Sensors 2013, 13(4), 4157-4169; doi:10.3390/s130404157
Article

Development of an Optical Gas Leak Sensor for Detecting Ethylene, Dimethyl Ether and Methane

1
, 1
, 2
, 1,3
, 1,2
, 1
, 2
, 1,2
 and 1,*
Received: 1 March 2013; in revised form: 25 March 2013 / Accepted: 25 March 2013 / Published: 28 March 2013
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [3316 KB, uploaded 21 June 2014]   |   Browse Figures

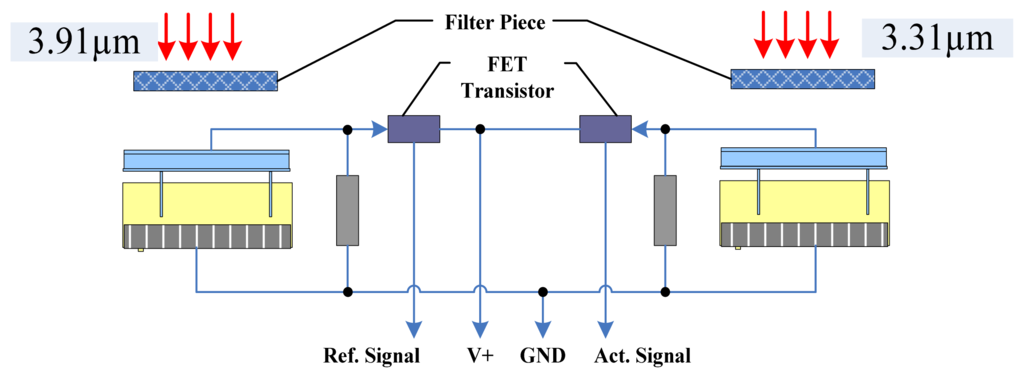

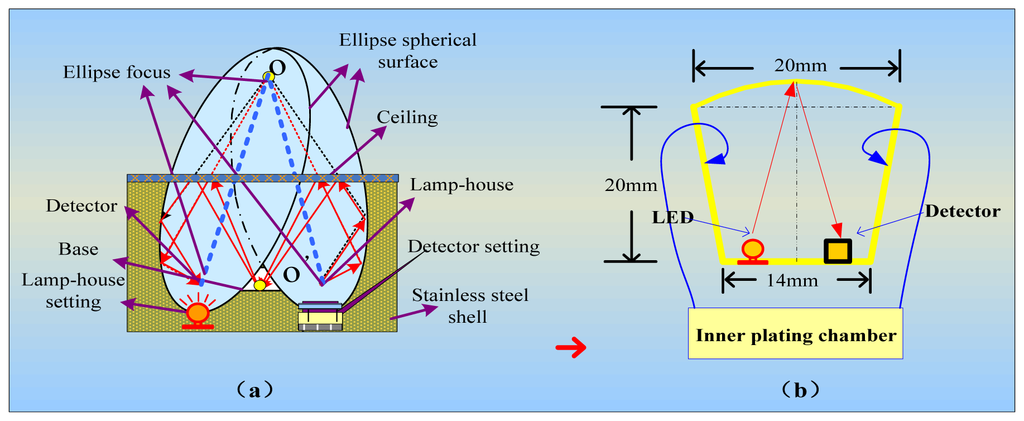

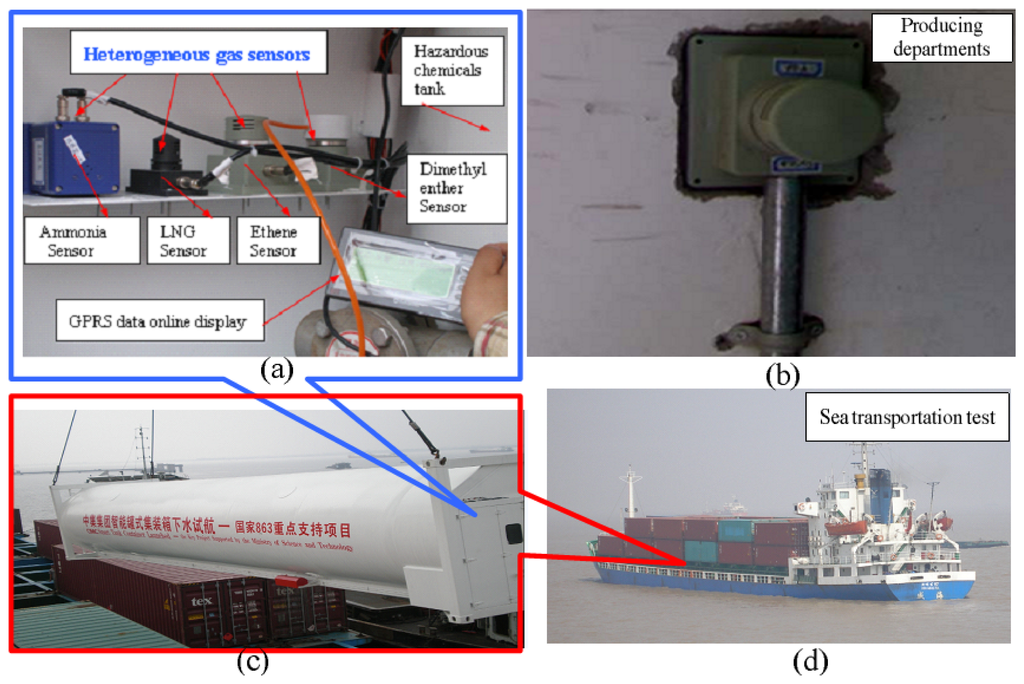

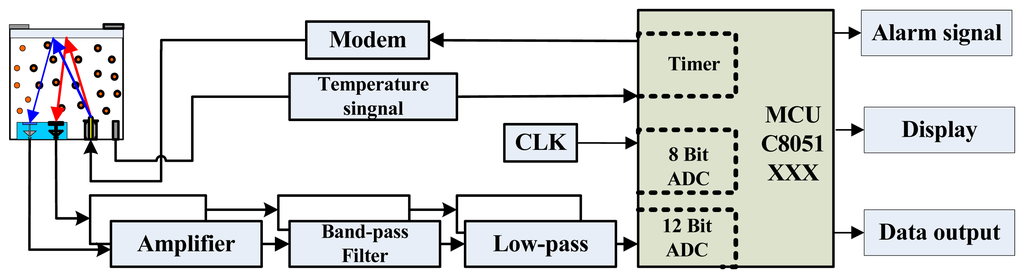

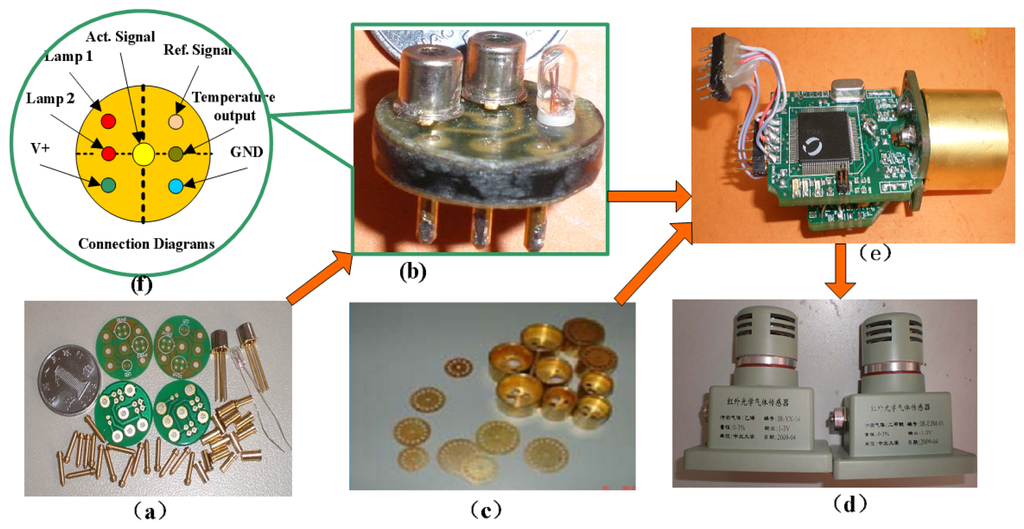

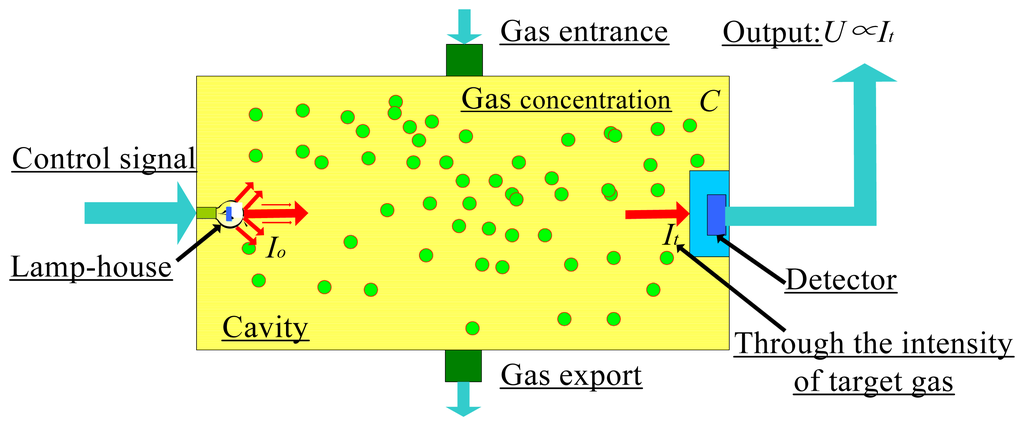

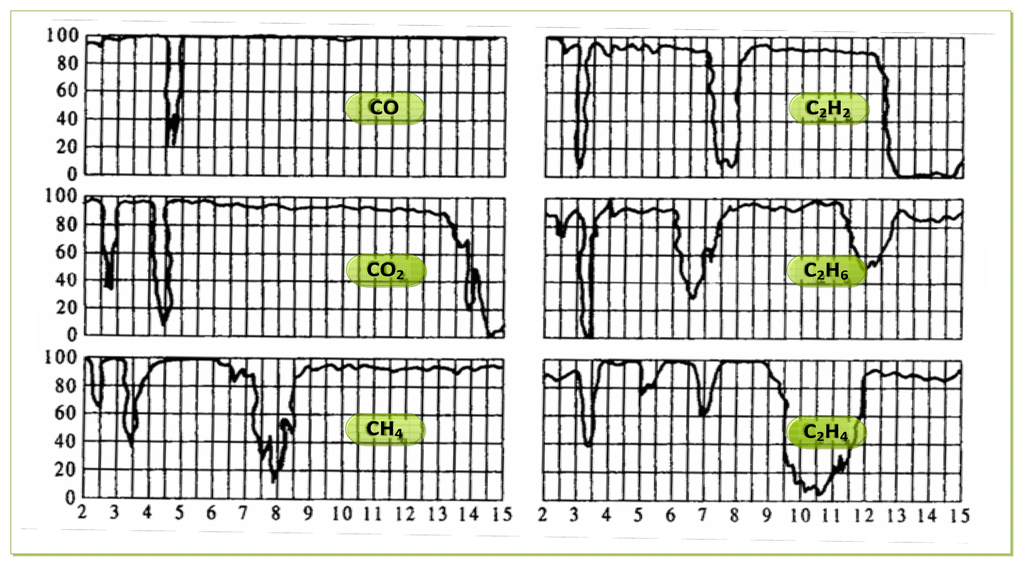

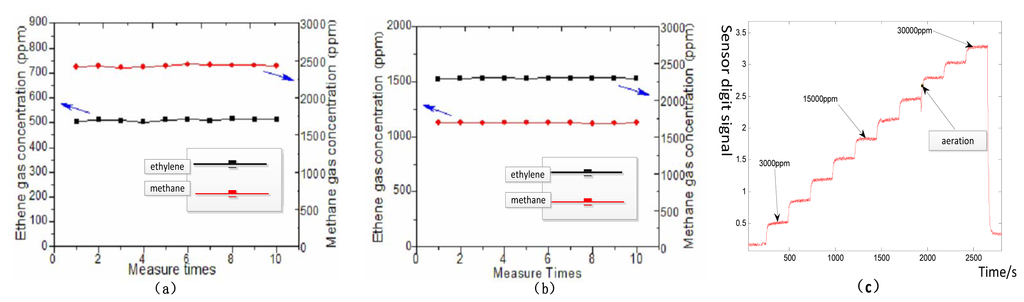

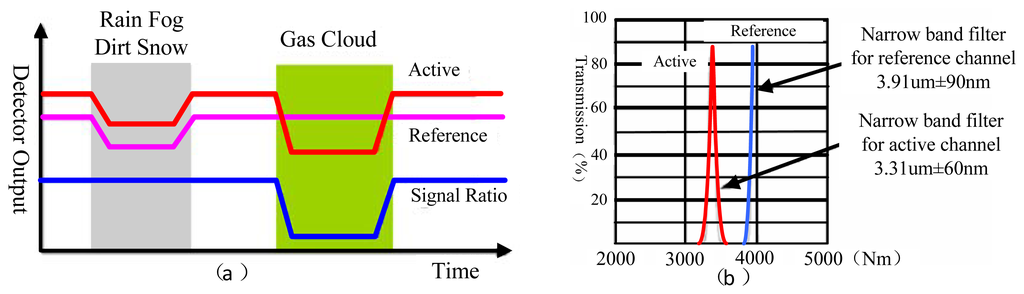

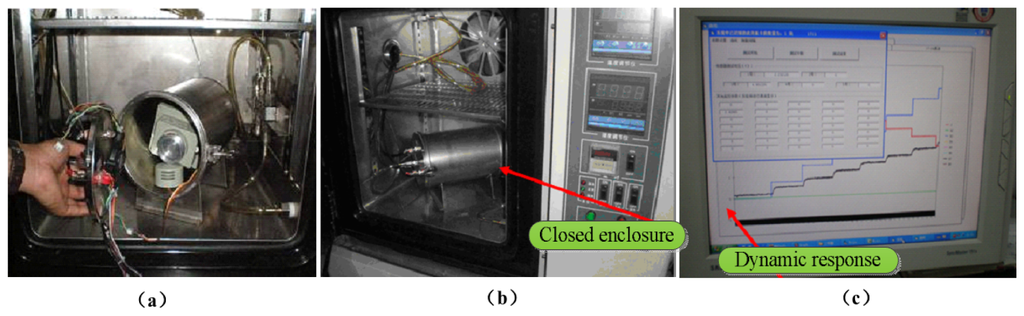

Abstract: In this paper, we present an approach to develop an optical gas leak sensor that can be used to measure ethylene, dimethyl ether, and methane. The sensor is designed based on the principles of IR absorption spectrum detection, and comprises two crossed elliptical surfaces with a folded reflection-type optical path. We first analyze the optical path and the use of this structure to design a miniature gas sensor. The proposed sensor includes two detectors (one to acquire the reference signal and the other for the response signal), the light source, and the filter, all of which are integrated in a miniature gold-plated chamber. We also designed a signal detection device to extract the sensor signal and a microprocessor to calculate and control the entire process. The produced sensor prototype had an accuracy of ±0.05%. Experiments which simulate the transportation of hazardous chemicals demonstrated that the developed sensor exhibited a good dynamic response and adequately met technical requirements.
Keywords: optical gas leak sensor; IR absorption spectrum; ethylene; dimethyl ether; methane optical gas leak sensor; IR absorption spectrum; ethylene; dimethyl ether; methane
