Sensors 2013, 13(4), 4138-4145; doi:10.3390/s130404138
Article

Ratiometric Optical Temperature Sensor Using Two Fluorescent Dyes Dissolved in an Ionic Liquid Encapsulated by Parylene Film

1,* , 1
, 2
, 2
 and 1,2
Received: 16 February 2013; in revised form: 21 March 2013 / Accepted: 24 March 2013 / Published: 27 March 2013
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Japan 2012)
View Full-Text   |   Download PDF [570 KB, uploaded 21 June 2014]   |   Browse Figures

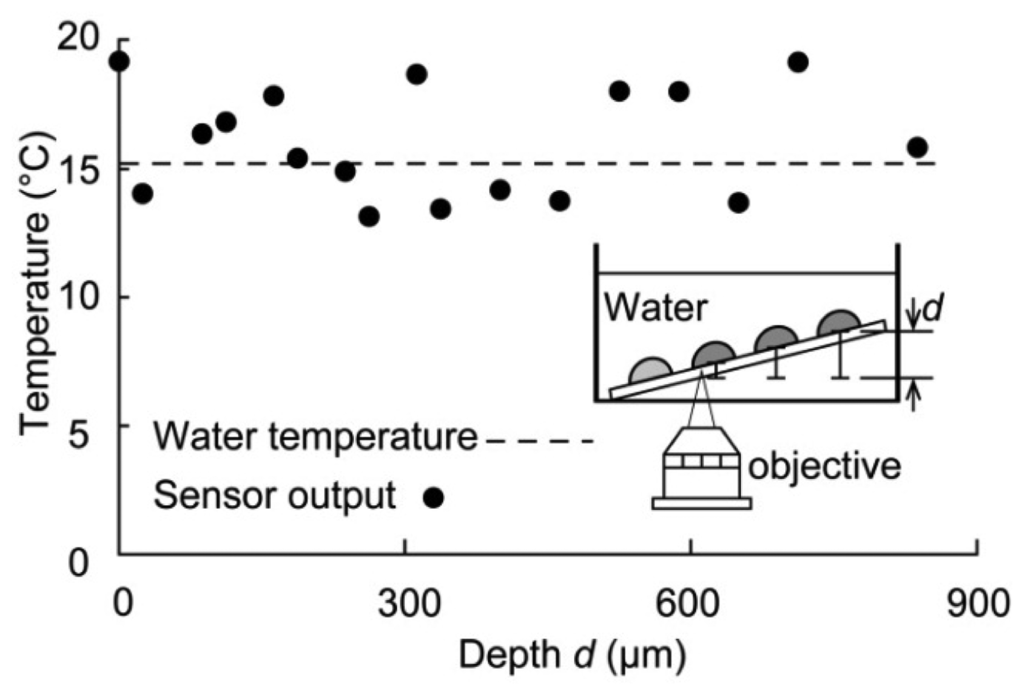

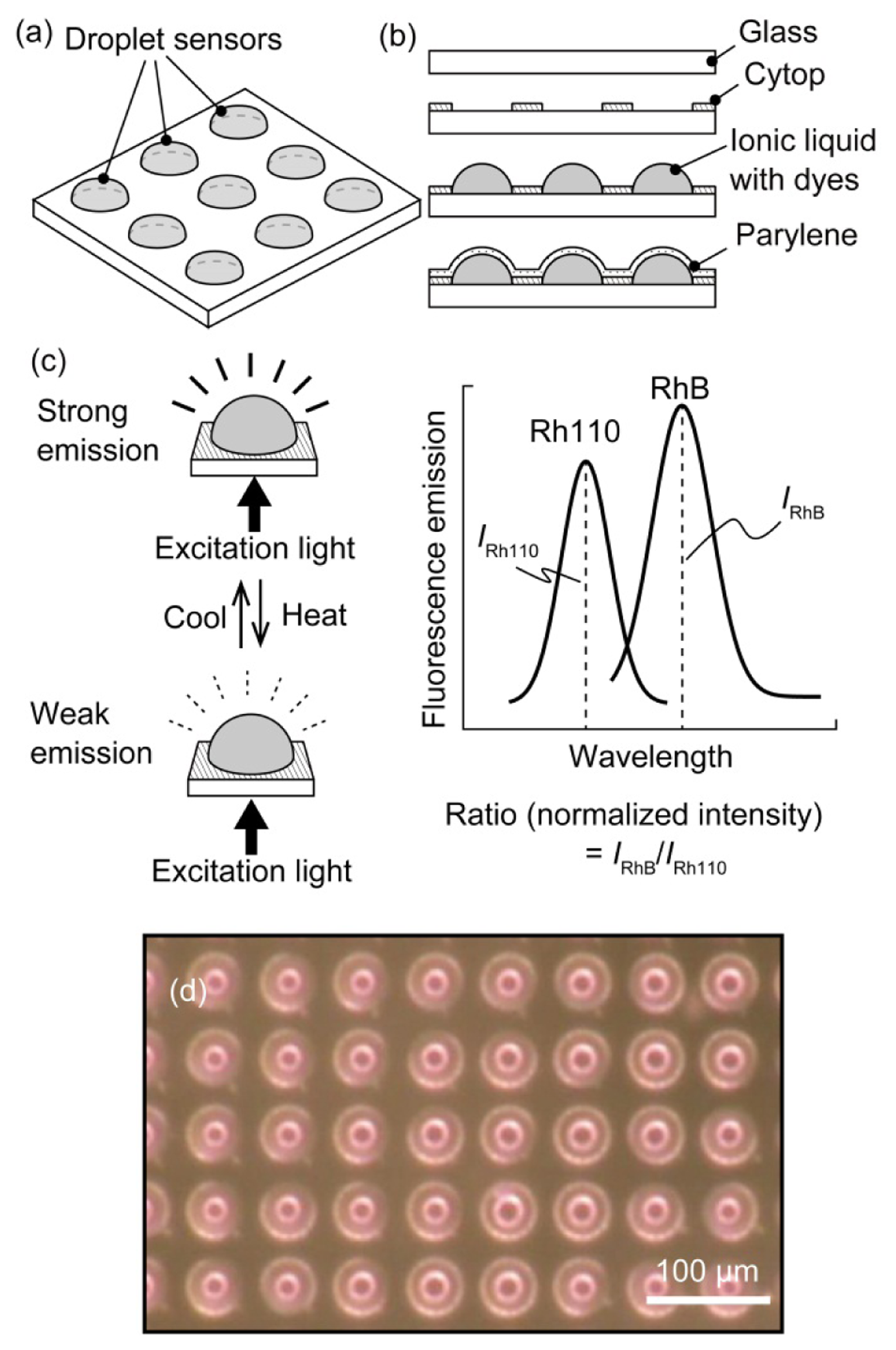

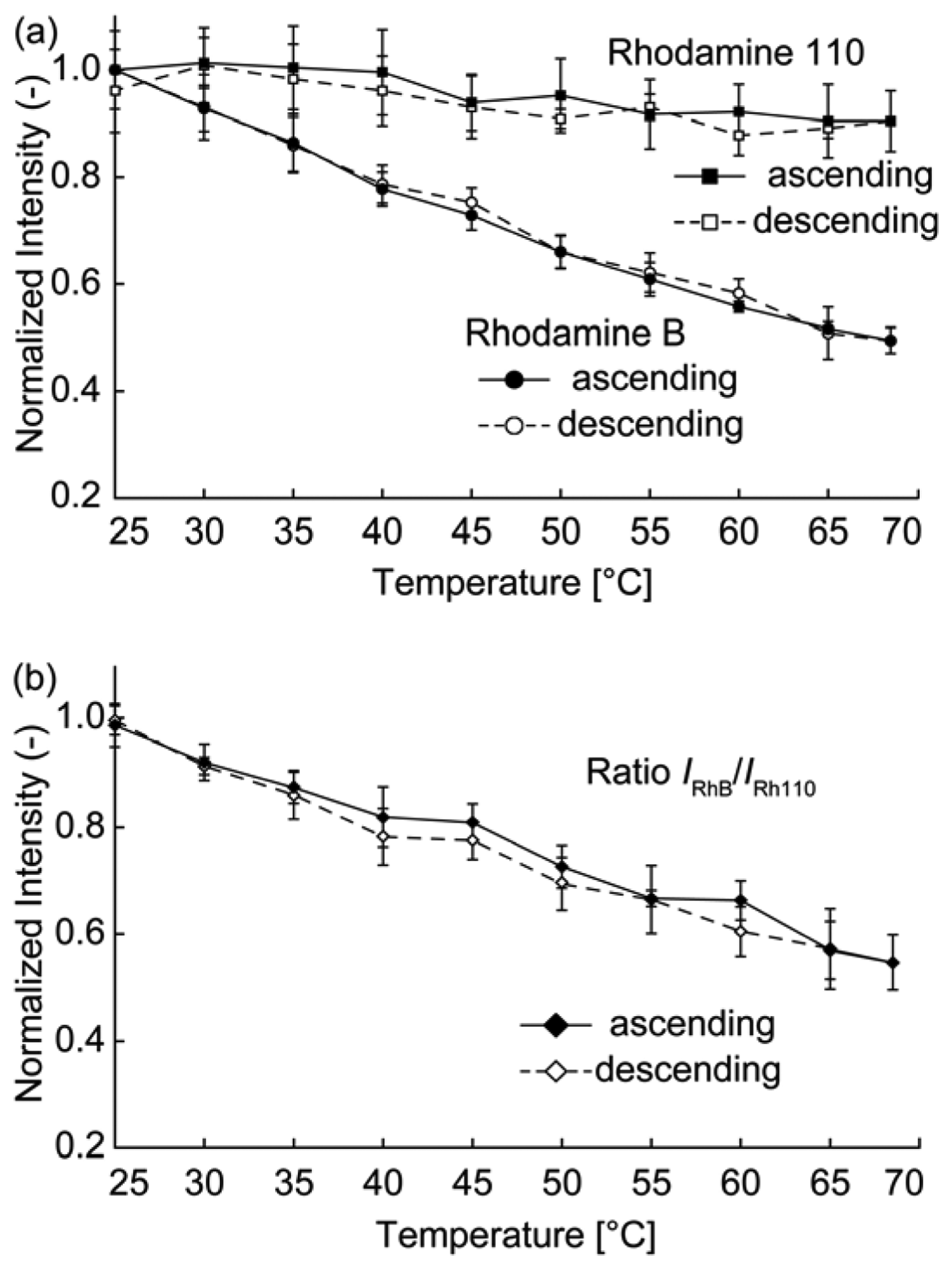

Abstract: A temperature sensor that uses temperature-sensitive fluorescent dyes is developed. The droplet sensor has a diameter of 40 µm and uses 1 g/L of Rhodamine B (RhB) and 0.5 g/L of Rhodamine 110 (Rh110), which are fluorescent dyes that are dissolved in an ionic liquid (1-ethyl-3-methylimidazolium ethyl sulfate) to function as temperature indicators. This ionic liquid is encapsulated using vacuum Parylene film deposition (which is known as the Parylene-on-liquid-deposition (PoLD) method). The droplet is sealed by the chemically stable and impermeable Parylene film, which prevents the dye from interacting with the molecules in the solution and keeps the volume and concentration of the fluorescent material fixed. The two fluorescent dyes enable the temperature to be measured ratiometrically such that the droplet sensor can be used in various applications, such as the wireless temperature measurement of microregions. The sensor can measure the temperature of such microregions with an accuracy of 1.9 °C, a precision of 3.7 °C, and a fluorescence intensity change sensitivity of 1.0%/K. The sensor can measure temperatures at different sensor depths in water, ranging from 0 to 850 µm. The droplet sensor is fabricated using microelectromechanical system (MEMS) technology and is highly applicable to lab-on-a-chip devices.
Keywords: temperature sensor; ionic liquid; fluorescent dye; Parylene on liquid deposition (PoLD) temperature sensor; ionic liquid; fluorescent dye; Parylene on liquid deposition (PoLD)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
