Sensors 2013, 13(3), 3831-3847; doi:10.3390/s130303831
Article

A New Adaptive Self-Tuning Fourier Coefficients Algorithm for Periodic Torque Ripple Minimization in Permanent Magnet Synchronous Motors (PMSM)

Alfonso Gómez-Espinosa 1,* email, Víctor M. Hernández-Guzmán 2 email, Manuel Bandala-Sánchez 1 email, Hugo Jiménez-Hernández 1 email, Edgar A. Rivas-Araiza 2 email, Juvenal Rodríguez-Reséndiz 2 email and Gilberto Herrera-Ruíz 2 email
1 Centro de Ingeniería y Desarrollo Industrial, Dirección de Investigación y Posgrado. Av. Playa Pie de la Cuesta No. 702, Desarrollo San Pablo, C.P. 76130 Santiago de Querétaro, Qro., Mexico 2 Universidad Autónoma de Querétaro, División de Estudios de Posgrado, Facultad de Ingeniería, Cerro de las Campanas s/n, C.P. 76010, Santiago de Querétaro, Qro., Mexico
* Author to whom correspondence should be addressed.
Received: 25 February 2013; in revised form: 4 March 2013 / Accepted: 11 March 2013 / Published: 19 March 2013
(This article belongs to the Section Physical Sensors)
PDF Full-text Download PDF Full-Text [489 KB, uploaded 19 March 2013 13:44 CET]

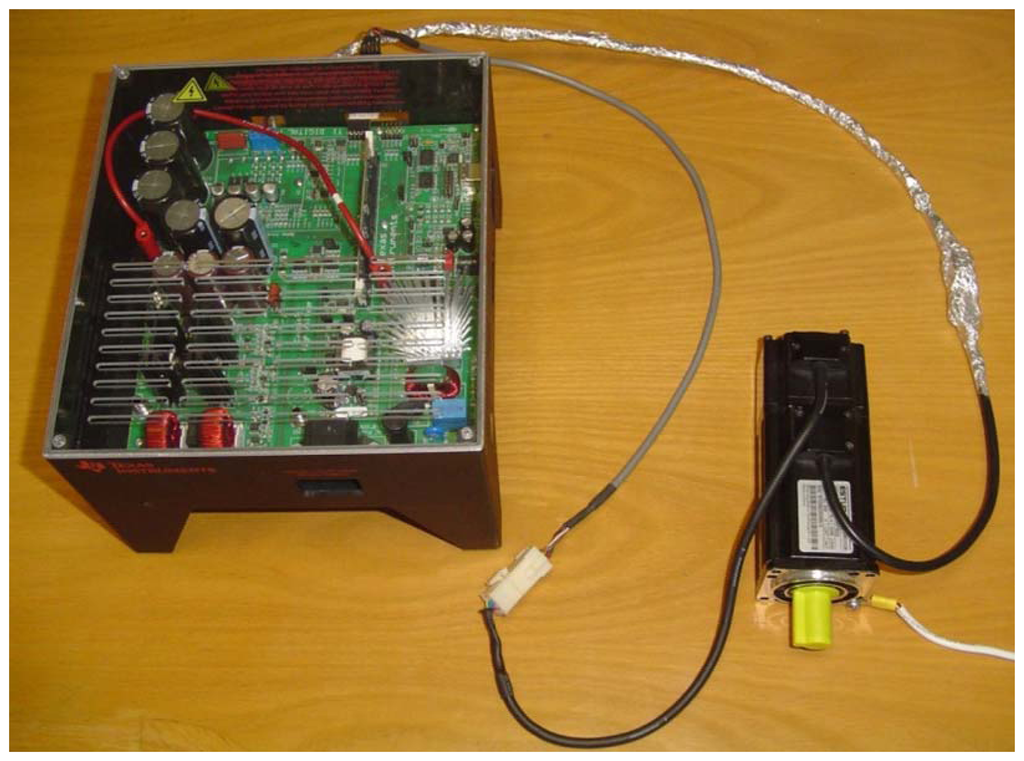

Abstract: A New Adaptive Self-Tuning Fourier Coefficients Algorithm for Periodic Torque Ripple Minimization in Permanent Magnet Synchronous Motors (PMSM) Torque ripple occurs in Permanent Magnet Synchronous Motors (PMSMs) due to the non-sinusoidal flux density distribution around the air-gap and variable magnetic reluctance of the air-gap due to the stator slots distribution. These torque ripples change periodically with rotor position and are apparent as speed variations, which degrade the PMSM drive performance, particularly at low speeds, because of low inertial filtering. In this paper, a new self-tuning algorithm is developed for determining the Fourier Series Controller coefficients with the aim of reducing the torque ripple in a PMSM, thus allowing for a smoother operation. This algorithm adjusts the controller parameters based on the component’s harmonic distortion in time domain of the compensation signal. Experimental evaluation is performed on a DSP-controlled PMSM evaluation platform. Test results obtained validate the effectiveness of the proposed self-tuning algorithm, with the Fourier series expansion scheme, in reducing the torque ripple.
Keywords: torque ripple; frequency domain; FOC; self-tuning algorithm; PMSM; DSP
