Sensors 2013, 13(12), 16347-16359; doi:10.3390/s131216347

A Table-Shaped Tactile Sensor for Detecting Triaxial Force on the Basis of Strain Distribution

1,* , 2
1 Department of Micro-Nano Systems Engineering, Nagoya University, Nagoya 464-8603, Japan 2 Department of Industrial Design, Eindhoven University of Technology, AZ Eindhoven 5612, The Netherlands 3 Department of Mechanical Engineering, Aichi Institute of Technology, Aichi 470-0392, Japan
* Author to whom correspondence should be addressed.
Received: 26 September 2013 / Revised: 2 November 2013 / Accepted: 14 November 2013 / Published: 28 November 2013
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [900 KB, 21 June 2014; original version 21 June 2014]   |   Browse Figures

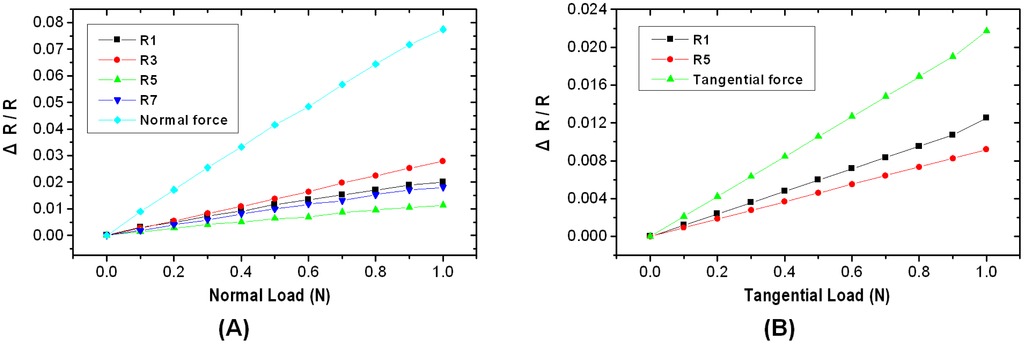

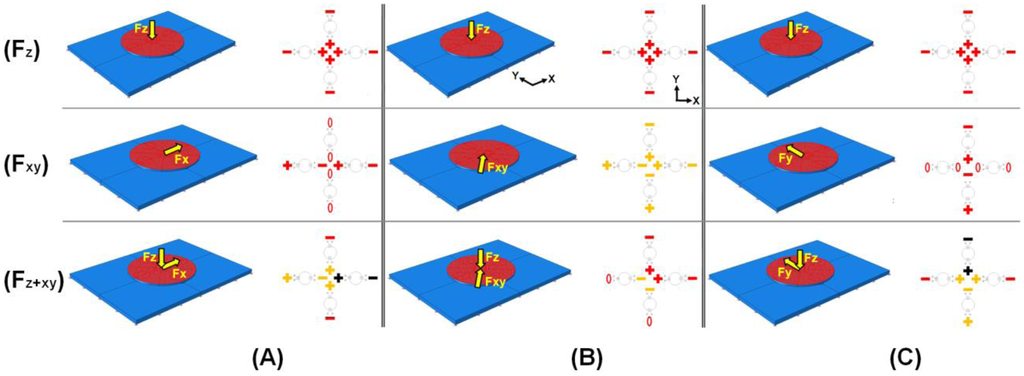

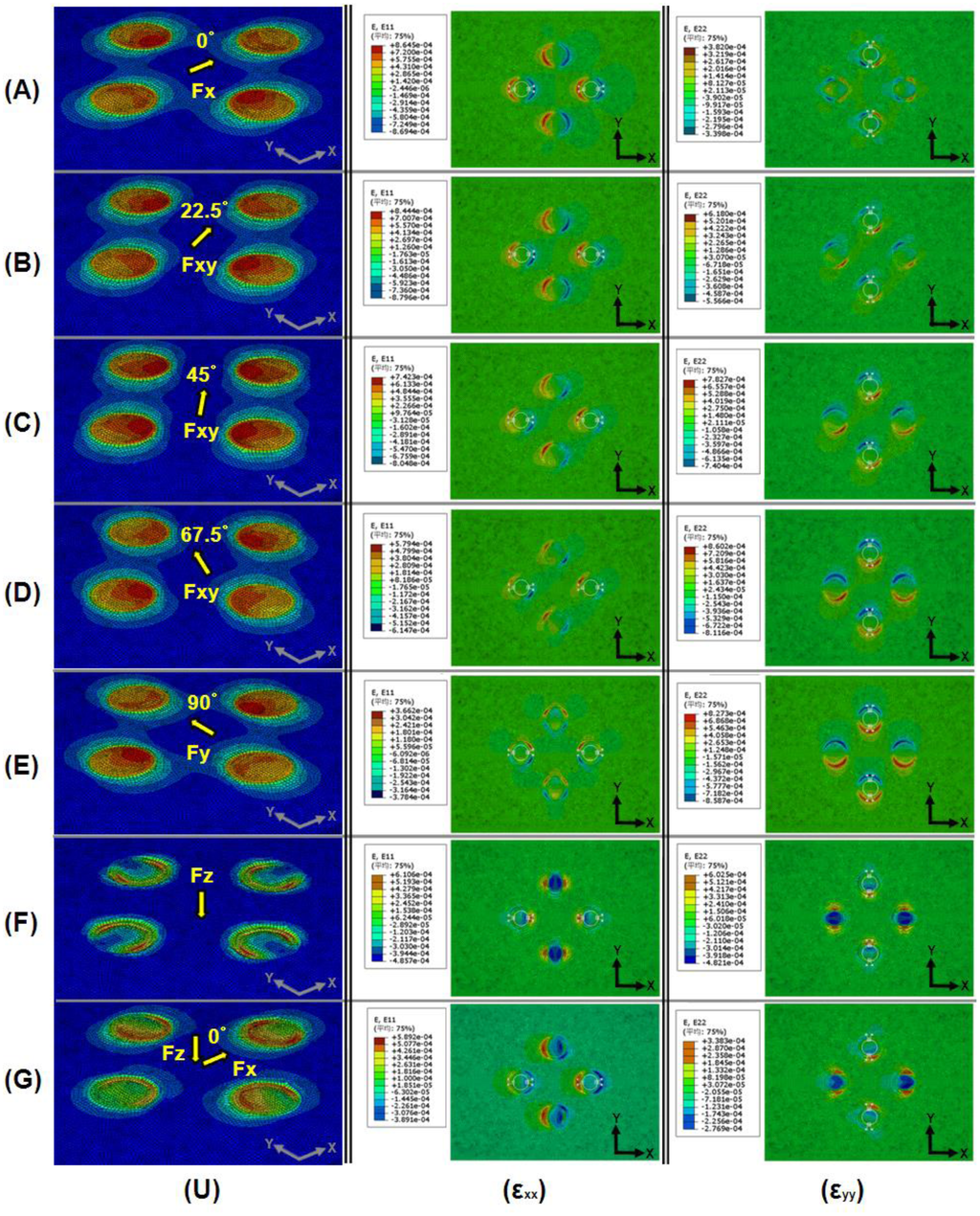

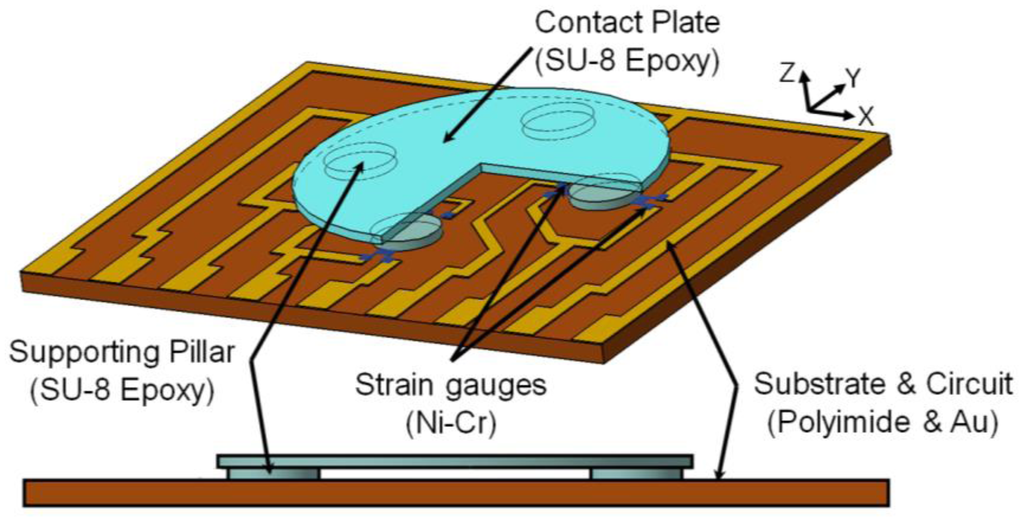

A slim and flexible tactile sensor applicable to the interaction of human and intelligent robots is presented. In particular, a simple sensing principle for decoupling of three-dimensional force is proposed. Sensitivity of the proposed tactile sensor is tested experimentally. To improve the sensitivity of the sensor, a table-shaped sensing element was designed. Table-shaped structure can convert an external acting force into concentrated internal stress. A “triaxial force decoupling algorithm” was developed by combining two-dimensional mapping data calculated by finite element analysis. The sensor was calibrated under normal and tangential forces. The external loads applied to the sensor could be decoupled independently as a function of the strain-gauge responses.
Keywords: tactile sensor; table-shaped structure; decoupling of triaxial force tactile sensor; table-shaped structure; decoupling of triaxial force
