Sensors 2013, 13(11), 15770-15784; doi:10.3390/s131115770

Article
Two Novel Measurements for the Drive-Mode Resonant Frequency of a Micromachined Vibratory Gyroscope
Ancheng Wang , Xiaoping Hu *, Bing Luo , Mingming Jiang , Xiaofeng He and Kanghua Tang
College of Mechatronics and Automation, National University of Defense Technology, Changsha 410073, China; E-Mails: wangancheng@ymail.com (A.W.); ruobing@nudt.edu.cn (B.L.); toppro@yeah.net (M.J.); hexiaofeng@nudt.edu.cn (X.H.); tt_kanghua@hotmail.com (K.T.)
*
Author to whom correspondence should be addressed; E-Mail: xphu@nudt.edu.cn; Tel./Fax: +86-731-8457-6305.
Received: 5 September 2013; in revised form: 1 November 2013 / Accepted: 1 November 2013 /
Published: 19 November 2013

Abstract

: To investigate the drive-mode resonance frequency of a micromachined vibratory gyroscope (MVG), one needs to measure it accurately and efficiently. The conventional approach to measure the resonant frequency is by performing a sweep frequency test and spectrum analysis. The method is time-consuming and inconvenient because of the requirements of many test points, a lot of data storage and off-line analyses. In this paper, we propose two novel measurement methods, the search method and track method, respectively. The former is based on the magnitude-frequency characteristics of the drive mode, utilizing a one-dimensional search technique. The latter is based on the phase-frequency characteristics, applying a feedback control loop. Their performances in precision, noise resistivity and efficiency are analyzed through detailed simulations. A test system is implemented based on a field programmable gate array (FPGA) and experiments are carried out. By comparing with the common approach, feasibility and superiorities of the proposed methods are validated. In particular, significant efficiency improvements are achieved whereby the conventional frequency method consumes nearly 5,000 s to finish a measurement, while only 5 s is needed for the track method and 1 s for the search method.
Keywords:
micromachined vibratory gyroscope; drive mode; resonant frequency; one-dimensional search; golden section

1. Introduction

With their advantages of low power dissipation, compact bulk, and low weight, MVGs have broad applications in military and commercial areas, such as navigation assistance, vehicle platform stabilization, consumer electronics and automation. The operation of an MVG based on the Coriolis force. First, a vibration is generated and maintained along the drive direction. If there exists an angular movement around the input axis, a Coriolis force will be formed. Then, the force causes a vibration in the sense direction. One can obtain the input angular rate by detecting the vibration along the sense axis [13].

Commonly, the drive mode of an MVG is excited at resonance with constant amplitude. In this case, the sense-mode vibration frequency equals the drive-mode resonant frequency [4,5]. Ideally, the drive-mode resonant frequency is a constant depending on the designed structure parameters. In practice, it is unpredictable and variable due to unavoidable fabrication inaccuracies, temperature variations or stiffness aging [611]. When the frequency varies, the vibration signal of the sense mode changes, and then the output of the gyroscope will drift, so the resonant frequency becomes a crucial parameter affecting the performance of the gyroscope. In order to investigate its characteristics, it is necessary to focus on the measurement of the frequency.

The conventional approach to measure the resonant frequency is by performing sweep frequency tests and spectrum analyses [1215], which in this paper is called the sweep frequency method. Generally, to carry out a sweep frequency test, special equipment such as a frequency response analyzer [13] or dynamic signal analyzer [14], a lot of data storage, and off-line data analysis are required. The whole test process is time-consuming and inconvenient. In particular, the sweep frequency method becomes unworkable when the resonant frequency changes rapidly. The reason is that the dynamics of the system may have changed substantially during the course of measurement [11]. Therefore, more efficient methods should be explored.

In this paper, two novel resonance frequency measurement methods for the drive mode of MVGs are introduced. One, called the search method, is based on the magnitude-frequency characteristics, and utilizes a one-dimensional search technique. The other, called the track method, is based on the phase-frequency characteristics, and applies a feedback control loop. The proposed measurements can be run on-line and perform efficiently and accurately.

In the next section, we present and analyze dynamics of the MVG. Section 3 introduces basic fundamentals of the proposed methods. Section 4 discusses the performance in simulation. Section 5 presents the implemented system and experimental results. Finally, conclusions are provided in Section 6.

2. Dynamics of the MVG

A typical MVG includes a vibration structure supported by suspensions and some electrodes. Normally, the structure oscillates freely along two orthogonal axes: the drive and sense axis. The overall system can be modeled as a mass-spring-damper structure having two degrees of freedom (2-DOF), as shown in Figure 1 [16].

In the drive direction, a controlled sinusoidal force is generated to make the mass vibrate at the drive-mode resonant frequency and achieve stable amplitude by the use of the automatic gain control (AGC) method [17]. When an angular rotation around the input axis exists, a Coriolis force will be formed. The force causes a vibration in the sense direction. Ideally, the dynamics of MVG can be described as follows [16]:

[ m 0 0 m ] [ x ¨ y ¨ ] + [ D x 0 0 D y ] [ x ˙ y ˙ ] + [ k x 0 0 k y ] [ x y ] = [ F d 2 m x ˙ Ω ]
where m denotes the mass of the vibration structure, x and y are the oscillation displacements in the drive and sense axes. The parameters kx, ky represent the stiffness, and Dx, Dy are the damping parameters. The expression −2mẋΩ represents the Coriolis force and Ω is the input angular rate around the rotation axis. Fd denotes the external force that can be an electrostatic, piezoelectric or electromagnetic force.

From Equation (1), the transfer function from the force Fd to the drive-mode vibration displacement x can be written as:

H ( s ) = x F d = 1 m s 2 + D x s + k x = 1 / m s 2 + ( ω r / Q ) s + ω r 2
where ω r = k x / m is the resonant frequency and Q = k x m / D x is the quality factor of the drive mode.

According to the transfer function in Equation (2), the magnitude and the phase as a function of frequency can be resolved by substituting s = j·ω. They are:

A ( ω ) = | H ( j ω ) | = 1 / m ( ω r 2 ω 2 ) 2 + ω r 2 ω 2 / Q 2
And:
φ ( ω ) = H ( j ω ) = arctan ω r ω ( ω r 2 ω 2 ) Q

As an example, an MVG with the parameters listed in Table 1 is considered. With these values, the magnitude A(ω) and phase φ(ω) are as drawn in Figure 2. From this figure, the magnitude of the transfer function increases as the resonant frequency is approached, and reaches a maximum near the resonant frequency [5]. The phase starts at 0°, reaches −90° at the resonant frequency, and tends to −180° at high frequencies. Further analysis will be presented in Section 3.

3. Fundamentals of Drive-mode Resonant Frequency Measurements

Traditionally, the sweep frequency method is adopted to measure the resonant frequency of the MVG. In this method, the frequency of the input signal increases or decreases by a set step (the stepped frequency) in a given range (sweep range), and all of the response signals should be collected and recorded. In order to get a more accurate result, the stepped frequency should be small enough, and the dwell time at each frequency point should be long enough to avoid the influence of the transient. Generally, a sweep frequency test requires more than a few minutes. A problem arises that the obtained resonant frequency may not be the real frequency because the dynamics of the system may have changed substantially during the course of the measurement. In this section, two efficient methods, the search method and the track method, are introduced and their fundamentals are presented below.

3.1. The Search Method

Differentiating Equation (3) with respect to ω yields:

A ' ( ω ) = 2 ω [ ω 2 ( 1 1 2 Q 2 ) ω r 2 ] m [ ( ω r 2 ω 2 ) 2 + ω r 2 ω 2 / Q 2 ] 3 / 2

By setting A′(ω) = 0, and considering ω > 0, the only frequency where the magnitude reaches its maximum value is solved to be:

ω m = ω r 1 1 / ( 2 Q 2 )

In practice, the MVG is normally packaged in specific vacuum level and Q is more than 1,000 [18]. Thus, ωm is very close to ωr. For example, if Q = 1,000, (ωrωm) ∕ ωr =2.5e-7, which implies that the magnitude-frequency function A(ω) is unimodal and approximately reaches the maximum value at the resonant frequency. Thus, to measure the resonant frequency is equivalent to finding maximum point of A(ω), and further to minimize −A(ω). According to the optimization theory, a one-dimensional search technique is a good candidate to solve the unconstrained minimization problem of a one-dimensional unimodal function [19]. Therefore, we apply it to measure the resonant frequency of the drive mode. In this paper, we name the measurement as the search method, whose principle diagram is depicted in Figure 3. The main modules and their functions are described below:

  • The synchronous demodulation module is adopted to obtain the amplitude of the response signal, whose principle diagram is presented in Figure 4. Obviously:

    I = LPF { sin ( ω t + φ ) sin ( ω t ) } = 1 2 cos φ Q = LPF { sin ( ω t + φ ) cos ( ω t ) } = 1 2 sin φ
    Where LPF represents low-pass-filtering, I, Q denote the in-phase component and the quadrature component. Then the amplitude can be calculated as:
    A = 2 I 2 + Q 2

  • A search controller is used to control search process. It is realized based on the one-dimensional search technique, whose flowchart is shown in Figure 5. In the flowchart, y(f) = −A(ω) = −A(·f) represents function value, and fl, fh represent the start and end frequency of the search range, respectively. ε denotes error tolerance determining whether to end the search or not. λ is a constant to control the stepped frequency. Typically, when λ = 0.618, the algorithm is also called golden section algorithm.

  • The oscillator is used to generate sine signal for a given frequency. Direct Digital Synthesizer (DDS) is a candidate to achieve the function [20].

3.2. The Track Method

According to Equation (4):

cot φ = ( ω 2 ω r 2 ) Q ω ω r

Defining a parameter Δω to represent the difference between the current excitation signal frequency and the resonance frequency, as:

Δ ω = ω ω r

Equation (9) can be rewritten as:

cot φ = ( 2 ω r + Δ ω ) Δ ω Q ( ω r + Δ ω ) ω r

Generally, ωr is more than 10,000 and Δω is less than 200, so Δωωr, and:

cot φ 2 Q ω r Δ ω

It is implied that cotφ is in direct proportion to Δω. So the value of cotφ can be thought as an indicator for the difference of the current excitation signal frequency and the resonance frequency, that is to say, the frequency ω satisfied with cot[φ(ω)] = 0 equals the resonance frequency ωr.

According to Equation (7), cotφ can be calculated as:

cot φ = I / Q

Based on the above analyses, a feedback control system is proposed to measure the resonance frequency ωr, which is shown in Figure 6. The main modules and their functions are introduced as follows:

  • The synchronous demodulation module here is the same as that in the search method.

  • The track controller is a key module in the system, which is used to smooth the value of cotφ and tune the current excitation signal frequency. It should be carefully designed according to the instantaneous response and steady-state performance of the whole control system.

  • The oscillator module here is the same as that in Section 3.1, which is also used to generate sine signals.

The closed-loop control system is similar to the phase locked loop (PLL) [21]. The main difference between the loop and conventional PLL used in drive-mode frequency keeping is the describer. In a PLL, a phase detector is required and realized according to Equation (4), so it needs an arctangent calculation process, but in the proposed control loop, the describer can be realized according to Equation (13), so the phase calculation is unneeded. Thus, as with a PLL, this loop has fewer calculations. Additionally, the describer cotφ has larger linearity range than Δφ used in PLL, as seen in Figure 7 which shows the comparison of the proposed describer and conventional PLL describer. In the simulation, ωr = 2π·4,000 rad, Q = 2,000.

When the loop reaches stability, the frequency ω is locked to the resonant frequency ωr. If the resonant frequency changes, the loop will tune current frequency ω to track it. So the measurement is named as track method in this paper.

4. Simulation Analyses

In this section, simulation systems are built using Simulink to investigate the performance of the proposed methods, including the efficiency, precision, and noise resistivity. MVG parameters used here are same as those in Table 1. For the search method, we set the search range as 3,000∼5,000 Hz, error tolerance ε as 0.000001, and λ as 0.618. For the track method, we use PID controller with P = 32, I = 256 and D = 0, and the control period is chosen as 50 ms.

4.1. Simulations for the Search Method

First, the precision and efficiency are studied by assigning six different resonant frequencies in the range of 4–5 kHz. The results are presented in Figure 8. The error and search steps are listed in Table 2. Clearly, the relative error of the search method is on the order of 10−8 and a measurement process requires only 44 search steps.

Then, the performance comparison is simulated at different noise levels. In the simulation, the resonant frequency to be measured is set as 4,000 Hz and random noise with different signal-noise-ratio (SNR) is injected into the detected amplitude of the response signal. Simulation results are plotted in Figure 9 and listed in Table 3. Obviously, the effect of the noise to the measurement precision is significant, while its effect on measurement efficiency is slight. When the SNR is 50 dB, the relative error of the search measurement is on the order of 10−5.

4.2. Simulations for the Track Method

Three simulations are carried out to investigate the performance of the track method. In the first simulation, the resonant frequency is set as a constant (fr = 4,000 Hz). The track result and track error graphs are plotted in Figure 10. As shown in this figure, the track error approaches 3.5e-7 Hz after 5 s.

The second simulation is carried out to evaluate the performance for tracking varying frequency, where the resonant frequency changes linearly with a 10 Hz/s slope from 4,000 Hz to 4,050 Hz. The results are plotted in Figure 11, which shows the relative error is about 5e-5.

Finally, the performance of noise resistivity is simulated. The resonant frequency here is still set as a constant (fr = 4,000 Hz), and random noise determined by the SNR is added to the detected phase. Track errors under different level noise are presented in Figure 12. It is obvious that the track method behaves well but its measurement precision decreases. When SNR = 50 dB, the measurement error is less than 0.01 Hz.

5. Implementation and Experiments

In order to study the presented methods experimentally, a measurement system is designed and implemented, as shown in Figure 13. The system includes two parts: the analog part and digital part. The analog part is mainly used for detecting the drive-mode vibration signal and filtering the noise. The digital part is implemented on an FPGA chip, including synchronous demodulation module, controller module, oscillator module and serial port module. Controllers of these two methods, search controller and track controller, are separate and programmable to switch. The measurement results are transferred to PC through a RS232 cable. As a comparison, the sweep frequency method using frequency response analysis FRA5087 is also employed, labeled in dashed lines in Figure 12b.

Two experiments are carried out to assess the actual performance of the proposed measurement methods. One is for normal temperature test where the resonant frequency varies slightly. The other is under different temperature conditions where the resonant frequency changes significantly. In each experiment, three methods are used in turn to facilitate comparison. The common parameters in the experiments are presented in Table 4.

In normal temperature experiment, five repeated tests are carried out. Figure 14 shows measurement results and consumed-time comparison of three methods. The statistics are presented in Table 5. Because the true value of the drive-mode resonant frequency is unknown and variable, we cannot evaluate the measurement precision directly, but the measured average values of these methods are close (the maximum difference is about 0.1 Hz), which denotes the feasibility of the proposed measurements. Besides, the track method exhibits smaller measurement variance (about 0.027 Hz), than the search method (about 0.104 Hz). As for measurement efficiency, significant differences are observed that the sweep frequency method consumes nearly 5,000 s to finish one test, but the track method only 5 s and the search method 1 s. Thus, the proposed methods yield a big efficiency improvement.

The second experiment is carried out to measure the varying resonant frequency. The system is placed in a the temperature chamber. We make the temperature change from 5 °C to 50 °C with each temperature point kept for 1 h. The measurement results are plotted in Figure 15. Clearly, the measurements using the three different methods are approximately equivalent, which again validates the feasibility of the proposed methods.

It should be noticed that these experimental results are inadequate to evaluate the measurement precision directly. The reason is twofold. First, the true value of the drive-mode resonant frequency is unknown and variable. Second, for each experiment, three methods are conducted at different time, meaning that their true values may be different.

6. Conclusions

This paper focuses on the measurement for the drive-mode resonant frequency of a MVG. Two novel methods, the search method and track method, are proposed. The search method is based on the magnitude-frequency characteristics of the drive mode, and utilizes a one-dimensional search technique, while the track method is based on the phase-frequency characteristics, and applies a closed-loop control technique.

The feasibilities of the two measurement methods are validated by simulations and experiments. The simulations results show that they behave well in both measurement accuracy and noise resistivity. When the SNR of a detected signal is 50 dB, the relative error of the measurement value using the search method is only on the order of 10−5, and 10−6 for the track method.

Significant improvements in measurement efficiency are achieved by the proposed methods. Experimental results show that the traditional sweep frequency method consumes nearly 5,000 s to finish one test, while only 5 s are needed for the track method and 1 s for the search method.

Additionally, the proposed methods are easy to implement on-line because they require only a small amount of data storage. They are also applicable for resonators similar to MVGs. It should be noticed that these two novel methods fail to provide information about other parameters, for example, the Q-factor, so they are suitable for users who only want to obtain the resonant frequency of a MVG.

This work was supported by the National Natural Science Foundation of China (Grant No. 61104201) and National University of Defense Technology Innovation Foundation For Postgraduate (Grant No. 4345111141N).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yazdi, N.; Ayazi, F.; Najafi, K. Micromachined inertial sensors. Proc. IEEE 1998, 86, 1640–1659.
  2. Baibour, N.; Schmidt, G. Inertial sensor technology trends. Sens. J. IEEE 2001, 86, 55–62.
  3. Liu, K.; Zhang, W.; Chen, W.; Li, K.; Dai, F.; Cui, F.; Wu, X.; Ma, G.; Xiao, Q. The development of micro-gyroscope technology. J. Micromech. Microeng. 2009, 19, 1–29.
  4. Park, S.; Tan, C.-W.; Kim, H.; Hong, S.K. Oscillation control algorithms for resonant sensors with applications to vibratory gyroscopes. Sensors 2009, 9, 5952–5967.
  5. Saukoski, M. System and Circuit Design for a Capacitive MEMS Gyroscope; Helsinki University of Technology: Espoo, Finland, 2008.
  6. Poreddy, S.R. Design and Dynamic Analysis of MEMS Gyroscopes; University of Missouri-Columbia: Columbia, MO, USA, 2004.
  7. Lobur, M.; Holovatyy, A. Research of Influence of Materials Properties on Resonance Frequencies of Micromechanical Tuning Fork Gyroscope. Proceedings of the International Conference on Perspective Technologies and Methods in MEMS Design (MEMSTECH 2007), Lviv-Polyana, Ukraine, 23–26 May 2007; pp. 115–116.
  8. Zhang, L.M.; Uttamchandani, D.; Culshaw, B.; Dobson, P. Measurement of Young's modulus and internal stress in silicon microresonators using a resonant frequency technique. Meas. Sci. Technol. 1990, 1, 1343–1346.
  9. Walsh, D.; Culshaw, B. Temperature dependence of resonant frequency in all-fibre optically addressed silicon microresonator sensors. Sens. Actuators A 1991, 25–27, 711–716.
  10. Hou, Z.; Xiao, D.; Wu, X.; Dong, P.; Chen, Z.; Niu, Z.; Zhang, X. Effect of axial force on the performance of micromachined vibratory rate gyroscopes. Sensors 2011, 11, 296–309.
  11. M'Closkey, R.; Gibson, J.S.; Hui, J. System identification of a MEMS gyroscope. J. Dyn. Sys. Meas. Cont. 2001, 123, 201–210.
  12. Hill, J.J.; Jewson, P.M. Digital method of sweep frequency generation. Electron. Lett. 1982, 18, 1017–1019.
  13. Man, H.; Xiao, D.; Wu, X.; Chen, Z. Research on temperature characteristic of mode frequency of silicom micro-gyroscope. Chin. J. Sens. Actuators 2009, 22, 1117–1121.
  14. Jeong, C.; Seok, S.; Lee, B.; Kim, H.; Chun, H. A study on resonant frequency and Q factor tunings for MEMS vibratory gyroscopes. J. Micromech. Microeng. 2004, 14, 1530–1536.
  15. Niedermayer, A.O.; Voglhuber-Brunnmaier, T.; Sell, J.; Jakoby, B. Methods for the robust measurement of the resonant frequency and quality factor of significantly damped resonating devices. Meas. Sci. Technol. 2012, 23, 1–11.
  16. Wang, A.; Luo, B.; Hu, X. The design and implementation of interface electronics for silicon micromechanical gyroscopes. Lect. Notes Electr. Eng. 2014, 238, 1857–1866.
  17. Cui, J.; Chi, X.Z.; Ding, H.T.; Lin, L.T.; Yang, Z.C.; Yan, G.Z. Transient response and stability of the AGC-PI closed-loop controlled MEMS vibratory gyroscopes. J. Micromech. Microeng. 2009, 19, 1–17.
  18. Lee, B.; Seok, S.; Chun, K. A study on wafer level vacuum packaging for MEMS devices. J. Micromech. Microeng. 2003, 13, 663–669.
  19. Ritter, G.L.; Isenhour, T.L. Feasibility of a one-dimensional search system. Comput. Chem. 1977, 1, 243–250.
  20. Tierney, J.; Rader, C.M.; Gold, B. A digital frequency synthesizer. IEEE Trans. Audio Electroacoust. 1971, 19, 48–57.
  21. Sun, X.; Horowitz, R.; Komvopoulos, K. Stability and resolution analysis of a phase-locked loop natural frequency tracking system for MEMS fatigue testing. J. Dyn. Syst. Meas. Control 2002, 124, 599–605.
Sensors 13 15770f1 200
Figure 1. A simplified model of a MVG.

Click here to enlarge figure

Figure 1. A simplified model of a MVG.
Sensors 13 15770f1 1024
Sensors 13 15770f2 200

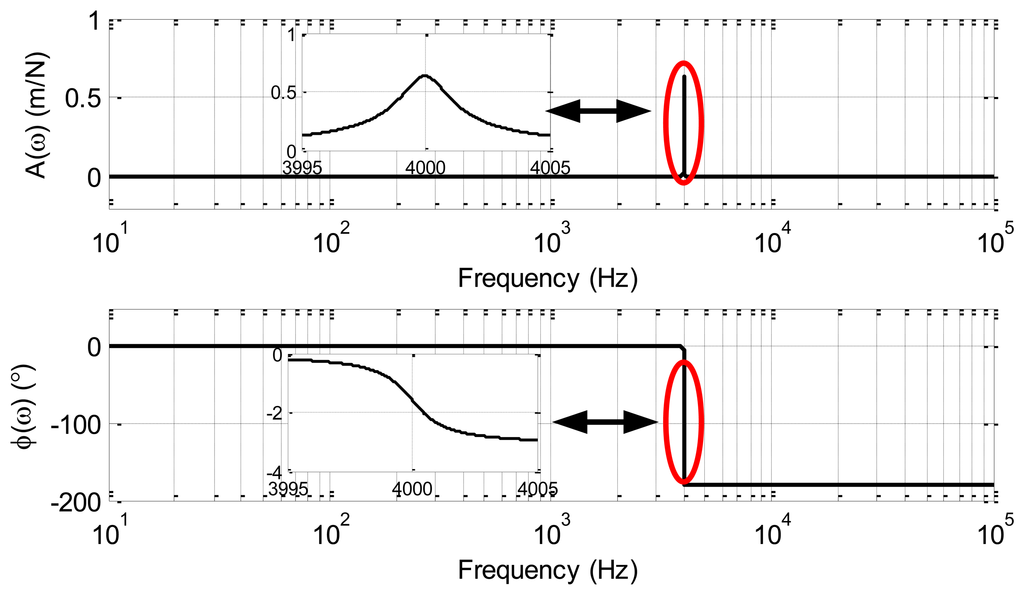

Figure 2. The magnitude and phase transfer function plot, with the inset showing a detailed view around the resonant frequency.

Click here to enlarge figure

Figure 2. The magnitude and phase transfer function plot, with the inset showing a detailed view around the resonant frequency.
Sensors 13 15770f2 1024
Sensors 13 15770f3 200

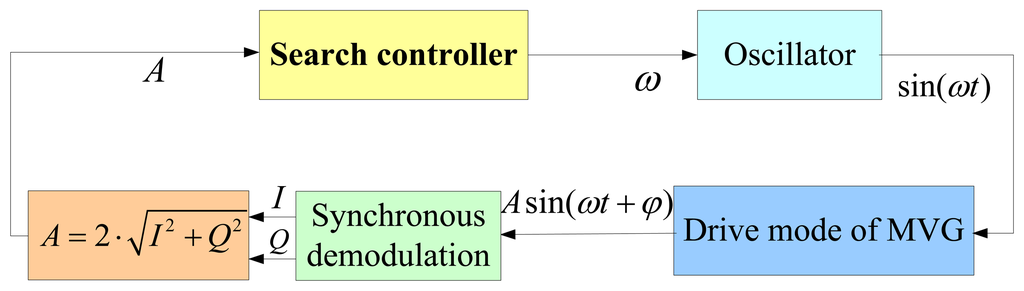

Figure 3. The block diagram of the proposed search method.

Click here to enlarge figure

Figure 3. The block diagram of the proposed search method.
Sensors 13 15770f3 1024
Sensors 13 15770f4 200

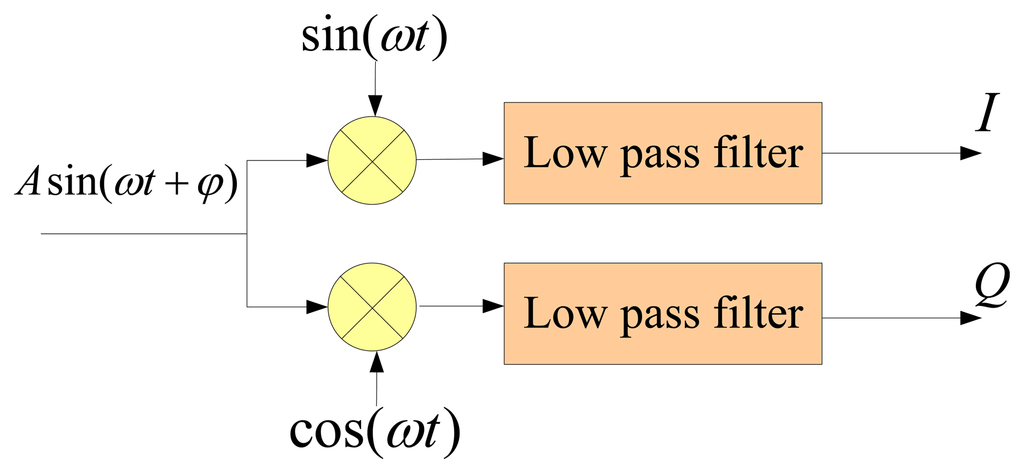

Figure 4. The principle diagram of the synchronous demodulation technique.

Click here to enlarge figure

Figure 4. The principle diagram of the synchronous demodulation technique.
Sensors 13 15770f4 1024
Sensors 13 15770f5 200

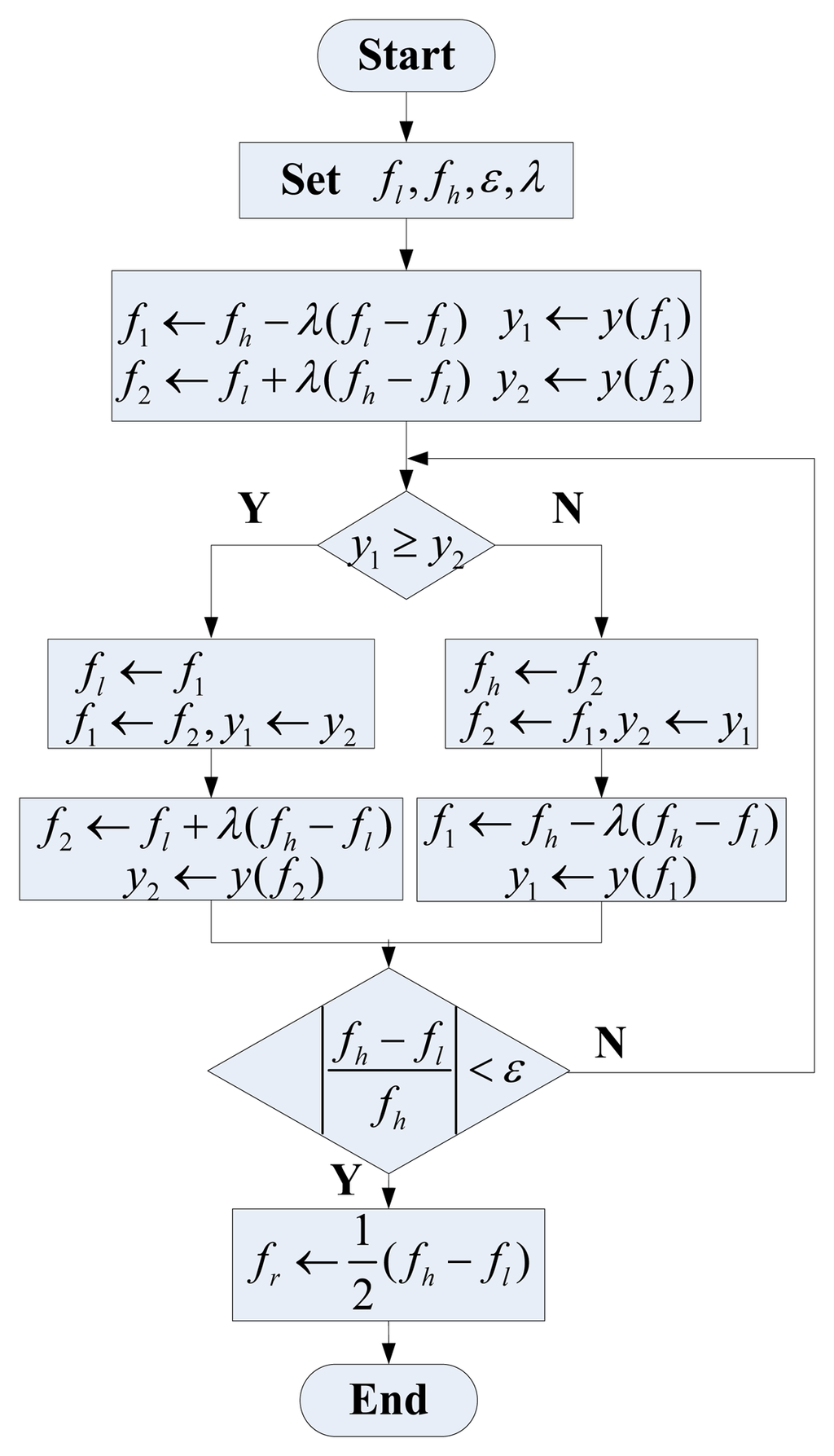

Figure 5. The flowchart of the applied one dimension search technique.

Click here to enlarge figure

Figure 5. The flowchart of the applied one dimension search technique.
Sensors 13 15770f5 1024
Sensors 13 15770f6 200
Figure 6. The block diagram of the track method.

Click here to enlarge figure

Figure 6. The block diagram of the track method.
Sensors 13 15770f6 1024
Sensors 13 15770f7 200

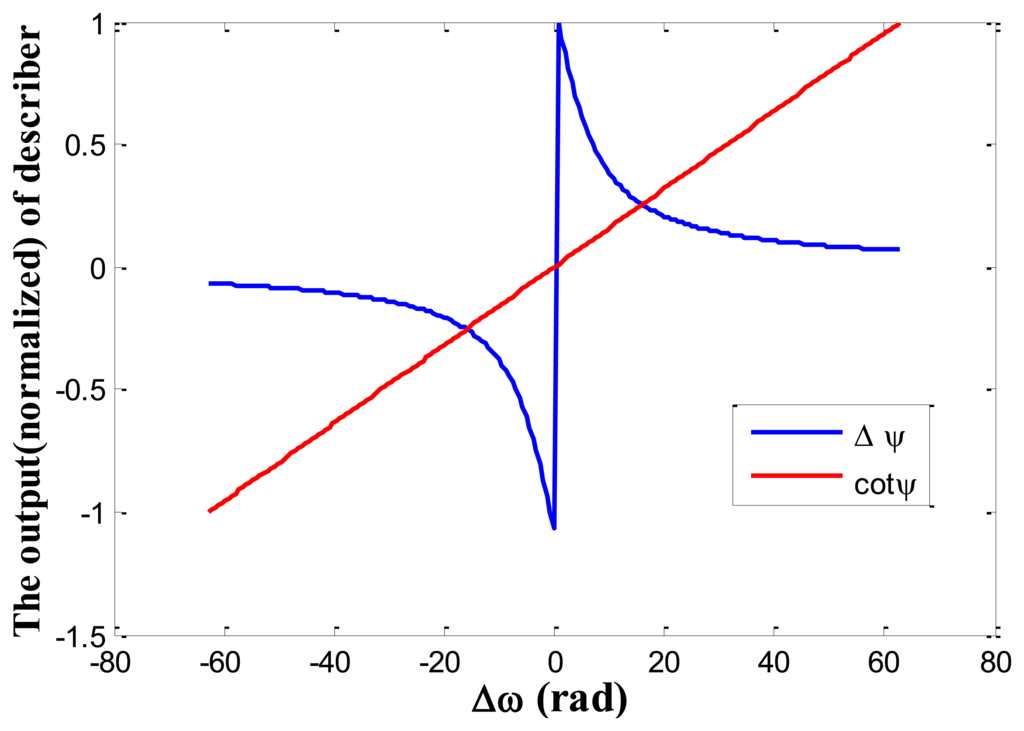

Figure 7. The comparison of the proposed describer (cotφ) and conventional PLL describer (Δφ).

Click here to enlarge figure

Figure 7. The comparison of the proposed describer (cotφ) and conventional PLL describer (Δφ).
Sensors 13 15770f7 1024
Sensors 13 15770f8 200

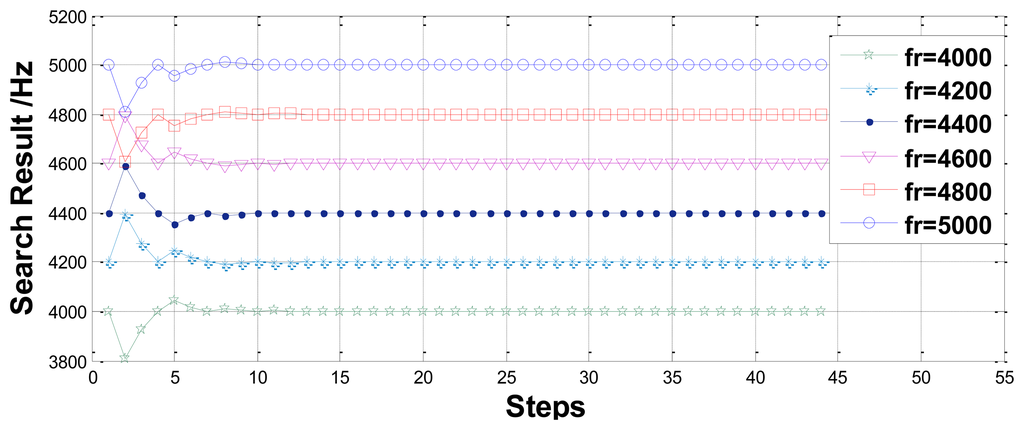

Figure 8. Measurement results for different resonant frequencies using the search method.

Click here to enlarge figure

Figure 8. Measurement results for different resonant frequencies using the search method.
Sensors 13 15770f8 1024
Sensors 13 15770f9 200

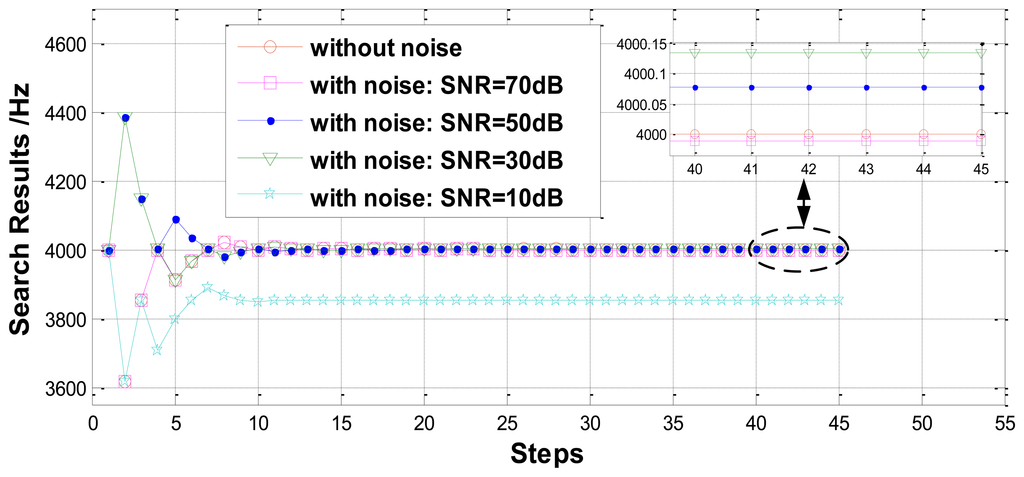

Figure 9. Measurement results of the search method under different level noise.

Click here to enlarge figure

Figure 9. Measurement results of the search method under different level noise.
Sensors 13 15770f9 1024
Sensors 13 15770f10 200

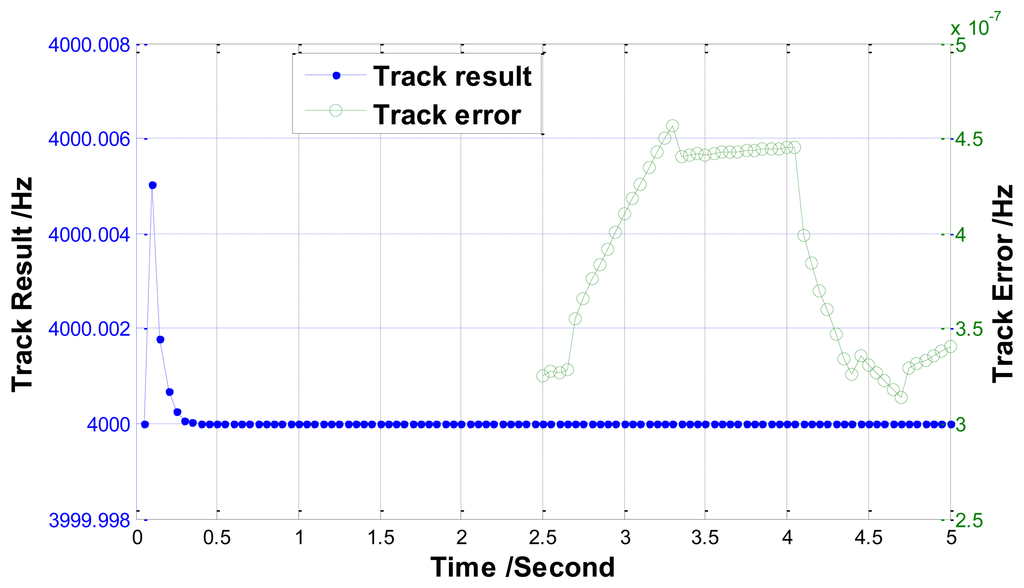

Figure 10. Measurement value (left) and error (right) for a constant resonant frequency (fr = 4,000 Hz) using the track method.

Click here to enlarge figure

Figure 10. Measurement value (left) and error (right) for a constant resonant frequency (fr = 4,000 Hz) using the track method.
Sensors 13 15770f10 1024
Sensors 13 15770f11 200

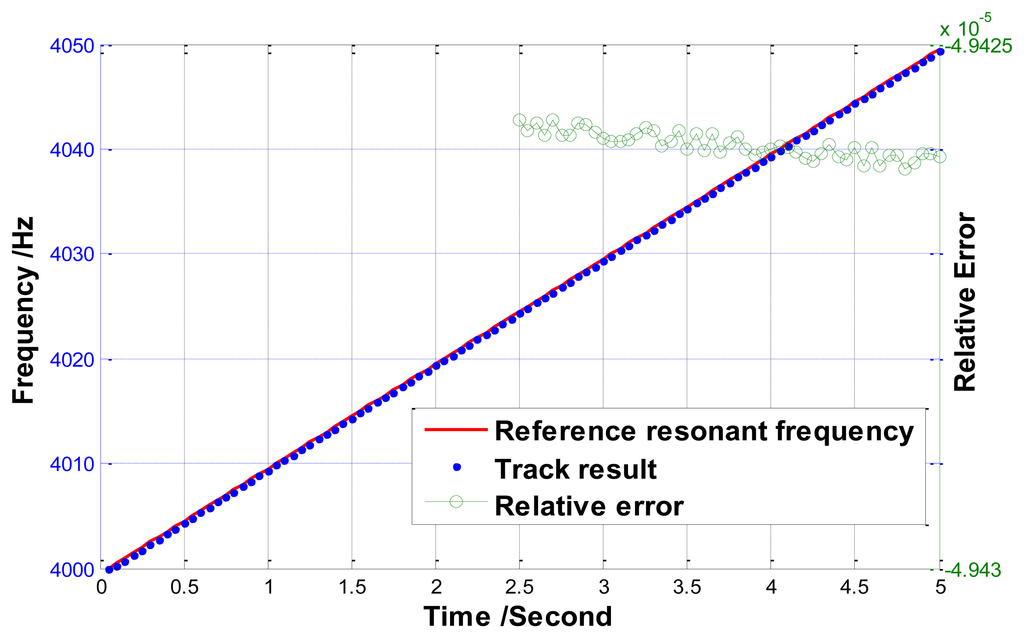

Figure 11. Track results when resonant frequency changes linearly from 4,000 Hz to 4,050 Hz using the track method.

Click here to enlarge figure

Figure 11. Track results when resonant frequency changes linearly from 4,000 Hz to 4,050 Hz using the track method.
Sensors 13 15770f11 1024
Sensors 13 15770f12 200

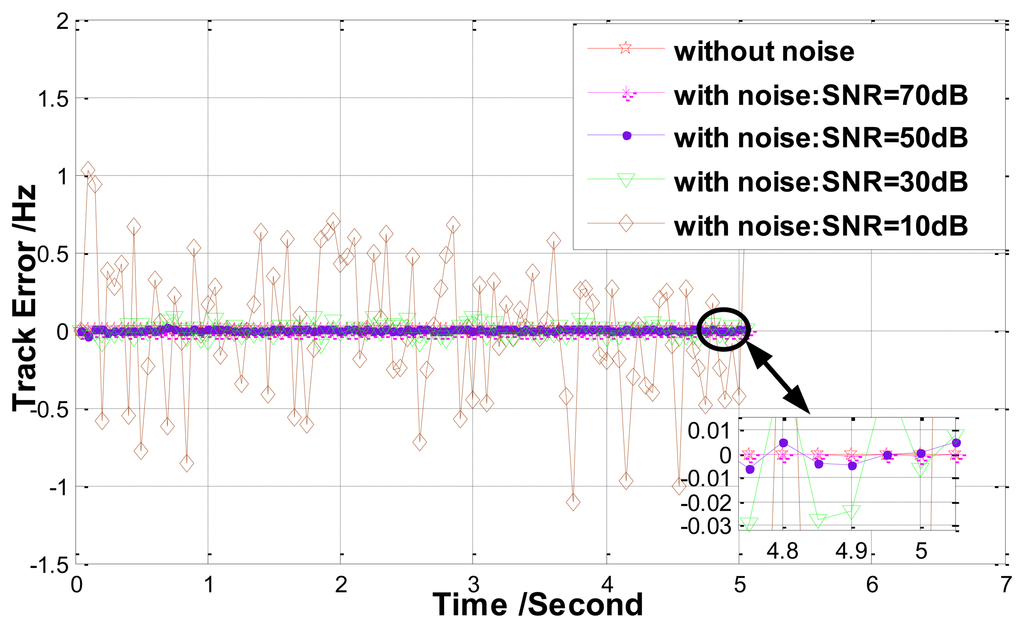

Figure 12. Errors of the track method under different level noise (fr = 4,000 Hz).

Click here to enlarge figure

Figure 12. Errors of the track method under different level noise (fr = 4,000 Hz).
Sensors 13 15770f12 1024
Sensors 13 15770f13 200

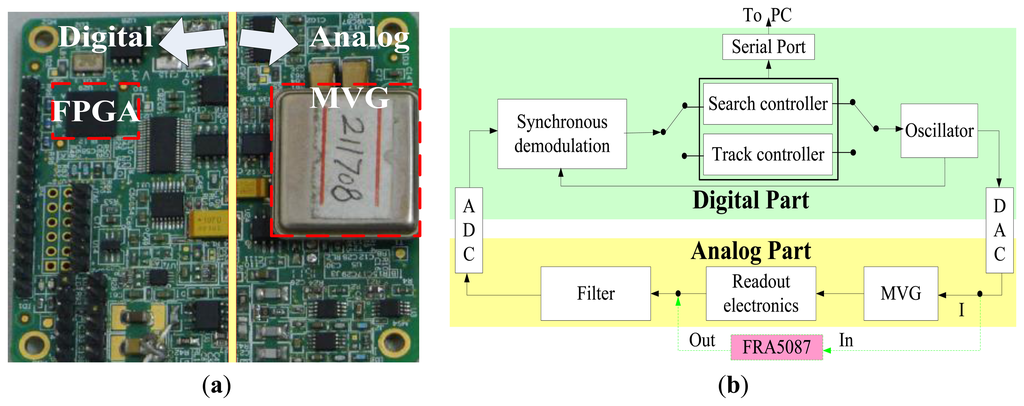

Figure 13. The implemented system for experiments. (a) The PCB. (b) The block diagram.

Click here to enlarge figure

Figure 13. The implemented system for experiments. (a) The PCB. (b) The block diagram.
Sensors 13 15770f13 1024
Sensors 13 15770f14 200

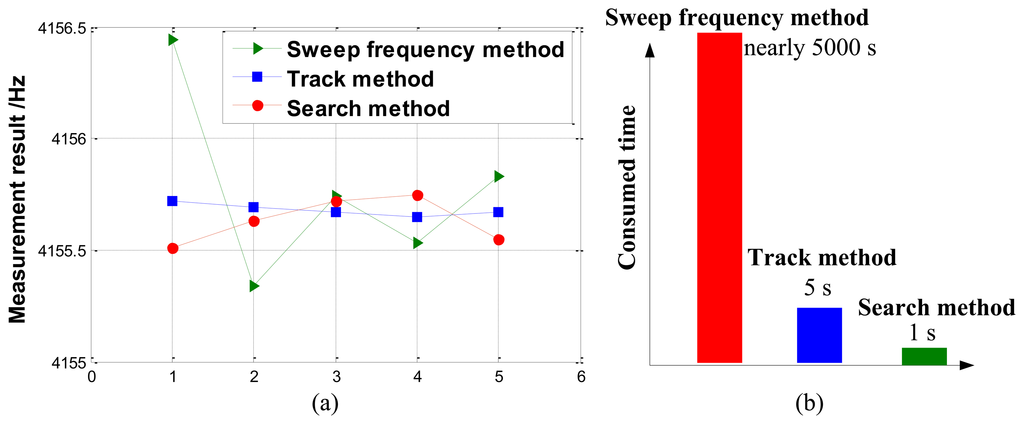

Figure 14. Experimental results of three methods in normal temperature. (a) The measurement results. (b) Consumed-time comparison.

Click here to enlarge figure

Figure 14. Experimental results of three methods in normal temperature. (a) The measurement results. (b) Consumed-time comparison.
Sensors 13 15770f14 1024
Sensors 13 15770f15 200

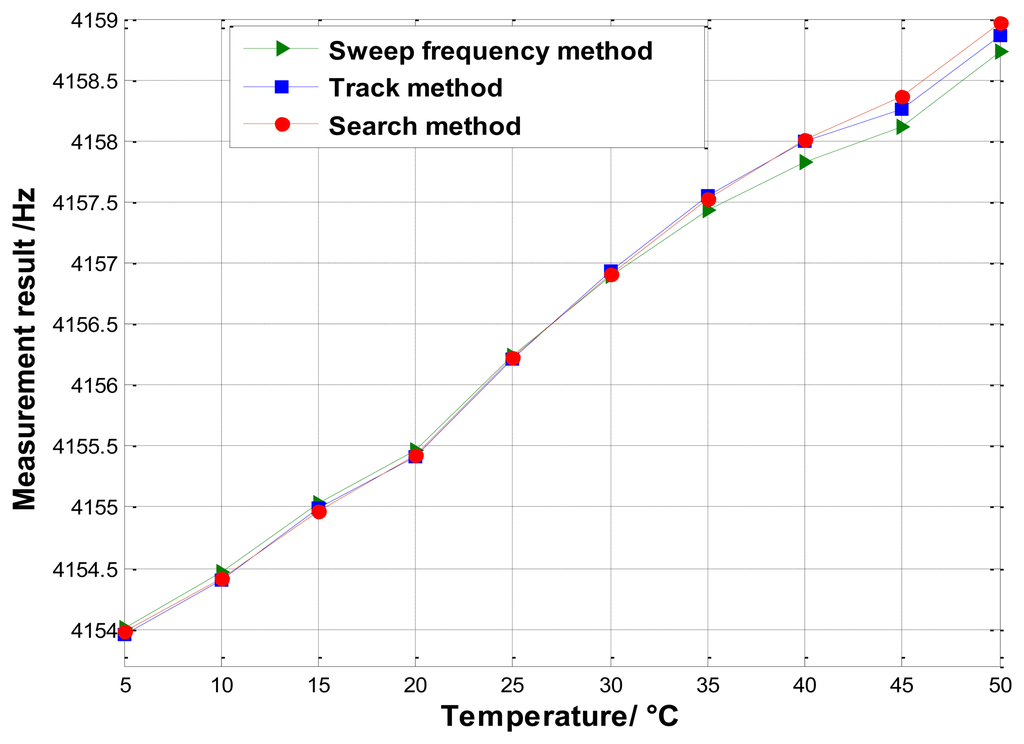

Figure 15. Experimental results of three methods for varying resonant frequency in different temperature.
