Sensors 2012, 12(3), 2539-2560; doi:10.3390/s120302539
Article

Dual Super-Systolic Core for Real-Time Reconstructive Algorithms of High-Resolution Radar/SAR Imaging Systems

1 Department of Mechatronics, Autonomous University of Yucatan, Av. Industrias No Contaminantes s/n, Cordemex, 97203, Merida, Yuc., Mexico 2 Science and Engineering Division, University of Quintana Roo, Boulevard Bahia s/n, Chetumal, QRoo 77010, Mexico
* Author to whom correspondence should be addressed.
Received: 3 December 2011; in revised form: 26 January 2012 / Accepted: 21 February 2012 / Published: 24 February 2012
(This article belongs to the Special Issue Microprocessors and System-on-Chip)
PDF Full-text Download PDF Full-Text [2195 KB, uploaded 24 February 2012 16:04 CET]

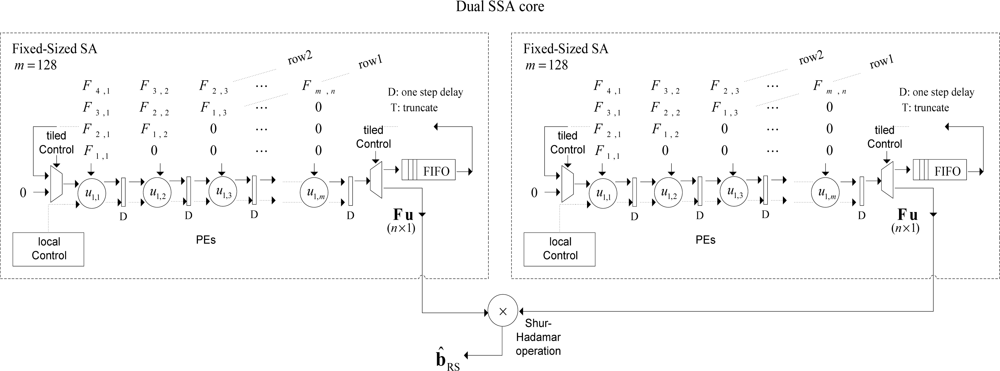

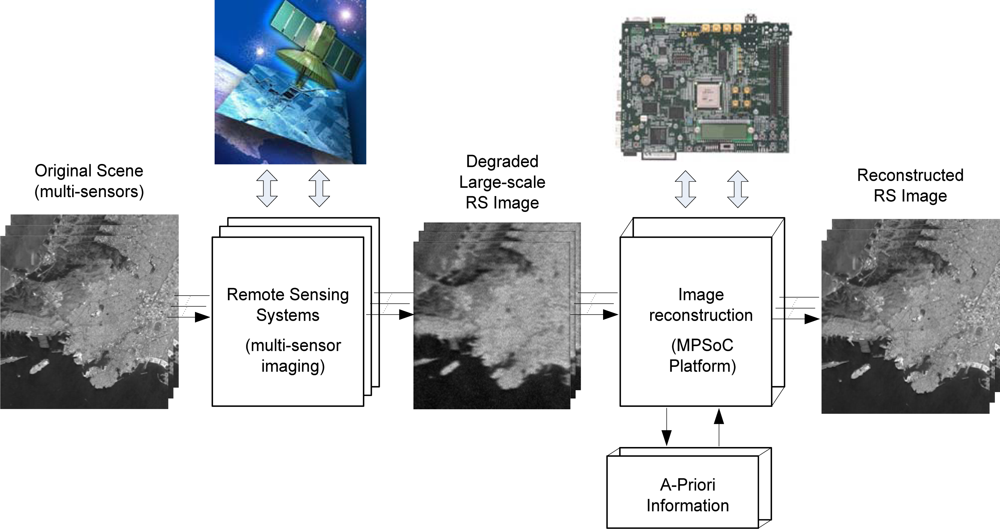

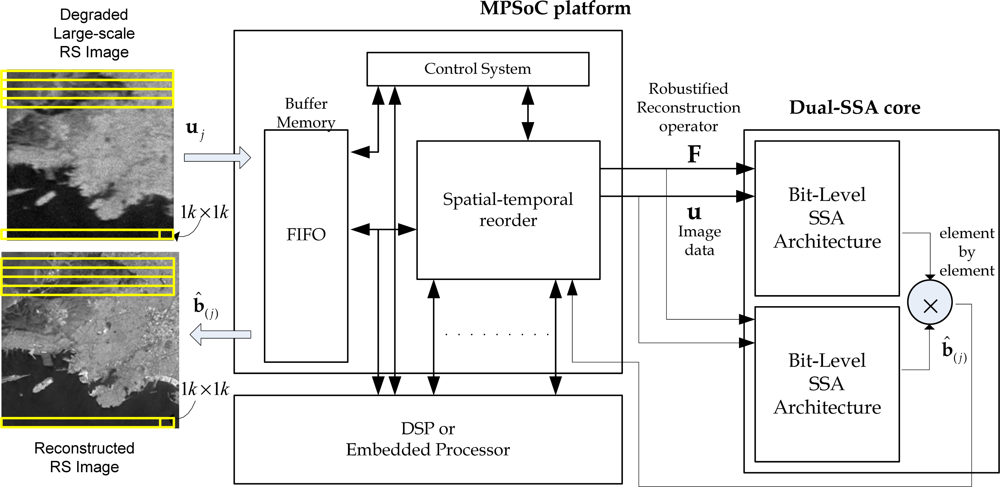

Abstract: A high-speed dual super-systolic core for reconstructive signal processing (SP) operations consists of a double parallel systolic array (SA) machine in which each processing element of the array is also conceptualized as another SA in a bit-level fashion. In this study, we addressed the design of a high-speed dual super-systolic array (SSA) core for the enhancement/reconstruction of remote sensing (RS) imaging of radar/synthetic aperture radar (SAR) sensor systems. The selected reconstructive SP algorithms are efficiently transformed in their parallel representation and then, they are mapped into an efficient high performance embedded computing (HPEC) architecture in reconfigurable Xilinx field programmable gate array (FPGA) platforms. As an implementation test case, the proposed approach was aggregated in a HW/SW co-design scheme in order to solve the nonlinear ill-posed inverse problem of nonparametric estimation of the power spatial spectrum pattern (SSP) from a remotely sensed scene. We show how such dual SSA core, drastically reduces the computational load of complex RS regularization techniques achieving the required real-time operational mode.
Keywords: super-systolic; parallel computing; remote sensing; FPGA
