Sensors 2012, 12(1), 24-41; doi:10.3390/s120100024

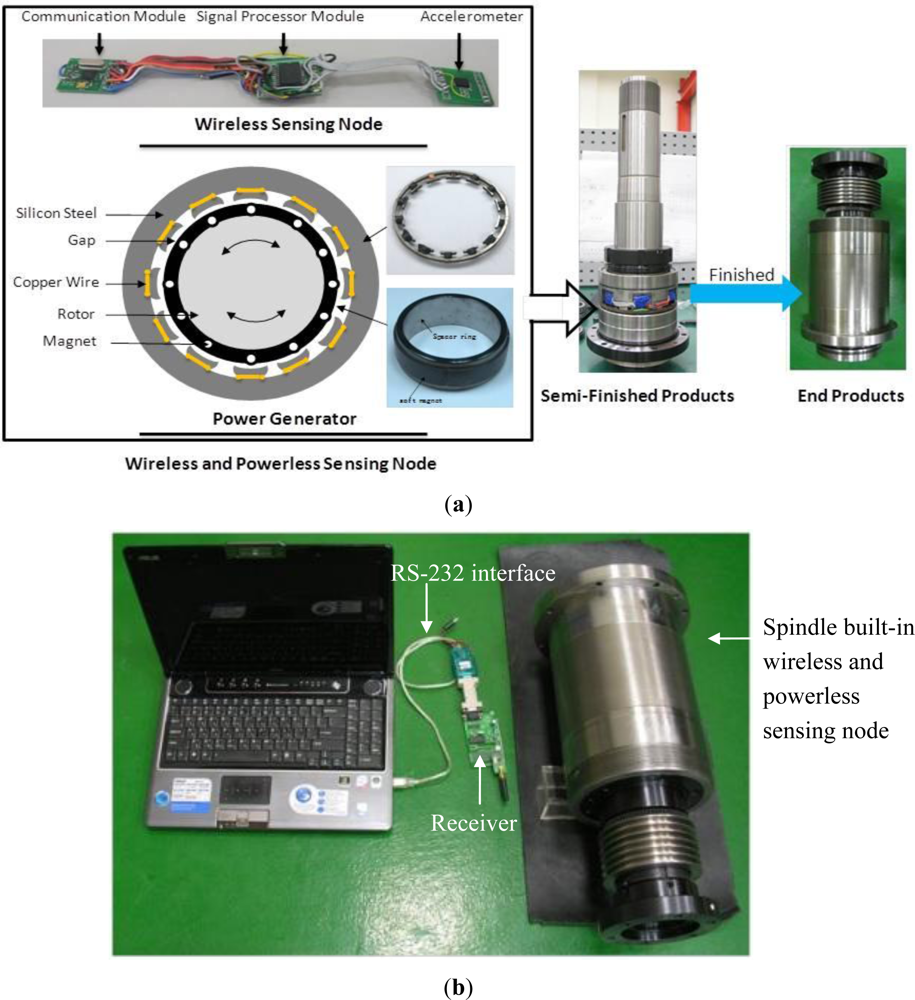

The Development of a Monitoring System Using a Wireless and Powerless Sensing Node Deployed Inside a Spindle

1
Graduate Institute of Mechanical and Electrical Engineering, National Taipei University of Technology, No. 1, Sec. 3 Zhongxiao E. Rd., Taipei City, 106, Taiwan
2
Department of Energy and Refrigerating Air-Conditioning Engineering, National Taipei University of Technology, No. 1, Sec. 3 Zhongxiao E. Rd., Taipei City, 106, Taiwan
*
Author to whom correspondence should be addressed.
Received: 10 October 2011 / Revised: 21 November 2011 / Accepted: 19 December 2011 / Published: 22 December 2011
(This article belongs to the Section Sensor Networks)
View Full-Text   |   Download PDF [1067 KB, 21 June 2014; original version 21 June 2014]   |

Abstract

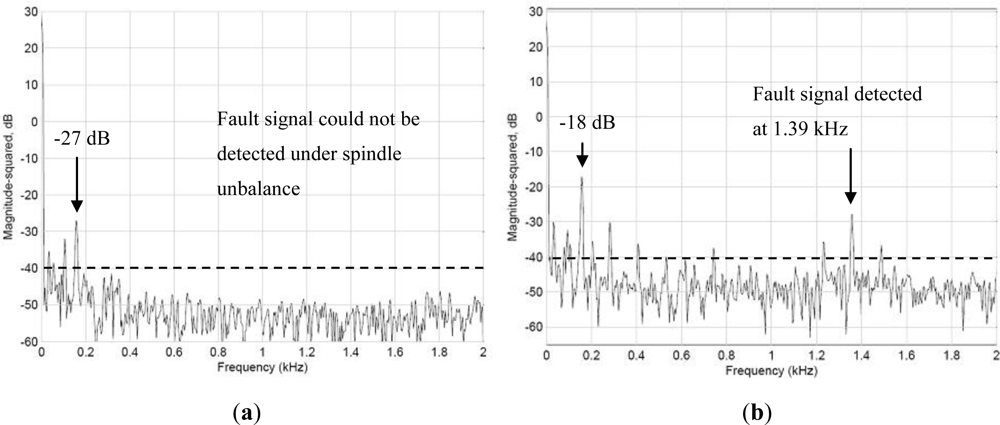

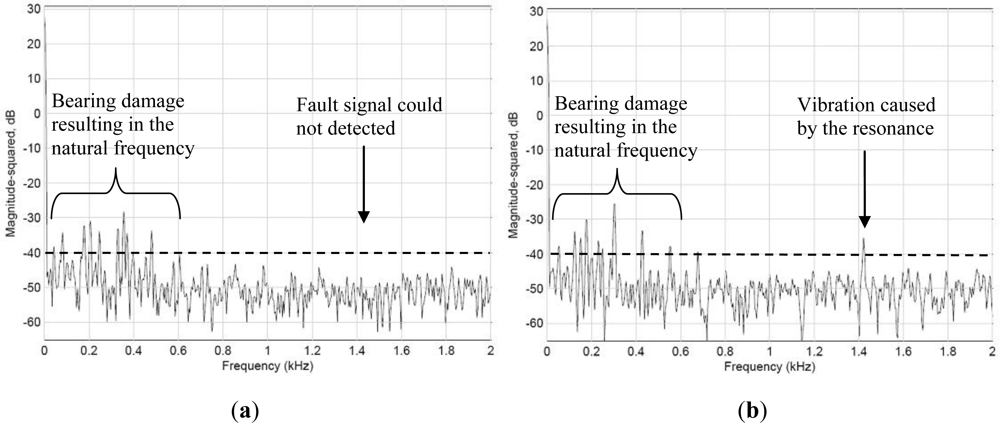

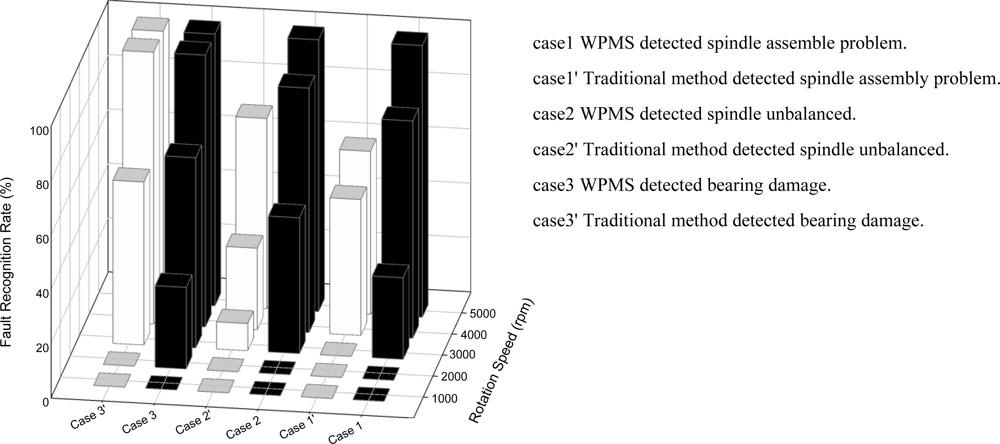

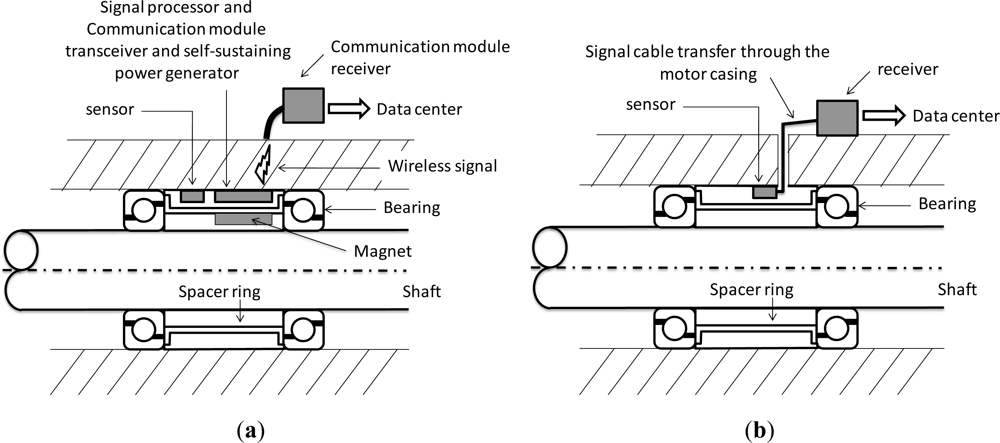

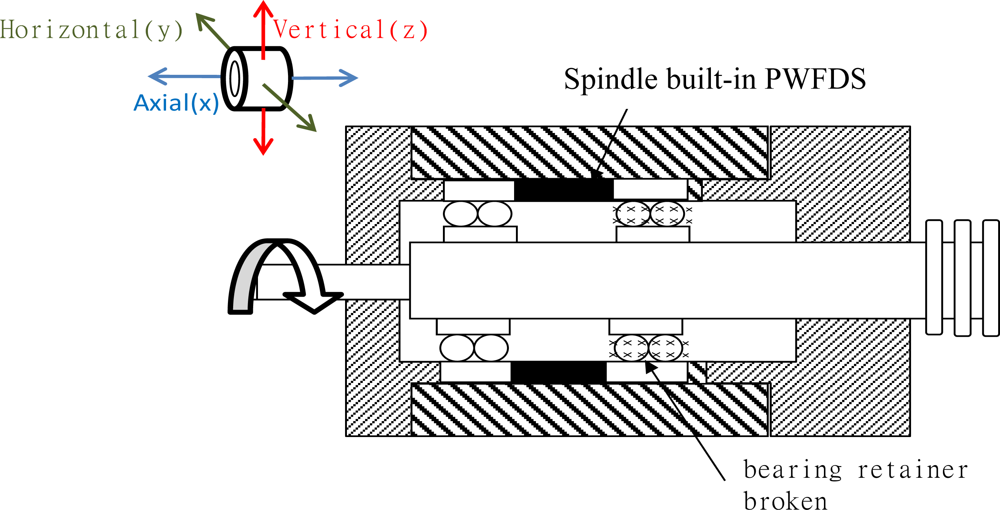

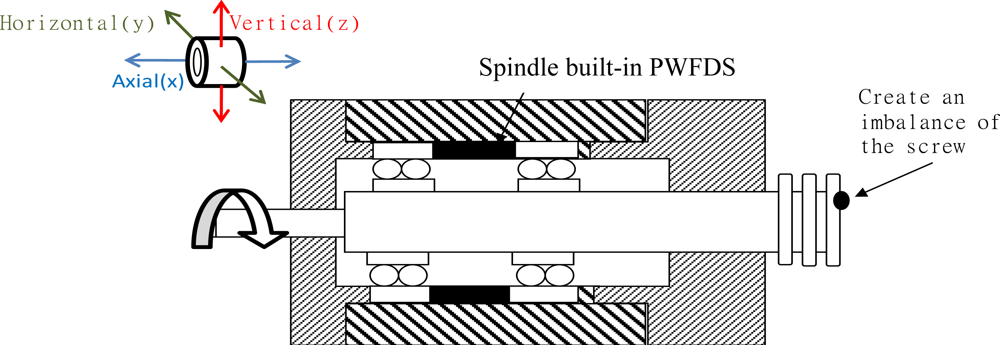

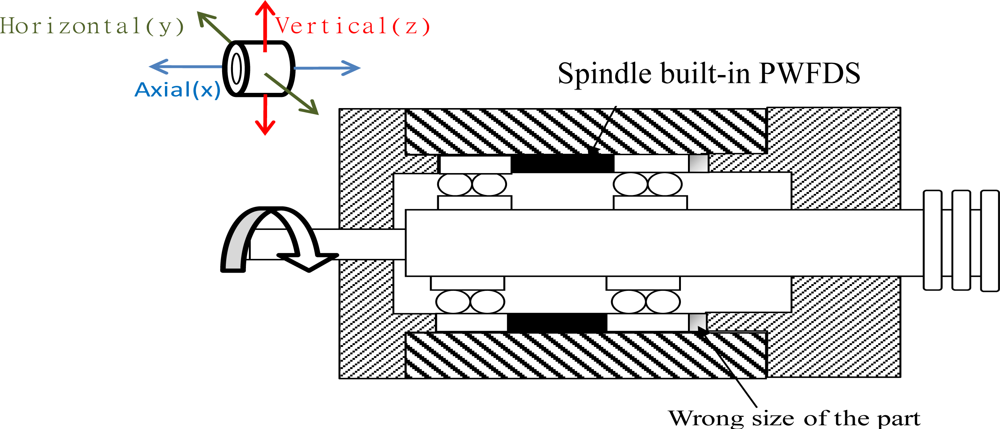

Installation of a Wireless and Powerless Sensing Node (WPSN) inside a spindle enables the direct transmission of monitoring signals through a metal case of a certain thickness instead of the traditional method of using connecting cables. Thus, the node can be conveniently installed inside motors to measure various operational parameters. This study extends this earlier finding by applying this advantage to the monitoring of spindle systems. After over 2 years of system observation and optimization, the system has been verified to be superior to traditional methods. The innovation of fault diagnosis in this study includes the unmatched assembly dimensions of the spindle system, the unbalanced system, and bearing damage. The results of the experiment demonstrate that the WPSN provides a desirable signal-to-noise ratio (SNR) in all three of the simulated faults, with the difference of SNR reaching a maximum of 8.6 dB. Following multiple repetitions of the three experiment types, 80% of the faults were diagnosed when the spindle revolved at 4,000 rpm, significantly higher than the 30% fault recognition rate of traditional methods. The experimental results of monitoring of the spindle production line indicated that monitoring using the WPSN encounters less interference from noise compared to that of traditional methods. Therefore, this study has successfully developed a prototype concept into a well-developed monitoring system, and the monitoring can be implemented in a spindle production line or real-time monitoring of machine tools.
Keywords: monitoring system; wireless and powerless sensing node; signal-to-noise ratio; spindle monitoring system; wireless and powerless sensing node; signal-to-noise ratio; spindle
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
