Sensors 2011, 11(8), 8060-8071; doi:10.3390/s110808060

A Microring Resonator Based Negative Permeability Metamaterial Sensor

School of Information Science and Engineering, Yunnan University, Kunming 650091, China
Faculty of Metallurgical and Energy Engineering, Kunming University of Science and Technology, Kunming 650093, China
Author to whom correspondence should be addressed.
Received: 16 July 2011 / Revised: 12 August 2011 / Accepted: 15 August 2011 / Published: 17 August 2011
(This article belongs to the Special Issue Optical Resonant Microsensors)
View Full-Text   |   Download PDF [1550 KB, uploaded 21 June 2014]   |

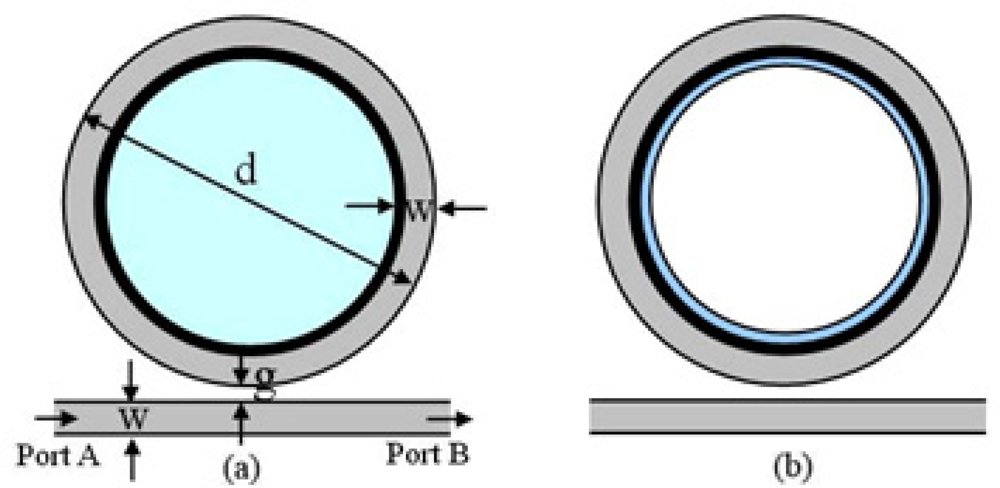

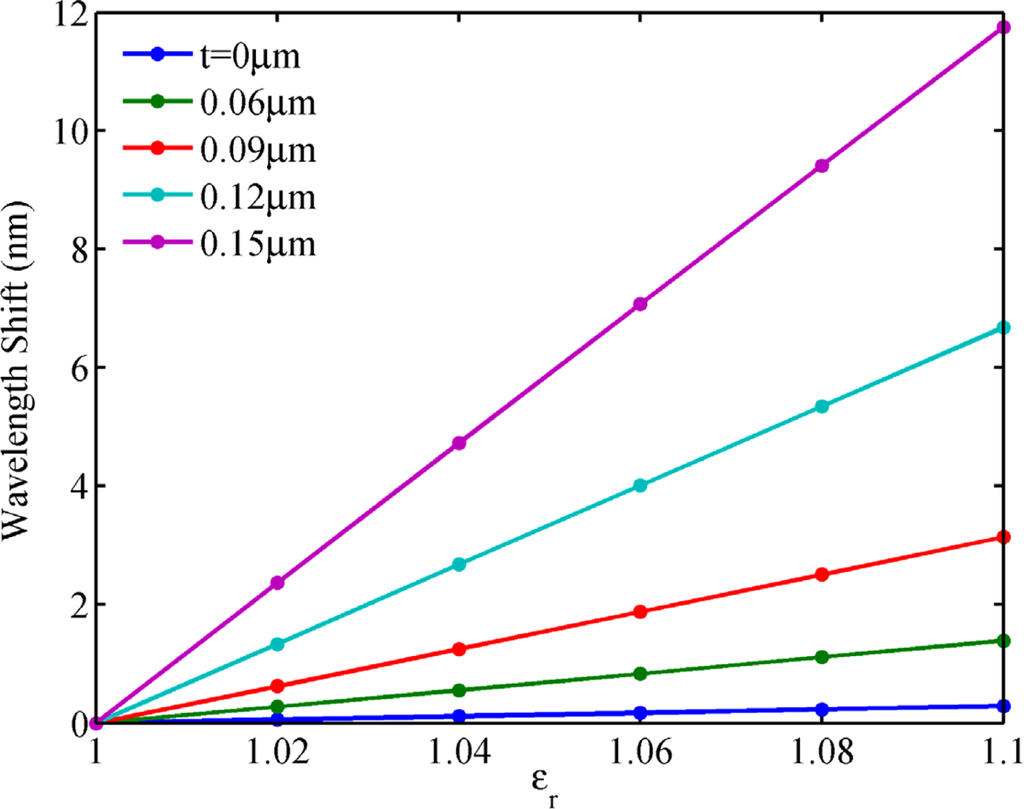

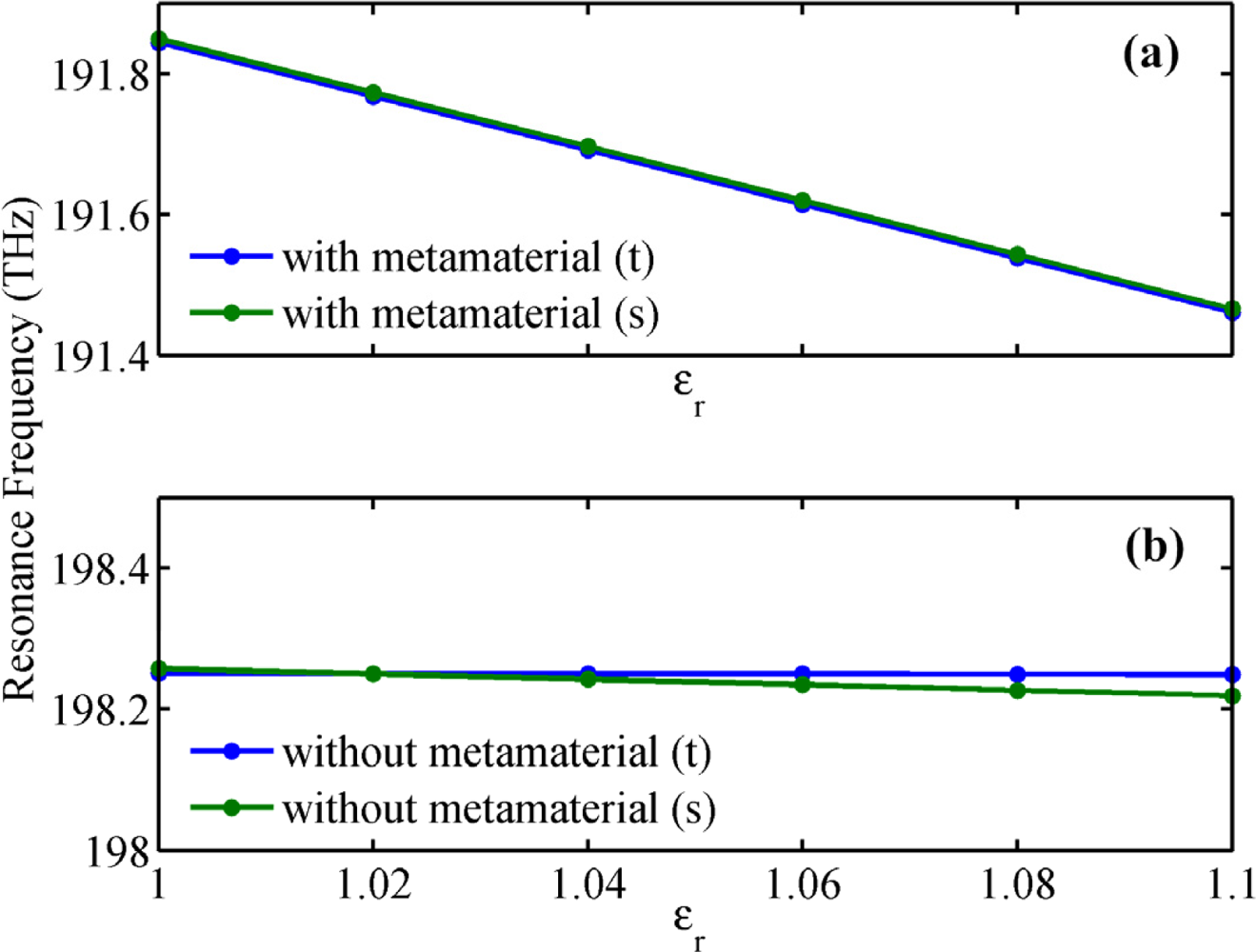

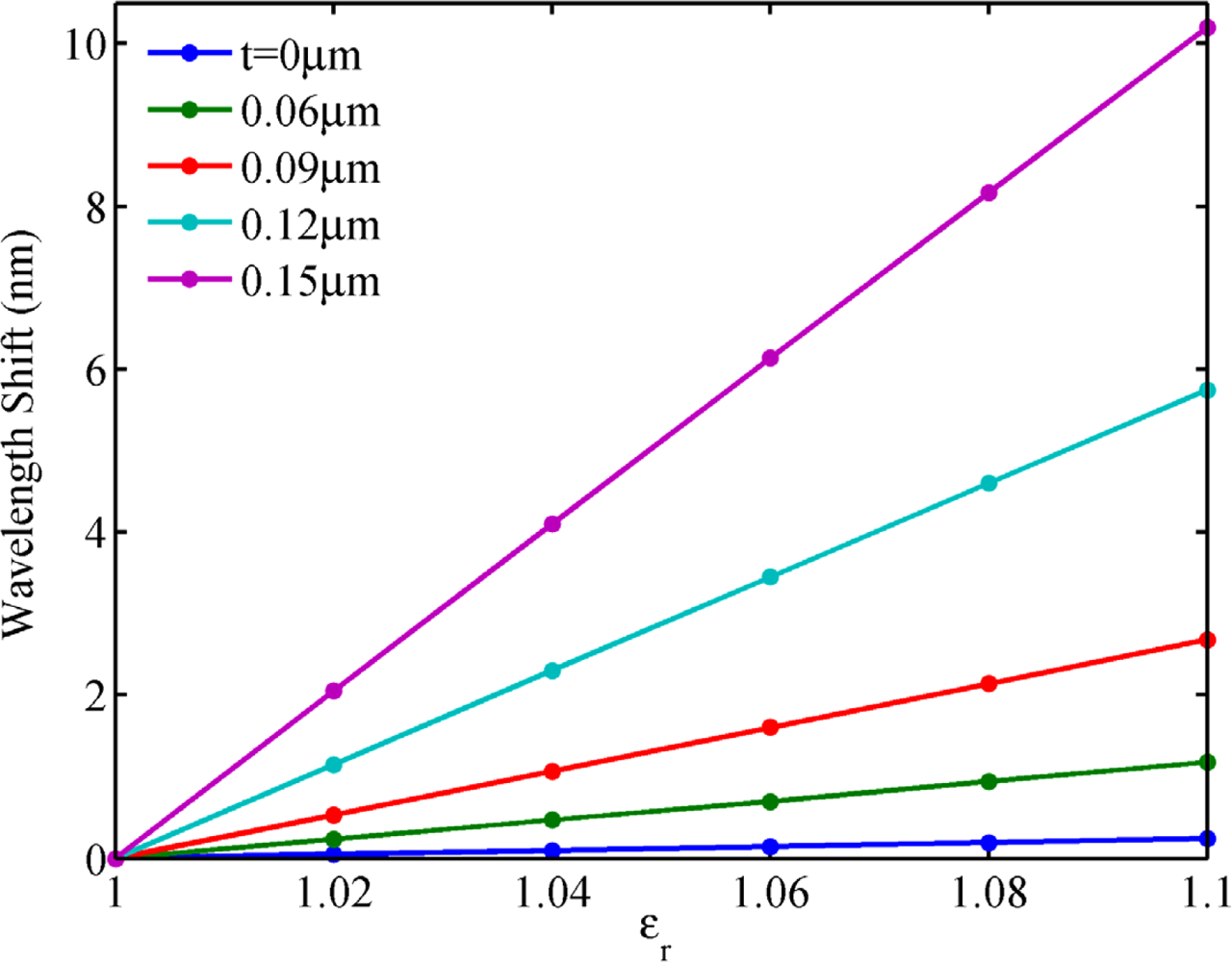

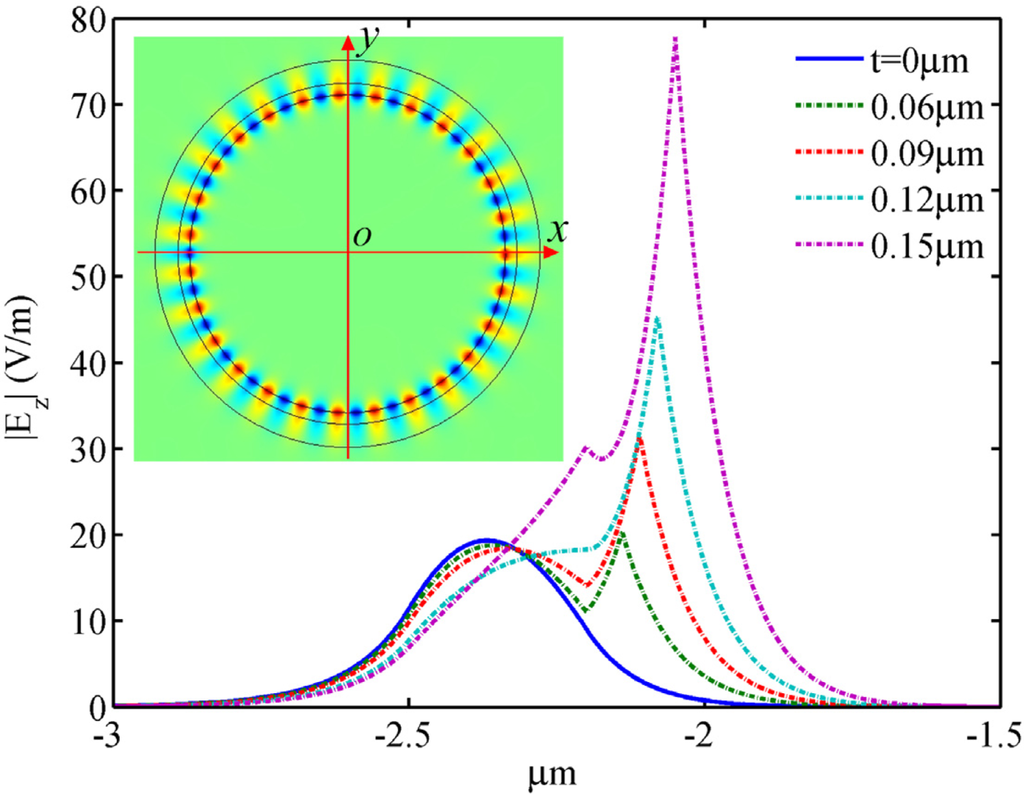

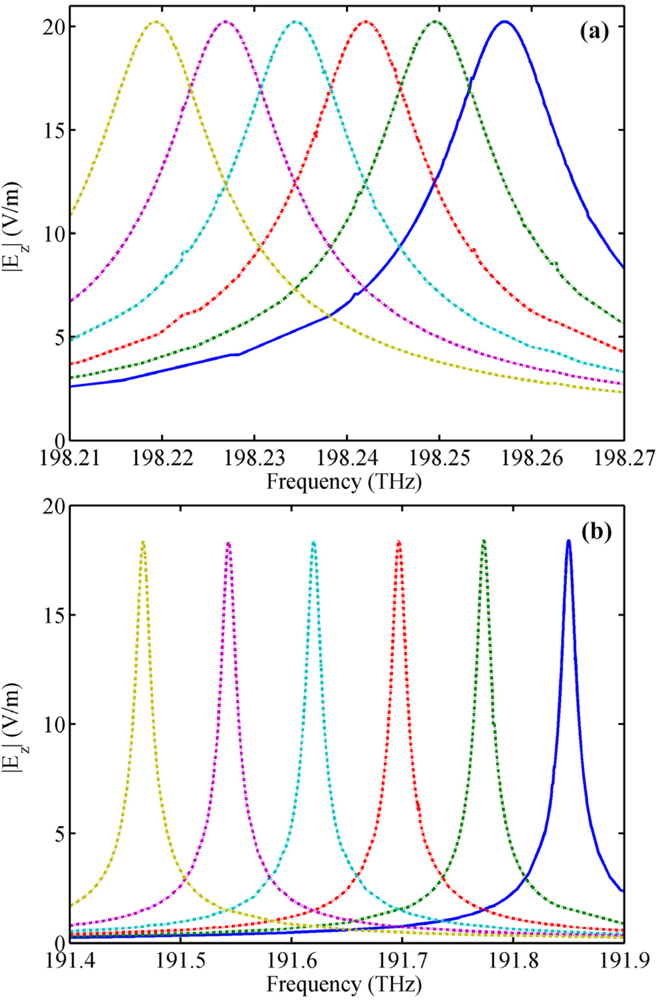

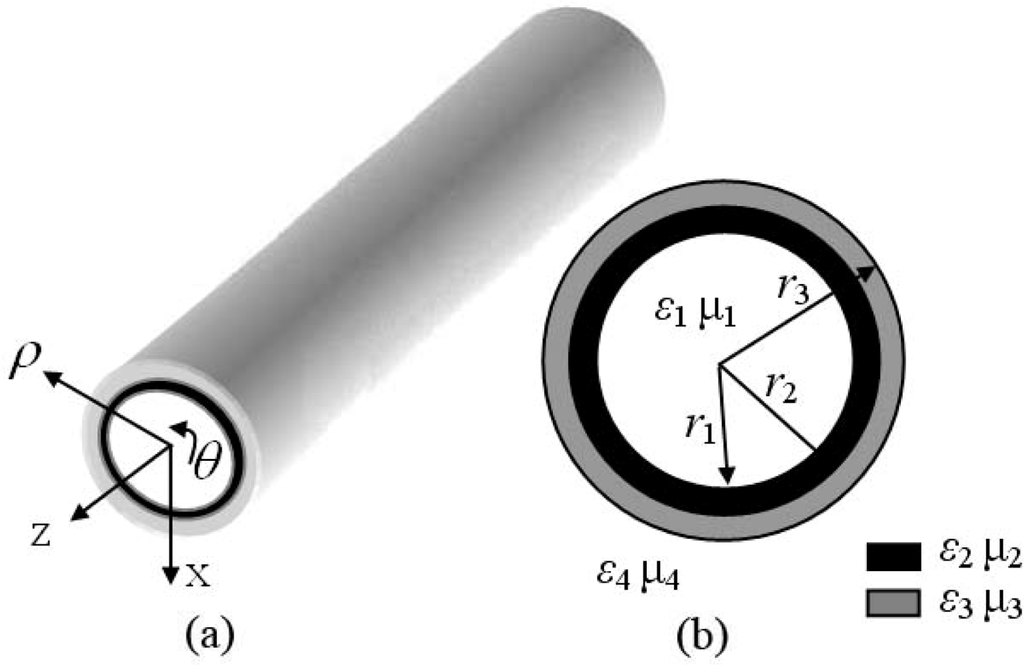

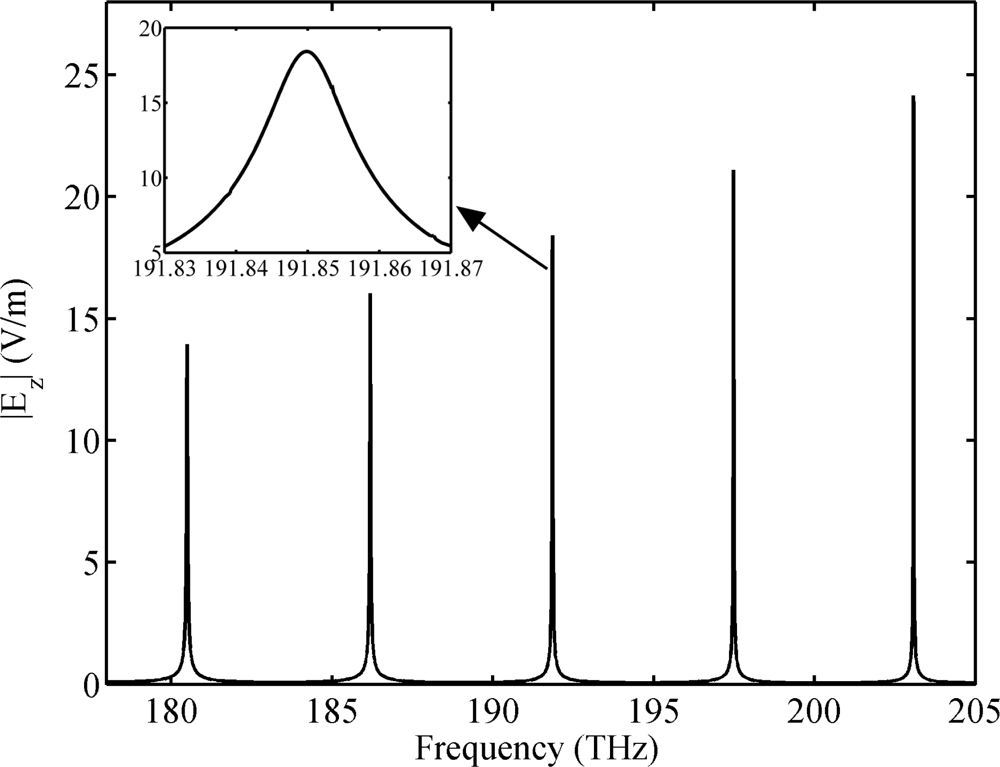

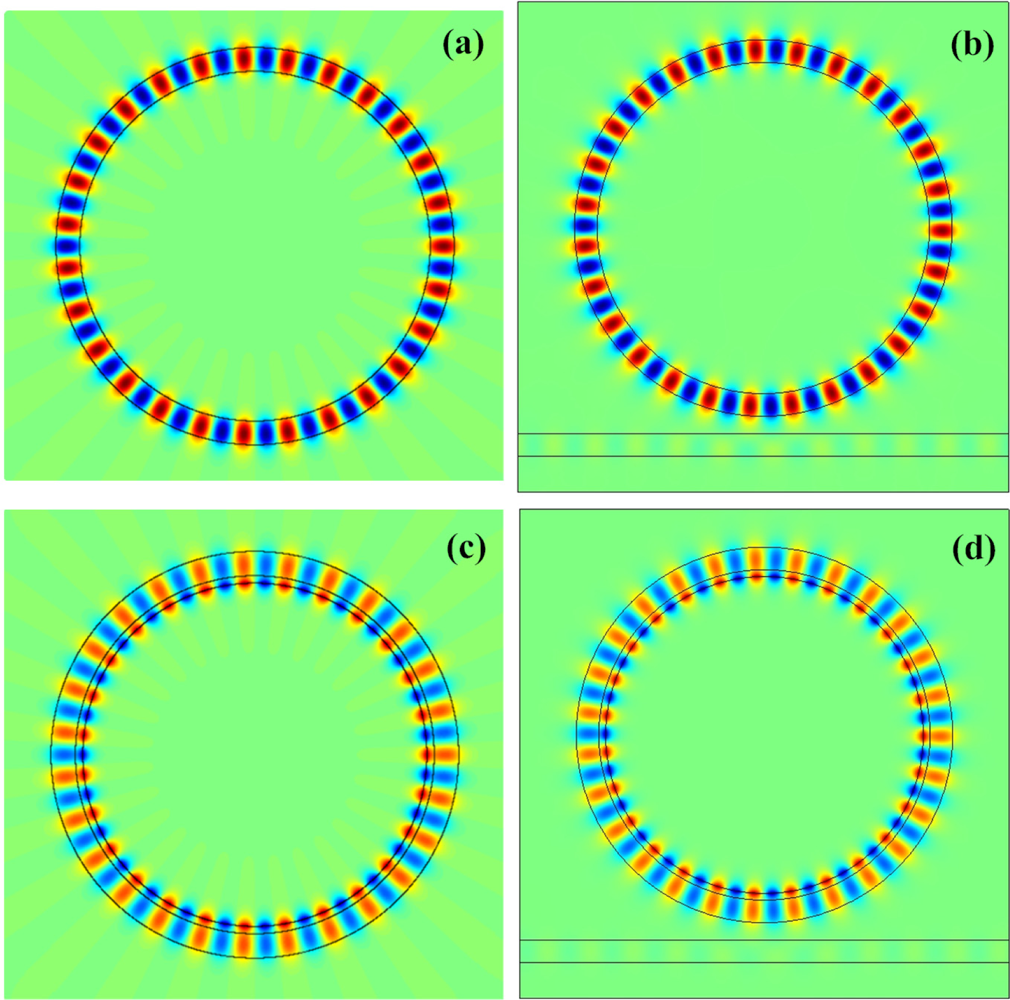

Metamaterials are artificial multifunctional materials that acquire their material properties from their structure, rather than inheriting them directly from the materials they are composed of, and they may provide novel tools to significantly enhance the sensitivity and resolution of sensors. In this paper, we derive the dispersion relation of a cylindrical dielectric waveguide loaded on a negative permeability metamaterial (NPM) layer, and compute the resonant frequencies and electric field distribution of the corresponding Whispering-Gallery-Modes (WGMs). The theoretical resonant frequency and electric field distribution results are in good agreement with the full wave simulation results. We show that the NPM sensor based on a microring resonator possesses higher sensitivity than the traditional microring sensor since with the evanescent wave amplification and the increase of NPM layer thickness, the sensitivity will be greatly increased. This may open a door for designing sensors with specified sensitivity.
Keywords: metamaterials; sensor; WGMs; microring resonator metamaterials; sensor; WGMs; microring resonator
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
