Sensors 2011, 11(6), 6284-6296; doi:10.3390/s110606284

An Improved Equivalent Simulation Model for CMOS Integrated Hall Plates

School of Electronic Science & Engineering, Nanjing University, Nanjing 210093, China
College of Electronic Science & Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210003, China
Author to whom correspondence should be addressed.
Received: 14 April 2011 / Revised: 30 May 2011 / Accepted: 5 June 2011 / Published: 10 June 2011
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [577 KB, uploaded 21 June 2014]   |

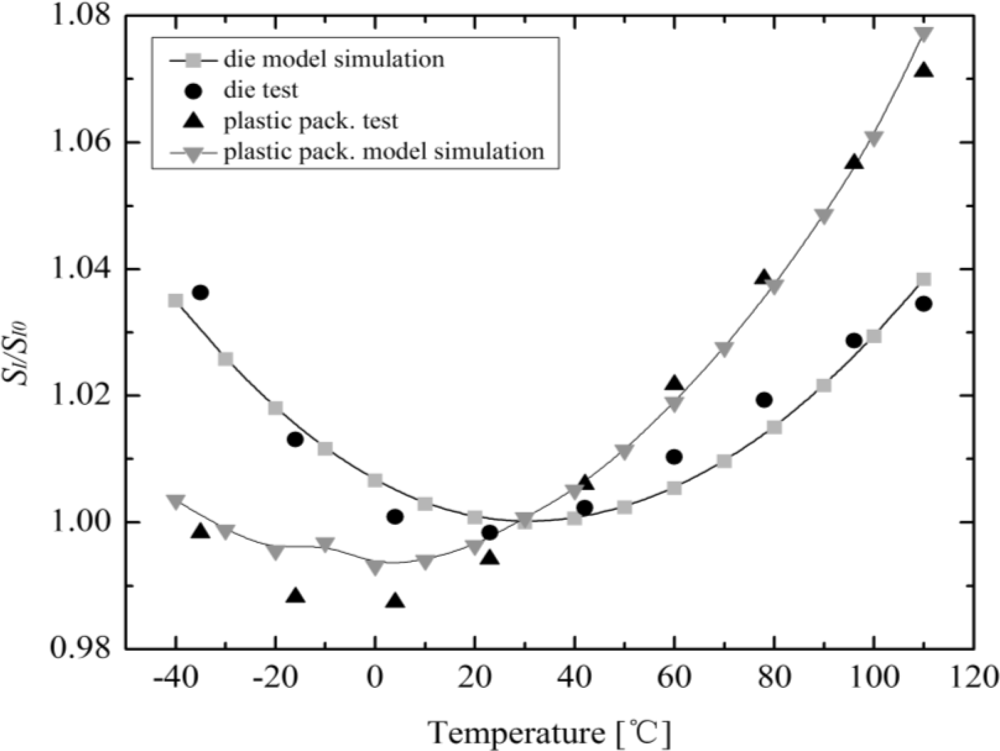

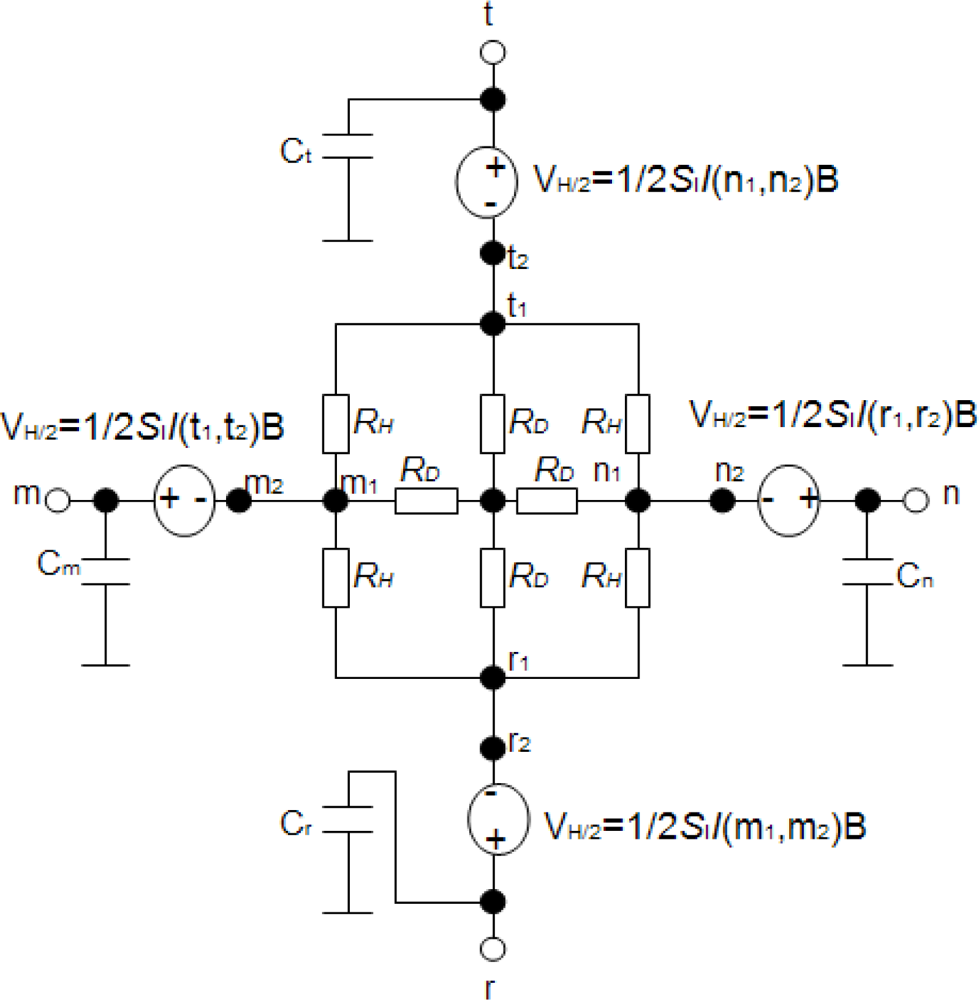

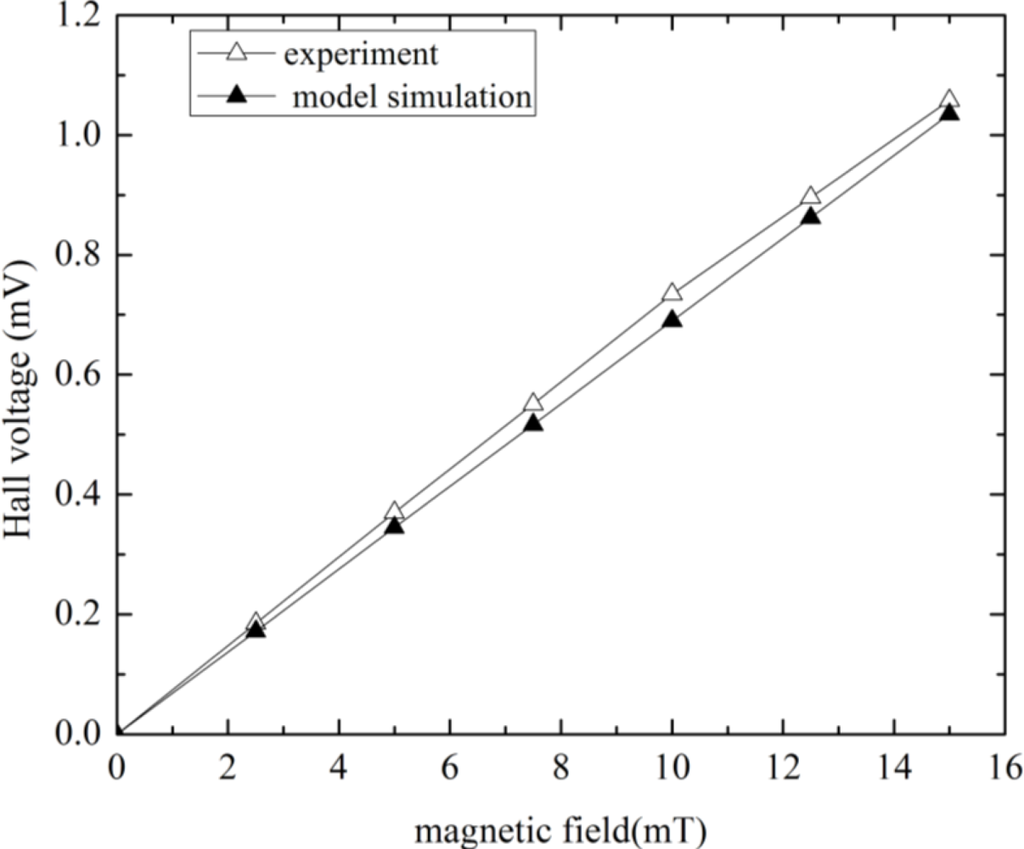

An improved equivalent simulation model for a CMOS-integrated Hall plate is described in this paper. Compared with existing models, this model covers voltage dependent non-linear effects, geometrical effects, temperature effects and packaging stress influences, and only includes a small number of physical and technological parameters. In addition, the structure of this model is relatively simple, consisting of a passive network with eight non-linear resistances, four current-controlled voltage sources and four parasitic capacitances. The model has been written in Verilog-A hardware description language and it performed successfully in a Cadence Spectre simulator. The model’s simulation results are in good agreement with the classic experimental results reported in the literature.
Keywords: hall plate; simulation model; non-linear effects; Verilog-A hall plate; simulation model; non-linear effects; Verilog-A
