Open AccessArticle
Sensors 2011, 11(6), 5729-5739; doi:10.3390/s110605729

Ultra-Abrupt Tapered Fiber Mach-Zehnder Interferometer Sensors

School of Mechanical Engineering, Beijing Institute of Technology, Beijing, 100081, China
Department of Electrical and Computer Engineering, Missouri University of Science and Technology, Rolla, MO 65409, USA
Department of Mechanical and Aerospace Engineering, Missouri University of Science and Technology, Rolla, MO 65409, USA
Author to whom correspondence should be addressed.
Received: 2 April 2011 / Revised: 2 May 2011 / Accepted: 24 May 2011 / Published: 27 May 2011
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [1101 KB, uploaded 21 June 2014]   |

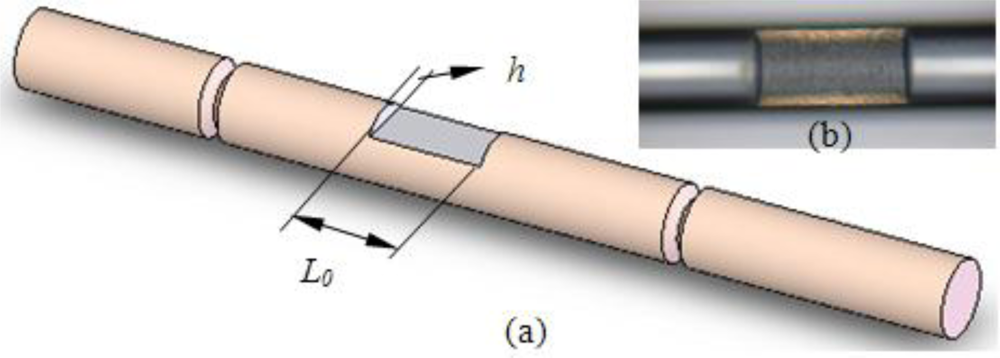

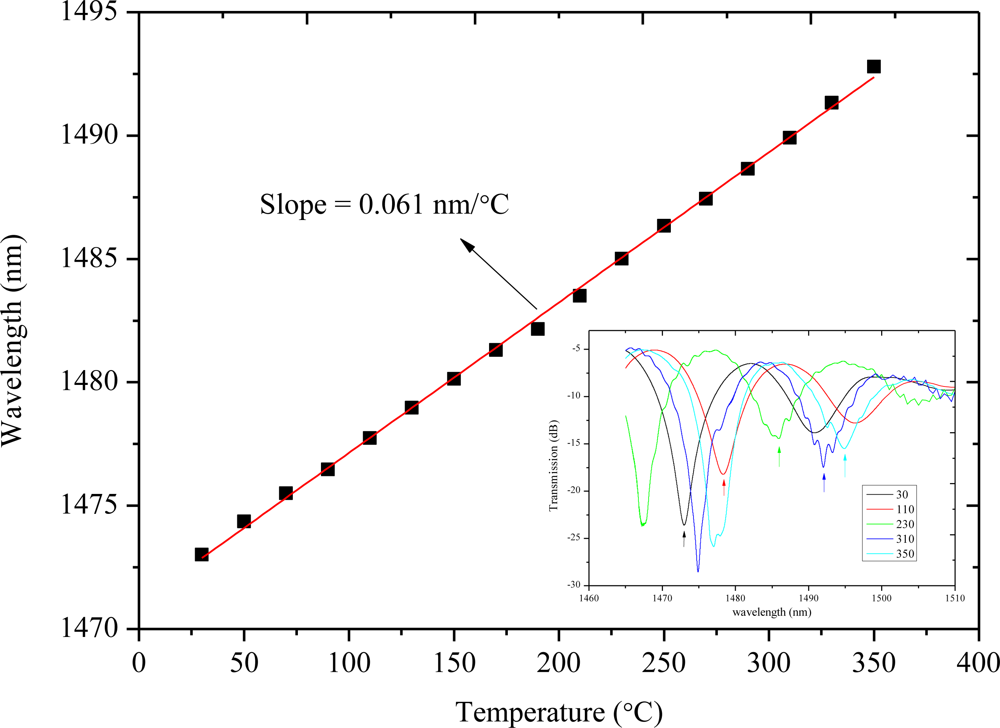

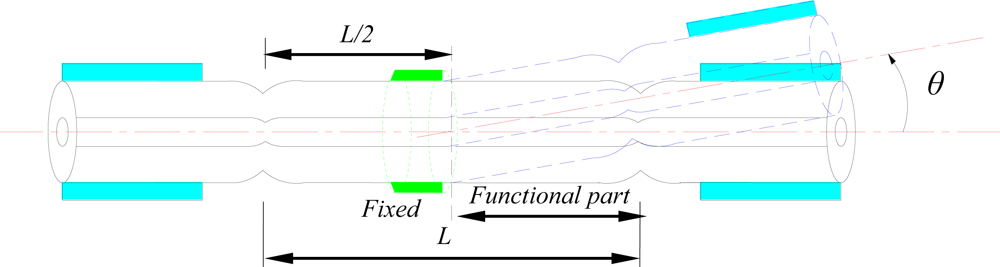

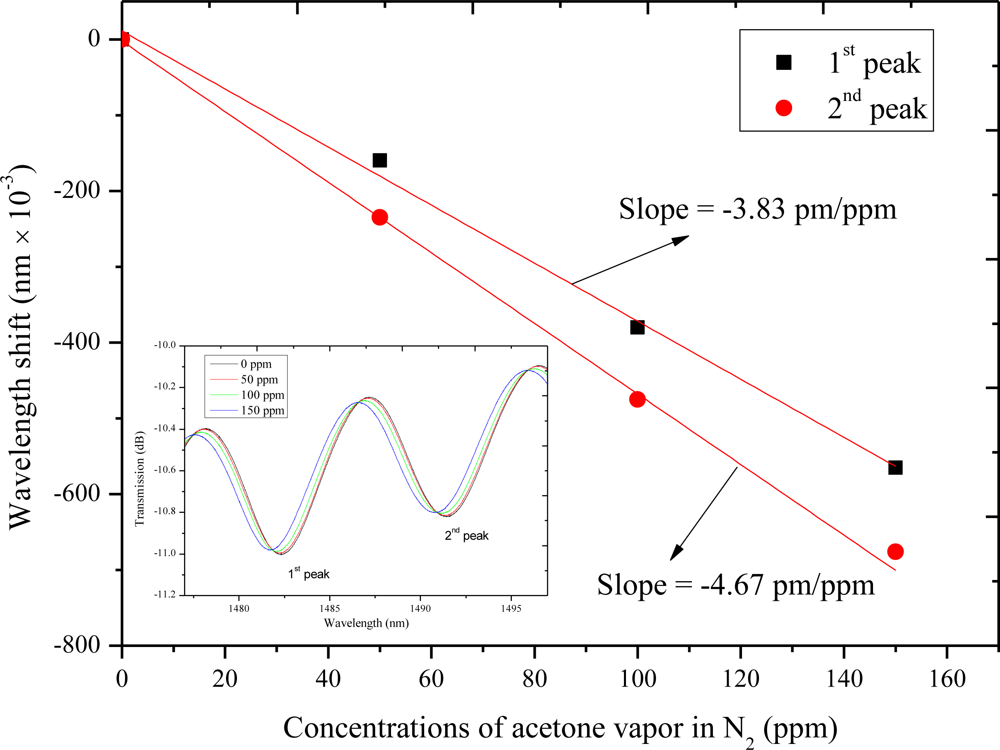

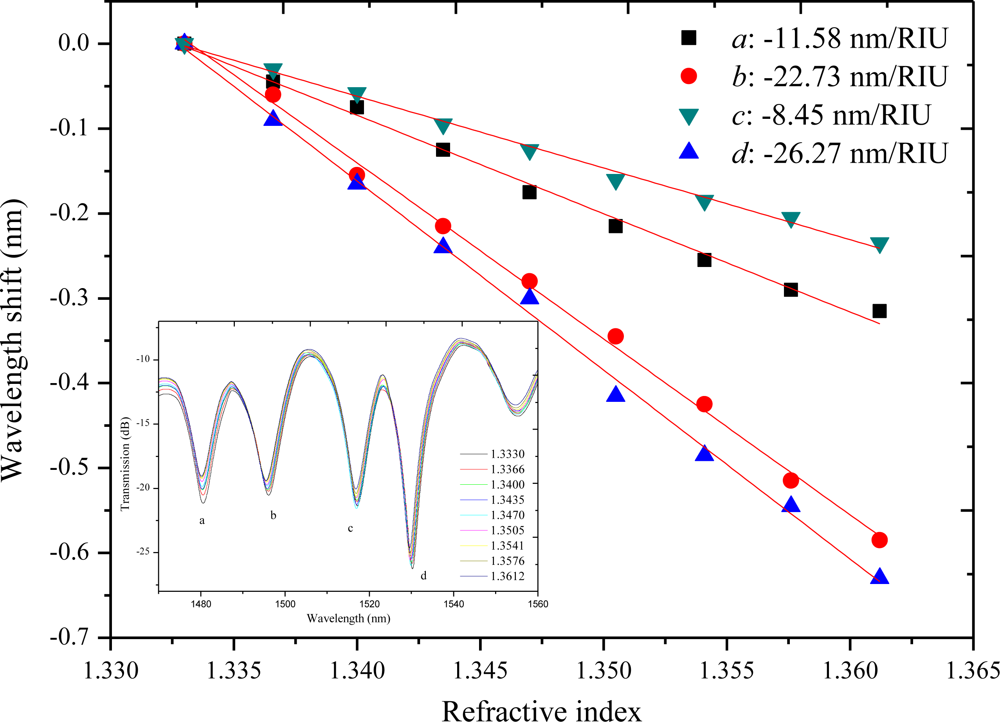

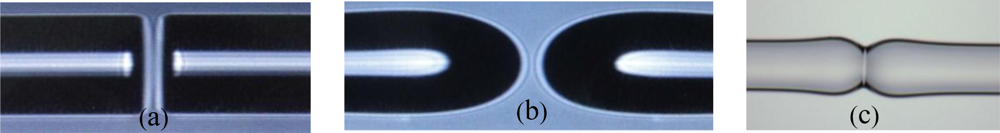

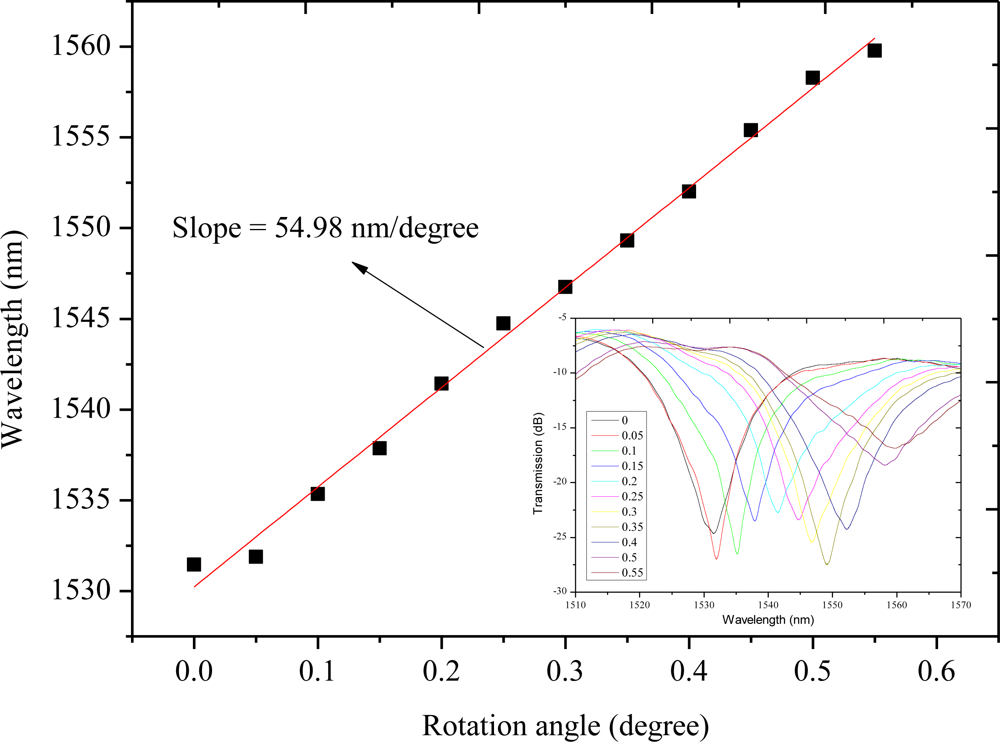

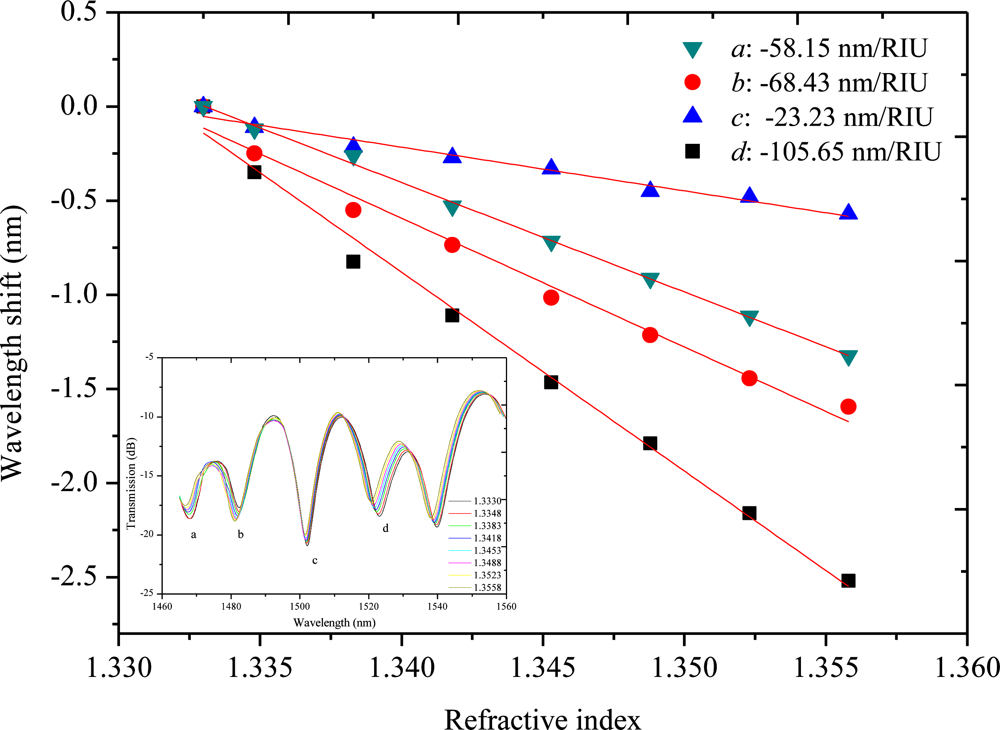

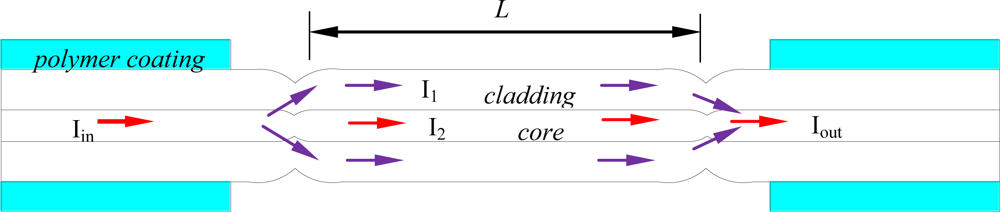

A fiber inline Mach-Zehnder interferometer (MZI) consisting of ultra-abrupt fiber tapers was fabricated through a new fusion-splicing method. By fusion-splicing, the taper diameter-length ratio is around 1:1, which is much greater than those (1:10) made by stretching. The proposed fabrication method is very low cost, 1/20–1/50 of those of LPFG pair MZI sensors. The fabricated MZIs are applied to measure refractive index, temperature and rotation angle changes. The temperature sensitivity of the MZI at a length of 30 mm is 0.061 nm/°C from 30–350 °C. The proposed MZI is also used to measure rotation angles ranging from 0° to 0.55°; the sensitivity is 54.98 nm/°. The refractive index sensitivity is improved by 3–5 fold by fabricating an inline micro–trench on the fiber cladding using a femtosecond laser. Acetone vapor of 50 ppm in N2 is tested by the MZI sensor coated with MFI–type zeolite thin film. The proposed MZI sensors are capable of in situ detection in many areas of interest such as environmental management, industrial process control, and public health.
Keywords: fiber sensors; refractive index; Mach-Zehnder interferometer; zeolite coating fiber sensors; refractive index; Mach-Zehnder interferometer; zeolite coating
