Odour Detection Methods: Olfactometry and Chemical Sensors

1
Department of Chemistry, University of Bari, via E.Orabona 4, 70126 Bari, Italy
2
Brindisi Technical Unit for Technologies of Materials, ENEA, Italian National Agency for New Technologies, Energy and Sustainable Economic Development, P.O. Box 51 Br-4, I-72100 Brindisi, Italy
*
Author to whom correspondence should be addressed.
Sensors 2011, 11(5), 5290-5322; https://doi.org/10.3390/s110505290
Submission received: 28 April 2011 / Revised: 5 May 2011 / Accepted: 5 May 2011 / Published: 16 May 2011
(This article belongs to the Special Issue Direct and Indirect Sensing of Odor and VOCs and Their Control)

Abstract

: The complexity of the odours issue arises from the sensory nature of smell. From the evolutionary point of view olfaction is one of the oldest senses, allowing for seeking food, recognizing danger or communication: human olfaction is a protective sense as it allows the detection of potential illnesses or infections by taking into account the odour pleasantness/unpleasantness. Odours are mixtures of light and small molecules that, coming in contact with various human sensory systems, also at very low concentrations in the inhaled air, are able to stimulate an anatomical response: the experienced perception is the odour. Odour assessment is a key point in some industrial production processes (i.e., food, beverages, etc.) and it is acquiring steady importance in unusual technological fields (i.e., indoor air quality); this issue mainly concerns the environmental impact of various industrial activities (i.e., tanneries, refineries, slaughterhouses, distilleries, civil and industrial wastewater treatment plants, landfills and composting plants) as sources of olfactory nuisances, the top air pollution complaint. Although the human olfactory system is still regarded as the most important and effective “analytical instrument” for odour evaluation, the demand for more objective analytical methods, along with the discovery of materials with chemo-electronic properties, has boosted the development of sensor-based machine olfaction potentially imitating the biological system. This review examines the state of the art of both human and instrumental sensing currently used for the detection of odours. The olfactometric techniques employing a panel of trained experts are discussed and the strong and weak points of odour assessment through human detection are highlighted. The main features and the working principles of modern electronic noses (E-Noses) are then described, focusing on their better performances for environmental analysis. Odour emission monitoring carried out through both the techniques is finally reviewed in order to show the complementary responses of human and instrumental sensing.

1. Introduction

In the last decade great attention has been paid to the issue of air quality as it directly affects both the environmental and human health. Air pollution has mainly an anthropogenic source: everyday industrial and commercial activities introduce an enormous and various amount of chemicals into the ambient air. Currently, people’s awareness of the effects of anthropic activities on the environment rises from the sensorial perception: nowadays olfactory nuisances, coming from various livestock buildings and industrial activities, are at the top of the list of air pollution complaints [13].

An odour is a mixture of light and small molecules, also at very low concentrations in the inhaled air, that, upon coming in contact with the human sensory system, is able to stimulate an anatomical response: the experienced perception is the odour [4]. Chemicals transported by the inhaled air are trapped and dissolved into the olfactory epithelium, a small region of both nasal cavities where odorants stimulate an electrical response of the olfactory nerves: the olfactory signal is thus transmitted to the brain, where the final perceived odour results from a series of neural computations. Odours are recognized thanks to the memory effect of previous experienced smells, thus accounting for the high subjectivity of the odour perception [5,6].

The human sense of smell has often been regarded as the least refined of all the human senses and far inferior to that of other animals. In fact, Aristotle (384–322 BC) blames this lack of finesse on the ducts in the human nose and claims that people who have noses with narrower ducts have a keener sense of smell, but he cites no experimental evidence for this assertion (Aristotle in Problemata XXXIII, and in De Sensu et Sensibili in Parva Naturalia). Moreover, the Roman philosopher Lucretius (99–55 BC) focused on the shape of the particles as conveying the quality of the odour and speculated on human olfaction by considering the nature and role of the odorant particles (Lucretius in De Rerum Natura). Also, the sense of smell is intimately linked with our emotions and aesthetics, but, despite the importance of odour, there is a lack of a suitable vocabulary to describe odours with precision. This is recognised by Plato in Timaeus: “the varieties of smell have no name, but they are distinguished only as painful and pleasant”.

The sense of smell enables people to detect the presence of some chemicals in the ambient air: in the worst cases an odour is associated with a risk perception [7,8]; anyway, generally, it is the marker for a specific situation or activity. Due to its nature, olfaction is becoming a tool of straightforward importance in various fields, such as food and beverage quality assessment [4,9,10] or illness detection [11]; in addition odour is more and more often regarded as an environmental concern [1217]: a complaint arises just from the personal sense of smell [1820]. The closer and closer proximity of industrial plants and farms, very often source of bad odours, to residential zones, really limits the acceptability of such activities and leads to citizen’s complaints [1,3,21]. Furthermore, odours strongly affect people’s daily life and health, as, although they do not represent a risk for human health, smells could cause both physiological symptoms (respiratory problems, nausea, headache) and psychological stress [2224].

The growing concern for human and environmental well being, along with the increasing air pollution complaints submitted to regulators and government bodies, has promoted the necessity for effective odour impact assessment and consequent odour emission regulation [21]. A careful investigation of the odours issue requires odorous air measurement by applying standardized scientific methods [1,2,25,26].

Instrumental approaches to the characterization of odorants are based on the evaluation of the odorous air chemical composition. First of all the odorous air needs to be collected for subsequent analysis: the traditional VOCs sampling methods, like adsorbers or metal canister and polymer bags, are taken into account. The sampling procedures ensure the sample integrity, preserve the odour originally associated to the sample, minimize losses and chemical-physical interaction between odorants and the sampler medium [27,28].

Gas Chromatography coupled with Mass Spectrometry (GC/MS) has been widely used to analyse air quality, in order to produce a list of substances involved and their concentration [29,30], but the main limit of this technique relies on the complexity of the odour: the perceived odour results from many volatile chemicals, often at concentration lower than the instrumental detection limit, that interact synergistically or additively according to unpredictable rules [1,2,4]. Furthermore GC/MS instrumentation is expensive and does not give information about human perception, thus not allowing a linear correlation between a quantified substance and an olfactory stimulus [31]. Nevertheless, to overcome these limits, some efforts have been done in order to study the behaviour of odourants in a mixture and the potential masking phenomena that may occur [32,33], and to assess a relationship between instrumental and olfactometric methods [34].

The most sensitive and broader range odour detector is undoubtedly the mammalian olfactory system, whose high complexity and efficiency derive from millions of years of evolutionary development. The limits of traditional instrumental techniques in the matter of odours has led to growing attention to odour measurement procedures relying on the use of the human nose as detector, in compliance with a scientific method [4,5,35]. As occurring in the trade industry (i.e., food, beverages, perfumes, etc.) for many years, the sensory evaluation of smells by means of panels of sensory trained evaluators has been the main odour assessment and quantification tool: the so-called dynamic olfactometry is the standardized method used for determining the concentration of odours and evaluating odour complaints [36,37]. This methodology is based on the use of a dilution instrument, called olfactometer, which presents the odour sample diluted with odour-free air at precise ratios, to a panel of human assessors. The examiners are selected in compliance with a standardized procedure performed using reference gases; only assessors who meet predetermined repeatability and accuracy criteria are selected as panelists. The odour concentration, usually expressed in odour units (ou/m3) is numerically equal to the dilution factor necessary to reach the odour threshold, that is the minimum concentration perceived by 50% of population [37,38]. According to European standardization, 1 ou/m3 is defined as the amount of odourant that, when evaporated into 1 m3 of gas air at standard conditions, causes a physiological response from a panel (detection threshold) equivalent to that of n-butanol (reference gas) evaporated into 1 m3 of neutral gas [37]. The perception of odours is a logarithmic phenomenon [39]; for this reason, in this kind of measurements it is necessary taking into account that odour concentration is associated to odour intensity though a defined logarithmic relation. Using other sensorial methods, subjective parameters, such as the hedonic tone or the perceived odour strength, could be assessed [37].

An improvement in odour determination consists of a GC-MS coupled with olfactometric detection (GC-MS/O) [40]. The gas chromatographic separation of an odorous air sample could be useful for identifying specific odorant components: GC-MS/O, thus, allows a deeper comprehension of the odorant composition as concerns the compounds’ identification and quantification, offering the advantage of a partial correlation between the odorant chemical nature and the perceived smell [41,42]. This instrumental approach tries to solve the odour complexity issue, which is also the main reason for the careful procedures required for the sampling of odorous air. Anyway the odour detection remains linked to the human perception. Although the careful choice of panel members and the use of standard procedures for odorous sample collection and analysis allow one to obtain reliable and repeatable olfactometric measures, thus overcoming the subjectivity due to the human olfaction variability, increasing attention is being paid to the availability of more objective odour evaluation methods.

The discovery of materials with chemo-electronic properties has provided the opportunity for the development of artificial olfactory instruments mimicking the biological system [4,9,43,44]. In the last decade a large field of scientific research has been devoted to the development of electronic-noses (E-Noses), that are sensor-based machines olfaction capable of discrimination between a variety of simple and complex odours. Like human olfaction, E-Noses are based on “an array of electronic-chemical sensors with partial specificity to a wide range of odorants and an appropriate pattern recognition system” [45]. In contrast to the ideal gas sensors, which are required to be highly specific to a single chemical species, sensors for E-Nose need to give broadly tuned responses like the olfactory receptors in the human nose: in both cases the odour quality information and recognition is ensured by the entire pattern of responses across the sensors array, rather than the response of any one particular sensor. Furthermore, mimicking the data processing in the biological systems, the incoming chemo-electronic signals are processed through the use of data reduction techniques (PCA); in both human and electronic noses, the function of odour recognition is finally achieved by means of some form of associative memory for the storage and recall of the previously encountered odours. A wide variety of competing sensor technologies (conducting polymers, piezoelectric devices, electrochemical cells, metal oxide sensors [MOX] and metal-insulator semiconductor field effect transistors [MISFETs]) are currently available: independently of the considered device, sensor elements have to show fast, reproducible and reversible responses to odour samples [43,46].

This review focuses on the state of the art of both human and instrumental sensing currently employed for odour assessment. The main features and the working principles of dynamic olfactometry and modern E-Noses, as monitoring tools for environmental analysis, are described. Papers comparing the performances of both techniques are finally reviewed in order to show the complementary responses of human and instrumental detection.

2. Sampling Methods for Odour Compounds

Sampling is a critical phase of the measurement procedure and requires particular attention in order to avoid sample losses due to sorption on the container or line surfaces and to minimize these interferences. Sample contaminations can easily occur if unsuitable or unclean materials are used; furthermore samples inevitably degrade or alter over the time: the choice of sample containers materials, the method for collecting odour and the time allowed between sampling and analysis are the main critical points of the sampling procedure [28,47].

Materials

Materials for odour containers and sampling lines must themselves be odourless, undergo minimal physical or chemical reactions with the air sample and have low permeability in order to minimize sample losses through diffusion and/or adsorption. Stainless steel, polytetrafluoroethylene (PTFE), tetrafluoroethylene hexafluoropropylene copolymer (Teflon™), polyvinylfluoride (Tedlar™), polyterephtalic ester copolymer (Nalophan NA™) and glass are considered appropriate materials for odour sampling [37,38]. Therefore, odorous air is usually collected in stainless steel containers, called canisters, polymer bags or on adsorbent materials [48].

Sampling Devices

Canisters are pre-cleaned evacuated cylinders useful for air sampling. Passivated canisters represent suitable devices for volatile and apolar molecules [49], as suggested by the most used standardized procedure [50]. The principal advantages of their use are that the air sample is collected without any breakthrough and there is no degradation of the trapping materials. Canisters need to be carefully conditioned and pretreated to avoid contamination problems and require complex sampling apparatus. Moreover the container volume is limited to a few liters, unless greater amounts of air samples are collected by means of pressurization, and they are more expensive than polymer bags [51,52]. Canister sampling does not work for dynamic olfactometry; only polymer-based bags are suitable for this use.

Polymer bags are mostly used for the collection of odorous compounds. In particular, sampling bags of materials such as Tedlar™ or Nalophan™ are considered appropriate [37,38,53]. Several researchers have investigated the features of plastic bags in order to verify the existence of background emissions. Keener et al. [54] and Trabue et al. [55] have shown that Tedlar™ bags emit acetic acid and phenol, which might bias air samples collected for olfactory analysis. Moreover, they have demonstrated that recovery of malodorous compounds is dependent on the residence time in the Tedlar™, bag with longer residence times leading to lower recovery. Reported background values in commercially available bags without pre-cleaning are in the range of 20–60 ou/m3 in Tedlar™ [56], 30–100 ou/m3 in Nalophan™ [57] or 2–30 ou/m3 and 10–50 ou/m3 in Tedlar™ and Nalophan™, respectively [58]. In these studies the authors have reported that flushing the bags with non-odorous air and, in some cases coupled by heating, background levels are reduced to about 10 ou/m3. Laor et al. [59] have tested the odour background from new bags and the impact of sample storage in both Tedlar™ and Nalophan™ bags, focusing on odours emitted from municipal sewage, aeration basins, sludge, livestock manure and coffee. They have verified that the odour background from new non-flushed Tedlar™ and Nalophan™ bags (in which fresh air have been stored for 24 h) is as high as 75–317 ou/m3 for Tedlar™ or 36–43 ou/m3 for Nalophan™. For pre-flushed bags the background is reduced to 25–32 ou/m3 for Tedlar™ or 19–22 ou/m3 for Nalophan™. This suggests that although new modern measurement systems allow us to detect very low odour concentrations, special caution is needed before considering values in the range of several to low tens of ou/m3.

Odour bags are filled using a depression pump that works on the basis of the “lung” technique; the bag is placed inside a rigid container evacuated using a vacuum pump [37,38,53]. This method avoids contamination because there is no direct contact between the pump and the sample. In order to get representative and reproducible results, it is necessary to adapt the sampling technique to the types of odour sources. In general, when a gas sample is very concentrated and/or it is very hot and humid, it is necessary to use a dilution device for avoiding condensation risks.

When sampling is performed by canisters or bags, the reactivity among the different compounds could compromise air sample stability and cause artifacts. For this reason, it is necessary that samples should be analyzed as soon as possible after sampling in order to minimize sample losses, degradation or alteration. Cheremisinoff [60] asserts that samples are still useful as long as 48 h after collection. In most cases, efforts are made to assess samples within 24 h of collection. The European Standard EN 13725/2003 states that odour samples must be analyzed within 30 h from sampling [37].

Sampling on adsorbent materials, packed in an appropriate tube, represents a handier sampling method than canisters and bags because it allows one to sample a great volume of air reducing the analytes in a small cartridge. The critical point is the choice of adsorbents (usually porous polymers or activated carbon, graphitized carbon black and carbon molecular sieves) [51,6163], that depends on the chemical features of the compounds to be sampled [52]. A combination of different adsorbents is preferred to sample a wide class of compounds without breakthrough problems [62]. The sampling on adsorbent materials can be applied in “active” or “passive” mode. In active sampling, a defined volume of sample air is pumped at a controlled flow-rate. Passive or diffusive sampling occurs by direct exposure to the atmosphere; the process is governed by the adsorption properties of sorbent and diffusion processes [6466]. The passive method does not require bulky and expensive pumps, that must be regularly checked, hindering field sampling, and it costs less than the active one. Moreover, particular care, on the choice of sampling volume, has to be taken to avoid breakthrough problems [51,52]. However, the active modality allows a greater and more accurate sampling volume. For both procedures the compounds can be recovered through thermal desorption or liquid extraction [65].

Sampling Auxiliary Devices

The sampling devices described in the previous section are used for odour concentration monitoring in ambient air or for punctual emissions. In case of areal emissions [67], auxiliary devices are employed, depending on source features. Areal sources can be distinguished as active or passive. The first ones are characterized by a measurable outward airflow (i.e., biofilters with forced aeration) while the latter do not have a measurable airflow (i.e., landfills, cumulus, tanks, etc.). In the case of areal sources, it is generally very difficult to cover the whole emission area during sampling; for this reason, representative sampling sites have to be established and it is necessary using particular auxiliary devices for collecting odorous samples [68]. The investigations are conducted using a hood or a wind tunnel, depending on the measurement conditions. According to German VDI 3475 Bl. 1 [69] and VDI 3477 [70] a static hood should be used for sample collection on active areal sources, selecting a portion of the area and convoying the odourous air into the stack placed over the hood. For passive areal sources, a wind tunnel is positioned over the emitting surface; a known neutral air flow is introduced into the device, simulating the action of wind on the liquid or solid surface [71,72]. Different papers have focused on the evaluation of the performance of the existing types of chambers, hoods and tunnels used to collect volatile materials samples under different operative conditions [73]. Hudson and Ayoko [28,72] have shown that estimates of odour emission rates are strongly influenced by the selection of sampling device. Comparison of emission rates derived from turbulent and essentially quiescent sampling devices confirms that the concentrations and emission rates provided by these devices are quite different. Moreover emission rates measured with these devices are subject to external influences, including ambient wind speed and direction and the permeability of the emitting surface [72]. For improving the performance of these devices and optimizing efficiency parameters, special sampling chamber extension and a sampling manifold with optimally distributed sampling orifices have been developed for the wind-tunnel sampling system [74] and a suitable sampling system has been designed for the simulation of specific odour emission rates from liquid area sources without outward flow [75].

3. Sensory Methods

Sensory measurements employ the human nose as the odour detector, relating directly to the properties of odours as experienced by humans. Sensory measurement techniques can be divided into two categories:

  • Quantitative measurements which couple the nose with some instrumentation;

  • Parametric measurements in which the nose is used without any other device.

3.1. Instrumental Sensory Measurement

Dynamic Olfactometry

Instrumental sensory measurements employ the human nose in conjunction with an instrument, called olfactometer, which dilutes the odour sample with odour-free air, according to precise ratios, in order to determine odour concentrations.

The variables which will affect olfactometric measurements [12] are:

  • - olfactometer design;

  • - test procedure;

  • - differing sensitivity of observers;

  • - data quality;

  • - measurement uncertainty.

Olfactometer design. The materials used in olfactometer construction should not cause sample contamination or alteration through adsorption/desorption. Low-adsorbency materials such as stainless steel, Teflon, Tedlar™ or glass are used and internal surface areas are minimized. Risks of contamination can be prevented also supplying neutral air between the successive presentations.

Test procedure. In the choice of the order of sample presentation to the panel, it is important to consider that a descending order can enhance the effects of adsorption/desorption, and moreover it could provoke olfactory adaptation in panelists, since a weak odour (highest dilution) is more difficult to detect after exposure to a strong odour (lower dilution). Nevertheless, when dilutions occurr in a stict order, this kind of presentation can affect the panel response, because panelists expect subsequent samples to be weaker or stronger. Among these problems, the effects due to the choice of a descending order are more relevant, so an ascending order presentation is preferred [12].

There are two standardized methods for the presentation of odour sample to the panel: forced choice and yes/no method [37,38,53]. In the forced choice method, two or more sniffing ports are used; the odour sample is presented at one port, and neutral air at the other port(s). In this case, the examiners have to compare the different presentations and to choose the port from which odour exits. In the yes/no method each examiner sniffs from a single port and communicates if an odour is detected or not. Odour samples diluted with neutral air or only neutral air can exit from the sniffing port.

Sampling odour mixtures at different dilutions are presented to a group of selected panelists for sniffing and their responses are recorded. Generally, the first mixture presented to an odour panel is diluted with a very large volume of air in order to be undetectable by the human nose. In subsequent presentations, the volume of diluent is decreased by a predetermined and constant factor. After having set the factor, it is possible to create a geometric progression of dilutions (for example power factor of two: 216, 215, 214,…) useful to describe the logarithmic relation between odour intensity and concentration [39]. The process continues until each panelist positively detects an odour in the diluted mixture; at this stage the panelist has reached the detection threshold for that odour [37,38,53]. This threshold is calculated as the geometric mean between the dilution of the last negative answer and the dilution of the first positive answer. The geometric mean is preferred for taking into account the logarithmic relation between odour intensity and concentration [39]. Different measurement cycles are carried out and the final result is calculated as the geometric mean of the values obtained for single series, as mentioned before [76].

The concentration is expressed as the dilution required for achieving panel detection threshold. Mathematically, the concentration is expressed as [77]:

C = V 0 + V f V 0
where C is the odour concentration, V0 the volume of odorous sample and Vf the volume of odour-free air required to reach the threshold.

By analogy, for a dynamic olfactometer the concentration is given by:

C = Q 0 + Q f Q 0
where Q0 is the flow of odorous sample and Qf the flow of odour-free air required to reach the threshold.

The concentrations may be expressed as threshold odour numbers (TON) or dilution to threshold (D/T) ratios. Although the concentrations are dimensionless, it is common to consider them as physical concentrations, and to express them as odour units per cubic meter (ou/m3) [77,78].

Sensitivity of observers: panel selection. Panelists are qualified examiners used as sensors in olfactometric analysis and their olfactive response (odour threshold) is the measured parameter for calculating odour concentrations. However, the sensitivity to odours is variable among different individuals, so panelists could indicate different odour concentrations for the same sample. This effect is minimized because the examiners are selected according to a standardized procedure in order to choose individuals with average olfactive sensitivity, who constitute a representative sample of human population [37,38,53,79]. The screening is usually performed using reference gases [37,38,53,79]. In particular, the most used reference gas is n-butanol and only assessors who meet predetermined repeatability and accuracy criteria for this gas are selected as panelists [37]:

  • - average n-butanol odour threshold in a range of 20–80 ppb (40 ppb represents the accepted odour threshold for n-butanol)

  • - antilog standard deviation of individual responses less than 2.3.

Panelists must be continuously screened and trained and they must observe a simple behaviour code [34,35,50], whose fundamental prescription is that panelists impaired by illness caused by a cold or other indispositions are excluded from measurements.

Olfactometric data quality. Olfactometric data quality can be estimated according to two sources of uncertainty: the panel referability to a standard and the coherence of panel responses. In order to ensure the referability, the laboratory performances are evaluated by accuracy and precision measures. The assumption is that the laboratory performance to the standard odourant can be transferred to all odours tested by the laboratory. An example of criteria applied to verify the laboratory performance is reported as follows [37]:

  • - Aod ≤ 0.217, where Aod indicates the laboratory accuracy;

  • - r ≤ 0.477 or 10r ≤ 3.0, where r indicates the laboratory precision, meaning that the difference between the results from any two consecutive measurements will not be larger than a factor three (3.0) for 95% of the cases.

The coherence of panel results can be estimated according to a validation procedure that permits one to exclude panel members who give invalid responses. An example of this type of procedures is represented by “retrospective screening” [37], based on the valuation of ΔZ parameter, calculated for each individual panel response as the ratio between the individual threshold value ZITE and the geometric mean of all individual threshold values ITE obtained during a measurement sequence:

If Z ITE Z ¯ ITE then Δ Z = Z ITE / Z ¯ ITE
If Z ITE < Z ¯ ITE then Δ Z = Z ¯ ITE / Z ITE

This parameter must satisfy the following relation:

5 Δ Z 5

If one or more individual threshold values do not satisfy this criterion, then all responses given by the panel member with an inadequate ΔZ must be eliminated by the final result and the procedure is repeated until all data provided by panel member are consistent with the criterion. The ΔZ parameter indicates the coherence of panel members’ responses and puts in evidence the gaps eventually present compared to the mean. Moreover, so a measurement may be considered valid it is necessary that each panel member does not commit mistakes of more than 20% for the detection of neutral air [37].

In addition to these standardized procedures, different studies have focused on the determination of the analytical characteristics of the olfactometric method (reliability and robustness) with the purpose of determining the operating conditions influencing the final uncertainty associated with the measurements. In this field additional procedures for improving accuracy and repeatability of olfactometric measure, by optimization of panel selection [80], or by editing a quality control protocol based on interlaboratory comparison studies [8183] have been evaluated. Moreover, panel repeatability tests have also been performed by presenting to panelists the same environmental odour sample or standard odorant multiple times during one test [84,85]. During these experiments, it has been shown that the time exposure affects panel response and that the optimal duration for the employment of analysts in a measure session is equal to two hours. By applying statistical methods, such as ANOVA, it has been demonstrated that olfactometric variance is mainly affected by within group variance compared to between group variance [84,85].

Measure uncertainty. Different attempts have been carried out for estimating a total uncertainty to assign to olfactometric measurements. As specified before, in this evaluation it is necessary to take into account the fact that the relation between odour intensity and odour concentration is logarithmic [39]. For this reason, the confidence interval is not symmetric around the average value [83,84]. It is possible to calculate an upper (UL) and a lower limit (LL) of the 95% confidence interval of the odour threshold, according to the following relations [86]:

lg Z UL = M + t s / N
lg Z LL = M + t s / N
where:
t

Student factor depending on f = L – W – 1

f

number of variances

L

total of measuring sequences

W

number of measuring sequences for series of measurements

N

number of panelists

M

arithmetic mean

s

standard deviation

Field Olfactometric Measurements

It would be ideal to carry out odour measurements directly at the odorous site, allowing continuous sampling of the odour without the need for storage. Unfortunately, this approach involves the need to isolate the panel of observers from the surrounding environment and to maintain them in an odour-free environment to prevent olfactory adaptation or fatigue. Usually in situ measurements can be performed using mobile laboratories even if their provision is much expensive. Instead of direct olfactometry, it is preferable to collect odour samples in situ and transfer them to an off-site odour laboratory for the assessment.

In 1958 the U.S. Public Health Service sponsored the development of an instrument and a procedure for field olfactometry (a technique only suitable for ambient odour concentration measurements). The first field olfactometer, called scentometer, is a hand-held device that allows one to evaluate odours on site. A field olfactometer creates a series of dilutions by mixing the odorous ambient air with odour-free (carbon-filtered) air. The U.S. Public Health Service method defines the dilution factor as Dilution to Threshold, D/T. The Dilution-to-Threshold ratio is a measure of the number of dilutions needed to make the odorous ambient air non detectable.

The advantages of scentometry are that it is economically attractive and readings are taken on site. Disadvantages include odour fatigue, because it is difficult not to expose the sniffer to the ambient environment (which is often odorous) before the scentometer is used, lack of dilution options and inability to rate sniffers against their ability to sense a known reference concentration. Because this test is conducted on site, some concern has been expressed regarding the ability of the sniffers to remain objective when they are seeing sources of odour emissions. These include rapid saturation of olfactory senses by some odorants, individual variation in sensitivity to different odours, fatigue as a result of adaptation, and changes in climatic variables (temperature, humidity, and wind speed) when measuring odours under field conditions, as well as effects of age, gender, health and personal habits on the sense of smell of individual panelists [87,88].

Two commercially available field olfactometers include the original scentometer, developed in the late 1950s, and the Nasal Ranger™, introduced to the market in 2002. These devices are used in studies regarding the evaluation of odour impact and have been compared with dynamic olfactometry or electronic noses [88], showing that Nasal Ranger field olfactometer is efficient at measuring livestock farm odour, and can provide consistent and accurate measuring results.

Hybrid Instrumentation: Gas Chromatography-Olfactometry (GC-O)

The opportunity of using sensory perception for the development of conventional instruments for chemical analysis has been investigated. Gas chromatography-olfactometry (GC-O) technique couples the traditional gas chromatographic analysis with sensory detection, in order to study complex mixtures of odorous compounds [40]. The GC-olfactometer consists of a traditional GC where a split column distributes the eluate between a conventional detector, such as a flame-ionization detector (FID) or a mass spectrometer (MS), and a sniffing port where a properly trained person or panel could detect the active odour species. All commercially available olfactometric ports are glass or PTFE cones, fitting the nose shape; the eluate is delivered through a dedicated transfer line which is heated to avoid the condensation of semivolatile analytes. In order to prevent the nasal mucous membrane drying, especially in long time analysis, auxiliary gas (humid air) is added to the eluate [89,90]. The sensory responses are recorded in an olfactogram: the eluate splitting occurs allowing the analytes to reach both human and instrumental detectors simultaneously, in order to compare the chromatogram with the olfactogram [89,91].

The combination of a mass spectrometer with an olfactometric detector is particularly advantageous as it allows the identification of odour-active compounds. Anyway, to avoid different retention times due to the different working pressure of the two detectors (a mass spectrometer and an olfactometer work under vacuum and atmospheric pressure conditions, respectively), particular attention is required for device assembling and in the choice of carrier and auxiliary gas flows [92].

Several methods have been developed to perform both qualitative and quantitative evaluation of the odour related to each analyte leaving the chromatographic column [89,93]. Dilution analysis methods, such as Charm (Combined Hedonic Aroma Response Measurement) Analysis [89,91,94,95] and AEDA (aroma extract dilution analysis) [89,91,96], are based on stepwise sample dilution, usually by a factor of two or three: each dilution is sniffed until no odour is detected, thus the highest dilution factor (FD) still allowing the odour perception is the odorant FD value. In the AEDA olfactogram each odorant is represented by a bar whose height is proportional to the odorant FD. In the Charm Analysis the beginning and the end of each odour perception is also taken into account, thus the olfactogram peaks combine the smell duration with the odour concentration [89,91]. Detection frequency methods use a group of assessors instead of one or two of them: the odour intensity of each compound is measured by means of the number of evaluators simultaneously detecting the odour at the sniffing port [97]. In direct intensity measurement methods, the intensity of the odour of the eluting compound is measured by means of different kinds of quantitative scales, thus single, time-averaged measurements, measurement registered after the elution of the analyte (posterior intensity evaluation method) or dynamic measurement (OSME, fingerspan method) are used [89,90,98]. The GC-O technique indicates the relevance of some chemicals in an odorant allowing the assessment of single compounds, but it does not provide information on their behaviour in a mixture [89].

The GC-O technique is widely used for the evaluation of food aromas [41,89,99102], but its application in the environmental field is increasing, thus moving the odour emission assessment, from the solely olfactometric evaluation to the characterization of volatile components causing the odour nuisance. Odours emitted from animal production facilities have been often investigated by the GC-O approach in order to identify the compounds responsible of the primary odour impact and produce a deep screening of VOCs emitted in such activities by applying the GC-MS analysis [42,103112]. It is often found that some compounds, due to their low odour threshold, can generate a high olfactory stimulus also at very low concentration; furthermore some odours are perceived at the olfactometric port also when the odorant compound is below the instrumental detection limit. Anyway the GC-O technique does not allow the evaluation of the additive and/or synergic effect of the single odorants in the true odour mixture, it limits its use to quantify the overall odour intensity [103106].

Due to the high complexity of real odorous air samples, multidimensional GC is revealing a more powerful tool to allow a better livestock air resolution [42,108111]. MDGC-O has also been employed to investigate the VOCs-odour-particular matter (PM) interactions, as suspended particulate is an important odour carrier [112].

3.2. Parametric Sensory Measurements

Parametric sensory measurements have the advantage of being quick to obtain at relatively low cost, as no particular equipment is required. Particular care has to be taken for interpretation of results due to the variation in odour perception, even for well-trained personnel [77]. Parameters which may be subjectively measured include odour character, odour intensity and hedonic tone.

  • - Odour character, often called odour quality, is a nominal scale of measurement. Odours can be characterized using a reference vocabulary with a standard list of descriptor terms [113].

  • - Perceived odour intensity is the relative strength of the odour above the recognition threshold (suprathreshold). Odour intensity is measured using several methods, including: descriptive category scales, magnitude estimation, and reference scales. There are several scales that usually employ 3–10 categories and panelists must assess the intensity of the sample according to the specified scale. The most common applied scale counts six categories [60,78,114] from no odour to very strong odour.

Systematic measurements on wastewater plants and waste treatment facilities and landfills have demonstrated that the intensity level of 3 (in a scale of six categories, it represents a distinct odour) is associated with an odorant concentration of approximately 4 ou/m3 [76].

Magnitude estimation is a procedure that compares the intensity of one odour with another odour. In this case, the assessor assigns an arbitrary value of intensity to the first odorant perceived and then attributes another value to the second sample on the basis of the first. This method is very difficult to apply to different types of odours, and is best suited for comparing similar odours [113].

The American Society for Testing and Materials recommends an intra-modal factory matching procedure with the use of an odour reference scale for the evaluation of suprathreshold odour intensity [115]. This standard presents two methods for referencing the intensity of ambient odours to a standard scale: dynamic-scale and static-scale. For dynamic scale dynamic olfactometry procedure is used, for static scale a test by a set of bottles with fixed dilutions of a standard odorant in a water solution [113] is performed.

  • - Hedonic tone defines the pleasantness and unpleasantness of an odorant. A method for determination of hedonic odour tone has been standardized [116]. Dilutions are presented through an olfactometer to the panelists. If the panelist detects an odour, the hedonic odour tone of the perceived concentration must be evaluated according to a category scale ranging from −4 (“extremely unpleasant”) through zero (“neither pleasant nor unpleasant”) to +4 (“extremely pleasant”) [76]. The influence of hedonic tone and intensity as suitable parameters for valuating odour impact and odour annoyance for residents living in the area surrounding industrial activities has been studied in several scientific works and taken into account in some government guidelines [17,21,117119].

4. Electronic Noses and Olfaction Systems: Overview and Principles of Operation

Despite the importance of our perception of odour and flavour, there are problems in comparing different persons’ experience of smell and in quantifying odour. This need has created a desire for a more analytical approach to the quantitative measurement of odour. For this purpose the field of instrumental analyzers such as Electronic Noses (E-Noses) and Olfaction Systems (Machine Olfaction) has been developed in response to this desire [120,121].

The Electronic Nose is a device developed to reproduce the human olfactory system. It consists of three main parts:

  • - sampling system of odours to be analyzed;

  • - sensor system based on array of multiple sensing elements, or chemical sensors;

  • - data analysis and signal processing unit for feature extraction and significant information.

The response of the chemical sensors with partial selectivity is measured upon exposure to the sampled odour or multicomponent gas-mixture. The pattern based on the overall response of a sensor array defines a chemical fingerprint related to a given sampled odour. The recorded data of the sensors array response towards various odours can be usually processed by pattern recognition techniques (i.e., artificial neural networks, multivariate statistical analysis) for their classification in order to identify odour and quantify the concentration. A proper set of features can be extracted from the recorded dataset to enhance the classification of odours without loss of significant information.

Despite the efforts to arrive at a universal device that can achieve fine discrimination of flavours, perfumes, smells, odours, analytes, and eventually replace the human nose, the E-Nose is not a chemical analyzer and thus must be trained for any specific application. However, this technical limitation of the E-Nose is combined to the potential ability of human odour sensing by increasing the number of performing individual sensors. This ability of the E-Nose to operate as biomimetic mammalian olfaction should be demonstrated yet. Nevertheless, there are strong drivers to apply E-Noses in the field of olfaction because alternatives, e.g., human test panels, either are not practicable or are too expensive and time-consuming/ In particular, E-Noses offer the advantages of real-time, in situ and remote control for olfactometric controls of air-emissions.

The term electronic nose first appeared in the literature in 1988 proposed by Gardner [122], it was discussed in a workshop on chemosensory techniques [123], and finally defined in 1994 [45]. Gopel et al. [124] in 1990 demonstrated the application of multicomponent analysis in chemical sensing for gas and odour detection. Ryan et al. [125] from NASA employed an E-Nose in the Space Shuttle to monitor air quality in the cabin. D’Amico et al. [126] demonstrated the monitoring of biological odour filtration in closed environments with olfactometry and electronic noses. Sberveglieri et al. [127] proposed a comparison of the performance of different features in sensor arrays for an E-Nose. Gardner et al. [128] proposed the development of a new olfaction system, called electronic Mucosa (e-Mucosa), based on advanced pattern recognition algorithms for space and time classification of odorants. Romain et al. [129] recently reviewed the use of metal oxide gas sensors for E-Nose environmental applications.

The detection of odours has been applied to many industrial applications. They include indoor air quality, health care, safety, security, environmental monitoring, quality control of beverage/food products and food processing, medical diagnosis, psychoanalysis, agriculture, pharmaceuticals, biomedicine, military applications, aerospace, detection of hazardous gases and chemical warfare agents.

Chemical Sensors for E-Noses: Materials and Transducers

Chemical sensors for E-Nose applications need to be responsive to molecules in the gas phase. Many different types of gas sensors are available and some of them have been used in E-Noses at one time or another; however, nowadays, commercial instruments take into account two main types of gas sensors (metal oxide [MOX] and conducting polymer [CP] resistive sensors). Recent studies are focused on the evaluation of other types of solid-state gas sensors.

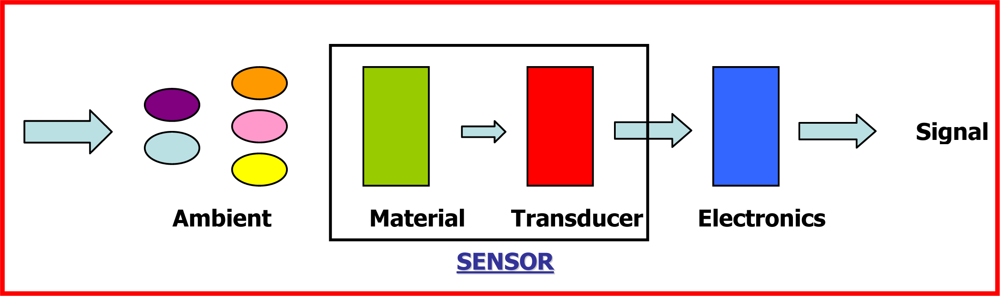

Chemical sensors comprise an appropriate and chemically-sensitive material interfaced to a transducer, as shown in Figure 1. Hence, the solid-state sensors are essentially constituted by a chemically sensitive interface (sensitive material) and a transducer able to convert a chemical input (gas concentration or ions concentration) and/or physical input (temperature, pressure, acceleration, etc.) into an output, generally an electrical signal, by means of a conditioning and/or signal processing electronics [122]. The input magnitudes or measurands include chemical and/or biological magnitudes such as concentration and identity of unknown species in gaseous or liquid phase, other than physical general magnitudes such as temperature, pressure, speed, acceleration and force. A transduction process is realized by converting the input-event or measurand into an output electrical signal (analogue voltage or current, digital voltage) correlated to the measurand that generates it. The output electrical signal is properly conditioned, processed and stored for analysis.

Gas sensors, based on the chemical sensitivity of semiconducting metal oxides, are readily available commercially and have been more widely used to make arrays for odour measurement than any other single class of gas sensors. An in-depth overview on sensor materials for odour detection can be found in literature [130,131]. The most common sensor materials for odour measurements are listed in Table 1.

The classification of chemical sensors can be realized according to the transducer used. The various categories of solid-state chemical sensors are differentiated by the physical principle of the signal transduction by distinguishing the following transducers: conductometric (resistive), optical, electrochemical, mechanical/acoustic or ultrasonic, thermal and MOSFET. A detailed classification of the solid-state chemical sensors is given in Table 2, showing the principle of operation, the methods of sensor fabrication and some technical comments. Additional definitions and principles of operation have been reported in literature [132,133].

The measurements of the odour concentration by solid-state sensors implemented in the E-Nose should be standardized. Hence, the definition of the sensor parameters is essentially in this issue [132,133].

The main sensor parameters are:

  • - Sensitivity: is a measure of the magnitude of the output signal produced in response to a given input magnitude (perturbation/stimulus), or the ratio between two non-homogeneous magnitudes output signal/input measurand.

  • - Response time: indicates the time that the sensor signal takes to pass from 10% to 90% of its excursion to reach a new steady state, during the response dynamics.

  • - Recovery time: indicates the time that the sensor signal takes to pass from 90% to 10% of its excursion to reach a new steady state, during the recovery dynamics.

  • - Resolution: is the measure of the minimal variation of the input magnitude to which the sensor is able to response for a given signal-to-noise ratio, at a fixed working point.

  • - Limit of Detection (LOD): is the minimum gas concentration that a sensor is able to detect for a given signal-to-noise ratio.

  • - Selectivity: characterizes the capability of the sensor to distinguish a given input magnitude from another measurand belonging to a different class.

  • - Drift: is the attitude of sensor output signal caused not by an external input but by intrinsic reasons (sensor material, electronics) of the sensor.

  • - Stability: is the attitude of the sensor to keep constant in the time its metrological characteristics; in other words, its response in the time.

  • - Repeatability: is the attitude of the sensor output signal towards a given fixed input measurand in different repeated measurements.

Applications of E-Noses for Environmental Analysis

The application sectors of E-Noses for odour monitoring are indicated as follows:

  • - measurement of odours produced by factories causing a public nuisance

  • - measurement and quantification of airborne odours from other sources: sewage farms, waste sites, agricultural activities, cattles, cars, etc.

  • - measurement of odours inside buildings that may arise from harmful building materials, faulty heating, ventilation systems

  • - measurement of odours in workplaces to preserve worker health.

Many multiparameter portable sensor-systems have been studied and exploited in field measurements for air quality control of toxic pollutants (NOx, CO, SO2, H2S) [134], greenhouse (CO2, CH4) [134,135], refrigerant gases [135], warfare agent simulants [136] with wireless functionalities [137] in urban areas [138] by using traditional (chemoresistive) [134,135,139,140] and innovative (SAW) [136,141] transducers.

Moreover, practical portable devices [142145] have been developed for odour monitoring of landfill municipal sites and for odour quantification by a sensor array. In particular, Persaud et al. [143145] used a single-point E-Nose instrument for continuous monitoring along the perimeter of a municipal landfill site by measuring methane and carbon dioxide as main components in a biogas produced by waste fermentation.

Additionally, the E-Nose has been applied in in situ measurements [146153] for the identification of malodours sources [149], to control odour concentration emitted from a malodour agricultural site [147] and a compost hall [151], to monitor the odour emission from construction materials [150] and for the classification of fruity odours [153], including odour emissions from a biofiltration system in a pig farm building [152].

The new trends in the odour detection are strongly driven by nanotechnologies and nanomaterials [154157]. Nanotechnology has attracted a lot of attention recently, particularly in the research and industrial communities. It offers many opportunities for advancing our ability to impact on day-life and environment. The ability to design, synthesize and manipulate specific materials at nanoscale lies at the very heart of the future promise of nanotechnology. Nanomaterials may have unique physical and chemical properties not found in their bulk counterparts, such as unusually large surface area to volume ratios or high interfacial reactivity. Such properties can be useful to develop new chemical capabilities arising from exciting new classes of nanomaterials (e.g., nanotubes, nanowires, nanocrystals, nanoparticles, etc.). Several studies concerning the use of nanomaterials as gas sensor materials have been reported in literature. Penza et al. [155] studied an array of four sensors based on carbon nanotube layers functionalized with metal catalysts for landfill gas monitoring applications. Lieber et al. [157] developed an individual silicon-nanowire to implement a field effect transistor (FET) functionalized with DNA and proteins for detection of biological and chemical species in the area of healthcare and life sciences. This device may be called a nanosensor. However, these nanosensors based on individual nanowires have been integrated by Cheng et al. [154] in an array of multiple sensing elements to implement a nanoelectronic nose based on hybrid nanowire/nanotubes and micromachining technology for sensitive gas discrimination. This nanoelectronic nose has great potential to detect and discriminate a wide variety of gases, including explosives, nerve agents and odours.

5. Olfactometry and E-Noses: Comparison and Integrated Approach

As concerning the different techniques applied to odour determination previously discussed, whose characteristics are summarized in Table 3, it was shown that no one of the described techniques is able alone to give exhaustive informations about the odorous emissions from different kinds of human activities that may cause olfactory nuisance. Therefore, a comparison and/or an integration of the olfactometry methods with the technologies of sensorial analysis is necessary to completely evaluate odour impact [158].

Several correlations can be observed between trends in the discrimination properties of the electronic nose and the human olfactory system [159]. Since E-Noses are not able to provide odour concentrations, many authors have focused their attention on the research of a correlation between olfactometric and sensorial results in order to realize a fast, portable and not very expensive device to carry out frequent odour measurements in case of complaints from the public or in presence of unstable odour compounds.

The dynamics of odour emissions from a pig barn have been investigated by olfactometry and using an electronic odour sensor. The sensor signals showed a good relation to the odour concentration and revealed a promising potential of electronic odour sensors to detect the dynamic and the level of odour concentrations [160].

On samples from pig and chicken slurry electronic nose measurements based on polypyrrole sensors have been evaluated against odour concentration measurements by the olfactometric technique; electronic nose sensitivity was found to be lower than the olfactometry one, showing the need to develop sensors to specific groups of compounds [161].

Thus, an electronic nose equipped with 14 gas sensors suitably selected for measuring odorous components from livestock farms has been developed. The responses of the sensors have been found to be in good agreement with the perceived odour intensities of a portable field olfactometer [88], and both the data sets, used to train an expert system for supporting odour management of livestock and poultry farm, have made possible to forecast the effectiveness of odour control efforts before those control means were applied [162].

An electronic nose based on conducting polymer sensors, has been widely applied in the analysis of odour samples from swine manure sources coupled with a NH3 and a H2S sensor [163,164] and as an alternative to sensory analysis for assessing the effectiveness of biofilters, showing good correlation with odour concentrations [165]; together with olfactometry and gas chromatography to analyze indoor air from swine finishing facilities, instead, the correlation between GC/MS analyses and E-Nose was found better than between E-Nose and olfactometry. This result suggested that human panelist responses may be based on detection of compounds that are not included in GC/MS quantification procedures and are not well detected by this electronic nose [166].

An electronic nose was used in an experimental farm to quantify the odour level inside the animal room and a good correlation was found with the olfactometric results on the same samples. E-Nose results showed an evolution of the odour with animal activities during the day and with their age [167].

Sohn et al. used an artificial neural network, trained by the data sets obtained with an electronic nose and dynamic dilution olfactometry, to predict the pig farm odour concentrations emanating from an effluent pond and to develop a confident, rapid, and cost-effective technique for odour measurement [168]; in addition they demonstrated the relationship between odour emission rates and pond loading rates on pig farm effluent ponds and the increased magnitude of emissions from a heavily loaded effluent pond [169].

As concerns livestock farms, they also employed olfactometry and electronic nose results to demonstrate the odour monitoring capability of a non-specific conducting polymer-based array for evaluating the performance of a biofiltration system installed at a commercial pig farm [152] and to develop an odour prediction model using PLS (Partial Least Squares) to investigate the relationship between odour concentrations inside the poultry shed and factors such as weather, bird age, ventilation rates and other variables associated with the broiler production cycle [170].

Agricultural sources can also be a source of complaints, so a device able to carry out field measurements is required. After application of cattle slurry to grassland, two olfactometers and two electronic noses were used, demonstrating the ability of both E-Noses to respond to the odour concentrations arising from cattle slurry applications at levels which would be similar to those from a range of agricultural sources [171].

Applying PCA (Principal Component Analysis) and then PLS regression, a good correlation between odour units and sensors data of E-Nose has been found in odour measurements from a rendering plant bio-filter inlet and outlet [172], and in investigations on the organic fraction of municipal solid waste [173], demonstrating that a correctly calibrated E-Nose could replace olfactometry as a tool for odour impact measurement.

On the other hand, studying samples from different sewage treatment works, a comparison between results of an electronic nose and dynamic olfactometry showed there is no universal relationship between the electronic nose responses and odour concentrations for sewage odours from a range of locations within different treatment works, but only for odour samples which are source/site specific [174,175]. The same result was obtained also on wastewater samples from different treatment works. [176].

Experimental studies have been carried out with an E-Nose to determine the detection limits of the selected sensors, using olfactometric measurements of odour detection threshold concentration, and the sensors capability of discriminating different odours in waste treatment plants. The sensors characterized by low detection limits for the considered odorants, also showed a good capability of discriminating these odorants from each other [177].

Moreover the use of a chemosensor system, calibrated with olfactometric data on a waste incineration plant, allowed continuous monitoring behind a charcoal filter and thus the identification of filter breakthrough [178].

Among the human activities that may generate problems related to unpleasant odour emissions, landfills represent one of the major causes of odour complaints [16]: they are difficult to monitor as they are characterized by a great variety of substances that may cause odour nuisance and then they require the use of more than one technique for odour determination.

For a complete characterization of odours at a landfill, Capelli et al. collected samples in different zones inside the plant, at the boundaries and at the receptors, and analyzed them with different techniques: olfactometry enabled a quantification of the landfill odour emissions, giving indicative values of sensory impacts; chemical analyses with GC-MS were useful to analyze odour composition, and electronic noses (two at the boundaries and one at the nearest receptor) were used as a management tool in order to monitor site changes or operational failures. This study has shown that even if the results of the three different odour characterization techniques do not necessarily correlate, each one contributes to solve the complexity of odour measurement in the environment [179].

Other comprehensive investigations on landfill areas used olfactometry with a dispersion modelling, odour patrol monitoring and an E-Nose [180]; dynamic olfactometry, field determination of odour perception points and electronic noses to create a calibration curve that allowed the translation of the global E-Nose response into odour concentration units that could be compared to a warning threshold concentration [181]. Another approach was carried out using results of olfactometric analysis as the input for a dispersion model and two electronic noses for continuous monitoring to determine the landfill odour impact on a specific receptor, and a very good correspondence of the electronic nose responses with the odour detections reported by the people living at the receptor and with the result of the odour dispersion modelling was found [182].

Some authors used data sets, obtained by evaluating odour samples with both an olfactometer and an electronic nose, to train artificial neural networks (ANN) and develop a function to convert the measurements of an electronic nose into odour concentrations. The odour concentrations measured with the olfactometer have been used as observed values, and the responses of the electronic nose as input variables [183]. Using this technique on composting plants, it was possible to get characteristic patterns only for different parts of the plant, but, for these parts a good similarity between the samples was shown [184].

For the estimation of odour disturbances from the biofilters for the treatment of emissions from a municipal solid waste organic fraction composting plant, dynamic olfactometry has been used to determine odour intensity and to verify the standards of odour disturbance in combination with an electronic nose. Once a correlation between the two methods was established, it was possible to carry out frequent quantitative determinations of the biofilter emissions by simply using the electronic nose, with consequent lower costs than dynamic olfactometry analysis [158].

The possibility of monitoring the time evolution of the odour concentration has also allowed the use of an electronic nose suitably calibrated by olfactory measurements to supply a warning signal when the compost odour is identified and exceeds a given threshold [151].

A problem that requires continuous monitoring, is the assessment of the presence of odours at a particular receptor, like a house whose owners often complain about the unpleasant odours originating from a nearby plant. For a composting plant the electronic nose response has been correlated with the odour concentration values measured by dynamic olfactometry in order to use the instrument for the continuous odour concentration measurement. Two electronic noses have been installed in the house and in the composting plant; in correspondence to the measurements during which the electronic nose inside the house detected the presence of odours from the composting plant, the olfactory classes recognized by both instruments coincided. Moreover, the electronic nose at the house detected the presence of odours from the composting plant at issue in correspondence of each odour perception of the house occupants [185].

An E-Nose was trained to analyze different gas samples of known olfactory quality at different odour concentration values, and then installed in two different periods at two receptors of a composting plant. Applying an appropriate data analysis, a high correlation index was found between true and predicted odour concentration values, thus demonstrating that an opportunely trained electronic nose and suitable data processing methods may represent a valid solution to the problem of having a system for continuously monitoring odours of environmental interest [186].

6. Conclusions

The increasing attention of the population to olfactory nuisances and the need to provide a reliable qualification and quantification of odours has led to the development of different odour measurement techniques. In particular, instrumental sensory methods and chemical sensors have been described, showing the advantages and disadvantages of each technique.

Although dynamic olfactometry represents the standardized objective method for the determination of odour concentration, it is affected by some limitations. First of all dynamic olfactometry provides point odour concentration data, however, it is not sufficient to evaluate completely a case of olfactory nuisance because it does not allow one to perform continuous and field measurements, useful for monitoring the industrial processes causing odour emissions. Moreover, dynamic olfactometry considers the whole odour mixture and do not discriminate the single chemical compounds and their contribution to the odour concentrations. Odour samples are difficult to store, because of their instability, and, therefore, require rapid time of analysis. Finally, as it is well-known, olfactometry is too time-consuming and quite expensive and moreover frequency and duration of analysis are limited.

On the other hand, electronic noses present lower analysis costs and quick results and they allow one to carry out continuous monitoring in the field nearby sources and receptors. After a training step, electronic noses are able to preview the class of an unknown sample and then to associate environmental odours to a specific source.

Since each technique satisfies only a part of the problems of odour monitoring, many authors have focused their attention on carrying out comparisons and integrations between olfactometry and E-Nose results. These applications show the opportunity of using more than one approach for describing and understanding olfactory nuisance cases as completely as possible.

References and Notes

  1. Yuwono, AS; Lammers, PS. Odor pollution in the environment and the detection instrumentation. 2004, 1–33. [Google Scholar]
  2. Vincent, A; Hobson, J. Odour Control; Terence Dalton Publishing Ltd.: London, UK, 1998. [Google Scholar]
  3. Stuetz, R, Frechen, FB, Eds.; Odours in Wastewater Treatment: Measurement, Modelling and Control; IWA Publishing: London, UK, 2001.
  4. Craven, MA; Gardner, JW; Bartlett, PN. Electronic noses—Development and future prospects. Trends Anal. Chem 1996, 15, 486–493. [Google Scholar]
  5. Pearce, TC. Computational parallel between the biological olfactory pathway and its analogue “The electronic nose”: Part I. Biological olfaction. BioSystems 1997, 41, 43–67. [Google Scholar]
  6. Freeman, JW. The physiology of perception. Sci. Am 1991, 264, 78–85. [Google Scholar]
  7. Rosenkranz, HS; Cunningham, AR. Environmental odor and health hazards. Sci. Total Environ 2003, 313, 15–24. [Google Scholar]
  8. Dalton, P. Upper airway irritation, odor perception and health risk due to airborne chemicals. Toxicol Lett 2003, 140–141, 239–248. [Google Scholar]
  9. Peris, M; Escuder-Gilabert, L. A 21st century technique for food control: Electronic noses. Anal. Chim. Acta 2009, 638, 1–15. [Google Scholar]
  10. Suffet, IH, Mallevialle, J, Kawczynski, E, Eds.; Advances in Taste-and-Odor Treatment and Control; American Water Works Association Research Foundation: Denver, CO, USA, 1995.
  11. Gardner, JW; Shin, HW; Hines, EL. An electronic nose system to diagnose illness. Sens. Actuat. B 2000, 70, 19–24. [Google Scholar]
  12. Gostelow, P; Parson, SA; Stuetz, RM. Odour measurements for sewage treatment works. Water Res 2001, 35, 579–597. [Google Scholar]
  13. Wolkoff, P; Nielsen, GD. Organic compounds in indoor air-Their relevance for perceived indoor air quality? Atmos. Environ 2001, 35, 4407–4417. [Google Scholar]
  14. Burgess, JE; Parsons, SA; Stuetz, RM. Developments in odour control and waste gas treatment biotechnology: A review. Biotechnol. Adv 2001, 19, 35–63. [Google Scholar]
  15. Héroux, M; Pagé, T; Gélinas, C; Guy, C. Evaluating odour impacts from a landfilling and composting site: Involving citizens in the monitoring. Water Sci. Technol 2004, 50, 131–137. [Google Scholar]
  16. Sironi, S; Capelli, L; Centola, P; Del Rosso, R, II; Grande, M. Odour emission factors for assessment and prediction of Italian MSW landfills odour impact. Atmos. Environ 2005, 39, 5387–5394. [Google Scholar]
  17. Miedema, HME; Walpot, JI; Vos, H; Steunenberg, CF. Exposure-annoyance relationships for odour from industrial sources. Atmos. Environ 2000, 34, 2927–2936. [Google Scholar]
  18. Both, R; Sucker, K; Winneke, G; Koch, E. Odour intensity and hedonic tone—Important parameters to describe odour annoyance to residents? Water Sci. Technol 2004, 50, 83–92. [Google Scholar]
  19. van Harreveld, AP. From odorant formation to odour nuisance: new definitions for discussing a complex process. Water Sci. Technol 2001, 44, 9–15. [Google Scholar]
  20. Wise, PM; Olsson, JM; Cain, WS. Quantification of odor quality. Chem. Senses 2000, 25, 429–443. [Google Scholar]
  21. Nicell, JA. Assessment and regulation of odour impacts. Atmos. Environ 2009, 43, 196–206. [Google Scholar]
  22. Wilson, GE; Huang, YC; Schroepfer, W. Atmospheric sublayer transport and odor control. J. Environ. Eng. Div 1980, 106, 389–401. [Google Scholar]
  23. Brennan, B. Odour nuisance. Water Waste Treat 1993, 36, 30–33. [Google Scholar]
  24. Schiffman, SS. Livestock odors: Implications for human health and well-being. J. Anim. Sci 1998, 76, 1343–1355. [Google Scholar]
  25. Pierson, S; Buckland, A; Barrie, I. The Use of Odour Measurement in the Control of Odours. Proceedings of the Second CIWEM National Conference on Odour Control in Sewage Treatment, London, UK, 30 April 1998.
  26. Gostelow, P; Longhurst, PJ; Parsons, SA; Stuetz, RM. Sampling for Measurement of Odours; IWA Publishing: London, UK, 2003. [Google Scholar]
  27. Jang, J; Kaye, R. Sampling techniques for odour measurement. In Odours in Wastewater treatment: Measurement, Modelling and Control; Stuetz, R, Frechen, FB, Eds.; IWA Publishing: London, UK, 2001; pp. 98–117. [Google Scholar]
  28. Hudson, N; Ayoko, GA. Odour sampling 1: Physical chemistry considerations. Bioresource Technol 2008, 99, 3982–3992. [Google Scholar]
  29. Davoli, E; Gangai, ML; Morselli, L; Tonelli, D. Characterisation of odorants emissions from landfills by SPME and GC/MS. Chemosphere 2003, 51, 357–368. [Google Scholar]
  30. Dincer, F; Odabasi, M; Muezzinoglu, A. Chemical characterization of odorous gases at a landfill site by gas chromatography–mass spectrometry. J. Chromatogr. A 2006, 1122, 222–229. [Google Scholar]
  31. Di Francesco, F; Lazzerini, B; Marcelloni, F; Pioggia, G. An electronic nose for odour annoyance assessment. Atmos. Environ 2001, 35, 1225–1234. [Google Scholar]
  32. Kim, K-H. Experimental demonstration of masking phenomenon between competing odorants via an air dilution sensory test. Sensors 2010, 10, 7287–7302. [Google Scholar]
  33. Kim, K-H. The averaging effect of odorant mixing via air dilution sensory test: A case study on reduced sulfur compounds. Sensors 2011, 11, 1405–1417. [Google Scholar]
  34. Kim, K-H; Park, S-Y. A comparative analysis of malodor samples between direct (olfactometry) and indirect (instrumental) methods. Atmos. Environ 2008, 42, 5061–5070. [Google Scholar]
  35. Walker, JC. The performance of the human nose in odour measurement. Water Sci. Technol 2001, 44, 1–7. [Google Scholar]
  36. Schulz, TJ; van Harreveld, AP. International moves towards standardisation of odour measurement using olfactometry. Water Sci. Technol 1996, 34, 541–547. [Google Scholar]
  37. EN13725: Air Quality—Determination of Odour Concentration by Dynamic Olfactometry; Committee for European Normalization (CEN), Brussels, Belgium; 2003.
  38. ASTM E679-04: Standard Practice for Determination of Odor and Taste Thresholds by a Forced-Choice Ascending Concentration Series Method of Limits; American Society for Testing and Materials, Philadelphia, PA, USA; 2004.
  39. Stevens, SS. The psychophysics of sensory functions. Am. Sci 1960, 48, 226–253. [Google Scholar]
  40. Leland, JV; Scheiberle, P; Buettner, A. Gas Chromatography–Olfactometry The State of the Art; Acree, TE, Ed.; American Chemical Society: Washington, DC, USA, 2001. [Google Scholar]
  41. Friedrich, JE; Acree, TE. Gas Chromatography Olfactometry (GC/O) of dairy product. Int. Dairy J 1998, 8, 235–241. [Google Scholar]
  42. Lo, YCM; Koziel, JA; Cai, L; Hoff, SJ; Jenks, WS; Xin, H. Simultaneous chemical and sensory characterization of volatile organic compounds and semi-volatile organic compounds emitted from swine manure using solid phase microextraction and multidimensional Gas Chromatography–Mass Spectrometry–Olfactometry. J. Environ. Qual 2008, 37, 521–534. [Google Scholar]
  43. Pearce, TC. Computational parallel between the biological olfactory pathway and its analogue “The electronic nose”: Part II. Sensor-based machine olfaction. BioSystems 1997, 41, 69–90. [Google Scholar]
  44. Snopok, BA; Kruglenko, IV. Multisensor systems for chemical analysis: State-of-the-art in Electronic Nose technology and new trends in machine olfaction. Thin Solid Films 2002, 418, 21–41. [Google Scholar]
  45. Gardner, JW; Bartlett, PN. A brief history of electronic noses. Sens Actuat B 1994, 18–19, 211–220. [Google Scholar]
  46. Ampuero, S; Bosset, JO. The electronic nose applied to dairy products: A review. Sens. Actuat. B 2003, 94, 1–12. [Google Scholar]
  47. Duffee, RA; Cha, SS. Consideration of physical factors in dynamic olfactometry. J. Air Pollut. Control Assoc 1980, 30, 1294–1295. [Google Scholar]
  48. Krol, S; Zabiega a, B; Namiesnik, J. Monitoring VOCs in atmospheric air II. Sample collection and preparation. Trends Anal. Chem 2010, 29, 1101–1112. [Google Scholar]
  49. Wang, DKW; Austin, CC. Determination of complex mixtures of volatile organic compounds in ambient air: Canister methodology. Anal Bioanal Chem 2006, 386, 1099–1120. [Google Scholar]
  50. EPA Compendium method TO-14A: Determination of volatile organic compounds (VOCs) in ambient air using specially prepared canisters with subsequent analysis by gas chromatography. In Compendium of Methods for the Determination of Toxic Organic Compounds in Ambient air, 2nd ed; US Environmental Protection Agency: Cincinnati, OH, USA, 1999.
  51. Camel, V; Caude, M. Trace enrichment methods for the determination of organic pollutants in ambient air. J. Chromatogr. A 1995, 710, 3–19. [Google Scholar]
  52. Kumar, A; Víden, I. Volatile organic compounds: sampling methods and their worldwide profile in ambient air. Environ. Monit. Assess 2007, 131, 301–321. [Google Scholar]
  53. Australian/New Zealand Standard™ Stationary Source Emissions Part 3: Determination of Odour Concentration by Dynamic Olfactometry; AS/NZS 4323.3:2001; Standards Australia International Ltd.: Sydney, Australia, 2001.
  54. Keener, KM; Zhang, J; Bottcher, RW; Munilla, RD. Quantification of odorants from Tedlar bags. Proceedings of ASABE Annual Meeting, Chicago, IL, USA, 6 April 2010; p. 024165.
  55. Trabue, SL; Anhalt, JC; Zahn, JA. Bias of Tedlar bags in the measurement of agricultural odorants. J. Environ. Qual 2006, 35, 1668–1677. [Google Scholar]
  56. Parker, DB; Rhoades, MB; Koziel, J; Spinhirne, J. Background Odors in Tedlar® Bags Used for Cafo Odor Sampling. Proceedings of ASABE Annual Meeting, Las Vegas, NV, USA, July 29 2003; p. 034144.
  57. Juarez-Galan, JM; Martinez, JV; Amo, A; Valor, I. Background odour from sampling bags. Influence in the analysis of the odour concentration. Chem. Eng. Trans 2008, 15, 87–94. [Google Scholar]
  58. Miller, RM; McGinley, MA. Evaluation of background odour in Tedlar and Nalophan sample bags. Proceedings of Water Environment Federation, WEF/A&WMA Odors and Air Emissions, Phoenix, AZ, USA, 6–8 April 2008; pp. 590–604.
  59. Laor, Y; Ozer, Y; Ravid, U; Hanan, A; Orenstein, P. Methodological aspects of sample collection for dynamic olfactometry. Chem. Eng. Trans 2010, 23, 55–60. [Google Scholar]
  60. Cheremisinoff, PN. Industrial Odour Control; Butterworth-Heinemann Ltd: Oxford, UK, 1988. [Google Scholar]
  61. Gawrys, M; Fastyn, P; Gawlowski, J; Gierczak, T; Niedzielski, J. Prevention of water vapour adsorption by carbon molecular sieves in sampling humid gases. J. Chromatogr. A 2001, 933, 107–116. [Google Scholar]
  62. Harper, M. Review: Sorbent trapping of volatile organic compounds from air. J. Chromatogr. A 2000, 885, 129–151. [Google Scholar]
  63. Matisová, E; Škrabáková, S. Carbon sorbents and their utilization for the preconcentration of organic pollutants in environmental samples. J. Chromatogr. A 1995, 707, 145–179. [Google Scholar]
  64. Gorecki, T; Namiesnik, J. Passive sampling. Trends Anal. Chem 2002, 21, 276–291. [Google Scholar]
  65. Bruno, P; Caselli, M; de Gennaro, G; Solito, M; Tutino, M. Monitoring of odor compounds produced by solid waste treatment plants with diffusive samplers. Waste Manage 2007, 27, 539–544. [Google Scholar]
  66. Seethapathy, S; Gorecki, T; Li, X. Passive sampling in environmental analysis. J. Chromatogr. A 2008, 1184, 234–253. [Google Scholar]
  67. Blatt 2: Umweltmeteorologie, Emissionen von Gasen, Gerühen und Stäuben aus diffusen Quellen, Deponien (Environmental meteorology, emission of gases, odour and dust from diffuse sources, landfills); VDI-Richtlinie 3790; Beuth Verlag: Berlin, Germany, 2000.
  68. Bockreis, A; Steinberg, I. Measurement of odour with focus on sampling techniques. Waste Manage 2005, 25, 859–863. [Google Scholar]
  69. Blatt 1 Entwurf: Emissionsminderung, Biologische Abfallbehandlungsanlagen, Kompostierung und Vergärung, Anlagenkapazität P0.75 Mg/h (P6750 Mg/a) (Emission reduction, biological waste treatment plants, composting and digestion, plant size P0.75 Mg/h (P6750 Mg/a)); VDI-Richtlinie 3475; Beuth Verlag: Berlin, Germany, 2000.
  70. Biologische Abgasreinigung: Biofilter (Biological waste gas purification: Biofilters); VDI-Richtlinie 3477; Ausgabe: Beuth Verlag: Berlin, Germany, 2004.
  71. Frechen, FB; Frey, M; Wett, M; Löser, C. Aerodynamic performance of a low-speed wind tunnel. Water Sci. Technol 2004, 50, 57–64. [Google Scholar]
  72. Hudson, N; Ayoko, GA. Odour sampling. 2. Comparison of physical and aerodynamic characteristics of sampling devices: a review. Bioresour. Technol 2008, 99, 3993–4007. [Google Scholar]
  73. Jiang, J; Kaye, R. Sampling techniques for odour measurement. In Odours in Wastewater Treatment: Measurement, Modelling and Control; Stuetz, R, Frechen, FB, Eds.; IWA Publishing: London, UK, 2008; pp. 95–119. [Google Scholar]
  74. Wang, X; Jiang, J; Kaye, R. Improvement of a wind-tunnel sampling system for odour and VOCs. Water Sci. Technol 2001, 44, 71–77. [Google Scholar]
  75. Capelli, L; Sironi, S; del Rosso, R; Céntola, P. Design and validation of a wind tunnel system for odour sampling on liquid area sources. Water Sci. Technol 2009, 59, 1611–1620. [Google Scholar]
  76. Frechen, FB. Odour measurement and odour policy in Germany. Water Sci. Technol 2000, 41, 17–24. [Google Scholar]
  77. Koe, LCC. Sewage odors quantification. In Encyclopedia of Environmental Control Technology, Wastewater Treatment Technology; Cheremisinoff, PN, Ed.; Gulf Publishing Company: Houston, TX, USA, 1989; pp. 423–446. [Google Scholar]
  78. Frechen, FB. Odour emissions of wastewater treatment plants: Recent German experiences. Water Sci. Technol 1994, 30, 35–46. [Google Scholar]
  79. The Offensive odor control law Latest Amendment by Law; Ministry of the Environment Government of Japan: Chiyoda-ku, Tokyo, Japan, 1995. Available online: http://www.env.go.jp/en/laws/air/odor/cm.html (accessed on 20 February 2011).
  80. Capelli, L; Sironi, S; Del Rosso, R; Centola, P; Bonati, S. Improvement of olfactometric measurement accuracy and repeatability by optimization of panel selection procedures. Water Sci. Technol 2010, 61, 1267–1278. [Google Scholar]
  81. van Harreveld, AP. A review of 20 years of standardization of odor concentration measurement by dynamic olfactometry in Europe. J. Air Waste Manage. Assoc 1999, 49, 705–715. [Google Scholar]
  82. Maxeiner, B. Olfactometric Interlaboratory Comparison Test 2005. Proceedings of the A&WMA/WEF 2006 Odors and Air Emissions, Hartford, CT, USA, 9–12 April, 2006; pp. 688–699.
  83. Higuchi, T. Estimation of uncertainty in olfactometry. Water Sci. Technol 2009, 59, 1649–1655. [Google Scholar]
  84. McGinley, MA; McGinley, CM. Precision of Olfactometry and Odor Testing Results. In Water Environment Federation/Air & Waste Management Association Specialty, Proceedings of Odors and Air Emissions, Hartford, CT, USA, 9–12 April 2006.
  85. Bruno, P; Caselli, M; Brattoli, M; de Gennaro, G; de Gennaro, L; De Leonibus, MA; Parenza, AE. Analytical characteristics of odour concentration measure by dynamic olfactometry: Preliminary results. Chem. Eng. Trans 2008, 15, 129–133. [Google Scholar]
  86. Olfactometry-Odour Threshold Determination, Part 1: Fundamentals; VDI-guideline 3881, VDI-Handbuch, Reinhaltung der Luft; Verein Deutsche Ingenieure Verlag: Düsseldorf, Germany, 1986; Volume 1.
  87. Rappert, S; Muller, R. Odor compounds in waste gas emissions from agricultural operations and food industries. Waste Manage 2005, 25, 887–907. [Google Scholar]
  88. Pan, L; Yang, SX; de Bruyn, J. Factor analysis of downwind odours from livestock farms. Biosyst. Eng 2007, 96, 387–397. [Google Scholar]
  89. van Ruth, SM. Methods for gas chromatography-olfactometry: A review. Biomol. Eng 2001, 17, 121–128. [Google Scholar]
  90. Plutowska, B; Wardencki, W. Application of gas chromatography–olfactometry (GC–O) in analysis and quality assessment of alcoholic beverages—A review. Food. Chem 2008, 107, 449–463. [Google Scholar]
  91. Benzo, M; Gilardoni, G; Gandini, C; Caccialanza, G; Finzi, PV; Vidari, G; Abdo, S; Layedra, P. Determination of the threshold odor concentration of main odorants in essential oils using gas chromatography-olfactometry incremental dilution technique. J. Chromatogr. A 2007, 1150, 131–135. [Google Scholar]
  92. Hochereau, C; Bruchet, A. Design and application of a GCSNIFF/MS system for solving taste and odour episodes in drinking water. Water Sci. Technol 2004, 49, 81–87. [Google Scholar]
  93. Acree, TE; Barnard, J. Trends in Flavour Research; Maarse, H, van der Heij, DG, Eds.; Elsevier: New York, NY, USA, 1994; pp. 211–220. [Google Scholar]
  94. Acree, TE; Barnard, J; Cummingham, D. A procedure for the sensory analysis of gas chromatographic effluents. Food. Chem 1984, 14, 273–286. [Google Scholar]
  95. Debonneville, C; Orsier, B; Flament, I; Chaintreau, A. Improved hardware and software for quick gas chromatography–olfactometry using CHARM and GC-‘SNIF’ analysis. Anal. Chem 2002, 74, 2345–2351. [Google Scholar]
  96. Grosch, W. Detection of potent odorants in foods by aroma extract dilution analysis. Trends Food Sci. Tech 1993, 4, 68–73. [Google Scholar]
  97. van Ruth, SM. Evaluation of two gas chromatography-olfactometry methods: The detection frequency and perceived intensity method. J. Chromatogr. A 2004, 1054, 33–37. [Google Scholar]
  98. Ferreira, V; Pet’ka, J; Aznar, M; Cacho, J. Quantitative gas chromatography-olfactometry. Analytical characteristics of a panel of judges using a simple quantitative scale as gas chromatography detector. J. Chromatogr. A 2003, 1002, 169–178. [Google Scholar]
  99. Curioni, PMG; Bosset, JO. Key odorants in various cheese types as determined by gas chromatography-olfactometry. Int. Diary J 2002, 12, 959–984. [Google Scholar]
  100. Hallier, A; Courcoux, P; Sérot, T; Prost, C. New gas chromatography-olfactometric investigative method, and its application to cooked Silurus glanis (European catfish) odor characterization. J. Chromatogr. A 2004, 1056, 201–208. [Google Scholar]
  101. Machiels, D; van Ruth, SM; Posthumus, MA; Istasse, L. Gas chromatography-olfactometry analysis of the volatile compounds of two commercial Irish beef meats. Talanta 2003, 60, 755–764. [Google Scholar]
  102. Garruti, DS; Franco, MRB; da Silva, MAAP; Janzantti, NS; Alves, GL. Assessment of aroma impact compounds in a cashew apple-based alcoholic beverage by GC-MS and GC-olfactometry. LWT 2006, 39, 372–377. [Google Scholar]
  103. Zahn, JA; Hatfield, JL; Do, YS; DiSpirito, AA; Laird, DA; Pfeiffer, RL. Characterization of volatile organic emissions and wastes from a swine production facility. J. Environ. Qual 1997, 26, 1687–1696. [Google Scholar]
  104. Schiffman, SS; Bennett, JL; Raymer, JH. Quantification of odors and odorants from swine operations in North Carolina. Agr. Forest Meteorol 2001, 108, 213–240. [Google Scholar]
  105. Rabaud, NE; Ebeler, SE; Ashbaugh, LL; Flocchini, RG. Characterization and quantification of odorous and non-odorous volatile organic compounds near a commercial dairy in California. Atmos. Environ 2003, 37, 933–940. [Google Scholar]
  106. Kai, P; Schäfer, A. Identification of key odour components in pig house air using hyphenated gas chromatography olfactometry. Agr Eng Int: CIGR J Sci Res 2004, VI, 1–11. [Google Scholar]
  107. Koziel, JA; Cai, L; Wright, D; Hoff, SJ. Solid-phase microextraction as a novel air sampling technology for improved, GC-Olfactometry-based assessment of livestock odors. J. Chromatogra. Sci 2006, 44, 451–457. [Google Scholar]
  108. Bulliner, EA; Koziel, JA; Cai, L; Wright, D. Characterization of Livestock odors using steel plates, solid-phase microextraction, and multidimensional gas chromatography-mass spectrometry-olfactometry. J. Air Waste Manage. Assoc 2006, 56, 1391–1403. [Google Scholar]
  109. Laor, Y; Koziel, JA; Cai, L; Ravid, U. Chemical-Sensory Characterization of Dairy Manure Odor Using Headspace Solid-Phase Microextraction and Multidimensional Gas Chromatography Mass Spectrometry-Olfactometry. J. Air Waste Manage. Assoc 2008, 58, 1187–1197. [Google Scholar]
  110. Koziel, JA; Lo, YCM; Cai, L; Wright, DW. Simultaneous characterization of VOCs and Livestock odors using solid-phase microextraction—multidimensional gas chromatography- mass spectrometry-olfactometry. Chem. Eng. Trans 2010, 23, 73–78. [Google Scholar]
  111. Zhang, S; Cai, L; Koziel, JA; Hoff, SJ; Schmidt, DR; Clanton, CJ; Jacobson, LD; Parker, DB; Heber, AJ. Field air sampling and simultaneous chemical and sensory analysis of livestock odorants with sorbent tubes and GC–MS/olfactometry. Sens. Actuat. B 2010, 146, 427–432. [Google Scholar]
  112. Cai, L; Koziel, JA; Lo, YC; Hoff, SJ. Characterization of volatile organic compounds and odorants associated with swine barn particulate matter using solid-phase microextraction and gas chromatography–mass spectrometry–olfactometry. J. Chromatogr. A 2006, 1102, 60–72. [Google Scholar]
  113. A Review of The Science and Technology of Odor Measurement. St. Croix Sensory, Inc.: Lake Elmo, MN, USA, 2005.
  114. Olfactometry-Determination of Odour Intensity, Part 1; VDI-guideline 3882/1, VDI-Handbuch Reinhaltung der Luft, Verein Deutsche Ingenieure Verlag: Düsseldorf, Germany, 1992; Volume 1.
  115. Standard Practice for Referencing Suprathreshold Odor Intensity; E544-99; ASTM International: Philadelphia, PA, USA, 2004.
  116. Olfactometry-Determination of Hedonic Odour Tone, Part 2; VDI-guideline 3882/2; VDI-Handbuch Reinhaltung der Luft, Verein Deutsche Ingenieure Verlag: Düsseldorf, Germany, 1994; Volume 1.
  117. Sarkara, U; Hobbs, SE. Odour from municipal solid waste (MSW) landfills: a study on the analysis of perception. Environ. Int 2002, 27, 655–662. [Google Scholar]
  118. Sucker, K; Both, R; Bischoff, M; Guski, R; Winneke, G. Odor frequency and odor annoyance. Part I: Assessment of frequency, intensity and hedonic tone of environmental odors in the field. Int. Arch. Occup. Environ. Health 2008, 81, 671–682. [Google Scholar]
  119. Sucker, K; Both, R; Bischoff, M; Guski, R; Winneke, G. Odor frequency and odor annoyance Part II: dose–response associations and their modification by hedonic tone. Int. Arch. Occup. Environ. Health 2008, 81, 683–694. [Google Scholar]
  120. Gardner, JW; Bartlett, PN. Electronic Noses-Principles and Applications; Oxford University Press: Oxford, UK, 1999. [Google Scholar]
  121. Rock, F; Barsan, N; Weimar, U. Electronic Nose: Current status and future trends. Chem. Rev 2008, 108, 705–725. [Google Scholar]
  122. Gardner, JW. Pattern recognition in the Warwick electronic nose. Proceedings of 8th International Congress of the European Chemoreception Research Organisation, Coventry, UK, 18–22 July 1988; p. 9.
  123. Gardner, JW; Bartlett, PN. Pattern recognition in gas sensing. In Techniques and Mechanisms in Gas Sensing; Moseley, P, Norris, J, Williams, D, Eds.; Adam Hilger: Bristol, UK, 1991; pp. 347–380. [Google Scholar]
  124. Vaihinger, S; Gopel, W. Multicomponent analysis in chemical sensing. In Sensors: A Comprehensive Study: Chemical Sensors; Gopel, W, Jones, TA, Kleitz, M, Lundstrom, I, Seiyama, T, Eds.; VCH: Weinheim, Germany, 1990; Volume 2/3, pp. 191–237. [Google Scholar]
  125. Ryan, MA; Zhou, H; Buehler, MG; Manatt, KS; Mowrey, VS; Jackson, SP; Kisor, AK; Shevade, AV; Honer, ML. Monitoring space shuttle air quality using the jet propulsion laboratory electronic nose. IEEE Sens. J 2004, 4, 337–347. [Google Scholar]
  126. Willers, H; de Gijsel, P; Ogink, N; D’Amico, A; Martinelli, E; Di Natale, C; van Ras, N; van der Waarde, J. Monitoring of biological odour filtration in closed environments with olfactometry and an electronic nose. Water Sci. Technol 2004, 50, 93–100. [Google Scholar]
  127. Pardo, M; Sberveglieri, G. Comparing the performance of different features in sensor arrays. Sens. Actuat. B 2007, 123, 437–443. [Google Scholar]
  128. Che Harun, FK; Taylor, JE; Covington, JA; Gardner, JW. An electronic nose employing dual-channel odour separation columns with large chemosensor arrays for advanced odour discrimination. Sens. Actuat. B 2009, 141, 134–140. [Google Scholar]
  129. Romain, AC; Nicolas, J. Long term stability of metal oxide-based gas sensors for e-nose environmental applications: An overview. Sens. Actuat. B 2010, 146, 502–506. [Google Scholar]
  130. Sberveglieri, G, Ed.; Gas Sensors; Kluwer Academic: Dordrecht, The Netherland, 1992.
  131. Sensors—A Comprehensive Survey—Chemical and Biochemical Sensors, Part I-II; Gopel, W, Jones, TA, Kleitz, M, Lundstrom, I, Seiyama, T, Eds.; Wiley-VCH: Weinheim, Germany, 1992; Volume 2–3.
  132. D’Amico, A; Di Natale, C. A contribution on some basic definitions of sensors properties. IEEE Sens. J 2001, 1, 183–190. [Google Scholar]
  133. D’Amico, A; Di Natale, C; Taroni, A. Sensors Parameters in Sensors for domestic applications. In Proceedings of the First European School on Sensors (ESS’94); D’Amico, A, Sberveglieri, G, Eds.; World Scientific: Singapore, 1995. [Google Scholar]
  134. Al-Ali, AR; Zualkernan, I; Aloul, F. A mobile GPRS-sensors array for air pollution monitoring. IEEE Sens. J 2010, 10, 1666–1671. [Google Scholar]
  135. Delpha, C; Lumbreras, M; Siadat, M. Discrimination and identification of a refrigerant gas in a humidity controlled atmosphere containing or not carbon dioxide: Application to the electronic nose. Sens. Actuat. B 2004, 98, 46–53. [Google Scholar]
  136. Alizadeh, T; Zeynali, S. Electronic nose based on the polymer coated SAW sensors array for the warfare agent simulants classification. Sens. Actuat. B 2008, 129, 412–423. [Google Scholar]
  137. Qu, J; Chai, Y; Yang, SX. A real-time de-noising algorithm for E-Noses in a wireless sensor network. Sensors 2009, 9, 895–908. [Google Scholar]
  138. Ma, Y; Richards, M; Ghanem, M; Guo, Y; Hassard, J. Air pollution monitoring and mining based on sensor grid in London. Sensors 2008, 8, 3601–3623. [Google Scholar]
  139. Burgeois, W; Romain, AC; Nicolas, J; Stuetz, RM. The use of the sensor arrays for environmental monitoring: interests and limitations. J. Environ. Monitor 2003, 5, 852–860. [Google Scholar]
  140. Pijolat, C; Riviere, B; Kamionka, M; Viricelle, JP; Breuil, P. Tin dioxide gas sensor as a tool for atmospheric pollution monitoring: Problems and possibilities for improvements. J. Mater. Sci 2003, 38, 4333–4346. [Google Scholar]
  141. McGill, RA; Nguyen, VK; Chung, R; Shaffer, RE; DiLella, D; Stepnowski, JL; Mlsna, TE; Venezky, DL; Dominguez, D. The “NRL-SAWRHINO” a nose for toxic gases. Sens. Actuat. B 2000, 65, 10–13. [Google Scholar]
  142. Micone, PG; Guy, C. Odour quantification by a sensor array: An application to landfill gas odours from two different municipal waste treatment works. Sens. Actuat. B 2007, 120, 628–637. [Google Scholar]
  143. Persaud, KC; Woodyan, NCP; Sneath, RW. Development of a perimeter odor monitoring system for landfill sites. Proceedings of IEEE Sensors 2008 Conference, Lecce, Italy, 26–29 October 2008; pp. 1360–1363.
  144. Persaud, KC; Wareham, P; Pisanelli, AM; Scorsone, E. Electronic Nose—New condition monitoring devices for environmental applications. Chem. Senses 2005, 30, i252–i253. [Google Scholar]
  145. Multisensor Systems Homepage, Available online: http://www.multisensor.co.uk (accessed on 15 February 2011).
  146. Koziel, J. What is that smell? Nature 2008, 45, 726–728. [Google Scholar]
  147. Persaud, KC; Khaffaf, SM; Hobbs, PJ; Sneath, RW. Assessment of conducting polymer odour sensors for agricultural malodour measurements. Chem. Senses 1996, 21, 496–505. [Google Scholar]
  148. Romain, AC; Nicolas, J. Monitoring malodours in the environment with an electronic nose: requirements for the signal processing. In Biologically Inspired Signal Processing for Chemical Sensing; Gutierrez, A, Marco, S, Eds.; Springer: Berlin, 2009; Volume 188, pp. 121–134. [Google Scholar]
  149. Romain, AC; Andre, P; Nicolas, J. Three years experiment with the same tin oxide sensor arrays for the identification of malodours sources in the environment. Sens. Actuat. B 2002, 84, 217–277. [Google Scholar]
  150. Romain, AC; Degrave, C; Nicolas, J; Lor, M; Vause, K; Dinne, K; Maes, F; Goelen, E. Olfactometry, chemical and e-nose measurements to characterize odor emission of construct materials for the implementation of the European construction products directive (CPD) on a Belgian level. Proceedings of ISOEN, Brescia, Italy, 15–17 April 2009; pp. 527–528.
  151. Nicolas, J; Romain, AC; Ledent, C. The electronic nose as a warning device of the odour emergence in a compost hall. Sens. Actuat. B 2006, 116, 95–99. [Google Scholar]
  152. Sohn, JH; Dunlop, M; Hudson, N; Kim, TI; Yoo, YH. Non-specific conducting polymer-based array capable of monitoring odour emissions from a biofiltration system in a piggery building. Sens. Actuat. B 2009, 135, 435–464. [Google Scholar]
  153. Tang, KT; Chiu, SW; Pan, CH; Hsieh, HY; Ling, YS; Liu, SC. Development of a portable electronic nose systems for the detection and classification of fruity odors. Sensors 2010, 10, 9179–9193. [Google Scholar]
  154. Cheng, PC; Ishikawa, FN; Chang, HK; Ryu, K; Zhou, C. A nanoelectronic nose: A hybrid nanowire/carbon nanotube sensor array with integrated micromachined hotplates for sensitive gas discrimination. Nanotechnology 2009, 20, 125503. [Google Scholar]
  155. Penza, M; Rossi, R; Alvisi, M; Serra, E. Metal-modified and vertically-aligned carbon nanotube sensors array for landfill gas monitoring applications. Nanotechnology 2010, 21, 105501. [Google Scholar]
  156. Fryxell, GE, Cao, G, Eds.; Environmental Applications of Nanomaterials; Imperial College Press: London, UK, 2007.
  157. Patolsky, F; Lieber, CM. Nanowire nanosensors. Mater Today 2005, 20–28. [Google Scholar]
  158. Littarru, P. Environmental odours assessment from waste treatment plants: Dynamic olfactometry in combination with sensorial analysers “electronic noses”. Waste Manag 2007, 27, 302–309. [Google Scholar]
  159. Doleman, BJ; Lewis, NS. Comparison of odor detection thresholds and odor discriminablities of a conducting polymer composite electronic nose versus mammalian olfaction. Sens. Actuat. B 2001, 72, 41–50. [Google Scholar]
  160. Brose, G; Gallmann, E; Hartung, E; Jungbluth, T. Detection of the dynamics of odour emissions from pig farms using dynamic olfactometry and an electronic odour sensor. Water Sci. Technol 2001, 44, 59–64. [Google Scholar]
  161. Hobbs, PJ; Misselbrook, TH; Pain, BF. Assessment of odours from livestock wastes by a photoionization detector, an electronic nose, olfactometry and gas chromatography-mass spectrometry. J. Agr. Eng. Res 1995, 60, 137–144. [Google Scholar]
  162. Pan, L; Yang, SX. A new intelligent electronic nose system for measuring and analysing livestock and poultry farm odours. Environ. Monitor. Assess 2007, 135, 399–408. [Google Scholar]
  163. Qu, G; Omotoso, MM; Gamal El-Din, M; Feddes, JJR. Development of an integrated sensor to measure odors. Environ. Monitor. Assess 2008, 144, 277–283. [Google Scholar]
  164. Omotoso, MM; Qu, G; Gamal El-Din, M; Feddes, JJR. Development of an Integrated Electronic Nose to Reliably Measure Odors. Proceedings of the Seventh International Symposium, Beijing, China, 18–20 May 2005.
  165. Gutierrez-Osuna, R; Schiffman, SS; Nagle, HT. Correlation of Sensory Analysis with Electronic Nose Data for Swine Odor Remediation Assessment. Proceedings of the 3rd European Congress on Odours, Metrology and Electronic Noses, Paris, France, 19–21 June 2001.
  166. Gralapp, AK; Powers, WJ; Bundy, DS. Comparison of olfactometry, gas chromatography, and electronic nose technology for measurement of indoor air from swine facilities. Trans. ASABE 2001, 44, 1283–1290. [Google Scholar]
  167. Fuchs, S; Strobel, P; Siadat, M; Lumbreras, M. Evaluation of unpleasant odor with a portable electronic nose. Mater. Sci. Eng. C 2008, 28, 949–953. [Google Scholar]
  168. Sohn, JH; Smith, R; Yoong, E; Leis, J; Galvin, G. Quantification of odours from piggery effluent ponds using an electronic nose and an artificial neural network. Biosyst. Eng 2003, 86, 399–410. [Google Scholar]
  169. Sohn, JH; Smith, RJ; Yoong, E. Process studies of odour emissions from effluent ponds using machine-based odour measurement. Atmos. Environ 2006, 40, 1230–1241. [Google Scholar]
  170. Sohn, JH; Hudson, N; Gallagher, E; Dunlop, M; Zeller, L; Atzeni, M. Implementation of an electronic nose for continuous odour monitoring in a poultry shed. Sens. Actuat. B 2008, 133, 60–69. [Google Scholar]
  171. Misselbrook, TH; Hobbs, PJ; Persaud, KC. Use of an electronic nose to measure odour concentration following application of cattle slurry to grassland. J. Agr. Eng. Res 1997, 66, 213–220. [Google Scholar]
  172. Boholt, K; Andreasen, K; den Berg, F; Hansen, T. A new method for measuring emission of odour from a rendering plant using the Danish Odour Sensor System (DOSS) artificial nose. Sens. Actuat. B 2005, 106, 170–176. [Google Scholar]
  173. Orzi, V; Cadena, E; D’Imporzano, G; Artola, A; Davoli, E; Crivelli, M; Adani, F. Potential odour emission measurement in organic fraction of municipal solid waste during anaerobic digestion: Relationship with process and biological stability parameters. Bioresour. Tech 2010, 101, 7330–7337. [Google Scholar]
  174. Stuetz, RM; Engin, G; Fenner, RA. Sewage odour measurements using a sensory panel and an electronic nose. Water Sci. Technol 1998, 38, 331–335. [Google Scholar]
  175. Stuetz, RM; Fenner, RA; Engin, G. Assessment of odours from sewage treatment works by an electronic nose, H2S analysis and olfactometry. Water Res 1999, 33, 453c–461c. [Google Scholar]
  176. Fenner, RA; Stuetz, RM. The application of electronic nose technology to environmental monitoring of water and wastewater treatment activities. Water Environ. Res 1999, 71, 282–289. [Google Scholar]
  177. Capelli, L; Sironi, S; Cèntola, P; del Rosso, R. MOS sensors for the recognition of environmental odours: evaluation of sensor sensitivity towards odour concentration and humidity. Chem. Eng. Trans 2008, 15, 307–314. [Google Scholar]
  178. Boeker, P; Haas, T; Diekmann, B; Schulze, LP. Continuous online odour measurements. Chem. Eng. Trans 2008, 15, 255–260. [Google Scholar]
  179. Capelli, L; Sironi, S; Del Rosso, R; Cèntola, P; Grande, M. A comparative and critical evaluation of odour assessment methods on a landfill site. Atmos. Environ 2008, 42, 7050–7058. [Google Scholar]
  180. Li, X. Odour impact and control at a landfill site in Hong Kong. In East Asia Workshop on Odour Measurement and Control Review, Ministry of the Environment; Japan, 13–14 October 2003; pp. 8–86.
  181. Romain, AC; Delva, J; Nicolas, J. Complementary approaches to measure environmental odours emitted by landfill areas. Sens. Actuat. B 2008, 131, 18–23. [Google Scholar]
  182. Snidar, R; Culòs, B; Trovarelli, A; Soldati, A; Sironi, S; Capelli, L. Evaluation of odour emissions from a landfill through dynamic olfactometry, dispersion modelling and electronic noses. Chem. Eng. Trans 2008, 15, 315–322. [Google Scholar]
  183. Qu, G; Feddes, JJR; Armstrong, WW; Coleman, RN; Leonard, JJ. Measuring odor concentration with an electronic nose. Trans. ASABE 2001, 44, 1807–1812. [Google Scholar]
  184. Bockreis, A; Jager, J. Odour monitoring by the combination of sensors and neural networks. Environ. Model. Softw 1999, 14, 421–426. [Google Scholar]
  185. Sironi, S; Capelli, L; Cèntola, P; del Rosso, R; Grande, M. Continuous monitoring of odours from a composting plant using electronic noses. Waste Manag 2007, 27, 389–397. [Google Scholar]
  186. Sironi, S; Capelli, L; Cèntola, P; Del Rosso, R. Development of a system for the continuous monitoring of odours from a composting plant: Focus on training, data processing and results validation methods. Sens. Actuat. B 2007, 124, 336–346. [Google Scholar]
Figure 1. Scheme of a solid-state chemical sensor with gas-sensitive material, transducer and interface electronics.
Figure 1. Scheme of a solid-state chemical sensor with gas-sensitive material, transducer and interface electronics.
Sensors 11 05290f1 1024
Table 1. Most used gas-sensitive materials for chemical sensors.
Table 1. Most used gas-sensitive materials for chemical sensors.
Class of MaterialsSensor MaterialsTechnology
Thin-film metal oxides (MOX)SnO2, ZnO, WO3, In2O3, TiO2, MoO3, etc.- Sputtering
- Evaporation
Conducting polymers (CP)Polypirroles, polytiophenes, etc.- Electrochemical
- Casting
- Spin-coating
Supramolecular materialsMetal-porphyrins, phthalocyanines, etc.- Electrochemical
- Solvent casting
Thick-films MOXSnO2, ZnO, WO3, In2O3, TiO2, MoO3, etc.- High-temperature material processing
- Sol-gel
Functional inorganic materialsMetal catalysts (Pt, Pd, Au, Ag, Ru, Ti, W, Ta, Mo, Cu, etc.), dopants, etc.- Sputtering
- Evaporation
Molecular organic materialsCavitands, receptors, enzymes, antibodies, proteins, biomolecules, DNA, etc.- Casting
- Langmuir-Blodgett
CompositesFillers in host-matrix- Langmuir-Blodgett
- Chemical routes
- PVD techniques
NanomaterialsMOX nanostructures: nanowires, nanotubes, nanorods, nanocrystals, nanoparticles, etc.
Carbon nanostructures : nanotubes, nanowalls, nanofibers, nanoplatelets, etc.
- CVD
- PVD
- Chemical routes

(PVD = Physical Vapor Deposition ; CVD= Chemical Vapor Deposition)

Table 2. Transducers used in chemical solid-state sensors.
Table 2. Transducers used in chemical solid-state sensors.
TransducerPrinciple of operationMethods of FabricationInput/Output
ConductometricElectrical Conductivity:
• Conducting Polymers
• Metal Oxides
PVD
Microfabrication
MEMS
Screen printing
Δc → Δσ → Δi → ΔV
OpticalAbsorption; Emission Fluorescence
Chemiluminescence
Evanescent Wave
Fiber Optics
Dip coating
MEMS
Microfabrication
Δc → Δn → ΔI → Δi →ΔV
ElectrochemicalIonic Conductivity:
• Amperometric
• Potentiometric
• Voltammetric
Screen printing
Dip coating
MEMS
Microfabrication
Δc → Δσ → Δi → ΔV
ThermalFlow of thermal energy:
• Catalytic
• Pyroelectric
• Calorimetric
PVD
Microfabrication
Δc → ΔT → Δi → ΔV
MOSFETCharge capacitive couplingMicrofabricationΔc → ΔΦ → Δi → ΔV
Ultrasonic
or Mechanical
or Acoustic
Piezoelectricity:
• QCM
• SAW
• TFBAR
PVD
Screen printing
Microfabrication
MEMS
Δc → Δm → Δf
Δc → Δm → Δf, Δϕ

MEMS = Micro Electro-Mechanical Systems; QCM = Quartz Crystal Microbalance;SAW = Surface Acoustic Wave; TFBAR = Thin Film Bulk Acoustic Resonator;Δc = variation of concentration; Δσ = variation of electrical conductivity; Δi = variation of current;ΔV = variation of voltage; Δn = variation of refractive index; ΔI = variation of light intensity;ΔT = variation of temperature; ΔΦ = variation of work function; Δm = variation of mass;Δf = variation of frequency; Δϕ = variation of phase of acoustic wave

Table 3. Characteristics of odour measurement techniques.
Table 3. Characteristics of odour measurement techniques.

OlfactometryOther sensorial methodsElectronic NoseGC-O

Objective measurement of odour concentration+++
Quantitative measurement of odour concentration+++
Measurement standardization++/–
Continuous measurement+/–+
Single species determination+
Temporal representativity of measurement+/–+
Time of analysis+/–++/–
Costs++/–+

(+ = high;+/– = medium;– = low)

Share and Cite

MDPI and ACS Style

Brattoli, M.; De Gennaro, G.; De Pinto, V.; Demarinis Loiotile, A.; Lovascio, S.; Penza, M. Odour Detection Methods: Olfactometry and Chemical Sensors. Sensors 2011, 11, 5290-5322. https://doi.org/10.3390/s110505290

AMA Style

Brattoli M, De Gennaro G, De Pinto V, Demarinis Loiotile A, Lovascio S, Penza M. Odour Detection Methods: Olfactometry and Chemical Sensors. Sensors. 2011; 11(5):5290-5322. https://doi.org/10.3390/s110505290

Chicago/Turabian Style

Brattoli, Magda, Gianluigi De Gennaro, Valentina De Pinto, Annamaria Demarinis Loiotile, Sara Lovascio, and Michele Penza. 2011. "Odour Detection Methods: Olfactometry and Chemical Sensors" Sensors 11, no. 5: 5290-5322. https://doi.org/10.3390/s110505290

Article Metrics

Back to TopTop
