Sensors 2010, 10(7), 6497-6512; doi:10.3390/s100706497

Article

Optimal Configuration of Redundant Inertial Sensors for Navigation and FDI Performance

Duk-Sun Shim*  and Cheol-Kwan Yang

School of Electrical and Electronics Engineering, Chung-Ang University, 221 HukSuk-dong, Dongjak ku, Seoul, 156-756, Korea

* Author to whom correspondence should be addressed.

Received: 20 May 2010; in revised form: 10 June 2010 / Accepted: 20 June 2010 / Published: 2 July 2010

(This article belongs to the Section Physical Sensors)

Download PDF Full-Text [427 KB, uploaded 2 July 2010 14:42 CEST]

Abstract: This paper considers the optimal sensor configuration for inertial navigation systems which have redundant inertial sensors such as gyroscopes and accelerometers. We suggest a method to determine the optimal sensor configuration which considers both the navigation and FDI performance. Monte Carlo simulations are performed to show the performance of the suggested optimal sensor configuration method.

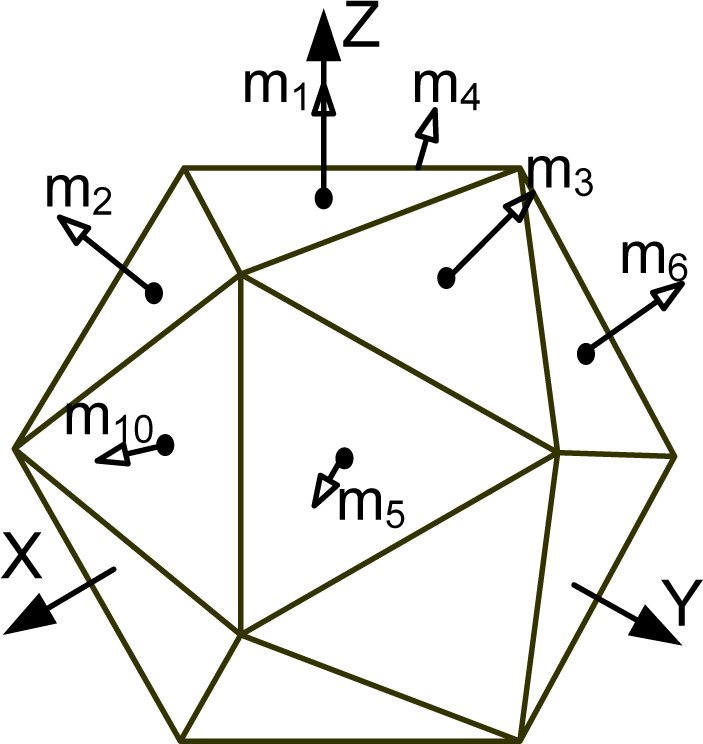

Keywords: optimal sensor configuration; redundant inertial sensor; navigation performance; FDI performance; fault detection and isolation; platonic solid; icosahedrons
