Sensors 2010, 10(6), 6241-6256; doi:10.3390/s100606241

A Nitrite Biosensor Based on Co-immobilization of Nitrite Reductase and Viologen-modified Chitosan on a Glassy Carbon Electrode

1,2,*  and 1,*
1 Department of Chemistry and Interdisciplinary Program of Integrated Biotechnology, Sogang University, Seoul, 121-742, Korea 2 Department of Chemistry, College of Chemistry, Chemical Engineering and Environment, Qingdao University, Qingdao, Shandong, 266071, China
* Authors to whom correspondence should be addressed.
Received: 18 May 2010 / Revised: 8 June 2010 / Accepted: 14 June 2010 / Published: 22 June 2010
(This article belongs to the Section Biosensors)
View Full-Text   |   Download PDF [319 KB, uploaded 21 June 2014]   |   Browse Figures

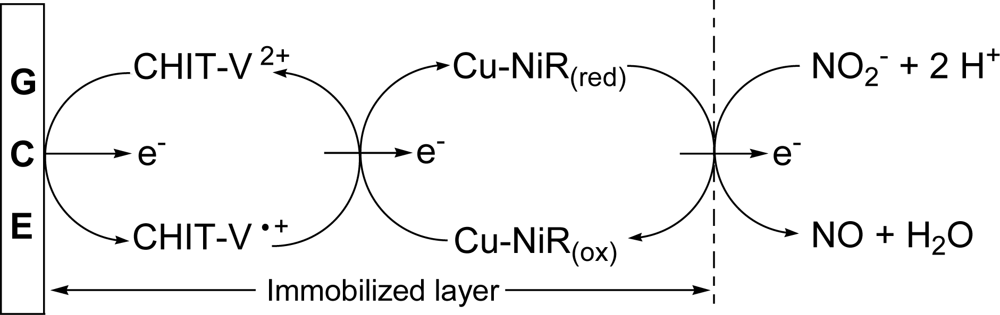

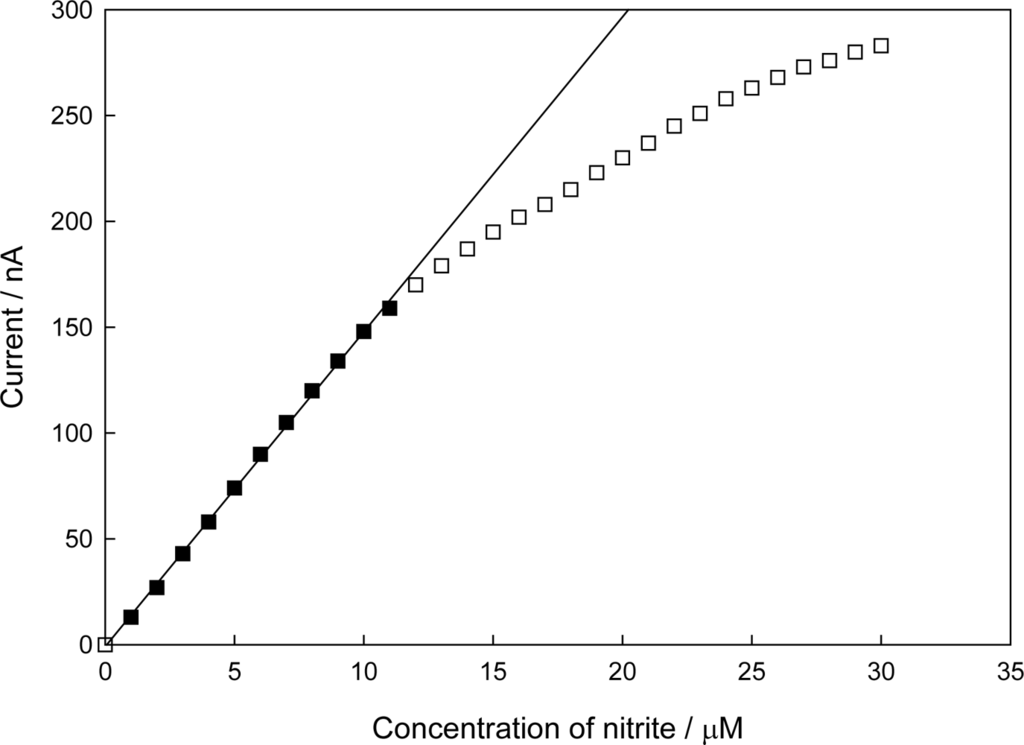

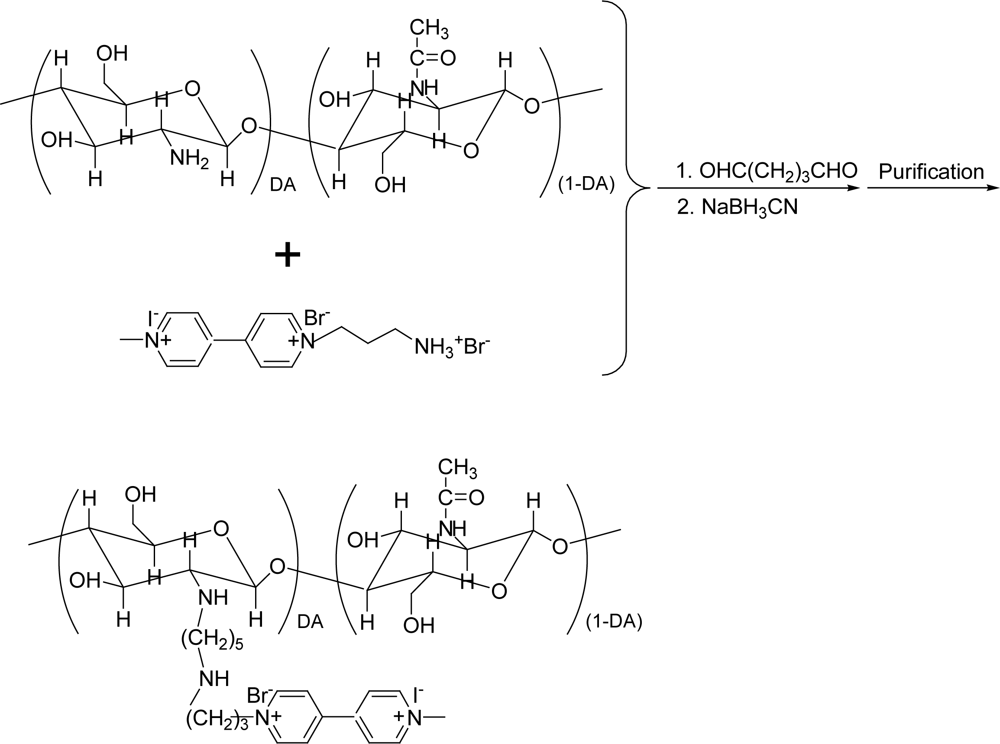

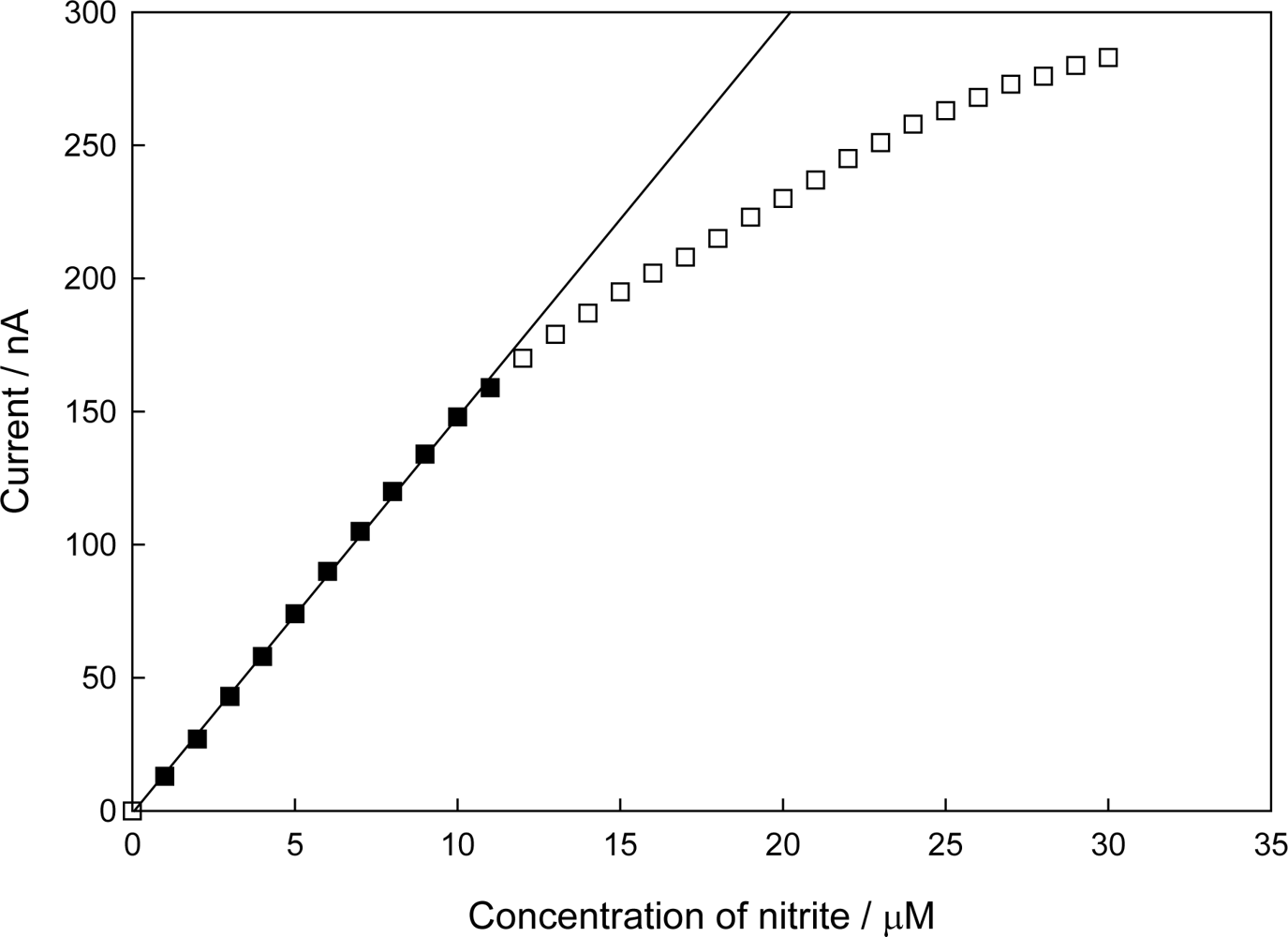

An electrochemical nitrite biosensor based on co-immobilization of copper- containing nitrite reductase (Cu-NiR, from Rhodopseudomonas sphaeroides forma sp. denitrificans) and viologen-modified chitosan (CHIT-V) on a glassy carbon electrode (GCE) is presented. Electron transfer (ET) between a conventional GCE and immobilized Cu-NiR was mediated by the co-immobilized CHIT-V. Redox-active viologen was covalently linked to a chitosan backbone, and the thus produced CHIT-V was co-immobilized with Cu-NiR on the GCE surface by drop-coating of hydrophilic polyurethane (HPU). The electrode responded to nitrite with a limit of detection (LOD) of 40 nM (S/N = 3). The sensitivity, linear response range, and response time (t90%) were 14.9 nA/mM, 0.04−11 mM (r2 = 0.999) and 15 s, respectively. The corresponding Lineweaver-Burk plot showed that the apparent Michaelis-Menten constant (KMapp) was 65 mM. Storage stability of the biosensor (retaining 80% of initial activity) was 65 days under ambient air and room temperature storage conditions. Reproducibility of the sensor showed a relative standard deviation (RSD) of 2.8% (n = 5) for detection of 1 mM of nitrite. An interference study showed that anions commonlyfound in water samples such as chlorate, chloride, sulfate and sulfite did not interfere with the nitrite detection. However, nitrate interfered with a relative sensitivity of 64% and this interference effect was due to the intrinsic character of the NiR employed in this study.
Keywords: biosensor; nitrite reductase; chitosan; viologen; hydrophilic polyurethane biosensor; nitrite reductase; chitosan; viologen; hydrophilic polyurethane
This is an open access article distributed under the Creative Commons Attribution License (CC BY) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
