Int. J. Mol. Sci. 2013, 14(8), 16303-16320; doi:10.3390/ijms140816303
Article

Domain Structures in Nematic Liquid Crystals on a Polycarbonate Surface

* ,
,
 and
Received: 5 June 2013; in revised form: 12 July 2013 / Accepted: 18 July 2013 / Published: 7 August 2013
View Full-Text   |   Download PDF [6529 KB, uploaded 19 June 2014]   |   Browse Figures

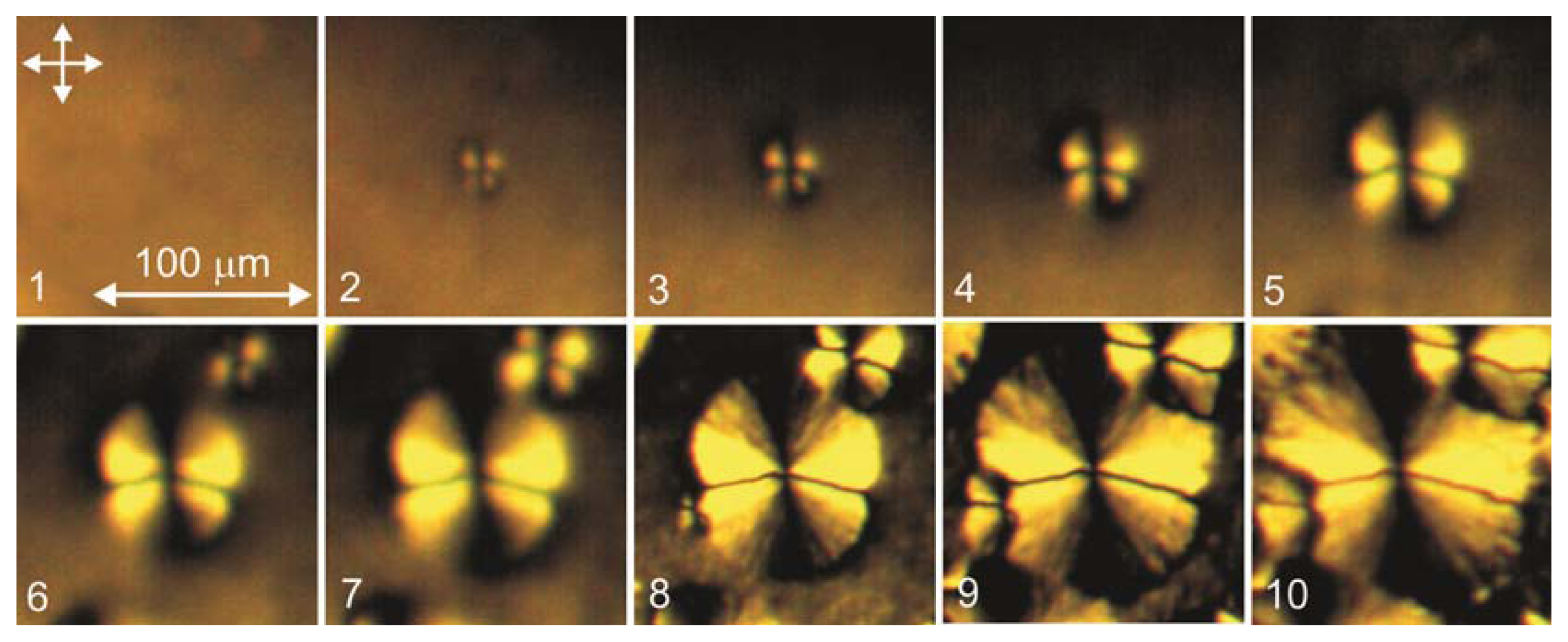

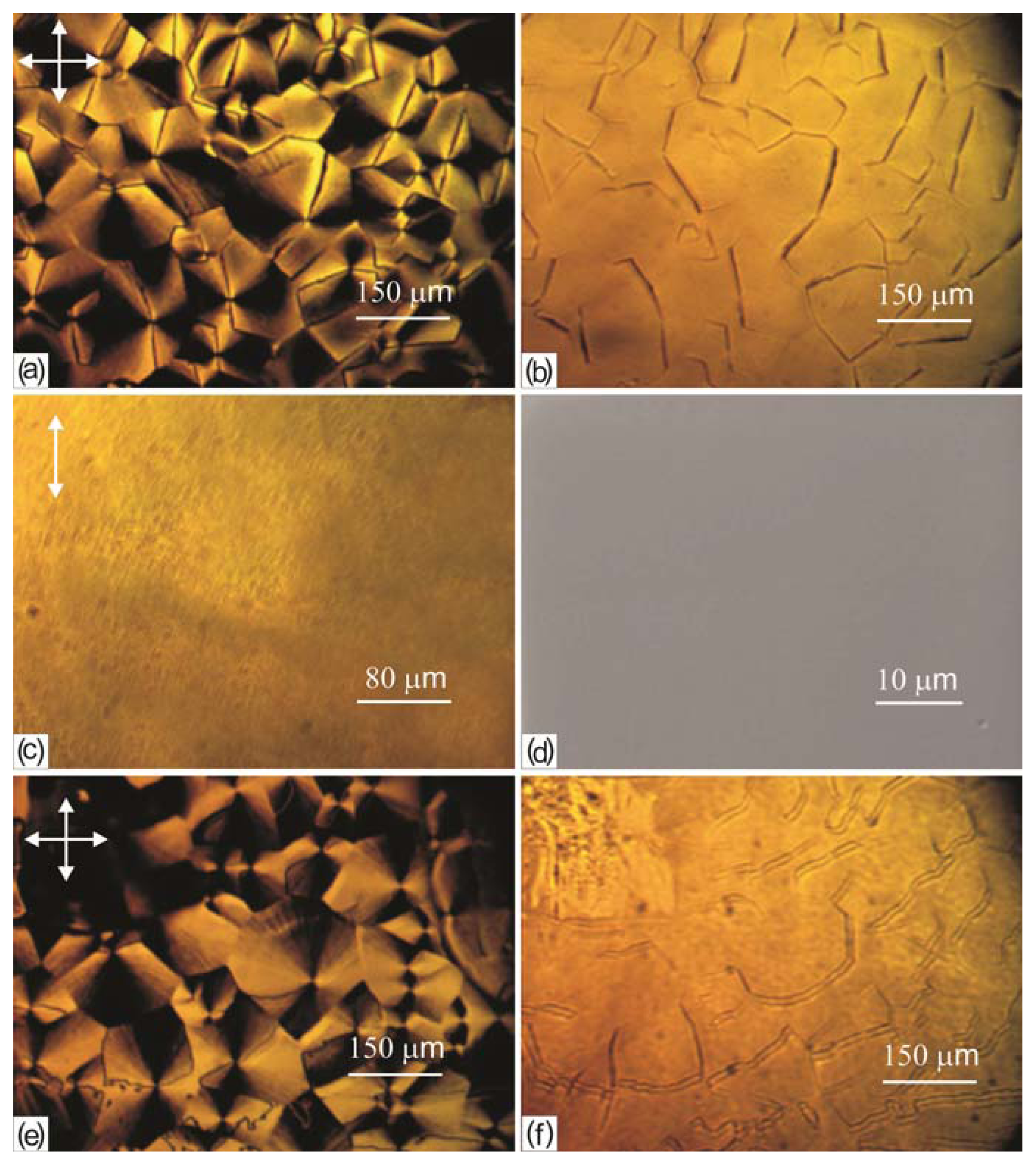

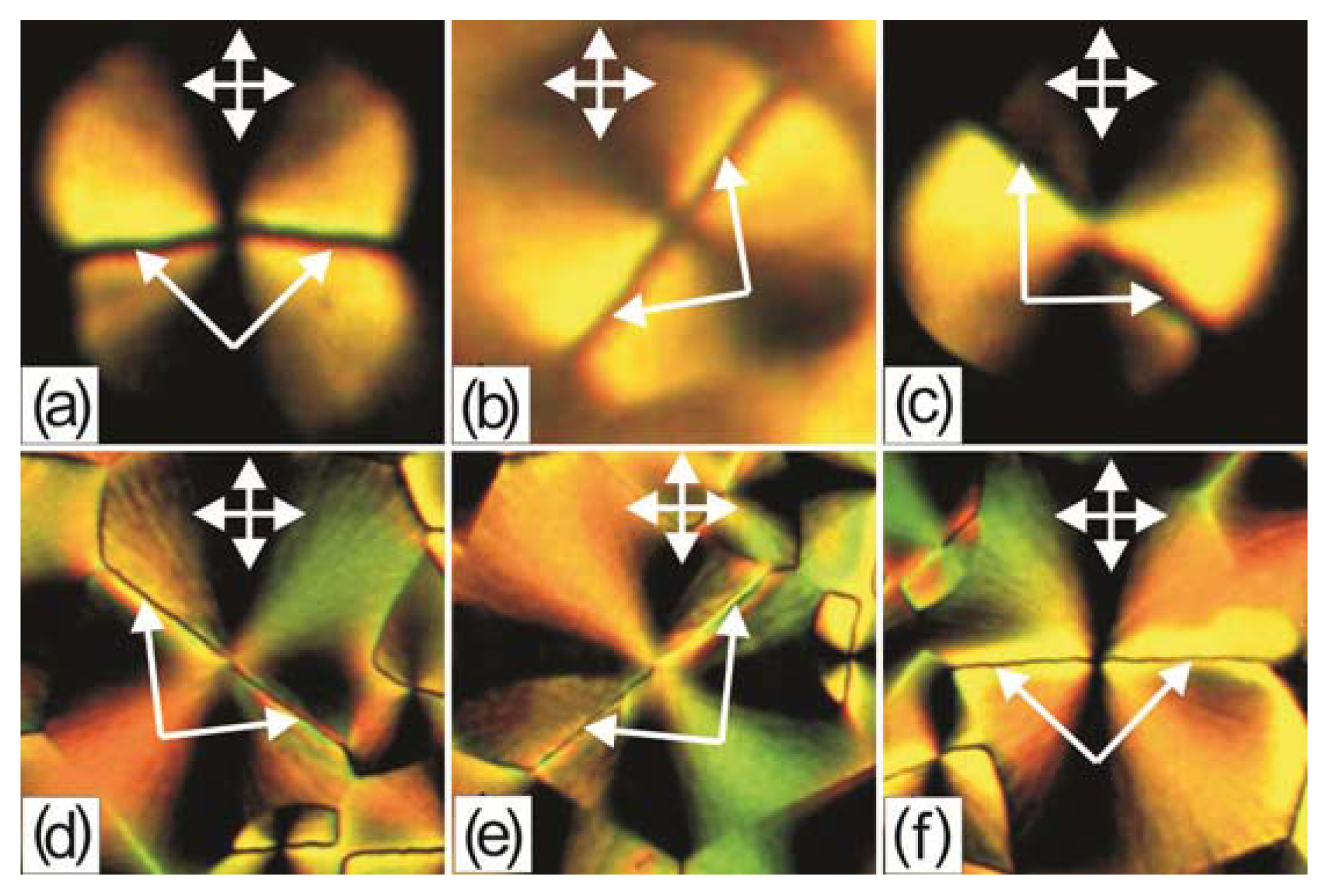

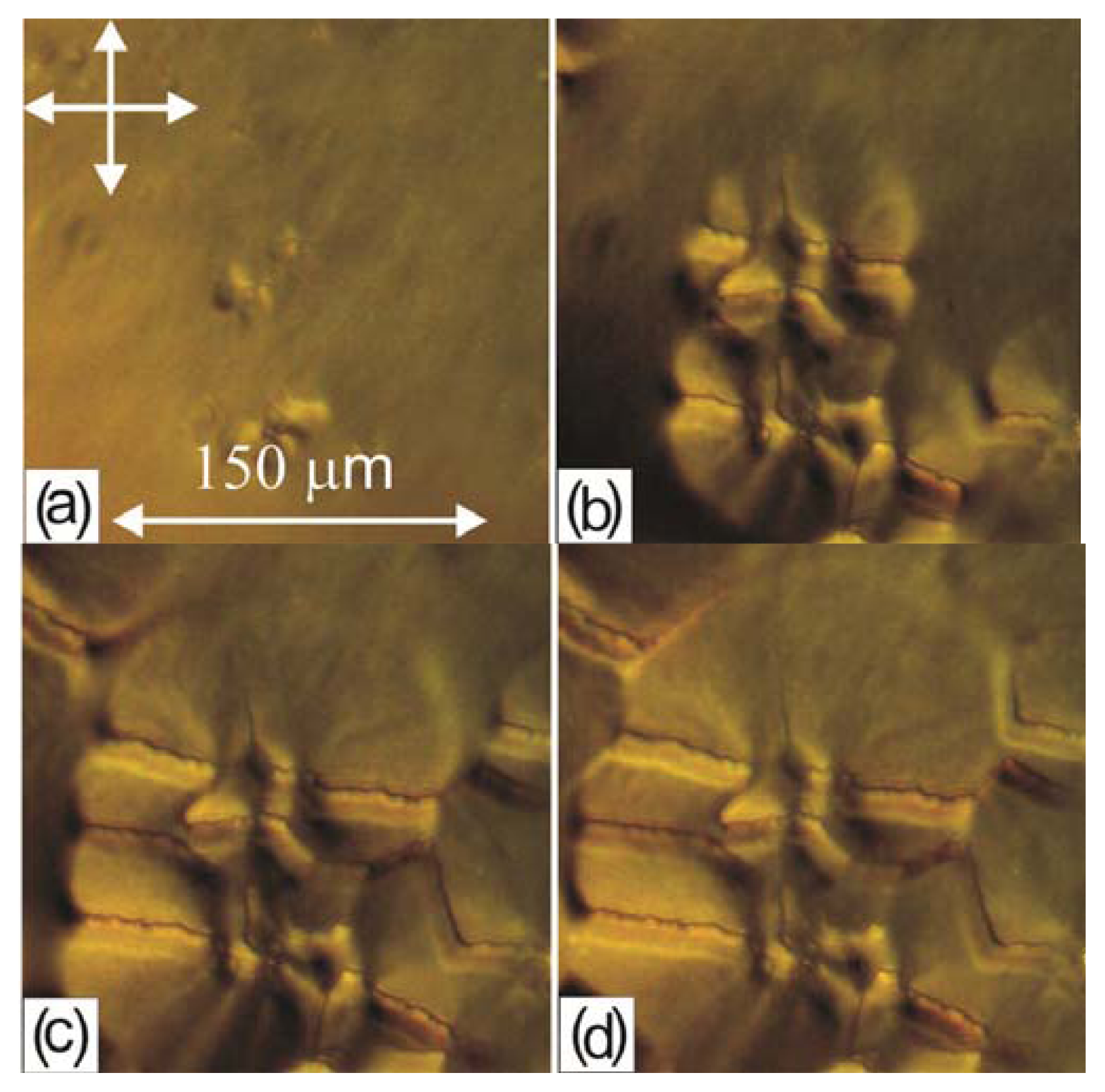

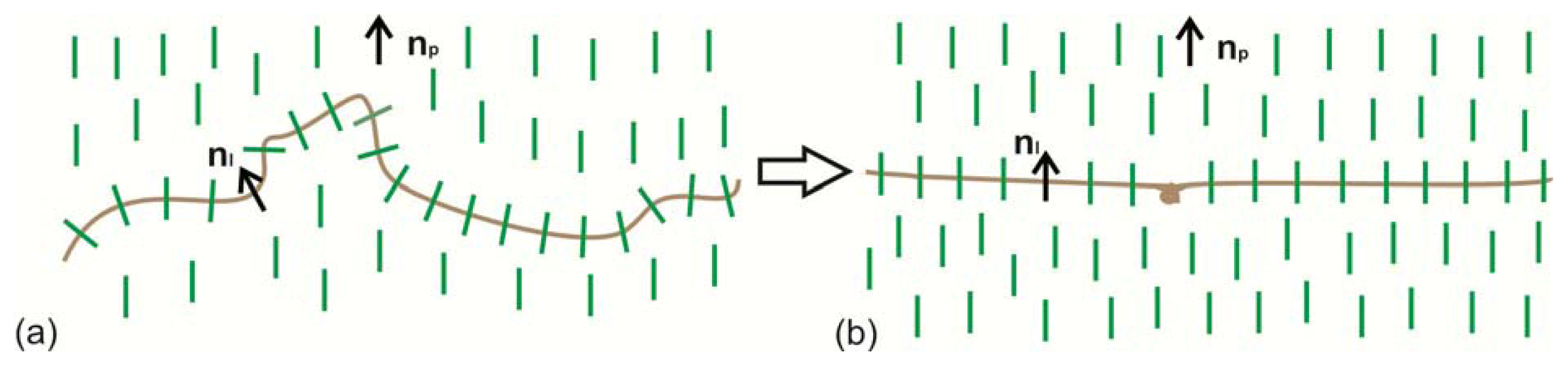

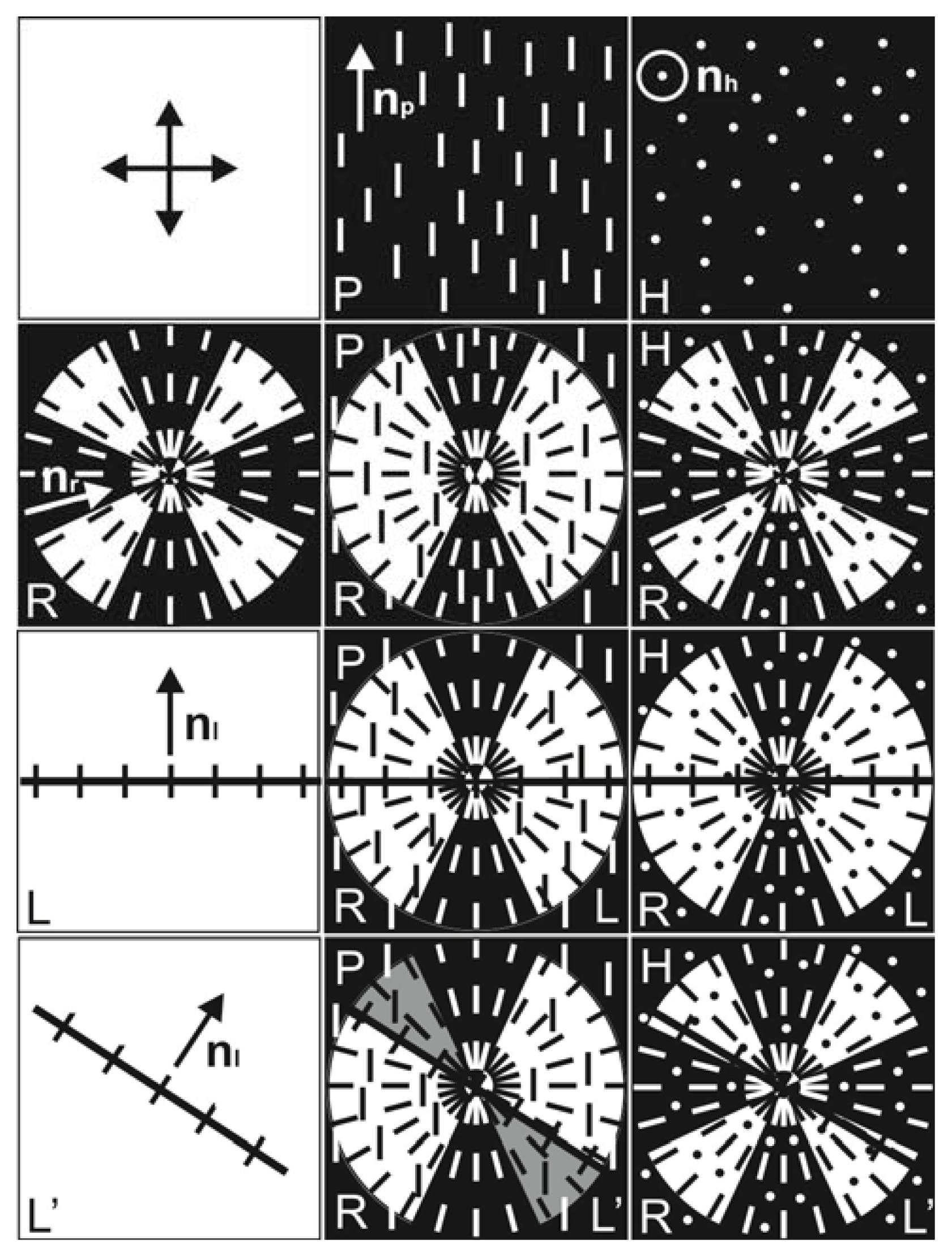

Abstract: Alignment of nematic liquid crystals on polycarbonate films obtained with the use of solvents with different solvations is studied. Domain structures occurring during the growth on the polymer surface against the background of the initial thread-like or schlieren texture are demonstrated. It is established by optical methods that the domains are stable formations visualizing the polymer surface structures. In nematic droplets, the temperature-induced transition from the domain structure with two extinction bands to the structure with four bands is observed. This transition is shown to be caused by reorientation of the nematic director in the liquid crystal volume from the planar alignment to the homeotropic state with the pronounced radial configuration of nematic molecules on the surface. The observed textures are compared with different combinations of the volume LC orientations and the radial distribution of the director field and the disclination lines at the polycarbonate surface.
Keywords: liquid crystal; polymer structure; domain liquid crystal; polymer structure; domain
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Parshin, A.M.; Gunyakov, V.A.; Zyryanov, V.Y.; Shabanov, V.F. Domain Structures in Nematic Liquid Crystals on a Polycarbonate Surface. Int. J. Mol. Sci. 2013, 14, 16303-16320.

AMA Style

Parshin AM, Gunyakov VA, Zyryanov VY, Shabanov VF. Domain Structures in Nematic Liquid Crystals on a Polycarbonate Surface. International Journal of Molecular Sciences. 2013; 14(8):16303-16320.

Chicago/Turabian Style

Parshin, Alexander M.; Gunyakov, Vladimir A.; Zyryanov, Victor Y.; Shabanov, Vasily F. 2013. "Domain Structures in Nematic Liquid Crystals on a Polycarbonate Surface." Int. J. Mol. Sci. 14, no. 8: 16303-16320.
