Review

In Vitro and in Vivo Models of Non-Alcoholic Fatty Liver Disease (NAFLD)

Department of Nutritional Sciences, SD Model Systems of Molecular Nutrition, Friedrich-Schiller-University, Dornburger Str. 25-29, D-07743 Jena, Germany
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2013, 14(6), 11963-11980; https://doi.org/10.3390/ijms140611963
Submission received: 19 March 2013 / Revised: 17 May 2013 / Accepted: 22 May 2013 / Published: 5 June 2013
(This article belongs to the Special Issue Non-Alcoholic Fatty Liver Disease Research)

Abstract

:
By now, non-alcoholic fatty liver disease (NAFLD) is considered to be among the most common liver diseases world-wide. NAFLD encompasses a broad spectrum of pathological conditions ranging from simple steatosis to steatohepatitis, fibrosis and finally even cirrhosis; however, only a minority of patients progress to end-stages of the disease, and the course of the disease progression to the later stages seems to be slow, developing progressively over several years. Key risk factors including overweight, insulin resistance, a sedentary life-style and an altered dietary pattern, as well as genetic factors and disturbances of the intestinal barrier function have been identified in recent years. Despite intense research efforts that lead to the identification of these risk factors, knowledge about disease initiation and molecular mechanisms involved in progression is still limited. This review summarizes diet-induced and genetic animal models, as well as cell culture models commonly used in recent years to add to the understanding of the mechanisms involved in NAFLD, also referring to their advantages and disadvantages.

1. Introduction

Throughout the last decades the prevalence of overweight and obesity has increased dramatically worldwide. Overweight and obesity have been identified to be key risk factors for many chronic diseases including cardiovascular diseases, type 2 diabetes and lipid disorders, but also non-alcoholic fatty liver disease (NAFLD) (for review see [1]). Indeed, NAFLD is now thought of as the hepatic manifestation of the metabolic syndrome, and is by now regarded as one of the most common liver diseases worldwide [2]. It is estimated that about 20% of the general adult population of most Westernized countries have hepatic steatosis and that ~2%–3% of adults even suffer from non-alcoholic steatohepatitis (NASH) [3].
The earliest and most common type of NAFLD is simple steatosis, which has long been thought to be a relatively benign state of liver injury; however, results of human studies indicate that fatty livers are more vulnerable to injury from various causes [2] and progress more rapidly to steatohepatitis, increasing the probability of further liver related morbidity and mortality [5]. Despite intense research efforts, molecular mechanisms involved in the onset, but also the progression of the disease, are still not fully understood. Indeed, in recent years it has been proposed that NAFLD may actually result as a consequence of multiple hits among which gut-, as well as adipose tissue-derived, factors may play a central role (for overview see [6] and Figure 1). Accordingly, universally accepted therapeutic options other than lifestyle modification including weight reduction diets and exercise are not yet available.
Due to ethical limitations in regards to tissue collection, but also therapeutic interventions (e.g., testing of drugs), and as the occurrence even of steatosis, but more so the progression to later stages of the disease (e.g., NASH, fibrosis or cirrhosis), may require a long period of time to study, animal models resembling conditions of the early phases of NAFLD in humans (e.g., steatosis and steatohepatitis) have been found to be useful tools to investigate mechanisms and pathophysiology underlying the development of NAFLD. The current review will focus primarily on dietary and genetic rodent animal models of NAFLD, and also on in vitro models and some ‘non-rodent’ animal models commonly used to study molecular mechanisms involved in the NAFLD.

2. Histopathology and Pathogenesis of NAFLD

The earliest stage of NAFLD is hepatic steatosis characterized by the deposition of cytoplasmic triglycerides as macro- and/or microvesicular lipid vacuoles in more than 5% of hepatocytes (for overview see [7] and Figure 1). The excessive accumulation of triglycerides in the hepatocytes arises from a dysbalance of triglyceride acquisition and removal, which seems primarily to result from (i) a hypercaloric and/or unbalanced diet, (ii) an increased de novo synthesis of triglycerides or (iii) enhanced lipolysis in adipose tissue (for overview also see [7]). Hepatic steatosis is often self-limited; however, it can progress to NASH distinguished from simple steatosis by the presence of hepatocellular injury, inflammatory infiltrate and/or collagen deposition (e.g., fibrosis) [7]. Fibrosis usually originates in the perisinusoidal regions of zone 3 and may also be present in the periportal area (for overview see [8,9]). Up to now, it is not clear what causes the progression of steatosis to NASH or if steatosis and NASH are distinct disorders (for overview see [6,7]).

3. Animal Models of NAFLD

In most patients the development of NAFLD takes years and results from an interplay of several risk factors like overnutrition and/or an inappropriate dietary pattern (e.g., high fat and/or high sugar intake) as well as inadequate energy expenditure due to a sedentary lifestyle and probably genetic susceptibility, all leading to multiple molecular alterations in the human organism (for overview see [6] and Figure 1). Accordingly, animal models used to study the onset of, but also progression of NAFLD to later stages of the disease like NASH or even fibrosis and cirrhosis, should incorporate the following criteria: (i) the pathological patterns and histological alterations found in the different stages of the disease in humans and (ii) the general physiological alterations associated with the disease development in humans (e.g., weight gain, insulin resistance but also impaired intestinal barrier function and adipocytokine release from adipose tissue). Inadequateness in resembling either the liver pathology or the physiological alterations in experimental models of NAFLD will make it difficult to translate results found in such laboratory model systems to the clinical situation and subsequently the development of therapeutic or prevention strategies of the disease. Specifically, an appropriate animal model of NAFLD should display not only steatosis, but also inflammation, liver cell injury (e.g., ballooning of hepatocytes) and should, if long enough extended, also progress to fibrosis. Furthermore, the model should also display metabolic abnormalities like overweight, insulin resistance, impaired glucose tolerance, dyslipidemia and altered adipocytokine profiles, as well as the increased bacterial endotoxin levels frequently found in patients with NAFLD (for overview see [6]).
However, as human behaviour and biology are rather complex, it should be kept in mind when selecting an animal model to study NAFLD, and also when interpreting that data obtained in these models that other factors like physical activity, social environment, psychological stress factors and genetics may also be important contributors to the development of NAFLD in humans.

4. Genetic Rodent Models of NAFLD

4.1. Ob/ob, db/db and Obese (fa/fa) Zucker Rat

Among the most frequently used genetic models to study NAFLD are those that exhibit alterations in feeding behaviour (e.g., hyperphagia), which frequently results from defects in the leptin signalling pathways. Indeed, the so-called ob/ob mouse carries a spontaneous mutation in the leptin gene, which results in a leptin deficiency, subsequently leading to a hyperphagic, inactive, obese, and diabetic phenotype accompanied by the development of NAFLD ([10,11] and Figure 2). This model has been extensively studied, and is used as a model for various metabolic diseases, among them NAFLD, despite the fact that the “ob” mutation is rare in humans [1214]. Furthermore, results of association studies of leptin levels with the development of NAFLD are somewhat contradictory, as in older studies leptin levels correlate poorly with the development of NASH, whereas in more recent years, a positive association was found [1214].
Furthermore, more recent studies also reported an association of a single nucleotide polymorphism on the gene encoding for the leptin receptor with the development of NAFLD [15,16]. However, also unlike the human situation, ob/ob mice do not spontaneously progress from steatosis to steatohepatitis but rather require some kind of “second hit” (e.g., a dietary intervention such as a methionine- and choline-deficient (MCD) diet, or a high-fat diet (HFD), or a challenge with small doses of endotoxin) [17,18].
Contrary to what is seen in ob/ob mice, db/db, mice have a natural mutation in the leptin receptor (ob-Rb) gene; however, in line with what is found in ob/ob mice, db/db animals also only develop obesity, insulin resistance, and macrovesicular steatosis and require a “second hit” to progress from steatosis to steatohepatitis [19]. Similar to the latter, the obese (fa/fa) Zucker rat also exhibits hyperphagia resulting in hyperinsulinemia, hyperlipidemia and the development of liver steatosis due to a loss of the leptin receptor [20,21].

4.2. Agouti Gene [KK-Ay/a]

The heterozygous mutation of the agouti gene (KK-Ay/a) has been shown to result in a loss of melanocortin, and an obese phenotype resulting from hyperphagia caused by an impaired hypothalamic appetite suppression, in addition to changes in color. Similar to what is found in ob/ob and db/db mice, this strain of mice develops obesity, insulin resistance, and steatosis in the liver but also does not progress to later stages of the disease. In order to progress to NASH, a “second hit” (e.g., a specific diet, like a MCD diet, a HFD, or a challenge with small doses of endotoxin) is again necessary [22], thereby only partly mimicking the situation found in humans with NAFLD.

4.3. Melanocortin 4 Receptor (MC4R)

In recent years, studies have revealed that the melanocortin 4 receptor (MC4R) may be a critical factor in the regulation of food intake and body weight [23]. Indeed, several pathogenic mutations of the MC4R were identified at a high frequency in severe early-onset obesity in humans [24]. Mice with targeted disruption of the MC4R have been shown to develop late-onset obesity with hyperphagia, hyperinsulinemia, and hyperglycaemia [25,26]. Furthermore, MC4R-KO mice fed a HFD have been shown to exhibit massive hepatic steatosis and altered gene expression of genes related to lipid metabolism [27]. Recently, Itoh et al. reported that MC4R-KO mice fed a HFD for up to a year progress from early steatosis through NASH to even liver fibrosis and hepatocellular carcinoma, displaying many metabolic abnormalities also reported in humans with NAFLD (e.g., excessive weight gain, altered blood glucose levels, hyperlipidemia) [28]; however, if alterations of the intestinal barrier function are also present in this model has to our knowledge not yet been studied.

4.4. Sterol Regulator Element-Binding Protein 1c (SREBP)

Targeted overexpression of the insulin-regulated transcription factor sterol regulator element-binding protein 1c (SREBP1) in adipose tissue has also been shown to results in the development of NAFLD in mice [29,30]. In this model the development of fatty liver was associated with alterations in the differentiation of white adipose tissue and hyperinsulinemia but also mild hepatic inflammation and fibrosis; however, body weight did not differ from wild-types and development of adipose tissue was markedly altered [29].

5. Dietary Rodent Models of NAFLD

5.1. Methionine- and Choline-Deficient (MCD) Diet

Dietary models to induce NAFLD have relevance to human disease since alterations of dietary pattern and over-nutrition both are being associated with the development of overweight and insulin resistance have been identified to be key risk factors for the development of the disease. However, conversely to what is found in most patients with NAFLD, one of the most frequently used dietary models for NASH, the MCD diet, is a nutrient-deficient dietary model. The MCD diet normally contains substantial amounts of sucrose (e.g., 40%) and low amounts of fat [10%] but is deficient in methionine and choline, both being essential factors in human and animal nutrition. Rodents fed a MCD diet rapidly (e.g., within 1 to 2 weeks) develop hepatic steatosis due to enhanced uptake of fatty acids and decreased secretion of very-low-density lipoproteins from the liver (for overview see [31]). After two weeks, the development of steatosis is followed by necrosis and inflammation and then even progresses to pericellular and pericentral fibrosis. In addition, oxidative stress [32], activation of Toll-like receptor (TLR) 4-dependent signalling cascades in the liver [33] and changes in cytokines as well as adipocytokines occur [33], all contributing to liver injury in this dietary model. Despite the fact that under the MCD diet rodents develop significantly faster and more pronounced liver damage, this dietary feeding regiment has some marked limitations. For instance, the main risk factors for the development of NAFLD found in humans (e.g., insulin resistance and overweight) are lacking; rather, severe weight loss of up to 35% over a period of 4 weeks has been reported [34]. Furthermore, it has been shown in several studies that the responsiveness of different mouse strains towards the MCD diet induced NAFLD varies considerably. Indeed, release of transaminases in different mouse strains can be ranked as follows: A/J > C57BL/6 > C3H/HeN = Balb/c = DBA/2J, whereas long term feeding of an only methionine deficient diet causes a more pronounced liver injury and even hepatocarcinogenesis in DBA/2J than in C57BL/6 mice [3537].

5.2. High Fat Diet (HFD)

Epidemiological studies suggest that a diet rich in fat might be a risk factor for the development of obesity and insulin resistance [38]. Furthermore, fat is the most energy dense macronutrient in human nutrition thereby increasing the odds to develop obesity when consumed in excessive amounts. Accordingly, diets rich in fat (HFD), e.g., 30%–75% of total calories derived from saturated fatty acids (± unsaturated fatty acids) have been proposed to be a useful tool to induced metabolic alterations and NAFLD. Indeed, depending on the duration of the feeding time and combination of fatty acids, rodents fed an HFD display obesity, impaired glucose tolerance, dyslipidemia, increased expression of regulators of lipogenesis (e.g., SREBP1c and liver X receptor) and expression of proinflammatory cytokines (for overview see [39,40]). Furthermore, signs of oxidative stress and of increased sensitivity to endotoxin as well as alterations in the Toll-like receptor 4 signaling cascade in the liver and a protection of animals depleted of Kupffer cells against HFD-induced NAFLD suggest that an impaired function of the intestinal barrier is also associated with the development of HFD-induced NAFLD in mice [41]; however, feeding a HFD does not produce as severe degrees of liver injury as those found in the MCD diet models and feeding times necessary to achieve more severe damage are markedly longer than those found for the MCD diet [42,43]. Nevertheless, these diets more closely resemble the pathological and molecular alterations found in humans with NAFLD. It is also for this reason that in recent years HFDs are commonly combined with genetic animal models of NAFLD (e.g., ob/ob mice) [44]. In other reports, the composition of the diet was altered to achieve steatohepatitis (e.g., HFD with lower methionine and choline content) or the application rout of the diet was altered (e.g., ad libitum feeding vs. intragastric force feeding) [45,46].
Indeed, Deng et al. [46] introduced an intragastric feeding model adapted from the so called Tsukamoto & French model used in alcoholic liver research [47] to induce steatohepatitis. In this model C57BL/6 mice were fed a high fat diet for 9 weeks intragastically resulting not only in steatohepatitis with beginning fibrosis but also overweight, increased visceral fat, impaired glucose tolerance and increased expression of adipocytokines in white adipose tissue; however, this model requires a surgical procedures and a high maintenance of the animals as the diet is administered through a pump-driven tubing system implanted in the stomach of the animals.
It seems that not only the amount of dietary fat, but also the quality of fat and the fatty acid composition, is important for inducing NAFLD, and maybe also the progression of the disease. A diet containing more unsaturated fat such as fish oil has been shown to result in higher levels of lipid peroxidation and a more pronounced induction of the expression of chemokines and cytokines in the liver than corn oil [48]. Tipoe et al. [49] developed a rat model for NASH by feeding a diet that contains 30% unsaturated fat derived from fish oil. Interestingly, after 8 weeks, these animals did not gain more weight than the controls; however, they developed a broad spectrum of features typical for NASH that include elevated ALT levels, increased collagen deposition, and increased fat incorporation, as well as signs of inflammation and necrosis. These results are in line with those of earlier studies that showed that in settings of alcoholic liver damage, an addition of fish oil to the diet as a source of unsaturated fatty acids enhanced liver damage which was associated with marked induction of CYP2E1 mRNA expression in the liver in comparison to rats fed a diet containing saturated fatty acids. In these studies a significant correlation was found between expression level of CYP2E1 mRNA and markers of lipid peroxidation (e.g., 4-hydoxynonenal protein adducts in liver tissue) [50,51]. These studies suggest that the harmful effects of unsaturated fatty acids might stem from an enhanced CYP2E1 mediated metabolism of the fatty acid associated with an enhanced formation of reactive oxygen species [50,51]. Chen et al. [52] found that feeding rats a diet fortified with fish oil (205g fish oil + 30 g maize oil/kg) for 6 weeks resulted in a marked mRNA induction of several cytochrom P450 enzymes in the liver; however, activity of superoxide dismutase (SOD) and ethoxyresorufin O-deethylase (EROD) was also found to be increased in livers of these animals. In a more recent study by Zong et al. [53] it was shown that CYP2E1 knockout mice fed a high fat diet for 12 weeks were markedly protected from insulin resistance and showed reduced fat accumulation in the liver. Furthermore, van den Berg et al. [54] showed that in C57BL/6 mice fed a HFD rich in lard has a greater impact in hepatic insulin sensitivity than a palm oil rich HFD, further suggesting that fatty acid composition may be a critical factor that should also be taken into consideration when choosing a dietary model of NAFLD. In addition, results of several studies suggest that not every mouse strain is similarly responsive to a high fat diet. Indeed, it was shown that both C57BL/6 and 129/SVJ develop NASH and may even display fibrotic alterations in the liver when exposed to a high fat diet for an extended time whereas for A/J mice a similar effect of a high fat diet was not found [55,56]. Furthermore, dietary models combining a high fat diet with cholesterol (1.25%) and even cholate (0.5%) (e.g., as found in the so called Paigen diet) have been shown to induce mild hepatic fibrosis and oxidative hepatocellular damage in rats but also mice within 4 weeks of feeding [5759]. Table 1 summarizes the composition of the Paigen diet. Taken together, these models clearly demonstrate that not simply high amounts of fat in the diet are causing liver damage but that the type of fat as well as overall composition of the diet in regards to metabolism of dietary fat (e.g., additions like cholate) and the mouse strain may also be important.

5.3. Fructose-Rich Diets

Results of several epidemiological and some small clinical studies conducted in different countries (e.g., US, Japan, Israel and Germany) suggest that a shift in dietary patterns towards a sugar rich diet may also be risk factor for the development of NAFLD in humans (for overview see [60,61]). Diets with elevated carbohydrate content (e.g., high-sucrose or high-fructose diets) have also been used to induce the development of NAFLD in mouse models. Studies giving C57BL/6 mice ad libitum access to different mono- and disaccharides in drinking water revealed that fructose had the most damaging effect on the liver despite having the least impact on body weight gain [62]. Furthermore, it was shown that fructose in chow (e.g., up to 60% of total calories derived from fructose) or drinking solutions (e.g., 30% fructose solution) not only leads to the development of NAFLD but also insulin resistance [6264]. Similar to what was reported from HFD models, diets rich in fructose can lead to oxidative stress, expression of proinflammatory cytokines, and SREBP1c in the liver and elevated endotoxin levels in portal blood as well as alterations of adipocytokine expression in visceral adipose tissue in a dose- and time of- exposure–related manner [6265]; however, similar to the results found for feeding HFDs, high fructose diets did not cause liver injury as severe as that found in the MCD diet models, despite more closely resembling not only the pathological and molecular alterations but also the dietary patterns found in humans with NAFLD.

5.4. Western-Style or Fast Food Diet: Combination of Fat and Sugar

In analogy to what is found in many Westernized countries in regards to “out-of home dining” or “fast food” rich diets, shown to be risk factor for the development of obesity [66,67] a combination of both fat and fructose -sometimes with slightly elevated cholesterol contents- referred to as Western-style or fast food diet has also repeatedly been used as a dietary model to induce NAFLD in rodents. Charlton et al. [68] showed that after feeding C57BL/6 mice for 6 months a fast food diet consisting of a high-fat chow (40% of energy from fat with 2% cholesterol) and drinking water enriched with high fructose corn syrup (HFCS, 42 g/L final concentration) mice not only became overweight and insulin resistant but also developed NASH and showed a gene expression signature of increased fibrosis. In this study, it was also shown that mice fed the fast food diet developed endoplasmatic reticulum stress and lipoapoptosis, both also found in humans with NAFLD. In line with these findings, in our own experiments we found that feeding a liquid diet based Western-style diet in C57/BL6 mice for 6 weeks results in the development of massive hepatic steatosis with marked inflammatory alterations but also increased bacterial endotoxin levels in portal plasma and slightly elevated fasting glucose levels (dietary composition see Table 2 and Figure 3). Furthermore, it was reported by Tsuchiya et al. [69] that feeding a fat- and fructose-rich diet for up to 16 weeks leads to hepatic iron overload and increased lipid peroxidation. Somewhat contrary to the results found for animal models only feeding a fructose or fat rich diet, the available data on using a Western-style or fast food diets suggests that animals progress to later stages of NAFLD (e.g., NASH with beginning fibrosis) quicker when being fed these types of diet than when being fed only fat or fructose ad libitium and even seem to gain more weight.

5.5. “Non-rodent” Animal Models of NAFLD

Studies have also proposed several non-rodents (like Caenorhabditis elegans, opossum, Ossabaw pig, primates) as models to investigate the pathogenesis of NAFLD [7072]. The nematode, Caenorhabditis elegans has been employed as a model organism to study obesity and the metabolic syndrome due to the conservation of the pathways that regulate energy and lipid metabolism [70]. Indeed, the insulin like signaling pathway was extensively studied in C. elegans [73] and has been proposed to be analogues to mammals; however, as this model lacks a liver clinical application of findings derived in this model organism remain to be determined. Recently studies have suggested that diet rich in cholesterol and fat results in an enormous increase in hepatic total cholesterol levels in ABCB 4 mutant opossums in comparison to controls when being fed for 24 weeks [74]. Indeed, results of Puri et al. [75] suggest that the hepatic cholesterol content in NASH patients was higher in comparison to NAFLD patients without NASH. Hence, opossums might be a novel animal model of NASH resembling the human NASH phenotype; however, further studies are necessary to characterize this animal model. In recent years, studies have also shown that minipigs, like the Ossabaw pigs, may be an excellent model to investigate the metabolic syndrome and type-2 diabetes [76]. In fact, Lee et al. [72] have shown that feeding Ossabaw pigs an atherogeneic diet for 24 weeks results in a significantly increased weight gain, and also the development of micro and macrovesicular steatosis and pericellular/perisinusoidal fibrosis when compared to controls; however, large animal models like Ossabaw pigs have the disadvantage to be rather expensive though they resemble human NAFLD more closely than rodents.

5.6. In Vitro Models for NAFLD

The molecular mechanisms and signalling cascades involved in the progression of NAFLD were first obtained through animal models (e.g., genetic models, diet-induced models) and confirmed through clinical studies (for overview see [77]). However, recent studies have employed in vitro approaches to elucidate the molecular mechanisms involved in the progression of the disease. Paradoxically, there is only few data obtained in NAFLD using these models, whereas for other liver diseases in vitro models are important tools in research. In general, primary cell cultures and immortalized cell lines are widely used to develop in vitro models for research. Primary human hepatocytes [78], Kupffer cells, stellate cells or sinusoidal endothelial cells seems to be physiologically relevant model for clinical conditions [79]; however, ethical issues and limited number of human liver samples make it extremely complicated to use primary human cell cultures. The other option would be primary rodent cells, which depending on the model used may more or less mimic the situation found in humans; however, methods used for isolation need to be well established in order to achieve reproducible results and sometimes cells loose tissue-specific functions when cultured for an extended time. An alternative to primary cell cultures are immortalized cell lines, which have an extended replicative capacity, a stable phenotype and enable the use of the same consistent cells throughout a research project. In addition, cultivation of immortalized cell lines is simpler and easier to standardize (for overview see [80]). Table 3 summarizes the available cell lines and model systems for an in vitro approach of the study of NAFLD.

5.7. Co-Culture Model: Interaction of RAW 264.7 Macrophages and AML-12 Cells

In the complex architecture of in vivo hepatic tissue the interaction of two or more cells is a common phenomenon. Accordingly, reproducing these settings in in vitro experiments can be a reliable model to investigate the cell to cell interaction in the progression of disease. For example, a co-culture model was developed by our own group to mimic the effect of feeding a fructose-rich diet on the liver. As it was shown before that chronic intake of fructose is associated with increased portal endotoxin levels suggesting that the effects found on the liver might result from both endotoxin and fructose. RAW 264.7 macrophages and AML-12 cells being models of Kupffer cells and murine hepatocytes, respectively, were concomitantly exposed to fructose and/or LPS in the presence of inhibitors (Figure 4). Indeed, studies have shown that morphological features, phagocytic properties or reactivity to external stimuli (e.g., lipopolysaccharide) was almost similar in both RAW 264.7 macrophages and Kupffer cells [8184]. Therefore, RAW264.7 cells were used as model cells for Kupffer cells. RAW 264.7 cells were grown on transwell cell culture chambers until 70% confluency. AML-12 cells were grown in normal six-well plates until 70% confluency followed by an 18 h serum starvation. Meanwhile, RAW 264.7 cells were challenged with either 50 ng/mL LPS or fructose either in the presence or in the absence of inhibitors for 1 h. The concentration of LPS used in the in vitro experiments is equivalent to 10 EU/mL; however, if these concentrations are comparable to the endotoxin levels found in the portal vein of patients with NAFLD remains to be determined. To our knowledge levels of endotoxin in the portal vein of patients with NAFLD have not yet been determined. Indeed, in most of the human studies endotoxin levels were measured in peripheral blood. Results of our own studies but also those of other groups suggest that in patients with NAFLD/NASH endotoxin levels might vary from 0.3 to 14.8 EU/mL [8587]. The results obtained from the co-culture model suggest that an activation of Kupffer cells by endotoxin may trigger the induction of inflammatory cytokines in other cell types in the liver (e.g., hepatocytes), which play a vital role in the progression of fructose-induced non-alcoholic fatty liver disease [88].

5.8. Three-Dimensional Cell Culture Model

Until now, most of in vitro studies have utilized two-dimensional monolayer cell cultures to elucidate the molecular mechanisms involved in the progression of NAFLD; however, recent studies have shown that three-dimensional liver cell cultures may better mimic the physiological settings of the liver rather than two-dimensional monolayer liver cell cultures [89,90]. Indeed, Janokar et al. [90] developed a model of 3D spheroids by using elastin-like peptide ELP-polyethyleneimine (PEI) and showed that ELP-PEI coated surfaces influence the morphology of H35 rat hepatoma cells to create 3D spheroids. This model was predominantly used to investigate the transcriptional regulation of genes involved in hepatic steatosis. Furthermore, the results for the first time have shown the transcriptional dynamics (e.g., activation, suppression) of NFκB in response to TNFα stimulation.
Taken together, co-culture models or 3D models which represent the complex architecture of liver tissue might be potential tools to elucidate the cellular mechanisms of the fatty liver disease. Indeed, these models serve as better tools to study cell-to-cell cross talk in the progression of the disease; however, further research is needed to standardize the culture conditions.

6. Conclusions

As summarized and discussed in this review, many animal models and herein, particularly rodent models, and to a lesser extend also cell culture models of NAFLD have been developed and been used in recent years to unravel the molecular mechanisms involved in the onset but also the progression of this liver disease; however, the available models, be it in vivo or in vitro only mimic certain disease aspects found in humans and markedly differ in regards to the degree of hepatocellular damage and metabolic alterations associated with the development of the disease. Nevertheless, when chosen carefully, both in vitro and in vivo models can be used to verify hypotheses on mechanisms underlying the development of NAFLD and as tools to test new therapeutic and prevention strategies. The future aim should be to develop both animals and cell based models that more closely reflect the histopathology and pathophysiology found in humans with NAFLD, and thereby, increasing the knowledge on the molecular mechanisms involved in the onset but also the progression of NAFLD and providing the basis for the development of better therapeutic approaches to the disease.

Acknowledgments

Supported by German Ministry of Education and Science (BMBF) (FKZ: 01EA1305 (IB)).

Abbreviations

NAFLD
non-alcoholic fatty liver disease
NFκB
nuclear factor kappa B
ROS
reactive oxygen species
TNFα
tumor necrosis factor α
TG
triglycerides
IL-6
interleukin 6
MCD
methionine- and choline-deficient
MC4R
melanocortin 4 receptor
HFD
high-fat diet
SREBP1
sterol regulator element-binding protein 1c
HFCS
high fructose corn syrup

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Marchesini, G.; Babini, M. Nonalcoholic fatty liver disease and the metabolic syndrome. Minerva Cardioangiol 2006, 54, 229–239. [Google Scholar]
  2. Adams, L.A.; Lymp, J.F.; St Sauver, J. The natural history of nonalcoholic fatty liver disease: A population-based cohort study. Gastroenterology 2005, 129, 113–121. [Google Scholar]
  3. Neuschwander-Tetri, B.A. Nonalcoholic steatohepatitis and the metabolic syndrome. Am. J. Med. Sci 2005, 330, 326–335. [Google Scholar]
  4. Krawczyk, M.; Bonfrate, L.; Portincasa, P. Nonalcoholic fatty liver disease. Best Pract. Res. Clin. Gastroenterol 2010, 24, 695–708. [Google Scholar]
  5. Gross, L.S.; Li, L.; Ford, E.S.; Liu, S. Increased consumption of refined carbohydrates and the epidemic of type 2 diabetes in the United States: An ecologic assessment. Am. J. Clin. Nutr 2004, 79, 774–779. [Google Scholar]
  6. Tilg, H.; Moschen, A.R. Evolution of inflammation in nonalcoholic fatty liver disease: The multiple parallel hits hypothesis. Hepatology 2010, 52, 1836–1846. [Google Scholar]
  7. Cohen, J.C.; Horton, J.D.; Hobbs, H.H. Human fatty liver disease: Old questions and new insights. Science 2011, 332, 1519–1523. [Google Scholar]
  8. Takahashi, H.; Ono, N.; Eguchi, Y. Evaluation of acoustic radiation force impulse elastography for fibrosis staging of chronic liver disease: A pilot study. Liver Int 2010, 30, 538–545. [Google Scholar]
  9. Brunt, E.M.; Kleiner, D.E.; Wilson, L.A. Nonalcoholic fatty liver disease [NAFLD] activity score and the histopathologic diagnosis in NAFLD: Distinct clinicopathologic meanings. Hepatology 2011, 53, 810–820. [Google Scholar]
  10. Mayer, J.; Bates, M.W.; Dickie, M.M. Hereditary diabetes in genetically obese mice. Science 1951, 113, 746–747. [Google Scholar]
  11. Mayer, J.; Dickie, M.M.; Bates, M.W. Free selection of nutrients by hereditarily obese mice. Science 1951, 113, 745–746. [Google Scholar]
  12. Chalasani, N.; Crabb, D.W.; Cummings, O.W. Does leptin play a role in the pathogenesis of human nonalcoholic steatohepatitis? Am. J. Gastroenterol 2003, 98, 2771–2776. [Google Scholar]
  13. Machado, M.V.; Cortez-Pinto, H. Gut microbiota and nonalcoholic fatty liver disease. Ann. Hepatol 2012, 11, 440–449. [Google Scholar]
  14. Zelber-Sagi, S.; Ratziu, V.; Zvibel, I. The association between adipocytokines and biomarkers for nonalcoholic fatty liver disease-induced liver injury: A study in the general population. Eur. J. Gastroenterol. Hepatol 2012, 24, 262–269. [Google Scholar]
  15. Swellam, M.; Hamdy, N. Association of nonalcoholic fatty liver disease with a single nucleotide polymorphism on the gene encoding leptin receptor. IUBMB Life 2012, 64, 180–186. [Google Scholar]
  16. Aller, R.; de Luis, D.A.; Izaola, O. Lys656Asn polymorphism of leptin receptor, leptin levels and insulin resistance in patients with non alcoholic fatty liver disease. Eur. Rev. Med. Pharmacol. Sci 2012, 16, 335–341. [Google Scholar]
  17. Faggioni, R.; Fantuzzi, G.; Gabay, C. Leptin deficiency enhances sensitivity to endotoxin-induced lethality. Am. J. Physiol 1999, 276, R136–R142. [Google Scholar]
  18. Brix, A.E.; Elgavish, A.; Nagy, T.R. Evaluation of liver fatty acid oxidation in the leptin-deficient obese mouse. Mol. Genet. Metab 2002, 75, 219–226. [Google Scholar]
  19. Wortham, M.; He, L.; Gyamfi, M. The transition from fatty liver to NASH associates with SAMe depletion in db/db mice fed a methionine choline-deficient diet. Dig. Dis. Sci 2008, 53, 2761–2774. [Google Scholar]
  20. Godbole, V.; York, D.A. Lipogenesis in situ in the genetically obese Zucker fatty rat [fa/fa]: Role of hyperphagia and hyperinsulinaemia. Diabetologia 1978, 14, 191–197. [Google Scholar]
  21. Oana, F.; Takeda, H.; Hayakawa, K. Physiological difference between obese [fa/fa] Zucker rats and lean Zucker rats concerning adiponectin. Metabolism 2005, 54, 995–1001. [Google Scholar]
  22. Masaki, T.; Chiba, S.; Tatsukawa, H. Adiponectin protects LPS-induced liver injury through modulation of TNF-alpha in KK-Ay obese mice. Hepatology 2004, 40, 177–184. [Google Scholar]
  23. Balthasar, N.; Dalgaard, L.T.; Lee, C.E. Divergence of melanocortin pathways in the control of food intake and energy expenditure. Cell 2005, 123, 493–505. [Google Scholar]
  24. Vaisse, C.; Clement, K.; Durand, E. Melanocortin-4 receptor mutations are a frequent and heterogeneous cause of morbid obesity. J. Clin. Invest 2000, 106, 253–262. [Google Scholar]
  25. Marsh, D.J.; Hollopeter, G.; Huszar, D. Response of melanocortin-4 receptor-deficient mice to anorectic and orexigenic peptides. Nat. Genet 1999, 21, 119–122. [Google Scholar]
  26. Huszar, D.; Lynch, C.A.; Fairchild-Huntress, V. Targeted disruption of the melanocortin-4 receptor results in obesity in mice. Cell 1997, 88, 131–141. [Google Scholar]
  27. Albarado, D.C.; McClaine, J.; Stephens, J.M. Impaired coordination of nutrient intake and substrate oxidation in melanocortin-4 receptor knockout mice. Endocrinology 2004, 145, 243–252. [Google Scholar]
  28. Itoh, M.; Suganami, T.; Nakagawa, N. Melanocortin 4 receptor-deficient mice as a novel mouse model of nonalcoholic steatohepatitis. Am. J. Pathol 2011, 179, 2454–2463. [Google Scholar]
  29. Shimomura, I.; Hammer, R.E.; Richardson, J.A. Insulin resistance and diabetes mellitus in transgenic mice expressing nuclear SREBP-1c in adipose tissue: Model for congenital generalized lipodystrophy. Genes Dev 1998, 12, 3182–3194. [Google Scholar]
  30. Nakayama, H.; Otabe, S.; Ueno, T. Transgenic mice expressing nuclear sterol regulatory element-binding protein 1c in adipose tissue exhibit liver histology similar to nonalcoholic steatohepatitis. Metabolism 2007, 56, 470–475. [Google Scholar]
  31. Anstee, Q.M.; Goldin, R.D. Mouse models in non-alcoholic fatty liver disease and steatohepatitis research. Int. J. Exp. Pathol 2006, 87, 1–16. [Google Scholar]
  32. Leclercq, I.A.; Farrell, G.C.; Field, J. CYP2E1 and CYP4A as microsomal catalysts of lipid peroxides in murine nonalcoholic steatohepatitis. J. Clin. Invest 2000, 105, 1067–1075. [Google Scholar]
  33. Larter, C.Z.; Yeh, M.M.; Williams, J. MCD-induced steatohepatitis is associated with hepatic adiponectin resistance and adipogenic transformation of hepatocytes. J. Hepatol 2008, 49, 407–416. [Google Scholar]
  34. Rinella, M.E.; Elias, M.S.; Smolak, R.R. Mechanisms of hepatic steatosis in mice fed a lipogenic methionine choline-deficient diet. J. Lipid Res 2008, 49, 1068–1076. [Google Scholar]
  35. Rangnekar, A.S.; Lammert, F.; Igolnikov, A.; Green, R.M. Quantitative trait loci analysis of mice administered the methionine-choline deficient dietary model of experimental steatohepatitis. Liver Int 2006, 26, 1000–1005. [Google Scholar]
  36. Yamazaki, Y.; Kakizaki, S.; Takizawa, D. Interstrain differences in susceptibility to non-alcoholic steatohepatitis. J. Gastroenterol. Hepatol 2008, 23, 276–282. [Google Scholar]
  37. Pogribny, I.P.; Tryndyak, V.P.; Bagnyukova, T.V. Hepatic epigenetic phenotype predetermines individual susceptibility to hepatic steatosis in mice fed a lipogenic methyl-deficient diet. J. Hepatol 2009, 51, 176–186. [Google Scholar]
  38. Bray, G.A.; Paeratakul, S.; Popkin, B.M. Dietary fat and obesity: A review of animal, clinical and epidemiological studies. Physiol. Behav 2004, 83, 549–555. [Google Scholar]
  39. Takahashi, Y.; Soejima, Y.; Fukusato, T. Animal models of nonalcoholic fatty liver disease/nonalcoholic steatohepatitis. World J. Gastroenterol 2012, 18, 2300–2308. [Google Scholar]
  40. Buettner, R.; Scholmerich, J.; Bollheimer, L.C. High-fat diets: Modeling the metabolic disorders of human obesity in rodents. Obesity [Silver Spring] 2007, 15, 798–808. [Google Scholar]
  41. Lanthier, N.; Molendi-Coste, O.; Cani, P.D. Kupffer cell depletion prevents but has no therapeutic effect on metabolic and inflammatory changes induced by a high-fat diet. FASEB J 2011, 25, 4301–4311. [Google Scholar]
  42. Omagari, K.; Kato, S.; Tsuneyama, K. Effects of a long-term high-fat diet and switching from a high-fat to low-fat, standard diet on hepatic fat accumulation in Sprague-Dawley rats. Dig. Dis. Sci 2008, 53, 3206–3212. [Google Scholar]
  43. Varela-Rey, M.; Embade, N.; Ariz, U. Non-alcoholic steatohepatitis and animal models: Understanding the human disease. Int. J. Biochem. Cell Biol 2009, 41, 969–976. [Google Scholar]
  44. Li, Z.; Soloski, M.J.; Diehl, A.M. Dietary factors alter hepatic innate immune system in mice with nonalcoholic fatty liver disease. Hepatology 2005, 42, 880–885. [Google Scholar]
  45. Cong, W.N.; Tao, R.Y.; Tian, J.Y.; Liu, G.T.; Ye, F. The establishment of a novel non-alcoholic steatohepatitis model accompanied with obesity and insulin resistance in mice. Life Sci 2008, 82, 983–990. [Google Scholar]
  46. Deng, Q.G.; She, H.; Cheng, J.H. Steatohepatitis induced by intragastric overfeeding in mice. Hepatology 2005, 42, 905–914. [Google Scholar]
  47. Tsukamoto, H.; French, S.W.; Benson, N. Severe and progressive steatosis and focal necrosis in rat liver induced by continuous intragastric infusion of ethanol and low fat diet. Hepatology 1985, 5, 224–232. [Google Scholar]
  48. Nanji, A.A. Role of different dietary fatty acids in the pathogenesis of experimental alcoholic liver disease. Alcohol 2004, 34, 21–25. [Google Scholar]
  49. Tipoe, G.L.; Ho, C.T.; Liong, E.C. Voluntary oral feeding of rats not requiring a very high fat diet is a clinically relevant animal model of non-alcoholic fatty liver disease [NAFLD]. Histol. Histopathol 2009, 24, 1161–1169. [Google Scholar]
  50. Morimoto, M.; Zern, M.A.; Hagbjork, A.L.; Ingelman-Sundberg, M.; French, S.W. Fish oil, alcohol, and liver pathology: Role of cytochrome P450 2E1. Proc. Soc. Exp. Biol. Med 1994, 207, 197–205. [Google Scholar]
  51. Nanji, A.A.; Zhao, S.; Sadrzadeh, S.M. Markedly enhanced cytochrome P450 2E1 induction and lipid peroxidation is associated with severe liver injury in fish oil-ethanol-fed rats. Alcohol Clin. Exp. Res 1994, 18, 1280–1285. [Google Scholar]
  52. Chen, H.W.; Tsai, C.W.; Yang, J.J. The combined effects of garlic oil and fish oil on the hepatic antioxidant and drug-metabolizing enzymes of rats. Br. J. Nutr 2003, 89, 189–200. [Google Scholar]
  53. Zong, H.; Armoni, M.; Harel, C. Cytochrome P-450 CYP2E1 knockout mice are protected against high-fat diet-induced obesity and insulin resistance. Am. J. Physiol. Endocrinol. Metab 2012, 302, E532–E539. [Google Scholar]
  54. Van den Berg, S.A.; Guigas, B.; Bijland, S. High levels of dietary stearate promote adiposity and deteriorate hepatic insulin sensitivity. Nutr. Metab. [Lond. ] 2010, 7, 24. [Google Scholar]
  55. Syn, W.K.; Yang, L.; Chiang, D.J. Genetic differences in oxidative stress and inflammatory responses to diet-induced obesity do not alter liver fibrosis in mice. Liver Int 2009, 29, 1262–1272. [Google Scholar]
  56. Hill-Baskin, A.E.; Markiewski, M.M.; Buchner, D.A. Diet-induced hepatocellular carcinoma in genetically predisposed mice. Hum. Mol. Genet 2009, 18, 2975–2988. [Google Scholar]
  57. Jeong, W.I.; Jeong, D.H.; Do, S.H. Mild hepatic fibrosis in cholesterol and sodium cholate diet-fed rats. J. Vet. Med. Sci 2005, 67, 235–242. [Google Scholar]
  58. Kumar, S.A.; Sudhahar, V.; Varalakshmi, P. Protective role of eicosapentaenoate-lipoate [EPA-LA] derivative in combating oxidative hepatocellular injury in hypercholesterolemic atherogenesis. Atherosclerosis 2006, 189, 115–122. [Google Scholar]
  59. Shockley, K.R.; Witmer, D.; Burgess-Herbert, S.L. Effects of atherogenic diet on hepatic gene expression across mouse strains. Physiol. Genomics 2009, 39, 172–182. [Google Scholar]
  60. Spruss, A.; Bergheim, I. Dietary fructose and intestinal barrier: Potential risk factor in the pathogenesis of nonalcoholic fatty liver disease. J. Nutr. Biochem 2009, 20, 657–662. [Google Scholar]
  61. Tappy, L.; Le, K.A.; Tran, C. Fructose and metabolic diseases: New findings, new questions. Nutrition 2010, 26, 1044–1049. [Google Scholar]
  62. Bergheim, I.; Weber, S.; Vos, M. Antibiotics protect against fructose-induced hepatic lipid accumulation in mice: Role of endotoxin. J. Hepatol 2008, 48, 983–992. [Google Scholar]
  63. Spruss, A.; Kanuri, G.; Wagnerberger, S. Toll-like receptor 4 is involved in the development of fructose-induced hepatic steatosis in mice. Hepatology 2009, 50, 1094–1104. [Google Scholar]
  64. Ackerman, Z.; Oron-Herman, M.; Grozovski, M. Fructose-induced fatty liver disease: Hepatic effects of blood pressure and plasma triglyceride reduction. Hypertension 2005, 45, 1012–1018. [Google Scholar]
  65. Kanuri, G.; Spruss, A.; Wagnerberger, S. Role of tumor necrosis factor alpha [TNFalpha] in the onset of fructose-induced nonalcoholic fatty liver disease in mice. J. Nutr. Biochem 2011, 22, 527–534. [Google Scholar]
  66. Anderson, B.; Rafferty, A.P.; Lyon-Callo, S. Fast-food consumption and obesity among Michigan adults. Prev. Chronic. Dis 2011, 8, A71. [Google Scholar]
  67. Bezerra, I.N.; Curioni, C.; Sichieri, R. Association between eating out of home and body weight. Nutr. Rev 2012, 70, 65–79. [Google Scholar]
  68. Charlton, M.; Krishnan, A.; Viker, K. Fast food diet mouse: Novel small animal model of NASH with ballooning, progressive fibrosis, and high physiological fidelity to the human condition. Am. J. Physiol. Gastrointest. Liver Physiol 2011, 301, G825–G834. [Google Scholar]
  69. Tsuchiya, H.; Ebata, Y.; Sakabe, T. High-fat, high-fructose diet induces hepatic iron overload via a hepcidin-independent mechanism prior to the onset of liver steatosis and insulin resistance in mice. Metabolism 2013, 62, 62–69. [Google Scholar]
  70. Hashmi, S.; Wang, Y.; Parhar, R.S. A C. elegans model to study human metabolic regulation. Nutr. Metab. [Lond. ] 2013, 10, 31. [Google Scholar]
  71. Farrell, G.C.; van, R.D. Liver cholesterol: Is it playing possum in NASH? Am. J. Physiol. Gastrointest. Liver Physiol 2012, 303, G9–G11. [Google Scholar]
  72. Lee, L.; Alloosh, M.; Saxena, R. Nutritional model of steatohepatitis and metabolic syndrome in the Ossabaw miniature swine. Hepatology 2009, 50, 56–67. [Google Scholar]
  73. Lant, B.; Storey, K.B. An overview of stress response and hypometabolic strategies in Caenorhabditis elegans: Conserved and contrasting signals with the mammalian system. Int. J. Biol. Sci 2010, 6, 9–50. [Google Scholar]
  74. Chan, J.; Sharkey, F.E.; Kushwaha, R.S. Steatohepatitis in laboratory opossums exhibiting a high lipemic response to dietary cholesterol and fat. Am. J. Physiol. Gastrointest. Liver Physiol 2012, 303, G12–G19. [Google Scholar]
  75. Puri, P.; Baillie, R.A.; Wiest, M.M. A lipidomic analysis of nonalcoholic fatty liver disease. Hepatology 2007, 46, 1081–1090. [Google Scholar]
  76. Dyson, M.C.; Alloosh, M.; Vuchetich, J.P. Components of metabolic syndrome and coronary artery disease in female Ossabaw swine fed excess atherogenic diet. Comp. Med 2006, 56, 35–45. [Google Scholar]
  77. Schattenberg, J.M.; Galle, P.R. Animal models of non-alcoholic steatohepatitis: Of mice and man. Dig. Dis 2010, 28, 247–254. [Google Scholar]
  78. Gomez-Lechon, M.J.; Donato, M.T.; Castell, J.V. Human hepatocytes in primary culture: The choice to investigate drug metabolism in man. Curr. Drug Metab 2004, 5, 443–462. [Google Scholar]
  79. Dambach, D.M.; Andrews, B.A.; Moulin, F. New technologies and screening strategies for hepatotoxicity: Use of in vitro models. Toxicol. Pathol 2005, 33, 17–26. [Google Scholar]
  80. Chavez-Tapia, N.C.; Rosso, N.; Tiribelli, C. In vitro models for the study of non-alcoholic fatty liver disease. Curr. Med. Chem 2011, 18, 1079–1084. [Google Scholar]
  81. Thakur, V.; Pritchard, M.T.; McMullen, M.R. Adiponectin normalizes LPS-stimulated TNF-alpha production by rat Kupffer cells after chronic ethanol feeding. Am. J. Physiol. Gastrointest. Liver Physiol 2006, 290, G998–G1007. [Google Scholar]
  82. Mandal, P.; Roychowdhury, S.; Park, P.H. Adiponectin and heme oxygenase-1 suppress TLR4/MyD88-independent signaling in rat Kupffer cells and in mice after chronic ethanol exposure. J. Immunol 2010, 185, 4928–4937. [Google Scholar]
  83. Shi, L.; Kishore, R.; McMullen, M.R. Chronic ethanol increases lipopolysaccharide-stimulated Egr-1 expression in RAW 264.7 macrophages: Contribution to enhanced tumor necrosis factor alpha production. J. Biol. Chem 2002, 277, 14777–14785. [Google Scholar]
  84. Kishore, R.; McMullen, M.R.; Cocuzzi, E. Lipopolysaccharide-mediated signal transduction: Stabilization of TNF-alpha mRNA contributes to increased lipopolysaccharide-stimulated TNF-alpha production by Kupffer cells after chronic ethanol feeding. Comp. Hepatol 2004, 3, S31. [Google Scholar]
  85. Thuy, S.; Ladurner, R.; Volynets, V. Nonalcoholic fatty liver disease in humans is associated with increased plasma endotoxin and plasminogen activator inhibitor 1 concentrations and with fructose intake. J. Nutr 2008, 138, 1452–1455. [Google Scholar]
  86. Volynets, V.; Kuper, M.A.; Strahl, S. Nutrition, intestinal permeability, and blood ethanol levels are altered in patients with nonalcoholic fatty liver disease [NAFLD]. Dig. Dis. Sci 2012, 57, 1932–1941. [Google Scholar]
  87. Harte, A.L.; da Silva, N.F.; Creely, S.J. Elevated endotoxin levels in non-alcoholic fatty liver disease. J. Inflamm 2010, 7, 15. [Google Scholar]
  88. Spruss, A.; Kanuri, G.; Uebel, K. Role of the inducible nitric oxide synthase in the onset of fructose-induced steatosis in mice. Antioxid. Redox Signal 2011, 14, 2121–2135. [Google Scholar]
  89. Fiegel, H.C.; Kneser, U.; Kluth, D. Hepatic tissue engineering. Handchir. Mikrochir. Plast Chir 2010, 42, 337–341. [Google Scholar]
  90. Janorkar, A.V.; Harris, L.M.; Murphey, B.S. Use of three-dimensional spheroids of hepatocyte-derived reporter cells to study the effects of intracellular fat accumulation and subsequent cytokine exposure. Biotechnol. Bioeng 2011, 108, 1171–1180. [Google Scholar]

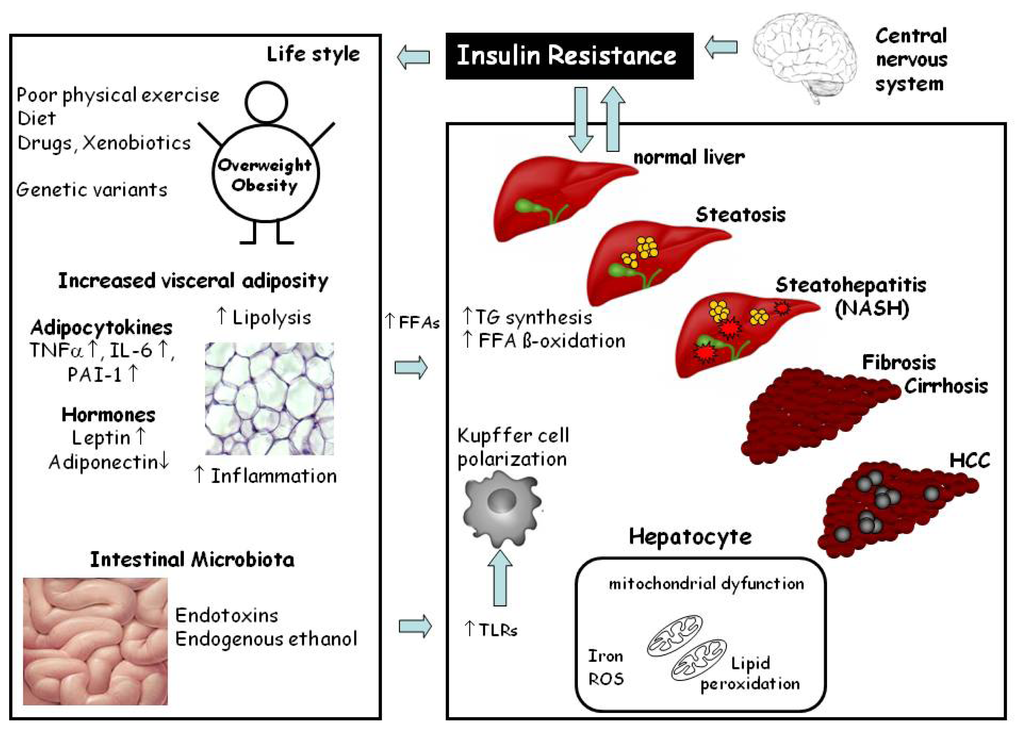

Figure 1. Schematic drawing of the molecular mechanisms involved in the development and progression of non-alcoholic fatty liver disease (NAFLD). The risk factors such as being overweight, visceral adiposity, adipocytokines may increase the flow of free fatty acids (FFAs) to the liver. Alterations of intestinal microbiota and increased permeation of bacterial endotoxins, from the gut may activate Toll-like receptor signaling cascades and lead to a M1 polarization of macrophages (e.g., of Kupffer cells and infiltrating macrophages). All these events (e.g., increased FFAs, adipocytokines, endotoxins, insulin resistance, macrophage polarization) may lead to the development of NAFLD. (Modified from Krawczyk et al. [4]).
Figure 1. Schematic drawing of the molecular mechanisms involved in the development and progression of non-alcoholic fatty liver disease (NAFLD). The risk factors such as being overweight, visceral adiposity, adipocytokines may increase the flow of free fatty acids (FFAs) to the liver. Alterations of intestinal microbiota and increased permeation of bacterial endotoxins, from the gut may activate Toll-like receptor signaling cascades and lead to a M1 polarization of macrophages (e.g., of Kupffer cells and infiltrating macrophages). All these events (e.g., increased FFAs, adipocytokines, endotoxins, insulin resistance, macrophage polarization) may lead to the development of NAFLD. (Modified from Krawczyk et al. [4]).
Ijms 14 11963f1
Figure 2. (A) Representative photographs of a lean (C57BL/6) and an ob/ob mouse, as well as (B) representative photomicrographs of liver sections stained with hematoxylin and eosin (200×).
Figure 2. (A) Representative photographs of a lean (C57BL/6) and an ob/ob mouse, as well as (B) representative photomicrographs of liver sections stained with hematoxylin and eosin (200×).
Ijms 14 11963f2
Figure 3. Effect of feeding a Western-style diet on the liver. Representative photomicrographs of hematoxylin and eosin staining of liver sections (200×) of mice fed with control or Western-style diet for 6 weeks.
Figure 3. Effect of feeding a Western-style diet on the liver. Representative photomicrographs of hematoxylin and eosin staining of liver sections (200×) of mice fed with control or Western-style diet for 6 weeks.
Ijms 14 11963f3

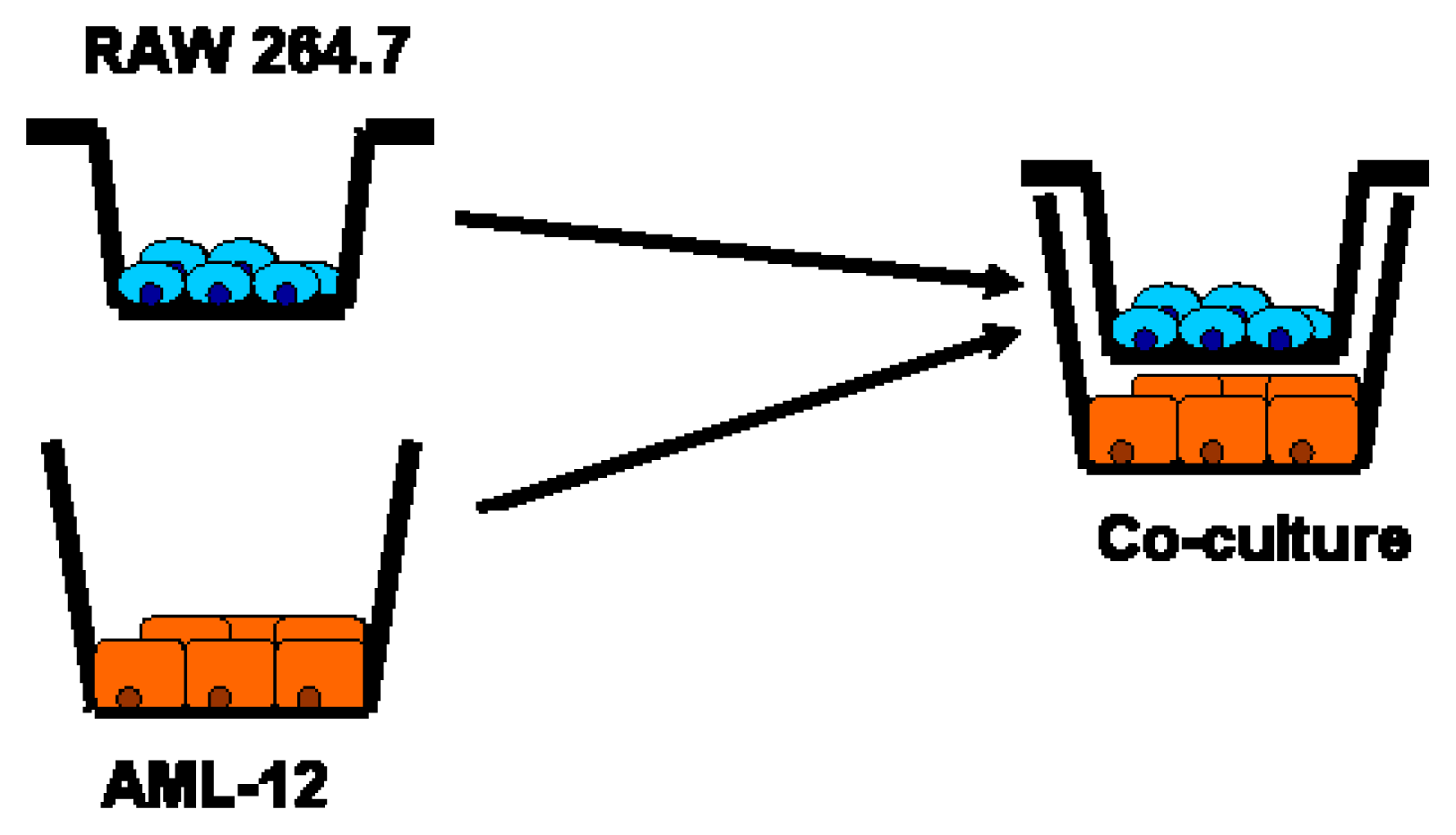

Figure 4. Schematic drawing of co-culture model (as used by Spruss et al. [88]).
Figure 4. Schematic drawing of co-culture model (as used by Spruss et al. [88]).
Ijms 14 11963f4
Table 1. Composition of the Piagen diet [57,58].
Table 1. Composition of the Piagen diet [57,58].
Ingredientsg/100 g dietIngredientsg/100 g diet
Casein20.0Vitamin mixture1
DL methionine0.3Choline bitartrate0.2
Corn strach15.0Corn oil5
Sucrose48.7Sodium cholate0.3
Cellulose powder5Cholesterol1
Mineral mixture3.5
Table 2. Composition of a liquid based control and Western style diet.
Table 2. Composition of a liquid based control and Western style diet.
Control diet% of energy from NutrientsWestern style diet% of energy from Nutrients
Total sugars23.3Fructose50
Starch39Glucose5
Protein11Starch5
Fat24Protein15
Cholesterol0.2
Fat25
Table 3. Summary of available cell lines and cell culture models [80].
Table 3. Summary of available cell lines and cell culture models [80].
In vitro modelsCell linesProsCons
Primary cell culturesHepatocytes from NAFLD patients/rodents
Kupffer cells/stellate cells/iNKT cells from human patients/rodents
Mimic in vivo settingsIsolation problems
Ethical issues
Varying reproducibility in experiments
Limited culture time
Immortalized cell linesRAW 264.7, AML-12, J774A, HepG2, HuH7, H4IIE, H4IIEC3, PAV-1, LX2Continuous growth
Easy to culture
Stable phenotype
Expression of several enzymes and nuclear factors alter according to the immortalization method
Co-culture modelsRAW 264.7 and AML-12 Human hepatocytes and adipocytesMimic in vivo liver architecture
Important tools in cellular cross talk studies
Difficult to cultivate
3D culturesH35 rat hepatoma cell lineMimic in vivo liver architecture
Liver specific differentiation and function
Tools for transcriptional regulation studies
Difficult to cultivate

Share and Cite

MDPI and ACS Style

Kanuri, G.; Bergheim, I. In Vitro and in Vivo Models of Non-Alcoholic Fatty Liver Disease (NAFLD). Int. J. Mol. Sci. 2013, 14, 11963-11980. https://doi.org/10.3390/ijms140611963

AMA Style

Kanuri G, Bergheim I. In Vitro and in Vivo Models of Non-Alcoholic Fatty Liver Disease (NAFLD). International Journal of Molecular Sciences. 2013; 14(6):11963-11980. https://doi.org/10.3390/ijms140611963

Chicago/Turabian Style

Kanuri, Giridhar, and Ina Bergheim. 2013. "In Vitro and in Vivo Models of Non-Alcoholic Fatty Liver Disease (NAFLD)" International Journal of Molecular Sciences 14, no. 6: 11963-11980. https://doi.org/10.3390/ijms140611963

Article Metrics

Back to TopTop
