Int. J. Mol. Sci. 2013, 14(5), 8948-8962; doi:10.3390/ijms14058948

Article
New Radioligands for Describing the Molecular Pharmacology of MT1 and MT2 Melatonin Receptors
Céline Legros 1, Ulrich Matthey 2, Teresa Grelak 2, Sandrine Pedragona-Moreau 3, Werner Hassler 4, Saïd Yous 5, Emmanuel Thomas 6, Franck Suzenet 7, Benoît Folleas 6, François Lefoulon 3, Pascal Berthelot 5, Daniel-Henri Caignard 8, Gérald Guillaumet 7, Philippe Delagrange 8, Jean-Louis Brayer 6, Olivier Nosjean 1 and Jean A. Boutin 1,*
1
BPMC, Institut de Recherches SERVIER, 125 chemin de Ronde, Croissy-sur-Seine 78290, France; E-Mails: celine.legros@fr.netgrs.com (C.L.); olivier.nosjean@fr.netgrs.com (O.N.)
2
Celerion Switzerland AG Allmendstrasse 32, Fehraltorf CH-8320, Switzerland; E-Mails: Ulrich.matthey@celerion.com (U.M.); teresa.grelak@celerion.com (T.G.)
3
Technologie SERVIER, 27 rue Vignat, Orléans 45000, France; E-Mails: sandrine.moreau@fr.netgrs.com (S.P.-M.); francois.lefoulon@fr.netgrs.com (F.L.)
4
ANAWA Trading SA, Unterdorfstrasse 21, Wangen CH-8602, Switzerland; E-Mail: hassler@anawa.ch
5
Université Lille Nord de France, F-59000 Lille, France & UDSL, EA GRIIOT, UFR Pharmacie, Lille F-59000, France; E-Mail: said.yous@univ-lille2.fr (S.Y.); pascal.berthelot@univ-lille2.fr (P.B.)
6
DIVERCHIM, 6 Rue du Noyer, Roissy 95700, France; E-Mails: emmanuel.thomas@diverchim.com (E.T.); benoit.folleas@diverchim.com (B.F.); jean-louis.brayer@diverchim.fr (J.-L.B.)
7
Institut de Chimie Organique et Analytique, UMR CNRS 7311, Université d’Orléans, rue de Chartres, Orléans 45067, France; E-Mails: franck.suzenet@univ-orleans.fr (F.S.); gerald.guillaumet@univ-orleans.fr (G.G.)
8
Unité de Recherches et Découvertes en Neurosciences, Institut de Recherches SERVIER, 125 chemin de Ronde, Croissy-sur-Seine 78290, France; E-Mails: daniel-henri.caignard@fr.netgrs.com (D.-H.C.); philippe.delagrange@fr.netgrs.com (P.D.)
*
Author to whom correspondence should be addressed; E-Mail: jean.boutin@fr.netgrs.com; Tel.: +33-0155-722-748; Fax: +33-0155-722-810.
Received: 16 March 2013; in revised form: 14 April 2013 / Accepted: 15 April 2013 /
Published: 25 April 2013

Abstract

: Melatonin receptors have been studied for several decades. The low expression of the receptors in tissues led the scientific community to find a substitute for the natural hormone melatonin, the agonist 2-[125I]-iodomelatonin. Using the agonist, several hundreds of studies were conducted, including the discovery of agonists and antagonists for the receptors and minute details about their molecular behavior. Recently, we attempted to expand the panel of radioligands available for studying the melatonin receptors by using the newly discovered compounds SD6, DIV880, and S70254. These compounds were characterized for their affinities to the hMT1 and hMT2 recombinant receptors and their functionality in the classical GTPγS system. SD6 is a full agonist, equilibrated between the receptor isoforms, whereas S70254 and DIV880 are only partial MT2 agonists, with Ki in the low nanomolar range while they have no affinity to MT1 receptors. These new tools will hopefully allow for additions to the current body of information on the native localization of the receptor isoforms in tissues.
Keywords:
melatonin receptors; 2-iodomelatonin; alternative radioligands; synthesis; radiolabeling

1. Introduction

Melatonin is a neurohormone produced by the pineal gland at night [1,2] and is thought to control circadian rhythm. The activity of melatonin is relayed primarily by the seven transmembrane G protein-coupled receptors MT1 and MT2 [3]. The pharmacological actions of melatonin at higher concentrations (μM and above) are thought to be mediated by other protein targets, such as QR2 [3,4]. Before these receptors were cloned in the late 1990s [5,6], the measurement of melatonin binding to membranes derived from any animal organ was difficult because the level of expression is naturally very low for these receptors, and the available radioligand ([3H]-melatonin) could not be synthesized with enough specific activity.

In 1984, a Finnish group described the use of a more sensible tool for binding studies: 2-[125I]-iodomelatonin ([125I]-2IMLT), a strongly labeled super-agonist of the receptors [7,8]. Almost immediately, all experiments reported in the literature used this tool, and the labeled natural hormone ([3H]-melatonin) was not used again until a later, complete study [9]. To determine whether other tools for molecular pharmacology studies of melatonin are useful, particularly regarding the agonist nature of this ligand (2-iodomelatonin, 2IMLT), we sought an alternative to [125I]-2IMLT by screening our compounds to identify antagonist(s) or partial agonists (30% and below) for any or both receptor isoforms. The aim was to broaden the panel of available tools for studying these receptors [3,10]. By conducting several series of high throughput screening HTS campaigns [11,12], we found a MT2-specific partial agonist, DIV880. The Ki of this compound is 2 logs less potent with MT1 than MT2. As a first step, we synthesized the precursors of each ligand, iodinated them, and assessed their binding characteristics with recombinant human MT1 and MT2 receptors.

Over the last few years, our search for new ligands has been driven mainly by the addition of more molecular tools to the available panel of molecules used to study melatonin receptors, such as ligands specific to MT1 or MT2 and antagonist(s) of the melatonin receptors. Such a discovery would help broaden our understanding of this system for which almost no molecules have been reported [13]. It thus follows that such a molecule would then be labeled in order to obtain new ligands.

2. Results and Discussion

SD6 and S70254 were the products of a rational exploration of the basic features of melatonin analogs and are structurally related to the natural hormone (Figure 1). The influence of iodine atoms on the core structures was studied systematically, leading to interesting compounds that can be used to complete the set of labeled compounds for describing the molecular pharmacology of melatonin receptor(s). For DIV880, the process was a little different. The compound is an iodinated analog of a bromo-compound that resulted from a large screening process, similar to the compounds described elsewhere [11,12]. This compound was specific to MT2, with a pKi 2 logs “better” for MT2 than for MT1. Therefore, the iodine equivalent was synthesized, leading to its possible use as a specific probe for MT2.

Prior to radiolabeling the compounds, we characterized the cold compounds for recombinant human MT1 and MT2 receptors and compared them to 2IMLT (Table 1). 2IMLT and SD6 shared similar properties, particularly similar affinities for the receptors in the low nanomolar range, similar potency in the GTPγS assay, with full agonistic effects for both receptors (Emax > 100%), and almost similar pEC50 for both receptors (with a minor discrepancy for MT1) in a TR-FRET cAMP assay (Emax ~100%). S70254 was a poor MT1 ligand, in the micromolar range (pKi = 6.18), but a good MT2 ligand (pKi = 8.73). The functionality of S72054 remained measurable but poor for MT1, but was a partial agonist for MT2 (43%) in the GTPγS assay and a less partial agonist (73%) in the TR-FRET cAMP assay. Finally, for DIV880, the affinity for MT1 remained in the micromolar range, but it was in the 10 nM range for MT2. Similarly, the functional effect of this compound was impossible to record using both functional assays with MT1, but the compound behaved as a partial agonist (67%) of MT2 in the GTPγS assay and full agonist (97%) of MT2 in the TR-FRET cAMP assay.

Overall, we identified two MT2-specific ligands, S70254 and DIV880, and two aspecific, full agonistic compounds, SD6 and iodomelatonin, for both receptors.

We proceeded to label the compounds with [125I], and characterized the ligands for both recombinant receptors. The compounds behaved properly in the binding assays after a rapid assessment of the experimental conditions. Figure 2 clearly indicates standard behavior comparable to [125I]-2IMLT for the three compounds. As expected, the four compounds bound MT2, but only [125I]-2IMLT and [125I]-SD6 bound MT1. The pKb and Bmax values are given in Table 2.

Interestingly, the compounds did not label the same amount of MT1 receptor (SD6: 276 fmol/mg of protein; [125I]-2IMLT: 688 fmol/mg of protein), strongly suggesting that the compounds “see” different states of the receptor. This feature needs to be explored further and the corresponding experiments are ongoing in our laboratory.

The present work offers the first alternative to the classical ligands [125I]-2IMLT and [3H]-melatonin. [125I]-2IMLT has been monopolizing the melatonin binding field since it was first described by Vakkuri et al. [7], and [3H]-melatonin was completely described in 2000 [9] and rarely used then after. [125I]-S70254 and [125I]-DIV880 will permit the first specific investigation of the hMT2 receptor, as well as cellular systems overexpressing MT receptors and tissue samples (e.g., binding and autoradiography).

3. Experimental Section

3.1. Reagents and Ligands

[125I]-SD6, [125I]-S70254, and [125I]-DIV880 were custom-made by ANAWA Trading SA (Wangen/Zürich, Switzerland). The specific activity was 2,175 Ci/mmol for [125I]-SD6, [125I]-S70254, and [125I]-DIV880. [125I]-2IMLT (specific activity 2,200 Ci/mmol) was purchased from Perkin Elmer (Boston, MA, USA). Melatonin and other reagents were obtained from Sigma (St. Louis, MO, USA). Melatonin was dissolved in DMSO at a stock concentration of 10 mM and stored at −20 °C.

3.2. Membrane Preparation

CHO-K1 cell lines stably expressing the human MT1 or MT2 receptors [14] were grown to confluence, harvested in PBS buffer (Gibco, Invitrogen, Saint-Aubin, France) containing 5 mM EDTA, and centrifuged at 1,000 g for 20 min (4 °C). The resulting pellet was suspended in 5 mM Tris/HCl (pH 7.4) containing 2 mM EDTA and homogenized using Kinematicapolytron. The homogenate was then centrifuged (20,000 g, 30 min, 4 °C) and the resulting pellet suspended in 75 mM Tris/HCl (pH 7.4) containing 2 mM EDTA and 12.5 mM MgCl2. Protein content was determined according to Bradford [15] using the Bio-Rad kit (Bio-Rad SA, Ivry-sur-Seine, France). Aliquots of membrane preparations were stored in re-suspension buffer (75 mM Tris/HCl pH 7.4, 2 mM EDTA, 12.5 mM MgCl2) at −80 °C until use.

3.3. Membrane Binding Assays

3.3.1. 2-[125I]-iodomelatonin and [35S]-GTPγS Binding Assays

The assays were described previously [16]. Briefly, for competition experiments in CHO cells, the membranes were incubated in 250 μL binding buffer (50 mM Tris/HCl pH 7.4, 5 mM MgCl2) containing 20 pM [125I]-2IMLT for 2 h at 37 °C. The results were expressed as the inhibition constant Ki, taking into account the concentration of radioligand used in each experiment. Non-specific binding was defined using 10 μM melatonin. The reaction was stopped by rapid filtration through GF/B unifilters, followed by three successive washes with ice-cold buffer. The data were analyzed using the program PRISM (GraphPad Software Inc., San Diego, CA, USA). Ki was calculated according to the Cheng–Prussof Equation: Ki = IC50/[1 + (L/Kd)], where IC50 is the half maximal inhibitory concentration and L is the concentration of [125I]-2IMLT [17].

For the [35S]-GTPγS binding assay, the membranes and compounds were diluted in the binding buffer (20 mM Hepes pH 7.4, 100 mM NaCl, 3 mM MgCl2, 3 μM GDP) in the presence of 20 μg/mL saponin in order to enhance the agonist-induced stimulation [16]. Incubation was started by adding 0.1 nM [35S]-GTPγS to the membranes and ligands in a final volume of 250 μL and allowed to continue for 60 min at room temperature. Non-specific binding was assessed using non-radiolabeled GTPγS (10 μM). Reactions were stopped by rapid filtration through GF/B unifilters pre-soaked with distilled water, followed by three successive washes with ice-cold buffer. The data were analyzed using the program PRISM to yield the half maximal effective concentration (EC50) and maximal effect (Emax) expressed as a percentage of that observed with melatonin (1 μM = 100%). pEC50 was calculated as pEC50 = −log(EC50).

3.3.2. New Ligand Binding Assays

The assays were performed in 96-well plates in 250 μL binding buffer (50 mM Tris/HCl pH 7.4, 5 mM MgCl2, 1 mM EDTA, plus BSA 0.1% for [125I]-DIV880). The membranes, hMT1 and hMT2, were used at a final concentration of 30 μg of proteins/mL for all radioactive compounds. For all protocols, the reaction was stopped by rapid filtration through GF/B unifilters (PEI 0.1% treated for [125I]-DIV880), followed by three successive washes with ice-cold buffer (50 mM Tris/HCl, pH 7.4). For saturation experiments with CHO-K1-hMT1 and hMT2, the membranes were incubated for 2 h at 37 °C, the time to reach the equilibrium determined by the mass-action law, in binding buffer containing 0.01–2 nM of an iodinated compound: 2-[125I]-2IMLT, [125I]-DIV880, [125I]-S70254, and [125I]-SD6.

The data were analyzed using the program PRISM (GraphPad Software Inc., San Diego, CA, USA). For the saturation assay, the binding site density (Bmax) and dissociation constant for the radioligand (Kd) were calculated according to the Scatchard method.

3.4. HTRF cAMP Assay

Cellular cAMP production was measured using cAMP dynamic HTRF kits (Cisbio Bioassays, Bedford, MA, USA) according to the manufacturer’s instructions. CHO-K1 cells stably expressing the hMT1 or hMT2 receptor were grown to confluence, harvested in PBS buffer containing 5 mM EDTA, and centrifuged at 100× g for 10 min (4 °C). The cell pellet was re-suspended in 0.5 mM HAMF12 IBMX at a concentration of 2 million cells/mL. Incubation was started by adding 5 μM forskolin (15 μL/well) to the cells (30,000 cells/well) and compounds (15 μL/well, DMSO 1.7%) in a final volume of 60 μL, and allowed to continue for 20 min at 37 °C. Next, 15 μL of cAMP-d2 conjugate and 15 μL of anti-cAMP-EuK conjugate in lysis buffer were incubated for 30 min at room temperature. The fluorescence intensity was measured at 340 nm excitation and 665 and 620 nm emission on an Envision (Perkin Elmer, Downers Grove, IL, USA). The TR-FRET 665 nm/620 nm ratio, which is inversely proportional to the production of cAMP, was used to determine the cAMP response. Non-specific binding was assessed using 100 μM non-labeled cAMP. The data were analyzed using the program PRISM to yield the EC50 and Emax.

3.5. Chemistry

In order to find and characterize new ligands for the melatonin receptors, the following strategy was used. Positive ligands bearing either an iodine or bromide atom were selected from either our chemical series or from the vast HTS campaigns we conducted, In the case of bromide, the cold iodinated compound was synthesized and tested for its characteristics at the receptors. With these results in hand, the most interesting compounds were selected based on properties such as affinity (nanomolar range), MT1versus MT2 selectivity (specificity at MT1 versus MT2 receptors should be at least 2 logs in order to be usable as specific ligands, though no clear consensus exists on this particular point), functionality (agonists versus antagonists), and accessibility to the radio-iodination process.

3.6. Synthesis of Tert-butyl 2-(2-[(2-bromo-4,5-dimethoxyphenyl)methyl]-4,5-dimethoxy phenyl) Acetate (DIV879)

3.6.1. General Procedures

All reactions were performed under a nitrogen atmosphere. Chemical reagents were purchased from classical suppliers and used without further purification. Thin-layer chromatography was conducted on silica gel plates pre-coated with aluminum (Macherey Nagel, Alugram© SIG G/UV254, Düren, Germany). Column chromatography was performed using silica gel 60 (Macherey Nagel, 43–60 μm). NMR spectra were measured with a Bruker AV300 spectrometer (300 MHz for 1H, 75.5 MHz for 13C). Proton chemical shifts were referenced to CHCl3 (1H δ7.26, 13C δ77.0) in CDCl3. Mass spectrometry-coupled liquid chromatography analyses were carried out using a Waters Alliance 2695 apparatus (PDA 2996 detector and ZQ2000 Micromass, Waters, Milford, MA, USA).

DIV879 was discovered during a large high-throughput screening campaign as an MT2 antagonist with at least 2 logs poorer affinity for MT1. This compound bears a bromide.

3.6.2. Synthesis of 6,7-dimethoxy-3-isochromanone (Compound 1, Figure 3)

Ten milliliters of formaldehyde (37% in water) was added drop-wise to a solution of 10.3 g (52.4 mmol) 3,4-dimethoxyphenylacetic acid in a mixture of 10 mL of HCl 37% and 30 mL of acetic acid at room temperature. The mixture was heated to 90 °C over 1 h, cooled to room temperature, and hydrolyzed by the addition of 300 mL of water. The aqueous layer was extracted three times with dichloromethane. The organic layer was washed three times with saturated sodium bicarbonate solution, dried over magnesium sulfate, filtered, and evaporated to dryness to obtain 7.39 g of crude material. Trituration in isopropylic ether for 1 h resulted in 6.51 g (60%) of compound 1 as an off-white solid after filtration. 1H NMR (CDCl3) δ6.76 (s, 1H), 6.73 (s, 1H), 5.28 (s, 2H), 3.91 (s, 3H), 3.90 (s, 3H), 3.66 (s, 2H).

3.6.3. Synthesis of 2-([(2-bromo-4,5-dimethoxyphenyl)methyl]-4,5-dimethoxyphenyl) Acetic Acid (Compound 2, Figure 3)

A total of 2.3 g (10.8 mmol, 1.13 eq.) of bromoveratrole was added in one portion to a solution of 2.0 g (9.6 mmol) of 6,7-dimethoxy-3-isochromanone 1 in 20 mL of formic acid. The mixture was heated to 90 °C for 2 h and then hydrolyzed by the addition of 10 mL of water. The aqueous layer was extracted three times with ethyl acetate. The organic layer was washed twice with brine, dried over magnesium sulfate, filtered, and evaporated to dryness to yield 4.18 g of crude material. Trituration in a mixture of isopropylic ether/AcOEt resulted in 3.2 g (78%) of compound 2 as an off-white solid. 1H NMR (CDCl3) δ7.07 (s, 1H), 6.80 (s, 1H), 6.58 (s, 1H), 6.47 (s, 1H), 3.99 (s, 2H), 3.90 (s, 3H), 3.88 (s, 3H), 3.79 (s, 3H), 3.68 (s, 3H), 3.61 (s, 2H).

3.6.4. Synthesis of Tert-butyl 2-(2-[(2-bromo-4,5-dimethoxyphenyl)methyl]-4,5-dimethoxy phenyl) Acetate (DIV879, Figure 3)

A total of 1.6 g (7.35 mmol, 3 eq.) O-tert-butyl-N,N′-diisopropylisourea was added in portions over a period of 2 h to a solution of 1.04 g (2.45 mmol) of acid 2 in 30 mL of dichloromethane at room temperature. The mixture was stirred overnight and filtered to remove insoluble materials. The filtrate was evaporated under vacuum and the residue purified twice by chromatography on silica gel (1-eluant: CH2Cl2/AcOEt 85/15, 2-eluant: heptane/AcOEt gradient) to obtain 749 mg (63%) of DIV879 as an off-white solid.

1H NMR (CDCl3) δ7.05 (s, 1H), 6.78 (s, 1H), 6.55 (s, 1H), 6.43 (s, 1H), 3.96 (s, 2H), 3.89 (s, 3H), 3.86 (s, 3H), 3.77 (s, 3H), 3.67 (s, 3H), 3.44 (s, 2H). 13C NMR (CDCl3) δ170.9, 148.4, 147.9, 147.3, 131.8, 130.2, 125.6, 115.3, 114.4, 113.6, 113.2, 113.1, 56.1, 55.8, 55.7, 39.5, 38.1, 27.9. LCMS (X-Bridge©, Waters, Milford, MA, USA, C18 4.6 × 150 mm, 5 μm) rt = 13.475 min (210.0 nm), UV > 98.7%; ESI [M + Na]+ = 503.3, 505.3.

3.7. Synthesis of DIV880

3.7.1. Synthesis of 2-(2-[(3,4-dimethoxyphenyl)methyl]-4,5-dimethoxyphenyl) Acetic Acid (Compound 3, Figure 4)

A total of 2.2 mL (17.3 mmol, 1.2 eq.) of veratrole was added to a solution of 3.0 g (14.4 mmol) of 6,7-dimethoxy-3-isochromanone 1 in 30 mL of formic acid at room temperature. The mixture was maintained at 95 °C overnight and then hydrolyzed by the addition of 30 mL of water. The aqueous layer was extracted three times with ethyl acetate. The organic layer was washed twice with brine, dried over magnesium sulfate, and evaporated to dryness to obtain 7.0 g of crude material. Chromatography on silica gel (eluant: heptane/AcOEt 1/1 + 1‰ AcOH) followed by trituration in isopropylic ether resulted in 2.2 g (44%) of compound 3 as an off-white solid after filtration. 1H NMR (CDCl3) δ6.75 (m, 2H), 6.62 (m, 3H), 3.91 (s, 2H), 3.86 (s, 3H), 3.83 (s, 3H), 3.78 (s, 3H), 3.77 (s, 3H), 3.55 (s, 2H).

3.7.2. Synthesis of 2-(2-[(3,4-dimethoxyphenyl)methyl]-4,5-dimethoxy phenyl) Acetate (Compound 4, Figure 4)

A total of 6.1 g (28.6 mmol, 4.5 eq.) of O-tert-butyl-N,N′-diisopropylisourea was added drop-wise over a period of 2 h to a solution of 2.2 g (6.35 mmol) of compound 2 in 33 mL of dichloromethane at room temperature. The mixture was stirred overnight and filtered to remove insoluble materials. The filtrate was evaporated under vacuum and the residue purified by chromatography on silica gel (eluant: heptane/AcOEt 7/3) to obtain 1.72 g (67%) of compound 3 as a yellow oil. 1H NMR (CDCl3) δ6.79 (d, 1H, J = 7.35 Hz), 6.78 (s, 1H), 6.64 (m, 3H), 3.93 (s, 2H), 3.89 (s, 3H), 3.87 (s, 3H), 3.83 (s, 3H), 3.81 (s, 3H), 3.46 (s, 2H).

3.7.3. Synthesis of 2-(2-[(2-iodo-4,5-dimethoxyphenyl)methyl]-4,5-dimethoxy phenyl) Acetate (DIV880, Figure 4)

A total of 1.7 g (4.2 mmol, 1 eq.) of compound 2 dissolved in 25 mL of acetic acid was added drop-wise to a solution of 1.77 g (6.3 mmol, 1.5 eq.) of chloramine T and 944 mg (6.3 mmol, 1.5 eq.) of sodium iodide in 25 mL of acetic acid stirred over 1 h. After two hours at room temperature, the mixture was poured into 20 mL of water and extracted three times with ethyl acetate. The organic layer was washed twice with brine, dried over magnesium sulfate, and evaporated to dryness to yield 4.0 g of crude brownish material. Purification by chromatography on silica gel (eluant: heptane/AcOEt 8/2) resulted in 1.2 g (55%) of compound DIV880 as a yellow oil. 1H NMR (CDCl3) δ7.29 (s, 1H), 6.81 (s, 1H), 6.54 (s, 1H), 6.43 (s, 1H), 3.94 (s, 2H), 3.91 (s, 3H), 3.88 (s, 3H), 3.79 (s, 3H), 3.68 (s, 3H), 3.45 (s, 2H), 1.44 (s, 9H). 13C-NMR ( (CDCl3) δ 170.9, 149.5, 148.0, 147.4, 135.7, 130.5, 125.5, 121.6, 113.9, 113.5, 112.8, 88.7, 80.7, 56.1, 55.8, 55.8, 55.7, 43.2, 39.6, 28.0. LCUV (XTerra© MS C18 5 μm) rt = 13.476 min (285.5 nm) UV > 99.8%. ESI [M + Na]+ = 551.35.

3.8. Synthesis of SD6

3.8.1. Synthesis of N-[2-(5-methoxy-1H-indol-3-yl)ethyl]iodoacetamide (SD6), Route A

N-[2-(5-methoxy-1H-indol-3-yl)ethyl]iodoacetamide (compound SD6, Figure 5) was obtained through two routes according to the synthetic pathway illustrated in Figure 5:

3.8.2. Synthesis of N-[2-(5-methoxy-1H-indol-3-yl)ethyl]iodoacetamide (compound SD6, Figure 5), Route B

Method A: A solution of 3.11 g (0.01 mol) of compound 5 in 50 mL of anhydrous acetone was treated with 1.5 g (0.01 mol) of sodium iodide and the mixture heated at reflux for 2 h. After cooling, the reaction mixture was filtered and evaporated. The residue was then crystallized from toluene, resulting in 2.5 g (70%) of compound 5.

Method B: A solution of iodoacetic acid (1.85 g, 0.01 mol) in 50 mL of methylene chloride was stirred at −10 °C for 20 min. Triethylamine (1.62 mL, 0.012 mol), EDCI (1.86 g, 0.0012 mol), and HOBt (1.62 g, 0.0012 mol) were added, and the mixture stirred at –10 °C for 30 min. A solution of 5-methoxy tryptamine (1.9 g, 0.01 mol) in 10 mL of methylene chloride was cooled at –10 °C and added drop-wise. After 6 h of stirring at room temperature, the reaction mixture was washed with water, a 1M HCl solution, water, a 10% NaOH solution, and water until a pH of 7 was reached. The organic phase was dried over MgSO4, filtered, and concentrated under reduced pressure. The residue was then crystallized from toluene, obtaining 2.6 g (73%) of SD6. Mp 159 °C; 1H NMR (80 MHz, CDCl3) δ8.32 (br s, 1H), 7.32 (d, 1H, J = 8.2 Hz ), 6.96 (d, 1H, J = 2.5Hz), 7.02 (d, 1H, J = 2.3 Hz), 6.80 (dd, 1H, J = 2.5 Hz and 8.2 Hz), 5.75 (br s, lH), 3.86 (s, 3H), 3.62 (m, 2H), 3.55 (s, 2H), 2.94 (t, 2H, J = 6.82 Hz). Anal. (C13H15IN2O2) C, H, N.

3.9. Synthesis of S70254

3.9.1. Synthesis of 2-[5-methoxy-2-(naphthalen-1-yl)-1H-pyrrolo[3,2-b]pyridine-3-yl]ethan-1-amine (compound 8, Figure 6)

N-Acylatedazaindole (compound 7, Figure 6) [19,20] (1.21 g, 3.4 mmol) was solubilized in a 1:10 water/methanol mixture. Potassium hydroxide (6.61 g, 118 mmol) was added and the reaction mixture refluxed for 87 h. After cooling, methanol was evaporated under reduced pressure and water (100 mL) added. The product was extracted with ethyl acetate (3 × 50 mL) and the organic phases combined and washed with a saturated aqueous solution of ammonium chloride (50 mL). The organic phase was dried over magnesium sulfate, filtrated, and evaporated under reduced pressure. The crude product was purified by silica gel column chromatography (ethyl acetate 84/methanol 15/ammoniac 1) to obtain amine 8 as a colorless oil (0.62 g).

Yield: 58%; 1H NMR (CDCl3; 250 MHz): δ8.45 (br s, 1H), 7.92–7.88 (m, 2H), 7.73 (d, J = 8.25 Hz, 1H), 7.58 (d, J = 8.75 Hz, 1H), 7.53–7.39 (m, 4H), 6.64 (d, 1H), 4.00 (s, 3H), 3.37 (br s, 2H), 3.00 (t, J = 6 Hz, 2H), 2.84 (t, J = 6 Hz, 2H); IR ν (neat, cm−1): 2,934, 1,613, 1,576, 1,242, 777; HRMS (ESI): calcd. for C20H20N3O [M+H]+ 318.160089; found 318.160154.

3.9.2. Synthesis of 2-bromo-N-2-[5-methoxy-2-(naphthalen-1-yl)-1H-pyrrolo[3,2-b]pyridine-3-yl] Acetamide (Compound 9, Figure 6)

A mixture of triethylamine (290 μL; 2.08 mmol) and amine 8 (600 mg; 1.90 mmol) in dichloromethane (20 mL) was cooled at −10 °C. A solution of bromoacetyl bromide (180 μL; 2.08 mmol) in dichloromethane (5 mL) was added and the reaction mixture stirred for 1 h. The resulting solution was washed with water (20 mL), and the organic phase dried over MgSO4 and evaporated under reduced pressure. The residue was purified by silica gel column chromatography (ethyl acetate 30/petroleum ether 70) to obtain 320 mg of compound 9 (S70253) as a white solid.

Yield: 59%; 1H NMR (CDCl3; 250 MHz): δ 8.18 (br s, 1H), 7.97–7.92 (m, 2H), 7.74 (d, J = 8.25 Hz, 1H), 7.63 (d, J = 8.75 Hz, 1H), 7.56–7.43 (m, 5H), 6.69 (d, J = 8.75 Hz, 1H), 4.09 (s, 3H), 3.60 (s, 2H), 3.57–3.52 (m, 2H), 2.93 (t, J = 6.25 Hz, 2H); Anal (C22H20BrN3O2)C, H, N; SM (ESI): m/z = 438 [M+H]+ (79Br), 440 [M+H]+ (81Br).

3.9.3. Synthesis of 2-iodo-N-2-[5-methoxy-2-(naphthalen-1-yl)-1H-pyrrolo[3,2-b]pyridine-3-yl] Acetamide (S70254, Figure 6)

A mixture of sodium iodide (115 mg; 0.77 mmol) and bromo derivative 9 (310 mg; 0.7 mmol) in dry acetone (5 mL) was refluxed for 15 h. After cooling, the reaction was evaporated and dichloromethane (20 mL) added. The organic phase was washed with water (20 mL), dried over MgSO4, filtered, and evaporated under reduced pressure. The residue was purified by silica gel column chromatography (ethyl acetate 30/petroleum ether 70) to obtain 160 mg of the desired compound, S70254, after precipitation with ethyl acetate.

Yield: 47%; 1H NMR (CDCl3; 250 MHz): δ8.23 (br, 1H), 7.96–7.91 (m, 2H), 7.75–7.67 (m, 2H), 7.64 (d, J = 8.75 Hz, 1H), 7.58–7.43 (m, 4H), 6.70 (d, J = 8.75 Hz, 1H), 4.10 (s, 3H), 3.50–3.46 (m, 2H), 3.45 (s, 2H), 2.89 (t, J = 6.5 Hz, 2H); Anal (C22 H20 I N3 O2)C, H, N; SM (ESI): m/z = 486 [M+H]+.

3.10. Radio-Iodination

3.10.1. Radio-Iodination of SD6 and S70254

Both radio-iodinated SD6 and radio-iodinated S70254 were synthesized by halogen exchange of their brominated precursors. Mixtures of Na125I (80.5 TBq/mmol) and brominated precursors were incubated for 12–15 h at ambient temperature. Carrier-free, mono-iodinated products were purified by HPLC.

3.10.2. Radio-Iodination of DIV879

DIV879 was labeled with Na125I (80.5 TBq/mmol) using the chloramin1 T method [21]. The reaction was stopped with NaS2O5 and the carrier-free, mono-iodinated product purified by HPLC. The final compound, the iodinated analog of DIV879, was named DIV880.

3.11. Selectivity Studies for Melatonin Receptor Ligands

In order to evaluate ligand selectivity, the cold compound S70254, SD6, and DIV880 were submitted to our standard selectivity procedure. The specificity of the compounds was assessed by testing a standard set of receptors and a small number of enzymatic targets: (standard name of the receptor (species)/radioligand used for the experiments): NMDA(r)/[3H]-CGP 39653; AMPA(r)/[3H]-AMPA; A1(h)/[3H]-DPCPX; A2A(h)/[3H]-CGS 21680; α1(r)/[3H]-prazosin; α1A(h)/[3H]-prazosin; α1B(h)/[3H]-prazosin; α1D(h)/[3H]-prazosin; α2(r)/[3H]-RX 821002; α2A(h)/[3H]-RX 821002; α2B(h)/[3H]-RX 821002; α2C(h)/[3H]-RX 821002; β1(h)/[3H]-CGP 12177; β2(h)/[3H]-CGP 12177; Ca2+ Type L/[3H]-diltiazem; K+/ATP(r)/[3H]-glibenclamide; K+/VOLT(r)/[125I]-charybdotoxin; hERG1(h)/[3H]-dofetilide; muscarinic (r)/[3H]-QNB; σ(r)/[3H]-ditolylguanidine; dopamine D1(h)/[3H]-SCH 23390; dopamine D2(h)/[3H]-spiperone; GABA(r)/[3H]-GABA; histamine H1(h)/[3H]-pyrilamine; histamine H2(h)/[125I]-aminopotentidine; histamine H4(h)/[3H]-histamine; histamine H3(h)/[125I]-iodoproxyfan; I1p(b)/[3H]-clonidine; Y(r)/[3H]-neuropeptide Y; Nα4/β2(r)/[3H]-cytisine; N α4/β2(h); N alpha7(h); N α3/β2(h); PPARγ2(h)/[3H]-BRL 49653; OPIOID(r)/[3H]-naloxone; ET-A(h)/[125I]-endothelin 1; serotonin transporter(h)/[3H]-paroxetin; dopamine transporter(h)/[3H]-GBR 12935; noradrenalin transporter(h)/[3H]-nisoxetin; TP(TXA2/PGH2)(h)/[3H]-SQ29548; 5-HT2B(h)/[3H]-N-methyl-LSD; 5-HT(r)/[3H]-5-HT; 5-HT1A(h)/[3H]8-OH-DPAT; 5-HT2A(h)/[125I]-(±)DOI; 5-HT2A(h)/[3H]-ketanserin; 5-HT3(h)/[3H]-BRL 43694; 5-HT1B(h)/[125I]-CYP; 5-HT2C(h)/[3H]-mesulergine; 5-HT1D(h)/[3H]-serotonin; and MCH1(h)/[125I][Phe13,Tyr19]-MCH. Inhibition of the activity of the following enzymes was also tested: caspase-3(h); EGFR kinase(h); and PKCα(h). For all of the details and protocols, go to www.cerep.org. Our compounds did not exhibit any activity towards these targets; they were mainly inactive or barely active (less than 20% effect) at 10 μM. This margin was thought to be enough to consider the compounds specific for the melatonin receptor(s).

4. Conclusions

Though the description of SD6 did not result in a new tool for studying melatonin receptors, the present work permitted the discovery, synthesis, and characterization of two specific ligands for the MT2 isoform: S70254 and DIV880. Complete characterization of the kinetics of ligand binding has started in order to determine if the behavior of these two ligands is different from [125I]-2IMLT and [3H]-melatonin using the available melatonin receptors from various species [14,16,22,23]. The next steps will comprise a comparison of the pharmacology of these ligands using a rather large set of compounds already described by our group, as well as binding and autoradiography using native organ membrane preparations or slices. We are still searching for a MT1-specific ligand. Unfortunately, the melatonin receptor ligand literature is sparse in regards to compounds with specificity better than 2 logs between receptors, despite several attempts by others [24,25] and our own group [2628].

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Arendt, J. Melatonin. Clin. Endocrinol 1988, 29, 205–229. [Google Scholar]
  2. Zawilska, J.B.; Skene, D.J.; Arendt, J. Physiology and pharmacology of melatonin in relation to biological rhythms. Pharmacol. Rep 2009, 61, 383–410. [Google Scholar]
  3. Jockers, R.; Maurice, P.; Boutin, J.A.; Delagrange, P. Melatonin receptors, heterodimerization, signal transduction and binding sites: What’s new? Br. J. Pharmacol 2008, 154, 1182–1195. [Google Scholar]
  4. Vella, F.; Ferry, G.; Delagrange, P.; Boutin, J.A. NRH:Quinone reductase 2: An enzyme of surprises and mysteries. Biochem. Pharmacol 2005, 71, 1–12. [Google Scholar]
  5. Reppert, S.M.; Weaver, D.R.; Ebisawa, T. Cloning and characterization of a mammalian melatonin receptor that mediates reproductive and circadian responses. Neuron 1994, 13, 1177–1185. [Google Scholar]
  6. Reppert, S.M.; Godson, C.; Mahle, C.D.; Weaver, D.R.; Slaugenhaupt, S.A.; Gusella, J.F. Molecular characterization of a second melatonin receptor expressed in human retina and brain: The Mel1b melatonin receptor. Proc. Natl. Acad. Sci. USA 1995, 92, 8734–8738. [Google Scholar]
  7. Vakkuri, O.; Lamsa, E.; Rahkamaa, E.; Ruotsalainen, H.; Leppaluoto, J. Iodinated melatonin: Preparation and characterization of the molecular structure by mass and 1H NMR spectroscopy. Anal. Biochem 1984, 142, 284–289. [Google Scholar]
  8. Vakkuri, O.; Rintamaki, H.; Leppaluoto, J. Plasma and tissue concentrations of melatonin after midnight light exposure and pinealectomy in the pigeon. J. Endocrinol 1985, 105, 263–268. [Google Scholar]
  9. Browning, C.; Beresford, I.; Fraser, N.; Giles, H. Pharmacological characterization of human recombinant melatonin MT(1) and MT(2) receptors. Br. J. Pharmacol 2000, 129, 877–886. [Google Scholar]
  10. Zlotos, D.P. Recent progress in the development of agonists and antagonists for melatonin receptors. Curr. Med. Chem 2012, 19, 3532–3549. [Google Scholar]
  11. Boutin, J.A.; Lahaye, C.; Pegurier, C.; Nicolas, J.P.; Fauchere, J.L.; Langlois, M.; Renard, P.; Delagrange, P.; Canet, E. Screening of ligand binding on melatonin receptor using non-peptide combinatorial libraries. J. Recept. Signal Transduct. Res 2000, 20, 105–118. [Google Scholar]
  12. Yan, J.H.; Su, H.R.; Boutin, J.A.; Renard, M.P.; Wang, M.W. High-throughput screening assay for new ligands at human melatonin receptors. Acta Pharmacol. Sin 2008, 29, 1515–1521. [Google Scholar]
  13. Markl, C.; Clafshenkel, W.P.; Attia, M.I.; Sethi, S.; Witt-Enderby, P.A.; Zlotos, D.P. N-Acetyl-5-arylalkoxytryptamine analogs: Probing the melatonin receptors for MT(1)-selectivity. Arch. Pharm 2011, 344, 666–674. [Google Scholar]
  14. Mailliet, F.; Audinot, V.; Malpaux, B.; Bonnaud, A.; Delagrange, P.; Migaud, M.; Barrett, P.; Viaud-Massuard, M.C.; Lesieur, D.; Lefoulon, F.; et al. Molecular pharmacology of the ovine melatonin receptor: Comparison with recombinant human MT1 and MT2 receptors. Biochem. Pharmacol 2004, 67, 667–677. [Google Scholar]
  15. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem 1976, 72, 248–254. [Google Scholar]
  16. Audinot, V.; Mailliet, F.; Lahaye-Brasseur, C.; Bonnaud, A.; Le, G.A.; Amosse, C.; Dromaint, S.; Rodriguez, M.; Nagel, N.; Galizzi, J.P.; et al. New selective ligands of human cloned melatonin MT1 and MT2 receptors. Naunyn Schmiedebergs Arch. Pharmacol 2003, 367, 553–561. [Google Scholar]
  17. Cheng, Y.; Prusoff, W.H. Relationship between the inhibition constant (K1) and the concentration of inhibitor which causes 50 per cent inhibition (I50) of an enzymatic reaction. Biochem. Pharmacol 1973, 22, 3099–3108. [Google Scholar]
  18. Chong, N.W.; Sugden, D. Antigonadal effects of two novel melatonin analogues in adult Djungarian hamsters. J. Pineal Res 1993, 15, 104–107. [Google Scholar]
  19. Mazeas, D.; Guillaumet, G.; Viaud, M.C. Synthesis of new melatoninergic ligands including azaindole moiety. Heterocycles 2013, 50, 1065–1080. [Google Scholar]
  20. Viaud, M.C.; Guillaumet, G.; Mazeas, D.; van de Poël, H.; Renard, P.; Pfeiffer, B.; Delagrange, P. Preparation of N-(pyrrolopyridylalkyl)alkanamides and analogs as melatonin receptor ligands. FR Patent 95-4504, 14 April 1995. [Google Scholar]
  21. McConahey, P.J.; Dixon, F.J. Radioiodination of proteins by the use of the chloramine-T method. Methods Enzymol 1980, 70, 210–213. [Google Scholar]
  22. Coge, F.; Guenin, S.P.; Fery, I.; Migaud, M.; Devavry, S.; Slugocki, C.; Legros, C.; Ouvry, C.; Cohen, W.; Renault, N.; et al. The end of a myth: Cloning and characterization of the ovine melatonin MT(2) receptor. Br. J. Pharmacol 2009, 158, 1248–1262. [Google Scholar]
  23. Devavry, S.; Legros, C.; Brasseur, C.; Cohen, W.; Guenin, S.P.; Delagrange, P.; Malpaux, B.; Ouvry, C.; Coge, F.; Nosjean, O.; et al. Molecular pharmacology of the mouse melatonin receptors MT(1) and MT(2). Eur. J. Pharmacol 2012, 677, 15–21. [Google Scholar]
  24. Sun, L.Q.; Takaki, K.; Chen, J.; Bertenshaw, S.; Iben, L.; Mahle, C.D.; Ryan, E.; Wu, D.; Gao, Q.; Xu, C. (R)-2-(4-Phenylbutyl)dihydrobenzofuran derivatives as melatoninergic agents. Bioorg. Med. Chem. Lett 2005, 15, 1345–1349. [Google Scholar]
  25. Rivara, S.; Pala, D.; Lodola, A.; Mor, M.; Lucini, V.; Dugnani, S.; Scaglione, F.; Bedini, A.; Lucarini, S.; Tarzia, G.; et al. MT(1)-selective melatonin receptor ligands: Synthesis, pharmacological evaluation, and molecular dynamics investigation of N-{[(3-O-substituted) anilino]alkyl}amides. Chem. Med. Chem 2012, 7, 1954–1964. [Google Scholar]
  26. Descamps-Francois, C.; Yous, S.; Chavatte, P.; Audinot, V.; Bonnaud, A.; Boutin, J.A.; Delagrange, P.; Bennejean, C.; Renard, P.; Lesieur, D. Design and synthesis of naphthalenic dimers as selective MT1 melatoninergic ligands. J. Med. Chem 2003, 46, 1127–1129. [Google Scholar]
  27. Larraya, C.; Guillard, J.; Renard, P.; Audinot, V.; Boutin, J.A.; Delagrange, P.; Bennejean, C.; Viaud-Massuard, M.C. Preparation of 4-azaindole and 7-azaindole dimers with a bisalkoxyalkyl spacer in order to preferentially target melatonin MT1 receptors over melatonin MT2 receptors. Eur. J. Med. Chem 2004, 39, 515–526. [Google Scholar]
  28. Mesangeau, C.; Peres, B.; Descamps-Francois, C.; Chavatte, P.; Audinot, V.; Coumailleau, S.; Boutin, J.A.; Delagrange, P.; Bennejean, C.; Renard, P.; et al. Design, synthesis and pharmacological evaluation of novel naphthalenic derivatives as selective MT(1) melatoninergic ligands. Bioorg. Med. Chem 2010, 18, 3426–3436. [Google Scholar]
Ijms 14 08948f1 1024

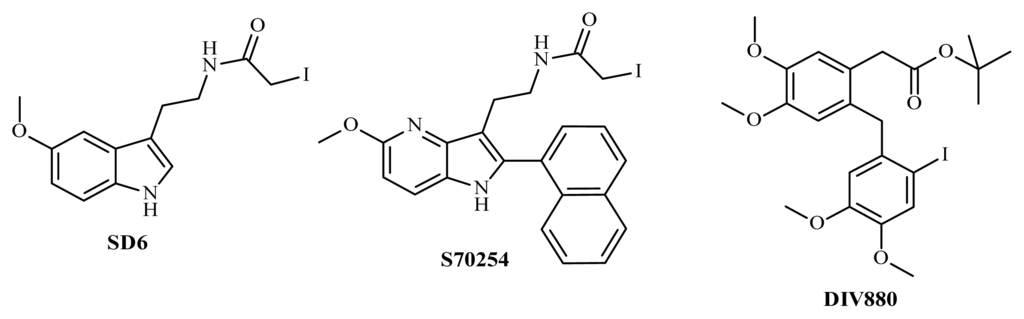

Figure 1. Structures of the new ligands used in the present study.

Click here to enlarge figure

Figure 1. Structures of the new ligands used in the present study.
Ijms 14 08948f1 1024
Ijms 14 08948f2 1024

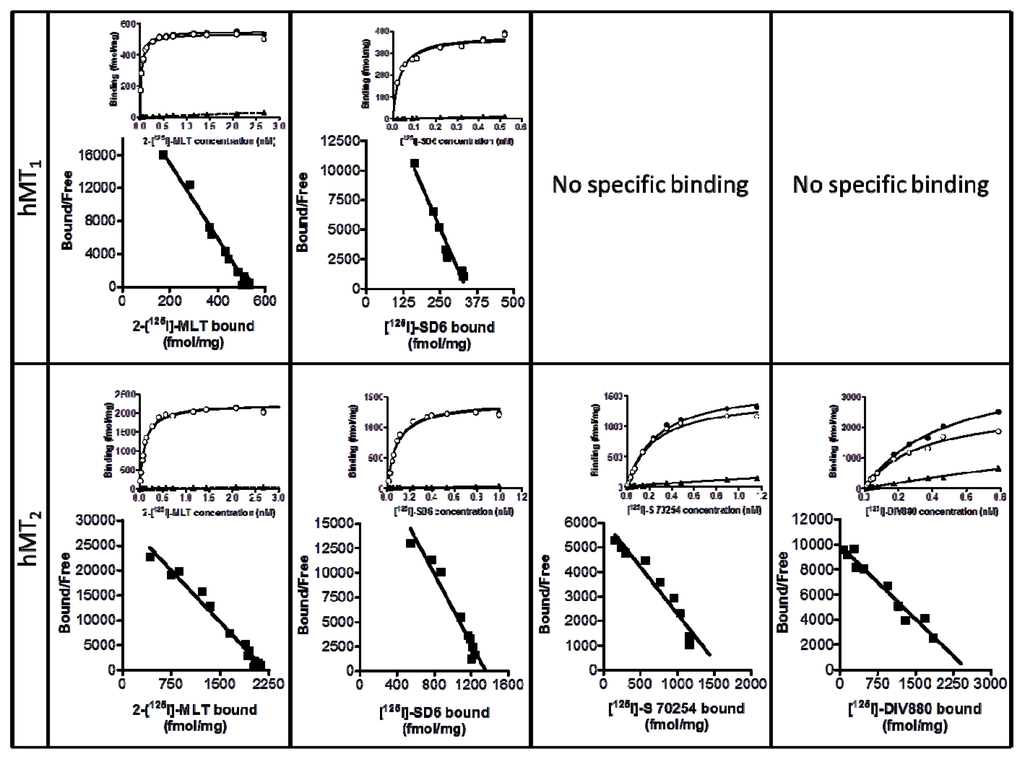

Figure 2. Saturation and Scatchard regression of the four radioligands of human recombinant MT1 and MT2 receptors: 2-[125I]-iodomelatonin, [125I]-SD6, [125I]-S70254, and [125I]-DIV880. The curves are individual results representative of at least three independent experiments. Full circles, total binding; open circles, specific binding; and close triangles, non-specific binding.

Click here to enlarge figure

Figure 2. Saturation and Scatchard regression of the four radioligands of human recombinant MT1 and MT2 receptors: 2-[125I]-iodomelatonin, [125I]-SD6, [125I]-S70254, and [125I]-DIV880. The curves are individual results representative of at least three independent experiments. Full circles, total binding; open circles, specific binding; and close triangles, non-specific binding.
Ijms 14 08948f2 1024
Ijms 14 08948f3 1024

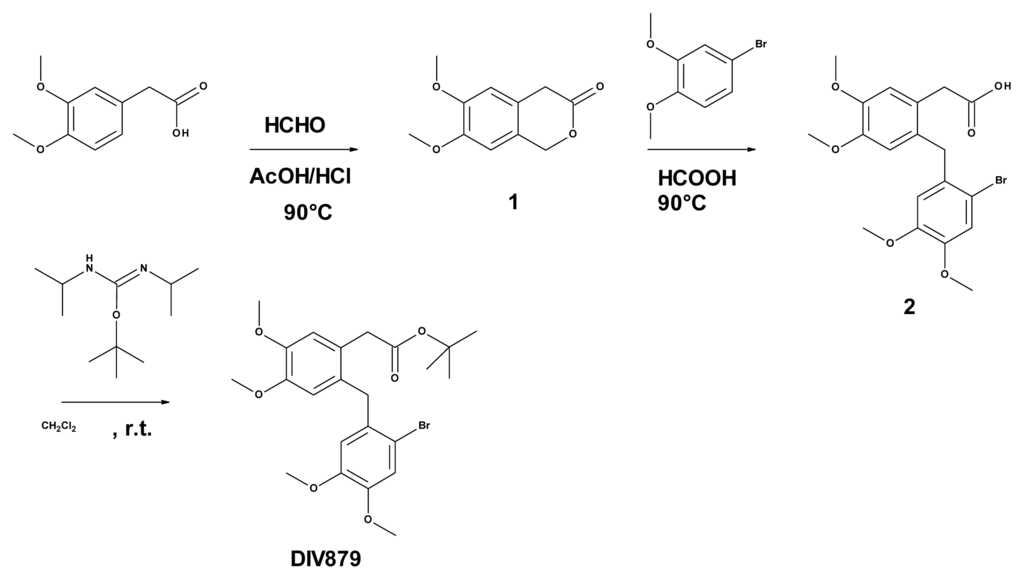

Figure 3. Schematic representation of the synthesis of DIV879.

Click here to enlarge figure

Figure 3. Schematic representation of the synthesis of DIV879.
Ijms 14 08948f3 1024
Ijms 14 08948f4 1024

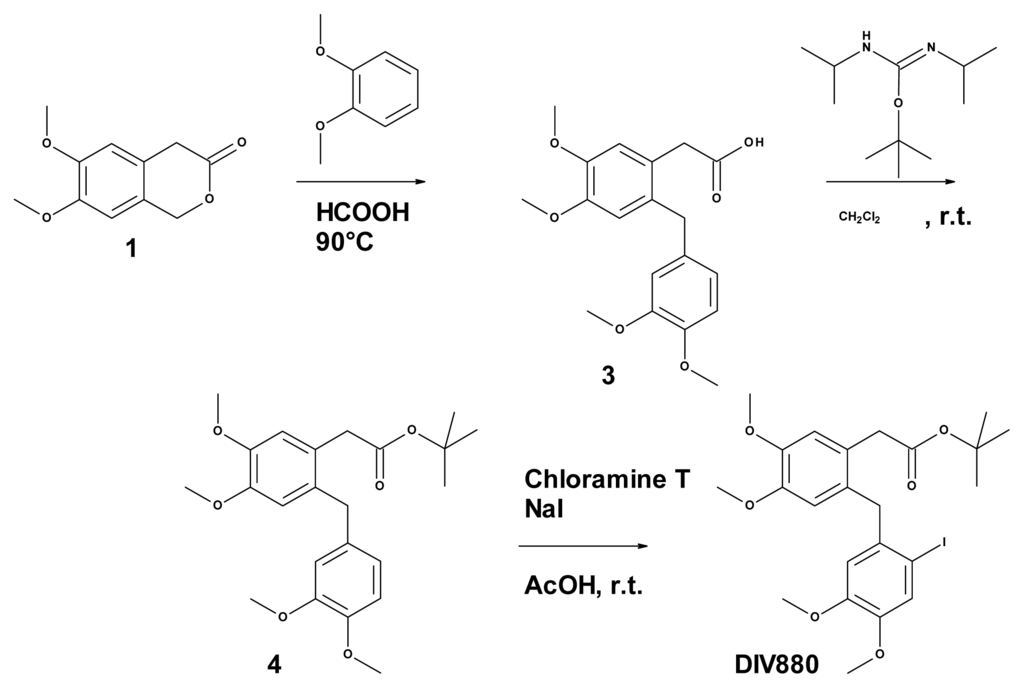

Figure 4. Schematic representation of the synthesis of DIV880.

Click here to enlarge figure

Figure 4. Schematic representation of the synthesis of DIV880.
Ijms 14 08948f4 1024
Ijms 14 08948f5 1024

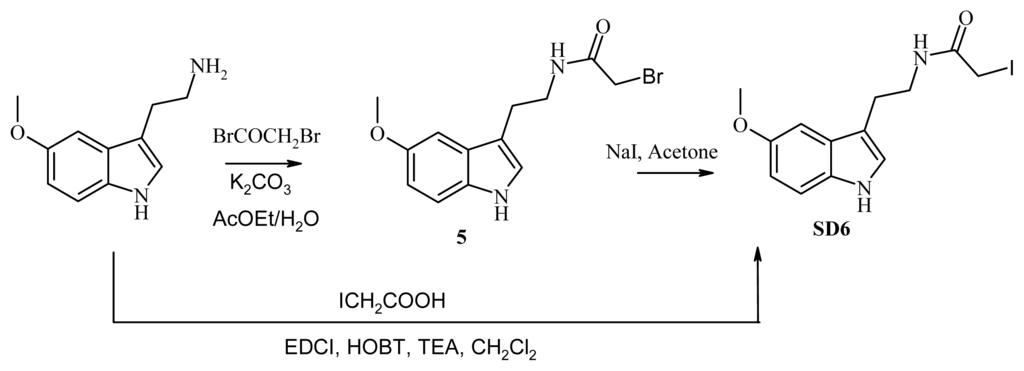

Figure 5. Schematic representation of the synthesis of SD6.(A) by reaction of 5-methoxytryptamine with bromoacetyl bromide in a biphasic medium (EtOAc-H2O) according to a variant of the Schotten–Baumann reaction (K2CO3) to obtain a bromoacetyl derivative [18]. Substitution of the bromine atom of compound 5 by refluxing in acetone with sodium iodide resulted in the iodo derivative SD6.(B) by a peptide-coupling reaction with iodoacetic acid in the presence of EDCI and HOBt in the presence of TEA in methylene chloride to generate the iodo derivative SD6.

Click here to enlarge figure

Figure 5. Schematic representation of the synthesis of SD6.(A) by reaction of 5-methoxytryptamine with bromoacetyl bromide in a biphasic medium (EtOAc-H2O) according to a variant of the Schotten–Baumann reaction (K2CO3) to obtain a bromoacetyl derivative [18]. Substitution of the bromine atom of compound 5 by refluxing in acetone with sodium iodide resulted in the iodo derivative SD6.(B) by a peptide-coupling reaction with iodoacetic acid in the presence of EDCI and HOBt in the presence of TEA in methylene chloride to generate the iodo derivative SD6.
Ijms 14 08948f5 1024
Ijms 14 08948f6 1024

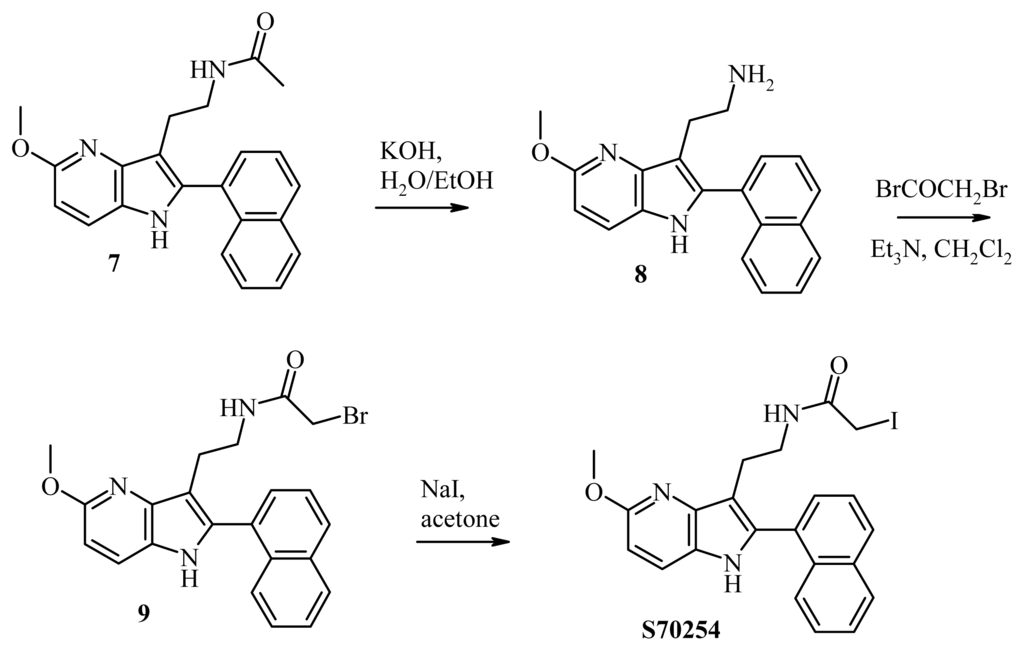

Figure 6. Schematic representation of the synthesis of S72054.

Click here to enlarge figure

Figure 6. Schematic representation of the synthesis of S72054.
Ijms 14 08948f6 1024
Table Table 1. Affinity and functional constants of the candidates for new radioligands for melatonin receptors compared to 2-iodomelatonin (2IMLT). Data are mean ± SEM of at least three independent experiments. The [35S]-GTPγS binding assay results are presented as the percentage of the assay conducted under the same conditions using melatonin as the agonist and taken as 100%.

Click here to display table

Table 1. Affinity and functional constants of the candidates for new radioligands for melatonin receptors compared to 2-iodomelatonin (2IMLT). Data are mean ± SEM of at least three independent experiments. The [35S]-GTPγS binding assay results are presented as the percentage of the assay conducted under the same conditions using melatonin as the agonist and taken as 100%.
A—hMT1Affinity [35S]-GTPγSTR-FRET-cAMP

pKipEC50Emax (%)pEC50Emax (%)
2IMLT10.44 ± 0.089.79 ± 0.11108 ± 310.09 ± 0.0190 ± 5
SD69.94 ± 0.019.79 ± 0.17115 ± 108.58 ± 0.14103 ± 10
S702546.18 ± 0.107.10 ± 0.0415 ± 25.84 ± 0.1478 ± 12
DIV8796.25 ± 0.03<5NDNDND
DIV8806.08 ± 0.015.9 ± 0.0210 ± 1<5ND

B—hMT2Affinity [35S]-GTPγSTR-FRET-cAMP

pKipEC50Emax (%)pEC50Emax (%)

2IMLT9.80 ± 0.059.80 ± 0.12121 ± 1310.15 ± 0.00299 ± 2
SD69.89 ± 0.229.97 ± 0.05114 ± 169.16 ± 0.02103 ± 1
S702548.73 ± 0.238.69 ± 0.3043 ± 17.47 ± 0.2176.5 ± 1
DIV8798.14 ± 0.047.91 ± 0.16158 ± 2NDND
DIV8808.02 ± 0.027.97 ± 0.1867 ± 87.79 ± 0.0997 ± 1
Table Table 2. pKd and Bmax values for radioligands of the MT1 and MT2 receptors. Data are mean ± SEM of at least three independent experiments.

Click here to display table

Table 2. pKd and Bmax values for radioligands of the MT1 and MT2 receptors. Data are mean ± SEM of at least three independent experiments.
[125I]-2IMLT [125I]-SD6 [125I]-S70254 [125I]-DIV880

pKdBmax fmol/mg of proteinpKdBmax fmol/mg of proteinpKdBmax fmol/mg of proteinpKdBmax fmol/mg of protein
hMT110.69 ± 0.07688 ± 15310.85 ± 0.01276 ± 50----
hMT210.16 ± 0.031,998 ± 31810.18 ± 0.111,929 ± 3089.61 ± 0.141,778 ± 879.65 ± 0.072,308 ± 0.07
