Int. J. Mol. Sci. 2013, 14(5), 10465-10482; doi:10.3390/ijms140510465

Article
The Role of Sulfur Dioxide in the Regulation of Mitochondrion-Related Cardiomyocyte Apoptosis in Rats with Isopropylarterenol-Induced Myocardial Injury
Hongfang Jin 1, Angie Dong Liu 2, Lukas Holmberg 2, Manman Zhao 1, Siyao Chen 1, Jinyan Yang 1, Yan Sun 1, Shanshan Chen 1, Chaoshu Tang 3,4 and Junbao Du 1,3,*
1
Department of Pediatrics, Peking University First Hospital, Xi’an Men Str. No. 1, West District, Beijing 100034, China; E-Mails: jinhongfang51@126.com (H.J.); manman8214908@163.com (M.Z.); siyaochen_nymaz@163.com (S.C.); yangjinyan_tg@163.com (J.Y.); yansun2008@gmail.com (Y.S.); s.s_chen@yahoo.com.cn (S.C.)
2
Department of Medical and Health Sciences, Linköping University, Linköping 58183, Sweden; E-Mails: angie.dongliu@gmail.com (A.D.L.); lukas.holmberg20@gmail.com (L.H.)
3
Laboratory of Molecular Cardiology, Ministry of Education, Beijing 100191, China; E-Mail: tangchaoshu@263.net.cn
4
Department of Physiology and Pathophysiology, Health Sciences Center, Peking University, Beijing 100191, China
*
Author to whom correspondence should be addressed; E-Mail: junbaodu1@126.com; Tel.: +86-10-8357-3238; Fax: +86-10-6653-0532.
Received: 5 March 2013; in revised form: 24 April 2013 / Accepted: 9 May 2013 /
Published: 21 May 2013

Abstract

: The authors investigated the regulatory effects of sulfur dioxide (SO2) on myocardial injury induced by isopropylarterenol (ISO) hydrochloride and its mechanisms. Wistar rats were divided into four groups: control group, ISO group, ISO plus SO2 group, and SO2 only group. Cardiac function was measured and cardiomyocyte apoptosis was detected. Bcl-2, bax and cytochrome c (cytc) expressions, and caspase-9 and caspase-3 activities in the left ventricular tissues were examined in the rats. The opening status of myocardial mitochondrial permeability transition pore (MPTP) and membrane potential were analyzed. The results showed that ISO-treated rats developed heart dysfunction and cardiac injury. Furthermore, cardiomyocyte apoptosis in the left ventricular tissues was augmented, left ventricular tissue bcl-2 expression was down-regulated, bax expression was up-regulated, mitochondrial membrane potential was significantly reduced, MPTP opened, cytc release from mitochondrion into cytoplasm was significantly increased, and both caspase-9 and caspase-3 activities were increased. Administration of an SO2 donor, however, markedly improved heart function and relieved myocardial injury of the ISO-treated rats; it lessened cardiomyocyte apoptosis, up-regulated myocardial bcl-2, down-regulated bax expression, stimulated mitochondrial membrane potential, closed MPTP, and reduced cytc release as well as caspase-9 and caspase-3 activities in the left ventricular tissue. Hence, SO2 attenuated myocardial injury in association with the inhibition of apoptosis in myocardial tissues, and the bcl-2/cytc/caspase-9/caspase-3 pathway was possibly involved in this process.
Keywords:
isopropylarterenol; sulfur dioxide; myocardium; apoptosis; mitochondrial membrane potential

1. Introduction

Myocardial injury is a common pathophysiologic phenomenon in a variety of cardiovascular diseases [1,2]. Loss of cardiomyocytes through apoptosis is an important pathological change in myocardial injury. Thus, more and more researchers consider preventing cardiomyocyte apoptosis as a key therapy target of cardiovascular diseases [3]. However, the pathogenesis responsible for myocardial apoptosis has not been fully understood.

Though sulfur dioxide (SO2) had been regarded as a harmful air pollutant [4,5], it was also found that SO2 might be generated endogenously from sulfur-containing amino acid metabolism pathway in mammals [6]. Furthermore, endogenous SO2 production was detected in cardiovascular tissues and its regulatory effects on the cardiovascular structure and function were discovered, including lowering blood pressure, relaxing blood vessels and a negative inotropic effect in the heart [710]. Most interestingly, recent studies revealed that a change in endogenous SO2 production was associated with the development of many cardiovascular diseases [1114].

In previous studies we found plasma and myocardial SO2 level was decreased in the rat model of ISO-induced myocardial injury. Administration of SO2 donor increased plasma and myocardial SO2 level and prevented myocardial injury. The mechanism was mainly related to promoting reactive oxygen species (ROS) scavengers, inhibiting the excessive endoplasmic reticulum stress, and restoring the intracellular calcium homeostasis [1316]. The above pathological processes were all related with the survival and apoptosis of cardiomyocytes and deepened the knowledge of development of myocardial apoptosis. However, the mechanism by which endogenous SO2 affects cardiomyocyte apoptosis remains unclear.

It is well known that mitochondrial dysfunction is an important feature in apoptosis as well as a prominent factor associated with cell death and apoptosis [17]. Bcl-2 family proteins were regarded to govern mitochondrial outer membrane permeability and determine the outcome of an intrinsic apoptotic process initiated by the release of cytc and apoptotic factors from the mitochondria [18]. Liang et al. reported that SO2 markedly attenuated ISO-induced mitochondrial swelling and deformation [13]. Therefore, the present study was undertaken to investigate the inhibitory effect of SO2 on cardiomyocyte apoptosis in the development of ISO-induced myocardial injury, and explore its mechanism in relation to the preservation of mitochondrial function.

2. Results

2.1. SO2 Improved Rat Heart Function in ISO-Treated Rats

ISO at 20 mg/kg daily via subcutaneous injection for 7 continuous days induced a marked left ventricular dysfunction in rats demonstrated by echocardiographic analysis on the morning of day 8 (Figure 1). Compared with the control group, left ventricular ejection fraction (EF) and fraction shortening (FS) of rats of the ISO group were reduced (both p < 0.01), whereas systolic left ventricular anterior wall thickness (LVAWs) and diastolic left ventricular anterior wall thickness (LVAWd) were increased (both p < 0.01). Administration of SO2 donor at 85 mg/kg daily by intraperitoneal injection for 7 continuous days improved EF and FS of the ISO-treated rats, and reduced LVAWd (both p < 0.05). There were no differences, however, in EF, FS, LVAWs and LVAWd, between SO2 only group and control group.

2.2. SO2 Relieved Myocardial Injury in ISO-Treated Rats

Plasma lactic dehydrogenase (LDH) and creatine kinase (CK) activities in 4 groups of rats were examined within 24 h after the samples were collected. Figure 2 showed that plasma LDH and CK activity in the rats of ISO group were increased compared with those of control group (both p < 0.01). Administration of SO2 donor for 7 continuous days decreased the plasma LDH and CK activities (both p < 0.05). There were no differences, however, in plasma LDH and CK activities between SO2 only group and control group.

2.3. SO2 Inhibited Cell Apoptosis Induced by ISO in Rat Myocardial Tissues

Cardiomyocyte apoptosis in the left ventricular tissue of rat was evaluated by detecting terminal deoxynucleotidyl transferase-mediated dUTP-biotin nick end labeling (TUNEL)-positive cells in the paraffin embedded tissue slice, and examining poly(ADP-ribose) polymerase-1 (PARP-1) cleavage, as well as caspase-3 and caspase-9 activities in left ventricular tissues. As shown in Figure 3A, the percentage of TUNEL-positive cells in left ventricular tissues was increased in rats of the ISO group, whereas SO2 decreased the percentage of TUNEL-positive cells by 75% (p < 0.01). Similarly, SO2 reduced ISO-induced PARP cleavage, and caspase-3 and caspase-9 activities in rat left ventricular myocardium (Figure 3B–D). There were also no differences in the percentage of TUNEL-positive cells, cleavage of PARP-1, myocardial caspase-3 and caspase-9 activities in rat left ventricular tissues between SO2 only group and control group.

2.4. SO2 Blocked the Effect of ISO on Myocardial bcl-2 and Bax Expression

Western blot assay showed that compared with the control group, left ventricular tissue bcl-2 protein expression of the ISO group was significantly reduced (p < 0.01). However, SO2 increased left ventricular tissue bcl-2 protein expression in the ISO-treated rats (p < 0.05). Compared with the control group, left ventricular tissue bcl-2 protein expression in rats of the SO2 group did not significantly change (Figure 4A). Immunohistochemical assay showed that compared with the control group, myocardial bcl-2 protein expression of the rats in the ISO group was significantly reduced (p < 0.01); compared with the ISO group, myocardial bcl-2 protein expression of rats in the ISO plus SO2 group was significantly increased (p < 0.05); but compared with the control group, myocardial bcl-2 protein expression of rats in the SO2 group had no significant change (p > 0.05) (Figure 4B,C).

Western blot assay showed that compared with the control group, left ventricular tissue bax protein expression in rats of the ISO group significantly rose (p < 0.01). However, SO2 attenuated the increased myocardial bax protein expression of ISO-treated rats (p < 0.05). Compared with the control group, myocardial bax protein expression in rats of the SO2 group did not significantly change (Figure 4D). Immunohistochemical assay showed that compared with the control group, myocardial positive bax protein signals were obviously strong in rats of the ISO group (p < 0.01). Compared with the ISO group, however, myocardial bax protein expression of rats in the ISO plus SO2 group was reduced (p < 0.01). Compared with the control group, myocardial bax protein expression of rats in the SO2 only group had no significant change (p > 0.05) (Figure 4E,F).

2.5. SO2 Antagonized the Inhibition of Myocardial Mitochondrial Membrane Potential by ISO in Rats

Cardiomyocyte mitochondrial membrane potential in rats of the ISO group was significantly reduced compared to the control group (p < 0.01). SO2 increased the cardiomyocyte mitochondrial membrane potential in the ISO-treated rats (p < 0.01). Compared with the control group, the cardiomyocyte mitochondrial membrane potential of the rats in the SO2 only group did not change obviously (Figure 5A,B).

2.6. SO2 Inhibited Myocardial Mitochondrial Permeability Transition Pore (MPTP) Opening Induced by ISO

Compared with the control group, myocardial fluorescence intensity of rats in the ISO group was significantly weakened, suggesting the opening of MPTP. When the rats were treated with SO2, cardiomyocyte fluorescence intensity of rats in the ISO plus SO2 group was significantly strengthened, suggesting the closing of MPTP. Compared with the control group, myocardial fluorescence intensity of rats of the SO2 only group did not alter (p > 0.05) (Figure 5C,D).

2.7. SO2 Antagonized the Increase in Myocardial Cytc Protein Expression Induced by ISO

Western blot showed that compared with the control group, left ventricular tissue cytc protein expression of rats in the ISO group was increased (p < 0.01). SO2 could markedly reduce the increased myocardial cytc protein expression in rats of the ISO plus SO2 group (p < 0.01). Compared with the control group, left ventricular tissue cytc protein expression of rats in the SO2 only group did not significantly change (Figure 6A).

Immunohistochemical analysis showed that compared with the control group, the signals of myocardial cytc protein of rats in the ISO group were significantly strengthened (p < 0.01). However, compared with the ISO group, myocardial cytc protein signals were significantly weakened in rats of the ISO plus SO2 group (p < 0.01). The signals did not differ between the control group and the SO2 only group (p > 0.05) (Figure 6B,C).

2.8. SO2 Inhibited the ISO-Induced Release of Cytc from the Mitochondrion into the Cytoplasm of Cardiomyocytes

Western blot showed that compared with the control group, cytc content in the cytoplasm of rats in the ISO group was increased but cytc content in the mitochondrion decreased (p < 0.01). Compared with the ISO group, cytc content in the cytoplasm of rats in the ISO plus SO2 group was reduced but cytc content in the mitochondrion increased (p < 0.01). Compared with the control group, both cytc content in cytoplasm and cytc content in mitochondrion of rats in the SO2 only group did not change (p > 0.05) (Figure 6D,E).

3. Discussion

Exploring options for cardioprotection from myocardial injury attracts a great amount of attention in cardiovascular research and clinical trials. Today, drugs targeting the renin-angiotensin system and nitric oxide are the common cardiovascular agents of clinical utility [19,20]. In an attempt to examine other signaling pathways, Geng et al. discovered that the endogenous hydrogen sulfide, an end product of sulfur-containing amino acid metabolic pathways, contributed to the cardioprotection of ISO-induced myocardial injury. Administration of a hydrogen sulfide donor effectively protected cardiomyocytes and their contractile activity, at least in part by its direct scavenging of oxygen-free radicals and reducing the accumulation of lipid peroxidations [21].

Actually, SO2, another end product of sulfur-containing amino acid metabolic pathways, was previously regarded as an atmospheric pollutant [4,5]. Recently, our research team found that there was an endogenous SO2 generation pathway in the cardiovascular system [7,8] and that SO2 played important cardiovascular physiological [7,9,10] and pathophysiological roles [1116]. In particular, our previous studies [13] showed that in the model of myocardial injury induced by ISO, endogenous myocardial SO2 generation was significantly reduced. In the present study, cardiac EF had a statistically significant decrease in ISO-treated rats compared with that of control rats though the decrease appears small. Other cardiac functional indexes, such as FS, and plasma CK and LDH levels also showed marked changes, indicating the presence of myocardial injury. After an SO2 donor was supplemented, myocardial injury was greatly alleviated, which suggested that the endogenous SO2 pathway down-regulation was involved in the pathogenesis of ISO-induced myocardial injury and that SO2 had an important cardioprotective effect. However, the mechanisms by which SO2 protects against myocardial injury remain unclear.

Cardiomyocyte apoptosis is involved in the development of cardiomyopathy, myocardial ischemia reperfusion and heart failure [2224]. Therefore, the present study was designed to investigate the mechanism responsible for cardioprotection by SO2 from the viewpoint of cell apoptosis. The apoptosis of cardiomyocytes was represented by detecting TUNEL-positive cell, cleaved PARP, caspase-3 and caspase-9 activities. PARP is a substrate for caspase-3, and cleaved PARP-1 has been shown to be an important marker for apoptosis [25]. Caspase-9 was activated by cytc released from mitochondrion and subsequently activated the caspase cascade reaction and finally activated caspase-3 to cause cell apoptosis [26]. The results of the present study showed that the percentage of apoptotic cells in the left ventricular tissues of rats in the ISO group was increased, and cleavage of PARP-1, casapase-3 and caspase-9 activites were also enhanced, whereas the administration of a SO2 donor both reduced apoptotic cells in left ventricular tissues of ISO-treated rats and reduced the cleavage PARP-1, casapase-3 and caspase-9 activities, indicating that SO2 could inhibit cardiomyocyte apoptosis in left ventricular tissues induced by ISO. Further studies are needed to investigate the possible mechanisms by which SO2 inhibits cardiomyocyte apoptosis.

The bcl-2/cytc/caspase-9/caspase-3 apoptosis pathway is a common apoptotic pathway [27]. Bcl-2 family proteins are known to determine the outcome of an intrinsic apoptotic process initiated by the release of cytc and apoptotic factors from the mitochondria. Bcl-2 and bax are a pair of interacting proteins in the bcl-2 family. Bcl-2 mainly plays an anti-apoptotic role [18,28], while bax mainly plays a pro-apoptotic role [29,30]. In this experiment, compared with the control group, bcl-2 protein expression in rat myocardial tissues of the ISO group was significantly down-regulated, and bax protein expression was significantly up-regulated, indicating that the anti-apoptotic ability of cardiomyocytes was lowered and pro-apoptotic ability increased. SO2 administration to the rats treated with ISO, however, attenuated bax up-regulation and prevented bcl-2 down-regulation, indicating that SO2 could prevent the imbalance of cardiomyocyte bcl-2/bax and the subsequent apoptosis induced by ISO. Regarding the mechanism by which SO2 regulated bcl-2 expression, we supposed that the PI3K/Akt and/or ROS pathways might be the possible target(s) according to the following studies: Wang et al. reported that bax/bcl-2 expression in the HepG2 cell was promoted with LY294002 (an inhibitor of PI3K) intervention but blocked by PI3K activator and NAC (a ROS scavanger) pretreatment, suggesting that PI3K/Akt activation might decrease bax/bcl-2 ratio and ROS might increase bax/bcl-2 ratio [31]; Zhao et al. and Liang et al. reported that SO2 could activate the PI3K/Akt pathway and decrease the ROS level in the myocardial injury [13,32].

The downstream molecule of the bcl-2 protein family is mainly cytc. Under physiological condition, cytc is mainly present in the mitochondrion, not inducing apoptosis. When apoptotic signals are received, cytc is released from the mitochondrion into the cytoplasm to induce apoptosis. The release of cytc from the mitochondrion into the cytoplasm is the key step of apoptotic pathways [33]. Therefore, we used the fluorescence probe to detect the changes in mitochondrial membrane potential and the opening status of MPTP. Western blot and immunohistochemical methods were used to detect the change in the total amount of cardiomyocyte cytc, and western blot was also used to detect the release change of cytc from the mitochondrion into cytoplasm. The results showed that compared with the control group, the cardiomyocyte mitochondrial membrane potential of the ISO group was decreased, the MPTP opening was promoted, and the mitochondrial cytc was decreased but cytoplamic cytc was increased, indicating that ISO damaged mitochondrial membrane potential, induced the opening of MPTP, and then promoted cytc release from the mitochondrion into the cytoplasm via the opened MPTP. In contrast, SO2 increased cardiomyocyte mitochondrial membrane potential and reduced the mitochondrion MPTP opening of the ISO-treated rats. Consequently, SO2 prevented cytc release from the mitochondrion to the cytoplasm, indicating that SO2 could inhibit ISO-induced mitochondrial membrane structural and functional damage and mitochondrial cytc release.

In addition, Na2SO3/NaHSO3 was used as SO2 donor (85 mg/kg), according to previous studies [12,13]. The SO2 only group was set in this experiment where the SO2 donor was administered to control rats. As a result, there were no significant differences in heart function, myocardial injury, apoptosis in the myocardial tissues, and mitochondrion function between the SO2 only group and the control group, suggesting that administration of a SO2 donor (intraperitoneal injection of 85 mg/kg for 7 continuous days) had no cardiac side effects.

Taken together, this study demonstrated that the SO2 donor antagonized myocardial injury induced by ISO, improved heart function and played a cardioprotective role. SO2 inhibited ISO-induced cardiomyocyte apoptosis, which was possibly one of the myocardial protective mechanisms of SO2. SO2 promoted bcl-2 expression, inhibited bax expression, stimulated mitochondrial membrane potential, inhibited mitochondrion MPTP opening, inhibited the release of cytc from mitochondrion into cytoplasm, and inhibited the activation of caspase-9 and caspase-3, thus exerting an anti-apoptotic function. The above-mentioned results thus deepen the understanding of the mechanisms responsible for cardioprotection by SO2.

Although bcl-2 family protein expression and subcellular translocation are the major regulatory processes involved in the mitochondria-mediated apoptosis pathway, other factors and pathological processes are also involved in the mitochondria-mediated apoptosis, for example, ROS and endoplasmic reticulum stress [34,35]. Loor et al. demonstrated that oxidant stress caused release of calcein to the cytosol during ischemia, a response that was inhibited by chemically diverse antioxidants, or over-expression of Mn-super oxide dismutase, suggesting that mitochondrial oxidant stress caused MPTP opening [34]. Cunha et al. elucidated that a crosstalk between lipotoxic ER stress and the mitochondrial pathway of apoptosis caused β-cell death in diabetes [35]. Our previous study indicated that SO2 protected against ISO-induced myocardial injury associated with increased myocardial antioxidant capacity and had inhibitory effect on the endoplasmic reticulum stress in rats [13,14]. Therefore, in addition to Bcl-2 pathway, the possibility that SO2 protected the mitochondria function via scavenging ROS or excessively activated endoplasmic reticulum stress was worthy of further investigation.

4. Experimental Section

4.1. Animal Model

Two month old male Wistar rats with body weights ranging from 200 to 250 g were purchased from Vital River Laboratory Animal Center [Certificate number: SCXK (Jing) 2011-0011] and bred in the Experimental Animal Center of Peking University Health Science Center. A total of 39 rats were divided into four groups: control group (10 rats), ISO group (9 rats), ISO plus SO2 group (10 rats) and SO2 only group (10 rats). The control group received intraperitoneal injections with the equivalent amount of saline daily for 7 continuous days, the ISO group received subcutaneous injections with 20 mg/kg of ISO daily for 7 continuous days, the ISO plus SO2 group received intraperitoneal injections with 20 mg/kg of ISO daily for 7 continuous days and intraperitoneal injections with 85 mg/kg of Na2SO3/NaHSO3 for 7 days, and the SO2 only group received intraperitoneal injections with 85 mg/kg of Na2SO3/NaHSO3 daily for 7 continuous days. The four groups of rats fasted on the evening of the 7th day. The Ethical Committee for Animal Studies at the Peking University First Hospital approved the study.

4.2. Echocardiography Analysis

At day 7 of the experiment, all rats fasted in the evening of the latest administration. The next morning, echocardiography detection was conducted on the rats with Visual Sonics Vevo 770 Imaging System (Toronto, Canada). Inhalation anesthesia was conducted with isoflurane and oxygen gas mixture (isoflurane concentration of 3%) on the rats. The rats were then kept in a supine position, a 17.5 Hz two-dimensional cardiography scanner probe was used to conduct level scanning at the left sternal border papillary muscle of the rats and the images were saved. Echocardiography quantitative analysis software was used to detect the values of 3 continuous cardiac cycles, and the mean value was obtained. Main indicators included left ventricular EF, FS, LVAWs and LVAWd [36].

4.3. Specimen Collection

After the rats woke up after echocardiography, they were anaesthetized with 12% urethane (10 mL/kg). Plasma samples were obtained from the abdominal aorta using a heparinized syringe and centrifuged at 3000 rpm for 20 min. Cardiac apex tissues were fixated in 4% paraformaldehyde for 8 h and dehydrated in 20% sucrose phosphate buffer for 24 h. Subsequently, one part of the tissue was embedded in paraffin, and sliced into sections with the thickness of 7 μm. The other part of the tissue was embedded in OCT, and sliced into frozen sections with the thickness of 7 μm. The remaining left ventricular tissues were coded, rapidly frozen in liquid nitrogen and stored at −70 °C.

4.4. Detection of Myocardial Enzymatic Activity in Plasma

The activities of LDH and CK were measured using an Automated Enzymology Instrument (Hitachi 7080, Hitachi Ltd., Tokyo, Japan) [13].

4.5. TUNEL Assay

The paraffin-fixed sections were dewaxed and rehydrated with dimethylbenzene and gradient ethanol. Apoptotic cells were detected with the TUNEL kit following the manufacturer’s instructions (G3250, Roche, Nutley, NJ, USA) [37]. Briefly, the slide underwent fixation with 4% formaldehyde, permeabilization with 20 μg/mL proteinase K, repeated fixation with 4% formaldehyde, equilibration with equilibration buffer and labeling with TdT reaction mixture. Finally, the reaction was ended with 2× SSC and the slides were counterstained with hematoxylin, and the labeled cells were analyzed under a light microscope. The percentage of apoptotic cells was calculated as a ratio of the number of TUNEL-positive cells to the total number of cells. Cells in eight different randomized fields in the myocardium were counted.

4.6. Isolation of Mitochondrial and Cytosolic Fraction

Two hundred micrograms of left ventricular tissue were homogenized in 1 mL of isolation buffer (70 mM sucrose, 190 mM mannitol, 20 mM HEPES, 0.2 mM EDTA, 200 μM sodium orthovanadate, 10 μg/mL aprotinin, 10 μg/mL leupeptin, 0.5 mM p-nitrophenyl phosphate, and 1 mM PMSF). After homogenization, 70 μL of the homogenate were added to 400 μL of RIPA buffer (150 mM NaCl, 20 mM Tris·HCl pH 7.5, 0.1% SDS, 1% Triton X-100, 1 mM EDTA, 200 μM sodium orthovanadate, 10 μg/mL aprotinin, 10 μg/mL leupeptin, 0.5 mM p-nitrophenyl phosphate, and 1 mM PMSF), and this whole homogenate fraction was saved for western blot analysis. The remainder homogenate was centrifuged at 600× g for 10 min to remove nuclei and myofibrils. The resulting supernatant was centrifuged at 5000× g for 15 min, producing a pellet enriched in mitochondria and a supernatant. The pellet was washed twice with 1 mL of isolation buffer and then resuspended in 400 μL of RIPA buffer to produce the final mitochondrial fraction. The supernatant was centrifuged at 100,000g for 60 min. The resulting supernatant was the final cytosolic fraction. Cytochrome c oxidase IV (COX IV) and β-tubulin were detected by western blot as the markers of mitochondrial and cytosolic fraction, respectively.

4.7. Western Blot Assay

Expressions of bcl-2, bax and cytc as well as PARP-1 cleavage in rat left ventricular tissues were detected using western blot [8]. The BCA method was used to detect the protein concentration. The protein sample of 40 μg was taken, and SDS-PAGE electrophoresis of 10% separation gel was conducted. The separated proteins were electrophoretically transferred onto a nitrocellulose membrane for 3 h at 200 mA. The membranes were blocked with 5% dried skimmed milk for 1 h. Subsequently, the primary antibodies to bcl-2, bax, cytc and PARP-1 (sc-492, sc-493, sc-13156 and sc-1561, Santa Cruz, CA, USA) (diluted with PBS at 1:2000, 1:2000, 1:4000 and 1:1000, respectively) were added and incubated at 4 °C overnight. After washing, the second antibody was added and incubated for 1 h at room temperature. After washing, LumiGLO chemiluminescence reagent was used for reaction and exposure was carried out. At last, grey scanning was conducted for the bands, and grey level was quantified using an AlphaImager (San Leandro, CA, USA). Also, a semi-quantitative analysis was conducted for the corresponding protein expression.

4.8. Immunohistochemical Staining Method

The paraffin-fixed slide was dewaxed, rehydrated with dimethylbenzene and gradient ethanol (100%, 95% and 70%), incubated with 3% H2O2 for 10 min at room temperature, digested in pepsin for 10 min at 37 °C and blocked in goat serum for 30 min at 37 °C. Specific primary antibodies to bcl-2, bax and cytc (sc-492, sc-493 and sc-13156, Santa Cruz, CA, USA) (diluted with PBS at 1:200, 1:200 and 1:400, respectively) were separately added and incubated overnight at 4 °C. HRP-conjugated anti-rabbit IgG was used as a secondary antibody. Finally, the slide was incubated with DAB buffer at room temperature in a humidified and dark chamber, and then counterstained with hematoxylin. The brown granules in the cardiomyocytes observed under microscope were defined as the positive signals. For negative controls, sections were processed as above except that the primary incubation was performed with non-immune goat serum instead of primary antibodies. Leica Q550image analysis software (Leica, Cambridge, UK) was used to acquire images and analyze optical density values. For each section, 4 different fields were selected randomly and the mean was obtained [8].

4.9. Mitochondrial Membrane Potential Detection

Mitochondrial membrane potential was measured with a unique cationic dye of 5,5′,6,6′-tetrachloro1,1′,3,3′-tetraethyl benzimidazol carbocyanine iodide (JC-1) (GMS10013.6, Genmed Scientific Inc., Shanghai, China). In live cells, the mitochondria appear red due to the aggregation of accumulated JC-1, which have absorption/emission maxima of 585/590 nm (red). In apoptotic and dead cells, the dye remains in its monomeric form, which has absorption/emission maxima of 510/530 nm (green). The ratio of JC-1 aggregate (red) to monomer (green) intensity was calculated. A decrease in this ratio was interpreted as a decrease in the mitochondrial membrane potential, whereas an increase in this ratio was interpreted as a gain in the mitochondrial membrane potential [38]. Briefly, 100 μL of working solution of JC-1 dye was added to the frozen slide at 37 °C for 20 min in darkness. The excess dye was removed by washing with JC-1staining buffer and then rinsed three times with PBS. Observations were made immediately using a laser confocal scanning microscope (Leica, Cambridge, UK). For each slide, 4 different fields were selected randomly to acquire images and the average intensity of red and green fluorescence was determined.

4.10. MPTP Opening Detection

MPTP opening was determined with calcein-AM in the presence of cobalt chloride using the commercial MPTP fluorescence assay kit (GMS10095, Genmed Scientific Inc., Shanghai, China). When calcein gathered in the mitochondrion, it presented green fluorescent staining. When it was released into the cytoplasm via the opening of MPTP, fluorescent quenching occurred [34]. The frozen section was incubated with calcein-AM (1.0 μmol/L) and cobalt-chloride (1.0 mmol/L), resulting in mitochondrial localization of calcein fluorescence. MPTP opening was indicated by a reduction in mitochondrial calcein signal and was measured over 4 randomly chosen areas in each section under confocal microscope (emitting at 488 nm and detecting at 505 nm) (Leica, Cambridge, UK).

4.11. Caspase-9 Activity Assay

Caspase-9 activity in rat myocardial tissue was detected using the tissue caspase-9 colorimetric activity assay kit (GMS50037.2, Genmed Scientific Inc., Shanghai, China). The assay was based on spectophotometric detection of the chromophorep-nitroaniline (pNA) after cleavage from the labeled substrate Ac-LEHD-pNA [39]. The free pNA could be quantified using a microtiter plate reader at 405 nm. Comparison of the absorbance of pNA from an apoptotic sample with an un-induced control allowed determination of the fold increase in caspase-9 activity. Briefly, myocardial tissue was grounded in liquid nitrogen, homogenized with chilled tissue lysis buffer, incubated on ice for 10 min, and centrifuged for 5 min in a microcentrifuge (16,000× g). The supernatant (cytosolic extract) was collected to a fresh tube on ice. The protein concentration was assayed for each sample. The assay mixture was prepared in a 96-well plate and samples were incubated for 1 h at 37 °C. Finally, samples (at 405 nm) were read in a microtiter plate reader (Bio-rad, Hercules, CA, USA). Fold-increase in caspase-9 activity could be determined by comparing the OD reading from the induced apoptotic sample with the level of the un-induced control.

4.12. Caspase-3 Activity Assay

Caspase-3 activity in rat myocardial tissue was detected using the tissue caspase-3 colorimetric activity assay kit (GMS50029.2, Genmed Scientific Inc., Shanghai, China). The assay was based on spectophotometric detection of the pNA after cleavage from the labeled substrate Ac-DEVD-pNA [40]. The free pNA could be quantified using a microtiter plate reader at 405 nm. Comparison of the absorbance of pNA from an apoptotic sample with an un-induced control allowed determination of the fold increase in caspase-3 activity. The protocol was the same as the protocol of caspase-9 activity assay.

4.13. Statistical Analysis

Data are presented as mean ± SD. Statistical analysis was conducted with SPSS 13 software (SPSS Software, Inc., Chicago, IL, USA) using one-way ANOVA followed by either LSD test or Tamhane test according to the homogeneity of variance test, p < 0.05 was considered significant.

5. Conclusion

In summary, SO2 donor inhibited ISO-induced myocardial injury and heart dysfunction. The mechanism by which SO2 inhibited ISO-induced cardiomyocyte apoptosis might involve promoting bcl-2 expression, decreasing bax expression, stimulating mitochondrial membrane potential, preventing mitochondrion MPTP opening, and then inhibiting the release of cytc from mitochondrion into cytoplasm, inhibiting the activation of caspase-9 and caspase-3, thus exerting an anti-apoptotic function. The results would deepen the knowledge of the cardioprotection by SO2.

Acknowledgments

This work was supported by Major Basic Research Program of China (2012CB517806 and 2011CB503904), the National Natural Science Foundation of China (81121061, 81070111 and 31130030) and Program for New Century Excellent Talent of Ministry of Education of China (NCET-11-0005).

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Singh, K.P.; Jaffe, A.S.; Liang, B.T. The clinical impact of circulating caspase-3 p17 level: A potential new biomarker for myocardial injury and cardiovascular disease. Future Cardiol 2011, 7, 443–445. [Google Scholar]
  2. Virag, J.A.; Dries, J.L.; Easton, P.R.; Friesland, A.M.; DeAntonio, J.H.; Chintalgattu, V.; Cozzi, E.; Lehmann, B.D.; Ding, J.M.; Lust, R.M. Attenuation of myocardial injury in mice with functional deletion of the circadian rhythm gene mPer2. Am. J. Physiol. Heart Circ. Physiol 2010, 298, H1088–H1095. [Google Scholar]
  3. Whelan, R.S.; Kaplinskiy, V.; Kitsis, R.N. Cell death in the pathogenesis of heart disease: Mechanisms and significance. Annu. Rev. Physiol 2010, 72, 19–44. [Google Scholar]
  4. Chen, T.M.; Gokhale, J.; Shofer, S.; Kuschner, W.G. Outdoor air pollution: Nitrogen dioxide, sulfur dioxide, and carbon monoxide health effects. Am. J. Med. Sci 2007, 333, 249–256. [Google Scholar]
  5. Rich, D.Q.; Schwartz, J.; Mittleman, M.A.; Link, M.; Luttmann-Gibson, H.; Catalano, P.J.; Speizer, F.E.; Dockery, D.W. Association of short term ambient air pollution concentrations and ventricular arrhythmias. Am. J. Epidemiol 2005, 161, 1123–1132. [Google Scholar]
  6. Stipanuk, M.H. Metabolism of sulfur-containing amino acids. Annu. Rev. Nutr 1986, 6, 179–209. [Google Scholar]
  7. Du, S.X.; Jin, H.F.; Bu, D.F.; Zhao, X.; Geng, B.; Tang, C.S.; Du, J.B. Endogenously generated sulfur dioxide and its vasorelaxant effect in rats. Acta Pharmacol. Sin 2008, 29, 923–930. [Google Scholar]
  8. Luo, L.M.; Chen, S.; Jin, H.F.; Tang, C.S.; Du, J.B. Endogenous generation of sulfur dioxide in rat tissues. Biochem. Biophys. Res. Commun 2011, 415, 61–67. [Google Scholar]
  9. Meng, Z.; Yang, Z.; Li, J.; Zhang, Q. The vasorelaxant effect and its mechanisms of sodium bisulfite as a sulfur dioxide donor. Chemosphere 2012, 89, 579–584. [Google Scholar]
  10. Zhang, Q.; Meng, Z. The negative inotropic effects of gaseous sulfur dioxide and its derivatives in the isolated perfused rat heart. Environ. Toxicol 2012, 27, 175–184. [Google Scholar]
  11. Li, W.; Tang, C.S.; Jin, H.F.; Du, J.B. Regulatory effects of sulfur dioxide on the development of atherosclerotic lesions and vascular hydrogen sulfide in atherosclerotic rats. Atherosclerosis 2011, 215, 323–330. [Google Scholar]
  12. Sun, Y.; Tian, Y.; Prabha, M.; Liu, D.; Chen, S.; Zhang, R.; Liu, X.; Tang, C.; Tang, X.; Jin, H.; et al. Effects of sulfur dioxide on hypoxic pulmonary vascular structural remodeling. Lab. Invest 2010, 90, 68–82. [Google Scholar]
  13. Liang, Y.F.; Liu, D.; Ochs, T.; Tang, C.S.; Chen, S.; Zhang, S.Q.; Geng, B.; Jin, H.F.; Du, J.B. Endogenous sulfur dioxide protects against isoproterenol-induced myocardial injury and increases myocardial antioxidant capacity in rats. Lab. Invest 2011, 91, 12–23. [Google Scholar]
  14. Jin, H.F.; Wang, Y.; Wang, X.B.; Sun, Y.; Tang, C.S.; Du, J.B. Sulfur dioxide preconditioning increases antioxidative capacity in rat with myocardial ischemia reperfusion (I/R) injury. Nitric Oxide 2013. [Google Scholar] [CrossRef]
  15. Chen, S.S.; Du, J.B.; Liang, Y.F.; Ochs, T.; Liu, D.; Zhu, L.L.; Tang, X.Y.; Tang, C.S.; Jin, H.F. Sulfur dioxide inhibits excessively activated endoplasmic reticulum stress in rats with myocardial injury. Heart Vessels 2012, 27, 505–516. [Google Scholar]
  16. Chen, S.S.; Du, J.B.; Liang, Y.F.; Zhang, R.Y.; Tang, C.S.; Jin, H.F. Sulfur dioxide restores calcium homeostasis disturbance in rat with isoproterenol-induced myocardial injury. Histol. Histopathol 2012, 27, 1219–1226. [Google Scholar]
  17. Galluzzi, L.; Kepp, O.; Trojel-Hansen, C.; Kroemer, G. Mitochondrial control of cellular life, stress, and death. Circ. Res 2012, 111, 1198–1207. [Google Scholar]
  18. Brunelle, J.K.; Letai, A. Control of mitochondrial apoptosis by the Bcl-2 family. J. Cell Sci 2009, 122, 437–441. [Google Scholar]
  19. Carson, P.; Giles, T.; Higginbotham, M.; Hollenberg, N.; Kannel, W.; Siragy, H.M. Angiotensin receptor blockers: Evidence for preserving target organs. Clin. Cardiol 2001, 24, 183–190. [Google Scholar]
  20. Hassan, M.A.; Ketat, A.F. Sildenafil citrate increases myocardial cGMP content in rat heart, decreases its hypertrophic response to isoproterenol and decreases myocardial leak of creatine kinase and troponin T. BMC Pharmacol. 2005, 5. [Google Scholar] [CrossRef]
  21. Geng, B.; Chang, L.; Pan, C.S.; Qi, Y.F.; Zhao, J.; Pang, Y.Z.; Du, J.B.; Tang, C.S. Endogenous hydrogen sulfide regulation of myocardial injury induced by isoproterenol. Biochem. Biophys. Res. Commun 2004, 318, 756–763. [Google Scholar]
  22. Yang, J.; Maity, B.; Huang, J.; Gao, Z.; Stewart, A.; Weiss, R.M.; Anderson, M.E.; Fisher, R.A. G-protein inactivator RGS6 mediates myocardial cell apoptosis and cardiomyopathy caused by doxorubicin. Cancer Res 2013, 73, 1662–1667. [Google Scholar]
  23. Murriel, C.L.; Churchill, E.; Inagaki, K.; Szweda, L.I.; Mochly-Rosen, D. Protein kinase activation induces apoptosis in response to cardiac ischemia and reperfusion damage: A mechanism involving BAD and the mitochondria. J. Biol. Chem 2004, 279, 47985–47991. [Google Scholar]
  24. Yang, B.; Ye, D.; Wang, Y. Caspase-3 as a therapeutic target for heart failure. Expert Opin. Ther. Targets 2013, 17, 255–263. [Google Scholar]
  25. Boulares, A.H.; Yakovlev, A.G.; Ivanova, V.; Stoica, B.A.; Wang, G.; Iyer, S.; Smulson, M. Role of poly(ADP-ribose) polymerase (PARP) cleavage in apoptosis. Caspase 3-resistant PARP mutant increases rates of apoptosis in transfected cells. J. Biol. Chem 1999, 274, 22932–22940. [Google Scholar]
  26. Kuida, K.; Haydar, T.F.; Kuan, C.Y.; Gu, Y.; Taya, C.; Karasuyama, H.; Su, M.S.; Rakic, P.; Flavell, R.A. Reduced apoptosis and cytochrome c-mediated caspase activation in mice lacking caspase 9. Cell 1998, 94, 325–337. [Google Scholar]
  27. Lin, J.W.; Chen, J.T.; Hong, C.Y.; Lin, Y.L.; Wang, K.T.; Yao, C.J.; Lai, G.M.; Chen, R.M. Honokiol traverses the blood-brain barrier and induces apoptosis of neuroblastoma cells via an intrinsic bax-mitochondrion-cytochrome c-caspase protease pathway. Neuro Oncol 2012, 14, 302–314. [Google Scholar]
  28. Adams, J.M.; Cory, S. Bcl-2-regulated apoptosis: Mechanism and therapeutic potential. Curr. Opin. Immunol 2007, 19, 488–496. [Google Scholar]
  29. Kirkland, R.A.; Franklin, J.L. Bax, reactive oxygen, and cytochrome c release in neuronal apoptosis. Antioxid. Redox Signal 2003, 5, 589–596. [Google Scholar]
  30. Wei, M.C.; Zong, W.X.; Cheng, E.H.; Lindsten, T.; Panoutsakopoulou, V.; Ross, A.J.; Roth, K.A.; MacGregor, G.R.; Thompson, C.B.; Korsmeyer, S.J. Proapoptotic BAX and BAK: A requisite gateway to mitochondrial dysfunction and death. Science 2001, 292, 727–730. [Google Scholar]
  31. Wang, J.; Yuan, L.; Xiao, H.; Xiao, C.; Wang, Y.; Liu, X. Momordin Ic induces HepG2 cell apoptosis through MAPK and PI3K/Akt-mediated mitochondrial pathways. Apoptosis 2013, 18, 751–765. [Google Scholar]
  32. Zhao, M.M.; Yang, J.Y.; Wang, X.B.; Tang, C.S.; Du, J.B.; Jin, H.F. The PI3K/Akt pathway mediates the protection of SO2 preconditioning against myocardial ischemia/reperfusion injury in rats. Acta Pharmacol. Sin 2013, 34, 501–506. [Google Scholar]
  33. Caroppi, P.; Sinibaldi, F.; Fiorucci, L.; Santucci, R. Apoptosis and human diseases: Mitochondrion damage and lethal role of released cytochrome C as proapoptotic protein. Curr. Med. Chem 2009, 16, 4058–4065. [Google Scholar]
  34. Loor, G.; Kondapalli, J.; Iwase, H.; Chandel, N.S.; Waypa, G.B.; Guzy, R.D.; Vanden Hoek, T.L.; Schumacker, P.T. Mitochondrial oxidant stress triggers cell death in simulated ischemia-reperfusion. Biochim. Biophys. Acta 2011, 1813, 1382–1394. [Google Scholar]
  35. Cunha, D.A.; Igoillo-Esteve, M.; Gurzov, E.N.; Germano, C.M.; Naamane, N.; Marhfour, I.; Fukaya, M.; Vanderwinden, J.M.; Gysemans, C.; Mathieu, C.; et al. Death protein 5 and p53-upregulated modulator of apoptosis mediate the endoplasmic reticulum stress-mitochondrial dialog triggering lipotoxic rodent and human β-cell apoptosis. Diabetes 2012, 61, 2763–2775. [Google Scholar]
  36. Shi, Y.X.; Chen, Y.; Zhu, Y.Z.; Huang, G.Y.; Moore, P.K.; Huang, S.H.; Yao, T.; Zhu, Y.C. Chronic sodium hydrosulfide treatment decreases medial thickening of intramyocardial coronary arterioles, interstitial fibrosis, and ROS production in spontaneously hypertensive rats. Am. J. Physiol. Heart Circ. Physiol 2007, 293, H2093–H2100. [Google Scholar]
  37. Gavrieli, Y.; Sherman, Y.; Ben-Sasson, S.A. Identification of programmed cell death in situ via specific labeling of nuclear DNA fragmentation. J. Cell Biol 1992, 119, 493–501. [Google Scholar]
  38. Reers, M.; Smiley, S.T.; Mottola-Hartshorn, C.; Chen, A.; Lin, M.; Chen, L.B. Mitochondrial membrane potential monitored by JC-1 dye. Methods Enzymol 1995, 260, 406–417. [Google Scholar]
  39. Zhao, C.Q.; Zhang, Y.H.; Jiang, S.D.; Jiang, L.S.; Dai, L.Y. Both endoplasmic reticulum and mitochondria are involved in disc cell apoptosis and intervertebral disc degeneration in rats. Age (Dordr) 2010, 32, 161–171. [Google Scholar]
  40. Angeloni, C.; Hrelia, S. Quercetin reduces inflammatory responses in LPS-stimulated cardiomyoblasts. Oxid. Med. Cell. Longev. 2012, 2012. [Google Scholar] [CrossRef]
Ijms 14 10465f1 1024

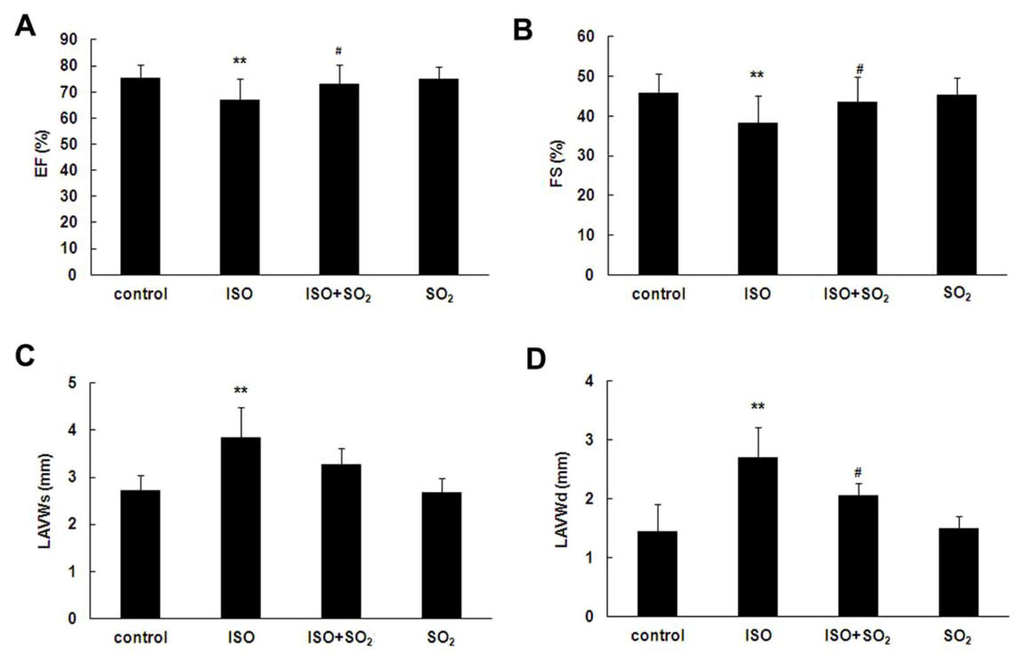

Figure 1. Echocardiographic determination of cardiac function in rats. At day 8 of the experiment, echocardiographic detection was conducted on the rats. Echocardiographic quantitative analysis software was used to detect the values of 3 continuous cardiac cycles. (A) Change of left ventricular ejection fraction (EF); (B) Change of left ventricular fractional shortening (FS); (C) Change of systolic left ventricular anterior wall thickness (LVAWs); (D) Change of diastolic left ventricular anterior wall thickness (LVAWd). ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, #p < 0.05 vs. ISO group.

Click here to enlarge figure

Figure 1. Echocardiographic determination of cardiac function in rats. At day 8 of the experiment, echocardiographic detection was conducted on the rats. Echocardiographic quantitative analysis software was used to detect the values of 3 continuous cardiac cycles. (A) Change of left ventricular ejection fraction (EF); (B) Change of left ventricular fractional shortening (FS); (C) Change of systolic left ventricular anterior wall thickness (LVAWs); (D) Change of diastolic left ventricular anterior wall thickness (LVAWd). ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, #p < 0.05 vs. ISO group.
Ijms 14 10465f1 1024
Ijms 14 10465f2 1024

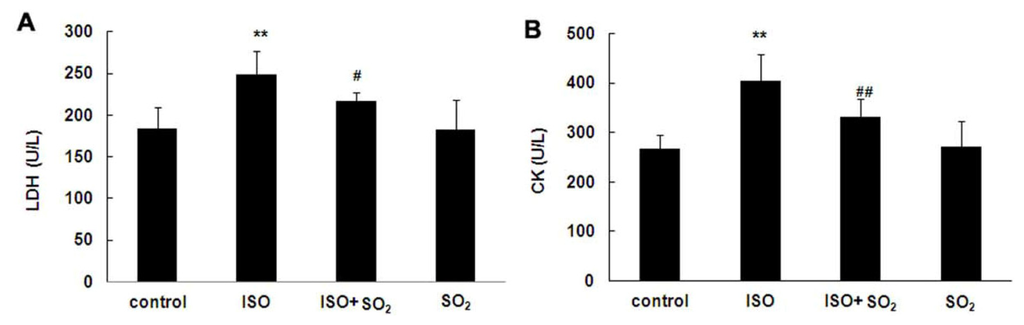

Figure 2. Plasma lactate dehydrogenase (LDH) and creatine kinase (CK) activity in rats. (A) Change of plasma LDH activity; (B) Change of plasma CK activity. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group; #p < 0.05; ##p < 0.01 vs. ISO group.

Click here to enlarge figure

Figure 2. Plasma lactate dehydrogenase (LDH) and creatine kinase (CK) activity in rats. (A) Change of plasma LDH activity; (B) Change of plasma CK activity. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group; #p < 0.05; ##p < 0.01 vs. ISO group.
Ijms 14 10465f2 1024
Ijms 14 10465f3a 1024

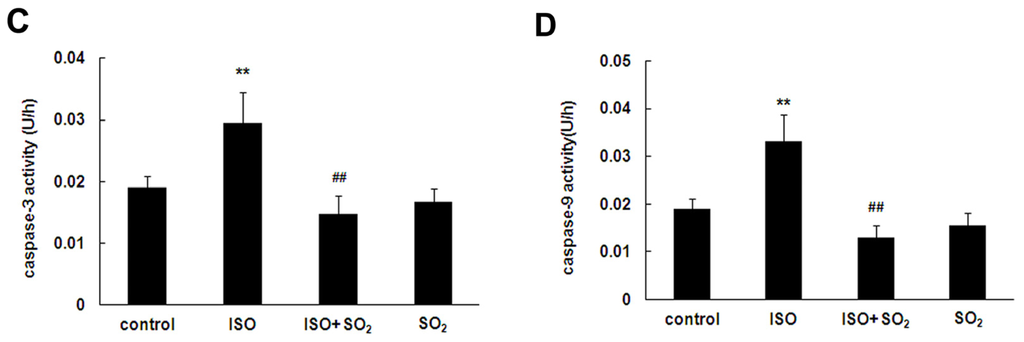

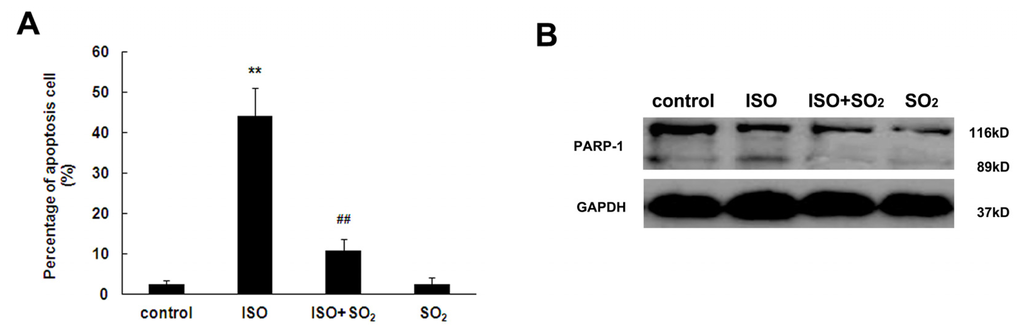

Figure 3. Change in cell apoptosis, caspase-9 and caspase-3 activities in left ventricular tissues of rat. (A) The difference among the cell apoptosis in myocardial tissues of the four groups of rats was observed by terminal deoxynucleotidyl transferase-mediated dUTP-biotin nick end labeling (TUNEL) assay. The percentage of apoptotic cells in myocardial tissues was calculated by semi-quantitative counting; (B) Poly(ADP-ribose) polymerase-1 (PARP-1) cleavage in myocardial tissues of rat; (C) Caspase-3 activity in myocardial tissues of rat; (D) Caspase-9 activity in myocardial tissues of rat. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, ##p < 0.01 vs. ISO group.

Click here to enlarge figure

Figure 3. Change in cell apoptosis, caspase-9 and caspase-3 activities in left ventricular tissues of rat. (A) The difference among the cell apoptosis in myocardial tissues of the four groups of rats was observed by terminal deoxynucleotidyl transferase-mediated dUTP-biotin nick end labeling (TUNEL) assay. The percentage of apoptotic cells in myocardial tissues was calculated by semi-quantitative counting; (B) Poly(ADP-ribose) polymerase-1 (PARP-1) cleavage in myocardial tissues of rat; (C) Caspase-3 activity in myocardial tissues of rat; (D) Caspase-9 activity in myocardial tissues of rat. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, ##p < 0.01 vs. ISO group.
Ijms 14 10465f3a 1024Ijms 14 10465f3b 1024
Ijms 14 10465f4 1024

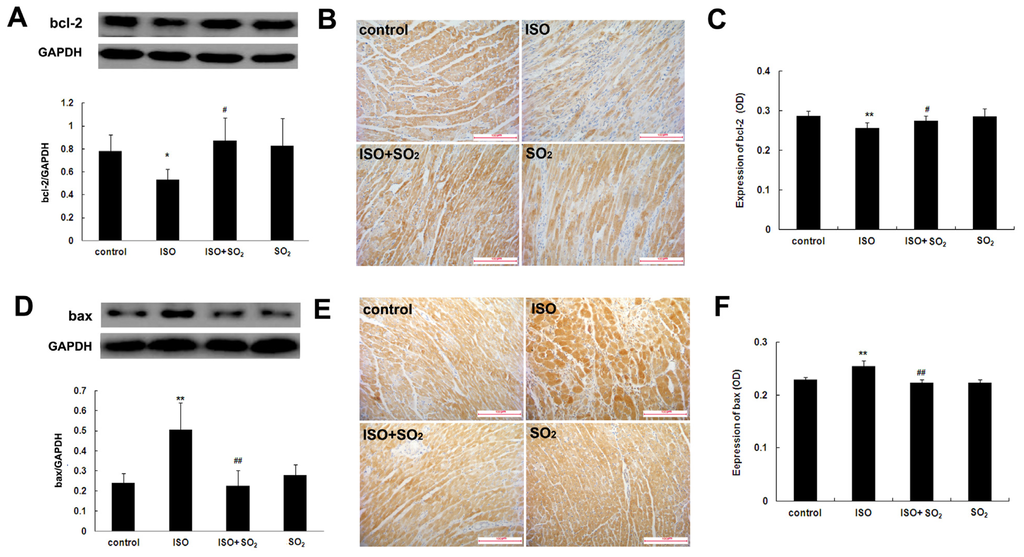

Figure 4. Bcl-2 and bax protein expression in rat left ventricular tissues. (A) Bcl-2 protein expression in rat myocardial tissues was detected by western blot; (B) and (C) Bcl-2 protein expression in rat myocardial tissues was detected by immunohistochemistry; (D) Bax protein expression in rat myocardial tissues was detected by western blot; (E) and (F) Bax protein expression in rat myocardial tissues was detected by immunohistochemistry. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, ##p < 0.01, #p < 0.05 vs. ISO group.

Click here to enlarge figure

Figure 4. Bcl-2 and bax protein expression in rat left ventricular tissues. (A) Bcl-2 protein expression in rat myocardial tissues was detected by western blot; (B) and (C) Bcl-2 protein expression in rat myocardial tissues was detected by immunohistochemistry; (D) Bax protein expression in rat myocardial tissues was detected by western blot; (E) and (F) Bax protein expression in rat myocardial tissues was detected by immunohistochemistry. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, ##p < 0.01, #p < 0.05 vs. ISO group.
Ijms 14 10465f4 1024
Ijms 14 10465f5 1024
Figure 5. Changes in mitochondrial membrane potential and mitochondrial permeability transition pore (MPTP) opening in rat myocardial tissues. (A) The change in mitochondrial membrane potential was detected with JC-1 fluorescent probe by laser confocal microscopy. Red color represented JC-1 aggregate and green color represented JC-1 monomer; (B) Summarized data for the relative changes in JC-1 fluorescence; (C) The change in MPTP opening was detected with calcein-AM as a fluorescence indicator by laser confocal microscopy; (D) Summarized data for the relative changes in calcein fluorescence. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, ##p < 0.01 vs. ISO group.

Click here to enlarge figure

Figure 5. Changes in mitochondrial membrane potential and mitochondrial permeability transition pore (MPTP) opening in rat myocardial tissues. (A) The change in mitochondrial membrane potential was detected with JC-1 fluorescent probe by laser confocal microscopy. Red color represented JC-1 aggregate and green color represented JC-1 monomer; (B) Summarized data for the relative changes in JC-1 fluorescence; (C) The change in MPTP opening was detected with calcein-AM as a fluorescence indicator by laser confocal microscopy; (D) Summarized data for the relative changes in calcein fluorescence. ISO: isopropylarterenol; SO2: sulfur dioxide; **p < 0.01 vs. control group, ##p < 0.01 vs. ISO group.
Ijms 14 10465f5 1024
Ijms 14 10465f6 1024

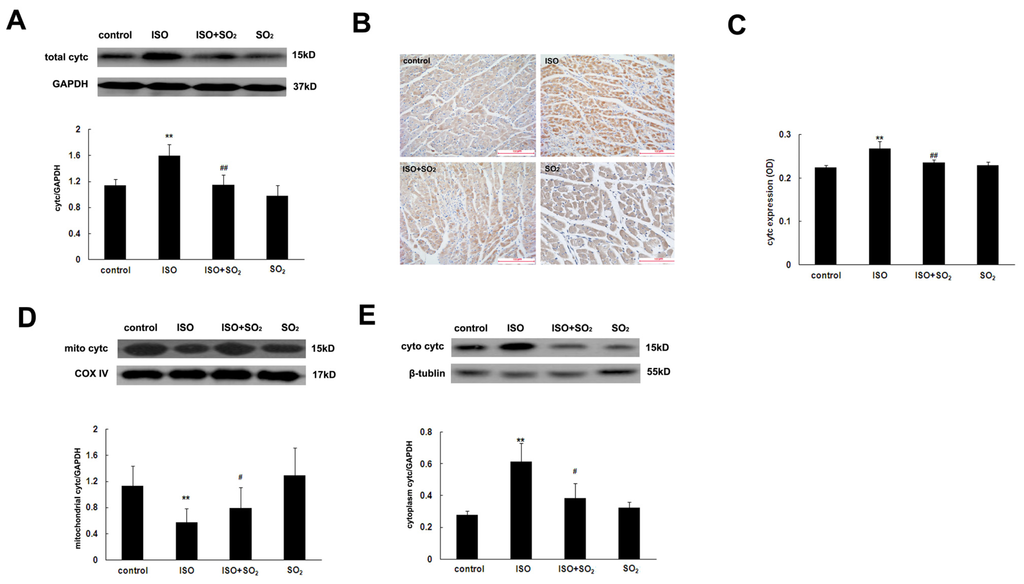

Figure 6. Cytochrome c (cytc) protein expression and distribution in rat left ventricular tissues. (A) Cytc expression in rat myocardial tissue detected by western blot; (B) Representative images of cytc expression in rat cardiomyocytes detected by immunohistochemical analysis; (C) Semi-quantitative analysis for the relative changes in cytc expression by immunohistochemistry; (D) Cytc expression in the mitochondrial fraction of rat myocardial tissue detected by western blot; (E) Cytc expression in the cytosolic fraction of rat myocardial tissue detected by western blot. ISO: isopropylarterenol; SO2: sulfur dioxide; COX IV: cytochrome c oxidase IV. **p < 0.01 vs. control group; ##p < 0.01, #p < 0.05 vs. ISO group.

Click here to enlarge figure

Figure 6. Cytochrome c (cytc) protein expression and distribution in rat left ventricular tissues. (A) Cytc expression in rat myocardial tissue detected by western blot; (B) Representative images of cytc expression in rat cardiomyocytes detected by immunohistochemical analysis; (C) Semi-quantitative analysis for the relative changes in cytc expression by immunohistochemistry; (D) Cytc expression in the mitochondrial fraction of rat myocardial tissue detected by western blot; (E) Cytc expression in the cytosolic fraction of rat myocardial tissue detected by western blot. ISO: isopropylarterenol; SO2: sulfur dioxide; COX IV: cytochrome c oxidase IV. **p < 0.01 vs. control group; ##p < 0.01, #p < 0.05 vs. ISO group.
Ijms 14 10465f6 1024
