Int. J. Mol. Sci. 2013, 14(1), 532-546; doi:10.3390/ijms14010532

Articles
Ultraviolet B (UVB) Irradiation-Induced Apoptosis in Various Cell Lineages in Vitro
Sara Salucci 1, Sabrina Burattini 1, Michela Battistelli 1, Valentina Baldassarri 1, Maria Cristina Maltarello 2 and Elisabetta Falcieri 1,3,*
1
DiSTeVA, University of Urbino “Carlo Bo”, Urbino 61029, Italy; E-Mails: sara.salucci@uniurb.it (S.S.); sabrina.burattini@uniurb.it (S.B.); michela.battistelli@uniurb.it (M.B.); valentina.baldassarri@uniurb.it (V.B.)
2
Laboratory of Musculoskeletal Cell Biology, Rizzoli Orthopaedic Institute, Bologna 40136, Italy; E-Mail: mariacristina.maltarello@ior.it
3
IGM, CNR, Rizzoli Orthopaedic Institute, Bologna 40136, Italy
*
Author to whom correspondence should be addressed; E-Mail: elisabetta.falcieri@uniurb.it; Tel.: +39-0722304284; Fax: +39-0722304244.
Received: 31 October 2012; in revised form: 19 December 2012 / Accepted: 21 December 2012 /
Published: 27 December 2012

Abstract

: Ultraviolet B (UVB) radiation acts as a strong apoptotic trigger in many cell types, in tumor and normal cells. Several studies have demonstrated that UVB-induced cell death occurs through the generation of reactive oxygen species. The consequent oxidative stress includes the impairment of cellular antioxidants, the induction of DNA damage and the occurrence of apoptosis. In this review, we investigated UVB apoptotic action in various cell models by using ultrastructural, molecular and cytofluorimetric techniques. Myeloid leukemia HL-60, T-lymphoblastoid Molt-4 and myelomonocytic U937 human cells, generally affected by apoptotic stimuli, were studied. Human chondrocytes and C2C12 skeletal muscle cells, known to be more resistant to damage, were also considered. All of them, when exposed to UVB radiation, revealed a number of characteristic apoptotic markers. Membrane blebbing, cytoplasm shrinkage and chromatin condensation were detected by means of electron microscopy. DNA cleavage, investigated by using agarose gel electrophoresis and TUNEL reaction, was observed in suspended cells. Differently, in chondrocytes and in skeletal muscle cells, oligonucleosomic DNA fragmentation did not appear, even if a certain TUNEL positivity was detected. These findings demonstrate that UVB radiation appears to be an ideal tool to study the apoptotic behavior.
Keywords:
UVB; apoptosis; HL-60; Molt-4; U937; chondrocytes; skeletal muscle cells

1. Introduction

UVB radiation-induced apoptosis has been extensively studied in human keratinocytes, which represent the major cellular target for solar UVB radiation [1]. Skin cells undergo apoptosis because of irreversible DNA damage [2], and it can prevent the accumulation of abnormal cells, which could lead to cutaneous malignancies [3].

The molecular pathways leading to UVB radiation-induced apoptosis include the formation of cyclobutane pyrimidine dimers (CPDs) and photoproducts [4,5], the activation of death receptors, including CD95 (Fas/APO-1) [4,6], and the formation of reactive oxygen species (ROS) [7].

Recently, several studies have demonstrated that many harmful effects of short-wavelength UVB rays (290–320 nm) occur through the generation of ROS [810]. Oxidative stress response of cells and tissues includes the induction of oxidative damage to various cellular components (e.g., membrane lipids, proteins and DNA) and the occurrence of inflammation, immunosuppression and apoptosis [1115]. After UVB exposure, DNA double-strand breaks occur; they are particularly toxic and may not be correctly repaired. This could lead to chromosomal translocations and to the formation of highly unstable dicentric chromosomes or acentric chromosomal fragments [16], which are correlated to the induction of apoptosis [17].

The purpose of this review is to report and discuss the UVB radiation role in apoptotic cell death, induced in vitro in different cell lines.

In fact, UVB radiation is a known inducer of apoptosis in cultured cells [1821]. It can trigger both the extrinsic and the intrinsic apoptotic pathways, but it remains unclear how these pathways are interrelated [22]. Recent studies demonstrated that UVB-induced cell death mostly occurs through the intrinsic apoptotic pathway [23,24], even if the presence of caspase-independent mechanisms cannot be excluded. Anyhow, a mitochondrial involvement in UVB-induced apoptosis is certain. In fact, it is well known that UVB radiation alters the structure of the outer mitochondrial membrane, causing its permeabilization and the cytochrome c release [2426].

Cell exposure to UVB is one of the best experimental systems to study apoptosis in response to DNA damage [27,28]. Morphological observations showed that low doses of UV induced apoptosis [27], whereas higher doses triggered both apoptosis and necrosis [29]. UVB, which is an oxidant and pro-apoptotic agent widely demonstrated in keratinocytes, melanocytes and epidermal cells [3032], appeared also useful to study apoptotic behavior in other cell cultures in vitro.

In the early years of our research, the UVB apoptotic effect was analyzed in different models: myeloid leukemia HL-60, T-lymphoblastoid Molt-4 and myelomonocytic U937 human tumor cell lines that grow in suspension. They have a high proliferative rate and, for this reason, they are usually more sensitive to cell death stimuli. As described in the literature, UVB radiation induces apoptosis rapidly and essentially in the entire cell population (about 90%). This aspect has been discussed in several reports in which apoptosis of human myeloblastic cells, induced by UV radiation, has been investigated [18,33].

Several studies, in the last decade, showed that apoptosis, necessary for maintaining tissue homeostasis, plays an active role not only in carcinogenesis [7,34]. It contributes to articular cartilage damage in osteoarthritis, and it is correlated to a number of cartilage disorders [35]. It is also necessary for the regulation of skeletal muscle homeostasis, and it has been described in several myopathies, as well as after denervation or disuse [36,37].

Thus, the UVB-induced DNA damage was recently investigated by our group in human chondrocytes and in C2C12 murine skeletal muscle cells, both known to be somehow apoptosis-resistant. Differently from suspended cell models, routinely used to study apoptosis, primary cell lines (chondrocytes) and murine skeletal myoblasts originally derived from satellite stem cells appeared as complex cell systems in which several molecules and genes are involved in promoting cell survival or driving the apoptotic process. For these reasons, they can be considered more resistant to apoptotic induction if compared to leukemic cells.

In this review, to obtain a massive apoptosis, cells were exposed to UVB (dose 72 J/cm2, wavelength 312 nm, Transilluminator 2000, Bio-Rad Laboratories, Hercules, CA, USA) for 30 min at room temperature, at a distance of 1 cm, and then post-incubated for 4 h at 37 °C in humidified air with 5% CO2. Different UVB exposure times were considered for chondrocytes and C2C12 cells, but after 1 h of treatment, a massive necrotic cell death appeared. Thus, 30 min of UVB exposure has been chosen for our experiments with all cell types [18,25].

This review demonstrates that UVB radiation induces apoptosis in various cell lines using different approaches: Scanning (SEM) and Transmission (TEM) Electron Microscopy used to evidence morphological features, such as surface blebbing, cytoplasm shrinkage and chromatin condensation [3841]; agarose gel electrophoresis and TUNEL reaction, the latter both at fluorescence and electron microscopy, used to investigate DNA [4244]; and flow cytometry used to analyze cell cycle patterns and mitochondrial activity [45,46].

1.1. Human Hemopoietic Cells

HL-60 (human myeloid leukemia cells), Molt-4 (T-lymphoblastoid cells) and U937 (myelomonocytic human leukemia cells) are round mononuclear cells, with microvilli. It is known that HL-60 and other human cell lines were found to rapidly undergo apoptosis after short periods of UV radiation, whereas prolonged exposure induced necrotic cell death [47].

Thus, cells were exposed to 30 min UVB, post-incubated for 4 h in growing media and then processed for ultrastructural, molecular and cytofluorimetric investigations. After UVB treatment, all cell types showed apoptotic patterns (Figure 1). Ultrastructural observations evidenced surface blebbing (Figure 1B), cytoplasm shrinkage and chromatin condensation (Figure 1D,E) [43,46]. Control and UVB-treated specimens were processed for SEM and TEM, as previously reported [39].

Renò et al. 1998 [48] studied the plasma membrane behavior in HL-60 and Molt-4 cells after UVB exposure, to investigate its involvement in apoptosis. The results showed that during the early stages of apoptosis, a membrane lipid rearrangement occurs and involves phosphatidylserine translocation from the inner to the outer leaflet, independently from nuclear activity. Moreover, in Figure 2, DNA behavior has been also investigated showing that in HL60, a widely studied leukemia cell line, the oligonucleosomic DNA cleavage occurred (Figure 2A, lane 3). On the other hand, in Molt-4, oligonucleosomic DNA fragmentation was not observed (Figure 2A, lane 5), even in the presence of typical apoptotic features: chromatin condensation, cell shrinkage with preservation of the plasma membrane structure, nuclear splitting and micronuclei formation. Molt-4 cell response to UVB was investigated not only at the standard post-incubation time (i.e., 4 h), but also at 6, 8, 10 and 24 h and DNA cleavage never occurred [44]. The lack of endonuclease activation can be postulated in this apoptotic model, despite the existence of a metabolic pathway responsible for chromatin rearrangement and other apoptotic patterns [38]. In addition, after conventional agarose gel electrophoresis, a typical DNA ladder appeared in U937 cells, too (Figure 2A, lane 7) [44], as also described in another work [49].

Cells were processed for TUNEL reaction at fluorescence microscope (TUNEL/FM). Moreover, to better highlight DNA fragmentation, the same technique was adapted for electron microscopy (TUNEL/TEM) [50,51]. In this way, a precise localization of DNA break points within the different chromatin domains was obtained (Figure 2). In UVB-treated Molt-4 cells, TUNEL/FM showed several positive cells (Figure 2B), also observed by TUNEL/TEM. The latter revealed a number of nuclear gold particles in the dense chromatin (Figure 2C). A peculiar chromatin behavior, reported to as “moth-eaten” [45], was observed in this cell lineage exposed to UVB, where small negative areas of diffuse chromatin scattered throughout the positive dense chromatin.

Numerous U937 cells with homogeneously fluorescent micronuclei (Figure 2D) appeared at TUNEL/FM. An intense gold labeling (TUNEL/TEM) was observed in dense apoptotic chromatin and micronuclei (Figure 2E) [52].

Moreover, Luchetti et al. 2006 [46] studied melatonin antiapoptic activity in UVB-treated U937 cells, analyzing the cell cycle profile by means of flow cytometry. A conspicuous hypodiploid peak appeared after UVB treatment (Figure 2F), revealing an apoptotic cell population with DNA cleavage also evidenced by Liu et al. 2005 [53] in the study on oridonin role in enhancing phagocytosis of UV-irradiated apoptotic U937 cells. Moreover, in this cell line, mitochondrial activity was investigated using mitochondrial fluorescent probes, such as Mito Tracker and JC-1, that revealed an alteration of mitochondrial membrane potential. This event has been evidenced using the cardiolipin-sensitive probe 10-nonyl acridine orange (NAO), to monitor changes in mitochondrial lipids. A decrease in cardiolipin content, induced by ROS increase, occurred in concomitance with mitochondrial permeability alteration and, successively, with the release of cytochrome c into the cytosol [54].

1.2. Chondrocytes

After local Ethics Committee approval, fragments of articular cartilage were obtained from 16 patients (mean age 67 years, range 41–81 years) who were undergoing knee replacement. The tissue was finely minced and subject to enzymatic digestion; primary chondrocytes were cultured in micromass [35], which represent a convenient model to study chondrocyte biology [55] and, in particular, their death, in the context of a tridimensional culture model.

Chondrocyte morphology (Figure 3) in control condition appears very similar to that of human articular cartilage. Cells are round or slightly elongated with a plurilobated nucleus and dispersed chromatin. Large amount of glycogen masses and lipid granules can be observed scattered throughout the cytoplasm. Proteoglycans and collagen fibers are present in the intercellular space, indicating a good extra-cellular matrix production (Figure 3A,B).

After UVB treatment, chromatin condensation appears, even if dense cup-shaped masses, comparable to those of more classic apoptotic models, could not be found. The evidenced nuclear features, when analyzed in detail, suggest apoptosis [56].

Gel electrophoresis did not show oligonucleosomic DNA cleavage (data not shown). Nevertheless, after UVB exposure, TUNEL evidenced the presence of positive nuclei, in particular in chondrocytes at the micromass periphery (Figure 3D).

1.3. Skeletal Muscle Cells

Murine C2C12 myoblasts have been widely used as a model to study apoptosis in developing muscle, because extensive cell death occurs during myogenic differentiation [57].

C2C12 is an adherent cell line of murine myoblasts that can be induced to differentiate in vitro into multinucleated myotubes, which progressively become muscle fibers [58]. These cells are considered apoptosis-resistant, in particular myotubes [59], but when exposed to UVB, undifferentiated and differentiated C2C12 showed a certain number of apoptotic features (Figure 4). Most cells began to detach from the substrate and membrane blebbing could be observed at SEM (Figure 4B,D).

Apoptotic nuclei showed condensed chromatin, which marginated beneath the nuclear membrane, occasionally forming micronuclei, even if the classical cup-shaped masses were not visible (Figure 4E). In addition, the simultaneous presence of normal and apoptotic nuclei inside the same myotube (Figure 4G) has been observed at TEM, suggesting a compartmentalization in nuclear domains. In the report by D’Emilio et al.[25] we hypothesized, indeed, the presence of territorial areas, which maintain along the syncytium, a certain specificity and the capability to differently respond to external stimuli.

Furthermore, after UVB radiation of C2C12 muscle cells, autophagy appeared (Figure 5). This process, recognizable by the presence of cytoplasmic vacuoles filled with membranes, organelles and mitochondria remnants, is clearly evident in treated myotubes, while absent in control condition.

In Figure 6, agarose gel electrophoresis did not show oligonucleosomic DNA cleavage in myoblasts nor in myotubes (Figure 6A), but the TUNEL technique revealed a diffuse positivity (Figure 6B) and confirmed the presence of positive and negative nuclei inside the same myotube (data not shown). Moreover, molecular analyses evidenced, in both myoblasts and myotubes, the activation of caspase-9 and -3, but not caspase-8 (Figure 6C). D’Emilio et al. 2010 [25], demonstrated that caspase-9 and -3 inhibitors only partially reduced the apoptotic rate, suggesting that apoptosis occurred by following both caspase-dependent and -independent pathways.

2. Conclusions

In this review, the apoptotic behavior of different cell lineages after UVB exposure has been investigated by means of several techniques, evidencing that UVB radiation plays a central role in the induction of apoptotic cell death. UVB is a powerful apoptotic stimulus in hemopoietic tumor cells. In these models, classical morphological apoptotic features were indeed observed, together with oligonucleosomic DNA cleavage evidenced after electrophoresis, TUNEL-FM and -TEM and cell cycle analysis. Cytofluorimetric analyses, used to test mitochondrial activity, showed that UVB induced cardiolipin decrease with alteration of mitochondrial membrane permeabilization and, as a consequence, cytochrome c release [54]. In suspended cells, UVB induced apoptosis mostly follows the mitochondrial pathway. Luchetti et al. 2009 [18] evidenced that melatonin was able to downregulate superoxide anion production, mitochondrial damage and caspase-dependent apoptosis in U937 cells exposed to UVB. In keratinocytes, UV-induced apoptosis is a complex event and involves different pathways. Apoptosis can be triggered by direct DNA damage, ROS production and death receptor activation and mitochondrial damage [12,27,6062]. Several studies [26,63] discussed the molecular mechanisms of UV-induced apoptosis in keratinocytes, demonstrating that mitochondrial changes and cytochrome c release are involved and can be considered the predominant mechanisms in UV-mediated apoptosis.

UVB application to other cell models has been considered; chondrocytes and skeletal muscle cells, even if known to be resistant to apoptosis, were studied. Intriguingly, chondrocytes appeared sensitive to UVB treatment, at ultrastructural and molecular analyses, showing chromatin condensation, pore clustering and DNA fragmentation only revealed by TUNEL reaction, whereas DNA fragmentation was absent.

Moreover, as also reported by D’Emilio et al. 2010 [25], skeletal muscle cells, as undifferentiated myoblasts and in the form of highly differentiate myotubes, appeared sensitive to UVB-induced apoptosis.

Chromatin changes, with progressive compaction and formation of micronuclei, were identified after ultrastructural observations. In this cell line, oligonucleosomic DNA cleavage does not seem to occur [15], but double-strand DNA breaks are shown by TUNEL reaction. The presence of normal and apoptotic nuclei inside the same syncytium seems to indicate that each myonucleus regulates a certain fiber volume, suggesting a cytoplasmic compartmentalization in nuclear domains. Thus, individual myonuclear apoptosis, as well as complete cell death, can occur, as previously described by other authors [64,65]. The partial inhibition of apoptosis by caspase inhibitors (both -9 and -3) indicates that UVB radiation is able to trigger apoptosis through the activation of the mitochondrial pathway, as occurs in epidermal cells [32]. Moreover, as reported by Sitailo et al. 2002 [63], in keratinocytes, UV radiation triggers activation of caspase-3, -9 and -8. UVB radiation activates primarily the mitochondrial or intrinsic apoptotic pathway, resulting in activation of procaspase-9, whereas activation of procaspase-8 via death receptors is a relatively minor pathway. As a consequence, UVB is able to induce apoptosis through the mitochondrial pathway in all cell systems considered in this review, as well as in epidermal cells.

Furthermore, molecular analyses demonstrated that DNA cleavage on agarose gel electrophoresis appeared only in U937 and HL-60 cell lines. Molt-4 cells exposed to UVB showed the lack of DNA fragmentation even if morphological apoptotic features appeared in the presence of TUNEL reaction positivity, detected both by fluorescence and electron microscopy. The lack of DNA cleavage can be linked to endonuclease absence [66] or, as suggested by Yanagisawa-Shiota et al. 1995 [67], endonuclease activity might be differently regulated in myelogenous (U937, HL-60) and non-myelogenous leukemic cell lines (Molt-4).

In our experiments, oligonucleosomic DNA fragmentation did not appear after UVB exposure in chondrocytes and skeletal muscle cells. The DNase responsible for the apoptotic DNA laddering and the precise molecular mechanisms are poorly understood in the case of these cell lines. Shiokawa et al. 2002 [57] demonstrated that an olinucleosomic DNA fragmentation occurred in myoblasts only when apoptosis appeared during induction of differentiation.

Moreover, in muscle cells, autophagy was observed after UVB exposure. Recent papers, evaluating the induction of LC3 lipidation and the increase of beclin-1 expression, demonstrated that UVB radiation induces autophagy in epidermal cells [68], where it appeared to be a protective response to damage. Inhibition of autophagy exacerbated UVB-induced cell death, whereas its stimulation provided protection [69,70]. It is known that autophagy is an important catabolic program fundamental for tissue homeostasis; in fact, it promotes physiological protein turnover and removes damaged proteins and organelles [69]. However, the role of autophagy as a mechanism of cell survival or death is still controversial, even if some evidences demonstrated its protective action against cell death after UV radiation [71].

In C2C12 control cells, as demonstrated by our images, autophagic vacuoles were not observed. After UVB-induced cell death, both myoblasts and myotubes evidenced a certain number of autophagic vacuoles, which appeared to be more diffuse in cells that do not show apoptotic changes.

Finally, these data demonstrated that UVB radiation is ideal to trigger apoptosis in different cell models, where they mainly act through the mitochondrial pathway. Thus, in all cell types considered in this review, as well as in skin cells, which are the major target of solar radiations, UVB seems to induce apoptosis through the same pathway. Unexpectedly, in skeletal muscle cells, as well as in keratynocytes, as recently evidenced by other works, UVB radiation induced autophagy; further studies are required to investigate its role through molecular and biochemical approaches.

Acknowledgements

This work was supported by Urbino University and the Ministry of Education, University and Research (PRIN 2009). We would like to thank A.M. Martelli, C. Evangelisti, R.M. Borzì, E. Olivotto, B. Canonico, F. Luchetti and P. Ferri for collaborating in various projects.

  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Narayanan, D.L.; Saladi, R.N.; Fox, J.L. Ultraviolet radiation and skin cancer. Int. J. Dermatol 2010, 49, 978–986. [Google Scholar]
  2. Jackson, S.; Harwood, C.; Thomas, M.; Banks, L.; Storey, A. Role of Bak in UV-induced apoptosis in skin cancer and abrogation by HPV E6 proteins. Genes Dev 2000, 14, 3065–3073. [Google Scholar]
  3. Katiyar, S.K.; Mantena1, S.K.; Meeran1, S.M. Silymarin protects epidermal keratinocytes from ultraviolet radiation-induced apoptosis and DNA damage by nucleotide excision repair mechanism. PLoS One 2011, 6, e21410. [Google Scholar]
  4. Kulms, D.; Pöppelmann, B.; Yarosh, D.; Luger, T.A.; Krutmann, J.; Schwarz, T. Nuclear and cell membrane effects contribute independently to the induction of apoptosis in human cells exposed to UVB radiation. Proc. Natl. Acad. Sci. USA 1999, 96, 7974–7979. [Google Scholar]
  5. Stege, H.; Roza, L.; Vink, A.A.; Grewe, M.; Ruzicka, T.; Grether-Beck, S.; Krutmann, J. Enzyme plus light therapy to repair DNA damage in ultraviolet-B-irradiated human skin. Proc. Natl. Acad. Sci. USA 2000, 97, 1790–1795. [Google Scholar]
  6. Aragane, Y.; Kulms, D.; Metze, D.; Wilkes, G.; Pöppelmann, B.; Luger, T.A.; Schwarz, T. Ultraviolet light induces apoptosis via direct activation of CD95 (Fas/APO-1) independently of its ligand CD95L. J. Cell Biol 1998, 140, 171–182. [Google Scholar]
  7. Kulms, D.; Zeise, E.; Pöppelmann, B.; Schwarz, T. DNA damage, death receptor activation and reactive oxygen species contribute to ultraviolet radiation-induced apoptosis in an essential and independent way. Oncogene 2002, 21, 5844–5851. [Google Scholar]
  8. Wölfle, U.; Esser, P.R.; Simon-Haarhaus, B.; Martin, S.F.; Lademann, J.; Schempp, C.M. UVB-induced DNA damage, generation of reactive oxygen species and inflammation are effectively attenuated by the flavonoid luteolin in vitro and in vivo. Free Radic. Biol. Med 2011, 50, 1081–1093. [Google Scholar]
  9. Yasui, H.; Hakozaki, T.; Date, A.; Yoshii, T.; Sakurai, H. Real-time chemiluminescent imaging and detection of reactive oxygen species generated in the UVB-exposed human skin equivalent model. Biochem. Biophys. Res. Commun 2006, 347, 83–88. [Google Scholar]
  10. Perluigi, M.; Di Domenico, F.; Blarzino, C.; Foppoli, C.; Cini, C.; Giorgi, A.; Grillo, C.; De Marco, F.; Butterfield, D.A.; Schininà, M.E.; et al. Effects of UVB-induced oxidative stress on protein expression and specific protein oxidation in normal human epithelial keratinocytes: A proteomic approach. Proteome Sci 2010, 8, 13–27. [Google Scholar]
  11. Hanson, C.J.; Bootman, M.D.; Distelhorst, C.W.; Maraldi, T.; Roderick, H.L. The cellular concentration of Bcl-2 determines its pro- or anti-apoptotic effect. Cell Calcium 2008, 44, 243–258. [Google Scholar]
  12. Muthusamy, V.; Piva, T.J. The UV response of the skin: A review of the MAPK, NFkappaB and TNFalpha signal transduction pathways. Arch. Dermatol. Res 2010, 302, 5–17. [Google Scholar]
  13. Maverakis, E.; Miyamura, Y.; Bowen, M.P.; Correa, G.; Ono, Y.; Goodarzi, H. Light, including ultraviolet. J. Autoimmun 2010, 34, J247–J257. [Google Scholar]
  14. Filip, A.; Daicoviciu, D.; Clichici, S.; Mocan, T.; Muresan, A.; Postescu, I.D. Photoprotective effects of two naturals products on ultraviolet B-induced oxidative stress and apoptosis in SKH-1 mouse skin. J. Med. Food 2011, 14, 761–766. [Google Scholar]
  15. Halliday, G.M. Common links among the pathways leading to UV-induced immunosuppression. J. Invest. Dermatol 2010, 130, 1209–1212. [Google Scholar]
  16. Su, J.; Pearce, D.J.; Feldman, S.R. The role of commercial tanning beds and ultraviolet A light in the treatment of psoriasis. J. Dermatol. Treat 2005, 16, 324–326. [Google Scholar]
  17. Bao, Y.; Shen, X. Chromatin remodeling in DNA double-strand break repair. Curr. Opin. Genet. Dev 2007, 17, 126–131. [Google Scholar]
  18. Luchetti, F.; Betti, M.; Canonico, B.; Arcangeletti, M.; Ferri, P.; Galli, F.; Papa, S. ERK MAPK activation mediates the antiapoptotic signaling of melatonin in UVB-stressed U937 cells. Free Radic. Biol. Med 2009, 46, 339–351. [Google Scholar]
  19. Liu, S.; Mizu, H.; Yamauchi, H. Molecular response to phototoxic stress of UVB-irradiated ketoprofen through arresting cell cycle in G2/M phase and inducing apoptosis. Biochem. Biophys. Res. Commun 2007, 364, 650–655. [Google Scholar]
  20. Pozzi, D.; Grimaldi, P.; Gaudenzi, S.; Di Giambattista, L.; Silvestri, I.; Morrone, S.; Congiu Castellano, A. UVB-radiation-induced apoptosis in Jurkat cells: A coordinated fourier transform infrared spectroscopy-flow cytometry study. Radiat. Res 2007, 168, 698–705. [Google Scholar]
  21. Paz, M.L.; González Maglio, D.H.; Weill, F.S.; Bustamante, J.; Leoni, J. Mitochondrial dysfunction and cellular stress progression after ultraviolet B irradiation in human keratinocytes. Photodermatol. Photoimmunol. Photomed 2008, 24, 115–122. [Google Scholar]
  22. Sandri, M.; El Meslemani, A.H.; Sandri, C.; Schjerling, P.; Vissing, K.; Andersen, J.L.; Rossini, K.; Carraro, U.; Angelini, C. Caspase 3 expression correlates with skeletal muscle apoptosis in Duchenne and facioscapulo human muscular dystrophy. A potential target for pharmacological treatment? J. Neuropathol. Exp. Neurol 2001, 60, 302–312. [Google Scholar]
  23. Ji, C.; Yang, B.; Yang, Z.; Tu, Y.; Yang, Y.L.; He, L.; Bi, Z.G. Ultra-violet B (UVB)-induced skin cell death occurs through a cyclophilin D intrinsic signaling pathway. Biochem. Biophys. Res. Commun 2012, 425, 825–829. [Google Scholar]
  24. Hilder, T.L.; Carlson, G.M.; Haystead, T.A.; Krebs, E.G.; Graves, L.M. Caspase-3 dependent cleavage and activation of skeletal muscle phosphorylase b kinase. Mol. Cell. Biochem 2005, 275, 233–242. [Google Scholar]
  25. D’Emilio, A.; Biagiotti, L.; Burattini, S.; Battistelli, M.; Canonico, B.; Evangelisti, C.; Ferri, P.; Papa, S.; Martelli, A.M.; Falcieri, E. Morphological and biochemical patterns in skeletal muscle apoptosis. Histol. Histopathol 2010, 25, 21–32. [Google Scholar]
  26. Nys, K.; van Laethem, A.; Michiels, C.; Rubio, N.; Piette, J.G.; Garmyn, M.; Agostinis, P.A. p38(MAPK)/HIF-1 pathway initiated by UVB irradiation is required to induce Noxa and apoptosis of human keratinocytes. J. Invest. Dermatol 2010, 130, 2269–2276. [Google Scholar]
  27. Kulms, D.; Schwarz, T. Molecular mechanisms of UV-induced apoptosis. Photodermatol. Photoimmunol. Photomed 2000, 16, 195–201. [Google Scholar]
  28. Svobodová, A.R.; Galandáková, A.; Sianská, J.; Doležal, D.; Lichnovská, R.; Ulrichová, J.; Vostálová, J. DNA damage after acute exposure of mice skin to physiological doses of UVB and UVA light. Arch. Dermatol. Res 2012, 304, 407–412. [Google Scholar]
  29. Caricchio, R.; McPhie, L.; Cohen, P.L. Ultraviolet B radiation-induced cell death: Critical role of ultraviolet dose in inflammation and lupus autoantigen redistribution. J. Immunol 2003, 171, 5778–5786. [Google Scholar]
  30. Abu-Yousif, A.O.; Smith, K.A.; Getsios, S.; Green, K.J.; van Dross, R.T.; Pelling, J.C. Enhancement of UVB-induced apoptosis by apigenin in human keratinocytes and organotypic keratinocyte cultures. Cancer Res 2008, 68, 3057–3065. [Google Scholar]
  31. Huynh, T.T.; Chan, K.S.; Piva, T.J. Effect of ultraviolet radiation on the expression of pp38MAPK and furin in human keratinocyte-derived cell lines. Photodermatol. Photoimmunol. Photomed 2009, 25, 20–29. [Google Scholar]
  32. Bivik, C.A.; Larsson, P.K.; Kågedal, K.M.; Rosdahl, I.K.; Ollinger, K.M. UVA/B-induced apoptosis in human melanocytes involves translocation of cathepsins and Bcl-2 family members. J. Invest. Dermatol 2006, 126, 1119–1127. [Google Scholar]
  33. Arrebola, F.; Fernández-Segura, E.; Campos, A.; Crespo, P.V.; Skepper, J.N.; Warley, A. Changes in intracellular electrolyte concentrations during apoptosis induced by UV irradiation of human myeloblastic cells. Am. J. Physiol. Cell Physiol 2006, 290, C638–C649. [Google Scholar]
  34. Elkholi, R.; Floros, K.V.; Chipuk, J.E. The role of BH3-only proteins in tumor cell development, signaling and treatment. Genes Cancer 2011, 2, 523–537. [Google Scholar]
  35. Olivotto, E.; Vitellozzi, R.; Fernandez, P.; Falcieri, E.; Battistelli, M.; Burattini, S.; Facchini, A.; Flamigni, F.; Santi, S.; Facchini, A.; et al. Chondrocyte hypertrophy and apoptosis induced by GROalpha require three-dimensional interaction with the extracellular matrix and a co-receptor role of chondroitin sulfate and are associated with the mitochondrial splicing variant of cathepsin B. J. Cell. Physiol 2007, 210, 417–427. [Google Scholar]
  36. Ferreira, R.; Neuparth, M.J.; Vitorino, R.; Appell, H.J.; Amado, F.; Duarte, J.A. Evidences of apoptosis during the early phases of soleus muscle atrophy in hindlimb suspended mice. Physiol. Res 2008, 57, 601–611. [Google Scholar]
  37. Adhihetty, P.J.; O’Leary, M.F.N.; Hood, D.A. Mitochondria in skeletal muscle: Adaptable rheostats of apoptotic susceptibility. Exerc. Sport Sci. Rev. 2009, 36, 116–121. [Google Scholar]
  38. Falcieri, E.; Martelli, A.M.; Bareggi, R.; Cataldi, A.; Cocco, L. The protein kinase inhibitor staurosporine induces morphological changes typical of apoptosis in MOLT-4 cells without concomitant DNA fragmentation. Biochem. Biophys. Res. Commun 1993, 193, 19–25. [Google Scholar]
  39. Luchetti, F.; Burattini, S.; Ferri, P.; Papa, S.; Falcieri, E. Actin involvement in apoptotic chromatin changes of hemopoietic cells undergoing hyperthermia. Apoptosis 2002, 7, 143–152. [Google Scholar]
  40. Salucci, S.; Battistelli, M.; Burattini, S.; Squillace, C.; Canonico, B.; Gobbi, P.; Papa, S.; Falcieri, E. C2C12 myoblast sensitivity to different apoptotic chemical triggers. Micron 2010, 41, 966–973. [Google Scholar]
  41. Maraldi, T.; Prata, C.; Caliceti, C.; Dalla Sega, F.V.; Zambonin, L.; Fiorentini, D.; Hakim, G. VEGF-induced ROS generation from NAD(P)H oxidase protects human leukemic cells from apoptosis. Int. J. Oncol 2010, 36, 1581–1589. [Google Scholar]
  42. Falcieri, E.; Burattini, S.; Bortul, R.; Luchetti, F.; Tabellini, G.; Tazzari, P.L.; Cappellini, A.; Cocco, L.; Martelli, A.M. Intranucleolar localization of DNA topoisomerase IIalpha is a distinctive feature of necrotic, but not of apoptotic, Jurkat T-cells. Microsc. Res. Tech 2003, 62, 192–200. [Google Scholar]
  43. Renò, F.; Tontini, A.; Burattini, S.; Papa, S.; Falcieri, E.; Tarzia, G. Mimosine induces apoptosis in the HL60 human tumor cell line. Apoptosis 1999, 4, 469–477. [Google Scholar]
  44. Burattini, S.; Ferri, P.; Battistelli, M.; D’Emilio, A.; Biagiotti, L.; Sestili, P.; Rocchi, M.B.; Falcieri, E. Apoptotic DNA fragmentation can be revealed in situ: An ultrastructural approach. Microsc. Res. Tech 2009, 72, 913–923. [Google Scholar]
  45. Zamai, L.; Burattini, S.; Luchetti, F.; Canonico, B.; Ferri, P.; Melloni, E.; Gonelli, A.; Guidotti, L.; Papa, S.; Falcieri, E. In vitro apoptotic cell death during erythroid differentiation. Apoptosis 2004, 9, 235–246. [Google Scholar]
  46. Luchetti, F.; Canonico, B.; Curci, R.; Battistelli, M.; Mannello, F.; Papa, S.; Tarzia, G.; Falcieri, E. Melatonin prevents apoptosis induced by UV-B treatment in U937 cell line. J. Pineal Res 2006, 40, 158–167. [Google Scholar]
  47. Martin, S.J.; Cotter, T.G. Ultraviolet B irradiation of human leukemia HL-60 cells in vitro induces apoptosis. Int. J. Radiat. Biol 1991, 59, 1001–1016. [Google Scholar]
  48. Renò, F.; Burattini, S.; Rossi, S.; Luchetti, F.; Columbaro, M.; Santi, S.; Papa, S.; Falcieri, E. Phospholipid rearrangement of apoptotic membrane does not depend on nuclear activity. Histochem. Cell Biol. 1998, 110, 467–476. [Google Scholar]
  49. Shin, S.W.; Park, C.I.; Yang, C.H.; Park, J.W. Protective effect of Rehmannia glutinosa on the UV induced apoptosis in U937 cells. Am. J. Chin. Med 2008, 36, 1159–1170. [Google Scholar]
  50. Kawashima, K.; Doi, H.; Ito, Y.; Shibata, M.A.; Yoshinaka, R.; Otsuki, Y. Evaluation of cell death and proliferation in psoriatic epidermis. J. Dermatol. Sci 2004, 35, 207–214. [Google Scholar]
  51. Ito, Y.; Shibata, M.A.; Kusakabe, K.; Otsuki, Y. Method of specific detection of apoptosis using formamide-induced DNA denaturation assay. J. Histochem. Cytochem. 2006, 54, 683–692. [Google Scholar]
  52. Biagiotti, L.; Ferri, P.; D’Emilio, A.; Rocchi, M.B.L.; Falcieri, E.; Burattini, S. Light and electron microscopy of apoptotic DNA fragmentation. Microscopie 2008, 1, 45–52. [Google Scholar]
  53. Liu, Y.Q.; You, S.; Zhang, C.L.; Tashiro, S.; Onodera, S.; Ikejima, T. Oridonin enhances phagocytosis of UV-irradiated apoptotic U937 cells. Biol. Pharm. Bull 2005, 28, 461–467. [Google Scholar]
  54. Luchetti, F.; Canonico, B.; Mannello, F.; Masoni, C.; D’Emilio, A.; Battistelli, M.; Papa, S.; Falcieri, E. Melatonin reduces early changes in intramitochondrial cardiolipin during apoptosis in U937 cell line. Toxicol In Vitro 2007, 21, 293–301. [Google Scholar]
  55. Battistelli, M.; Borzì, R.M.; Olivotto, E.; Vitellozzi, R.; Burattini, S.; Facchini, A.; Falcieri, E. Cell and matrix morpho-functional analysis in chondrocyte micromasses. Microsc. Res. Tech. 2005, 67, 286–295. [Google Scholar]
  56. Falcieri, E.; Zamai, L.; Santi, S.; Cinti, C.; Gobbi, P.; Bosco, D.; Cataldi, A.; Betts, C.; Vitale, M. The behavior of nuclear domains in the course of apoptosis. Histochemistry 1994, 102, 221–231. [Google Scholar]
  57. Shiokawa, D.; Kobayashi, T.; Tanuma, S. Involvement of DNase gamma in apoptosis associated with myogenic differentiation of C2C12 cells. J. Biol. Chem 2002, 277, 31031–31037. [Google Scholar]
  58. Burattini, S.; Ferri, P.; Battistelli, M.; Curci, R.; Luchetti, F.; Falcieri, E. C2C12 murine myoblasts as a model of skeletal muscle development: Morpho-functional characterization. Eur. J. Histochem 2004, 48, 223–233. [Google Scholar]
  59. Primeau, A.J.; Adhihetty, P.J.; Hood, D.A. Apoptosis in heart and skeletal muscle. Can. J. Appl. Physiol 2002, 27, 349–395. [Google Scholar]
  60. Pustisek, N.; Situm, M. UV-radiation, apoptosis and skin. Coll Antropol 2011, 2, 339–241. [Google Scholar]
  61. Assefa, Z.; van Laethem, A.; Garmyn, M.; Agostinis, P. Ultraviolet radiation-induced apoptosis in keratinocytes: On the role of cytosolic factors. Biochim. Biophys. Acta 2005, 1755, 90–106. [Google Scholar]
  62. Herrlich, P.; Karin, M.; Weiss, C. Supreme EnLIGHTenment: Damage recognition and signaling in the mammalian UV response. Mol. Cell 2008, 29, 279–290. [Google Scholar]
  63. Sitailo, L.A.; Tibudan, S.S.; Denning, M.F. Activation of caspase-9 is required for UV-induced apoptosis of human keratinocytes. J. Biol. Chem 2002, 277, 19346–19352. [Google Scholar]
  64. Aravamudan, B.; Mantilla, C.B.; Zhan, W.Z.; Sieck, G.C. Denervation effects on myonuclear domain size of rat diaphragm fibers. J. Appl. Physiol 2006, 100, 1617–1622. [Google Scholar]
  65. Marzetti, E.; Privitera, G.; Simili, V.; Wohlgemuth, S.E.; Aulisa, L.; Pahor, M.; Leeuwenburgh, C. Multiple pathways to the same end: Mechanisms of myonuclear apoptosis in sarcopenia of aging. Scientific World J. 2010, 10, 340–349. [Google Scholar]
  66. Walker, P.R.; Leblanc, J.; Smith, B.; Pandey, S.; Sikorska, M. Detection of DNA fragmentation and endonucleases in apoptosis. Methods 1999, 17, 329–338. [Google Scholar]
  67. Yanagisawa-Shiota, F.; Sakagami, H.; Kuribayashi, N.; Iida, M.; Sakagami, T.; Takeda, M. Endonuclease activity and induction of DNA fragmentation in human myelogenous leukemic cell lines. Anticancer Res 1995, 15, 259–265. [Google Scholar]
  68. Yang, Y.; Wang, H.; Wang, S.; Xu, M.; Liu, M.; Liao, M.; Frank, J.A.; Adhikari, S.; Bower, K.A.; Shi, X.; et al. GSK3β signaling is involved in ultraviolet B-induced activation of autophagy in epidermal cells. Int. J. Oncol 2012, 41, 1782–1788. [Google Scholar]
  69. Wang, Q.; Ye, Y.; Liu, W.; Jiang, S.; Tashiro, S.; Onodera, S.; Gu, F.; Wang, Y.; Ikejima, T. Dual effects of silibinin treatment on autophagy-regulated dermal apoptosis retardation and epidermal apoptosis up-regulation in UVB-induced skin inflammation. J. Asian Nat. Prod. Res 2012, 14, 688–699. [Google Scholar]
  70. Levine, B.; Klionsky, D.J. Development by self-digestion: Molecular mechanisms and biological functions of autophagy. Dev. Cell 2004, 6, 463–477. [Google Scholar]
  71. Wang, Y.; Singh, R.; Massey, A.C.; Kane, S.S.; Kaushik, S.; Grant, T.; Xiang, Y.; Cuervo, A.M.; Czaja, M.J. Loss of macroautophagy promotes or prevents fibroblast apoptosis depending on the death stimulus. J. Biol. Chem. 2008, 283, 4766–4777. [Google Scholar]
Ijms 14 00532f1 1024
Figure 1. Control (A) and Ultraviolet B (UVB)-treated (B) HL-60 cells at Scanning Electron Microscopy (SEM). Surface blebbing (B, asterisks), absent in the control (A), appears. Control (C) vs. treated U937 (D) cells and treated Molt-4 (E) cells at Transmission Electron Microscopy (TEM). Condensed chromatin, organized in cup-shaped masses (arrows) under the nuclear envelope, can be observed in both cases (D,E). Scale bars: AC, 2 μm; D,E, 1 μm.

Click here to enlarge figure

Figure 1. Control (A) and Ultraviolet B (UVB)-treated (B) HL-60 cells at Scanning Electron Microscopy (SEM). Surface blebbing (B, asterisks), absent in the control (A), appears. Control (C) vs. treated U937 (D) cells and treated Molt-4 (E) cells at Transmission Electron Microscopy (TEM). Condensed chromatin, organized in cup-shaped masses (arrows) under the nuclear envelope, can be observed in both cases (D,E). Scale bars: AC, 2 μm; D,E, 1 μm.
Ijms 14 00532f1 1024
Ijms 14 00532f2 1024
Figure 2. In HL-60 (lane 2), Molt-4 (lane 4) and U937 (lane 6) control cells, as well as in UVB-treated Molt-4 (lane 5), DNA cleavage is absent (A). In treated HL-60 (lane 3) and U937 (lane 7) cells, the ladder, due to oligonucleosomic fragmentation, appeared. Terminal deoxynucleotidyl transferase-mediated dUTP nick-end labeling reaction at fluorescence microscope (TUNEL/FM) (B,D) and TUNEL/TEM (C,E) of Molt-4 (B,C) and U937 (D,E) cells. Fluorescent micronuclei (arrows) are evident in both cases (B,D). Colloidal gold particles can be detected in dense chromatin (C,E, arrows) and micronuclei (m) appear labeled (E). U937 cell DNA content, evaluated by flow cytometry is shown in (F). A sub-G1 peak (63%) is revealed in treated cells, whereas it is absent in the control ones. Scale bars: (B,D) 20 μm; (C) 0.5 μm; (E) 0.1 μm.

Click here to enlarge figure

Figure 2. In HL-60 (lane 2), Molt-4 (lane 4) and U937 (lane 6) control cells, as well as in UVB-treated Molt-4 (lane 5), DNA cleavage is absent (A). In treated HL-60 (lane 3) and U937 (lane 7) cells, the ladder, due to oligonucleosomic fragmentation, appeared. Terminal deoxynucleotidyl transferase-mediated dUTP nick-end labeling reaction at fluorescence microscope (TUNEL/FM) (B,D) and TUNEL/TEM (C,E) of Molt-4 (B,C) and U937 (D,E) cells. Fluorescent micronuclei (arrows) are evident in both cases (B,D). Colloidal gold particles can be detected in dense chromatin (C,E, arrows) and micronuclei (m) appear labeled (E). U937 cell DNA content, evaluated by flow cytometry is shown in (F). A sub-G1 peak (63%) is revealed in treated cells, whereas it is absent in the control ones. Scale bars: (B,D) 20 μm; (C) 0.5 μm; (E) 0.1 μm.
Ijms 14 00532f2 1024
Ijms 14 00532f3 1024
Figure 3. Untreated chondrocytes at SEM (A) and TEM (B). Condensed chromatin can be observed after UVB treatment (C), where pore translocation appears at diffuse chromatin level (arrows). Nuclear TUNEL-positivity is shown at fluorescence microscope (D). n: nuclei; g: lipid granules. Scale bars: (AC) 5 μm; (D) 40 μm.

Click here to enlarge figure

Figure 3. Untreated chondrocytes at SEM (A) and TEM (B). Condensed chromatin can be observed after UVB treatment (C), where pore translocation appears at diffuse chromatin level (arrows). Nuclear TUNEL-positivity is shown at fluorescence microscope (D). n: nuclei; g: lipid granules. Scale bars: (AC) 5 μm; (D) 40 μm.
Ijms 14 00532f3 1024
Ijms 14 00532f4 1024
Figure 4. Surface blebs (asterisks), absent in control myoblasts (A) and myotubes (C), appear after UVB treatment (B and D) at SEM. Myoblast chromatin condensation (arrow) can be also revealed (E). TEM of control (F) and treated myotubes (G) shows nuclear peculiarities. In the latter normal (arrowhead) and apoptotic (arrow) nuclei coexist (G). Scale bars: (AD) 10 μm; (E,G) 2 μm; (F) 2.5 μm.

Click here to enlarge figure

Figure 4. Surface blebs (asterisks), absent in control myoblasts (A) and myotubes (C), appear after UVB treatment (B and D) at SEM. Myoblast chromatin condensation (arrow) can be also revealed (E). TEM of control (F) and treated myotubes (G) shows nuclear peculiarities. In the latter normal (arrowhead) and apoptotic (arrow) nuclei coexist (G). Scale bars: (AD) 10 μm; (E,G) 2 μm; (F) 2.5 μm.
Ijms 14 00532f4 1024
Ijms 14 00532f5 1024
Figure 5. Autophagy occurs in UVB-radiation response of differentiated C2C12 cells. Autophagic vacuoles (arrows), absent in C2C12 control myotubes (A), appeared in UVB-treated myotubes (B). n: nuclei. Scale bars: (A) 2.5 μm; (B) 1 μm.

Click here to enlarge figure

Figure 5. Autophagy occurs in UVB-radiation response of differentiated C2C12 cells. Autophagic vacuoles (arrows), absent in C2C12 control myotubes (A), appeared in UVB-treated myotubes (B). n: nuclei. Scale bars: (A) 2.5 μm; (B) 1 μm.
Ijms 14 00532f5 1024
Ijms 14 00532f6 1024

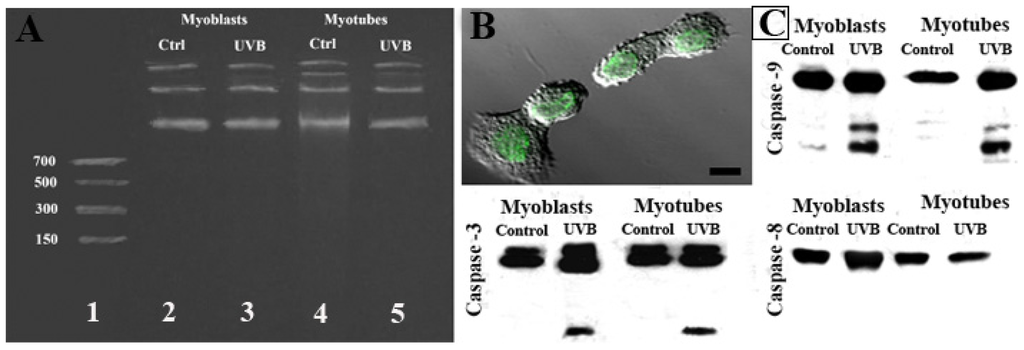

Figure 6. DNA cleavage (A) is absent in control myoblasts (lane 2) and myotubes (lane 4) and in UVB-treated myoblasts (lane 3) and myotubes (lane 5). Nevertheless, TUNEL positive nuclei were observed in treated myoblasts at confocal microscopy (B). Caspase-9 and -3 activation and caspase-8 absence were demonstrated by Western blotting, both in myoblasts and myotubes (C). Scale bar: (B) 20 μm.

Click here to enlarge figure

Figure 6. DNA cleavage (A) is absent in control myoblasts (lane 2) and myotubes (lane 4) and in UVB-treated myoblasts (lane 3) and myotubes (lane 5). Nevertheless, TUNEL positive nuclei were observed in treated myoblasts at confocal microscopy (B). Caspase-9 and -3 activation and caspase-8 absence were demonstrated by Western blotting, both in myoblasts and myotubes (C). Scale bar: (B) 20 μm.
Ijms 14 00532f6 1024
