Int. J. Mol. Sci. 2012, 13(5), 6138-6155; doi:10.3390/ijms13056138

Article
The Three Dimensional Quantitative Structure Activity Relationships (3D-QSAR) and Docking Studies of Curcumin Derivatives as Androgen Receptor Antagonists
Guanhong Xu 1, Yanyan Chu 1, Nan Jiang 1, Jing Yang 1,2 and Fei Li 1,*
1
School of Pharmacy, Nanjing Medical University, Nanjing 210029, China; E-Mails: xghchem@hotmail.com (G.X.); chuyanyan1@hotmail.com (Y.C.); jiangnan792000@163.com (N.J.); alley79@163.com (J.Y.)
2
School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210093, China
*
Author to whom correspondence should be addressed; E-Mail: kldlf@163.com; Tel.: +86-025-8686-3175; Fax: +86-025-8686-3165.
Received: 17 April 2012; in revised form: 8 May 2012 / Accepted: 13 May 2012 /
Published: 18 May 2012

Abstract

: Androgen receptor antagonists have been proved to be effective anti-prostate cancer agents. 3D-QSAR and Molecular docking methods were performed on curcumin derivatives as androgen receptor antagonists. The bioactive conformation was explored by docking the potent compound 29 into the binding site of AR. The constructed Comparative Molecular Field Analysis (CoMFA) and Comparative Similarity Indices Analysis (CoMSIA) models produced statistically significant results with the cross-validated correlation coefficients q2 of 0.658 and 0.567, non-cross-validated correlation coefficients r2 of 0.988 and 0.978, and predicted correction coefficients r2pred of 0.715 and 0.793, respectively. These results ensure the CoMFA and CoMSIA models as a tool to guide the design of novel potent AR antagonists. A set of 30 new analogs were proposed by utilizing the results revealed in the present study, and were predicted with potential activities in the developed models.
Keywords:
CoMFA; CoMSIA; docking; androgen receptor antagonists; curcumin derivatives

1. Introduction

Prostate cancer is the most common malignant tumor and the second most common cause of cancer death in the male population [1]. The current treatment for prostate cancer is a combination of surgery, radiation, and chemotherapy [2]. As prostate cancer development and disease progression is hormone dependent, blockade of androgen action is the foundation of most popular therapies [3]. Castration-resistant prostate cancer (CRPC) is an advanced status of prostate cancer associated with high death rates [4]. Treatment options for CRPC are an unmet need, with current anti-androgens having been shown only to prolong survival [5]. The androgen receptor (AR) is postulated to play a key mediator of prostate cancer [6]. Over the past 2 decades, several important mechanisms of mutation in AR have been elucidated. Laboratory observations have offered clues that AR mutations have turned the growth-inhibitory effect of the current clinically used anti-androgens into a growth-promoting effect at the castration-resistant form [5,6]. This has led to an attractive strategy targeting mutant AR which offer promising potential in future treatment of CRPC.

In recent years, a number of androgen receptor antagonists have appeared, among them, Li Lin et al. synthesized a series of curcumin derivatives as potent selective AR antagonists. Some compounds showed significant cytotoxicity against human prostate cancer cell lines, androgen-dependent LNCaP. Anti-androgenic activity was also evaluated in LNCaP cells transfected with wild-type AR [2]. In addition, the X-ray crystal structures of AR have been determined [7] which provide useful information about the interaction with the residues near the binding site.

The three dimensional quantitative structure activity relationships (3D-QSAR) may be useful in drug discovery and design [8]. As the most popular QSAR methods, Comparative Molecular Field Analysis (CoMFA) [9] and Comparative Similarity Indices Analysis (CoMSIA) [10] studies incorporate 3D information for the ligands by searching for sites on molecules capable of being modified into better specific ligands. As a useful methodology for studying the interaction mechanism, receptor based molecular docking analysis can offer vivid interaction picture between a ligand and an acceptor [11]. Combined 3D-QSAR and docking study could offer more information to understand the structural features of bonding site of protein and the detail of protein–ligand interactions for purposive directing the design of new potential molecules [12].

In this work, QSAR and docking studies of androgen receptor antagonists with anticancer activity against human prostate cancer cell line LNCaP were carried out. An optimal 3D QSAR model for these compounds was established, and the model can be used to predict quantitatively the properties of entry antagonists not in the data set. We expect that the results can offer some reference to guide the design of novel potent AR antagonists.

2. Material and Methods

2.1. Data Sets

All curcumin derivatives and their biological activities (IC50 values) were taken from the literature [2]. In order to examine the predictive ability and robustness of the QSAR models, the test set of 7 molecules were selected randomly in such a way that the structural diversity and wide range of activity in the data set were included, and the remaining 33 compounds are treated as a training set and used to derive the 3D-QSAR models.

The structures of the compounds and their biological data are given in Table 1. The cytotoxicity bioassay was performed according to the procedures described in Lin et al. [2]. IC50 values are mean concentrations that inhibit growth by 50% and variation between replicates was less than 5%. The IC50 values in units of μM were transformed in pIC50 (-log IC50) in order to give numerically larger data values.

2.2. Molecular Modeling and Alignment

All molecular modeling and 3D-QSAR calculations were done using SYBYL X 1.3 (Tripos Associates Inc., St. Louis, Missouri, USA, 2011). Molecular building was done with a molecule sketch program on the same software. The molecular geometry of each compound was first minimized using a standard Tripos molecular mechanics force field with 0.01 kcal/(mol Å) energy gradient convergence criterion. Partial atomic charges were calculated by the Gasteiger-Hückel method and energy minimizations were performed using the Powell method 1000 iterations [13].

The accuracy of the prediction of QSAR model and reliability of the contour maps are directly dependent on the structural alignment rule [14]. In order to obtain the best possible 3D-QSAR statistical model, two different alignment rules were adopted. During the process, the lowest energy conformation of compound 29 was used as the template for the alignment, because it is one of the most active compounds in Table 1. Figure 1a describes the common substructure for the alignment which is marked in bold. However, due to with no such substructure of Figure 1a in the structures, compounds 1–10, 28 and 31 were aligned based on another common substructure depicted in bold as shown in Figure 1b,c shows the resulting ligand-based alignment model.

2.3. CoMFA and CoMSIA Field Calculation

The standard CoMFA procedure as implemented by SYBYL X 1.3 was performed. For each aligned sets of molecules were positioned inside a 3D cubic lattice with a grid spacing of 2.0 Å (default distance) in all Cartesian directions was generated to enclose the molecule aggregate. A sp3 carbon atom with a charge of +1.0 and a van der Waals radius of 1.52 Å was used as a probe; this atom was placed at every lattice point to calculate various steric and electrostatic fields by the CoMFA standard method with default cut-off energy of 30.0 kcal/mol [15]. In order to reduce noise and improve efficiency, column filtering was set to 1.0 kcal/mol. The fields generated were scaled by CoMFA standard in SYBYL automatically.

The CoMFA region focusing is the application of weights to the lattice points in a CoMFA region to enhance or attenuate the contribution of those points to subsequent analyses. When the weights are StDev*Coefficient values, the process is exactly equivalent to image enhancement of the derived CoMFA maps for getting the better models [16].

The CoMSIA method, discovered by Klebe [10], has advantages over CoMFA technique such as greater robustness regarding both region shifts and small shifts within the alignments [16]. With the standard parameters and no arbitrary cutoff limits, five fields associated, namely, steric, electrostatic, hydrophobic, hydrogen bond donor and hydrogen bond acceptor, were calculated using the same lattice box created for CoMFA. The default value of 0.3 was used as the attenuation factor.

2.4. Partial Least Square Analysis

The partial least squares (PLS) methodology was used to derive a linear relationship for the 3D-QSAR, and cross-validation was performed using the leave-one-out(LOO) method [17] to choose the optimum number of components (ONC) and assess the statistical significance of each model. In PLS, the independent variables were the CoMFA and CoMSIA descriptors, and pIC50 values were used as dependent variables [16]. The ONC was the number of components that led to the highest cross-validated correlated correlation coefficient q2 (or r2 cv). Before the PLS analysis, the CoMFA and CoMSIA columns were filtered by using column filtering. Non-cross-validation was performed to calculate conventional r2 ncv using the same number of components. To further assess the robustness and statistical confidence of the derived models, bootstrapping analysis for 100 runs was performed [9,18].

2.5. Molecular Docking

To determine the probable binding conformations and offer more insight into the understanding of the interactions of androgen receptor antagonists, molecular docking analysis was carried out using the Surflex Dock in SYBYL. The crystal structure of AR was retrieved from RCSB Protein Data Bank (PDB entry code: 1T65) [7]. The protein structures were utilized in subsequent docking experiments without energy minimization. All ligands and water molecules have been removed at first, the polar hydrogen atoms and AMBER7FF99 charges were added. Protomol, a computational representation of the intended binding site, is used to guide molecular docking [19]. Jinming Z. et al. predicted binding mode of AR antagonists in the antagonistic model of wild type AR ligand-binding domain (WT AR-LBD). E709, Q738, W741, M742, L880, L881, and V889 were key residues of the active site to form hydrogen bonds or a hydrophobic pocket [6]. Therefore, the active sites were considered to be the potential receptor’s binding sites. In view of this, residues mode was adopted to generate the protomol by specifying residues in the receptor near Helix 12 in this study. The protomol bloat value was set as 1 and the protomol threshold value as 0.5 when a reasonable binding pocket was obtained. Other parameters are established by default in software.

3. Results and Discussion

3.1. CoMFA and CoMFA Region Focusing

The results of CoMFA studies are summarized in Table 2. The optimal number of components was determined by selecting highest q2 value. PLS analysis showed a high q2 value of 0.564 with 6 components for CoMFA. The non-cross-validated PLS analysis results in a conventional r2 ncv of 0.986; F is 304.611, and a standard error of estimation (SEE) of 0.068. When these fields were focused, the q2 improved and produced highest q2 of 0.658 with 6 components, F = 352.278, r2 ncv = 0.989 and SEE = 0.063. The steric and electrostatic contributions were 48.8% and 51.2%, respectively. Bootstrap analysis for 100 runs was then carried out for further validation of the model by statistical sampling of the original data set to create new data sets. The higher r2 bootstrap value 0.992 for CoMFA with standard error value of 0.049 is supporting the statistical validity of the developed models. The predicted activities for the antagonists versus their experimental activities are listed in Table 3 and the correlation between the predicted activities and the experimental activities is depicted in Figure 2. The predictive correlation coefficient r2 pred was found to be 0.715 for the test set. Statistical results suggest that the CoMFA model is a reliable predictor.

3.2. CoMSIA

The PLS results of CoMSIA analysis using different combinations were depicted in Table 4. The SEHD field descriptors exhibited highest q2, better SEE and F values than the others. Therefore, the combination of steric (S), electrostatic (E), hydrophobic (H) and hydrogen bond donor (D) fields was selected as the best model. The CoMSIA model gave a q2 of 0.567 with an optimized component number of 5. A high r2 ncv of 0.978 with a low SEE of 0.083 and F value of 241.534. High values of the electrostatic (43.0%) and hydrogen bond donor (23.6%) fields show the importance of the electrostatic and hydrogen bond donor nature of the substituents on the core. The other descriptors, steric (16.0%) and the hydrophobic (17.3%) also have contribution. The predicted activities for the antagonists versus their experimental activities are listed in Table 3 and the correlation between the predicted activities and the experimental activities is depicted in Figure 3. The predictive correlation coefficient r2 pred was found to be 0.793 for the test set. Bootstrap analysis for 100 runs was then carried out for further validation of the model by statistical sampling of the original data set to create new data set. This r2 of bootstrap value is 0.983 for CoMSIA with standard error value of 0.069, supporting further the statistical validity of the developed models. All the results indicate that the CoMSIA model is also fairly predictive.

3.3. Contour Maps Analysis

The best CoMFA and CoMSIA models are selected to construct the stdev*coeff contour maps to view the field effects on the target features. All the contours represented the default 80% and 20% level contributions for favorable and unfavorable regions, respectively, except 70% and 30% level contributions in figure of hydrogen bond donor contour maps. The maps showed regions where differences in molecular fields are associated with differences in biological activity.

3.3.1. CoMFA Contour Maps

CoMFA steric contour maps are shown in Figure 4. The steric interaction is represented by green and yellow contours, while electrostatic interaction is denoted by red and blue contours. A large green contour was found near the substituent group of C-4 position indicating that bulky substituents were preferred in this region (Figure 4a). This may be the reason why compounds with alkyl substituents in this area, e.g., compounds 32, 33 and 40, are more potent AR antagonist activity than molecules without any substituent at this particular position, such as compounds 14, 15 (Figure 4a) and 22.

The CoMFA electrostatic contour plots for compounds are displayed in Figure 5. The blue contours indicate that electropositive substituents would increase the AR antagonist activity with protein, while red color indicates that they should be the electron rich groups [18]. Since the red contours were found near the methoxyl group of compounds 29, which is an electron rich functionality, compounds 29 exhibit high AR antagonist activity (Figure 5a). A large blue contour was found near the methoxyl substituent on phenyl ring of compound 7 (Figure 5b), indicating that negatively charged groups are disfavored at this position, and that is a possible reason why compound 7 displays less potent AR antagonist activity than compound 29.

3.3.2. CoMSIA Contour Maps

The CoMSIA contour maps, derived using steric, electrostatic, hydrophobic and hydrogen bond donor fields, are represented in Figures 69. CoMSIA steric and electrostatic contours are more or less similar to those of the CoMFA. As in case of CoMFA, a large green contour was found overlapping the substituent group of C-4 position (Figure 6a), to indicate that bulky substituents were preferred in this region compared with compound 15 (Figure 6b).

Figure 7 shows the CoMSIA electrostatic fields denoted by red and blue contours. Red contours represent regions where negatively charged substituents are preferred on ligands and blue contours indicate regions where electron-rich substituents are unfavorable for the activity. The methoxyl groups of compound 29 are all near the red areas (Figure 7a), the favored position for electronegative groups. While one the methoxyl groups of compounds 15 is near the blue contour, which means that this group is not favored in this region and will lead to a decrease in the AR antagonist activity (Figure 7b).

Figure 8 shows the hydrophobic contour maps in which yellow and gray contours indicate the regions where hydrophobic and hydrophilic groups are favored by the model, respectively. A yellow contour overlapping the linker including aliphatic hydrocarbon structure of compound 21 group indicates that hydrophobic substituent at this position would increase the AR antagonist activity (Figure 8a). The two large gray contours near the hydroxyl groups indicate that hydrophilic groups at these positions are favorable. These results are quite similar to those of compound 29 (Figure 8b).

Hydrogen-bond donor contour maps from CoMSIA are shown in Figure 9. Here, the maps generated depict regions having scaled coefficients 70% (favored) or 30% (disfavored). The cyan contours represent the regions where hydrogen bond-donating groups increase the activity; the purple contours represent the regions where hydrogen bond-donating groups decrease the activity. As shown in Figure 9a, the cyan contours are near the H-bond donor, hydroxyl groups, of compound 21, whereas the methoxy groups of compound 29 are present near the purple contour (Figure 9b) as H-bond acceptors.

3.4. Docking Analysis

Docking was employed to explore the binding mode between these curcumin derivatives and the AR, to examine the stability of 3D-QSAR models previously established. We selected the most potent antagonist 29 in the experiment to perform the deeper docking study and discussion below. In order to visualize secondary structure elements, the MOLCAD program was applied. Figure 10a showed the secondary structure of the receptor. The key residues and hydrogen bonds were labeled. As shown in Figure 10a, the oxygen atom of methoxy group acted as a hydrogen bond acceptor by forming two H-bonds with the –NH2 group of the HIS920 residue and the –NH– group of the GLU893, respectively. The observations taken from Figure 10 were in agreement with the corresponding CoMSIA hydrogen bond contour maps.

Figure 10b depicted the MOLCAD cavity depth potential surfaces structure of the binding site within the compound 29. The cavity depth color ramp ranges from blue (low depth values = outside of the pocket) to light red (high depth values = cavities deep inside the pocket) [20]. The substituent group of C-4 position of compound 29 was oriented in a light red region which demonstrated that this part was anchored deep inside the pocket. The remaining parts of compound 29 are found in the cyan area which indicated that the benzene ring was anchored outside the pocket.

Figure 10c showed the MOLCAD lipophilic potential (LP) surface of the binding area, the color for LP ranges from brown (highest lipophilic area of the surface) to blue (highest hydrophilic area). The linker of molecule was oriented to a brown region, suggesting that a hydrophobic substituent may be favored; the methoxy group was oriented to the blue and white areas which indicated that a hydrophilic group would be favorable. The observations taken from Figure 10c satisfactorily matched those of the CoMSIA hydrophobic contour map.

Figure 10d displayed the MOLCAD hydrogen bonding sites of the binding surfaces, ligands can be docked to proteins by matching the patterns displayed on the surface, the red is hydrogen donors and the blue is hydrogen acceptors. As shown in Figure 10d, the methoxy groups were oriented to a red surface, which indicated that the surfaces of this site were hydrogen bond donors, and a hydrogen bond acceptor substituent would be favorable. The observations taken from this hydrogen bonding sites satisfactorily matched the corresponding CoMSIA hydrogen bond contour maps.

3.5. Summary of Structure-Activity Relationship

The structure-activity relationship revealed by 3D-QSAR and molecular docking studies were illustrated in Figure 11. The negatively charged substituents, H-bond acceptors at R1, R2, R3, and R4 position would increase the activity; the substitution at the C-4 position of the linker is very crucial for improved activity in this compound class. The hydrophobic substituent at the position of the linker would increase the activity. Biphenyl rings at the both two sides of curcumin derivatives are required for the cytotoxic same as those in bicalutamide, a known and clinically used AR antagonist. Here, the hydrophobic property of benzene ring plays a key role in the anti-androgenic activities.

3.6. Designs for New Molecules

Based on QSAR and docking results, antagonists 29, with the highest activity, was taken as a template to design new compounds. A set of 30 new compounds with high predicted activity were designed and assessed (Table 5), these molecules were aligned to the database and their activities were predicted by the CoMFA and CoMSIA models previously established. The chemical structures and predicted pIC50 values of these compounds were shown in Table 5, and the graph of their predicted pIC50 values versus the most active compound 29 was shown in Figure 12. Most of the designed molecules exhibited better predicted pIC50 values than compound 29 in CoMFA or CoMSIA models. Molecules D2, D3, D7, D9–14, D17, D19–20, D23–24, and D27–30 displayed significantly improved predicted activities than compound 29 in both the CoMFA and CoMSIA models. The results validated the structure activity relationship obtained by this study.

4. Conclusion

In the present study, 3D-QSAR analyses have been applied to a set of curcumin derivatives. The models have proven to be statistically robust with higher q2 and r2. Also, as demonstrated in our study, 3D-QSAR and docking methods were employed to understand the structural features responsible for the affinity of the ligands for AR. These results provided crucial clues that were used to design novel androgen receptor antagonists with high predicted potent activity. A set of 30 novel derivatives were designed by utilizing the structure-activity relationship taken from the present study.

Acknowledgements

The authors gratefully acknowledge the support of this work by the Natural Science Foundation of China (No. 21172108), Natural Science Foundation of Jiangsu Province (No. BK2011772), University Natural Science Research Project of Jiangsu Province (No. 08KJD310004) and NJMU Science and Technology Promotion Foundation (No. 06NMUM023) for the support.

References

  1. Siegel, R.; Ward, E.; Brawley, O.; Jemal, A. Cancer statistics. CA Cancer J. Clin 2011, 61, 212–236.
  2. Lin, L.; Shi, Q.; Nyarko, A.K.; Bastow, K.F.; Wu, C.; Su, C.; Shih, C.C.Y.; Lee, K. Antitumor agents. 250. Design and synthesis of new curcumin analogues as potential anti-prostate cancer agents. J. Med. Chem 2006, 49, 3963–3972.
  3. Henderson, L.C.; Altimari, J.M.; Dyson, G.; Servinis, L.; Niranjan, B.; Risbridger, G.P. A comparative assessment of α-lipoic acid N-phenylamides as non-steroidal androgen receptor antagonists both on and off gold nanoparticles. Bioorg. Chem 2012, 40, 1–5.
  4. Kirby, M.; Hirst, C.; Crawford, E.D. Characterising the castration-resistant prostate cancer population: A systematic review. Int. J. Clin. Pract 2011, 65, 1180–1192.
  5. Chen, Y.; Sawyers, C.L.; Scher, H.I. Targeting the androgen receptor pathway in prostate cancer. Curr. Opin. Pharmacol 2008, 8, 440–448.
  6. Zhou, J.; Geng, G.; Shi, Q.; Sauriol, F.; Wu, J.H. Design and synthesis of androgen receptor antagonists with bulky side chains for overcoming antiandrogen resistance. J. Med. Chem 2009, 52, 5546–5550.
  7. Estebanez-Perpina, E.; Moore, J.M.R.; Mar, E.; Delgado-Rodrigues, E.; Nguyen, P.; Baxter, J.D.; Buehrer, B.M.; Webb, P.; Fletterick, R.J.; Guy, R.K. The molecular mechanisms of coactivator utilization in ligand-dependent transactivation by the androgen receptor. J. Biol. Chem 2005, 280, 8060–8068.
  8. Markus, A.L. Multi-dimensional QSAR in drug discovery. Drug Discov. Today 2007, 12, 1013–1017.
  9. Cramer, R.D.; Patterson, D.E.; Bunce, J.D. Comparative molecular field analysis (CoMFA). 1. Effect of shape on binding of steroids to carrier proteins. J. Am. Chem. Soc 1988, 110, 5959–5967.
  10. Klebe, G.; Abraham, U.; Mietzner, T. Molecular similarity indices in a comparative analysis (CoMSIA) of drug molecules to correlate and predict their biological activity. J. Med. Chem 1994, 37, 4130–4146.
  11. Yi, P.; Qiu, M. 3D-QSAR and docking studies of aminopyridine carboxamide inhibitors of c-Jun N-terminal kinase-1. Eur. J. Med. Chem 2008, 43, 604–613.
  12. Liao, S.Y.; Qian, L.; Miao, T.F.; Lu, H.L.; Zheng, K.C. CoMFA and docking studies of 2-phenylindole derivatives with anticancer activity. Eur. J. Med. Chem 2009, 44, 2822–2827.
  13. Clark, M.; Cramer, R.D.; van Opdenbosch, N. Validation of the general purpose tripos 5.2 force field. J. Comput. Chem 1989, 10, 982–1012.
  14. Cho, S.J.; Tropsha, A. Cross-validated r2-guided region selection for comparative molecular field analysis: A simple method to achieve consistent results. J. Med. Chem 1995, 38, 1060–1066.
  15. Zhao, X.; Chen, M.; Huang, B.; Ji, H.; Yuan, M. Comparative Molecular Field Analysis (CoMFA) and Comparative Molecular Similarity Indices Analysis (CoMSIA) studies on alpha(1A)- adrenergic receptor antagonists based on pharmacophore molecular alignment. Int. J. Mol. Sci 2011, 12, 7022–7237.
  16. Pirhadi, S.; Ghasemi, J.B. 3D-QSAR analysis of human immunodeficiency virus entry-1 inhibitors by CoMFA and CoMSIA. Eur. J. Med. Chem 2010, 45, 4897–4903.
  17. Vong, R.; Geladi, P.; Wold, S.; Esbensen, K. Source contributions to ambient aerosol calculated by discriminat partial least squares regression (PLS). J. Chemometrics 1988, 2, 281–296.
  18. Srivastava, V.; Gupta, S.P.; Siddiqi, M.I.; Mishra, B.N. 3D-QSAR studies on quinazoline antifolate thymidylate synthase inhibitors by CoMFA and CoMSIA models. Eur. J. Med. Chem 2010, 45, 1560–1571.
  19. Ai, Y.; Wang, S.T.; Sun, P.H.; Song, F.J. Combined 3D-QSAR modeling and molecular docking studies on pyrrole-indolin-2-ones as aurora a kinase inhibitors. Int. J. Mol. Sci 2011, 12, 1605–1624.
  20. Ping, L.; Chen, W.N.; Chen, W.M. Molecular modeling studies on imidazo[4,5-b]pyridine derivatives as Aurora A kinase inhibitors using 3D-QSAR and docking approaches. Eur. J. Med. Chem 2011, 46, 77–94.
Ijms 13 06138f1 200

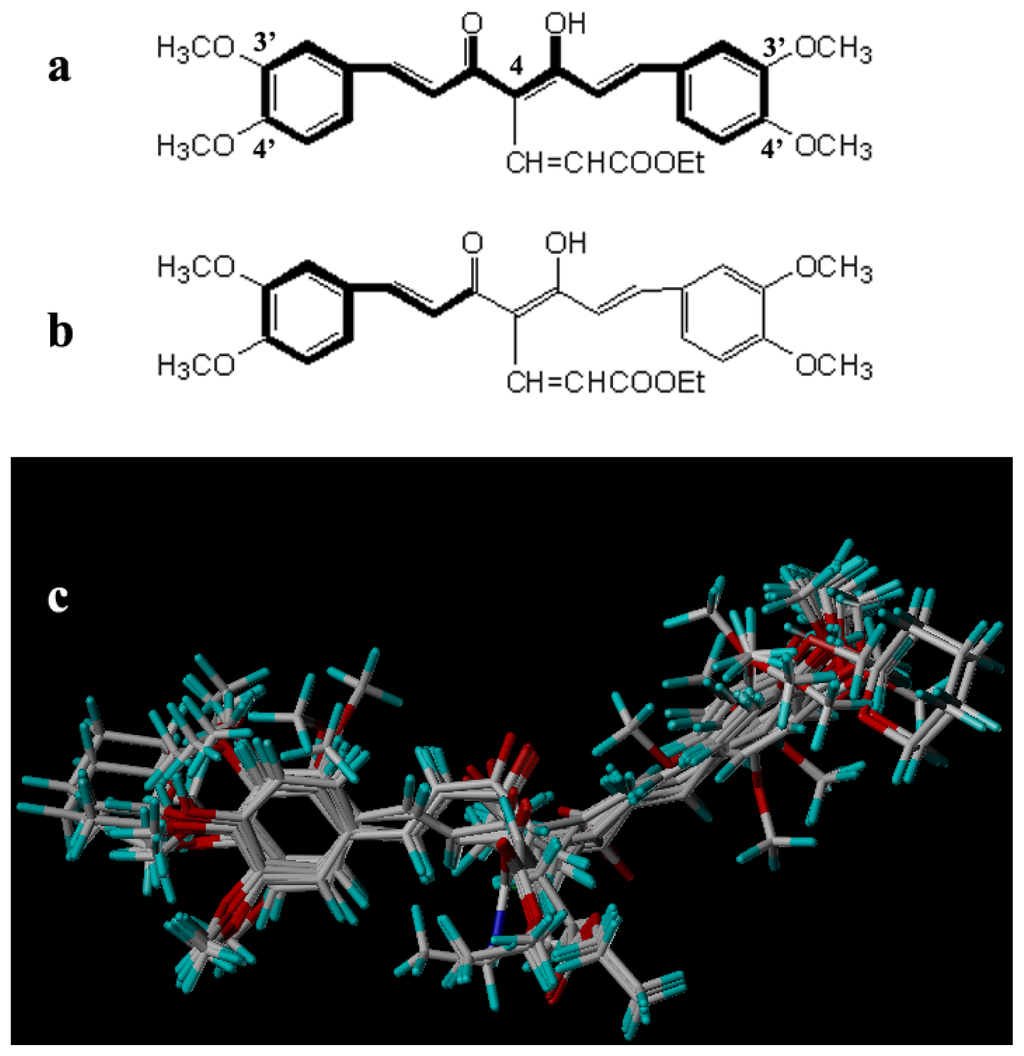

Figure 1. Molecular alignment of the compounds in the training set.

Click here to enlarge figure

Figure 1. Molecular alignment of the compounds in the training set.
Ijms 13 06138f1 1024
Ijms 13 06138f2 200

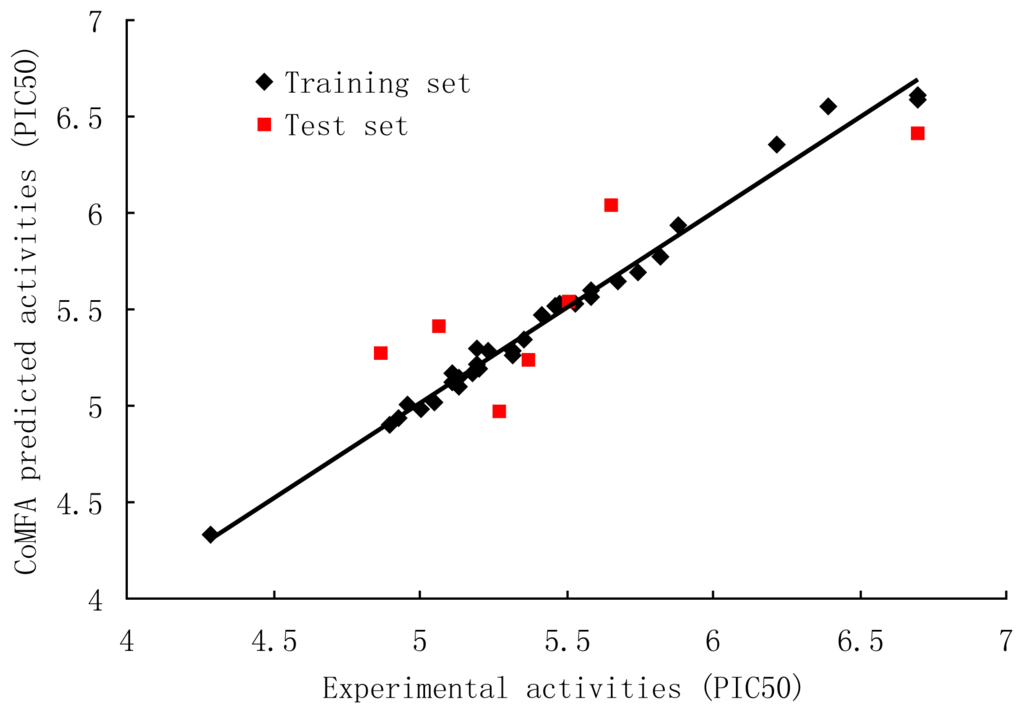

Figure 2. Correlation between the experimental and CoMFA (region focusing) predicted activities of compounds.

Click here to enlarge figure

Figure 2. Correlation between the experimental and CoMFA (region focusing) predicted activities of compounds.
Ijms 13 06138f2 1024
Ijms 13 06138f3 200

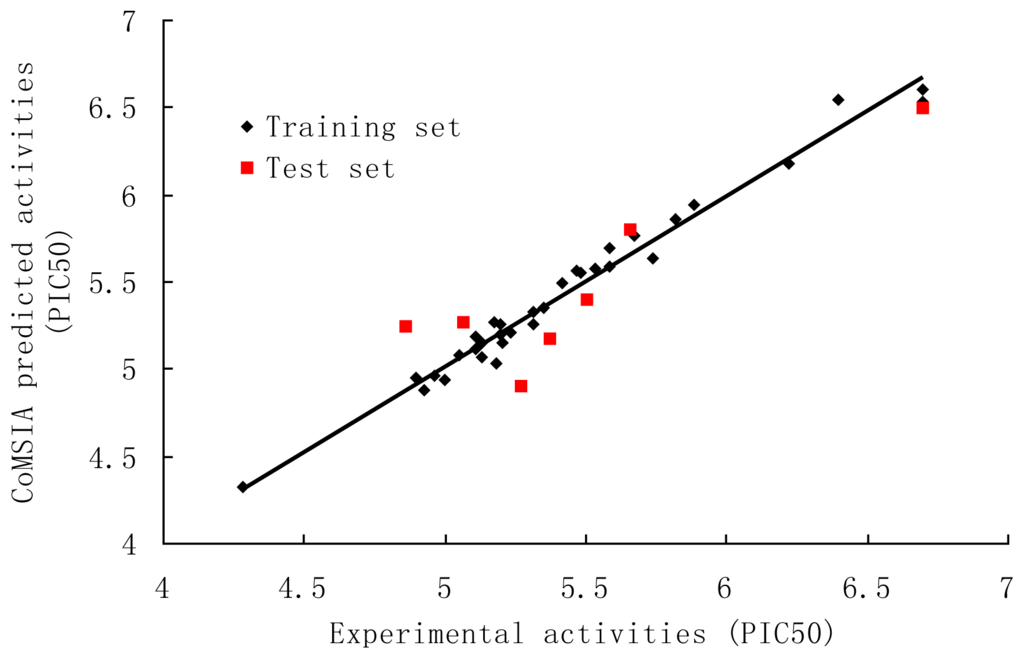

Figure 3. Correlation between the experimental and CoMSIA predicted activities of compounds.

Click here to enlarge figure

Figure 3. Correlation between the experimental and CoMSIA predicted activities of compounds.
Ijms 13 06138f3 1024
Ijms 13 06138f4 200

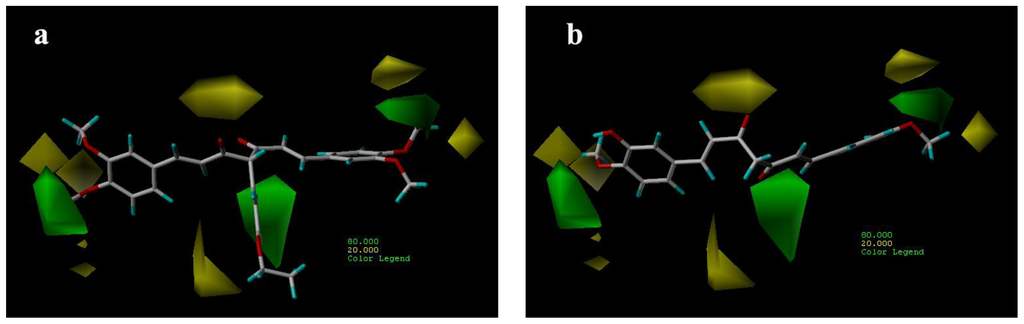

Figure 4. CoMFA steric contour maps for compounds: (a) compound 29; (b) compound 15.

Click here to enlarge figure

Figure 4. CoMFA steric contour maps for compounds: (a) compound 29; (b) compound 15.
Ijms 13 06138f4 1024
Ijms 13 06138f5 200

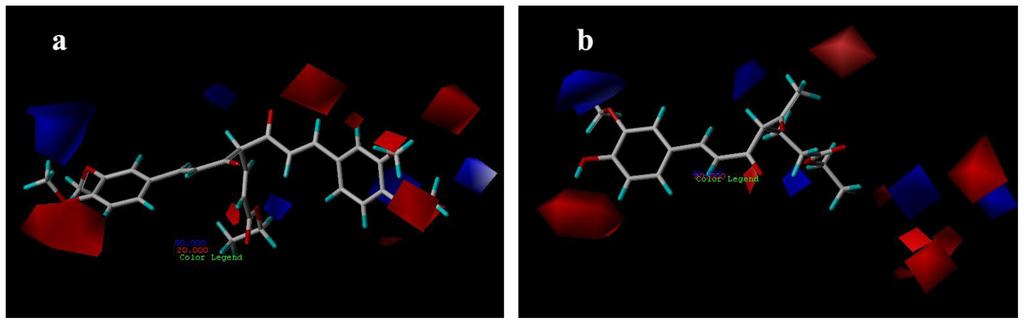

Figure 5. CoMFA electrostatic contour maps for compounds: (a) compound 29; (b) compound 7.

Click here to enlarge figure

Figure 5. CoMFA electrostatic contour maps for compounds: (a) compound 29; (b) compound 7.
Ijms 13 06138f5 1024
Ijms 13 06138f6 200

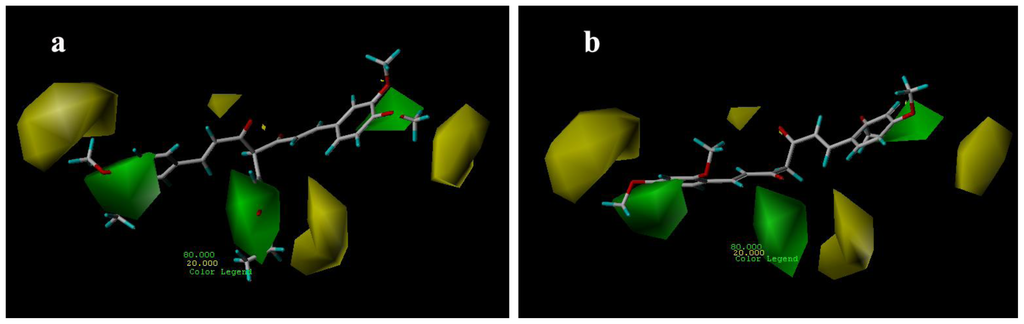

Figure 6. CoMSIA steric contour maps for compounds: (a) compound 29; (b) compound 15.

Click here to enlarge figure

Figure 6. CoMSIA steric contour maps for compounds: (a) compound 29; (b) compound 15.
Ijms 13 06138f6 1024
Ijms 13 06138f7 200

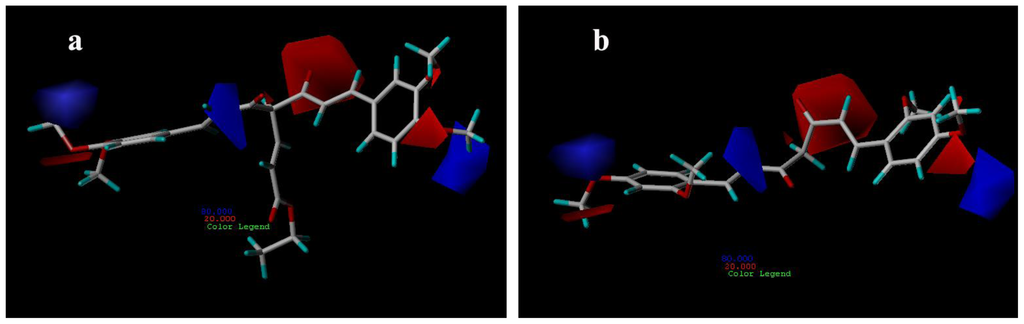

Figure 7. CoMSIA electrostatic contour maps for compounds: (a) compound 29; (b) compound 15.

Click here to enlarge figure

Figure 7. CoMSIA electrostatic contour maps for compounds: (a) compound 29; (b) compound 15.
Ijms 13 06138f7 1024
Ijms 13 06138f8 200

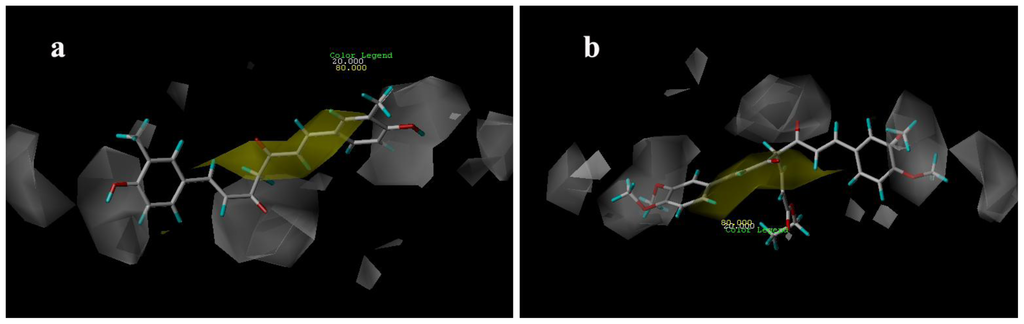

Figure 8. CoMSIA hydrophobic contour maps for compounds: (a) compound 21; (b) compound 29.

Click here to enlarge figure

Figure 8. CoMSIA hydrophobic contour maps for compounds: (a) compound 21; (b) compound 29.
Ijms 13 06138f8 1024
Ijms 13 06138f9 200

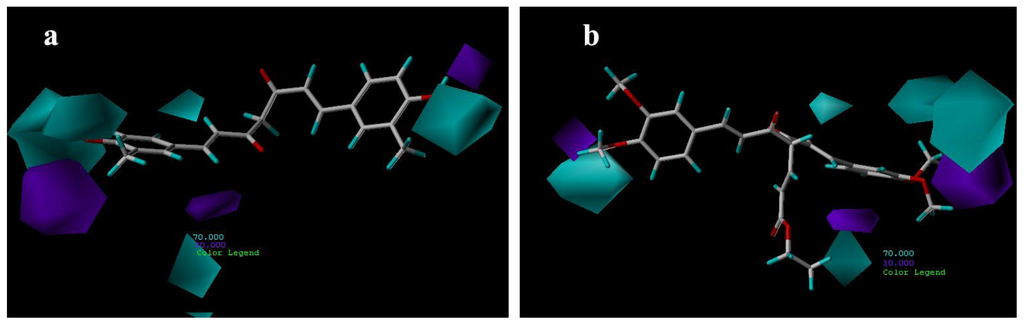

Figure 9. CoMSIA hydrogen bond donor contour maps for: (a) compound 21; (b) compound 29.

Click here to enlarge figure

Figure 9. CoMSIA hydrogen bond donor contour maps for: (a) compound 21; (b) compound 29.
Ijms 13 06138f9 1024
Ijms 13 06138f10 200

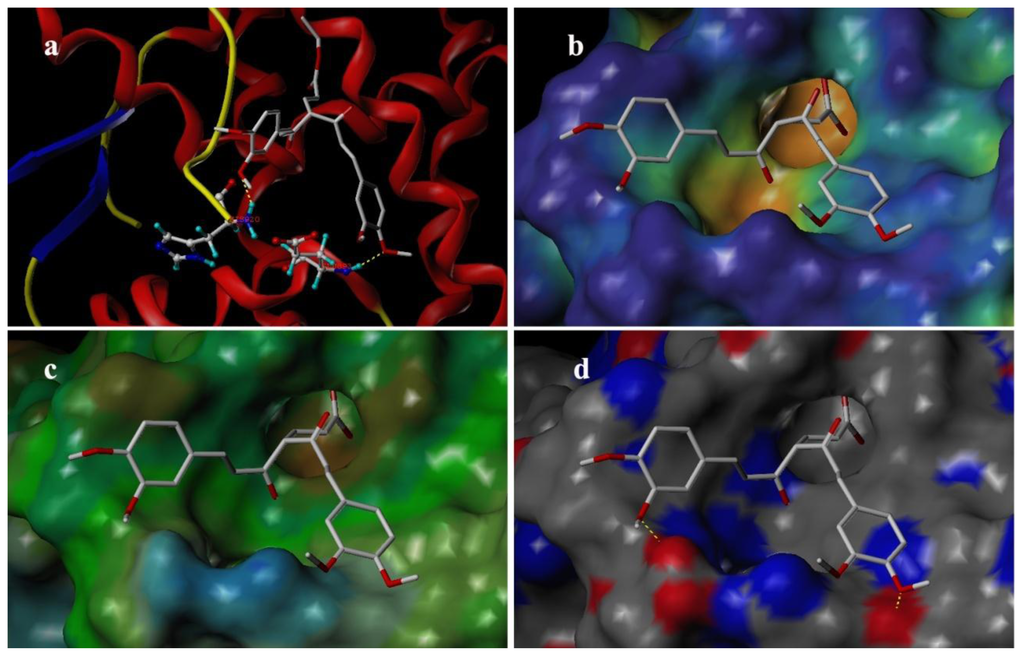

Figure 10. Binding conformations of the compound 29 at the bonding site of androgen receptor (AR).

Click here to enlarge figure

Figure 10. Binding conformations of the compound 29 at the bonding site of androgen receptor (AR).
Ijms 13 06138f10 1024
Ijms 13 06138f11 200

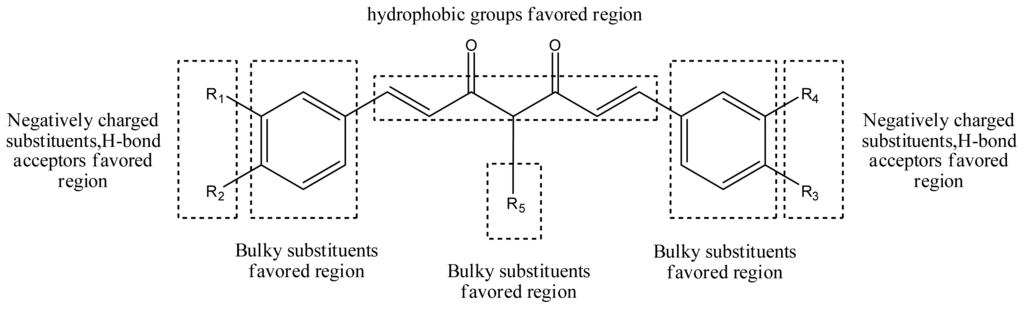

Figure 11. Summary of structure-activity relationship.

Click here to enlarge figure

Figure 11. Summary of structure-activity relationship.
Ijms 13 06138f11 1024
Ijms 13 06138f12a 200Ijms 13 06138f12b 200

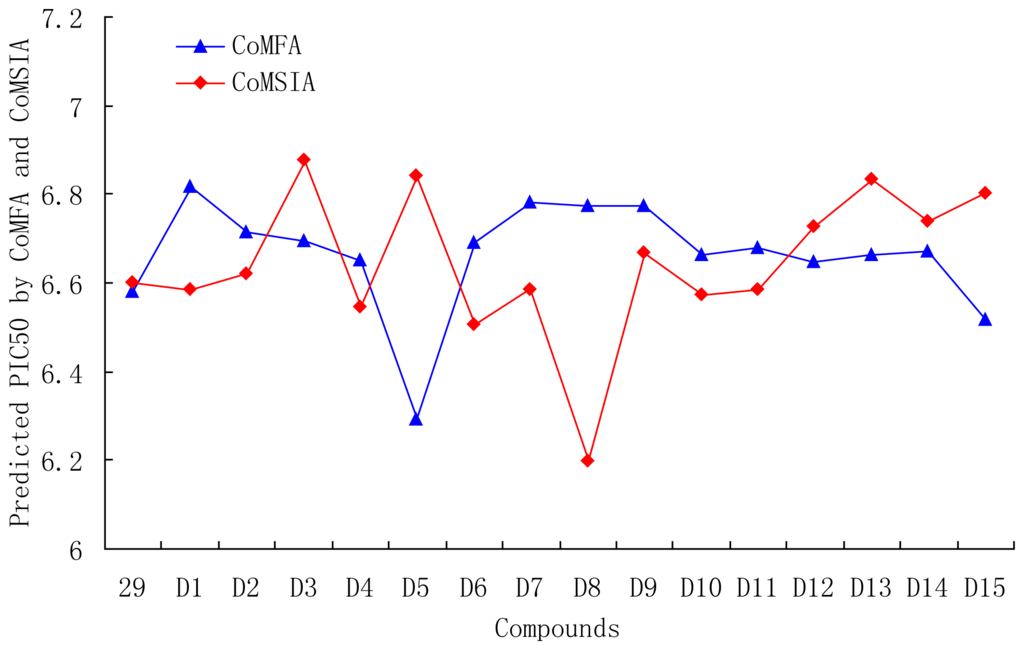

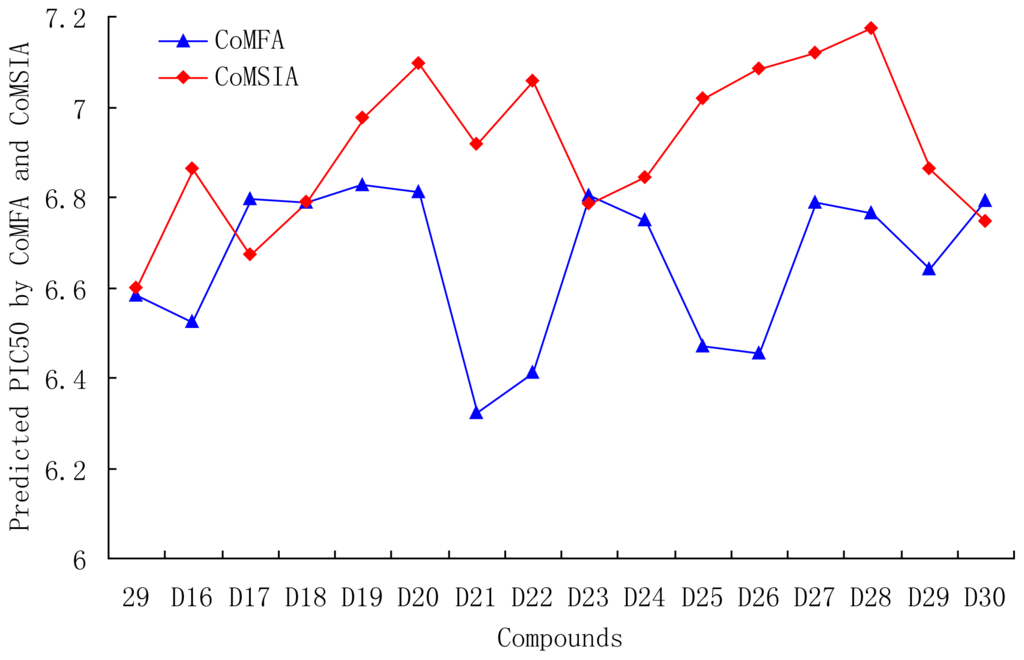

Figure 12. Graph of the predicted pIC50 of the designed molecules versus compound 29.

Click here to enlarge figure

Figure 12. Graph of the predicted pIC50 of the designed molecules versus compound 29.
Ijms 13 06138f12a 1024Ijms 13 06138f12b 1024
Table 1. Structures and experimental anticancer activities (against human prostate cancer cell line LNCaP) of the curcumin derivatives.

Click here to display table

Table 1. Structures and experimental anticancer activities (against human prostate cancer cell line LNCaP) of the curcumin derivatives.
Ijms 13 06138f13

CompoundR1R2R3R4R5IC50 (μM)pIC50
1HOMeOHHH6.25.208
2HOMeOMeHH6.65.180
3 *HOHOMeHH5.35.276
4OMeHOMeHH9.95.004
5OMeOMeOMeHH5.85.237
6HOMeOMeOMeH12.54.903
7HOMeOHH(CH2)2COOEt51.54.288

Ijms 13 06138f14

CompoundR1XIC50 (μM)pIC50

8CH2OHO7.35.137
9HS6.35.201
10*HNH13.64.866

Ijms 13 06138f15

CompoundR1R2R3R4R5IC50 (μM)pIC50

11HOMeOHHH3.85.420
12HOMeOMeHH1.35.886
13HOMeOHH(CH2)2COOEt1.55.824
14HOHOMeHH10.94.963
15OMeHOMeHH11.84.928
16OMeOMeOMeHH4.85.319
17HOMeOMeOMeH2.95.538
18*HOMeOTHPH(CH2)2COOEt4.25.377
19HOMeOEtHH6.55.187
20 Ijms 13 06138f162.65.585
21HMeOHHH1.85.745
22HMeOMeHH7.75.114

Ijms 13 06138f17

CompoundR1R2R3R4R5IC50 (μM)pIC50

23HOMeOHHH3.35.481
24HOHOMeHH4.85.319
25OMeOMeOMeHH7.75.114
26*HOMeOMeOMeH8.65.066
27HOMeOHH(CH2)2COOEt2.15.678

Ijms 13 06138f18

CompoundR1XIC50 (μM)pIC50

28 *OH Ijms 13 06138f193.15.509
29OMe Ijms 13 06138f200.26.699
30OTHP Ijms 13 06138f212.65.585
31 *OMe Ijms 13 06138f222.25.658
32OMe Ijms 13 06138f230.46.398
33OMe Ijms 13 06138f240.66.222
34 *OMe Ijms 13 06138f250.26.699
35OH Ijms 13 06138f268.85.056
36OTHP Ijms 13 06138f277.35.137
37OH Ijms 13 06138f286.35.201
38OMe Ijms 13 06138f293.45.469
39OH Ijms 13 06138f304.45.357
40OMe Ijms 13 06138f310.26.699

*Compounds taken for the test set.

Table 2. Statistical quality parameters of different molecular interaction field methods.

Click here to display table

Table 2. Statistical quality parameters of different molecular interaction field methods.
Component aq2br2ncv cFdSEEe
A–CoMFA region focusing model in Gs = 1 in various numbers of components f
10.3060.53335.3670.357
20.3960.73842.1560.272
30.5010.89380.9160.176
40.5900.955149.0670.116
50.6290.978237.4290.083
60.6580.988352.2780.063
B–CoMFA model in Gs = 2 in various numbers of components f
10.2090.39523.1910.395
20.2730.68833.0100.297
30.3990.88171.5770.186
40.4320.940109.4900.135
50.5260.976223.1590.086
60.5640.986304.611 0.068

aOptimum number of components (ONC) obtained from cross-validated PLS analysis and same used in final non-cross-validated analysis;bq2: Cross-validated correlation coefficient;cr2 ncv: Non-cross-validated correlation coefficient;dF: F-test value;eSEE: Standard error of estimate;fColumn filtering = 1.0 kcal/mol.

Table 3. Comparative Molecular Field Analysis (CoMFA)/Comparative Similarity Indices Analysis (CoMSIA) predicted activity (PIC50) of compounds.

Click here to display table

Table 3. Comparative Molecular Field Analysis (CoMFA)/Comparative Similarity Indices Analysis (CoMSIA) predicted activity (PIC50) of compounds.
CompoundPredicted Activity (CoMFA)Predicted Activity (CoMSIA)
15.1915.124
25.1635.257
3*4.9634.896
44.9714.935
55.2775.202
64.9004.964
74.3234.333
85.1455.144
95.2085.242
10 *5.2645.243
115.4635.495
125.9295.925
135.7635.850
145.0034.960
154.9294.879
165.2815.325
175.5225.567
18 *5.2355.175
195.1675.020
205.5895.586
215.6845.634
225.1155.187
235.5265.554
245.2555.249
255.1575.115
26 *5.4125.260
275.6425.747
28 *5.5405.389
296.5806.606
305.5595.697
31 *6.0395.800
326.5436.543
336.3476.169
34 *6.4076.487
355.0135.072
365.0945.062
375.2905.186
385.5075.567
395.3375.353
406.6036.529

*Compounds taken for the test set.

Table 4. Regression summary of CoMFA and CoMSIA models.

Click here to display table

Table 4. Regression summary of CoMFA and CoMSIA models.
Field Contribution in %
DescriptorsONCq2r2 ncvr2 pred aSEEFSEHDA
CoMFA
SE60.6580.9880.7150.063352.27848.851.2
CoMSIA b
SE50.4980.9670.102156.62627.272.8
SHE60.5360.9850.069292.08819.657.622.7
SED60.5190.9830.075247.31022.352.025.7
SEA50.4040.9650.105148.07019.755.025.3
SEHD50.5670.9780.7930.083241.53416.043.017.323.6
SEDA50.4860.9690.098170.50315.638.923.521.9
SEHA60.4260.9830.074255.49815.345.917.820.9
SEHDA60.5140.9830.074250.21712.733.414.321.618.0

ar2 pred: Predictive r2;bField contributions: Steric (S) and electrostatic (E) field from CoMFA; Steric (S), electrostatic (E), hydrophobic (H), donor (D), and acceptor (A) fields from CoMSIA.

Table 5. The structures and predicted pIC50 values of newly designed derivatives.

Click here to display table

Table 5. The structures and predicted pIC50 values of newly designed derivatives.
Ijms 13 06138f32
Compound IDSubstituentPredicted pIC50

R1R2R3COMFACOMSIA
29OMeOMeCH=CHCOOEt6.5826.599
D1CNCNCH=CHCOOEt6.8176.583
D2SO3HSO3HCH=CHCOOEt6.7146.619
D3NO2NO2CH=CHCOOEt6.6966.876
D4CF3CF3CH=CHCOOEt6.6516.544
D5COOHCOOHCH=CHCOOEt6.2936.840
D6CHOCHOCH=CHCOOEt6.6916.506
D7BrBrCH=CHCOOEt6.7836.583
D8 Ijms 13 06138f33 Ijms 13 06138f34CH=CHCOOEt6.7736.196
D9NO2CNCH=CHCOOEt6.7746.666
D10B(OH)2B(OH)2CH=CHCOOEt6.6646.571
D11CNCNCH=CH(CH2)3CH36.6806.585
D12OMeOMe Ijms 13 06138f356.6486.727
D13OMeOMe Ijms 13 06138f366.6626.832
D14OMeOMe Ijms 13 06138f376.6706.740
D15OMeOMe Ijms 13 06138f386.5186.802
D16OMeOMe Ijms 13 06138f396.5266.864
D17CNCN Ijms 13 06138f406.7986.670
D18CNCN Ijms 13 06138f416.7876.787
D19NO2NO2 Ijms 13 06138f426.8286.973
D20NO2NO2 Ijms 13 06138f436.8137.094
D21COOHCOOH Ijms 13 06138f446.0206.917
D22COOHCOOH Ijms 13 06138f456.1127.058
D23CNCN Ijms 13 06138f466.8046.783
D24CNCN Ijms 13 06138f476.7496.842
D25COOHCOOH Ijms 13 06138f486.0687.017
D26COOHCOOH Ijms 13 06138f496.0537.084
D27NO2NO2 Ijms 13 06138f506.7897.119
D28NO2NO2 Ijms 13 06138f516.7657.172
D29 Ijms 13 06138f52 Ijms 13 06138f53 Ijms 13 06138f546.6416.863
D30BrBr Ijms 13 06138f556.7946.746
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
