Acetylene-Based Materials in Organic Photovoltaics

1
Department of Materials Science, University of Milan–Bicocca, via Cozzi, 53, I-20125, Milan, Italy
2
Department of Chemistry, University of Perugia, via Elce di Sotto, 8, I-06123 Perugia, Italy
*
Author to whom correspondence should be addressed.
Present address: Laboratory of Organic Chemistry, Department of Chemistry and Applied Biosciences, ETH Zürich, HCI G 304 Wolfgang-Pauli-Straβe 10, CH-8093 Zürich, Switzerland; E-Mail: [email protected].
Int. J. Mol. Sci. 2010, 11(4), 1471-1508; https://doi.org/10.3390/ijms11041471
Submission received: 15 March 2010 / Accepted: 29 March 2010 / Published: 8 April 2010
(This article belongs to the Special Issue Solar Cells)

Abstract

:
Fossil fuel alternatives, such as solar energy, are moving to the forefront in a variety of research fields. Organic photovoltaic systems hold the promise of a lightweight, flexible, cost-effective solar energy conversion platform, which could benefit from simple solution-processing of the active layer. The discovery of semiconductive polyacetylene by Heeger et al. in the late 1970s was a milestone towards the use of organic materials in electronics; the development of efficient protocols for the palladium catalyzed alkynylation reactions and the new conception of steric and conformational advantages of acetylenes have been recently focused the attention on conjugated triple-bond containing systems as a promising class of semiconductors for OPVs applications. We review here the most important and representative (poly)arylacetylenes that have been used in the field. A general introduction to (poly)arylacetylenes, and the most common synthetic approaches directed toward making these materials will be firstly given. After a brief discussion on working principles and critical parameters of OPVs, we will focus on molecular arylacetylenes, (co)polymers containing triple bonds, and metallopolyyne polymers as p-type semiconductor materials. The last section will deal with hybrids in which oligomeric/polymeric structures incorporating acetylenic linkages such as phenylene ethynylenes have been attached onto C60, and their use as the active materials in photovoltaic devices.

Graphical Abstract

1. Introduction

Electronic and optoelectronic devices using π-conjugated organic materials as active elements, including organic light-emitting diodes (OLEDs), organic photovoltaic devices (OPVs), organic field-effect transistors (OFETs), organic photorefractive devices and so forth, have recently attracted a great deal of attention inspired by the promise of low-cost printed electronics and the significant scientific challenges that must be overcome for this goal to be realized [19]. Compared to silicon or germanium, organic molecules and polymers are chemically versatile, and can be synthesized in large quantities under moderate reaction conditions. They are mechanically flexible and enable vapor- or solution phase fabrication of large area devices. Furthermore, organic semiconductors may show high absorption coefficients, which make them good chromophores for optoelectronic applications [1014]. The discovery of electrical conductivity in polyacetylene (PA) upon doping by Heeger et al. [15] in the late 1970s was a milestone for the use of π-conjugated organic materials in electronics. Enormous progress has been made in their design, synthesis and studies of properties and applications since.
Among organic semiconductors, two classes of materials are the most commonly used: poly-arylenes, i.e., polymers consisting in aromatic rings directly connected to each other, and poly-arylenevinylenes, i.e., polymers made by alternating aryl and ethylene units. Other classes of organic semiconductors, including oligo-thiophenes, metal phthalocyanines, (hetero)acenes, polytriphenylamines, perylenes, and fullerenes, have also been extensively investigated [1622].
In the past few decades, increasing interest has focused on conjugated triple-bond containing systems, (poly)arylene ethynylenes (also referred to as (poly)arylacetylenes), as a promising class of semiconductors, due to the availability of efficient protocols for palladium catalyzed alkynylation reactions and the new conception of their steric and conformational advantages.
The development of triple-bond based materials was not correlated with double-bond based ones, probably due to an inaccurate perception of their inferior electronic properties as well as the lack of efficient approaches to their synthesis. Indeed, if we consider the most common used polymers, the delocalization and charge stabilization are better in systems as (poly)arylenevinylenes and polyarylenes than (poly)aryleneethynylenes. Additionally, larger band gaps and narrower bandwidths are generally found for poly(phenylene ethynylene) (PPE) than for its structurally close relative (poly)phenylenevinylene (PPV), which results into more difficult charge separation in (poly)arylacetylenes [23]. Despite these findings, an alkyne linkage is more accommodating than an alkene to steric and conformational constraints. For instance, steric interactions between the aromatic nuclei and the alkene units in poly(arylene vinylene)s may result in non-planar conformations, thus producing a dramatic reduction in delocalization. In contrast, direct steric interaction with alkynes may result in a bending distortion, but conjugation will be maintained due to their cylindrical electronic symmetry. Acetylene derivatives are also of interest from the standpoint of their shape-persistent rigid rod-like structures [24].
After a brief overview of the most commonly used synthetic methods leading to (poly)aryl-acetylenes, we will summarize in this review article the recent developments in their use as semiconductor materials for organic/hybrid photovoltaic devices.

2. Synthesis

From a synthetic point of view, remarkable advances have been made in the area of acetylenic materials in recent decades [2531]. This impressive development and interest in the acetylene chemistry have been focused the attention on conjugated triple-bond containing systems as a promising class of semiconductors.
Palladium-catalyzed coupling reactions between aryl- or vinyl halides or triflates and terminal alkynes have led to improvements in both the selectivity and reliability of acetylenic homo- and heterocouplings, and paved the way for their application to ever more complicated systems.

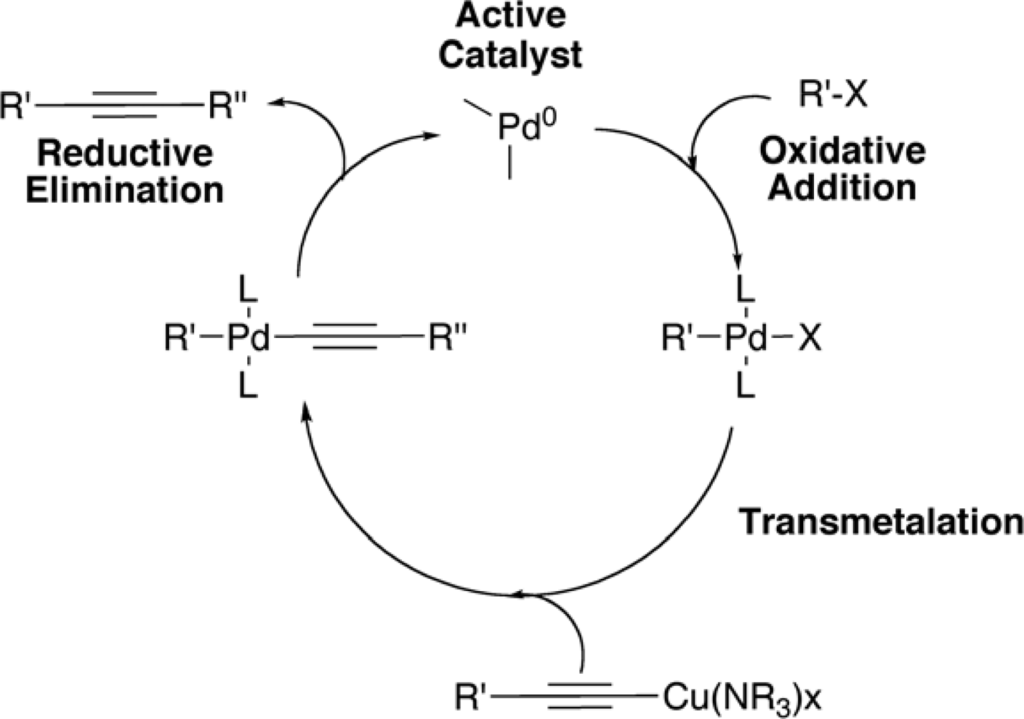

In particular, the Sonogashira-Hagihara protocol (more often simply known as Sonogashira coupling, Scheme 1) has been known since 1975 and it is one of the most frequently used carbon-carbon bond forming processes in organic synthesis [3234]. Although aryl and vinyl chlorides, bromides, and triflate are competent coupling partners, the reaction is particularly facile when using iodide substrates. As a consequence, it can be conducted under mild conditions and, in case of polymers, it can minimize cross-linking and defects formation.
The Sonogashira reaction is generally carried out in organic solvents such as benzene, toluene, THF or dioxane. This reaction needs a base, which is usually an amine such as triethylamine, diethylamine or diisopropylethylamine. The most widely used catalysts are (Ph3P)2PdCl2 or Pd(PPh3)4 in conjunction with copper(I) salts, which act as co-catalysts. Several important modifications have simplified the Sonogashira reaction protocol [3539], particularly the elimination of the copper(I) co-catalyst [4042], since it could induce a homocoupling reaction of terminal alkynes to diynes in the presence of oxygen (Glaser-type reaction). Copper-free approaches to the Sonogashira reactions usually include the use of an amine, such as triethylamine or pyperidine, as solvent or in large excess. Recently, some copper- and amine-free methodologies have also been reported [4346]. More recently, Fulmer et al [47] reported on the solvent-free Sonogashira reaction utilizing high speed ball milling. Under these conditions, iodo- and bromo- aromatics make very good coupling partners. The authors investigated the reaction under aerobic conditions. Conducting the reaction in absence of copper iodide led to moderate yields of the coupling product. However, substituting the copper iodide and conducting the reaction using a copper ball and a copper vial allows yields similar to the use of copper iodide. Selected illustrative examples highlighting the potential of palladium-catalyzed coupling reactions for generating structurally different acetylene-derived materials are shown in Scheme 2 [40,43,48,49].
A second additional significant synthetic method makes use of alkyne (cross-)metathesis (Scheme 3). Recently it has been shown [5056] that this transformation hold great synthetic promise in different technological field, as molecular electronics and photonics.

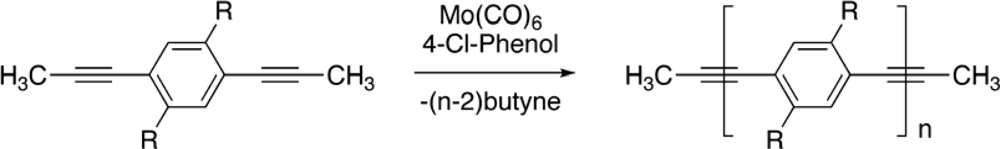

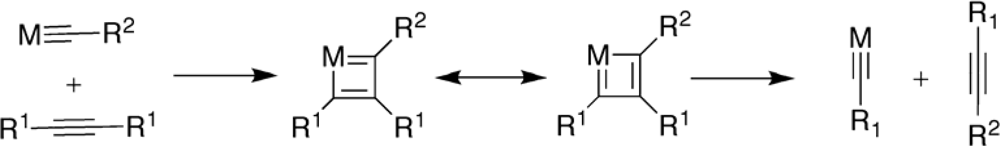

Alkyne metathesis refers to the exchange of alkylidyne units between a pair of (non terminal) aliphatic as well as aromatic acetylene derivatives. The generally accepted mechanism is a chain mechanism, involving the intervention of a metal-carbyne complex and a four-membered ring containing a metal [53]. The catalysts that have been most widely used, either homogeneous or heterogeneous, are based on molybdenum or tungsten complexes, in which alkoxide or phenoxide ligands are most common. For instance, the Mortreux-Mori-Bunz catalyst [54] generated in situ from commercially available Mo(CO)6 and phenol reagents was used to initiate acyclic metathesis polymerization of a series of dipropynylated benzenes to furnish polyphenylene ethynylenes in quantitative yield and high purity (Scheme 4). A promising catalytic system has been developed by Fürstner et al [55,56] using molybdenum complexes of the general type Mo[N(tBu)(Ar)]3 (Ar = 3,5-dimethylphenyl) as precatalysts that are activated in situ by dichloromethane. This particular reagent combination enables highly selective and efficient reactions and tolerates polar functionalites as diverse as ether, nitrile, acetals, sulfone, ketone, and silyl ether.

3. Photovoltaic Studies

Within the organic PVs field, there are multiple approaches: single layer diodes [5759] organic cells based on a heterojunction between polymeric or small molecular weight materials [6063], and organic/inorganic hybrid cells [6467].

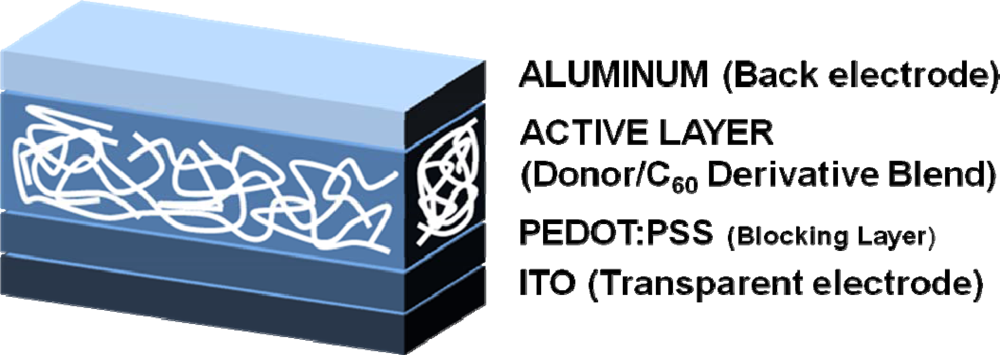

Photovoltaic cells made with a single polymer/small molecule and two electrodes tend to be inefficient because the photo-generated excitons are usually not split by the built-in electric field, which arises from differences in the electrode work functions. The cell efficiency can be increased by splitting the excitons at the interface between an electron donor, a p-type semiconductor, and an electron acceptor, an n-type semiconductor (so-called heterojunction). Ideally, bulk heterojunction (BHJ) structures (Figure 1) represent the case of a bicontinuous composite of donor and acceptor phases, thereby maximizing the interfacial area between these two components.
It is possible to promote efficient exciton splitting and charge transport and to reduce the band gap of the p-type polymer/small molecule to absorb a larger fraction of the solar spectrum.
The device power conversion efficiency (PCE) is defined by Equation 1, where Voc is the open circuit voltage, Jsc is the short circuit current (mA/cm2), FF is the fill factor, and P0 is the power of incident light source (mW/cm2):
η = ( V o c J s c FF ) / P 0
The state-of-the-art in organic photovoltaics is currently represented by a BHJ solar cell based on the blend film of a polymer based on alternating ester substituted thieno[3,4-b]thiophene and benzodithiophene units (PTB7) with (6,6)-phenyl-C71-butyric acid methyl ester (C71-PCBM) [68], showing efficiencies over 7%. This device presents a good Voc (0.74 V), a high Jsc, (14.5 mA/cm2) and a high FF (69%).
One of the basic photovoltaic parameters that influences overall performance of solar cells is open circuit voltage. Brabec et al. [69] demonstrated that the Voc in polymer/fullerene-based solar cells is strongly dependent on the difference between HOMO level of the donor and the LUMO level of the acceptor. Thus, an effective method to improve the open circuit voltage is therefore to manipulate the HOMO energy level of the polymers by modifying the chemical structure.
The other important parameter regarding organic solar cell efficiencies is Jsc, short circuit current. This value is mostly determined by the light absorption ability of the material, the charge separation efficiency, and the high and balanced carrier mobility. Indeed, a critical issue in solar cells based on systems such as poly(3-hexylthiophene) (P3HT) or poly[2-methoxy-5-(3,7-dimethyloctyloxy)-1,4-phenylene]-alt-(vinylene) (MDMO-PPV) is the number of absorbed photons. The photon flux reaching the surface of the earth from the Sun occurs at a maximum of approximately 1.8 eV (700 nm); however, neither MDMO-PPV (Egap = 2.2 eV) nor P3HT (Egap = 1.9 eV) can effectively harvest photons from the solar spectrum. It is calculated that P3HT is only capable of absorbing about 46% of the available solar photons [70], and in the wavelength range between 350 nm and 650 nm. The limitation in the absorption is primarily due to limited spectral breadth, as conjugated polymers typically have extremely high absorption coefficients of the order of magnitude of 105 cm−1 [71]. Developing a molecule that could capture all of the solar photons down to 1.1 eV would allow absorption of 77% of all the solar photons [72].
Within this frame, (poly)arylacetylenes are particularly attractive because they exhibit distinguishing spectro-electrochemical characteristics, resulting from the electron-withdrawing character of the triple bond, and their rigid rod-like structure. Moreover, the availability of efficient synthetic protocols allows variation of the effective π-conjugation length of these structures, as well as functionalization of their peripheries with suitable chromophoric groups. Therefore, a broad range of arylacetylenes has been synthesized and evaluated for use in OPVs, going from donor small molecules to (co)polymers to donor (oligomer or polymer)-fullerene hybrids.

3.1. Small Molecules

Recently, increasing attention has focused on soluble small molecules (S) as donors, since they offer the facile processing associated with polymers, are monodisperse, are easier to purify, and typically exhibit higher charge carrier mobilities [73,74] compared to other organic semiconductor. To date, the small molecule solar cells with the highest PCE (i.e., 4.4%) have been fabricated with an active layer composed of a blend of a diketopyrrolopyrrole-containing oligothiophene (donor), and a fullerene derivative C71-PCBM (acceptor) [75]. This section discusses the use of molecular arylacetylenes as the active materials in OPV cells. Details on their preparation are not provided here, and the reader is referred to the original papers for greater depth and scope.
Lloyd et al. [76] reported photovoltaic cells based on solution-processed blends using easily prepared 2,8-diethyl-5,11-bis(triethylsilylethynyl)anthradithiophene (S1) (Figure 2) as the donor and (6,6)-phenyl-C61-butyric acid methyl ester (PCBM) as the acceptor. Conjugated acene molecules have been shown to exhibit high solubility in common organic solvents and large field-effect mobilities, which may be accompanied by relatively large exciton diffusion lengths, desirable in BHJ solar cells. Solvent vapor annealing of these blends induces the formation of spherulites, which consist of a network of anthradithiophene crystallites dispersed in an amorphous matrix primarily composed of fullerene. A direct correlation between device coverage with spherulites and its performance was found, leading to a PCE of 1%.
Recent efforts in our group [7779] focus on the synthesis and characterization of molecular arylacetylenes and their implementation in photovoltaic devices. The syntheses of the [2.2]para-cyclophane-based [80] molecular systems (S2, S3) (Figure 2) comprising three para-connected carbon-carbon triple bonds have been reported and their use in single layer organic solar cells has been explored [77]. Organic solar cells were fabricated with the structure of FTO/PEDOT:PSS/Active layer/LiF/Al and tested under a halogen tungsten lamp with an intensity of 76 mW/cm2. A maximum photocurrent quantum efficiency of 13.24% was achieved with compound S2; photovoltaic effect was reached with a Voc of 1.26 V, Jsc of 2.3 × 10−2 mA/cm2, and a PCE of 0.008%. The overall efficiency of device was low but we were able to demonstrate that the presence of an anthracene unit in the π-conjugated side chain resulted in a larger photon harvesting, thus contributing to the preservation of a high open circuit voltage and the increase in the short circuit density.

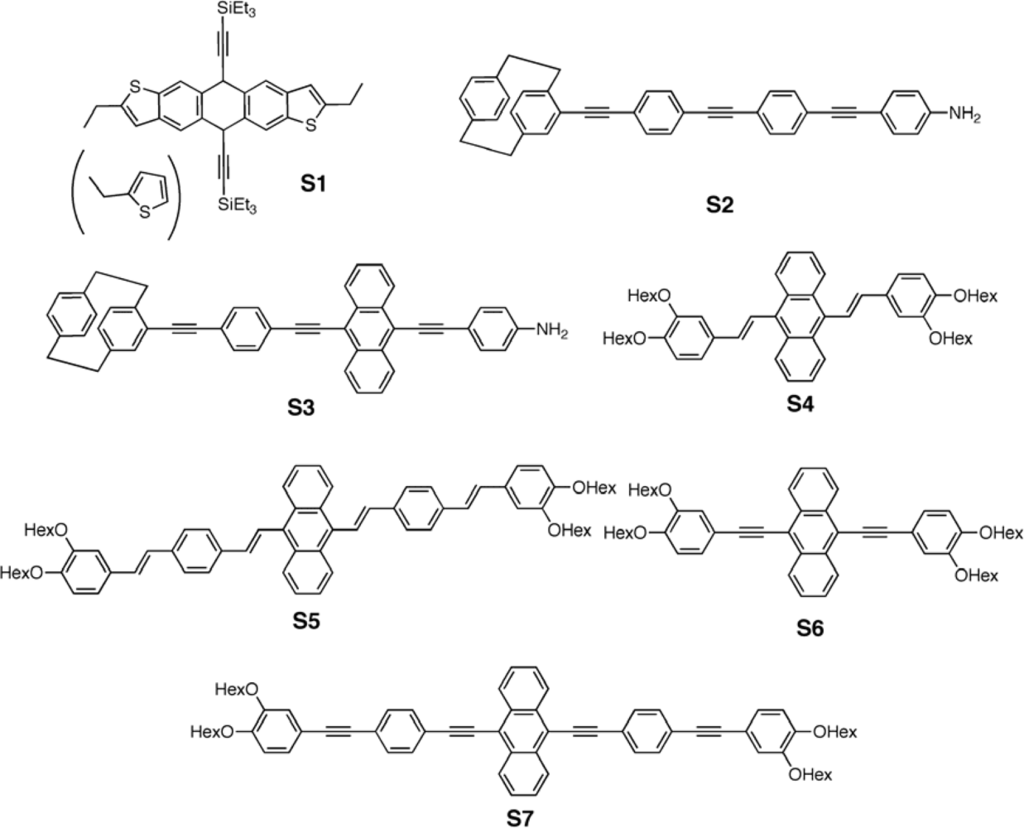

Very recently, we reported the synthesis of new anthracene derivatives (S4–S7) [78,79] (Figure 2) and their implementation as donors in bulk heterojunction solar cells having PCEs of up to ∼1.2% under standard AM1.5G conditions. Each donor system was designed to achieve both high solubility in common organic solvents and an extension of the absorption spectra toward low energies to enhance solar light harvesting. Importantly, the comparative study of compounds S4–S7 allows understanding of the effects of the replacement of the acetylenic for the olefinic π-spacer on the chromophore electronic structure, physical properties, and device efficiencies.
The OPV active layers consisted of one of compounds S4S7 as the donor and PCBM as the acceptor, blended in a 1:1 wt/wt ratio. The open-circuit voltage values for devices fabricated with olefinic compounds S4 and S5 were lower than those for acetylenic donors S6 and S7 and, interestingly, track the progression in the HOMO energy levels. The short circuit currents measured for devices based on olefinic donors S4 and S5 were low, affording a poor PCE, especially for S4/PCBM (i.e., 0.04%). This is consistent with the much higher LUMO energies present in S6 and S7 versus S4 and S5, which is a result of the more electron-withdrawing character of the triple bond. On the other hand, the devices fabricated with acetylenic donors S6 and S7 exhibited short-circuit current densities of 2.62 and 2.64 mA/cm2, respectively, and substantial open circuit voltages of 0.96 and 0.93 V, respectively. Combined with fill factors of 45% and 41%, these data yielded PCEs of 1.17% and 1.02%, respectively. The spectral response of the S6/PCBM and S7/PCBM based OPVs revealed an appreciable EQE response in the 400–500 nm wavelength range (∼27%). BHJ solar cells based on the acetylenic donors employed in this study were found to be significantly more efficient than those based on the olefinic donors, thus underscoring the potential of acetylenic π-donors in organic photovoltaics.

3.2. (Co)Polymers and Metallopolyyne Polymers

In this section, the properties and application in organic photovoltaics of (co)polymers (P) containing triple bonds, and metallopolyyne polymers (MP) are covered. For details on the synthetic methods leading to the specific systems the interested reader is referred to the original papers.

3.2.1. Polymers

Umnov and Korovyanko [81] studied a poly-dioctyl phenylene ethynylene (P1, Figure 3) (PPE)/C60 blended cell, as well as bilayer cells to evaluate the Voc dependence on excitation photon energy. The authors found that it was possible to satisfactorily describe such dependence by an energy diagram containing both exciton and free carrier pair levels, and conjectured that Voc in two-component organic photocells is correlated to the energy difference between the built-in potential and exciton binding energy in absorbing material.

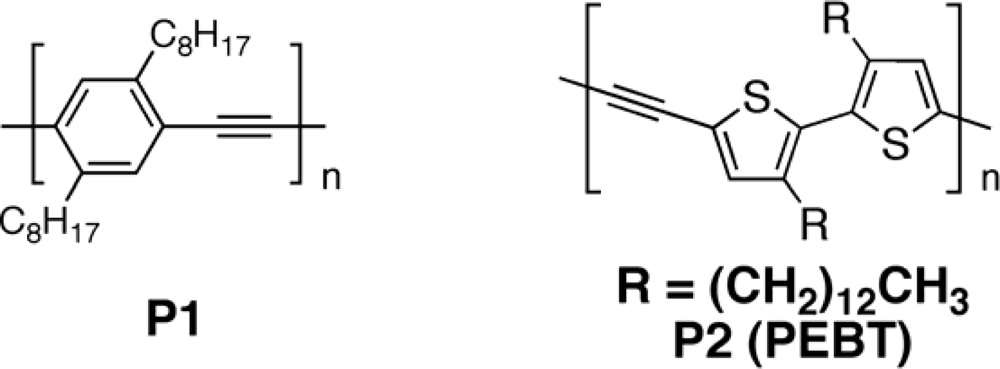

Cremer et al. [82] synthesized a poly(ethynylene-bithienylene) (PEBT, P2) (Figure 3) and compared its photovoltaic behavior with P3HT. This work underlined the positive influence of triple bond on the open circuit voltage, reaching an impressive enhancement from 0.62 V to 1.03 V, one of the highest values reported in literature. The UV-vis absorption spectra of P2 and P3HT in chloroform were very similar, with π-π* absorption bands that maximize at 451 nm and 448 nm, respectively. Apparently, introduction of ethynylene groups into the backbone of P3HT only marginally affected the optical transitions. In thin films, the absorption spectra of P2 and P3HT exhibited partly resolved vibrational fine structure and showed a significant red shift of the π-π* transition that was attributed to planarization of the π-system and interchain interactions induced by aggregation and crystallization. The lowering of the HOMO level in P2 by 0.3 eV as compared to P3HT was due to the electron-withdrawing character of the ethynylene units in the chain. Moreover, the red shift in the absorption spectra revealed a tendency for P2 to form aggregated structures, albeit somewhat less than for P3HT. In contrast to P3HT, P2 did not aggregate in mixed films with PCBM, as deduced from the lack of a red shift in the absorption spectrum in the blend. This lack of aggregation limited the number of absorbed photons and likely caused a lower mobility for the photo-generated holes. As a consequence, the short-circuit current and fill factor of these P2/PCBM devices were limited, reaching a maximum value of respectively 3.1 mA/cm2 and 36%. A PCE of 1.13% was achieved.

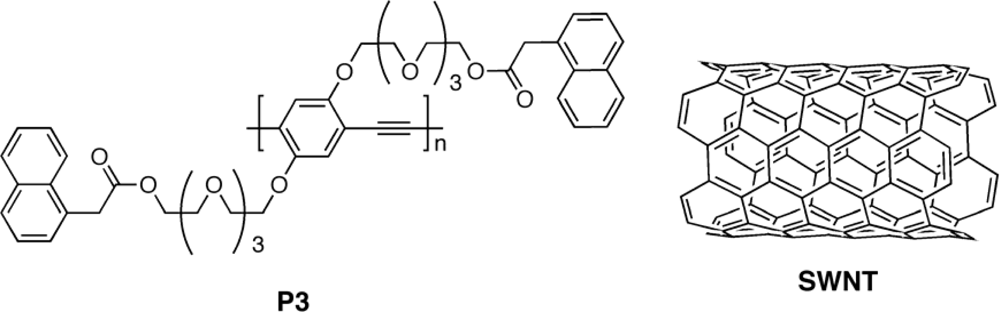

Very recently, Liu et al. [83] designed a novel bulk heterojunction structure based on a poly(phenylene ethynylene) (P3)/Single Wall NanoTube (SWNT) to improve the dispersion of SWNTs in the composite based on their structural similarity and strong interaction (Figure 4). Compared with C60, SWNTs have many advantages, including high charge mobility, long π–π conjugation and large aspect ratio. However, the advantages of using SWNTs in photovoltaic devices are somewhat hindered due to their insolubility and poor dispersion in a polymer matrix. This is because the device performance depends not only on the properties of the nano-fillers, but also on their arrangement in the thin-film.
It is known that active layer morphology plays a key role in the device fabrication; a better dispersion of SWNTs would inevitably lead to higher donor/acceptor (D/A) interfaces in the active layer, which facilitates the efficiency of exciton dissociation, and provides more conducting channels for charge transfer, thus leading to a high power conversion efficiency. The authors demonstrated a much higher open circuit voltage and a higher energy conversion efficiency relative to a control device fabricated by using a poly(3-octylthiophene) (P3OT)/SWNT active layer. Indeed, a Voc of 1.04 V and a Jsc of 0.27 mA/cm2 were achieved. The difference in electron affinity between the donor (P3) and acceptor (SWNTs) originated a built-in potential that broke the symmetry, thereby providing a driving force for the dissociation of the photo-generated excitons into electrons and holes.
The overall power conversion efficiency of the P3/SWNTs based device was 0.05%, which was more than 2× higher relative to the P3OT- based device one (0.02%). The potential interaction between highly delocalized π-electrons of carbon nanotubes and π-electrons correlated with the lattice of the polymer skeleton allow to form an interconnecting network and provide a direct pathway for enhanced charge transport, thus inducing an increase in Jsc.

3.2.2. Copolymers

The copolymer approach to the development of a new material aims at combining the intrinsic characteristics of the constituting monomers with novel structure-specific properties. The introduction of electron-withdrawing acetylene units within the PPV backbone opened a way to new types of π-conjugated systems, denoted PPE-PPVs. PPE-PPVs may in principle combine the high quantum yields of fluorescence, as exhibited by PPEs, with suitability and stability, as it is found in the case of PPVs [84].
These materials were obtained through Wittig-Horner-Emmonds reaction between an acetylene containing phosphonate and/or aldehyde precursors. To attain insight into the structural and electronic properties of such hybrid conjugated aromatic polymers, Bredas et al. [85] carried out experimental and theoretical investigations on a number of corresponding monodisperse conjugated oligomers. They demonstrated the tunability of the electronic properties of the materials by inserting double/triple bonds and by changing the aromatic cores within a given oligomeric backbone. By substituting the inner benzene ring (P4) with an anthracene unit (P5) or by switching from triple bonds to double bonds around the central unit (P6) (Figure 5), the authors also showed that it is possible to red-shift the absorption spectra. Anthracene substitution also allowed to remarkably red-shift the fluorescence [86].
Chu et al. [87] demonstrated that hybrid systems are also interesting for the high energy transfer between PPV and PPE counterpart. They found that the absorption of the copolymer P7 (Figure 6) corresponding to the sum of the absorption of the chromophores blocks C1 and C2. However, the fluorescence spectrum exhibited emission peaks which were quite similar to those observed for the chromophore block C2, thus indicating an efficient energy transfer from PPE moiety to PPV counterpart. Photoexcitation dynamics and laser action studies in solution were also carried out for PPE-PPV copolymer, confirming the interchain interaction between the two moieties [88]. These results elucidated the behavior of the hybrid conjugated system as well as the effects due to the functionalization with specific moieties, playing a key role in the design of polymers with suitable features for OPV applications.

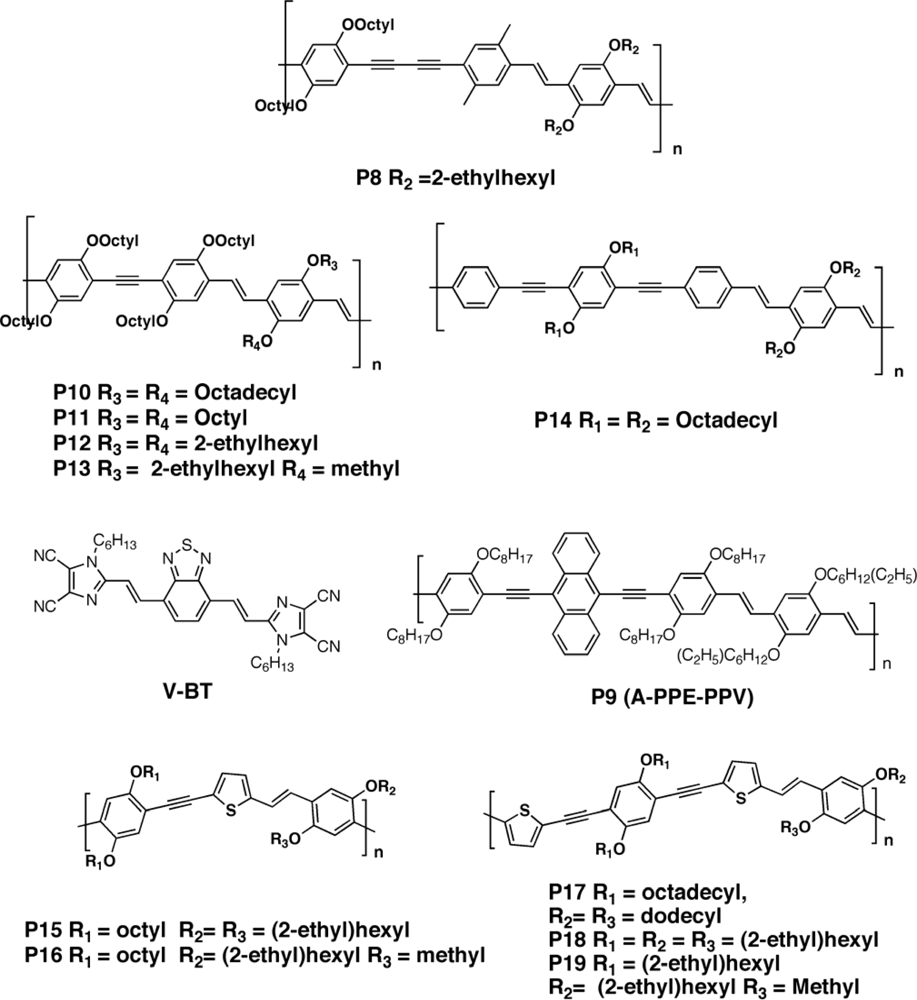

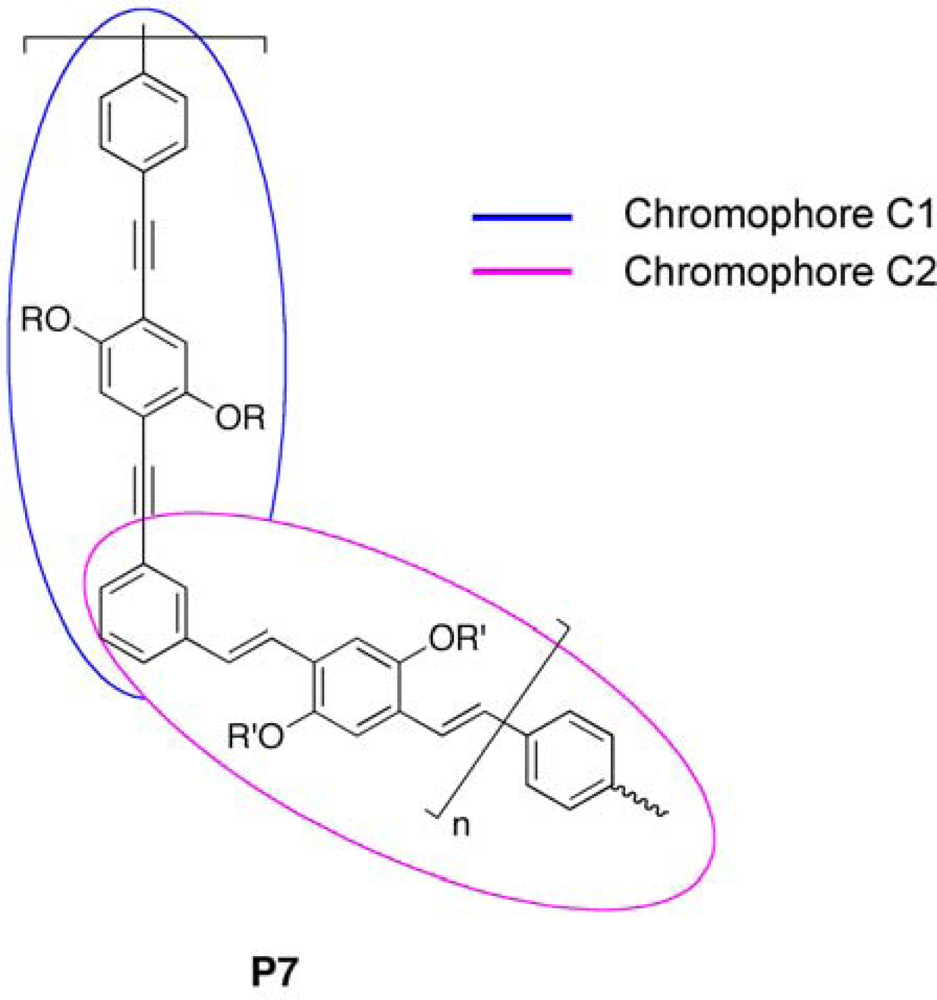

Egbe et al. [8992] synthesized novel PPE-PPV copolymers for photovoltaic devices. In their earlier work, they reported that hybrid arylene-ethynylene/arylene-vinylene polymers P8 and P9 (Figure 7) exhibited a higher open circuit voltage relative to MDMO-PPV systems. The increased open circuit voltage was attributed to the electron-withdrawing nature of the triple-bond moieties, which led to an enhanced electron affinity, and consequently, to a higher oxidation potential (i.e., improved oxidation stability) as well as to a lower HOMO level (i.e., a higher ionization potential). Supporting the idea about the origin of the open circuit potential [69] originates from the quasi-Fermi level splitting between the donor HOMO and the acceptor LUMO, a lower donor HOMO level corresponds, in general, to an improvement in the device efficiencies. For the device made with P9 and PCBM (1:2 wt/wt) [89], a Voc of 0.81 V was observed with a quite low short circuit current, because of the large scale phase segregation, of 4.3 mA/cm2 and a FF of 59%, resulting in a PCE of 2%. Through further investigations, Egbe and co-workers have found that photovoltaic devices based on P9/PCBM blends with a weight ratio of 1:2 [93] and 1:1 [94] showed efficiencies of 3.14% and ∼2.5%, respectively. The difference between PCE values achieved in ref. 89 and ref. 93 was ascribed by the authors to differences in polymer P9 molecular weights as well as differences in the experimental conditions.
Molecules with similar structure (P12P14) were studied by Al-Ibrahim et al. [95]; the best result was obtained with a device based on P12 (Figure 7), which gave the following parameter values: Voc = 0.86 V, Jsc = 4.2 mA/cm2 and FF = 46%. By using P14 as donor material the same authors achieved a device exhibiting Voc = 0.72 V, Jsc = 1.86 mA/cm2 and FF = 38%.
The alkoxy side chain was found to influence the devices performances [9698]. Of particular note, the Voc value of devices based on the copolymers P10P14 investigated in the work were found to depend much more on the length and nature of the grafted alkoxy side chains than on HOMO energy levels. For example, the open circuit voltage changed from 750 mV for P10 to 900 mV for P14 (Figure 7). Indeed, longer side chains not only limited the interfacial area between the donor conjugated backbone and the acceptor components, but might also favor an easy recombination of the photo-generated charges by elongating the percolating path as well as hampering the transfer of charges to the electrodes. Short circuit current was also found to be affected by the insulating nature of the longer side chain with a maximum around 2 mA/cm2; the highest PCE value obtained was 1.75% for P12.
To better evaluate the efficiency of acetylene-based polymers, Sellinger and coworkers [99] compared poly(2,5-dioctyloxy-1,4-phenylene-ethynylene-9,10-anthracenylene-ethynylene-2,5-dioctyloxy-1,4-phenylene-vinylene-2,5-di(2′-ethyl)hexyloxy-1,4-phenylene-vinylene (A-PPE-PPV) (P9) and P3HT with a novel acceptor material, 4,7-bis(2-(1-hexyl-4,5-dicyanoimidazol-2-yl)-0vinyl)benzo[c]1,2,5-thiadiazole (V-BT). The LUMO energy level of P9 was found to be −3.1 eV, and the LUMO of V-BT (−3.49 eV) was sufficiently low to allow photo-generated excitons on P9 to be separated at the hetero-interface. Both the A-PPE-PPV: V-BT and PH3T:V-BT devices exhibited low efficiency (<0.4%) due to the very low Jsc and FF. As expected because of a sufficiently large LUMO(V-BT)- HOMO (P9) offset, the Voc value of the corresponding device was high (∼0.9 V), whereas for P3HT-based device a Voc < 0.6 V was reached. By using this acceptor, the efficiency in the P3HT-based solar cells was limited by an incomplete dissociation of the photo-generated excitons, as indicated by incomplete photoluminescence (PL) quenching. On the opposite side, P9/V-BT blends showed nearly complete quenching and thus very efficient exciton separation. However, missing percolation pathways and recombination via exciplex emission seemed to be the limiting processes. The low FF (30%–40%) observed for each donor polymer blended with V-BT was attributed to low electron mobility.
Polythiophenes, e.g., poly(3-hexylthiophene), have been proven to be efficient donor materials for photovoltaic devices in conjunction with fullerenes. Relatively high short circuit currents of up to 10 mA/cm2 were measured, which was attributed to a high degree of intermolecular ordering leading to high charge carrier mobility [100,101]. Egbe et al. [102,103] synthesized thiophene-containing arylene-ethynylene/arylene-vinylene alternating copolymers with 1:2 and 2:2 ratio of triple-bond/double- bond units and explored the BHJ device performances. By reducing the number of the triple bonds units in the polymer the photovoltaic performance was found to improve. Indeed, a higher number of triple bonds resulted in lowering the mobility of the photo-generated charges, and also enabled strong π–π interactions among the donor molecules, thereby limiting the contact area between donor and acceptor molecules. The polymer P15 (Figure 7) reached a maximum efficiency of 1.21% while that for P16 was 1.74%, with an increase in the short circuit current of 40% for the latter. As expected, the open circuit voltage for both P15 and P16 was higher than in P3HT. This was attributed to a larger donor-acceptor interfacial area in P15- than in P16-based cells, as evidenced by the smaller nanoscale clusters size observed in the AFM topology. By inserting a further thiophene ring to obtain polymer P1718, the cell characteristics were found to be much more influenced by the alkoxy chains. The best results were obtained for P18-based solar cells, with an open circuit voltage of 0.8 mV, a short circuit current of 4.19 mA/cm2 and a PCE of 1.52%. Going from P17 to P19 (that differ from another only in length of the alkoxy chain) the device efficiency decreased of ∼5×. The AFM images did not show clear donor–acceptor phase separation of the active layer in P18 and P19 cells, thus confirming their similar photovoltaic performance. However, a very large phase separation arises after attaching long dodecyloxy and octadecyloxy side chains as in the case of P19. In contrast to the PPV-type polymers, PPEs having structures closer to those of the PPV, have received much less attention, probably because their absorption did not well match the solar spectrum.

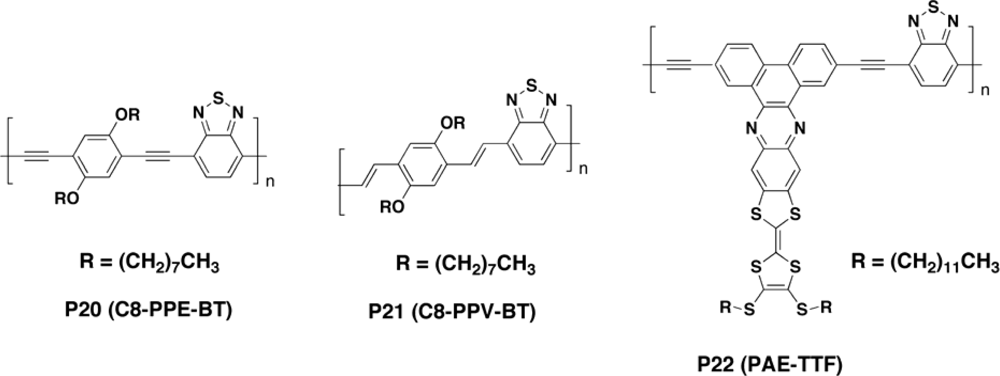

Lu et al. [104] synthesized a novel PPE derivative (P20, Figure 8) containing benzothiadiazole (BT) co-monomer. The alternation of donor and acceptor units in the main chain of P20 resulted in the considerable shift of the maximum absorption band position to a longer wavelength of 485 nm compared with that of pure PPE (374 nm), indicating the presence of extensive π-conjugated system. A strong charge transfer from the π* band of P20 to PCBM was observed in the excited state but the efficiency of the resulting BHJ device was very low (0.022%). The open circuit voltage was good (0.7 V), thus confirming the ability of the triple bond to decrease the HOMO energy levels; unfortunately, the low short circuit current (82.7 μA/cm2) and low fill factor (0.29%) adversely affected the global efficiency of the device. Comparing the photovoltaic performance of P20 to P21 (Figure 8), in which triple bonds are replaced by double bonds to connect dioctyloxybenzene units and benzothiadiazole units, it was demonstrated a somewhat higher efficiency of P21/PCBM blend device (0.335%). This was tentatively attributed to P21 better ability in transferring electrons to PCBM, as well as to a more effective conjugation length, leading to a broader optical absorption range [105].
Hou et al. [106] prepared a novel tetrathiafulvalene (TTF)-fused poly(arylene ethynylene) P22 (PAE-TTF, Figure 8) where the linear main chain acts as electron-deficient acceptor and the π-conjugated TTF units act as electron-rich donor in the side chains. Intramolecular charge transfer between the TTF side chains and the main chain was demonstrated. The electroactivity of the TTF units was found to be closely associated with the HOMO–LUMO levels of the conjugated polymer. Effective π–π stacking in the solid state was ensured from the coplanarity of the acceptor main chain and the donor TTF side chains. A photovoltaic device based on PAE-TTF has been fabricated and characterized. Initial studies revealed that the corresponding open-circuit voltage, short-circuit current, fill factor and power conversion efficiency were 0.42 V, 2.47 mA/cm2, 24.2% and 0.25%, respectively. The lack of effective absorption in the red to near-infrared region of the solar spectrum was considered to account for the low power conversion efficiency. Although the power conversion efficiency was relatively low, it excels that of other reported TTF-fused systems, indicating that this kind of TTF-fused polymers might become a promising active material for photovoltaic devices.
To ensure better solar emission spectrum coverage, it is also possible to introduce a strong chromophore like a porphyrin into the polymer skeleton, as reported by Huang et al. [107]. The planarity and S···S interaction of fused thiophenes in the backbone also promoted highly ordered π-stacked structures and high hole mobilities. The single bond linked polymer P23 showed higher molecular weight and better thermal stability than the triple-bond linked counterpart P24 (Figure 9). The Soret band and Q-band of the latter were further red-shifted by ∼28 and 94 nm, respectively; the Q-bands of P24 were broadened and stronger, compared to that for the single-bond linked counterpart P23. The absorption spectrum of polymer P23 as a thin film was similar to that obtained in solution, which was likely a result of the twisted main chain. However, the Soret band and Q-band of P24 were broadened and red-shifted by 18 and 57 nm respectively, on going from solution to solid state. It is worth noting that the Q-band of P24 in thin-film was located at 650–850 nm and was much stronger than that in solution. This is beneficial to sunlight harvesting, as the solar emission spectrum peaks at 600–800 nm. The red-shifted absorption and stronger Q-band of P24 as a thin film was probably related to the aggregation caused by a more coplanar main chain. The triple-bond linked polymer P24 was electrochemically active in the oxidation as well as the reduction region, while the single-bond linked polymer P23 showed only an oxidation peak potential.
Field-effect hole mobilities up to 2.1 × 10−4 cm2 V−1 s−1 were obtained for these porphyrin-dithienothiophene copolymers. P24 showed higher mobility than P23 at room temperature, which was attributed to a more coplanar and extended π-conjugated main chain in P24, stronger aggregation and intermolecular interactions in the solid state. Thermal annealing of P24 led to a different film quality and, therefore, different device performance. An optimal PCE of 0.3% was achieved using P24:PCBM (1:3, w/w) as the active layer, which is among the highest PCEs reported for the device based on porphyrin-containing molecules and polymers. Open-circuit voltage, short-circuit current and fill factor reached 0.58V, 1.52 mA/cm2, 0.34%, respectively. The PCE of the solar cell based on P24:PCBM (1:3, w/w) was twice as great as that based on P23:PCBM (1:2, w/w). This correlates well with the stronger Q-band absorption and higher mobility at room temperature observed for P24.

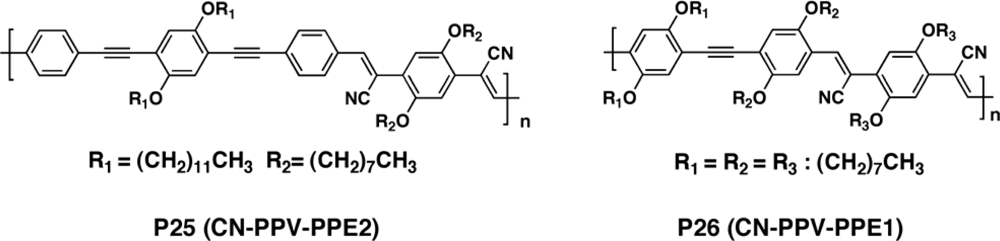

Egbe et al. [108,109] employed alkoxy-substituted CN-containing phenylene-vinylene-phenylene-ethynylene hybrid copolymers (CN-PPE-PPV), P25 and P26 (Figure 10), as acceptors in single layer, bilayer and bulk heterojunction devices. The inclusion of the cyano group caused a decrease in the HOMO and LUMO energy levels, which perfectly matched donor, poly[2,5-dimethoxy-1,4-phenylene-1,2-ethenylene-2-methoxy-5-(2-ethylhexyloxy)-1,4-phenylenevinylene-1,2-ethenylene (M3EH-PPV). An interesting feature in these results was that the copolymers P25, whose constitutional units include two triple bonds, showed smaller discrepancy between optical and electrochemical band gap energies to that of copolymer P26, whose repeating unit consists of one triple bond. This was interpreted in terms of similarities and differences in the polymer chains alignment (i.e., thin-film morphology) in films prepared by spin-coating for optical investigations and by drop casting for the electrochemical studies. Indeed, the presence of a higher number of triple bonds in P26 enhanced the conjugated backbone rigidity (and coplanarity), leading to a greater intrinsic self-assembly ability, thereby limiting the dependence of the film morphology on the preparation methods.
As expected, the efficiencies for single layer cells were quite low. However, the device containing polymer with only one triple bond on the repeating unit (P26) showed a surprisingly high IPCE with 3.9%. On the contrary, pure single layer devices with P25 reached only a peak IPCE of 0.15%. Solar cells based on a blend of M3EH:P25 (1:1 wt/wt) achieved an IPCE of 26%, which is among the highest values reported for polymer-polymer blend devices. Interestingly, the open circuit voltage of these devices reached ∼1.5 V. Similar high Voc of 1.5 V and IPCE of 16% were obtained in M3EH:P26 blend. As a result, the energy efficiencies under white light were 0.80% and 0.62% for P25 and P26, respectively. The small fill factor (16%–26%) observed for the blend devices suggested that the electron mobility in these hybrid polymers was rather low. This hypothesis was supported by the photovoltaic performance of P25 and P26 in bilayer devices, which was found to decrease with increasing thickness of the acceptor layer. In particular, in the case of P25 (two triple bonds), the FF dropped from ∼23% from the thinnest acceptor layer to less than 13% for the thickest, whereas it dropped to ∼18% for compound P25 (one triple bond). The increasing number of ethynylene units into the backbone of CN-PPV seemed therefore to reduce the ability to transport electrons. The authors rationalized this finding in terms of a low rotational barrier around the triple bond, which increases the energetic disorder of single polymer chains. The Voc of the bilayer devices from P25 and P26 was ∼1.5 V. However, because of the small fill factor and the low IPCE, the energy efficiency was only 0.6% in both cases.
Ashraf et al. [110] synthesized two poly(heteroaryleneethynylene) derivatives containing thieno[3,4-b]pyrazine as the acceptor and thiophene (P27) or dialkoxyphenylene (P28) as the donor, respectively, to achieve absorption in the 390–800 nm region (Figure 11). Both materials have low optical band-gaps (∼1.57 eV), due to donor-acceptor push-pull effects through the conjugated triple bonds. Photovoltaic devices based on the blends of P27, P28 (as electron donor) and PCBM (as electron acceptor) has been fabricated on a polyester foil. The cell based on P27/PCBM (1:1 wt/wt) showed an open circuit voltage of 0.67V, a short circuit current of 10.72 mA/cm2, and a PCE value of 2.37%. The corresponding device parameters found using P28/PCBM (1:2 wt/wt) were 0.7 V, 4.45 mA/cm2, and 1.36%.

3.2.3. Metallopolyyne Polymers

Inclusion of transition metals into macromolecular organic scaffolds allows the hybridization of the interesting physical characteristics of metal complexes such as electronic, optical and magnetic properties with the solubility and processability inherent to carbon-based polymers. Within the framework of synthetic metal-containing polymers, rigid-rod transition metal-acetylide polymers, or metallopolyynes (MP) in short, have spurred tremendous global interest at the forefront of many organometallic polymer investigations.
The interest in these materials, and in platinum polyynes in particular, lies in the nature of interaction between the conjugated ligands and the metal. Pt-polyyne is a metal complex in a square planar configuration. The complexation of an electron-donating transition metal (Pt) ion into the polymer main chain was reported to enhance the intrachain charge transport of π-conjugated polymers [100,101,111,112]. When Pt metal is conjugated with an alkyne unit, the d-orbitals (dxy and dxz) of the Pt overlaps with the π-orbitals (πy* and πz*) of the alkyne unit leading to an enhancement of π-electron delocalization along the polymer chain. The metal ions act as a barrier to this delocalization, so that optical excitations are expected to have the character of molecular excited states and thus be in the form of strongly bound excitons. Most of the photo-excited states in these organometallic polymers are triplet excitons. Indeed, the triplet exciton is confined to one monomer unit [113]. With reference to the Jablonski energy level diagram in a simple photoluminescence (PL) system, there are two radiative decay processes upon the absorption of photons by a molecule from the ground state (S0), fluorescence (Sz→S0) and phosphorescence (T1→S0). The relative positions of the lowest singlet (S1) and triplet (T1) excited states strongly affect the intersystem crossing (ISC) rate into the triplet manifold. This provides a major non-radiative decay mechanism for organic systems, thereby reducing the PL efficiency in purely fluorescent molecules. Triplet states are not produced efficiently as a result of a direct excitation of most organic conjugated materials. Therefore it is necessary to use materials that incorporate heavy atoms, which give rise to efficient intersystem crossing by enhancing the spin-orbit coupling. Platinum acetylide polymers represent a class of π-conjugated materials featuring high quantum efficiency for intersystem crossing (to produce the triplet excited state) following direct excitation.
It is thought that triplet excitations play an important role in optical and electrical processes within conjugated organic polymers with direct implications for their technological applications in optoelectronics and photonics [114]. Indeed, triplet excited states can be harnessed to increase the efficiency of charge generation in OPV active materials [115,116]. The long lifetime of the triplet state may enhance the probability of exciton diffusion to a donor-acceptor interface. What’s more, quantum mechanical spin restrictions prevent charge recombination in the geminate ion-radical pair produced as a result of photoinduced charge transfer from a triplet state precursor.
Despite this fact, metallated conjugated polymers have rarely been tested as materials for organic solar cells. We focused this part of the review on soluble π-conjugated organometallic poly-yne polymers of the form trans-[-Pt(PBu3)2C≡CRC≡C-]n (R = arylene or heteroarylene). These systems are mainly obtained by the coupling reaction between bis-terminal alkyne units and trans-dichlorobis(trialkylphosphine) platinum(II) unit through dehydrohalogenation methods [117,118].
The prototype for much of the initial metallopolyyne work was the Pt poly-yne MP1 (Figure 12). Köhler et al. [119] showed that the maximum photocurrent quantum efficiencies for carrier generation in single-layer neat polymer MP1 cells of ITO/MP1/Al were ∼0.03–0.6%, and the performance was comparable to that found in similar devices made with PPV. Remarkably, the quantum efficiency of ∼1–2% could be achieved for the ITO/MP1:C60/Al cell with the addition of 7 wt% of C60 [113]. They provided evidence that the polymer triplet state was active in charge generation by observing that C60 only partially quenched the polymer’s singlet emission but completely quenched the triplet emission.
In 1999 Chawdhury et al. [120] demonstrated the same using higher conjugated polymers with thiophenyl-, dithiophenyl- or terthiophenyl chain between bridging triple bonds (Figure 12). With increasing thiophene content for the oligothienyl chain the optical gap value decreased; this was attributed to a greater delocalization of π-electrons along the polymer backbone. It was also noted that when the number of thiophene units increased, the overall effect on the band gap decreased. From the photocurrent action spectra of the Au/MP2/Al, ITO/MP3/Al, and ITO/MP4/Al photocells, polymers appeared to be good photoconductors and showed a photocurrent quantum efficiency of ∼0.04% at the first photocurrent peak, which is common for many single-layer devices. The photoconducting properties did not depend on the size of the thiophene fragment.
More recently, an external quantum efficiency of ∼9% has been achieved by Guo et al. [121] for the ITO/PEDOT-PSS/(MP2)-PCBM(1:4)/Al bulk heterojunction device which resulted in a Voc of 0.64 V, a Jsc of 0.00 mA/cm2, and a PCE of 0.27%. The overall efficiency varied with the photoactive layer thickness. Evidence obtained by photophysical measurements suggested that the efficiency for generating long-lived charge separation was substantially higher when the excited state of the organometallic polymer that preceded a photoinduced electron transfer process was a triplet state. However, the polymer absorbed light only in the blue-violet visible spectroscopic region, and consequently the efficiency was disappointing because of the low coverage of the solar spectrum.
A high photocurrent quantum yield of up to 1% was reported in 1998 by Younus et al. [122] for sandwich-type diode structure ITO/MP5/Al in air, although the phosphorescent state was not apparently involved in the photovoltaic effect. Due to the push-pull interaction between the electron-donating Pt-ethynyl group and the electron withdrawing 5,7-diphenyl-2,3-dithieno[3,4-b]-pyrazine unit, polymer MP5 has an unusually low Egap at 1.77 eV.

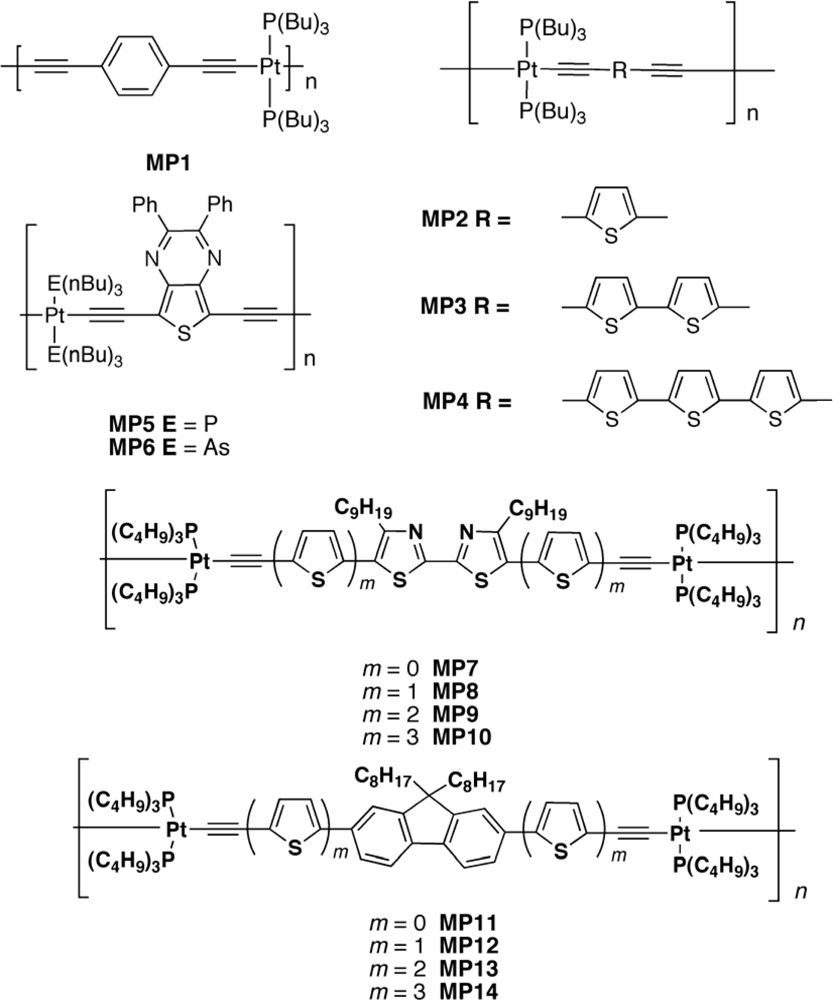

Wong et al. [123] synthesized a series of platinum(II) polyynes containing bithiazole-oligo(thienyl) rings (MP7-10, Figure 12). They tuned absorption, charge transport properties, and solar cell efficiency by varying the number of thienyl rings. A high PCE of up to 2.50–2.66% was obtained for MP9 and MP10; the Voc was quite good and increases with the number of thiophenes, going from 0.73 to 0.88 V. Same result for short circuit current density; the Jsc was considerable increased from 0.91 mA/cm2 to values over 6.50 mA/cm2. The broad EQE curves for MP9 and MP10 covered almost the entire visible spectrum from 350 to 700 nm with a maximum of 81.3 and 59.3%, respectively. At the same blend ratio of 1:4, the PCE increased sharply from MP7 to MP10 (i.e., MP7 < MP8 < MP9 < MP10), and it is remarkable that the light-harvesting ability of MP10 could be increased by 12 times relative to MP7 simply by adding more thienyl rings along the polymeric backbone.
Changing the bithiazole with fluorene (MP11-14) L. Liu et al. [124] obtained a similar trend, but a higher PCE (<2.9%). This was a result of a higher current density (6 times increasing), very good open circuit voltage (0.89 V) and also a very high EQE (83%).

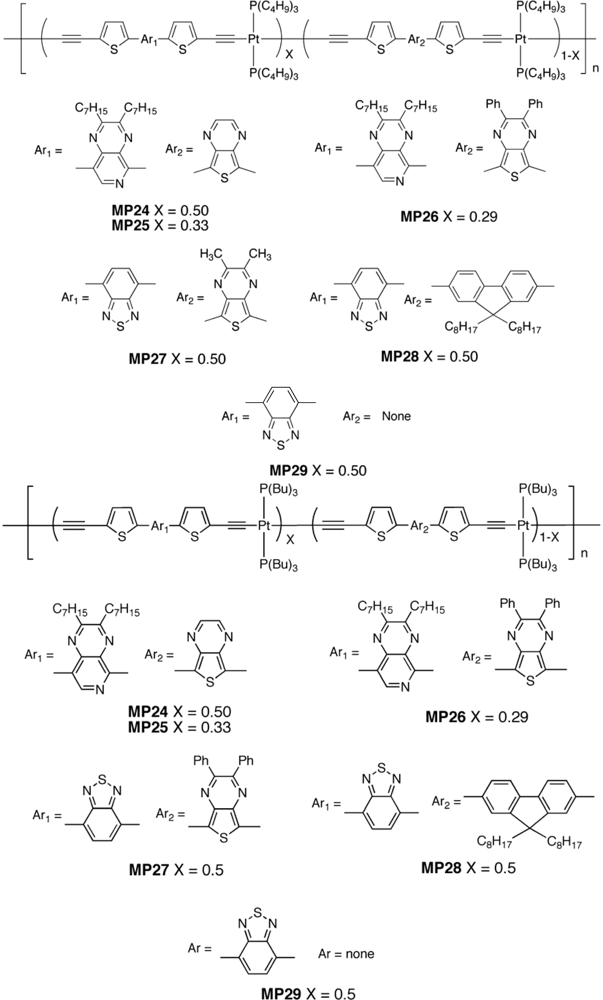

The breakthrough in organometallic photovoltaics came from another work by Wong et al. [125]. The bulk heterojunction cells consisting in a strongly-absorbing metallopolyyne MP15 (Figure 13) and PCBM exhibit substantial photovoltaic responses, comparable to the best reported efficiencies of fully optimized devices based on P3HT. A considerable increase in the short-circuit current density and the power-conversion efficiency was observed in MP15 in respect of P3HT. The open-circuit voltage obtained for the best cell was 0.82 V, the short-circuit current density was 15.43 mA/cm2 and the fill factor was 0.39, resulting in the PCE of 4.93%. EQE as high as 87% at 570 nm was also obtained. The open-circuit voltage was higher than P3HT/PCBM cells, which was attributed to the lower HOMO level of MP15 (−5.37 eV, compared with −5.20 eV for P3HT). The best ratio between donor and acceptor was found 1:4 wt/wt because of a better phase separation. Formation of PCBM-rich domains improved charge transport and carrier collection efficiency, which resulted in a reduction of recombination losses and in an increase in short-circuit current density. It was not a triplet state but mostly a charge-transfer excited state that contributed to the efficient photoinduced charge separation in the energy conversion for MP15. The charge transfer nature of the transition was also supported by solvatochromism of MP15. Several groups [126,127] raised serious doubts that the reported efficiencies were significantly overestimated. Baek et al. [128] developed a series of Pt-based polymers (MP16MP18, Figure 13) derived from MP15 by substituting the thiophene rings with the more rigid tienothiophene. They also changed the alkyl chain both on fused thiophene and on phosphorus. The solar cell giving the best performance was based on the highest hole mobility polymer MP18 blended with PCBM. The device resulted in a Jsc of 5.67 mA/cm2, an open circuit voltage of ∼0.8 V and a PCE of 2.22%. Changing the acceptor from PCBM to PC71BM the authors found that it was possible to increase the cell efficiency, due to the better absorbance and charge transport properties of the latter. An average power conversion efficiency of 3.73% was achieved, with a short circuit current value of 9.61 mA/cm2.

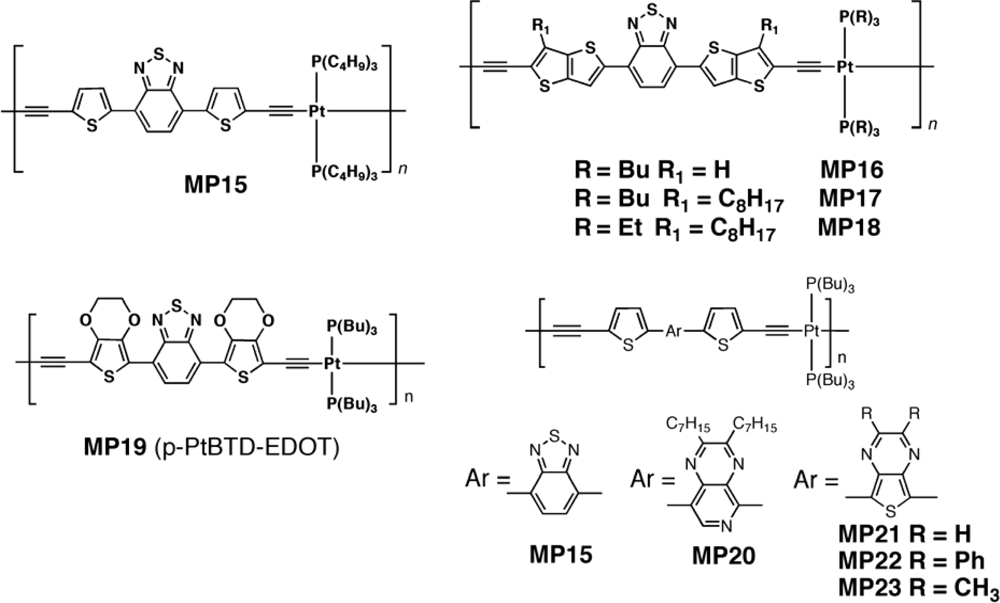

Very recently, Mei et al. [129] developed two polymers which feature a π-conjugated segment consisting of a 2,1,3-benzothiadiazole acceptor moiety flanked on either side by 2,5-thienyl donor (p-Pt-BTD-Th, MP15), and (3,4-ethylendioxy)-2,5-thienyl (p-PtBTD-EDOT, MP19) donor units, respectively (Figure 13). Both polymers absorbed strongly throughout the visible region. When tested in OPV device, if the BTD unit was flanked by (3,4-ethylenedioxy)-2,5-thienyl donors (MP19) a maximum PCE of 0.78%, a short circuit current of 4.56 mA/cm2 and a Voc of 0.50 V were achieved. Wong et al also reported on photovoltaic devices on MP19 and showing lower PCE as well as Jsc values, but higher Voc (0.55 V) [130]. The results achieved suggested that charge separation occurred with high internal quantum efficiency, but the overall photovoltaic performance was limited by incomplete light harvesting and low carrier mobility. The photophysical studies of the polymers revealed that, although a triplet excited state was produced following light absorption, it was too low in energy to undergo PET with PCBM. Studies carried out in solution demonstrated that quenching of the singlet state of the polymers by PCBM was efficient, thus leading to the conclusion that the photovoltaic response of the solid materials arised because of charge separation from the singlet state of the polymer.
The results pointed to the fact that, in order to harness the triplet excitons for charge separation in low-band-gap materials, it is necessary to manipulate the energy levels of either the polymer or the acceptor. If the BTD was flanked with thiophene, careful optimization of processing conditions and the active layer thickness afforded MP15/PCBM-based devices that exhibited peak IPCEs of 36% (vs. 87% at 575 nm) and overall power conversion efficiencies of 1.39%. The photovoltaic devices based on the low-band-gap polymers display considerably improved performances compared to devices based on blends of a wide-band-gap (blue-absorbing) platinum acetylide polymer.
Other examples were recently reported [131] both with PC71BM and PC61BM as acceptors. In particular, Wu et al. [131,132] synthesized and tested a series of Pt-containing D-A polymers and copolymers systems in bulk heterojunction solar cells (MP15, MP20-29). General structures are shown in Figures 13 and 14.
The authors also reported the photovoltaic device made with MP15 with a PCE much closer to Janssen prediction (i.e., 2.2%) [126]. The results are summarized in Table 1. The overall power conversion efficiency of the BHJ solar cells incorporating these organometallic “polymers as donors and PC71BM (or PC61BM) as acceptor varied widely among the polymers. The best efficiencies were 0.68%, 0.71% (MP20 and MP29, respectively) and 2.41% for MP15. Open circuit voltage varied in a range from 0.3 V to 0.8 V; the short-circuit current density of the photovoltaic devices within this series of polymers was relatively low (0.17–4.21 mA/cm2) except in the case of MP15 (9.65 mA/cm2). However, the Jsc value was much lower than the reported 13.1–15.1 mA/cm2 for MP15 by Wong [125], this being the major limiting factor on the solar cell performance.
The Jsc was greatly reduced going from MP15 to MP20, MP21, and MP23, for not explained reasons. Although the lower hole mobilities of MP20 and MP21 were considered contributing factors, however, MP23 showed a higher mobility than MP15 and a much lower Jsc. MP24 and MP25 presented moderately high molecular weights but their hole mobilities were low, accounting for their rather poor Jsc values (1.39 and 0.99 mA/cm2). MP22 and MP26 were poor p-type semiconductors for BHJ solar cells as a result of their low molecular weights and poor carrier mobilities. Even though additional electron-donating groups were incorporated into copolymers MP28 and MP29, their hole mobilities and Jsc were not improved.

3.3. Donor-Fullerene Hybrids

The covalent fixation of the C60 group on the π-conjugated system has progressively emerged as a very active field of research [133,134]. In addition to a possible answer to the problem of phase segregation and clustering phenomena, it is also possible to provide new synthetic tools for a more global control of the interface between the π-conjugated donor and the fullerene acceptor. This should allow a fine tuning of relevant parameters such as the ratio, distance, relative orientation and mode of connection of the donor and acceptor groups. Furthermore, in addition to interesting model systems for the analysis of the fundamental aspects of photo-induced charge generation, C60-derivatized π-conjugated systems (DF) can open interesting opportunities to develop nanoscale or molecular photovoltaic devices.
This section deals with hybrids in which oligomeric/polymeric structures incorporating acetylenic linkages such as phenylene ethynylenes and thienylene ethynylenes have been attached onto C60, and their use as the active materials in photovoltaic devices. For details on their preparation the reader is referred to the original papers.
Nierengarten et al. [135137] described the synthesis of the C60-oligophenylene ethynylene (OPE) dyads DF1-DF4 (Figure 15). For all compounds the UV-vis spectrum exhibited the spectral signature of the two individual building blocks, indicating an absence of significant ground state interactions, whereas the quenching of luminescence of the π-conjugated chain clearly pointed out the occurrence of intramolecular photoinduced processes. As far as the charge carrier mobility properties are concerned, an increasing trend for the hole mobility was found in correspondence with a longer conjugated backbone. This observation was ascribed to a better stabilization of the cationic species when the length of the conjugated backbone is increased. At the same time the electron mobility, which was in all cases greater than the hole mobility, increased when the intrinsic fullerene:OPE weight ratio was higher, i.e., when the oligomeric chain was shorter. The performances of the photovoltaic cells based on DF1DF4 were rather limited. The authors stated that the low mobilities measured were an important limiting factor. Indeed, having the highest average charge carrier mobility, compound DF3 exhibited also the highest short circuit current (1.16 × 10−6 A/cm2) and the highest overall energy conversion efficiency (0.02%). Interestingly, the electron mobility of the N,N-dialkylaniline terminated derivatives DF3 and DF4 (3.93 × 10−6 cm2/Vs and 7.00 × 10−7 cm2/Vs, respectively) was found to be almost one order of magnitude higher when compared to the corresponding homologues DF1 and DF2, leading therefore to a significantly improved performance of the corresponding devices. This was explained in terms of the different donating ability of the OPEs.
Atienza et al. [138] recently reported the synthesis and PV application of a light harvesting tetrafullerene nanoarray in which four C60 units were covalently linked to a single oligo(p-phenylene ethynylene)-type π-conjugated oligomer (DF5). No significant PV effect was observed for the single layer device; photophysical studies carried out in solution and in thin films demonstrated that the absence of PV activity was due to an inefficient photoinduced electron-transfer process between the OPE central core and the peripheral C60 units. The low tendency for photoinduced charge generation in these tetrafullerene conjugates was caused by a relatively high oxidation potential for the OPE oligomers. Nevertheless, the combination of this new conjugate with P3HT led to a device that exhibited a short-circuit current of 1.2 mA/cm2, a Voc of 0.65 V, and a fill factor of 0.17%. The external quantum efficiency of the devices reached 15%. This demonstrated that DF5 acted as an efficient electron acceptor in combination with P3HT as electron donor.
More recently [139] two new tetrafullerene hybrids, DF6 and DF7, were synthesized and their PV response evaluated by using them as active materials in single layer devices. In solution these nanoconjugates exhibited a very fast deactivation (∼10 ps) of the singlet excited state of the central core unit to produce both charge-separated species and C60 singlet excited states. The formation of a charge separate state was more pronounced for DF7, whose central core presents a stronger donor character. The charge-separated state recombined partially to the C60 centered singlet state, which underwent subsequent intersystem crossing. Photophysical studies carried out in films supported these data, demonstrating long-lived triplet excited states. For both nanohybrids, the low yield of long-lived charge carriers in thin films accounted for the limited PV response (0.005% and 0.015%, respectively).

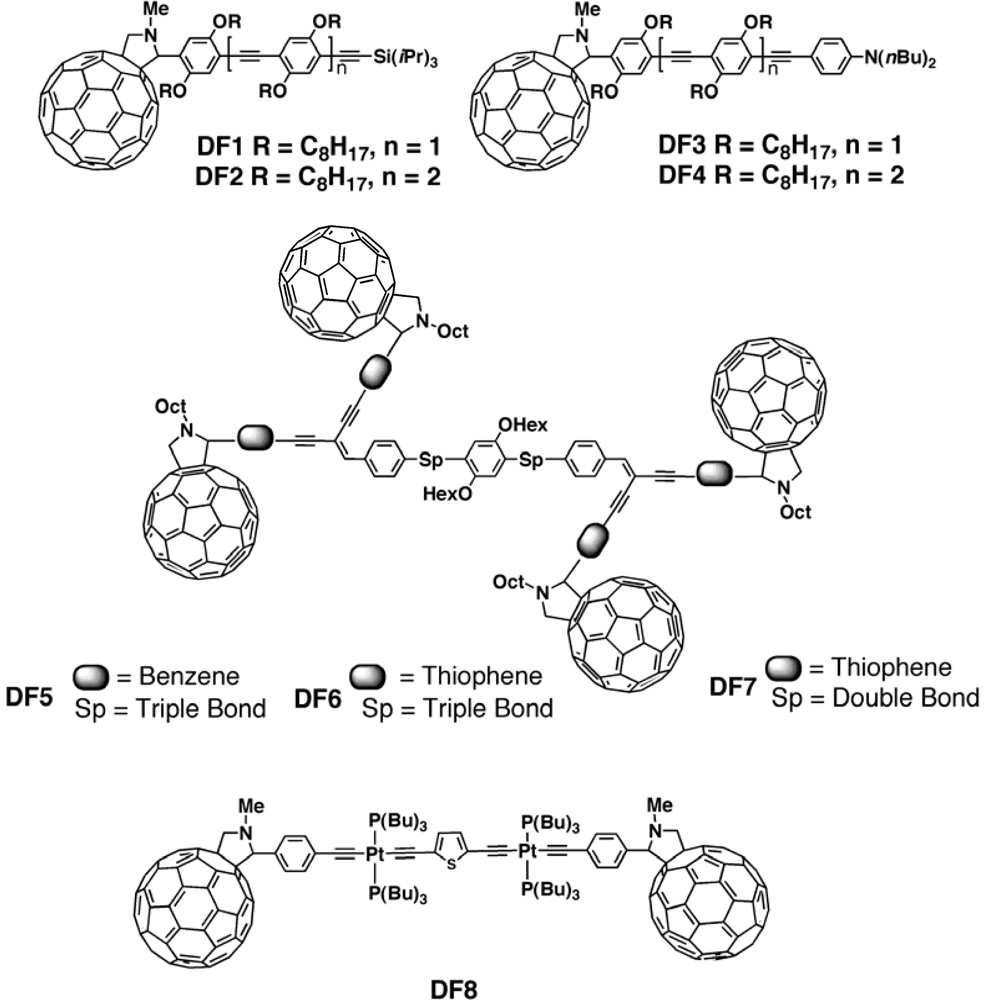

Guo et al. [140] synthesized a donor-acceptor triad (DF8, Figure 15) consisting of a platinum-acetylide oligomer that contains fulleropyrrolidine moieties. The authors aimed at gaining insight into the mechanism, efficiency and dynamics of photoinduced charge transfer from the platinum-acetylide chromophore to a fullerene acceptor. Electrochemistry of the triad revealed four reversible redox processes. First, on the anodic sweep was observed a single, reversible oxidative wave at E1/2 = +0.83 V. This wave corresponds to a one-electron process and it was attributed to the oxidation of the platinum acetylide moiety. The cathodic scan reveals three, reversible waves in the potential region from −0.5 to −1.6 V. These waves represented the reduction of the two fulleropyrrolidine units. Transient absorption studies indicated that photoinduced charge transfer occurred very rapidly following photoexcitation of the platinum-acetylide chromophore with a 400 nm excitation pulse. Although a quantitative assessment of the contributions of the singlet and triplet electron transfer pathways was not possible, the authors supposed that photoinduced charge transfer occurred predominantly from the triplet state, which was produced very rapidly following photo-excitation. This means that the geminate ion radical pair which was produced by photoinduced electron transfer was in a triplet spin state. Despite the possible involvement of the triplet in the charge separation process, the charge separated state decayed rapidly. When the triad was tested in an OPV device, a short circuit current of 0.5 mA/cm−2, a Voc of 0.41 V and an overall power conversion efficiency of 0.056% were obtained. The peak IPCE of the device was 22% under a monochromatic light intensity of 10 μW cm−2. The results also demonstrated that hole as well as electron transport in the material was efficient. The good photovoltaic performance of the material was tentatively attributed to the favorable molecular packing in the solid state.

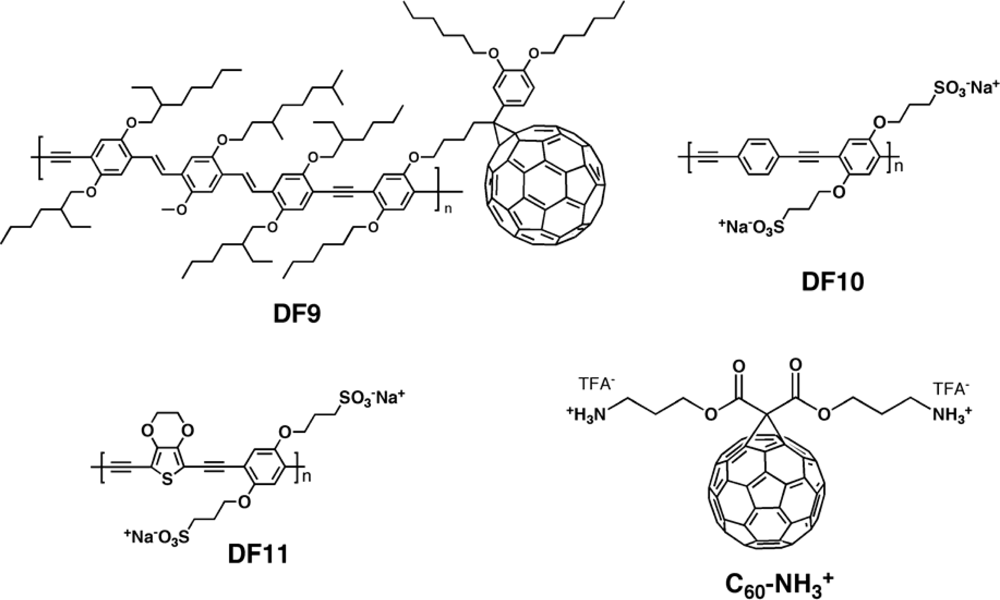

Ramos et al. [141] synthesized a novel π-conjugated polymer DF9 (Figure 16) comprising both double and triple bonds in the backbone, and carrying pendant fullerenes. Photoluminescence quenching was in thin-films of DF9, thus suggesting the presence of a photo-induced electron transfer between the conjugated chain and the pendant fullerene.
The solar cells based on DF9 delivered a short circuit current of 0.42 mA/cm2, an open circuit voltage of 0.83 V and a fill factor of 0.29. This device exhibited peak IPCE of 6% at 480 nm. The values of the photovoltaic parameters are the highest reported so far for a cell based on a single component C60-π-conjugated system.
Mwaura et al. [142] used anionic poly-(phenylene ethynylene)-based conjugated polyelectrolytes (CPE) as electron donors (DF10DF11), combined with a water-soluble cationic fullerene C60 (C60-NH3+) derivative as the acceptor (Figure 16) to fabricate thin-film photovoltaic cells using the layer-by-layer technique. Electrostatic layer-by-layer (LBL) deposition of polyelectrolytes has been shown to produce thin-films with molecular level thickness control. Combining absorption spectroscopy, atomic force microscopy (AFM), scanning electron microscopy (SEM) and XPS it was demonstrated that the deposited layers were spatially uniform, relatively smooth, and free of long-range phase segregation between the donor CPE and acceptor components. Indeed, the DF9 films exhibited a more aggregated texture relative to DF10 films, which was tentatively attributed to the DF9-based films being thicker, as this polymer was found to deposit more efficiently. For the optimal DF10/C60NH3+ cell, a short-circuit current of 0.50 mA/cm2, and an open circuit voltage of 260 mV was observed under AM 1.5 solar simulated light. Combined with a fill factor of 31%, the device gave a power conversion efficiency of ∼0.04%. The optimal photovoltaic response of DF11/C60NH3+ was not as good as that DF10/C60NH3+-based cell. Such device exhibited Voc ∼ 200 mV, Jsc ∼ 0.2 mA/cm2, FF ∼ 25% and an overall power conversion efficiency of ∼0.01%. Visual observation of DF11 cell revealed that the polymer bleached while it was illuminated with the high intensity AM1.5 solar light. The authors supposed that this photobleaching was partly responsible for the poor photoresponse of the cells that contain DF11. An interesting feature in these results was that the IPCE for the DF9 cell fell sharply at wavelengths below 400 nm, whereas that for the DF10 cell continued to increase for λ < 400 nm. It was demonstrated that the absorption in the region below 400 nm was mainly due to the C60-NH3+ component. Thus, the photoaction spectra implied that in the DF10/C60-NH3+ cells light absorbed by the C60-NH3+ component gives rise to photocurrent. By contrast, in the DF9/C60-NH3+ cells, light absorbed by C60-NH3+ seemed not to efficiently generate photocurrent. An explanation for this difference came from consideration of the thermodynamics for photo-induced charge transfer in the two cells.
Although the overall power conversion efficiencies were low, this work represents the best values yet reported on photovoltaic cells constructed using the LBL approach.

4. Conclusions

Since the pioneering investigations of Tang and co-workers [143], huge progresses have been made in organic solar cells and a large number of molecules and polymers were investigated. Although P3HT is still dominating OPV, (poly)arylacetylenes are an alternative and very promising class of semiconductors which have led to power conversion efficiencies which rival, in several cases, with the optimal values reported in literature.
Small-molecule approach presents attractions over polymer one in terms of tailoring structures to obtain desired features (e.g., energy levels, absorption spectra, charge carrier mobility, purity). However, in some cases, the scope of this approach is limited by the low reproducibility of the results, as the interactions within the active layer are not easily predictable. It is desirable, therefore, to achieve further progress concerning the supra-molecular control of the active layer morphology, i.e., by hydrogen or halogen bonding, exploiting the rigid rod like structure of monodisperse molecules.
On the other hand, the use of polymers assures better EQEs and higher reproducibility, but it is hard to control parameters such as polydispersity. The approach based on metal-containing polyarylacetylenes seems to be really promising, because it allows to combine the interesting physical characteristics of metal complexes (e.g., electronic, optical and magnetic properties) with the solubility and processability inherent to carbon-based polymers. As widely demonstrated in Grätzel solar cells, it is also possible to fine tuning the physico-electrochemical characteristics of the organo-metallic materials.
Donor-acceptor dyads (i.e., fullerene derivatives-p-type olygomers/polymers) seem to be promising as well, even though it is not yet clear what is the device limiting step (electron transfer, charge transport, etc) when these systems are used as active layer. More efforts are needed to address the issue.
The best results reported to date in the literature for (poly)arylacetylene- based photovoltaic devices are summarized in Table 2.
By exploiting the effect of the electron-withdrawing character of the triple bond and their rigid rod-like structure, acetylene containing materials can offer peculiar spectroelectrochemical characteristics (e.g., the ability to decrease the HOMO energy level, which is directly correlated with the tuning of open circuit voltage of the corresponding photovoltaic devices). Moreover, the aforementioned availability of efficient synthetic protocols allows the easy variation of specific structural features (e.g., the π-conjugation length, as well as the core functionalization with proper chromophoric groups), which may lead to an increase in the charge carrier mobility and photon/light harvesting, thus improving in principle both short circuit current density and fill factor. Therefore, it is desirable to explore new structures to advance their state-of-the art performance.

References and Notes

  1. Zhao, L; Zou, JH; Huang, J; Li, C; Zhang, Y; Sun, C; Zhu, XH; Peng, J; Cao, Y; Roncali, J. Asymmetrically 9,10-disubstituted anthracenes as soluble and stable blue electroluminescent molecular glasses. Org. El 2008, 9, 649–655. [Google Scholar] [Green Version]
  2. Luo, J; Zhou, Y; Niu, ZQ; Zhou, QF; Ma, Y; Pei, J. Three-dimensional architectures for highly stable pure blue emission. J. Am. Chem. Soc 2007, 129, 11314–11315. [Google Scholar]
  3. Tang, ML; Mannsfeld, SCB; Sun, Y-S; Becerril, HA; Bao, Z. Pentaceno[2,3-b]thiophene, a hexacene analog for organic thin film transistors. J. Am. Chem. Soc 2009, 131, 882–883. [Google Scholar]
  4. Xia, Y; Cho, J; Paulsen, B; Frisbie, CD; Renn, MJ. Correlation of on-state conductance with referenced electrochemical potential in ion gel gated polymer transistors. Appl Phys Lett 2009, 94, 013304/1–013304/3. [Google Scholar]
  5. Allard, S; Forster, M; Souharce, B; Thiem, H; Sherf, U. Organic Semiconductors for Solution-Processable Field-Effect Transistors (OFETs). Angew. Chem. Int. Ed 2008, 47, 4070–4098. [Google Scholar]
  6. Liang, Y; Feng, D; Guo, J; Szarko, JM; Ray, C; Chen, LX; Yu, L. Regioregular Oligomer and Polymer Containing Thieno[3,4-b]thiophene Moiety for Efficient Organic Solar Cells. Macromolecules 2009, 42, 1091–1098. [Google Scholar]
  7. Ooi, ZE; Tam, TL; Shin, RYC; Chen, ZK; Kietzke, T; Sellinger, A; Baumgarten, M; Müllen, K; deMello, J. Solution processable bulk-heterojunction solar cells using a small molecule acceptor. J. Mater. Chem 2008, 18, 4619–4622. [Google Scholar]
  8. Wei, SKH; Chen, SH; Dolgaleva, K; Lukishova, S; Boyd, RW. Robust organic lasers comprising glassy-cholesteric pentafluorene doped with a red-emitting oligofluorene. Appl Phys Lett 2009, 94, 041111/1–041111/3. [Google Scholar]
  9. Amarasinghe, D; Ruseckas, A; Vasdekis, AE; Turnbull, GA; Samuel, IDW. Picosecond gain switching of an organic semiconductor optical amplifier. Appl Phys Lett 2008, 92, 083305/1–083305/3. [Google Scholar]
  10. Silvestri, F; Irwin, MD; Beverina, L; Facchetti, A; Pagani, GA; Marks, TJ. Efficient Squaraine-Based Solution Processable Bulk-Heterojunction Solar Cells. J. Am. Chem. Soc 2008, 130, 17640–17641. [Google Scholar]
  11. Bagnis, D; Beverina, L; Huang, H; Silvestri, F; Yao, Y; Yan, H; Pagani, GA; Marks, TJ; Facchetti, A. Marked Alkyl- vs Alkenyl-Substituent Effects on Squaraine Dye Solid-State Structure, Carrier Mobility, and Bulk Heterojunction Solar Cells Efficiency. J. Am. Chem. Soc 2010, 132, 4074–4075. [Google Scholar]
  12. Moliton, A; Nunzi, J-M. How to model the behaviour of organic photovoltaics cells. Polym. Int 2006, 55, 583–600. [Google Scholar]
  13. Chen, CP; Chan, SH; Chao, TC; Ting, C; Ko, BT. Low-Bandgap Poly(Thiophene-Phenylene-Thiophene) Derivatives with Broaden Absorption Spectra for Use in High-Performance Bulk Heterojunction Polymer Cells. J. Am. Chem. Soc 2008, 130, 12828–12833. [Google Scholar]
  14. Koeppe, A; Bossart, O; Calzaferri, G; Sariciftci, NS. Advanced photon-harvesting concept for low-energy gap organic solar cells. Sol. Energ. Mater. Sol. Cell 2007, 91, 986–995. [Google Scholar]
  15. Shirakawa, H; Louis, EJ; MacDiarmid, AG; Chiang, CK; Heeger, AJ. Synthesis of electrically conducting organic polymers: halogen derivatives of polyacetylene, (CH)x. J. Chem. Soc. Chem. Commun 1977, 16, 578–580. [Google Scholar]
  16. Thompson, BC; Frechet, JMJ. Polymer–Fullerene Composite Solar Cells. Angew. Chem. Int. Ed 2008, 47, 58–77. [Google Scholar]
  17. Guldi, DM; Gouloumis, A; Vázquez, P; Torres, T; Georgakilas, V; Prato, M. Nanoscale Organization of a Phthalocyanine-Fullerene System: Remarkable Stabilization of Charges in Photoactive 1-D Nanotubules. J. Am. Chem. Soc 2005, 127, 5811–5813. [Google Scholar]
  18. Jones, BA; Facchetti, A; Wasielewski, MR; Marks, TJ. Tuning Orbital Energetics in Arylene Diimide Semiconductors. Materials Design for Ambient Stability of n-Type Charge Transport. J. Am. Chem. Soc 2007, 129, 15259–15278. [Google Scholar]
  19. Prato, M. [60]Fullerene chemistry for materials science applications. J. Mater. Chem 1997, 7, 1097–1109. [Google Scholar]
  20. Anthony, JE. The Larger Acenes: Versatile Organic Semiconductors. Angew. Chem. Int. Ed 2008, 47, 452–483. [Google Scholar]
  21. Anthony, JE. Functionalized Acenes and Heteroacenes for Organic Electronics. Chem. Rev 2006, 106, 5028–5048. [Google Scholar]
  22. Sim, JH; Kim, SJ; Yamada, K; Yokokura, S; Natori, I; Natori, S; Sato, H. Synthesis and characterization of polytriphenylamine containing ether bond in the main chain. Synth. Metals 2009, 159, 85–90. [Google Scholar]
  23. Bredas, JL; Chance, RR; Baughman, RH; Silbey, R. Ab initio effective Hamiltonian study of the electronic properties of conjugated polymers. J. Chem. Phys 1982, 76, 3673–3678. [Google Scholar]
  24. Young, JK; Moore, JS. Modern Acetylene Chemistry; Stang, PJ, Diederich, F, Eds.; VCH: Weinheim, Germany, 1995; pp. 415–442. [Google Scholar]
  25. Nielsen, MB; Diederich, F. Conjugated Oligoenynes Based on the Diethynylethene Unit. Chem. Rev 2005, 105, 1837–1867. [Google Scholar]
  26. Bunz, UHF. Poly(aryleneethynylene)s: Syntheses, Properties, Structures, and Applications. Chem. Rev 2000, 100, 1605–1644. [Google Scholar]
  27. Tang, BZ. Construction of Functional Polymers from Acetylenic Triple-Bond Building Blocks. Macromol. Chem. Phys 2008, 209, 1303–1307. [Google Scholar]
  28. Li, C; Li, Y. The Process of Functional Conjugated Organic Polymers Derived from Triple-Bond Building Blocks. Macromol. Chem. Phys 2008, 209, 1541–1552. [Google Scholar]
  29. Kivala, M; Diederich, F. Acetylene-Derived Strong Organic Acceptor for Planar and Nonplanar Push-Pull Chromophores. Acc. Chem. Res 2009, 42, 235–248. [Google Scholar]
  30. Siemsen, P; Livingston, RC; Diederich, F. Acetylenic Coupling: A Powerful Tool in Molecular Construction. Angew. Chem. Int. Ed 2000, 39, 2632–2657. [Google Scholar]
  31. Liu, J; Lam, JWY; Tang, BZ. Acetylenic Polymers: Syntheses, Structure, and Functions. Chem. Rev 2009, 109, 5799–5867. [Google Scholar]
  32. Sonogashira, K; Tohda, Y; Hagihara, N. A convenient synthesis of acetylenes: Catalytic substitutions of acetylenic hydrogen with bromoalkenes, iodoarenes and bromopyridines. Tetrahedron Lett 1975, 16, 4467–4470. [Google Scholar]
  33. Sonogashira, K. Development of Pd–Cu catalyzed cross-coupling of terminal acetylenes with sp2-carbon halides. J. Organomet. Chem 2002, 653, 46–49. [Google Scholar]
  34. Negishi, EJ; Anastasia, L. Palladium-Catalyzed Alkynylation. Chem. Rev 2003, 103, 1979–2018. [Google Scholar]
  35. Chinchilla, R; Carmen Nájera, C. The Sonogashira Reaction: A Booming Methodology in Synthetic Organic Chemistry. Chem. Rev 2007, 107, 874–922. [Google Scholar]
  36. Alami, M; Ferri, F; Linstrumelle, G. An efficient palladium-catalyzed reaction of vinyl and aryl halides or triflates with terminal alkynes. Tetrahedron Lett 1993, 34, 6403–6406. [Google Scholar]
  37. Mori, A; Kawashima, J; Shimada, T; Suguro, M; Hirabayashi, K; Nishihara, Y. Non-Sonogashira-Type Palladium-Catalyzed Coupling Reactions of Terminal Alkynes Assisted by Silver(I) Oxide or Tetrabutylammonium Fluoride. Org. Lett 2000, 2, 2935–2937. [Google Scholar]
  38. Tykwinski, RR. Evolution in the Palladium-Catalyzed Cross-Coupling sp- and sp2-Hybridized Carbon Atoms. Angew. Chem. Int. Ed 2003, 42, 1566–1568. [Google Scholar]
  39. Monnier, F; Turtaut, F; Duroure, L; Taillefer, M. Copper-Catalyzed Sonogashira type Reactions Under Mild Palladium-Free Conditions. Org. Lett 2008, 10, 3203–3206. [Google Scholar]
  40. Liang, B; Dai, M; Chen, J; Yang, Z. Copper-Free Sonogashira Coupling Reaction with PdCl2 in Water under Aerobic Conditions. J. Org. Chem 2005, 70, 391–393. [Google Scholar]
  41. Kuang, YY; Chen, FE. Copper- and Phosphine-Free Sonogashira Coupling Reaction Catalyzed by Polyurea-Encapsulated Palladium (II). Helvetica Chimica. Acta 2009, 92, 897–902. [Google Scholar]
  42. Bohm, VPW; Herrmann, WA. Coordination Chemistry and Mechanisms of Metal-Catalyzed C-C Coupling Reactions, A Copper-Free Procedure for the Palladium-Catalyzed Sonogashira Reaction of Aryl Bromides with Terminal Alkynes at Room Temperature. Eur. J. Org. Chem 2000, 22, 3679–3681. [Google Scholar]
  43. Urgaonkar, S; Verkade, JG. Ligand-, Copper-, and Amine-Free Sonogashira Reaction of Aryl Iodides and Bromides with Terminal Alkynes. J. Org. Chem 2004, 69, 5752–5755. [Google Scholar]
  44. Yi, C; Hua, R. Efficient Copper-Free PdCl2(PCy3)2-Catalyzed Sonogashira Coupling of Aryl Chloride with Terminal Alkynes. J. Org. Chem 2006, 71, 2535–2537. [Google Scholar]
  45. de Souza, ROMA; Bittar, MS; Mendes, LVP; da Silva, CMF; da Silva, VT; Antunes, OAC. Copper-Free Sonogashira Reaction Using Gold Nanoparticles Supported on Ce2O3, Nb2O5 and SiO2 under Microwave Irradiation. Synlett 2008, 12, 1777–1780. [Google Scholar]
  46. Zhang, G. Easy Copper-, Ligand- and Amine-Free Sonogashira Coupling Reaction Catalyzed by Palladium on Carbon at Low Catalyst Loading and by Exposure to Air. Synlett 2005, 4, 619–622. [Google Scholar]
  47. Fulmer, DA; Shearouse, WC; Mendonza, ST; Mack, J. Solvent-free Sonogashira coupling reaction via high speed ball milling. Green Chem 2009, 11, 1821–1825. [Google Scholar]
  48. Diederich, F. Advanced opto-electronics materials by fullerene and acetylene scaffolding. Pure Appl. Chem 2005, 77, 1851–1864. [Google Scholar]
  49. Soares do Rego Barros, O; Favero, A; Nogueira, CW; Menezes, PH; Zeni, G. Palladium-catalyzed cross-coupling of 2-haloselenophene with with terminal alkyne in the absence of additive. Tetrahedron Lett 2006, 47, 2179–2182. [Google Scholar]
  50. Brizius, G; Pschirer, NG; Steffen, W; Stitzer, K; zur Loye, HC; Bunz, UHF. Alkyne Metathesis with Simple Catalyst Systems: Efficient Synthesis of Conjugated Polymers Containing Vinyl Groups in Main or Side Chain. J. Am. Chem. Soc 2000, 122, 12435–12440. [Google Scholar]
  51. Schrock, RR; Czekelius, C. Recent Advances in the Syntheses and Applications of Molybdenum and Tungsten Alkylidene and Alkylidyne Catalysts for the Metathesis of Alkenes and Alkynes. Adv. Synth. Catal 2007, 349, 55–77. [Google Scholar]
  52. Fürstner, A; Davies, PW. Alkyne metathesis. Chem. Commun 2005, 18, 2307–2320. [Google Scholar]
  53. Katz, TJ; McGinnis, J. The Mechanism of the Olefin Methathesis Reaction. J. Am. Chem. Soc 1975, 97, 1592–1594. [Google Scholar]
  54. Bunz, UHF. Poly(p-phenyleneethynylene)s by Alkyne Methathesis. Acc. Chem. Res 2001, 34, 998–1010. [Google Scholar]
  55. Fürstner, AF; Mathes, C; Lehmann, CW. Mo[N(t-Bu)(Ar)]3 Complexes As Catalyst Precursors: In Situ Activation and Application to Metathesis Reactions of Alkynes and Diynes. J. Am. Chem. Soc 1999, 121, 9453–9454. [Google Scholar]
  56. Fürstner, AF; Mathes, C; Lehmann, C. Alkyne Metathesis: Development of a Novel Molybdenum-Based Catalyst System and Its Application to the Total Synthesis of Epothilone A and C. Chem. Eur. J 2001, 7, 5299–5317. [Google Scholar]
  57. Jain, V; Rajbongshi, BK; Mallajosyula, TA; Bhattacharjya, G; Iyer, SSK; Ramanathan, G. Photovoltaic effect in single-layer organic solar cell devices fabricated with two new imidazolin-5-one molecules. Sol. Energ. Mater. Sol. Cell 2008, 92, 1043–1046. [Google Scholar]
  58. Fang, Y; Chen, SA; Chu, ML. Effect on the side chain length on rectification and photovoltaic characteristics of poly(3-alkylthiophene) Schottky barriers. Synth. Met 1992, 52, 261–272. [Google Scholar]
  59. Glenis, S; Horowitz, G; Tourillon, G; Garnier, F. Electrochemically grown polythiophene and poly(3-methylthiophene) organic photovoltaic cells. Thin Solid Films 1984, 111, 93–103. [Google Scholar]
  60. Coakley, KM; McGehee, MD. Conjugated polymer photovoltaic cells. Chem. Mater 2004, 16, 4533–4542. [Google Scholar]
  61. Janssen, RAJ; Hummelen, JC; Sariciftci, NS. Polymer fullerene bulk heterojunction solar cells. MRS Bull 2005, 30, 33–36. [Google Scholar]
  62. Forrest, SR. The limits to organic photovoltaic cell efficiency. MRS Bull 2005, 30, 28–32. [Google Scholar]
  63. Peumans, P; Yakimov, A; Forrest, SR. Small molecular weight organic thin-film photodetectors and solar cells. J. Appl. Phys 2003, 93, 3693–3723. [Google Scholar]
  64. Coakley, KM; Liu, YX; Goh, C; McGehee, MD. Ordered organic-inorganic bulk heterojunction photovoltaic cells. MRS Bull 2005, 30, 37–40. [Google Scholar]
  65. Milliron, DJ; Gur, I; Alivisatos, AP. Hybrid organic-nanocrystal solar cells. MRS Bull 2005, 30, 41–44. [Google Scholar]
  66. Schmidt-Mende, L; Bach, U; Humphry-Baker, R; Horiuchi, T; Miura, H; Ito, S; Uchida, S; Grätzel, M. Organic dye for highly efficient solid-state dye sensitized solar cells. Adv. Mater 2005, 17, 813–815. [Google Scholar]
  67. Grätzel, M. Perspectives for dye-sensitized nanocrystalline solar cells. Prog. Photovolt: Res. Appl 2000, 8, 171–185. [Google Scholar]
  68. Liang, Y; Xu, Z; Xia, J; Tsai, ST; Wu, Y; Li, G; Ray, C; Yu, L. For the Bright Future–Bulk Heterojunction Polymer Solar Cells with Power Conversion Efficiency of 7.4%. Adv Mater 2010, 22. [Google Scholar]
  69. Brabec, CJ; Cravino, A; Meissner, D; Sariciftci, NS; Fromherz, T; Rispens, MT; Sanchez, L; Hummelen, JC. Origin of the open circuit voltage of plastic solar cells. Adv. Funct. Mater 2001, 11, 374–380. [Google Scholar]
  70. Soci, C; Hwang, IW; Moses, D; Zhu, Z; Waller, D; Guadiana, R; Brabec, CJ; Heeger, AJ. Photoconductivity of a Low-Bandgap Conjugated Polymer. Adv. Funct. Mater 2007, 17, 632–636. [Google Scholar]
  71. Coakley, KM; McGehee, MD. Conjugated Polymer Photovoltaic Cells. Chem. Mater 2004, 16, 4533–4542. [Google Scholar]
  72. Gunes, S; Neugebauer, H; Sariciftci, NS. Conjugated Polymer-Based Organic Solar Cells. Chem. Rev 2007, 107, 1324–1338. [Google Scholar]
  73. Rand, BP; Genoe, J; Heremans, P; Poortmans, J. Solar cells utilizing small molecular weight organic semiconductors. Prog. Photovolt.: Res. Appl 2007, 15, 659–676. [Google Scholar]
  74. Matthew Lloyd, T; Anthony, JE; Malliaras, GG. Photovoltaics from soluble small molecules. Mater. Today 2007, 10, 34–41. [Google Scholar]
  75. Walker, B; Tamayo, AB; Dang, XD; Zalar, P; Seo, HJ; Garcia, A; Tantiwiwat, M; Nguyen, TQ. Nanoscale Phase Separation and High Photovoltaic Efficiency in Solution-Processed, Small-Molecule Bulk Heterojunction Solar Cells. Adv. Funct. Mater 2009, 19, 1–7. [Google Scholar]
  76. Lloyd, MT; Mayer, AC; Subramanian, S; Mourey, DA; Herman, DJ; Bapat, AV; Anthony, JE; Malliaras, GG. Efficient Solution-Processed Photovoltaic Cells Based on an Anthradithiophene/Fullerene Blend. J. Am. Chem. Soc 2007, 129, 9144–9149. [Google Scholar]
  77. Valentini, L; Marrocchi, A; Seri, M; Mengoni, F; Meloni, F; Taticchi, A; Kenny, JM. [2.2]Paracyclophane-based molecular systems for the development of organic solar cells. Thin Solid Films 2008, 516, 7193–7198. [Google Scholar]
  78. Valentini, L; Bagnis, D; Marrocchi, A; Seri, M; Taticchi, A; Kenny, JM. Novel Anthracene-Core Molecule for the Development of Efficient PCBM-Based Solar Cells. Chem. Mater 2008, 20, 32–34. [Google Scholar]
  79. Marrocchi, A; Silvestri, F; Seri, M; Facchetti, A; Taticchi, A; Marks, TJ. Conjugated anthracene derivatives as donor materials for bulk heterojunction solar cells: Olefinic versus acetylenic spacers. Chem Commun 2009, 1380–1382. [Google Scholar]
  80. Hopf, H. Recent Uses of [2.2]Paracyclophanes in Polymer Chemistry and Material Science. Angew. Chem. Int. Ed 2008, 47, 9808–9812. [Google Scholar]
  81. Umnov, AG; Korovyanko, OJ. Photovoltaic effect in poly-dioctyl-phenylene-ethynylene-C60 cells upon donor and acceptor excitation. Appl. Phys. Lett 2005, 87, 113506. [Google Scholar]
  82. Cremer, J; Bäuerle, P; Wienk, MM; Janssen, RAJ. High Open-Circuit Voltage Poly(ethynylene bithienylene): Fullerene Solar Cells. Chem. Mater 2006, 18, 5832–5834. [Google Scholar]
  83. Liu, Q; Mao, J; Liu, Z; Zhang, N; Wang, Y; Yang, L; Yin, S; Chen, Y. A photovoltaic device based on a poly(phenylene ethynylene)/SWNT composite active layer. Nanotechnology 2008, 19, 115601-1–115601-5. [Google Scholar]
  84. Egbe, DAM; Carbonnier, B; Birckner, E; Grummt, UH. Arylene-ethynylene/arylene-vinylene copolymers: Synthesis and structure-property relationships. Prog. Polym. Sci 2009, 34, 1023–1067. [Google Scholar]
  85. Schenning, APHJ; Tsipis, AC; Meskers, SCJ; Beljonne, D; Meijer, EW; Bredas, JL. Electronic Structure and Optical Properties of Mixed Phenylene Vinylene/Phenylene Ethynylene Conjugated Oligomers. Chem. Mater 2002, 14, 1362–1368. [Google Scholar]
  86. Swager, TM; Gil, CJ; Wrighton, MS. Fluorescence Studies of Poly(p-phenyleneethyny1ene)s: The Effect of Anthracene Substitution. J. Phys. Chem 1995, 99, 4886–4893. [Google Scholar]
  87. Chu, Q; Pang, Y; Ding, L; Karasz, FE. Green-Emitting PPE–PPV Hybrid Polymers: Efficient Energy Transfer across the m-Phenylene Bridge. Macromolecules 2003, 36, 3848–3853. [Google Scholar]
  88. Tong, M; Sheng, CX; Yang, C; Vardeny, ZV; Pang, Y. Photoexcitation dynamics and laser action in solutions and films of PPE-PPV copolymer. Phys Rev B 2004, 69, 155211/1–155211/8. [Google Scholar]
  89. Hoppe, H; Egbe, DAM; Mühlbacher, D; Sariciftci, NS. Photovoltaic action of conjugated polymer/fullerene bulk heterojunction solar cells using novel PPE-PPV copolymers. J. Mater. Chem 2004, 14, 3462–3467. [Google Scholar]
  90. Egbe, DAM; Wild, A; Birckner, E; Grummt, UW; Schubert, US. Anthracene- and Thiophene-Containing Poly(p-arylene-ethynylene)/poly(p-arylene-vinylene)s: Towards Optimized Structures for Photovoltaic Applications. Macromol. Symp 2008, 268, 25–27. [Google Scholar]
  91. Egbe, DAM; Nguyen, LH; Schmidtke, K; Wild, A; Sieber, C; Guenes, S; Sariciftci, NS. Combined Effects of Conjugation Pattern and Alkoxy Side Chains on the Photovoltaic Properties of Thiophene-Containing PPE-PPVs. J. Pol. Sci. A: Polym. Chem 2009, 47, 2243–2261. [Google Scholar]
  92. Rathgeber, S; de Toledo, DB; Birckner, E; Hoppe, H; Egbe, DAM. Intercorrelation between Structural Ordering and Emission Properties in Photoconducting Polymers. Macromolecules 2010, 43, 306–315. [Google Scholar]
  93. Egbe, DAM; Türk, S; Rathgeber, S; Kühnlenz, F; Jadhav, R; Wild, A; Birckner, E; Adam, G; Pivrikas, A; Cimrova, V; Knör, G; Sariciftci, NS; Hoppe, H. Anthracene Based Conjugated Polymers: Correlation between π-π-Stacking Ability, Photophysycal Properties, Charge Carrier Mobility, and Photovoltaic Performance. Macromolecules 2010, 43, 1261–1269. [Google Scholar]
  94. Jadhav, R; Türk, S; Kühnlenz, F; Cimrova, V; Rathgeber, S; Egbe, DAM; Hoppe, H. Anthracene-containing PPE-PPV copolymers: Effect of side-chain nature and length on photophysical and photovoltaic properties. Phys. Status Solidi A 2009, 206, 2695–2699. [Google Scholar]
  95. Al-Ibrahim, M; Konkina, A; Rotha, HK; Egbe, DAM; Klemmb, E; Zhokhavetsc, U; Gobschc, G; Sensfussa, S. Phenylene-ethynylene/phenylene-vinylene hybrid polymers: Optical and electrochemical characterization, comparison with poly[2-methoxy-5-(3V,7V-dimethyloctyloxy)-1,4-phenylene vinylene] and application in flexible polymer solar cells. Thin Solid Films 2005, 474, 201–210. [Google Scholar]
  96. Miteva, T; Palmer, L; Kloppenburg, L; Neher, D; Bunz, UHF. Interplay of Thermochromicity and Liquid Crystalline Behavior in Poly(p-phenylene ethynylene)s: π-π Interactions or Planarization of the Conjugated Backbone? Macromolecules 2000, 33, 652–654. [Google Scholar]
  97. Egbe, DAM; Nguyen, LH; Hoppe, H; Mühlbacher, D; Sariciftci, NS. Side Chain Influence on Electrochemical and Photovoltaic Properties of Yne-Containing Poly(phenylene vinylene)s. Macromol. Rapid Commun 2005, 26, 1389–1394. [Google Scholar]
  98. Egbe, DAM; Ulbricht, C; Orgis, T; Carbonnier, B; Kietzke, T; Peip, M; Metzner, M; Gericke, M; Birckner, E; Pakula, T; Neher, D; Grummt, UV. Odd-Even Effects and the Influence of Length and Specific Positioning of Alkoxy Side Chains on the Optical Properties of PPE-PPV Polymers. Chem. Mater 2005, 17, 6022–6032. [Google Scholar]
  99. Kietzke, T; Shin, RYC; Egbe, DAM; Chen, ZK; Sellinger, A. Effect of Annealing on the Characteristics of Organic Solar Cells: Polymer Blends with a 2-Vinyl-4,5-dicyanoimidazole Derivative. Macromolecules 2007, 40, 4424–4428. [Google Scholar]
  100. McGehee, MD. Organic solar cells: Overcoming recombination. Nat. Photon 2009, 3, 250–252. [Google Scholar]
  101. Park, SH; Roy, A; Beaupré, S; Cho, S; Coates, N; Moon, JS; Moses, D; Leclerc, M; Lee, K; Heeger, AJ. Bulk heterojunction solar cells with internal quantum efficiency approaching 100%. Nat. Photon 2009, 3, 297–303. [Google Scholar]
  102. Egbe, DAM; Nguyen, LH; Carbonnier, B; Mühlbacher, D; Sariciftci, NS. Thiophene-containing poly(arylene–ethynylene)-alt-poly(arylene–vinylene)s: Synthesis, characterisation and optical properties. Polymer 2005, 46, 9585–9595. [Google Scholar]
  103. Egbe, DAM; Nguyen, LH; Mühlbacher, D; Hoppe, H; Schmidtke, K; Sariciftci, NS. Photophysical, electrochemical and photovoltaic properties of thiophene-containing arylene-ethynylene/arylene-vinylene polymers. Thin Solid Films 2006, 511–512, 486–488. [Google Scholar]
  104. Lu, S; Yang, M; Luo, J; Cao, Y. Photovoltaic devices based on a novel poly(phenylene ethynylene) derivative. Synth. Metals 2004, 140, 199–202. [Google Scholar]
  105. Lu, S; Yang, M; Luo, J; Cao, Y; Bai, F. Novel Alternating Dioctyloxyphenylene Vinylene-Benzothiadiazole Copolymer: Synthesis and Photovoltaic Performance. Macromol. Chem. Phys 2005, 206, 664–671. [Google Scholar]
  106. Hou, Y; Chen, Y; Liu, Q; Yang, M; Wan, X; Yin, S; Yu, A. A Novel Tetrathiafulvalene-(TTF-) Fused Poly(aryleneethynylene) with an Acceptor Main Chain and Donor Side Chains: Intramolecular Charge Transfer (CT), Stacking Structure, and Photovoltaic Property. Macromolecules 2008, 41, 3114–3119. [Google Scholar]
  107. Huang, X; Zhu, C; Li, W; Guo, Y; Zhang, S; Zhan, X; Liu, Y; Bo, Z. Porphyrin-dithienothiophene π-conjugated copolymers: synthesis and their applications in field-effect transistors and solar cells. Macromolecules 2008, 41, 6895–6902. [Google Scholar]
  108. Egbe, DAM; Kietzke, T; Carbonnier, B; Mühlbacher, D; Hörhold, H-H; Neher, D; Pakula, T. Synthesis, Characterization, and Photophysical, Electrochemical, Electroluminescent, and Photovoltaic Properties of Yne-Containing CN-PPVs. Macromolecules 2004, 37, 8863–8873. [Google Scholar]
  109. Kietzke, T; Egbe, DAM; Hans-Hörhold, H-H; Neher, D. Comparative Study of M3EH-PPV-Based Bilayer Photovoltaic Devices. Macromolecules 2006, 39, 4018–4022. [Google Scholar]
  110. Ashraf, RS; Shahid, M; Klemm, E; Al-Ibrahim, M; Sensfuss, S. Thienopyrazine-Based Low-Bandgap Poly(heteroaryleneethynylene)s for Photovoltaic Devices. Macromol. Rapid Commun 2006, 27, 1454–1459. [Google Scholar]
  111. Schull, TL; Kushmerick, JG; Patterson, CH; George, C; Moore, MH; Pollack, SK; Shashidhar, R. Ligand effects on charge transport in platinum(II) acetylides. J. Am. Chem. Soc 2003, 125, 3202–3203. [Google Scholar]
  112. Holliday, BJ; Swager, TM. Conducting metallopolymers: the roles of molecular architecture and redox matching. Chem Commun 2005, 23–36. [Google Scholar]
  113. Köhler, A; Wittmann, HF; Friend, RH; Khan, MS; Lewis, J. Enhanced photocurrent response in photocells made with platinum- poly-yne/C60 blends by photoinduced electron transfer. Synth. Metals 1996, 77, 147–150. [Google Scholar]
  114. Dennler, G; Scharber, MC; Brabec, CJ. Polymer-Fullerene Bulk-Heterojunction Solar Cells. Adv Mater 2009, 21, 1323–1338. [Google Scholar]
  115. Xue, J; Uchida, S; Rand, BP; Forrest, SR. 4.2% Efficient organic photovoltaic cells with low series resistances. Appl. Phys. Lett 2004, 84, 3013–3015. [Google Scholar]
  116. Robertson, N. Optimizing dyes for dye-sensitized solar cells. Angew. Chem. Int. Ed 2006, 45, 2338–2345. [Google Scholar]
  117. Nguyen, P; Gomez-Elipe, P; Manners, I. Organometallic polymers with transition metals in the main chain. Chem. Rev 1999, 99, 1515–1548. [Google Scholar]
  118. Williams, KA; Boydston, AJ; Bielawski, CW. Main-chain organometallic polymers: Synthetic strategies, applications, and perspectives. Chem. Soc. Rev 2007, 36, 729–744. [Google Scholar]
  119. Köhler, A; Wittmann, HF; Friend, RH; Khan, MS; Lewis, J. The Photovoltaic effect in a platinum poly-yne. Synth. Metals 1994, 67, 245–249. [Google Scholar]
  120. Chawdhury, N; Köhler, A; Friend, RH; Wong, WY; Lewis, J; Younus, M; Raithby, PR; Corcoran, TC; Al-Mandhary, MRA; Khan, MS. Evolution of lowest singlet and triplet excited states with number of thienyl rings in platinum poly-ynes. J. Chem. Phys 1999, 110, 4963–4970. [Google Scholar]
  121. Guo, F; Kim, YG; Reynolds, JR; Schanze, KS. Platinum–Acetylide polymer based solar cells: Involvement of the triplet state for energy conversion. Chem. Commun 2006, 17, 1887–1889. [Google Scholar]
  122. Younus, M; Köhler, A; Cron, S; Chawdhury, N; Al-Mandhary, MRA; Khan, MS; Lewis, J; Long, NJ; Friend, RH; Raithby, PR. Synthesis, electrochemistry, and spectroscopy of blue platinum(II) polyynes and diynes. Angew. Chem. Int. Ed 1998, 37, 3036–3039. [Google Scholar]
  123. Wong, WY; Wang, XZ; He, Z; Chan, KK; Djurisîć, AB; Cheung, KY; Yip, CT; Ng, AMG; Xi, YY; Mak, CSK; Chan, WK. Tuning the Absorption, Charge Transport Properties, and Solar Cell Efficiency with the Number of Thienyl Rings in Platinum-Containing Poly(aryleneethynylene)s. J. Am. Chem. Soc 2007, 129, 14372–14380. [Google Scholar]
  124. Liu, L; Ho, CL; Wong, WY; Cheung, KY; Fung, MK; Lam, WT; Djurisîć, AB; Chan, WK. Effect of Oligothienyl Chain Length on Tuning the Solar Cell Performance in Fluorene-Based Polyplatinynes. Adv. Funct. Mater 2008, 18, 2824–2833. [Google Scholar]
  125. Wong, WY; Wang, XZ; He, Z; Djurisîć, AB; Yip, CT; Cheung, KY; Wang, H; Mak, CSK; Chan, WK. Metallated conjugated polymers as a new avenue towards high-efficiency polymer solar cells. Nat. Mater 2007, 6, 521. [Google Scholar]
  126. Gilot, J; Wienk, MM; Janssen, RAJ. On the efficiency of polymer solar cells. Nat. Mater 2007, 6, 704. [Google Scholar]
  127. Wong, WY; Wang, XZ; He, Z; Djurisic, AB; Yip, CT; Cheung, KY; Wang, H; Mak, CSK; Chan, WK. On the efficiency of polymer solar cells. Nat. Mater 2007, 6, 704–705. [Google Scholar]
  128. Baek, NS; Hau, SK; Yip, HL; Acton, O; Chen, KS; Jen, AKY. High Performance Amorphous Metallated π-Conjugated Polymers for Field-Effect Transistors and Polymer Solar Cells. Chem. Mater 2008, 20, 5734–5736. [Google Scholar]
  129. Mei, J; Ogawa, K; Kim, YG; Heston, NC; Arenas, DJ; Nasrollahi, Z; McCarley, TD; Tanner, DB; Reynolds, JR; Schanze, KS. Low-Band-Gap Platinum Acetylide Polymers as Active Materials for Organic Solar Cells. Appl. Mater. Interf 2009, 1, 150–161. [Google Scholar]
  130. Wong, WY; Wang, X; Zhang, HL; Cheung, KY; Djurišić, AB; Chan, WK. Synthesis, characterization and photovoltaic properties of a low bandgap platinum(II) polyyne functionalized with a 3,4-ethylenedioxythiophene-benzothiadiazole hybrid spacer. J. Organomet. Chem 2008, 693, 3603–3612. [Google Scholar]
  131. Wong, WY. Metallopolyyne Polymers as New Functional Materials for Photovoltaic and Solar Cell Applications. Macromol. Chem. Phys 2008, 209, 14–24. [Google Scholar]
  132. Wu, PT; Bull, T; Kim, FS; Luscombe, CK; Jenekhe, SA. Organometallic Donor-Acceptor Conjugated Polymer Semiconductors: Tunable Optical, Electrochemical, Charge Transport, and Photovoltaic Properties. Macromolecules 2009, 42, 671–681. [Google Scholar]
  133. Roncali, J. Linear π-conjugated systems derivatized with C60-fullerene as molecular heterojunctions for organic photovoltaics. Chem. Soc. Rev 2005, 34, 483–495. [Google Scholar]
  134. Segura, JL; Martín, N; Guldi, D. Materials for organic solar cells: the C60/π-conjugated oligomer approach. Chem. Soc. Rev 2005, 34, 31–47. [Google Scholar]
  135. Nierengarten, JF; Gu, T; Aernouts, T; Geens, W; Poortmans, J; Hadziioannou, G; Tsamouras, D. Fullerene–Oligophenylene ethynylene conjugates: Relationships between charge-carrier mobility, photovoltaic characteristics and chemical structure. Appl. Phys. A 2004, 79, 47–49. [Google Scholar]
  136. Gu, T; Tsamoursa, D; Melzer, C; Krasnikov, V; Gisselbrecht, JP; Gross, M; Hadziioannou, G; Nierengarten, JF. Photovoltaic Devices from Fullerene-Oligophenylene-ethynylene Conjugates. Chem. Phys Chem 2002, 3, 124–127. [Google Scholar]
  137. Gu, T; Nierengarten, JF. Synthesis of fullerene–oligophenylene ethynylene hybrids. Tetrahedron Lett 2001, 42, 3175–3178. [Google Scholar]
  138. Atienza, CM; Fernández, G; Sánchez, L; Martín, N; Dantas, IS; Wienk, MM; Janssen, RAJ; Aminur Rahmanc, GM; Guldi, D. Light harvesting tetrafullerene nanoarray for organic solar cells. Chem. Commun 2006, 5, 514–516. [Google Scholar]
  139. Fernández, G; Sánchez, L; Veldman, D; Wienk, MM; Atienza, C; Guldi, D; Janssen, RAJ; Martín, N. Tetrafullerene Conjugates for All-Organic Photovoltaics. J. Org. Chem 2008, 73, 3189–3196. [Google Scholar]
  140. Guo, F; Ogawa, K; Kim, YG; Danilov, EO; Castellano, FN; Reynolds, JR; Schanze, KS. A fulleropyrrolidine end-capped platinum-acetylide triad: the mechanism of photoinduced charge transfer in organometallic photovoltaic cells. Phys. Chem. Chem. Phys 2007, 9, 2724–2734. [Google Scholar]
  141. Ramos, AM; Rispens, MT; van Duren, JKJ; Hummelen, JC; Janssen, RAJ. Photoinduced Electron Transfer and Photovoltaic Devices of a Conjugated Polymer with Pendant Fullerenes. J. Am. Chem. Soc 2001, 123, 6714–6715. [Google Scholar]
  142. Mwaura, JK; Pinto, MR; Witker, D; Ananthakrishnan, N; Schanze, KS; Reynolds, JR. Photovoltaic Cells Based on Sequentially Adsorbed Multilayers of Conjugated Poly(p-phenylene ethynylene)s and a Water-Soluble Fullerene Derivative. Langmuir 2005, 21, 10119–10126. [Google Scholar]
  143. Tang, CW. Two Layer Organic Photovoltaic Cell. Appl. Phys. Lett 1986, 48, 183–185. [Google Scholar]
Figure 1. General Structure of Bulk Heterojunction (BHJ) Device.
Figure 1. General Structure of Bulk Heterojunction (BHJ) Device.
Ijms 11 01471f1
Figure 2. Structure of Acetylene-containing Small Molecules for Organic Photovoltaics.
Figure 2. Structure of Acetylene-containing Small Molecules for Organic Photovoltaics.
Ijms 11 01471f2
Figure 3. Structure of Poly-dioctyl phenylene ethynylene (PPE) and Poly(ethynylene-bithienylene) (PEBT).
Figure 3. Structure of Poly-dioctyl phenylene ethynylene (PPE) and Poly(ethynylene-bithienylene) (PEBT).
Ijms 11 01471f3
Figure 4. Structure of Modified Poly(phenylene ethynylene) (P3) and Single Wall NanoTubes (SWNT).
Figure 4. Structure of Modified Poly(phenylene ethynylene) (P3) and Single Wall NanoTubes (SWNT).
Ijms 11 01471f4
Figure 5. Structure of PPE-PPV Oligomers P4–P6.
Figure 5. Structure of PPE-PPV Oligomers P4–P6.
Ijms 11 01471f5
Figure 6. Structure of PPE-PPV Copolymer P7.
Figure 6. Structure of PPE-PPV Copolymer P7.
Ijms 11 01471f6
Figure 7. Structure of Modified PPE-PPV Copolymers P8P19.
Figure 7. Structure of Modified PPE-PPV Copolymers P8P19.
Ijms 11 01471f7
Figure 8. Structure of Copolymers with Donor-Acceptor Architectures.
Figure 8. Structure of Copolymers with Donor-Acceptor Architectures.
Ijms 11 01471f8
Figure 9. Structure of Porphyrin-Dithienothiophene π-Conjugated Copolymers P24 and P25.
Figure 9. Structure of Porphyrin-Dithienothiophene π-Conjugated Copolymers P24 and P25.
Ijms 11 01471f9
Figure 10. Structure of Alkyne-Containing CN-PPVs P25 and P26.
Figure 10. Structure of Alkyne-Containing CN-PPVs P25 and P26.
Ijms 11 01471f10

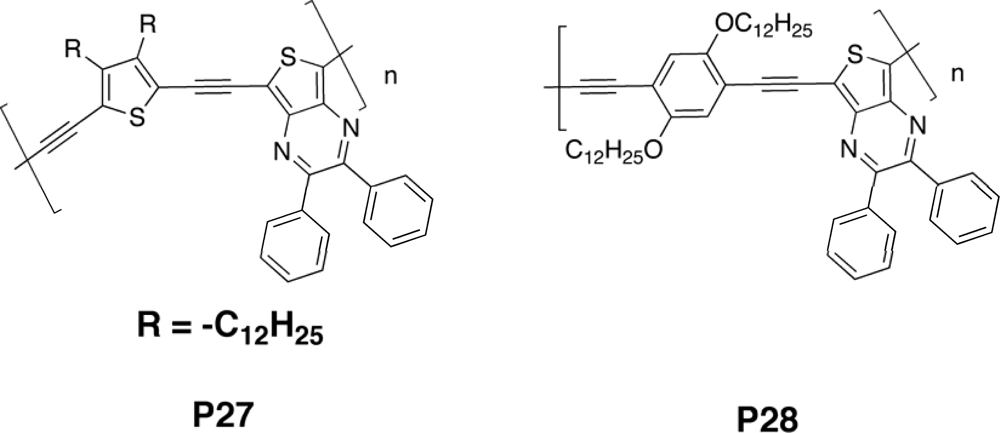

Figure 11. Structure of Poly(heteroaryleneethynylene)Copolymers P27 and P28.
Figure 11. Structure of Poly(heteroaryleneethynylene)Copolymers P27 and P28.
Ijms 11 01471f11
Figure 12. Structures of Metallopolyyne Polymers MP1–MP14.
Figure 12. Structures of Metallopolyyne Polymers MP1–MP14.
Ijms 11 01471f12
Figure 13. Structures of Metallopolyyne Polymers MP15–MP23.
Figure 13. Structures of Metallopolyyne Polymers MP15–MP23.
Ijms 11 01471f13
Figure 14. Structures of Metallopolyyne Polymers MP24MP29.
Figure 14. Structures of Metallopolyyne Polymers MP24MP29.
Ijms 11 01471f14
Figure 15. Covalently Linked Donor-Fullerene Hybrids DF1–DF8.
Figure 15. Covalently Linked Donor-Fullerene Hybrids DF1–DF8.
Ijms 11 01471f15
Figure 16. Structure of Donor-Fullerene Dyads DF9, DF10, and DF11.
Figure 16. Structure of Donor-Fullerene Dyads DF9, DF10, and DF11.
Ijms 11 01471f16
Scheme 1. Postulated Mechanism of the Copper-Cocatalyzed Sonogashira Reaction.
Scheme 1. Postulated Mechanism of the Copper-Cocatalyzed Sonogashira Reaction.
Ijms 11 01471f17

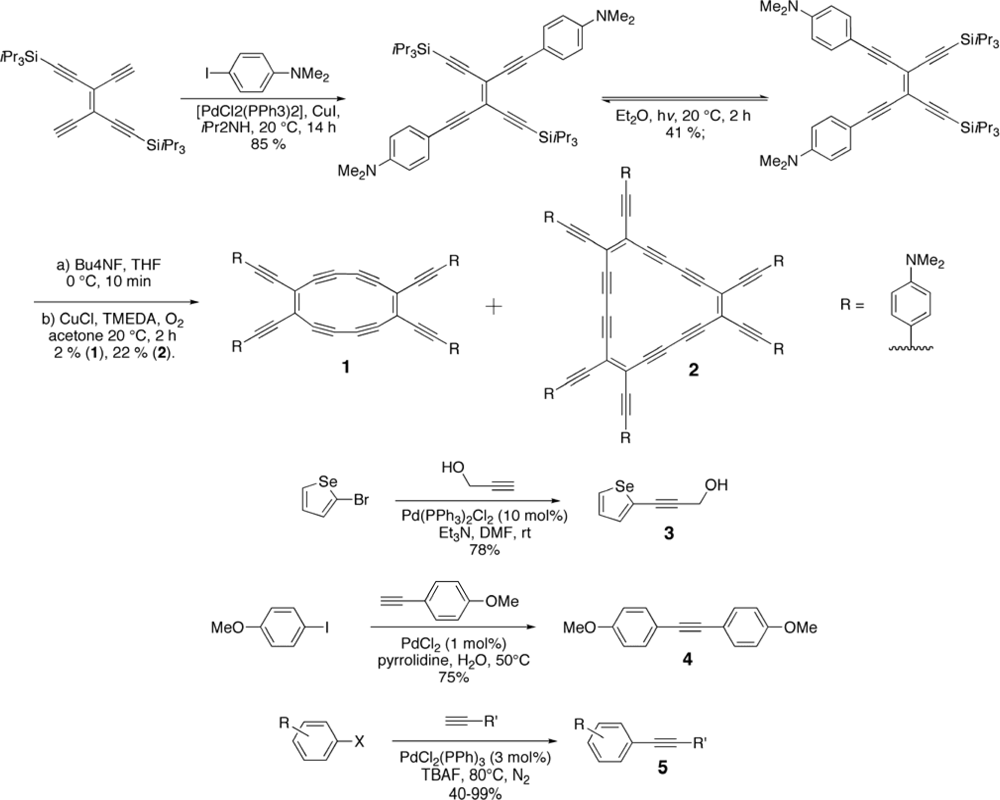

Scheme 2. Coupling of Terminal Diynes (Glaser-Hay Coupling), and Copper Promoted/Copper Free Sonogashira Coupling of Arylenediynes with Arylhalides.
Scheme 2. Coupling of Terminal Diynes (Glaser-Hay Coupling), and Copper Promoted/Copper Free Sonogashira Coupling of Arylenediynes with Arylhalides.
Ijms 11 01471f18
Scheme 3. Alkyne Metathesis and Its Mechanism. The Equation Interprets the Reaction as Proceeding through the Intermediacy of Metal Carbynes.
Scheme 3. Alkyne Metathesis and Its Mechanism. The Equation Interprets the Reaction as Proceeding through the Intermediacy of Metal Carbynes.
Ijms 11 01471f19
Scheme 4. Acyclic Diyne Methathesis of Dipropynylated Benzenes by the Mortreux-Mori-Bunz Catalyst.
Scheme 4. Acyclic Diyne Methathesis of Dipropynylated Benzenes by the Mortreux-Mori-Bunz Catalyst.
Ijms 11 01471f20
Table 1. Summary of J-V Characteristics of D-A (Co)Polymer-based OPVs by Wu et al. [131].
Table 1. Summary of J-V Characteristics of D-A (Co)Polymer-based OPVs by Wu et al. [131].
Polymer BlendaThickness (nm)Voc (V)Jsc (mA/cm2)FF (%)PCE (%)
MP15 : PC71BM750.779.65322.41
MP20 : PC71BM800.662.99340.68
MP21 : PC71BM650.522.71260.36
MP22 : PC71BM50–700.390.25170.016
MP23 : PC71BM50–700.532.14280.32
MP24 : PC61BM600.51.39230.16
MP25 : PC61BM600.50.99230.11
MP26 : PC61BM50–700.320.17180.009
MP27 : PC71BM50–700.520.86250.11
MP28 : PC71BM50–700.642.35200.31
MP29 : PC71BM50–700.684.21250.71
a1:4 w/w.
Table 2. Summary of the Device Parameters for the Best (Poly)Arylacetylene-Based Devices Reported to Date in the Literature.
Table 2. Summary of the Device Parameters for the Best (Poly)Arylacetylene-Based Devices Reported to Date in the Literature.
BlendVoc (V)Jsc (mA/cm2)FF (%)PCE (%)
S6:PCBM [76]0.962.6451.17
P9:PCBM [93]0.797.1455.653.14
MP14:PCBM [124]0.897.56432.88
MP15:PCBM[125]0.8215.43394.93
DF10:PCBM [142]0.260.50310.041

Share and Cite

MDPI and ACS Style

Silvestri, F.; Marrocchi, A. Acetylene-Based Materials in Organic Photovoltaics. Int. J. Mol. Sci. 2010, 11, 1471-1508. https://doi.org/10.3390/ijms11041471

AMA Style

Silvestri F, Marrocchi A. Acetylene-Based Materials in Organic Photovoltaics. International Journal of Molecular Sciences. 2010; 11(4):1471-1508. https://doi.org/10.3390/ijms11041471

Chicago/Turabian Style

Silvestri, Fabio, and Assunta Marrocchi. 2010. "Acetylene-Based Materials in Organic Photovoltaics" International Journal of Molecular Sciences 11, no. 4: 1471-1508. https://doi.org/10.3390/ijms11041471

Article Metrics

Back to TopTop
