Communication

Regio- and Stereoselective Allylindation of Alkynes Using InBr3 and Allylic Silanes: Synthesis, Characterization, and Application of 1,4-Dienylindiums toward Skipped Dienes

1
Frontier Research Base for Global Young Researchers Center for Open Innovation Research and Education (COiRE), Graduate School of Engineering, Osaka University; Osaka 565-0871, Japan
2
Department of Applied Chemistry, Graduate School of Engineering, Osaka University; Osaka 565-0871, Japan
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(8), 1884; https://doi.org/10.3390/molecules23081884
Submission received: 7 July 2018 / Revised: 26 July 2018 / Accepted: 27 July 2018 / Published: 27 July 2018
(This article belongs to the Special Issue Indium in Organic Synthesis)

Abstract

:
Regioselective anti-allylindation of alkynes was achieved using InBr3 and allylic silanes. Various types of alkynes and allylic silanes were applicable to the present allylindation. This sequential process used the generated 1,4-dienylindiums to establish novel synthetic methods for skipped dienes. The 1,4-dienylindiums were characterized by spectral analysis and treated with I2 to stereoselectively give 1-iodo-1,4-dienes. The Pd-catalyzed cross coupling of 1,4-dienylindium with iodobenzene successfully proceeded in a one-pot manner to afford the corresponding 1-aryl-1,4-diene.

Graphical Abstract

1. Introduction

Carbometalation is an important synthetic method in organic synthesis because organometallic compounds are produced with an expansion of the carbon framework [1,2,3,4,5,6,7]. In particular, the allylmetalation of alkynes provides metalated skipped dienes (1,4-diene), which are effectively transformed to functionalized skipped dienes via sequential reactions [8,9,10,11,12,13,14,15,16,17,18]. Skipped diene units are present in many biologically important natural products, and are also versatile synthetic building blocks in organic synthesis [19,20,21,22]. Therefore, various types of allylmetalation of alkynes have been developed. However, most reported reactions involve a syn-addition to alkynes, and few reports have focused on anti-allylmetalation (Scheme 1). Allylmagnesations via direct anti-addition of allylic Grignard reagent were also reported (Scheme 1A,B), in which a directing group such as hydroxy and amino groups nearby the alkyne moiety are required [23,24,25,26,27,28,29]. Yamamoto reported an allylsilylation of simple alkynes with allylic silanes catalyzed by either HfCl4 or EtAlCl2-Me3SiCl (Scheme 1C) [16,30,31,32]. However, the produced 1,4-dienyl trialkylsilanes cannot be applied to sequential transformations such as Hiyama coupling without activation by a strong base because of their low reactivity. In this context, we achieved regioselective anti-allylindation of simple alkynes using InBr3 and allylic silanes (Scheme 1D). To the best of our knowledge, anti-allylindation of alkynes has never been established, while several syn-allylindations using allylic indiums have [13,33,34,35,36,37,38,39]. The 1,4-dienylindium compounds can be excellent precursors for functionalized skipped dienes due to their moderate reactivity and high compatibility with many functional groups. In fact, the 1,4-dienylindiums synthesized by the present allylindation can be easily transformed to functionalized skipped dienes by iodination or Pd-catalyzed cross coupling without the addition of bases in contrast to 1,4-dienylsilanes produced via allylsilylation.

2. Results

Recently, we reported regioselective anti-carbometalations of alkynes using organosilicon nucleophiles and metal halides such as InBr3 [40], GaBr3 [41], BiBr3 [42], ZnBr2 [43], and AlBr3 [44]. In our established carbometalations, a metal halide directly activates an alkyne, and then an organosilicon nucleophile adds to the alkyne from an opposite site of the metal halide. Therefore, we applied a combination of indium trihalides and allylic silanes to establish anti-allylindation of alkynes. First, various indium salts were investigated for the reaction using alkyne 1a and methallyl trimethylsilane 2a (Table 1). InBr3, 1a, and 2a were mixed in CH2Cl2, and then the reaction mixture was stirred at room temperature for 24 h. After an I2 solution in THF was added at −78 °C, alkenyl iodide 4aa was obtained as a single isomer in 89% yield (Entry 1). An iodine group was introduced exclusively cis to the allylic group. The production of 4aa by quenching with I2 suggested that anti-allylindation regioselectively proceeded to give the corresponding 1,4-dienylindium 3aa. The use of InCl3 instead of InBr3 afforded 4aa in a 42% yield (Entry 2). On the other hand, examinations using InF3, InI3, and In(OTf)3 resulted in no reaction (Entries 3–5). The thermodynamic stability of a generated side product Me3SiX might influence the driving force of the reaction. An investigation of the solvent effect was carried out. The reaction performed in non-polar solvents such as toluene resulted in no product because InBr3 did not dissolve the solvent (Entry 6). Polar solvents such as Et2O, CH3CN, and THF were not suitable to the present allylindation because of the deactivation of InBr3 by the solvent coordination (Entries 7–9).
The scope of the alkynes 1 is shown in Table 2. Sterically hindered aliphatic alkynes 1b and 1c (R = primary alkyl group) that were slightly larger than 1a resulted in lower yields of the corresponding alkenyl iodides 4ba and 4ca, respectively (Entries 1 and 2). Cyclohexylacetylene 1d (R = secondary alkyl group) gave a moderate yield (Entry 3), and the allylindation of tert-butylacetylene 1e did not proceed due to large steric hindrance (Entry 4). These results showed that the steric hindrance on an alkyne disturbs the allylindation. This allylindation system tolerated functionalities such as Ph and alkyl chloride moieties (Entries 5 and 6). Aromatic alkyne 1h was also applicable to the present allylindation. In this case, the addition of Me2Si(OMe)2 effectively increased the yield of the desired alkenyl iodide 4ha (Entries 7 and 8), probably because the MeO group of Me2Si(OMe)2 coordinated to an indium atom of the produced 1,4-dienylindium 3 to stabilize 3, and to avoid protonation of 3 by alkyne 1h.
Next, we evaluated the scope of allylic silanes 2 in the allylindation of alkyne 1h in the presence of Me2Si(OMe)2 (Table 3). Allylindation using the simplest allylic silane 2b effectively proceeded to give the desired product 4hb in 48% yield (Entry 1). Allylic silane 2c bearing a Ph group at the 2-position also afforded a high yield (Entry 2). Allylindations using prenylsilane 2d and cinnamylsilane 2e, which have a substituent at the 3-position, effectively occurred to give the corresponding iodinated skipped dienes 4hd and 4he in 72% and 39% yields, respectively (Entries 3 and 4).
The 1,4-dienylindium 3 synthesized by the present allylindation were isolated and characterized (Figure 1). After the allylindation of alkyne 1h using InBr3 and methallylsilane 2a, the volatiles were evaporated and the residual oil was washed with hexane to obtain the desired 1,4-dienylindium 3ha as a white solid (Figure 1A). The 1,4-dienylindium 3ha was characterized by NMR spectroscopy. The resonance of a vinylic proton (H1) at the α-position of the InBr2 group appeared at δ 5.99 ppm (Figure 1B). The 13C-NMR spectrum of 3ha showed a slightly broad signal for C1 at δ 134.1 ppm. These chemical shift values are similar to those of previously reported alkenylindium generated by the carboindation of alkyne 1h with InBr3 and a silyl ketene acetal [41]. A nuclear Overhauser effect between H1 and H3 was observed, which showed that anti-allylindation proceeded stereoselectively to give 1,4-dienylindium with a trans-configuration between the InBr2 and allylic groups.
A plausible reaction mechanism is illustrated in Scheme 2. A carbon-carbon triple bond of alkyne 1 coordinates to InBr3, and then the positive charge on the internal carbon atom of alkyne 1 is increased. Allylic silane 2 adds to the internal carbon atom from the opposite side of InBr3 to give 1,4-dienylindium 3. The iodination of 1,4-dienylindium 3 with I2 proceeds with retention of the double bond configuration of 3 to yield alkenyl iodide 4 as a single isomer.
Finally, we applied the synthesized 1,4-dienylindium to Pd-catalyzed cross coupling [40,45,46]. After 1,4-dienylindium 3ha was produced via the allylindation of alkyne 1h with allyl silane 2a and InBr3, iodobenzene, a catalytic amount of Pd(PPh3)4, and DMF were added to the reaction mixture in a one-pot manner. Then, the Pd-catalyzed coupling reaction of 3ha with iodobenzene smoothly proceeded at 100 °C to give the desired skipped diene 5 as a single isomer. It should be noted that the coupling product 5 was stereoselectively obtained with retention of the double bond configuration of the alkenylindium (Scheme 3).

3. Materials and Methods

3.1. Analysis

NMR spectra were recorded on a JEOL JNM-400 (400 MHz for 1H-NMR and 100 MHz for 13C-NMR) spectrometer (JEOL Ltd., Tokyo, Japan). Chemical shifts were reported in ppm on the δ scale relative to tetramethylsilane (δ = 0 for 1H-NMR) with the residual CHCl3 (δ = 77.0 for 13C-NMR) used as an internal reference. 1H and 13C-NMR signals of all new compounds were assigned by using HMQC, HMBC, COSY, and 13C off-resonance techniques. Infrared (IR) spectra were recorded on a JASCO FT/IR-6200 Fourier transform infrared spectrophotometer (JASCO Co., Tokyo, Japan). Silica gel column chromatography was performed using an automated flash chromatography system from the Yamazen Co. (W-Prep 2XY) (Yamazen Co., Osaka, Japan). Gel permeation chromatography (GPC) was performed using a NEXT recycling preparative HPLC from the Japan Analytical Industry Co. (Tokyo, Japan) (solvent: CHCl3; column: JAIGEL-1HH and JAIGEL-2HH). Reactions were carried out in dry solvents under a nitrogen atmosphere, unless otherwise stated. All allylic silanes were prepared by reported methods. Other reagents were purchased from Sigma-Aldrich Co. (St. Louis, MO, USA), the Tokyo Chemical Industry Co., Ltd. (TCI) (Tokyo, Japan) or Wako Pure Chemical Industries, Ltd. (Osaka, Japan), and used after purification by distillation or used without purification for solid substrates.

3.2. Typical Procedure

Alkyne 1 (1 mmol) was added to a solution of InBr3 (1 mmol) and allylic silane 2 (2 mmol) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h, and then 0.75 M I2 in THF solution (2 mL) was added at −78 °C. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL), and then extracted with dichloromethane (3 × 10 mL). The collected organic layers were dried over MgSO4, and concentrated under reduced pressure. The yield was determined by 1H-NMR using 1,1,2,2-tetrachloroethane as an internal standard. The crude product was purified by flash chromatography (spherical silica gel 60 μm, 30 g, diameter 2.7 cm) and GPC to give the product.
(E)-4-(Iodomethylene)-2-methyldodec-1-ene (4aa)
Molecules 23 01884 i026
The alkyne 1-decyne (0.980 mmol, 0.1354 g) was added to a solution of InBr3 (0.996 mmol, 0.3530 g) and methallyl trimethylsilane (2.07 mmol, 0.2654 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated, and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.279 g, 89%).
IR: (neat) 1650, 1457 cm−1; 1H-NMR: (400 MHz, CDCl3) 5.92 (s, 1H, 4-CHI), 4.83 (s, 1H, 1-H), 4.75 (s, 1H, 1-H), 2.87 (s, 2H, 3-H2), 2.16 (t, J = 7.8 Hz, 2H, 5-H), 1.65 (s, 3H, 2-Me), 1.43–1.23 (m, 14H), 0.88 (t, J = 6.8 Hz, 3H); 13C-NMR: (100 MHz, CDCl3) 149.4 (s, C-4), 142.5 (s, C-2), 113.0 (t, C-1), 76.2 (d, 4-CHI), 45.8 (t, C-3), 36.4 (t, C-5), 31.9 (t), 29.43 (t), 29.38 (t), 29.22 (t), 27.0 (t), 22.7 (t), 21.8 (q, 2-Me), 14.1 (q, C-12); HRMS: (EI, 70 eV) Calculated (C14H25I) 320.1001 (M+), Found: 320.1000.
(E)-4-(Iodomethylene)-2,7-dimethyloct-1-ene (4ba)
Molecules 23 01884 i027
The alkyne 5-methylhex-1-yne (1.02 mmol, 0.0985 g) was added to a solution of InBr3 (0.983 mmol, 0.3485 g) and methallyl trimethylsilane (1.94 mmol, 0.2487 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.0930 g, 33%).
IR: (neat) 1650, 1467, 1455 cm−1; 1H-NMR: (400 MHz, CDCl3) 5.90 (s, 1H, 4-CHI), 4.83 (s, 1H, 1-H), 4.75 (s, 1H, 1-H), 2.88 (s, 2H, 3-H2), 2.18–2.16 (m, 2H, 5-H2), 1.65 (s, 3H, 2-Me), 1.62–1.52 (m, 1H, 7-H), 1.30–1.24 (m, 2H, 6-H2), 0.93 (d, J = 6.3 Hz, 6H, 8-H3 and 7-Me); 13C-NMR: (100 MHz, CDCl3) 149.5 (s, C-4), 142.4 (s, C-2), 113.1 (t, C-1), 75.9 (d, 4-CHI), 45.8 (t, C-3), 36.0 (t, C-6), 34.5 (t, C-5), 28.2 (d, C-7), 22.5 (q, C-8 and 7-Me), 21.8 (q, 2-Me); HRMS: (EI, 70 eV) Calculated (C11H19I) 278.0531 (M+), Found: 278.0529.
(E)-4-(Iodomethylene)-2,6-dimethylhept-1-ene (4ca)
Molecules 23 01884 i028
The alkyne 4-methylpent-1-yne (1.06 mmol, 0.0872 g) was added to a solution of InBr3 (1.02 mmol, 0.3606 g) and methallyl trimethylsilane (2.03 mmol, 0.2620 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.0560 g, 20%).
IR: (neat) 1650, 1463 cm−1; 1H-NMR: (400 MHz, CDCl3) 6.01 (s, 1H, 8-H), 4.84 (s, 1H, 1-H), 4.74 (s, 1H, 1-H), 2.87 (s, 2H, 3-H2), 2.09 (d, J = 8.0 Hz, 2H, 5-H2), 1.90 (septet, J = 8.0 Hz, 1H, 6-H), 1.65 (s, 3H, 2-Me), 0.93 (d, J = 0.8 Hz, 6H, 7-H3 and 6-Me); 13C-NMR: (100 MHz, CDCl3) 148.4 (s, C-4), 142.4 (s, C-2), 113.2 (t, C-1), 77.5 (d, C-8), 46.1 (t, C-3), 44.7 (t, C-5), 26.8 (d, C-6), 22.4 (q, C-7 and 6-Me), 21.8 (q, 2-Me); HRMS: (EI, 70 eV) Calculated (C10H17I) 264.0375 (M+), Found: 264.0370.
(Z)-(1-Iodo-4-methylpenta-1,4-dien-2-yl)cyclohexane (4da)
Molecules 23 01884 i029
Ethynylcyclohexane (1.01 mmol, 0.1094 g) was added to a solution of InBr3 (0.968 mmol, 0.3432 g) and methallyl trimethylsilane (1.98 mmol, 0.2540 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.0607 g, 21%).
IR: (neat) 1650, 1448 cm−1; 1H-NMR: (400 MHz, CDCl3) 5.83 (s, 1H, 11-H), 4.87 (s, 1H, 10-H), 4.77 (s, 1H, 10-H), 2.81 (s, 2H, 8-H2), 2.63–2.56 (m, 1H, 1-H), 1.79–1.55 (m, 8H), 1.4–1.23 (m, 4H), 1.20–1.09 (m, 1H); 13C-NMR: (100 MHz, CDCl3) 151.8 (s, C-7), 142.8 (s, C-9), 113.7 (t, C-10), 76.0 (d, C-11), 47.3 (d, C-1), 42.1 (t, C-8), 29.9 (t), 26.3 (t), 26.0 (t), 22.0 (t, C-12); HRMS: (EI, 70 eV) Calculated (C12H19I) 290.0531 (M+), Found: 290.0530.
(E)-(3-(Iodomethylene)-5-methylhex-5-en-1-yl)benzene (4fa)
Molecules 23 01884 i030
Pent-4-yn-1-ylbenzene (1.01 mmol, 0.1314 g) was added to a solution of InBr3 (0.979 mmol, 0.3471 g) and methallyl trimethylsilane (2.00 mmol, 0.2560 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.1357 g, 43%).
IR: (neat) 1649, 1604, 1494, 1454 cm−1; 1H-NMR: (400 MHz, CDCl3) 7.31–7.17 (m, 5H, Ph), 6.00 (s, 1H, 3-CHI), 4.85 (s, 1H, 6-H), 4.76 (s, 1H, 6-H), 2.86 (s, 2H, 4-H2), 2.72–2.68 (m, 2H, 1-H2), 2.48–2.44 (m, 2H, 2-H2), 1.64 (s, 3H, 5-Me); 13C-NMR: (100 MHz, CDCl3) 148.4 (s, C-3), 142.2 (s, C-5), 141.4 (s, i), 128.39 (d), 128.35 (d), 126.0 (d, p), 113.3 (t, C-6), 77.2 (d, 3-CHI), 46.3 (t, C-4), 38.6 (t, C-2), 33.3 (t, C-1), 21.8 (q, 5-Me); HRMS: (EI, 70 eV) Calculated (C14H17I) 312.0375 (M+), Found: 312.0377.
(E)-7-Chloro-4-(iodomethylene)-2-methylhept-1-ene (4ga)
Molecules 23 01884 i031
The alkyne 5-chloropent-1-yne (1.01 mmol, 0.1031 g) was added to a solution of InBr3 (0.983 mmol, 0.3486 g) and methallyl trimethylsilane (1.99 mmol, 0.2557 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) to give the product (0.1676 g, 59%).
IR: (neat) 1649, 1443 cm−1; 1H-NMR: (400 MHz, CDCl3) 6.01 (s, 1H, 4-CHI), 4.84 (s, 1H, 7-H), 4.76 (s, 1H, 7-H), 3.54 (t, J = 7.3 Hz, 2H, 1-H2), 2.88 (s, 2H, 5-H2), 2.31 (t, J = 7.3 Hz, 2H, 3-H2), 1.88 (quintet, J = 7.3 Hz, 2H, 2-H2), 1.64 (s, 3H, 6-Me); 13C-NMR: (100 MHz, CDCl3) 147.6 (s, C-4), 141.9 (s, C-6), 113.4 (t, C-7), 77.6 (d, 4-CHI), 46.0 (t, C-5), 44.5 (t, C-1), 33.9 (t, C-3), 30.0 (t, C-2), 21.7 (q, 6-Me); HRMS: (EI, 70 eV) Calculated (C9H14ClI) 283.9829 (M+), Found: 283.9823.
(Z)-(1-Iodo-4-methylpenta-1,4-dien-2-yl)benzene (4ha)
Molecules 23 01884 i032
Phenylacetylene (1.08 mmol, 0.110 g) was added to a solution of InBr3 (1.00 mmol, 0.3541 g), methallyl trimethylsilane (1.99 mmol, 0.2552 g), and Me2Si(OMe)2 (1.02 mmol, 0.1230 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.169 g, 55%).
IR: (neat) 1650, 1490, 1442 cm−1; 1H-NMR: (400 MHz, CDCl3) 7.38–7.30 (m, 3H, Ar), 7.21 (d, J = 6.8 Hz, 2H, Ar), 6.35 (s, 1H, 1-H), 4.78 (s, 1H, 5-H), 4.66 (s, 1H, 5-H), 3.20 (s, 2H, 3-H), 1.70 (s, 3H, 4-Me); 13C-NMR: (100 MHz, CDCl3) 150.1 (s), 141.9 (s), 141.5 (s), 128.1 (d), 127.9 (d), 127.6 (d), 113.7 (t, C-5), 77.6 (d, C-1), 48.6 (t, C-3), 21.9 (q, 4-Me); Calculated (C12H13I) 284.0062 (M+), Found: 284.0062.
(Z)-(1-Iodopenta-1,4-dien-2-yl)benzene (4hb)
Molecules 23 01884 i033
Phenylacetylene (1.00 mmol, 0.102 g) was added to a solution of InBr3 (1.11 mmol, 0.3921 g), allyl trimethylsilane (1.96 mmol, 0.2236 g), and Me2Si(OMe)2 (1.00 mmol, 0.1202 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.102 g, 38%).
IR: (neat) 1638 cm−1; 1H-NMR: (400 MHz, CDCl3) 7.42–7.7.31 (m, 3H, Ar), 7.24–7.22 (m, 2H, Ar), 6.35 (t, J = 1.5 Hz, 1H, 1-H), 5.78 (m, 1H, 4-H), 5.11–5.06 (m, 2H, 5-H), 3.25 (dq, J = 6.8, 1.5 Hz, 2H, 3-H2); 13C-NMR: (100 MHz, CDCl3) 150.8 (s, C-2), 142.1 (s), 134.3 (d, C-4), 128.2 (d), 127.8 (d), 127.6 (d), 117.5 (t, C-5), 77.1 (d, C-1), 44.3 (t, C-3); HRMS: (EI, 70 eV) Calculated (C11H11I) 269.9905 (M+), Found: 269.9903.
(Z)-1-Iodo-2,4-diphenylpenta-1,4-diene (4hc)
Molecules 23 01884 i034
Phenylacetylene (1.03 mmol, 0.1053 g) was added to a solution of InBr3 (0.98 mmol, 0.3497 g), 2-phenylallyl trimethylsilane (2.00 mmol, 0.3813 g), and Me2Si(OMe)2 (1.00 mmol, 0.1207 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.153 g, 43%).
IR: (neat) 1626, 1492, 1442 cm−1; 1H-NMR: (400 MHz, CDCl3) 7.36–7.23 (m, 8H, Ar), 7.17–7.15 (m, 2H, Ar), 6.33 (s, 1H, 1-H), 5.41 (s, 1H, 5-H), 5.07 (s, 1H, 5-H), 3.65 (s, 2H, 3-H2); 13C-NMR: (100 MHz, CDCl3) 149.9 (s), 143.9 (s), 142.2 (s), 140.1 (s), 128.3 (d), 128.1 (d), 127.8 (d), 127. 6 (d), 126.0 (d), 115.8 (t, C-5), 78.6 (d, C-1), 45.6 (t, C-3); HRMS: (EI, 70 eV) Calculated (C17H15I) 346.0218 (M+) Found: 346.0221.
(Z)-(1-Iodo-3,3-dimethylpenta-1,4-dien-2-yl)benzene (4hd)
Molecules 23 01884 i035
Phenylacetylene (1.02 mmol, 0.104 g) was added to a solution of InBr3 (1.01 mmol, 0.3597 g), prenyl trimethylsilane (1.96 mmol, 0.2788 g), and Me2Si(OMe)2 (0.962 mmol, 0.1157 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.126 g, 41%).
IR: (neat) 1638, 1490, 1462, 1442 cm−1; 1H-NMR: (400 MHz, CDCl3) 7.41–7.7.32 (m, 3H, Ar), 7.04–7.00 (m, 2H, Ar), 6.53 (s, 1H, 1-H), 5.94 (dd, J = 17.4, 10.6 Hz, 1H, 4-H), 5.09 (d, J = 10.6 Hz, 1H, 5-H), 5.03 (d, J = 17.4 Hz, 1H, 5-H), 1.21 (s, 6H, 3-Me2); 13C-NMR: (100 MHz, CDCl3) 159.7 (s, C-2), 145.2 (d, C-4), 142. 4 (s), 128.9 (d), 127.8 (d), 127.1 (d), 112.3 (t, C-5), 80.2 (d, C-1), 45.1 (s, C-3), 26.4 (q, 3-Me2); HRMS: (EI, 70 eV) Calculated (C13H15I) 298.0218 (M+), Found: 298.0219.
(Z)-1-Iodo-2,3-diphenylpenta-1,4-diene (4he)
Molecules 23 01884 i036
Phenylacetylene (1.02 mmol, 0.1044 g) was added to a solution of InBr3 (1.04 mmol, 0.3701 g), cinnamyl trimethylsilane (2.10 mmol, 0.4007 g), and Me2Si(OMe)2 (1.06 mmol, 0.1280 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The reaction mixture was cooled to −78 °C, and 0.75 M I2 in THF solution (2 mL) was added. The resultant mixture was stirred at −78 °C for 30 min. The mixture was quenched by saturated Na2S2O3 aq (10 mL). The mixture was extracted with dichloromethane (3 × 10 mL). The collected organic layer was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.080 g, 23%).
IR: (neat) 1636 cm−1; 1H-NMR: (400 MHz, CDCl3) 7.29–7.14 (m, 8H, Ar), 6.99 (dd, J = 7.8, 2.0 Hz, 2H, Ar), 6.42 (s, 1H, 1-H), 6.11 (ddd, J = 17.4, 10.1, 7.3 Hz, 1H, 4-H), 5.19 (d, J = 10.1 Hz, 1H, 5-H), 5.00 (d, J = 17.4 Hz, 1H, 5-H), 4.47 (d, J = 7.3 Hz, 1H, 3-H); 13C-NMR: (100 MHz, CDCl3) 154.1 (s), 142.3 (s), 139.8 (s), 138.2 (d, C-4), 128.48 (d), 128.40 (d), 128.2 (d), 127.9 (d), 127.4 (d), 126.8 (d), 117.3 (t, C-5), 80.4 (d, C-1), 58.8 (d, C-3); HRMS: (EI, 70 eV) Calculated (C17H15I) 346.0218 (M+), Found: 346.0214.
(Z)-(4-Methyl-2-phenylpenta-1,4-dien-1-yl)indium(III) bromide (3ha)
Molecules 23 01884 i037
All manipulations were carried out in a globe box filled with nitrogen gas. Phenylacetylene (0.886 mmol, 0.0905 g) was added to a solution of InBr3 (1.00 mmol, 0.3550 g), methallyl trimethylsilane (1.98 mmol, 0.2541 g), and Me2Si(OMe)2 (1.05 mmol, 0.1267 g) in dichloromethane (1 mL). The mixture was stirred at room temperature for 24 h. The volatiles were evaporated and the residual oil was washed with hexane to obtain the desired alkenylindium compound as a white solid (0.106 g, 26%).
1H-NMR: (400 MHz, CDCl3) 7.43–7.22 (m, 5H, Ar), 5.99 (s, 1H, 1-H), 4.83 (s, 1H, 5-H), 4.73 (s, 1H, 5-H), 3.30 (s, 2H, 3-H2), 1.72 (s, 3H, 4-Me); 13C-NMR: (100 MHz, CDCl3) 160.6 (s), 145.7 (s), 141.9 (s), 134.1 (d, C-1), 129.5 (d), 128.8 (d), 126.5 (d), 113.9 (t, C-5), 48.1 (t, C-3), 22.1 (q, 4-Me).
(Z)-4-Methy-1,2-diphenylpenta-1,4-diene (5)
Molecules 23 01884 i038
Phenylacetylene (0.540 mmol, 0.0551 g) was added to a solutin of InBr3 (0.532 mmol, 0.1885 g), methallyl trimethylsilane (1.01 mmol, 0.1290 g), and Me2Si(OMe)2 (0.499 mmol, 0.060 g) in dichloromethane (0.5 mL). The mixture was stirred at room temperature for 3 h. DMF (1 mL) was added to the reaction mixture at −78 °C. Then, the »reaction mixture was warmed to room temperature. PhI (0.749 mmol, 0.1528 g) and Pd(PPh3)4 (0.028 mmol, 0.0325g) were added to the reaction mixture, and the mixture was heated at 100 °C for 3 h. The mixture was quenched by H2O (10 mL) and Et2O (20 mL) at room temperature. The organic layer was washed by H2O (3 × 10 mL), and was dried over MgSO4. The solvent was evaporated and the residue was purified by column chromatography (hexane, column length 10 cm, diameter 26 mm silica gel) and GPC (CHCl3) to give the product (0.0686 g, 54%).
IR: (neat) 1650, 1599, 1494, 1444 cm−1; 1H-NMR: (400 MHz, CDCl3) 7.29–7.20 (m, 3H, Ar), 7.15 (d, J = 6.8 Hz, 2H, Ar), 7.12–7.04 (m, 3H, Ar), 6.95 (d, J = 6.8 Hz, Ar), 4.79 (s, 1H, 5-H), 4.72 (s, 1H, 5-H), 3.18 (s, 2H, 3-H2), 1.76 (s, 3H, 4-Me); 13C-NMR: (100 MHz, CDCl3) 142.9 (s, C-4), 141.1 (s), 140.4 (s), 137.3 (s), 129.0 (d), 128.6 (d), 128.3 (d), 128.1 (d), 127.8 (d), 126.9 (d), 126.3 (d), 113.1 (t, C-5), 49.1 (t, C-3), 22.1 (q, 4-Me); HRMS: (EI, 70 eV) Calculated (C18H18) 234.1409 (M+), Found: 234.1408.

4. Conclusions

We established a regioselective anti-allylindation of alkynes using InBr3 and allylic silanes. Many types of aliphatic and aromatic alkynes were applicable. The present allylindation has a wide scope of allylic silanes, and the reactions using allyl, methallyl, prenyl, cinnamyl silanes gave the desired products. A 1,4-dienyl indium compound generated by the present allylindation was successfully isolated and characterized by NMR spectroscopy. The synthesized 1,4-dienyl indiums were applicable to iodination and Pd-catalyzed cross-coupling with an aryl iodide in a one-pot manner to give the corresponding functionalized skipped dienes.

Supplementary Materials

The following are available online, Supporting Information of NOE Experiments and NMR Spectra.

Author Contributions

Y.N., A.B. and M.Y. conceived and designed the experiments; J.Y. and T.T. performed the experiments; Y.N., J.Y. and T.T. analyzed the data; Yoshihiro Nishimoto, J.Y. and T.T. contributed reagents/materials/analysis tools; Y.N. and M.Y. wrote the paper.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the JSPS KAKENHI Grant Numbers JP15H05848 in Middle Molecular Strategy, JP16K05719, and JP18H01977. Y.N. acknowledges support from the Frontier Research Base for Global Young Researchers, Osaka University, of the MEXT program. N.Y. acknowledges financial support from Mitsui Chemicals Award in Synthetic Organic Chemistry and Shorai Foundation for Science and Technology to Y.N.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Normant, J.F.; Alexakis, A. Carbometallation (C-metallation) of alkynes: Stereospecific synthesis of Alkenyl derivatives. Synthesis 1981, 841–870, 841–870. [Google Scholar] [CrossRef]
  2. Yamamoto, Y.; Asao, N. Selective reactions using allylic metals. Chem. Rev. 1993, 93, 2207–2293. [Google Scholar] [CrossRef]
  3. Asao, N.; Yamamoto, Y. Lewis acid-catalyzed hydrometalation and carbometalation of unactivated alkynes. Bull. Chem. Soc. Jpn. 2000, 73, 1071–1087. [Google Scholar] [CrossRef]
  4. Fallis, A.G.; Forgione, P. Metal mediated carbometallation of alkynes and alkenes containing adjacent heteroatoms. Tetrahedron 2001, 57, 5899–5913. [Google Scholar] [CrossRef]
  5. Shirakawa, E.; Hiyama, T. Transition metal-catalyzed carbostannylation of alkynes and dienes. Bull. Chem. Soc. Jpn. 2002, 75, 1435–1450. [Google Scholar] [CrossRef]
  6. Knochel, P. Comprehensive Organometallic Chemistry III; Mingos, D.M.P., Crabtree, R.H., Eds.; Elsevier: Oxford, UK, 2007; Volume 9. [Google Scholar]
  7. Ojima, I. Comprehensive Organometallic Chemistry III; Mingos, D.M.P., Crabtree, R.H., Eds.; Elsevier: Oxford, UK, 2007; Volume 10. [Google Scholar]
  8. Singleton, D.A.; Waller, S.C.; Zang, Z.; Frantz, D.E.; Leung, S.-W. Allylboration of alkenes with allyldihaloboranes. J. Am. Chem. Soc. 1996, 118, 9986–9987. [Google Scholar] [CrossRef]
  9. Negishi, E.; Miller, J.A. Selective carbon-carbon bond formation via transition metal catalysis. 37. Controlled carbometalation. 16. Novel syntheses of α,β-unsaturated cyclopentenones via allylzincation of alkynes. J. Am. Chem. Soc. 1983, 105, 6761–6763. [Google Scholar] [CrossRef]
  10. Eishi, J.J.; Bokslawski, M.P. Effects of Lewis acids and bases on the carbotitanation of unsaturated hydrocarbons and ketones with η3-allyl(di-η5-cyclopentadienyl)titanium(III). J. Organomet. Chem. 1987, 334, C1–C4. [Google Scholar]
  11. Yeon, S.H.; Han, J.S.; Hong, E.; Do, Y.; Jung, I.N. Aluminum chloride catalyzed stereo- and regiospecific allylsilylation of alkynes: A convenient route to silyldienes. J. Organomet. Chem. 1995, 499, 159–165. [Google Scholar] [CrossRef]
  12. Chatani, N.; Amishiro, N.; Morri, T.; Yamashita, T.; Murai, S. Pd-catalyzed coupling reaction of acetylenes, iodotrimethylsilane, and organozinc reagents for the stereoselective synthesis of vinylsilanes. J. Org. Chem. 1995, 60, 1834–1840. [Google Scholar] [CrossRef]
  13. Fujiwara, N.; Yamamoto, Y. Allylation of Unactivated and/or Functionalized Alkynes with Allylindiums. J. Org. Chem. 1997, 62, 2318–2319. [Google Scholar] [CrossRef] [PubMed]
  14. Shirakawa, E.; Yoshida, H.; Nakao, Y.; Hiyama, T. Mechanistic aspects of palladium-catalyzed allylstannylation of alkynes. Org. Lett. 2000, 2, 2209–2211. [Google Scholar] [CrossRef] [PubMed]
  15. Matsukawa, Y.; Asao, A.; Kitahara, H.; Yamamoto, Y. Lewis acid catalyzed allylstannylation of unactivated alkynes. Tetrahedron 1999, 55, 3779–3790. [Google Scholar] [CrossRef]
  16. Yoshikawa, E.; Gevorgyan, V.; Asao, N.; Yamamoto, Y. Lewis acid Catalyzed trans-Allylsilylation of Unactivated Alkynes. J. Am. Chem. Soc. 1997, 119, 6781–6786. [Google Scholar] [CrossRef]
  17. Shin, S.; RajanBabu, T.V. Regio- and Stereochemical Control in Bis-functionalization−Cyclization:  Use of Alleneyne Precursors for Carbocyclic and Heterocyclic Synthesis. J. Am. Chem. Soc. 2001, 123, 8416–8417. [Google Scholar] [CrossRef] [PubMed]
  18. Miura, K.; Fujisawa, N.; Hosomi, A. Indium (III) Chloride-Promoted Intramolecular Addition of Allylstannanes to Alkynes. J. Org. Chem. 2004, 69, 2427–2430. [Google Scholar] [CrossRef] [PubMed]
  19. Jie, M.; Pasha, M.K.; Syed-Rahmatullah, M.S.K. Fatty acids, fatty acid analogues and their derivatives. Nat. Prod. Rep. 1997, 14, 163–189. [Google Scholar] [CrossRef]
  20. Shinohara, Y.; Kudo, F.; Eguchit, T. A Natural Protecting Group Strategy to Carry an Amino Acid Starter Unit in the Biosynthesis of Macrolactam Polyketide Antibiotics. J. Am. Chem. Soc. 2011, 133, 18134–18137. [Google Scholar] [CrossRef] [PubMed]
  21. Winter, P.; Hiller, W.; Christmann, M. Access to Skipped Polyene Macrolides through Ring-Closing Metathesis: Total Synthesis of the RNA Polymerase Inhibitor Ripostatin B. Angew. Chem. Int. Ed. 2012, 51, 3396–3400. [Google Scholar] [CrossRef] [PubMed]
  22. Tang, W.; Prusov, E.V. Total Synthesis of RNA-Polymerase Inhibitor Ripostatin B and 15-Deoxyripostatin A. Angew. Chem. Int. Ed. 2012, 51, 3401–3404. [Google Scholar] [CrossRef] [PubMed]
  23. Eisch, J.J.; Merkley, J.H. Intramolecular coordinative assistance in the addition of Grignard reagents to unconjugated carbon-carbon unsaturation. J. Organomet. Chem. 1969, 20, P27–P31. [Google Scholar] [CrossRef]
  24. Eisch, J.J.; Merkley, J.H.; Galle, J.E. Rearrangements of organometallic compounds. 16. Stereochemical factors in the carbomagnesiation of unsaturated alcohols. J. Org. Chem. 1979, 44, 587–593. [Google Scholar] [CrossRef]
  25. Richey, H.G.; von Rein, F.W. Promotion by hydroxyl functions of additions of Grignard reagents to alkynes. J. Organomet. Chem. 1969, 20, P32–P35. [Google Scholar] [CrossRef]
  26. Richey, H.G.; von Rein, F.W. The stereochemistry of additions of grignard reagents to alkynols. Tetrahedron Lett. 1971, 12, 3777–3780. [Google Scholar] [CrossRef]
  27. Miller, R.B.; Reichenbach, T. Grignard Addition to Alkynols. Synth. Commun. 1976, 6, 319–323. [Google Scholar] [CrossRef]
  28. Richey, H.G.; Erickson, W.E.; Heyn, A.S. Promotion by primary and tertiary amine functions of additions of grignard reagents to alkenes and alkynes. Tetrahedron Lett. 1971, 12, 2183–2186. [Google Scholar] [CrossRef]
  29. Mauzé, B.; Nivert, C.; Miginiac, L. Étude de l’addition des organozinciques α-éthyléniques aux amines éthyléniques, acétyléniques et alléniques. J. Organomet. Chem. 1972, 44, 69–96. [Google Scholar] [CrossRef]
  30. Imamura, K.; Yoshikawa, E.; Gevorgyan, V.; Yamamoto, Y. First Exclusive Endo-dig Carbocyclization:  HfCl4-Catalyzed Intramolecular Allylsilylation of Alkynes. J. Am. Chem. Soc. 1998, 120, 5339–5340. [Google Scholar] [CrossRef]
  31. Asao, N.; Yoshikawa, E.; Yamamoto, Y. Lewis Acid-Catalyzed trans-Carbosilylation of Simple Alkynes. J. Org. Chem. 1996, 61, 4874–4875. [Google Scholar] [CrossRef]
  32. Jung, I.N.; Yoo, B.R. Lewis Acid-Catalyzed Regio- and Stereoselective Allylsilation of Simple Unsaturated Hydrocarbons. Synlett 1999, 519–528, 519–528. [Google Scholar] [CrossRef]
  33. Ranu, B.C.; Majee, A. Indium-mediated regioselective Markovnikov allylation ofunactivated terminal alkynes. Chem. Commun. 1997, 13, 1225–1226. [Google Scholar] [CrossRef]
  34. Araki, S.; Imai, A.; Shimizu, K.; Yamada, M.; Mori, A.; Butsugan, Y. Carboindation of Alkynes. Regio- and Stereoselective Allylation of Carbon-Carbon Triple Bonds of Alkynols by Allylic Indium Reagents. J. Org. Chem. 1995, 60, 1841–1847. [Google Scholar] [CrossRef]
  35. Fujiwara, N.; Yamamoto, Y. Allyl- and Benzylindium Reagents. Carboindation of Carbon–Carbon and Carbon–Nitrogen Triple Bonds. J. Org. Chem. 1999, 64, 4095–4101. [Google Scholar] [CrossRef]
  36. Klaps, E.; Schmid, W. Carboindation of Carbon–Carbon Triple Bonds:  Regioselective Indium-Mediated Allylation of Functionalized Alkynes and Transformation into Halogen-Substituted 1,4-Dienes. J. Org. Chem. 1999, 64, 7537–7546. [Google Scholar] [CrossRef]
  37. Goeta, A.; Salterb, M.M.; Shah, H. New indium-mediated cyclisation reactions of tethered haloenynes in aqueous solvent systems. Tetrahedron 2006, 62, 3582–3599. [Google Scholar] [CrossRef]
  38. Salter, M.M.; Sardo-Inffiri, S. Novel Intramolecular Allylindination of Terminal Alkynes in Aqueous Media. Synlett 2002, 2068–2070. [Google Scholar] [CrossRef]
  39. Araki, S.; Imai, A.; Shimizu, K.; Butsugan, Y. Carboindation of alkynols. A facile synthesis of yomogi alcohol. Tetrahedron Lett. 1992, 33, 2581–2582. [Google Scholar] [CrossRef]
  40. Nishimoto, Y.; Moritoh, R.; Yasuda, M.; Baba, A. Regio- and Stereoselective Generation of Alkenylindium Compounds from Indium Tribromide, Alkynes, and Ketene Silyl Acetals. Angew. Chem. Int. Ed. 2009, 48, 4577–4580. [Google Scholar]
  41. Nishimoto, Y.; Ueda, H.; Yasuda, M.; Baba, A. Carbogallation of Alkynes Using Gallium Tribromide and Silyl Ketene Acetals and Synthetic Application to Cross-Coupling with Aryl Iodides. Chem. Eur. J. 2011, 17, 11135–11138. [Google Scholar] [CrossRef] [PubMed]
  42. Nishimoto, Y.; Takeuchi, M.; Yasuda, M.; Baba, A. Regio- and Stereoselective Carbobismuthination of Alkynes. Angew. Chem. Int. Ed. 2012, 51, 1051–1054. [Google Scholar] [CrossRef] [PubMed]
  43. Nishimoto, Y.; Kang, K.; Yasuda, M. Regio- and Stereoselective Anti-Carbozincation of Alkynyl Ethers Using ZnBr2 toward (Z)-β-Zincated Enol Ether Synthesis. Org. Lett. 2017, 19, 3927–3930. [Google Scholar] [CrossRef] [PubMed]
  44. Nishimoto, Y.; Hirase, R.; Yasuda, M. Anti-Carboalumination of Alkynes Using Aluminum Trihalide and Silyl Ketene Imines: Stereo- and Regioselective Synthesis of Alkenylaluminum Compounds Bearing a Cyano Group. Org. Lett. 2018, 20, 3651–3655. [Google Scholar] [CrossRef] [PubMed]
  45. Hayashi, N.; Hirokawa, H.; Shibata, I.; Yasuda, M.; Baba, A. Hydroindation of allenes and its application to radical cyclization. Org. Biomol. Chem. 2008, 6, 1949–1954. [Google Scholar] [CrossRef] [PubMed]
  46. Lee, P.H.; Kim, S.; Lee, K.; Seomoon, D.; Kim, H.; Lee, S.; Kim, M.; Han, M.; Noh, K.; Livinghouse, T. Cyclization of 1-Bromo-2,7- and 1-Bromo-2,8-Enynes Mediated by Indium. Org. Lett. 2004, 6, 4825–4828. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.

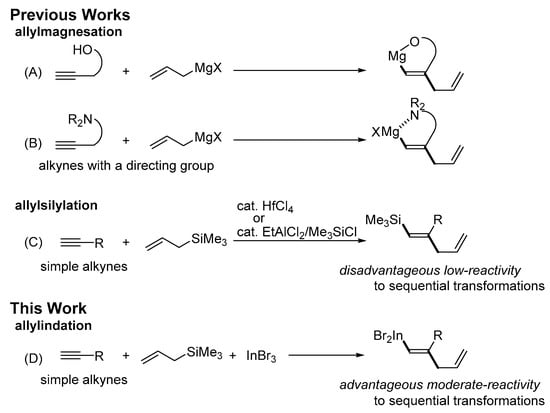

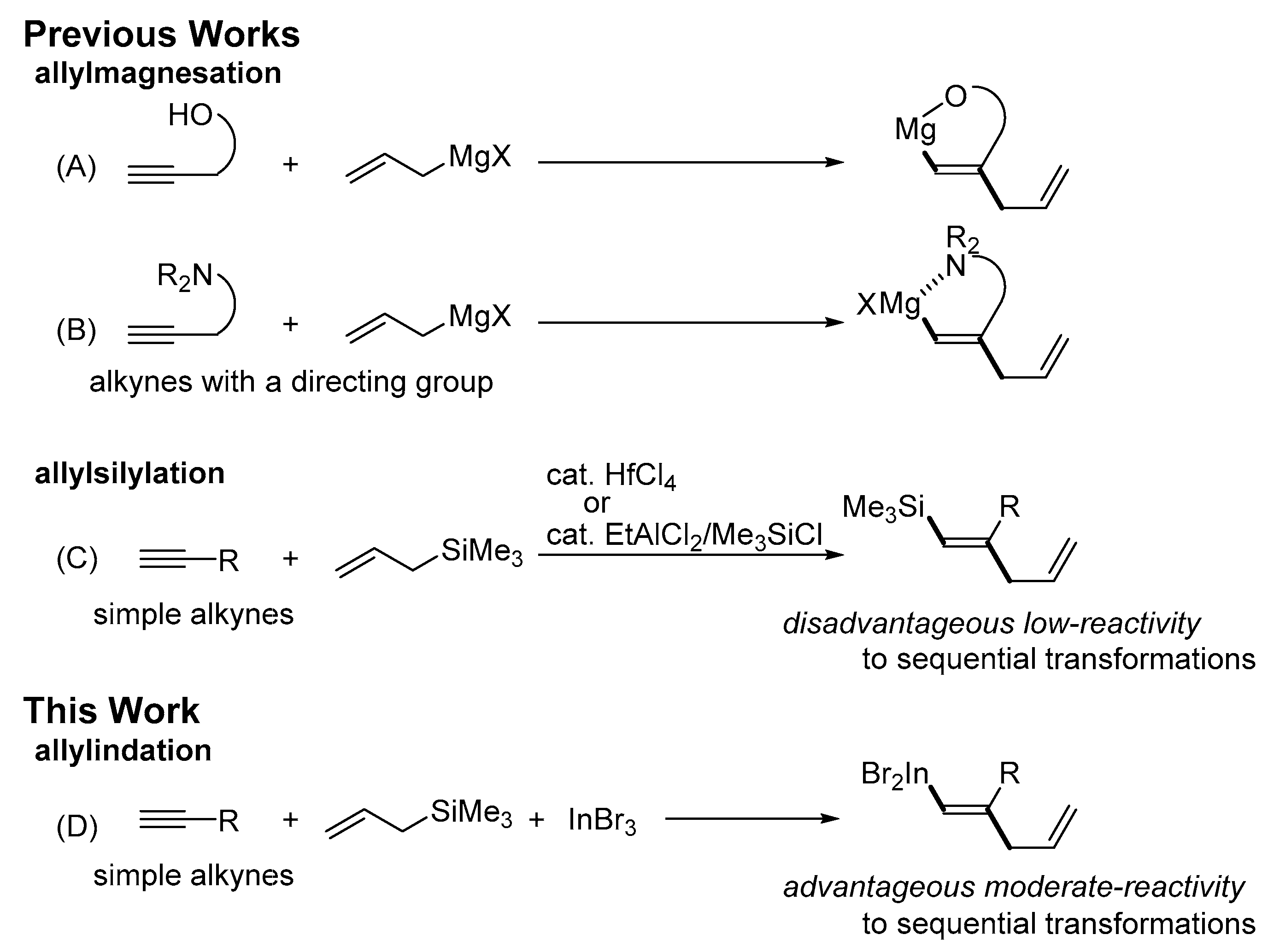

Scheme 1. Anti-allylmetalation of alkynes.
Scheme 1. Anti-allylmetalation of alkynes.
Molecules 23 01884 sch001

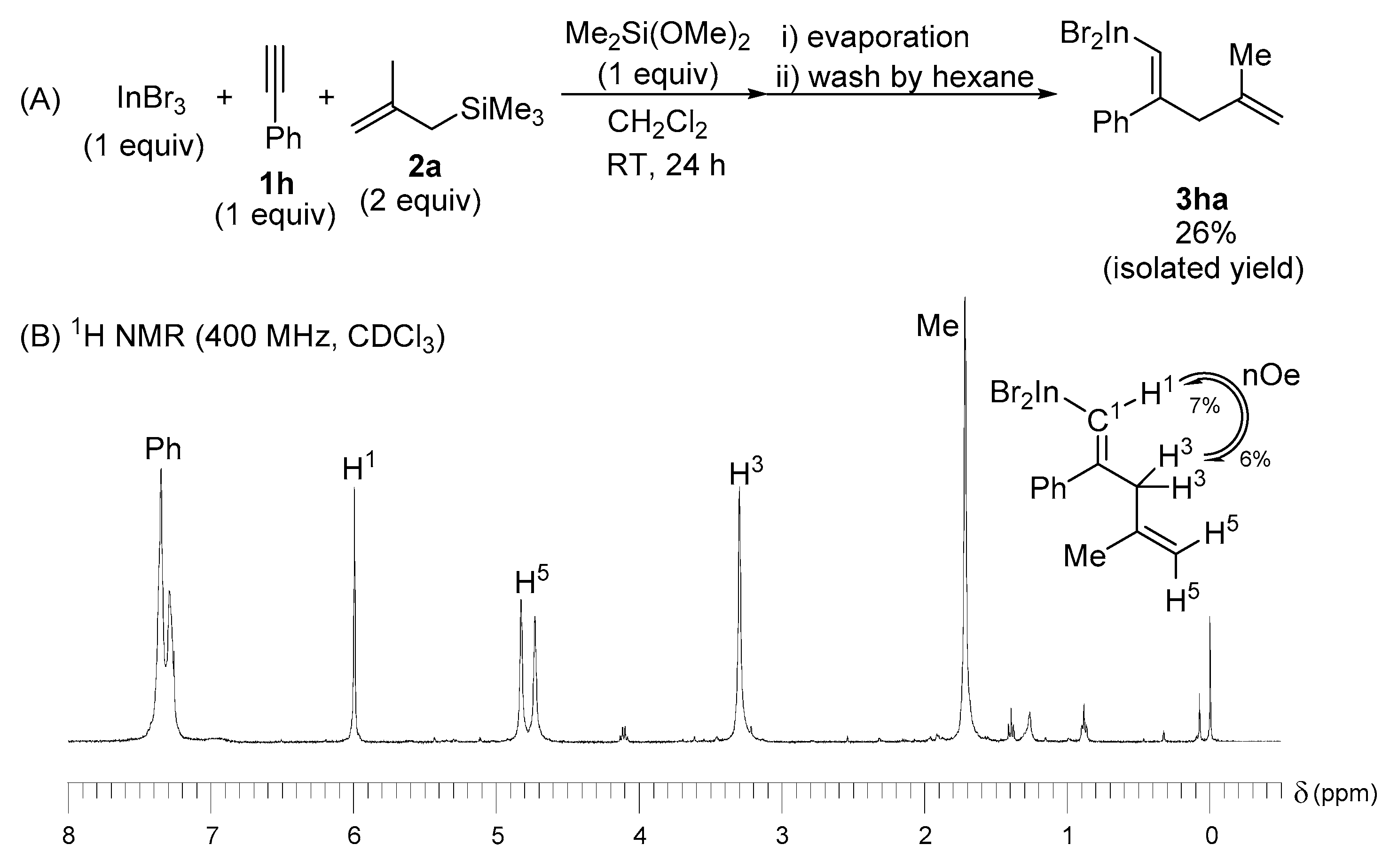

Figure 1. Isolation and characterization of 1,4-dienylindium synthesized by allylindation. (A) Isolation of 1,4-dienylindium 3ha. (B) 1H-NMR spectrum of 3ha.
Figure 1. Isolation and characterization of 1,4-dienylindium synthesized by allylindation. (A) Isolation of 1,4-dienylindium 3ha. (B) 1H-NMR spectrum of 3ha.
Molecules 23 01884 g001

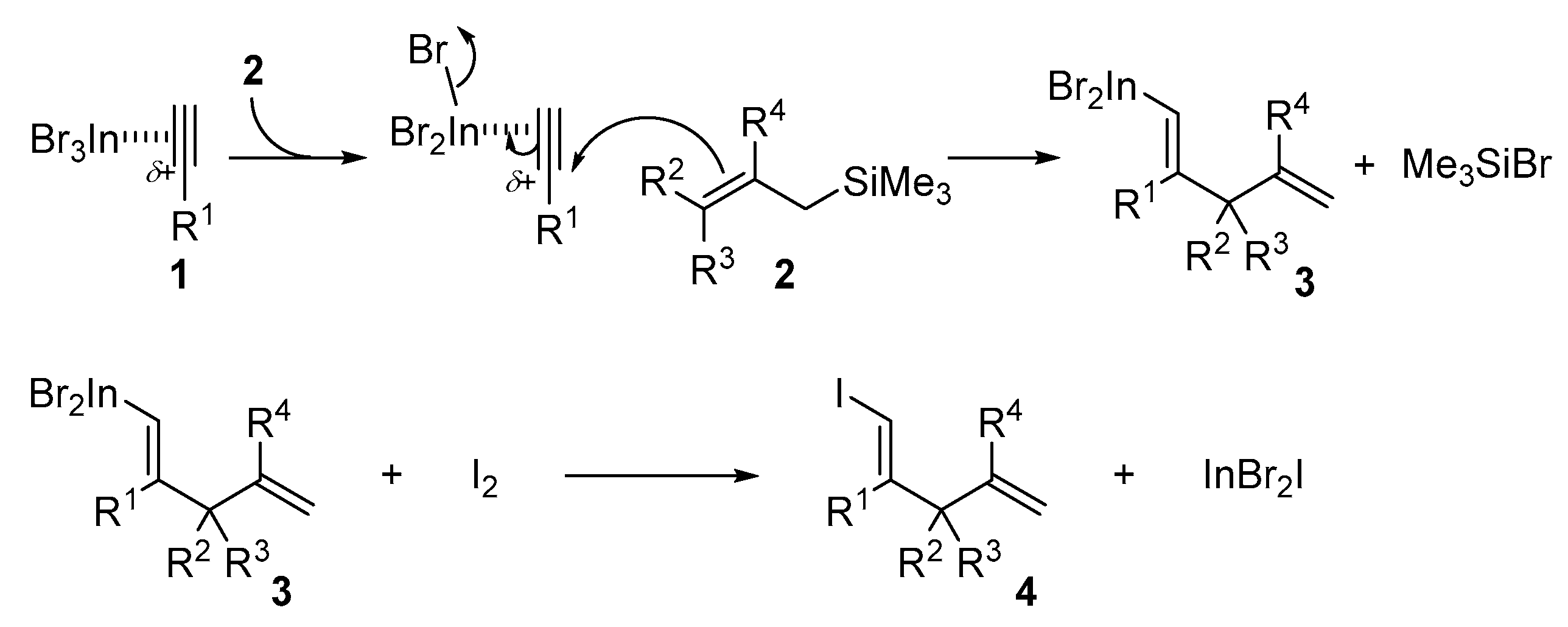

Scheme 2. Plausible reaction mechanism.
Scheme 2. Plausible reaction mechanism.
Molecules 23 01884 sch002

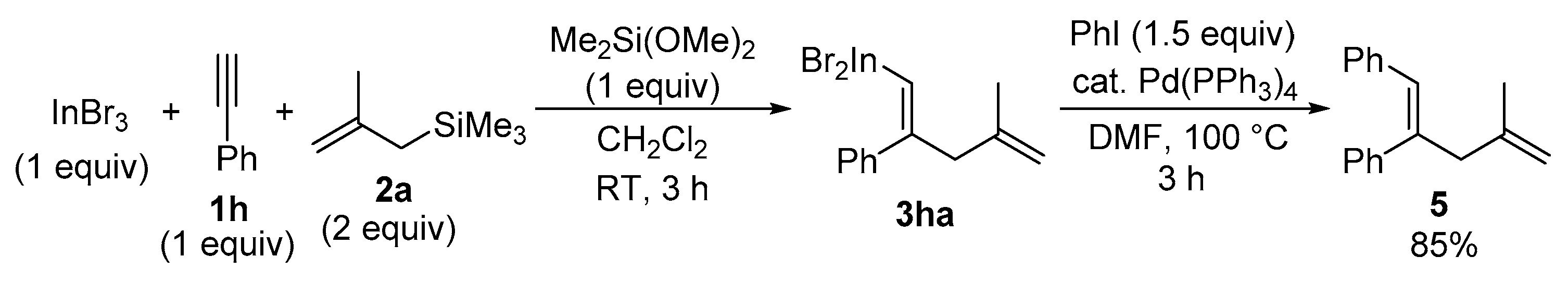

Scheme 3. Pd-catalyzed cross-coupling of alkenylindium with iodobenzene.
Scheme 3. Pd-catalyzed cross-coupling of alkenylindium with iodobenzene.
Molecules 23 01884 sch003

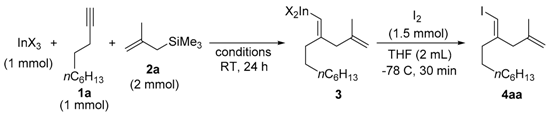

Table 1. Optimization of reaction conditions for carboindation of alkyne 1a with allylic silane 2a a.
Table 1. Optimization of reaction conditions for carboindation of alkyne 1a with allylic silane 2a a.
Molecules 23 01884 i001
EntryInX3SolventYield/%
1InBr3CH2Cl289
2 bInCl3CH2Cl242
3InF3CH2Cl20
4InI3CH2Cl20
5In(OTf)3CH2Cl20
6InBr3toluene0
7InBr3Et2O0
8InBr3CH3CN0
9InBr3THF0
a InX3 (1 mmol), alkyne 1a (1 mmol), allylic silane 2a (2 mmol), solvent (1 mL), room temperature, 24 h. I2 (1.5 mmol), THF (2 mL). Yields were determined via 1H-NMR using 1,1,2,2-tetrachloroethane as an internal standard; b Et2O was used instead of THF.
Table 2. Scope and limitation of alkyne 1 in allylindation a.
Table 2. Scope and limitation of alkyne 1 in allylindation a.
Molecules 23 01884 i002
EntryAlkyne 1Product 4Yield/%
1 Molecules 23 01884 i003
1b
Molecules 23 01884 i004
4ba
64
2 Molecules 23 01884 i005
1c
Molecules 23 01884 i006
4ca
41
3 Molecules 23 01884 i007
1d
Molecules 23 01884 i008
4da
40
4 Molecules 23 01884 i009
1e
Molecules 23 01884 i010
4ea
0
5 Molecules 23 01884 i011
1f
Molecules 23 01884 i012
4fa
59
6 Molecules 23 01884 i013
1g
Molecules 23 01884 i014
4ga
80
7 Molecules 23 01884 i015
1h
Molecules 23 01884 i016
4ha
65
878 b
a Alkyne 1 (1 mmol), allylic silane 2a (2 mmol), InBr3 (1 mmol), CH2Cl2 (1 mL). Yields were determined by 1H-NMR using 1,1,2,2-tetrachloroethane as an internal standard; b Me2Si(OMe)2 (1 mmol) was added.
Table 3. Scope of allylic silane 2 in allylindation a.
Table 3. Scope of allylic silane 2 in allylindation a.
Molecules 23 01884 i017
EntryAllylic Silane 2Product 3Yield/%
1 Molecules 23 01884 i018
2b
Molecules 23 01884 i019
4hb
48
2 Molecules 23 01884 i020
2c
Molecules 23 01884 i021
4hc
76
3 Molecules 23 01884 i022
2d
Molecules 23 01884 i023
4hd
72
4 Molecules 23 01884 i024
2e
Molecules 23 01884 i025
4he
39
a Alkyne 1a (1 mmol), allylic silane 2 (2 mmol), InBr3 (1 mmol), Me2Si(OMe)2 (1 mmol), and CH2Cl2 (1 mL). Yields were determined by 1H-NMR using 1,1,2,2-tetrachloroethane as an internal standard.
