Molecules 2017, 22(3), 343; doi:10.3390/molecules22030343

Article
Antimalarials with Benzothiophene Moieties as Aminoquinoline Partners
Jelena Konstantinović 1, Milica Videnović 2, Jelena Srbljanović 3, Olgica Djurković-Djaković 3, Katarina Bogojević 1, Richard Sciotti 4 and Bogdan Šolaja 1,*
1
Faculty of Chemistry, University of Belgrade, Studentski trg 16, P.O. Box 51, 11158 Belgrade, Serbia
2
Innovation Center of the Faculty of Chemistry, Studentski trg 12-16, 11158 Belgrade, Serbia
3
Institute for Medical Research, University of Belgrade, Dr. Subotića 4, 11129 Belgrade, Serbia
4
Experimental Therapeutics Branch, Walter Reed Army Institute of Research, Silver Spring, MD 20910, USA
*
Correspondence: Tel.: +381-11-263-86-06
Academic Editor: Diego Muñoz-Torrero
Received: 9 January 2017 / Accepted: 16 February 2017 / Published: 24 February 2017

Abstract

:
Malaria is a severe and life-threatening disease caused by Plasmodium parasites that are spread to humans through bites of infected Anopheles mosquitoes. Here, we report on the efficacy of aminoquinolines coupled to benzothiophene and thiophene rings in inhibiting Plasmodium falciparum parasite growth. Synthesized compounds were evaluated for their antimalarial activity and toxicity, in vitro and in mice. Benzothiophenes presented in this paper showed improved activities against a chloroquine susceptible (CQS) strain, with potencies of IC50 = 6 nM, and cured 5/5 Plasmodium berghei infected mice when dosed orally at 160 mg/kg/day × 3 days. In the benzothiophene series, the examined antiplasmodials were more active against the CQS strain D6, than against strains chloroquine resistant (CQR) W2 and multidrug-resistant (MDR) TM91C235. For the thiophene series, a very interesting feature was revealed: hypersensitivity to the CQR strains, resistance index (RI) of <1. This is in sharp contrast to chloroquine, indicating that further development of the series would provide us with more potent antimalarials against CQR strains.
Keywords:
antimalarials; thiophene; benzothiophene; aminoquinoline

1. Introduction

Malaria is a severe and life-threatening disease caused by Plasmodium parasites that are spread to humans through bites of infected Anopheles mosquitoes. Plasmodium sporozoites injected into the bloodstream travel to the liver, where they are transformed into merozoites. They later re-enter the bloodstream, attacking the red blood cells where they begin the asexual replication. A few of these merozoites develop into sexual forms—gametocytes—which are being taken up by mosquitos during blood feeding, thus completing their life cycle [1]. This suggests that numerous stages of the life cycle of Plasmodium parasite could be potential drug targets for development of new antimalarials.
According to the 2015 World Health Organization (WHO) report it is estimated that 214 million cases of malaria occurred globally and the disease led to 438,000 deaths [2]. As artemisinin resistance has spread, posing a threat to malaria control [3], in order to prevent progression to life-threatening malaria artemisinin-based combination therapies (ACTs) have been recommended by the WHO [4]. A vaccine has yet to be discovered [5] and taking into account the constant loss of therapeutic efficacy due to the drug resistant strains, there is an urgent need for the discovery of new targets and treatments for malaria. Widespread chloroquine (CQ) resistance is largely attributable to mutations in the vacuole transmembrane protein (PfCRT) protein [6,7], found in the membrane of the digestive vacuole where hemoglobin digestion takes place.
A number of potential drug targets for novel antimalarials are known so far, most of them parasite proteins, such as Plasmodium falciparum enoyl-acyl carrier protein reductase [8,9,10], fatty acid synthase (PfFAS) [11], N-myristoyltransferase (NMT) [12,13], hexose transporter (PfHT1) [14,15,16], serine hydroxymethyltransferase (SHMT) [17], histone deacetylase [18], and many others. It is unclear if inhibition of these enzymes is the only mechanism of action (MOA) through which novel drugs inhibit parasite growth, but they are important in discovering enzyme function and metabolic pathways. Aminoquinolines, such as chloroquine, are well-known antimalarials. One of the hypotheses of their MOA is the accumulation in the parasite food vacuole, leading to inhibition of hemozoin formation. The toxic effect of free hematin containing ferriprotoporphyrin IX system is suppressed by “polymerization” into hemozoin; therefore, drugs that act as inhibitors of hematin sequestration are involved in the death of the parasite [19]. On the other hand, molecules that contain benzothiophene cores have an important role in medicinal chemistry due to their various biological properties, including antibacterial, antifungal and antitubercular activities [20]. They also act as inhibitors of mitogen activated protein kinase-activated protein kinase 2 (MK2) [21,22], C17,20-lyase inhibitors [23], liver receptor homolog-1 (LRH-1) antagonists [24], inhibitors of tyrosine phosphatase 1B and antihyperglycemic agents [25]. Regarding antimalarial activity, only one series of benzothiophene derivatives was evaluated and showed IC50 values up to 0.16 μM for P. falciparum 3D7 strain and inhibited parasite growth up to 65% at 50 mg/kg/day × 4 days in P. berghei infected mice [26].
Now, we report on the efficacy of aminoquinolines coupled to benzothiophene and thiophene rings in inhibiting Plasmodium falciparum parasite growth and compare the obtained results with CQ and previously reported related thiophene and benzothiophene-based 4-amino-7-chloroquinoline derivatives [27,28], as well as other antimalarial benzothiophene derivatives.
The new series possesses an additional phenylene linker between aminoquinoline and benzothiophene/thiophene moieties (Figure 1), and the influence of the extra π-system on antiplasmodial activity was analyzed taking into account the influence of different methylene linkers.

2. Results

2.1. Chemistry

The syntheses of the aminoquinoline antimalarials with a benzothiophene carrier were executed using procedures we developed earlier. Derivatives 8, 9, 12 and 13 were obtained by reductive amination, starting from the corresponding aldehydes (Scheme 1).
Substituted benzothiophene cores were synthesized starting from commercially available difluoro- or bromofluorobenzaldehyde. Bromination of benzothiophene core afforded C(3) substituted products 17, 18 and 19 in good yields (>80%, Scheme 2), which were further coupled to 4-formylphenylboronic acid via Suzuki reactions to give the aldehydes 20, 21 and 22. These fragments are used in the key reductive amination reaction to prepare a diverse set of methylene-linked P. falciparum inhibitors. It is interesting to note that aldehydes 20 and 22 were obtained in good yields (88% and 76%, respectively), in contrast to 21 (37%). Finally, the reductive amination afforded target compounds 2326 and 2832 in 19%–77% isolated yield after column purification. In addition, compound 26 was methylated and gave 27 in moderate yield.
In the thiophene series, the key intermediate, aldehyde 36, was synthesized in few steps starting from commercially available 2-bromothiophene (33) as follows: 4-(thiophen-2-yl)benzonitrile (34) was obtained from 2-bromothiophene by Suzuki coupling with 4-cyanophenylboronic acid using PdO hydrate as a catalyst (Scheme 3) [29]. Subsequent bromination of thiophene 34 at C(5) position and additional Suzuki reaction with 4-formyphenylboronic acid afforded 36 in excellent yield (92%). After submitting 36 to reductive amination reactions with different aminoquinolines, the target aminoquinoline derivatives 3744 were obtained in 26%–59% isolated yield. The compound 45 was further methylated providing derivative 46 with a tertiary amino group (Scheme 3).
To examine the significance of the cyano group for antiplasmodial potency, the terminal acetylenic derivative 52 was prepared (Scheme 4). 2-Bromothiophene (33) was coupled with 4-formylphenylboronic acid to afford 47. Brominated product 48 obtained by reaction of 47 with NBS in THF was further submitted to Suzuki coupling with the 4-bromophenylboronic acid to afford the bromo aldehyde 49, which was converted in the next step to 50 by Sonogashira coupling with ethynyltrimethylsilane applying microwave irradiation. The final acetylene derivative 52 was obtained after reductive amination of 50 that was followed by removal of trimethylsilyl group under basic conditions.
All tested compounds were fully characterized and their purity was >95% (as determined by High performance liquid chromatography (HPLC)). Full details are given in the Supplementary Materials.

2.2. In Vitro Antiplasmodial Activity

The antimalarial candidates were tested in vitro for their antiplasmodial activity against three P. falciparum strains: D6 (CQ susceptible (CQS) strain), W2 (CQ resistant (CQR) strain), and TM91C235 (Thailand, a multidrug-resistant (MDR) strain), using the Malaria SYBR Green Fluorescence Assay, a microtiter drug sensitivity assay that uses the intercalation of SYBR Green into malaria DNA as a measure of blood stage P. falciparum parasite proliferation in the presence of antimalarial compounds. This assay is performed as a dose response (12 two-fold serial dilutions) to obtain a calculated IC50 determination [30]. CQ and mefloquine (MFQ) were used as positive controls (Table 1 and Table 2).
As a general remark, to our content, all synthesized compounds were more active than CQ against the CQR W2 strain. Importantly, compounds 29, 30 and 31 were as active as CQ against the CQS D6 strain (and had higher activity against W2 and C235 strains), while 28 was two times more active than CQ against the D6 strain. Comparison of in vitro antiplasmodial activities of fluoro and cyano analogues 26 with 29, and 24 with 30, clearly indicate that both cyano derivatives show significantly higher activities against CQS D6 strain. To analyze the effect of the cyano group in different positions of the benzothiophene core, we synthesized the pair of homologs 28, 30, and 31, 32, respectively. The compounds with cyano group at C(5) position were more potent than their C(6) isomers; it was also noticed that the shorter linker n = 2, instead of n = 4, was more favorable for antiplasmodial activity against D6 strain (28 vs. 30, 31 vs. 32).
Unlike benzothiophenes, the compounds of the thiophene series were found to generally exhibit higher in vitro activity against CQR W2 than against CQS D6 strain (Table 2). We found it indicative that all derivatives in this series bearing cyano group were more active against MDR C235 strain in comparison to CQ, among which 41, 42, 44, and 46 showed higher potency than MFQ as well. In addition, all tested C(7) chloro derivatives were more active than the respective des-chloro aminoquinolines against CQR W2 strain, e.g., 41 vs. 44 (13 nM vs. 74 nM). The effect of the cyano group of this series was additionally confirmed by comparison of its antimalarial activity to the activity of the respective acetylene analogue 52, suggesting that cyano substituent may play an important role in the antiplasmodial activity of these derivatives.

3. Discussion

To investigate possible toxicity issues, the synthesized compounds were evaluated in vitro against a human hepatoma cell line (HepG2). The range of their activity falls within 1976–30605 nM, significantly higher in comparison to their respective antimalarial activities (Table 1 and Table 2).
Among all examined derivatives, the compounds 25, 42, and 46 have been chosen for in vivo evaluation since they showed significant activities against W2 clone in vitro (Table 1 and Table 2, RI values), which is in sharp contrast to CQ. In a separate host toxicity study, benzothiophene 25 was subjected to in vivo toxicity evaluation. At the 160 mg/kg/day × 3 days dose, 25 proved to be non-toxic, as all 5 mice survived 30 days after administration and showed normal appearance and behavior. Yet, using a modified Thompson test model [31], administering 25 at the same concentration of 160 mg/kg/day × 3 days to C57Bl6 female mice infected with 1 × 106 P. berghei parasites, unfortunately led to death of 3 out of 4 mice, with only one surviving 31 days but with parasitemia. In this test model, P. berghei infected mice were treated with aminoquinolines suspended in 0.5% hydroxyethylcellulose-0.1% Tween 80 and administered per os (p.o.) once per day on days 3–5 postinfection (Table 3).
Regarding thiophene derivatives, they were all well tolerated by Hep G2 cells, possessing IC50 > 2000 nM. However, rather low selectivity indices were calculated for all derivatives (SIHepG2/D6 = 30–624) with an exception of derivative 43, SI HepG2/D6 > 2000. In a host toxicity study at the concentration of 160 mg/kg × 3 days, compounds 42 and 46 with the longest methylene linker (eight methylene groups), proved to be non-toxic (all 5 mice survived). The compounds were further subjected to in vivo evaluation, using the modified Thompson test model, at 160 mg/kg/day × 3 days for 42, and at 80 and 40 mg/kg/day × 4 days for 46. Under applied treatment conditions, three sets of 5 infected mice died of malaria. Derivative 46 enabled one mouse survival until day 25 (D25) at both administered doses, while compound 42 provided survival with high level of parasitemia until day 24 (D24) at a higher dose (Table 3).
It is important to be aware that direct correlation of in vitro and in vivo results is not always justified. One of many examples is our previously reported compound 1 [27] (Figure 2), which was examined for its antimalarial activity in vivo, despite a relatively low SI (282). Surprisingly, compound 1 cured 5/5 mice using a modified Thompson test (Figure 3, Table 3) and cleared all parasites on day 7 (D7) (parasitemia before treatment was 0.3%–0.9%, and at the end of the study all 5 mice were parasite negative). The same compound was assessed in a dose response test in which P. berghei infected mice were treated per os (p.o.) for 4 days, starting with day 3 postinfection. Unfortunately, at all three applied doses (80, 40 and 20 mg/kg/day) benzothiophene 1 did not clear the parasites (Table 3). There was no detectable parasitemia up to day 11 at a dose as low as 40 mg/kg/day; however, recrudescence occurred between day 11 (D11) and day 14 (D14). In vivo activity results for 1 are summarized on Figure 3. On the other hand, compound 53 [27] with a propylene linker, which showed much more promising SI index (1111), proved to be toxic at concentration of 160 mg/kg/day, thus it was not evaluated in vivo (Figure 2).
Parasite clearance provided by compound 1 with a 160 mg/kg/day × 3 days dose regimen, was further examined at the molecular level by polymerase chain reaction (PCR) [32]. Briefly, genomic DNA was extracted from the blood and liver of experimental animals using the DNeasy blood and tissue kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. The primers and corresponding TaqMan (Applied BioSystems. Foster City, CA, USA) probe amplify and detect a highly conserved region of the 18S rRNA gene of the genus Plasmodium. Pure P. berghei gDNA samples were used as positive controls. Both blood and tissue samples of all 5 mice proved to be negative for P. berghei DNA (Figure 4).
The possible mechanism of action of compound 1 could include inhibition of β-hematin formation, since this compound showed a low IC50 value of 0.34 [33], which is 3.7 times lower than for CQ.

4. Materials and Methods

4.1. Chemistry

4.1.1. General Experimental Procedures

Melting points were determined on a Boetius PHMK apparatus (Carl Zeiss, Germany) and were not corrected. IR spectra were recorded on a Nicolet 6700 Fourier-transformed infrared (FT-IR) diamond crystal spectrophotometer (Thermo-Scientific, Waltham, MA, USA). 1H- and 13C-NMR spectra were recorded on a Ultrashield Advance III spectrometer (at 500 and 125 MHz, respectively, Bruker, Billerica, MA, USA) and Gemini-200 spectrometer (at 50 MHz for 13C-NMR spectra, Varian, Palo Alto, CA, USA), in the indicated solvents (vide infra) using tetramethylsilane as the internal standard. Chemical shifts are expressed in ppm (δ) values and coupling constants (J) in Hz. High-resolution electrospray ionization mass spectrometry (ESI–MS, HRMS) spectra of the synthesized compounds were acquired on a 1200 Series instrument (Agilent Technologies, Santa Clara, CA, USA) equipped with a Zorbax Eclipse Plus C18 (100 × 2.1 mm i.d. 1.8 μm) column and diode array detector (DAD, 190–450 nm) in combination with a 6210 Time-of-Flight LC/MS instrument in positive ion mode. The samples were dissolved in MeOH (HPLC grade). The selected values were as follows: capillary voltage 4 kV; gas temperature 350 °C; drying gas 12 L·min-1; nebulizer pressure 45 psig; fragmentator voltage 70 V. Gas chromatography tandem mass spectrometry (GC-MS) analyses were performed on an Agilent 7890A GC (Agilent) system equipped with a 5975C inert XL EI/CI MSD and a flame ionization detector (FID) connected by capillary flow technology through a 2-way splitter with make-up gas. An HP-5 MS capillary column (Agilent Technologies, 25 mm i.d., 30 m length, 0.25 μm film thickness) was used. The flash chromatography was performed on a Biotage SP1 system (Biotage AB, Uppsala, Sweden) equipped with UV detector and FLASH 12+, FLASH 25+ or FLASH 40+ columns charged with KP-SIL (40–63 µm, pore diameter 60 Å), KP-C18-HS (40–63 µm, pore diameter 90 Å) or KP-NH (40–63 µm, pore diameter 100 Å) as an adsorbent.

4.1.2. Method A—General Procedure for Reductive Amination for Compounds 8, 9, 12, 13, 2326, 2832, 3745, 51

Amine (1.5 eq.) and appropriate aldehyde (1 eq.) were dissolved in MeOH/CH2Cl2 mixture (2:1 v:v), AcOH glac (1.5 eq.) was added, and the mixture was stirred under an Ar atmosphere at r.t. After 3 h, NaBH4 (6 eq.) was added, and stirring was continued for another 18 h. Solvent was removed under reduced pressure, and the residue was dissolved in CH2Cl2. The organic layer was washed with 2M NH4OH, water and then extracted with CH2Cl2. The combined organic layers were washed with brine and dried over anhydrous Na2SO4. Finally, the solvent was evaporated under reduced pressure.

4.1.3. Method B—General Experimental Procedure for Bromination for Compounds 1719, 35

Substituted benzothiophene (1 eq.) was dissolved in 1,2-dichloroethane. A solution of bromine (1.12 eq.) in 1,2-dichloroethane (CH2Cl2 for 17) was slowly added to the reaction mixture at 0 °C, then warmed to r.t., and stirred for 2 h. Reaction progress was monitored by thin-layer chromatography (TLC, reverse phase silica gel, MeOH). Aqueous Na2S2O3 solution was added, and the desired product was extracted with CH2Cl2. Combined organic layers were washed with brine, and dried over anhydrous Na2SO4. After filtration, the solvent was removed under reduced pressure. The product was purified using column chromatography. [34]

4.1.4. Method C—General Procedure for Suzuki Coupling for Compounds 2022

A suspension of Pd(OAc)2 (5.00 mol %) and SPhos (20.0 mol %) in DME was purged with Ar and stirred at r.t. for 10 mins. Brominated benzothiophene (1 eq.) in DME and 2 M Na2CO3 were then added. After 5 min, 4-formylphenylboronic acid (1.2 eq.) in EtOH was added. The mixture is once more purged with Ar and heated in a sealed vessel in microwave reactor at 100 °C for 2 h. Reaction mixture was filtered through Celite and transferred to a separation funnel. Water was added and extracted with CH2Cl2. Combined organic layers were washed with brine and dried over anhydrous Na2SO4. After filtration, the solvent was removed under reduced pressure. The product was purified using column chromatography.

4.1.5. Method D—General Procedure for Synthesis of Aminoquinolines AQ88, AQ9 and AQ10

A mixture of 4-chloroquinoline or 4,7-dichloroquinoline (1 eq.) and an appropriate diamine (5 eq.) were subjected to microwave irradiation using an Initiator 2.5 apparatus (Biotage) for 15 mins at 80 °C, followed by 30 mins at 95 °C and then 2 h at 140 °C. After cooling to room temperature 0.1 M aqueous NaOH was added and then extracted with CH2Cl2. Combined organic layers were dried over anhydrous Na2SO4. After filtration, the solvent was removed under reduced pressure. The crude product was subjected to silica-gel column chromatography using CH2Cl2/MeOH (NH3 satd.) as eluent to afford the final compound.

4.1.6. Method E—General Procedure for N-Methylation of Aminoquinolines for Compounds 27 and 46

To a stirred solution of aminoquinolines (1 eq.) in MeOH containing 37% aqueous formaldehyde (2 eq.) was added mixture of ZnCl2 (2 eq.) and NaHB3CN (4 eq.) in MeOH. After the reaction mixture was stirred at r.t. for 4 h, the solution was taken up in 0.1 M NaOH and most of the MeOH was evaporated under reduced pressure. Aqueous solution was extracted with CH2Cl2, the combined extracts were washed with water and brine and dried over anhydrous Na2SO4. The solvent was evaporated under reduced pressure. [35]

4.1.7. Method F—General Procedure for the Suzuki Coupling Reaction Using PdO × 1.4 H2O for Compounds 34, 36

An appropriate aryl-bromide (1 eq.) was added to the mixture of arylboronic acid (1.2 eq.), catalyst PdO × 1.4 H2O (0.01–0.05 eq.), K2CO3 (1.2 eq.) and ethanol/H2O (3:1 v/v). The mixture was stirred at 60 °C for 5 h, then diluted with water and extracted with CH2Cl2. The combined organic layers were washed with brine and dried over anhydrous Na2SO4. After filtration, the solvent was removed under reduced pressure. The product was purified using silica gel flash chromatography [29].

4.1.8. Method G—General Procedure for the Suzuki Coupling in MeOH/Toluene for Compounds 47, 49

A solution of Pd(OAc)2 (0.05 eq.) and PPh3 (0.2 eq.) in toluene was stirred at r.t. under an argon atmosphere for 10 mins. After that, the solution of an appropriate aryl-bromide (1 eq.), an appropriate arylboronic acid (1.1 eq.) and 2M aq. Na2CO3 (2 eq.) in MeOH and toluene was added. The mixture was stirred at 110 °C under an argon atmosphere for 3 h. The reaction work up method is provided for each compound.
N-(7-Chloroquinolin-4-yl)ethane-1,2-diamine (AQ2), N-(7-chloroquinolin-4-yl)propane-1,3-diamine (AQ3), N-(7-chloroquinolin-4-yl)butane-1,4-diamine (AQ4), N-(7-chloroquinolin-4-yl)pentane-1,5-diamine (AQ5), N-(7-chloroquinolin-4-yl)hexane-1,6-diamine (AQ6), N-(quinolin-4-yl)propane-1,3-diamine (AQ7), N-(quinolin-4-yl)butane-1,4-diamine (AQ8), were prepared according to known procedures [36,37,38,39].
Full details are given in the Supplementary Materials.

4.2. In Vitro Antiplasmodial Activity

Synthesized aminoquinolines were screened in vitro against P. falciparum strains: CQ and MFQ susceptible strain D6 (clone of Sierra Leone/UNC isolate), CQ resistant but MFQ susceptible strain W2 (clone of Indochina isolate), and CQ and MFQ resistant strain TM91C235 (clone of South East Asian isolate) using the Malaria SYBR Green Fluorescence Assay. Full method details are given in Supplementary Materials I. Assessment of compound toxicity in a HepG2 (hepatocellular carcinoma) cell line followed the protocol described in Ref. [40].

4.3. In Vivo Antiplasmodial Activity and Toxicity

The P. berghei (ANKA) mouse efficacy tests were conducted using a modified version of the Thompson test. Groups of five mice were inoculated intraperitoneally with erythrocytes infected with P. berghei on day 0. Drugs were suspended in 0.5% hydroxyethylcellulose-0.1% Tween 80 and administered orally once a day beginning on day 3 post infection. Dosings are given in Table 3. All untreated infected (control) mice showed parasitemia on day 3, which reached levels between 11.2% and 30% on day 6 and succumbed to the infection on day 6–8. Therefore, the test was considered valid. Cure was defined as survival (with no parasitemia) until day 31 post-treatment. Parasitemia was determined by thin-blood Giemsa-stained smears prepared from mice tail blood of each animal on days 0, 3, 6, 10, 13, 17, 20, 24, 27, and 31 (postinfection). The slides were examined under a light microscope.
In a separate host toxicity study, groups of five healthy mice were administered 160 mg/kg/day × 3 days of the investigational compounds and individually monitored for behavior and appearance two times a day for 31 days. No toxicity was defined as survival past day 31 with no overt clinical manifestations of toxicity (changes in behavior and appearance).
The study followed the International Guiding Principles for biomedical research involving animals, and was reviewed by a local Ethics Committee and approved by the Veterinary Directorate at the Ministry of Agricultutre and Environmental Protection of Serbia (decision no. 323-07-02444/2014-05/1).

4.4. Genomic DNA Extraction and qPCR Analysis

4.4.1. DNA Extraction

Genomic DNA was extracted from the blood and liver of experimental animals using the DNeasy blood and tissue kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. Briefly, mice alive past day 31 with complete parasite clearance were sacrificed. Next, between 300 and 500 μL of blood was removed after heart puncture and the organs were removed, rinsed with dPBS and homogenized. The liver was homogenized using mechanical disruption and then subjected to proteinase K digestion. Approximately 100 μL of sample was used per each spin column for gDNA extraction.

4.4.2. Real Time PCR

Briefly, the primers and corresponding TaqMan probe amplify and detect a highly conserved region of the 18S rRNA gene of the genus Plasmodium. The primer and probe sequences were as follows: forward primer Plasmo 1: 5-GTTAAGGGAGTGAAGACGA TCAGA-3; reverse primer Plasmo 2: 5-AACCCAAAGACTTTGATTTC TCATAA-3; TaqMan probe Plasprobe: 5-FAM-ACCGTCGTAA TCTTAACCAT AAACTATGCC GACTAG-TAMRA-3. Each 20μL reaction contained 1× Maxima Probe qPCR Master Mix (Thermo Fisher Scientific, Waltham, MA, USA), 200 nM of each primer, 50 nM probe, 1U UNG (Thermo Fisher Scientific) and 3 μL template gDNA. The following PCR conditions were used: one holding step at 50 °C for 2 min, one holding step at 95 °C for 10 min, then 45 cycles of 95 °C for 15 s, 60 °C for 1 min. The PCR was performed in a StepOne Plus instrument (Applied BioSystems). Samples starting with Ct40 were considered negative. A positive (P. berghei gDNA) and negative control (H2O) were included in each run [32].

5. Conclusions

Benzothiophenes presented in this paper, in comparison to compounds discussed in [26] showed improved activities against the CQS strain, with potencies against D6 of IC50 = 6 nM, and cured 5/5 P. berghei infected mice dosed per os (p.o.) at 160 mg/kg/day × 3 days. However, comparing the two series of benzothiophenes (and thiophenes), with and without the phenyl linker, we found that introducing the phenyl linker did not improve the in vitro activity of the first series of aminoquinolines [27] In both benzothiophene series, all compounds were more active against the CQS strain D6, than against strains CQR W2 and MDR TM91C235, with the sole exception of 25 which was more active against the W2 strain. As for thiophene series—3742, 44 and 46—a very interesting feature was revealed: hypersensitivity to the resistant strains, with a resistance index of less than 1. This is in sharp contrast to chloroquine, thus indicating that further development of the series could provide us with antimalarials more powerful against CQR strains.

Supplementary Materials

Supplementary Material—I (Chemistry); Supplementary Material—II (NMR spectra of synthesized compounds, HPLC analyses for purity) are available online.

Acknowledgments

This research was supported by The Ministry of Science and Technological Development of Serbia (grant #: 172008 and 41019) and the Serbian Academy of Sciences and Arts.

Author Contributions

Bogdan Šolaja and Jelena Konstantinović designed thiophene and benzothiophene antiplasmodials; Jelena Konstantinović, Milica Videnović and Katarina Bogojević synthesized and characterized the compounds; Richard Sciotti coordinated research at WRAIR; Jelena Srbljanović, Jelena Konstantinović, and Olgica Djurković-Djaković performed in vivo antimalarial screening and toxicity tests; Bogdan Šolaja was the head research advisor, directed research activities and edited the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Soulard, V.; Bosson-Vanga, H.; Lorthiois, A.; Roucher, C.; Franetich, J.; Zanghi, G.; Bordessoulles, M.; Tefit, M.; Thellier, M.; Morosan, S.; et al. Plasmodium falciparum full life cycle and Plasmodium ovale liver stages in humanized mice. Nat. Commun. 2015, 6, 7690. [Google Scholar] [CrossRef] [PubMed]
  2. World Health Organization. World Malaria Report, 2015. Available online: http://www.who.int/malaria/publications/world-malaria-report-2015/report/en/ (accessed on 19 December 2016).
  3. Ashley, E.A.; Dhorda, M.; Fairhurst, R.M.; Amaratunga, C.; Lim, P.; Suon, S.; Sreng, S.; Anderson, J.M.; Mao, S.; Sam, B.; et al. Spread of Artemisinin Resistance in Plasmodium falciparum Malaria. N. Engl. J. Med. 2014, 371, 411–423. [Google Scholar] [CrossRef] [PubMed]
  4. World Health Organization. Overview of Malaria Treatment. Available online: http://www.who.int/malaria/areas/treatment/overview/en/ (accessed on 19 December 2016).
  5. Dholakia, N.; Dhandhukia, P.; Roy, N. Screening of potential targets in Plasmodium falciparum using stage-specific metabolic network analysis. Mol. Divers. 2015, 19, 991–1002. [Google Scholar] [CrossRef] [PubMed]
  6. Hastings, I.M.; Bray, P.G.; Ward, S.A. Parasitology. A requiem for chloroquine. Science 2002, 298, 74–75. [Google Scholar] [CrossRef] [PubMed]
  7. Fidock, D.A.; Nomura, T.; Talley, A.K.; Cooper, R.A.; Dzekunov, S.M.; Ferdig, M.T.; Ursos, L.M. B.; Sidhu, A.B.S.; Naude, B.; Deitsch, K.W.; et al. Mutations in the P. falciparum Digestive Vacuole Transmembrane Protein PfCRT and Evidence for Their Role in Chloroquine Resistance. Mol. Cell 2000, 6, 861–871. [Google Scholar] [CrossRef]
  8. Banerjee, T.; Sharma, S.K.; Kapoor, N.; Dwivedi, V.; Surolia, N.; Surolia, A. Benzothiophene carboxamide derivatives as inhibitors of Plasmodium falciparum enoyl-ACP reductase. IUBMB Life 2011, 63, 1101–1110. [Google Scholar] [CrossRef] [PubMed]
  9. Chhibber, M.; Kumar, G.; Parasuraman, P.; Ramya, T.N.C.; Surolia, N.; Surolia, A. Novel diphenyl ethers: Design, docking studies, synthesis and inhibition of enoyl ACP reductase of Plasmodium falciparum and Escherichia coli. Bioorg. Med. Chem. 2006, 14, 8086–8098. [Google Scholar] [CrossRef] [PubMed]
  10. Sharma, S.K.; Parasuraman, P.; Kumar, G.; Surolia, N.; Surolia, A. Green Tea Catechins Potentiate Triclosan Binding to Enoyl-ACP Reductase from Plasmodium falciparum (PfENR). J. Med. Chem. 2007, 50, 765–775. [Google Scholar] [CrossRef] [PubMed]
  11. Carballeira, N.M.; Bwalya, A.G.; Itoe, M.A.; Andricopulo, A.D.; Cordero-Maldonado, M.L.; Kaiser, M.; Mota, M.M.; Crawford, A.D.; Guido, R.V.C.; Tasdemir, D. 2-Octadecynoic acid as a dual life stage inhibitor of Plasmodium infections and plasmodial FAS-II enzymes. Bioorg. Med. Chem. Lett. 2014, 24, 4151–4157. [Google Scholar] [CrossRef] [PubMed]
  12. Rackham, M.D.; Brannigan, J.A.; Moss, D.K.; Yu, Z.; Wilkinson, A.J.; Holder, A.A.; Tate, E.W.; Leatherbarrow, R.J. Discovery of Novel and Ligand-Efficient Inhibitors of Plasmodium falciparum and Plasmodium vivax N-Myristoyltransferase. J. Med. Chem. 2013, 56, 371–375. [Google Scholar] [CrossRef] [PubMed]
  13. Rackham, M.D.; Brannigan, J.A.; Rangachari, K.; Meister, S.; Wilkinson, A.J.; Holder, A.A.; Leatherbarrow, R.J.; Tate, E.W. Design and Synthesis of High Affinity Inhibitors of Plasmodium falciparum and Plasmodium vivax N-Myristoyltransferases Directed by Ligand Efficiency Dependent Lipophilicity (LELP). J. Med. Chem. 2014, 57, 2773–2788. [Google Scholar] [CrossRef] [PubMed]
  14. Slavic, K.; Krishna, S.; Derbyshire, E.T.; Staines, H.M. Plasmodial sugar transporters as anti-malarial drug targets and comparisons with other protozoa. Malar. J. 2011, 10, 165. [Google Scholar] [CrossRef] [PubMed]
  15. Slavic, K.; Derbyshire, E.T.; Naftalin, R.J.; Krishna, S.; Staines, H.M. Comparison of effects of green tea catechins on apicomplexan hexose transporters and mammalian orthologues. Mol. Biochem. Parasitol. 2009, 168, 113–116. [Google Scholar] [CrossRef] [PubMed]
  16. Saliba, K.J.; Krishna, S.; Kirk, K. Inhibition of hexose transport and abrogation of pH homeostasis in the intraerythrocytic malaria parasite by an O-3-hexose derivative. FEBS Lett. 2004, 570, 93–96. [Google Scholar] [CrossRef] [PubMed]
  17. Witschel, M.C.; Rottmann, M.; Schwab, A.; Leartsakulpanich, U.; Chitnumsub, P.; Seet, M.; Tonazzi, S.; Schwertz, G.; Stelzer, F.; Mietzner, T.; et al. Inhibitors of Plasmodial Serine Hydroxymethyltransferase (SHMT): Cocrystal Structures of Pyrazolopyrans with Potent Blood- and Liver-Stage Activities. J. Med. Chem. 2015, 58, 3117–3130. [Google Scholar] [CrossRef] [PubMed]
  18. Agbor-Enoh, S.; Seudieu, C.; Davidson, E.; Dritschilo, A.; Jung, M. Novel Inhibitor of Plasmodium Histone Deacetylase That Cures P. berghei-Infected Mice. Antimicrob. Agents Chemother. 2009, 53, 1727–1734. [Google Scholar] [CrossRef] [PubMed]
  19. O’Neill, P.M.; Bray, P.G.; Hawley, S.R.; Ward, S.A.; Park, B.K. 4-Aminoquinolines—Past, present, and future: a chemical perspective. Pharmacol. Ther. 1998, 77, 29–58. [Google Scholar] [CrossRef]
  20. Kharb, R.; Bansal, K. Perspectives on Antimicrobial Potential of Benzothiophene Derivatives. Res. J. Pharm. Biol. Chem. Sci. 2013, 4, 1585–1606. [Google Scholar]
  21. Anderson, D.R.; Meyers, M.J.; Kurumbail, R.G.; Caspers, N.; Poda, G.I.; Long, S.A.; Pierce, B.S.; Mahoney, M.W.; Mourey, R.J. Benzothiophene inhibitors of MK2. Part 1: Structure–activity relationships, assessments of selectivity and cellular potency. Bioorg. Med. Chem. Lett. 2009, 19, 4878–4881. [Google Scholar] [CrossRef] [PubMed]
  22. Anderson, D.R.; Meyers, M.J.; Kurumbail, R.G.; Caspers, N.; Poda, G.I.; Long, S.A.; Pierce, B.S.; Mahoney, M.W.; Mourey, R.J.; Parikh, M.D. Benzothiophene inhibitors of MK2. Part 2: Improvements in kinase selectivity and cell potency. Bioorg. Med. Chem. Lett. 2009, 19, 4882–4884. [Google Scholar] [CrossRef] [PubMed]
  23. Matsunaga, N.; Kaku, T.; Itoh, F.; Tanaka, T.; Hara, T.; Miki, H.; Iwasaki, M.; Aono, T.; Yamaoka, M.; Kusaka, M.; et al. C17,20-lyase inhibitors I. Structure-based de novo design and SAR study of C17,20-lyase inhibitors. Bioorg. Med. Chem. 2004, 12, 2251–2273. [Google Scholar] [CrossRef] [PubMed]
  24. Rey, J.; Hu, H.; Kyle, F.; Lai, C.; Buluwela, L.; Coombes, R.C.; Ortlund, E.A.; Ali, S.; Snyder, J.P.; Barrett, A.G.M. Discovery of a New Class of Liver Receptor Homolog-1 (LRH-1) Antagonists: Virtual Screening, Synthesis and Biological Evaluation. ChemMedChem. 2012, 7, 1909–1914. [Google Scholar] [CrossRef] [PubMed]
  25. Malamas, M.S.; Sredy, J.; Moxham, C.; Katz, A.; Xu, W.; McDevitt, R.; Adebayo, F.O.; Sawicki, D.R.; Seestaller, L.; Sullivan, D.; et al. Novel Benzofuran and Benzothiophene Biphenyls as Inhibitors of Protein Tyrosine Phosphatase 1B with Antihyperglycemic Properties. J. Med. Chem. 2000, 43, 1293–1310. [Google Scholar] [CrossRef] [PubMed]
  26. Pérez-Silanes, S.; Berrade, L.; García–Sánchez, R.N.; Mendoza, A.; Galiano, S.; Pérez-Solórzano, B.M.; Nogal-Ruiz, J.J.; Martínez-Fernández, A.R.; Aldana, I.; Monge, A. New 1-Aryl-3-Substituted Propanol Derivatives as Antimalarial Agents. Molecules 2009, 14, 4120–4135. [Google Scholar] [CrossRef] [PubMed]
  27. Terzić, N.; Konstantinović, J.; Tot, M.; Burojević, J.; Djurković-Djaković, O.; Srbljanović, J.; Štajner, T.; Verbić, T.; Zlatović, M.; Machado, M.; et al. Reinvestigating Old Pharmacophores: Are 4-Aminoquinolines and Tetraoxanes Potential Two-Stage Antimalarials? J. Med. Chem. 2016, 59, 264–281. [Google Scholar] [CrossRef] [PubMed]
  28. Opsenica, I.M.; Verbić, T.Ž.; Tot, M.; Sciotti, R.J.; Pybus, B.S.; Djurković-Djaković, O.; Slavić, K.; Šolaja, B.A. Investigation into novel thiophene- and furan-based 4-amino-7-chloroquinolines afforded antimalarials that cure mice. Bioorg. Med. Chem. 2015, 23, 2176–2186. [Google Scholar] [CrossRef] [PubMed]
  29. Amoroso, F.; Colussi, S.; Del Zotto, A.; Llorca, J.; Trovarelli, A. PdO hydrate as an efficient and recyclable catalyst for the Suzuki–Miyaura reaction in water/ethanol at room temperature. Catal. Commun. 2011, 12, 563–567. [Google Scholar] [CrossRef]
  30. Johnson, J.D.; Dennull, R.A.; Gerena, L.; Lopez-Sanchez, M.; Roncal, N.E.; Waters, N.C. Assessment and Continued Validation of the Malaria SYBR Green I-Based Fluorescence Assay for Use in Malaria Drug Screening. Antimicrob. Agents Chemother. 2007, 51, 1926–1933. [Google Scholar] [CrossRef] [PubMed]
  31. Opsenica, I.; Burnett, J.C.; Gussio, R.; Opsenica, D.; Todorović, N.; Lanteri, C.A.; Sciotti, R.J.; Gettayacamin, M.; Basilico, N.; Taramelli, D.; et al. A Chemotype That Inhibits Three Unrelated Pathogenic Targets: The Botulinum Neurotoxin Serotype A Light Chain, P. falciparum Malaria, and the Ebola Filovirus. J. Med. Chem. 2011, 54, 1157–1169. [Google Scholar] [CrossRef] [PubMed]
  32. Rougemont, M.; van Saanen, M.; Sahli, R.; Hinrikson, H.P.; Bille, J.; Jaton, K. Detection of Four Plasmodium Species in Blood from Humans by 18S rRNA Gene Subunit-Based and Species-Specific Real-Time PCR Assays. J. Clin. Microbiol. 2004, 42, 5636–5643. [Google Scholar] [CrossRef] [PubMed]
  33. The inhibition of β-hematin formation is expressed as the molar equivalent of compound, relative to hemin, that inhibits β-hematin formation by 50% and determined by slightly modified BHIA assay introduced by Parapini, S.; Basilico, N.; Pasini, E.; Egan, T.J.; Olliaro, P.; Taramelli, D.; Monti, D. Standardization of the physicochemical parameters to assess in vitro the beta-hematin inhibitory activity of antimalarial drugs. Exp. Parasitol. 2000, 96, 249–256. [Google Scholar] [CrossRef] [PubMed]
  34. Brendle, J.J.; Outlaw, A.; Kumar, A.; Boykin, D.W.; Patrick, D.A.; Tidwell, R.R.; Werbovetz, K.A. Antileishmanial Activities of Several Classes of Aromatic Dications. Antimicrob. Agents Chemother. 2002, 46, 797–807. [Google Scholar] [CrossRef] [PubMed]
  35. Kim, S.; Oh, C.H.; Ko, J.S.; Ahn, K.H.; Kim, Y.J. Zinc-modified cyanoborohydride as a selective reducing agent. J. Org. Chem. 1985, 50, 1927–1932. [Google Scholar] [CrossRef]
  36. Musonda, C.C.; Gut, J.; Rosenthal, P.J.; Yardley, V.; Carvalho de Souza, R.C.; Chibale, K. Application of multicomponent reactions to antimalarial drug discovery. Part 2: New antiplasmodial and antitrypanosomal 4-aminoquinoline γ- and δ-lactams via a ‘catch and release’ protocol. Bioorg. Med. Chem. 2006, 14, 5605–5615. [Google Scholar] [CrossRef] [PubMed]
  37. Peck, R.M.; Preston, R.K.; Creech, H.J. Nitrogen mustard analogs of antimalarial drugs. J. Am. Chem. Soc. 1959, 81, 3984–3989. [Google Scholar] [CrossRef]
  38. Price, C.C.; Leonard, N.J.; Peel, E.W.; Reitsema, R.H. Some 4-amino-7-chloroquinoline derivatives. J. Am. Chem. Soc. 1946, 68, 1807–1808. [Google Scholar] [CrossRef] [PubMed]
  39. Singh, C.; Malik, H.; Puri, S.K. Synthesis and antimalarial activity of a new series of trioxaquines. Bioorg. Med. Chem. 2004, 12, 1177–1182. [Google Scholar] [CrossRef] [PubMed]
  40. Opsenica, I.M.; Tot, M.; Gomba, L.; Nuss, J.E.; Sciotti, R.J.; Bavari, S.; Burnett, J.C.; Šolaja, B.A. 4‑Amino-7-chloroquinolines: Probing Ligand Efficiency Provides Botulinum Neurotoxin Serotype A Light Chain Inhibitors with Significant Antiprotozoal Activity. J. Med. Chem. 2013, 56, 5860–5871. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds 8, 9, 12, 13, 2332, 3744, 46, 52 are available from the authors.

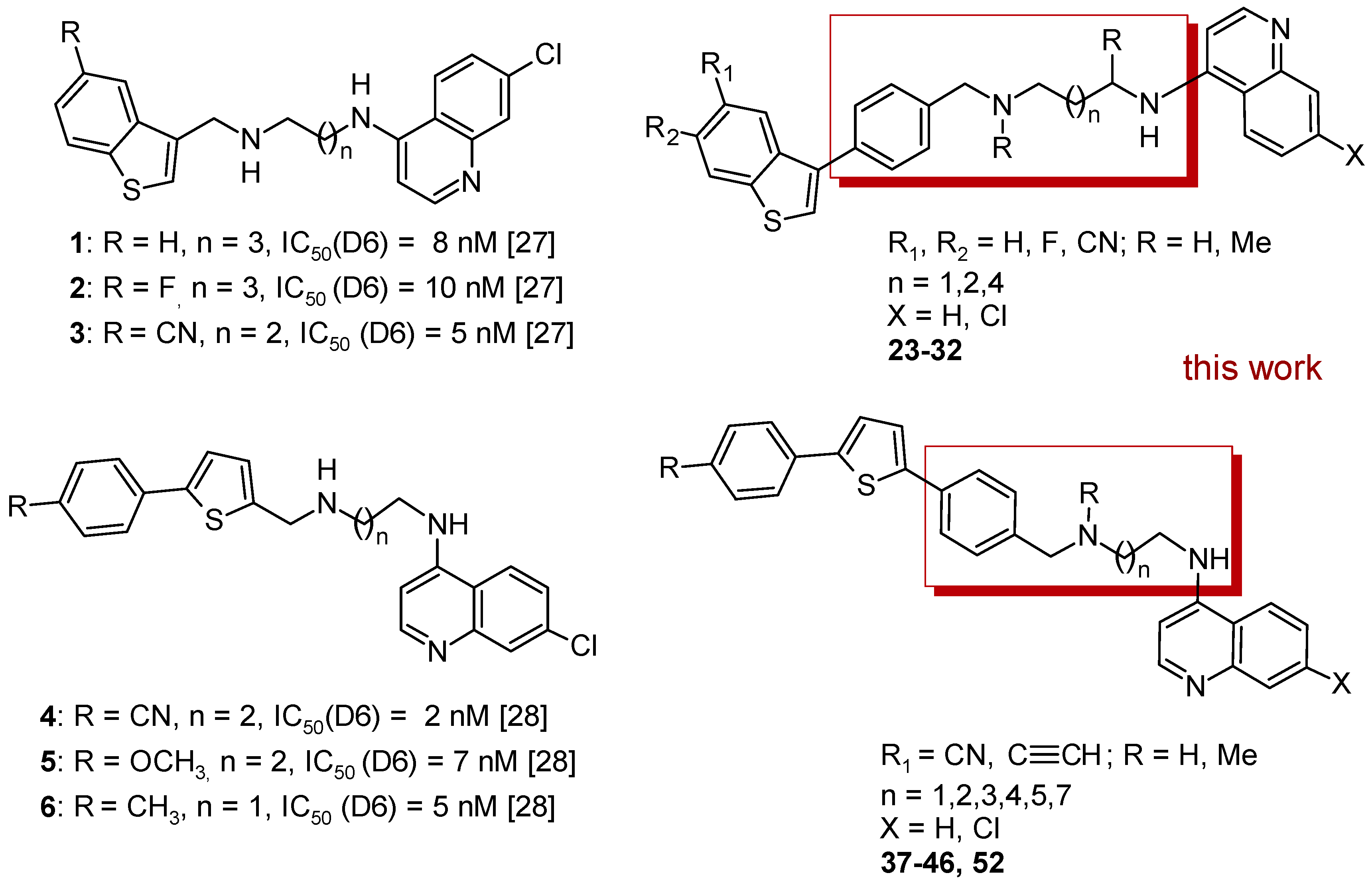

Figure 1. Benzothiophene and thiophene based antimalarials 2332, 3746 and 52.
Figure 1. Benzothiophene and thiophene based antimalarials 2332, 3746 and 52.
Molecules 22 00343 g001
Scheme 1. Synthesis of benzothiophene derivatives 8, 9, 12 and 13.
Scheme 1. Synthesis of benzothiophene derivatives 8, 9, 12 and 13.
Molecules 22 00343 sch001
Scheme 2. Synthesis of benzothiophene derivatives 2332 with the phenylene linker. SPhos = 2-Dicyclohexylphosphino-2′,6′-dimethoxybiphenyl‎; DME = 1,2-dimetoxyethane
Scheme 2. Synthesis of benzothiophene derivatives 2332 with the phenylene linker. SPhos = 2-Dicyclohexylphosphino-2′,6′-dimethoxybiphenyl‎; DME = 1,2-dimetoxyethane
Molecules 22 00343 sch002

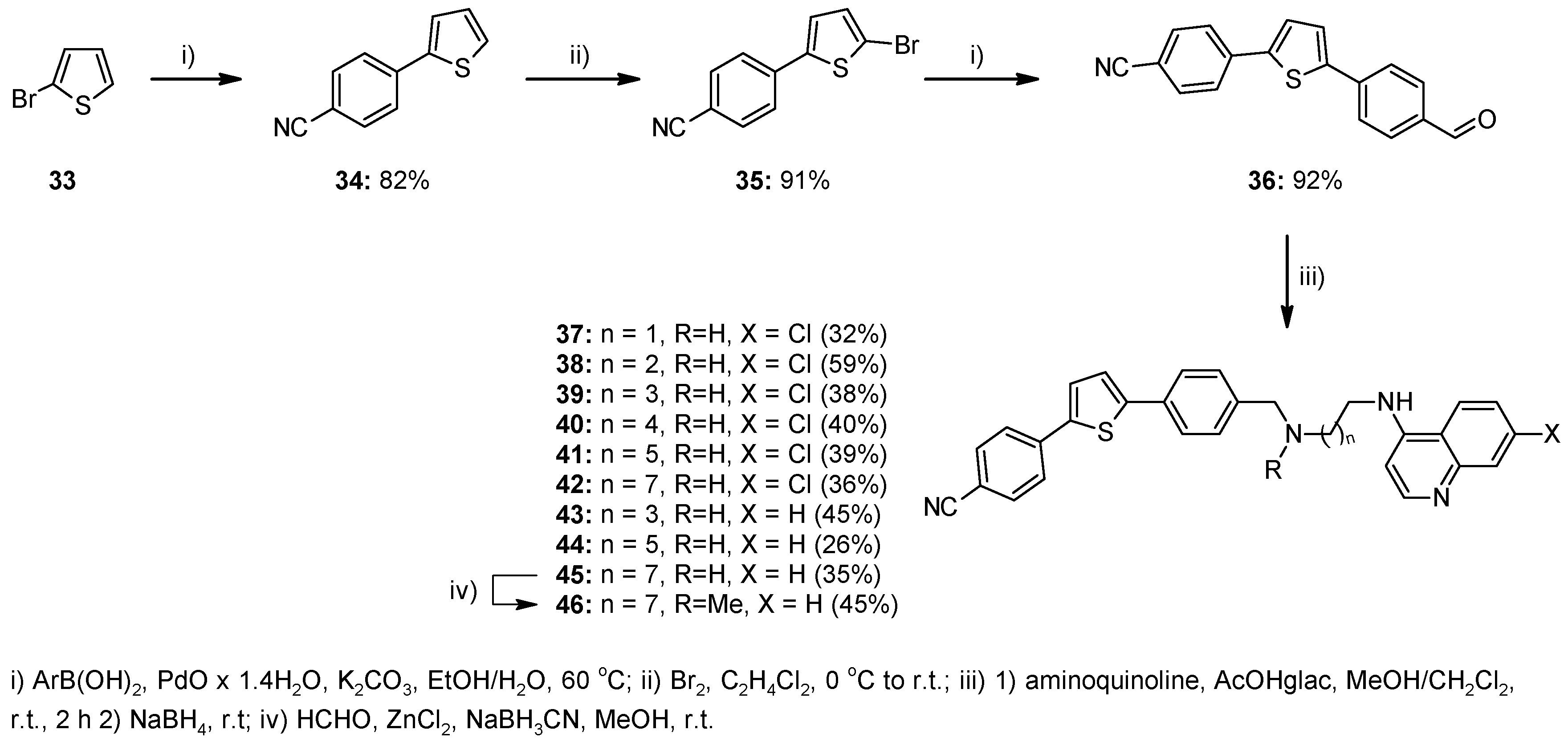

Scheme 3. Synthesis of thiophene derivatives 3746.
Scheme 3. Synthesis of thiophene derivatives 3746.
Molecules 22 00343 sch003

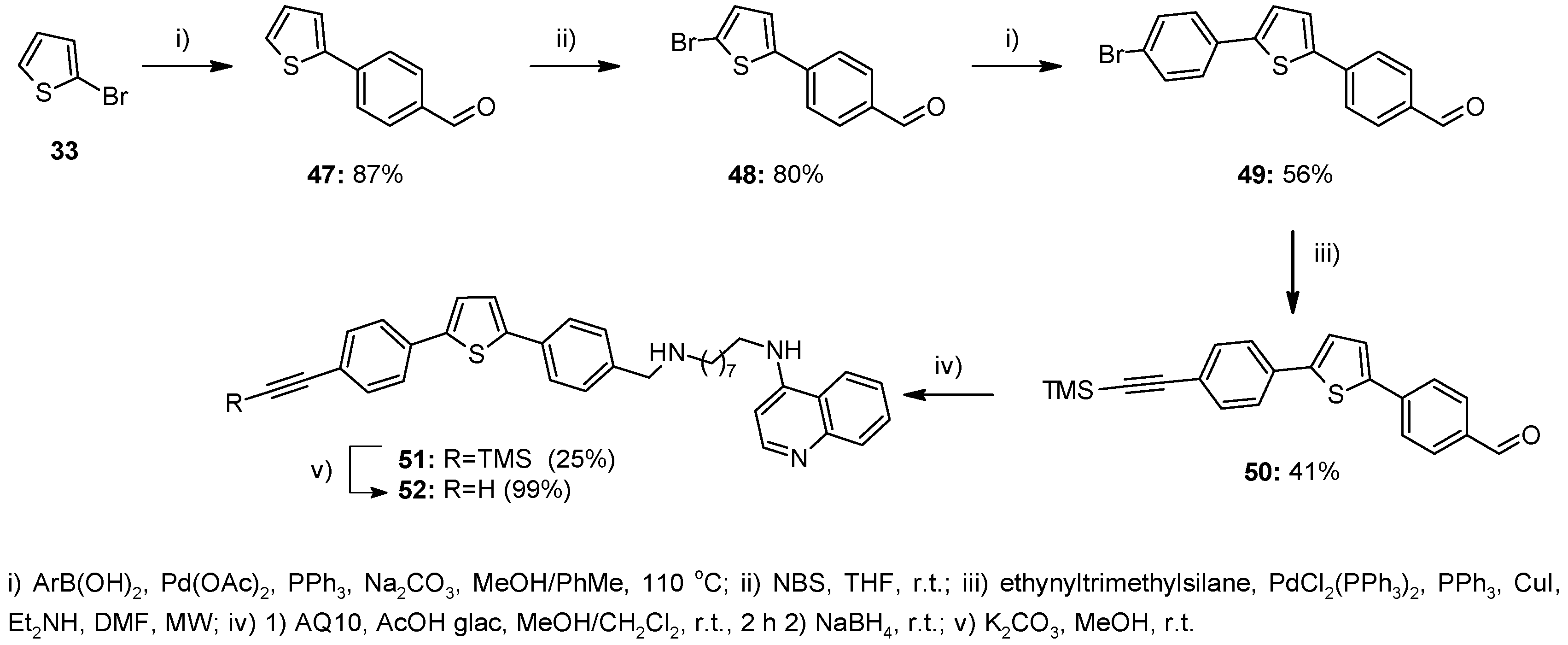

Scheme 4. Synthesis of acetylene derivative 52. NBS = N-bromosuccinimide; THF = tetrahydrofuran; DMF = N,N-dimethylformamide; MW = microwave irradiation; AQ10 = N-(quinolin-4-yl)octane-1,8-diamine.
Scheme 4. Synthesis of acetylene derivative 52. NBS = N-bromosuccinimide; THF = tetrahydrofuran; DMF = N,N-dimethylformamide; MW = microwave irradiation; AQ10 = N-(quinolin-4-yl)octane-1,8-diamine.
Molecules 22 00343 sch004

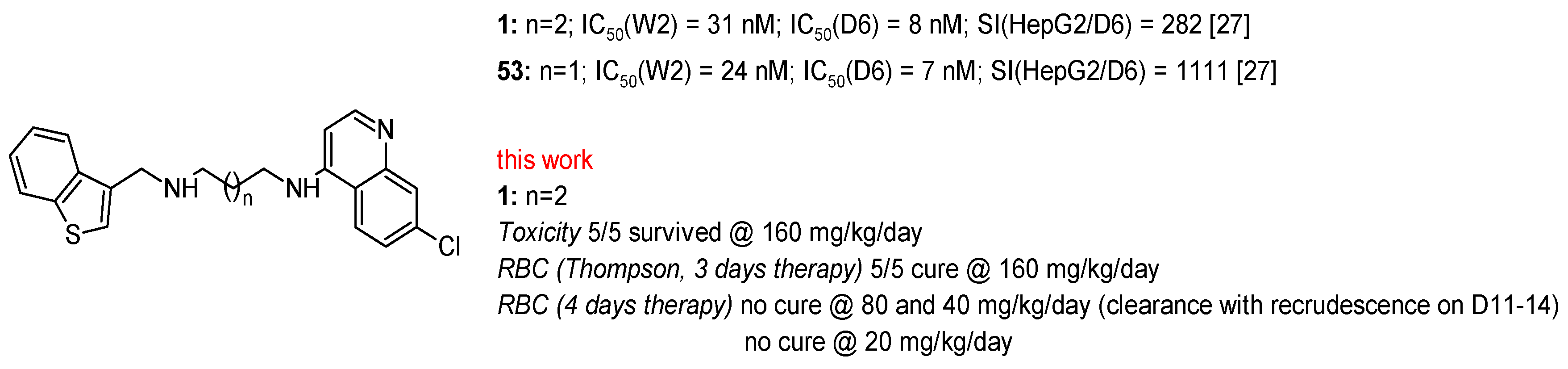

Figure 2. Antimalarial activity of compounds 1 and 53. RBC—red blood cell.
Figure 2. Antimalarial activity of compounds 1 and 53. RBC—red blood cell.
Molecules 22 00343 g002
Figure 3. Effect of treatment with compound 1 at four dosage regimens (20, 40, 80, 160 mg/kg) on the survival of mice infected with P. berghei Antwerpen-Kasapa (ANKA) strain.
Figure 3. Effect of treatment with compound 1 at four dosage regimens (20, 40, 80, 160 mg/kg) on the survival of mice infected with P. berghei Antwerpen-Kasapa (ANKA) strain.
Molecules 22 00343 g003
Figure 4. Real time (quantitative) PCR (qPCR) analysis for compound 1. Amplification curves for blood and tissues of five mice. Horizontal line represents threshold for amplification. All values >40 Ct and amplification curves below threshold indicate absence of target DNA. The three amplification curves above threshold correspond to positive controls.
Figure 4. Real time (quantitative) PCR (qPCR) analysis for compound 1. Amplification curves for blood and tissues of five mice. Horizontal line represents threshold for amplification. All values >40 Ct and amplification curves below threshold indicate absence of target DNA. The three amplification curves above threshold correspond to positive controls.
Molecules 22 00343 g004
Table 1. In vitro antiplasmodial activity of benzothiophene derivatives.
Table 1. In vitro antiplasmodial activity of benzothiophene derivatives.
StructureIn Vitro Antimalarial Activity (P. falciparum, IC50, nM) a,bHepG2 f (IC50, nM)SI g HepG2/D6RI h W2/D6
D6 cW2 dC235 e
8 Molecules 22 00343 i0012010410788674405.2
9 Molecules 22 00343 i00214191205486733913.6
12 Molecules 22 00343 i0032118519144772118.8
13 Molecules 22 00343 i00416201177272617212.6
23 Molecules 22 00343 i0052814411138251365.1
24 Molecules 22 00343 i006602772422233374.6
25 Molecules 22 00343 i00771121212087290.2
26 Molecules 22 00343 i0083655452345651.5
27 Molecules 22 00343 i0092912612649981734.3
28 Molecules 22 00343 i0106188129257540131.3
29 Molecules 22 00343 i01113444624131923.4
30 Molecules 22 00343 i01212815119761626.8
31 Molecules 22 00343 i0131319793357727615.2
32 Molecules 22 00343 i01455102292049371.8
CQ i Molecules 22 00343 i01515 (6)595 (5)206 (5) 39.7
MFQ i Molecules 22 00343 i01623 (6)7 (5)55 (5) 0.3
a Antiplasmodial IC50 values (nM) (Malaria SYBR Green Fluorescence Assay) for isolates and clones of P. falciparum; b All in vitro experiments were done as technical quadruplicates, mean values are given; c Chloroquine (CQ) susceptible P. falciparum African D6 clone; d Chloroquine (CQ) resistant P. falciparum Indochina W2 clone; e P. falciparum CQ, MFQ and pyrimethamine resistant TM91C235 strain (Thailand); f Hepatocellular carcinoma; g Selectivity index; h Resistance index; i Control drugs: CQ as diphosphate; MFQ as HCl salt (number of replicates given in parentheses).
Table 2. In vitro antiplasmodial activity of thiophene derivatives.
Table 2. In vitro antiplasmodial activity of thiophene derivatives.
StructureIn Vitro Antimalarial Activity (P. falciparum, IC50, nM) a,bHepG2 f (IC50, nM)SI g HepG2/D6RI h W2/D6
D6 cW2 dC235 e
37 Molecules 22 00343 i017492660> 306056240.5
38 Molecules 22 00343 i0188420432564300.2
39 Molecules 22 00343 i019594652> 5792980.8
40 Molecules 22 00343 i0208041546702840.5
41 Molecules 22 00343 i0212713202415890.5
42 Molecules 22 00343 i0225512302092380.2
43 Molecules 22 00343 i0234106348153203826
44 Molecules 22 00343 i02410174544085400.7
46 Molecules 22 00343 i025751325703670.7
52 Molecules 22 00343 i0261772592749230521.5
CQ i Molecules 22 00343 i02715 (6)595 (5)206 (5) 39.7
MFQ i Molecules 22 00343 i02823 (6)7 (5)55 (5) 0.3
a Antiplasmodial IC50 values (nM) (Malaria SYBR Green Fluorescence Assay) for isolates and clones of P. falciparum; b All in vitro experiments were done as technical quadruplicates, mean values are given; c CQ susceptible P. falciparum African D6 clone; d CQ resistant P. falciparum Indochina W2 clone; e P. falciparum multidrug resistant TM91C235 strain (Thailand). f Hepatocellular carcinoma; g Selectivity index; h Resistance index; i Control drugs: CQ as diphosphate; MFQ as HCl salt (number of replicates given in parentheses).
Table 3. In Vivo Antimalarial Activity a,b.
Table 3. In Vivo Antimalarial Activity a,b.
Comp.mg/kg/DayParasitemia (Day: # Mice, %Parasitemia)Mice Dead/Day DiedMice Alive on Day 31Mean Survival Time (MST, Days)
120 cD3: 5 mice positive, 0.6%–2.4%;
D7: 2 mice negative, 3 mice positive, 0.1%–0.2%;
D11: 3 mice positive, 0.8%–1.9%;
D14: 2 mice positive, 1.6%–3.7%;
D18: 1 mouse positive, 6%;
D21: 1 mouse positive, 27%;
D25: 1 mouse positive, 63%;
D28: 1 mouse positive, 66%
2/110/516.8
1/14
1/18
1/30
40 cD3: 5 mice positive, 0.4%–0.9%;
D7: 5 mice negative;
D11: 5 mice negative;
D14: 5 mice positive, 0.6%–2.4%;
D18: 1 mouse positive, 2.2%;
D21: 1 mouse positive, 7.3%;
D25: 1 mouse positive, 37%;
D28: 1 mouse positive, 53%
1/150/519.4
1/16
2/18
1/30
80 cD3: 4 mice positive, 0.7%–1.1%;
D7: 4 mice negative;
D11: 4 mice negative;
D14: 4 mice positive, 0.1%–0.5%;
D18: 1 mouse positive, 2.3%
3/180/418.2
1/19
160D3: 5 mice positive, 0.3%–0.9%;
D7–D31: 5 mice negative
5/5>31
25160D3: 4 mice positive, 0.4%–0.6%;
D7: 4 mice positive, 0.2%–0.4%;
D10: 4 mice positive, 0.3%–0.6%;
D14: 4 mice positive, 0.5%–0.8%;
D17: 2 mouse positive, 1.5%–3.7%;
D21: 1 mouse positive, 2.7%;
D24: 1 mouse positive, 52%;
D28: 1 mouse positive, 72%;
D31: 1 mouse positive, 79%
2/171/420.8
1/18
42160D3: 5 mice positive, 0.2%–0.6%;
D7: 5 mice positive, 0.2%–10%;
D10: 4 mice positive, 9.2%–15%;
D14: 3 mice positive, 12.8%–47%;
D17: 3 mice positive, 50%–60%;
D21: 2 mice positive, 64%–70%;
D24: 1 mouse positive, 75%
1/90/518.6
1/13
1/20
1/23
1/28
4640 cD3: 5 mice positive, 0.6%–2.2%;
D7: 1 mouse negative, 4 mice positive, 0.2%–0.4%;
D10: 4 mice positive, 1.6%–4.9%;
D14: 2 mice positive, 8.1%–12%;
D18: 2 mice positive, 16%–20%;
D21: 2 mice positive, 22%–41%;
D25: 1 mouse positive, 43%
1/100/515.8
2/11
1/22
1/25
80 cD3: 5 mice positive, 0.8%–2.3%;
D7: 2 mice negative, 2 mice positive, 0.1%–0.2%;
D10: 4 mice positive, 0.2%–6.6%;
D14: 1 mouse positive, 4.7%;
D18: 1 mouse positive, 12%;
D21: 1 mouse positive, 35%;
D25: 1 mouse positive, 41%
1/70/514.4
1/12
1/13
1/14
1/26
CQ160D3: 5 mice positive, 0.3%–0.8%;
D6-D31: 5 mice negative
5/5>31
Infected controls0All mice died on day 7–8
a Groups of five P. berghei (ANKA strain) infected mice were treated per os (p.o.) once per day on days 3–5 postinfection with aminoquinolines suspended in 0.5% hydroxyethylcellulose-0.1% Tween 80. Mice alive on day 31 with no parasites in a blood film are considered cured; b All compounds were tested in separate experiments (mice groups) for toxicity. None exerted any toxic effect when dosed orally at 160 mg/kg/day × 3 days; c Groups of five P. berghei (ANKA strain) infected mice were treated per os (p.o.) once per day on days on 3–6 postinfection with aminoquinolines suspended in 0.5% hydroxyethylcellulose-0.1% Tween 80. Mice alive on day 31 with no parasites in a blood film are considered cured.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
