Molecules 2017, 22(2), 207; doi:10.3390/molecules22020207

Article
Synthesis of 16 New Hybrids from Tetrahydropyrans Derivatives and Morita-Baylis-Hillman Adducts: In Vitro Screening against Leishmania donovani
Suervy Canuto de Oliveira Sousa 1, Juliana da Câmara Rocha 2, Tatjana de Souza Lima Keesen 2, Everton da Paz Silva 1, Priscilla Anne Castro de Assis 1,3, João Paulo Gomes de Oliveira 1, Saulo Luís Capim 4, Francisco José Seixas Xavier 1, Bruno Guimarães Marinho 5, Fábio Pedrosa Lins Silva 1, Claudio Gabriel Lima-Junior 1,* and Mário Luiz Araújo de Almeida Vasconcellos 1,*
1
Laboratório de Síntese Orgânica Medicinal da Paraíba (LASOM-PB), Departamento de Química, Universidade Federal da Paraíba, Campus I, João Pessoa, PB 58059-900, Brazil
2
Departamento de Biotecnologia, Universidade Federal da Paraíba, Campus I, João Pessoa, PB 58059-900, Brazil
3
Unidade Acadêmica de Saúde, Centro de Educação e Saúde, Universidade Federal de Campina Grande, Campus Cuité, Cuité, PB 58175-000, Brazil
4
Instituto Federal de Educação, Ciência e Tecnologia da Bahia, Campus Catu, Barão de Camaçari, Catu, BA 48110-000, Brazil
5
Programa de Pós-Graduação em Ciências Fisiológicas and Laboratório de Farmacologia, Departamento Ciências Fisiológicas, Instituto de Ciências e Saúde, Universidade Federal Rural do Rio de Janeiro Seropédica, RJ 23890-000, Brazil
*
Correspondence: Tel.: +55-083-3216-7589 (C.G.L.J. & M.L.A.d.A.V.)
Academic Editors: Diego Muñoz-Torrero and Kelly Chibale
Received: 19 December 2016 / Accepted: 25 January 2017 / Published: 30 January 2017

Abstract

:
Leishmaniases are a group of neglected tropical diseases (NTDs) caused by protozoan parasites from >20 Leishmania species. Visceral leishmaniasis (VL), also known as kala-aza, is the most severe form of leishmaniasis, usually fatal in the absence of treatment in 95% of cases. The Morita-Baylis-Hillman adducts (MBHAs) are being explored as drug candidates against several diseases, one of them being leishmaniasis. We present here the design, synthesis and in vitro screening against Leishmania donovani of sixteen new molecular hybrids from analgesic/anti-inflammatory tetrahydropyrans derivatives and Morita-Baylis-Hillman adducts. First, acrylates were synthesized from analgesic/anti-inflammatory tetrahydropyrans using acrylic acid under TsOH as a catalyst (70%–75% yields). After the 16 new MBHAs were prepared in moderate to good yields (60%–95%) promoted by microwave irradiation or low temperature (0 °C) in protic and aprotic medium. The hybrids were evaluated in vitro on the promastigote stage of Leishmania donovani by determining their inhibitory concentrations 50% (IC50), 50% hemolysis concentration (HC50), selectivity index (HC50/IC50,), and comparing to Amphotericin B, chosen as the anti-leishmanial reference drug. The hybrid which presents the bromine atom in its chemical structure presents high leishmanicide activity and the high selectivity index in red blood cells (SIrb > 180.19), compared with the highly-toxic reference drug (SIrb = 33.05), indicating that the bromine hybrid is a promising compound for further biological studies.
Keywords:
antileishmanial Morita-Baylis-Hillman adducts; opioids tetrahydropyrans derivatives; molecular hybridization; Leishmania donovani

1. Introduction

Neglected tropical diseases (NTDs) are those that occur primarily in poor countries. Drugs to treat these diseases are few, and usually lead to severe side effects, since the buying power of these populations is very low, not being attractive to global pharmaceutical industries to invest money on the development of drugs for these diseases [1]. Leishmaniases are a group of NTDs caused by protozoan parasites from >20 Leishmania species [2]. Visceral leishmaniasis (VL), also known as kala-azar, is the most severe form of leishmaniasis, usually fatal in the absence of treatment in over 95% of cases [3]. Leishmania donovani is one of the major species of the genus Leishmania that causes VL, affecting more than 100 million people worldwide, with 500,000 new cases and more than 50,000 deaths each year [4]. Due to inexistence of vaccines for humans and that the available chemotherapy is toxic and expensive, research aiming to obtain new efficient drugs is of great urgency.
The Morita-Baylis-Hillman adducts (MBHAs) are being explored as drug candidates against several diseases, one of them being leishmaniasis [5]. These compounds are prepared from the Morita-Baylis-Hillman reaction [6,7] in green conditions from aldehydes (among other electrophiles) or alkenes connected to electron attractor groups (EAG, like methyl acrylate, acrylonitrile, and others) under basic catalysis (DABCO being the most common base, Scheme 1).
Molecular hybridization is a useful tool in the design of new drug prototypes [8]. It was reported by us that the hybridization between an analgesic/anti-inflammatory methyl salicylate (2) and the MBHA (3) resulting in the development of a chalcone-like compound (1) that is more active as a leishmanicide than corresponding precursors [9]. In 2016 we also described the synthesis of a new hybrid (5) from an analgesic and anti-inflammatory eugenol (4) that presents a stronger leishmanicidal activity than compound 1 [10] (Figure 1).
In a different line of research from our group, synthesis and in vivo experiments were described that demonstrate that tetrahydropyran derivative 6 is very efficient and is a non-toxic analgesic/anti-inflammatory [11,12]. It was published the synthesis of (±)-cis,cis-6 [13,14] and recently the anti-hyperalgesic effect of is associated with NO/cGMP/KATP pathway participation and the κ-opioid receptor [15]. Additionally, it was recently discovered that the tetrahydropyran derivative (±)-cis-7 [16,17] presents an analgesic effect in the same order of magnitude (μmol·kg−1) than the analogous 6 (Figure 1) [16].
In connection with our interest in the discovery of new Morita-Baylis-Hillman adducts with promising leishmanicidal and other bioactivities [5,18,19,20,21], we present here the design, synthesis, and in vitro screening against Leishmania donovani of sixteen new molecular hybrids (8ah and 9ah, Figure 2). It is important to note here that our design is based on the fact that inhibitors of opioid receptors participate in the mechanism of action against leishmaniasis interfering with the immune system, not only participating in the function of the immune cells, but also modulating innate and acquired immune responses [22].

2. Results and Discussion

2.1. Chemistry

Compounds 6 and 7 were prepared in the same way as described in the literature [11,13]. Synthesis of new hybrids 8a8h (spectra, see in Supplementary Materials) were made via the Morita-Baylis-Hillman reaction (MBHR) between acrylate 10 and aromatic aldehydes ArCHO (Scheme 2) under DABCO as a promoter (conditions and yields are described in Table 1). Acrylate 10 was synthetized from 6 using acrylic acid under TsOH as a catalyst (70%, Scheme 2). In the same way, the new acrylate 11 was prepared from 7 (Scheme 3) with 75% yield. The conditions and yields of the MBH reaction between 11 and ArCHO, to prepare the hybrids 9a9h (spectra, see in Supplementary Materials) are presented in Table 2.
The general proposal mechanism of MBHR is presented in Scheme 4.
However, the slow step of the mechanism and the transition state structure has been the main source of controversy [7]. To date, the slow step has been proposed to change between the aldol step (step 2) and the elimination step (step 3). In fact, depending on various parameters, such as the Michael acceptor used as the reagent, solvents, addition or not of phenolic additives, temperature (may be reversible or not), many different catalysts, etc. [7], MBHR is an exquisite reaction and each reaction must have its experimental parameters carefully optimized as an individual problem. However, some facts are incontestable: the MBHR between methyl acrylate reacting with p-bromobenzaldehyde is reversible at elevated temperatures [21]; several MBHR are faster at 0 °C than at room temperature [23,24]; and the type of solvent (aprotic or protic) [25,26] and the phenol or naphthol additives modifies the reactions rate. We can see in Table 1 (Entries 1, 2, 4–8, 10 ) and Table 2 (Entries 1–6, 8 and 10) that it used t-buOH/H2O at 80 °C under microwave irradiation as the first experimental attempt [21]. When this condition was not efficient, low temperatures were used (0 °C) in DMF/water as the solvent mixture and used phenol as the additive, increasing yields (Entries 7, 9 and 11, Table 2). Addition of phenol as an additive with t-buOH/H2O at 80 °C under microwave irradiation also improves the rate and yields (compare entries 6 and 7, Table 2). These delicate results can be interpreted based on the experimental studies on the MBHR described recently by Plata and Singleton [27]. Enthalpy and entropy of activations, contributions in ΔG were measured on the methyl acrylate and p-nitrobenzaldehyde reaction in methanol as a solvent and DABCO as a promoter, proving the pivotal importance of entropic parameters in the slow step of this reaction.

2.2. Biology

The hybrids 8a8h and 9a9h were evaluated in vitro on the promastigote stage of Leishmania donovani by determining their inhibitory concentrations 50% (IC50), 50% hemolysis concentration (HC50), selectivity index (HC50/IC50,), and comparing to Amphotericin B, chosen as the anti-leishmanial reference drug (Table 3 and Figure 3).
The experimental results are shown in Table 3 and deserve comment here. Precursors 6 and 7 had their leishmanicidal activity evaluated (data not shown). Precursor 6 was shown to be effective against L. donovani (IC50 = 172.19 μM), whereas the precursor tetrahydropyrans (THP )with the ethyl portion (7) has no leishmanicida activity (IC50 > 2775.46 μM). Knowing this, the proposal of the work was the molecular hybridization of these precursors with MBHAs presenting anti-leishmania activities already reported, aiming to increase the leishmanicidal activity. Initially hybrids 8a8h, demonstrated a higher antiparasitic activity against L. donovani compared to precursor 6; leishmanicidal activity with IC50 values ranging from 14.74 μM to 141.67 μM. As can be seen in Table 3, among hybrids 8a8h, compounds 8a, 8b, 8c, 8e, and 8f showed similar anti-leishmania activity against the promastigote forms of L. donovani, but 8a presented a lesser cytotoxic effect (HC50 >831,38 μM) and the highest selectivity index (S.I. rb > 56.40), showing the most promise of the 8a8h hybrids.
The improvement in leishmanicidal activity was also observed for the hybrids originating from precursor 7 that did not show antiparasitic activity (IC50 > 2775.46 μM), but with the hybrids 9a9h presented higher antiparasitic activities against L. donovani. The variation of leishmanicidal activities of hybrids 9a9h IC50 values ranged from 5.81 μM to 240.27 μM. Hybrids 9a, 9c, and 9h were the ones that presented greater tendencies of antiparasitic activities, presenting IC50 values of 16.15 μM, 20.13 μM, and 5.81 μM, respectively. Additionally, values of HC50 were >1000 μM. It should be noted that the high selectivity index of 9h (SIrb > 180.19) compared with the reference drug that presents high toxicity (SIrb = 33.05). The hybrid 9h presents the bromine atom in its chemical structure. In previous works described by our research group we highlight the association between leishmanicidal activity and the presence of bromine atoms as substituents in the aromatic moiety [9,18,19,20,28]. Among the works we highlight two examples. In 2007 we reported a significant increase in leishmanicidal activity in promastigote forms of L. amazonensis when the benzene moiety (49.3 μM) was changed to p-bromobenzyl (12.5 μM) in MBHAs. Furthermore, in these two compounds there was no toxicity measured by the release of lactate dehydrogenase into macrophages (% LDH = 0%) [18]. In 2016 we reported that the homodimer of MBHAs with a bromine atom as a substituent in the aromatic moiety showed very high anti-leishmania activity on L. donovani (0.50 μM) almost 400 times more active than the corresponding monomer and 1.24 times more potent than Amphotericin B (0.62 μM). Moreover, the selectivity index of the homodimer was very high (SIrb > 400), far better than Amphotericin B (SIrb = 18.73) [28]. These results demonstrate that the hybridization reactions were pivotal for the increase of leishmanicidal action and maintaining the absence of toxicity in macrophages and red blood cells of the hybrids, indicating that 9h is a promising compound for further biological studies.

3. Materials and Methods

3.1. Chemistry

3.1.1. General

All commercially available reagents and solvent were obtained from the commercial providers from Sigma-Aldrich® (St. Louis, MO, USA) and used without further purification, except the opioids tetrahydropyrans 6 and 7, which have previously been synthesized. Reactions were monitored by TLC (thin layer chromatography) using silica gel 60 UV254 Macherey-Nagel pre-coated silica gel plates (Macherey-Nagel, Bethlehem, PA, USA); detection was by means of a UV lamp. Flash column chromatography was performed on 300–400 mesh silica gel. Organic layers were dried over anhydrous MgSO4 or Na2SO4 prior to evaporation on a rotary evaporator. 1H and 13C nuclear magnetic resonance (NMR) spectra were recorded using Varian Mercury Spectra AC 20 spectrometer (500 MHz for 1H, 125 MHz for 13C). Chemical shifts were reported relative to internal tetramethylsilane (δ 0.00 ppm) for 1H, and CDCl3 (δ 77.0 ppm) for 13C (Varian, Palo Alto, CA, USA). HRMS was obtained using Q-TOF quadrupole/orthogonal spectrometry (Waters, Milford, MA) in negative or positive mode. Analyses of low-resolution mass spectrometry were obtained via a gas chromatograph coupled with a mass spectrometer, model GCMS–QP2010 from Shimadzu. Infrared spectra (FTIR) data were recorded in a spectrophotometer, model IR Prestige–21 from Shimadzu (Shimadzu, Kyoto, Japan), using potassium bromide (KBr) pellets. Reactions requiring microwave irradiation were performed in a CEM® microwave reactor, Discover model, with a BenchMate system temperature monitor with an infrared sensor (Gilroy, CA, USA).

3.1.2. Procedure for the Synthesis of Acrylate 10 and 11

Tetrahydropyrans 6 or 7 (10 mmol), acrylic acid (20 mmol), p-toluensulfonic acid (20 mol%), and 80 mL anhydrous CH2Cl2 were mixed in a 125 mL flask under a reflux system at 50 °C for two days. The reaction mixture was neutralized with sodium bicarbonate aqueous solution, washed with salt water until pH = 7, and dried by anhydrous sodium sulfate. The mixture was purified by column chromatography, performed using silica gel (230–400 mesh). Acrylates 10 and 11 were obtained with yields of 70% and 75%, respectively.

3.1.3. General Procedure for the Synthesis of MBHA (8a8h) and (9a9h)

Reactions were carried out using the acrylates 10 or 11 (0.5 mmol), corresponding aromatic aldehydes (1.0 mmol), and 3 mL of appropriate solvent in the presence of DABCO, with catalytic promotion and under microwave irradiation (MW), or subjected to a temperature of 0 °C when a reaction improvement was necessary. After that, the solvent was removed and the reaction media was directly filtered through silica gel, using hexane/ethyl acetate (7:3) as eluent. The reaction products were concentrated under reduced pressure (yields are shown in Table 1 and Table 2).
Acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro-pyran-2-ylmethyl ester (10): FTIR (KBr) cm−1: 541, 777, 794, 954, 1062, 1188, 1298, 1406, 1633, 1718, 2944. RMN 1H (500 MHz; CDCl3) δ 1.835 (dd, 1H, J = 15 Hz); 2.08 (dd, 1H, J = 15 Hz); 2.33 (dt, 1H, J = 10 Hz, J = 5 Hz); 2.60 (dt, 1H, J = 10 Hz, J = 5 Hz); 3.99 (m, 1H); 4.31 (m, 1H); 5.1 (d, 1H, J = 10 Hz); 5.85 (dd, 1H, J = 10 Hz, J = 2.5 Hz); 6.16 (dd, 1H, J = 15 Hz, J = 10 Hz); 6.45 (dd, 1H, J = 15 Hz, J = 2.5 Hz); 7.48 (m, 3H); 7.62 (d, 1H, J = 5 Hz); 7.80 (d, 1H, J = 5 Hz); 7.86 (d, 1H, 10 Hz); 7.97 (d, 1H, J = 10 Hz). RMN 13C (125 MHz; CDCl3): δ 38.57; 42.70; 55.16; 66.38; 75.11; 75.82; 123.02; 123.31; 125.46; 125.55; 126.34; 128.06; 128.53; 129.93; 130.31; 131.32; 133.78; 136.04; 165.94. LC-MS-IT-TOF calculated for C19H20ClO3: 331.1095 [M + H]+; found: 331.1097.
Acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (11): FTIR (KBr) cm−1: 455, 645, 800, 894, 955, 1230, 1411, 1540, 1643, 1704, 2849, 2926. RMN 1H (500 MHz; CDCl3) δ 0.94 (t, 3H, J = 10 Hz); δ 1.51 (m, 2H); δ 1.61 (m, 2H); δ 2.16 (m, 2H); δ 3.25 (m, 1H); δ 3.62 (m, 1H); δ 4.16 (dd, 1H, J = 15 Hz, 5 Hz); δ 4.21 (dd, 1H, J = 10 Hz, 5 Hz); δ 5.85 (dd, 1H, J = 10 Hz, 2.5 Hz); δ 6.16 (dd, 1H, J = 15 Hz, 10 Hz); δ 6.44 (dd, 1H, J = 15 Hz, 2.5 Hz). RMN 13C (125 MHz; CDCl3) δ 9.78; 28.63; 38.76; 41.76; 55.34; 66.43; 74.29; 78.24; 128.13; 131.19; 165.95. LC-MS-IT-TOF calculated for C11H19O3: 199.1329 [M + H]+; found: 199.1330.
2-[Hydroxy-(2-nitro-phenyl)-methyl]-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro- pyran-2- ylmethyl ester (8a): FTIR (KBr) cm−1: 781, 1051, 1136, 1159, 1265, 1301, 1348, 1446, 1525, 1720, 2927, 2960, 3448. RMN 1H (500 MHz; CDCl3) δ 1.14 (dd, 1H, J = 25 Hz, 10 Hz); δ 1.60 (m. 1H); 1.91 (ddd, 1H, J = 30 Hz, 25 Hz, 10 Hz); δ 2.08 (m, 1H); δ 2.49 (d, 1H, J = 10 Hz); δ 2.83 (d, 1H); δ 3.8 (m, 1H); δ 4.18 (m, 3H); δ 4.97 (dd, 1H, J = = 15 Hz, 10 Hz); δ 5.76 (d, 1H, J = 15 Hz); δ 6.08 (d, 1H, J = 10 Hz); δ 6.39 (d, 1H, J = 15 Hz); δ 7.18 (dt, 1H, J = 5 Hz); δ 7.41 (m, 5H); δ 7.55 (dd, 1H, J = 20 Hz, 10 Hz); δ 7.72 (m, 2H); δ 7.80 (m, 1H); δ 7.87 (t, 1H, J = 10 Hz). RMN 13C (125 MHz; CDCl3) δ 38.29; 38.47; 55.00; 66.79; 67.49; 74.80; 75.30; 122.84; 122.96; 123.33; 124.53; 124.62; 125.60; 126.23; 127.24; 128.43; 128.56; 128.79; 129.00; 133.47; 136.09; 137.17; 140.37; 140.45; 148.40; 165.50. LC-MS-IT-TOF calculated for C26H24ClNO6Na: 504.1184 [M + H]+; found: 504.1188.
2-[Hydroxy-(3-nitro-phenyl)-methyl]-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro- pyran-2- yl-methyl ester (8b): FTIR (KBr) cm−1: 781, 802, 1053, 1087, 1159, 1348, 1527, 1714, 2854, 2924, 3427, RMN 1H (500 MHz; CDCl3) δ 1.64 (q, 1H, J = 10 Hz); δ 1.95 (ddd, 1H, J = 25 Hz, 15 Hz, 5 Hz); δ 2.14 (m, 1H); δ 2.50 (d, 1H, J = 10 Hz); δ 3.85 (m, 1H); δ 4.20 (m, 3H); δ 5.00 (d, 1H, J = 10 Hz); δ 5.52 (d, 1H, J = 5 Hz); δ 5.85 (d, 1H, J = 10 Hz); δ 6.39 (s, 1H); δ 7.29 (dt, 1H, J = 10 Hz, 7.5 Hz); δ 7.41 (m, 3H); δ 7.50 (dd, 1H, J = 10 Hz, 5 Hz); δ 7.57 (dd, 1H, J = 20 Hz, 10 Hz); δ 7.73 (d, 1H, J = 10 Hz); δ 7.80 (dd, 1H, J = 5 Hz, 2.5 Hz); δ 7.88 (d, 1H, J = 5 Hz); δ 7.96 (m, 1H); δ 8.15 (d, 1H, J = 15 Hz). RMN 13C (125 MHz; CDCl3) δ 38.34; 42.71; 54.88; 66.84; 72.51; 74.86; 75.83; 121.49; 122.79; 123.26; 125.50; 125.66; 126.26; 127.88; 128.66; 129.06; 129.34; 130.26; 132.65; 133.81; 135.90; 140.89; 143.59; 148.31; 165.48. LC-MS-IT-TOF calculated for C26H24ClNO6Na: 504.1184 [M + H]+; found: 504.1188.
2-[Hydroxy-(4-nitro-phenyl)-methyl]-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro-pyran-2- ylmethyl ester (8c): FTIR (KBr) cm−1: 781, 854, 1053, 1159, 1263, 1346, 1521, 1604, 1720, 2926, 2960, 3450. RMN 1H (500 MHz; CDCl3) δ 1.16 (d, 1H, J = 10 Hz); δ 1.64. (q, 1H, J = 10 Hz); δ 1.96 (m, 1H); δ 2.14 (d, 1H, J = 15 Hz); δ 2.51 (d, 1H, J = 0 Hz); δ 3.84 (m, 1H); δ 4.20 (m, 3H); δ 5.00 (d, 1H, J = 10 Hz); δ 5.52 (d, 1H, J = 10 Hz); δ 5.83 (d, 1H, J = 10 Hz); δ 6.38 (s, 1H); δ 7.42 (m, 5H); δ 7.51 (d, 1H, J = 5 Hz); δ 7.75 (d, 1H, J = 5 Hz); δ 7.80 (m, 1H); δ 7.89 (m, 1H); δ 7.99 (dd, 2H, J = 10 Hz, 5 Hz). RMN 13C (125 MHz; CDCl3) δ 18.95; 38.30; 42.63; 54.87; 66.79; 72.51; 74.88; 75.84; 122.87; 123.27; 123.60; 125.49; 125.68; 126.28; 127.32; 127.79; 127.88; 128.73; 129.10; 130.28; 133.83; 133.85; 140.94; 147.44; 148.57; 165.46. LC-MS-IT-TOF calculated for C26H24ClNO6Na: 504.1184 [M + H]+; found: 504.1186.
2-(Hydroxy-pyridin-2-yl-methyl)-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro-pyran-2-yl methyl ester (8d): FTIR (KBr) cm−1: 781, 800, 958, 1064, 1159, 1247, 1375, 1438, 1593, 1720, 2926, 2958, 3057, 3394. RMN 1H (500 MHz; CDCl3) δ 1.18 (s, 1H); δ 1.66 (dd, 2H, J = 30 Hz, 10 Hz); δ 1.14 (d, 1H, J = 15 Hz); δ 2.50 (dt, 1H, J = 20 Hz, 5 Hz); δ 4.20 (m, 4H); δ 5.61 (d, 1H, J = 10 Hz); δ 6.00 (d, 1H, J = 10 Hz); δ 6.40 (d, 1H, J = 5 Hz); δ 6.97 (t, 1H, J = 10 Hz); δ 7.41 (m, 6H); δ 7.74 (d, 2H, J = 10 Hz); δ 7.79 (m, 1H); δ 7.90 (m, 1H). RMN 13C (125 MHz; CDCl3) δ 29.71; 38.41; 42.81; 55.04; 66.65; 71.37; 71.57; 74.94; 75.77; 121.86; 122.98; 123.40; 125.49; 125.67; 126.33; 128.53; 128.96; 130.25; 133.79; 136.17; 128.23; 141.01; 146.68; 158.86; 165.49. LC-MS-IT-TOF calculated for C25H24ClNO4Na: 438.1467 [M + H]+; found: 438.1469.
2-(Hydroxy-pyridin-3-yl-methyl)-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro-pyran-2-yl methyl ester (8e): FTIR (KBr) cm−1: 713, 781, 800, 848, 1058, 1157, 1261, 1375, 1425, 1597, 1624, 1720, 2856, 2960, 3055, 3294. RMN 1H (500 MHz; CDCl3) δ 1.26 (m, 1H); δ 1.71 (qua, 1H, J = 20 Hz); δ 2.04 (m, 1H); δ 2.19 (m, 1H); δ 2.58 (dt, 1H, J = 25 Hz, 5 Hz); δ 3.90 (t, 1H, J = 15 Hz); δ 4.24 (m, 3H); δ 5.06 (dd, 1H, J = 20 Hz); δ 5.57 (s, 1H); δ 5.96 (d, 1H, J = 5 Hz); δ 6.45 (s, 1H); δ 7.12 (m, 1H); δ 7.48 (m, 3H); δ 7.58 (d, 1H); δ 7.66 (t, 1H, J = 20 Hz); δ 7.82 (m, 2H); δ 7.96 (d, 1H, J = 15 Hz); δ 8.40 (m, 1H); δ 8.55 (s, 1H). RMN 13C (125 MHz; CDCl3) δ 38.57; 42.88; 55.12; 66.87; 71.10; 75.07; 75.97; 123.09; 123.46; 123.62; 125.68; 125.81; 126.40; 127.33; 128.76; 129.19; 130.44; 133.96; 134.74; 136.14; 137.36; 141.44; 148.38; 148.90; 165.67. LC-MS-IT-TOF calculated for C25H24ClNO4Na: 438.1467 [M + H]+; found: 438.1470.
2-(Hydroxy-pyridin-4-yl-methyl)-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro-pyran-2-yl methyl ester (8f): FTIR (KBr) cm−1: 781, 800, 1066, 1178, 1244, 1373, 1448, 1598, 1734, 2854, 2958, 3053, 3332. RMN 1H (500 MHz; CDCl3) Despite the spectrum does not provide enough resolution to demonstrate the integration of the peaks we can observe the presence of the olefinic and carbinolic hydrogens signals characterizing the C-C bond formation in Morita-Baylis-Hillman reaction step. δ 5.42 (d, 1H, J = 5 Hz); δ 5.83 (d, 1H, 10 Hz); δ 6.38 (s, 1H). RMN 13C (125 MHz; CDCl3) δ 13.24; 24.06; 38.16; 41.31; 42.66; 48.44; 54.83; 65.68; 67.21; 74.72; 75.72; 121.36; 122.75; 122.83; 123.31; 125.53; 125.67; 126.26; 128.53; 128.62; 129.07; 150.85; 159.84. LC-MS-IT-TOF calculated for C25H24ClNO4Na: 438.1467 [M + H]+; found: 438.1470.
2-(Hydroxy-naphthalen-2-yl-methyl)-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro-pyran -2-ylmethyl ester (8g): FTIR (KBr) cm−1: 474, 553, 746, 772, 956, 1034, 1139, 1252, 1507, 1621, 1708, 2847, 2926, 2952, 3057, 3425. RMN 1H (500 MHz; CDCl3) δ 1.62 (ddd, 1H, J = 20 Hz, 10 Hz, 5 Hz); δ 1.90 (qui, 1H, J = 10 Hz); δ 2.07 (m, 1H); δ 2.47 (d, 1H, J = 15 Hz); δ 2.82 (d, 1H); δ 3.77 (m, 1H); δ 4.10 (m, 1H); δ 4.15 (dd, 1H, J = 10 Hz, 5 Hz); δ 4.18 (m, 1H); δ 4.95 (m, 1H); δ 5.66 (s, 1H); δ 5.87 (d, 1H, J = 2.5 Hz); δ 6.39 (s, 1H); δ 7.39 (m, 7H); δ 7.71 (m, 6H); δ 7.80 (d, 1H, J = 5 Hz); δ 7.86 (d, 1H, J = 10 Hz). RMN 13C (125 MHz; CDCl3) δ 29.72; 38.39; 42.65; 54.95; 66.57; 73.30; 74.95; 75.80; 122.93; 122.98; 123.96; 124.57; 125.50; 125.60; 126.07; 126.19; 127.03; 127.68; 128.09; 128.29; 128.55; 129.00; 130.26; 133.02; 133.20; 133.80; 135.98; 138.60; 141.70; 165.95. LC-MS-IT-TOF calculated for C30H27ClO4Na: 509.1490 [M + H]+; found: 509.1492.
2-[(4-Bromo-phenyl)-hydroxy-methyl]-acrylic acid 4-chloro-6-naphthalen-1-yl-tetrahydro-pyran -2-ylmethyl ester (8h): FTIR (KBr) cm−1: 550, 728, 771, 797, 950, 1009, 1034, 1137, 1265, 1299, 1401, 1503, 1630, 1707, 2856, 2925, 3435. RMN 1H (500 MHz; CDCl3) δ 1.63 (dd, 1H, J 30 Hz, 10 Hz); δ 1.93 (m, 1H); δ 2.09 (dd, 1H, J = 20 Hz, 5 Hz); δ 2.48 (dt, 1H, J 15 Hz, 5 Hz); δ 3.76 (qui, 1H); δ 4.15 (m, 3H); δ 4.95 (d, 1H, J = 10 Hz); δ 5.37 (s, 1H); δ 5.76 (d, 1H, J = 10 Hz); δ 6.30 (s, 1H); δ 7.90 (t, 2H, J = 10 Hz); δ 7.27 (m, 2H); δ 7.39 (m, 3H); δ 7.49 (d, 1H, J = 10 Hz); δ 7.72 (d, 1H, J = 10 Hz); δ 7.79 (m, 1H); δ 7.86 (d, 1H, J = 15 Hz) RMN 13C (125 MHz; CDCl3) δ 38.35; 42.70; 54.99; 66.64; 72.58; 74.94; 75.84; 121.82; 122.98; 123.33; 125.53; 125.67; 126.27; 126.97; 127.07; 128.36; 128.65; 129.07; 130.30; 131.57; 133.83; 135.99; 140.35; 141.48; 165.75. LC-MS-IT-TOF calculated for C26H24BrClO4Na: 537.0439 [M + H]+; found: 537.0442.
2-[Hydroxy-(2-nitro-phenyl)-methyl]-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9a): FTIR (KBr) cm−1: 752, 786, 1037, 1145, 1267, 1350, 1527, 1633, 1720, 2875, 2933, 2962, 3448. RMN 1H (500 MHz; CDCl3) δ 0.84 (t, 2H, J 15 Hz); δ 1.42 (m, 6H); δ 2.06 (m, 1H); δ 3.14 (m, 1H); δ 3.90 (m, 1H); δ 4.04 (d, 2H, J = 15 Hz); δ 5.68 (d, 1H, J = 15 Hz); δ 6.11 (d, 1H, J = 10 Hz); δ 6.36 (s, 1H); δ 7.40 (t, 1H, J = 15 Hz); δ 7.58 (t, 1H, J = 15 Hz); δ 7.65 (m, 1H); δ 7.89 (ddd, 1H, J = 15 Hz, 10 Hz, 2.5 Hz). RMN 13C (125 MHz; CDCl3) δ 9.71; 28.53; 38.58; 41.66; 55.10; 66.73; 67.63; 73.97; 78.22; 124.58; 127.16; 128.87; 133.49; 136.04; 140.53; 148.34; 165.41. LC-MS-IT-TOF calculated for C18H24NO6: 350.1598 [M + H]+; found: 350.1602.
2-[Hydroxy-(3-nitro-phenyl)-methyl]-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9b): FTIR (KBr) cm−1: 740, 812, 962, 1047, 1147, 1350, 1529, 1624, 1658, 1722, 2873, 2931, 2962, 3427. RMN 1H (500 MHz; CDCl3) δ 0.85 (t, 3H, J = 15 Hz); δ 1.43 (m, 4H); δ 2.07 (m, 1H); δ 3.17 (m, 1H); δ 3.49 (m, 1H); δ 3.91 (m, 1H); δ 4.06 (m, 2H); δ 5.56 (s, 1H); δ 5.84 (d, 1H, J = 10 Hz); δ 6.39 (d, 1H, J = 10 Hz); δ 7.46 (t, 1H, J = 20 Hz); δ 7.66 (t, 1H, J = 10 Hz); δ 8.07 (d, 1H, J = 15 Hz); δ 8.19 (s, 1H). RMN 13C (125 MHz; CDCl3) δ 9.70; 28.55; 38.39; 41.58; 54.92; 66.79; 72.65; 73.89; 78.20; 121.46; 122.78; 127.88; 129.34; 132.52; 140.81; 143.70; 148.33; 165.32. LC-MS-IT-TOF calculated for C18H24NO6: 350.1598 [M + H]+; found: 350.16012.
2-[Hydroxy-(4-nitro-phenyl)-methyl]-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9c): FTIR (KBr) cm−1: 754, 829, 854, 962, 1047, 1147, 1265, 1348, 1521, 1604, 1631, 1720, 2875, 2935, 2964, 3462. RMN 1H (500 MHz; CDCl3) δ 0.92 (t, 3H, J = 10 Hz); δ 1.51 (m, 5H); δ 2.05 (m, 1H); δ 2.15 (dt, 1H, J = 15 Hz, 5 Hz); δ 3.23 (m, 1H); δ 3.55 (m, 1H); δ 3.985 (m, 1H); δ 4.15 (d, 2H, J = 10 Hz); δ 5.64 (d, 1H, J = 5 Hz); δ 5.90 (d, 2H, J = 15 Hz); δ 6.46 (d, 1H, J = 5 Hz); δ 7.58 (dd, 2H, J = 10 Hz, 2.5 Hz); δ 8.20 (d, 2H, J = 10 Hz). RMN 13C (125 MHz; CDCl3) δ 9.71; 28.57; 38.38; 41.59; 54.93; 66.78; 72.65; 73.98; 78.23; 123.62; 127.38; 127.79; 127.94; 140.91; 147.46; 148.61; 148.73; 165.37. LC-MS-IT-TOF calculated for C18H24NO6: 350.1598 [M + H]+; found: 350.15995.
2-(Hydroxy-pyridin-2-yl-methyl)-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9d): FTIR (KBr) cm−1: 754, 960, 1006, 1045, 1062, 1147, 1267, 1382, 1436, 1593, 1635, 1720, 2875, 2933, 2962, 3392. RMN 1H (500 MHz; CDCl3) δ 0.84 (t, 3H, J = 10 Hz); δ 1.44 (m, 5H); δ 1.95 (m, 1H); δ 2.07 (dt, 1H, J = 15 Hz, 2.5 Hz); δ 3.14 (qui, 1H, J = 7.5 Hz); δ 3.46 (t, 1H, J = 7.5 Hz); δ 3.91 (qui, 1H, J = 5 Hz, 10 Hz); δ 4.06 (m, 2H); δ 5.55 (s, 1H); δ 5.93 (s, 1H); δ 6.34 (s, 1H); δ 7.16 (t, 1H, J = 7.5 Hz); δ 7.37 (t, 1H, J = 10 Hz); δ 7.61 (t, 1H, J = 10 Hz); δ 8.48 (d, 1H, J = 5 Hz). RMN 13C (125 MHz; CDCl3) δ 9.72; 28.57; 38.65; 41.68; 55.19; 66.53; 72.20; 74.08; 78.15; 121.23; 122.71; 127.50; 136.87; 141.53; 148.22; 159.36; 165.68. LC-MS-IT-TOF calculated for C17H24NO4: 306.1700 [M + H]+; found: 306.17010.
2-(Hydroxy-pyridin-3-yl-methyl)-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9e): FTIR (KBr) cm−1: 713, 758, 813, 848, 960, 1058, 1147, 1263, 1327, 1377, 1425, 1460, 1624, 1633, 1720, 2875, 2933, 2962, 3332. RMN 1H (500 MHz; CDCl3) δ 0.84 (t, 3H, J = 15 Hz); 1.43 (m, 4H); 1.94 (m, 1H); 2.07 (dt, 1H, J = 25 Hz, 5 Hz); 3.15 (m, 1H); 3.45 (m, 1H); 3.91 (m, 1H); 4.06 (m, 2H); 5.53 (s, 1H); 5.88 (d, 1H, J = 10 Hz); 6.37 (s, 1H); 7.20 (t, 1H, J = 10 Hz); 7.66 (dd, 1H, J = 15 Hz, 2.5 Hz); 8.40 (dd, 1H, J = 10 Hz, 2.5 Hz); 8.48 (s, 1H). RMN 13C (125 MHz; CDCl3) δ 9.72; 28.55; 38.49; 41.59; 55.02; 66.65; 70.93; 73.98; 78.16; 123.40; 127.00; 134.44; 137.14; 141.41; 148.34; 148.83; 165.40. LC-MS-IT-TOF calculated for C17H24NO4: 306.1700 [M + H]+; found: 306.17011.
2-(Hydroxy-pyridin-4-yl-methyl)-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9f): FTIR (KBr) cm−1: 758, 873, 1041, 1089, 1149, 1259, 1377, 1409, 1458, 1602, 1635, 1735, 2852, 2927, 2962, 3392. RMN 1H (500 MHz; CDCl3) Despite the spectrum does not provide enough resolution to demonstrate the integration of the peaks we can observe the presence of the olefinic and carbinolic hydrogens signals characterizing the C-C bond formation in Morita-Baylis-Hillman reaction step. δ 5.48 (d, 1H, J = 5 Hz); δ 5.84 (d, 1H, J = 10 Hz); δ 6.38 (d, 1H, J = 5 Hz). RMN 13C (125 MHz; CDCl3) δ 9.81; 13.25; 28.58; 38.28; 41.61; 48.43; 54.99; 55.59; 65.60; 67.31; 73.91; 78.23; 121.47; 141.95; 150.95; 169.81. LC-MS-IT-TOF calculated for C17H24NO4: 306.1700 [M + H]+; found: 306.17006.
2-(Hydroxy-naphthalen-2-yl-methyl)-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9g): FTIR (KBr) cm−1: 752, 819, 962, 1045, 1147, 1269, 1382, 1462, 1631, 1658, 1718, 2852, 2927, 2962, 3427. RMN 1H (500 MHz; CDCl3) δ 0.81 (t, 3H, J = 5 Hz); δ 1.35 (m, 3H); δ 1.45 (m, 1H); δ 1.87 (m, 1H); δ 1.99 (d, 1H); δ 3.06 (m, 1H); δ 3.37 (m, 1H); δ 3.78 (m, 1H); δ 4.01 (m, 2H); δ 5.635 (d, 1H); δ 5.81 (d, 1H); δ 6.35 (d, 1H); δ 7.39 (m, 3H); δ 7.75 (dd, 4H, J = 10 Hz); RMN 13C (125 MHz; CDCl3) δ 9.78; 28.59; 38.52; 41.63; 55.10; 66.58; 73.34; 74.06; 78.18; 124.60; 125.51; 126.10; 126.23; 127.02; 127.73; 128.12; 128.28; 133.05; 133.24; 138.68; 141.80; 165.89. LC-MS-IT-TOF calculated for C22H26O4Na: 377.1723 [M + H]+; found: 377.17258.
2-[(4-Bromo-phenyl)-hydroxy-methyl]-acrylic acid 6-ethyl-tetrahydro-pyran-2-ylmethyl ester (9h): FTIR (KBr) cm−1: 759, 817, 875, 962, 1014, 1045, 1070, 1147, 1271, 1382, 1404, 1460, 1631, 1656, 1716, 2852, 2927, 2962, 2448. RMN 1H (500 MHz; CDCl3) δ 0.83 (t, 3H, J = 10 Hz); δ 1.37 (m, 3H); δ 1.48 (dt, 1H, J = 25 Hz, 10 Hz); δ 1.93 (t, 1H, J = 10 Hz); δ 2.05 (d, 1H, J = 15 Hz); δ 3.12 (m, 1H); 3.43 (m, 1H); δ 3.89 (m, 1H); δ 4.04 (m, 2H); δ 5.41 (d, 1H, J = 10 Hz); δ 5.74 (d, 1H, J = 10 Hz); δ 6.30 (d, 1H); δ 7.17 (dd, 1H, J = 7.5 Hz); δ 7.38 (d, 1H, J = 7.5 Hz). RMN 13C (125 MHz; CDCl3) δ 9.78; 28.63; 38.52; 41.66; 55.08; 66.66; 72.77; 72.87; 74.03; 78.23; 121.81; 127.07; 127.11; 128.32; 131.57; 140.29; 140.40; 141.41; 141.52; 165.68. LC-MS-IT-TOF calculated for C18H23BrO4Na: 405.0672 [M + H]+; found: 405.06756.

3.5. Biology

3.5.1. Leishmania Culture

Leishmania (Leishmania) donovani (MHOM/ET/1967/HU3) was provided by Oswaldo Cruz Institute Leishmania Collection-Fiocruz-RJ-Brazil. Promastigotes were maintained in vitro at 26 °C in Schneider’s medium, pH 7 (20% heat-inactivated fetal bovine serum (FBS), 100 U/mL penicillin, 100 mg/mL streptomycin, and 2% of male urine), as previously described [29].

3.5.2. Effect of Morita-Baylis-Hillman Adduct in Promastigotes of Leishmania donovani

Briefly, promastigotes in the logarithmic growth phase were cultured in 96-well cell culture plates at 1 × 106 parasites per well in 100 mL of Schneider's medium with increasing concentrations of 3.12, 6.25, 12.5, 25, 50, 100, 200, and 400 µg/mL of Morita-Baylis-Hillman adduct. The plates were incubated for 72 h in a biological oxygen demand (B.O.D.) incubator at 26 °C. Cytotoxicity to promastigotes was evaluated by the 3-(4,5-dimethyl-2-thiazole)-2,5-diphenyltetrazolium bromide (MTT) colorimetric assay as described by Valadares et al. [30].The absorbance was measured using an ELISA plate reader (ELx800, BIOTEK) at 540 nm. Amphotericin® was used as a positive control. The viability of promastigotes incubated in the presence of different concentrations of adducts was determined by comparing to a culture control (L. donovani cultivated in Schneider only). The concentration that caused a 50% reduction in cell viability (IC50) was calculated by Probit analysis (SPSS 13.0 for Windows). Each experiment was performed in duplicate and repeated at least three times. Haemolytic assays (HC50 > 400 μg·L–1) towards human red blood cells were performed as described in the literature [30].

4. Conclusions

The synthesis of the sixteen new hybrids was done in two steps in moderate to very good yields, through the reaction of MBHAs with tetrahydropyran acrylates and aromatic aldehydes. Studies of the variation of reaction conditions, such as the use of microwaves promoting the reaction at 80 °C, use of low temperature, protic or aprotic solvents, and the use of phenol as additives were used satisfactorily based on the knowledge of MBHR reaction mechanisms. The success of the biological results of leishmanicidal activities and high indices of selectivities of several hybrids, especially those which present a bromine atom in the aromatic structure (SIrb > 180.19) higher than the reference drug Amphotericin B (SIrb = 33.05), which presents high toxicity, indicate that our proposal that hybridization of opioid analgesic tetrahydropyrans with MBHA was a good strategy. This also shows a good possibility to obtain new leishmanicidal drugs against Leishmania donovani ssp.

Supplementary Materials

The following are available online at www.mdpi.com/1420-3049/22/2/207/s1.

Acknowledgments

The authors gratefully acknowledge CNPq/CAPES for financial support and the Pro-Rector’s Office (PRPG, UFPB) for the payment of publication fees in Molecules.

Author Contributions

Suervy Canuto de Oliveira Sousa was responsible for the chemical experiments and analyzed the data; Everton da Paz Silva, Francisco José Seixas Xavier and João Paulo Gomes de Oliveira assisted Suervy Canuto de Oliveira Sousa in some experiments; Juliana da Câmara Rocha was responsible for antipromastigotes experiments; Tatjana Keesen de Souza Lima directed the biological studies; Fábio Pedrosa Lins Silva and Priscilla Anne Castro de Assis participate in discussions during the work ; Saulo Luís Capim and Bruno Guimarães Marinho were responsible for the synthesis and corresponding evaluation of the analgesic activity of tetrahydropyran 7; Claudio Gabriel Lima Junior and Mário Luiz Araújo de Almeida Vasconcellos coordinate the chemical experiments and analyzed the data and had all conception of this work. They also wrote this article.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Feasey, N.; Wansbrough-Jones, M.; Mabey, D.C.W.; Solomon, A.W. Neglected tropical diseases. Br. Med. Bull. 2010, 93, 179–200. [Google Scholar] [CrossRef] [PubMed]
  2. Alvar, J.; Vélez, I.D.; Bern, C.; Herrero, M.; Desjeux, P.; Cano, J.; Jannin, J.; den-Boer, M. Leishmaniasis Worldwide and Global Estimates of Its Incidence. PLoS ONE 2012, 7, e35671. [Google Scholar] [CrossRef] [PubMed]
  3. Romero, G.A.S.; Boelaert, M. Control of Visceral Leishmaniasis in Latin America—A Systematic Review. PLoS NTD 2010, 1, e584. [Google Scholar] [CrossRef] [PubMed]
  4. Forestier, C.L. Imaging host-Leishmania interactions: significance in visceral leishmaniasis. Parasite Immunol. 2013, 35, 256–266. [Google Scholar] [CrossRef] [PubMed]
  5. Lima–Junior, C.G.; Vasconcellos, M.L.A.A. Morita–Baylis–Hillman adducts: Biological activities and potentialities to the discovery of new cheaper drugs. Bioorg. Med. Chem. 2012, 20, 3954–3971. [Google Scholar] [CrossRef] [PubMed]
  6. Basavaiah, D.; Reddy, B.S.; Badsara, S.S. Recent Contributions from the Baylis−Hillman Reaction to Organic Chemistry. Chem. Rev. 2010, 110, 5447–5674. [Google Scholar] [CrossRef] [PubMed]
  7. Santos, M.S.; Coelho, F.; Lima-Junior, C.G.; Vasconcellos, M.L.A.A. The Morita-Baylis-Hillman Reaction: Advances and Contributions from Brazilian Chemistry. Curr. Org. Synt. 2015, 12, 830–852. [Google Scholar] [CrossRef]
  8. Viegas-Junior, C.; Danuello, A.; Bolzani, V.S.; Barreiro, E.J.; Fraga, C.A.M. Molecular Hybridization: A Useful Tool in the Design of New Drug Prototypes. Curr. Med. Chem. 2007, 14, 1829–1852. [Google Scholar] [CrossRef] [PubMed]
  9. Barbosa, T.P.; Sousa, S.C.O.; Amorim, F.M.; Rodrigues, Y.K.S.; de Assis, P.A.C.; Caldas, J.P.A.; Oliveira, M.R.; Vasconcellos, M.L.A.A. Design, synthesis and antileishmanial in vitro activity of new series of chalcones-like compounds: A molecular hybridization approach. Bioorg. Med. Chem. 2011, 19, 4250–4256. [Google Scholar] [CrossRef] [PubMed]
  10. Xavier, F.J.S.; Rodrigues, K.A.F.; Oliveira, R.G.; Lima-Junior, C.G.; Rocha, J.C.; Keesen, T.S.L.; Oliveira, M.R.; Silva, F.P.L.; Vasconcellos, M.L.A.A. Synthesis and In Vitro Anti Leishmania amazonenses Biological Screening of Morita-Baylis-Hillman Adducts Prepared from Eugenol, Thymol and Carvacrol. Molecules 2016, 21, 1483. [Google Scholar] [CrossRef] [PubMed]
  11. Capim, S.L.; Carneiro, P.H.P.; Castro, P.C.; Barros, M.R.M.; Marinho, B.G.; Vasconcellos, M.L.A.A. Design, Prins-cyclization reaction promoting diastereoselective synthesis of 10 new tetrahydropyran derivatives and in vivo antinociceptive evaluations. Eur. J. Med. Chem. 2012, 58, 1–11. [Google Scholar] [CrossRef] [PubMed]
  12. The 2D-NOESY spectrum of compound 6 described on reference 11, presented significant signals of correlation between Ha/ Hb, Ha/Hc and Hb/Hc that determine unequivocally the 2,4,6-cis geometry of tetrahydropyran ring. Thus, the relative configuration of the C2 -C4-C6 in the compounds 8a-8h in the tetrahydropyran ring are the same as those determined for 6. However, the relative configuration in the carbinolic carbon in 8a-8h has not been determined in this article.
  13. Miranda, L.S.M.; Marinho, B.G.; Leitão, S.G.; Matheus, M.E.; Fernandes, P.D.; Vasconcellos, M.L.A.A. (±)-cis-(6-Ethyl-tetrahydropyran-2-yl)-formic acid: A novel substance with antinociceptive properties. Bioorg. Med. Chem. Lett. 2004, 14, 1573–1575. [Google Scholar] [CrossRef] [PubMed]
  14. Eliel, E.L.; Manoharan, M.; Pietrusiewicz, K.M.; Hargrave, K.D. Carbon 13 NMR Spectra of Saturated Heterocycles. XI:-Tetrahydropyrans (Oxanes). Org. Magn. Res. 1983, 21, 94–107. [Google Scholar] [CrossRef]
  15. Gonçalves, G.M.; Capim, S.L.; Vasconcellos, M.L.A.A.; Marinho, B.G. Antihyperalgesic effect of [(±)-(2,4,6-cis)-4-chloro-6-(naphthalen-1-yl)-tetrahydro-2H-pyran-2-yl]methanol:participation of the NO/cGMP/KATP pathway and κ-opioid receptor. Behav. Pharmacol. 2016, 27, 506–515. [Google Scholar] [CrossRef] [PubMed]
  16. Calculated ED50 values from the acetic acid-induced abdominal writhes in mice to 6 = 27.97 μmol·kg–1 Capim, S.L.; Gonçalves, G.M.; dos Santos, G.C.M.; Marinho, B.G.; Vasconcellos, M.L.A.A. High analgesic and anti-inflammatory in vivo activities of six new hybrids NSAIAs tetrahydropyran derivatives. Bioorg. Med. Chem. 2013, 21, 6003–6010. [Google Scholar] [CrossRef] [PubMed] Calculated ED50 values from the acetic acid-induced abdominal writhes in mice to 7 = 41.67 μmol·kg–1 (unpublished results).
  17. The relative cis configuration of the groups present in the C2 and C6 positions of the corresponding carboxylic acid prepared from the alcohol 7, were determinated by 13C NMR spectroscopy through the characteristic down field shift of the C2, C6 carbons (see references 28 and 29). Thus, the relative configuration of the C2-C6 in the compounds 9a9h in the tetrahydropyran ring are the same as those determined for 7. However, the relative configuration in the carbinolic carbon in 9a-9h has not been determined in this article.
  18. De Souza, R.O.M.A.; Pereira, V.L.P.; Muzitano, M.F.; Rossi-Bergmann, B.; Filho, E.B.A.; Vasconcellos, M.L.A.A. High selective leishmanicidal activity of 3-hydroxy-2-methylene-3-(4-bromophenyl) propanenitrile and analogous compounds. Eur. J. Med. Chem. 2007, 42, 99–102. [Google Scholar] [CrossRef] [PubMed]
  19. Junior, C.G.L.; de Assis, P.A.C.; Silva, F.P.L.; Sousa, S.C.O.; de Andrade, N.G.; Barbosa, T.P.; Nerís, P.L.N.; Segundo, L.V.G.; Anjos, I.C.; Carvalho, G.A.U.; et al. Efficient synthesis of 16 aromatic Morita-Baylis-Hillman adducts: biological evaluation on Leishmania amazonensis and Leishmania chagasi. Bioorg. Chem. 2010, 38, 279–284. [Google Scholar] [CrossRef] [PubMed]
  20. Silva, F.P.L.; de Assis, P.A.C.; Lima-Junior, C.G.; de Andrade, N.G.; da Cunha, S.M.D.; Oliveira, M.R.; Vasconcellos, M.L.A.A. Synthesis, evaluation against Leishmania amazonensis and cytotoxicity assays in macrophages of sixteen new congeners Morita-Baylis-Hillman adducts. Eur. J. Med. Chem. 2011, 46, 4295–4301. [Google Scholar] [CrossRef] [PubMed]
  21. Junior, C.G.L.; Silva, F.P.L.; Oliveira, R.G.; Subrinho, F.L.; Andrade, N.G.; Vasconcellos, M.L.A.A. Microwave Irradiation or Low Temperature Improved Synthesis of Antiparasitic Morita-Baylis-Hillman Adducts. J. Braz. Chem. Soc. 2011, 22, 2220–2224. [Google Scholar] [CrossRef]
  22. Muylder, G.D.; Ang, K.K.H.; Chen, S.; Arkin, M.R.; Engel, J.C.; McKerrow, J.H. A Screen against Leishmania Intracellular Amastigotes: Comparison to a Promastigote Screen and Identificationof a Host Cell-Specific Hit. PLoS NTD 2011, 5, e1253. [Google Scholar] [CrossRef] [PubMed]
  23. Rafel, S.; Leahy, J.W. An unexpected rate acceleration practical improvements in the Baylis-Hillman reaction. J. Org. Chem. 1997, 62, 1521–1522. [Google Scholar] [CrossRef]
  24. Vasconcellos, M.L.A.A.; de Souza, R.O.M.A. Intrinsic catalytic activity of tertiary amines: a mechanistic proposal to the unexpected temperature effect in Baylis-Hillman reaction. Catal. Commun. 2004, 5, 21–24. [Google Scholar]
  25. Price, K.E.; Broadwater, S.J.; Walker, B.J.; McQuade, D.T. A new interpretation of the Baylis-Hillman mechanism. J. Org. Chem. 2005, 70, 3980–3987. [Google Scholar] [CrossRef] [PubMed]
  26. Robiette, R.; Aggarwal, V.K.; Harvey, J.N. Mechanism of the Morita-Baylis-Hillman reaction: a computational investigation. J. Am. Chem. Soc. 2007, 129, 15513–15525. [Google Scholar] [CrossRef] [PubMed]
  27. Plata, R.E.; Singleton, D.A. A Case Study of the Mechanism of Alcohol-Mediated Morita Baylis–Hillman Reactions. The Importance of Experimental Observations. J. Am. Chem. Soc. 2015, 137, 3811–3826. [Google Scholar] [CrossRef] [PubMed]
  28. Da Silva, W.A.V.; Rodrigues, D.C.; Oliveira, R.G.; Mendes, R.K.S.; Olegário, T.R.; Rocha, J.C.; Keesen, T.S.L.; Lima-Junior, C.G.; Vasconcellos, M.L.A.A. Synthesis and activity of novel homodimers of Morita–Baylis–Hillman adducts against Leishmania donovani: A twin drug approach. Bioor. Med. Chem. Lett. 2016, 26, 4523–4526. [Google Scholar] [CrossRef] [PubMed]
  29. Morais-Teixeira, E.; Damasceno, Q.S.; Galuppo, M.K.; Romanha, A.J.; Rubella, A. The in vitro leishmanicidal activity of hexadecylphosphocholine (miltefosine) against four medically relevant Leishmania species of Brazil. Mem. Inst. Oswaldo Cruz 2011, 106, 475–478. [Google Scholar] [CrossRef] [PubMed]
  30. Valadares, D.G.; Duarte, M.C.; Oliveira, J.S.; Chávez-Fumagalli, M.A.; Martins, V.T.; Costa, L.E.; Leite, J.P.V.; Santoro, M.M.; Régis, W.C.B.; Tavares, C.A.P.; et al. Leishmanicidal activity of the Agaricus blazei Murill in different Leishmania species. Parasitol. Int. 2011, 60, 357–363. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds not available from the authors.

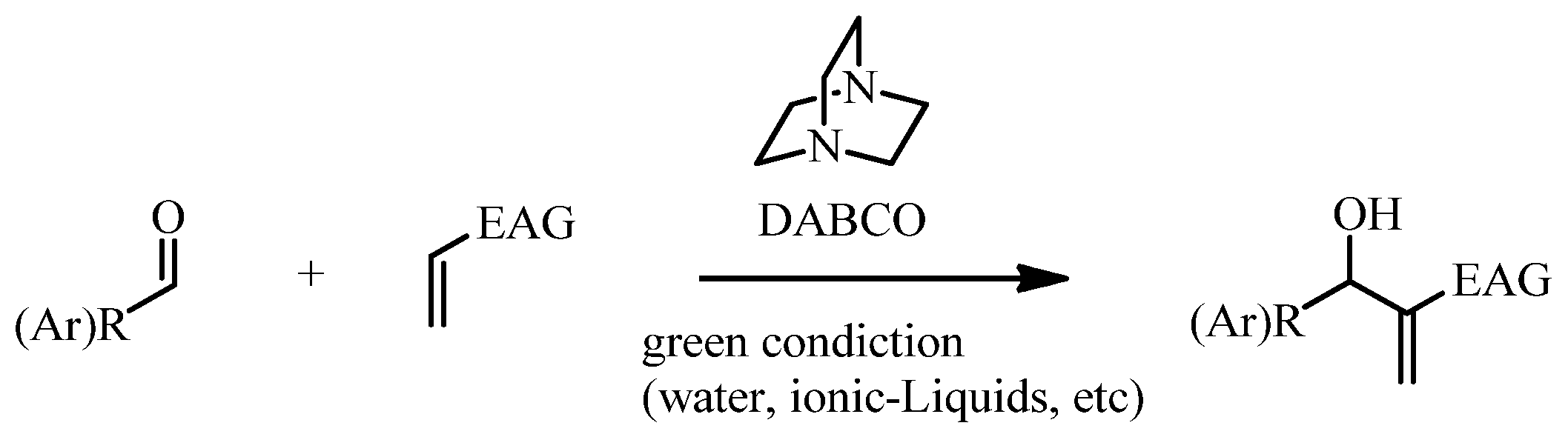

Scheme 1. General Morita-Baylis-Hillman reaction. EAG = electron attractor group. Ar = aryl or heteroaryl, R = alkyl or H.
Scheme 1. General Morita-Baylis-Hillman reaction. EAG = electron attractor group. Ar = aryl or heteroaryl, R = alkyl or H.
Molecules 22 00207 sch001

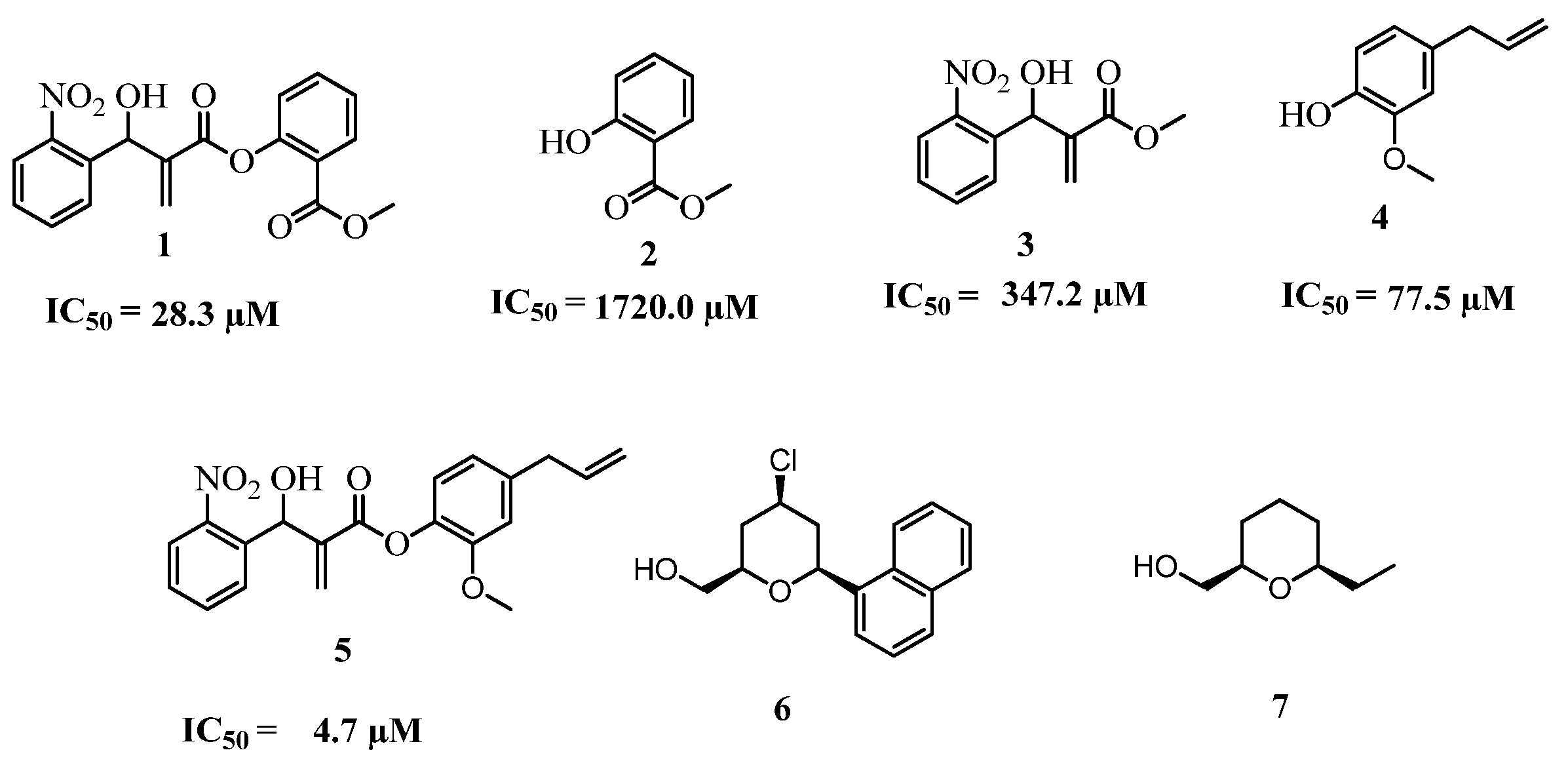

Figure 1. The leishmanicidal activity of hybrids 1 and 5 and their precursors. The analgesic/anti-inflammatory 6 and 7.
Figure 1. The leishmanicidal activity of hybrids 1 and 5 and their precursors. The analgesic/anti-inflammatory 6 and 7.
Molecules 22 00207 g001

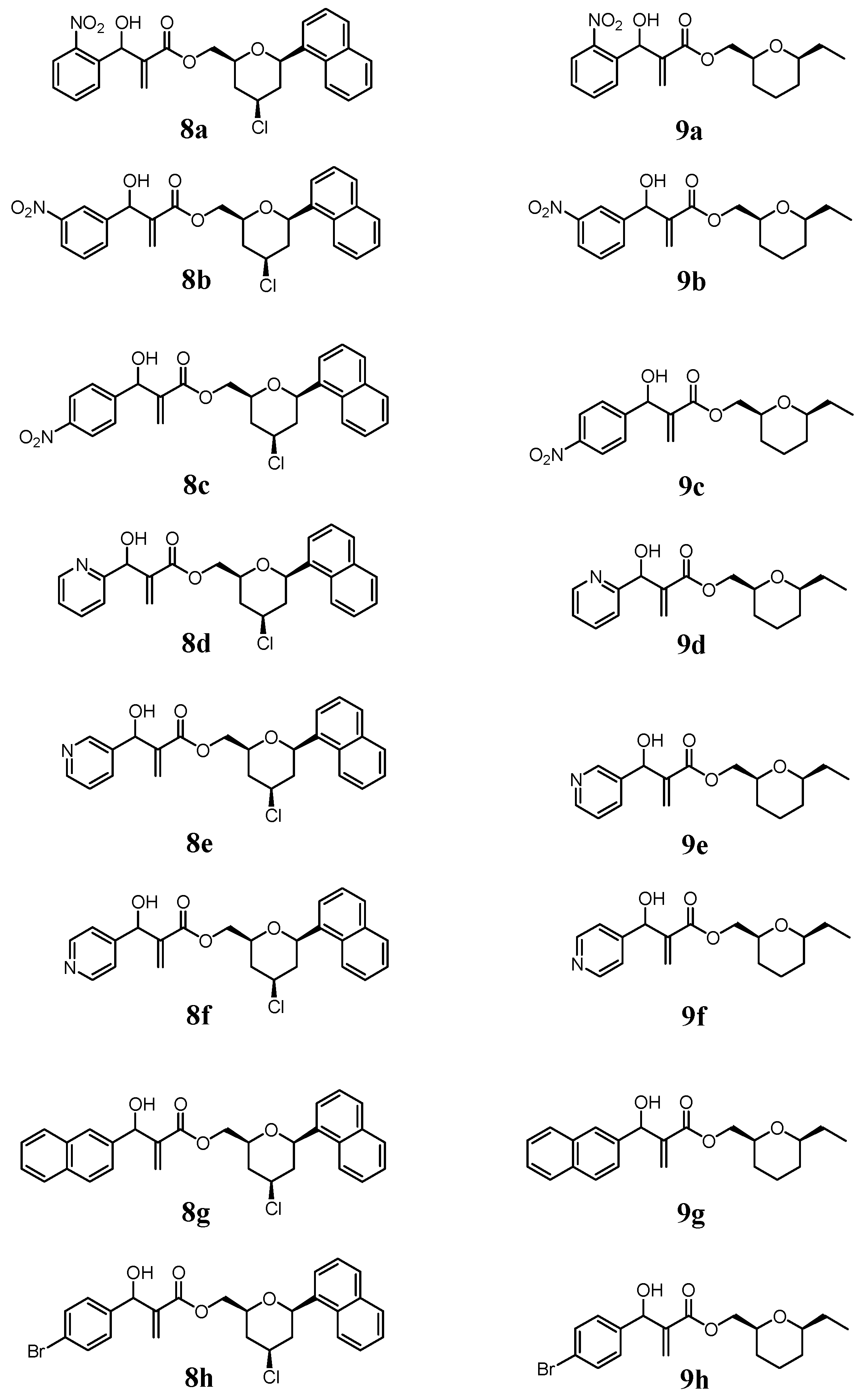

Figure 2. The synthetized hybrids 8a8h and 9a9h.
Figure 2. The synthetized hybrids 8a8h and 9a9h.
Molecules 22 00207 g002

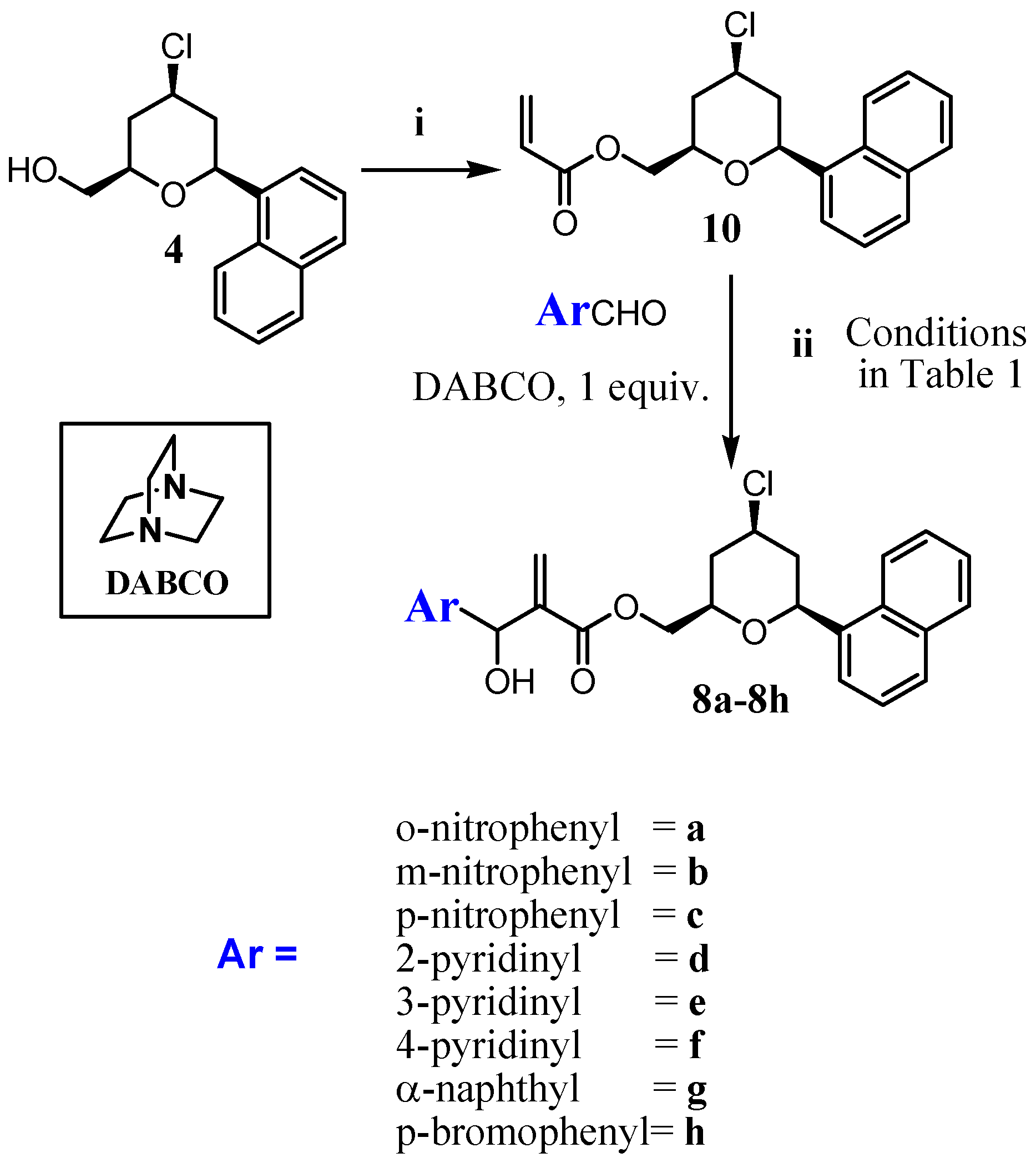

Scheme 2. (i) Acrylic acid (2 equiv.), TsOH (20 mol%), anhydrous CH2Cl2, 50 °C, two days, 70% yield. (ii) MBHR between 10 and ArCHO (conditions and yields in Table 1).
Scheme 2. (i) Acrylic acid (2 equiv.), TsOH (20 mol%), anhydrous CH2Cl2, 50 °C, two days, 70% yield. (ii) MBHR between 10 and ArCHO (conditions and yields in Table 1).
Molecules 22 00207 sch002

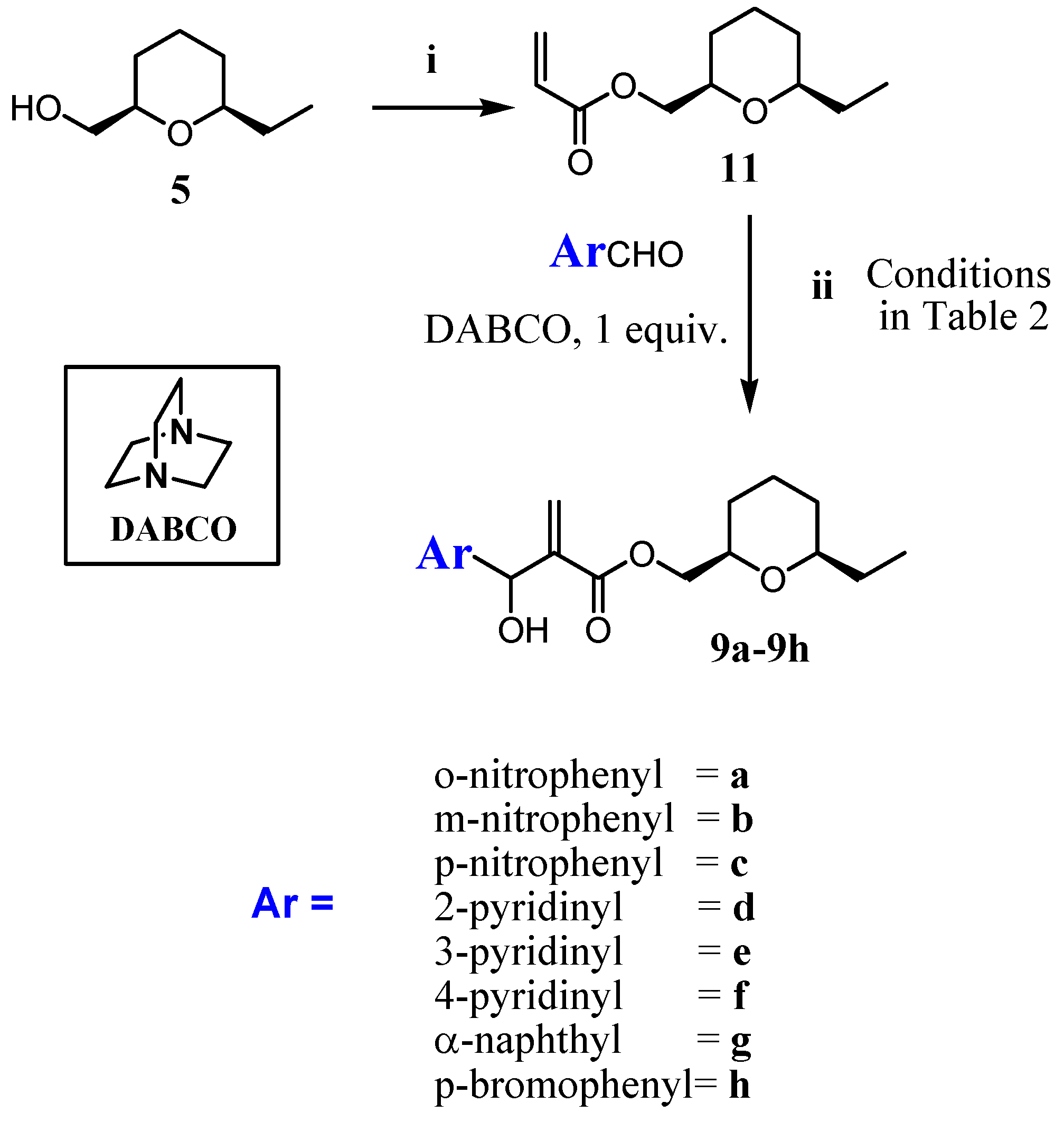

Scheme 3. (i) Acrylic acid (2 equiv.), TsOH (20 mol%), anhydrous CH2Cl2, 50 °C, two days, 75% yield. (ii) MBHR between 11 and ArCHO (conditions and yields in Table 2).
Scheme 3. (i) Acrylic acid (2 equiv.), TsOH (20 mol%), anhydrous CH2Cl2, 50 °C, two days, 75% yield. (ii) MBHR between 11 and ArCHO (conditions and yields in Table 2).
Molecules 22 00207 sch003
Scheme 4. The general proposal mechanism of MBHR.
Scheme 4. The general proposal mechanism of MBHR.
Molecules 22 00207 sch004
Figure 3. In vitro biological results.
Figure 3. In vitro biological results.
Molecules 22 00207 g003
Table 1. Conditions and yields in the synthesis of new hybrids 8a8h.
Table 1. Conditions and yields in the synthesis of new hybrids 8a8h.
Molecules 22 00207 i001
EntryArHybridSolvent aTemp. (°C) bTime (h)Yield (%) c
1o-nitrophenyl8at-buOH/H2O80 Mw185
2m-nitrophenyl8bt-buOH/H2O80 Mw0.734d
3m-nitrophenyl8bDMF:H2O04881
4p-nitrophenyl8ct-buOH/H2O80 Mw0.786
52-pyridinyl8dt-buOH/H2O80 Mw1.381
63-pyridinyl8et-buOH/H2O80 Mw280
74-pyridinyl8ft-buOH/H2O80 Mw187
8α-naphthyl8gt-buOH/H2O80 Mw2n.r.
9α-naphthyl8gDMF:H2O04845
10p-bromophenyl8ht-buOH/H2O80 Mw2n.r.
11p-bromophenyl8hDMF:H2O024060
a Mixture of 9:1; b Mw = microwave irradiation; c isolated yields; d co-products were observed; n.r.= no reaction.
Table 2. Conditions and yields in the synthesis of new hybrids 9a9h.
Table 2. Conditions and yields in the synthesis of new hybrids 9a9h.
Molecules 22 00207 i002
EntryArHybridSolvent aTemp. (°C) bTime (h)Yield (%) c,d
1o-nitrophenyl9at-buOH/H2O80 Mw0.774
2m-nitrophenyl9bt-buOH/H2O80 Mw0.778
3p-nitrophenyl9ct-buOH/H2O80 Mw0.395
42-pyridinyl9dt-buOH/H2O80 Mw0.896
53-pyridinyl9et-buOH/H2O80 Mw1.380
64-pyridinyl9ft-buOH/H2O80 Mw0.772
74-pyridinyl9ft-buOH/H2O, PhOH80 Mw0.396
8α-naphthyl9gt-buOH/H2O80 Mw2n.r.
9α-naphthyl9gDMF/H2O, PhOH 09665
10p-bromophenyl9ht-buOH/H2O80 Mw2n.r.
11p-bromophenyl9hDMF/H2O, PhOH024050
a Mixture of 9:1; b Mw = microwave irradiation; c isolated yields; d co-products were not observed.
Table 3. In vitro biological results.
Table 3. In vitro biological results.
CompoundsIC50 a (μg·mL−1)IC50 a (μM)HC50 b (μg·mL−1)HC50 b (μM)SIrb c
647.53 ± 39172.19 ± 141.25---
7>400>2775.46---
8a7.09 ± 3.014.74 ± 6.23>400>831.38>56.40
8b8.76 ± 4.018.21 ±8.31---
8c9.05 ± 3.318.81 ± 6.85---
8d61.93 ± 18141.67 ± 41.17---
8e8.76 ± 3.820.04 ± 8.69---
8f8.96 ± 4.520.50 ± 10.29---
8g24.51± 7.550.42 ± 15.42---
8h17.17 ± 5.633.40 ± 10.90---
9a5.64 ± 3.016.15 ± 8.60>400>1145.64>70.94
9b13.75 ± 9.839.38 ± 28.06---
9c7.03 ± 4.320.13 ± 12.31>400>1145.64>56.91
9d72.32 ± 26.0240.27 ± 85.20---
9e17.68 ± 7.757.94 ± 25.23---
9f57.76 ± 20.0189.28 ± 65.53---
9g9.73 ± 4.827.47 ± 13.55---
9h2.22 ± 7.65.81 ± 19.90>400>1046.90>180.19
Amphotericin B0.35 ± 0.270.38 ± 0.3011.6112.5633.05
a The half maximal inhibitory concentration; b 50% hemolysis in red blood cells; c SIrb (selectivity index on red blood cell) = HC50/IC50.
