Molecules 2017, 22(11), 1854; doi:10.3390/molecules22111854

Article
Functional Characterization of a Hydroxyacid/Alcohol Hydroxycinnamoyl Transferase Produced by the Liverwort Marchantia emarginata
Ping-Ping Wang, Hui Liu, Shuai Gao and Ai-Xia Cheng *
Key Laboratory of Chemical Biology of Natural Products, Ministry of Education, School of Pharmaceutical Sciences, Shandong University, Jinan 250012, China
*
Correspondence: Tel.: +86-531-88382012; Fax: +86-531-88382019
Received: 25 September 2017 / Accepted: 26 October 2017 / Published: 31 October 2017

Abstract

:
The aerial organs of most terrestrial plants are covered by a hydrophobic protective cuticle. The main constituent of the cuticle is the lipid polyester cutin, which is composed of aliphatic and aromatic domains. The aliphatic component is a polyester between fatty acid/alcohol and hydroxycinnamoyl acid. The BAHD/HxxxD family enzymes are central to the synthesis of these polyesters. The nature of this class of enzymes in bryophytes has not been explored to date. Here, a gene encoding a fatty ω-hydroxyacid/fatty alcohol hydroxycinnamoyl transferase (HFT) has been isolated from the liverwort Marchantia emarginata and has been functionally characterized. Experiments based on recombinant protein showed that the enzyme uses ω-hydroxy fatty acids or primary alcohols as its acyl acceptor and various hydroxycinnamoyl-CoAs—preferentially feruloyl-CoA and caffeoyl-CoA—as acyl donors at least in vitro. The transient expression of a MeHFT-GFP fusion transgene in the Nicotiana benthamiana leaf demonstrated that MeHFT is directed to the cytoplasm, suggesting that the feruloylation of cutin monomers takes place there.
Keywords:
ferulate esters; BAHD; acyltransferase; cutin; bryophytes

1. Introduction

The evolution of plants from marine/aquatic to terrestrial organisms has necessitated the development of a protective outer coat, primarily to prevent water loss [1,2,3]. The material making up this coat typically contains substantial quantities of the polymers cutin and suberin [1,4,5]. Cutin has a high content of the C16 fatty acid ferulic acid and the C18 fatty acid p-coumaric acid linked by esterification to glycerol [1,5,6]. Although cutin is primarily an acylglycerol polymer, varying amounts of certain aromatics (ferulic acid, coumaric acid and caffeic acid) feature in some cutins [1].
The enzymes responsible for acylation belong to the large BAHD/HXXXD acyltransferase family [7], almost all the members of which harbor both the HxxxD and the DFGWG motif. The HxxxD sequence is thought to be involved in enzyme catalysis [8], the DFGWG motif is distal to the active site in space and appears to have a structural function [9,10]. Three functional classes of these enzymes have been identified, namely the alcohol acetyltransferases [11,12,13], the anthocyanin/flavonoid acyltransferases [14,15,16,17,18] and the hydroxycinnamoyl transferases [19,20,21]. Their molecular masses range from 48 to 55 kDa [10]. The enzyme hydroxycinnamoyl-CoA:ω-hydroxyacid/fatty alcohol transferase (HHT) catalyzes the formation of aromatic esters in lipidic polymers. Its activity has been noted in many plant species, both angiosperms and gymnosperms [22,23]. The Arabidopsis thaliana BAHD/HXXXD family acyltransferase, encoded by the gene At5g41040, has been shown to have HHT activity [20,21] and is employed in the formation of suberin aromatics. The suppression of a potato homolog of At5g41040 reduces both the ferulate ester and ω-hydroxy fatty acid contents of suberin, resulting in the development of a thickened peel and an increased rate of water loss [24]. In contrast, an A. thaliana mutant lacking cutin feruloyltransferase (a distant homolog of HHT1) activity displays no marked alteration in its cuticle function in relation to ion permeability, water loss or pathogen infection [25].
The Populus trachocarpa FHT1 enzyme accepts both p-coumaroyl and feruloyl CoA as a thioester donor and is able to acylate ω-hydroxy acids and fatty alcohols in vitro. Heterologously expressing the Populus gene in A. thaliana has the effect of increasing, by as much as 45%, the incorporation of phenolic esters into both the leaf cutin and the root and seed suberin; the accumulation of ferulate esters conferred thereby confer a significantly increased tolerance to salinity stress [26]. WoLF PSORT analysis [27] has indicated that FHT is most likely a cytosolic enzyme, as no signal peptides for targeting the protein to organelles or transmembrane domains have been recognized [24].
Bryophytes, the group of non-vascular plants which includes mosses, liverworts and hornworts, were among the first plants to colonize land. To achieve this, they needed to evolve an number of adaptations to cope with a range of abiotic stresses which are not relevant in a marine or aquatic environment [28]. The liverworts synthesize a wide range of terpenoids [29], lignin [30], flavonoids [31] and bis-bibenzyls [32,33]. As yet, however, their synthesis of cutin has not been described. Here, a HFT enzyme produced by the liverwort species M. emarginata (MeHFT) has been characterized. The enzyme appears to be involved in the formation of alkyl hydroxycinnamate esters and is active in the cytoplasm; in vitro, the enzyme can use either feruloyl or caffeoyl-CoA as its acyl donor, and ω-hydroxyacids or fatty alcohols as its acyl acceptor.

2. Results and Discussion

2.1. Gene Isolation and Sequence Analysis

On the basis of the Swissprot in silico annotation of the M. emarginata transcriptome (SRP078649), a sequence encoding a putative HFT was identified and given the designation MeHFT. The sequence’s length was 1413 nt and its predicted product a 470 residue protein of molecular mass 51.93 kDa and pI 4.91. The predicted polypeptide’s sequence shared, respectively, 50.6%, 48.2%, 42.3%, 44.3% and 49.5% identity with those of PtFHT (JX515962: [26]), AtHHT1/ASFT (AT5G41040: [20,21]), AtDCF (AT3G48720: [25]), AtFACT (AT5G63560: [34]) and StFHT (ACS70946: [24]). Sequence alignments confirmed that each these proteins harbored the HxxxD and DFGWG motifs (Figure 1). A phylogenetic analysis (Figure 2) of the M. emarginata sequence suggested the existence of two distinct clades: the first grouped PtFHT1, StFHT, AtHHT1/ASFT, AtFACT and AtDCF, while the second grouped DcHCBT, NtHQT, AsHHT, AtHCT and NtHCT. The MeHFT sequence was related to the former clade; its peripheral position suggested that its function may involve the formation of polyester aromatics. Finding this gene is such a basal land plant implies that it likely represents an ancestral sequence of homologs present in vascular plants.

2.2. Functional Analysis

The molecular mass of the recombinant MeHFT protein, as estimated from its migration through an SDS polyacrylamide gel was ~71 kDa (including the 20.4 kDa His-tag) (Figure 3), which is in line with that of most BAHD acyltransferases. The experiments run to test its ability to accept a range of thioester donors (p-coumaroyl CoA, caffeoyl CoA and feruloyl CoA) and acyl acceptors (16-hydroxypalmitic acid, hexadecanoic acid and a range of primary alcohols [C6, C7, C10, C12, C14, C16, C20, C22]) showed that when recombinant MeHFT was provided with feruloyl CoA and 1-dodecanol, a single prominent HPLC peak was observed (Figure 4A). MS/MS analysis of this reaction product revealed it to be a molecular ion [M+H]+ with an m/z of 363.3, consistent with it being a complex of ferulate with C12 (Figure 4B). The presence of an additional fragment with an m/z of 177.1 implied the presence of a feruloyl moiety in the reaction product. No products were generated from a control reaction run with the protein obtained from the culture of E. coli carrying an empty pET32a plasmid (Figure 4A). When C10 was provided as the acyl acceptor, the activity of the recombinant MeHFT provided with caffeoyl CoA as a substrate was only ~38% of that recorded when feruloyl CoA was provided and ~43% when using p-coumaroyl CoA (Table 1). The data implied that the preferred acyl donor of MeHFT was feruloyl CoA. With feruloyl-CoA as the acyl donor, a comparison of 15 aliphatic substrates as potential acyl acceptors (Table 1) showed that 1-decanol, 1-dodecanol and 1-tetradecanol were similarly effective as acceptors. The recombinant enzyme showed a level of activity when provided with the short-to-mid-chain fatty alcohols (C6, C7, C10, C12, C14) but none when provided with the long chain fatty alcohols (C20, C22).
Experiments designed to identify the optimal reaction conditions for recombinant MeHFT showed that the enzyme preferred a temperature of 40 °C and a pH of 7.5. At this temperature and pH optimum, recombinant MeHFT, when provided with ~0.1 mM feruloyl-CoA as the acyl donor, was associated with comparable Kcat/Km ratios in the presence of 1-decanol (3181 M−1s−1) and 1-dodecanol (3015 M−1s−1) (Table 1). When provided with 0.1 mM 1-decanol and feruloyl-CoA the Kcat/Km rose to 3928 M−1s−1, a value comparable to that achieved by HFTs isolated from higher plants [26]. These measurements suggested that, in the presence of a non-limiting supply of CoA thioester, MeHFT is effective in catalyzing transferuloylation on aliphatic monomers, at least in vitro. Just as is the case with AtFACT, MeHFT recognized feruloyl-CoA, caffeoyl-CoA and p-coumaroyl-CoA as an acyl donor, although its preference was for feruloyl-CoA, while that of AtFACT was for caffeoyl-CoA [31]. The substrate preferences of AtHHT1/ASFT, StHFT and PtHFT are the same as that of MeHFT.

2.3. The Subcellular Localization of MeHFT

The pattern of expression of the p35S::MeHFT-GFP trangene in the N. benthamiana leaf is shown in Figure 5. The clear result was that the translation product was deposited in the cytoplasm.

3. Materials and Methods

3.1. Plant Materials

M. emarginata thallus was raised under a 12 h photoperiod and a constant temperature of 25 °C. Harvested thalli were snap-frozen in liquid nitrogen and stored at −80 °C. Nicotiana benthamiana plants were soil-grown for 5–6 weeks under a 12 h photoperiod, with a day/night temperature regime of 24 °C/22 °C.

3.2. Reagents

All chemicals and reagents required were purchased from either Sigma–Aldrich (St. Louis, MO, USA) or Energy Chemical (Shanghai, China), unless otherwise noted. Feruloyl CoA, p-coumaroyl CoA and caffeoyl CoA were synthesized from ferulic acid, p-coumaric acid and caffeic acid, respectively, using liverwort 4-coumarate CoA ligase [35], then purified using an LC-18 SPE column (Supelco Inc., Bellefonte, PA, USA), following the recommendation of Beuerle and Pichersky [36]. The products were checked for purity using a spectrophotometric assay.

3.3. Phylogenetic Analysis of the MeHFT Sequence

A phylogenetic analysis involving the MeHFT sequence and certain selected related plant proteins was carried out using routines implemented in MEGA v5.1 software. [37]. The Neighbor-Joining method was applied, and a bootstrap analysis, based on 1000 replicates, was performed to give statistical support for the derived clade structure.

3.4. Gene Isolation, Recombinant Protein Expression and Purification

Total RNA from two month old M. emarginata thallus was extracted using a CTAB-based method [38], and reverse transcribed with the help of a PrimeScript™ RT Master Mix Kit (Takara Bio, Inc., Shiga, Japan) according to the supplier’s protocol. The full length cDNA produced by MeHFT was amplified from a cDNA template using PrimeSTAR HS DNA polymerase (Takara) driven by the primer pair MeHFT-F/-R (sequences given in Table 2). The full length clone was subcloned into pMD19-T (Takara, Japan) and then transformed into Escherichia coli DH5a. Plasmids from positive transformants were extracted with Plasmid Mini Kit (Omega Bio-Tek, Norcross, GA, USA) and fully sequenced. The plasmids was then double-digested with SacI and XhoI (Takara, Japan), and ligated into the corresponding cleavage sites of pET32a (Novagen, Darmstadt, Germany) in order to generate a transgene which encoded a His-tagged version of MeHFT. To heterologously express this transgene, it was transferred into competent E. coli BL21 (DE3) cells Expression of the transgene was induced by the addition of 0.5 mM isopropyl β-d-1-thiogalactopyranoside to the culture medium, and the cells were held at 16 °C for 16 h. Recombinant protein was purified from the medium by passage through a Ni-NTA Sefinose His-bind column (Bio Basic Inc., Markham, ON, Canada), following Gao et al. [35]. The concentrations and approximate molecular masses of the recombinant protein were determined as described elsewhere [39].

3.5. Enzymatic Assay and Kinetics Determination

Each 50 μL enzymatic assay reaction comprised 1 μg recombinant protein, along with 50 μM of either p-coumaroyl-CoA, caffeoyl-CoA or feruloyl-CoA and 20 μM acyl acceptor (see below) in 0.1 M Tris-HCl buffer, pH 7.5. The reactions were initiated by the addition of the recombinant protein, held at 40 °C for 20 min, and terminated by the addition of 50 μL acetonitrile. After centrifugation (12,000× g, 20 min) to remove any precipitated protein, a 20 μL aliquot of the mixture was injected into an HPLC device equipped with C18 reverse-phase column (4.6 × 250 mm Agilent, Santa Clara, CA, USA). The material was eluted by passing a mixture of 0.2% v/v glacial acetic acid in water (A) and acetonitrile (B) provided at a flow of 0.8 mL min−1. In the period 0–5 min, the eluate was composed of 85% A, 15% B; from 5 to 25 min, the proportion of B was raised linearly to 100%; from 25 to 35 min, the eluate was 100% B; and from 35 to 40 min, the proportion of B was lowered linearly to 15%. UV absorption was monitored at 330 nm.
The reaction kinetics of the recombinant MeHFT was tested in two sets of experiments. In the first, the recombinant enzyme was provided with 0.1 mM 1-decanol and a range of concentrations of feruloyl-CoA in 0.1 M Tris-HCl buffer (pH 7.5), while in the second, the feruloyl-CoA concentration was fixed at 0.1 mM and the 1-decanol concentration was varied. Both sets of experiment utilized 1 μg purified protein, and were held at 40 °C for 10 min. Kinetic data were calculated on the basis of the Michaelis-Menten equation, using Graphpad Prism 5 software (www.graphpad.com). The quantity of reaction product was calculated based on a standard calibration curve.

3.6. The Subcellular Localization of MeHFT

The MeHFT sequence was inserted into pGWB5 (p35S::GL2-GFP) (www.thermofisher.com) for the purpose of determining the subcellular localization of MeHFT. After its amplification driven by primer pair attB1-MeHFT-F/R (Table 2), the sequence was introduced into pDONR207 (Invitrogen, Carlsbad, CA, USA) using the BP reaction, as recommended by the manufacturer. Correct insertion was verified by sequencing. Following validation by sequencing, the construct was transferred into pGWB5 via the LR reaction, and the recombined pGWB5 plasmid was transferred into Agrobacterium tumefaciens strain EHA105 using the freeze/thaw method. To achieve its transient transformation in the N. benthamiana leaf, a 0.1 mL aliquot of the overnight Ag. tumefaciens culture was seeded into 10 mL yeast extract peptone medium containing 50 mg/L of both kanamycin and rifamycin. The cultures were shaken (200 rpm) and held at 28 °C until their OD600 reached about 0.5. The cells were then harvested by centrifugation (2000× g, 20 min), rinsed in 50 mM MES/KOH (pH 5.6), 2 mM Na3PO4, 28 mM glucose, 100 mM acetosyringone, then re-suspended in the same buffer to an OD600 of 1.0. The resuspended cells and p19 were mixed in a 1:1 ratio and the mixture incubated for 3 h at 25 °C, then infiltrated with a syringe into the base of a N. benthamiana leaf [39]. After two days, the fluorescence of the leaf hypodermis was inspected by laser confocal microscopy (Model LSM 700, Carl Zeiss AG, Oberkochen, Germany). The micrscope was equipped with both 495–570 nm (GFP) and 650–760 nm (chlorophyll) band pass filters. Image data were visualized using ZEN 2009 software (CarlZeiss AG).

4. Conclusions

This represents the first report of the in vitro functionality of a bryophyte HFT. The identification of a member of the BAHD family in as basal a land plant as the liverwort M. emarginata may reveal new insights into the diversity of acyltransferases.

Acknowledgments

We are grateful for the support of the National Natural Science Foundation of China (No. 31370330).

Author Contributions

AXC designed the experiments. PPW, HL and SG performed the experiments. PPW and AXC analyzed the data and wrote the paper. All the authors analyzed the results and edited and approved the final version of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pollard, M.; Beisson, F.; Li, Y.; Ohlrogge, J.B. Building lipid barriers: Biosynthesis of cutin and suberin. Trends Plant Sci. 2008, 13, 236–246. [Google Scholar] [CrossRef] [PubMed]
  2. Schreiber, L. Transport barriers made of cutin, suberin and associated waxes. Trends Plant Sci. 2010, 15, 546–553. [Google Scholar] [CrossRef] [PubMed]
  3. Beisson, F.; Li-Beisson, Y.; Pollard, M. Solving the puzzles of cutin and suberin polymer biosynthesis. Curr. Opin. Plant Biol. 2012, 15, 329–337. [Google Scholar] [CrossRef] [PubMed]
  4. Franke, R.; Schreiber, L. Suberin—A biopolyester forming apoplastic plant interfaces. Curr. Opin. Plant Biol. 2007, 10, 252–259. [Google Scholar] [CrossRef] [PubMed]
  5. Graca, J.; Santos, S. Suberin: A biopolyester of plants’ skin. Macromol. Biosci. 2007, 7, 128–135. [Google Scholar] [CrossRef] [PubMed]
  6. Panikashvili, D.; Shi, J.X.; Schreiber, L.; Aharoni, A. The Arabidopsis DCR encoding a soluble BAHD acyltransferase is required for cutin polyester formation and seed hydration properties. Plant Physiol. 2009, 151, 1773–1789. [Google Scholar] [CrossRef] [PubMed]
  7. Petersen, M. Hydroxycinnamoyltransferases in plant metabolism. Phytochem. Rev. 2015, 15, 699–727. [Google Scholar] [CrossRef]
  8. Ma, X.; Koepke, J.; Panjikar, S.; Fritzsch, G.; Stockigt, J. Crystal structure of vinorine synthase, the first representative of the BAHD superfamily. J. Biol. Chem. 2005, 280, 13576–13583. [Google Scholar] [CrossRef] [PubMed]
  9. St-Pierre, B.; De Luca, V. Evolution of Acyltransferase Genes: Origin and Diversification of the BAHD Superfamily of Acyltransferases Involved in Secondary Metabolism. Recent Adv. Phytochem. 2000, 34, 285–315. [Google Scholar]
  10. D’Auria, J.C. Acyltransferases in plants: A good time to be BAHD. Curr. Opin. Plant Biol. 2006, 9, 331–340. [Google Scholar] [CrossRef] [PubMed]
  11. Dudareva, N.; Pichersky, E. Biochemical and molecular genetic aspects of floral scents. Plant Physiol. 2000, 122, 627–633. [Google Scholar] [CrossRef] [PubMed]
  12. D’Auria, J.C.; Chen, F.; Pichersky, E. Characterization of an acyltransferase capable of synthesizing benzylbenzoate and other volatile esters in flowers and damaged leaves of Clarkia breweri. Plant Physiol. 2002, 130, 466–476. [Google Scholar] [CrossRef] [PubMed]
  13. D’Auria, J.C.; Pichersky, E.; Schaub, A.; Hansel, A.; Gershenzon, J. Characterization of a BAHD acyltransferase responsible for producing the green leaf volatile (Z)-3-hexen-1-yl acetate in Arabidopsis thaliana. Plant J. 2007, 49, 194–207. [Google Scholar] [CrossRef] [PubMed]
  14. Suzuki, H.; Nakayama, T.; Yonekura-Sakakibara, K.; Fukui, Y.; Nakamura, N.; Nakao, M.; Tanaka, Y.; Yamaguchi, M.A.; Kusumi, T.; Nishino, T. Malonyl-CoA:anthocyanin 5-O-glucoside-6‴-O-malonyltransferase from scarlet sage (Salvia splendens) flowers. Enzyme purification, gene cloning, expression, and characterization. J. Biol. Chem. 2001, 276, 49013–49019. [Google Scholar] [CrossRef] [PubMed]
  15. D’Auria, J.C.; Reichelt, M.; Luck, K.; Svatos, A.; Gershenzon, J. Identification and characterization of the BAHD acyltransferase malonyl CoA: Anthocyanidin 5-O-glucoside-6′′-O-malonyltransferase (At5MAT) in Arabidopsis thaliana. FEBS Lett. 2007, 581, 872–878. [Google Scholar] [CrossRef] [PubMed]
  16. Luo, J.; Nishiyama, Y.; Fuell, C.; Taguchi, G.; Elliott, K.; Hill, L.; Tanaka, Y.; Kitayama, M.; Yamazaki, M.; Bailey, P.; et al. Convergent evolution in the BAHD family of acyl transferases: Identification and characterization of anthocyanin acyl transferases from Arabidopsis thaliana. Plant J. 2007, 50, 678–695. [Google Scholar] [CrossRef] [PubMed]
  17. Yu, X.H.; Chen, M.H.; Liu, C.J. Nucleocytoplasmic-localized acyltransferases catalyze the malonylation of 7-O-glycosidic (iso)flavones in Medicago truncatula. Plant J. 2008, 55, 382–396. [Google Scholar] [CrossRef] [PubMed]
  18. Taguchi, G.; Ubukata, T.; Nozue, H.; Kobayashi, Y.; Takahi, M.; Yamamoto, H.; Hayashida, N. Malonylation is a key reaction in the metabolism of xenobiotic phenolic glucosides in Arabidopsis and tobacco. Plant J. 2010, 63, 1031–1041. [Google Scholar] [CrossRef] [PubMed]
  19. Luo, J.; Fuell, C.; Parr, A.; Hill, L.; Bailey, P.; Elliott, K.; Fairhurst, S.A.; Martin, C.; Michael, A.J. A novel polyamine acyltransferase responsible for the accumulation of spermidine conjugates in Arabidopsis seed. Plant Cell 2009, 21, 318–333. [Google Scholar] [CrossRef] [PubMed]
  20. Gou, J.Y.; Yu, X.H.; Liu, C.J. A hydroxycinnamoyltransferase responsible for synthesizing suberin aromatics in Arabidopsis. Proc. Natl. Acad. Sci. USA 2009, 106, 18855–18860. [Google Scholar] [CrossRef] [PubMed]
  21. Molina, I.; Li-Beisson, Y.; Beisson, F.; Ohlrogge, J.B.; Pollard, M. Identification of an Arabidopsis feruloyl-coenzyme A transferase required for suberin synthesis. Plant Physiol. 2009, 151, 1317–1328. [Google Scholar] [CrossRef] [PubMed]
  22. Lotfy, S.; Javelle, F.; Negrel, J. Distribution of hydroxycinnamoyl-CoA: ω-hydroxypalmitic acid O -hydroxycinnamoyltransferase in higher plants. Phytochemistry 1995, 40, 389–391. [Google Scholar] [CrossRef]
  23. Lotfy, S.; Javelle, F.; Negrel, J. Purification and characterization of hydroxycinnamoyl-Coenzyme A: ω-hydroxypalmitic acid O-hydroxycinnamoyltransferase from tobacco (Nicotiana tabacum L.) cell-suspension cultures. Planta 1996, 199, 475–480. [Google Scholar]
  24. Serra, O.; Hohn, C.; Franke, R.; Prat, S.; Molinas, M.; Figueras, M. A feruloyl transferase involved in the biosynthesis of suberin and suberin-associated wax is required for maturation and sealing properties of potato periderm. Plant J. 2010, 62, 277–290. [Google Scholar] [CrossRef] [PubMed]
  25. Rautengarten, C.; Ebert, B.; Ouellet, M.; Nafisi, M.; Baidoo, E.E.; Benke, P.; Stranne, M.; Mukhopadhyay, A.; Keasling, J.D.; Sakuragi, Y.; et al. Arabidopsis Deficient in Cutin Ferulate encodes a transferase required for feruloylation of omega-hydroxy fatty acids in cutin polyester. Plant Physiol. 2012, 158, 654–665. [Google Scholar] [CrossRef] [PubMed]
  26. Cheng, A.X.; Gou, J.Y.; Yu, X.H.; Yang, H.; Fang, X.; Chen, X.Y.; Liu, C.J. Characterization and ectopic expression of a populus hydroxyacid hydroxycinnamoyltransferase. Mol. Plant 2013, 6, 1889–1903. [Google Scholar] [CrossRef] [PubMed]
  27. Horton, P.; Park, K.J.; Obayashi, T.; Fujita, N.; Harada, H.; Adams-Collier, C.J.; Nakai, K. WoLF PSORT: Protein localization predictor. Nucleic Acids Res. 2007, 35, 585–587. [Google Scholar] [CrossRef] [PubMed]
  28. Rensing, S.A.; Lang, D.; Zimmer, A.D.; Terry, A.; Salamov, A.; Shapiro, H.; Nishiyama, T.; Perroud, P.F.; Lindquist, E.A.; Kamisugi, Y. The Physcomitrella genome reveals evolutionary insights into the conquest of land by plants. Science 2008, 319, 64–69. [Google Scholar] [CrossRef] [PubMed]
  29. Asakawa, Y. Terpenoids and Aromatic Compounds with Pharmacological Activity from Bryophytes; Clarendon Press: Oxford, UK, 1990; pp. 369–410. [Google Scholar]
  30. Espineira, J.M.; Novo Uzal, E.; Gomez Ros, L.V.; Carrion, J.S.; Merino, F.; Ros Barcelo, A.; Pomar, F. Distribution of lignin monomers and the evolution of lignification among lower plants. Plant Biol. 2011, 13, 59–68. [Google Scholar] [CrossRef] [PubMed]
  31. Lou, H.X.; Li, G.Y.; Wang, F.Q. A cytotoxic diterpenoid and antifungal phenolic compounds from Frullania muscicola Steph. J. Asian Nat. Prod. Res. 2002, 4, 87–94. [Google Scholar] [CrossRef] [PubMed]
  32. Asakawa, Y. Recent advances in phytochemistry of bryophytes-acetogenins, terpenoids and bis(bibenzyl)s from selected Japanese, Taiwanese, New Zealand, Argentinean and European liverworts. Phytochemistry 2001, 32, 297. [Google Scholar] [CrossRef]
  33. Asakawa, Y.; Ludwiczuk, A. Distribution of Cyclic and Acyclic Bis-bibenzyls in the Marchantiophyta (Liverworts), Ferns and Higher Plants and Their Biological Activities, Biosynthesis, and Total Synthesis. Heterocycles 2012, 86, 891–917. [Google Scholar] [CrossRef]
  34. Kosma, D.K.; Molina, I.; Ohlrogge, J.B.; Pollard, M. Identification of an Arabidopsis fatty alcohol: caffeoyl-Coenzyme A acyltransferase required for the synthesis of alkyl hydroxycinnamates in root waxes. Plant Physiol. 2012, 160, 237–248. [Google Scholar] [CrossRef] [PubMed]
  35. Gao, S.; Yu, H.N.; Xu, R.X.; Cheng, A.X.; Lou, H.X. Cloning and functional characterization of a 4-coumarate CoA ligase from liverwort Plagiochasma appendiculatum. Phytochemistry 2015, 111, 48–58. [Google Scholar] [CrossRef] [PubMed]
  36. Beuerle, T.; Pichersky, E. Enzymatic synthesis and purification of aromatic coenzyme a esters. Anal. Biochem. 2002, 302, 305–312. [Google Scholar] [CrossRef] [PubMed]
  37. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
  38. Gambino, G.; Perrone, I.; Gribaudo, I. A rapid and effective method for RNA extraction from different tissues of grapevine and other woody plants. Phytochem. Anal. 2008, 19, 520–525. [Google Scholar] [CrossRef] [PubMed]
  39. Sun, Y.; Wu, Y.F.; Zhao, Y.; Han, X.J.; Lou, H.X.; Cheng, A.X. Molecular cloning and biochemical characterization of two cinnamyl alcohol dehydrogenases from a liverwort Plagiochasma appendiculatum. Plant Physiol. Biochem. 2013, 70, 133–141. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not available.

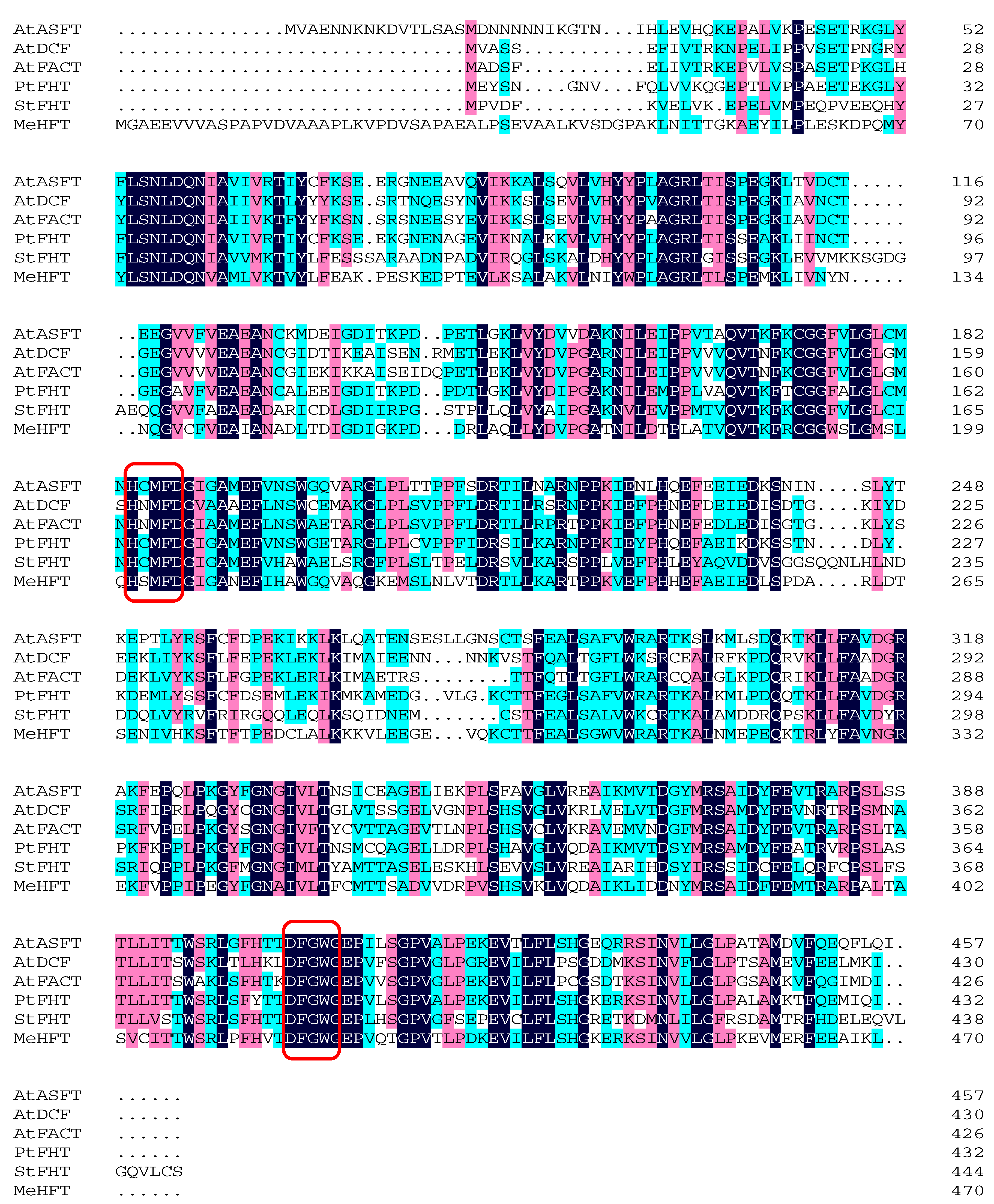

Figure 1. Sequence alignment of MeHFT with PtFHT from P. trichocarpa (JX515962), StFHT from S. tuberosum (ACS70946), AtASFT (AT5G41040), AtDCF (AT3G48720) and AtFACT (AT5G63560) from A. thaliana. The conserved HxxxD and DFGWG motifs are indicated by red boxing.
Figure 1. Sequence alignment of MeHFT with PtFHT from P. trichocarpa (JX515962), StFHT from S. tuberosum (ACS70946), AtASFT (AT5G41040), AtDCF (AT3G48720) and AtFACT (AT5G63560) from A. thaliana. The conserved HxxxD and DFGWG motifs are indicated by red boxing.
Molecules 22 01854 g001

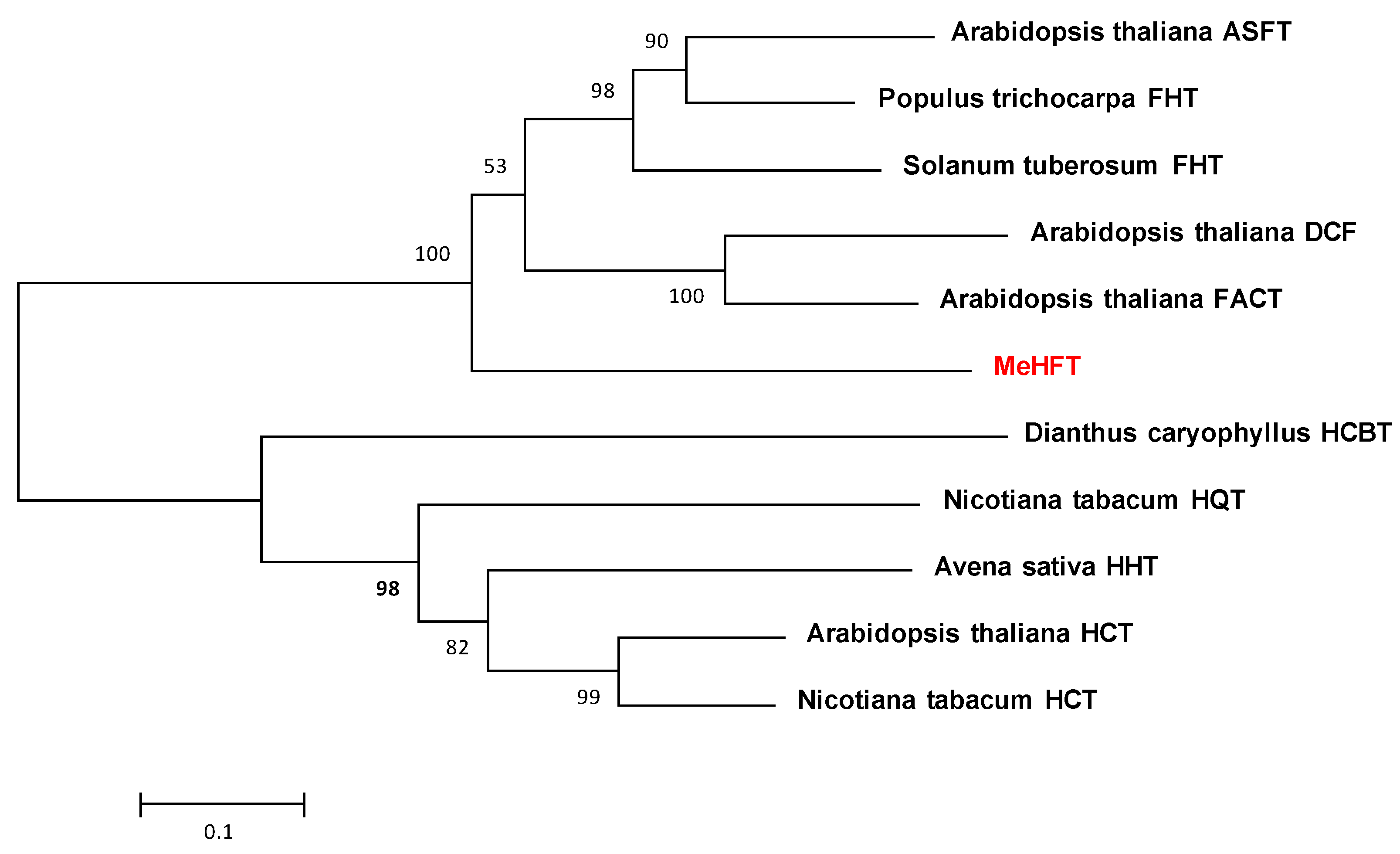

Figure 2. A phylogenetic analysis of MeHFT. The Uniprot accession numbers of the proteins included in the analysis are: Populus trichocarpa FHT (JX515962), Solanum tuberosum FHT (ACS70946), A. thaliana ASFT (AT5G41040), Dianthus caryophyllus HCBT (CAB06430), A. thaliana DCF (AT3G48720), A. thaliana FACT (AT5G63560), N. tabacum HQT (CAE46932), Avena sativa HHT (BAC78633), A. thaliana HCT (AT5G48930), N. tabacum HCT (CAD47830).
Figure 2. A phylogenetic analysis of MeHFT. The Uniprot accession numbers of the proteins included in the analysis are: Populus trichocarpa FHT (JX515962), Solanum tuberosum FHT (ACS70946), A. thaliana ASFT (AT5G41040), Dianthus caryophyllus HCBT (CAB06430), A. thaliana DCF (AT3G48720), A. thaliana FACT (AT5G63560), N. tabacum HQT (CAE46932), Avena sativa HHT (BAC78633), A. thaliana HCT (AT5G48930), N. tabacum HCT (CAD47830).
Molecules 22 01854 g002
Figure 3. SDS-PAGE separation of recombinant MeHFT. Lane M: molecular mass standards. Lane 1: culture medium from E coli cells harboring an empty pET32a vector control; lane 2: proteins purified from the culture medium used in lane 1; lane 3: culture medium from E coli cells harboring pET32a-MeHFT; lane 4: proteins purified from the culture medium used in lane 3.
Figure 3. SDS-PAGE separation of recombinant MeHFT. Lane M: molecular mass standards. Lane 1: culture medium from E coli cells harboring an empty pET32a vector control; lane 2: proteins purified from the culture medium used in lane 1; lane 3: culture medium from E coli cells harboring pET32a-MeHFT; lane 4: proteins purified from the culture medium used in lane 3.
Molecules 22 01854 g003
Figure 4. In vitro activity of MeHFT recombinant enzymes. (A) HPLC separation of the reaction products of recombinant MeHFT (the solid blue line) or the negative control (empty vector harboring cells) (the red dashed line) provided with feruloy-CoA and 1-dodecanol; (B) The MS/MS spectrum of the alky ferulate product from (A).
Figure 4. In vitro activity of MeHFT recombinant enzymes. (A) HPLC separation of the reaction products of recombinant MeHFT (the solid blue line) or the negative control (empty vector harboring cells) (the red dashed line) provided with feruloy-CoA and 1-dodecanol; (B) The MS/MS spectrum of the alky ferulate product from (A).
Molecules 22 01854 g004
Figure 5. Expression of the p35S::MeHFT-GFP transgene in a transiently transformed N. benthamiana leaf reveals the localization of MeHFT to the cytoplasm. The GFP signal appears green and the chlorophyll auto-fluorescence signal red.
Figure 5. Expression of the p35S::MeHFT-GFP transgene in a transiently transformed N. benthamiana leaf reveals the localization of MeHFT to the cytoplasm. The GFP signal appears green and the chlorophyll auto-fluorescence signal red.
Molecules 22 01854 g005
Table 1. Activity and Kinetics of Recombinant MeHFT on Different Acyl Donors and Acceptors.
Table 1. Activity and Kinetics of Recombinant MeHFT on Different Acyl Donors and Acceptors.
ChemicalsSpecific Activity (%)Km (μM)Vmax (nmol mg−1 min−1)Kcat (s−1)Kcat/Km (M−1s−1)
Acyl donor
Feruloyl-CoA100*79.4 ± 10.86 a
83.23 ± 18.70 b
83.23 ± 18.70 a
290 ± 37.49 b
0.25263945 ± 0.015 a
0.250995 ± 0.032 b
3181 a
3015 b
p-Coumaroyl-CoA38
Caffeoyl-CoA43
Acyl acceptor
1-Hexanol31
1-Heptanol50
1-Decanol100 *65.5 ± 11.21297.3 ± 21.040.25731315 ± 0.0183928
1-Dodecanol89
1-Tetradecanol85
1-Hexadecanoln.d.
16-Hydroxypalmitic acid71
Palmitic acidn.d.
1-Eicosanoln.d.
1-Docosanoln.d.
* Specific activity with feruloyl-CoA and 1-Decanol (102.34 ± 3.75 nmol mg−1 min−1) was taken to be 100%. n.d, not detectable. a Reactions were performed using feruloyl-CoA as the acyl donor and 1-Decanol as the acyl acceptor; b Reactions were performed using feruloyl-CoA as acyl donor and 1-Dodecanol as the acyl acceptor.
Table 2. The primers used in the present Investigation.
Table 2. The primers used in the present Investigation.
Primer NamePrimer Sequences (5’ to 3’)
MeHFT-FATGGGCGCCGAGGAAGTG
MeHFT-RCAGCAGGCAGACGGAATT
MeHFT-pet32a-FCGAGCTCATGGGCGCCGAGGAAGTGGT
MeHFT-pet32a-RCCCTCGAGTTACAGCTTGATAGCTTCTT
attB1-MeHFT-FGGGGACAAGTTTGTACAAAAAAGCAGGCTTAACCATGGGCGCCGAGGAAGTGGT
attB2-MeHFT-RGGGGACCACTTTGTACAAGAAAGCTGGGTCCAGCTTGATAGCTTCTTCGA
