Molecules 2017, 22(10), 1600; doi:10.3390/molecules22101600

Article
Hydrogen-Bonding Interactions in Luminescent Quinoline-Triazoles with Dominant 1D Crystals
Shi-Qiang Bai 1,*Orcid, David James Young 1,2 and T. S. Andy Hor 3
1
Institute of Materials Research and Engineering, ASTAR (Agency for Science, Technology and Research), 2 Fusionopolis Way, #08-03, Innovis, Singapore 138634, Singapore
2
Faculty of Science, Health, Education and Engineering, University of the Sunshine Coast, Maroochydore DC, Queensland 4558, Australia
3
Department of Chemistry, The University of Hong Kong, Pokfulam, Hong Kong, China
*
Correspondence: Tel.: +65-6416-8966
Received: 24 August 2017 / Accepted: 15 September 2017 / Published: 22 September 2017

Abstract

:
Quinoline-triazoles 2-((4-(diethoxymethyl)-1H-1,2,3-triazol-1-yl)methyl)quinoline (1), 2-((4-(m-tolyl)-1H-1,2,3-triazol-1-yl)methyl)quinoline (2) and 2-((4-(p-tolyl)-1H-1,2,3-triazol-1-yl)methyl)quinoline (3) have been prepared with CuAAC click reactions and used as a model series to probe the relationship between lattice H-bonding interaction and crystal direction of growth. Crystals of 13 are 1D tape and prism shapes that correlate with their intermolecular and solvent 1D lattice H-bonding interactions. All compounds were thermally stable up to about 200 °C and blue-green emissive in solution.
Keywords:
structural relationship; H-bonding; crystal growth; 1,2,3-triazole; luminescence

1. Introduction

Molecular growth and design offers the tantalizing prospect of controllable assembly of functional supramolecular materials and inorganic-organic hybrid materials [1,2,3,4,5,6,7,8,9,10]. Organic molecules play important roles in hybrid structures to tune the magnetism, catalytic activity, luminescence, electrical conductivity and thermoelectric effect [11,12,13]. Despite considerable progress in recent years, this field could still be regarded as in its infancy with serendipity playing the major role in breakthrough discoveries. What appears to be lacking is understanding of (and control over) weak inter-molecular forces that fashion the gross structure and function. One fundamentally important tool to elucidate this relationship between molecular form and function in the solid state is single-crystal XRD [14,15,16,17,18,19,20]. A great many organic molecules and metal complexes have been synthesized and structurally characterized by this technique [21,22,23,24,25,26,27,28,29]. The controlled growth of crystals and material assembly, however, is still a challenge because of this lack of correlation between intermolecular forces and bulk morphology. The structural effect of ligands on metal complexes has been investigated extensively and we have contributed to this with, for example, a series of Cu(I) complexes supported by quinoline-triazole ligands bearing different tail groups [30]. Tuning of the ligand structures resulted in different magnetic coordination polymers [31,32]. Mono- and bis-chelating ligands similarly permit tuning of cluster-structures [33]. Less attention, however, has been directed to the relationship between molecular structure and material shape. Our recent study of triazole-pyridine-supported Cu(I) dimers demonstrated that the shape/growth direction of their single crystals correlated with the weak lattice interactions such as hydrogen-bonding and π···π stacking interactions [34]. The dominant plate crystals of Cu(II) complexes also align with their lattice 2D hydrogen-bonding interactions [35]. We have extended this analysis in the current study with an investigation of a series of three quinoline-triazoles (1–3) bearing different triazole substituents. (Scheme 1) These compounds were conveniently prepared using CuAAC click chemistry in good to high yields. These hitherto unreported molecules are air stable and luminescent.

2. Results and Discussion

2.1. Synthesis

2-(Chloromethyl)quinoline hydrochloride (428 mg, 2 mmol), Na2CO3 (210 mg, 2 mmol), NaN3 (143 mg, 2.4 mmol), alkyne (4 mmol) and CuI (23 mg, 0.12 mmol) were placed in a reaction tube containing a mixed solvent of CH3OH/H2O (1:1 v:v, 4 mL). Each reaction was stirred at 50 °C for 20 h on a MultiMax reactor. The alkynes, 3,3-diethoxy-1-propyne, 3-ethynyltoluene and 4-ethynyltoluene were used for the synthesis of 13, respectively. (Scheme 2) On completion, each mixture was extracted with ethyl acetate three times. The combined organic extract was washed with brine, concentrated and purified by column chromatography on silica. 2-((4-(diethoxymethyl)-1H-1,2,3-triazol-1-yl)methyl)quinoline (1), C17H20N4O2, 312.37. Yield: 560 mg, 90%. ESI-MS (m/z, %): [1 + H]+ (313, 100). Main IR bands (cm−1): 3111 (m), 3069 (m), 2976 (m), 2926 (m), 2904 (m), 2878 (m), 1618 (m), 1598 (m), 1567 (m), 1506 (m), 1455 (m), 1426 (m), 1385 (m), 1345 (m), 1320 (m), 1309 (m), 1271 (m), 1225 (m), 1178 (m), 1117 (m), 1097 (m), 1061 (s), 1050 (s), 1038 (m), 1021 (m), 1004 (m), 910 (m), 873 (m), 847 (m), 823 (m), 803 (m), 778 (m), 745 (m), 734 (m), 618 (m), 491 (m), 479 (m) and 432 (m). The bands among 1004–1117 cm−1 should be attributed to the C−O stretching vibrations. 1H-NMR (CDCl3, 500.2 MHz) δ 8.15 and 8.13 (d, 1H, J = 9 Hz), 8.07 and 8.05 (d, 1H, J = 9 Hz), 7.82 and 7.80 (d, 1H, J = 8 Hz), 7.76–7.73 (m, 2H), 7.58–7.55 (m, 1H), 7.28 and 7.27 (d, 1H, J = 9 Hz), 5.83 (s, 2H, quinoline-CH2), 5.71 (1H, CHO2), 3.73–3.56 (m, 4H, CH2CH3), 1.22, 1.21 and 1.19 (t, 6H, CH3). 13C-NMR (CDCl3, 125.8 MHz) δ 154.6, 147.85, 147.77, 137.8, 130.3, 129.3, 127.8, 127.7, 127.3, 122.8 and 119.7 (quinoline and triazole groups), 96.9, 61.8, 56.5 (quinoline-CH2-triazole) and 15.2.
2-((4-(m-Tolyl)-1H-1,2,3-triazol-1-yl)methyl)quinoline (2), C19H18N4O (2·H2O), 318.37. Yield: 510 mg, 80%. ESI-MS (m/z, %): [2 + H]+ (301, 100). Main IR bands (cm−1): 3134 (m), 2944 (m), 2918 (m), 1664 (m), 1615 (m), 1600 (m), 1568 (m), 1508 (m), 1488 (m), 1460 (m), 1432 (m), 1420 (m), 1360 (m), 1322 (m), 1230 (m), 1218 (m), 1179 (m), 1142 (m), 1121 (m), 1082 (m), 1045 (m), 980 (m), 961 (m), 894 (m), 847 (m), 821 (m), 797 (s), 784 (m), 760 (m), 749 (m), 727 (m), 697 (m), 618 (m), 477 (m), 442 (m) and 410 (m). 1H-NMR (CDCl3, 500.2 MHz) δ 8.17–8.10 (m, 2H), 7.94–7.93 (b, 1H), 7.81–7.79 (m, 1H), 7.77–7.73 (m, 1H), 7.63 (s, 1H), 7.58, 7.56 and 7.55 (t, 2H, J = 8 Hz), 7.34–7.30 (m, 1H), 7.25 and 7.23 (d, 1H, J = 8 Hz), 7.10 and 7.08 (d, 1H, J = 8 Hz), 5.90–5.88 (b, 2H, quinoline-CH2) and 2.34 (s, 3H, CH3). 13C-NMR (CDCl3, 125.8 MHz) δ 154.5, 148.6, 147.1, 138.6, 138.5, 130.7, 130.4, 129.1, 128.82, 128.78, 127.9, 127.7, 127.5, 126.5, 123.0, 120.4 and 119.9 (quinoline and triazole groups), 56.0 (quinoline-CH2-triazole) and 21.5 (CH3).
2-((4-(p-Tolyl)-1H-1,2,3-triazol-1-yl)methyl)quinoline (3), C19H16N4, 300.36. Yield: 490 mg, 82%. ESI-MS (m/z, %): [3 + H]+ (301, 100). Main IR bands (cm−1): 3132 (m), 3111 (m), 2939 (m), 2920 (m), 1617 (m), 1601 (m), 1568 (m), 1499 (m), 1460 (m), 1425 (m), 1356 (m), 1323 (m), 1313 (m), 1225 (m), 1187 (m), 1141 (m), 1118 (m), 1076 (m), 1049 (m), 1022 (m), 976 (m), 890 (m), 821 (m), 812 (s), 778 (m), 763 (m), 746 (m), 730 (m), 616 (m), 517 (m), 477 (m) and 415 (m). 1H-NMR (CDCl3, 500.2 MHz) δ 8.17 and 8.16 (d, 1H, J = 9 Hz), 8.11 and 8.09 (d, 1H, J = 9 Hz), 7.89 (s, 1H), 7.84 and 7.82 (d, 1H, J = 8 Hz), 7.78–7.75 (m, 1H), 7.71–7.70 (m, 2H), 7.60–7.57 (m, 1H), 7.34 and 7.32 (d, 1H, J = 9 Hz), 7.22 and 7.20 (d, 2H, J = 8 Hz), 5.88 (s, 2H, quinoline-CH2) and 2.36 (s, 3H, CH3). 13C-NMR (CDCl3, 125.8 MHz) δ 154.9, 148.7, 147.8, 138.2, 137.9, 130.4, 129.6, 129.4, 127.9, 127.8, 127.7, 127.3, 125.8, 120.0 and 119.8 (quinoline and triazole groups), 56.6 (quinoline-CH2-triazole) and 21.4 (CH3).

2.2. Molecular Structures

Quinoline-triazoles 13 were synthesized using 2-(chloromethyl)quinoline hydrochloride, sodium azide and an alkyne (3,3-diethoxy-1-propyne, 3-ethynyltoluene or 4-ethynyltoluene) in good to high yields (80–90%). The structures of 13 were characterized by 1H-NMR and 13C-NMR spectroscopy (Supplementary Materials, Figures S1–S6), electrospray ionization mass spectrometry, single-crystal X-ray crystallography. These compounds crystalized in different dominant shapes, viz belt and prism. Compound 2 crystallized in the orthorhombic crystal system with space groups of Pbca. Compounds 1 and 3 crystallized in the monoclinic crystal system with the same space group of P21/c. The open and flexible substituent group of 1 has only one obvious H-bonding interaction (C11−H···N4A, Table 1, Figure 1) between the triazole (C11) and 3’-Ntri atom along the b direction, which is also aligned with the dominant direction in the belt crystal. Molecules 2 and 3 are less flexible analogues of 1, bearing rigid tolyl groups. The introduction of an m-tolyl group in 2 aligns the molecular packing along the b direction and captures water molecules in that same direction. These packing and encapsulation effects contribute to the formation of 1D water H-bonding interactions (O1−H···N1 and O1−H···O1A, Table 1, Figure 2) between the lattice water and quinoline N acceptor, and between neighbouring water molecules along the lattice b direction. These results suggest that the backbone H-bonding interactions are disrupted by the introduction of small lattice molecules, in this case H2O. The 1D water chains (in the b direction) align with the dominant crystal belt direction (b axis). Compound 3 bearing a pendant p-tolyl group is isostructural with 2 in generating a prism shaped crystal along the dominant b axis. The bulk crystal does not capture lattice solvent, but displays 1D H-bond interactions as in 3, (Table 1, Figure 3) which similarly drive 1D crystal growth. Intramolecular constraints imposed by a rigid pendant group thus appear to influence H-bonding formation and therefore crystal shape. The C−H···N H-bonding interactions were formed between the neighboring triazole rings along the b direction in 1 and 3, but not in 2. These triazole rings are parallel to each other in b direction in 13, their center-center distances are 5.52, 5.23 and 5.45 Å, and plane-plane distances are 0.29, 2.14 and 1.28 Å, respectively. The large plane-plane distance (2.14 Å) in 2 probably decreases the possibility of forming intermolecular H-bonding interaction.
This series of molecules show some correlation between compound lattice structures and the resulting shape of bulk single crystals. The lattice H-bonding directions are aligned with the direction of material growth, which also align with the shortest axis (b) in all three compounds 13. We are currently investigating if such correlation can be extended to related systems, and the potential of small molecule (e.g., water) entrapment to control crystal shape, size and function.

2.3. Powder XRD, TGA, UV-vis and Photoluminescent Spectroscopy

The experimental powder X-ray diffraction patterns for compounds 13 showed good agreement with their simulated patterns determined from single-crystal XRD experiments, supporting phase purity (Figure 4a). Thermogravimetric analysis (TGA) curves of 13 from room temperature to 700 °C are given in Figure 4b. Compounds 1, 2 and 3 were stable in air to 200, 220 and 220 °C, respectively. The weight loss (~5.3%) before 115 °C in 2 was assigned to the loss of lattice water molecules (5.7%). All three compounds continue to degraded and reach residual weights at about 640 °C.
The UV-vis electronic absorption spectra of 1 in ethanol displayed two broad absorption bands centred at 205 and 230 nm (Figure 5a). Compounds 2 and 3 also displayed these absorptions with an additional band at 250 nm that can be attributed to intramolecular charge transfer and π···π interactions of the toluene substituent groups. All solution samples of 13 were luminescent at room temperature. Compounds 13 displayed broad emissions centered at 425, 395 and 409 nm respectively with excitation at 370, 334 and 334 nm (Figure 5b). The emissions in the blue-green part of the visible spectrum most likely arise from a π→π* transition. The tolyl substituents gave blue-shifted emissions in 2 and 3 relative to 1 with 3 the strongest emitter.

3. Materials and Methods

All starting chemicals were used as received. Electrospray ionization mass spectra (ESI-MS) were recorded in positive ion mode using a Shimadzu LCMS-IT-TOF mass spectrometer. NMR spectra were measured at room temperature using a JEOL 500 MHz NMR spectrometer. Thermogravimetric analysis (TGA) was carried out in an air stream using a TA Instruments TGA Q500 analyzer with a heating rate of 30 °C/min. Photoluminescence spectra were measured on a Shimadzu RF-5301 PC spectrofluorophotometer. UV-vis absorption spectra were recorded on a Shimadzu UV-2501PC UV-Vis recording spectrophotometer. Infrared spectra were obtained on a Perkin Elmer Spectrum 2000 FT-IR spectrometer from samples in KBr disc. Powder X-ray diffraction data were collected on a Bruker (Billerica, MA, USA) AXS GADDS X-ray diffractometer with Cu-Kα radiation (λ = 1.54056 Å). Single-crystal X-ray diffraction data were collected using a Bruker AXS SMART APEXII CCD diffractometer using Mo-Kα radiation (λ = 0.71073 Å) (Table 2). Data integration and scaling were performed using the Bruker SAINT program [36]. Empirical absorption correction was performed by SADABS [37]. The space group determination, structure solution and least-squares refinements on |F|2 were carried out using Bruker SHELXL [38]. Structures were solved by direct methods to locate the heavy atoms, followed by difference maps for the light non-hydrogen atoms. Anisotropic thermal parameters were refined for the rest of the non-hydrogen atoms. The high R factor (0.0920) in compound 1 could be due to poor quality of its single-crystal. Hydrogen atoms were placed geometrically and refined isotropically. CCDC 1453356(1), 1453357(2 H2O) and 1453358(3) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: deposit@ccdc.cam.ac.uk).

4. Conclusions

This work reports a series of new, luminescent quinoline-triazoles 13, conveniently prepared by copper-catalyzed azide-alkyne cycloaddition reactions. Lattice H-bonding interactions observed from their single-crystal structures align with the shortest axis. They are also the primary driving force for the direction of bulk crystal growth. This trend was seen for all three compounds and we are investigating the predictive capabilities of this correlation between intermolecular interactions and the direction of crystal growth with a view to more rational crystal engineering.

Supplementary Materials

The Supplementary Materials are available: Figures S1–S6.

Acknowledgments

We gratefully acknowledge the funding (SERC Grant No. 1527200020) supports from the Institute of Materials Research and Engineering, A*STAR of Singapore.

Author Contributions

S.-Q.B. designed the research, performed the experimental work and wrote the manuscript. D.J.Y. and T.S.A.H. provided direction and contributed to the revisions of the manuscript. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Karmakar, A.; Illathvalappil, R.; Anothumakkool, B.; Sen, A.; Samanta, P.; Desai, A.V.; Kurungot, S.; Ghosh, S.K. Hydrogen-Bonded Organic Frameworks (HOFs): A New Class of Porous Crystalline Proton-Conducting Materials. Angew. Chem. Int. Ed. 2016, 55, 10667–10671. [Google Scholar] [CrossRef] [PubMed]
  2. Jeong, Y.; Lee, J.; Ryu, J.-S. Design, synthesis, and evaluation of hinge-binder tethered 1,2,3-triazolylsalicylamide derivatives as Aurora kinase inhibitors. Bioorg. Med. Chem. 2016, 24, 2114–2124. [Google Scholar] [CrossRef] [PubMed]
  3. Deng, Y.-K.; Su, H.-F.; Xu, J.-H.; Wang, W.-G.; Kurmoo, M.; Lin, S.-C.; Tan, Y.-Z.; Jia, J.; Sun, D.; Zheng, L.-S. Hierarchical Assembly of a {MnII15MnIII4} Brucite Disc: Step-by-Step Formation and Ferrimagnetism. J. Am. Chem. Soc. 2016, 138, 1328–1334. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, S.-Y.; Fu, D.-J.; Yue, X.-X.; Liu, Y.-C.; Song, J.; Sun, H.-H.; Liu, H.-M.; Zhang, Y.-B. Design, Synthesis and Structure-Activity Relationships of Novel Chalcone-1,2,3-triazole-azole Derivates as Antiproliferative Agents. Molecules 2016, 21, 653. [Google Scholar] [CrossRef] [PubMed]
  5. Li, L.; Li, H.-Y.; Ren, Z.-G.; Lang, J.-P. Unique Deca- and Tetranuclear Halocuprate(I) Clusters of a Clamplike Ligand: Isolation, Structure, and Luminescence Properties. Eur. J. Inorg. Chem. 2014, 2014, 824–830. [Google Scholar] [CrossRef]
  6. Han, L.-L.; Li, Z.-H.; Chen, J.-S.; Wang, X.-P.; Sun, D. Solution and Mechanochemical Syntheses of Two Novel Cocrystals: Ligand Length Modulated Interpenetration of Hydrogen-Bonded 2D 63-hcb Networks Based on a Robust Trimeric Heterosynthon. Cryst. Growth Des. 2014, 14, 1221–1226. [Google Scholar] [CrossRef]
  7. Gadre, S.R.; Yeole, S.D.; Sahu, N. Quantum Chemical Investigations on Molecular Clusters. Chem. Rev. 2014, 114, 12132–12173. [Google Scholar] [CrossRef] [PubMed]
  8. Shishkin, O.V.; Zubatyuk, R.I.; Shishkina, S.V.; Dyakonenko, V.V.; Medviediev, V.V. Role of supramolecular synthons in the formation of the supramolecular architecture of molecular crystals revisited from an energetic viewpoint. Phys. Chem. Chem. Phys. 2014, 16, 6773–6786. [Google Scholar] [CrossRef] [PubMed]
  9. Sun, D.; Li, Y.-H.; Hao, H.-J.; Liu, F.-J.; Wen, Y.-M.; Huang, R.-B.; Zheng, L.-S. Solvent-Controlled Rare Case of a Triple Helical Molecular Braid Assembled from Proton-Transferred Sebacic Acid. Cryst. Growth Des. 2011, 11, 3323–3327. [Google Scholar] [CrossRef]
  10. Liu, H.; Xu, J.; Li, Y.; Li, Y. Aggregate Nanostructures of Organic Molecular Materials. Acc. Chem. Res. 2010, 43, 1496–1508. [Google Scholar] [CrossRef] [PubMed]
  11. Tiana, D.; Hendon, C.H.; Walsh, A.; Vaid, T.P. Computational screening of structural and compositional factors for electrically conductive coordination polymers. Phys. Chem. Chem. Phys. 2014, 16, 14463–14472. [Google Scholar] [CrossRef] [PubMed]
  12. Balachandran, J.; Reddy, P.; Dunietz, B.D.; Gavini, V. End-Group Influence on Frontier Molecular Orbital Reorganization and Thermoelectric Properties of Molecular Junctions. J. Phys. Chem. Lett. 2013, 4, 3825–3833. [Google Scholar] [CrossRef]
  13. Bai, S.-Q.; Young, D.J.; Hor, T.S.A. Nitrogen-rich azoles as ligand spacers in coordination polymers. Chem. Asian J. 2011, 6, 292–304. [Google Scholar] [CrossRef] [PubMed]
  14. Turner, M.J.; Thomas, S.P.; Shi, M.W.; Jayatilaka, D.; Spackman, M.A. Energy frameworks: insights into interaction anisotropy and the mechanical properties of molecular crystals. Chem. Commun. 2015, 51, 3735–3738. [Google Scholar] [CrossRef] [PubMed]
  15. Perry, A.R.; Peruffo, M.; Unwin, P.R. Quantitative Plane-Resolved Crystal Growth and Dissolution Kinetics by Coupling In Situ Optical Microscopy and Diffusion Models: The Case of Salicylic Acid in Aqueous Solution. Cryst. Growth Des. 2013, 13, 614–622. [Google Scholar] [CrossRef]
  16. Moh, P.Y.; Cubillas, P.; Anderson, M.W.; Attfield, M.P. Revelation of the Molecular Assembly of the Nanoporous Metal Organic Framework ZIF-8. J. Am. Chem. Soc. 2011, 133, 13304–13307. [Google Scholar] [CrossRef] [PubMed]
  17. Adolf, C.R.R.; Ferlay, S.; Kyritsakas, N.; Hosseini, M.W. Welding Molecular Crystals. J. Am. Chem. Soc. 2015, 137, 15390–15393. [Google Scholar] [CrossRef] [PubMed]
  18. Jassal, A.K.; Sharma, S.; Hundal, G.; Hundal, M.S. Structural Diversity, Thermal Studies, and Luminescent Properties of Metal Complexes of Dinitrobenzoates: A Single Crystal to Single Crystal Transformation from Dimeric to Polymeric Complex of Copper(II). Cryst. Growth Des. 2015, 15, 79–93. [Google Scholar] [CrossRef]
  19. Padgett, C.W.; Arman, H.D.; Pennington, W.T. Crystal Structures Elucidated from X-ray Powder Diffraction Data without Prior Indexing. Cryst. Growth Des. 2007, 7, 367–372. [Google Scholar] [CrossRef]
  20. Chen, T.; Sun, Z.; Song, C.; Ge, Y.; Luo, J.; Lin, W.; Hong, M. Bulk Crystal Growth and Optical and Thermal Properties of the Nonlinear Optical Crystal l-Histidinium-4-nitrophenolate 4-Nitrophenol (LHPP). Cryst. Growth Des. 2012, 12, 2673–2678. [Google Scholar] [CrossRef]
  21. Taylor, R. It Isn’t, It Is: The C–H···X (X = O, N, F, Cl) Interaction Really Is Significant in Crystal Packing. Cryst. Growth Des. 2016, 16, 4165–4168. [Google Scholar] [CrossRef]
  22. Vologzhanina, A.V.; Sokolov, A.V.; Purygin, P.P.; Zolotarev, P.N.; Blatov, V.A. Knowledge-Based Approaches to H-Bonding Patterns in Heterocycle-1-Carbohydrazoneamides. Cryst. Growth Des. 2016, 16, 6354–6362. [Google Scholar] [CrossRef]
  23. Paz, F.A.A.; Klinowski, J.; Vilela, S.M.F.; Tomé, J.P.C.; Cavaleiro, J.A.S.; Rocha, J. Ligand design for functional metal–organic frameworks. Chem. Soc. Rev. 2012, 41, 1088–1110. [Google Scholar] [PubMed]
  24. Zhao, X.-L.; Sun, W.-Y. The organic ligands with mixed N-/O-donors used in construction of functional metal—Organic frameworks. CrystEngComm 2014, 16, 3247–3258. [Google Scholar] [CrossRef]
  25. Liu, H.-K.; Sadler, P.J. Metal Complexes as DNA Intercalators. Acc. Chem. Res. 2011, 44, 349–359. [Google Scholar] [CrossRef] [PubMed]
  26. Jiang, L.; Wang, Z.; Bai, S.-Q.; Hor, T.S.A. “Click-and-click”—hybridised 1,2,3-triazoles supported Cu(I) coordination polymers for azide–alkyne cycloaddition. Dalton Trans. 2013, 42, 9437–9443. [Google Scholar] [CrossRef] [PubMed]
  27. Brotherton, W.S.; Michaels, H.A.; Simmons, J.T.; Clark, R.J.; Dalal, N.S.; Zhu, L. Apparent Copper(II)-Accelerated Azide−Alkyne Cycloaddition. Org. Lett. 2009, 11, 4954–4957. [Google Scholar] [CrossRef] [PubMed]
  28. Crowley, J.D.; McMorran, D.A. “Click-Triazole” Coordination Chemistry: Exploiting 1,4-Disubstituted-1,2,3-Triazoles as Ligands. Top. Heterocycl. Chem. 2012, 28, 31–84. [Google Scholar]
  29. Sun, D.; Yuan, S.; Wang, H.; Lu, H.-F.; Feng, S.-Y.; Sun, D.-F. Luminescence thermochromism of two entangled copper-iodide networks with a large temperature-dependent emission shift. Chem. Commun. 2013, 49, 6152–6154. [Google Scholar] [CrossRef] [PubMed]
  30. Bai, S.-Q.; Jiang, L.; Young, D.J.; Hor, T.S.A. Luminescent [Cu4I4] aggregates and [Cu3I3]-cyclic coordination polymers supported by quinolyl-triazoles. Dalton Trans. 2015, 44, 6075–6081. [Google Scholar] [CrossRef] [PubMed]
  31. Bai, S.-Q.; Fang, C.-J.; He, Z.; Gao, E.-Q.; Yan, C.-H.; Hor, T.S.A. Chelating Schiff base assisted azide-bridged Mn(II), Ni(II) and Cu(II) magnetic coordination polymers. Dalton Trans. 2012, 41, 13379–13387. [Google Scholar] [CrossRef] [PubMed]
  32. Bai, S.-Q.; Gao, E.-Q.; He, Z.; Fang, C.-J.; Yue, Y.-F.; Yan, C.-H. Manganese Azides Based on Co-Ligands with a Flexible Tail: Diverse Structural and Magnetic Properties. Eur. J. Inorg. Chem. 2006, 2006, 407–415. [Google Scholar] [CrossRef]
  33. Bai, S.-Q.; Jiang, L.; Sun, B.; Young, D.J.; Hor, T.S.A. Five Cu(I) and Zn(II) clusters and coordination polymers of 2-pyridyl-1,2,3-triazoles: Synthesis, structures and luminescence properties. CrystEngComm 2015, 17, 3305–3311. [Google Scholar] [CrossRef]
  34. Bai, S.-Q.; Kai, D.; Ke, K.L.; Lin, M.; Jiang, L.; Jiang, Y.; Young, D.J.; Loh, X.J.; Li, X.; Hor, T.S.A. A Triazolyl-Pyridine-Supported CuI Dimer: Tunable Luminescence and Fabrication of Composite Fibers. ChemPlusChem, 2015, 80, 1235–1240. [Google Scholar] [CrossRef]
  35. Bai, S.-Q.; Jiang, L.; Young, D.J.; Hor, T.S.A. Hybrid 1,2,3-Triazole Supported CuII Complexes: Tuning Assembly and Weak Interaction-Driven Crystal Growth. Aust. J. Chem. 2016, 69, 372–378. [Google Scholar] [CrossRef]
  36. SAINT Software Reference Manual; Version 6.0; Bruker AXS Inc.: Madison, WI, USA, 2003.
  37. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Cryst. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed]
  38. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
  • Sample Availability: Samples of the compounds are available from the authors.
Scheme 1. Compounds 13.
Scheme 1. Compounds 13.
Molecules 22 01600 sch001

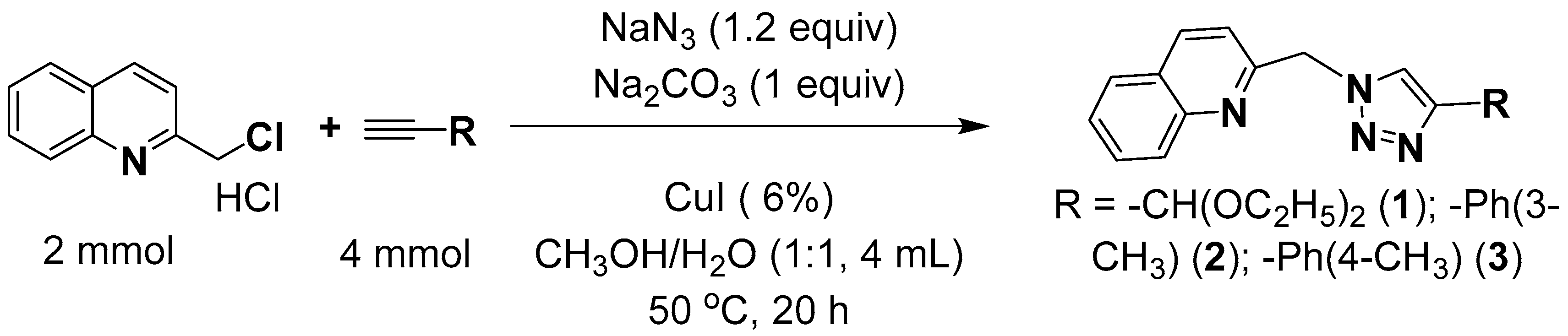

Scheme 2. Synthesis of 13 from CuAAC click reactions.
Scheme 2. Synthesis of 13 from CuAAC click reactions.
Molecules 22 01600 sch002
Figure 1. Molecular structure of 1 (a). H-bond interactions in 1 (b). Crystal image with lattice directions of 1 (c).
Figure 1. Molecular structure of 1 (a). H-bond interactions in 1 (b). Crystal image with lattice directions of 1 (c).
Molecules 22 01600 g001

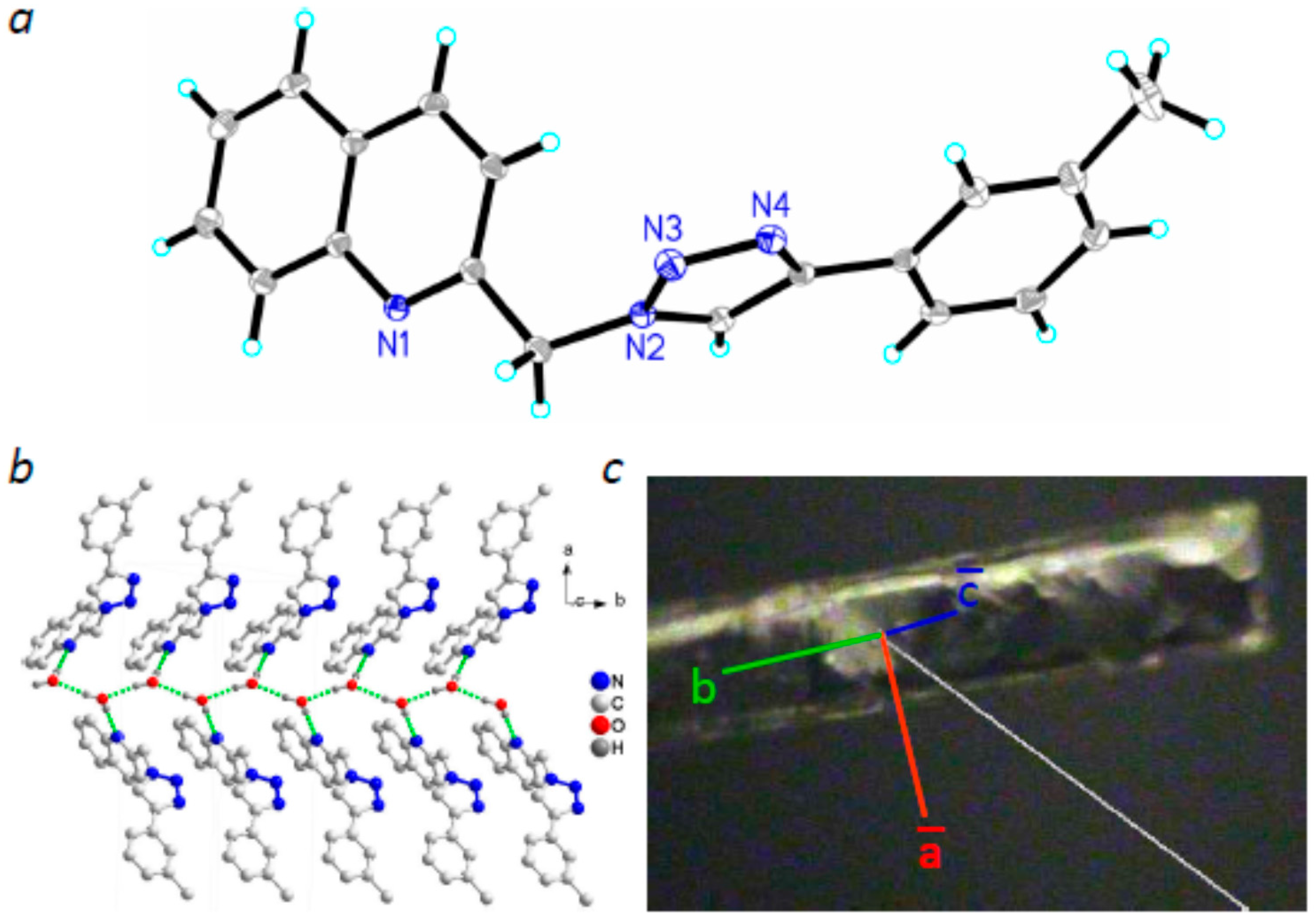

Figure 2. Molecular structure of 2 (a). H-bond interactions with lattice water molecules in 2 (b). Crystal image with lattice directions of 2 (c).
Figure 2. Molecular structure of 2 (a). H-bond interactions with lattice water molecules in 2 (b). Crystal image with lattice directions of 2 (c).
Molecules 22 01600 g002

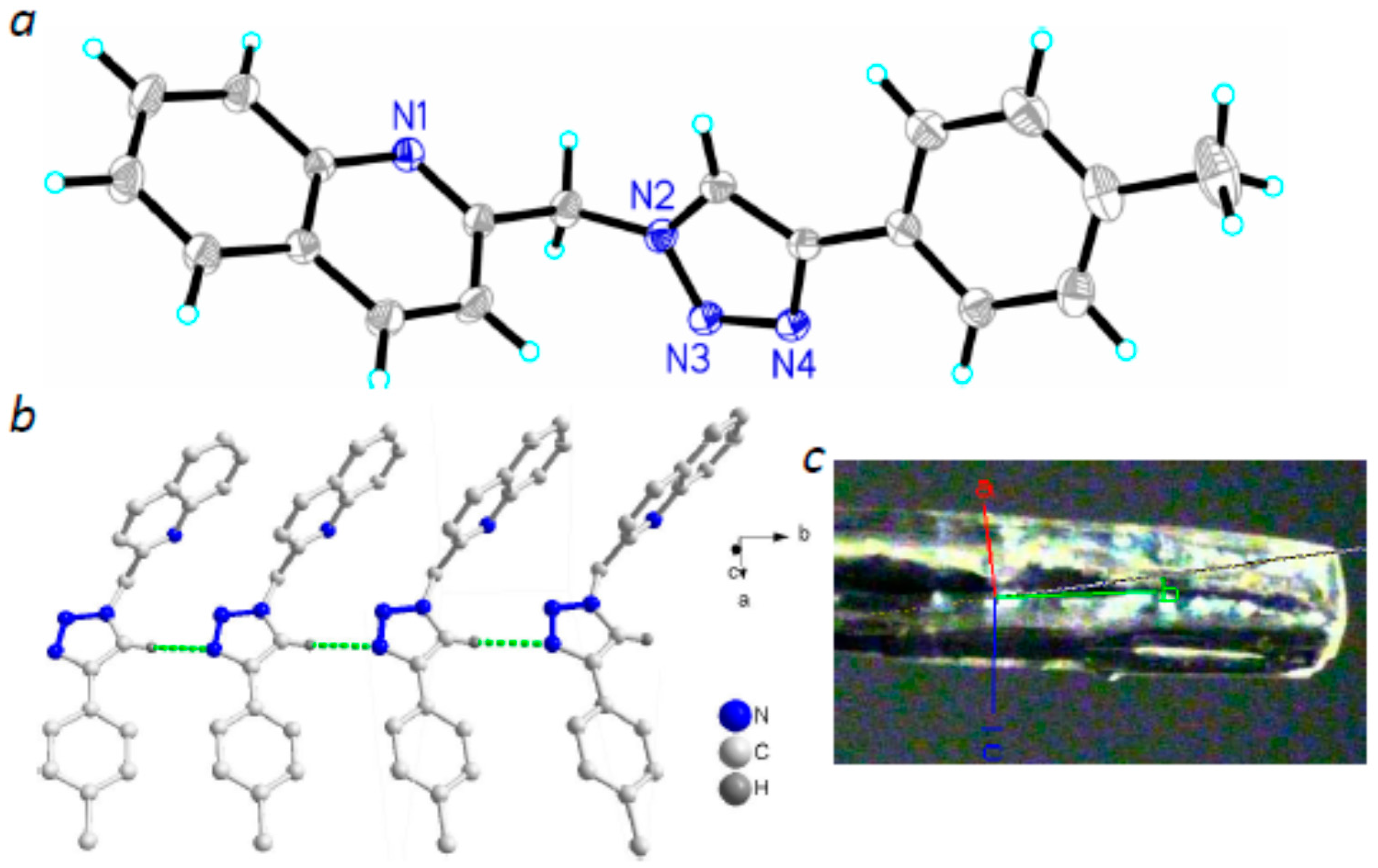

Figure 3. Molecular structure of 3 (a); H-bond interactions in 3 (b); Crystal image with lattice directions of 3 (c).
Figure 3. Molecular structure of 3 (a); H-bond interactions in 3 (b); Crystal image with lattice directions of 3 (c).
Molecules 22 01600 g003

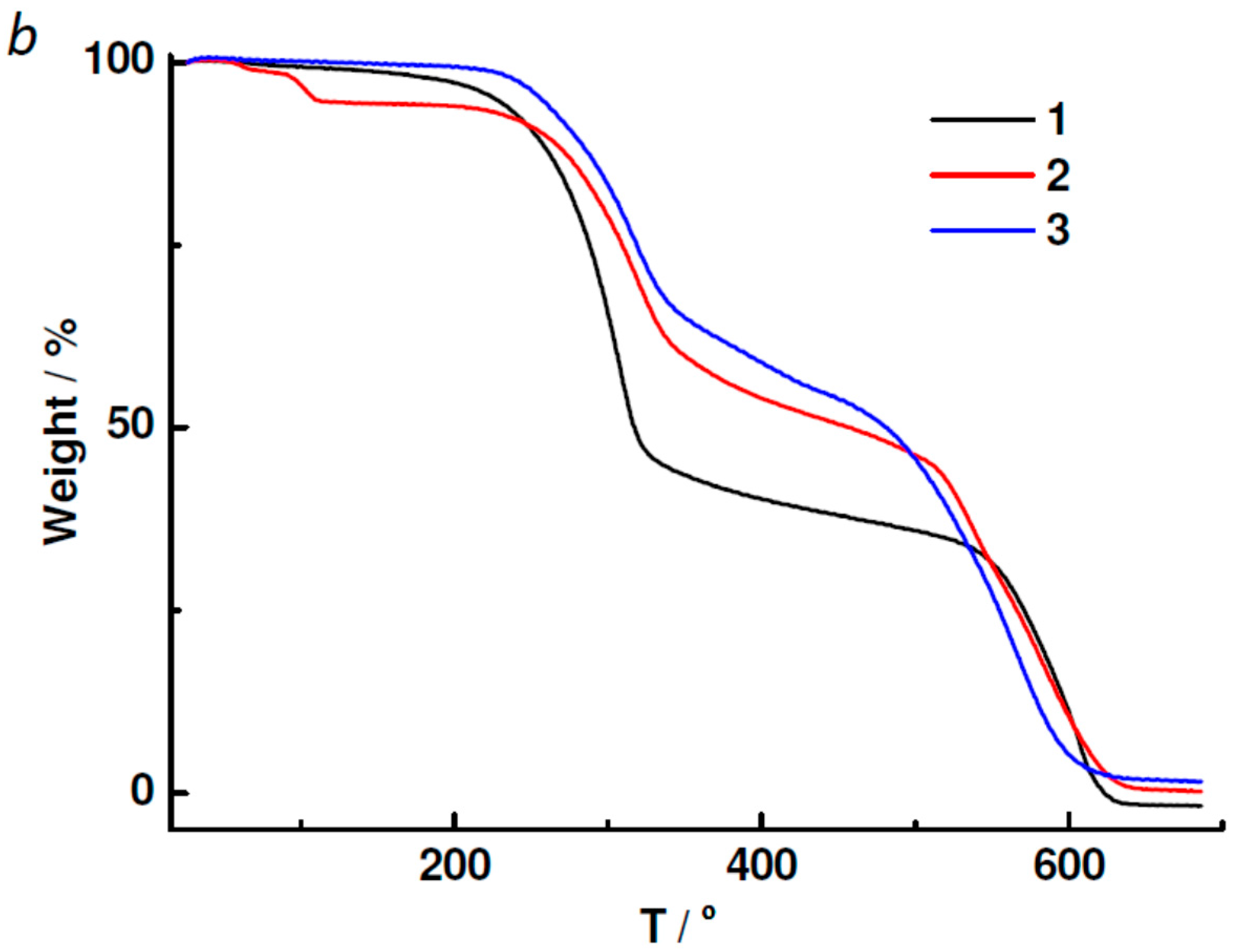

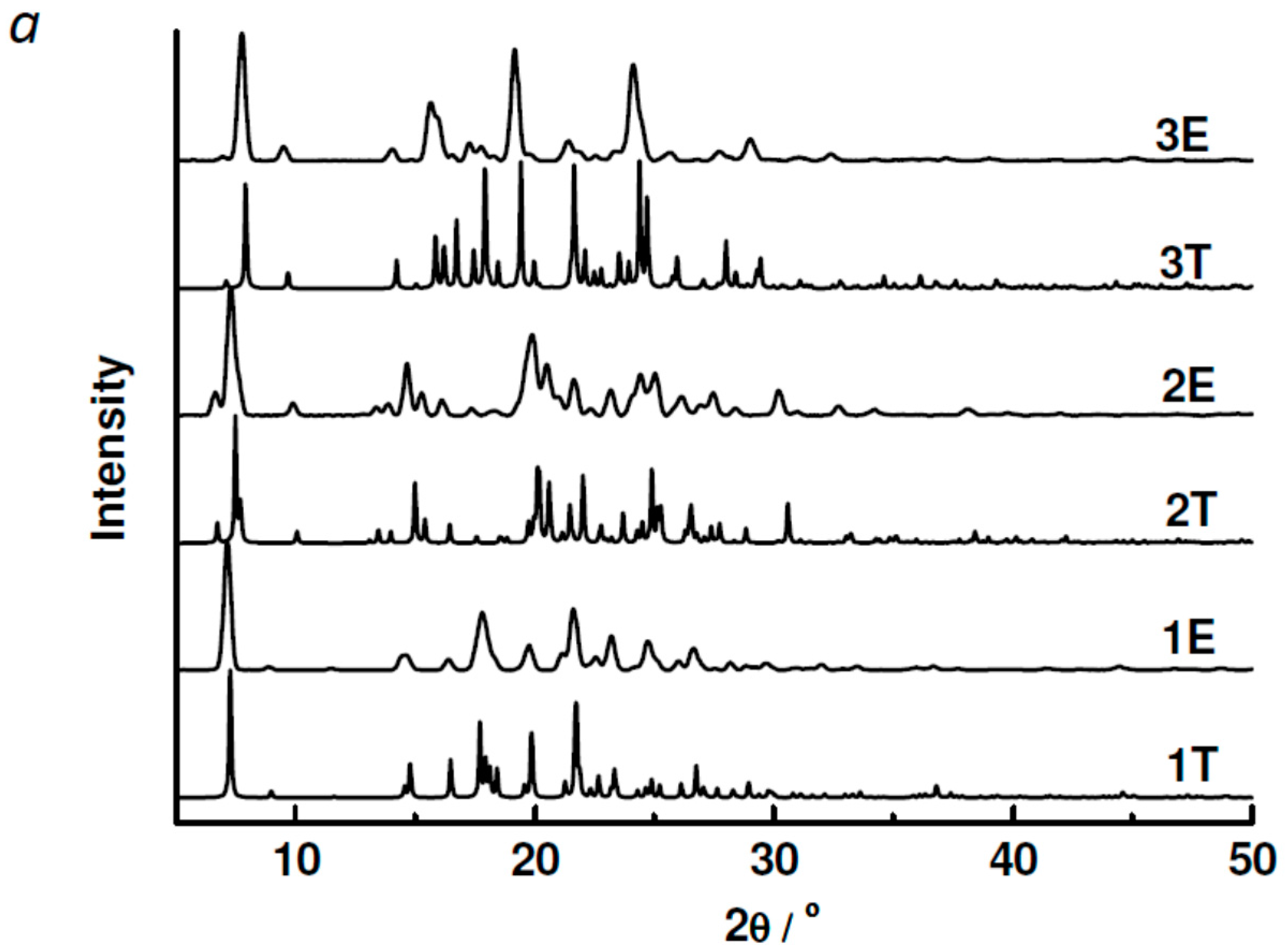

Figure 4. (a) Powder XRD patterns of 13. (T = theoretical profile referenced to the experimentally determined single-crystal XRD pattern; E = experimental data). (b) TGA curves of 13.
Figure 4. (a) Powder XRD patterns of 13. (T = theoretical profile referenced to the experimentally determined single-crystal XRD pattern; E = experimental data). (b) TGA curves of 13.
Molecules 22 01600 g004aMolecules 22 01600 g004b

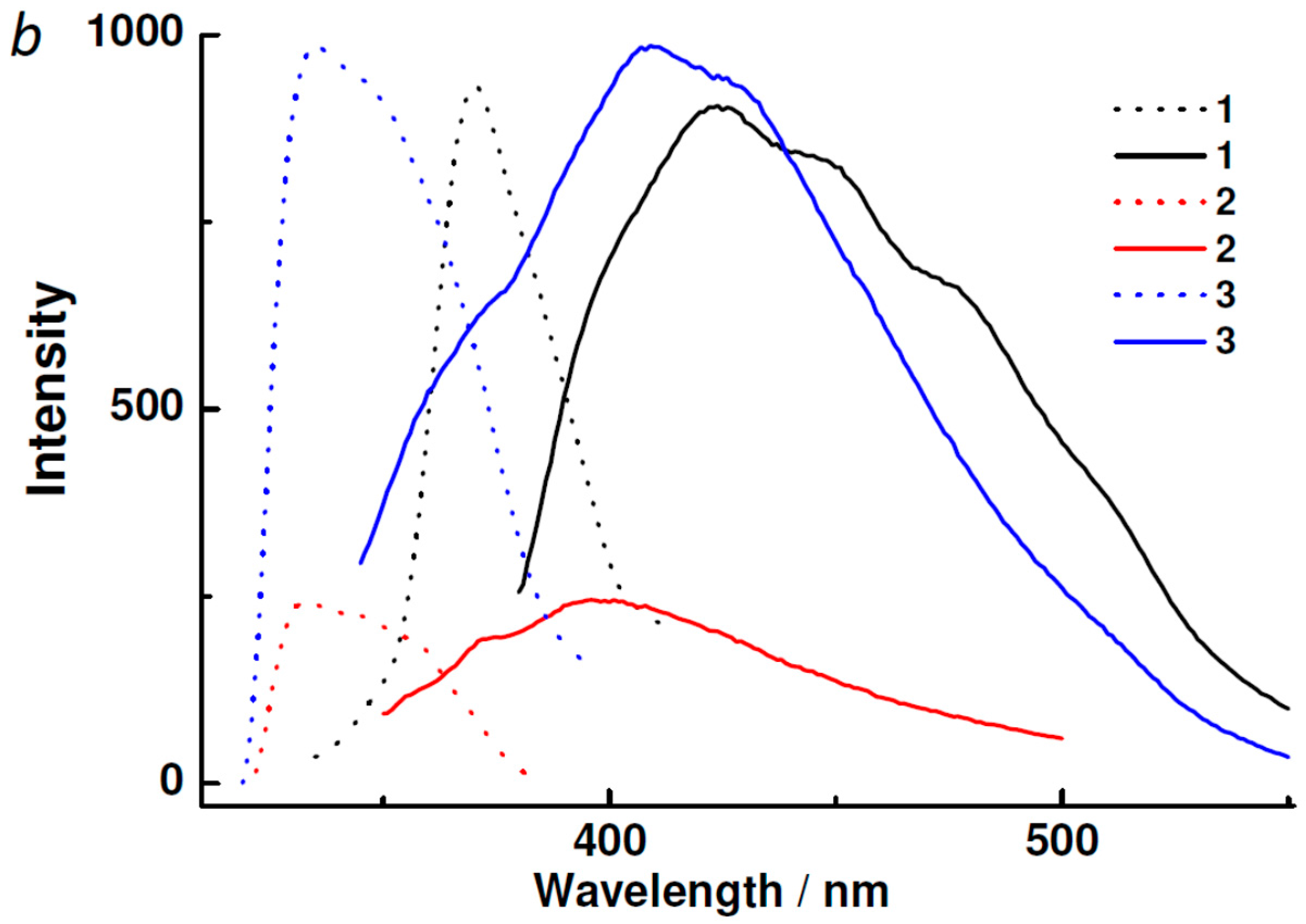

Figure 5. (a) UV-vis absorption spectra of 13 in ethanol solution; (b) Excitation (dotted line) and emission (solid lines) spectra of compound 13 in ethanol solution.
Figure 5. (a) UV-vis absorption spectra of 13 in ethanol solution; (b) Excitation (dotted line) and emission (solid lines) spectra of compound 13 in ethanol solution.
Molecules 22 01600 g005aMolecules 22 01600 g005b
Table 1. Lattice H-bonding interactions in compounds 13.
Table 1. Lattice H-bonding interactions in compounds 13.
D−H···AD−H (Å)D···A (Å)H···A (Å)∠D−H···A (°)
1
C11−H···N4A0.933.333(4)2.44162
Symmetry code A: x, y−1, z.
2
O1−H···N10.892.850(2)1.96172
O1−H···O1A0.842.793(2)1.96177
Symmetry code A: 0.5−x, 0.5+y, z.
3
C11−H···N4A0.953.455(2)2.61149
Symmetry code A: x, 1+y, z.
Table 2. Summary of crystallographic data for compounds 13.
Table 2. Summary of crystallographic data for compounds 13.
Compound12·H2O3
FormulaC17H20N4O2C19H18N4OC19H16N4
MW312.37318.37300.36
T/K298(2)110(2)150(2)
Crystal size/mm30.65 × 0.16 × 0.041.10 × 0.30 × 0.051.40 × 0.20 × 0.10
Crystal systemMonoclinicOrthorhombicMonoclinic
Space groupP21/cPbcaP21/c
a12.574(1)23.617(1)12.638(1)
b5.5153(4)5.2305(2)5.4474(4)
c24.654(2)26.299(1)22.694(2)
α909090
β104.563(2)9099.956(2)
γ909090
V31654.8(2)3248.6(2)1538.8(2)
Z484
Dcalc/g cm−31.2541.3021.297
μ/mm−10.0850.0840.080
θ range/°1.67–25.881.55–26.421.64–26.38
Reflections collected443612975624940
Independent reflections [Rint]3182 [0.0522]3349 [0.0392]3148 [0.0313]
Parameters208225208
GOF1.0591.0251.038
R1 (I > 2σ(I))0.09200.03860.0429
wR2 (all data)0.28570.11080.1217
