(PG) C. A. Meyer, one of the ancient and famous herbal roots in China, has been used as a tonic and for the treatment of various diseases [1
]. Biologically active constituents have been pursued extensively from the different parts of PG including roots, stems, leaves, berries and flowers, and many dammarane-type triterpene oligoglycosides have been identified as the principal ingredients [7
]. Recently, the saponins in the flower buds of P. ginseng
(FBPG) have been reported including various dammarane-type saponins, the same as in ginsenoside roots, even several new active compounds [10
]. Ginseng flowers has been recorded to strengthen body, tonify Qi, and delay the process of aging in many Chinese medical literatures such as “Zhong Hua Ben Cao” and “Chinese Herbal Medicine”. Therefore, ginseng flowers could also function as a supplementary source of pharmacologically active ginsenosides [13
]. However, PG often blossoms only a flower on a plant after three or four years of growing, and the flowers were much more precious than the leaves, even though both were renewable resources. Amazingly, quantitative analysis showed that the total saponins in flowers was about three times higher than roots, and some specific ginsenosides were even ten times higher, such as ginsenoside Re and Rd [14
]. The amount of total saponins in FBPG was 5%–7% [15
], much higher than the roots and leaves, so it was an ideal source for obtaining the specific and pure ginsenoside compounds.

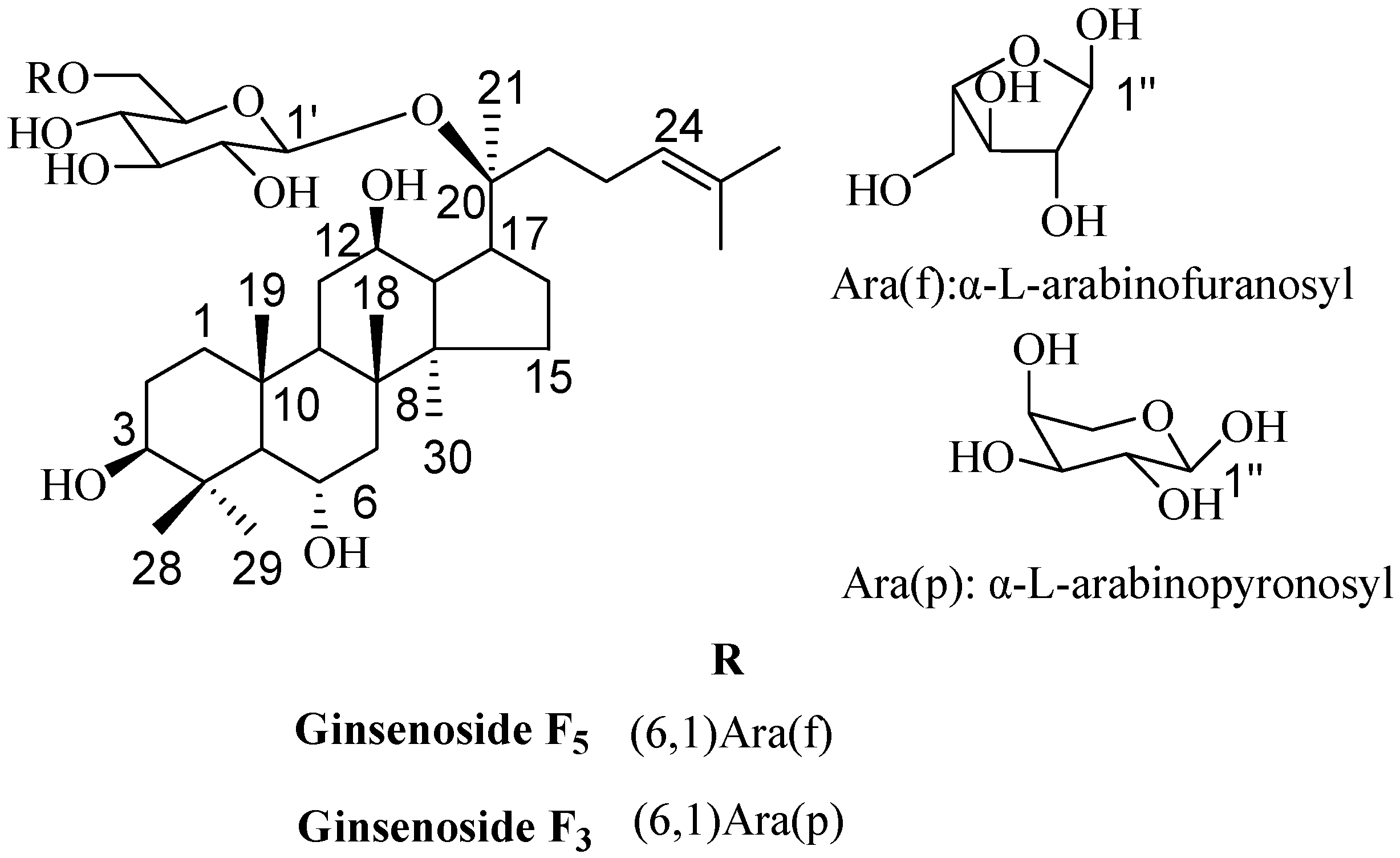

Among the saponins of PG, the structure of ginsenoside F5
) was very similar, they were two isomeric compounds. The only difference was the configuration of the C-20 arabinosyl-(1→6)-β-d
-glucopyranosyl; in ginsenoside F5
it was arabinofuranosyl, while in ginsenoside F3
it was arabinopyronosyl. According to the literature, ginsenoside F5
have been only found in the leaves of PG as minor ginsenoside [16
], and this might partly affect the further scientific research. The reported activity studies showed that ginsenoside F5
remarkably inhibited the growth of HL-60 cells by the apoptosis pathway [12
], and ginsenoside F3
had immunoenhancing activity by regulating productions and gene expressions of type 1 cytokines and type 2 cytokines in murine spleen cells [17
]. However, if the two ginsenosides could be obtained easily and in high-quality, we might find new biological activities and their utility values would be increased.
The analytical approaches, including HPLC/UV [18
], HPLC/evaporative light scattering detector (ELSD) [19
] and LC-MS [20
], have been developed to separate and identify ginsenosides of PG. Up to now, many efforts have been made to analyze the active saponins in PG, while studies on the preparation and quantification of the isomeric ginsenosides from crude extracts of flower buds of P. ginseng
(CEFBPG) was rarely reported, and there were no publications on the isolation and preparation of ginsenoside F5
simultaneously. Moreover, producing highly pure saponins was beneficial to carrying out structure-activity relationship and other pharmaceutical studies.
Based on the above description, in this work, two isomeric compounds ginsenoside F5 and F3 were isolated from CEFBPG for the first time. We developed a specific RP-HPLC/UV method to prepare highly pure ginsenoside F5 and F3 from CEFBPG and determined their contents. The influences of several chromatographic conditions on the analysis and preparation were optimized. Chemical structure was characterized by NMR and electrospray ionization mass spectrometry (ESI-MS). The method validation was comprehensively performed including linearity, precision, recovery, limits of detection (LOD) and limits of quantification (LOQ).
2. Results and Discussion
2.1. Optimization of Analytical Method
2.1.1. Influence of Mobile Phase Composition
Optimization of mobile phase composition in HPLC is investigated first, because this parameter plays a key role in resolution and sensitivity. In this section, the influence of mobile phase on separation effect was analysed in five different compositions: acetonitrile–water (30:70, v
), acetonitrile–water–phosphoric acid (30:69:1), acetonitrile–water–phosphoric acid (28:71:1), methanol–water (60:40), methanol–water–phosphoric acid (60:39:1), as shown in Figure 2
, Figures S1, S2, S7 and S8
. Three determinations (n
= 3) were carried out for each composition. The best separation was obtained with the ternary system of acetonitrile–water–phosphoric acid. The addition of phosphoric acid in mobile phase can help separation due to the presence of flavonoids in the CEFBPG, while a small amount of H3
could reduce the ionization and lower the polarity of these compounds.
2.1.2. Influence of Volume Ratios of Mobile Phase
Different volume ratios of acetonitrile–water–phosphoric acid (30:69:1, 30:69.5:0.5, 28:71:1, 28:71.5:0.5, 27:72:1) were assayed (n

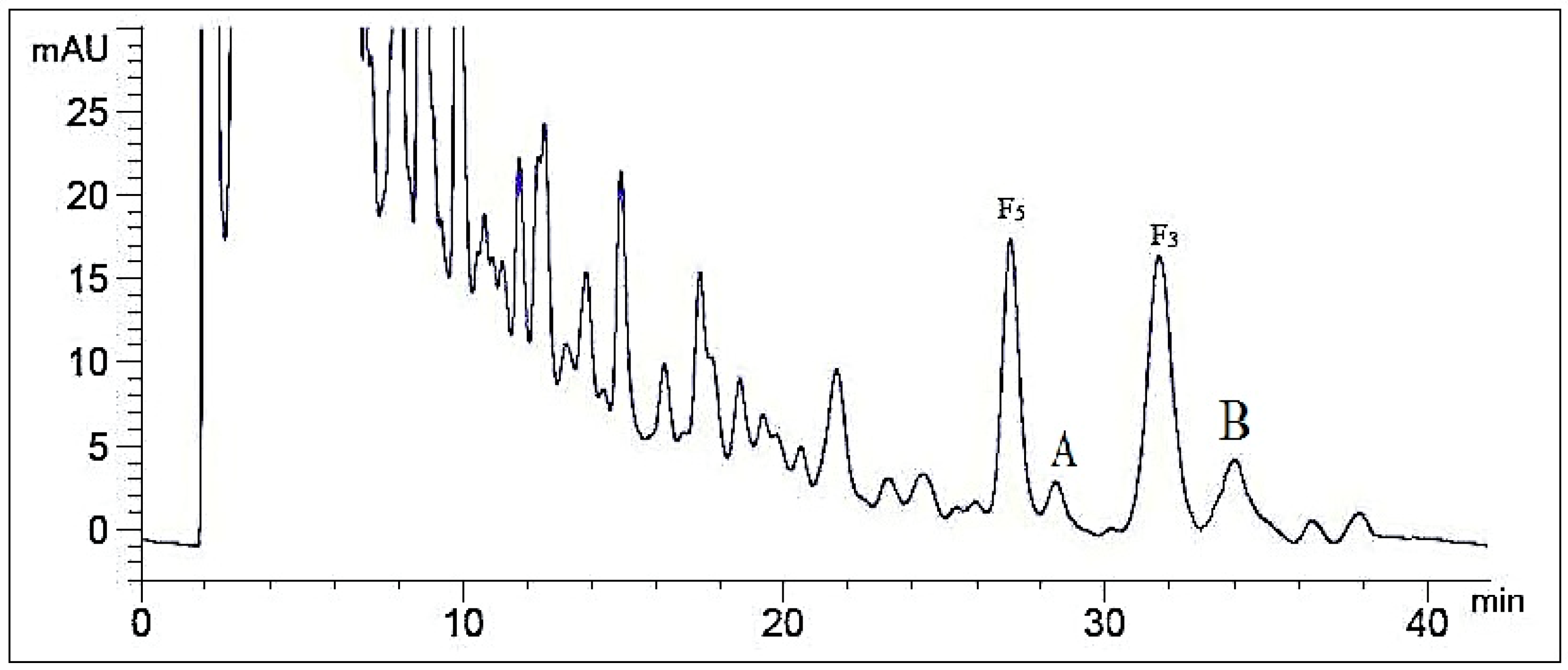

= 3) in order to achieve maximum sensitivity (Figure 2
and Figures S2–S6
). A satisfactory separation was obtained with a mobile phase composed of acetonitrile–water–phosphoric acid (28:71:1). Increasing the increment of acetonitrile ratio to more than 28% led to overlappings of ginsenoside F5
and A, as well as ginsenoside F3
and B (compounds A and B were unknown). For lower acetonitrile ratio, the separation would take longer retention time. The typical chromatogram of the HPLC method was illustrated in Figure 2
, which exhibited separation of ginsenoside F5
and their adjacent compounds well.
2.2. Optimization of Semi-Preparative Method
From the results of analytical chromatography, the separation process was scaled up to preparative-scale chromatography. In this section, the preparative method was optimized for various parameters such as composition and volume ratios of mobile phase, flow rate, sample load. Three determinations (n = 3) were carried out for each solution. The eluent of ginsenoside F5 and F3 was collected over the period of each retention time for about 2 min.
2.2.1. Optimization of Composition of Mobile Phase

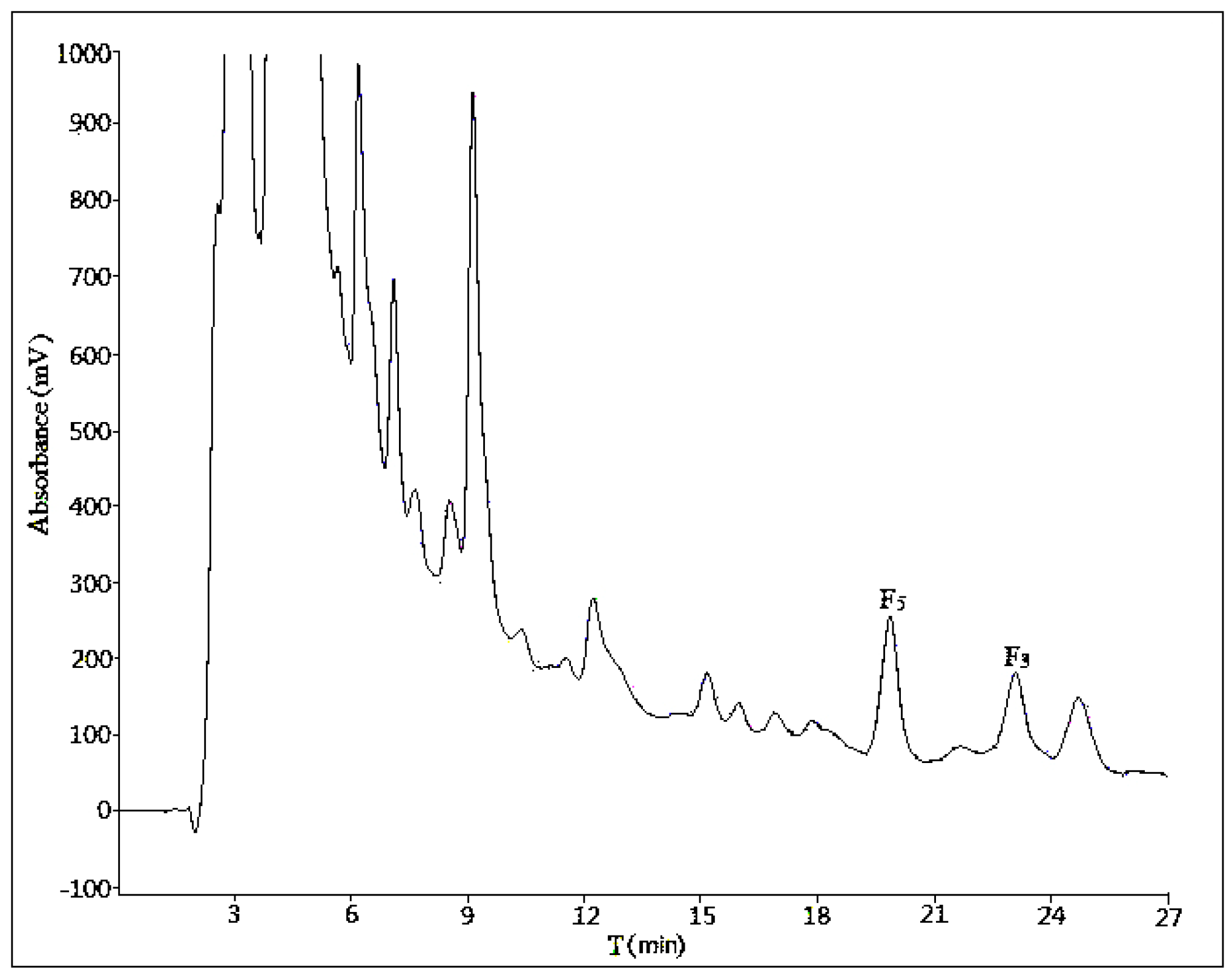

Three different compositions of mobile phase (acetonitrile:water = 28:72, acetonitrile:water:phosphoric acid = 28:71:1, methanol:water = 58:42) were tested at a flow rate of 10 mL/min with a sample load of 30 mg at room temperature. In Figure 3

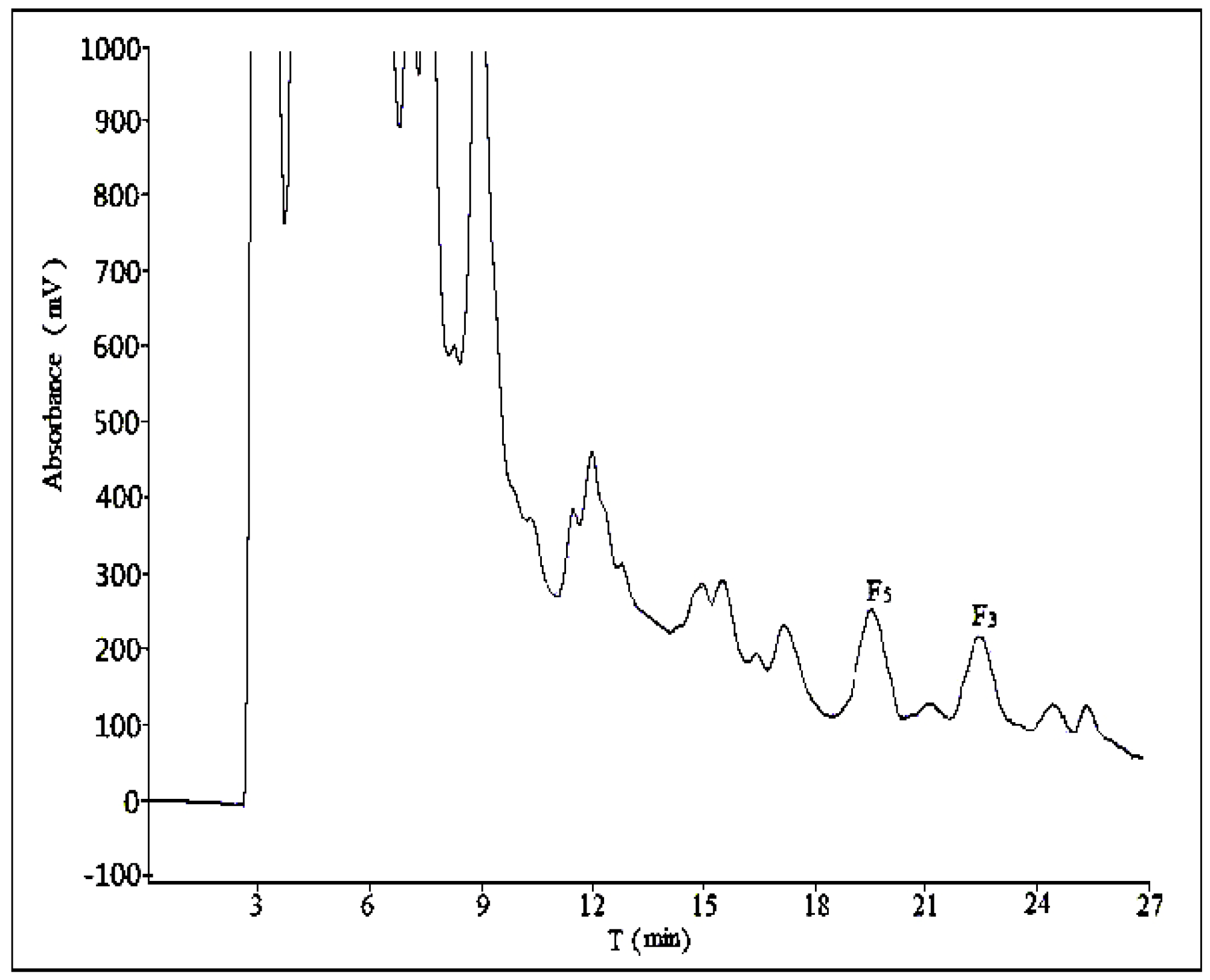

and Figure 4

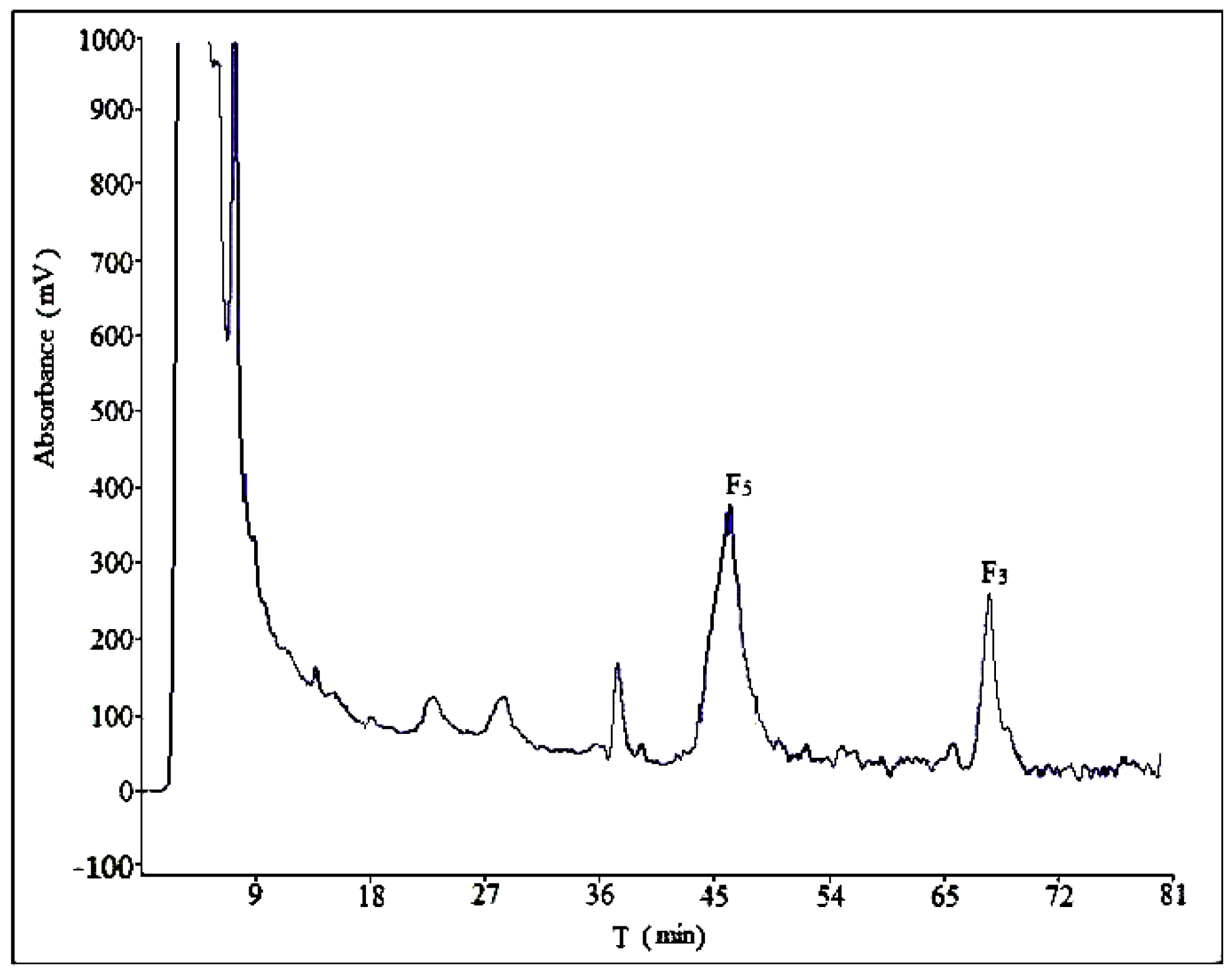

, there was no obvious difference in separation effect whether the mobile phase was with or without phosphoric acid. In addition, in Figure 5
, which used methanol–water as the mobile phase, the separation effect was very poor. Considering the shorter retention time and simplicity of the composition of mobile phase, we used a binary system of acetonitrile and water to achieve the best resolution.
2.2.2. Optimization of Flow Rate
An ideal flow rate of mobile phase can improve an effective separation and suitable retention time. As shown in Figure 3

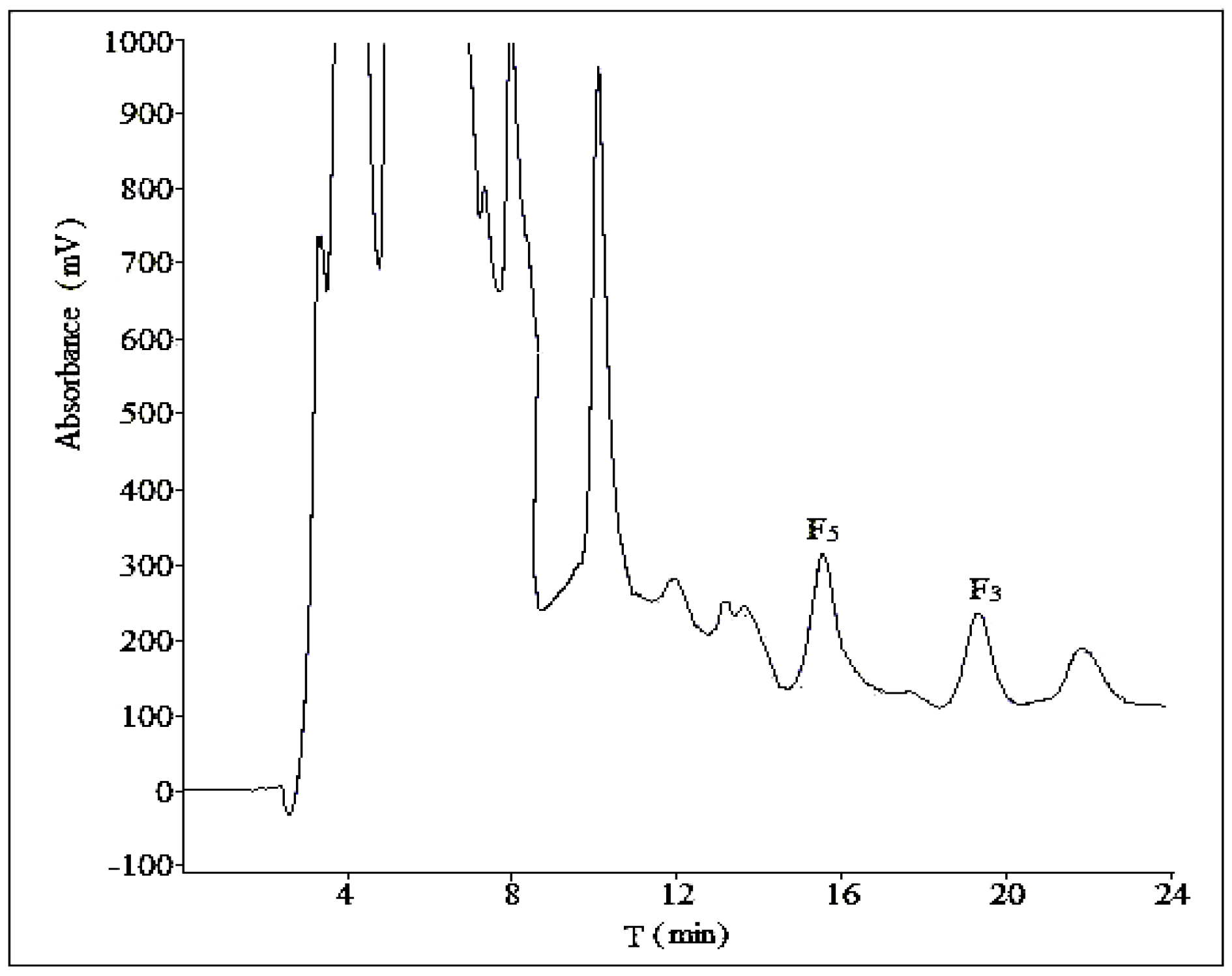

and Figure 6
, two different flow rates were tested (10 and 15 mL/min) with a mobile phase composed of acetonitrile and water. The higher flow rate generated a poorer separation effect of ginsenoside F5
and the unknown compound A, so the optimal flow rate was 10 mL/min.
2.2.3. Optimization of Volume Ratios of Mobile Phase
The volume ratios of the mobile phase play a key role in separation of ginsenosides in semi-preparative HPLC. Different volume ratios of acetonitrile:water 28:72; 32:68; 32:68 → 28:72 (0 min 28:72, 15 min 28:72); 32:68 → 28:72 (0 min 32:68, 10 min 28:72) were investigated at a flow rate of 10 mL/min (Figure 3

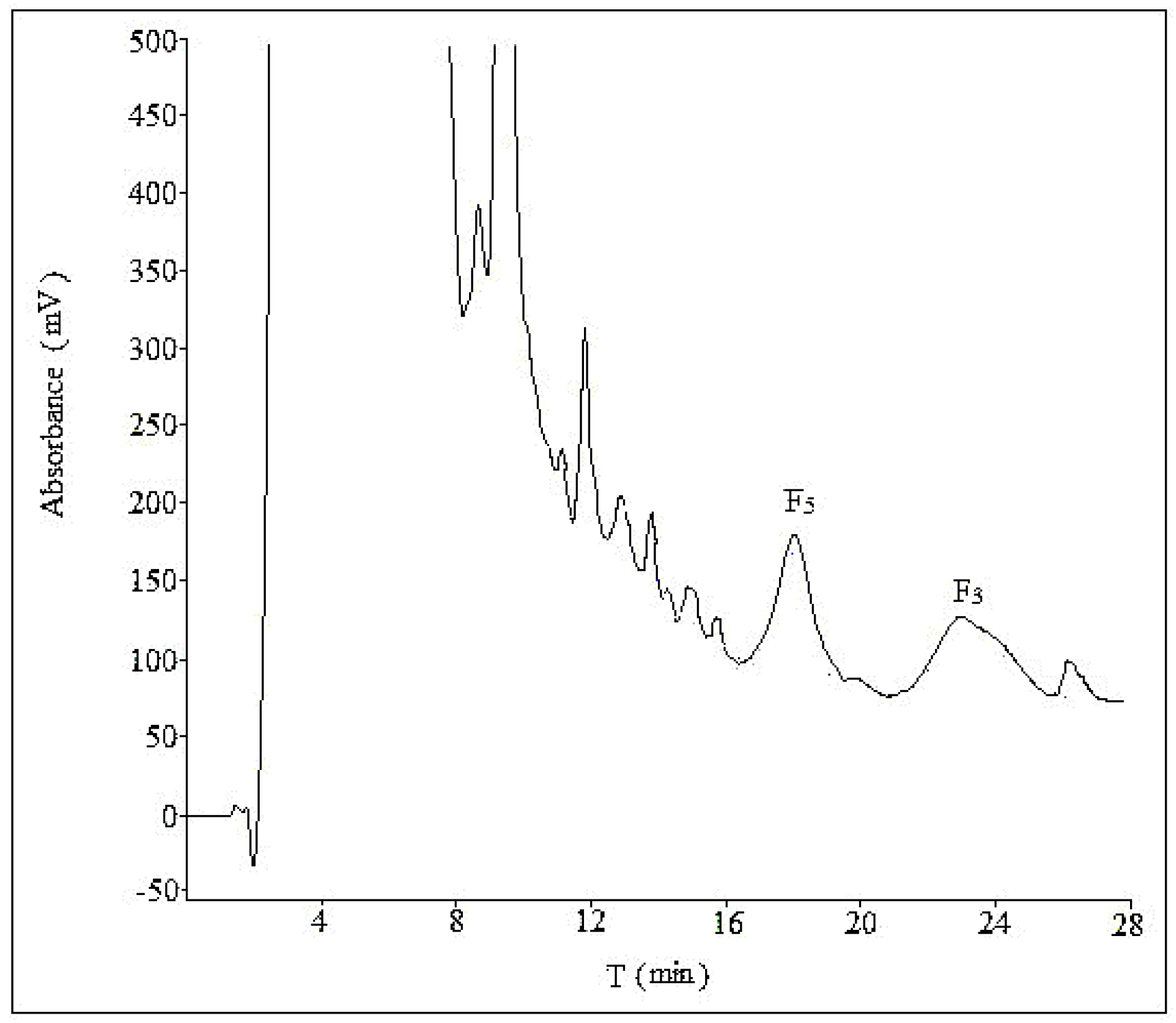

, Figure 7

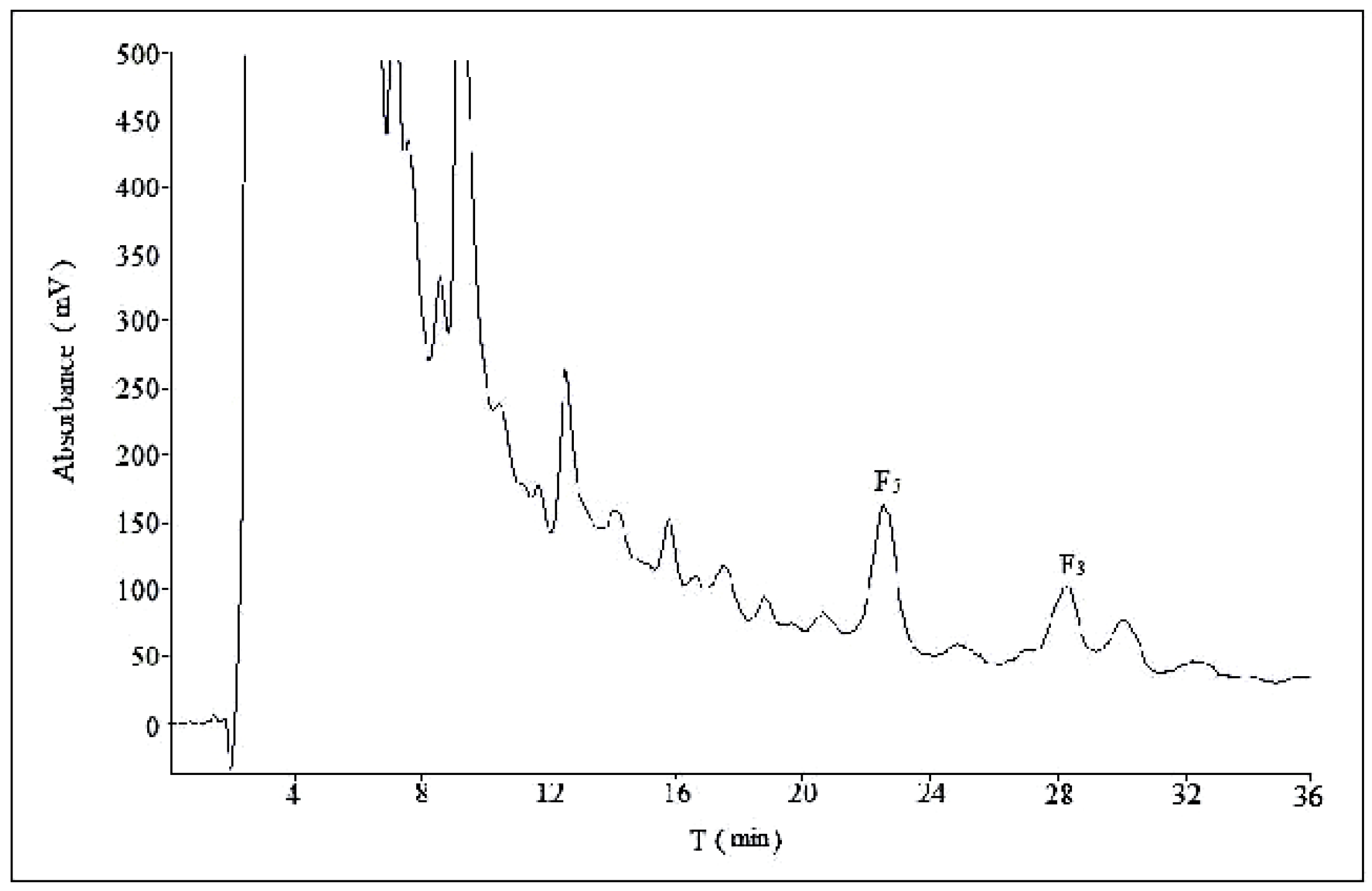

, Figure 8

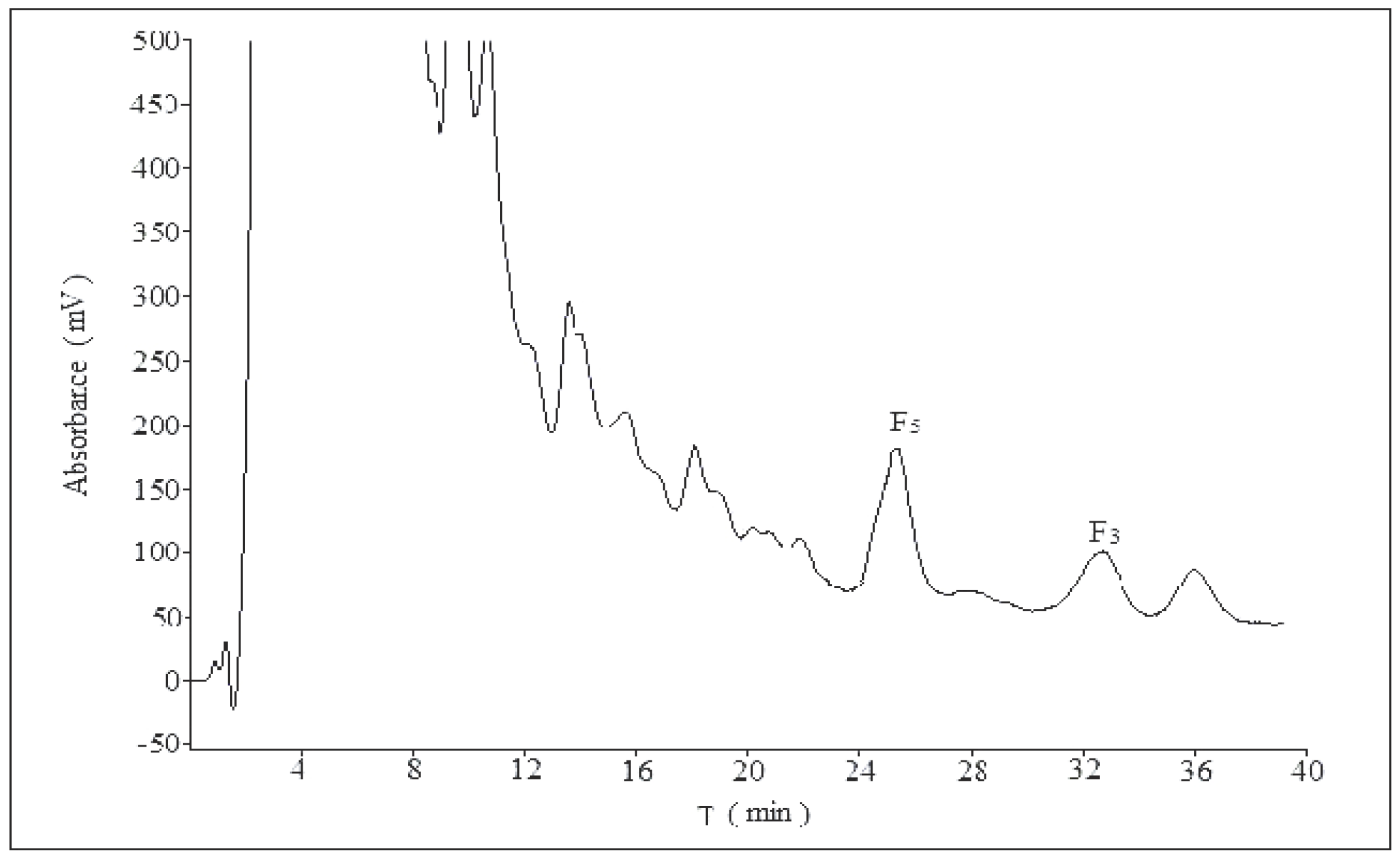

and Figure 9
). The results shown in Table 1
indicated that the separation varied among four different volume ratios of mobile phase, especially for ginsenoside F3
. A satisfactory separation was achieved with a gradient of acetonitrile–water (0 min 32:68, 10 min 28:72).
2.2.4. Optimization of Sample Load
The effect of sample load was tested in the range from 10 to 50 mg at a flow rate of 10 mL/min using an acetonitrile–water system (32:68 → 28:72; 0 min 32:68, 10 min 28:72). The results shown in Table 2
indicated that the separation varied among different sample loads. Increasing the increment of the sample load from 10 to 30 mg resulted in little influence on the purity of ginsenoside F5
. However, when the sample load was more than 30 mg, the purity of ginsenosides decreased markedly. The best separation was achieved at 20–30 mg, in which the semi-preparative chromatography gave a good purity and yielded relatively large amounts of ginsenosides.
2.3. Elucidation of Chemical Structures
Structures of ginsenoside F5
were confirmed by modern spectroscopic techniques, including NMR and MS. The NMR data were elucidated by comparing with those reported [22
C-NMR data was shown in Table 3
. The 1
C-NMR and MS spectra were shown in Supplementary Materials
2.4. Method Validation
2.4.1. Range and Linearity
Six concentrations of ginsenoside F5 and F3 methanol solution were injected in triplicate, and then the calibration curve was constructed by plotting the peak areas versus the concentration of each analyte. The calibration curves were y = 2650.5x + 29.279 for F5 and y = 1975.1x − 24.909 for F3, which showed good linear regression (R2 = 0.9994 for F5 and R2 = 0.9999 for F3) within 0.1–1.0 mg/mL.
2.4.2. Accuracy and Precision
Accuracy and precision of the method were determined by analyzing two different concentrations (0.2, 0.4 mg/mL) within the calibration range and each concentration three times (n
= 3). Accurate amounts of standard ginsenosides were added to an accurately weighed portion of FBPG and then prepared and analyzed as described above. The average recoveries were shown in Table 4
, and both had an excellent accuracy recovery from 96.58% to 101.32% (n
= 3) and an acceptable relative standard deviation (RSD) limits (<3%) for the analytes. The intra- and inter-day variability were evaluated for the precision of the method, the overall intra- and inter-day variations were less than 5%. These data demonstrated the acceptable precision of the method.
LOD and LOQ were used to represent the sensitivity of the method. The diluted standard solutions of ginsenoside F5 and F3 were further diluted with methanol to give a series of concentrations until signal-to-noise (S/N) ratio reached about three for determining the LOD, and S/N ratio was about 10 for determining the LOQ. In the method, the LOD and LOQ were determined to be 0.021 mg/mL and 0.052 mg/mL for ginsenoside F5, 0.011 mg/mL and 0.042 mg/mL for ginsenoside F3, respectively, indicating the method was extremely sensitive.
2.5. Quantitative Analysis of Ginsnoside F5 and F3 in FBPG
Two grams of FBPG sample was extracted in triplicate by reflux treatment with methanol (each 20 mL, w/v = 1:10). After the extracts was partitioned with dichloromethane and ethyl acetate, the unextracted residue was concentrated and dissolved in methanol with a 10 mL volumetric flask, then filtered through a 0.45 μm syringe filter, and it was ready for HPLC analysis. Each solution was analyzed three times, the content of ginsenoside F5 and F3 from Tonghua County was (4.21 ± 0.04) mg and (5.13 ± 0.03) mg in 1 g FBPG (n = 9), respectively.
The reported methods of extraction and purification of ginsenosides F5
usually use aqueous ethanol or aqueous methanol as the extraction solvent, then followed by reverse-phase polystyrene gel or ordinary-phase silica gel column chromatography [22
]. However, the aqueous solvent may lead to the presences of more large polar substances, such as oligoglycosides, polysaccharides and inorganic salt. Ginsenosides F5
are compounds with medium polarity and good solubility in methanol, so they can be extracted relatively completely in methanol with less needless components under this work. Meanwhile, the pre-purification with dichloromethane and ethyl acetate can remove the chemical constituents of low polarity, leading to less disturbances to the separation, thus this procedure can also provide simplified ways of purification. The similar method of pre-purification for ginsnosides can be seen in the studies of Kwon et al.
] and Gu et al.
]. In another study carried out by Magiera et al.
], ginsenoside Re was separated and purified from ginseng bud by selective adsorption of active carbon before preparative HPLC. Although the adsorption ability of ginsenoside Re by active carbon is much weaker than any other kind of ginsenosides, there is more or less adsorbance for ginsenoside Re. In contrast, in our work made by the extraction with dichloromethane and ethyl acetate, there was no loss since ginsenosides F5
did not dissolve in the two solvents. The other applied pretreatment methods such as solid phase extraction [28
] and centrifugation [30
] were also adaptable to ginsenosides, but they were not very suitable for the large scale of ginsenoside preparation.
We used two different methods for the separation of ginsenosides F5
in analytical and semi-preparative experiments. The method of semi-preparation was derived from the improvement of analytical methods. Due to the different chromatographic column used and the large sample loads in semi-preparative experiments, a gradient elution of acetonitrile-water could obtain a satisfactory separation with shorter retention time. As to the addition of phosphoric acid to the mobile phase, it showed no obvious difference in the separation effect of semi-preparative experiments (Figure 3
and Figure 4
), so the optimization result of composition of mobile phase was performed without phosphoric acid. The volume ratios of acetonitrile in mobile phase played an important role in the separation effect of the two ginsenosides, and it should be no more than 28% (Figure 7
and Figures S1–S3
). In the reported study on the purification of ginsenoside Re from ginseng bud [27
], the volume ratios of acetonitrile in mobile phase was also one of the important influence factors for the separation conditions.
The time-saving and decrease in the total consumption of mobile phase implies a reduction in analysis cost. Compared with the preparative HPLC/UV for ginsenoside Re [27
] and the semi-preparative HPLC/ELSD for ginsenosides Rb3
and Rc [32
], our semi-preparative HPLC/UV method offered a threefold decrease in retention time.
Based on the extraction of FBPG with methanol and followed by the solvent extraction with dichloromethane and ethyl acetate, we obtained an efficient performance by the validated semi-preparative HPLC method, as it achieved the separation and purification of two isomeric compounds ginsenoside F5 and F3 and got high-quality monomers.
3. Materials and Methods
3.1. Reagents, Materials and Preparation of CEFBPG
The FBPG were collected at Tonghua County (Jilin, China) in 2014 and were taxonomically identified by one of us (Xiao-Jie Gong). The air-dried material (2.5 kg) was powdered in a pulverizer (XS-10B, Longxin, China) and passed through an 80 mesh sieve. The extraction of saponins from the flower buds of PG was performed three times by reflux treatment with methanol (each 25 L, w/v = 1:10). The extracts were combined and concentrated to small volume (3 L), which was partitioned with dichloromethane and ethyl acetate in sequence. Then, the unextracted residue residue was concentrated and the CEFBPG was obtained. The reference standards ginsenoside F3 and F5 were purchased from National Institutes for Food and Drug Control. All reagents were of chromatographic grade, except the phosphoric acid, which was of analytical grade.
3.2. Chromatographic Analysis
The analytical HPLC system was an Agilent Series 1260 (Agilent Technologies, Santa Clara, CA, USA) liquid chromatography system, equipped with a vacuum degasser, a quaternary pump, a column oven, a 7125i Reodyne Model manual injector with a 20 μL loop and a diode array detector (DAD). The chromatographic separation of the compounds was achieved with a Agilent Zorbax Eclipse XDB C-18 (5 μm; 4.6 mm i.d. × 250 mm, St. Louis, MO, USA) column. UV detection of samples was performed at a wavelength of 203 nm with a flow rate of 1.0 mL/min.
The semi-preparative HPLC was performed on a CXTH HPLC system (Chuang Xin Tong Heng Sci. Technol. Co. Ltd., Beijing, China) equipped with two P3050 pumps, a UV-3000 ultraviolet-visible detector (Chuang Xin Tong Heng Sci. Technol. Co. Ltd., Beijing, China), and a 7125i Reodyne Model manual injector with a 5 mL loop, using a Daisogel C-18 column (5 μm, 20 mm i.d. × 250 mm, Mcirowants, Suzhou, China). The data acquisition system was CXTH-3000 chromatography workstation (Chuang Xin Tong Heng Sci. Technol. Co. Ltd., Beijing, China).
3.3. Semi-Preparative Liquid Chromatography Separation
The CEFBPG was dissolved in the mobile phase of semi-preparative liquid chromatography, then filtered through a 0.45 μm syringe filter (Whatman, Brentford, Middlesex, UK). The resulted clear yellow solution is directly injected into the column by a 7125i Rheodyne injector. The fractions containing individual ginsenoside were collected respectively, and then combined and concentrated under vacuum. Ginsenoside F5 and F3 were finally obtained as white powder.
3.4. Structure Characterization of Ginsenosides
The isolated ginsenosides were characterized by NMR and electrospray ionization mass spectrometry (ESI-MS). NMR spectra were measured on a Bruker DRX500 spectrometer (Bruker S.A., Wissembourg, France) with tetramethyl silicane (TMS) as internal standard and pyridine-d5 as the solvent. Chemical shifts are reported in δ (ppm). The mass detection was performed on an Orbitrap Elite mass spectrometer (Thermo Scientific, Bremen, Germany) equipped with an ESI source. Melting point was recorded on a X-4 microscopic melting point meter (uncorrected) (Maisiqi High-tech Co. Ltd., Beijing, China).
Ginsenoside F5: white powder. m.p.: 186–187 °C. ESI-MS (m/z): 793.4648 [M + Na]+ (calcd C41H70O13Na 793.4714), 459.3794 [M − GlcAra(f) + H]+, 441.3690 [M − GlcAra(f) − H2O + H]+, 423.3588 [M − GlcAra(f) − 2H2O + H]+, 405.3487 [M − GlcAra(f) − 3H2O + H]+, 335.0914 [GlcAra(f) + Na]+.
Ginsenoside F3: white powder. m.p.: 192–194 °C. ESI-MS (m/z): 793.4674 [M + Na]+ (calcd C41H70O13Na 793.4714), 459.3810 [M − GlcAra(p) + H]+, 441.3704 [M − GlcAra(p) − H2O + H]+, 423.3600 [M − GlcAra(p) − 2H2O + H]+, 405.3499 [M − GlcAra(p) − 3H2O + H]+, 335.0918 [GlcAra(p) + Na]+.
The proposed HPLC method was validated for various parameters such as linearity, range, precision, recovery, LOD and LOQ. Calibration curve with six concentration levels of standard solutions of each compound was constructed in the range of 0.1–1.0 mg/mL (n = 3). Precision was evaluated on both intra- and inter-day by analyzing two standard solutions (0.2, 0.4 mg/mL) within one day and on six different days (n = 6), respectively. Recovery of the method was performed at two different concentrations of 0.2, 0.4 mg/mL. LOD and LOQ were estimated from the plots as 3 and 10 times of the noise level, respectively.
