Half-Sandwich Ru(II) Halogenido, Valproato and 4-Phenylbutyrato Complexes Containing 2,2′-Dipyridylamine: Synthesis, Characterization, Solution Chemistry and In Vitro Cytotoxicity

by
Pavel Štarha
1,
Zdeněk Trávníček
1,*,
Radka Křikavová
1 and
Zdeněk Dvořák
2
1
Department of Inorganic Chemistry & Regional Centre of Advanced Technologies and Materials, Faculty of Science, Palacký University in Olomouc, 17. listopadu 12, 771 46 Olomouc, Czech Republic
2
Department of Cell Biology and Genetics & Regional Centre of Advanced Technologies and Materials, Faculty of Science, Palacký University in Olomouc, Šlechtitelů 27, 783 71 Olomouc, Czech Republic
*
Author to whom correspondence should be addressed.
Molecules 2016, 21(12), 1725; https://doi.org/10.3390/molecules21121725
Submission received: 9 November 2016 / Revised: 12 December 2016 / Accepted: 13 December 2016 / Published: 15 December 2016
(This article belongs to the Section Organometallic Chemistry)
Browse Figures
Versions Notes

Abstract

:
Halogenido and carboxylato Ru(II) half-sandwich complexes of the general composition [Ru(η6-p-cym)(dpa)X]PF6 (1–5) were prepared and thoroughly characterized with various techniques (e.g., mass spectrometry, NMR spectroscopy and X-ray analysis); dpa = 2,2′-dipyridylamine; p-cym = p-cymene; X = Cl− (for 1), Br− (for 2), I− (for 3), valproate(1−) (for 4) or 4-phenylbutyrate(1−) (for 5). A single-crystal X-ray analysis showed a pseudo-octahedral piano-stool geometry of [Ru(η6-p-cym)(dpa)I]PF6 (3), with a η6-coordinated p-cymene, bidentate N-donor dpa ligand and iodido ligand coordinated to the Ru(II) atom. The results of the 1H-NMR solution behaviour studies proved that the complexes 1–5 hydrolyse were in the mixture of solvents used (10% MeOD-d4/90% D2O). Complexes 1–5 were in vitro inactive against the A2780 human ovarian carcinoma cell line, up to the highest tested concentration (IC50 > 100 μM).

1. Introduction

Organometallic Ru(II) half-sandwich complexes represent one of the most promising group of newly developed substances for the treatment of cancer [1,2]. These complexes typically adopt a piano-stool geometry with η6-coordinated arene (e.g., p-cymene or benzene), chelating (XY) and monodentate (Z; typically chlorido ligand) ligands, together producing the compounds of the general composition [RuII(η6-arene)(XY)Z]0/+. It has been reported that the in vitro cytotoxicity of these complexes can be improved when the chlorido ligand is replaced by different halogenido ligand, as exemplified on the [Ru(η6-p-cym)(L1)Cl]PF6 and [Ru(η6-p-cym)(L1)I]PF6 complexes, showing the IC50 values of 16.2, and 3.0 µM, respectively, against the A2780 human ovarian carcinoma cells; L1 = N,N-dimethyl-N′-(2-pyridinylmethylene) [3].
Quite recently, the simple organic valproato(1–) (VP) and 4-phenylbutyrato(1–) (PB) ligands, derived from the histone deacetylase inhibitors (HDACi) valproic acid (VPA) [4] and sodium 4-phenylbutyrate (Na(PB)) [5], have been used as the releasable O-donor ligands of the platinum(IV) complexes derived from the clinically used platinum(II) drugs cisplatin and oxaliplatin. Remarkably, the studied platinum(IV) valproato and 4-phenylbutyrato complexes exhibited significantly higher in vitro cytotoxicity than their hydroxidoplatinum(IV) analogues [6,7,8,9]. For example, the complex trans-[Pt(dach)(ox)(VP)2] (IC50 = 1.3 µM) significantly exceeded potency of trans-[Pt(dach)(OH)2(ox)] (IC50 = 11.4 µM) against the A2780 cells [8]; dach = 1,2-diaminocyclohexane, ox = oxalate(2–).
In this work, we decided to combine the above-described approaches, and study the effect of the replacement of the chlorido ligand with other halogenido ligands (a known approach utilized, for example, in the reference [3]) as well as by the VP and PB ligands (innovative approach in the field of Ru(II) anticancer complexes) on the in vitro cytotoxicity against the A2780 cells. For this purpose, we chose the easily-obtainable [Ru(η6-p-cym)(dpa)Cl]PF6 complex (Figure 1) [10], recently reported as having moderate, and thus possibly tunable, in vitro cytotoxicity against the MCF-7 cancer cells (IC50 = 40.8 µM) [11]. From the coordination chemistry point of view, this is the first report on Ru(II) complexes containing the VP ligand. Regarding the ruthenium complexes containing the PB ligand, they have been used as either bidentate O,O-coordinated ligand in the [Ru(µ-PB)(CO)2(L2)]2 complex, or as η6-coordinated 4-phenylbutyric acid (PBA) in the [Ru(η6-PBA)(L3)Cl]+ or [Ru(η6-ar)(η6-PBA)]2+ complexes; L2 = pyridine or triphenylphosphane, L3 = e.g., 1,10-phenanthroline or benzaldehyde monothiosemicarbazone, and ar = e.g., 1,2,3,4,5,6-hexamethylbenzene [12,13,14]. However, to the best of our knowledge, neither VP nor PB ligand has been reported in the literature to date as the monodentate O-donor ligand of any ruthenium complex.

2. Results and Discussion

2.1. Synthesis and General Properties

Recently, the preparation [10,11,15,16], X-ray structure [10] and in vitro cytotoxicity [11] of the simple ruthenium(II) complex [Ru(η6-p-cym)(dpa)Cl]PF6 were reported. In this work, its structure was modified by either different halogenido ligands (bromido or iodido) or monodentate O-coordinated carboxylato ligands (valproato or 4-phenylbutyrato). The obtained products were thoroughly characterized, their solution chemistry was studied by 1H-NMR and their in vitro cytotoxicity against the A2780 cells was assessed.
The synthesis of the herein used complex [Ru(η6-p-cym)(dpa)Cl]+ was reported in the literature, but with different reaction conditions (4 h/ambient temperature [15], 4 h/reflux [11], 6 h/reflux [16] or overnight stirring/50 °C [10]). In this work, the reaction time was considerably shortened to only 1 min, by using a microwave reactor. For the bromido (2) and iodido (3) complexes, instead of the known protocol starting from the appropriate dimeric compounds, [Ru(µ-Br)(η6-p-cym)Br]2 and [Ru(µ-I)(η6-p-cym)I]2 [17], the easily-obtainable chloride salt [Ru(η6-p-cym)(dpa)Cl]Cl (1*) was dechlorinated by 2 molar equivalents of silver triflate, followed by the addition of the appropriate potassium halogenide to form [Ru(η6-p-cym)(dpa)X]+ (2, 3). In the case of carboxylato complexes 4 and 5, a one-step replacement of the chlorido ligand of 1 by the VP or PB ones was achieved using the silver carboxylates Ag(VP) (for 4) or Ag(PB) (for 5).
The prepared complexes of the general formula [Ru(η6-p-cym)(dpa)X]PF6 (Figure 1) were thoroughly characterized, using elemental analysis, RP-HPLC, FTIR spectroscopy, ESI+ mass spectrometry, 1H-NMR and 13C-NMR spectroscopy, and a single crystal X-ray analysis. The composition of the complexes 1–5 was proved by the results of elemental analysis, with up to 0.4% differences between the calculated and found contents of C, H, and N. The RP-HPLC experiments proved >99% purity of the complexes 1–5. FTIR spectra of the complexes 1–5 contained the characteristic peaks of ν(C–H)aliph (2930–2980 cm−1) of p-cymene, as well as ν(C–H)ar (3000–3200 cm−1), and ν(C–C)ar and ν(C–N)ar (1435, 1470 and 1580 cm−1) of the dpa and p-cymene ligands [18]. The maxima detected at ca. 830 cm−1 belong to the ν(P–F) vibrations [19]. The peaks assignable to the characteristic vibrations of the VP (e.g., 2930, 1640 or 1380 cm−1) and PB (e.g., 2970, 1640, 1385 or 1300 cm−1) ligands [20,21] clearly showed in the FTIR spectra of the complexes 4 and 5. The peaks whose mass corresponded to the complex cations, i.e., [Ru(p-cym)(dpa)X]+, of the studied complexes 1–5 were detected in the ESI+ mass spectra (Figure 2). A release of the halogenido (for 1–3) or carboxylato (for 4 and 5) ligands under the used electrospray ionization conditions led to the [Ru(p-cym)(dpa–H)]+ species, whose peaks appeared at 406.2 m/z uniformly for all complexes 1–5.
The 1H- and 13C-NMR spectra of the complexes 1–5 (measured in DMSO-d6) contained all the signals of both the p-cym and dpa ligands (Figure 3), and only the N2–H signal was not detected in the 1H-NMR spectrum of complex 5. The septet of C17–H (i.e., H3C–CH–CH3) was overlapped by the signal of the used solvent for complexes 1–3, but this signal was clearly detected in the 2D NMR spectra, as well as in the 1H-NMR spectra obtained in different solvents (e.g., MeOD-d4). The signals of C4–H, C5–H and C6–H shifted downfield as a consequence of the coordination of the dpa ligand to the Ru(II) atom, while the signals detected for C3–H showed strong upfield shifts (Table 1).
The spectra obtained for the carboxylato complexes 4 and 5 contained, along with the signals of the p-cym and dpa ligands, the signals of the appropriate carboxylato ligands (Figure 3). The 13C-NMR signals of the carboxyl carbon atom (i.e., C21) were detected at ca. 181 ppm (for the VP-containing complex 4) and 179 ppm (for the PB-containing complex 5), and they were shifted by 4.0 ppm, and 4.7 ppm, respectively, as compared with the free carboxylic acids (i.e., VPA and PBA). The positions of these characteristic 13C-NMR signals of the complexes 4 and 5 were consistent with those reported for trans-[Pt(NH3)(py)(VP)2] (182.1 ppm), containing valproate(1−) as the monodentate O-donor ligand [22]. On the other hand, the formerly reported complexes [Ru(µ-PB)(CO)2(L2)]2, containing PB as the O-donor bridging ligand, and [Ru(η6-PBA)(L3)Cl]+ or [Ru(η6-ar)(η6-PBA)]2+, containing PBA as η6-coordinated ligand, showed different 13C-NMR δ values of their COO− signals. In particular, the δCOO– value for [Ru(µ-PB)(CO)2(L2)]2 equals 186.5 ppm [12], while it equals 175.0 ppm for [Ru(η6-PBA)(L3)Cl]+ [14]. Czomplexes 1–5 are stable in the used solvent (DMSO-d6), because no changes were detected in their 1H and 13C-NMR spectra even after 48 h of standing at ambient temperature.

2.2. Single Crystal X-ray Analysis

The complex [Ru(η6-p-cym)(dpa)I]PF6 (3) was characterized by a single crystal X-ray analysis. The crystal data and structure refinement are given in Table 2, while the selected bond lengths and angles can be found in Table 3.
The complex 3 adopts a pseudo-octahedral piano-stool geometry (Figure 4), known to be a typical one for the half-sandwich Ru(II) complexes, including the recently reported complex [Ru(η6-p-cym)(dpa)Cl]PF6 (1 in this work; [10]), whose structural parameters were included in Table 3 for comparative purposes. The Ru–N and Ru–Cg bond lengths are comparable for the chlorido (1; [10]) and iodido (3) complexes (Table 3); Cg = the centroid of the p-cymene aromatic ring. Moreover, the Ru–N bond lengths agreed well with the average value of 2.11(4) Å (the range of 2.025–2.219 Å) of 30 ruthenium complexes, such as [Ru(η6-bz)(dpa)Cl]PF6 [15], [Ru(η6-p-cym)(dpa)Cl]BF4 [16] or [Ru(η6-hmbz)(dpa)Cl]PF6∙CH2Cl2 [23], containing the N-donor dpa ligand, which have been deposited in the Cambridge Crystallographic Data Centre (CCDC) under the respective Cambridge Structural Database (CSD) refcodes; CSD version 5.37 updated to May 2016 [24]; bz = benzene, hmbz = 1,2,3,4,5,6-hexamethylbenzene.
To date, only three half-sandwich p-cymene-iodidoruthenium(II) complexes containing a bidentate N-donor ligand, namely [Ru(η6-p-cym)(L4)I]PF6 [25], [Ru(η6-p-cym)(en)I]I [26] and [Ru(η6-p-cym)(L5)I] [27], were crystallographically characterized; L4 = 2,2′-bipyrimidine, en = ethylene-1,2-diamine, HL5 = N-[(1R,2R)-2-(amino)-1,2-diphenylethyl]-4-methylbenzenesulfonamide. The average Ru–I bond length of these three complexes is 2.74(3) Å. However, only [Ru(η6-p-cym)(L4)I]PF6 is structurally similar to complex 3 with a heterocyclic chelating ligand coordinated to the Ru(II) atom through the two nitrogen atoms [25].
Both the aromatic rings of the dpa ligand form the dihedral angle of 37.00(8)°, while the dihedral angles between theses rings and p-cymene ring equal 29.46(8)° (formed by the ring containing the N1 atom) and 27.40(8)° (formed by the ring containing the N1A atom). The crystal structure of the complex 3 is stabilized by a variety of non-covalent contacts of the N–H···F and C–H···F types (Supplementary Materials Table S1 and Figure S1).

2.3. 1H-NMR Studies of Solution Chemistry and Interactions with Reduced Glutathione

As it is known for the anticancer complexes of various transition metals (e.g., platinum(II) [28] or ruthenium(II) [29] complexes), hydrolysis of the M–Cl bond/s is an activation step of their action enabling the interaction with the target biomolecules including DNA. Moreover, it is necessary to ensure that the studied complexes do not decompose in water or water-containing solution mimicking physiological conditions, as recently described for similar half-sandwich Ru(II) complexes [30].
After dissolution of the halogenido complexes 1–3 in a mixture of 10% MeOD-d4/90% D2O, the new sets of 1H-NMR signals of both the dpa and p-cym ligand were detected (e.g., at 7.90 ppm for C4–H or at 2.00 ppm for C20–H in the case of the complex 1). The formation of these new signals is most likely connected with the hydrolysis of the original complexes, showing in the formation of the [Ru(η6-p-cym)(dpa)(H2O)]2+ and/or [Ru(η6-p-cym)(dpa)(OH)]+ species [2]. The integral intensity ratios of the signals of the initial halogenido complexes (1–3) and their hydrolyzed forms observed after 48 h of standing at ambient temperature (Figure S2) equaled approximately 1:3 (for 1), 2:3 (for 2) and 3:2 (for 3). In other words, 75% (1), 60% (2) and 40% (3) of the studied halogenido complexes hydrolyzed in the used mixture of solvents after 48 h of standing at ambient temperature. The evidence that the new 1H-NMR signals detected in the spectra of the complexes 1–3 dissolved in a mixture of 10% MeOD-d4/90% D2O belong to the hydrolyzed complexes was obtained by the addition of 2 molar equivalents of KCl (for 1), KBr (for 2) or KI (for 3) to the appropriate equilibrated solutions, which overturned the hydrolysis progress, resulting in disappearance of the signals of hydrolysates after next 24 h of standing at ambient temperature (Figure S2).
Glutathione (GSH) is a naturally occurring tripeptide (Glu–Cys–Gly), known to be responsible for the intracellular detoxification of various transition metals [31], including ruthenium [32]. Importantly, it has been reported that the decrease in the GSH level of cancer cells induced by co-application of a γ-glutamylcysteine synthetase inhibitor, l-buthionine sulfoximine (l-BSO), led to the cytotoxicity enhancement for similar half-sandwich Ru(II) complexes [3], thus indicating the important role of GSH for cytotoxicity of prospective anticancer ruthenium complexes. That is why similar experiments, as described above, were performed for complexes 1–5 dissolved in 10% MeOD-d4/90% D2O, with an addition of 2 molar equivalents of GSH. However, no evidence was obtained for the formation of the GS–Ru adducts of the studied halogenido complexes with GSH even after 48 h of standing at ambient temperature, because the 1H-NMR spectra of the mixtures of complexes 1–3 with GSH contained only the signals of the initial complexes (1–3), their hydrolysates (as described above) and those of free GSH (e.g., at 4.45 ppm and 2.85 ppm for Cys-α CH, and Cys-β CH2, respectively) (Figure 5).
Regarding the carboxylato complexes 4 and 5, their hydrolysis was connected with a release of the appropriate O-donor ligands, resulting in the complex species [Ru(η6-p-cym)(dpa)(H2O)]2+ and free carboxylates (Figure 6). The positions of 1H-NMR signals of the formed complex species (e.g., at 7.89 ppm for C4–H or at 2.01 ppm for C20–H for the hydrolyzed form of the complex 4) were consistent with those of the hydrolyzed halogenido complexes (see above), which strongly suggested the same composition of the complex species (most likely aqua complexes [Ru(η6-p-cym)(dpa)(H2O)]2+) formed by the hydrolysis of all the complexes 1–5. Further, the signals of the released carboxylato ligands appeared in the 1H-NMR spectra with the δ values well-correlating with free carboxylate anions (Figure 6). As for the valproato complex 4, the triplet of the terminal methyl groups (i.e., C25–H) of the VP ligand showed at 0.62 ppm in the 1H-NMR spectra recorded on the fresh 10% MeOD-d4/90% D2O solutions. Together with this signal, another triplet was detected at 0.78 ppm, whose integral intensity increased in time and whose position correlated with that of free valproate(1–) anion (0.78 ppm in the same mixture of solvents), thus this signal can be unambiguously assigned to the released VP ligand. Regarding the 4-phenylbutyrato complex 5, the 1H-NMR multiplets of the aliphatic hydrogens of the PB ligand appeared at 1.65, 2.17 and 2.25 ppm, for the fresh 10% MeOD-d4/90% D2O solutions of complex 5 and its mixture with GSH. A hydrolytic release of the PB ligand led to the changes of these positions to 1.77, 2.10 and 2.54 ppm, which correlated well with the positions of these signals detected in the spectrum of free 4-phenylbutyrate (the experiment performed with PBA in 10% MeOD-d4/90% D2O).
Interestingly, the carboxylato complexes 4 and 5 differed markedly one from another, in connection with the hydrolysis process. It has been observed that ca. 90% of the PB-containing complex 5 hydrolyzed after 48 h of standing at ambient temperature, while the valproato complex 4 was more stable and only ca. 25% hydrolyzed (Figure 7). Remarkably, although no signs of interactions of the carboxylato complexes (or their hydrolysates) with GSH were observed in the acquired 1H-NMR spectra, the presence of GSH in the mixtures with complexes 4 or 5 enhanced the release of the appropriate carboxylato ligand up to ca. 98% for both complexes 4 and 5 after 48 h of standing at ambient temperature (Figure 7).

2.4. In Vitro Cytotoxicity

In this work, the structure of the recently reported complex [Ru(η6-p-cym)(dpa)Cl]PF6 (1 in this work) [10,11] was modified by the replacement of the chlorido ligand by either bromido (2) or iodido (3) ones (known approach [3,17]), or by valproato (4) or 4-phenylbutyrato (5) ones (innovative approach). Complex 1, recently reported as cytotoxic against the MCF-7 cells (IC50 = 40.8 µM) [11], did not show any cytotoxicity in this work, up to the highest tested concentration (IC50 > 100 µM) on the A2780 cells. Similarly, the different sensitivity of various types of cancer cells was reported for the Ru(II) half-sandwich complex [Ru(η6-p-cym)(L6)Cl]PF6 containing 2-pyridylpropylimine (L6), which was inactive against the A2780 cells (IC50 > 200 µM) [33], but showed moderate activity at the MG63 human osteosarcoma cells (IC50 = 88.5 µM) [34]. The replacement of the chlorido ligand of the inactive complex 1 by the bromido (for 2) or iodido (for 3) ones did not provide potent Ru(II) complexes. Recently, similar half-sandwich Ru(II) bromido [17] and iodido [3] complexes were described in the literature as in vitro cytotoxic against the A2780 cells, with even higher activity against some of the used cell lines as compared with their chlorido analogues. In particular, complex [Ru(η6-p-cym)(L7)Br] is more potent (IC50 = 2.9 µM) than its chlorido analog [Ru(η6-p-cym)(L7)Cl] (IC50 = 4.6 µM) against the NCI-H460 non-small cell lung carcinoma; HL7 = 5,7-diiodo-8-quinoline [17]. Regarding iodido complexes, cytotoxicity of the [Ru(η6-p-cym)(L1)Cl]PF6 complex against the A2780 cells (IC50 = 16.2 µM) was lower than for the iodido complex [Ru(η6-p-cym)(L1)I]PF6 (IC50 = 3.0 µM) [3]. Finally and surprisingly, no activity was detected at the used A2780 cells for the Ru(II) carboxylato complexes 4 and 5, bearing the biologically active O-donor ligands themselves.

3. Materials and Methods

3.1. Materials

The chemicals (RuCl3∙xH2O, 2,2′-dipyridylamine, valproic acid, 4-phenylbutyric acid, sodium hydroxide, silver trifluoromethanesulfonate (silver triflate), potassium chloride, potassium bromide, potassium iodide, ammonium hexafluorophosphate, reduced glutathione (GSH)) and solvents (methanol, diethyl ether, n-hexane, dichloromethane, DMSO-d6, MeOD-d4, D2O) were supplied by VWR International (Stříbrná Skalice, Czech Republic), Sigma-Aldrich (Prague, Czech Republic), Fisher Scientific (Pardubice, Czech Republic), Litolab (Chudobín, Czech Republic) and Precious Metals Online (University of Wollongong, Wollongong, Australia).

3.2. Syntheses

[Ru(µ-Cl)(η6-p-cym)Cl]2 was prepared according to the reported synthetic procedure performed in the microwave reactor [35]. Silver valproate (Ag(VP)) and silver 4-phenylbutyrate (Ag(PB)) were obtained by the neutralization of the methanolic solutions of valproic or 4-phenylbutyric acid with the stoichiometric amount of 1 M NaOH (5 min of stirring at ambient temperature) followed by the addition of 1 molar equivalent of silver triflate (5 min of stirring at ambient temperature in the dark).

3.2.1. Synthesis of [Ru(η6-p-cym)(dpa)Cl]PF6 (1)

The mixture of [Ru(µ-Cl)(η6-p-cym)Cl]2 (0.5 mmol) and dpa (1.0 mmol) in methanol (15 mL) reacted in a microwave reaction system for 1 min at 100 °C, leading to the color change from orange-red to yellow. The obtained solution of [Ru(η6-p-cym)(dpa)Cl]Cl (1*) was cooled to the ambient temperature and NH4PF6 (2.5 mmol) was added. The yellow precipitate of the complex 1 (Figure 8) was collected by filtration, washed with methanol (1 × 2 mL) and diethyl ether (3 × 2 mL), and dried under vacuum in desiccator. A yield was ca. 85% (related to the starting Ru(II) dimer). Anal. Calcd. for RuC20H23N3ClPF6: C, 40.93; H, 3.95; N, 7.16%; found: C, 40.86; H, 3.97; N, 6.95%. 1H-NMR (DMSO-d6, ppm): δ 10.87 (s, N2–H, 1H), 8.55 (d, J = 5.5 Hz, C6–H, 2H), 7.97 (t, J = 7.8 Hz, C4–H, 2H), 7.22 (m, C3–H, C5–H, 4H), 5.73 (d, J = 6.4 Hz, C13–H, C15–H, 2H), 5.56 (d, J = 6.4 Hz, C12–H, C16–H, 2H), 2.50 (C17–H), 1.84 (s, C20–H, 3H), 1.13 (d, J = 7.3 Hz, C18–H, C19–H, 6H). 1H-NMR (MeOD-d4, ppm): δ 8.63 (d, J = 5.5 Hz, C6–H, 2H), 7.93 (t, J = 7.6 Hz, C4–H, 2H), 7.21 (m, C3–H, C5–H, 4H), 5.67 (d, J = 6.2 Hz, C13–H, C15–H, 2H), 5.57 (d, J = 6.2 Hz, C12–H, C16–H, 2H), 2.62 (sep, J = 6.9 Hz, C17–H), 2.10 (s, C20–H, 3H), 1.22 (d, J = 6.9 Hz, C18–H, C19–H, 6H). 13C-NMR (DMSO-d6, ppm): δ 154.6, 152.4, 140.5, 119.2, 113.8, 105.4, 99.7, 85.1, 83.8, 30.3, 21.7, 17.7. ESI + MS (methanol, m/z): 442.0 (calc. 442.0; 50%; [Ru(p-cym)(dpa)Cl]+), 406.2 (calc. 406.1; 100%; [Ru(p-cym)(dpa–H)]+). FTIR (νATR/cm−1): 448w, 463w, 533m, 641w, 677w, 762s, 827vs, 878m, 966w, 1026w, 1058w, 1092w, 1125w, 1161m, 1233w, 1279w, 1341m, 1376w, 1392w, 1437s, 1464s, 1491w, 1523w, 1582m, 1625s, 2961m, 2980m, 3025m, 3088m, 3134m, 3192m, 3223m, 3262m.

3.2.2. Synthesis of [Ru(η6-p-cym)(dpa)Br]PF6 (2)

[Ru(η6-p-cym)(dpa)Cl]Cl (1*; 0.1 mmol), prepared as described above for 1 and further used in situ, was left to interact with silver triflate (0.2 mmol) at ambient temperature in the dark (under aluminum foil) for 1 h. The white precipitate of AgCl was filtered off and 0.25 mmol of KBr was added to the obtained pure yellow filtrate. NH4PF6 (0.5 mmol) was added to the obtained orange solution after 3 h of stirring at ambient temperature. The light orange precipitate of the complex 2 (Figure 9) was collected, washed with methanol (1 × 1 mL) and diethyl ether (3 × 2 mL) and dried under vacuum in desiccator. A yield was ca. 70% (related to the starting Ru(II) dimer). Anal. Calcd. for RuC20H23N3BrPF6: C, 38.05; H, 3.67; N, 6.66%; found: C, 37.82; H, 3.67; N, 6.35%. 1H-NMR (DMSO-d6, ppm): δ 10.88 (s, N2–H, 1H), 8.62 (d, J = 5.5 Hz, C6–H, 2H), 7.96 (t, J = 7.3 Hz, C4–H, 2H), 7.20 (m, C3–H, C5–H, 4H), 5.75 (d, J = 6.4 Hz, C13–H, C15–H, 2H), 5.68 (d, J = 6.4 Hz, C12–H, C16–H, 2H), 2.50 (C17–H), 2.06 (s, C20–H, 3H), 1.13 (d, J = 6.4 Hz, C18–H, C19–H, 6H). 13C-NMR (DMSO-d6, ppm): δ 155.7, 152.4, 140.5, 119.2, 113.8, 106.1, 99.5, 85.5, 83.7, 30.5, 21.7, 18.1. ESI + MS (methanol, m/z): 488.0 (calc. 488.0; 100%; [Ru(p-cym)(dpa)Br]+), 406.2 (calc. 406.1; 60%; [Ru(p-cym)(dpa–H)]+). FTIR (νATR/cm−1): 464w, 532m, 555s, 639w, 677w, 762s, 828vs, 877m, 1024w, 1057w, 1161m, 1233w, 1342m, 1376w, 1392w, 1436s, 1465s, 1582m, 1625m, 2978w, 3023w, 3088m, 3133m, 1392m, 3223m, 3260w.

3.2.3. Synthesis of [Ru(η6-p-cym)(dpa)I]PF6 (3)

The complex 3 (Figure 10) was prepared as described for the complex 2, with KI used instead of KBr. A yield of orange product was ca. 70% (related to the starting Ru(II) dimer). Anal. Calcd. for RuC20H23N3IPF6: C, 35.41; H, 3.42; N, 6.19%; found: C, 35.42; H, 3.60; N, 5.99%. 1H-NMR (DMSO-d6, ppm): δ 10.89 (s, N2–H, 1H), 8.71 (br, C6–H, 2H), 7.94 (br, C4–H, 2H), 7.18 (m, C3–H, C5–H, 4H), 5.75 (m, C12–H, C13–H, C15–H, C16–H, 4H), 2.50 (C17–H), 2.17 (s, C20–H, 3H), 1.12 (br, C18–H, C19–H, 6H). 13C-NMR (DMSO-d6, ppm): δ 157.3, 152.3, 140.4, 119.1, 113.9, 107.4, 99.3, 86.0, 83.6, 30.8, 21.8, 18.9. ESI + MS (methanol, m/z): 534.0 (calc. 534.0; 100%; [Ru(p-cym)(dpa)I]+), 406.2 (calc. 406.1; 40%; [Ru(p-cym)(dpa–H)]+). FTIR (νATR/cm−1): 452w, 462w, 530w, 555s, 636w, 672w, 745m, 831vs, 880m, 1033w, 1059w, 1122w, 1160m, 1233w, 1348m, 1382w, 1433m, 1468s, 1523w, 1584m, 1626m, 2933w, 2967w, 3045w, 3092w, 3224w, 3253w, 3371s.
Recrystallization of the complex 3 from the dichloromethane/n-hexane mixture of solvents provided the crystals suitable for a single-crystal X-ray analysis.

3.2.4. Synthesis of [Ru(η6-p-cym)(dpa)(VP)]PF6 (4)

The complex 1 (0.1 mmol) was dissolved in methanol (50 mL) and 0.35 mmol of Ag(VP) was added. The mixture of the formed AgCl and unreacted Ag(VP) was filtered off after the overnight stirring in the dark (under aluminum foil) at ambient temperature, and NH4PF6 was added (0.5 mmol). Then the reaction mixture was evaporated (using the nitrogen gas) until the light yellow solid precipitated. The product (Figure 11) was collected by filtration, washed with methanol (1 × 1 mL) and diethyl ether (3 × 2 mL) and dried under vacuum in desiccator. The yield was ca. 65% (related to the starting complex 1). Anal. Calcd. for RuC28H38N3O2PF6: C, 48.41; H, 5.51; N, 6.05%; found: C, 48.03; H, 5.81; N, 6.11%. 1H-NMR (DMSO-d6, ppm): δ 10.83 (s, N2–H, 1H), 8.73 (d, J = 5.5 Hz, C6–H, 2H), 7.97 (t, J = 7.6 Hz, C4–H, 2H), 7.23 (d, J = 7.6 Hz, C3–H, C5–H, 2H), 5.84 (d, J = 5.9 Hz, C13–H, C15–H, 2H), 5.79 (d, J = 5.9 Hz, C12–H, C16–H, 2H), 2.40 (sep, J = 6.8 Hz, C17–H, 1H), 2.04 (m, C22–H, 1H), 1.93 (s, C20–H, 3H), 1.25 (m, C23–H, C23′–H, 4H), 1.08 (d, J = 6.2, C18–H, C19–H, 6H), 0.97 (m, C24–H, C24′–H, 4H), 0.62 (t, J = 7.2 Hz, C25–H, C25′–H, 6H). 13C-NMR (DMSO-d6, ppm): δ 181.1, 153.7, 152.0, 140.3, 128.6, 125.9, 118.7, 113.7, 103.8, 99.4, 83.7, 83.3, 46.7, 35.1, 30.0, 23.8, 21.6, 19.9, 17.3, 13.7. ESI + MS (methanol, m/z): 549.8 (calc. 550.2; 15%; [Ru(p-cym)(dpa)(VP)]+), 406.2 (calc. 406.1; 100%; [Ru(p-cym)(dpa–H)]+). FTIR (νATR/cm−1): 467w, 552w, 614w, 699w, 771m, 833vs, 881w, 1006w, 1029w, 1058w, 1165w, 1229w, 1242w, 1306w, 1362m, 1384m, 1437m, 1475s, 1533m, 1579s, 1619m, 1644m, 2872m, 2935s, 2957s, 3081w, 3192w, 3241w, 3299w.

3.2.5. Synthesis of [Ru(η6-p-cym)(dpa)(PB)]PF6 (5)

The complex 5 (Figure 12) was prepared as described for complex 4, with Ag(PB) used instead of Ag(VP). A yield was ca. 60% (related to the starting complex 1). Anal. Calcd. for RuC30H34N3O2PF6: C, 50.42; H, 4.80; N, 5.88%; found: C, 50.05; H, 4.80; N, 5.48%. 1H-NMR (DMSO-d6, ppm): δ 8.77 (d, J = 5.1 Hz, C6–H, 2H), 7.95 (t, J = 7.2 Hz, C4–H, 2H), 7.20 (m, C3–H, C5–H, 2H), 7.11 (m, C27–H, C28–H, C29–H, 3H), 6.92 (m, C26–H, C30–H, 2H), 5.86 (d, J = 6.3 Hz, C13–H, C15–H, 2H), 5.75 (d, J = 6.3 Hz, C12–H, C16–H, 2H), 2.40 (sep, J = 6.7 Hz, C17–H, 1H), 2.31 (t, J = 7.4 Hz, C22–H, 2H), 2.07 (t, J = 7.0 Hz, C24–H, 2H), 1.89 (s, C20–H, 3H), 1.67 (qui, J = 7.3 Hz, C23–H, 2H), 1.09 (d, J = 6.7 Hz, C18–H, C19–H, 6H). 13C-NMR (DMSO-d6, ppm): δ 179.0, 153.8, 152.3, 142.0, 140.5, 128.1, 125.6, 119.0, 114.1, 103.8, 99.6, 84.0, 83.7, 36.4, 34.6, 28.1, 24.0, 21.8, 17.5. ESI + MS (methanol, m/z): 569.8 (calc. 570.2; 10%; [Ru(p-cym)(dpa)(PB)]+), 406.2 (calc. 406.1; 100%; [Ru(p-cym)(dpa)]+). FTIR (νATR/cm−1): 439w, 494w, 538w, 555s, 648w, 663w, 701m, 759m, 781m, 830vs, 874w, 1029w, 1063w, 1082w, 1158w, 1224m, 1303m, 1349m, 1387s, 1413w, 1434m, 1467s, 1490w, 1530w, 1571m, 1615w, 1639w, 2867m, 2930m, 2967m, 3005w, 3065w, 3183w, 3184w, 3232w, 3287w.

3.3. Methods

1H, 13C, 1H–1H gs-COSY, 1H–13C gs-HMQC and 1H–13C gs-HMBC spectra were acquired for DMSO-d6 solutions at 298 K on a JEOL JNM-ECA 600II device at 600.00 MHz (1H) and 150.86 MHz (13C); gs = gradient selected, COSY = correlation spectroscopy, HMQC = heteronuclear multiple quantum coherence, HMBC = heteronuclear multiple bond coherence. The spectra were calibrated against the residual signals of the used solvent at 2.50 ppm (1H-NMR) and 39.52 ppm (13C-NMR) [36]. The splitting of the 1H-NMR signals is defined as s = singlet, d = doublet, t = triplet, qui = quintet, dt = doublet of triplets, br = broad band, m = multiplet. Electrospray ionization (ESI) mass spectra of the methanol solutions were obtained of on a LCQ Fleet Ion Trap mass spectrometer (Thermo Scientific; Qual Browser software, version 2.0.7; Waltham, MA, USA) in the positive ionization mode (ESI+). Elemental analysis (C, H, N) was performed using a Flash 2000 CHNS Elemental Analyzer (Thermo Scientific). FTIR spectra were recorded using Nexus 670 FT-IR (Thermo Nicolet) on an ATR diamond plate between 400 and 4000 cm−1. RP-HPLC experiments were performed using UHPLC-MS (Dionex/Thermo Scientific) mass spectrometer and an ReproSil-Pur Basic C18, 5 μm pore size, 200 × 4.6 mm. Mobile phase used was H2O 0.1% Htfa/MeCN at gradients of t = 0 min 10% B, t = 30 min 80% B, t = 40 min 80% B, t = 41 min 10% B, and t = 55 min 10% B over a 55 min period. Flow rate was 1 mL·min−1, and the detection wavelength was set at 254 nm. H2O and acetonitrile (MeCN) of HPLC grade were used for the RP-HPLC experiments with an addition of trifluoroacetic acid (Htfa).
A Monowave 300 (Anton PaarGmbH, Graz, Austria) microwave reactor was used for the synthesis of the starting dimeric Ru(II) compound as well as for the chlorido complexes 1* and 1 (30 mL microwave vials equipped with magnetic stirring bars).
A suitable single crystal of [Ru(η6-p-cym)(dpa)I]PF6 (3) was selected and placed on an D8 QUEST monocrystal diffractometer (Bruker, Billerica, MA, USA) with PHOTON 100 CMOS detector, using the Mo–Kα radiation (λ = 0.71075 Å). The APEX3 software package was used for data collection and reduction [37]. The structures were solved using a direct method and refined using the Bruker SHELXTL Software Package (Bruker) [38]. X-ray crystallographic data have been deposited in the Cambridge Crystallographic Data Centre (Cambridge, United Kingdom) under the accession number CCDC 1515628. The graphics were drawn and additional structural calculations were performed by DIAMOND (Version 4.0.3.; Crystal Impact GbR, Bonn, Germany) [39] and Mercury [40] software (Version 3.0; Cambridge Crystallographic Data Centre, Cambridge, United Kingdom).

3.4. 1H-NMR Studies of Aqueous Chemistry and Interactions with GSH

Complexes 1–5 were dissolved in 60 µL of MeOD-d4 and diluted with 540 µL of D2O to get the 1 mM solutions. The 1H-NMR spectra were recorded immediately after the preparation of the samples (0 h) and after 0.5, 1, 2, 4, 6, 24 and 48 h of standing at ambient temperature. After that, 5 molar equivalent of KCl (for 1), KBr (for 2) or KI (for 3) were added to the solutions and the 1H-NMR spectroscopy was carried out on the fresh solutions (0 h) and after 1, 6 and 24 h of standing at ambient temperature. Similar experiments were performed with an addition of GSH, as follows: 1–5 (amounts necessary for the final concentration of 1 mM) were dissolved in 60 µL of MeOD-d4 and 2 molar equivalent of GSH dissolved in 540 µL of D2O were added. The 1H-NMR spectra were acquired right after the preparation of the solutions (0 h) and after 0.5, 1, 2, 4, 6 and 24 h of standing at ambient temperature. The obtained 1H-NMR spectra were calibrated against the residual signal of D2O found at 4.85 ppm.

3.5. Cell Culture and In Vitro Cytotoxicity

The A2780 human ovarian carcinoma cells, purchased from the European Collection of Cell Cultures (ECACC), were cultured in RPMI-1640 medium supplemented with 10% of fetal calf serum, 1% of 2 mM glutamine and 1% penicillin/streptomycin, according to the ECACC instructions. The cells were grown at 37 °C and 5% CO2 in a humidified incubator as adherent monolayers.
The cultured A2780 cells were seated in the 96-well culture plates and pre-incubated in drug-free media at 37 °C for 24 h. After that, the cells were treated with the 0.01–100.0 μM solutions of complexes 1–5 and cisplatin (prepared by appropriate dilution of the fresh 100 mM stock solutions of the tested substances dissolved in DMF) for 24 h (exposure time) at 37 °C. Then, the solutions containing the tested compounds were removed and the cells were washed with drug-free medium and kept under drug-free medium for the next 72 h (recovery time). In parallel, the cells were treated with vehicle (0.1% DMF, v/v) and Triton X-100 (1%, v/v) to assess the minimal (100% viability) and maximal (0% viability) cell damage, respectively.
The in vitro cytotoxicity was assessed using an MTT assay and evaluated spectrophotometrically at 540 nm (Tecan Group Ltd., Männedorf, Switzerland). The cytotoxicity data were received from three independent experiments (each conducted in triplicate) using the cells from three different passages. The resulting IC50 values (µM) were calculated from viability curves and the results are presented as arithmetic mean ± SD.

4. Conclusions

A series of the half-sandwich ruthenium(II) complexes of the general formula [Ru(η6-p-cym)(dpa)X]PF6 (1–5), showing a pseudo-octahedral piano-stool geometry, has been prepared and fully characterized. The halogenido complexes 1–3 contain the chlorido, bromido, and iodido ligand, respectively. For the first time, we report on the organometallic ruthenium(II) complexes 4 and 5 containing the monodentate O-donor valproato (VP), and 4-phneylbutyrato (PB) ligand, respectively. The obtained results of the solution behavior in a water-containing solution clearly proved a release of the halogenido (for 1–3) and carboxylato (for 4 and 5) ligands used. The rate of release of the ligands is increased in the presence of the reduced glutathione. The complexes 1–5 did not show any cytotoxic effect in vitro up to the highest tested concentration (IC50 > 100 μM) against the A2780 human ovarian carcinoma cells.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/21/12/1725/s1.

Acknowledgments

The authors gratefully thank the Ministry of Education, Youth and Sports of the Czech Republic (projects LO1305 and CZ.1.05/2.1.00/19.0377) for the financial support. The authors also thank Lucie Hanousková for her help with the syntheses of the complexes, Kateřina Kubešová and Nikola Juračková for performing the in vitro cytotoxicity experiments, Bohuslav Drahoš for performing mass spectrometry experiments, Pavla Richterová for performing elemental analysis, and Alena Klanicová for recording the infrared spectra.

Author Contributions

P.S., Z.T. and Z.D. conceived and designed the experiments; P.S., Z.T. and R.K. performed the experiments; P.S., Z.T., R.K. and Z.D. analysed the data; Z.T. and Z.D. contributed reagents/materials/analysis tools; P.S. and Z.T. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Murray, B.S.; Babak, M.V.; Hartinger, C.G.; Dyson, P.J. The development of RAPTA compounds for the treatment of tumors. Coord. Chem. Rev. 2016, 306, 86–114. [Google Scholar] [CrossRef]
  2. Süss-Fink, G. Arene ruthenium complexes as anticancer agents. Dalton Trans. 2010, 39, 1673–1688. [Google Scholar] [CrossRef] [PubMed]
  3. Romero-Canelón, I.; Salassa, L.; Sadler, P.J. The contrasting activity of iodido versus chlorido ruthenium and osmium arene azo- and imino-pyridine anticancer complexes: Control of cell selectivity, cross-resistance, p53 dependence, and apoptosis pathway. J. Med. Chem. 2013, 56, 1291–1300. [Google Scholar] [CrossRef] [PubMed]
  4. Chiu, C.T.; Wang, Z.; Hunsberger, J.G.; Chuang, D.M. Therapeutic potential of mood stabilizers lithium and valproic acid: Beyond bipolar disorder. Pharmacol. Rev. 2013, 65, 105–142. [Google Scholar] [CrossRef] [PubMed]
  5. Iannitti, T.; Palmieri, B. Clinical and experimental applications of sodium phenylbutyrate. Drugs R&D 2011, 11, 227–249. [Google Scholar]
  6. Alessio, M.; Zanellato, I.; Bonarrigo, I.; Gabano, E.; Ravera, M.; Osella, D. Antiproliferative activity of Pt(IV)-bis(carboxylato) conjugates on malignant pleural mesothelioma cells. J. Inorg. Biochem. 2013, 129, 52–57. [Google Scholar] [CrossRef] [PubMed]
  7. Kašpárková, J.; Kostrhunová, H.; Nováková, O.; Křikavová, R.; Vančo, J.; Trávníček, Z.; Brabec, V. A photoactivatable platinum(IV) complex targeting genomic DNA and histone deacetylases. Angew. Chem. Int. Ed. 2015, 54, 14478–14482. [Google Scholar] [CrossRef] [PubMed]
  8. Novohradsky, V.; Zerzankova, L.; Stepankova, J.; Vrana, O.; Raveendran, R.; Gibson, D.; Kasparkova, J.; Brabec, V. Antitumor platinum(IV) derivatives of oxaliplatin with axial valproato ligands. J. Inorg. Biochem. 2014, 140, 72–79. [Google Scholar] [CrossRef] [PubMed]
  9. Raveendran, R.; Braude, J.P.; Wexselblatt, E.; Novohradsky, V.; Stuchlikova, O.; Brabec, V.; Gandin, V.; Gibson, D. Pt(IV) derivatives of cisplatin and oxaliplatin with phenylbutyrate axial ligands are potent cytotoxic agents that act by several mechanisms of action. Chem. Sci. 2016, 7, 2381–2391. [Google Scholar] [CrossRef]
  10. Romain, C.; Gaillard, S.; Elmkaddem, M.K.; Toupet, L.; Fischmeister, C.; Thomas, C.M.; Renaud, J.L. New dipyridylamine ruthenium complexes for transfer hydrogenation of aryl ketones in water. Organometallics 2010, 29, 1992–1995. [Google Scholar] [CrossRef]
  11. Kaluderović, G.N.; Krajnović, T.; Momcilovic, M.; Stosic-Grujicic, S.; Mijatović, S.; Maksimović-Ivanić, D.; Hey-Hawkins, E. Ruthenium(II) p-cymene complex bearing 2,2′-dipyridylamine targets caspase 3 deficient MCF-7 breast cancer cells without disruption of antitumor immune response. J. Inorg. Biochem. 2015, 153, 315–321. [Google Scholar] [CrossRef] [PubMed]
  12. Auzias, M.; Mattsson, J.; Therrien, B.; Süss-Fink, G. New dinuclear Ru2(CO)4 sawhorse-type complexes containing bridging carboxylato ligands. Z. Anorg. Allg. Chem. 2009, 635, 115–119. [Google Scholar] [CrossRef]
  13. Stodt, R.; Gencaslan, S.; Müller, I.M.; Sheldrick, W.S. Preparation, reactivity and peptide labelling Properties of (η6-arene)ruthenium(II) complexes with pendant carboxylate groups. Eur. J. Inorg. Chem. 2003, 1873–1882. [Google Scholar] [CrossRef]
  14. Stringer, T.; Therrien, B.; Hendricks, D.T.; Guzgay, H.; Smith, G.S. Mono- and dinuclear (η6-arene) ruthenium(II) benzaldehyde thiosemicarbazone complexes: Synthesis, characterization and cytotoxicity. Inorg. Chem. Commun. 2011, 14, 956–960. [Google Scholar] [CrossRef]
  15. Gupta, G.; Gloria, S.; Das, B.; Rao, K.M. Study of new mononuclear platinum group metal complexes containing η5 and η6-carbocyclic ligands and nitrogen based derivatives and formation of helices due to N–H···Cl interactions. J. Mol. Struct. 2010, 979, 205–213. [Google Scholar] [CrossRef]
  16. Kumar, P.; Singh, A.K.; Pandey, R.; Li, P.Z.; Singh, S.K.; Xu, Q.; Pandey, D.S. Synthesis, characterization and reactivity of arene ruthenium compounds based on 2,2′-dipyridylamine and di-2-pyridylbenzylamine and their applications in catalytic hydrogen transfer of ketones. J. Organomet. Chem. 2010, 695, 2205–2212. [Google Scholar] [CrossRef]
  17. Kubanik, M.; Holtkamp, H.; Sohnel, T.; Jamieson, S.M.F.; Hartinger, C.G. Impact of the halogen substitution pattern on the biological activity of organoruthenium 8-hydroxyquinoline anticancer agents. Organometallics 2015, 34, 5658–5668. [Google Scholar] [CrossRef]
  18. Pouchert, C.J. The Aldrich Library of Infrared Spectra (Ed. III); Aldrich Chemical Co.: Milwaukee, WI, USA, 1981. [Google Scholar]
  19. Govindaswamy, P.; Mozharivskyj, Y.A.; Kollipara, M.R. Syntheses, spectral and structural studies of Schiff base complexes of η5-pentamethylcyclopentadienyl rhodium and iridium. Polyhedron 2005, 24, 1710–1716. [Google Scholar] [CrossRef]
  20. Petruševski, G.; Naumov, P.; Jovanovski, G.; Bogoeva-Gaceva, G.; Ng, S.W. Solid-state forms of sodium valproate, active component of the anticonvulsant drug epilim. ChemMedChem 2008, 3, 1377–1386. [Google Scholar] [CrossRef] [PubMed]
  21. Brittain, H.G. Vibrational spectroscopic studies of cocrystals and salts. 3. Cocrystal products formed by benzenecarboxylic acids and their sodium salts. Cryst. Growth Des. 2010, 10, 1990–2003. [Google Scholar] [CrossRef]
  22. Griffith, D.M.; Duff, B.; Suponitsky, K.Y.; Kavanagh, K.; Morgan, M.P.; Egan, D.; Marmion, C.J. Novel trans-platinum complexes of the histone deacetylase inhibitor valproic acid; synthesis, in vitro cytotoxicity and mutagenicity. J. Inorg. Biochem. 2011, 105, 793–799. [Google Scholar] [CrossRef] [PubMed]
  23. Gupta, G.; Therrien, B.; Kim, J. [Bis-(2-pyrid-yl-κN)amine]chlorido(η6-hexa-methyl-benzene)-ruthenium(II) hexa-fluorido-phosphate dichloro-methane solvate. Acta Cryst. 2011, E67, m548. [Google Scholar]
  24. Allen, F.H. The Cambridge Structural Database: A quarter of a million crystal structures and rising. Acta Cryst. 2002, B58, 380–388. [Google Scholar] [CrossRef]
  25. Betanzos-Lara, S.; Novakova, O.; Deeth, R.J.; Pizarro, A.M.; Clarkson, G.J.; Liskova, B.; Brabec, V.; Sadler, P.J.; Habtemariam, A. Bipyrimidine ruthenium(II) arene complexes: Structure, reactivity and cytotoxicity. J. Biol. Inorg. Chem. 2012, 17, 1033–1051. [Google Scholar] [CrossRef] [PubMed]
  26. Sadler, P.; Morris, R.; Parsons, S.; Messenger, D. CCDC 276854: Experimental Crystal Structure Determination. CSD Commun. 2005. [Google Scholar] [CrossRef]
  27. Jolley, K.E.; Clarkson, G.J.; Wills, M. Tethered Ru(II) catalysts containing a Ru–I bond. J. Organomet. Chem. 2015, 776, 157–162. [Google Scholar] [CrossRef]
  28. Jamieson, E.R.; Lippard, S.J. Structure, recognition, and processing of Cisplatin−DNA adducts. Chem. Rev. 1999, 99, 2467–2498. [Google Scholar] [CrossRef] [PubMed]
  29. Morris, R.E.; Aird, R.E.; del Socorro Murdoch, P.; Chen, H.; Cummings, J.; Hughes, N.D.; Parsons, S.; Parkin, A.; Boyd, G.; Jodrell, D.I.; et al. Inhibition of cancer cell growth by ruthenium(II) arene complexes. J. Med. Chem. 2001, 44, 3616–3621. [Google Scholar] [CrossRef] [PubMed]
  30. Štarha, P.; Hanousková, L.; Trávníček, Z. Organometallic half-sandwich dichloridoruthenium(II) complexes with 7-azaindoles: Synthesis, characterization and elucidation of their anticancer inactivity against A2780 cell line. PLoS ONE 2015, 10, e0143871. [Google Scholar]
  31. Reedijk, J. Why does cisplatin reach guanine-N7 with competing S-donor ligands available in the cell? Chem. Rev. 1999, 99, 2499–2510. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, F.; Xu, J.; Habtemariam, A.; Bella, J.; Sadler, P.J. Competition between glutathione and guanine for a ruthenium(II) arene anticancer complex: Detection of a sulfenato intermediate. J. Am. Chem. Soc. 2005, 127, 17734–17743. [Google Scholar] [CrossRef] [PubMed]
  33. Govender, P.; Renfrew, A.K.; Clavel, C.M.; Dyson, P.J.; Therrien, B.; Smith, G.S. Antiproliferative activity of chelating N,O- and N,N-ruthenium(II) arene functionalised poly(propyleneimine) dendrimer scaffolds. Dalton Trans. 2011, 40, 1158–1167. [Google Scholar] [CrossRef] [PubMed]
  34. Makhubela, B.C.E.; Meyer, M.; Smith, G.S. Evaluation of trimetallic Ru(II)- and Os(II)-arene complexes as potential anticancer agents. J. Organomet. Chem. 2014, 772–773, 229–241. [Google Scholar] [CrossRef]
  35. Tönnemann, J.; Risse, J.; Grote, Z.; Scopelliti, R.; Severin, K. Efficient and rapid synthesis of chlorido-bridged half-sandwich complexes of ruthenium, rhodium, and iridium by microwave heating. Eur. J. Inorg. Chem. 2013, 4558–4562. [Google Scholar] [CrossRef]
  36. Gottlieb, H.E.; Kotlyar, V.; Nudelman, A. NMR chemical shifts of common laboratory solvents as trace impurities. J. Org. Chem. 1997, 62, 7512–7515. [Google Scholar] [CrossRef] [PubMed]
  37. Bruker. Apex3; Bruker AXS Inc.: Madison, WI, USA, 2015. [Google Scholar]
  38. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
  39. Brandenburg, K. Diamond Version 4.0.3; Crystal Impact GbR: Bonn, Germany, 2015. [Google Scholar]
  40. Macrae, C.F.; Bruno, I.J.; Chisholm, J.A.; Edgington, P.R.; McCabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; van de Streek, J.; Wood, P.A. Mercury: Visualization and analysis of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 1–5 are available from the authors.
Molecules 21 01725 g001 550

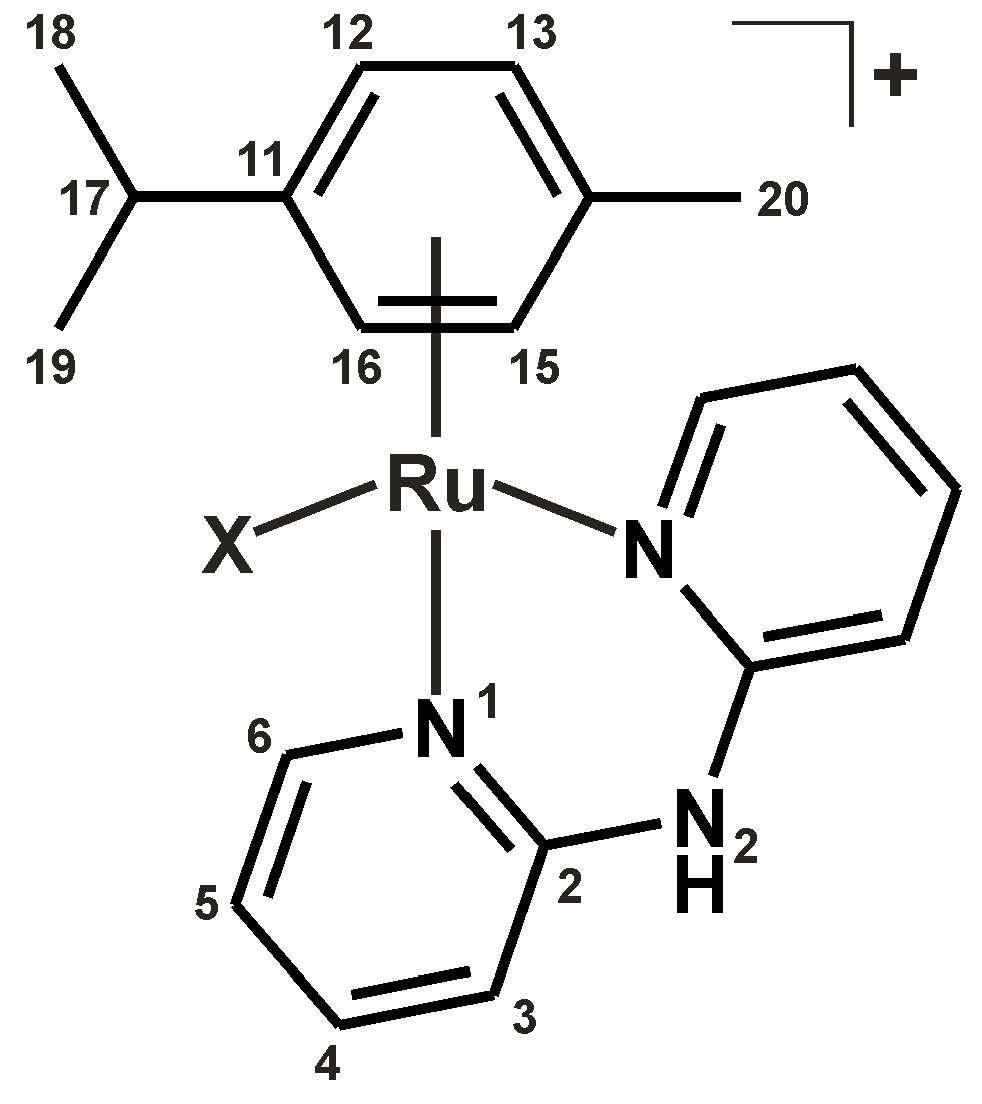

Figure 1. General structural formula of the studied complexes 1–5 given with the atom numbering scheme for the p-cym and dpa ligands; p-cym = p-cymene; dpa = 2,2′-dipyridylamine; X = Cl− (1), Br− (2), I− (3), valproate(1−) (4) or 4-phenylbutyrate(1−) (5).
Figure 1. General structural formula of the studied complexes 1–5 given with the atom numbering scheme for the p-cym and dpa ligands; p-cym = p-cymene; dpa = 2,2′-dipyridylamine; X = Cl− (1), Br− (2), I− (3), valproate(1−) (4) or 4-phenylbutyrate(1−) (5).
Molecules 21 01725 g001
Molecules 21 01725 g002 550
Figure 2. ESI+ mass spectra of the carboxylato complexes [Ru(η6-p-cym)(dpa)(VP)]PF6 (4; top) and [Ru(η6-p-cym)(dpa)(PB)]PF6 (5; bottom), given with a comparison of the experimental and simulated isotopic distributions of the [Ru(p-cym)(dpa)(VP)]+ and [Ru(p-cym)(dpa)(PB)]+ species (insets).
Figure 2. ESI+ mass spectra of the carboxylato complexes [Ru(η6-p-cym)(dpa)(VP)]PF6 (4; top) and [Ru(η6-p-cym)(dpa)(PB)]PF6 (5; bottom), given with a comparison of the experimental and simulated isotopic distributions of the [Ru(p-cym)(dpa)(VP)]+ and [Ru(p-cym)(dpa)(PB)]+ species (insets).
Molecules 21 01725 g002
Molecules 21 01725 g003 550

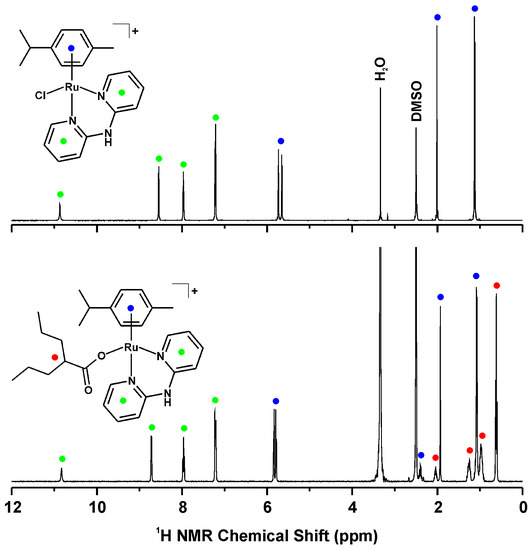

Figure 3. 1H-NMR spectra of [Ru(η6-p-cym)(dpa)Cl]PF6 (1; top) and [Ru(η6-p-cym)(dpa)VP]PF6 (4; bottom), given together with the general assignment of the observed signals, as follows; green dots for the dpa signals, blue dots for the p-cym signals and red dots for the VP signals.
Figure 3. 1H-NMR spectra of [Ru(η6-p-cym)(dpa)Cl]PF6 (1; top) and [Ru(η6-p-cym)(dpa)VP]PF6 (4; bottom), given together with the general assignment of the observed signals, as follows; green dots for the dpa signals, blue dots for the p-cym signals and red dots for the VP signals.
Molecules 21 01725 g003
Molecules 21 01725 g004 550

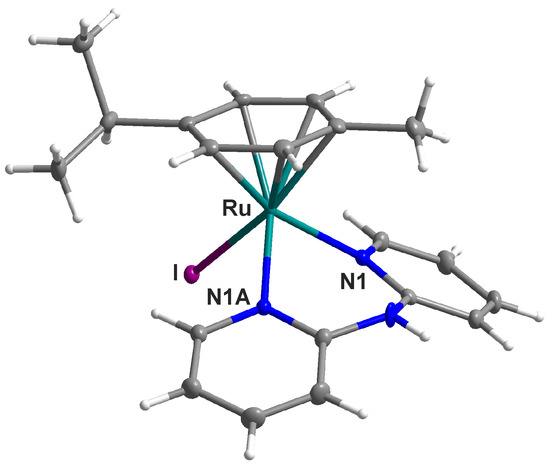

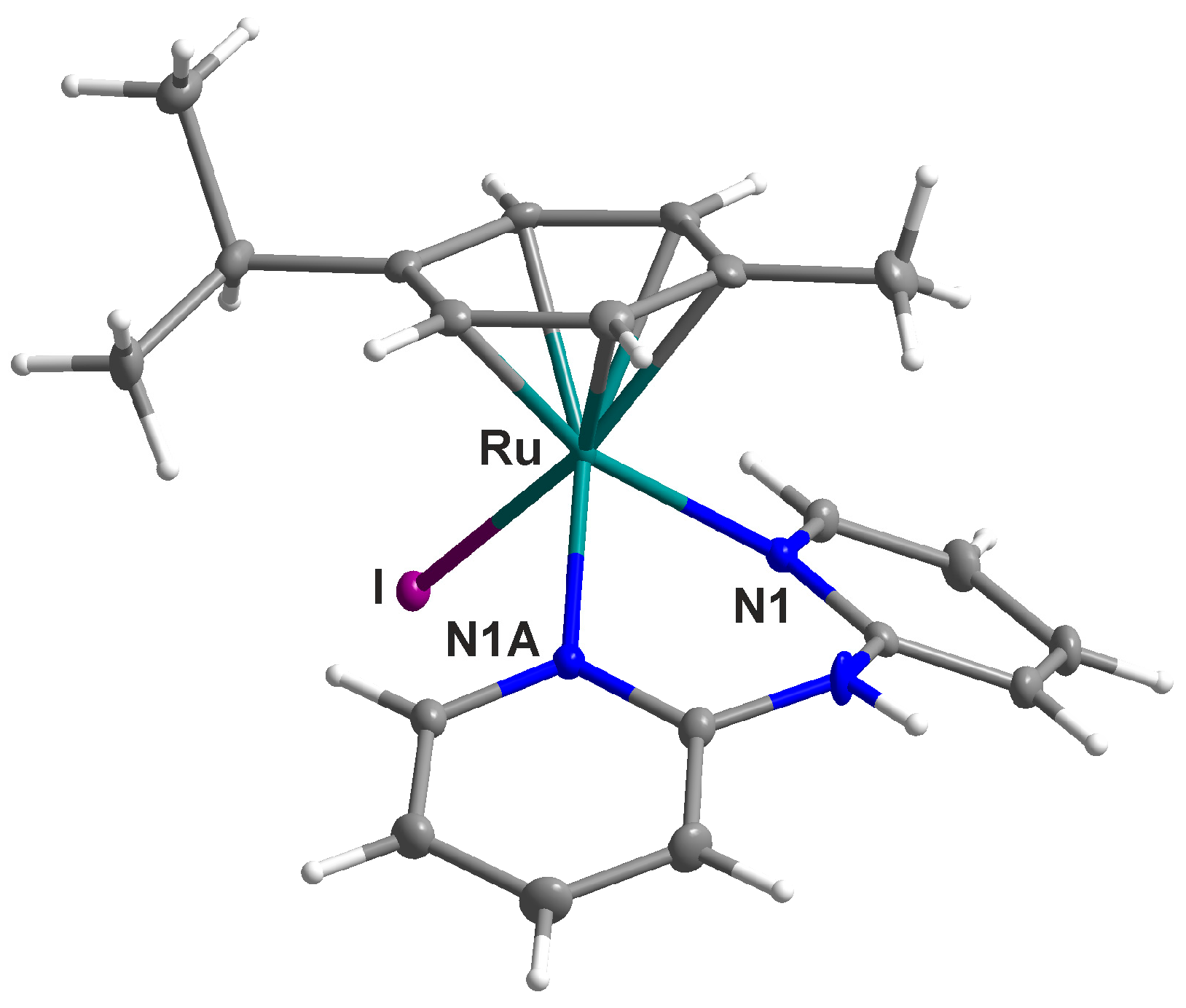

Figure 4. Molecular structure of [Ru(η6-p-cym)(dpa)I]PF6 (3). Non-hydrogen atoms are drawn as thermal ellipsoids at the 50% probability level. The PF6− counterion has been omitted for clarity.
Figure 4. Molecular structure of [Ru(η6-p-cym)(dpa)I]PF6 (3). Non-hydrogen atoms are drawn as thermal ellipsoids at the 50% probability level. The PF6− counterion has been omitted for clarity.
Molecules 21 01725 g004
Molecules 21 01725 g005 550

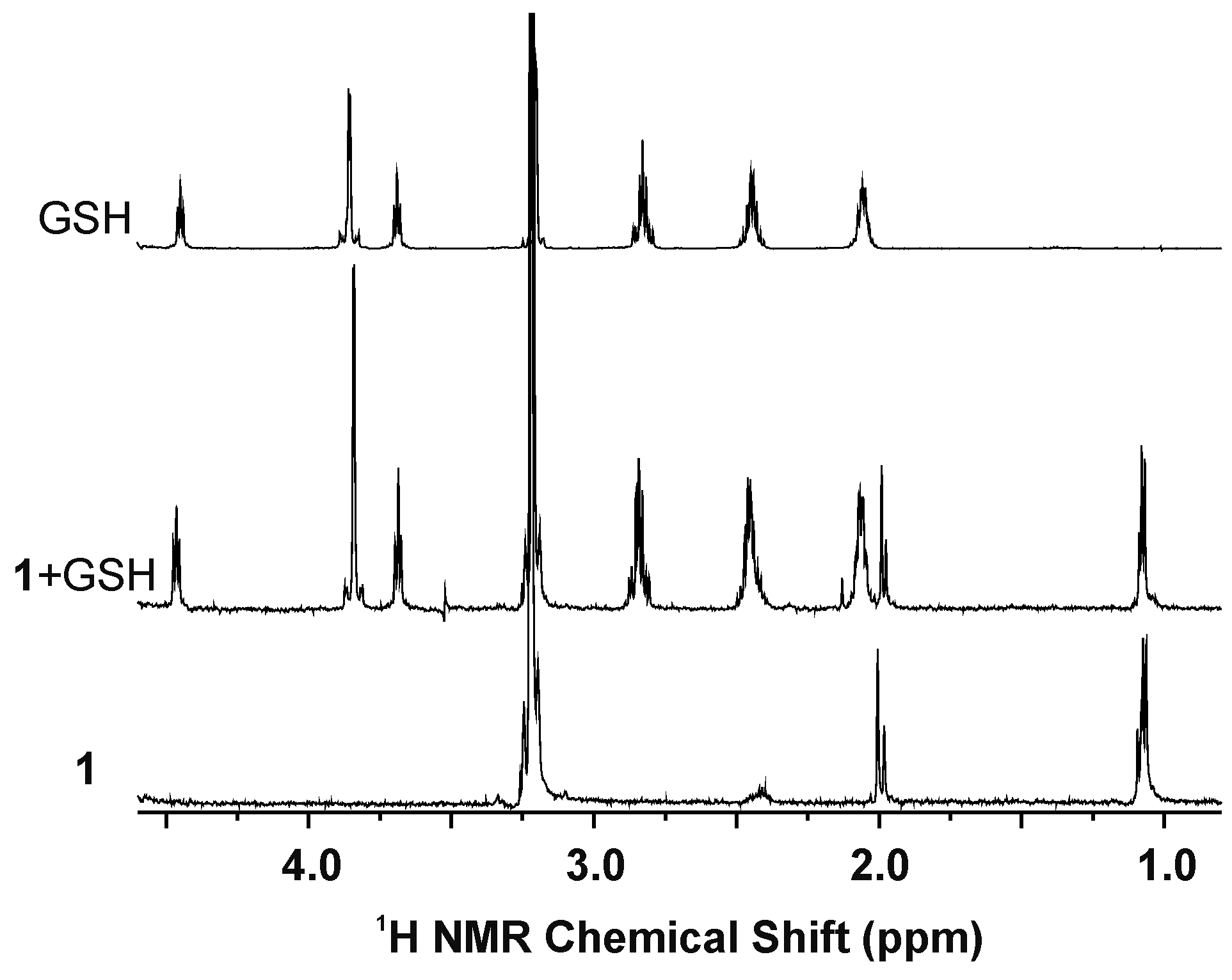

Figure 5. Parts of the 1H-NMR spectra of complex 1 and its mixture with 2 molar equivalents of the reduced glutathione (GSH), both after 48 h of standing at ambient temperature. 1H-NMR spectrum of free GSH is given for comparative purposes.
Figure 5. Parts of the 1H-NMR spectra of complex 1 and its mixture with 2 molar equivalents of the reduced glutathione (GSH), both after 48 h of standing at ambient temperature. 1H-NMR spectrum of free GSH is given for comparative purposes.
Molecules 21 01725 g005
Molecules 21 01725 g006 550

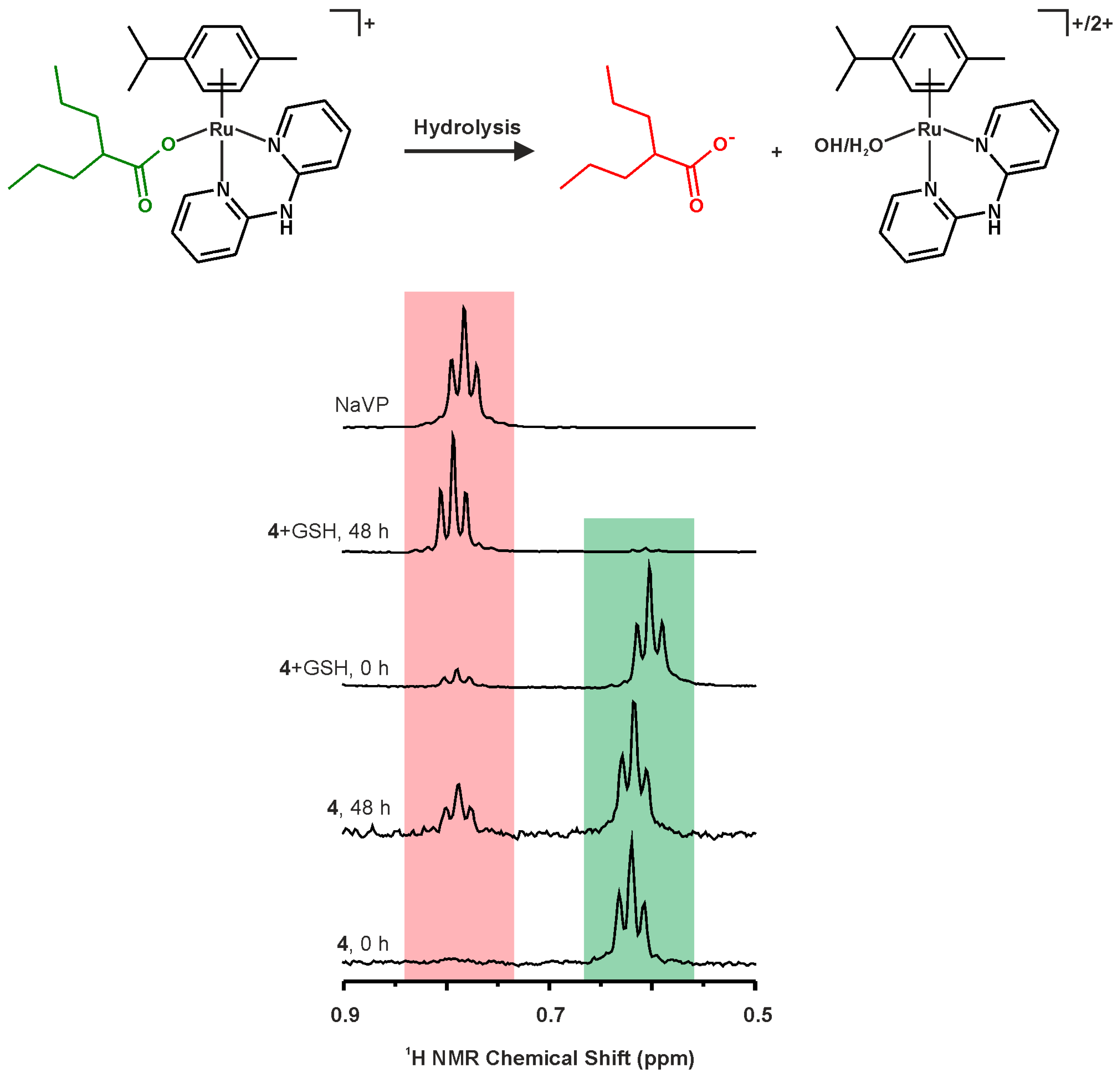

Figure 6. A schema of the hydrolysis of complex [Ru(η6-p-cym)(dpa)(VP)]PF6 (4) given together with the tentative compositions of the hydrolysates, i.e., the [Ru(η6-p-cym)(dpa)(H2O)]2+ and [Ru(η6-p-cym)(dpa)(OH)]+ species (top). 1H-NMR spectra of the representative signal of the terminal C25–H methyl group of released valproate(1–) anion (ca. 0.78 ppm; red) and the valproato ligand (ca. 0.62 ppm; green), as observed for complex 4, without or with the addition of the reduced glutathione (GSH) at different time points. 1H-NMR spectrum of free sodium valproate (NaVP) is given for comparative purposes (bottom).
Figure 6. A schema of the hydrolysis of complex [Ru(η6-p-cym)(dpa)(VP)]PF6 (4) given together with the tentative compositions of the hydrolysates, i.e., the [Ru(η6-p-cym)(dpa)(H2O)]2+ and [Ru(η6-p-cym)(dpa)(OH)]+ species (top). 1H-NMR spectra of the representative signal of the terminal C25–H methyl group of released valproate(1–) anion (ca. 0.78 ppm; red) and the valproato ligand (ca. 0.62 ppm; green), as observed for complex 4, without or with the addition of the reduced glutathione (GSH) at different time points. 1H-NMR spectrum of free sodium valproate (NaVP) is given for comparative purposes (bottom).
Molecules 21 01725 g006
Molecules 21 01725 g007 550

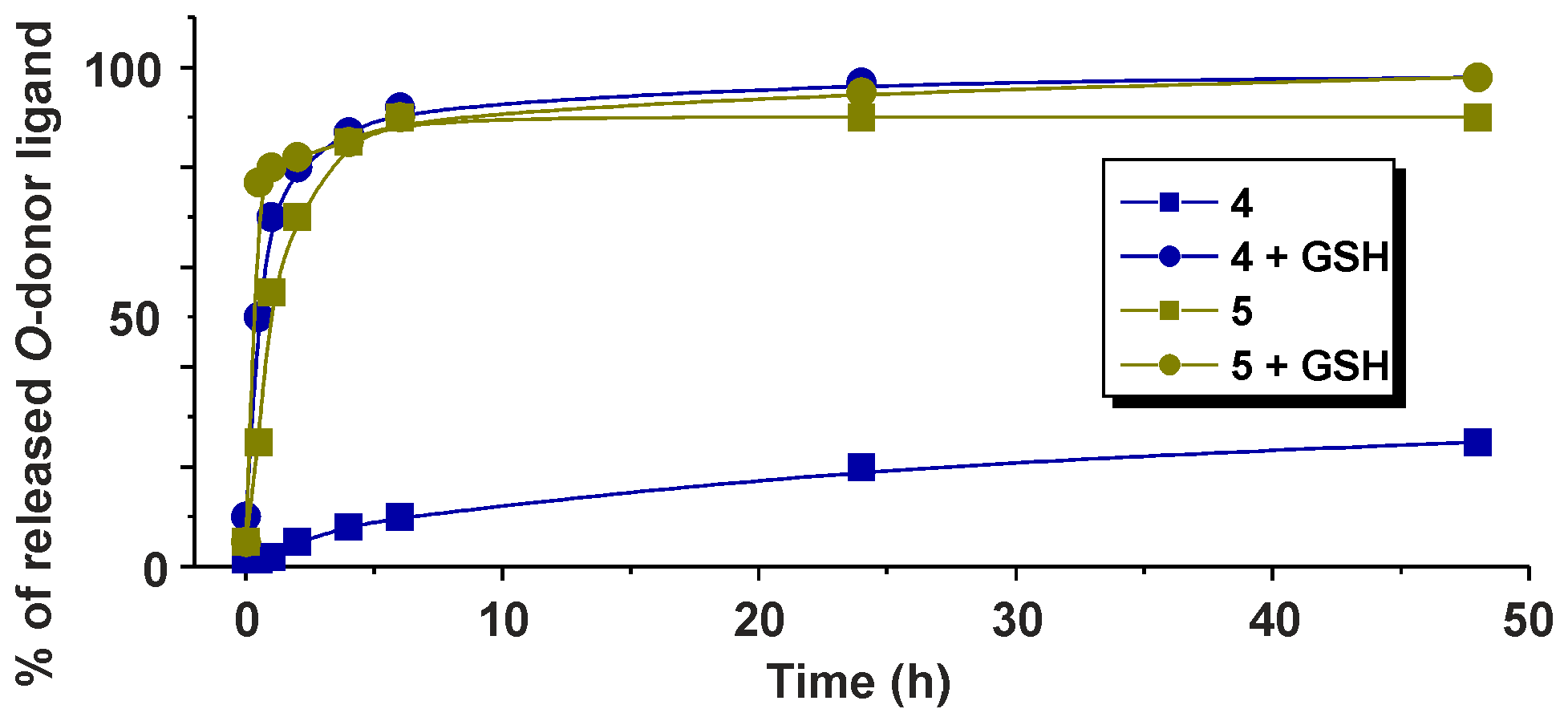

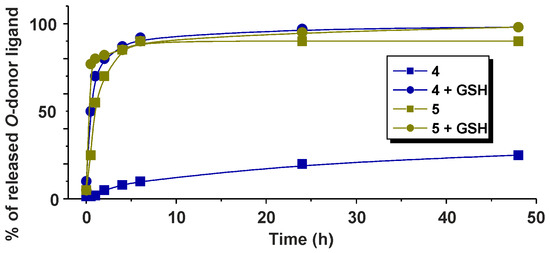

Figure 7. Progress of hydrolysis of the carboxylato complexes 4 (blue) and 5 (dark yellow), with (circles) or without (squares) the addition of 2 molar equivalents of the reduced glutathione (GSH). Complexes were dissolved in 10% MeOD-d4/90% D2O and the 1H-NMR spectra were recorded on the fresh solutions (0 h) and after 0.5, 1, 2, 4, 6, 24 and 48 h of standing at ambient temperature.
Figure 7. Progress of hydrolysis of the carboxylato complexes 4 (blue) and 5 (dark yellow), with (circles) or without (squares) the addition of 2 molar equivalents of the reduced glutathione (GSH). Complexes were dissolved in 10% MeOD-d4/90% D2O and the 1H-NMR spectra were recorded on the fresh solutions (0 h) and after 0.5, 1, 2, 4, 6, 24 and 48 h of standing at ambient temperature.
Molecules 21 01725 g007
Molecules 21 01725 g008 550

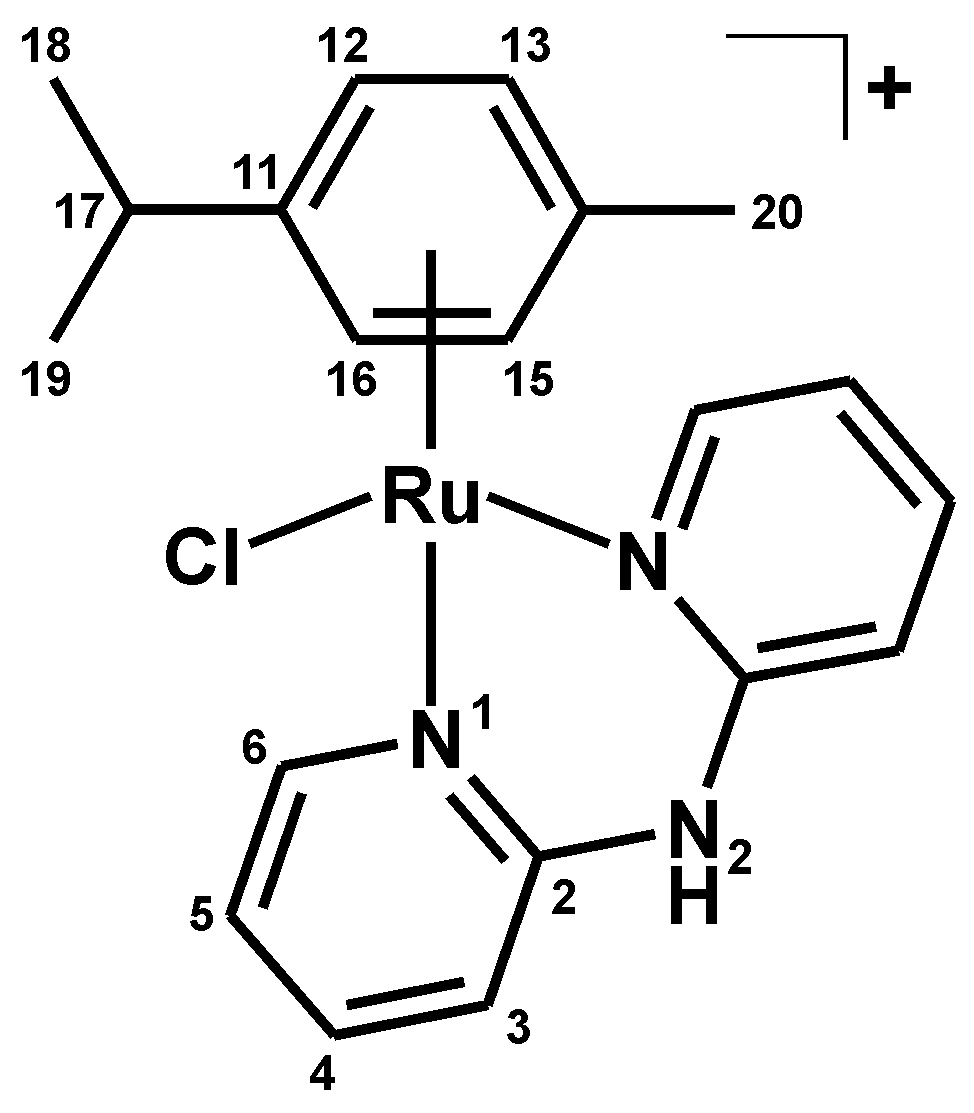

Figure 8. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)Cl]PF6 (1).
Figure 8. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)Cl]PF6 (1).
Molecules 21 01725 g008
Molecules 21 01725 g009 550

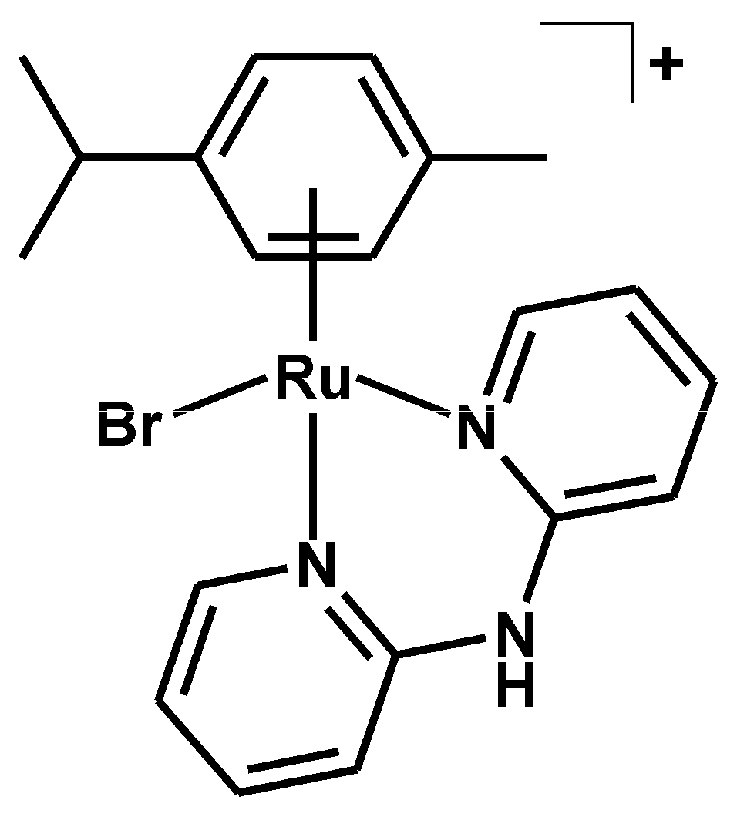

Figure 9. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)Br]PF6 (2).
Figure 9. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)Br]PF6 (2).
Molecules 21 01725 g009
Molecules 21 01725 g010 550

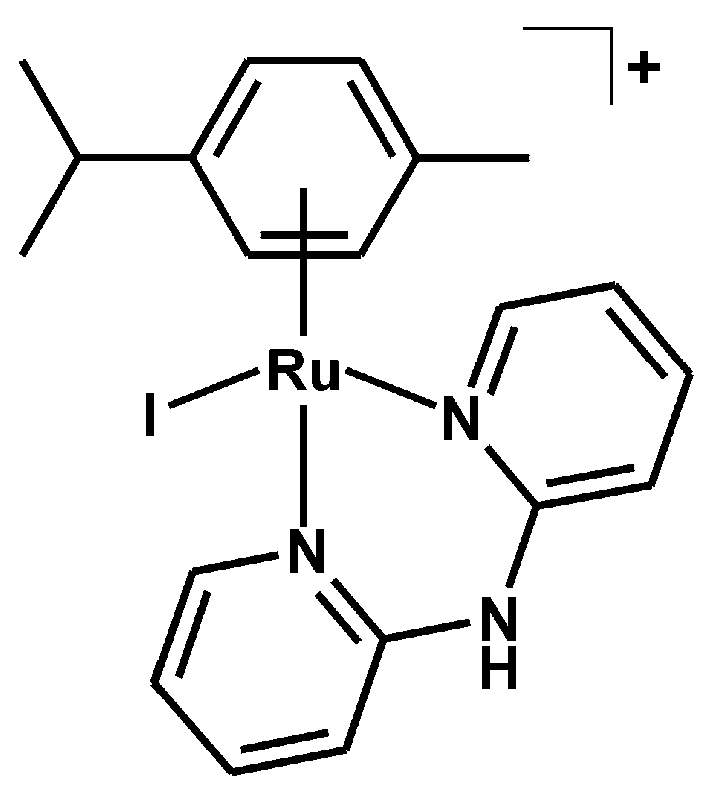

Figure 10. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)I]PF6 (3).
Figure 10. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)I]PF6 (3).
Molecules 21 01725 g010
Molecules 21 01725 g011 550

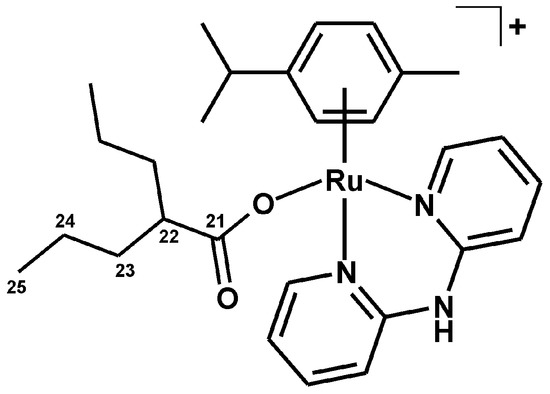

Figure 11. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)(VP)]PF6 (4); VP = valproato(1–).
Figure 11. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)(VP)]PF6 (4); VP = valproato(1–).
Molecules 21 01725 g011
Molecules 21 01725 g012 550

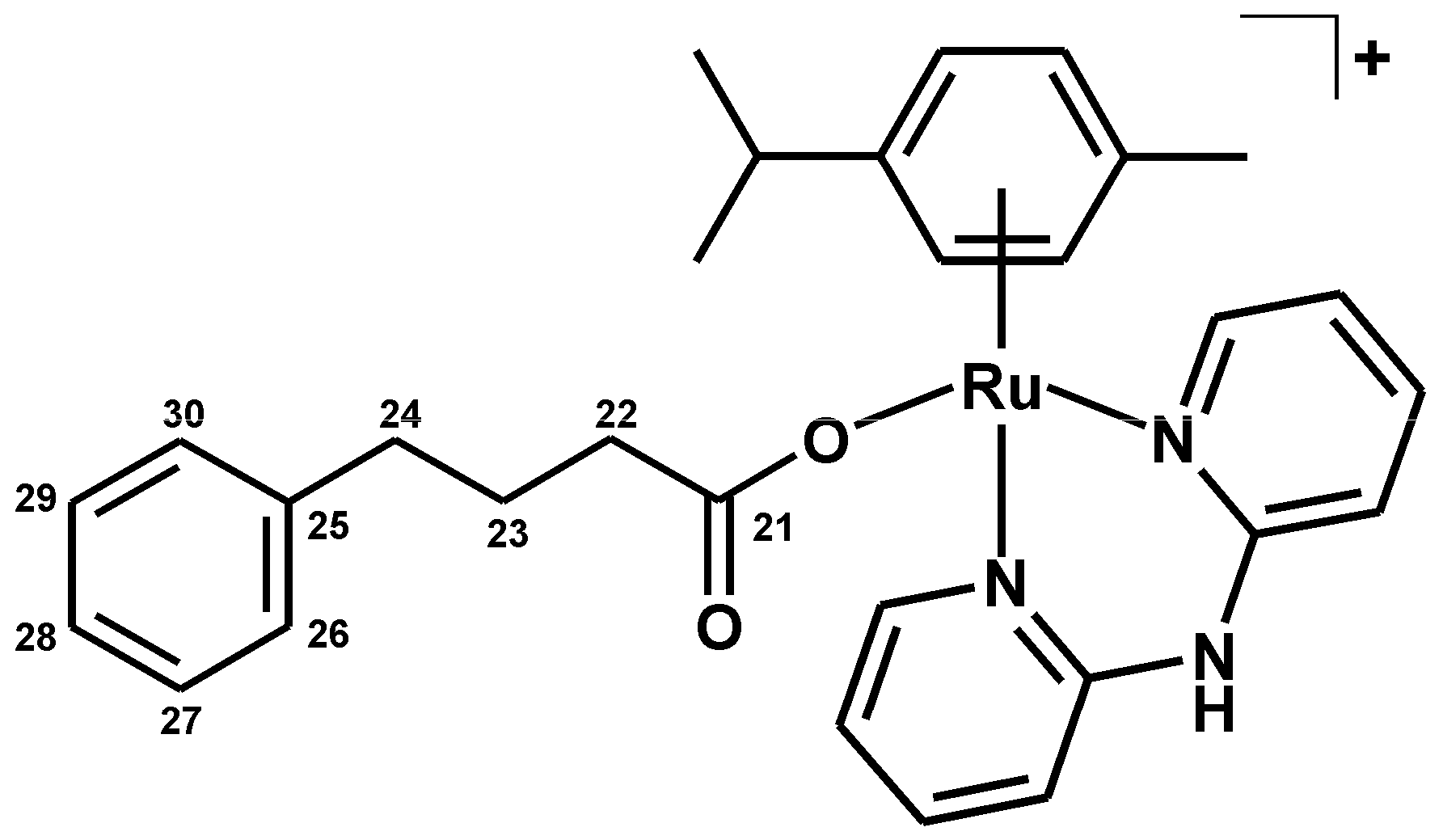

Figure 12. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)(PB)]PF6 (5); PB = 4-phenylbutyrato(1–).
Figure 12. Structural formula of the complex cation in [Ru(η6-p-cym)(dpa)(PB)]PF6 (5); PB = 4-phenylbutyrato(1–).
Molecules 21 01725 g012
Table
Table 1. 1H-NMR coordination shifts (Δδ = δcomplex − δligand; ppm) for the dpa ligand of 1–5.
Table 1. 1H-NMR coordination shifts (Δδ = δcomplex − δligand; ppm) for the dpa ligand of 1–5.
ComplexN2–HC3–HC4–HC5–HC6–H
11.21−0.520.340.380.34
21.22−0.540.330.360.41
31.24−0.560.310.340.50
41.17−0.510.340.390.52
5–−0.540.320.360.56
Table
Table 2. Crystal data and structure refinement for [Ru(η6-p-cym)(dpa)I]PF6 (3).
Table 2. Crystal data and structure refinement for [Ru(η6-p-cym)(dpa)I]PF6 (3).
Empirical FormulaC20H23F6IN3PRu
Formula weight678.35
Temperature (K)120(2)
Wavelength (Å)0.71073
Crystal systemTriclinic, P-1
Unit cell dimensions
a (Å)8.708(3)
b (Å)10.275(4)
c (Å)13.349(5)
α (°)93.15(2)
β (°)105.564(15)
γ (°)94.245(17)
V (Å3)1143.9(8)
Z, Dcalc (g·cm−3)2, 1.969
Absorption coefficient (mm−1)2.167
Crystal size (mm)0.160 × 0.100 × 0.100
F (000)660
θ range for data collection (°)2.438 to 24.999
Index ranges (h, k, l)−10 ≤ h ≤ 10
−12 ≤ k ≤ 12
−15 ≤ l ≤ 15
Reflections collected26913
Independent reflections4035 [R(int) = 0.0393]
Data/restraints/parameters4035/1/295
Goodness–of–fit on F21.052
Final R indices [I > 2σ(I)]R1 = 0.0202, wR2 = 0.0499
R indices (all data)R1 = 0.0241, wR2 = 0.0516
Largest peak and hole (e·Å−3)0.585 and −0.871
Table
Table 3. Comparison of the selected bond lengths (Å) and angles (°) of the complexes [Ru(η6-p-cym)(dpa)Cl]PF6 (1) 1 and [Ru(η6-p-cym)(dpa)I]PF6 (3).
Table 3. Comparison of the selected bond lengths (Å) and angles (°) of the complexes [Ru(η6-p-cym)(dpa)Cl]PF6 (1) 1 and [Ru(η6-p-cym)(dpa)I]PF6 (3).
Parameter 213
Ru1–X12.4148(7)2.7277(10)
Ru1–N12.107(2)2.101(2)
Ru1–N1A2.096(2)2.112(2)
Ru1–Cg1.6817(2)1.6895(6)
Ru1–C112.206(2)2.239(3)
Ru1–C122.202(2)2.197(3)
Ru1–C132.215(3)2.197(3)
Ru1–C142.237(2)2.210(3)
Ru1–C152.203(2)2.184(3)
Ru1–C162.169(3)2.212(3)
X1–Ru1–N187.04(7)87.52(6)
X1–Ru1–N1A87.26(6)88.46(6)
X1–Ru1–Cg127.32(6)127.54(2)
N1–Ru1–N1A82.30(8)84.47(8)
N1–Ru1–Cg128.72(6)127.27(6)
N1A–Ru1–Cg127.32(6)127.59(6)
1 Crystallographic data have been taken from the literature [10] (CSD refcode: IKEKUF); 2 X = Cl (1) or I (3); Cg = the centroid of the p-cymene aromatic ring.

Share and Cite

MDPI and ACS Style

Štarha, P.; Trávníček, Z.; Křikavová, R.; Dvořák, Z. Half-Sandwich Ru(II) Halogenido, Valproato and 4-Phenylbutyrato Complexes Containing 2,2′-Dipyridylamine: Synthesis, Characterization, Solution Chemistry and In Vitro Cytotoxicity. Molecules 2016, 21, 1725. https://doi.org/10.3390/molecules21121725

AMA Style

Štarha P, Trávníček Z, Křikavová R, Dvořák Z. Half-Sandwich Ru(II) Halogenido, Valproato and 4-Phenylbutyrato Complexes Containing 2,2′-Dipyridylamine: Synthesis, Characterization, Solution Chemistry and In Vitro Cytotoxicity. Molecules. 2016; 21(12):1725. https://doi.org/10.3390/molecules21121725

Chicago/Turabian Style

Štarha, Pavel, Zdeněk Trávníček, Radka Křikavová, and Zdeněk Dvořák. 2016. "Half-Sandwich Ru(II) Halogenido, Valproato and 4-Phenylbutyrato Complexes Containing 2,2′-Dipyridylamine: Synthesis, Characterization, Solution Chemistry and In Vitro Cytotoxicity" Molecules 21, no. 12: 1725. https://doi.org/10.3390/molecules21121725

Article Metrics

Back to TopTop
