Molecules 2016, 21(11), 1427; doi:10.3390/molecules21111427

Article
Properties of Manganese(III) Ferrocenyl-β-Diketonato Complexes Revealed by Charge Transfer and Multiplet Splitting in the Mn 2p and Fe 2p X-Ray Photoelectron Envelopes
Blenerhassitt E. Buitendach 1, Elizabeth Erasmus 1, J. W. (Hans) Niemantsverdriet 2 and Jannie C. Swarts 1,*
1
Department of Chemistry, University of the Free State, Bloemfontein 9300, South Africa
2
SynCat@DIFFER, Syngaschem BV, De Zaale 20, Eindhoven 5612 AJ, The Netherlands
*
Correspondence: Tel.: +27-51-401-2781
Academic Editor: Jeremy M. Rawson
Received: 9 September 2016 / Accepted: 19 October 2016 / Published: 26 October 2016

Abstract

:
A series of ferrocenyl-functionalized β-diketonato manganese(III) complexes, [Mn(FcCOCHCOR)3] with R = CF3, CH3, Ph (phenyl) and Fc (ferrocenyl) was subjected to a systematic XPS study of the Mn 2p3/2 and Fe 2p3/2 core-level photoelectron lines and their satellite structures. A charge-transfer process from the β-diketonato ligand to the Mn(III) metal center is responsible for the prominent shake-up satellite peaks of the Mn 2p photoelectron lines and the shake-down satellite peaks of the Fe 2p photoelectron lines. Multiplet splitting simulations of the photoelectron lines of the Mn(III) center of [Mn(FcCOCHCOR)3] resemble the calculated Mn 2p3/2 envelope of Mn3+ ions well, indicating the Mn(III) centers are in the high spin state. XPS spectra of complexes with unsymmetrical β-diketonato ligands (i.e., R not Fc) were described with two sets of multiplet splitting peaks representing fac and the more stable mer isomers respectively. Stronger electron-donating ligands stabilize fac more than mer isomers. The sum of group electronegativities, ΣχR, of the β-diketonato pendant side groups influences the binding energies of the multiplet splitting and charge transfer peaks in both Mn and Fe 2p3/2 photoelectron lines, the ratio of satellite to main peak intensities, and the degree of covalence of the Mn–O bond.
Keywords:
manganese; ferrocene; β-diketonato complexes; multiplet splitting; charge transfer; X-ray photoelectron spectroscopy

1. Introduction

Properties of metal(III) β-diketonato complexes [M(R1COCHCOR2)3], M = metal and R = pendant β-diketonato side groups such as CH3, have been studied with a variety of different techniques including crystallography [1], electrochemistry [2], non-linear refractive measurements [3], UV-Vis spectroscopy [4], and high frequency electron paramagnetic resonance (EPR) [5]. However, characterization of these complexes by means of X-ray photoelectron spectroscopy (XPS) is not well established. XPS can play an important role in further determining the influence of the chemical environment surrounding the elements under investigation. The binding energy of a photoelectron line generally gives insight into the oxidation state of the metal ion. However, the position and shape of the photoelectron line is further influenced by final-state effects of the metal ions. These final state effects include multiplet splitting, shake-up, and shake-down peaks which are caused by crystal field splitting and charge transfer from the ligand to the metal (back bonding) [6,7]. The substructure obtained due to Mn 2p (2p53dn+1) final state effect can be traced back to the 3d core-level and the valence band of the manganese. For octahedral structures such as Mn(β-diketonato)3 complexes, the crystal field splits the 3d level into a higher energy doubly degenerate (eg) level and a lower energy triply degenerate (t2g) level. The crystal potential determines the difference between the eg level and t2g level, and this difference is large for octahedral complexes. If the interaction between the unpaired core p-electrons (2p core holes) and the unpaired valence 3d-electrons are strong enough, satellite shake-up peaks which result from valence electrons being transferred to unoccupied states are present in the XPS spectra at a few eV higher than the main photoelectron lines.
Multiplet splitting of photoelectron lines arises from the coupling of the angular momenta (spin-orbit coupling) of the unpaired core p-electrons (caused by photoionization) and the unpaired valence d-electrons [8,9]. Paramagnetic high-spin metal species show significant multiplet splitting [10]. The full width at half maximum (FWHM) of the photoelectron lines of these high-spin metals are broader than those of their low-spin counterparts—e.g., high spin Mn(III) vs. low spin Mn(II) [5]. These complex photoelectron lines can be deconvoluted with multiplet splitting peaks as demonstrated by Gupta and Sen [8,9] and others [11,12,13].
In the XPS of complexes bearing 3d transition metals there normally appear shake-up peaks at a few eV higher than the main peak’s binding energy. This is generally accepted to be the charge transfer peak from the ligand orbital to the metal 3d, 4s, or 4p orbitals [14,15,16,17,18,19].
Multiplet splitting in XPS spectra of metal oxides and metal hydroxides has been investigated intensively [10,13,20,21,22]. There also are reports on multiplet splitting of metal halides, phosphates, and metal sulphides [13,22]. It has, however, never been attempted to deconvolute the multiplet splitting of Mn β-diketonates and relate the peaks to the free ion splitting as calculated by Gupta and Sen [8,9].
Useful mathematical relationships exist between the Gordy group electronegativity [23], χR, of different pendent R-groups of the β-diketonato ligands, (R1COCHCOR2) and other physical properties including NMR resonance positions, redox potentials, reaction rates, and ligand pKa’s [24,25,26,27,28,29,30,31]. With respect to XPS determined binding energies we recently reported [4] that for [Mn(FcCOCHCOR)3] complexes with R = CF3, 1, CH3, 2, C6H5, 3, and Fc, 4, as well as [Mn(CH3COCHCOCH3)3], 5, and [Mn(FcCOCHCOFc)2(FcCOCHCOCH3)], 6, (Figure 1) linear relationships exist between the binding energies at maximum peak height of the Fe 2p3/2 and Mn 2p3/2 photoelectron lines and R-group’s Gordy scale group electronegativities, χR, as well as ΣχR = χR1 + χR2 where R1 and R2 are the group electronegativities of pendant side groups of the β-diketonato ligands (R1COCHCOR2) [4]. However, χR, and ΣχR may also relate to the substructures (shake-up, shake-down, and multiplet splitting) of the Mn 2p3/2 and Fe 2p3/2 photoelectron lines [32].
Here, we report results from an in depth analysis of the (a) satellite substructure as well as (b) multiplet splitting substructure of the manganese(III) and ferrocenyl iron(II) metal centers and empirically quantify these substructure binding energies as a function of χR and ΣχR of the ligand R-groups.

2. Results and Discussion

XPS data of the β-diketonato manganese(III) complexes 16 (Figure 1) with respect to the Mn 2p and Fe 2p regions are presented in Table 1, Table 2 and Table 3. The broad peaks of the Mn 2p3/2 and Mn 2p1/2 photoelectron lines (a wide envelope) are located between 641.31–641.86 eV and 652.82–653.56 eV respectively (Figure 2, Table 1).
The binding energy position of the binding energies at maximum peak height of the main Mn 2p3/2 photoelectron line corresponds to MnIII [33]. It is known that MnIII exists in a high-spin paramagnetic state [34,35], which also is evident from the high FWHM (ca. 3.86–4.64 eV). A strong satellite peak at ca. 4.4 eV higher than the maximum binding energy of the Mn 2p photoelectron lines is also present (Figure 2). An additional unidentified peak at ca. 8 eV higher than the maximum binding energy of the Mn 2p3/2 photoelectron line (prominently observed for 2, 3, 4, and 6, and to a lesser extent for 1 and 5) was observed.
A spin orbit splitting of 11.58–11.96 eV was observed, depending on ΣχR of the R-group on the β-diketonato ligand. An increase in ΣχR leads to an increase in binding energy (Figure 3a, we discussed this relationship in detail before) and the spin orbit splitting between the Mn 2p3/2 and Mn 2p1/2 photoelectron lines (Figure 3b). The latter relationship is an indication of dependence on the degree of delocalization of the spin density on the valence orbitals [36,37].
In paramagnetic compounds, the intensity of the satellite and main peaks are important. The ratio of the intensities of the satellite and main Mn 2p3/2 photoelectron lines, Iratio = (IMn2p3/2satel)/(IMn2p3/2main), correlates with spin density (magnetic moment, i.e., increasing number of unpaired electrons) [38,39]. Here we demonstrate that Iratio (and therefore also spin density) also correlates to ΣχR, Figure 3c. To interpret this relationship, we note the amount of unpaired electrons in all Mn(III) complexes 16 are the same. This implies the effect of the increase in polarity (electron density shift to one side of the β-diketonato ligand) of the valence electrons due to increased ΣχR could be considered proportional to the increased magnetic moment or spin density. Therefore, there must be a correlation between the spin density and the electronegativity of the ligand. From Figure 3c (and values for Iratio in Table 1) it is evident that the lower ΣχR is (ΣχFc = 11.22 for 4 is the smallest), the larger the satellite peak gets.
It is known that observed satellite peaks for first row transition metal complexes with an octahedral symmetry is attributed to charge transfer from ligand-to-metal transitions of the type eg-eg* and/or t2g-t2g* [40]. A donor-acceptor bond is formed, which transfers electron density from the ligand to the metal center via a σ-donor mechanism. A larger satellite charge transfer peak indicates that more charge (electron density) is transferred from the ligand to the metal. The graph in Figure 3c confirms this. Since β-diketonato ligands with lower ΣχR values, e.g., ΣχFc = 11.22 for 4 which supports in total 6 strongly electron-donating ferrocenyl groups in its structure, are stronger electron-donating than others, they would transfer more charge to the Mn metal center than the ligands of, for example, 1 with three Fc and three CF3 groups and ΣχR = 14.64. Thus, our obtained relationship between ΣχR and Iratio is consistent with the argument that more electron-donating ligands would transfer more charge to the metal center they are coordinated to than weaker electron-donating ligands.
The molecular orbital energy of a Mn-ligand bond depends on the overlap of the Mn 4s orbitals and ligand orbitals. Larger overlap of metal and ligand orbitals will lead to a lower energy of the bonding orbital and a higher energy of the anti-bonding orbital. Since the ligand orbitals have a lower energy than the 4s orbital of the metal center, the bonding orbital will predominantly be located over the ligand orbital, while the antibonding orbital will then mainly be located over the metal center 4s orbital. The satellite XPS peak represents the charge-transfer process from the ligand 3d orbital to the metal 4s orbital. Therefore, the difference between the maximum binding energy of the satellite Mn 2p3/2 photoelectron line and the main Mn 2p3/2 photoelectron line, ΔBE2 = BEMn2p3/2satel − BEMn2p3/2main (values are summarized in Table 1), can be used as a measure of the degree of covalence of the ligand-metal bond. From Figure 3d, an increase ΣχR of the complexes 16 leads to a decrease in ΔBE2. This implies that the degree of the difference in covalency between the initial and final states of the ligand-metal bond decreases as ΣχR increases. It follows that the Mn–O bond of 1 with R = CF3 has a considerably lower degree of difference in covalency between the initial and final states than 4 with R = Fc. This is in agreement with what was found [41] for a series of Mn-halides, where MnF2 has a lower covalency than MnBr2 (Br has a lower Pauling electronegativity [42], χBr = 2.96, than F; χF = 4.00).
The linear relationship obtained between spin orbit splitting of the Mn 2p3/2 and Mn 2p1/2 photoelectron lines (ΔBE1), the ratio of the intensities of the satellite and main Mn 2p3/2 photoelectron line (Iratio), and the difference between the maximum binding energy of the satellite Mn 2p3/2 photoelectron line and the main Mn 2p3/2 photoelectron line (ΔBE2) on the one hand and the sum of β-diketonato ligand Gordy scale R-group electronegativities, ΣχR (Figure 3) on the other fit the equations:
BEMn2p3/2 = 0.1517 ΣχR + 639.62; R2 = 0.9919
ΔBE1 = BEMn2p1/2 − BEMn2p3/2 = 0.0911 ΣχR + 10.631; R2 = 0.9867
Iratio = (IMn2p3/2satel)/(IMn2p3/2main) = −0.0258 ΣχR + 0.5148; R2 = 0.9111
ΔBE2 = BEMn2p3/2satel − BEMn2p3/2main = −0.2013 ΣχR + 6.99; R2 = 0.9621
The above relationships enable one to calculate (or predict) the degree of delocalization of electrons, amount of charge transferred via a σ-donor mechanism, as well as the degree of the difference in covalency between the initial and final states for manganese(III) β-diketonato complexes 16 as well as related complexes provided the group electronegativity of β-diketonato R-group substituents are known.
The oxygen atoms of the ferrocenyl-functionalized β-diketonato manganese(III) complexes, 14 and 6, as well as the tris(acetylacetonato)manganese(III) complexes 5 are octahedrally arranged around the Mn metal center. When the Mn(III) complexes contain symmetrically substituted β-diketonato ligands, as in 4 and 5, the six Mn–O bonds are equal and these complexes display a D3 symmetry. However, when the Mn(III) complexes contain unsymmetrically substituted β-diketonato ligands, as in 13, mer and fac geometrical isomers are possible (Figure 4). The meridional isomers (mer) possess a symmetry plane passing through the Mn metal center which is formed by the three identical substituents (in this case the ferrocenyl groups) on the three unsymmetrical ligands. For the facial isomer (fac), the vertices of one face of the octahedron of the Mn complexes are occupied by the same substituent (in this case the ferrocenyl groups) from the three unsymmetrical ligands.
For the three complexes 13 having unsymmetrically substituted β-diketonato ligands, two Gaussian peaks were simulated to the Mn main 2p3/2 peak as well as to the shake-up peak; one was associated with the mer and the other with the fac isomer. Since the distribution between mer and fac isomers statistically should be 3:1 for all three complexes, the two Gaussian peaks were enforced in a ratio of 3:1. This simulation with two Gaussian peaks (FWHM = 3.90, 3.68, 3.68 eV for 1, 2, and 3 respectively and CHI squared = ca. 1.3) was more accurate than the fitting of only one Gaussian peak (FWHM = 4.64, 4.00, 3.86 eV for 1, 2, and 3 respectively CHI squared = ca. 1.5) and the FWHM decreased. The peak of the fac isomer (dashed lines) is found at ca. 0.4 eV higher binding energy than the peak of the mer isomer (solid lines), see Figure 2 and Table 1. The higher binding energy of the fac isomer is in agreement with published results [29], as well as experimental evidence of a similar Al compound, which showed that in solution only the mer isomer is present [43]. This implies that the mer isomer is more stable and in XPS the more stable isomer would be detected at the lowest binding energy. The difference in binding energies between mer and fac isomers has, to our knowledge, not been explained theoretically before. Our XPS measurements, however, shows experimentally they are different. To place this experimental result in perspective, it is useful to note that DFT calculations on a similar set of tris(β-diketonato)manganese(III) complexes revealed there is an energy difference between mer and fac HOMO energies [44]. Since EHOMO has been proven to be related to binding energies obtained from XPS [30,45,46], it follows that there must also be a difference between the binding energies of the fac and mer isomers. Qualitatively, this means interaction between different molecular fragments (Fc and R; R and Fc cannot equal in mer and fac isomers) in different special arrangements relative to each other must induce small but noticeable differences in the binding energies for these fac and mer isomers.
The difference in binding energy position for the mer and fac isomer was found to be dependent on ΣχR, the sum of the Gordy group electronegativity of the R-groups substituted on the ferrocenyl-containing β-diketonato ligands. From Table 1, it is evident that as ΣχR increases, the difference between the mer and the fac isomer binding energies also increases. This implies that more electron-donating R-groups like the ferrocenyl moiety (Fc) stabilizes the fac isomer more than electron-withdrawing R-groups like CF3. The higher stability of the fac isomer of more electron-donating R-groups was also found with DFT calculations of similar Cr(III) and Fe(III) β-diketonato complexes [40].
The Mn(III) atom in complexes 16 all have an initial state 2p63s23p63d4 subshell population. After photoionization, a final state of 2p53s23p63d4 subshell population is present [47]. Thus the Mn 2p XPS spectra of complexes 16 should display a similar multiplet splitting substructure as Gupta and Sen calculated for the core p-level of the free Mn3+ ion [8,9]. To demonstrate that the experimentally measured Mn 2p3/2 photoelectron lines could successfully be generated by the theoretically calculated multiplet splitting peaks of Gupta and Sen, spectra of complexes 16 were simulated with one set of multiplet split peaks consisting of five components according to the most intense Gupta and Sen calculated peaks for a high-spin Mn3+ ion (peaks 1–5, Figure 5, left) in a ratio area % the same as the calculated ratio area distributions of Gupta and Sen for the free Mn3+ ion. These were ca. 1:1:1.35:0.7:0.3 [8,9]. Similar successful fittings utilizing the Gupta and Sen distribution were published for manganese oxides, phosphates and sulphates [47,48].
For the three complexes containing symmetrically substituted β-diketonato ligands and two separate types of ligands, complexes 46, the single set of five multiplet splitting peaks gave excellent fits, with a CHI squared = ca. 1.2. However, for the complexes containing unsymmetrically substituted β-diketonato ligands, 13, where both a mer isomer and fac isomer are possible, the fitting of two different sets of multiplet splitting peaks (labelled m1m5 and f1f5) into the broad Mn 2p3/2 peak (main envelope), proved to be more accurate than the fitting of only one set of multiplet splitting peaks, to give a CHI squared = ca. 0.9 for two peaks as compared to a CHI squared = ca. 1.3 (see Figure 5 right, top).
This is an indication that two different species are present within the sample of complex 13. These two different species are attributed to the mer and fac isomers of the unsymmetrical substituted ferrocenyl-containing β-diketonato manganese(III) complexes. The weight % of the mer and fac isomers fitted for the XPS data was, as for Figure 2, again 3:1, due to the statistical possibility of occurrence. The XPS data of the multiplet splitting fits of the main envelope of the Mn 2p3/2 peaks are listed in Table 2. The multiplet splitting simulations correlated very well with the reported measured data of different manganese oxides, phosphates, and sulphates [47,48].
This implies that, according to the multiplet splitting simulations, the final-state obtained after photoionization of the Mn(III) species is within experimental error independent of the ligand type, even if the ligand varies from an oxide to a phosphates, sulphates, and finally to β-diketonato ligands. The measured fits of the multiplet splitting of the Mn 2p3/2 envelopes represent the calculated fittings as predicted by Gupta and Sen well; only the binding energy position differs slightly. This is to be expected since the group electronegativities of the ligands play an important role in the position of the binding energy.
The relationship between ΣχR and the binding energy of the first peak of the fitted multiplet splitting peaks of the Mn 2p3/2 photoelectron line of 46 and the first peak of the mer isomers’ fitted multiplet splitting peaks of the Mn 2p3/2 photoelectron line of 13 (see Table 2 and Figure 6) was found to be directly proportional. With an increase in ΣχR, increased electron density moves away from the Mn3+ metal center towards the ligand. The Mn3+ ion binds more firmly to its own electrons, causing the increased binding energy values.
The linear relationship obtained between binding energy of the first peak of the fitted multiplet splitting peaks of the Mn 2p3/2 phototelectron line of 46 and the first peak of the mer isomer fitted multiplet splitting peaks of the Mn 2p3/2 photoelectron line of 13 (BEMn2p3/2multiplet) and ΣχR (Figure 6) fits the equation
BEMn2p3/2multiplet = 0.0943 ΣχR + 638.85; R2 = 0.9691
Since we could observe the charge transfer process from the β-diketonato ligand to Mn in the Mn 2p spectra, it would only be logical that we should be able to identify a similar charge transfer peak in photoelectron lines representing the ligand. The complexes under investigation are ferrocenyl-containing β-diketonates; therefore the Fe 2p photoelectron line is representative of the ligand. For complexes 14 and 6, the Fe 2p3/2 photoelectron lines have a maximum binding energy at ca. 708 eV, with a distinct shoulder on the lower energy side of the main photoelectron line, Figure 7. This shoulder is formed by a shake-down mechanism and it represents the charge transfer from the β-diketonato ligand to Mn. The main Fe 2p3/2 photoelectron lines are sharp single peaks and since the iron in the ferrocenyl moiety is Fe2+, it is in a low spin state and does not display multiplet splitting.
An in-depth discussion of the main Fe 2p photoelectron lines of 14 and 6 were already presented before by us [4], so here only the shake down peak will be discussed. The data obtained from the XPS for the Fe 2p3/2 main and satellite peaks are summarized in Table 3. As ΣχR increases, the binding energy of the main Fe 2p3/2 photoelectron line also increases. A similar trend was observed for the Fe 2p3/2 satellite peaks (Figure 8, left, Table 3). However, the degree of increase in binding energy for the main and satellite Fe 2p3/2 peaks are not the same and the difference between the Fe 2p3/2 main and the Fe 2p3/2 satellite peaks (ΔBE = BEFe2p3/2main − BEFe2p3/2satel) is inversely proportional to the ΣχR (Figure 8, middle). As ΣχR increases, the difference between the main and the satellite Fe 2p3/2 photoelectron lines, ΔBE, decreases.
The charge transfer process takes place between the 3d orbitals of the β-diketonato ligand oxygens and the 4s of the manganese. Thus, when charge is transferred to the manganese, an electron deficiency in the β-diketonato ligand is the result. More specifically, the electron deficiency manifests at the delocalized electrons in the six-membered chelating ring of the coordinated β-diketonato ligand. Stronger electron-donating pendent β-diketonato R-groups (e.g., ferrocenyl) would be able to stabilize this electron deficiency much better than electron-withdrawing R-groups such as CF3. This enhanced stabilization would cause the binding energy of the Fe shake-down satellite peak to be located at lower binding energies in comparison to the main Fe 2p3/2 photoelectron line, which explains the inverse proportional correlation.
Comparison of the ratio of intensities of the satellite and main Fe 2p3/2 photoelectron line (Iratio = (IFe2p3/2satel)/(IFe2p3/2main) with ΣχR revealed a direct proportional correlation (Figure 8, right) showing that as ΣχR increases, the intensity of the satellite Fe 2p3/2 photoelectron line also increases. This is opposite to the trend found for the intensity ratios of the satellite and main Mn 2p3/2 photoelectron line vs. ΣχR (Figure 3c).
After charge transfer from the ligand to the manganese, a partially positive charge, δ+, is created on the six-membered chelating ring of the coordinated β-diketonato ligand. When an electron-withdrawing R-group like CF3 is attached to this chelating ring (as in complex 1), it withdraws even more electron density causing an even bigger partial positive charge, δn+ (1 < n < 2). To compensate for this overly δn+ charge, the electron-donating ferrocenyl groups on the other side of each of the β-diketonato ligands, donates extra electron density to the chelating pseudo-aromatic β-diketonato ring. This causes the intensity of the Fe 2p3/2 shake-down peak to be relatively large. When there are two electron-donating ferrocenyl groups on each coordinating β-diketonato ligand, as in 4, more ferrocenyl groups donate electron-density to compensate for the δn+ charge. Thus, the individual contributions from each ferrocenyl group (and also the intensity of the charge transfer peak) will be less than for complex 1 bearing CF3 electron-withdrawing groups.
The linear relationship obtained between binding energy of the satellite Fe 2p3/2 photoelectron line of 14 and 6 (BEFe2p3/2satel), the difference between the maximum binding energy of the main and satellite Fe 2p3/2 photoelectron lines (ΔBE = BEFe2p3/2main − BEFe2p3/2satel) as well as the intensity ratios of the satellite and main Fe 2p3/2 photoelectron lines (Iratio = (IFe2p3/2satel)/(IFe2p3/2main)) and the sum of β-diketonato ligand Gordy scale R-group electronegativities, ΣχR (Figure 8) fit the equations:
BEFe2p3/2satel = 0.1678 ΣχR + 703.45; R2 = 0.9885
ΔBE = −0.0899 ΣχR + 3.4344; R2 = 0.9456
Iratio = 0.0568 ΣχR − 0.5505; R2 = 0.9794

3. Methods

3.1. Compounds

The ferrocenyl-functionalized β-diketonato manganese(III) complexes of general formula [Mn(FcCOCHCOR)3], with R = CF3, 1, CH3, 2, C6H5, 3 and Fc, 4, as well as [Mn(CH3COCHCOCH3)3], 5, and [Mn(FcCOCHCOFc)2(FcCOCHCOCH3)], 6, (Figure 1) were prepared and characterized according to published methods [4].

3.2. X-Ray Photoelectron Spectroscopy

XPS data was recorded on a PHI 5000 Versaprobe (Ulvac-Phi, Chigasaki, Japan) system, with a monochromatic Al Kα X-ray source. Spectra were obtained using the aluminium anode (Al Kα = 1486.6 eV), operating at 50 μm, 12.5 W, and 15 kV energy (97 X-ray beam). A low energy neutralizer electron gun was used to minimize charging of the samples. The instrument work function was calibrated to give a binding energy of 284.5 eV for the lowest binding energy peak of the carbon 1s envelope, corresponding to adventitious carbon. Survey scans were recorded at constant pass energy of 187.85 eV, while detailed region scans were recorded at constant pass energy of 29.35 eV for C and O, and 93.90 eV for Fe and Mn. The resolution of the PHI 5000 Versaprobe system is FWHM = 0.53 eV at a pass energy of 23.5 and FWHM = 1.44 eV at a pass energy of 93.90. The background pressure was 2 × 10−8 mbar. Spectra have been charge-corrected to the main line of the carbon 1s spectrum, which was set to 284.5 eV. XPS data was analyzed utilizing Multipak version 8.2c computer software [49] and applying Gaussian/Lorentz fits (the Gaussian/Lorentz ratios were always > 95%). All measured photoelectron lines were seven-point smoothed.

4. Concluding Remarks

The sub-structures of the Mn 2p and Fe 2p XPS photoelectron lines gave insight into the electronic structure of the [Mn(β-diketonato)3] complexes 16. Despite the absence of fine structure, the Mn 2p3/2 envelope could successfully be described with the calculated multiplet splitting from Gupta and Sen [8,9]. The Mn 2p3/2 envelopes of complexes containing unsymmetrically substituted β-diketonato ligands could be approximated by two sets of calculated multiplet splitting peaks corresponding to the presence of mer and fac isomers. The shake-up peak in the Mn 2p and the shake-down peak in the Fe 2p region gave a clear indication of the charge transfer process taking place from the ligand to the centrally coordinated MnIII cation. A key factor that influences all these processes and binding energies is the theoretical concept “sum of group electronegativities”, ΣχR, of the β-diketonato pendant side groups. Utilizing the experimental XPS binding energies and ΣχR values, it was shown that the mer isomer is more stable than the fac isomer but more electron-donating ligands stabilize fac isomers more than mer isomers. It also became possible to explain the intuitive feeling that ligands which are stronger electron-withdrawing induces a lower degree of covalence in bonds than ligands which are stronger electron-donating and that the latter transfer more charge to metal centers to which they are coordinated than electron-withdrawing ligands. Furthermore, it also explains the decrease in binding energy of core electrons of metals when relative stronger electron-donating ligands are coordinated to it. Variations in the XPS spectral characteristics of the Mn and Fe 2p regions as a result of changing R-group substituted on the β-diketonato ligands, (FcCOCHCOR), as well as their influence on the electronic environment of the central coordinated high spin MnIII cation, is emphasized by the linear relationships involving on the one hand ΣχR and on the other, binding energies of the satellite and main Fe and Mn 2p3/2 phototelectron lines of 14 and 6, the difference between the maximum binding energy of the main and satellite Fe and Mn 2p3/2 photoelectron lines or the intensity ratios between satellite and main Fe or Mn 2p3/2 photoelectron lines.

Acknowledgments

J.C.S., E.E., and B.E.B. acknowledge financial support from the NRF under grant 2054243, the UFS and Syngaschem BV during the course of this study. Syngaschem BV acknowledges substantial funding from Synfuels China Technology Co., Ltd., (Huairou, Beijing, China).

Author Contributions

B.E.B. synthesized all compounds; E.E. recorded all XPS spectra; J.W.N., E.E., and J.C.S. interpreted all XPS data, all authors assisted in writing the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Bansse, W.; Ludwig, E.; Mickler, W.; Uhlemann, E.; Hahn, E.; Lügger, T.; Lehmann, A. Mangan(IV)-Komplexe mit Dreizähnigen Diaciden Liganden. Kristallstruktur von Acetylacetonato-salicylaldehydbenzoylhydrazonato(2-)-methanol-mangan(III). Z. Anorg. Allg. Chem. 1995, 621, 1483–1488. [Google Scholar] [CrossRef]
  2. Perera, I.R.; Gupta, A.; Xiang, W.; Daeneke, T.; Bach, U.; Evans, R.A.; Ohlin, C.A.; Spiccia, L. Introducing manganese complexes as redox mediators for dye-sensitized solar cells. Phys. Chem. Chem. Phys. 2014, 16, 12021–12028. [Google Scholar] [CrossRef] [PubMed]
  3. Henari, F.Z.; Ali-Mohamed, A.Y. Nonlinear refractive index measurement of tris(acetylacetonato) manganese(III) solution. Opt. Laser Technol. 2008, 40, 602. [Google Scholar] [CrossRef]
  4. Buitendach, B.E.; Erasmus, E.; Landman, M.; Niemantsverdriet, J.W.; Swarts, J.C. Consequences of electron-density manipulations on the X-ray photoelectron spectroscopic properties of ferrocenyl-β-diketonato complexes of manganese(III). Structure of [Mn(FcCOCHCOCH3)3]. Inorg. Chem. 2016, 55, 1992–2000. [Google Scholar] [CrossRef] [PubMed]
  5. Barra, A.L.; Gatteschi, D.; Sessoli, R.; Abbati, G.L.; Cornia, A.; Fabretti, A.C.; Uytterhoeven, M.G. Electronic structure of manganese(III) compounds from high-frequency EPR spectra. Angew. Chem. Int. Ed. 1997, 36, 2329–2331. [Google Scholar] [CrossRef]
  6. Kowalczyk, S.P.; Ley, L.; Martin, R.L.; McFeely, F.R.; Shirley, D.A. Relaxation and final-state structure in XPS of atoms, molecules and metals. Faraday Discuss. Chem. Soc. 1975, 60, 7–17. [Google Scholar] [CrossRef]
  7. Chusuei, C.C.; Goodman, D.W. Control of CuO Particle Size on SiO2 by Spin Coating. In Encyclopedia of Physical Science and Technology, 3rd ed.; Meyers, R.A., Ed.; Academic Press: New York, NY, USA, 2001; Volume 17, p. 921. [Google Scholar]
  8. Gupta, R.P.; Sen, S.K. Calculation of multiplet structure of core p-vacancy levels. Phys. Rev. B 1974, 10, 71–77. [Google Scholar] [CrossRef]
  9. Gupta, R.P.; Sen, S.K. Calculation of multiplet structure of core p-vacancy levels. II. Phys. Rev. B 1975, 12, 15–19. [Google Scholar] [CrossRef]
  10. Biesinger, M.C.; Payne, B.P.; Grosvenor, A.P.; Lau, A.W.M.; Gerson, A.R.; Smart, R.S.C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Cr, Mn, Fe, Co and Ni. Appl. Surf. Sci. 2011, 257, 2717. [Google Scholar] [CrossRef]
  11. Ȕnveren, E.; Kemnitz, E.; Hutton, S.; Lippitz, A.; Unger, W.E.S. Analysis of highly resolved X-ray photoelectron Cr 2p spectra obtained with a Cr2O3 powder sample prepared with adhesive tape. Surf. Interface Anal. 2004, 36, 92–95. [Google Scholar] [CrossRef]
  12. Ilton, E.S.; de Jong, W.A.; Bagus, P.S. Intra-atomic many-body effects in p-shell photoelectron spectra of Cr3+ ions. Phys. Rev. B 2003, 68, 125106. [Google Scholar] [CrossRef]
  13. Biesinger, M.C.; Brown, C.; Mycroft, J.R.; Davidson, R.D.; McIntyre, N.S. X-ray photoelectron spectroscopy studies of chromium compounds. Surf. Interface Anal. 2004, 36, 1550–1563. [Google Scholar] [CrossRef]
  14. Asada, S.; Sugano, S. Satellites in X-ray photoelectron Spectra of Transition-Metal Compounds. J. Phys. Soc. Jpn. 1976, 41, 1291–1299. [Google Scholar] [CrossRef]
  15. Larsson, S. Satellites in ESCA inner-shell spectra of 3d0 transition metal complexes. J. Electron Spectrosc. Relat. Phenom. 1976, 8, 171–178. [Google Scholar] [CrossRef]
  16. Larsson, S. Shake-up and multiplet structure of ESCA satellites of Cu compounds. Chem. Phys. Lett. 1976, 40, 362–366. [Google Scholar] [CrossRef]
  17. Larsson, S.; Braga, M. Charge transfer satellites. Intensity dependence on localization of hole state. Chem. Phys. Lett. 1977, 48, 596–600. [Google Scholar] [CrossRef]
  18. Carlson, T.A. Photoelectron and Auger Spectroscopy; Plenum: New York, NY, USA, 1976. [Google Scholar]
  19. Feuerbacher, B.; Fitton, B.; Willis, R.F. Photoemission and the Electronic Properties of Surfaces; Wiley: New York, NY, USA, 1978. [Google Scholar]
  20. Biesinger, M.C.; Payne, B.P.; Hart, B.R.; Grosvenor, A.P.; McIntyre, N.E.; Lau, L.W.M.; Smart, R.S.C. Quantitative chemical state XPS analysis of first row transition metals, oxides and hydroxides. J. Phys. Conf. Ser. 2008, 100, 012026. [Google Scholar] [CrossRef]
  21. Grosvenor, A.P.; Biesinger, M.C.; Smart, R.S.C.; McIntrye, N.S. New interpretations of XPS spectra of nickel metal and oxides. Surf. Sci. 2006, 600, 1771–1779. [Google Scholar] [CrossRef]
  22. Grosvenor, A.P.; Kobe, B.A.; Biesinger, M.C.; McIntyre, N.S. Investigation of multiplet splitting of Fe 2p XPS spectra and bonding in iron compounds. Surf. Interface Anal. 2004, 36, 1564–1574. [Google Scholar] [CrossRef]
  23. Gordy scale group electronegativities, χR, are empirical numbers that express the combined tendency of not only one atom, but a group of atoms, like R = CF3 or ferrocenyl (Fc), to attract electrons (including those in a covalent bond) as a function of the number of valence electrons, n, and the covalent radius, r (in Å), of groups as discussed in Kagarise, R.E. Relation between the electronegativities of adjacent substitutents and the stretching frequency of the carbonyl group. J. Am. Chem. Soc. 1955, 77, 1377–1379. [Google Scholar] [CrossRef].
  24. Erasmus, E.; Conradie, J.; Muller, A.; Swarts, J.C. Synthesis, crystal structure and electrochemistry of tetrahedral mono-β-diketonato titanocenyl complexes. Inorg. Chim. Acta 2007, 360, 2277–2283. [Google Scholar] [CrossRef]
  25. Erasmus, E. Ferrocene- and ruthenocene-containing chalcones: A spectroscopic and electrochemical study. Inorg. Chim. Acta 2011, 378, 95–101. [Google Scholar] [CrossRef]
  26. Muller, T.J.; Conradie, J.; Erasmus, E. A spectroscopic, electrochemical and DFT study of para-substituted ferrocene-containing chalcone derivatives: Structure of FcCOCHCH(p-tBuC6H4). Polyhedron 2012, 33, 257–266. [Google Scholar] [CrossRef]
  27. Erasmus, E. Swarts, J.C. Intramolecular communication and electrochemical observation of the 17-electron ruthenocenium cation in fluorinated ruthenocene-containing β-diketones; polymorphism of C10H21 and C10F21 derivatives. New J. Chem. 2013, 37, 2862–2873. [Google Scholar] [CrossRef]
  28. Conradie, M.M.; Conradie, J.; Erasmus, E. Immobilization of iron tris(β-diketonates) on a two-dimensional flat amine functionalized silicon wafer: A catalytic study of the formation of urethane, from ethanol and a diisocyanate derivative. Polyhedron 2014, 79, 52–59. [Google Scholar] [CrossRef]
  29. Erasmus, E. Synthesis and unexpected electrochemical reaction of p-substituted phenyl diphenylphosphinites. J. Electroanal. Chem. 2014, 727, 1–7. [Google Scholar] [CrossRef]
  30. Liu, R.; Conradie, J.; Erasmus, E. Comparison of X-ray photoelectron spectroscopy multiplet splitting of Cr 2p peaks from chromium tris(β-diketonates) with chemical effects. J. Electron Spectrosc. Relat. Phenom. 2016, 206, 46–51. [Google Scholar] [CrossRef]
  31. Erasmus, E. Synthesis and electrochemistry of p-substituted phenyl diphenylphosphinite rhodium(I) complexes. Polyhedron 2016, 106, 18–26. [Google Scholar] [CrossRef]
  32. Carniato, S.; Journel, L.; Guillemin, R.; Piancastelli, M.N.; Stolte, W.C. A new method to derive electronegativity from resonant inelastic X-ray scattering. J. Chem. Phys. 2016, 137, 144303–144313. [Google Scholar] [CrossRef] [PubMed]
  33. Ilton, E.S.; Post, J.E.; Heaney, P.J.; Ling, F.T.; Kerisit, S.N. XPS determination of Mn oxidation states in Mn (hydr)oxides. Appl. Surf. Sci. 2016, 366, 475–485. [Google Scholar] [CrossRef]
  34. Wang, S.; He, W.R.; Ferbinteanu, M.; Li, Y.H.; Huang, E. Tetragonally compressed high-spin Mn(III) Schiff base complex: Synthesis, crystal structure, magnetic properties and theoretical calculations. Polyhedron 2013, 52, 1199–1205. [Google Scholar] [CrossRef]
  35. Kennedy, B.J.; Murray, K.S. Magnetic properties and zero-field splitting in high-spin manganese(III) complexes. 1. Mononuclear and polynuclear Schiff-base chelates. Inorg. Chem. 1985, 24, 1557. [Google Scholar] [CrossRef]
  36. Carver, J.C.; Schweitzer, G.K.; Carlson, T.A. Use of X-ray Photoelectron Spectroscopy to Study Bonding in Cr, Mn, Fe, and Co Compounds. J. Chem. Phys. 1972, 57, 973–981. [Google Scholar] [CrossRef]
  37. Ivanova, T.M.; Shchukarev, A.V.; Naumkin, A.V.; Sidorov, A.A.; Kiskin, M.A.; Novotortsev, V.M.; Eremenko, I.L. X-ray photoelectron spectra of polynuclear manganese complexes. Russ. J. Inorg. Chem. 2008, 53, 1929–1933. [Google Scholar] [CrossRef]
  38. Borod’ko, Y.G.; Vetchinkin, S.I.; Zimont, S.L.; Ivleva, I.N.; Shul’ga, Y.M. Nature of satellites in X-ray photoelectron spectra XPS of paramagnetic cobalt (II) compounds. Chem. Phys. Lett. 1976, 42, 264–267. [Google Scholar] [CrossRef]
  39. Ioffe, M.S.; Borod’Ko, Y.G. Dependence of satellite intensity in X-ray photoelectron spectra of Cu(II) complexes on the spin density on copper. J. Electron Spectrosc. Relat. Phenom. 1977, 11, 235–238. [Google Scholar] [CrossRef]
  40. Perera, J.S.H.Q.; Frost, D.C.; McDowell, C.A. X-ray photoelectron spectroscopy of Co(II), Ni(II), and Cu(II) acetylacetonate vapors. J. Phys. Chem. 1980, 72, 5151–5158. [Google Scholar] [CrossRef]
  41. Park, J.; Ryu, S.; Han, M.; Oh, S.J. Charge-transfer satellites in the 2p core-level photoelectron spectra of heavy-transition-metal dihalides. Phys. Rev. B 1988, 37, 10867–10875. [Google Scholar] [CrossRef]
  42. Pauling, L. The nature of the chemical bond. IV The energy of single bonds and the relative electronegativity of atoms. J. Am. Chem. Soc. 1932, 54, 3570–3582. [Google Scholar] [CrossRef]
  43. Gericke, H.J.; Muller, A.J.; Swarts, J.C. Electrochemical illumination of intramolecular communication in ferrocene-containing tris-β-diketonato aluminum(III) complexes; cytotoxicity of Al(FcCOCHCOCF3)3. Inorg. Chem. 2012, 51, 1552–1561. [Google Scholar] [CrossRef] [PubMed]
  44. Gotstynski, R.; van Rooyen, P.H.; Conradie, J. Jahn-Teller distortion in tris[4,4,4-trifluoro-1-(2-thienyl)-1,3-butanedionato]manganese(III) isomers: An X-ray and computational study. J. Mol. Struct. 2016, 1119, 48–53. [Google Scholar] [CrossRef]
  45. Conradie, J.; Erasmus, E. XPS Fe 2p peaks from iron tris(β-diketonates): Electronic effect of the β-diketonato ligand. Polyhedron 2016, 119, 142–150. [Google Scholar] [CrossRef]
  46. Jansen van Rensburg, A.; Landman, M.; Erasmus, E.; van der Westhuizen, D.; Ferreira, H.; Conradie, M.M.; Conradie, J. Electrochemical and X-ray photoelectron spectroscopic insights into Molybdenum(0) Fischer ethoxycarbene complexes. Electrochim. Acta 2016, 219, 204–213. [Google Scholar] [CrossRef]
  47. Nelson, A.J.; Reynolds, J.G.; Roos, J.W. Core-level satellites and outer core-level multiplet splitting in Mn model compounds. J. Vac. Sci. Technol. A 2000, 18, 1072–1076. [Google Scholar] [CrossRef]
  48. Nesbitt, H.W.; Banerjee, D. Interpretation of XPS Mn(2p) spectra of Mn oxyhydroxides and constraints on the mechanism of MnO2 precipitation. Am. Mineral. 1998, 83, 305–315. [Google Scholar] [CrossRef]
  49. Moulder, F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of X-ray Photoelectron Spectroscopy; ULVAC-PHI, Inc.: Chigasaki, Japan, 1995; pp. 45, 57 and 143. [Google Scholar]
  • Sample Availability: Not Available.

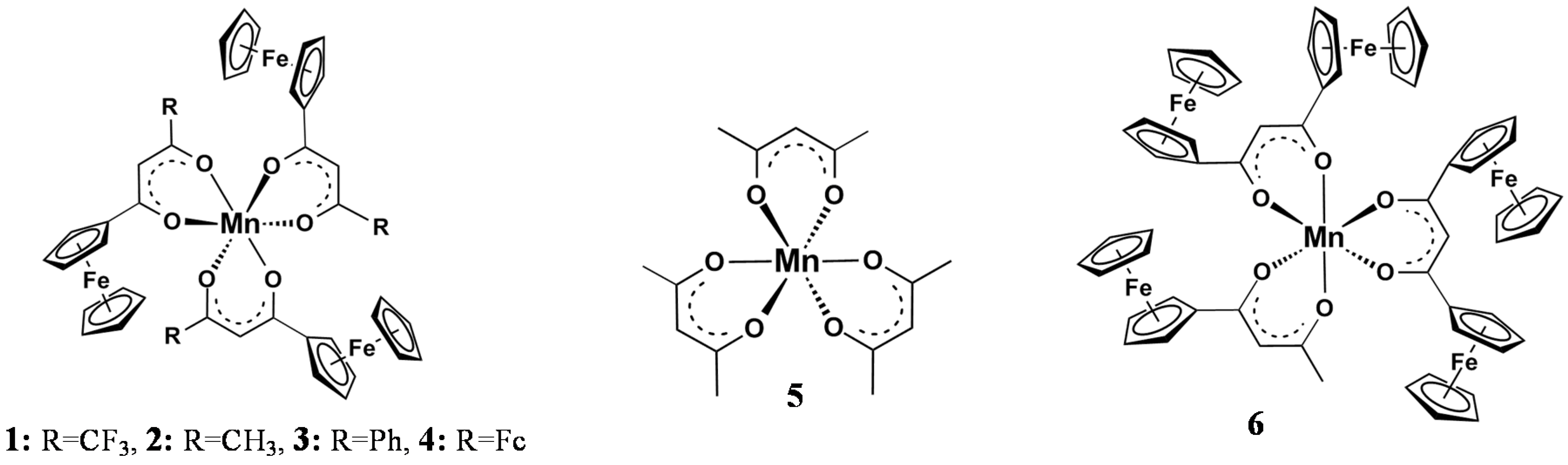

Figure 1. Structures of 16.
Figure 1. Structures of 16.
Molecules 21 01427 g001
Figure 2. Left: Comparative XPS spectra showing a single peak fitted for all the main Mn 2p peaks as well as the shake-up peaks of the Mn 2p area of complexes 14, [Mn(FcCOCHCOR)3], 5, [Mn(CH3COCHCOCH3)3] and 6, [Mn(FcCOCHCOFc)2(FcCOCHCOCH3)]. Right: Comparative XPS spectra showing one peak fitted for the main Mn 2p peaks of the complexes having symmetrical β-diketonato ligands and two simulated peaks for the complexes with unsymmetrical β-diketonato ligands, representing the mer and fac isomers (a ratio of 3:1 was forced into the simulation) as well as the shake-up peaks of the Mn 2p area of complexes 16. In some cases, a surface peak from the interface of Mn complexes attached to the carbon tape was identified and is shown with …. lines. The vertical dotted lines give an indication of how the binding energy shifts.
Figure 2. Left: Comparative XPS spectra showing a single peak fitted for all the main Mn 2p peaks as well as the shake-up peaks of the Mn 2p area of complexes 14, [Mn(FcCOCHCOR)3], 5, [Mn(CH3COCHCOCH3)3] and 6, [Mn(FcCOCHCOFc)2(FcCOCHCOCH3)]. Right: Comparative XPS spectra showing one peak fitted for the main Mn 2p peaks of the complexes having symmetrical β-diketonato ligands and two simulated peaks for the complexes with unsymmetrical β-diketonato ligands, representing the mer and fac isomers (a ratio of 3:1 was forced into the simulation) as well as the shake-up peaks of the Mn 2p area of complexes 16. In some cases, a surface peak from the interface of Mn complexes attached to the carbon tape was identified and is shown with …. lines. The vertical dotted lines give an indication of how the binding energy shifts.
Molecules 21 01427 g002

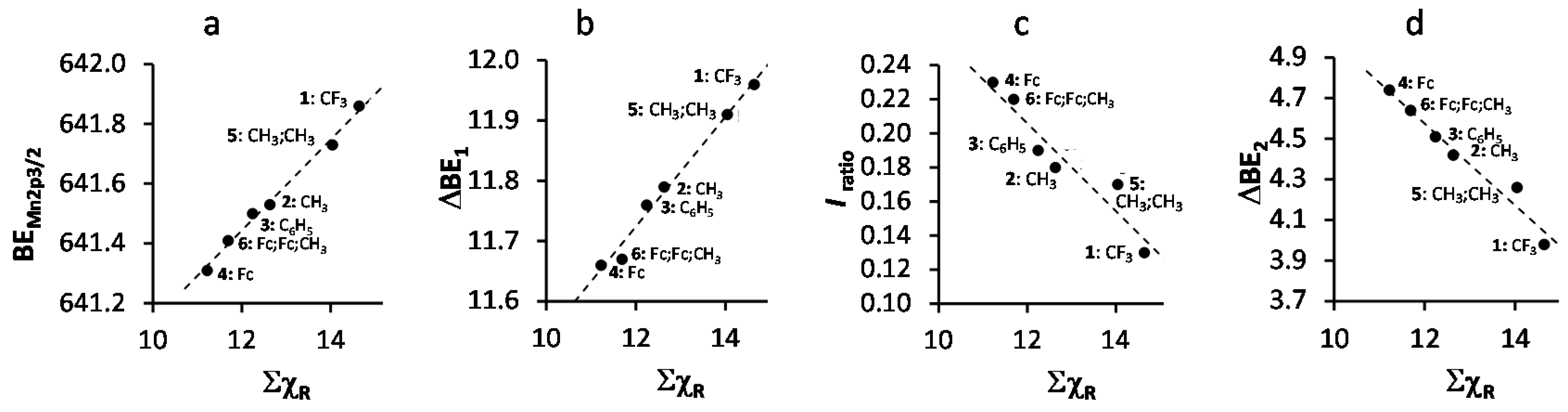

Figure 3. (a) Relationship between the binding energy of the main Mn 2p3/2 photoelectron envelope and the sum of β-diketonato ligand Gordy scale R-group electronegativities, ΣχR, of 16; (b) Relationship between the spin orbit splitting of the main Mn 2p3/2 and Mn 2p1/2 photoelectron envelopes (ΔBE1 = BEMn2p1/2 − BEMn2p3/2) and ΣχR; (c) Relationship between the ratio of the intensities of the satellite and main Mn 2p3/2 photoelectron line, Iratio = (IMn2p3/2satel)/(IMn2p3/2main), and ΣχR of 16; (d) Relationship between the difference between the maximum binding energy of the main Mn 2p3/2 photoelectron line and the satellite Mn 2p3/2 photoelectron line (ΔBE2 = BEMn2p3/2satel − BEMn2p3/2main) and ΣχR of 16.
Figure 3. (a) Relationship between the binding energy of the main Mn 2p3/2 photoelectron envelope and the sum of β-diketonato ligand Gordy scale R-group electronegativities, ΣχR, of 16; (b) Relationship between the spin orbit splitting of the main Mn 2p3/2 and Mn 2p1/2 photoelectron envelopes (ΔBE1 = BEMn2p1/2 − BEMn2p3/2) and ΣχR; (c) Relationship between the ratio of the intensities of the satellite and main Mn 2p3/2 photoelectron line, Iratio = (IMn2p3/2satel)/(IMn2p3/2main), and ΣχR of 16; (d) Relationship between the difference between the maximum binding energy of the main Mn 2p3/2 photoelectron line and the satellite Mn 2p3/2 photoelectron line (ΔBE2 = BEMn2p3/2satel − BEMn2p3/2main) and ΣχR of 16.
Molecules 21 01427 g003

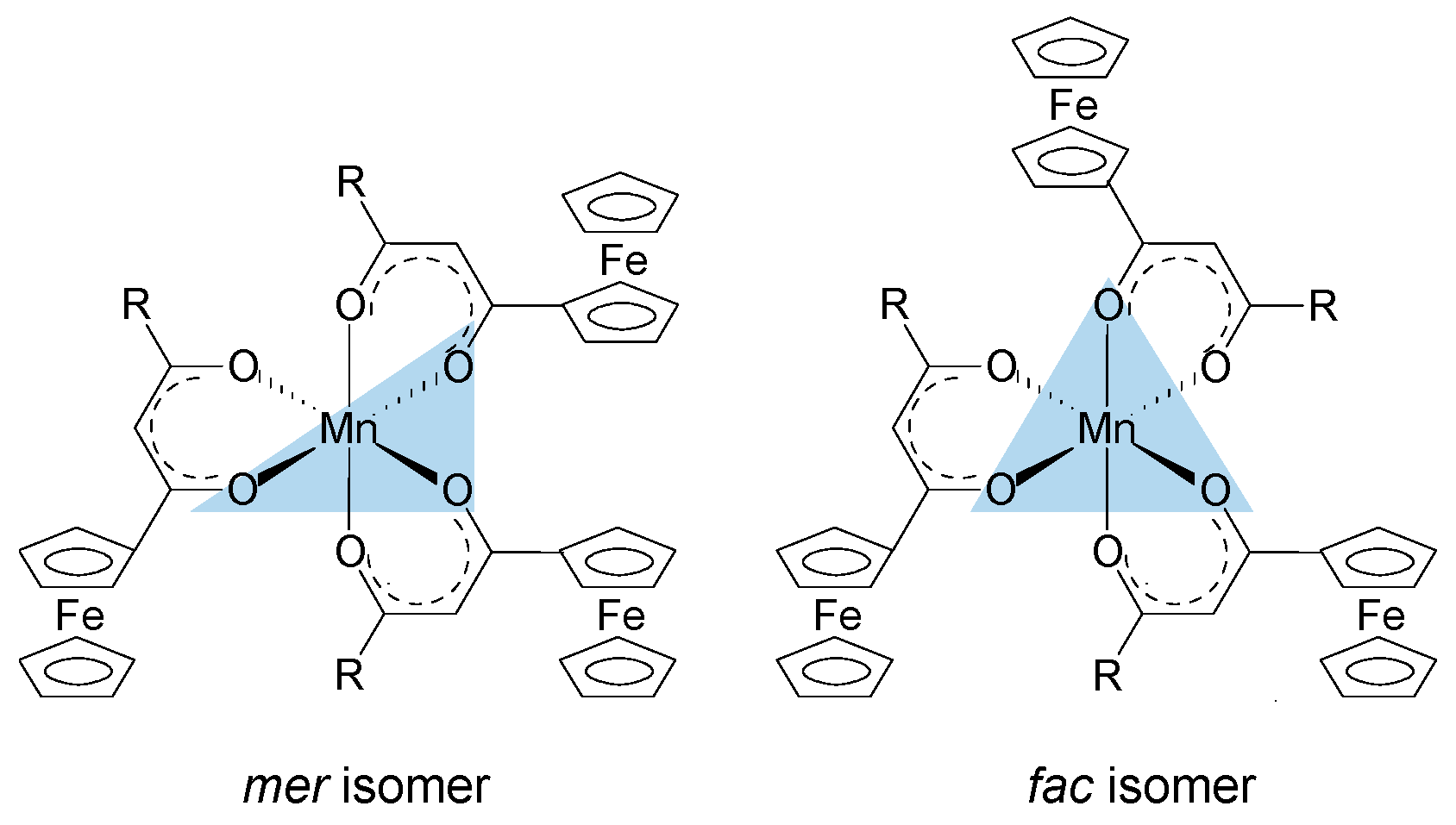

Figure 4. Mer and fac isomers of [Mn(FcCOCHCOR)3] complexes containing an unsymmetrically substituted β-diketonato ligand, R = CF3 (1), CH3 (2), C6H5 (3).
Figure 4. Mer and fac isomers of [Mn(FcCOCHCOR)3] complexes containing an unsymmetrically substituted β-diketonato ligand, R = CF3 (1), CH3 (2), C6H5 (3).
Molecules 21 01427 g004
Figure 5. Left: Comparative XPS spectra showing muliplet splitting for the main Mn 2p3/2 peaks as well as the shake-up peak of the Mn 2p3/2 of complexes 16. Right: Multiplet splitting (Ms) of both the mer (solid line) fac (dashed line) isomers. In both XPS comparisons, simulated spectra of the Gupta and Sen calculated multiplet splitting of Mn3+ is superimposed onto experimental spectra. The vertical dotted lines give an indication of how binding energy shifts.
Figure 5. Left: Comparative XPS spectra showing muliplet splitting for the main Mn 2p3/2 peaks as well as the shake-up peak of the Mn 2p3/2 of complexes 16. Right: Multiplet splitting (Ms) of both the mer (solid line) fac (dashed line) isomers. In both XPS comparisons, simulated spectra of the Gupta and Sen calculated multiplet splitting of Mn3+ is superimposed onto experimental spectra. The vertical dotted lines give an indication of how binding energy shifts.
Molecules 21 01427 g005

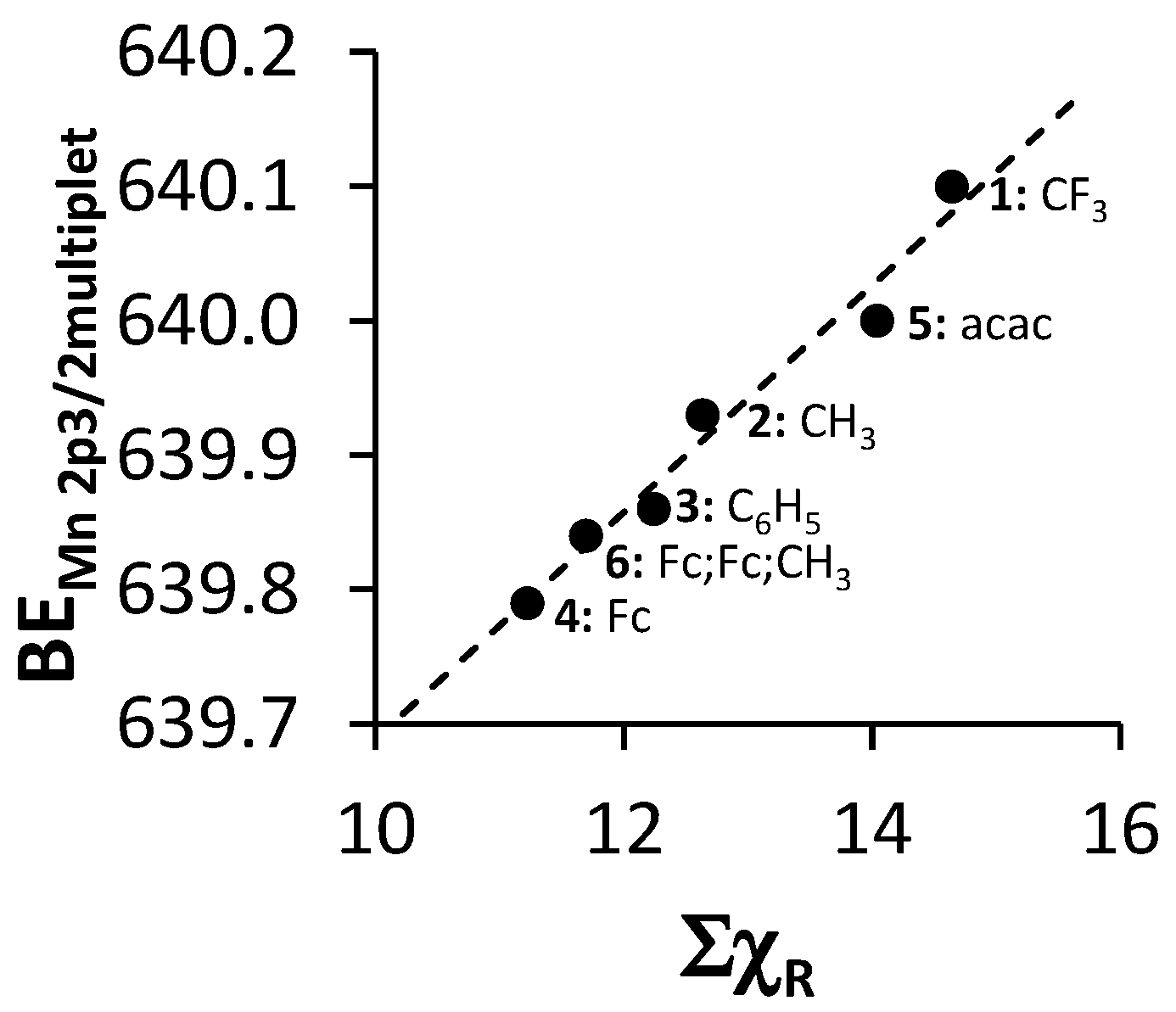

Figure 6. Relationship between the binding energy of the first peak of the mer isomers’ fitted multiplet splitting peaks of the Mn 2p3/2 photoelectron line of 13 or the first peak of the fitted multiplet splitting peaks of the Mn 2p3/2 phototelectron line of 46 (BEMn2p3/2multiplet) and ΣχR.
Figure 6. Relationship between the binding energy of the first peak of the mer isomers’ fitted multiplet splitting peaks of the Mn 2p3/2 photoelectron line of 13 or the first peak of the fitted multiplet splitting peaks of the Mn 2p3/2 phototelectron line of 46 (BEMn2p3/2multiplet) and ΣχR.
Molecules 21 01427 g006

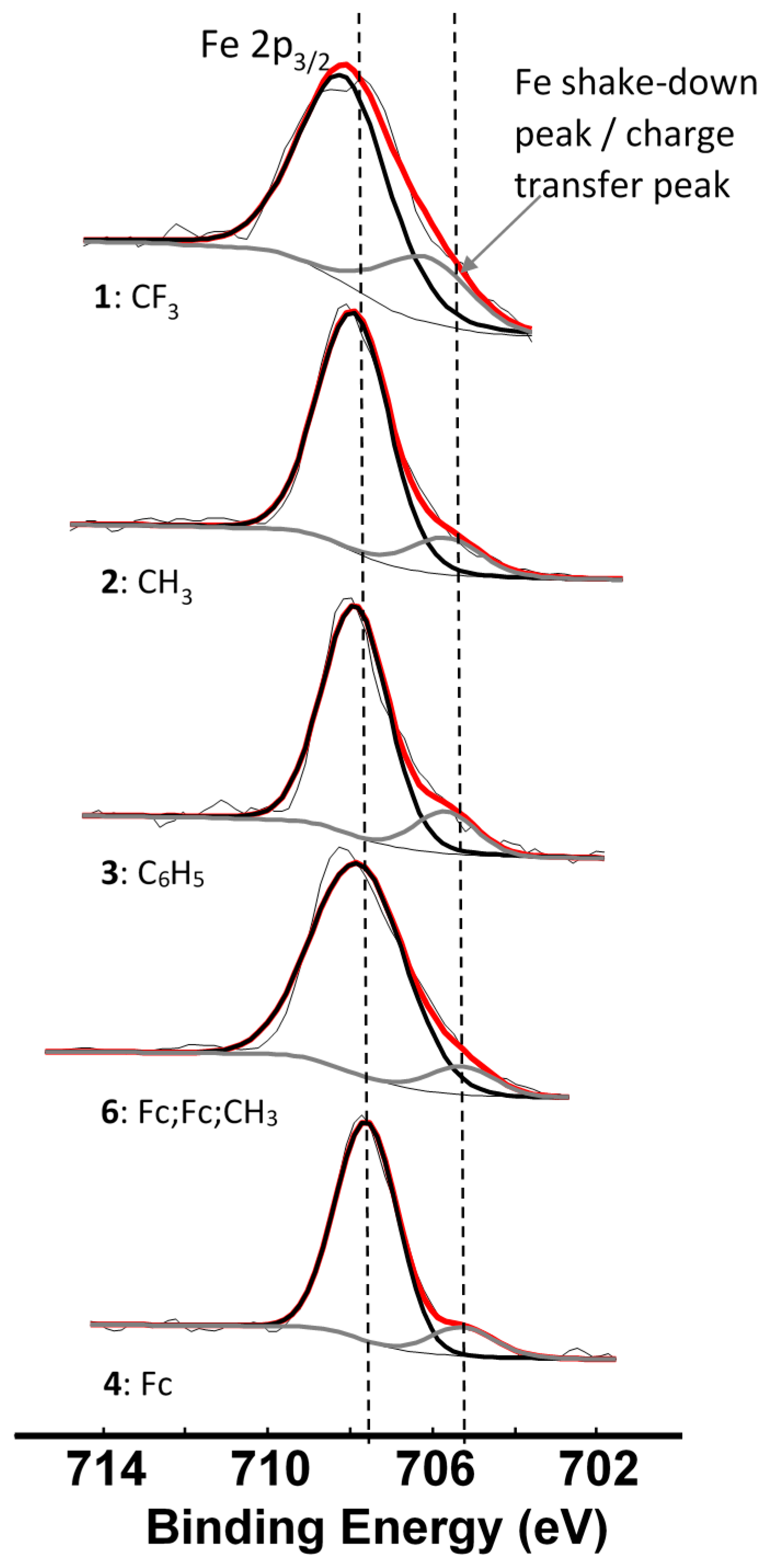

Figure 7. Comparative XPS spectra showing the main Fe 2p3/2 peaks as well as the shake-down peaks of complexes 14 and 6. The vertical dotted lines give an indication of how binding energy shifts.
Figure 7. Comparative XPS spectra showing the main Fe 2p3/2 peaks as well as the shake-down peaks of complexes 14 and 6. The vertical dotted lines give an indication of how binding energy shifts.
Molecules 21 01427 g007

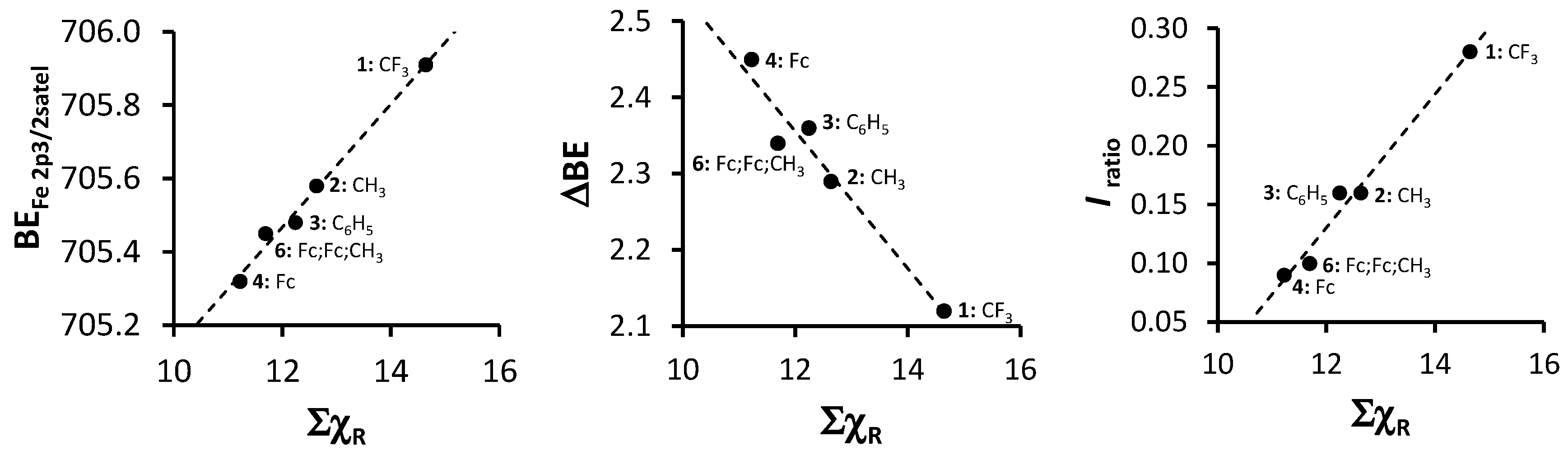

Figure 8. Left: Relationship of binding energy of the satellite Fe 2p3/2 phototelectron line of 14 and 6 (BEFe2p3/2satel) and the sum of β-diketonato ligand Gordy scale R-group electronegativities, ΣχR. Middle: Relationship between ΔBE = BEFe2p3/2main − BEFe2p3/2satel and ΣχR. Right: Relationship between Iratio = (IFe2p3/2satel)/(IFe2p3/2main) and ΣχR.
Figure 8. Left: Relationship of binding energy of the satellite Fe 2p3/2 phototelectron line of 14 and 6 (BEFe2p3/2satel) and the sum of β-diketonato ligand Gordy scale R-group electronegativities, ΣχR. Middle: Relationship between ΔBE = BEFe2p3/2main − BEFe2p3/2satel and ΣχR. Right: Relationship between Iratio = (IFe2p3/2satel)/(IFe2p3/2main) and ΣχR.
Molecules 21 01427 g008
Table 1. χR and ΣχR values, maximum binding energies, BE, of the main Mn 2p3/2 envelope, full width at half maximum (FWHM) values, peak separations between main Mn 2p3/2 and 2p1/2 peaks (ΔBE1), peak separations between satellite and Mn 2p3/2 peaks (ΔBE2), Iratio values, mer and fac isomer maximum binding energies of the main Mn 2p3/2 simulated peaks of 16.
Table 1. χR and ΣχR values, maximum binding energies, BE, of the main Mn 2p3/2 envelope, full width at half maximum (FWHM) values, peak separations between main Mn 2p3/2 and 2p1/2 peaks (ΔBE1), peak separations between satellite and Mn 2p3/2 peaks (ΔBE2), Iratio values, mer and fac isomer maximum binding energies of the main Mn 2p3/2 simulated peaks of 16.
Comp. No.; Ligand R-GroupsχRΣχR 4BE Mn 2p3/2 (eV)FWHM (eV)ΔBE1 5 (eV)ΔBE2 6 (eV)Iratio 7BE Mn 2p3/2 (eV)
merfac
1; CF3 13.0114.64641.864.6411.963.980.13641.62642.22
2; CH3 12.3412.63641.534.0011.794.420.19641.5641.9
3; C6H5 12.2112.24641.503.8611.764.510.18641.38641.68
4; Fc 11.8711.22641.313.8611.584.740.23- 8- 6
5; CH3,CH3 22.3414.04641.734.0611.914.360.17- 8- 8
6; Fc,Fc,CH3 3-11.69641.414.311.674.640.23- 9- 9
1 For [Mn(FcCOCHCOR)3], 14; 2 For [Mn(CH3COCHCOCH3)3], 5; 3 For [Mn(FcCOCHCOFc)2(FcCOCHCOCH3)], 6; 4 Sum of R-group electronegativities, ΣχR. By way of example, for 6, this is calculated as follows: ΣχR = 5(χFc) + χCH3 = 5(1.87) + 2.34 = 11.69; 5 ΔBE1 = BEMn2p1/2 − BEMn2p3/2; 6 ΔBE2 = BEMn2p3/2satel − BEMn2p3/2main; 7 Iratio = ratio between the intensities of the satellite and main Mn 2p3/2 photoelectron lines (= (IMn2p3/2satel)/(IMn2p3/2main)); 8 Symmetrical ligands implying there are no mer and fac isomers; 9 The ligands of complex 6 are not equivalent, hence the concepts mer and fac isomers are not applicable.
Table 2. Maximum binding energy, BE, of the Mn 2p3/2 envelope, the binding energies of each multiplet split peak and Iratio %’s for the multiplet splitting of the Mn 2p3/2 peak. BE of the shake-up (charge transfer peak) is also shown.
Table 2. Maximum binding energy, BE, of the Mn 2p3/2 envelope, the binding energies of each multiplet split peak and Iratio %’s for the multiplet splitting of the Mn 2p3/2 peak. BE of the shake-up (charge transfer peak) is also shown.
Comp. No.; R-GroupsMax BE (eV)IsomerPeak 1 (eV)Iratio % 7Peak 2 (eV)Iratio % 7Peak 3 (eV)Iratio % 7Peak 4 (eV)Iratio % 7Peak 5 (eV)Iratio % 7Shake-up (eV)Iratio % 7
1; CF3 1641.86mer640.1023.4641.2223.4642.5231.2644.1715.0645.567.0646.902.46
fac640.7023.4641.8223.4643.1231.2644.7715.0646.167.0
2; CH3 1641.53mer639.9323.1640.9923.1641.8331.4642.9315.3643.717.1645.774.56
fac640.3323.1641.3923.1642.2331.4643.3315.3644.117.1
3; C6H5 1641.50mer639.8623.0640.9023.0641.8231.0642.9016.0644.037.0645.719.28
fac640.1623.0641.2023.0642.1231.0643.2016.0644.337.0
4; Fc 1641.31- 5639.7822.5640.8022.5641.5630.3642.8618.0643.876.7645.8910.25
5; CH3,CH3 2641.73- 5640.0022.9641.1422.9642.2031.0643.3616.1644.367.1646.243.98
6; Fc,Fc,CH3 3641.41- 6639.8421.5640.8921.5641.8226643.1921.5644.1011.2645.358.69
Mn3+ 4 -640.123641.423642.331643.116644.97
1 For [Mn(FcCOCHCOR)3], 14. 2 For [Mn(CH3COCHCOCH3)3], 5. 3 For [Mn(FcCOCHCOFc)2(FcCOCHCOCH3)], 6. 4 Gupta and Sen calculations of the Mn(III) free ion [8,9]. 5 Symmetrical ligands implying there are no mer and fac isomers. 6 The ligands of complex 6 are not equivalent, hence the concepts mer and fac isomers are not applicable. 7 Iratio percentages = percentage ratio between the intensities of the satellite and main Mn 2p3/2 photoelectron lines (= (IMn2p3/2satel)/(IMn2p3/2main) × 100).
Table 3. ΣχR values, maximum binding energy (BE) of the main and satellite Fe 2p3/2 envelope, peak separations between the satellite and main Fe 2p3/2 peaks ΔBE, as well as Iratio values for 14 and 6.
Table 3. ΣχR values, maximum binding energy (BE) of the main and satellite Fe 2p3/2 envelope, peak separations between the satellite and main Fe 2p3/2 peaks ΔBE, as well as Iratio values for 14 and 6.
Comp. Num.; R-GroupsΣχR 3BEFe2p3/2main (eV)FWHM (eV)BEFe2p3/2satel (eV)FWHM (eV)ΔBE 5 (eV)Iratio f
1; R = CF3 114.64708.032.67705.91- 42.120.28
2; R = CH3 112.63707.872.22705.612.372.260.16
3; R = C6H5 112.24707.841.93705.482.072.360.16
4; R = Fc 111.22707.772.81705.282.402.340.09
6; Fc,Fc,CH3 211.69707.791.95705.451.952.490.11
1 For [Mn(FcCOCHCOR)3], 14. 2 For [Mn(FcCOCHCOFc)2(FcCOCHCOCH3)], 6. 3 Sum of R-group electronegativities; calculations are explained in Table 1. 4 Due to a non-linear baseline, FWHM of 1 could not be measured with any degree of accuracy, but it is estimated as 2.84 eV. 5 ΔBE = BEFe2p3/2main − BEFe2p3/2satel. f Iratio = ratio between the intensities of the satellite and main Fe 2p3/2 photoelectron lines (= (IFe2p3/2satel)/(IFe2p3/2main)).
