Molecules 2014, 19(2), 1394-1410; doi:10.3390/molecules19021394

Article
Antileishmanial Lead Structures from Nature: Analysis of Structure-Activity Relationships of a Compound Library Derived from Caffeic Acid Bornyl Ester
Jan Glaser 1, Martina Schultheis 2, Sudipta Hazra 3, Banasri Hazra 3, Heidrun Moll 2, Uta Schurigt 2,* and Ulrike Holzgrabe 1,*
1
Institute of Pharmacy and Food Chemistry, University of Würzburg, Am Hubland, Würzburg 97074, Germany; E-Mail: jan.glaser@uni-wuerzburg.de
2
Institute for Molecular Infection Biology, University of Würzburg, Josef-Schneider-Str. 2, Würzburg 97080, Germany; E-Mails: martina.schultheis@uni-wuerzburg.de (M.S.); heidrun.moll@uni-wuerzburg.de (H.M.)
3
Department of Pharmaceutical Technology, Jadavpur University, Kolkata-700032, India; E-Mails: sudipta_manu@rediffmail.com (S.H.); banasrihazra@yahoo.co.in (B.H.)
*
Authors to whom correspondence should be addressed; E-Mails: uta.schurigt@uni-wuerzburg.de (U.S.); u.holzgrabe@pharmazie.uni-wuerzburg.de (U.H.); Tel.: +49-931-318-4671 (U.S.); +49-931-318-5461 (U.H.).
Received: 23 December 2013; in revised form: 13 January 2014 / Accepted: 13 January 2014 /
Published: 27 January 2014

Abstract

: Bioassay-guided fractionation of a chloroform extract of Valeriana wallichii (V. wallichii) rhizomes lead to the isolation and identification of caffeic acid bornyl ester (1) as the active component against Leishmania major (L. major) promastigotes (IC50 = 48.8 µM). To investigate the structure-activity relationship (SAR), a library of compounds based on 1 was synthesized and tested in vitro against L. major and L. donovani promastigotes, and L. major amastigotes. Cytotoxicity was determined using a murine J774.1 cell line and bone marrow derived macrophages (BMDM). Some compounds showed antileishmanial activity in the concentration range of pentamidine and miltefosine which are the standard drugs in use. In the L. major amastigote assay compounds 15, 19 and 20 showed good activity with relatively low cytotoxicity against BMDM, resulting in acceptable selectivity indices. Molecules with adjacent phenolic hydroxyl groups exhibited elevated cytotoxicity against murine cell lines J774.1 and BMDM. The Michael system seems not to be essential for antileishmanial activity. Based on the results compound 27 can be regarded as new lead structure for further structure optimization.
Keywords:
Valeriana wallichii; leishmaniasis; caffeic acid bornyl ester; structure-activity relationship

1. Introduction

Leishmaniasis is one of the most dreadful infectious diseases worldwide. It is endemic in 98 countries and almost 350 million people on five continents are at risk of infection [1,2]. The disease has an especially high impact on the population of the disadvantaged regions of South America, Africa and Asia (especially India), all of them suffering from poverty and low health care standards. Leishmaniasis is caused by protozoan parasites, which are transmitted by the bite of the sand fly. It comprises a variety of diseases. Cutaneous leishmaniasis mostly caused by L. major produces skin sores, ulcers and eventually heals by leaving defacing scars. The most severe form is the visceral leishmaniasis also known as kala-azar or black fever. Here the parasites invade internal organs, especially the liver and the spleen. This is fatal if left untreated. The species known to cause visceral leishmaniasis is L. donovani which is prevalent in India and East Africa. 70% of the global burden of kala-azar is concentrated in India [1,3]. The estimated incidence of visceral leishmaniasis in India is 146,700 to 282,800 cases per year [1].

The infection can be treated but the drugs in use like miltefosine or amphotericin B show severe side effects. Additionally these drugs are expensive and require adequate medicinal care which is not readily available in the most affected regions of India or Africa. Therefore, the need for new antileishmanial drugs is evident. As reported previously the chloroform extract of V. wallichii roots showed antileishmanial activity [4]. In this paper we describe the isolation and structure elucidation of one active ingredient, which was assigned to be caffeic acid bornyl ester (1). In order to analyse structure-activity relationship for activity optimization a library of derivatives has been synthesized. The respective cytotoxicity against diverse species of Leishmania promastigotes, amastigotes, and macrophages was determined.

2. Results and Discussion

2.1. Isolation

The crude chloroform extract obtained from the pulverized rhizomes of V. wallichii was subjected to bioactivity-guided fractionation. The extract was roughly fractionated into twelve fractions by means of semi-preparative HPLC using reverse phase material and a gradient of H2O/MeOH as the eluent. The most active fraction was repeatedly partitioned by normal phase silica gel column chromatography with CHCl3/MeOH (4.8:0.2 v/v) as mobile phase. From a relatively polar sub-fraction with an IC50 of 11.8 µg/mL against L. major promastigotes a pure compound could be isolated. 1H- NMR data showed two doublets for vinyl protons at 6.3 and 7.6 ppm, respectively, with the typical coupling constants of 15.9 Hz indicating a double bond with trans configuration. Signals for three aromatic protons with a characteristic coupling pattern suggested meta and para substitution in relation to the side chain. Characteristic for the borneol moiety were the three -CH3 singlets at 0.90, 0.95 and 0.99 ppm respectively. ESIMS data confirmed the assumed ester structure with two hydroxyl groups as substituents on the aromatic ring by giving a mass of m/z 315 [M−H]. The obtained spectroscopic data are in accordance to literature data [5,6,7] for caffeic acid bornyl ester. Similar bornyl esters have been found in Conocephalum conicum (liverwort) [8,9] and some Verbesina species [7,10,11].

2.2. Chemistry

Since the caffeoyl-skeleton has been described to be a valuable pharmacophore for antiviral [5,12], antibacterial [13] and antiprotozoal activity [14] we tried to enhance the antileishmanial activity and to decrease the cytotoxicity by the synthesis of a library of derivatives of 1 with systematic structure variations with regard to the terpenoid part on the one hand and the caffeic acid part on the other hand. To investigate structure-activity relationship borneol was replaced by moieties varying in size and bulkiness, and substituents with different properties such as hydroxyl, methoxy and nitro groups as well as halogen atoms were attached to the aromatic ring in varying positions. The general synthesis of phenolic compound 1 and its derivatives 213 via Knoevenagel-Doebner condensation is outlined in Scheme 1.

Molecules 19 01394 g002 200
Scheme 1. Preparation of compounds 113 (substituents are listed in Table 1).

Click here to enlarge figure

Scheme 1. Preparation of compounds 113 (substituents are listed in Table 1).
Molecules 19 01394 g002 1024

Activation of the corresponding alcohol with Meldrum’s acid without isolation of the activated product and subsequent aldol condensation using the substituted aldehyde lead to the cinnamic acid derivatives 113 in acceptable yields [5]. Compounds 1426 were accessible by facile esterification using the Steglich concept composed of N,N'-dicyclohexylcarbodiimide (DCC) and 4-dimethyl-aminopyridine (DMAP) in CHCl3 or THF (Scheme 2).

Molecules 19 01394 g003 200

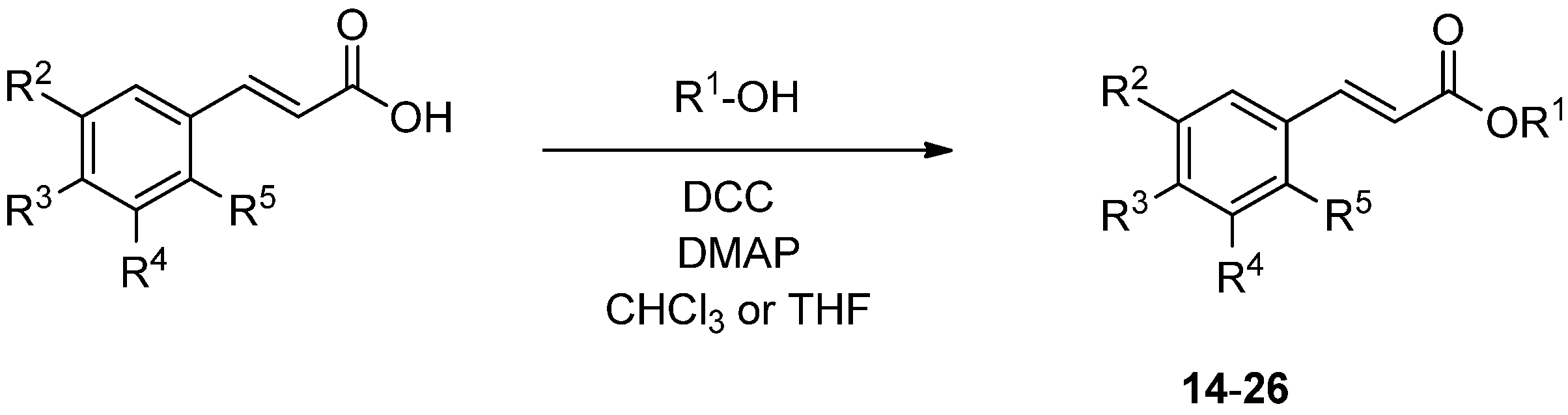

Scheme 2. Preparation of compounds 1426 (substituents are listed in Table 2).

Click here to enlarge figure

Scheme 2. Preparation of compounds 1426 (substituents are listed in Table 2).
Molecules 19 01394 g003 1024

The α,β-unsaturated carbonyl moiety of the caffeic acid is a Michael acceptor which is highly reactive to nucleophilic attacks, e.g., by amino or thiol groups. To investigate whether the double bond is essential for antileishmanial activity compound 27 has been synthesized via a different synthesis route as described before [15]. By esterification of 3-phenyl propanoic acid with borneol using tosyl chloride, Et3N and DMAP as a catalyst (Scheme 3) product 27 was obtained.

Molecules 19 01394 g004 200
Scheme 3. Preparation of compound 27.

Click here to enlarge figure

Scheme 3. Preparation of compound 27.
Molecules 19 01394 g004 1024

It might be possible that the catechol moiety of compound 1 contributes to cytotoxicity or antileishmanial activity. Hence both phenolic hydroxyl groups were acetylated by adding acetic acid anhydride to caffeic acid bornyl ester 1 (isolated from the plant) in pyridine at 0 °C and stirring for 24 h at room temperature (Scheme 4) to give compound 28.

Molecules 19 01394 g005 200

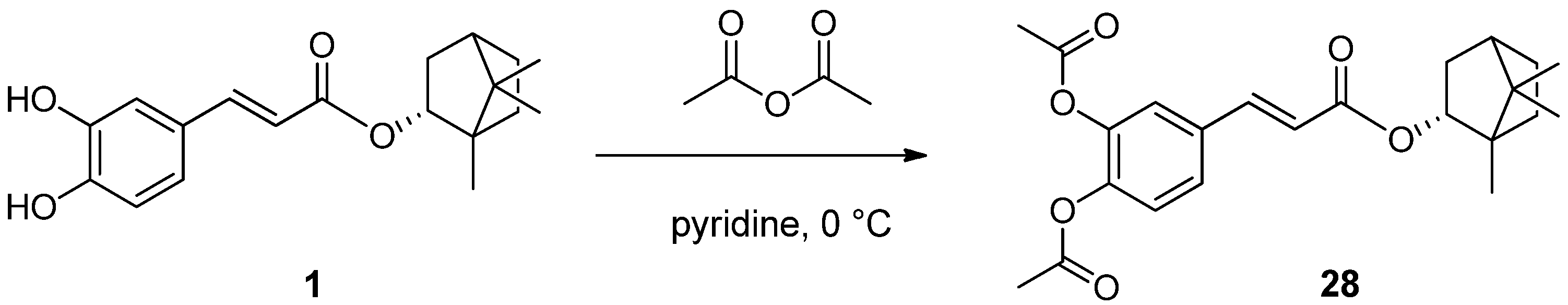

Scheme 4. Preparation of compound 28.

Click here to enlarge figure

Scheme 4. Preparation of compound 28.
Molecules 19 01394 g005 1024

2.3. Structure-Activity Relationship Investigation

Antileishmanial activities of the synthesized compounds were evaluated in L. major promastigotes as described before [16] and in L. donovani promastigotes according to Hazra et al. [17]. Cytotoxicity was determined on a J774.1 murine cell line [16]. The antiprotozoal activities are presented in Table 1, Table 2 and Table 3 as inhibitory concentrations (IC50). The most active compound is the cinnamic acid bornyl ester 15 having an IC50 value of 39.6 µM against L. major and 15.6 µM against L. donovani promastigotes, which is in the concentration range of pentamidine and miltefosine; both are drugs currently in use.

2.3.1. Influence of the Bornyl Moiety

The bornyl moiety is of particular importance of preserving antileishmanial activity. The most active compounds 1, 7, 15 and 27 are all esters of borneol. There is no significant change in activity using isoborneol (1) instead of borneol (7). Substituting borneol with a less sterically demanding alcohol e.g., cyclohexanol (23) or eugenol (24) gives IC50 values higher than 100 µM (L. major). Using thymol (10, 11, 19), menthol (12, 13, 20) or other bulky substituents like naphthol (22) or adamantol (21) preserves the activity. A similar pattern is found with L. donovani promastigotes. Again the bornyl esters show the best IC50 values, and the activity is at a similar level using thymol, menthol or naphthol. In contrast to L. major some of the sterically less demanding compounds exhibit activity against L. donovani promastigotes (e.g., 23.4 μM (23), 41.9 μM (26)). This might be due to biological differences between the two species. However borneol seems to be the most advantageous substituent fulfilling the requirement of bulkiness in this position.

2.3.2. The Catechol Moiety

The caffeic acid derivative (1) isolated from V. wallichii having two hydroxyl groups in position 3 and 4 of the aromatic ring shows an IC50 value of 48.8 μM against L. major promastigotes and relatively high cytotoxicity (8.3 μM) against a J774.1 cell line. The toxicity is an attribute of all meta and para dihydroxylated cinnamic acid derivatives (7, 10, 12) and has been reported in the literature for similar compounds [14,18,19]. The catechol moiety is prone to oxidation resulting in an o-quinone which can easily react with amino groups of proteins [20]. Hence, omitting the hydroxyl groups lead to 15 with antileishmanial activity in the same concentration range as 1 but with a fivefold lower cytotoxicity.

Table 1. Antileishmanial activity and cytotoxicity (compounds 113). Molecules 19 01394 i001

Click here to display table

Table 1. Antileishmanial activity and cytotoxicity (compounds 113). Molecules 19 01394 i001
IC50 (μM) *
Compd.R1R2R3L. major promastigotesL. donovani promastigotesJ774.1
1 Molecules 19 01394 i002-OH-OH48.827.38.3
2-OH-OCH364.441.348.7
3-H-Cl71.2>10049.5
4-H-Br>100>10054.6
5-H-N(CH3)2>100>100>100
6-H Molecules 19 01394 i003>100>100>100
7 Molecules 19 01394 i004-OH-OH45.834.88.8
8-OH-OCH360.674.544.3
9-H-NO2>100>100>100
10 Molecules 19 01394 i005-OH-OH57.642.19.5
11-OH-OCH359.879.645.6
12 Molecules 19 01394 i006-OH-OH59.579.41.95
13-OH-OCH354.2>10044.6

* Positive control: pentamidine 82 μM (L. major), 38.6 μM (J774.1); miltefosine: 36.2 μM (L. major), 56.5 μM (J774.1); amphotericin B 0.4 μM (L. donovani).

Table 2. Antileishmanial activity and cytotoxicity (compounds 1426 and 28). Molecules 19 01394 i007

Click here to display table

Table 2. Antileishmanial activity and cytotoxicity (compounds 1426 and 28). Molecules 19 01394 i007
IC50 (µM) *
Compd.R1R2R3R4R5L. major promastigotesL. donovani promastigotesJ774.1
14 Molecules 19 01394 i008-H-H-Cl-Cl65.6>10058.9
15-H-H-H-H39.615.645.2
16-H-OCH3-H-H60.9>10042.6
17-H-Cl-H-Cl80.5>10060.6
18 Molecules 19 01394 i009-H-H-H-H 64.3 51.2 46.0
19 Molecules 19 01394 i010-H-H-H-H 55.0 >100 44.8
20 Molecules 19 01394 i011-H-H-H-H53.179.7 44.8
21 Molecules 19 01394 i012-H-H-H-H 60.0 >100 46.7
22 Molecules 19 01394 i013-H-H-H-H67.028.744.5
23 Molecules 19 01394 i014-H-H-H-H >100 23.4 >100
24 Molecules 19 01394 i015 -H -H -H -H >100 >100 >100
25 Molecules 19 01394 i016-H-H-H-H>10080.332.2
26 Molecules 19 01394 i017-H-H-H-H >10041.9 >100
28 Molecules 19 01394 i018-OAc-OAc-H-H 30.7-2.1

* Positive control: pentamidine 82 μM (L. major), 38.6 μM (J774.1); miltefosine: 36.2 μM (L. major), 56.5 μM (J774.1); amphotericin B 0.4 μM (L. donovani).

The same effect is observed by replacement of the hydroxyl group in 4-position with a methoxy group (compounds 2, 8, 11, 13). However, the cytotoxicity is not correlating with antileishmanial activity, the latter stays in the same concentration range for compounds whether with or without hydroxyl groups. Acetylation to “mask” the catechol structure (compound 28) slightly increased antileishmanial activity but cytotoxicity persisted in the single-digit micromolar range.

2.3.3. Substitution on the Aromatic Ring

In order to analyse the influence of the substituents of the aromatic ring on antileishmanial activity and cytotoxicity, bornyl esters are compared in the following. Compound 15 with an unsubstituted benzene ring is the most promising compound with an antileishmanial activity in a low micromolar concentration and low cytotoxicity. The comparison of all derivatives with substituents in para position reveals compounds 3 (-Cl) and 16 (-OMe) to have minor antileishmanial activity against L. major (71.2 μM and 60.9 μM). Larger substituents are not tolerated in this location (compounds 46, 9) whereas chlorination in position 2 and 3 (compound 14), and 2 and 4 (compound 17), respectively, is acceptable. None of these compounds exhibited any activity against L. donovani promastigotes. Thus, a non-substituted aromatic ring is advantageous for a good antiprotozoal activity against both species.

2.3.4. Michael System

All compounds are characterized by the highly reactive enone Michael system, which is prone to unspecific covalent reactions with proteins of both parasite and host. In order to check whether the Michael moiety is necessary for antileishmanial activity, compound 27 characterized by a simple carbonyl group was synthesized. This compound is as active as the corresponding compound 15 and did not show cytotoxicity (Table 3). This is in contrast to the results observed for caffeic acid alkyl ester derivatives which were found to be inactive without the double bond [14].

Table 3. Antileishmanial activity of compounds 15 and 27.

Click here to display table

Table 3. Antileishmanial activity of compounds 15 and 27.

Compound
L. major promastigotes IC50 (µM)Cytotoxicity J774.1 IC50 (µM)Selectivity index SI a
Molecules 19 01394 i019
39.6

45.2

1.1
Molecules 19 01394 i020
50.2

>100

>2.0

a SI = IC50 for J774.1/IC50 for L. major.

2.4. Amastigote Results

The amastigote is the intracellular pathogenic form of the parasite in the vertebrate host and therefore the important target. Compounds 1, 2, 7, 10, 15, 19, 20 showing high activity against L. major promastigotes were selected for screening against L. major amastigotes and cytotoxicity against BMDM. The amastigote assay was conducted as reported by Bringmann et al. [16] and the results are presented in Table 4. The cytotoxicity against BMDM mirrors those against the macrophages J774.1. With regard to antileishmanial activity cinnamic acid menthyl (20) and thymyl ester (19) show good activities combined with low cytotoxicity. Again the cinnamic acid bornyl ester (15) is the most active compound. In general, the activity lies in the range of miltefosine with an IC50 value of 33.0 μM. Based on these results, the compounds should be tested for in vivo activity against Leishmania infections.

Table 4. Antileishmanial activity and cytotoxicity of selected compounds.

Click here to display table

Table 4. Antileishmanial activity and cytotoxicity of selected compounds.
CompoundL.major amastigotes IC50 (µM)Cytotoxicity BMDM IC50 (µM)Selectivity index SI a
147.65.30.1
747.010.90.2
1510.954.35.0
239.249.01.2
1949.1>148>3.0
2019.5>126>6.4
1054.19.80.2
Miltefosine33.065.52.0

a SI = IC50 for BMDM/IC50 for L. major.

3. Experimental

3.1. General Procedures

Starting materials and reagents were purchased from Sigma-Aldrich (Taufkirchen, Germany) and VWR (Darmstadt, Germany). Solvents were of synthetic or analytical grade. Melting points were determined on a Stuart melting point apparatus SMP10 (Bibby Scientific, Stone, United Kingdom) and are uncorrected. Optical rotations were measured on a CHIRALYSER 6.3 (IBZ Messtechnik, Springe, Germany). IR spectra were acquired on a JASCO (Gross-Umstadt, Germany) FT/IR-6100 Fourier Transformation Infrared Spectrometer equipped with an ATR unit. 1H (400.132 MHz) and 13C (100.613 MHz) NMR spectra were recorded on a Bruker Avance 400 Ultra Shield™ (Bruker Biospin, Ettlingen, Germany) spectrometer. The signals of the deuterated solvents were used as internal standards (CDCl3: 1H 7.26 ppm, 13C 77.0 ppm; MeOD: 1H 4.84 ppm, 13C 49.05 ppm). LC/MS was conducted on an Agilent 1100 analytical HPLC with DAD detection and an Agilent LC/MSD Trap (Agilent Technologies, Böblingen, Germany). ESIMS data was conducted in positive and negative mode. For LC/MS, following conditions were used: Nucleodur Sphinx RP-18 (Macherey-Nagel, Düren, Germany, 150 mm × 4.6 mm, 5 µm, A) CH3CN + 0.1% FA, B) H2O + 0.1% formic acid (FA), gradient: 10% B (0–2 min), 30% B (2–3 min), 100% B (3–25 min), 80% B (25–33 min), 40% B (33–37 min), 10% B (38–40 min), 0.8 mL/min, MS-detection: ESI, nebulizer pressure: 50 psi, drying gas: 10 L/min, drying gas temperature: 350 °C, capillary voltage: 3500 V. An Agilent 1100 preparative HPLC with fraction collector and multiple wavelength detector (MWD) was used for fractionation of the extract.

3.2. Plant Material and Preparation of Extract

The plant material was obtained as described previously [4]. The rhizomes were pulverized and a portion of 10 g was refluxed for 2 h with 100 mL chloroform. Evaporation of the solvent yielded a black syrup with a characteristic smell.

3.3. Bioactivity-Guided Fractionation and Isolation of 1

The crude chloroform extract (10.9 g) was subjected to a bioactivity-guided fractionation (Figure 1). The extract was slurried in MeOH and the insoluble parts were removed by filtration over LiChroprep© RP-18 material (Yield: 9.5 g).

Molecules 19 01394 g001 200
Figure 1. Overview of bioactivity-guided fractionation.

Click here to enlarge figure

Figure 1. Overview of bioactivity-guided fractionation.
Molecules 19 01394 g001 1024

The extract was subjected to semi-preparative HPLC (250 mm × 10 mm, 5 µm, Macherey-Nagel Nucleosil 100-5; (A) H2O, (B) MeOH, gradient: 70% B (0 min), 75% B (7 min), 100% B (25 min), 70% B (30 min); flow rate: 3.3 mL/min) and partitioned into 12 fractions. Fraction 4–8 exhibited significant antileishmanial activity against L. major promastigotes. Fraction 5 (559 mg) was further fractionated by column chromatography using silica gel and MeOH/CHCl3 (4.8:0.2 v/v) as mobile phase. Fraction 5β3 (258 mg) was partitioned a second time by column chromatography using silica gel and MeOH/CHCl3 (4.8:0.2 v/v) to yield three fractions (5β3a, 5β3b, 5β3c) from which the last fraction afforded 135 mg of caffeic acid (−)-bornyl ester (IC50 = 48.8 µM). The structure was identified by means of NMR and LC/MS data.

Caffeic Acid (−)-bornyl Ester (1). Brownish solid (MeOH); m.p. 150 °C (lit.[6] 148–151 °C); [α]426 −5.1° (c 0.1, MeOH); IR: 3444, 3165, 1661, 1604, 1273, 1186 cm−1; 1H-NMR (MeOD) δ (ppm) J (Hz): 0.90 (s; 3H); 0.94 (s; 3H); 0.98 (s; 3H); 1.06 (dd; 3.7; 13.7; 1H); 1.26–1.35 (m;2H); 1.70 (t; 4.5; 1H); 1.79–1.88 (m; 1H); 2.07–2.13 (m; 1H); 2.38–2.46 (m; 1H); 5.00 (ddd; 2.2; 3.4; 9.9; 1H); 6.30 (d; 15.9; 1H); 6.80 (d; 8.2; 1H); 7.00 (dd; 2.1; 8.2; 1H); 7.05 (d; 2.1; 1H); 7.54 (d; 15.9; 1H); 13C-NMR (MeOD) δ (ppm) 13.9; 19.2; 20.1; 28.2; 29.0; 37.9; 46.4; 48.9; 49.5; 81.2; 115.1; 115.5; 116.5; 122.9; 127.8; 146.7; 146.8; 149.6; 169.7; ESIMS: m/z 315 [M−H], 339 [M+Na]+.

3.4. Synthesis

3.4.1. General Procedure for the Synthesis of Compounds 113

Synthesis was conducted according to the method of Xia et al. [5]. The alcohol (2.94 mmol) and Meldrum’s acid (2.94 mmol) were dissolved in toluene (20 mL) and refluxed for 4 h. To the resulting activated alcohol the corresponding aldehyde (2.94 mmol), pyridine (2.5 mL) and piperidine (250 µL) were added. This mixture was stirred at room temperature for 24–48 h. The solvent was evaporated, the residue dissolved in diethyl ether (20 mL) and washed three times with an aqueous saturated NaHCO3 solution (10 mL), 20% HCl (10 mL), and H2O (10 mL), respectively. After drying over MgSO4 the solvent was evaporated and the residue was chromatographed using silica gel (petroleum ether/ethyl acetate 60:40) to yield the desired product (overall yields of the two steps are reported).

Synthesized Caffeic Acid (−)-bornyl Ester (1). Yield 19%; off-white solid; m.p. 150 °C; [α]426 −4.5° (c 0.1, MeOH); IR and NMR data in accordance with above and literature [6].

Isoferulic Acid (−)-bornyl Ester (2). Yield 9%; colorless syrup; IR: 3384, 2952, 2877, 1698, 1631, 1263, 1172, 1155 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.88 (s; 3H); 0.90 (s; 3H); 0.95 (s; 3H); 1.04–1.08 (m; 1H); 1.25–1.32 (m; 2H); 1.71 (t 4.5; 1H); 1.75–1.85 (m; 1H); 2.02–2.09 (m; 1H); 2.38–2.46 (m; 1H); 3.94 (s; 3H); 5.02 (ddd; 2.1; 3.4; 9.9; 1H); 6.30 (d; 16.0; 1H); 6.92 (d; 8.2; 1H); 7.05 (d; 1.9; 1H); 7.09 (dd; 8.2; 1.9; 1H); 7.60 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm): 13.6; 18.9; 19.7; 27.3; 28.1; 36.9; 45.0; 47.9; 48.9; 56.0; 79.8; 109.3; 114.7; 116.2; 123.0; 127.1; 144.3; 146.7; 147.8; 167.6.

4-Chlorocinnamic Acid (−)-bornyl Ester (3). Yield 14%; slightly yellow solid; m.p. 80–83 °C; IR: 2952, 2876, 1704, 1636, 1490, 1308, 1184, 820 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.88 (s; 3H); 0.90 (s; 3H); 0.94 (s; 3H); 1.03–1.08 (m; 1H); 1.25–1.32 (m; 2H); 1.71 (t; 4.6; 1H); 1.74–1.84 (m; 1H); 2.01–2.06 (m; 1H); 2,38–2.46 (m; 1H); 5.02 (ddd; 2.2; 3.4; 10.0; H); 6.44 (d; 16.0; 1H); 7.36 (d; 8.5; 2H); 7.47 (d; 8.5; 2H); 7.61 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm): 13.5; 18.9; 19.7; 27.2; 28.1; 36.9; 45.0; 47.9; 49.0; 80.2; 119.4; 129.1 (2C); 129.2 (2C); 133.1; 136.0; 142.7; 167.1.

4-Bromocinnamic Acid (−)-bornyl Ester (4). Yield 9%; yellow solid; m.p. 71–74 °C; IR: 2953, 2875, 1705, 1635, 1203, 1158, 816 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.88 (s;3H); 0.90 (s;3H); 0.94 (s; 3H); 1.03–1.08 (m; 1H); 1.25–1.32 (m;2H); 1.71 (t; 4.6; 1H); 1.74–1.84 (m;1H); 2.01–2.06 (m;1H); 2.38–2.46 (m; 1H); 5.03 (ddd; 2.2; 3.4; 9.9; 1H); 6.44 (d; 16.0; 1H); 7.36 (d; 8.5; 2H); 7.47 (d; 8.5; 2H); 7.61 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm): 13.5; 18.9; 19.7; 27.2; 28.1; 36.9; 45.0; 47.9; 48.9; 80.2; 119.4; 124.4; 129.4 (2C); 132.1 (2C); 133.4; 142.7; 167.1.

4-N-Dimethylaminocinnamic Acid (−)-bornyl Ester (5). Yield 25%; yellowish solid; m.p. 114–116 °C; IR: 2950, 2877, 1696, 1603, 1524, 1151, 810 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.88 (s; 3H); 0.90 (s; 3H); 0.94 (s; 3H); 1.04–1.08 (m; 1H); 1.25–1.37 (m; 2H); 1.70 (t; 4.5; 1H); 1.74–1.84 (m; 1H); 2.03–2.10 (m; 1H); 2.37–2.45 (m; 1H); 3.02 (s; 6H); 5.01 (ddd; 2.0; 3.3; 9.9; 1H); 6.25 (d; 15.9; 1H); 6.67 (d; 8.8; 2H); 7.43 (d; 8.8; 2H); 7.61 (d; 15.9; 1H); 13C-NMR (CDCl3) δ (ppm): 13.6; 18.9; 19.8; 27.3; 28.1; 36.9; 40.1 (2C); 45.0; 47.8; 48.9; 79.4; 111.8 (2C); 113.2; 123.0; 129.7 (2C); 144.7; 151.7; 168.2.

4-O-Benzoylcinnamic Acid (−)-bornyl Ester (6). Yield 13%; lightly yellow solid; m.p. 93–95 °C; IR: 2951, 2878, 1695, 1627, 1600, 1510, 1255, 1171, 998 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.88 (s; 3H); 0.90 (s; 3H); 0.95 (s; 3H); 1.04–1.08 (m; 1H); 1.25–1.37 (m; 2H); 1.70 (t; 4.5; 1H); 1.73–1.84 (m; 1H); 2.02–2.08 (m; 1H); 2.37–2.45 (m; 1H); 5.01 (ddd; 2.0; 3.4; 9.9; 1H); 5,10 (s; 2H); 6.34 (d; 16.0; 1H); 7.00 (d; 8.7; 2H); 7.34–7.44 (m; 5H); 7.49 (d; 8.7; 2H); 7.60 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm): 13.5; 18.9; 19.7; 27.2; 28.1; 36.9; 45.0; 47.8; 48.9; 70.1; 79.8; 115.2 (2C); 116.5; 127.4 (2C); 127.5; 128.0; 128.7 (2C); 129.7 (2C); 136.5; 143.8; 160.4; 167.6.

Caffeic Acid Isobornyl Ester (7). Yield 12%; brownish solid; m.p. 160–161 °C; IR: 3444, 3168, 2956, 1666, 1604, 1439, 1277, 1182 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.86 (s; 3H); 0.89 (s;3H); 1.05 (s; 3H); 1.09–1.25 (m; 2H); 1.55–1.62 (m; 1H); 1.68–1.88 (m; 4H); 4.80 (dd; 4.6; 6.9; 1H); 6.23 (d; 15.9; 1H); 6.87 (d; 8.2; 1H); 6.99 (dd; 1.7; 8.2; 1H); 7.12 (d; 1.7; 1H); 7.53 (d; 15.9; 1H); 13C-NMR (CDCl3) δ (ppm) 11.2; 19.7; 19.8; 26.7; 33.4; 38.5; 44.8; 46.7; 48.6; 81.2; 114.1; 115.2; 115.7; 122.1; 127.1; 143.6; 144.5; 146.3; 167.4.

Isoferulic Acid Isobornyl Ester (8). Yield 11%; colourless syrup; IR: 3387, 2952, 2876, 1696, 1631, 1591, 1512, 1263, 1154 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.87 (s;3H); 0.90 (s;3H); 1.07 (s;3H); 1.09–1.26 (m;2H); 1.54–1.61 (m;1H); 1.68–1.90 (m;4H); 3.94 (s;3H); 4.80 (dd;4.3;7.4;1H); 6.25 (d;15.9;1H); 6.91 (d;8.2;1H); 7.02 (d;1.9;1H); 7.07 (dd;1.9;8.2;1H); 7.55 (d;15.9;1H); 13C-NMR (CDCl3) δ (ppm) 11.5; 20.0; 20.1; 27.0; 33.8; 38.9; 45.1; 47.0; 48.9; 56.0; 81.0; 109.3; 114.7; 116.3; 123.0; 127.1; 144.3; 146.8; 147.8; 167.0.

4-Nitrocinnamic Acid Isobornyl Ester (9). Yield 16%; yellowish solid; m.p. 121–123 °C; IR: 2950, 2876, 1700, 1516, 1340, 1301, 1163, 842 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.87 (s; 3H); 0.90 (s; 3H); 1.06 (s; 3H); 1.07–1.25 (m; 2H); 1.54–1.61 (m; 1H); 1.70–1.92 (m; 4H); 4.83 (dd; 4.1; 7.5; 1H); 6.53 (d; 16.0; 1H); 7.65 (d; 16.0; 1H); 7.67 (d; 8,7; 2H); 8.24 (d; 8.7; 2H); 13C-NMR (CDCl3) δ (ppm) 11.5; 20.0; 20.1; 27.0; 33.8; 38.8; 45.1; 47.0; 49.0; 81.8; 123.2; 124.1 (2C); 128.6 (2C); 140.7; 141.3; 165.6.

Caffeic Acid Thymyl Ester (10). Yield 14%; brownish solid; m.p. 115–117 °C; IR: 3339, 2960, 1726, 1695, 1616, 1514, 1235, 1136, 1114 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 1.20 (s; 3H); 1.21 (s; 3H); 2.32 (s; 3H); 3.03 (sept; 6.9; 1H); 5.84 (br s; -OH); 5.89 (br s; -OH); 6.48 (d; 15.9; 1H); 6.87 (d; 8.2; 1H); 6.87 (d; 0.9; 1H); 7.04 (dd; 0.9; 7.9; 1H); 7.07 (dd; 2.0; 8.2; 1H); 7.22 (d; 7.9; 1H); 7.77 (d; 15.9; 1H); 13C-NMR (CDCl3) δ (ppm) 20.5; 22.7 (2C); 26.9; 114.2; 114.4; 115.2; 122.4; 122.5; 126.2; 126.9; 127.0; 136.3; 136.9; 143.5; 146.3; 146.4; 147.6; 166.2.

Isoferulic Acid Thymyl Ester (11). Yield 15%; colourless syrup; IR according to ref. [21]; 1H-NMR (CDCl3) δ (ppm) J (Hz): 1.21 (s; 3H); 1.23 (s; 3H); 2.32 (s; 3H); 2.34 (s; 3H); 3.05 (sept; 6.9; 1H); 3.96 (s; 3H); 6.52 (d; 15.9; 1H); 6.89 (d; 0.9; 1H); 6.96 (d; 8.2; 1H); 7.05 (dd; 0.9; 7.9; 1H); 7.11 (d; 1.9; 1H); 7.12 (dd; 1.9; 8.2; 1H); 7.23 (d; 7.9; 1H); 7.81 (d; 15.9; 1H); 13C-NMR (CDCl3) δ (ppm) 21.2; 23.4 (2C); 27.5; 56.3; 109.8; 114.9; 115.1; 123.2; 123.7; 126.7; 127.1; 127.4; 136.8; 137.5; 146.8; 147.1; 148.3; 148.6; 166.3.

Caffeic Acid Menthyl Ester (12). Yield 25%; colourless syrup; IR: 3384, 2953, 2868, 1694, 1632, 1591, 1511, 1264, 1170 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.78 (d; 6.9; 3H); 0.90 (d; 2.7; 3H); 0.90 (d; 2.7; 3H); 1.00–1.15 (m; 2H); 1.42–1.55 (m; 2H); 1.69–1.72 (m; 2H); 1.87–1.95 (m; 1H); 2.03–2.06 (m; 1H); 4.8 (dt; 4.4; 10.9; 1H); 6.25 (d; 15.9; 1H); 6.87 (d; 8.2; 1H); 6.99 (dd; 1.9; 8.2; 1H); 7.11 (d; 1.9; 1H); 7.57 (d; 15.9; 1H); 13C-NMR (CDCl3) δ (ppm) 16.8; 21.1; 22.4; 24.0; 26.8; 31.8; 34.7; 41.4; 47.6; 75.1; 114.8; 115.8; 116.2; 122.7; 127.8; 144.4; 145.4; 147.0; 168.2.

Isoferulic Acid Menthyl Ester (13). Yield 24%; colourless syrup; IR: 3398, 2953, 2926, 2868, 1695, 1513, 1263, 1158 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz) 0.79 (d; 6.9; 3H); 0.91 (d; 2.9; 3H); 0.92 (d; 2.6; 3H); 1.00–1.16 (m; 2H); 1.40–1.55 (m; 2H); 1.67–1.73 (m; 2H); 1.90–1.99 (m; 1H); 2.03–2.09 (m; 1H); 3.93 (s; 3H); 4.82 (dt; 4.4; 10.9; 1H); 6.28 (d; 15.8; 1H); 6.91 (d; 8.2; 1H); 7.04 (d; 1.8; 1H); 7.07 (dd; 1.8; 8.2; 1H); 7.60 (d; 15.8; 1H); 13C-NMR (CDCl3) δ (ppm) 16.4; 20.8; 22.0; 23.6; 26.3; 31.4; 34.3; 41.1; 47.3; 55.9; 74.1; 109.2; 114.7; 116.1; 123.0; 127.1; 144.4; 146.7; 147.8; 166.8.

3.4.2. General Procedure for the Synthesis of Compounds 1427

Cinnamic acid (500 mg, 3.37 mmol) and the respective alcohol (3.37 mmol) were dissolved in THF or CHCl3 (20 mL). After addition of DCC and DMAP the resulting mixture was stirred for 16 h at room temperature. After evaporation and column chromatography on silica gel (CHCl3/MeOH 4.8:0.2) the desired product was obtained.

2,3-Dichlorocinnamic acid (−)-bornyl ester (14). Yield 18%; colourless crystals; m.p. 86–87 °C; IR: 2930, 2875, 2118, 1711, 1635, 1315, 1178 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz) 0.89 (s; 3H); 0.90 (s; 3H); 0.95 (s; 3H); 1.05–1.09 (m; 1H); 1.25–1.38 (m; 2H); 1.72 (t; 4.5; 1H); 1.75–1.83 (m; 1H); 2.00–2.06 (m; 1H); 2.39–2.47 (m; 1H); 5.03 (ddd; 2.2; 3.4; 9.9; 1H); 6.44 (d; 16.0; 1H); 7.22 (t; 7.9; 1H); 7.48 (dd; 1.5; 7.9; 1H); 7.54 (dd; 1.5; 7.9; 1H); 8.09 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm) 13.2; 18.6; 19.4; 26.9; 27.7; 36.5; 44.6; 47.6; 48.6; 80.1; 122.3; 125.5; 127.0; 131.1; 132.6; 133.7; 134.9; 139.7; 166.2.

Cinnamic Acid (−)-Bornyl Ester (15). Yield 7%; colourless syrup; spectral data are in accordance with data reported in ref. [22,23].

4-Methoxycinnamic Acid (−)-Bornyl Ester (16). Yield 25%; crystalline solid; m.p. 87–90 °C; IR: 2952, 2929, 2117, 1701, 1627, 1602, 1513, 1152 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz) 0.87 (s; 3H); 0.88 (s; 3H); 0.94 (s; 3H); 1.03–1.08 (m; 1H); 1.24–1.39 (m; 2H); 1.70 (t; 4.5; 1H); 1.73–1.80 (m; 1H); 2.02–2.08 (m; 1H); 2.37–2.45 (m; 1H); 3.84 (s; 3H); 5.02 (ddd; 2.2; 3.4; 9.9; 1H); 6.34 (d; 15.9; 1H); 6.90 (d; 8.7; 2H); 7.49 (d; 8.7; 2H); 7.63 (d; 15.9; 1H); 13C-NMR (CDCl3) δ (ppm) 13.2; 18.6; 19.4; 26.9; 27.7; 36.6; 44.7; 47.5; 48.6; 55.0; 79.4; 114.0 (2C); 116.0; 127.0; 129.3 (2C); 143.5; 160.9; 167.3.

2,4-Dichlorocinnamic Acid (−)-bornyl Ester (17). Yield 85%; colourless crystalline solid; m.p. 90–92 °C; IR: 2930, 2882, 2118, 1712, 1638, 1469, 1312, 1177 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz): 0.90 (s; 3H); 0.92 (s; 3H); 0.97 (s; 3H); 1.07–1.11 (m; 1H); 1.27–1.40 (m; 2H); 1.74 (t; 4.5; 1H); 1.76–1.85 (m; 1H); 2.02–2.09 (m; 1H); 2.41–2.49 (m; 1H); 5.03 (ddd; 2.2; 3.4; 9.9; 1H); 6.44 (d; 16.0; 1H); 7.22 (t; 7.9; 1H); 7.48 (dd; 1.5; 7.9; 1H); 7.54 (dd; 1.5; 7.9; 1H); 8.09 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm) 13.5; 18.9; 19.7; 27.2; 28.0; 36.8; 44.9; 47.9; 49.0; 80.4; 121.8; 127.5; 128.3; 130.0; 131.4; 135.5; 136.2; 138.8; 166.5.

Cinnamic Acid Isobornyl Ester (18). Yield 14%; colourless syrup; IR: 2952, 2877, 1708, 1637, 1309, 1160 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz) 0.88 (s; 3H); 0.90 (s; 3H); 1.07 (s; 3H); 1.09–1.24 (m; 2H); 1.55–1.62 (m; 1H); 1.68–1.91 (m; 4H); 4.81 (dd; 4.3; 7.3; 1H); 6.41 (d; 16.0; 1H); 7.36–7.40 (m; 3H); 7.00–7.54 (m; 2H); 7.63 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm) 11.5; 20.0; 20.1; 27.0; 33.8; 38.9; 45.1; 47.0; 48.9; 81.1; 118.9; 128.0 (2C); 128.8 (2C); 130.1; 134.5; 144.2; 167.0.

Cinnamic Acid Thymyl Ester (19). Yield 24%; colourless solid; m.p. 64 °C; spectral data are in accordance with data reported in ref. [24].

Cinnamic Acid Menthyl Ester (20). Yield 25%; colourless crystals; m.p. 51–53 °C; spectral data are in accordance with data reported in ref. [25,26,27].

Cinnamic Acid Adamantyl Ester (21). Yield 10%; colourless powder; m.p. 66 °C [lit. [28]: 63–65 °C]; IR: 2896, 2866, 2848, 1703, 1687, 1641, 1170 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz) 1.70 (m; 6H); 2.20 (s; 9H); 6.36 (d; 15.9; 1H); 7.36–7.38 (m; 3H); 7.49 (m; 2H); 7.57 (d; 15.9; 1H); 13C-NMR (CDCl3) δ (ppm) 30.9 (3C); 36.2 (3C); 41.4 (3C); 80.6; 102.4; 128.0; 128.8; 129.9; 134.7; 143.4; 166.0.

Cinnamic Acid Naphthyl Ester (22). Yield 15%; colourless crystalline solid; m.p. 109–110 °C [lit. [24] 106–107 °C]; spectral data are in accordance with data reported in ref. [24].

Cinnamic Acid Cyclohexyl Ester (23). Yield 33%; colourless liquid; spectral data are in accordance with data reported in ref. [29,30,31].

Cinnamic Acid Bisabolyl Ester (24). Yield 11%; yellowish syrup; IR: 2962, 2924, 1703, 1636, 1160 cm−1; 1H-NMR(CDCl3) δ (ppm) J (Hz) 1.28–1.33 (m; 1H); 1.41 (s; 3H); 1.53 (s; 3H); 1.58 (s; 3H); 1.59 (s; 3H); 1.74–2.00 (m; 9H); 5.04 (br m; 1H); 5.31 (br m; 1H); 6.32 (d; 16.0; 1H); 7.29–7.32 (m; 3H); 7.43–7.46 (m; 2H); 7.52 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm) 17.6; 20.6; 22.1; 23.3; 23.7; 25.7; 26.4; 30.9; 35.7; 40.5; 87.3; 120.1; 120.3; 124.1; 128.0 (2C); 128.8 (2C); 130.0; 131.6; 134.1; 134.7; 143.5; 166.1.

Cinnamic Acid Eugenyl Ester (25). Yield 50%; colourless plates; all data are in accordance with data reported in ref. [21,32].

Cinnamic Acid Geranyl Ester (26). Yield 28%; colourless liquid; spectral data are in accordance with data reported in ref. [33].

3.4.3. Synthesis of Phenyl Propanoic Acid (−)-Bornyl Ester (27)

Propanoic acid (700 mg, 4.66 mmol) was dissolved in NEt3 (3.2 mL, 5 eq.) and cooled in an ice bath. 4-Dimethylaminopyridine (114 mg, 0.2 eq.) in CH3CN (2 mL) and tosyl chloride (1.07 g, 1.2 eq.) in CH3CN (3 mL) were added and the solution stirred for 30 min until a red colour developed. Then (−)-borneol (719 mg, 4.66 mmol) dissolved in CH3CN (2 mL) was added to the solution. The mixture was allowed to warm up to room temperature and stirred for two hours. After evaporation of the solvent the reaction mixture was suspended in water (10 mL) and extracted three times with diethyl ether (10 mL). The organic phase was washed three times each with water, brine and Na2SO4. After drying the organic phase over MgSO4 the product was purified twice by column chromatography on silica gel using ethyl acetate/petroleum ether (60:40) as eluent to yield 278 mg of 27. Yield 21%; colourless liquid; IR: 2952, 2877, 1730 cm−1; 1H-NMR (MeOD) δ (ppm) J (Hz) 0.78 (s; 3H); 0.89 (s; 3H); 0.91 (s; 3H); 0.84–0.88 (m; 2H); 1.14–1.20 (m; 1H); 1.26–1.34 (m; 1H); 1.63 (t; 4.5; 1H); 1.72–1.80 (m; 1H); 1.87–1.94 (m; 1H); 2.26–2.34 (m; 1H); 2.67 (t; 7.4; 2H); 2.95 (t; 7.4; 2H); 4.84 (m; 1H); 7.11–7.29 (m; 5H); 13C-NMR (MeOD) δ (ppm) 13.8; 19.2; 20.1; 28.1; 28.9; 32.2; 37.0; 37.7; 46.3; 48.8; 49,7; 81.4; 127.3; 129.4 (2C); 129.5 (2C); 141.8; 175.0.

3.4.4. Synthesis of 3-(3,4-Bis(acetyloxy))phenyl Propenoic Acid (−)-Bornyl Ester (28)

Compound 1 (20 mg) was suspended in pyridine (2 mL) at 0 °C. One equivalent of acetic acid anhydride was added and the solution stirred for 2 h at room temperature. After evaporation the residue was subjected to column chromatography on silica gel using CHCl3/MeOH (4.8:0.2 v/v) as eluent to yield the desired product. Yield 51%; orange syrup; IR: 2953, 2877, 1771, 1707 cm−1; 1H-NMR (CDCl3) δ (ppm) J (Hz) 0.87 (s; 3H); 0.90 (s; 3H); 0.94 (s; 3H); 1.03–1.07 (m; 1H); 1.25–1.35 (m; 2H); 1.71 (t; 4.5; 1H); 1.75–1.81 (m; 1H); 1.99–2.05 (m; 1H); 2.30 (s; 3H); 2.31 (s; 3H); 2.37–2.47 (m; 1H); 5.01 (ddd; 2.1; 3.4; 9.9; 1H); 6,41 (d; 16.0; 1H); 7.22 (d; 8.4; 1H); 7.38 (d; 2.0; 1H); 7,42 (dd; 2.0; 8.4; 1H); 7.60 (d; 16.0; 1H); 13C-NMR (CDCl3) δ (ppm) 13.5; 18.9; 19.7; 20.6; 20.7; 27.2; 28.0; 36.8; 45.0; 47.9; 49.0; 80.2; 120.0; 122.7; 123.9; 126.3; 133.5; 142.2; 142.4; 143.4; 166.9; 168.0; 168.1.

3.5. Biological Assays

Materials and methods for the biological assays have been described before by the authors. AlamarBlue assays for investigation of antileishmanial activities against L. major promastigotes, amastigotes and J774.1 and BMDM cytotoxicity were conducted as previously reported [16]. The protocol for the L. donovani quantitative colorimetric assay is outlined by Hazra et al. [17]. The IC50 values are presented as mean values of two independent experiments against the parasite and macrophages.

4. Conclusions

In summary, caffeic acid bornyl ester (1) was isolated as the antileishmanial component of the chloroform extract of V. wallichii rhizome. Structure-activity relationships of a compound library of 27 derivatives were analysed and revealed the size of the non-cinnamyol part of the molecule to have a significant influence on antileishmanial activity. Hydroxyl groups in the 3 and 4 positions of the aromatic ring increase cytotoxicity and the Michael system in the side chain is not essential for antiprotozoal activity against L. major promastigotes (Table 3). The cinnamic acid bornyl ester 15 showed the best activity with regards to L. major and L. donovani promastigotes with acceptable cytotoxicity. Compound 27 with no Michael acceptor moiety was almost as active as compound 15. Since 27 is less toxic it presents an attractive new lead structure derived from nature for further optimization.

Additionally esters of caffeic and ferulic acid under certain conditions may face the problem of limited bioavailability because of the possible formation of a polar phenolate ion which prevents the compound from penetrating the cell membrane. By omitting the hydroxyl groups and thereby increasing the lipophilicity this problem should be avoided.

Since bornyl hydroxycinnamic esters have been shown to inhibit the trypanosomal rhodesain [10] it is tempting to speculate whether they are able to inhibit the corresponding leishmanial proteases. Preliminary experiments using L. major promastigote full-lysate in a cysteine-cathepsin fluorescence activity assay [16,34] showed protease inhibitory activity of compound 1 and 15 and, thus, point to this target.

Acknowledgments

Thanks are due to the Deutsche Forschungsgemeinschaft (SFB 630) for financial support. Sudipta Hazra was awarded a fellowship from ICMR, New Delhi (3/1/3/WL/JRF-2008/MPD).

Author Contributions

The listed authors contributed to this work as described in the following. Jan Glaser fractionated the plant extract and isolated and identified the antileishmanial compound. He also carried out the synthesis and prepared the manuscript. As corresponding author for infection biology Uta Schurigt together with Martina Schultheis conducted assays against L. major amastigotes and promastigotes and helped interpreting the results. Sudipta Hazra and Banasri Hazra were in charge of the L. donovani promastigote assays. As corresponding author for medicinal chemistry Ulrike Holzgrabe proposed the subject and monitored the progress of the ongoing research. Banasri Hazra, Heidrun Moll and Ulrike Holzgrabe contributed with valuable discussions and scientific input. All authors helped preparing the manuscript and approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alvar, J.; Vélez, I.D.; Bern, C.; Herrero, M.; Desjeux, P.; Cano, J.; Jannin, J.; den Boer, M. Leishmaniasis worldwide and global estimates of its incidence. PLoS One 2012, 7, e35671.
  2. Desjeux, P. Leishmaniasis: Current situation and new perspectives. Comp. Immun. Microbiol. Infect. Dis. 2004, 27, 305–318, doi:10.1016/j.cimid.2004.03.004.
  3. Hotez, P.; Singh, S.K.; Zhou, X.-N. Advancing sino-indian cooperation to combat tropical diseases. PLoS Negl. Trop. Dis. 2013, 7, e2204, doi:10.1371/journal.pntd.0002204.
  4. Ghosh, S.; Debnath, S.; Hazra, S.; Hartung, A.; Thomale, K.; Schultheis, M.; Kapkova, P.; Schurigt, U.; Moll, H.; Holzgrabe, U. Valeriana wallichii root extracts and fractions with activity against Leishmania spp. Parasitol. Res. 2011, 108, 861–871, doi:10.1007/s00436-010-2127-0.
  5. Xia, C.-N.; Li, H.-B.; Hu, W.-X. Synthesis of trans-caffeate analogues and their bioactivities against HIV-1 integrase and cancer cell lines. Bioorg. Med. Chem. Lett. 2008, 18, 6553–6557, doi:10.1016/j.bmcl.2008.10.046.
  6. Xia, C.-N.; Hu, W.-X. Synthesis of caffeic acid esters. J. Chem. Res. 2005, 332–334.
  7. Bohlmann, F.; Zdero, C. Neue Terpen-Inhaltsstoffe aus Verbesina-Arten. Phytochemistry 1976, 15, 1310–1311, doi:10.1016/0031-9422(76)85099-6.
  8. Toyota, M.; Saito, T.; Matsunami, J.; Asakawa, Y. A comparative study on three chemo-types of the liverwort Conocephalum Conicum using volatile constituents. Phytochemistry 1997, 44, 1265–1270, doi:10.1016/S0031-9422(96)00723-6.
  9. Suire, C.; Asakawa, Y.; Toyota, M.; Takemoto, T. Chirality of terpenoids isolated from the liverwort Conocephalum Conicum. Phytochemistry 1982, 21, 349–352, doi:10.1016/S0031-9422(00)95264-6.
  10. Ogungbe, I.V.; Crouch, R.A.; Haber, W.A.; Setzer, W.N. Phytochemical investigation of Verbesina turbacensis Kunth: Trypanosome cysteine protease inhibition by (−)-bornyl esters. Nat. Prod. Commun. 2010, 5, 1161–1166.
  11. Bohlmann, F.; Lonitz, M. Natürlich vorkommende Terpen-Derivate, 109: Neue Eudesman-Derivate und andere Sesquiterpene aus Verbesina-Arten. Chem. Ber. 1978, 111, 254–263, doi:10.1002/cber.19781110124.
  12. König, B.; Dustmann, J. The caffeoylics as a new family of natural antiviral compounds. Naturwissenschaften 1985, 72, 659–661, doi:10.1007/BF00497441.
  13. Michalet, S.; Cartier, G.; David, B.; Mariotte, A.-M.; Dijoux-franca, M.-G.; Kaatz, G.W.; Stavri, M.; Gibbons, S. N-Caffeoylphenalkylamide derivatives as bacterial efflux pump inhibitors. Bioorg. Med. Chem. Lett. 2007, 17, 1755–1758, doi:10.1016/j.bmcl.2006.12.059.
  14. Otero, E.; Robledo, S.M.; Diaz, S.; Carda, M.; Muñoz, D.; Paños, J.; Vélez, I.D.; Cardona, W. Synthesis and leishmanicidal activity of cinnamic acid esters: Structure–activity relationship. Med. Chem. Res. 2013, doi:10.1007/s00044-00013-00741-y.
  15. Wakasugi, K.; Iida, A.; Misaki, T.; Nishii, Y.; Tanabe, Y. Simple, Mild, and Practical esterification, Thioesterification, and amide formation utilizing p-toluenesulfonyl chloride and N-Methylimidazole. Adv. Synth. Catal. 2003, 345, 1209–1214, doi:10.1002/adsc.200303093.
  16. Bringmann, G.; Thomale, K.; Bischof, S.; Schneider, C.; Schultheis, M.; Schwarz, T.; Moll, H.; Schurigt, U. A Novel Leishmania major amastigote assay in 96-well format for rapid drug screening and its use for discovery and evaluation of a new class of leishmanicidal quinolinium salts. Antimicrob. Agents Chemother. 2013, 57, 3003–3011, doi:10.1128/AAC.02201-12.
  17. Hazra, S.; Ghosh, S.; Debnath, S.; Seville, S.; Prajapati, V.K.; Wright, C.W.; Sundar, S.; Hazra, B. Antileishmanial activity of cryptolepine analogues and apoptotic effects of 2,7-dibromocryptolepine against Leishmania donovani promastigotes. Parasitol. Res. 2012, 111, 195–203, doi:10.1007/s00436-012-2818-9.
  18. Aponte, J.C.; Castillo, D.; Estevez, Y.; Gonzalez, G.; Arevalo, J.; Hammond, G.B.; Sauvain, M. In vitro and in vivo anti-leishmania activity of polysubstituted synthetic chalcones. Bioorg. Med. Chem. Lett. 2010, 20, 100–103.
  19. Jensen, S.; Omarsdottir, S.; Bwalya, A.G.; Nielsen, M.A.; Tasdemir, D.; Olafsdottir, E.S. Marchantin A, a macrocyclic bisbibenzyl ether, isolated from the liverwort Marchantia polymorpha, inhibits protozoal growth in vitro. Phytomedicine 2012, 19, 1191–1195, doi:10.1016/j.phymed.2012.07.011.
  20. Rawel, H.M.; Rohn, S. Nature of hydroxycinnamate-protein interactions. Phytochem. Rev. 2010, 9, 93–109, doi:10.1007/s11101-009-9154-4.
  21. Tawata, S.; Taira, S.; Kobamoto, N.; Zhu, J.; Ishihara, M.; Toyama, S. Synthesis and antifungal activity of cinnamic acid esters. Biosci. Biotech. Biochem. 1996, 60, 909, doi:10.1271/bbb.60.909.
  22. Wu, D.; Nair, M.G.; DeWitt, D.L. Novel compounds from Piper Methysticum forst (Kava-kava) roots and their effect on cyclooxygenase enzyme. J. Agric. Food Chem. 2002, 50, 701–705, doi:10.1021/jf010963x.
  23. Monteiro, A.L.; Lando, V.R.; Gasparini, V. Synthesis of chiral 2-arylpropenoic esters by the palladium catalyzed carbonylation of arylacetylenes. Synth. Commun. 1997, 27, 3605–3611, doi:10.1080/00397919708007083.
  24. Palermo, V.; Ruiz, D.M.; Autino, J.C.; Vázquez, P.G.; Romanelli, G.P. Simple halogen-free synthesis of aryl cinnamates using Mo-keggin heteropoly acids as catalyst. Pure Appl. Chem. 2012, 84, 529, doi:10.1351/PAC-CON-11-06-05.
  25. Meth‐Cohn, O. Transesterification of methyl esters of aromatic and α,β‐unsaturated acids with bulky alcohols: (−)‐Menthyl cinnamate and (−)‐menthyl nicotinate. Org. Synth. 1990, 68, 155–159.
  26. Ye, S.; Tang, Y.; Dai, L.-X. Highly diastereoselective synthesis of vinylcyclopropane derivatives with (−)-8-phenylmenthol as chiral auxiliary. J. Org. Chem. 2001, 66, 5717–5722, doi:10.1021/jo010121x.
  27. Sakakura, A.; Kawajiri, K.; Ohkubo, T.; Kosugi, Y.; Ishihara, K. Widely useful DMAP-catalyzed esterification under auxiliary base- and solvent-free conditions. J. Am. Chem. Soc. 2007, 129, 14775–14779, doi:10.1021/ja075824w.
  28. Mikhajlovich, G.B.; Pastukhova, N.P.; Kamneva, E.A. Method of Producing Adamantyl Esters of Unsaturated Acides. RU 2448950 C1, 27 April 2012.
  29. Shi, Z.H.; Li, N.G.; Shi, Q.P.; Tang, Y.P. Design, synthesis, and preliminary evaluation of substituted cinnamic acid esters as selective matrix metalloproteinase inhibitors. Drug Dev. Res. 2012, 73, 317–324, doi:10.1002/ddr.21015.
  30. Gupta, A.K.; Reddy, S.A.D.; Boomishankar, R. Facile formation of stable tris(imido)phosphate trianions as their tri-and hexanuclear Pd(II) complexes in protic solvents. Inorg. Chem. 2013, 52, 7608–7614, doi:10.1021/ic400686e.
  31. Sova, M.; Perdih, A.; Kotnik, M.; Kristan, K.; Rižner, T.L.; Solmajer, T.; Gobec, S. Flavonoids and cinnamic acid esters as inhibitors of fungal 17β-hydroxysteroid dehydrogenase: A synthesis, QSAR and modelling study. Bioorg. Med. Chem. 2006, 14, 7404–7418, doi:10.1016/j.bmc.2006.07.027.
  32. Mali, R.S.; Papalkar, A.S. Useful synthesis of aryl cinnamates: Synthesis of difengpin. J. Chem. Res. 2003, 2003, 603–604, doi:10.3184/030823403322655761.
  33. Jakupovic, J.; Pathak, V.P.; Bohlmann, F.; King, R.M.; Robinson, H. Obliquin derivatives and other constituents from australian Helichrysum species. Phytochemistry 1987, 26, 803–807, doi:10.1016/S0031-9422(00)84791-3.
  34. Schurigt, U.; Schad, C.; Glowa, C.; Baum, U.; Thomale, K.; Schnitzer, J.K.; Schultheis, M.; Schaschke, N.; Schirmeister, T.; Moll, H. Aziridine-2,3-dicarboxylate-based cysteine cathepsin inhibitors induce cell death in Leishmania major associated with accumulation of debris in autophagy-related lysosome-like vacuoles. Antimicrob. Agents Chemother. 2010, 54, 5028–5041, doi:10.1128/AAC.00327-10.
  • Sample Availability: Samples of the compounds 128 are available from the authors.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
