Determination and Comparison of Seed Oil Triacylglycerol Composition of Various Soybeans (Glycine max (L.)) Using 1H-NMR Spectroscopy

1
College of Biomedical Science, Kangwon National University, Chuncheon 200-701, Korea
2
Center, AmorePacific Corporation, Yongin 446-729, Korea
3
AmorePacific Group, Seoul 100-230, Korea
4
Sulloccha Research Center, Jangwon. Co., Ltd., Jeju 699-924, Korea
5
National Institute of Biological Resources, Incheon 404-708, Korea
*
Authors to whom correspondence should be addressed.
Molecules 2013, 18(11), 14448-14454; https://doi.org/10.3390/molecules181114448
Submission received: 15 September 2013 / Revised: 2 November 2013 / Accepted: 12 November 2013 / Published: 21 November 2013
(This article belongs to the Section Natural Products Chemistry)

Abstract

:
Seed oil triacylglycerol (TAG) composition of 32 soybean varieties were determined and compared using 1H-NMR. The contents of linolenic (Ln), linoleic (L), and oleic (O) ranged from 10.7% to 19.3%, 37.4%–50.1%, and 15.7%–34.1%, respectively. As is evident, linoleic acid was the major fatty acid of soybean oil. Compositional differences among the varieties were observed. Natural oils containing unsaturated groups have been regarded as important nutrient and cosmetic ingredients because of their various biological activities. The TAG profiles of the soy bean oils could be useful for distinguishing the origin of seeds and controlling the quality of soybean oils. To the best of our knowledge, this is the first study in which the TAG composition of various soybean oils has been analyzed using the 1H-NMR method.

1. Introduction

Nowadays, soybean and its products are attracting more attention because of their beneficial effects on human health [1]. The most important organic compound of the soybean seed are proteins (approximately 40%) and oil (approximately 20%). Soybean oil is extensively used as cooking oil. The main component of natural oils, including soybean oil, is triacylglycerol (TAG), which contains unsaturated functional groups such as linolenic (Ln), linoleic (L), and oleic (O) acids [2]. The nutritional value and physiochemical properties of natural oil are linked to the composition of TAG. Recently, various biological activities of natural oils on the skin have been reported [3,4,5,6]. Their activities might be caused by the unsaturated groups. Soy bean oils have a great potential as active cosmetic ingredients because of the presence of a large quantity of unsaturated functional groups. Therefore, defining the TAG composition of oil is very important because it provides information about the quality of the oil. The contents and compositions of TAG may depend on the condition of cultivation and varieties [7,8]. There have been numerous studies on the determination of chemical compounds in soybean varieties [9,10,11]. However, the composition of oil from various soybean varieties had not been studied well [12]. Thus, the aim of this study was to determine and compare the seed oil TAG composition of soybean varieties. After analyzing their TAG profiles, soybean varieties that were suitable for use as cosmetic ingredients were selected. Several methods, including gas-liquid chromatography, are available for the quantitative determination of TAGs in oil [13,14,15]. However, these methods are labor-intensive and time-consuming because of the complex series of reaction steps. Recently, proton nuclear magnetic resonance (1H-NMR) has been used as an alternative analytical method to provide information about the TAG composition [16,17,18]. We also selected 1H-NMR as an analytical method because it allows rapid, simultaneous, noninvasive, and nondestructive analysis without chemical reactions. Thirty two varieties of soybean cultivated in Korea were chosen for this study.

2. Results and Discussion

The soybean seeds contained 0.9%–11.9% of oil (Table 1). The highest amount of oil was measured in the Shinhwakong variety (11.9%), while the lowest content was observed in the Yak-kong variety (0.9%).
We studied the 400 MHz spectra of the soybean oils. The 1H-NMR spectra of Dollkong (wild soybean) oil and Vandalkong oil are shown in Figure 1. The composition of Ln, L, O, and saturated (S) acyl groups can be determined using the following equations [17,18]:
Ln (%) = 100 [B/(A + B)],
L (%) = 100 [(E/D) – 2[B/(A + B)]],
O (%) = 100 [(C/2D) – (E/D) + [B/(A + B)]],
S (%) = 100 [1 − (C/2D)].
The various peaks are assigned as follows (Table 2): signal A is produced by the overlapping of the triplet signals of methyl group protons of S, O, and L acyl groups. Signal B is the triplet methyl protons of Ln acyl groups. Signal C is due to the α methylene protons in relation to a single double bond. Signal D is due to the methylene protons in the α position in relation to the carboxyl group. Signal E is due to the overlapping of the signals from the α methylene protons in relation to two double bonds. The area of signal B obtained from Dollkong (wild soybean) oil is bigger than that of Vandalkong oil (Figure 1).
Table 1. Seed color and oil yield of 32 soybean varieties.
Table 1. Seed color and oil yield of 32 soybean varieties.
EntryVarietyColorOil yield a
1Jangwonkongyellow5.4
2Anpyungkongyellow7.3
3Daepungkongyellow/wine6.5
4Daewonkongyellow/wine8.5
5Pureunkonggreen2.7
6Samnamkonggreen4.8
7Dooyookongyellow5.3
8Cheongjakongblack3.9
9Buseokgreen4.2
10Dachaekongyellow3.3
11Seonamkongyellow3.5
12Yak-kongblack0.9
13Hwangsekjilgeumkongyellow/green3.5
14Milyangkongyellow2.3
15Danwonkongyellow6.2
16Bongeuiyellow2.5
17Kwangduyellow4.1
18Seomoktaeyellow4.0
19Subaktaeblack/green3.4
20Seoritaeblack4.1
21Shinhwakongyellow11.9
22Vandalkongwine7.9
23Saealblack/green5.1
24Geomjeong Bul Konglight black6.4
25Bamsekyak-kongwine8.7
26Bamkongwine/white spot9.5
27Yonganblack/light yellow6.4
28Horangi kongwine6.2
29Seonbikongblack/light green8.5
30Dollkong (wild soybean)dark wine2.3
31Nabdegikongwine/light green7.2
32Geomjeong-nabdegikongblack3.8
a The oil yield is expressed as % (w/w) on a dry weight basis.

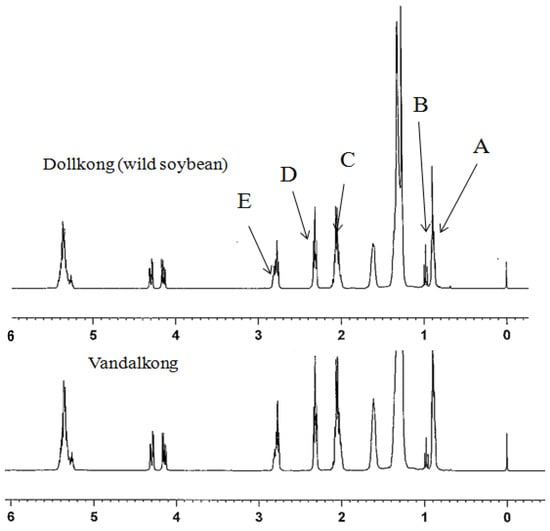

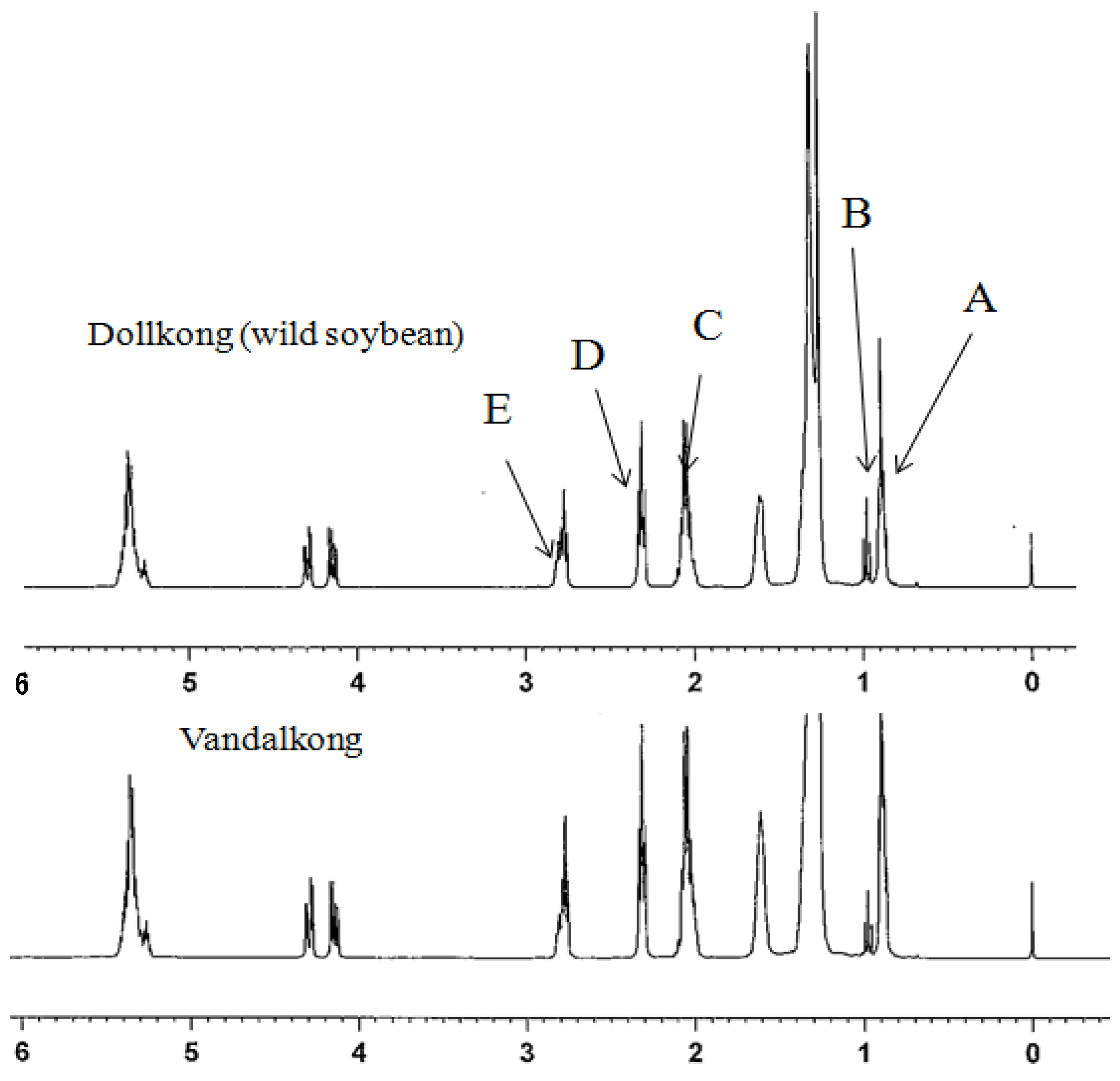

Figure 1. 1H-NMR spectra of Dollkong (wild soybean) and Vandalkong oils.
Figure 1. 1H-NMR spectra of Dollkong (wild soybean) and Vandalkong oils.
Molecules 18 14448 g001
Table 2. Assignment of signals of 1H-NMR spectra. Signal number agrees with those in Figure 1.
Table 2. Assignment of signals of 1H-NMR spectra. Signal number agrees with those in Figure 1.
SignalChemical shift (ppm)Functional group
A0.83–0.93-CH3 (saturated, oleic and linoleic acyl chains)
B0.93–1.03-CH3 (linolenic acyl chains)
C1.94–2.14-CH2-CH=CH- (acyl chains)
D2.23–2.36-OCO-CH2- (acyl chains)
E2.70–2.84=HC-CH2-CH= (acyl chains)
The acyl group compositions of 32 soybean oils obtained by 1H-NMR data are shown in Table 3. The content of Ln in the oils, containing three unsaturated groups, ranged from 10.7% to 19.3%. The highest content of Ln was measured in Dollkong (wild soybean) (19.3%). L was the major acyl group, with content ranging from 37.4% to 50.1%. The highest content of L was measured in the Vandalkong variety (50.1%), while the lowest content was observed in the Hwangsekjilgeumkong variety (37.4%). The mean content of L was 45.0%. The content of O ranged between 15.7% and 34.1%, and its mean content was 24.1%. The highest content of O was measured in the Hwangsekjilgeumkong variety (34.1%). The S content varied between 13.3% and 20.9%. The highest S content was measured in the Anpyungkong variety (20.9%), while the lowest was in the Samnamkong variety (13.3%).
Table 3. TAG composition of soybean oils using 1H-NMR analysis.
Table 3. TAG composition of soybean oils using 1H-NMR analysis.
EntryVarietyLinolenicLinoleicOleicSaturated
1Jangwonkong12.3%44.2%26.5%17.0%
2Anpyungkong13.0%48.0%18.1%20.9%
3Daepungkong13.8%47.7%23.2%15.3%
4Daewonkong13.8%45.6%24.3%16.3%
5Pureunkong12.3%45.1%23.4%19.2%
6Samnamkong13.5%40.8%32.4%13.3%
7Dooyookong12.3%49.4%22.5%15.8%
8Cheongjakong12.3%44.3%22.5%15.8%
9Buseok13.8%41.4%25.8%19.0%
10Dachaekong13.0%45.3%24.7%17.0%
11Seonamkong13.0%43.0%27.8%16.2%
12Yak-kong13.0%43.7%28.1%15.2%
13Hwangsekjilgeumkong12.2%37.4%34.1%16.3%
14Milyangkong11.5%38.2%31.5%18.8%
15Danwonkong10.7%49.0%26.2%14.0%
16Bongeui13.0%39.4%31.5%16.1%
17Kwangdu13.0%45.9%25.7%15.4%
18Seomoktae12.3%47.9%21.0%18.8%
19Subaktae13.0%46.9%23.8%16.3%
20Seoritae13.0%45.8%24.6%16.6%
21Shinhwakong13.0%45.5%25.2%16.3%
22Vandalkong12.3%50.1%16.8%20.8%
23Saeal15.2%43.3%21.8%19.7%
24Geomjeong Bul Kong12.2%43.3%25.7%18.8%
25Bamsekyak-kong12.2%47.8%22.1%17.9%
26Bamkong15.2%36.5%29.8%18.5%
27Yongan13.8%47.4%18.5%20.3%
28Horangi kong13.0%49.2%20.8%17.0%
29Seonbikong14.5%45.9%22.2%17.4%
30Dollkong (wild soybean)19.3%45.6%15.7%19.4%
31Nabdegikong15.9%48.8%18.5%16.8%
32Geomjeong-nabdegikong15.2%48.5%18.3%18.0%
Mean13.3%45.0%24.1%17.3%

3. Experimental

3.1. Soybean Materials

The soybean varieties purchased and used for this experiment had been grown in Gangwon-do, Chuncheon, South Korea in 2012. Soybean seeds were soaked in water, then washed to remove any adhering flesh and finally oven dried at 40 °C for 24 h. The dried seeds were crushed for use.

3.2. Preparation of Oils

Soybean oils were prepared through a pressing method. Soybean oil was extracted using a breast pump (HD-333, Hyun-dae Green Industrial Co., Seoul, Korea). The oil was centrifuged (VS-5000N, Vision Scientific Co., Seoul, Korea) at 3,000 rpm for 10 min, and then supernatant were collected for analysis.

3.3. 1H-NMR Analysis

1H-NMR analyses were performed on Varian Mercury 400 (400 MHz for 1H) instrument. Each oil sample, weighing 0.2 g, was dissolved in CDCl3 (400 µL, Sigma-Aldrich, Saint Louis, Missouri, USA) with a small amount of TMS as internal standard and the resulting mixture was placed into a 5-mm diameter ultra-precision NMR sample tubes. The temperature of the sample in the probe was 30 °C. Chemical shifts were recorded in ppm, using the solvent proton signal as standard. The area of the signals was determined by using the equipment software.

4. Conclusions

Oil yield and TAG composition of 32 soybean varieties were studied. 1H-NMR was selected as the analytical method. Quantitative differences in the TAG profiles of various varieties were observed. The study of TAG profiles can be a convenient method of distinguishing the origin of seeds and controlling the quality of soybean oils. After analyzing the TAG profiles, three varieties (Dollkong, Vandalkong, and Hwangsekjilgeumkong) were chosen as potentially effective cosmetic ingredients. The highest content of Ln was measured in Dollkong (wild soybean) (19.3%). The highest content of L was measured in the Vandalkong variety (50.1%). The highest content of O was measured in the Hwangsekjilgeumkong variety (34.1%). Further studies on their biological activities on the skin are underway.

Acknowledgments

This study was supported by 2013 Research Grant from Kangwon National University (No. C1009663-01-01).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Messina, M.J.; Persky, V.; Setchell, K.D.R.; Barnes, S. Soy intake and cancer risk: A review of the in-vitro and in-vivo data. Nutr. Cancer 1994, 21, 113–131. [Google Scholar] [CrossRef]
  2. Li, R.; Hatanaka, T.; Yu, K.; Wu, Y.; Fulushige, H.; Hildebrand, D. Soybean oil biosynthesis: Role of diacylglycerol acyltransferases. Funct. Integr. Genomics 2013, 13, 99–113. [Google Scholar] [CrossRef]
  3. Dubtsova, G.N.; Negmatulloeva, R.N.; Bessonov, V.V.; Baĭkov, V.G.; Sheviakova, L.V.; Makhova, N.N.; Perederiaev, O.I.; Bogachuk, M.N.; Baĭgarin, E.K. Composition and content of biologically active substances in rose hips. Vopr. Pitan. 2012, 81, 84–88. [Google Scholar]
  4. Ando, H.; Ryu, A.; Hashimoto, A.; Oka, M.; Ichihara, M. Linoleic acid and alpha-linolenic acidlightens ultraviolet-induced hyperpigmentation of the skin. Arch. Dermatol. Res. 1998, 290, 375–381. [Google Scholar] [CrossRef]
  5. Hwang, J.S.; Choi, H.; Rho, H.S.; Shin, H.J.; Kim, D.H.; Lee, J.; Lee, B.G.; Chang, I. Pigment-lightening effect of N,N'-dilinoleylcystamine on human melanoma cells. Br. J. Dermatol. 2004, 150, 39–46. [Google Scholar] [CrossRef]
  6. Hamazaki-Fujita, N.; Itomura, M.; Hamazaki, K.; Tohno, H.; Yomoda, S.; Terashima, Y.; Hamazaki, T. Relationships among skin conditions, mood, and polyunsaturated fatty acids of RBCs in healthy women. J. Cosmet. Sci. 2012, 63, 303–310. [Google Scholar]
  7. Marchi, F.D.; Seraglia, R.; Molin, L.; Traldi, P.; Rosso, M.D.; Panighel, A.; Vedova, A.D.; Gardiman, M.; Giust, M.; Flamini, R. Seed oil triacylglyceride profiling of thirty-two hybrid grape varieties. J. Mass Spectrom. 2012, 47, 1113–1119. [Google Scholar] [CrossRef]
  8. Savikin, K.P.; Dodevic, B.S.; Ristic, M.S.; Krivokuca-Dokic, D.; Pljevljakusic, D.S.; Vulic, T. Variation in the fatty-acidcontent in seeds of various black, red, and white currant varieties. Chem. Biodivers. 2013, 10, 157–165. [Google Scholar] [CrossRef]
  9. Malencic, D.; Popovic, M.; Miladinovic, J. Phenolic content and antioxidant properties of soybean (Glycine max (L.) Merr.) seeds. Molecules 2007, 12, 576–581. [Google Scholar]
  10. Zhang, R.F.; Zhang, F.X.; Zhang, M.W.; Wei, Z.C.; Yang, C.Y.; Zhang, Y.; Tang, X.J.; Deng, Y.Y.; Chi, J.W. Phenolic composition and antioxidant activity in seed coats of 60 Chinese black soybean (Glycine max L. Merr.) varieties. J. Agric. Food Chem. 2011, 59, 5935–5944. [Google Scholar] [CrossRef]
  11. Whent, M.; Hao, J.; Slavin, M.; Zhou, M.; Song, J.; Kenworthy, W.; Yu, L.L. Effect of genotype, environment, and their interaction on chemical composition and antioxidantproperties of low-linolenic soybeans grown in Maryland. J. Agric. Food Chem. 2009, 57, 10163–10174. [Google Scholar] [CrossRef]
  12. Rao, M.S.; Bhagsari, A.S.; Mohamed, A.I. Yield, protein, and oil quality of soybean genotypes selected for tofu production. Plant Foods Hum. Nutr. 1998, 52, 241–251. [Google Scholar] [CrossRef]
  13. Jakab, A.; Nagy, K.; Heberger, K.; Vekey, K.; Forgacs, E. Differentiation of vegetable oils by mass spectrometry combined with statistical analysis. Rapid Commun. Mass Spectrom. 2002, 16, 2291–2297. [Google Scholar] [CrossRef]
  14. Buchgraber, M.; Ulberth, F.; Emons, H.; Anklam, E. Triacylglycerol profiling by using chromatographic techniques. Eur. J. Lipid Sci. Technol. 2004, 106, 621–648. [Google Scholar] [CrossRef]
  15. Laakso, P. Analysis of triacylglycerols-approaching the molecular composition of natural mixture. Food Rev. Int. 1996, 12, 199–250. [Google Scholar] [CrossRef]
  16. Salinero, C.; Feas, X.; Mansilla, J.P.; Seijas, J.A.; Vazquez-Tato, M.P.; Vela, P.; Sainz, M.J. 1H-nuclear magnetic resonance analysis of the triacylglyceride composition of cold-pressed oil from Camellia japonica. Molecules 2012, 17, 6716–6727. [Google Scholar] [CrossRef]
  17. Guillen, M.D.; Ruiz, A. 1H nuclear magnetic resonance as a fast tool for determining the composition of acyl chains in acylglycerol mixtures. Eur. J. Lipid Sci. Technol. 2003, 105, 502–507. [Google Scholar] [CrossRef]
  18. Guillen, M.D.; Ruiz, A. Rapid simultaneous determination by proton NMR of unsaturation and composition of acyl groups in vegetable oils. Eur. J. Lipid Sci. Technol. 2003, 105, 688–696. [Google Scholar] [CrossRef]
  • Sample Availability: Soybean oils of 32 varieties are available from the authors.
