Molecules 2013, 18(1), 27-40; doi:10.3390/molecules18010027
Article

Tripolyphosphate Cross-Linked Macromolecular Composites for the Growth of Shape- and Size-Controlled Apatites

1, 2, 3, 4,†,* email and 3,5,†,* email
1 Department of Polymer Materials, Vanung University, Chung-Li 320, Taiwan 2 Department of Chemical Engineering, MingChi University of Technology, Taipei 243, Taiwan 3 Department of Biochemistry, School of medicine, Taipei Medical University, Taipei 110, Taiwan 4 Material and Chemical Research Laboratories (MCL), Industrial Technology Research Institute (ITRI), HsinChu, 310, Taiwan 5 Graduate Institute of Medical Sciences, College of Medicine, Taipei Medical University, Taipei 110, Taiwan These authors contributed equally to this work.
* Authors to whom correspondence should be addressed.
Received: 8 November 2012; in revised form: 26 November 2012 / Accepted: 10 December 2012 / Published: 20 December 2012
(This article belongs to the Special Issue Chitins and Chitosans)
PDF Full-text Download PDF Full-Text [1048 KB, Updated Version, uploaded 21 December 2012 16:18 CET]
The original version is still available [2593 KB, uploaded 20 December 2012 16:04 CET]

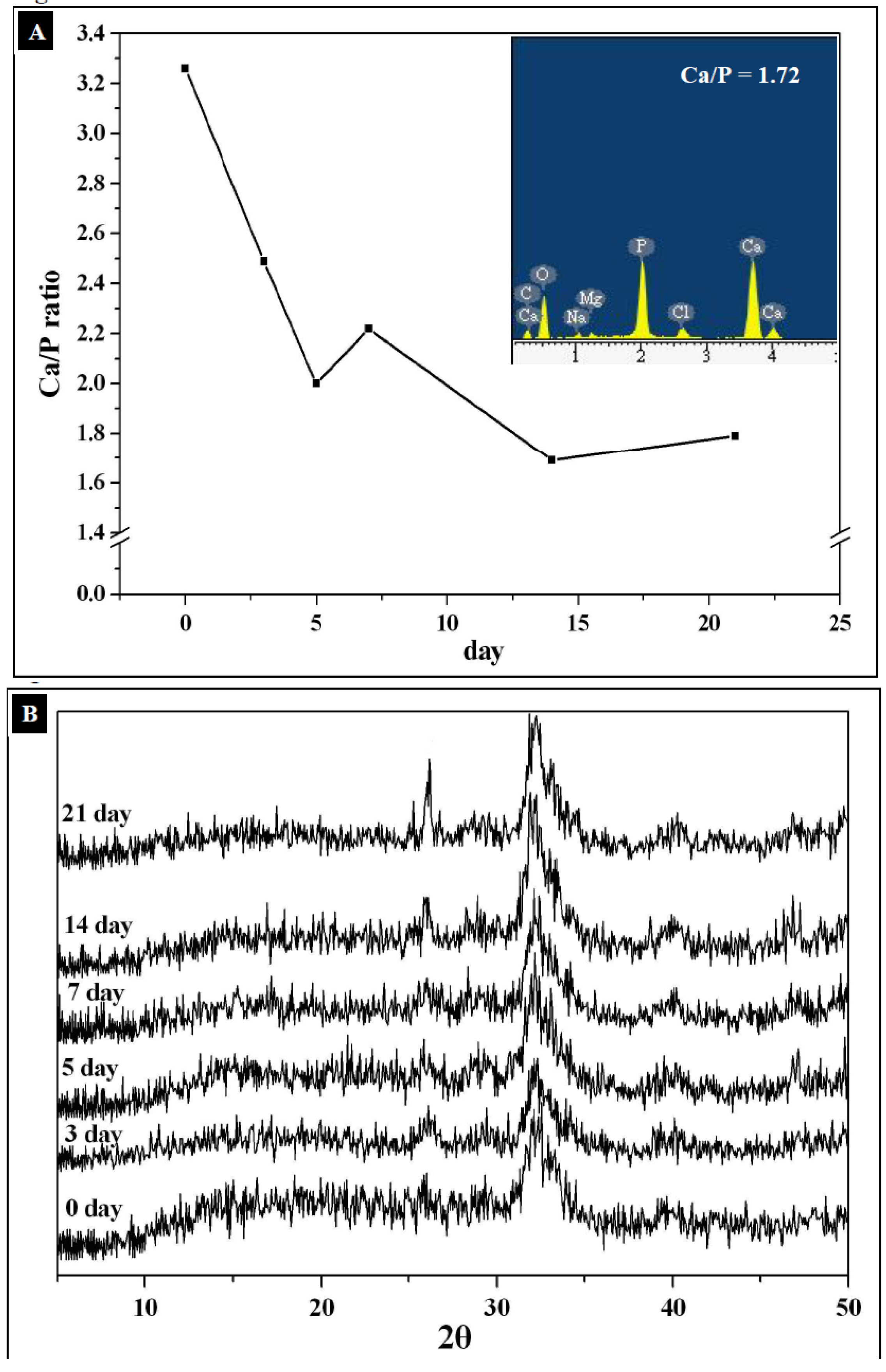

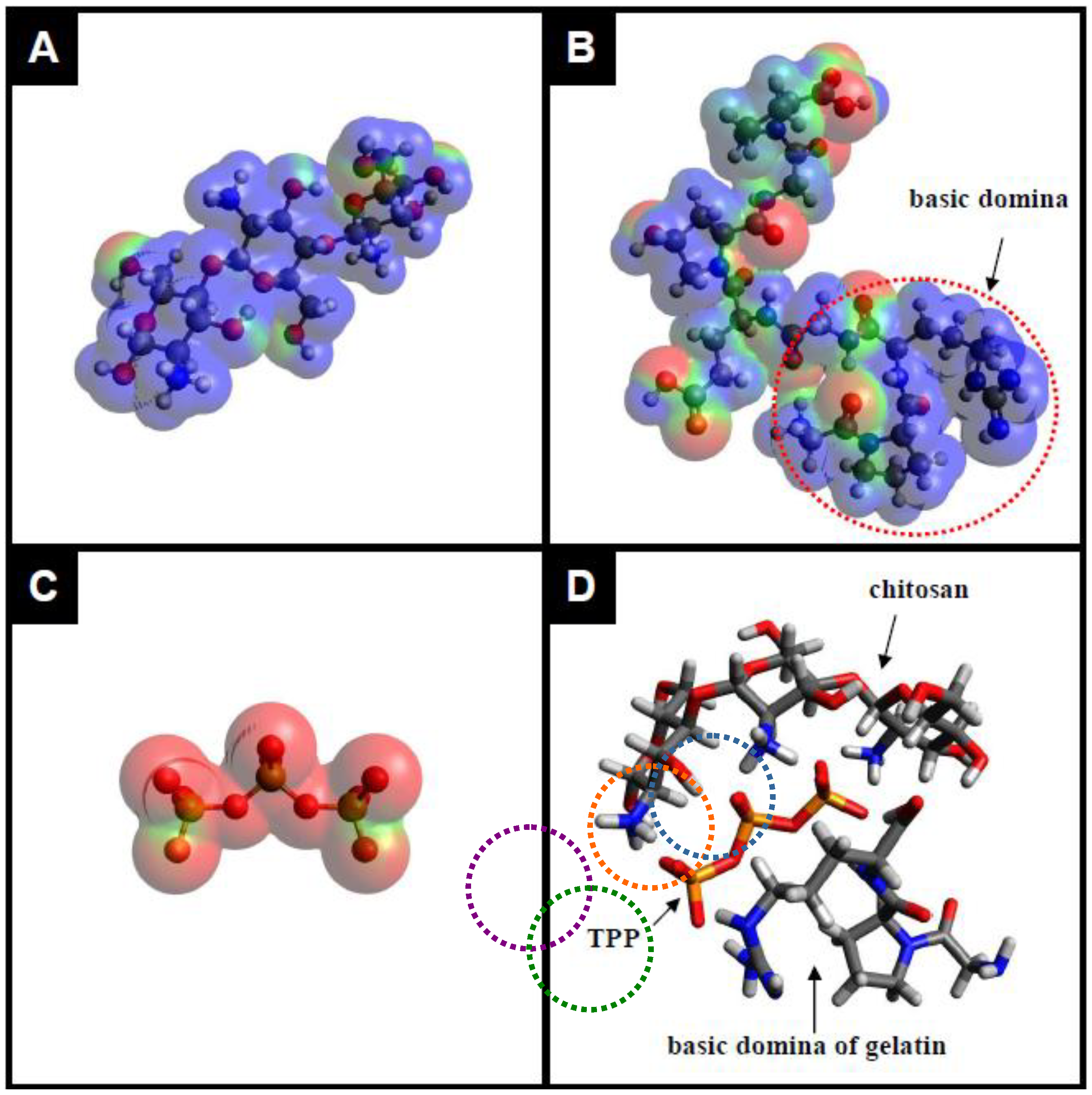

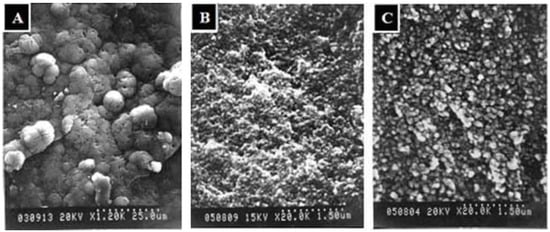

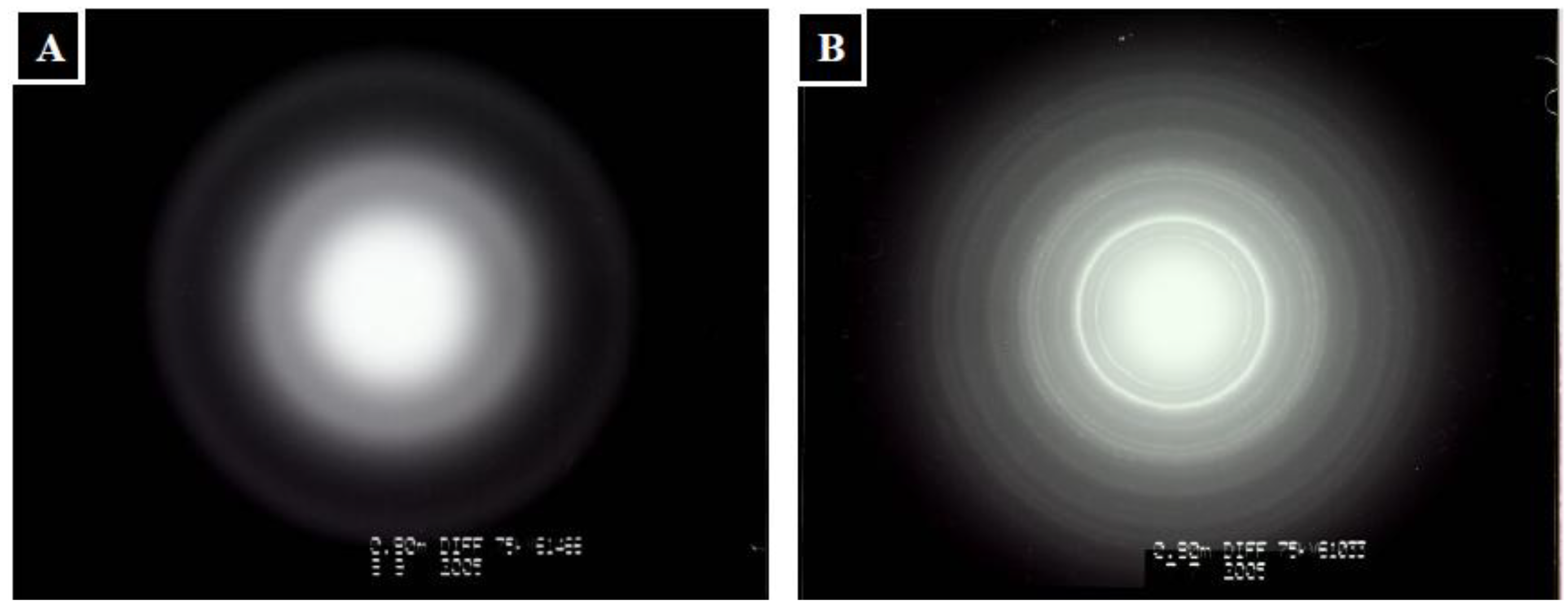

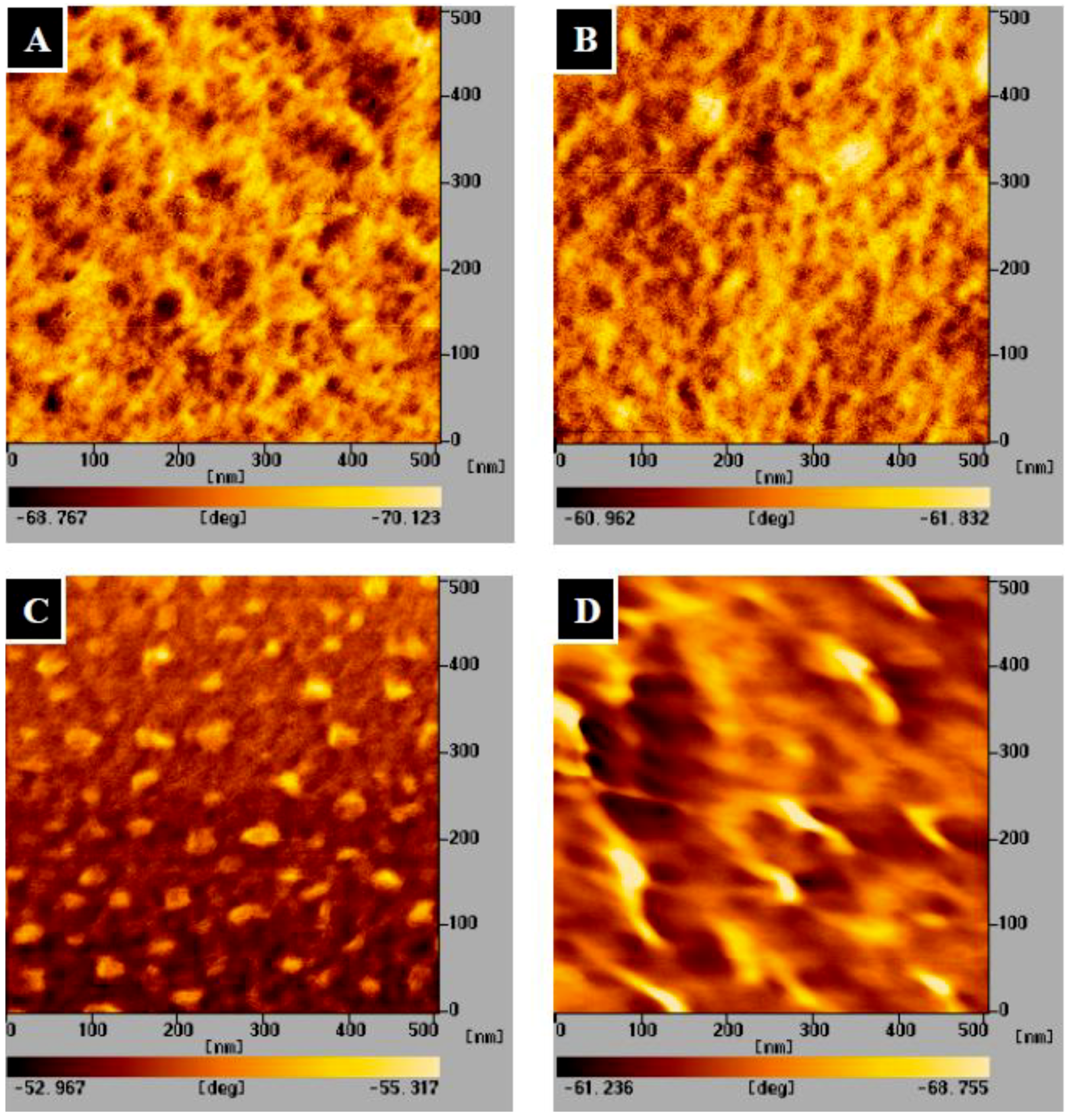

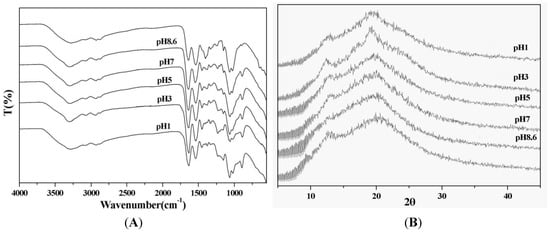

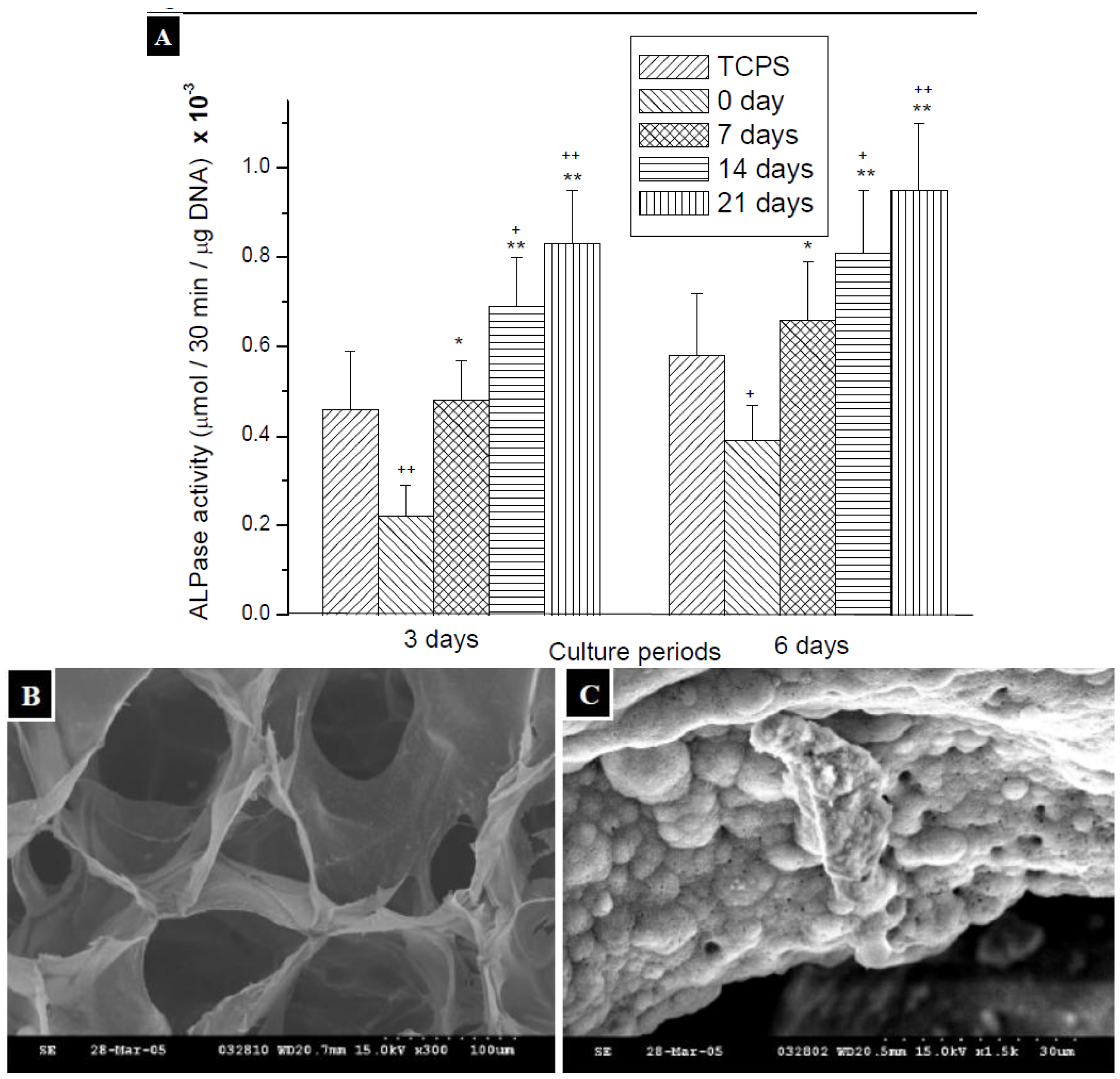

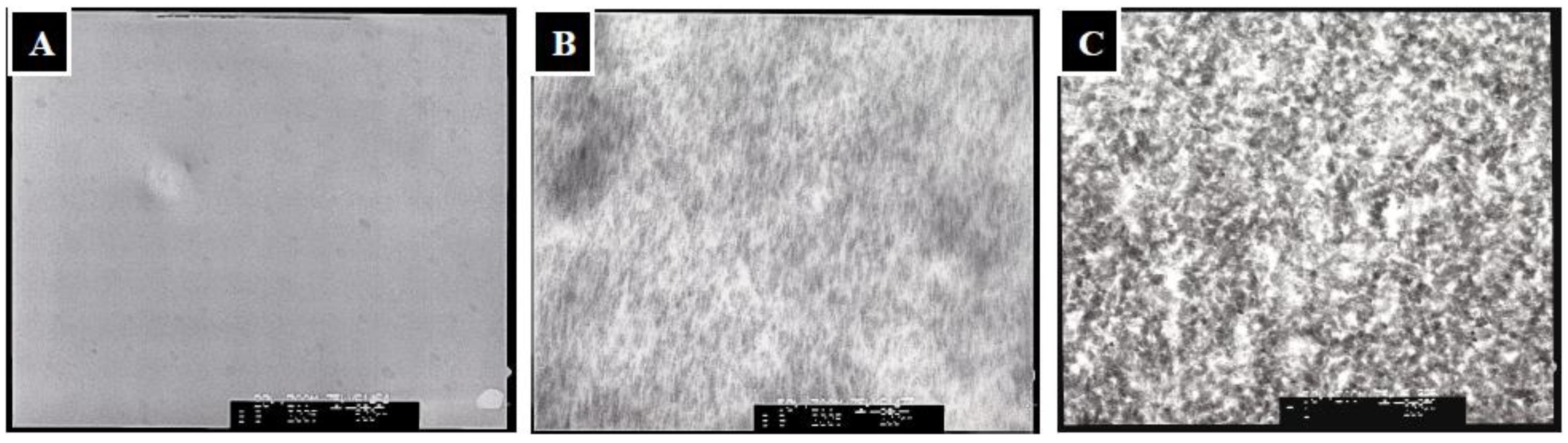

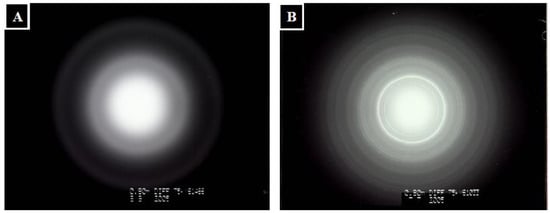

Abstract: Bioactive composites that enable the formation of calcium phosphates have received increased attention over the last decade, in the development of osteoconductive biomaterials for orthopaedic applications. In this work, tripolyphosphate (TPP)-cross-linked chitosan/gelatin composites (TPP-CG) were prepared for the growth of shape- and size-controlled calcium phosphates on/in the composites. The mineralization pattern of the composites, after soaking in the Ca(OH)2 aqueous solution, clearly demonstrated oriented, needle-like nanocrystallites of calcium phosphates in the matrix with especially high Ca/P molar ratio (3.98) as detected by energy dispersive X-ray spectroscopy (EDX) analysis. Subsequent to mineralization in a simulated body fluid (SBF), the mineralized composites showed micro-scaled spherical aggregates deposited on the surface and granule-like nanocrystallites grew in the matrix. The Ca/P molar ratio (1.72) and X-ray diffraction pattern of the nanocrystallites grown in the composites were similar to those of hydroxyapatite (HAp). Osteoblastic differentiation of ROS cells cultured on the mineralized composites allowed an enhanced expression of the chosen osteogenic marker (alkaline phosphatase, ALPase). These results indicated that the composites mineralized with micro- and nano-scaled calcium phosphates with various structural features make them attractive for bone tissue engineering applications.
Keywords: chitosan; gelatin; composites; apatite; mineralization

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Yu, S.-H.; Wu, S.-J.; Wu, J.-Y.; Peng, C.-K.; Mi, F.-L. Tripolyphosphate Cross-Linked Macromolecular Composites for the Growth of Shape- and Size-Controlled Apatites. Molecules 2013, 18, 27-40.

AMA Style

Yu S-H, Wu S-J, Wu J-Y, Peng C-K, Mi F-L. Tripolyphosphate Cross-Linked Macromolecular Composites for the Growth of Shape- and Size-Controlled Apatites. Molecules. 2013; 18(1):27-40.

Chicago/Turabian Style

Yu, Shu-Huei; Wu, Shao-Jung; Wu, Jui-Yu; Peng, Chih-Kang; Mi, Fwu-Long. 2013. "Tripolyphosphate Cross-Linked Macromolecular Composites for the Growth of Shape- and Size-Controlled Apatites." Molecules 18, no. 1: 27-40.

Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
