An Improved Synthesis of Pentacene: Rapid Access to a Benchmark Organic Semiconductor

Department of Chemistry & Materials Science Program, University of New Hampshire, Durham, NH 03824, USA
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(4), 4625-4633; https://doi.org/10.3390/molecules17044625
Submission received: 20 March 2012 / Revised: 6 April 2012 / Accepted: 6 April 2012 / Published: 20 April 2012
(This article belongs to the Section Organic Chemistry)

Abstract

:
Pentacene is an organic semiconductor used in a variety of thin-film organic electronic devices. Although at least six separate syntheses of pentacene are known (two from dihydropentacenes, two from 6,13-pentacenedione and two from 6,13-dihydro-6,13-dihydroxypentacene), none is ideal and several utilize elevated temperatures that may facilitate the oxidation of pentacene as it is produced. Here, we present a fast (~2 min of reaction time), simple, high-yielding (≥90%), low temperature synthesis of pentacene from readily available 6,13-dihydro-6,13-dihydroxypentacene. Further, we discuss the mechanism of this highly efficient reaction. With this improved synthesis, researchers gain rapid, affordable access to high purity pentacene in excellent yield and without the need for a time consuming sublimation.

1. Introduction

Pentacene is a benchmark organic semiconductor in thin-film organic electronic devices due to its π-conjugated electronic structure, its relatively low HOMO-LUMO gap and the relatively high charge carrier mobility of its solid state films. It is the most common p-type organic semiconductor in OFET devices [1,2,3,4]. Extensive efforts have also been carried out to integrate pentacene into OLED [5,6] and photovoltaic [7,8,9] devices.
Pentacene is a deep blue, crystalline material of high reactivity that shows only sparing solubility in organic solvents. Unlike anthracene or tetracene, pentacene cannot be isolated from petroleum; hence it needs to be synthesized. The first synthesis of pentacene was accomplished by Clar in 1929 via a transfer dehydrogenation of 6,13-dihydropentacene using phenanthraquinone [10,11]. Thus, successive Friedel-Craft acylations of m-xylene using benzoyl chloride produces 1,3-dibenzoyl-4,6-dimethylbenzene. With further heating in the presence of copper, the diketone is transformed to 6,13-dihydropentacene. Transfer dehydrogenation in the presence of phenanthraquinone and nitrobenzene yields pentacene in unreported yield (Scheme 1).

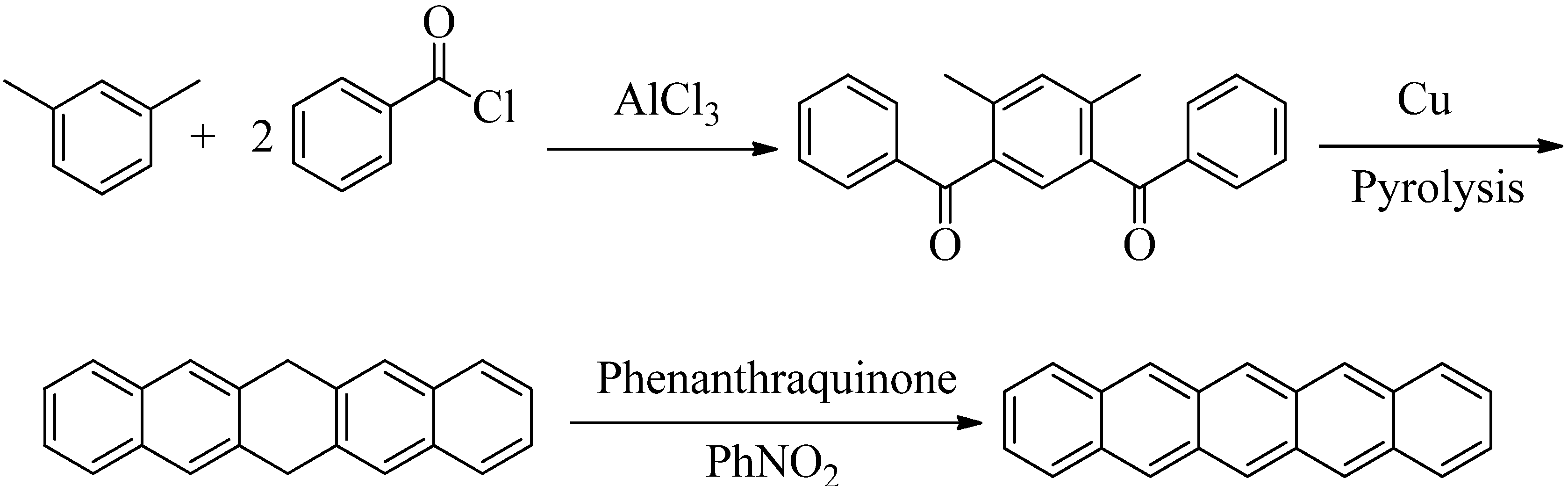

Scheme 1. The first synthesis of pentacene by Clar [10,11].
Scheme 1. The first synthesis of pentacene by Clar [10,11].
Molecules 17 04625 g001
Similarly, pentacene has also been synthesized from 5,14-dihydropentacene via a transition metal catalyzed dehydrogenation [12]. Thus, Hart reacted benzocyclobutene, an o-quinodimethane precursor, with anthracene-1,4-endoxide (prepared in a multi-step synthesis involving 2,3-dihydronaphthalene and furan) to produce a dihydropentacene hydrate that was dehydrated using HCl. A subsequent Pd/C catalyzed dehydrogenation produced pentacene (59% overall yield from anthracene-1,4-endoxide, Scheme 2).

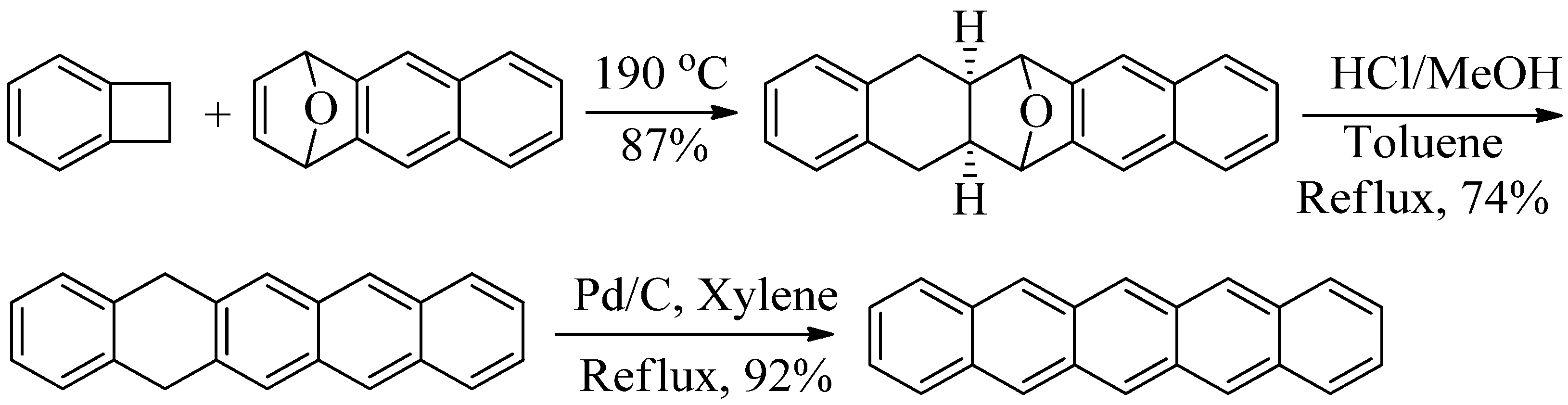

Scheme 2. Synthesis of pentacene from 5,14-dihydropentacene via a Pd/C dehydrogenation [12].
Scheme 2. Synthesis of pentacene from 5,14-dihydropentacene via a Pd/C dehydrogenation [12].
Molecules 17 04625 g002
A third synthetic pathway to pentacene involves reduction of pentacene-6,13-dione which is itself synthesized via four successive aldol condensations involving two equivalents of o-phthalaldehyde and one equivalent of 1,4-cyclohexanedione [13,14]. The reduction of pentacene-6,13-dione using either Al in cyclohexanol (5–51% yield) [15] or an Al/HgCl2 mixture in cyclohexanol/carbon tetrachloride (54% yield) [16] requires multiple days to produce pentacene (Scheme 3). The high boiling solvent conditions may hasten pentacene degradation as it is produced. Moreover, CCl4 is a regulated chemical and HgCl2 is highly toxic.

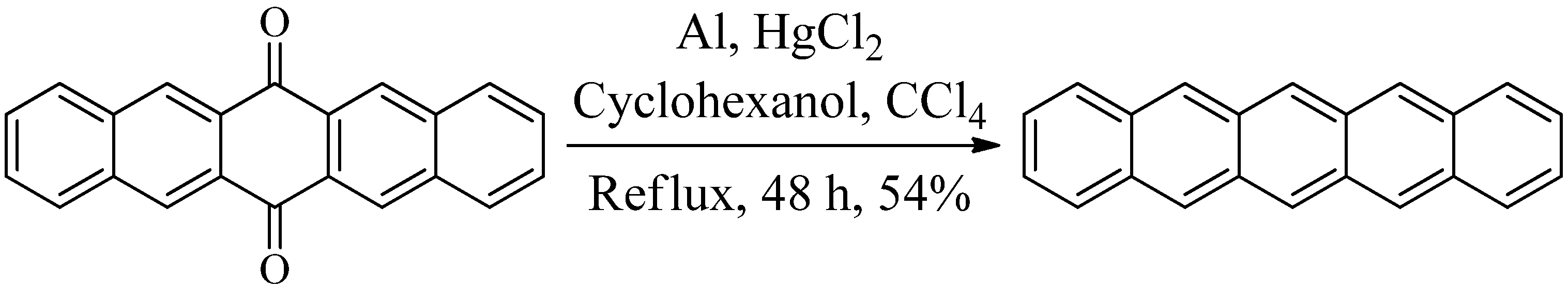

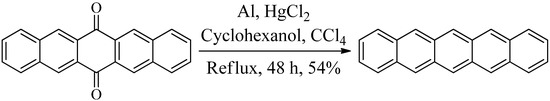

Scheme 3. Synthesis of pentacene from pentacene-6,13-dione using a Hg-Al amalgam [16].
Scheme 3. Synthesis of pentacene from pentacene-6,13-dione using a Hg-Al amalgam [16].
Molecules 17 04625 g003
A fourth procedure to prepare pentacene involves the reaction of pentacene-6,13-dione in dry, boiling THF with LiAlH4 for 30 min followed by the addition of 6 M HCl and three additional hours of boiling. This procedure yields a crude product mixture that reportedly includes pentacen-6(13H)-one and its tautomer 6-hydroxypentacene. Following filtration and washing, the crude product is subjected to the same reaction sequence a second time to produce pentacene in 54% overall yield [17] (Scheme 4).

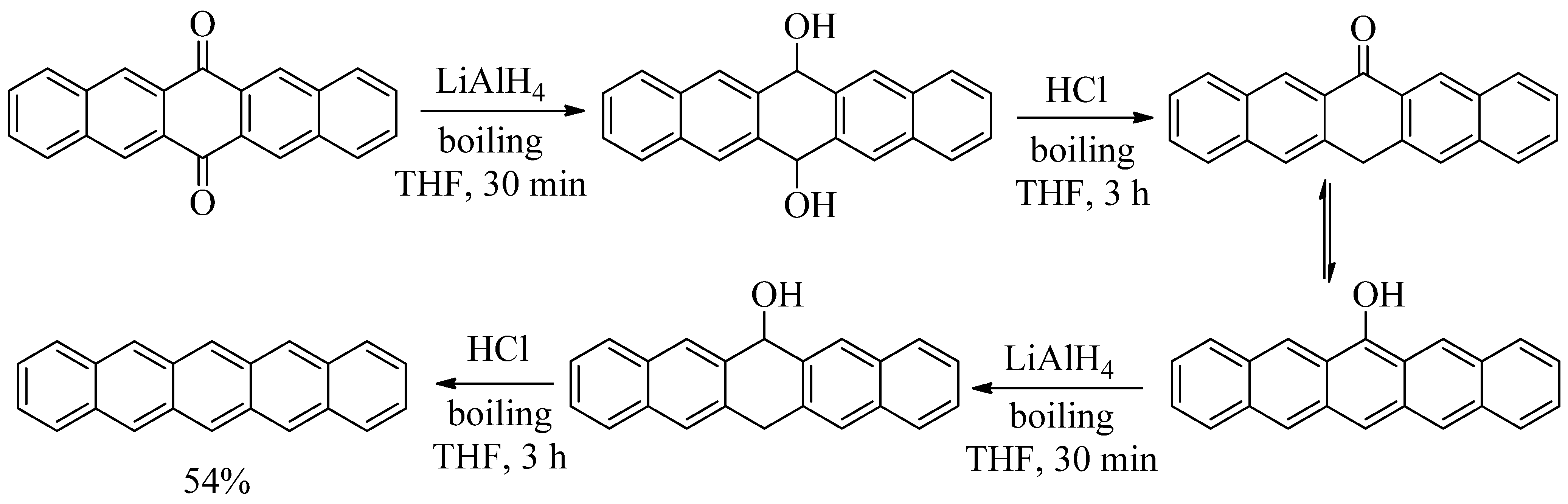

Scheme 4. Synthesis of pentacene from pentacene-6,13-dione using successive LiAlH4 reductions followed by acid dehydrations [17].
Scheme 4. Synthesis of pentacene from pentacene-6,13-dione using successive LiAlH4 reductions followed by acid dehydrations [17].
Molecules 17 04625 g004
A fifth procedure to produce pentacene involves the reduction of 6,13-dihydro-6,13-dihydroxypentacene using potassium iodide and sodium hyposulfite in boiling acetic acid for three hours (Scheme 5). In this way, pentacene is produced in 67% yield [18].

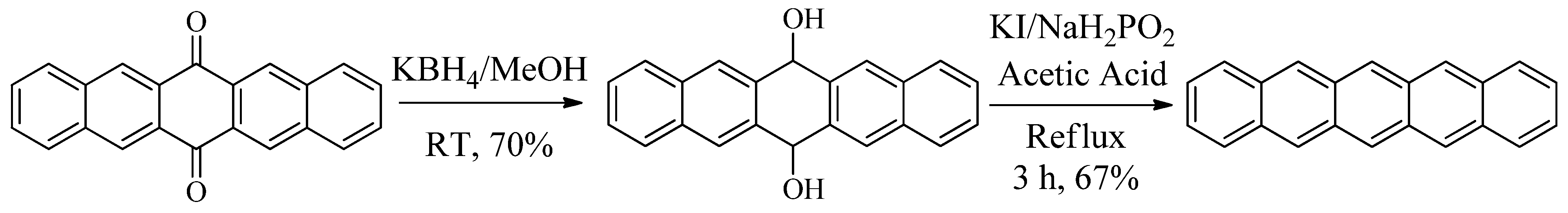

Scheme 5. Synthesis of pentacene from pentacene-6,13-dihydro-6,13-diol using potassium iodide, sodium hypophosphite and acetic acid [18].
Scheme 5. Synthesis of pentacene from pentacene-6,13-dihydro-6,13-diol using potassium iodide, sodium hypophosphite and acetic acid [18].
Molecules 17 04625 g005
Finally, a sixth procedure [19] involves a minimum of 30 minutes of stirring of 6,13-dihydro-6,13-dihydroxypentacene and SnCl2 (1:2 mole ratio) in acetone. The resulting crude pentacene was isolated by centrifuge, and washed with both methanol and THF. Purification by sublimation resulted in pure pentacene in 60% overall yield from 6,13-dihydro-6,13-dihydroxypentacene.
This latter procedure is closest to the improved synthesis of pentacene reported here. However, the improved synthesis utilizes HCl as co-reagent, involves shorter reaction times, does not require a sublimation step, and results in a significantly higher overall yield.

2. Results and Discussion

Here, we present a simple, fast, high-yielding (≥90%), scalable synthesis of pentacene under mild conditions. Thus, 6,13-dihydro-6,13-dihydroxypentacene, readily prepared from pentacene-6,13-dione, is reduced to pentacene at low temperature using SnCl2 and HCl in an appropriate solvent, preferably DMF or acetone. The low temperature reaction is high yielding (e.g., 90–93% in DMF, Scheme 6) and is complete within 1–2 min. The reaction begins working within seconds at 0 °C, but it is more convenient to perform at or near RT. The work-up involves only simple filtration and washing with water, acetone and hexane. The crude reaction product is high purity pentacene, a slightly soluble blue solid that exhibits the expected molecular ion [m/z 278 by MALDI-MS (S8 matrix) and LDI-MS] and UV-Vis λmax values [o-dichlorobenzene (ODCB) solvent: 501, 537, 582 nm], both in agreement with the literature [17,20]. Most important, there is no mass spectrometry or UV-Vis evidence for pentacene-6,13-dione in the reaction product, a consequence of the mild reaction conditions, short reaction time, and simple work-up. In fact, the crude product prepared in this manner is identical to a commercial sample purified by sublimation (TCI America, P0030) as determined by UV-Vis analysis (Figure 1).

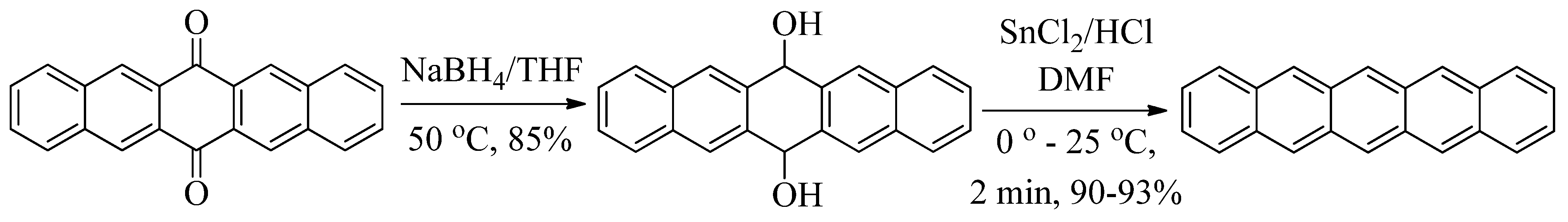

Scheme 6. Synthesis of pentacene from 6,13-dihydro-6,13-dihydroxypentacene using SnCl2/HCl/DMF.
Scheme 6. Synthesis of pentacene from 6,13-dihydro-6,13-dihydroxypentacene using SnCl2/HCl/DMF.
Molecules 17 04625 g006
The use of HCl and the choice of solvent are both key to the success of the reaction. Thus, the SnCl2 reduction of 6,13-dihydro-6,13-dihydroxypentacene is considerably faster in the presence of HCl, regardless of choice of solvent. All eight solvents tested (i.e., DMF, DMSO, THF, dioxane, acetone, CH3CN, AcOH, MeOH) gave pentacene product but the rates and yields of reactions varied as a function of solvent. Of these solvents, acetone and DMF gave very fast reactions (1–2 min) with high yields (≥90%). In a typical synthesis, 6,13-dihydro-6,13-dihydroxypentacene is first dissolved in appropriate solvent along with SnCl2. Concentrated HCl is added leading to the instant formation of blue pentacene, most of which immediately precipitates from solution. In acetone, a small amount of pentacene is observed to form even before the HCl addition. In DMF, pentacene only forms after the addition of HCl. The HCl addition is exothermic, especially in DMF. Thus, if the reaction is run on a relatively large scale (e.g., ≥1 g), then the reaction vessel should be submerged in an ice-water bath. For reactions run on a smaller scale, the reaction vessel can simply be submerged in a water bath held at room temperature.

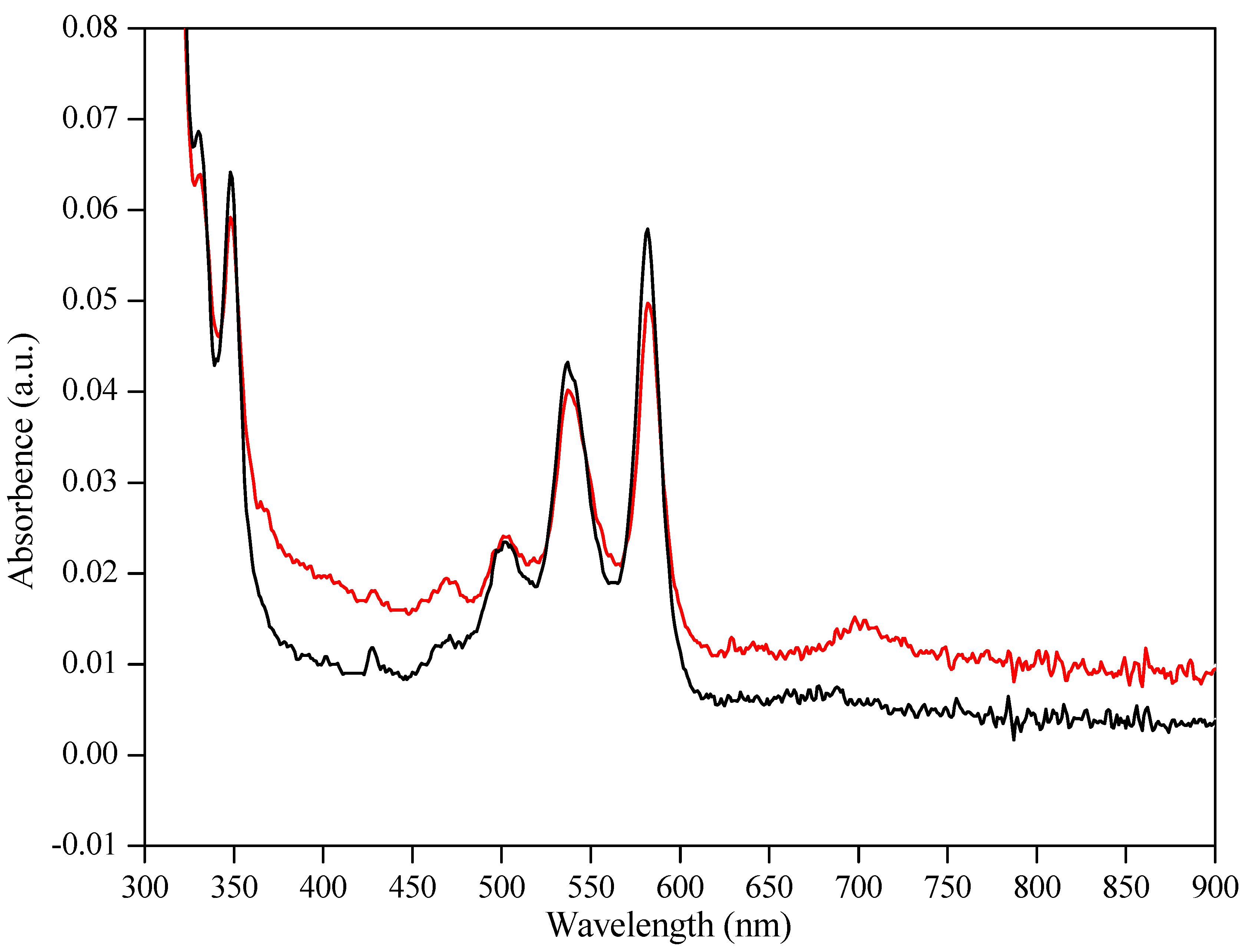

Figure 1. UV-Vis comparison of crude product prepared as described (black line)versus a commercial pentacene sample (red line) that has been purified by sublimation (both samples prepared in o-dichlorobenzene solvent).
Figure 1. UV-Vis comparison of crude product prepared as described (black line)versus a commercial pentacene sample (red line) that has been purified by sublimation (both samples prepared in o-dichlorobenzene solvent).
Molecules 17 04625 g007
Because 6,13-dihydro-6,13-dihydroxypentacene and SnCl2 are both highly soluble in DMF, this solvent is particularly appropriate for larger scale reactions. Thus, after dissolving 1.0 g of 6,13-dihydro-6,13-dihydroxypentacene and 1.5 g of SnCl2 in 13 mL of DMF, 20 mL of concentrated HCl was added over one minute with stirring while the reaction vessel was submerged in an ice water bath at 0 °C. Following work-up, 0.83 g of pure pentacene was isolated (93% yield). We see no reason why the DMF reaction could not be scaled several additional orders of magnitude, although precautions would need to be taken to properly manage the heat associated with mixing larger quantities of DMF and HCl (e.g., by submerging the reaction vessel in an ice-water bath).
We propose that the use of concentrated HCl facilitates the conversion of 6,13-dihydro-6,13-dihydroxypentacene to pentacene via protonation of the hydroxyl groups followed by elimination of water and formation of short-lived, electron deficient carbocations that act as electron acceptors (Scheme 7). It is also possible that HCl converts SnCl2 into a better electron donor species like, for example, SnCl42− or SnCl64−. Additionally, we observe that pentacene precipitates much more rapidly from solutions that contain HCl as opposed to those that do not. This is critical in that since solution phase pentacene oxidizes much more rapidly than solid state pentacene. Thus, the use of HCl minimizes the formation of a common oxidation by-product, pentacene-6,13-dione, and eliminates the need to perform a rigorous, time consuming separation like a sublimation.

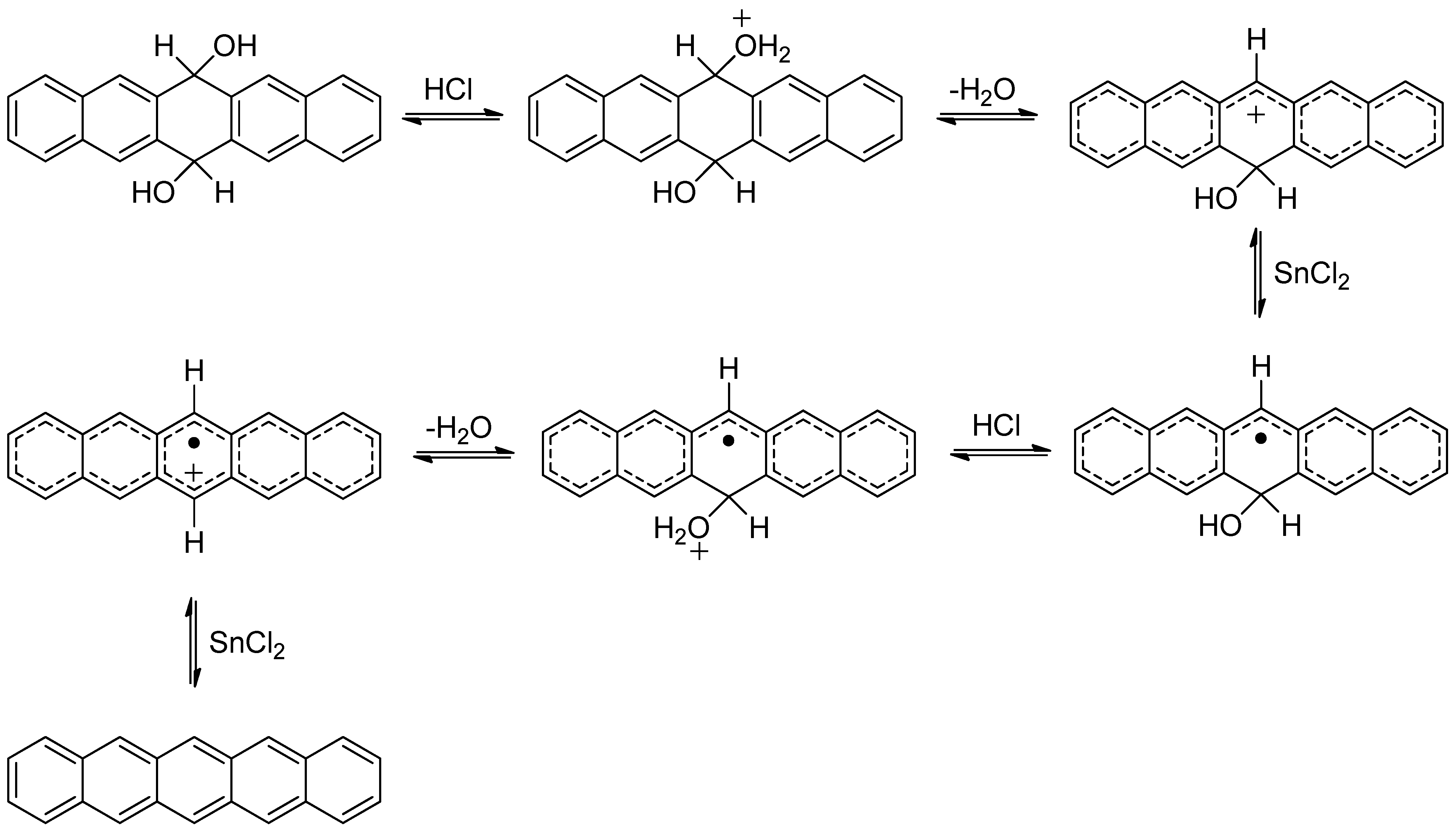

Scheme 7. Proposed mechanism for rapid formation of pentacene using a combination of HCl and SnCl2.
Scheme 7. Proposed mechanism for rapid formation of pentacene using a combination of HCl and SnCl2.
Molecules 17 04625 g008

3. Experimental

3.1. General Experimental Methods

Reactions were performed in standard glassware except where noted. Mass spectra were recorded on a Shimadzu Kratos Axima-CFR laser desorption ionization (LDI) time of flight (TOF) mass spectrometer (Kyoto, Japan). UV-visible spectra were obtained on a Nikolet Evolution 300 spectrometer (Cambridge, UK) using 1 cm quartz cells. Saturated solutions of pentacene were prepared using spectroscopic grade o-dichlorobenzene. NMR spectra were recorded using Varian Mercury 400 MHz (Palo Alto, CA, USA) and Varian Unity INOVA 500 MHz spectrometers (Palo Alto, CA, USA). Chemicals were used as purchased without further purification: 1,4-cyclohexanedione (Aldrich), o-phthalaldehyde (TCI America), NaOH (Alfa Aesar), NaBH4 (Sigma-Aldrich), SnCl2 (Sigma-Aldrich), EtOH (Pharmaco-AAPER), THF (EMD Chemicals), CHCl3 (Fisher Scientific), o-dichlorobenzene (Acros Organics), concentrated HCl (EMD Chemicals).
Pentacene-6,13-dione. Aqueous NaOH (10%, 5.96 g, 149 mmol) was slowly added to a solution of o-phthalaldehyde (10 g, 74.6 mmol) and 1,4-cyclohexanedione (4.18 g, 37.3 mmol) in ethanol (460 mL) under a N2 atmosphere. The solution turned from yellow to golden brown to dark brown before a yellow solid corresponding to pentacene-6,13-dione precipitated. After stirring the reaction mixture for four hours, the crude reaction mixture was filtered and washed with ethanol, water, and methanol until the washings were colorless. The solid residue was dried under vacuum to obtain 11.02 g (96% yield) of bright yellow pentacene-6,13-dione. 1H-NMR (500 MHz, CDCl3) δ (ppm): 8.96 (s, 4H), 8.14 (m, 4H), 7.72 (m, 4H); 13C-NMR (100 MHz, CDCl3): δ (ppm): 183.21, 135.45, 130.78, 130.31, 129.99, 129.67; LDI-MS m/z: [M++O], 324, [M++1] 309, [M+] 308.
6,13-Dihydroxy-6,13-dihydropentacene. Solid NaBH4 (12.3 g, 324.4 mmol) was slowly added to a 1,000 mL round bottom flask containing a suspension of pentacene-6,13-dione (5 g, 16.2 mmol) in THF (600 mL) at 0 °C. After the addition of NaBH4 was complete, the reaction vessel was purged with N2 and water (20 mL) was added. The reaction mixture was heated to 50 to 60 °C until homogeneous. After two hours of heating, THF was evaporated at reduced pressure, water was added, and the reaction mixture was filtered. The solids were washed with copious amounts of water followed by a small amount of cold CHCl3. After drying, 4.31 g of a white solid was recovered (85% yield) consisting of only one diastereomer of 6,13-dihydroxy-6,13-dihydropentacene. 1H-NMR (500 MHz, DMSO-d6): δ (ppm): 8.12 (s, 4H), 7.95 (m, 4H), 7.48 (m, 4H), 6.63 (s, 2H), 5.81 (s, 2H). 13C-NMR (125.68 MHz, DMSO-d6): δ (ppm): 138.19, 131.67, 127.47, 125.44, 120.91, 66.98. LDI-MS m/z: 312[M+], 295 [M+-OH], 278 [M+-2(OH)].
Pentacene. To a N2 purged 200 mL round bottom flask was added 6,13-dihydroxy-6,13-dihydropentacene (1 g, 3.2 mmol), SnCl2 (1.44 g, 6.4 mmol) and DMF (15 mL). Twenty mL of concentrated HCl was added over ~60 seconds with stirring at 0 °C (ice-water bath) in the dark. The resulting blue reaction mixture was stirred briefly (~15 s) at 0 °C before an additional 20 mL of concentrated HCl was added over ~30 seconds followed by the rapid addition of 100 mL water. The deep blue solids were filtered and washed with copious amounts of water followed by acetone and finally hexane. All washings were performed in air in the dark. The blue solid was dried under reduced pressure yielding 0.83 g of pentacene (93% yield). LDI-MS m/z: 278[M+]. UV-Vis (ODCB): λmax (nm): 501, 537, 582; (CHCl3) λmax (nm): 497, 533, 577.

4. Conclusions

We have demonstrated a simple, fast, high-yielding, scalable, low temperature synthesis of pentacene from 6,13-dihydro-6,13-dihydroxypentacene. Following a simple work-up, crude product is isolated and shown by mass spectrometry and UV-Vis spectroscopy to be of equal quality to commercial samples that have been purified by sublimation. With this synthesis, researchers gain rapid, affordable access to high purity pentacene in excellent yield and without the need for a time consuming sublimation.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/4625/s1.

Acknowledgments

This work was funded by the National Science Foundation through the Nanoscale Science & Engineering Center for High-rate Nanomanufacturing (grant NSF EEC: 0832785). The authors also acknowledge Edward Wong for helpful discussions, as well as former and current members of the Miller research group that prepared pentacene under similar conditions, especially Irvinder Kaur, Jeremy Kintigh and Lei Zhou.

References and Notes

  1. Karl, N. Charge carrier transport in organic semiconductors. Synth. Met. 2003, 133, 649–657. [Google Scholar] [CrossRef]
  2. Yamashita, Y. Organic semiconductors for organic field-effect transistors. Sci. Technol. Adv. Mater. 2009, 10, 1–9. [Google Scholar] [CrossRef]
  3. Lin, Y.; Gundlach, D.J.; Nelson, S.F.; Jackson, T.N. Stacked pentacene layer organic thin-film transistors with improved characteristics. IEEE Electron Device Lett. 1997, 18, 606–608. [Google Scholar] [CrossRef]
  4. Dimitrakopoulos, C.D.; Malenfant, P.R.L. Organic thin film transistors for large area electronics. Adv. Mat. 2002, 14, 99–117. [Google Scholar] [CrossRef]
  5. Shi, S.; Ma, D. A pentacene-doped hole injection layer for organic light-emitting diodes. Semicond. Sci. Technol. 2005, 20, 1213–1216. [Google Scholar] [CrossRef]
  6. Rao, M.V.M.; Huang, T.; Su, Y.; Huang, Y. Fullerene and pentacene as a pure organic connecting layer in tandem organic light emitting devices. J. Electrochem. Soc. 2010, 157, H69–H71. [Google Scholar] [CrossRef]
  7. Rand, B.P.; Burk, D.P.; Forrest, S.R. Offset energies at organic semiconductor heterojunctions and their influence on the open-circuit voltage of thin-film solar cells. Phys. Rev. B 2007, 75, 115327–1. [Google Scholar]
  8. Linares, M.; Beljonne, D.; Cornil, J.; Lancaster, K.; Brédas, J.; Verlaak, S.; Mityashin, A.; Heremans, P.; Fuchs, A.; et al. On the interface dipole at the pentacene-fullerene heterojunction: A theoretical study. J. Phys. Chem. C 2010, 114, 3215–3224. [Google Scholar]
  9. Karak, S.; Ray, S.K.; Dhar, A. Improved photovoltaic properties of pentacene/N,N'-Dioctyl-3,4,9,10-perylenedicarboximide-based organic heterojunctions with thermal annealing. Sol. Ener. Mater. Sol. Cells 2010, 94, 836–841. [Google Scholar] [CrossRef]
  10. Clar, E.; John, Fr. Polynuclear aromatic hydrocarbons and their derivatives. V. Naphthoanthracenes, their oxidation products and a new class of deeply colored hydrocarbons. Ber. Dtsch. Chem. Ges. 1929, 62, 3021–3029. [Google Scholar] [CrossRef]
  11. Clar, E.; John, Fr. Polynuclear aromatic hydrocarbons and their derivatives. VII. A new class of deeply colored radical hydrocarbons and the supposed pentacene of E. Philippi; also a reply to remarks of Roland Scholl and Oskar B.ovrddot.ottger. Ber. Dtsch. Chem. Ges. 1930, 63, 2967–2977. [Google Scholar] [CrossRef]
  12. Luo, J.; Hart, H. Linear acene derivatives. New routes to pentacene and naphthacene and the first synthesis of a triptycene with two anthracene moieties. J. Org. Chem. 1987, 52, 4833–4836. [Google Scholar] [CrossRef]
  13. Ried, W.; Anthofer, F. Einfache synthese für pentacen-6,13-chinon. Angew. Chem. 1953, 65, 601. [Google Scholar]
  14. Bruckner, V.; Tomasz, J. Weitere vereinfachung der pentacensynthese. Acta Chim. Acad. Sci. Hung. 1961, 28, 405–408. [Google Scholar]
  15. Bruckner, V.; Karczag, A.; kormendy, K.; Meszaros, M.; Tomasz, J. Einfache synthese des pentacenes. Tetrahedron Lett. 1960, 1, 5–6. [Google Scholar]
  16. Goodings, E.P.; Mitchard, D.A.; Owen, G. Synthesis, structure, and electrical properties of naphthacene, pentacene, and hexacene sulphides. J. Chem. Soc. PerkinTrans.I 1972, 1310–1314. [Google Scholar]
  17. Vets, N.; Smet, M.; Dehaen, W. Synthesis and thermolysis of a Diels-Alder adduct of pentacene and thiophosgene. Tetrahedron Lett. 2004, 45, 7287–7289. [Google Scholar]
  18. Sparfel, D.; Gobert, F.; Rigaudy, J. Transformations thermiques des photooxydes méso des acénes—VI: Cas des photooxydes de pentacenes. Tetrahedron 1980, 36, 2225–2235. [Google Scholar] [CrossRef]
  19. Chi, X. Synthesis of acenes and hydroxy-acenes. U.S. Patent 7,863,488 B2, 2011. [Google Scholar]
  20. Kaur, I.; Jia, W.; Kopreski, R.P.; Selvarasah, S.; Dokmeci, M.R.; Pramanik, C.; McGruer, N.E.; Miller, G.P. Substituent effects in pentacenes: Gaining control over HOMO-LUMO gaps and photooxidative resistances. J. Am. Chem. Soc. 2008, 130, 16274–16286. [Google Scholar]
  • Sample Availability: Samples of pentacene prepared as described are available from the authors.
