Cross-Cyclotrimerization with Two Nitriles as a Synthetic Pathway to Unsymmetrically 3,3’-Disubstituted bis(Tetrahydroisoquinolines)

1
Department of Organic and Nuclear Chemistry, and Center for Structural and Synthetic Application of Transition Metal Complexes, Faculty of Science, Charles University in Prague, Hlavova 8, 128 43 Praha 2, Czech Republic
2
Institute of Organic Chemistry and Biochemistry, Academy of Sciences of the Czech Republic, Flemingovo nám. 2, 166 10 Praha 6, Czech Republic
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(8), 2918-2926; https://doi.org/10.3390/molecules14082918
Submission received: 10 July 2009 / Revised: 31 July 2009 / Accepted: 3 August 2009 / Published: 10 August 2009
(This article belongs to the Special Issue Microwave Assisted Synthesis)

Abstract

:
Microwave assisted CpCo(CO)2 catalyzed cross-cyclotrimerizations of 1,7,9,15-hexadecatetrayne with two different nitriles to give unsymmetrically substituted bis(tetrahydroisoquinolines) was studied. The reaction proceeded with a range of alkyl and aryl nitriles with reasonable isolated yields.

Graphical Abstract

1. Introduction

Lewis base catalyzed processes constitute a large group of reactions that has been extensively used in organic synthesis and especially in asymmetric catalysis [1]. Among Lewis bases that have recently attracted considerable attention are pyridine N-oxides and their congeners. For example, they are able to strongly activate halosilanes via Lewis base-acid interaction to such an extent that halosilanes react with various functional groups. In this respect, enantioselective catalytic allylation of aldehydes have been intensively studied [2,3,4,5,6,7,8]. A number of various N-oxides [9,10,11,12,13,14,15,16,17,18,19,20], N,N-dioxides [21,22,23,24,26,27] and even N,N,N-trioxides [28] based on heterocyclic compounds with pyridine ring have been synthesized for this purpose.
We have recently demonstrated that microwave irradiation-enhanced Co-complex catalyzed [2+2+2]-cross-cyclotrimerization of diynes with nitriles can be conveniently used for simple and expedient synthesis of various bipyridines. Their oxidation, usually by MPCBA, and resolution into enantiomers yielded the corresponding chiral bipyridine N,N-dioxides [29,30,31,32,33]. The compounds catalyzed asymmetric allylation of aldehydes in up to 87% ee. In our last report we showed that the cyclotrimerization of 1,7,9,15-hexadecatetrayne with two different nitriles, benzonitrile and (R)-tetrahydrofurancarbonitrile, furnished unsymmetrically substituted bis(tetrahydroisoquinoline) in 28% isolated yield, along with the symmetric derivative (20% isolated yield). Its further oxidation afforded two diastereoisomeric bis(tetrahydroisoquinoline) N,N’-dioxides that catalyzed enantioselective allylation of aldehydes [34]. This result provided us with impetus to study potential application of cobalt-complex catalyzed cross-cyclotrimerization of 1,7,9,15-hexadecatetrayne (1) with various nitriles as a pathway to unsymmetrically substituted bis(tetrahydroisoquinolines).

2. Results and Discussion

The microwave assisted cyclotrimerization of alkynes with nitriles offers several advantages in comparison with standard thermal conditions. Among these are, for example, reduced reaction times from hours to minutes, reactants are thus exposed to high reaction temperatures for shorter periods of time reducing possibility of thermal decomposition, and also the use of lower boiling point solvents such as THF, which allows easier separation of products [35,36,37,38,39,40].
For the study of cross-cyclotrimerization of 1,7,9,15-hexadecatetrayne (1) with various nitriles the previously used conditions were applied: CpCo(CO)2 (20 mol%), nitrile R1-CN (1 equiv.), nitrile R2-CN (1-20 equiv.), THF as solvent. The reactions were carried out in microwave reactor (microwave irradiation 300 W, reaction time 25 min). A series of cross-cyclotrimerization reactions between two different nitriles with 1,7,9,15-hexadecatetrayne (1) in various molar ratios was carried out with varied success (Scheme 1).

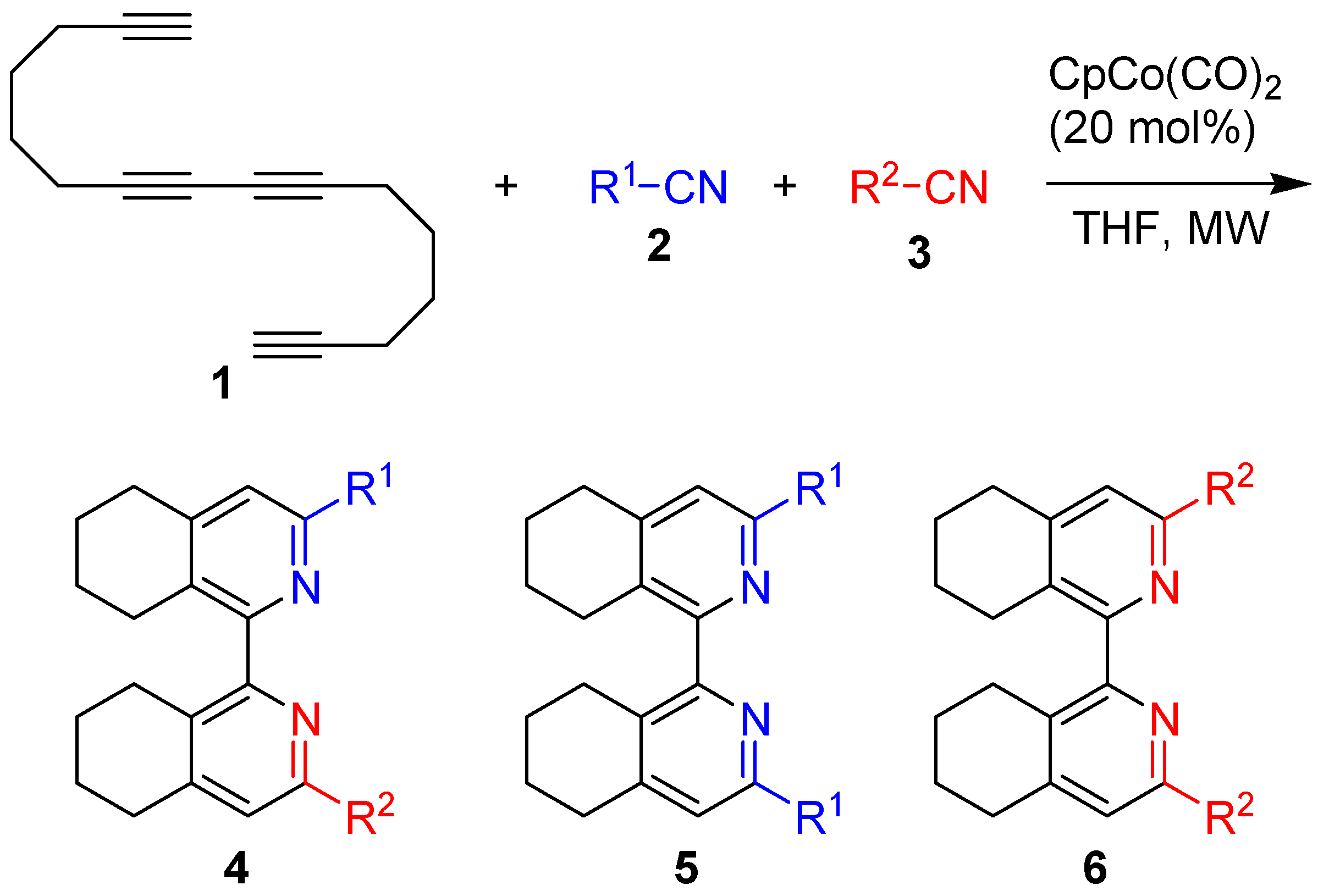

Scheme 1. Co-cyclotrimerization of tetrayne 1 with nitriles 2 and 3.
Scheme 1. Co-cyclotrimerization of tetrayne 1 with nitriles 2 and 3.
Molecules 14 02918 g001
In all cases the desired products of cross-cyclotrimerization of 1 with two different nitriles 2 and 3 – unsymmetrically substituted bis(tetrahydroisoquinolines) 4 – were formed. The reaction was always accompanied by the formation of varying amounts of symmetrically substituted bis(tetrahydr-oisoquinolines) 5 and/or 6, the products of cyclotrimerization of 1 with 2 or 3. Some of the most representative examples are given in Table 1.
Table 1. Cross-cyclotrimerization of tetrayne 1 with two nitriles 2 and 3.
Table 1. Cross-cyclotrimerization of tetrayne 1 with two nitriles 2 and 3.
EntryR1-CNR2-CN R1/R2 aYield (%)b 4Yield (%)b 5Yield (%)b 6
1C6H5CH33a1/14a, 105a, 300
2 1/1025100
3 1/2025100
4C6H54-MeOC6H43b1/14b, 235a, 150
5 1/1028100
6C6H52-C5H4Ne3c1/14c, 205a, 100
7 1/52820
8C6H5THF*c3d1/14d, 285a, 100
9 1/1024100
10CH33,4,5-(MeO)3C6H43e1/14e, 20traces6e, 9
11 10/12805
12CH34-CF3C6H43f1/14f, 1206f, 30
13 10/120015
14CH34-ClC6H43g1/14g, 2206g, 10
15 10/12705
16CH3THF*c3d1/14h, 16d06h, 16d
17 10/116d5b, 16d3d
a Molar ratio. b Isolated yields. c (R)-tetrahydrofuran-2-yl. d 1H-NMR yields. e 2-pyridyl.
Thus the cross-cyclotrimerization of benzonitrile (2) with acetonitrile (3a, 1/1 2/3a ratio) gave preferentially symmetrical product 5a (Entry 1), the change of the nitrile ratio to 1/10 resulted in the preferential formation of 4a (25% isolated yield) which was accompanied by a small amount of 5a (10%) (Entry 2). The formation of 6a was not detected. Further change of the nitrile ratio did not affect the reaction outcome (Entry 3). The analogical results were obtained also in other cases. Thus cross-cyclotrimerization of benzonitrile (2) and 4-methoxybenzonitrile (3b, 1/10 2/3b ratio) gave 4b in 28% isolated yield along with 10% of 5a (Entry 5). The formation of 4c was achieved in 28% isolated yield (1/5 2/3c ratio) and 5a was formed in just 2% yield (Entry 7). Finally benzonitrile (2) and (R)-tetrahydrofurancarbonitrile (2d) were cross-cyclotrimerized to yield the corresponding 4d in 28% isolated yield. Unlike in the previous cases, the best result was obtained when both nitriles were used in 1/1 molar ratio (compare Entries 8 and 9). In none of the cases was the formation of 6a-6d detected.
Then combination of acetonitrile (3a) and other nitriles was also studied. The best results for cyclotrimerization of 3a with nitriles 3e-3g giving the highest yields of the corresponding bis(tetrahydroisoquinolines) 4e-4g (28, 20, and 27% yields, respectively) occurred when the molar ratios of 3a/3e, 3a/3f, and 3a/3g were 10/1 (Entries 11, 13, and 15). On the other hand, for the reactions of 3a with nitrile 3d the optimal ratio of 3a/3d was 1/1 (Entry 16). The formation 5b was not observed under these conditions.
It should be emphasized that the cross-cyclotrimerization proceeded only under microwave irradiation. Carrying out the reaction under standard thermal condition (130 °C, 24-48 h) or attempts to facilitate the cyclotrimerization by visible light irradiation gave rise to intractable reaction mixtures.
Attempts to carry out the cyclotrimerization sequentially, i.e. to cyclotrimerize tetrayne 1 with one nitrile, isolate the expected intermediate (1-diynyltetrahydroisoquinoline), and then to carry out the second cyclotrimerization with another nitrile, also failed. The first reaction under the above mentioned conditions usually proceeded with low selectivity for the monocyclotrimerization (only up to 30%) and low yields (~10%), regardless of the nitrile used, making the whole process uneconomical. Carrying out the monocyclotrimerization under less forcing conditions by using another catalytic system, e.g. CoCl2·6H2O, Zn, dppe [41,42], did not meet the expectations either. Although the reaction proceeded exclusively to yield 1-diynyltetrahydroisoquinolines, the yields did not exceed in 10%. The use of catalysts based on other transition metals (Rh, Ru) did not promote the cyclotrimerization.

Experimental

General

All solvents, unless otherwise stated, were used as obtained. THF was distilled from sodium and benzophenone under Ar. All other reagents were obtained from commercial sources. 1H- and 13C- NMR spectra were recorded on a Varian UNITY 300 (1H at 300 MHz, 13C at 75 MHz) as solutions in C6D6. Chemical shifts are given in δ-scale, coupling constants J are given in Hz. Mass spectra were recorded on a LTQ Orbitrap XL. Infrared spectra were recorded on a FTIR Nicolet avatar Drift KBr and are reported in wave numbers (cm-1). Fluka 60 silica gel was used for flash chromatography. TLC was performed on silica gel 60 F254-coated aluminum sheets (Merck). All reactions were carried out under an argon atmosphere using flasks or in microwave reactor Biotage Initiator. Hexadeca-1,7,9,15-tetrayne (1) was prepared according to the previously reported method [43].

General procedure for cross-cyclotrimerization

R1CN (0.48 mmol), R2CN (4.8 mmol) and CpCo(CO)2 (18 mg, 0.1 mmol) were added under atmosphere of argon to a solution of hexadeca-1,7,9,15-tetrayne (1, 100 mg, 0.48 mmol) in dry and degassed THF (3 mL) contained in a vial. Then the vial was placed into the microwave oven and irradiated for 25 min (300 W) (during the process temperature and pressure reached 180 °C and 20 barr, respectively). Unreacted nitriles were then removed under reduced pressure and column chromatography of the residue on silica gel using the indicated eluent systems yielded the products.
5,6,7,8-Tetrahydro-1-(5,6,7,8-tetrahydro-3-methylisoquinolin-1-yl)-3-phenylisoquinoline (4a). Eluent: 3/1 hexane/EtOAc; yield: 40 mg (25%) of the title compound as a viscous colorless liquid and 30 mg (10%) of symmetrical benzonitrile substituted product 5a. Compound 4a: 1H-NMR: δ 1.44-1.49 (m, 8H), 2.44-2.48 (m, 4H), 2.51 (s, 3H), 2.61-2.66 (m, 4H), 6.59 (s, 1H), 7.19 (s, 1H), 7.24-7.29 (m, 3H), 8.17-8.20 (m, 2H); 13C-NMR: δ 23.2 (2C), 23.9, 24.0, 24.8, 26.8, 27.0, 30.2, 30.5, 120.4, 123.3, 127.9 (2C), 128.2, 128.5, 129.2, 129.4, 130.8, 141.0, 147.4, 148.0, 154.0, 154.7, 158.7, 159.3; IR (THF) ν 696, 1069, 1430, 1590, 1722, 2858, 2933, 3085 cm-1; ESI-MS m/z (% relative intensity) 355 (M+, 100), 377 (15); HR-ESI calculated for C25H26N2 355.2169 found 355.2169.
5,6,7,8-Tetrahydro-1-(5,6,7,8-tetrahydro-3-phenylisoquinolin-1-yl)-3-(4-methoxyphenyl)iso-quinoline (4b). Eluent: 3/1 hexane/EtOAc; yield: 60 mg (28%) of the title compound as a viscous colorless liquid and 20 mg (10%) of symmetrical benzonitrile substituted product 5a. Compound 4b: 1H-NMR: δ 1.48-1.50 (m, 8H), 2.51-2.53 (m, 4H), 2.69-2.71 (m, 4H), 3.31 (s, 3H), 6.91-6.93 (m, 2H), 7.18-7.20 (m, 1H), 7.19-7.21 (m, 1H); 7.27-7.32 (m, 3H), 8.21-8.24 (m, 4H); 13C-NMR: δ 23.2, 23.3, 23.9, 24.0, 27.1 (2C), 30.5 (2C), 55.5, 115.0, 119.8, 120.5, 127.9 (2C), 129.2 (4C), 129.5 (2C), 130.3, 131.1, 133.6, 141.0, 148.1 (2C), 153.9, 154.0, 159.0, 159.2, 161.4; IR (THF) ν 694, 835, 1030, 1172, 1247, 1307, 1416, 1451, 1514, 1550, 1589, 1608, 2931 cm-1; ESI-MS m/z (% relative intensity) 447 (M+, 100), 448 (36), 469 (8), 893 (50), 915 (50), 916 (35), 917 (15); HR-ESI calculated for C30H30N2O 447.2431 found 447.2426.
5,6,7,8,-Tetrahydro-1-(5,6,7,8-tetrahydro-3-phenylisoquinolin-1-yl)-3-(pyridin-2-yl)isoquino-line (4c). Eluent: 1/1 hexane/EtOAc; yield: 55 mg (28%) of the title compound as a viscous colorless liquid and 4 mg (2%) of symmetrical benzonitrile substituted product 5a. Compound 4c: 1H-NMR: δ 1.44-1.46 (m, 8H), 2.43-2.64 (m, 8H), 6.84-6.85 (m, 1H), 7.18-7.21, (m, 3H), 7.26-7.32 (m, 2H), 8.19-8.29 (m, 3H), 8.57-8.58 (m, 1H), 9.52 (s, 1H); 13C-NMR: δ 22.0, 22.2, 22.8, 22.9, 26.1, 29.3, 29.4, 30.0, 119.7, 123.1, 126.9 (2C), 128.3 (2C), 128.5, (2C), 130.0, 130.8, 133.7, 135.0, 139.8, 147.3, 147.5, 148.4, 149.6, 150.5, 153.1, 157.7, 158.4; IR (THF) ν 689, 751, 806, 1024, 1160, 1430, 1588, 2855, 2922, 3036 cm-1; ESI-MS m/z (% relative intensity) 418 (M+, 100), 440 (61); HR-ESI calculated for C29H27N3 418.2269, found 418.2278.
3-[(R)-Tetrahydrofuran-2-yl]-3’-phenyl-(5,5’,6,6’,7,7’,8,8’-octahydro-l,l’-biisoquinoline) (4d). Eluent: 5/1 hexane/EtOAc; yield: 56 mg (28%) of the title compound as a viscous colorless liquid and 20 mg (20%) of symmetrical product 5a. Compound 4d: 1H-NMR: δ 1.36-1.68 (m, 11H), 2.08-2.14 (m, 1H), 2.19-2.26 (m, 1H), 2.46-2.68 (m, 7H), 3.74-3.80 (m, 1H), 3.95-4.0 (m, 1H), 5.23 (t, J= 7Hz; 1H), 7.15-7.19 (m, 1H), 7.25-7.29 (m, 3H), 7.4 (s, 1H), 8.16-8.19 (m, 2H); 13C-NMR: δ 23.2 (2C), 24.0 (2C), 26.7, 27.0, 27.1, 30.4, 30.5, 34.0, 69.5, 82.4, 120.3, 120.5, 128.2, 128.6 (2C), 129.2 (2C), 130.4, 131.0, 140.9, 148.0, 148.1, 153.9, 158.4, 159.1, 160.1; IR (THF) ν 699, 961, 1069, 1432, 1722, 2877, 2937, 3292 cm-1; ESI-MS m/z (% relative intensity) 411 (M+, 100), 412 (31), 433 (27); HR-ESI calculated for C28H30N2O+H+ 411.2431, found 411.2421.
5,6,7,8-Tetrahydro-1-(5,6,7,8-tetrahydro-3-(3,4,5-trimethoxyphenyl)isoquinolin-1-yl)-3-methyl-iso-quinolne (4e). Eluent: 3/1 hexane/EtOAc; yield: 60 mg (28%) of the titled compound as a viscous colorless liquid and 2 mg (5%) of symmetrical 3,4,5-trimethoxybenzonitrile substituted product 6e. Compound 4e: 1H-NMR: δ 1.46-1.51 (m, 8H), 2.42-2.65 (m, 11H), 3.42 (s, 6H), 3.88 (s, 3H), 6.56 (s, 1H), 7.42 (s, 1H), 7.53 (s, 2H); 13C-NMR: δ 23.3, 23.9, 24.0, 24.7, 26.8, 26.9, 30.2, 30.5, 56.6 (2C), 61.2, 106.1, 120.3, 123.4, 128.6 (2C), 129.0 (2C), 130.5, 136.4, 141,4, 147.4, 148.0, 154.3, 155.0, 155.1, 158.7, 159.3; IR (THF) ν 853, 1068, 1127, 1228, 1430, 1554, 2858, 2934, 1584, 1721 cm-1; ESI-MS m/z (% relative intensity) 445 (M+, 100), 467 (33); HR-ESI calculated for C28H32N2O3 445.2486 found 445.2476.
1-(3-(4-(Trifluoromethyl)phenyl)-5,6,7,8-tetrahydroisoquinolin-1-yl)-5,6,7,8-tetrahydro-3-methyl-isoquinoline (4f). Eluent: 3/1 hexane/EtOAc; yield: 40 mg (20%) of this product as a viscous colorless liquid and 30 mg (15%) of symmetrical 4-(trifluoromethyl)benzonitrile substituted product 6f. Compound 4f: 1H-NMR: δ 1.46-1.50 (m, 8H), 2.45-2.48 (m, 4H), 2.51 (s, 3H), 2.58-2.64 (m, 4H), 6.60 (s, 1H), 7.16 (s, 1H), 7.47 (m, 2H), 8.00 (m, 2H); 13C-NMR: δ 23.1, 23.2, 23.7, 23.8, 24.0, 24.7, 26.8, 27.0, 30.1, 30.4, 32.6, 120.8, 123.5, 126.3, 126.4, 127.7, 128.1, 129.2, 132.0, 144.1, 148.0, 148.3, 152.2, 154.8, 158.3, 159.6; IR (THF) ν 848, 1015, 1068, 1123, 1161, 1323, 1432, 1591, 2858, 2928 cm-1; ESI-MS m/z (% relative intensity) 423 (M+, 100), 445 (58); HR-ESI calculated for C26H25N2F3 445.2486 found 445.2476.
1-(3-(4-Chlorophenyl)-5,6,7,8-tetrahydroisoquinolin-1-yl)-5,6,7,8-tetrahydro-3-methylisoquinoline (4g). Eluent: 3/1 hexane/EtOAc; yield: 50 mg (27%) of this product as a viscous colorless liquid and 9 mg (5%) of symmetrical 4-chlorobenzonitrile substituted product 6g. Compound 4g: 1H-NMR: δ 1.43-1.49 (m, 8H), 2.44-2.47 (m, 4H), 2.51 (s, 3H), 2.57-2.63 (m, 4H), 6.59 (s, 1H), 7.12 (s, 1H), 7.21-7.24 (m, 2H), 7.89-7.92 (m, 2H); 13C-NMR: δ 23.2, 23.3, 23.9, 24.0, 24.7, 26.8, 26.9, 30.1, 30.4, 120.2, 123.4, 128.8 (2C), 129.2 (2C), 129.6, 131.2, 135.3, 139.3, 147.5, 148.1, 152.6, 154.8, 158.5, 159.4; IR (THF) ν 834, 1012, 1304, 1431, 1492, 1592, 2857, 2932 cm-1; ESI-MS m/z (% relative intensity) 389 (M+, 100), 391 (36); ESI-MS m/z (% relative intensity) 389 (M+, 100), 391 (36); HR-ESI calculated for C25H25N2Cl 389.1779 found 389.1779.
5,6,7,8-Tetrahydro-1-(5,6,7,8-tetrahydro-3-methylisoquinolin-1-yl)-3-(tetrahydrofuran-2-yl)-isoquinoline (4h). Eluent: EtOAc; yield: 52 mg (32%) of the mixture of this product and the symmetrical (R)-tetrahydrofurancarbonitrile substituted product 6h in the ratio of 1:1. Compound 4h: 1H-NMR: δ 1.36-1.66 (m, 12H), 2.01-2.10 (m, 2H), 2.18-2.29 (m, 2H), 2.38-2.50 (m, 7H), 3.74-3.79 (m, 1H), 3.91-3.97 (m, 1H), 5.15-5.19 (m, 1H), 6.56 (s, 1H), 7.36 (s, 1H); 13C-NMR: δ 22.9, (2C), 23.7, 24.3, 26.3, 26.5, 26.6, 29.8, 30.1, 30.5, 33.6, 69.1, 82.0, 119.8, 199.9, 129.8, 130.0, 147.5, 147.6, 158.0, 158.3, 159.7, 159.8.

Conclusions

In conclusion, we have demonstrated that CpCo(CO)2 catalyzed cross-cyclotrimerization of 1,7,9,15-hexadecatetrayne with two different nitriles under microwave irradiation can be a convenient method for synthesis of unsymmetrically substituted bis(tetrahydroisoquinolines). Although the isolated yields of the unsymmetrical products did not exceed 30%, this shortcoming is counterweighed by the simplicity and expeditiousness of the cross-cyclotrimerization method and also by the fact that sequential two step cyclotrimerization cannot be applied due to low selectivity and thermal instability of the starting tetrayne. Last but not least, it also should taken into the account that during two catalytic cycles six new bonds are formed.

Acknowledgements

Authors gratefully acknowledge financial support from the Czech Science Foundation (Grant No. 203/08/0350) and Ministry of Education of the Czech Republic to the Center for Structural and Synthetic Application of Transition Metal Complexes (Project Nos. LC06070, MSM0021620857, and Z40550506).

References and Notes

  1. For recent review, see: Denmark, S.E.; Beutner, G.L. Lewis Base Catalysis in Organic Synthesis. Angew. Chem. Int. Ed. 2008, 47, 1560–1638. [Google Scholar] [CrossRef]
  2. Chelucci, G.; Thummel, R.P. Chiral 2,2‘-Bipyridines, 1,10-Phenanthrolines, and 2,2‘:6‘,2‘‘-Terpyridines: Syntheses and Applications in Asymmetric Homogeneous Catalysis. Chem Rev. 2002, 102, 3129–3170. [Google Scholar] [CrossRef]
  3. Malkov, A.V.; Kočovský, P. Chiral Bipyridine Derivatives in Asymmetric Catalysis. Curr. Org. Chem. 2003, 7, 1737–1757. [Google Scholar] [CrossRef]
  4. Chelucci, G.; Murineddu, G.; Pinna, G.A. Chiral pyridine N-oxides: useful ligands for asymmetric catalysis. Tetrahedron Asymmetry 2004, 15, 1373–1389. [Google Scholar] [CrossRef]
  5. Kočovský, P.; Malkov, A.V. From Transition Metals To Organocatalysis, Russ. Chem. Bull. Int. Ed. 2004, 53, 1806–1812. [Google Scholar] [CrossRef]
  6. Orito, Y.; Nakajima, M. Chiral Base-Catalyzed Aldol Reaction of Trimethoxysilyl Enol Ethers: Effect of Water as an Additive on Stereoselectivities. Synthesis 2006, 1391–1401. [Google Scholar]
  7. Malkov, A.V.; Kočovský, P. Chiral N-Oxides In Asymmetric Catalysis. Eur. J. Org. Chem. 2007, 29–36. [Google Scholar] [CrossRef]
  8. For general review on allylation of the carbonyl group see: Denmark, S. Catalytic Enantioselective Addition of Allylic Organometallic Reagents to Aldehydes and Ketones. Chem. Rev. 2003, 103, 2763–2793. [Google Scholar] [CrossRef]
  9. Malkov, A.V.; Orsini, M.; Pernazza, D.; Muir, K.W.; Langer, V.; Kočovský, P. Chiral 2,2‘-Bipyridine-Type N-Monoxides as Organocatalysts in the Enantioselective Allylation of Aldehydes with Allyltrichlorosilane. Org. Lett. 2002, 4, 1047–1049. [Google Scholar] [CrossRef]
  10. Malkov, A.V.; Bell, M.; Vassieu, M.; Bugatti, V.; Kočovský, P. New pyridine-derived N-oxides as chiral organocatalysts in asymmetric allylation of aldehydes. J. Mol. Catal. 2003, 196, 179–186. [Google Scholar] [CrossRef]
  11. Malkov, A.V.L.; Dufková, L.; Farrugia, L.; Kočovský, P. Quinox, a Quinoline-Type N-Oxide, as Organocatalyst in the Asymmetric Allylation of Aromatic Aldehydes with Allyltrichlorosilanes: The Role of Arene-Arene Interactions. Angew. Chem., Int. Ed. 2003, 42, 3674–3676. [Google Scholar] [CrossRef]
  12. Malkov, A.V.; Bell, M.; Castelluzzo, F.; Kočovský, P. METHOX: A New Pyridine N-Oxide Organocatalyst for the Asymmetric Allylation of Aldehydes with Allyltrichlorosilanes. Org. Lett. 2005, 7, 3219–3222. [Google Scholar] [CrossRef]
  13. Pignataro, L.; Benaglia, M.; Annunziata, R.; Cinquini, M.; Cozzi, F. Structurally Simple Pyridine N-Oxides as Efficient Organocatalysts for the Enantioselective Allylation of Aromatic Aldehydes. J. Org. Chem. 2006, 71, 1458–1463. [Google Scholar] [CrossRef]
  14. García-Flores, F.; Flores-Michel, K. S.; Juristi, E. Asymmetric allylation of N-benzoylhydrazones promoted by novel C2-symmetric bis-sulfoxide organocatalysts. Tetrahedron Lett. 2006, 47, 8235–8238. [Google Scholar] [CrossRef]
  15. Chelucci, G.; Baldino, S.; Pinna, G.A.; Benaglia, M.; Buffa, L.; Guizzetti, S. Chiral pyridine N-oxides derived from monoterpenes as organocatalysts for stereoselective reactions with allyltrichlorosilane and tetrachlorosilane. Tetrahedron 2008, 64, 7574–7582. [Google Scholar] [CrossRef]
  16. Muller, C.A.; Hoffart, T.; Holbach, M.; Reggelin, M. Pyridyl-N-oxide Substituted hellicaly Chiral Poly(methacrylate)s in asymmetric Organocatalysis. Macromolecules 2005, 38, 5375–5380. [Google Scholar] [CrossRef]
  17. Pignataro, L.; Benaglia, M.; Cinquini, M.; Cozzi, F.; Celentano, G. Readily available pyridine- and quinoline-N-oxides as new organocatalysts for the enantioselective allylation of aromatic aldehydes with allyl(trichloro)silane. Chirality 2005, 17, 396–403. [Google Scholar] [CrossRef]
  18. Chelucci, G.; Belmonte, N.; Benanglia, M.; Pignataro, L. Enantioselective allylation of aldehydes with allyltrichlorosilane promoted by new chiral dipyridylmethane N-oxides. Tetrahedron Lett. 2007, 48, 4037–4041. [Google Scholar] [CrossRef]
  19. Simonini, S.; Benaglia, M.; Pignataro, L.; Guizzetti, S.; Celentano, G. A New Class of Chiral Lewis Basic Metal-Free Catalysts for Stereoselective Allylations of Aldehydes. Synlett 2008, 1061–1065. [Google Scholar]
  20. Chai, Q.; Sung, C.; Sun, Z.; Ma, Y.; Ma, C.; Dai, Y.; Andrus, M.B. Asymmetric allylation of aldehydes with allyltrichlorosilane using aza-paracyclophane-oxazoline-N-oxide catalysts. Tetrahedron Lett. 2006, 47, 8611–8615. [Google Scholar] [CrossRef]
  21. Nakajima, N.; Saito, M.; Shiro, M.; Hashimoto, S. (S)-3,3‘-Dimethyl-2,2‘-biquinoline N,N‘-Dioxide as an Efficient Catalyst for Enantioselective Addition of Allyltrichlorosilanes to Aldehydes. J. Am. Chem. Soc. 1998, 120, 6419–6420. [Google Scholar] [CrossRef]
  22. Nakajima, N.; Saito, M.; Hashimoto, S. One-pot Enantioselective Synthesis of optically Active Homoallylic Alcohols from Allyl Halides. Chem. Pharm. Bull. 2000, 48, 306–307. [Google Scholar] [CrossRef]
  23. Nakajima, N.; Saito, M.; Hashimoto, S. Selective synthesis of optically active allenic and homopropargylic alcohols from propargyl chloride. Tetrahedron Asymmetry 2002, 13, 2449–2452. [Google Scholar] [CrossRef]
  24. Shimada, T.; Kina, A.; Ikeda, S.; Hayashi, T. A Novel Axially Chiral 2,2’-Bipyridine N,N’-Dioxide. Its preparation and Use for Asymmetric Allylation of Aldehydes with Allyl(trichloro)silane as a Highly Efficient Catalyst. Org. Lett. 2002, 4, 2799–2801. [Google Scholar] [CrossRef]
  25. Shimada, T.; Kina, A.; Hayashi, T. A Novel Axially Chiral 2,2‘-Bipyridine N,N‘-Dioxide. Its Preparation and Use for Asymmetric Allylation of Aldehydes with Allyl(trichloro)silane as a Highly Efficient Catalyst. J. Org. Chem. 2003, 68, 6329–6337. [Google Scholar] [CrossRef]
  26. Kina, A.; Shimada, T.; Hayashi, T. A New Approach to Axially Chiral Bipyridine N,N-Dioxides Bearing Aromatic Substituents and their Use for Catalytic Asymmetric Allylation of Aldehydes with Allyl(trichloro)silane. Adv. Synth. Catal. 2004, 346, 1169–1174. [Google Scholar] [CrossRef]
  27. Wong, W.L.; Lee, C.S.; Leung, H.K.; Kwong, H.L. The first series of chiral 2,2ʹ:6ʹ,2ʺ-terpyridine tri-N-oxide ligands for Lewis base-catalyzed asymmetric allylation of aldehydes. Org. Biomol. Chem. 2004, 2, 1967–1969. [Google Scholar] [CrossRef]
  28. Hrdina, R.; Stará, I.G.; Dufková, L.; Mitchel, S.; Císařová, I.; Kotora, M. Synthesis of atropoisomeric pyridines via cobalt-catalyzed cocyclotrimerization of diynes with benzonitrile. Tetrahedron 2006, 62, 968–976. [Google Scholar] [CrossRef]
  29. Hrdina, R.; Kadlčíková, A.; Valterová, I.; Hodačová, J.; Kotora, M. An easy route to atropoisomeric bipyridine N,N′-dioxides and allylation of aldehydes. Tetrahedron Asymmetry 2006, 17, 3185–3191. [Google Scholar] [CrossRef]
  30. Hrdina, R.; Valterová, I.; Hodačová, J.; Kotora, M. A Simple Approach to Unsymmetric Atropoisomeric Bipyridine N,N′-Dioxides and Their Application in Enantioselective Allylation of Aldehydes. Adv. Synth. Catal. 2007, 349, 822–826. [Google Scholar] [CrossRef]
  31. Hrdina, R.; Dračínský, M.; Valterová, I.; Hodačová, J.; Císařová, I.; Kotora, M. New Pathway to C2-Symmetric Atropoisomeric Bipyridine N,N′-Dioxides and Solvent Effect in Enantioselective Allylation of Aldehyde. Adv. Synth. Catal. 2008, 350, 1449–1456. [Google Scholar] [CrossRef]
  32. For application of alkyne-nitrile cyclotrimerization in organic synthesis, see: Turek, P.; Kotora, M. Synthesis of pyridines by [2+2+2]-cyclotrimerization of alyknes with nitriles. Targ. Heterocyclic Syst. 2009, 13. in press. [Google Scholar]
  33. Kadlčíková, A.; Hrdina, R.; Valterová, I.; Kotora, M. Simple and Fast Synthesis of New Axially Chiral Bipyridine N,N’-Dioxide for Highly Enantioselective Allylation of Aldehydes. Adv. Synth. Catal. 2009, 351, 1279–1283. [Google Scholar] [CrossRef]
  34. Zhou, Y.; Porco, J.A.; Snyder, J.K. Synthesis of 5,6,7,8-Tetrahydro-1,6-naphthyridines and Related Heterocycles by Cobalt-Catalyzed [2 + 2 + 2] Cyclizations. Org. Lett. 2007, 9, 393–395. [Google Scholar] [CrossRef]
  35. Young, D.D.; Deiters, A. A General Approach to Chemo- and Regioselective Cyclotrimerization Reactions. Angew. Chem. Int. Ed. 2007, 47, 5187–5190. [Google Scholar] [CrossRef]
  36. Zou, Y.; Young, D.D.; Cruz-Montanez, A.; Deiters, A. Synthesis of Anthracene and Azaanthracene Fluorophores via [2+2+2] Cyclotrimerization Reactions. Org. Lett. 2008, 10, 4661–4664. [Google Scholar] [CrossRef]
  37. McIver, A.; Young, D.D.; Deiters, A. A general approach to triphenylenes and azatriphenylenes: total synthesis of dehydrotylophorine and tylophorine. Chem. Commun. 2008, 4750–4752. [Google Scholar] [CrossRef]
  38. Turek, P.; Hocek, M.; Pohl, R.; Klepetářová, B.; Kotora, M. Cobalt-Induced Synthesis of 6-(Pyridin-2-yl)purines by Microwave-Enhanced [2+2+2] Cyclotrimerization. Eur. J. Org. Chem. 2008, 3335–3343. [Google Scholar]
  39. Zhou, Y.; Beeler, A.B.; Cho, S.; Wang, Y.; Franzblau, S.G.; Snyder, J. K. Library Synthesis Using 5,6,7,8-Tetrahydro-1,6-naphthyridines as Scaffolds. J. Comb. Chem. 2008, 10, 534–540. [Google Scholar] [CrossRef]
  40. Kase, K.; Goswami, A.; Ohtaki, K.; Tanabe, E.; Saino, N.; Okamoto, S. On-Demand Generation of an Efficient Catalyst for Pyridine Formation from Unactivated Nitriles and α,ω-Diynes Using CoCl2-6H2O, dppe, and Zn. Org. Lett. 2007, 9, 931–934. [Google Scholar] [CrossRef]
  41. Goswami, A.; Ohtaki, K.; Kase, K.; Ito, T.; Okamoto, S. Synthesis of Substituted 2,2ʹ-Bipyridines and 2,2ʹ:6ʹ,2ʺ-Terpyridines by Cobalt-Catalyzed Cycloaddition Reactions of Nitriles and α,ω-Diynes with Exclusive Regioselectivity. Adv. Synth. Catal. 2008, 350, 143–152. [Google Scholar] [CrossRef]
  42. Sondheimer, F.; Amiel, Y. Unsaturated Macrocyclic Compounds. Synthesis of Cyclohexadeca-1,3,9,11-tetrayne by a Novel Cyclization Reaction. J. Am. Chem. Soc. 1957, 79, 5817–5820. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from the authors.
