Implant Fracture: A Narrative Literature Review

Abstract

Implants fracture is a rare but possible complication that leads to implants failure after prostheses delivery. Mechanical properties play a key role in the failure of dental implant systems. The aim of this narrative review was to evaluate the existing evidence in identifying etiology risk factors for implants fracture. The focused question was to evaluate whether there was any possible factors influencing the fracture of dental implants. A literature search of papers written in English, published from 1967 to July 2021, and reporting incidence of implants fracture in human with at least 15 participants (and one year of follow-up) was conducted using PubMed database including MeSH and free text terms and filters. Selected manuscripts were analyzed and discussed. The outcomes were the incidence of implants failure due to a fracture and the associated risk factors. A total of 96 articles were initially selected, but only eight articles were included according to the search criteria (two systematic reviews and six retrospective evaluation). Incidence of implants fracture ranged from 0.2 to 2.3%, with a mean value of 0.52%. Poor implant planning, including implant design and diameter, and occlusal overloading, were the most common variables associated with implants fracture. Implant removal is the only possible treatment and hence prevention, including stability of the marginal bone loss, is mandatory.

1. Introduction

Since the discovery of osseointegration by prof. Peter-Ingvar Brånemark, implantology has undergone a considerable evolution allowing the successful treatment of partial and complete edentulism [1]. High implant survival and success rate could also be expected thanks to the improvement of surface treatments, implant and prosthetic materials, and geometry of implant body [2]. However, while the implant procedure is deemed to be safe, having dental implants installed is a surgical procedure. As for any surgical procedure, some risks may be involved. Even if the percentage of patients who end up having problems after receiving implant surgery is small, there are some patients that experienced several major complications, both biological and mechanical. Within these, progressive infections, lack of osseointegration, and implant fractures lead to implants failures [3,4].

Implant fracture is a possible, even if improbable, cause of implant failure, that occurs very rarely. Brånemark and co-workers, about forty-five years ago, firstly reported 0.8% of fractured implants [5]. Nevertheless, although implants were made on titanium grade one, mostly of the cases were complete arch restorations, that are less probable to fracture. Recently, according to a couple of review manuscripts, the prevalence of implant fracture was reported to be around 1.0–1.5% [6,7].

The use of a standard (from 3.75 mm to less than 5 mm) and wide (5.0 mm or more) diameter implants [8] is generally recommended in the posterior area to ensure sufficient contact between the bone and the implant, and at the same time, to allow sufficient occlusal load resistance. However, it should be emphasized that a minimum of 1.5 mm between the implant and the adjacent tooth, and 3 mm between implants, is essential to support the interdental papillae and to achieve adequate esthetics, reducing crestal bone loss [9]. Moreover, a minimum thickness of about 1.5 to 2.0 mm of bone must surround the entire implant surface, including the buccal and palatal/lingual sites, to reduce the risk of bone fenestration [9]. For the latter, thin ridges or limited space are a challenge that require advanced surgical techniques (edentulous ridge expansions, guided bone regeneration, etc.). With the aim to reduce the overall treatment time, costs, and patients’ morbidity, narrow or extra-narrow diameter implants of ≥3.0 mm to ≤3.75 mm, or less than 3.0 mm, respectively, were used. Indeed, when the amount of horizontal available bone is less than 5 mm, the placement of mini (3.5 mm) or standard (4 mm) diameter implants without bone management procedures, can often lead to gingival recession, bone resorption, and in advanced cases, exposure and/or infection of the implants, with irreversible consequences for the implants survival and/or success rate [10]. Hence, the gold standard still remains horizontal guided bone regeneration.

Extra-narrow and narrow diameter implants are primarily indicated in the anterior area to replace mandibular incisors or maxillary lateral incisors. They are also indicated in case of reduced mesio-distal space, and/or thin vestibulo-lingual thickness [11], to allow implant placement in situations where there is not enough space for wider diameter implants. Thus, the need for bone augmentation procedures, or pre-prosthetic orthodontic tooth movement could be avoided. Nevertheless, narrow implants should be used in areas not subjected to high occlusal force, as indicated by the manufacturers. Hence, high risk of implant fracture may occur when extra-narrow and narrow implants are placed in premolar and molar area [12,13].

In an effort to re-evaluate the clinical approach to extra-narrow and narrow diameter implants, the aim of this narrative review was to evaluate the existing evidence in identifying etiology risk factors for implants fracture. The present review was conducted as part of the 2nd Osstem AIC Italy Consensus Conference. Osstem AIC Italy is an independent, no profit, scientific community that provides implant education for dentists including consensus conferences [14]. The present group was assigned the task to review the current knowledge regarding the prevalence of implant fracture.

2. Results

A total of 96 articles were found according to the search criteria. After abstracts evaluation and duplicates removal, 22 articles were deemed useful for the aim of the present review. A manual search using personal contacts and references of published works allows to include another two articles, resulting in a total of 24 manuscripts. Finally, after full-text articles selection and reading, eight manuscripts were included according to the inclusion/exclusion criteria [3,4,7,8,10,15,16,17]. Of these, two were systematic reviews [3,15], and six were retrospective evaluations [4,7,8,10,16,17]. Relevant informations from each article were extracted and analyzed.

2.1. Incidence of Implants Fracture

Seven studies reported incidence of implant fracture [3,4,8,10,15,16,17]. Major of the studies reported an incidence of less than 1% [3,4,8,15,17]. Higher value was reported by Stoichkov and co-workers [16]. In this study, 5 implants fractured from a total of 218 (percentage 2.3%).

In a previous systematic review by Berglundh and co-workers in 2002 [3], evaluating 159 articles on complications in implantology, the incidence of implant fractures was less than 1% (0.08 to 0.74%), in a period of five years. Later, in two studies the incidence of implant fracture was 1.40% [10], and 0.23%, as reported by Sánchez-Pérez and co-workers in another literature review published on 2010 [15]. In a 2017 retrospective cohort study of Tabrizi and co-workers [4], 37 implants fractures were experienced out of a total of 18,700 implant (0.2%). In the same year, another retrospective study by Chrcanovic and co-workers [8], reported an incidence of 0.44%. Overall, the fractured implants were 44 out of 10,099 in a total of 2670 patients. A year later, Stoichkov and Kirov reported an incidence of dental implant fracture of 2.3% experienced in 101 patients with 218 dental implants followed for a period ranging between three to 10 years [16]. More recently, Implant fracture failure rate of 0.92% was reported by Dong-Woon Lee in a retrospective study published into 2019, on 5124 patients and with up to 12-year of follow-up [17]. Overall, the percentage of fractured implants was 0.52% (302 implants out of 57,646,

Table 1. Percentage of implant fracture.

Study	Fractured Implants	Total Implants	Percentage
Berglundh et al. [3]	19	7279	0.26%
Tabrizi et al. [4]	37	18,700	0.2%
Chrcanovic et al. [8]	44	10,099	0.44%
Gargallo-Albiol et al. [10]	21	1500	1.40%
Sánchez-Pérez et al. [15]	2	844	0.23%
Stoichkov et al. [16]	5	218	2.3%
Lee et al. [17]	174	19,006	0.92%
Grand total	302	57,646	0.52%

).

2.2. Risk Factors for Implants Fracture

Seven studies reported incidence of implants fracture [3,4,7,8,10,16,17]. According to Berglundh and co-workers [3], poor implant planning, implant-abutment misfit, and overloading were the most common reasons for implants fracture. Later, Tabrizi and co-workers reported as possible causes of implants fracture long lasting time, treated area, implant and prosthetic design [4]. For all of these variables, a statistically significant correlation was found. Risk of implant fracture was 0.38/1000 and 1.46/1000 at the 1- and 5-year follow-up, respectively. Moreover, implant fractures occurred more often in the premolar and molar area (94.6%). Finally, the incidence of implants fracture was higher for conical connection implants and for single screw-retained prostheses.

In agreement with these results, a larger retrospective evaluation by Chrcanovic and co-workers [8], reported a mean time before implant fracture of 95.1 ± 58.5 months, with half of the fractures occurred between two and eight years. The authors also identified five more possible influencing factors: high grade titanium (72.9% reduced risk); bruxism (1819.5% increased risk); adjacent to a cantilever (247.6% increased risk); implant length (22.3% increased risk per mm); and implant diameter (96.9% less risk per mm). In this retrospective study there was no statistically significant differences between prosthesis design. The chi-square statistic is 2.782. The p-value is 0.594943. The result is not significant at p < 0.05. Data are reported in the

Table 2. Percentage of implant fracture according to the prosthetic design (by Chrcanovic et al. [8], modified).

Prosthetic Design	Fractured Implants	Total Implants	Percentage
Single crown	6	1683	0.36%
Partial-fixed (2 to 6 units)	12	2600	0.46%
Partial-fixed (7 to 10 units)	1	371	0.27%
Full-arch fixed	23	5055	0.45%
Overdenture	2	293	0.68%
Grand total	44	10,002	0.44%

.

Higher incidence of implant fractures was established in the area of the molars and premolars. Based on the study by Gargallo-Albiol and co-workers [10], the onset of these complications occurs during the first two to three years after the functional load of the implants. Also in the study of Chrcanovic and co-workers [8], statistically significant difference was found for implant diameter. The chi-square statistic is 2.782. The p-value is <0.0001. The result is significant at p < 0.05. Data are reported in the

Table 3. Percentage of implant fracture according to the implant diameter (by Chrcanovic et al. [8], modified).

Prosthetic Design	Fractured Implants	Total Implants	Percentage
Narrow (3.00–3.50 mm)	14	1038	1.35%
Regular (3.70–4.10 mm)	30	8873	0.34%
Wide (4.20–5.00 mm)	0	186	0%
Grand total	44	10,097	0.44%

.

In agreement with previous reports, Stoichkov and Kirov reported as most common causes associated with implant fracture, the implant design (e.g., diameter and length, biomaterial, and macro-design of the implant), physiologic or biomechanical occlusal overload, and incorrect operative and prosthetic planning [16].

In the retrospective study by Dong-Woon Lee [17], the implant diameter, location, history of bone graft, and microthread presence were significantly correlated with implant fractures. On the contrary, wide-diameter implants had a reduced fracture risk within 90 months, after which the diameter did not correlate with fractures. Implants placed in the anterior mandible had a lower fracture risk within 90 months; mandibular premolar implants corresponded with a lower risk up to 90 months on function. Implants without a history of bone graft or without microthreads were more likely to fracture throughout the follow-up time.

In two retrospective studies the percentage of implants fracture, for different implant companies and systems were reported [8,17]. Even if a direct comparison is not possible, all of the major implant brands fractured with percentage from 0.74% (Osstem TSIII with conical connection) to 2.57% (Nobel replace with butt internal connection) [8,17].

3. Discussion

Implants fracture is a rare but not exceptional biomechanical complication that may occur with a significant incidence. During the past few years, several studies reported incidence of implant fracture within a range of 0.2 to 2.3%. In the present narrative review, the overall incidence of implant fracture is 0.52%. This data are slightly lower than previous review manuscripts, where, the prevalence of implant fracture was reported to be around 1.0–1.5% [6,7]. The reason for better value should be due to the improvement in implant design and materials.

Nevertheless, dental implants market is growing and it is expected to increase from USD 7222 million in 2020 to USD 11,801 million by 2026 [18]. The American Academy of Implant Dentistry provides evidence of growth in the industry stating that the number of people getting implants in the United States increased by 500,000 a year [19]. Reasons for dental market growing could be rise on geriatric population, dental diseases, along with the misconception that dental implants may increase long lasting success, and aesthetics of dental restorations. It means that, proportionally, biological and mechanical complications, including several implants fractures, could be expected yearly.

Implants fracture, even if rare, is a serious complication, which leads to implant and prosthesis failure. In contrast to peri-implantitis, for which several approaches have been proposed, depending on the severity of the bone loss around the implant, the only possible treatment of a fractured implant is its removal. Hence, its prevention is mandatory.

There are still limited and conflicted data available regarding possible associations between implants fracture and some risk factors. Various biomechanical issues were suggested by several authors. Implant and prosthetic design (implants diameter and length, and type of prosthetic restorations) were the most common reasons suggested in four studies [4,8,16,17]. Within these, implant diameter is the most significant variable, with an estimated risk up to three times higher for narrow implants placed in molar area. Tabrizi and co-workers reported higher incidence of implants fracture for single crown [4]. On the other hands, no difference was found in the retrospective study by Chrcanovic and co-workers [8]. These authors also reported that risk for implants fracture increases over time, as expected due to metal fatigue by overloading. Berglundh and co-workers [3], specifically suggested that implant-abutment misfit and overloading were the most common reasons for implants fracture. On the same page, Stoichkov and Kirov reported biomechanical overloading as one of the most common variables associated with implant fracture [16]. In addition, Chrcanovic and co-workers [5] identified titanium presence of cantilever, parafunctional activities, such as bruxism (e.g., teeth clenching and grinding), narrow implant diameter as major variables that may cause overloading, and therefore, they were associated with higher risk of implant fracture. Last but not the least, Berglundh, Stoichkov, and co-workers [3,16], pointed at the poor implant planning as major reason for failure. It is the author’s opinion that poor implant planning is the base of everything. Tridimensional implant position, diameter and number of implants, their inclination, accurate implant/abutment selection, as well as, occlusion management are mandatory to ensure long lasting survival and success of an implant-supported restoration.

Localization of the implants, diameter and number of implants, their inclination to the sagittal and transverse planes, may increase stress on the peri-implant cortical bone.

According to Tabrizi et al. [4], the incidence of implants fracture was higher for conical connection implants and for single screw-retained prostheses. Screw-loosening and marginal bone loss were often associated with implant fracture [20]. Both complications may lead the implant-abutment complex to undergo increased horizontal forces that may finally cause implants fracture. Though it is obvious, screw loosening depends by technical reasons, several variables were associated to increased peri-implant bone loss. Of these, poor treatment planning, including wrong implants position, crown-to-implant ration, and overloading were associated with higher risk of marginal bone loss [21,22]. Very often standard or narrow diameter implants are used in the molar area to avoid bone reconstruction. It is the authors’ opinion that, in case when guided bone regeneration is not indicated, tissue level implants of standard diameter should be used. Tissue level implants with wider implant neck present strong resistance at the implant-abutment complex. In fact, data from the present narrative review strongly suggested proportional increase in diameter/strength in case of molar and premolar teeth must to be replaced. Because 3.5 mm diameter implants are weak, their usage should be limited to mandibular anterior teeth or maxillary lateral incisor area where occlusal load is not heavy. The 4.0 mm diameter implants are the first choice in maxillary anterior teeth or both premolar teeth area. Finally, minimum size of 4.5 mm of diameter is recommended when replacing molar teeth. Nevertheless, great disparity is reported when the implant is fully submerged in bone or is partially exposed by bone resorption [22]. In many cases, some preliminary signals could be expected: typically screw loosening, sometimes even fracture of the passing screw. Crown-to-implant-ratio seems to be a more relevant variable when considering the resistance to fracture of implants, since significant reductions were observed when unfavorable crown-to-implant-ratio subgroups (2.5:1 and 3:1) were compared with the 2:1 samples [22].

Dental implant companies are working on stronger resistance of dental implants. In fact, according to Chrcanovic and co-workers [8], a high grade of titanium was a protective factor, as well as, wider implant diameter. The results of a prospective randomized clinical trial suggest that narrow Ti-Zr implant were comparable with standard-diameter conventional titanium implants in the sort term [23], even if fractured Ti-Zr implant was reported [24]. Unfortunately, most of available data derived from in vitro research, retrospective study, or previous reviews [25,26,27,28].

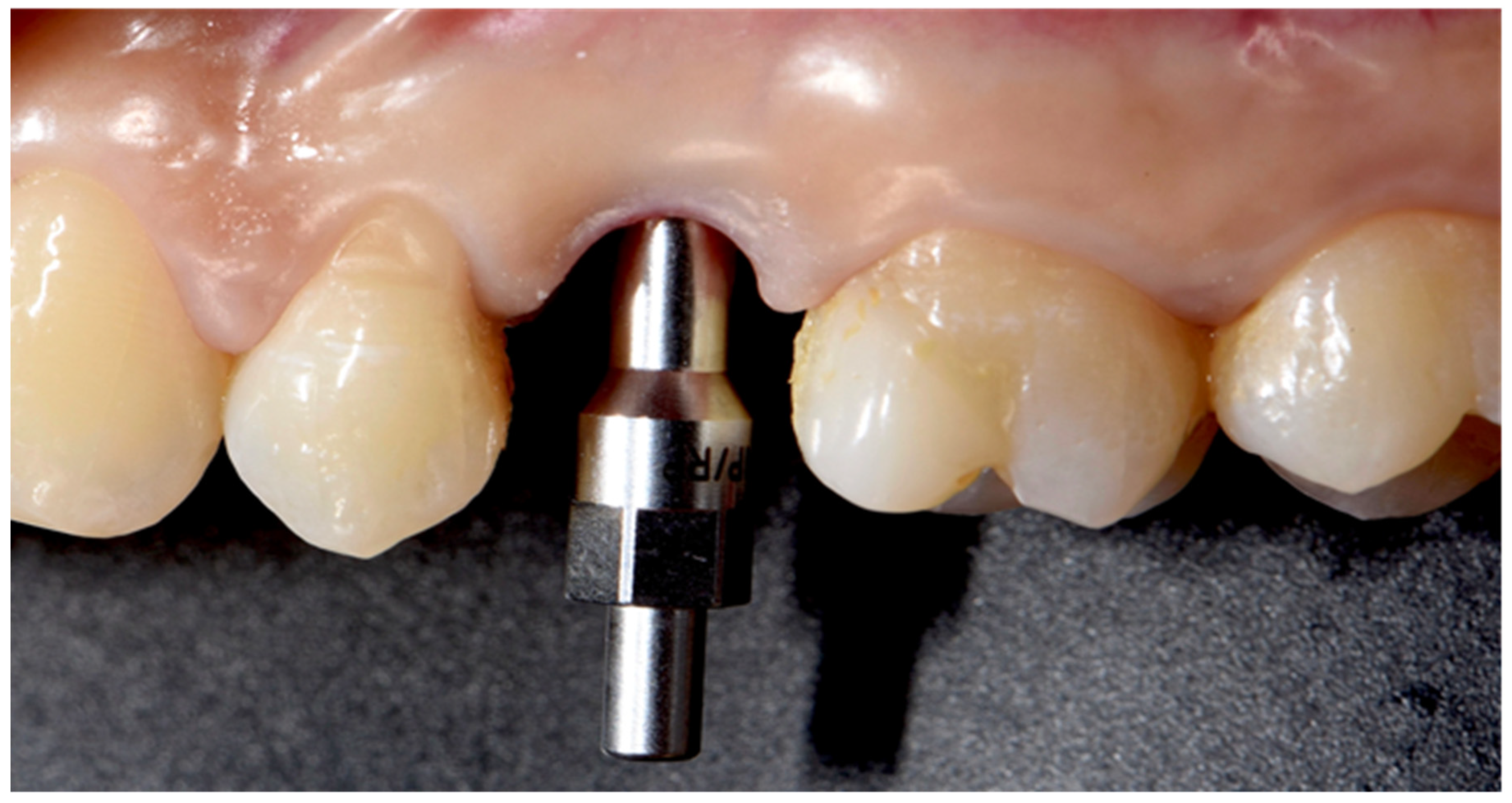

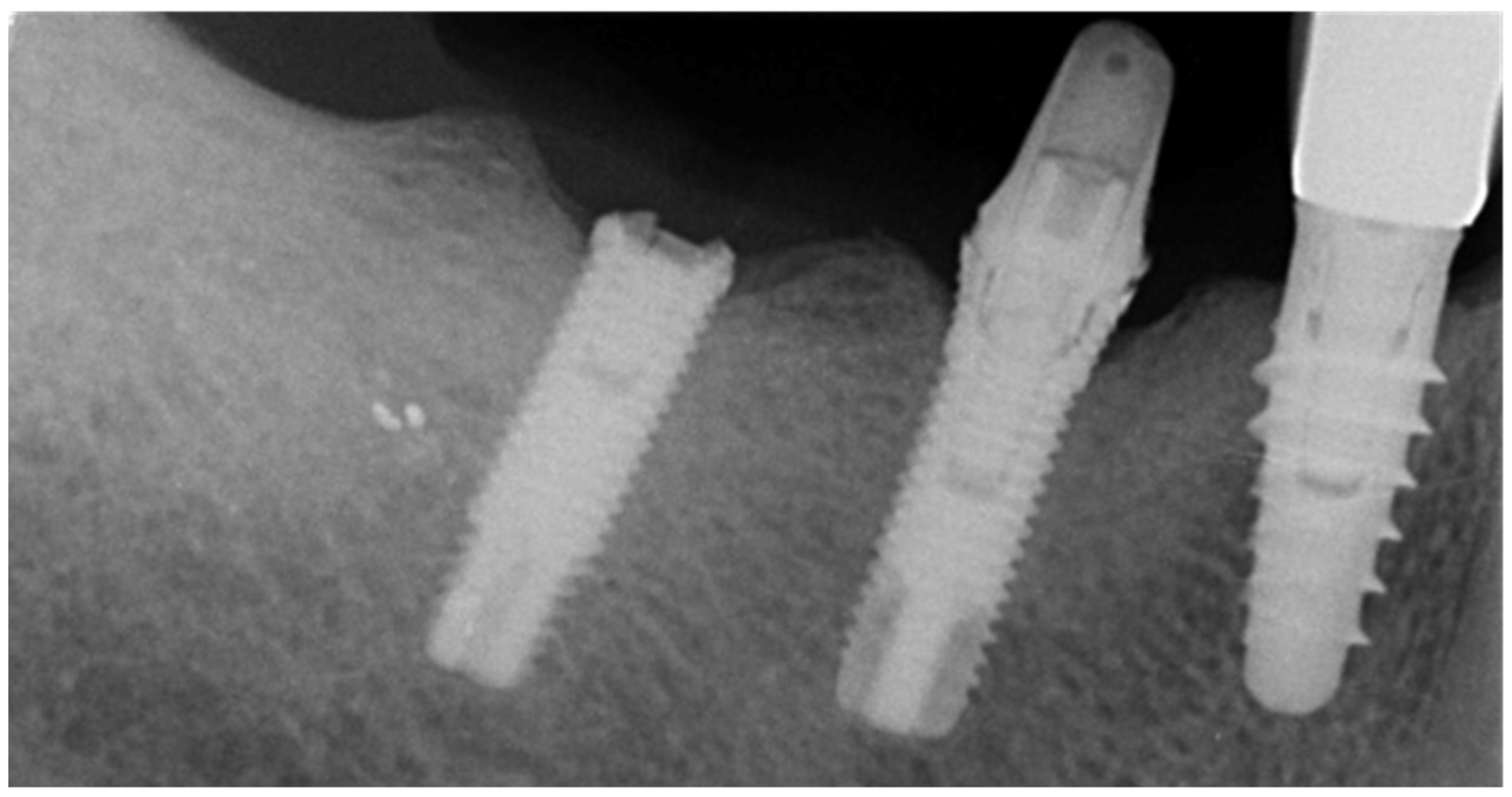

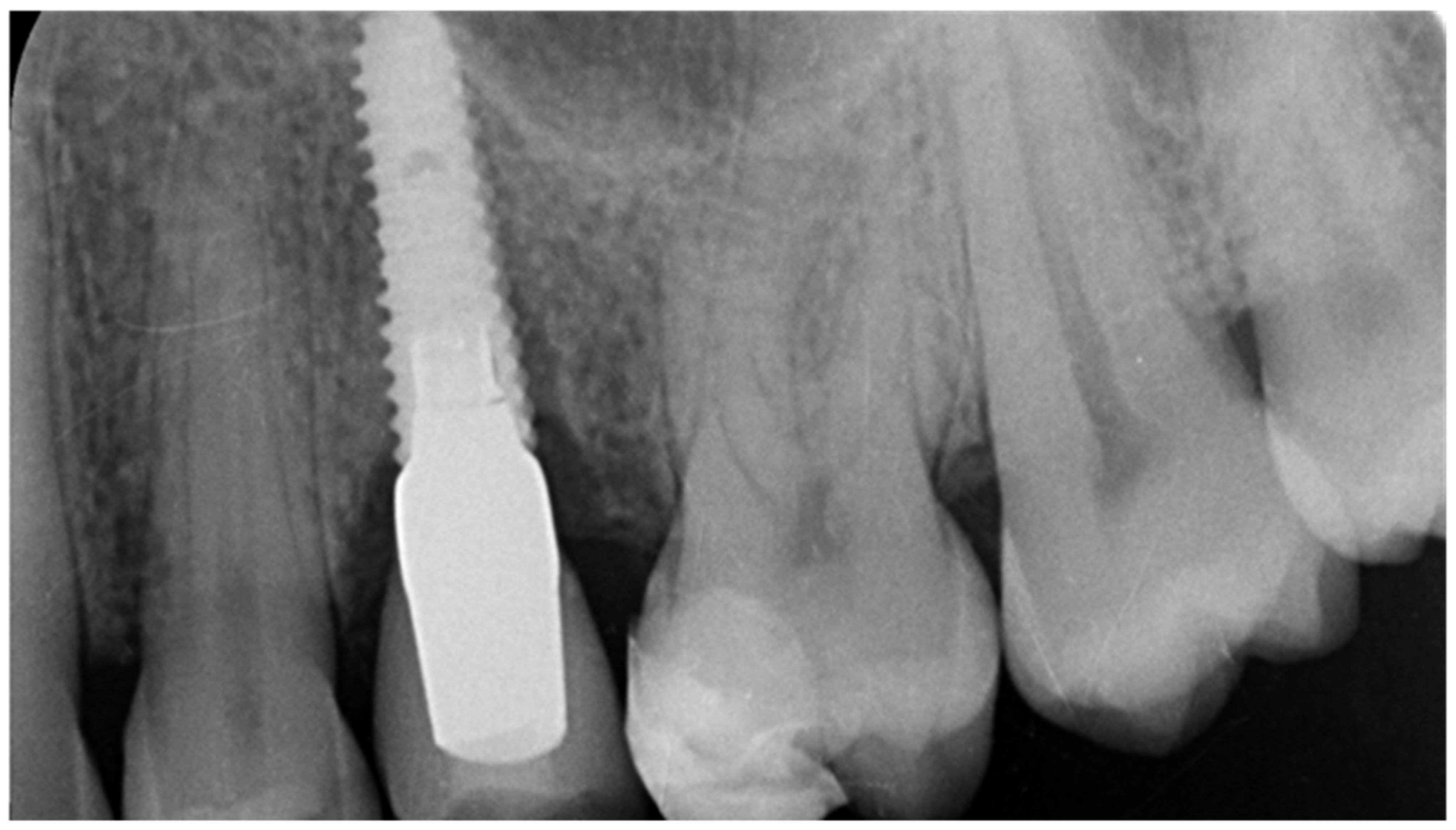

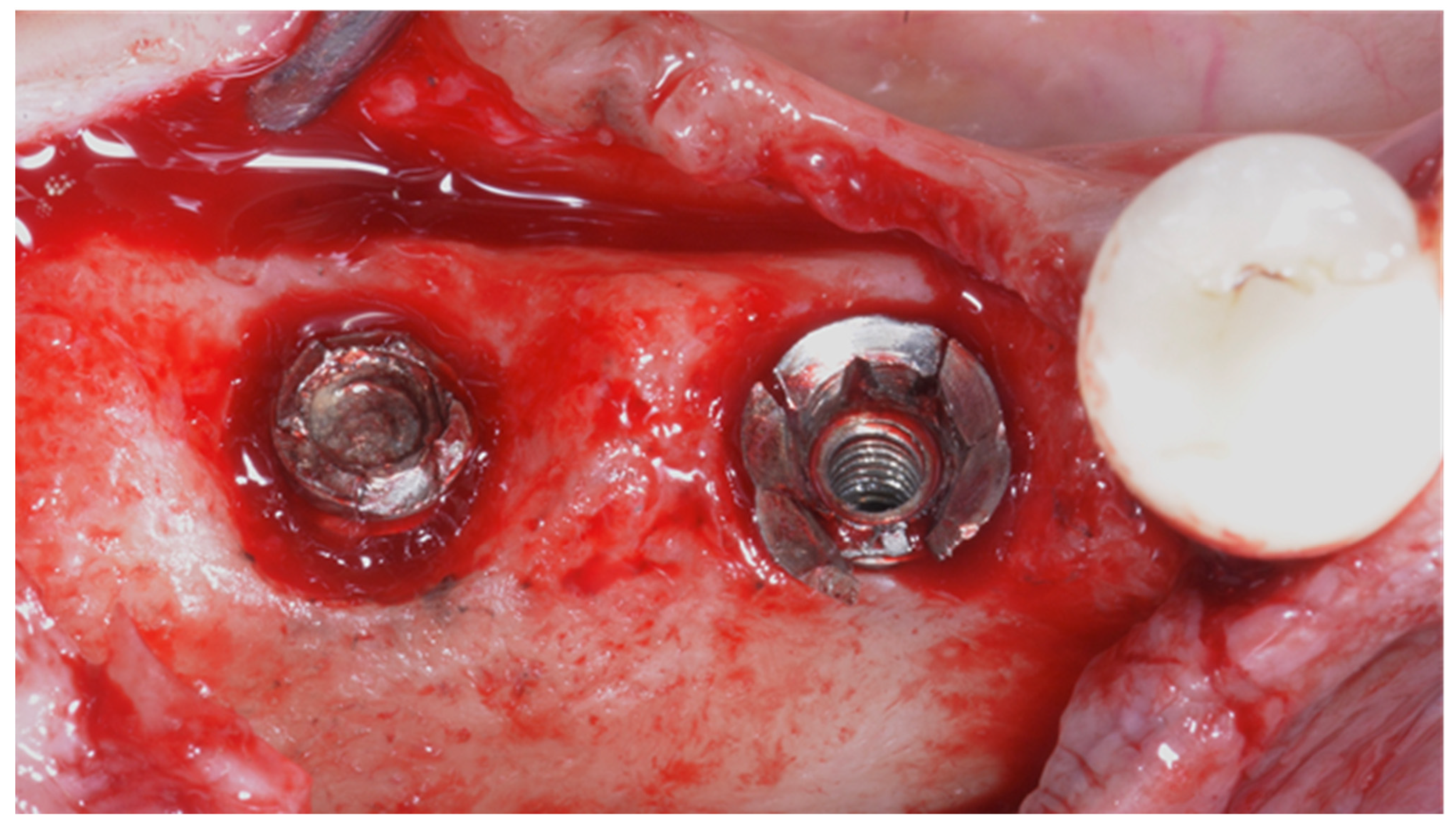

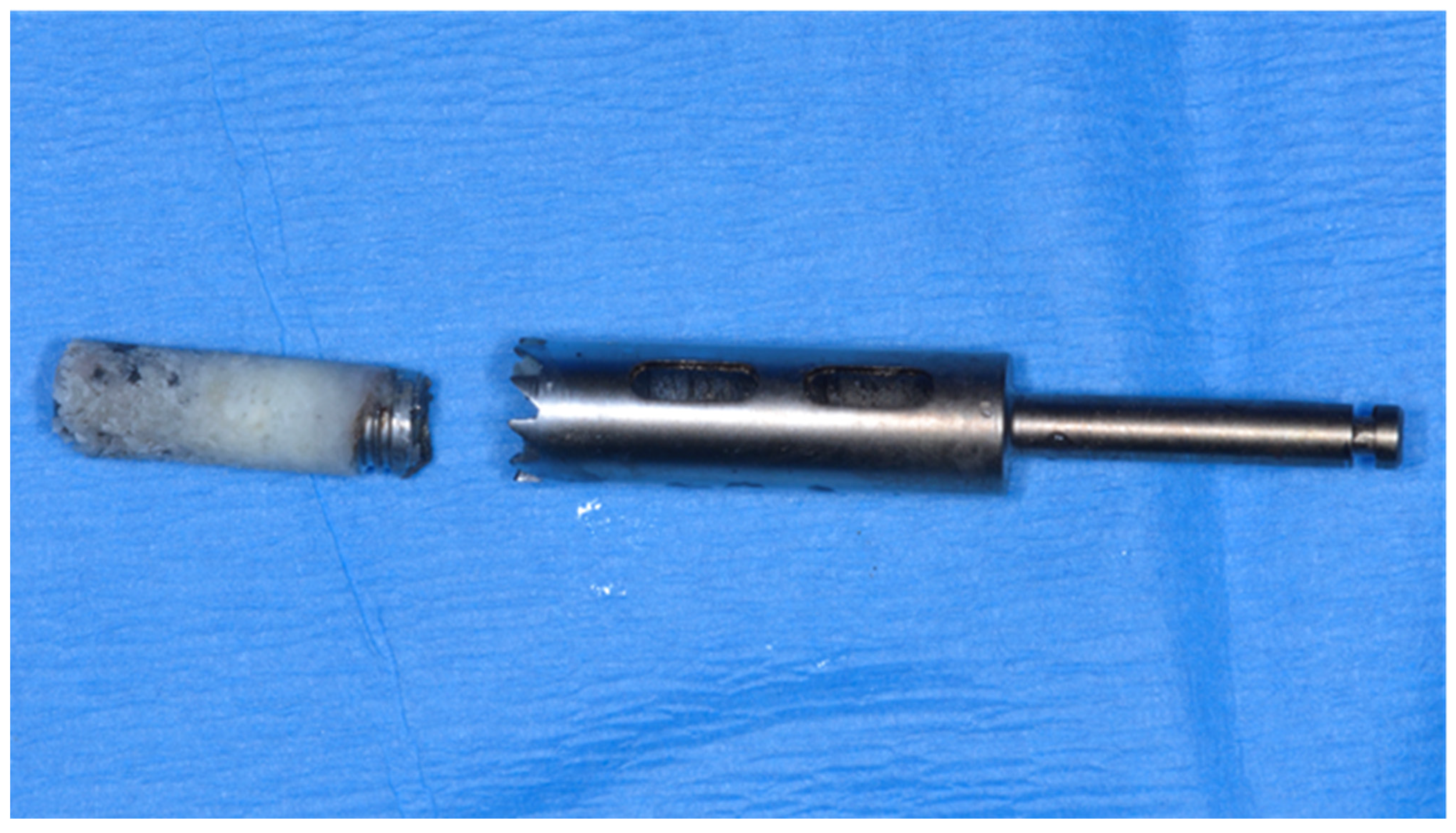

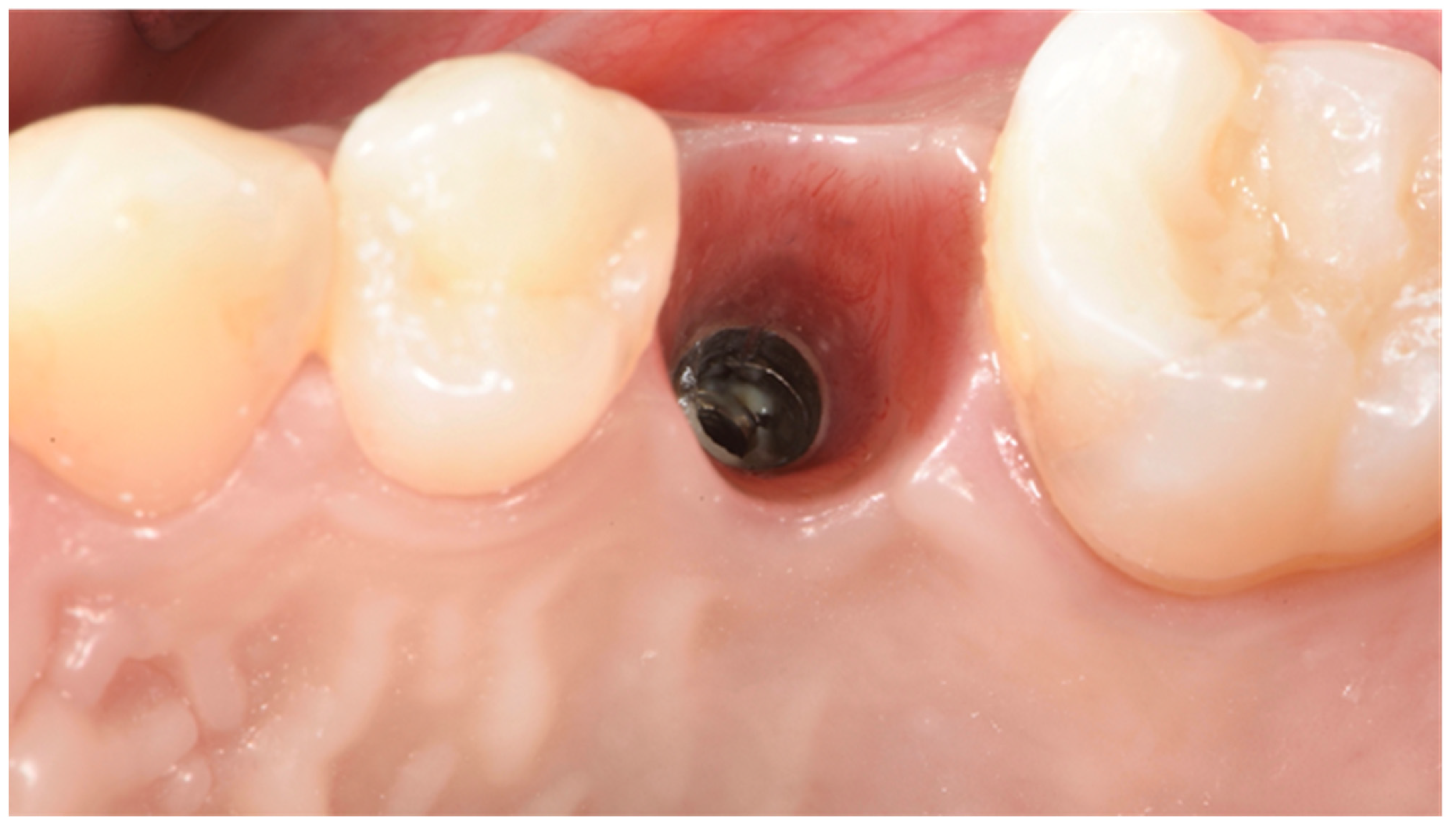

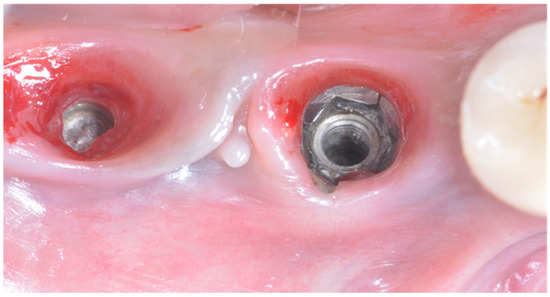

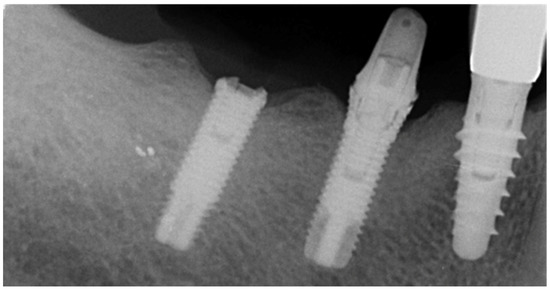

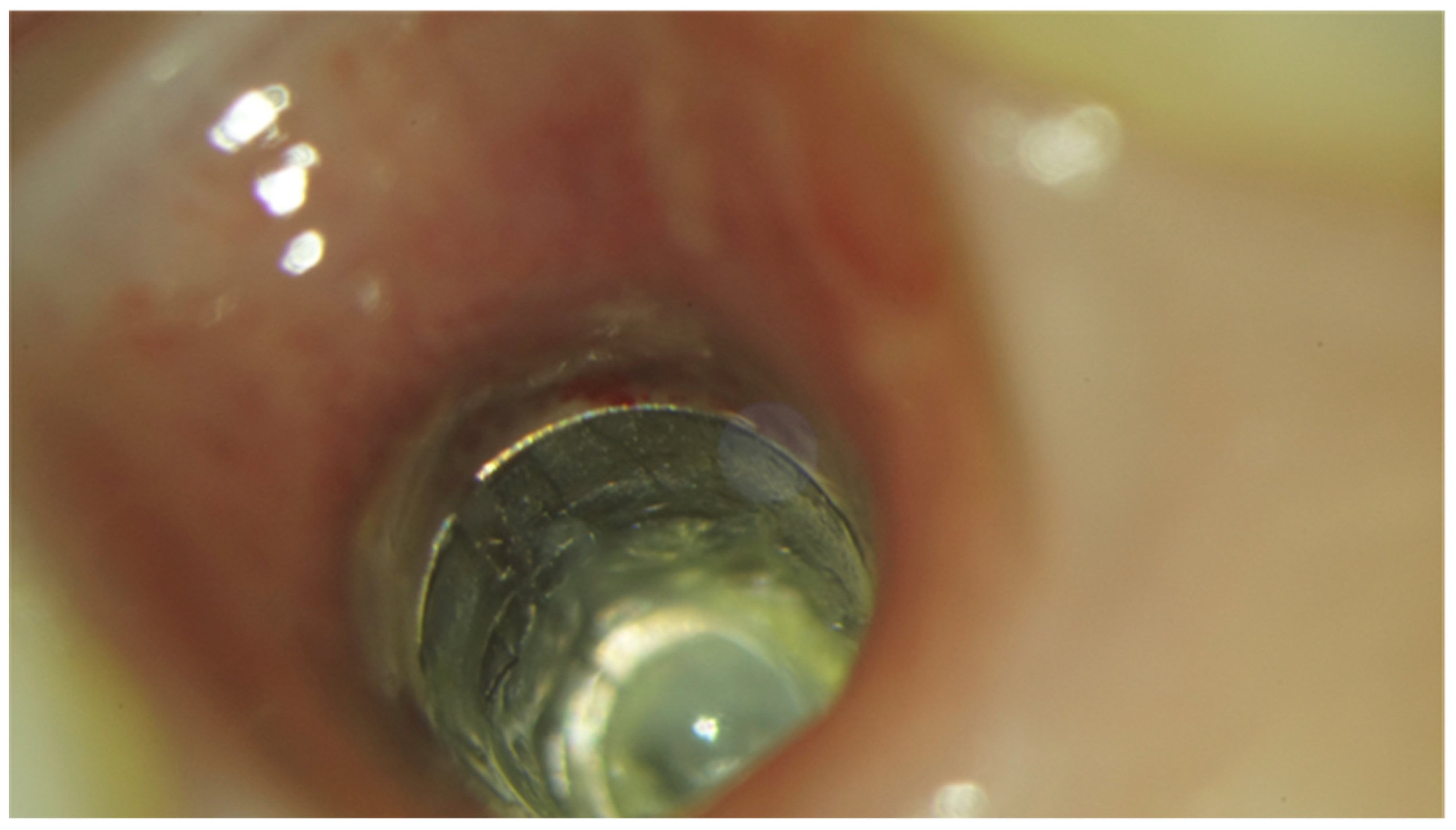

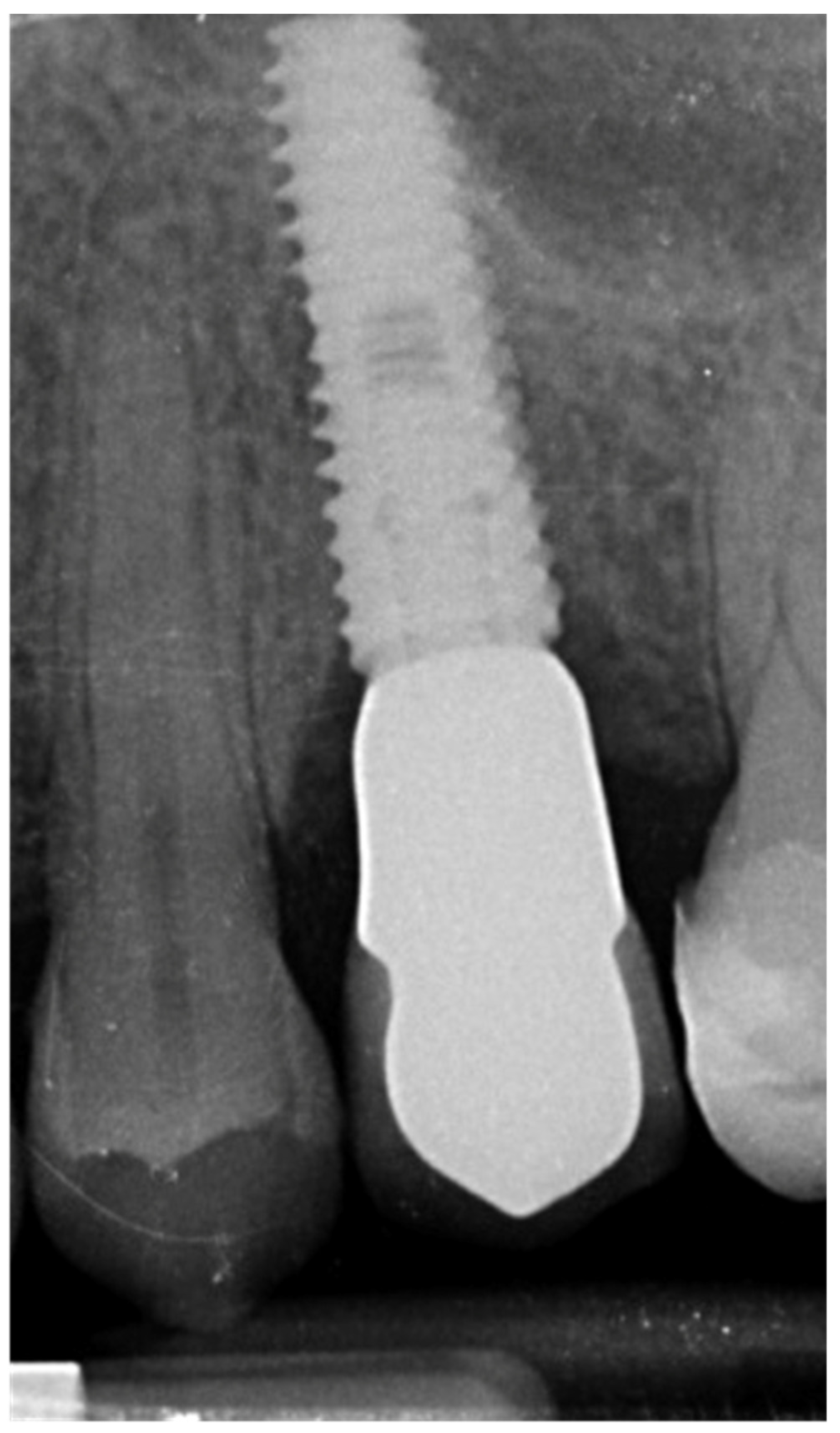

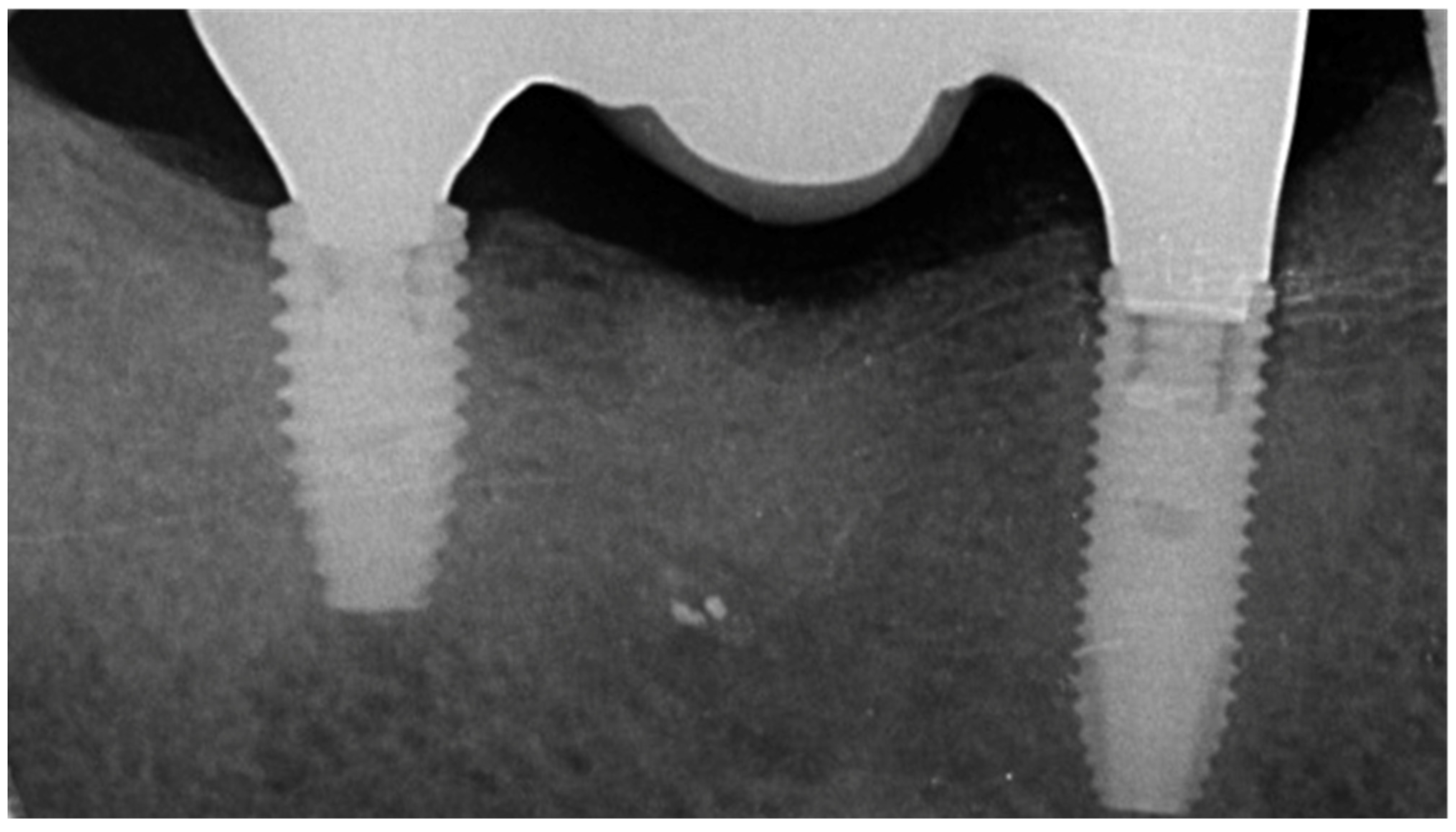

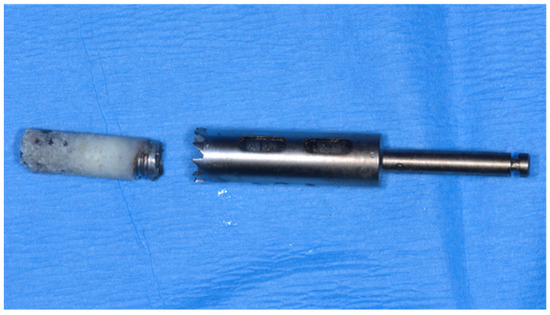

Implants fracture is an untreatable condition. There are several tools that may help clinician to remove the implant. However, fractured implant often presented damaged implant-abutment connection, hence, implant retrieval tools/kits (Figure 1, Figure 2, Figure 3 and Figure 4) may not work. In cases implant is severely damaged and/or the residual osseointegration is very strong, such us in the mandible, the only possibility is to use a trephine burs (Figure 5, Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10).

The main limitation of the present research is its study design (narrative review). However, a systematic review is not easy to develop. Due to ethical reasons, it is not possible to conduct randomized controlled trial evaluating implants fracture, so, data derived only from retrospective evaluations or previous reviews. Nevertheless, retrospective study could help to find possible risk factors associated to implants fracture, helping to prevent this irreversible complication.

4. Materials and Methods

4.1. Focus Question and Search Strategy

The focus question of the present narrative review was to evaluate whether there were any possible factors influencing the fracture of dental implants. A literature search strategy encompassing the literature in English from 1967 up to July 2021 was performed to identify relevant studies meeting the inclusion criteria. The PubMed database of the U.S. National Library of Medicine has been consulted using a combination of Boolean keywords including MeSH (Medical Subject Headings), free text terms, and filters with the following combination: Search: (“Dental Implants/adverse effects” [Mesh] AND “fracture”) Filters: Abstract, Dental journals, English. Screening was performed independently by two expert examiners (SSM, FMC).

4.2. Eligibility Criteria

The following inclusion criteria was defined for the selection of the articles: papers written in the English language; clinical examination of human patients reporting incidence of implant fracture; prospective and retrospective observational studies; systematic reviews; meta-analysis; narrative reviews, and consensus conference. Articles were excluded if they were: animal or in vitro studies; reports with less than 15 patients; reports of implant outcomes with less than one year on function.

4.3. Data Collection Process

Full-text papers were obtained for all the selected abstracts and titles that appeared to meet the inclusion and exclusion criteria, and they were assessed for inclusion by the same two reviewers. A final reviewer (MT) evaluated possible inconsistencies between the two reviewers. Moreover, the reference lists of the selected studies were screened for additional papers that could meet the eligibility criteria of this review. Given the narrative nature of this study, no any methodology and reporting quality of selected articles was performed in order to collect the greatest number of manuscripts. Moreover, considering that no randomized controlled trial assessing implants fracture as primary outcome could be conducted due to ethical reasons, systematic approach and meta-analysis could not be done. All the full texts of the selected papers were stored in shared folders accessible to all the reviewers.

4.4. Measures and Analysis of Results

The incidence of implants fracture and the risks factors for implants fracture were considered for data analysis. Data from selected manuscript were divided and evaluated to find incidence of implant fracture, and possible risk factors. Chi-square test calculation was performed on-line (https://www.socscistatistics.com/tests/chisquare2/default2.aspx) to find any statistically significant difference between risks factors and incidence of implants fracture.

5. Conclusions

Implants fracture is a rare but dramatic complication that leads to implants and prostheses failures. Mechanical properties play a key role. The mean implants fracture is 0.52%. To overcame this drawback the prevention is mandatory. Poor implant planning, including implant design and diameter and occlusal overloading, were the most common variables associated with implant fracture. Prevention of marginal bone loss is also important. Further study are needed to confirm this results.
