Editorial

Upstream Bioprocesses to Biomass-Based Platform Chemicals and Derivatives

by
Miguel Ladero Galán
FQPIMA Group, Department of Chemical Engineering and Materials, Faculty of Chemical Sciences, Complutense University of Madrid, Avenida Complutense s/n, 28040 Madrid, Spain
Fermentation 2024, 10(1), 59; https://doi.org/10.3390/fermentation10010059
Submission received: 9 January 2024 / Accepted: 11 January 2024 / Published: 15 January 2024
Over the past few decades, the need for new, more accessible and renewable raw materials has become evident. The biomass or matter contained and created by living beings through their metabolisms is created annually in quantities of more than 180 billion tons, an amount far greater than the 8 billion tons of fossil resources mobilized each year [1]. Most of this biomass is lignocellulosic (more than 80%) and is not directly edible for humans, which avoids tensions in the food market. Combining the plentiful availability of biomass and the knowledge and, in part, the technology gained during the last 150 years in crude refining and transformation, biorefineries are thought as complex, multifeedstock, multiprocess, integrated facilities, transforming diverse biomasses in a wide range of products via diverse platform chemicals: bio-oils, biochars, biogas, sugars, fatty acids, proteins and more [2].
Originally, biorefineries have been inspired by processes in the food and pulp and paper industries [3,4]. The use of food resources is typical in the so-called first-generation biorefineries, initially meant to produce huge amounts of bioethanol by yeast fermentation of sucrose derived from corn via enzymatic hydrolysis (in the USA) or from sugar factories in Brazil transforming enormous quantities of sugarcane—which is the bioethanol mixed with gasoline in various amounts, up to 85% v/v [5]. In parallel, most biodiesel is obtained from food-grade oil that is rich in triglycerides extracted from oil palm nuts, soya beans, rapeseed, sunflower seeds, etc. [6]. The extraction operations are typical in the food industry, and only the transesterification of triglycerides with low-molecular-weight alcohols can be envisaged as a different type of process; even the hydrogenation of triglycerides to HVO—a biomass-based substitute of diesel—is based on oil hydrogenations common in margarine manufacturing. Therefore, as biofuels are increasingly being blended with gasoline and diesel (up to 85% in gasoline; up to 20% in diesel) and most bioethanol is still produced via the aforementioned first-generation biorefining, a notable stress in the food sector has emerged. HVO is emerging as a supplement for diesel, together with biodiesel from transesterification; however, to reiterate, most oil transformed is from an edible source [7].
The second- and third-generation biorefineries emerge as a solution to the stress posed by first-generation biorefinery processes and expand the biorefinery solution by including the majority of biomass created annually at a global scale [8]. The huge cultivation of macro- and microalgae needed for third-generation biorefineries is still in its infancy, though rapidly progressing. In contrast, lignocellulosic biomass is widely available and can originate from the agriculture, forestry and food sectors, either directly or as residues. Lignocellulose transformation can be performed by combining physical, chemical, biocatalytic and microbial processes via a thermochemical approach [9], a fractionation strategy (as shown in Figure 1) [10] or combining them. However, the high oxygen content of this feedstock, the even higher resistance to physical and chemical change and the chemical diversity of lignocellulosic biomass pose notable technical and scientific challenges.
In this Special Issue, several of the key processes in the upstream section of biorefineries, devoted to the creation of platform chemicals and industrial intermediates, key ingredients or reagents for the final market products, are tackled. It is a collection of notable contributions showcasing diverse key aspects of the first processes of a biorefinery: the upstream section.
Contribution 1 focused on the statistical optimization of steam explosion [11] as a pretreatment that renders a lignocellulose biomass suitable for the next transformation here studied: the production of bioethanol at high-solid load after the enzymatic transformation of the pretreated biomass into a glucose-rich hydrolysate. To this end, the authors employed both horizontal and vertical fermenters which had suitable propellers for operation, with large solid concentrations. In contribution 8, the authors applied an empirical modeling of the response surface, severity factor and multi-response desirability function methodology to explore the feasibility of soybean hull, a major lignocellulosic residue, as a source of bioethanol. To this end, a thermochemical pretreatment based on H2SO4 was optimized and supported the SHF process to bioethanol with Saccharomyces cerevisiae as the biocatalyst in good mass yields.
Pretreatments open the door to economically feasible productions of bioethanol, lactic acid, succinic acid, fumaric acid, microbial alginate—a most promising exopolysaccharide—and bioplastics, all of which are potential substitutes, at least partially, of petrochemical-based polymers [12,13,14], to name but a few of the large diversity of potential biorefinery platform chemicals and material ingredients. The importance of bioethanol as co-fuel has been commented before; even if it is not a perfect substitute for gasoline, its power as a polar solvent is of utmost importance in the extraction of bioactive, antimicrobial, antioxidant mixtures out of several lignocellulose biomasses. Lactic, succinic and fumaric acids act as acidulants and flavors in the food and feed industry, but they are also considered promising biomonomers to synthetize biobased polyesters and polyamides.
Lactic acid production is the target of contribution 3, where the authors start from steam-exploded sugarcane bagasse that is hydrolyzed through a mixture of Cellic CTec3 and Cellic HTec3 enzymatic cocktails and further transformed into the acid by Bacillus coagulans DSM 2314 with high yields and productivities. Furthermore, the importance of inhibitor elimination and its relation to pretreatment conditions was evidenced. The authors in contribution 5 explore the possibility of using a lignocellulose-rich source, cow manure, as feedstock for lactic acid production, showing that the proper application of a SHF strategy resulted in promising results for lactic acid production with Bacillus coagulans DSM 2314 regarding yield, productivity and titer. Contribution 2 highlights the importance of novel and cost-effective membranes for microbial fuel cells able to treat animal slurry, thus reducing the polluting potential of these concentrated wastewater streams, while producing electricity and struvite, a fertilizer rich in nitrogen, magnesium and phosphate.
The development of efficient operations and biocatalysts and of empirical, simple kinetic models aid their future implementation at an industrial scale. In this sense, authors of contributions 4 and 11 explore diverse operation types for the production of succinic acid from glucose and from xylose using Actinobacillus succinogenes DSM 22257, proposing and fitting non-segregated unstructured empirical kinetic models suitable for data retrieved in a wide variety of conditions, including nitrogen stress.
Fumaric acid is another dicarboxylic acid and a top biorefinery platform of interest in the food and the chemical industries. Its production via biotechnological strategies using Rhizopus arrhizus NRRL 1526, glucose as the carbon source and batch and fed-batch processing as operational approaches is the subject of contribution 6. Here, the authors show how, under adequate conditions and, as a consequence, morphology, the fungus is able to produce up to 195 g/L of the target biomonomers, reaching industrial-relevant concentrations of the acid within 16 days under closely controlled pH by CaCO3 addition.
Moreover, the need to more efficiently create enzymes and microorganisms, from agricultural and food waste (such as lactose in whey), as well as efficient biocatalysts to transform biomass is presented. In this regard, the obtention of thermostable enzymes, which are key for cellulose saccharification, with a natural higher stability at higher process temperatures shows the need for novel saccharification processes under more efficient conditions [15]. This issue is addressed in contribution 7, where a thermostable endoglucanase (MtEG5-1) from Myceliophthora thermophila is overexpressed in Pichia pastoris GS115 and is fully characterized. The authors observe that the enzyme expressed in this new host had an even higher thermostability than when expressed in others.
Likewise, the use of food residues to obtain these critical enzymes alleviates the production costs, one of the main economical hindrances in the implementation of second-generation biorefineries [16]. In contribution 9, Trichoderma guizhouense NJAU4742 is shown to produce high levels of cellulase under lactose, but not with other carbon sources such as glucose, galactose and sucrose. Additionally, the combination of lactose and wheat straw resulted in higher activities of the targeted enzymes. Moreover, the authors performed a detailed study to show that TgRas family genes are critical to the growth of fungi, whereby this family’s proteins play key effects on cell wall integrity, growth site selection, polarity establishment and maintenance. In fact, this work sheds more light on the evidence that TgRas family genes play an indispensable role in fungal survival and lactose metabolism.
Furthermore, in this Special Issue, the production of bioplastics and biomonomers from food wastes is also presented. The authors of the review presented in contribution 12 dwell on the use of sugar beet pulp—a plentiful waste carbon source—for the production of two key precursors of bioplastics: lactic acid and polyhydroxyalkanoates (PHAs). Microbial exopolysaccharides can also be used as ingredients for biomaterials, in addition to notable applications in the food and fine chemistry sectors. In this regard, in contribution 10, the authors set the conditions for the continuous production of alginate from Azotobacter vinelandii under diazotrophic and nondiazotrophic conditions. The results of this work show the feasibility of enhancing alginate production (yields and specific productivity rates) and quality (molecular weight) under nitrogen-fixing conditions.
If carbon sources in bioprocesses present an important raw material cost, complex nitrogen sources such as peptone, tryptone or yeast extract is an even higher economical expenditure [17]. The proper consideration of all operational costs (OPEX) should be carefully performed to ensure the economic feasibility of industrial-scale lignocellulose-based biorefineries.

Funding

This editorial has received funding from the European Union Horizon 2020 Research and Innovation Program under grant agreement no. 958174. In particular, I wish to express my gratitude to the Spanish “Agencia Estatal de Investigación”, which granted me a national subproject within the M.ERA-Net Call 2021, project 9147 “BioMAT4EYE”: PCI2022-132971. Furthermore, this work is supported by the Spanish Science and Innovation Ministry-State Research Agency through research project PID2020-114365RB-C21.

Acknowledgments

As Guest Editor of this Special Issue, “Upstream Bioprocesses to Biomass-Based Platform Chemicals and Derivatives”, devoted to biorefineries, I would like to show my deep gratitude to the authors that have submitted their valuable contributions published in this Special Issue, thus contributing to its success. Likewise, I would like to thank editorial office for their support during this rewarding experience.

Conflicts of Interest

The author declares no conflicts of interest.

List of Contributors

  • Troncoso-Ortega, E.; Valenzuela, R.; Reyes-Contreras, P.; Castaño-Rivera, P.; Schiappacasse, L.N.; Parra, C. Maximizing Bioethanol Production from Eucalyptus globulus Using Steam Explosion Pretreatment: A Multifactorial Design and Fermenter Development for High Solid Loads. Fermentation 2023, 9, 965. https://doi.org/10.3390/fermentation9110965.
  • Iniesta-López, E.; Hernández-Fernández, A.; Garrido, Y.; Ieropoulos, I.A.; Hernández-Fernández, F.J. Microbial Fuel Cell Using a Novel Ionic Liquid-Type Membrane–Cathode Assembly for Animal Slurry Treatment and Fertilizer Production. Fermentation 2023, 9, 844. https://doi.org/10.3390/fermentation9090844.
  • Alves, W.R.; Da Silva, T.A.; Zandoná Filho, A.; Pereira Ramos, L. Lactic Acid Production from Steam-Exploded Sugarcane Bagasse Using Bacillus coagulans DSM2314. Fermentation 2023, 9, 789. https://doi.org/10.3390/fermentation9090789.
  • Escanciano, I.A.; Ripoll, V.; Ladero, M.; Santos, V.E. Study on the Operational Modes Using Both Growing and Resting Cells for Succinic Acid Production from Xylose Kinetic Modelling. Fermentation 2023, 9, 663. https://doi.org/10.3390/fermentation9070663.
  • Garrido, R.; Falguera, V.; Pérez Navarro, O.; Acosta Solares, A.; Cabeza, L.F. Lactic acid production from cow manure: Experimental process conditions analysis. Fermentation 2023, 9, 604. https://doi.org/10.3390/fermentation9070604.
  • Kuenz, A.; Eidt, L.; Prüße, U. Biotechnological Production of Fumaric Acid by Rhizopus arrhizus—Reaching Industrially Relevant Final Titers. Fermentation 2023, 9, 588. https://doi.org/10.3390/fermentation9070588.
  • Zhou, W.; Tong, S.; Amin, F.R.; Chen, W.; Cai, J.; Li, D. Heterologous Expression and Biochemical Characterization of a Thermostable Endoglucanase (Mt EG5-1) from Myceliophthora thermophila. Fermentation 2023, 9, 462. https://doi.org/10.3390/fermentation9050462.
  • Gil Rolón, M.; Leonardi, R.J.; Bolzico, B.C.; Seluy, L.G.; Benzzo, M.T.; Comelli, R.N. Multi-Response Optimization of Thermochemical Pretreatment of Soybean Hulls for 2G-Bioethanol Production. Fermentation 2023, 9, 454; https://doi.org/10.3390/fermentation9050454.
  • Miao, J.; Chen, C.; Gu, Y.; Zhu, H.; Guo, H.; Liu, D.; Shen, Q. The TgRas1 Gene Affects the Lactose Metabolism of Trichoderma guizhouense NJAU4742. Fermentation 2023, 9, 440. https://doi.org/10.3390/fermentation9050440.
  • Contreras-Abara, P.; Castillo, T.; Ponce, B.; Urtuvia, V.; Peña, C.; Díaz-Barrera, A. Continuous Bioproduction of Alginate Bacterial under Nitrogen Fixation and Nonfixation Conditions. Fermentation 2023, 9, 426. https://doi.org/10.3390/fermentation9050426.
  • Escanciano, I.A.; Ladero, M.; Santos, V.E.; Blanco, Á. Development of a Simple and Robust Kinetic Model for the Production of Succinic Acid from Glucose Depending on Different Operating Conditions. Fermentation 2023, 9, 222. https://doi.org/10.3390/fermentation9030222.
  • Marzo-Gago, C.; Díaz, A.B.; Blandino, A. Sugar Beet Pulp as Raw Material for the Production of Bioplastics. Fermentation 2023, 9, 655. https://doi.org/10.3390/fermentation9070655.

References

  1. Deng, W.; Feng, Y.; Fu, J.; Guo, H.; Guo, Y.; Han, B.; Jiang, Z.; Kong, L.; Li, C.; Liu, H.; et al. Catalytic conversion of lignocellulosic biomass into chemicals and fuels. Green Energy Environ. 2023, 8, 10–114. [Google Scholar] [CrossRef]
  2. Garcia-Ochoa, F.; Vergara, P.; Wojtusik, M.; Gutiérrez, S.; Santos, V.E.; Ladero, M.; Villar, J.C. Multi-feedstock lignocellulosic biorefineries based on biological processes: An overview. Ind. Crops Prod. 2021, 172, 114062. [Google Scholar] [CrossRef]
  3. Dahiya, S.; Kumar, A.N.; Sravan, J.S.; Chatterjee, S.; Sarkar, O.; Mohan, S.V. Food waste biorefinery: Sustainable strategy for circular bioeconomy. Bioresour. Technol. 2018, 248, 2–12. [Google Scholar] [CrossRef] [PubMed]
  4. Gupta, G.K.; Shukla, P. Insights into the resources generation from pulp and paper industry wastes: Challenges, perspectives and innovations. Bioresour. Technol. 2020, 297, 122496. [Google Scholar] [CrossRef]
  5. Ayodele, B.V.; Alsaffar, M.A.; Mustapa, S.I. An overview of integration opportunities for sustainable bioethanol production from first-and second-generation sugar-based feedstocks. J. Clean. Prod. 2020, 245, 118857. [Google Scholar] [CrossRef]
  6. Callegari, A.; Bolognesi, S.; Cecconet, D.; Capodaglio, A.G. Production technologies, current role, and future prospects of biofuels feedstocks: A state-of-the-art review. Crit. Rev. Environ. Sci. Technol. 2020, 50, 384–436. [Google Scholar] [CrossRef]
  7. No, S.Y. Application of hydrotreated vegetable oil from triglyceride based biomass to CI engines—A review. Fuel 2014, 115, 88–96. [Google Scholar] [CrossRef]
  8. Goswami, L.; Kayalvizhi, R.; Dikshit, P.K.; Sherpa, K.C.; Roy, S.; Kushwaha, A.; Kim, B.S.; Banerjee, R.; Jacob, S.; Rajak, R.C. A critical review on prospects of bio-refinery products from second and third generation biomasses. Chem. Eng. J. 2022, 448, 137677. [Google Scholar] [CrossRef]
  9. Seo, M.W.; Lee, S.H.; Nam, H.; Lee, D.; Tokmurzin, D.; Wang, S.; Park, Y.K. Recent advances of thermochemical conversion processes for biorefinery. Bioresour. Technol. 2022, 343, 126109. [Google Scholar] [CrossRef] [PubMed]
  10. Rodionova, M.V.; Bozieva, A.M.; Zharmukhamedov, S.K.; Leong, Y.K.; Lan, J.C.; Veziroglu, A.; Veziroglu, T.N.; Tomo, T.; Chang, J.S.; Allakhverdiev, S.I. A comprehensive review on lignocellulosic biomass biorefinery for sustainable biofuel production. Int. J. Hydrogen Energy 2022, 47, 1481–1498. [Google Scholar] [CrossRef]
  11. Tuan Hoang, A.; Phuong Nguyen, X.; Quang Duong, X.; Ağbulut, Ü.; Len, C.; Quy Phong Nguyen, P.; Kchaou, M.; Chen, W.-H. Steam explosion as sustainable biomass pretreatment technique for biofuel production: Characteristics and challenges. Bioresour. Technol. 2023, 385, 129398. [Google Scholar] [CrossRef]
  12. Kohli, K.; Prajapati, R.; Sharma, B.K. Bio-based chemicals from renewable biomass for integrated biorefineries. Energies 2019, 12, 233. [Google Scholar] [CrossRef]
  13. Talan, A.; Pokhrel, S.; Tyagi, R.D.; Drogui, P. Biorefinery strategies for microbial bioplastics production: Sustainable pathway towards Circular Bioeconomy. Bioresour. Technol. Rep. 2022, 17, 100875. [Google Scholar] [CrossRef]
  14. Schmid, J. Recent insights in microbial exopolysaccharide biosynthesis and engineering strategies. Curr. Opin. Biotechnol. 2018, 53, 130–136. [Google Scholar] [CrossRef]
  15. Patel, A.K.; Singhania, R.R.; Sim, S.J.; Pandey, A. Thermostable cellulases: Current status and perspectives. Bioresour. Technol. 2019, 279, 385–392. [Google Scholar] [CrossRef] [PubMed]
  16. Kosamia, N.M.; Samavi, M.; Piok, K.; Rakshit, S.K. Perspectives for scale up of biorefineries using biochemical conversion pathways: Technology status, techno-economic, and sustainable approaches. Fuel 2022, 324, 124532. [Google Scholar] [CrossRef]
  17. De la Torre, I.; Ladero, M.; Santos, V. Production of d-lactic acid by Lactobacillus delbrueckii ssp. delbrueckii from orange peel waste: Techno-economical assessment of nitrogen sources. Appl. Microbiol. Biotechnol. 2018, 102, 10511–10521. [Google Scholar] [CrossRef]

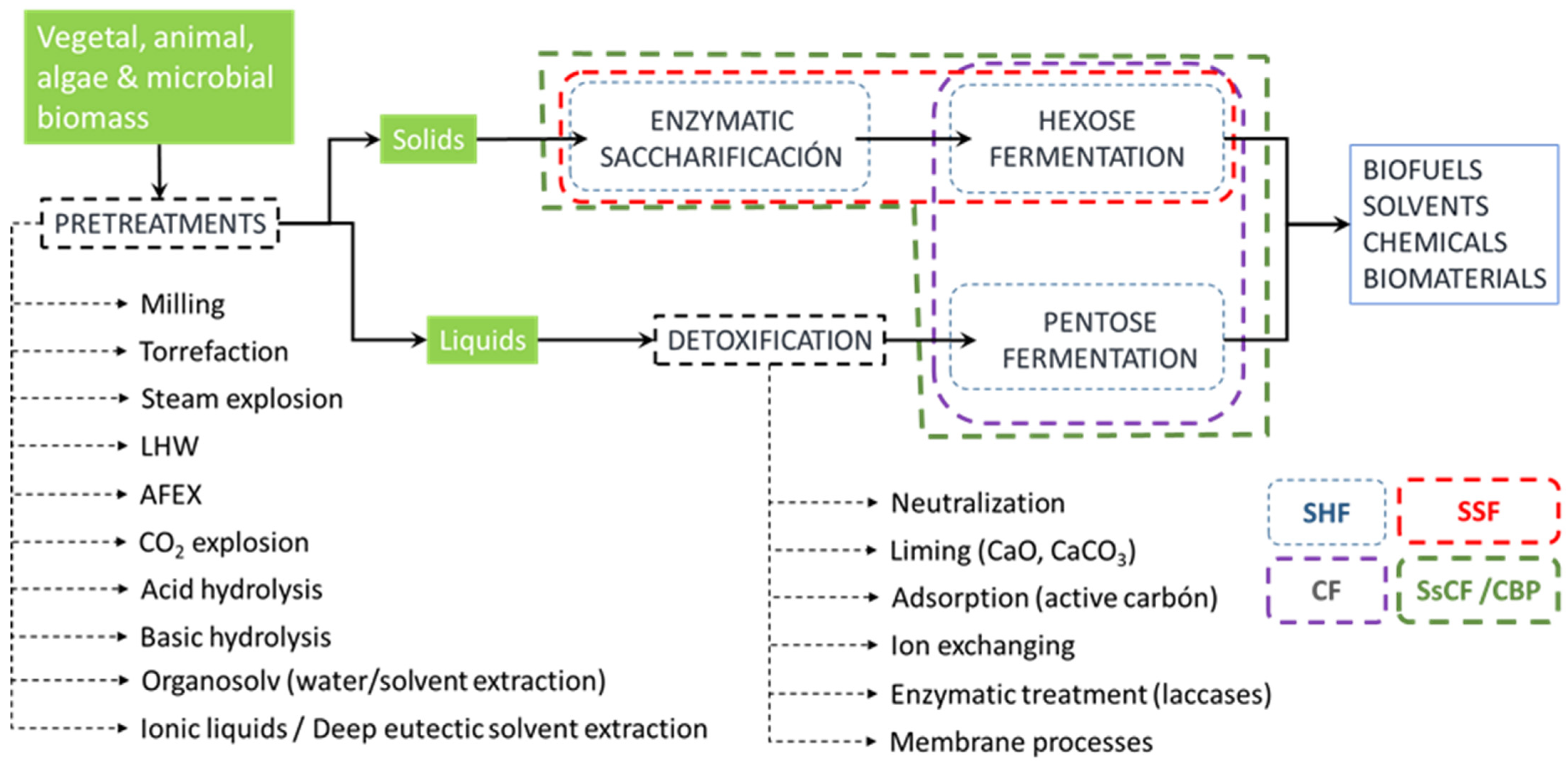

Figure 1. The general fractionation biological biorefinery scheme: From biomass to chemicals and materials via bioprocessing with enzymes and microorganisms. Pretreatments are needed to render the most recalcitrant biomasses amenable for bioprocessing, together, sometimes, with detoxification processes to remove acids, aldehydes, lipopolysaccharides and phenols (including diverse lignin types and lignin oligosaccharides). Enzymatic and microbial bioprocessing can be applied in-series (SHF: separated hydrolysis and fermentation) or together (SSF: simultaneous saccharification and fermentation). Some microorganisms are capable of using pentoses from hemicelluloses and pectin and hexoses from all polysaccharides at the same time (CF: co-fermentation) and can be combined with enzyme cocktails working at the same bioreactor in a one-pot strategy to obtain the targeted compounds (SsCF: simultaneous saccharification and co-fermentation). The ultimate approach is to create genetically engineered microorganisms that can synthetize enzymes, which are able to degrade the biomass to low-molecular-weight compounds that can be transported within the cell and metabolize to products of interest (CB: consolidated bioprocessing).
Figure 1. The general fractionation biological biorefinery scheme: From biomass to chemicals and materials via bioprocessing with enzymes and microorganisms. Pretreatments are needed to render the most recalcitrant biomasses amenable for bioprocessing, together, sometimes, with detoxification processes to remove acids, aldehydes, lipopolysaccharides and phenols (including diverse lignin types and lignin oligosaccharides). Enzymatic and microbial bioprocessing can be applied in-series (SHF: separated hydrolysis and fermentation) or together (SSF: simultaneous saccharification and fermentation). Some microorganisms are capable of using pentoses from hemicelluloses and pectin and hexoses from all polysaccharides at the same time (CF: co-fermentation) and can be combined with enzyme cocktails working at the same bioreactor in a one-pot strategy to obtain the targeted compounds (SsCF: simultaneous saccharification and co-fermentation). The ultimate approach is to create genetically engineered microorganisms that can synthetize enzymes, which are able to degrade the biomass to low-molecular-weight compounds that can be transported within the cell and metabolize to products of interest (CB: consolidated bioprocessing).
Fermentation 10 00059 g001
