Fibers 2015, 3(3), 338-347; doi:10.3390/fib3030338
Abstract: Surface-initiated graft atom transfer radical polymerization (ATRP) of methyl methacrylate (MMA) from self-assembled chitin nanofibers (CNFs) was performed under dispersion conditions. Self-assembled CNFs were initially prepared by regeneration from a chitin ion gel with 1-allyl-3-methylimidazolium bromide using methanol; the product was then converted into the chitin nanofiber macroinitiator by reaction with α-bromoisobutyryl bromide in a dispersion containing N,N-dimethylformamide. Surface-initiated graft ATRP of MMA from the initiating sites on the CNFs was subsequently carried out under dispersion conditions, followed by filtration to obtain the CNF-graft-polyMMA film. Analysis of the product confirmed the occurrence of the graft ATRP on the surface of the CNFs.
Chitin is a natural polysaccharide composed of β-(1→4)-linked N-acetyl-d-glucosamine units, and occurs mainly in the exoskeletons of crustaceans, shellfish, and insects [1,2,3]. Although chitin is one of the most abundant polysaccharides, it still remains as an unutilized biomass resource primarily because of its intractable bulk structure and insolubility in common organic solvents and water due to the stiff polymer chain packing derived from numerous intra- and intermolecular hydrogen bonds. Therefore, studies on the conversion of chitin into functional bio-based materials, such as nanomaterials, by means of the proper dissolution, gelation, and processing have attracted much attention even in recent years [4,5,6,7].
To efficiently provide functional chitin materials through dissolution or gelation, we have focused on ionic liquids, which are low-melting-point salts that form liquids at temperatures below the boiling point of water, because they are identified as good solvents for natural polysaccharides such as cellulose [8,9,10,11,12]. Since it was first reported that an ionic liquid, 1-butyl-3-methylimidazolium chloride, dissolved cellulose , various ionic liquids have been used for the dissolution of cellulose and other polysaccharides [14,15,16,17,18]. We also found that the ionic liquid 1-allyl-3-methylimidazolium bromide (AMIMBr) dissolved chitin in concentrations up to ca. 4.8 wt% and further formed ion gels with higher contents of chitin [19,20]. We also reported in a subsequent publication that chitin self-assembled to form a nanofiber dispersion by regeneration from the ion gel using methanol [21,22]. When the dispersion was subjected to filtration, the isolated self-assembled chitin nanofibers (CNFs) entangled and formed a film.
We then investigated the surface-initiated graft polymerization of several monomers on the CNF films to give chitin-based composite materials [23,24,25]. For example, the surface-initiated graft atom transfer radical polymerization (ATRP) of 2-hydroxyethyl acrylate (HEA) on the surface of the CNF film, which carried covalently linked α-bromoisobutylate groups as the initiating sites (CNF macroinitiator film), was performed to produce the CNF-graft-polyHEA (CNF-g-PHEA) film . SEM analysis confirmed that the film produced with shorter graft chains exhibited the nanofiber morphology, whereas the longer graft chains totally covered the surface of the film, resulting in the disappearance of the nanofiber morphology. This observation suggested that surface-initiated ATRP on the surface of the CNF film is not an efficient approach for the production of composite materials with CNF morphology and, thus, the resulting materials are not expected to exhibit the desirable CNF properties and functionality.
In this paper, we report surface-initiated graft ATRP of methyl methacrylate (MMA), a representative monomer polymerized by ATRP, on the surface of CNFs under dispersion conditions, followed by entanglement of the products to obtain CNF-based composite materials with nanofiber morphology (Figure 1). First, the initiating groups for ATRP were introduced by the reaction of α-bromoisobutyryl bromide with CNFs in the N,N-dimethylformamide (DMF) dispersion. Subsequently, the surface-initiated graft ATRP of MMA on the surface of the produced CNF macroinitiator in the dispersion was conducted, followed by filtration, to obtain the CNF-graft-polyMMA (CNF-g-PMMA) film with nanofiber morphology.
2. Experimental Section
Chitin powder from crab shells was purchased from Wako Pure Chemical Industries, Ltd., (Osaka, Japan). The weight-average molecular weight of the chitin sample was estimated to be 7 × 105 g/mol by viscometric analysis . The ionic liquid AMIMBr was prepared by reaction of 1-methylimidazole with 3-bromo-1-propene according to the method previously published . All other reagents and solvents were used as received from commercial sources.
2.2. Preparation of CNF Dispersion with DMF
A mixture of chitin (0.120 g, 0.59 mmol) with AMIMBr (1.00 g, 4.92 mmol) was allowed to stand at room temperature for 24 h and subsequently heated with stirring at 100 °C for 24 h to obtain a chitin ion gel (10 wt%). The gel was then soaked in methanol (40 mL) at room temperature for 48 h, followed by sonication for 10 min to give self-assembled CNF dispersion with methanol. After addition of DMF (20 mL) to the dispersion, the mixture was evaporated at 60 °C for 2 h under reduced pressure to give the CNF dispersion with DMF (ca. 20 mL).
2.3. Preparation of CNF Macroinitiator in Dispersion with DMF
Pyridine (0.70 g, 8.85 mmol, 15 equiv. for a repeating unit of chitin) was mixed into the CNF dispersion with DMF (0.59 mmol/20 mL) and α-bromoisobutyryl bromide (2.71 g, 11.8 mmol, 20 equiv. for a repeating unit of chitin) was added dropwise with stirring at room temperature; the mixture was further stirred for 12 h to give the CNF macroinitiator dispersion with DMF. The CNF macroinitiator was isolated from the dispersion by filtration prior to characterization.
The resulting dispersion was subjected to centrifugation for 30 min and the supernatant containing the unreacted α-bromoisobutyryl bromide was removed. DMF (20–30 mL) was added and the procedure was repeated again in order to remove as much of the unreacted α-bromoisobutyryl bromide as possible.
2.4. Surface-Initiated Graft ATRP of MMA from CNF Macroinitiator in Dispersion with DMF
The typical experimental procedure for the surface-initiated ATRP was as follows. MMA (2.05 g, 20.5 mmol), copper(I) bromide (CuBr) (0.148 g, 1.03 mmol), and 2,2′-bipyridine (Bpy) (0.320 g, 2.05 mmol) (10, 0.5, and 1.0 equiv. for total initiating sites) were added to the CNF macroinitiator dispersion with DMF (total initiating sites (which were covalently linked on CNF + residual α-bromoisobutyryl bromide) = 2.05 mmol). The mixture was then incubated at 60 °C for 24 h and filtered. The resulting residue was washed with chloroform, methanol, and acetone and dried under reduced pressure to obtain the CNF-g-PMMA film (0.117 g).
IR spectra were recorded on a PerkinElmer Spectrum Two spectrometer using KBr pellets of the samples (resolution; 4 cm−1, number of scans: 16). The SEM images of the platinum-coated samples were obtained using a Hitachi S-4100H electron microscope by applying 5 kV acceleration voltage. Prior to acquisition of the SEM images, the samples were first placed on glass plates, followed by coating with platinum using magnetron splutter. Powder X-ray diffraction (XRD) measurements of the samples on glass plates were conducted using a PANalytical X’Pert Pro MPD with Ni-filtered CuK α radiation (λ = 0.15418 nm, dwell time; 0.05 s). The 1H NMR spectrum was recorded on a JEOL ECX 400 spectrometer. The stress-strain curves were measured using a tensile tester (Little Senstar LSC-1/30, Tokyo Testing Machine, Tokyo, Japan).
3. Results and Discussion

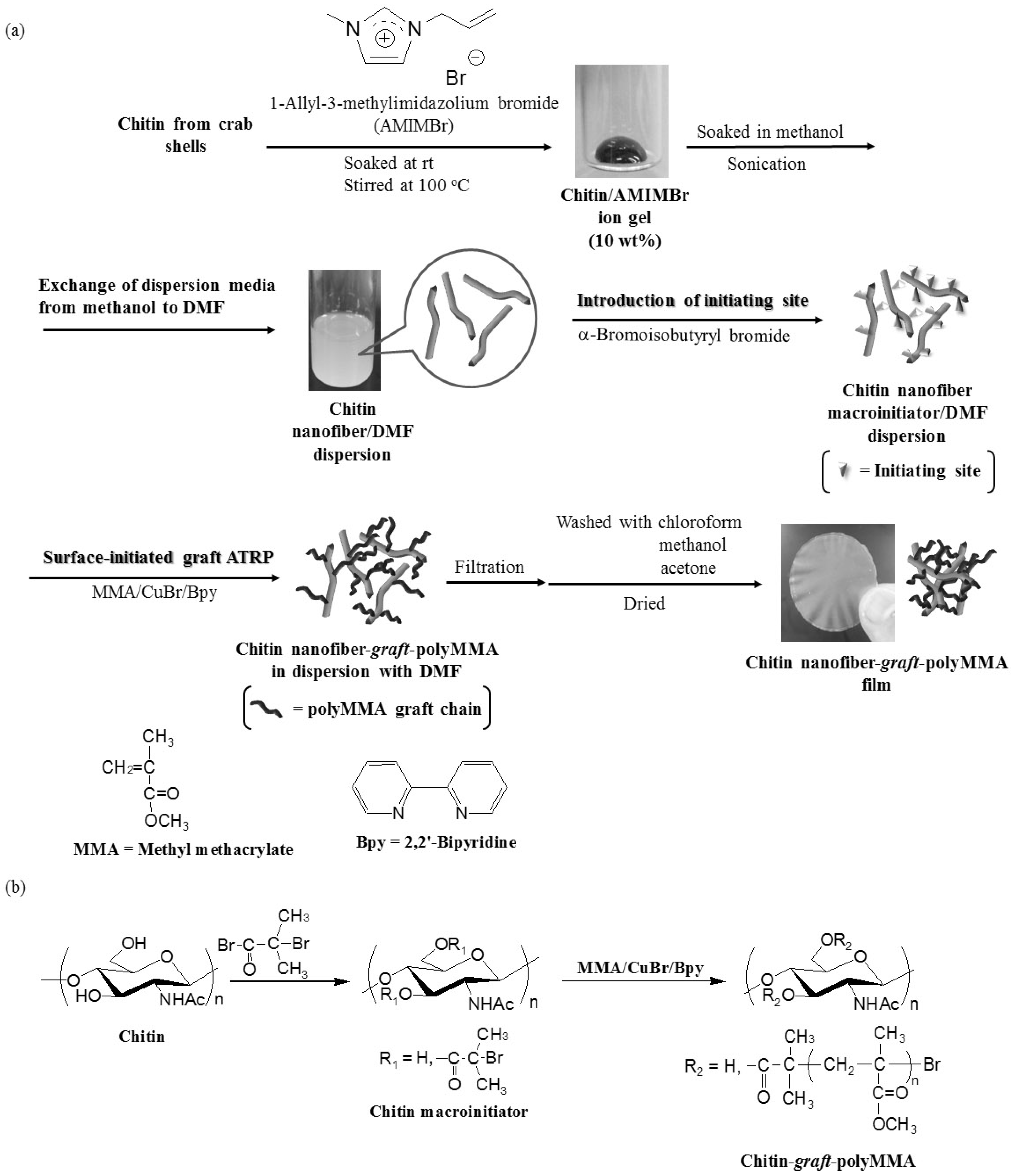

As previously reported , the CNF dispersion in methanol was prepared via gelation with AMIMBr, followed by regeneration using methanol as shown in Figure 1a. For graft ATRP on CNFs under dispersion conditions, we then attempted to synthesize the CNF macroinitiator by the reaction of α-bromoisobutyryl bromide with the hydroxy groups on the CNFs. Because it was obvious that α-bromoisobutyryl bromide would react with the solvent present in the dispersion, thereby resulting in inhibition of the reaction with CNFs, it was necessary to exchange the dispersion medium by removal of methanol and addition of other liquids that do not react with α-bromoisobutyryl bromide. Accordingly, some liquids with relatively high boiling points, e.g., DMF, N,N-dimethylacetamide (DMAc), and dimethylsulfoxide (DMSO), were respectively added to the CNF dispersion with methanol and the resulting mixtures were evaporated to remove methanol. Consequently, in the mixture with DMF, chitin remained in the dispersed state after several hours, whereas in the other two mixtures with DMAc and DMSO, chitin underwent aggregation. Indeed, the nanofiber morphology is observed in the SEM image of the resulting dispersion with DMF (Figure 2b), which is the same as that in the original dispersion with methanol (Figure 2a).

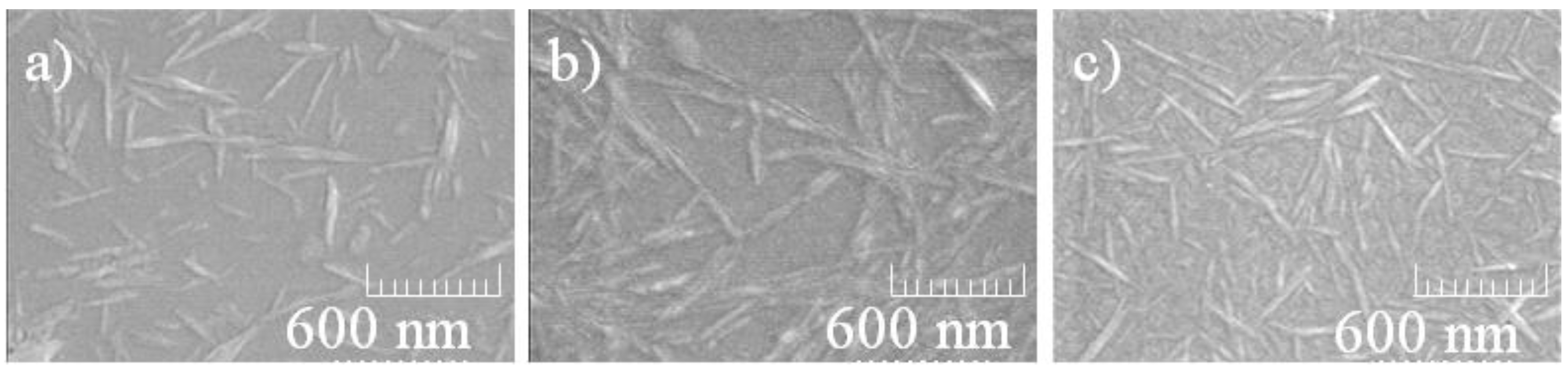

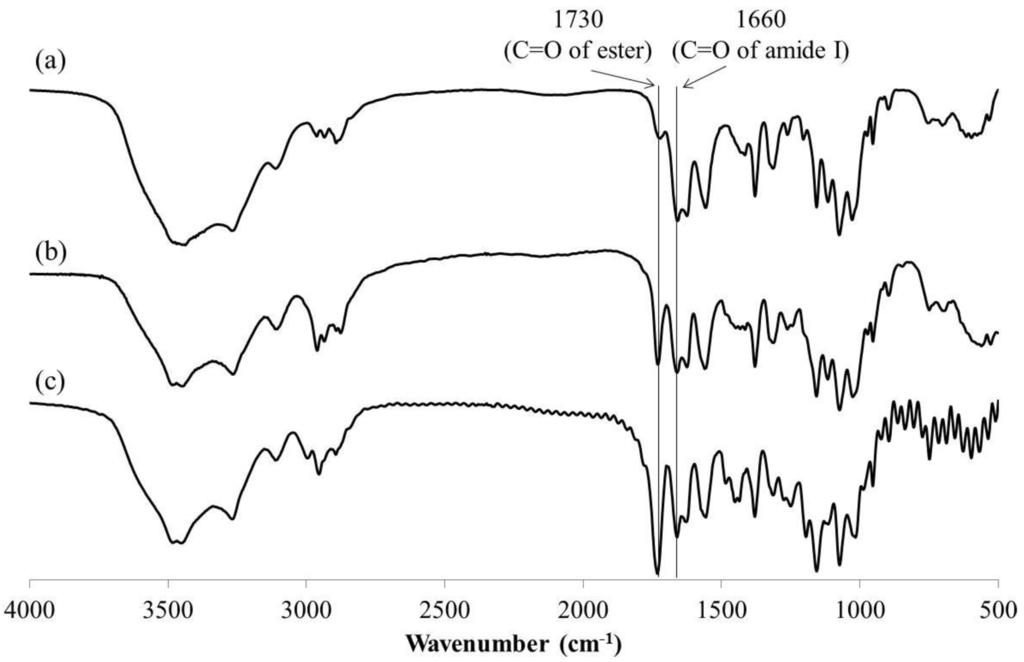

The reaction of α-bromoisobutyryl bromide (20 equiv. for a repeating unit of chitin) with the hydroxy groups on CNF in the dispersion with DMF was carried out in the presence of pyridine to produce the CNF macroinitiator (Figure 1b). The SEM image of the dispersion after the reaction suggests retention of the nanofiber morphology of chitin (Figure 2c). The detection of an ester group carbonyl absorption at 1730 cm−1 in the IR spectrum of the CNF macroinitiator (Figure 3a), which was isolated from the dispersion by filtration, strongly supported the presence of α-bromoisobutylate initiating sites on the CNFs. From the intensity ratio of the two carbonyl absorptions due to ester and amide I (1730 and 1660 cm−1, respectively) in the IR spectrum, the functionality of the initiating sites on CNFs was estimated to be 0.37 for a repeating unit of chitin according to a method documented in the literature .
Prior to surface-initiated graft ATRP, as much of the unreacted α-bromoisobutyryl bromide as possible was removed from the CNF dispersion by repeated centrifugation. The amount of removed α-bromoisobutyryl bromide was estimated by 1H NMR analysis of the supernatant after centrifugation in CDCl3 using 1,4-dimethoxybenzene as an internal standard. On the basis of this estimation, the total initiating sites (that were covalently linked on CNF and residual α-bromoisobutyryl bromide) in the dispersion with DMF (ca. 20 mL) were calculated to be ca. 2 mmol. Surface-initiated graft ATRP of MMA (5 and 10 equiv. for an initiating site) from the CNF macroinitiator was carried out in the presence of CuBr and BPy (0.5 and 1.0 equiv. for an initiating site, respectively) in the dispersion with DMF at 60 °C for 24 h (Figure 1a,b). The resulting materials were isolated by filtration, washed with chloroform, methanol, and acetone, and dried under reduced pressure to give CNF-g-PMMA films. The intensity ratios of the ester absorption to the amide I absorption in the IR spectra of the products (Figure 3b,c) increased in comparison to that of the CNF macroinitiator film (Figure 3a), suggesting the successful graft polymerization of MMA. In addition, the intensity of the ester absorption in the IR spectra was higher when 10 equiv. of MMA was used than when 5 equiv. was used, indicating that longer graft chains were produced in the former case.

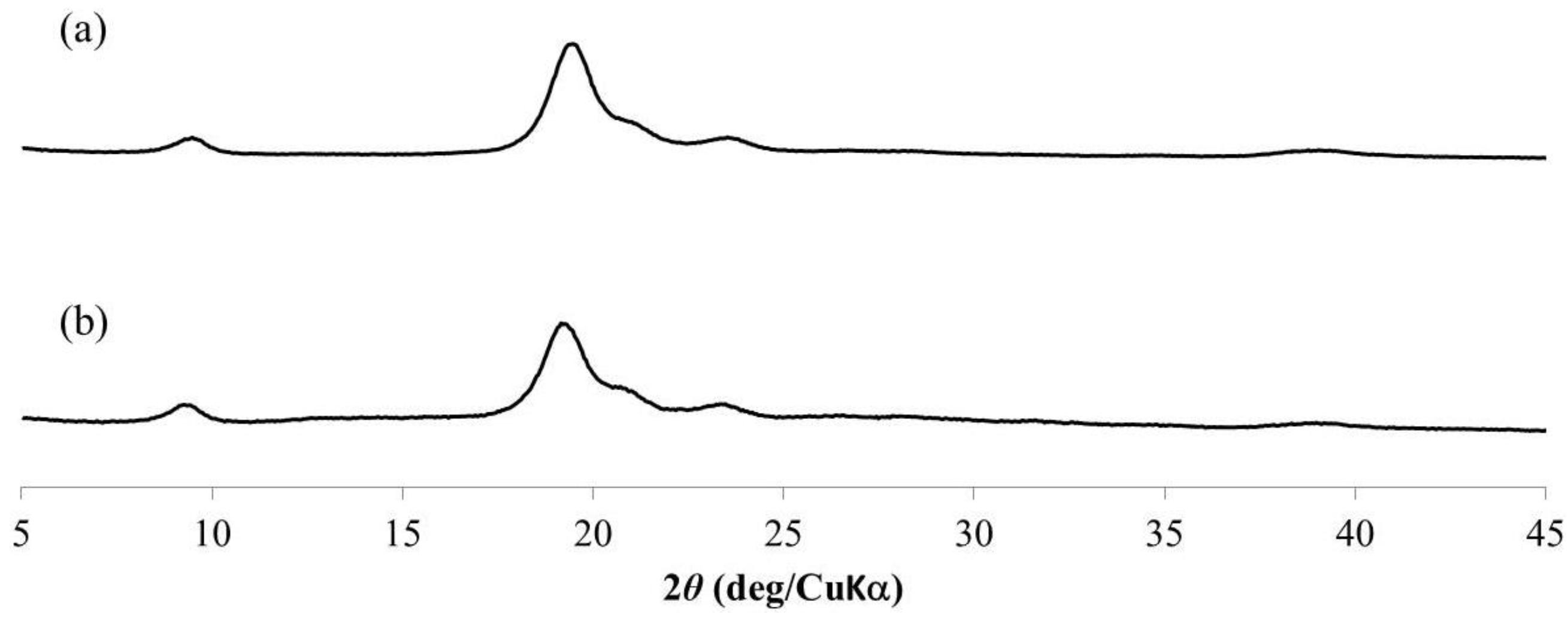

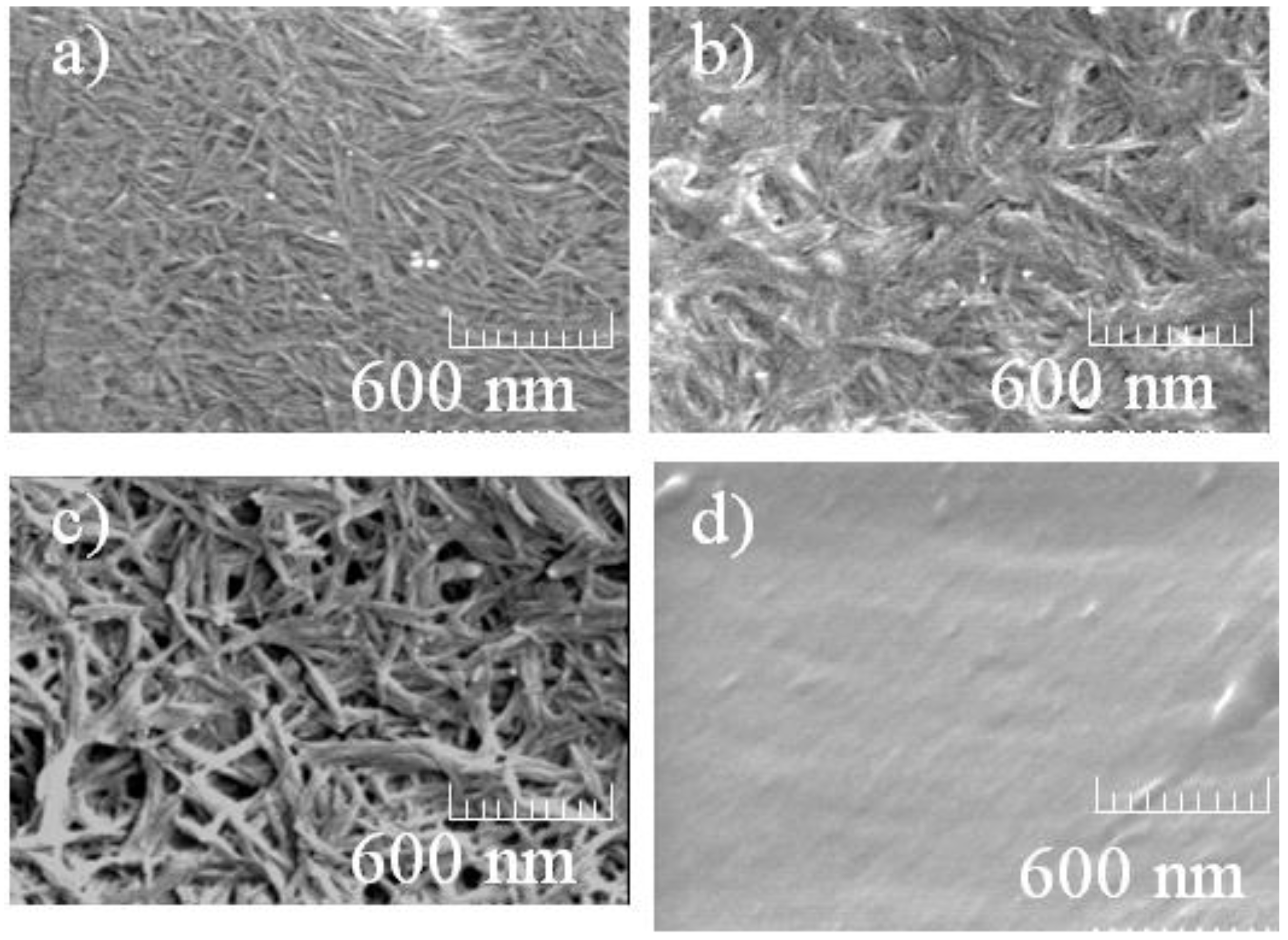

The SEM images of the resulting films show the nanofiber morphologies (Figure 4b,c). The images also indicate that the nanofibers are merged at the interfacial areas, and are thus completely different from those of the original CNF film (Figure 4a). As we previously reported, on the other hand, the SEM image of the CNF-g-PHEA film (which was produced by surface-initiated graft ATRP on the film) does not show the nanofiber morphology (Figure 4d) . These results suggest that in the present study, surface-initiated graft ATRP occurs on the surface of each nanofiber under dispersion conditions. Thus, the nanofibers become entangled during filtration and are merged among the non-crystalline PMMA graft chains on the nanofibers. The occurrence of the graft ATRP on the surface of the CNFs only was also supported by the XRD data given that the XRD pattern of the resulting film (Figure 5b) is the same as that of the original CNF film (Figure 5a), indicating no disruption of the chitin crystalline structure after ATRP. Because the two XRD profiles are almost identical, it can be deduced that there was no significant change in the crystallinity after ATRP.
The mechanical property of the resulting CNF-g-PMMA film was evaluated by tensile testing. Figure 6 shows a comparison of the stress-strain curve of the CNF-g-PMMA film obtained using 5 equiv. of MMA versus that of the original CNF and PMMA films. The elongation at break value of the CNF-g-PMMA film is slightly larger than that of the original CNF film (1.3% versus 1.1%), whereas the tensile strength of the former was lower than that of the latter (12.2 and 16.1 MPa) (Figure 6a,b). The presence of the graft PMMA chains in the CNF-g-PMMA film contributes to the observed change in the mechanical property because the PMMA film exhibits a highly elastic nature as shown in Figure 6c.
In this study, surface-initiated graft ATRP of MMA was carried out on the surface of CNFs under dispersion conditions. The CNF dispersion with methanol was first prepared from the chitin ion gel with AMIMBr according to the regeneration procedure previously reported by the present authors. The protocol involves the exchange of the dispersion media by the removal of methanol and the introduction of DMF, after which the initiating sites for ATRP were introduced by the reaction of α-bromoisobutyryl bromide with hydroxy groups on the surface of the CNFs in the dispersion to obtain the CNF macroinitiator dispersion with DMF. The surface-initiated graft ATRP of MMA (5, 10 equiv. for an initiating site) was then performed in the presence of CuBr and Bpy at 60 °C under dispersion conditions. The products were isolated by filtration to produce the CNF-g-PMMA films. The presence of CNFs in the films was confirmed from the IR spectra, which also suggested the production of longer graft chains when a higher feed equiv. of MMA was utilized. The SEM images of the films confirmed the nanofiber morphology, which also indicated that nanofibers were merged at interfacial areas. The occurrence of the graft ATRP on the surface of the CNFs was further supported by XRD measurements. The mechanical property of the CNF-g-PMMA film was evaluated by tensile testing. The present products are new CNF-based composite materials and, accordingly, have the potential to be used as eco-friendly and environmentally benign materials in practical applications.
Jun-ichi Kadokawa conceived the project and designed the experiments. Jun-ichi Kadokawa and Kazuya Yamamoto directed the research. Ryo Endo performed the experiments. Jun-ichi Kadokawa wrote the manuscript. All authors discussed the results and edited the manuscript.
Conflicts of Interest
The authors declare no conflict of interest.
