Next Article in Journal
Microstructure and Cavitation Erosion Resistance of HVOF Deposited WC-Co Coatings with Different Sized WC
Previous Article in Journal
Preparation and Properties of Ginger Essential Oil β-Cyclodextrin/Chitosan Inclusion Complexes
Article Menu

Export Article

Open AccessArticle
Coatings 2018, 8(9), 306; https://doi.org/10.3390/coatings8090306

Influence of SiO2 Particles on the Corrosion and Wear Resistance of Plasma Electrolytic Oxidation-Coated AM50 Mg Alloy

1
Corrosion and Protection Division, Shenyang National Laboratory for Materials Science, Northeastern University, Shenyang 110819, China
2
Key Laboratory for Anisotropy and Texture of Materials (Education Ministry of China), Northeastern University, Shenyang 110004, China
3
Magnesium Innovation Centre (MagIC), Helmholtz-Zentrum Geesthacht, Max-Planck-Str. 1, 21502 Geesthacht, Germany
4
Faculty of Engineering, University of Kiel, Kaiserstrasse 2, 24143 Kiel, Germany
*
Authors to whom correspondence should be addressed.
Received: 10 July 2018 / Revised: 31 July 2018 / Accepted: 20 August 2018 / Published: 29 August 2018
(This article belongs to the Special Issue Plasma Electrolytic Oxidation (PEO) Coatings)
Full-Text   |   PDF [6028 KB, uploaded 29 August 2018]   |

Abstract

The influence of SiO2 particles on the microstructure, phase composition, corrosion and wear performance of plasma electrolytic oxidation (PEO) coatings on AM50 Mg was investigated. Different treatment durations were applied to fabricate coatings in an alkaline, phosphate-based electrolyte (1 g/L KOH + 20 g/L Na3PO4 + 5 g/L SiO2), aiming to control the incorporated amount of SiO2 particles in the layer. It was found that the uptake of particles was accompanied by the coating growth at the initial stage, while the particle content remained unchanged at the final stage, which is dissimilar to the evolution of the coating thickness. The incorporation mode of the particles and phase composition of the layer was not affected by the treatment duration under the voltage-control regime. The corrosion performance of the coating mainly depends on the barrier property of the inner layer, while wear resistance primarily relies on the coating thickness. View Full-Text
Keywords: magnesium; plasma electrolytic oxidation; SiO2 particle; corrosion resistance; wear resistance magnesium; plasma electrolytic oxidation; SiO2 particle; corrosion resistance; wear resistance
Figures

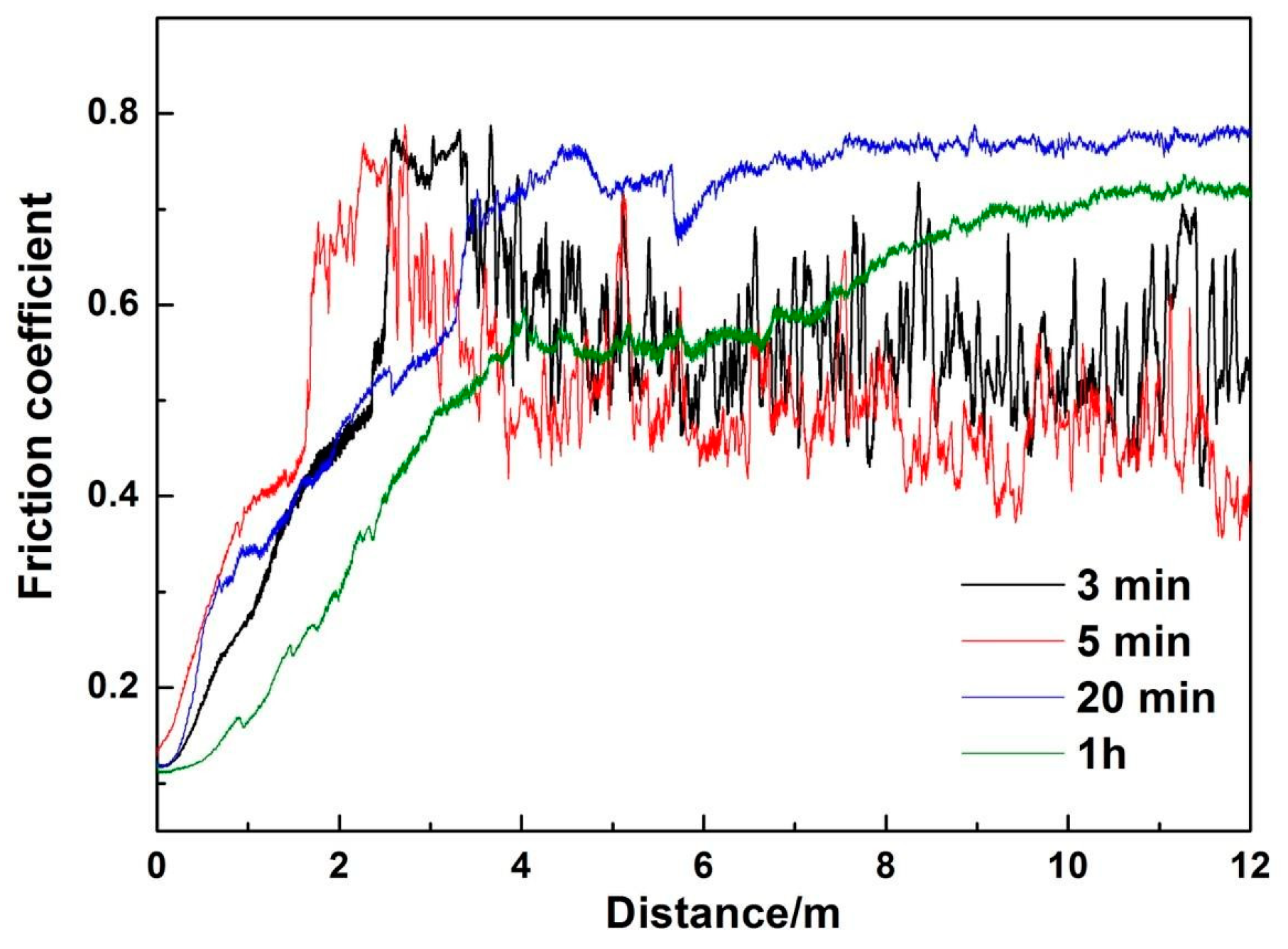

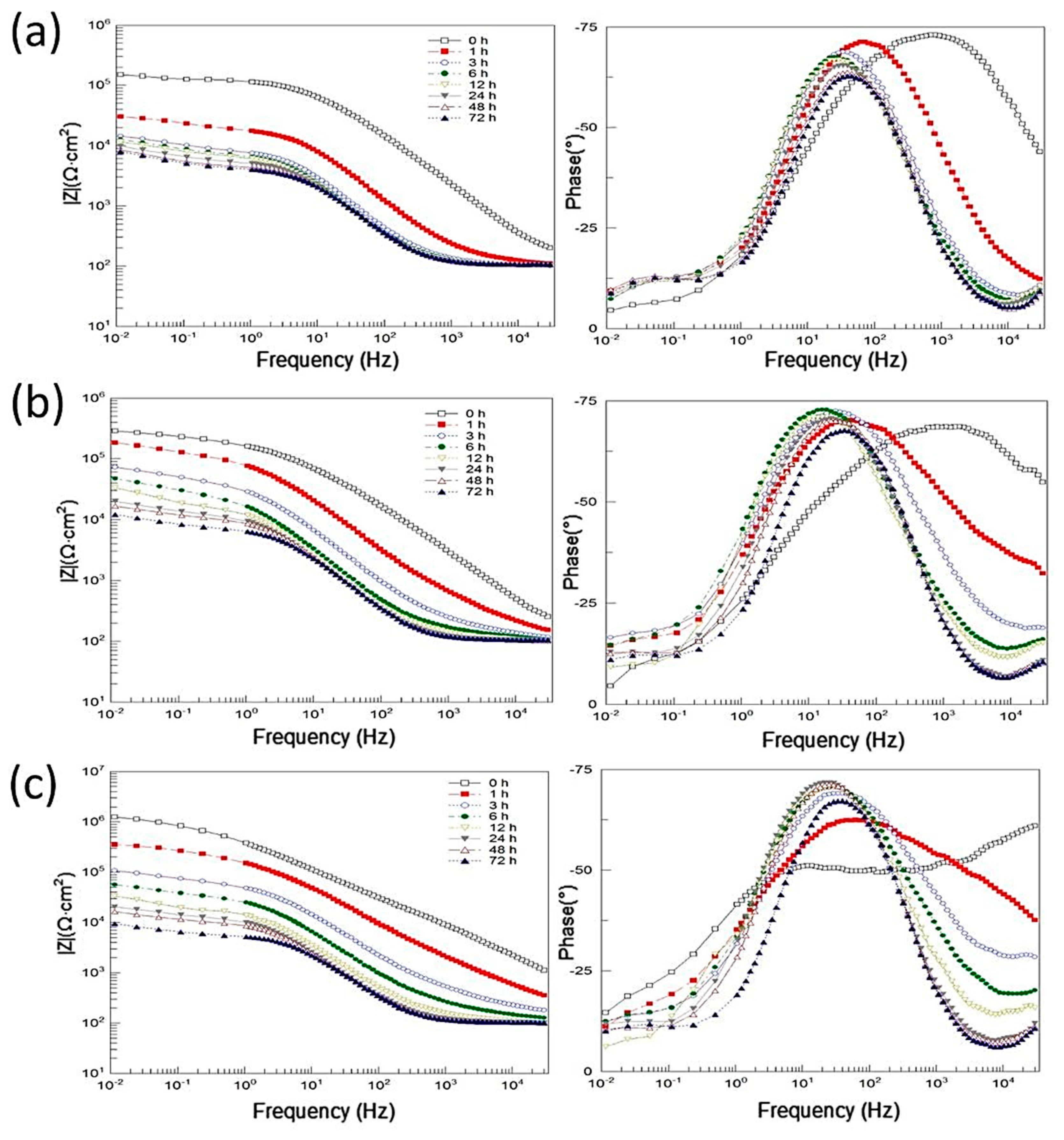

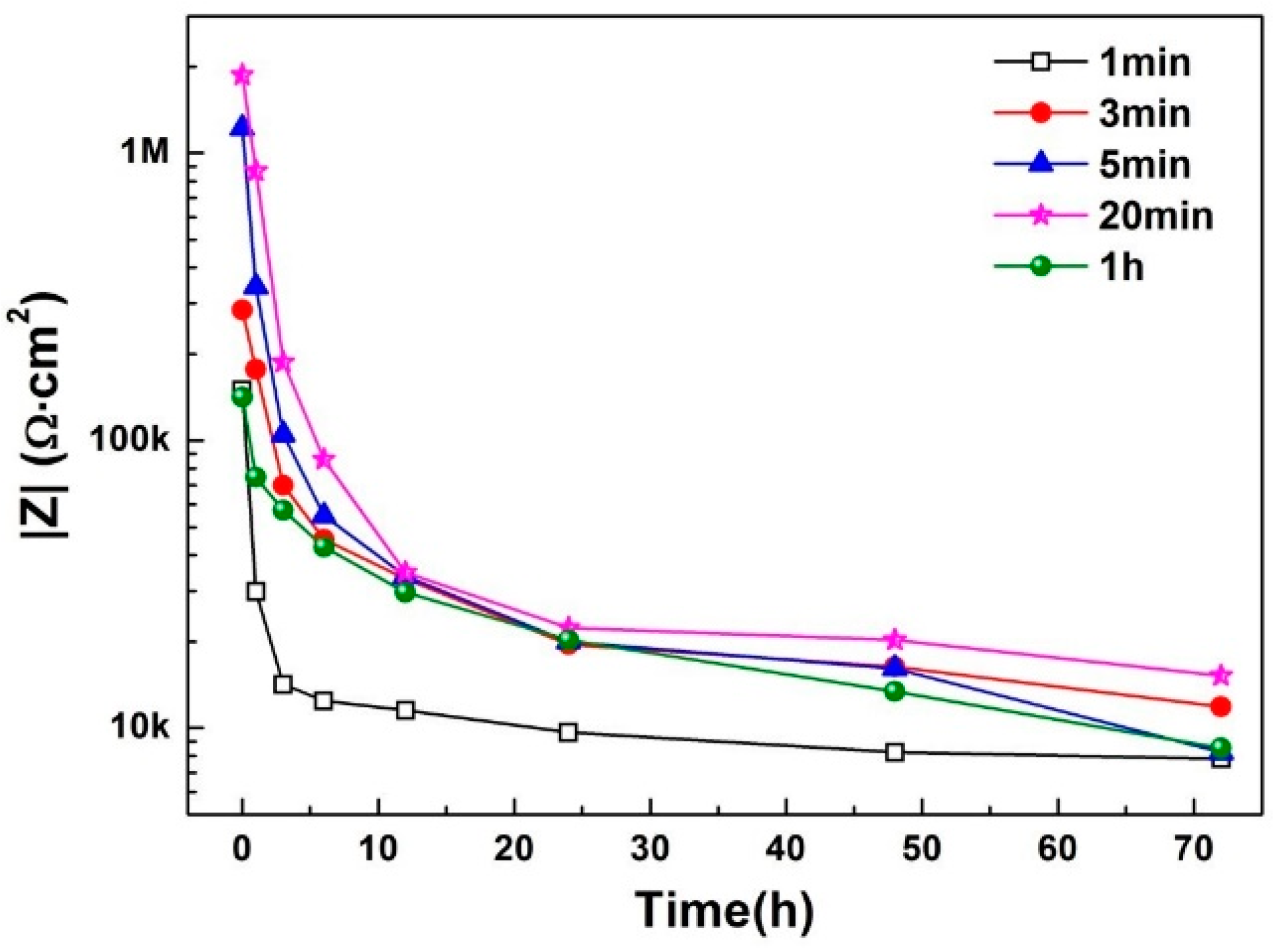

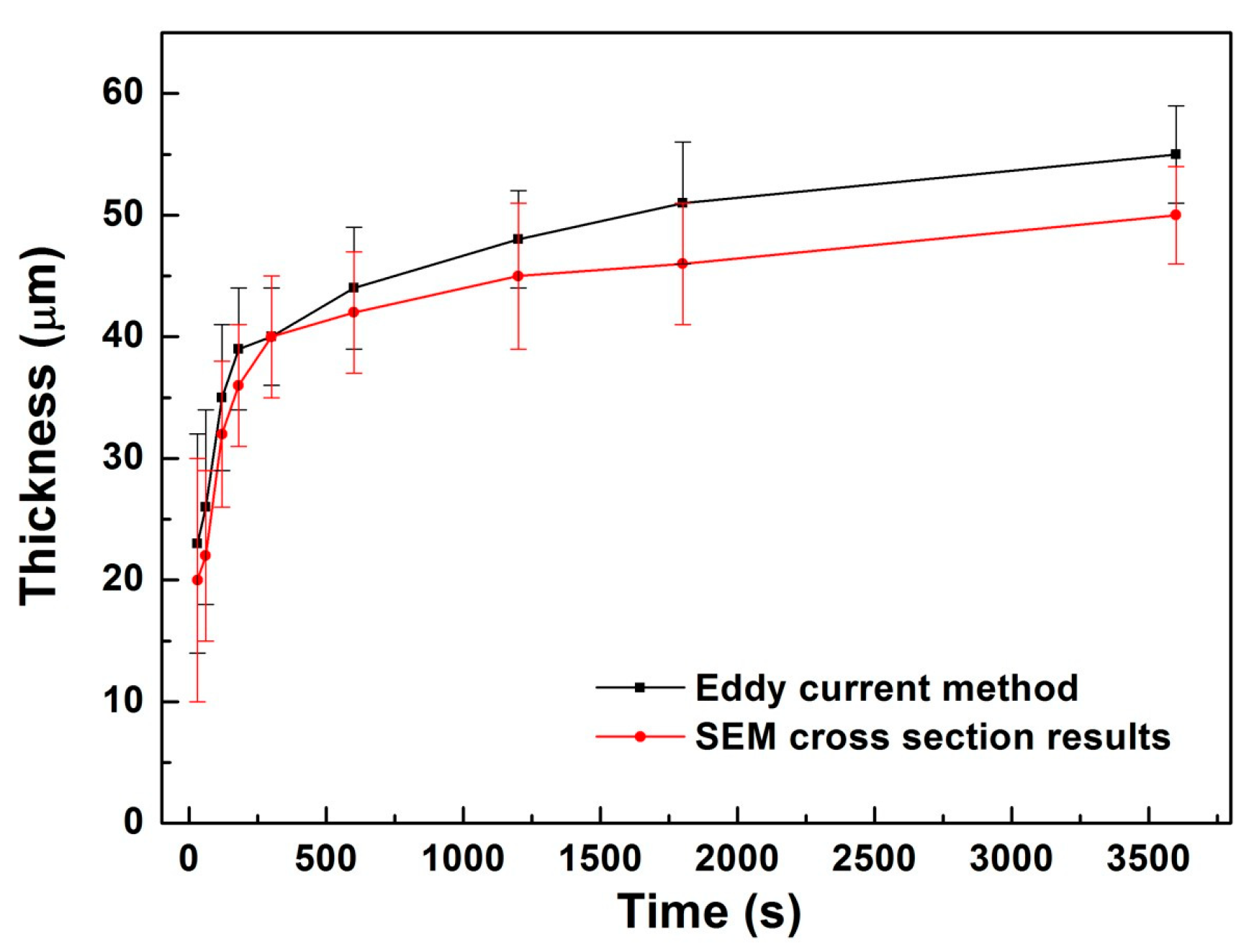

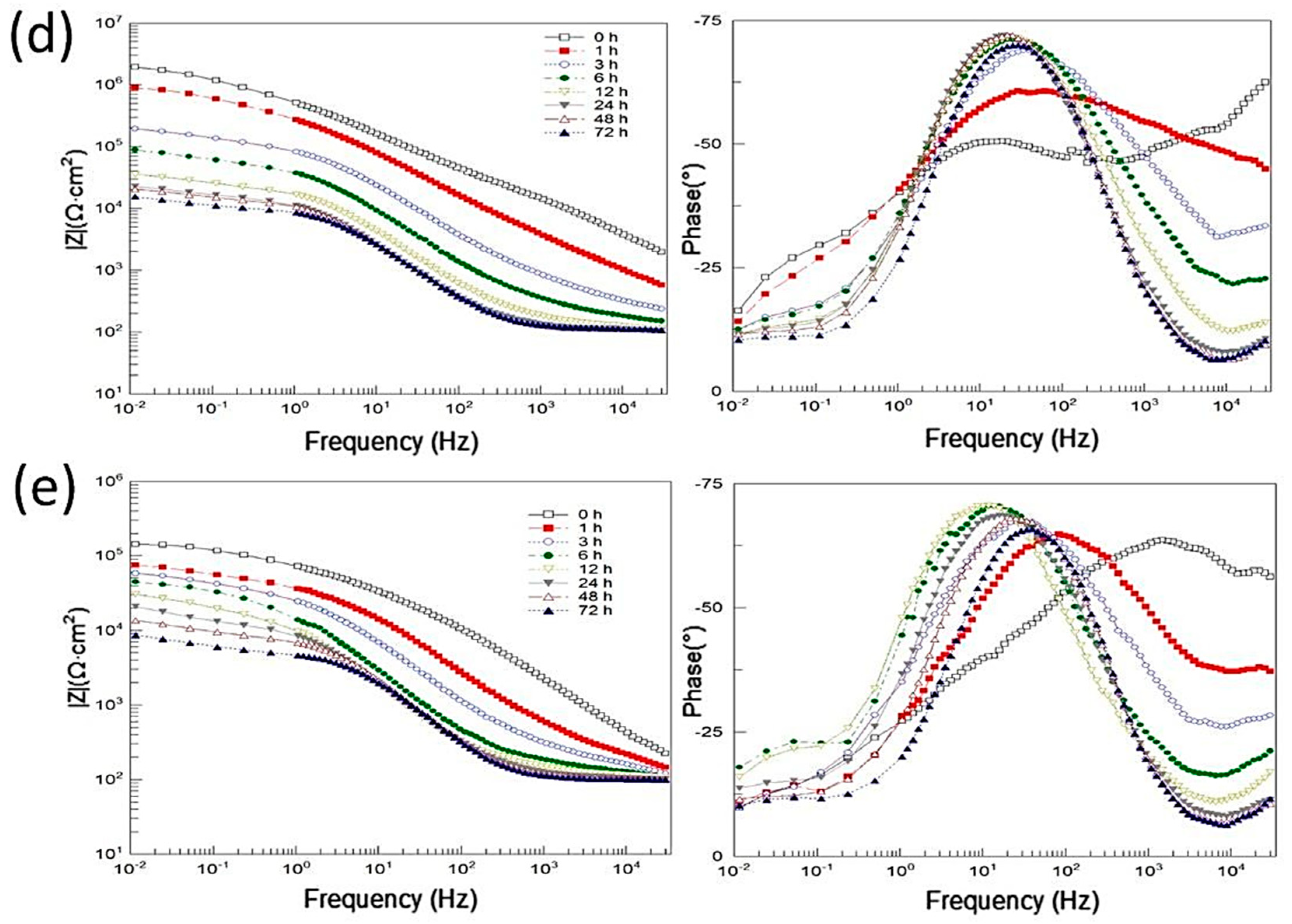

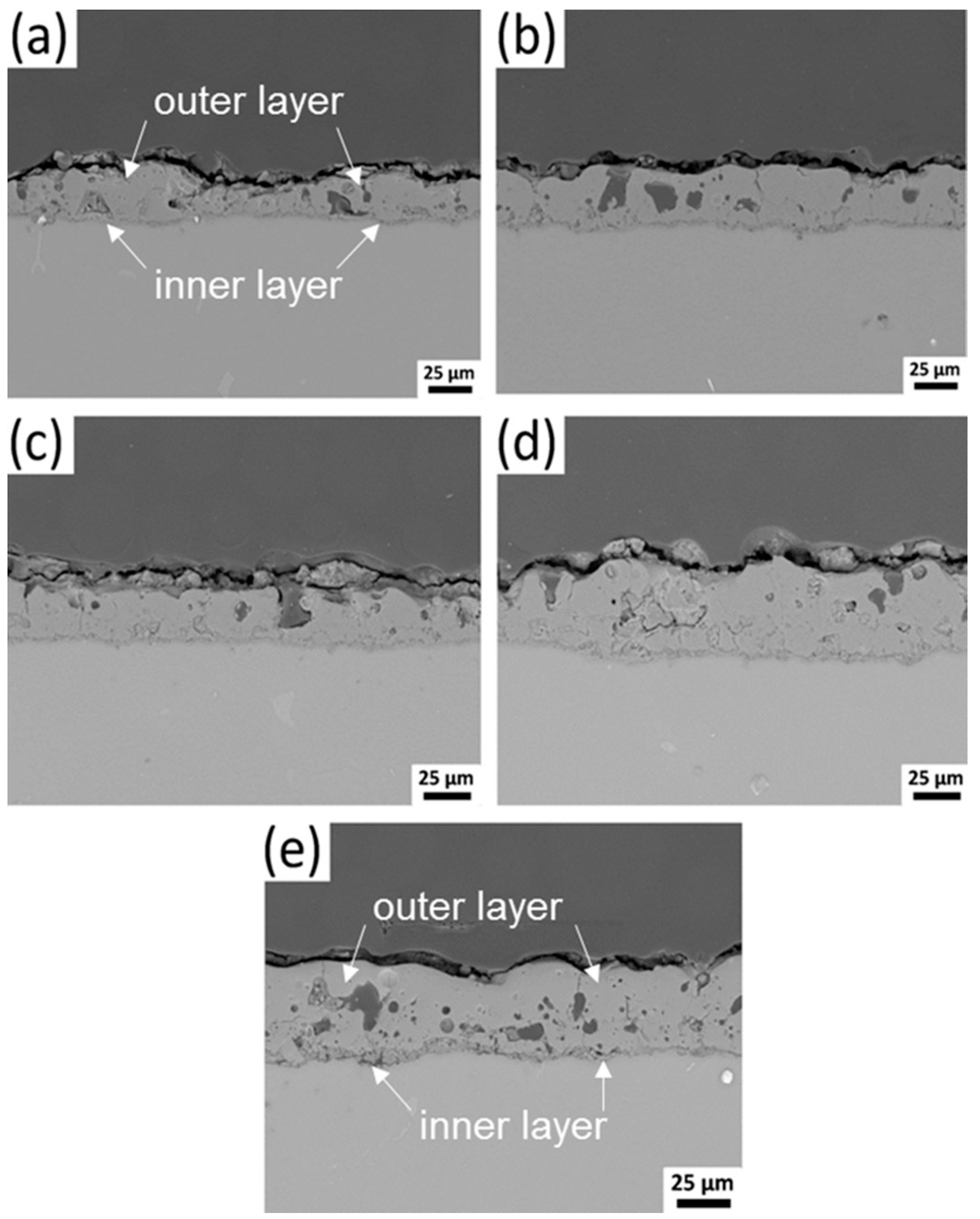

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Lu, X.; Chen, Y.; Blawert, C.; Li, Y.; Zhang, T.; Wang, F.; Kainer, K.U.; Zheludkevich, M. Influence of SiO2 Particles on the Corrosion and Wear Resistance of Plasma Electrolytic Oxidation-Coated AM50 Mg Alloy. Coatings 2018, 8, 306.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
