Next Article in Journal
Preparation and Properties of Ginger Essential Oil β-Cyclodextrin/Chitosan Inclusion Complexes
Next Article in Special Issue
Recent Studies of Semitransparent Solar Cells
Previous Article in Journal
Improvement of Thin Film Adhesion Due to Bombardment by Fast Argon Atoms
Previous Article in Special Issue
Electrochemical Performance of Few-Layer Graphene Nano-Flake Supercapacitors Prepared by the Vacuum Kinetic Spray Method
Article Menu

Export Article

Open AccessArticle
Coatings 2018, 8(9), 304; https://doi.org/10.3390/coatings8090304

Influence of Ge Incorporation from GeSe2 Vapor on the Properties of Cu2ZnSn(S,Se)4 Material and Solar Cells

1,* , 2
and
2
1
Institute of Photovoltaics, Nanchang University, Nanchang 330031, China
2
College of Physics Science and Technology, Hebei University, Baoding 071002, China
*
Author to whom correspondence should be addressed.
Received: 18 July 2018 / Revised: 15 August 2018 / Accepted: 24 August 2018 / Published: 28 August 2018
(This article belongs to the Special Issue Thin Films for Energy Harvesting, Conversion, and Storage)
Full-Text   |   PDF [1947 KB, uploaded 28 August 2018]   |

Abstract

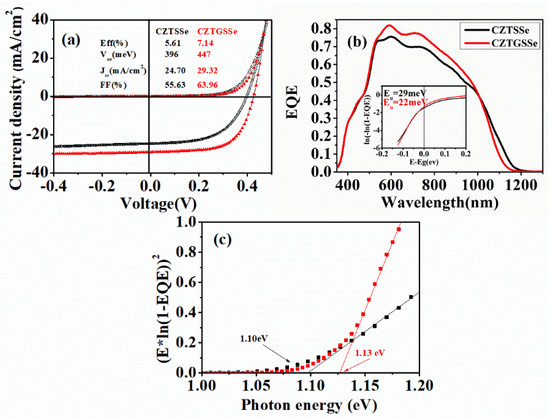

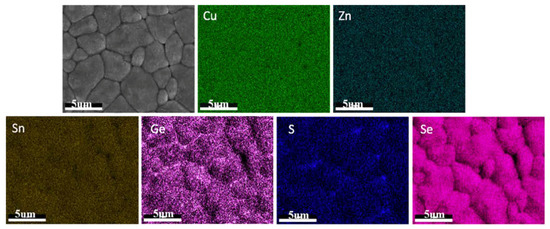

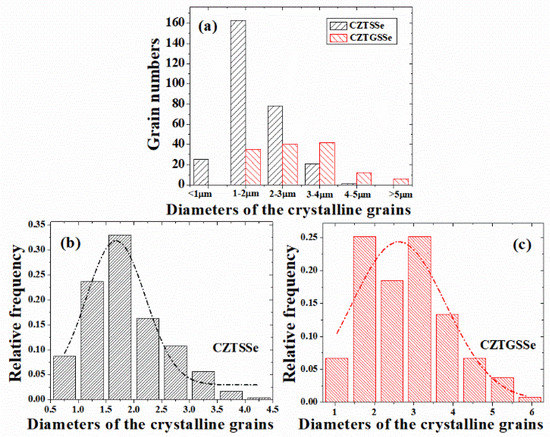

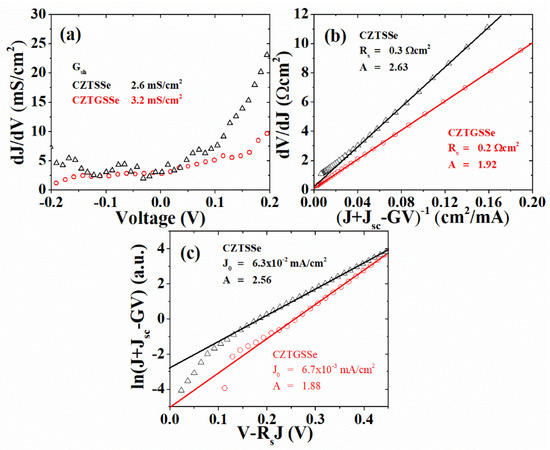

Cu2ZnSn(S,Se)4 (CZTSSe) and Cu2Zn(Sn,Ge)(S,Se)4 (CZTGSSe) thin films were prepared based on a non-vacuum solution method. The CZTSSe films were obtained by annealing the solution-deposited precursor films with Se, while the CZTGSSe films were obtained by annealing the similar precursor films with Se and GeSe2. We found that Ge could be incorporated into the annealed films when GeSe2 was present during the annealing process. The Ge incorporation obviously enlarged the sizes of the crystalline grains in the annealed films. However, the energy dispersive spectrometry (EDS) measurements revealed that the element distribution was not uniform in the CZTGSSe films. We fabricated solar cells based on the CZTSSe and CZTGSSe films. It was found the Ge incorporation decreases the Eu energy of the absorber material. The solar cell efficiency was increased from 5.61% (CZTSSe solar cell) to 7.14% (CZTGSSe solar cell) by the Ge incorporation. Compared to CZTSSe solar cells, the CZTGSSe solar cells exhibited a lower diode ideality factor and lower reverse saturation current density. View Full-Text
Keywords: Cu2ZnSn(S,Se)4; Ge incorporation; annealing; solar cells Cu2ZnSn(S,Se)4; Ge incorporation; annealing; solar cells
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Gao, C.; Sun, Y.; Yu, W. Influence of Ge Incorporation from GeSe2 Vapor on the Properties of Cu2ZnSn(S,Se)4 Material and Solar Cells. Coatings 2018, 8, 304.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
