Next Article in Journal
On the Activity Enhancing Role of Iron Oxide for Noble Metal Oxidation Catalysts: A CVD-Based Study with Differently Structured Combinations of Pt and FeOx Coatings on Al2O3
Previous Article in Journal
Surface Modification of Esophageal Stent Materials by a Drug-Eluting Layer for Better Anti-Restenosis Function
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessArticle
Coatings 2018, 8(6), 216; https://doi.org/10.3390/coatings8060216

Improvement of Corrosion Resistance for Gray Cast Iron in Palm Biodiesel Application Using Thermoreactive Diffusion Niobium Carbide (NbC) Coating

1
Department of Mechanical and Mechatronics Engineering, Universidad Nacional de Colombia, Bogotá 111321, Colombia
2
Faculty of Engineering, Coordination of Mechanical Engineering, Universidad ECCI, Bogotá 111311, Colombia
*
Author to whom correspondence should be addressed.
Received: 8 May 2018 / Revised: 26 May 2018 / Accepted: 2 June 2018 / Published: 7 June 2018
View Full-Text   |   Download PDF [2745 KB, uploaded 26 June 2018]   |

Abstract

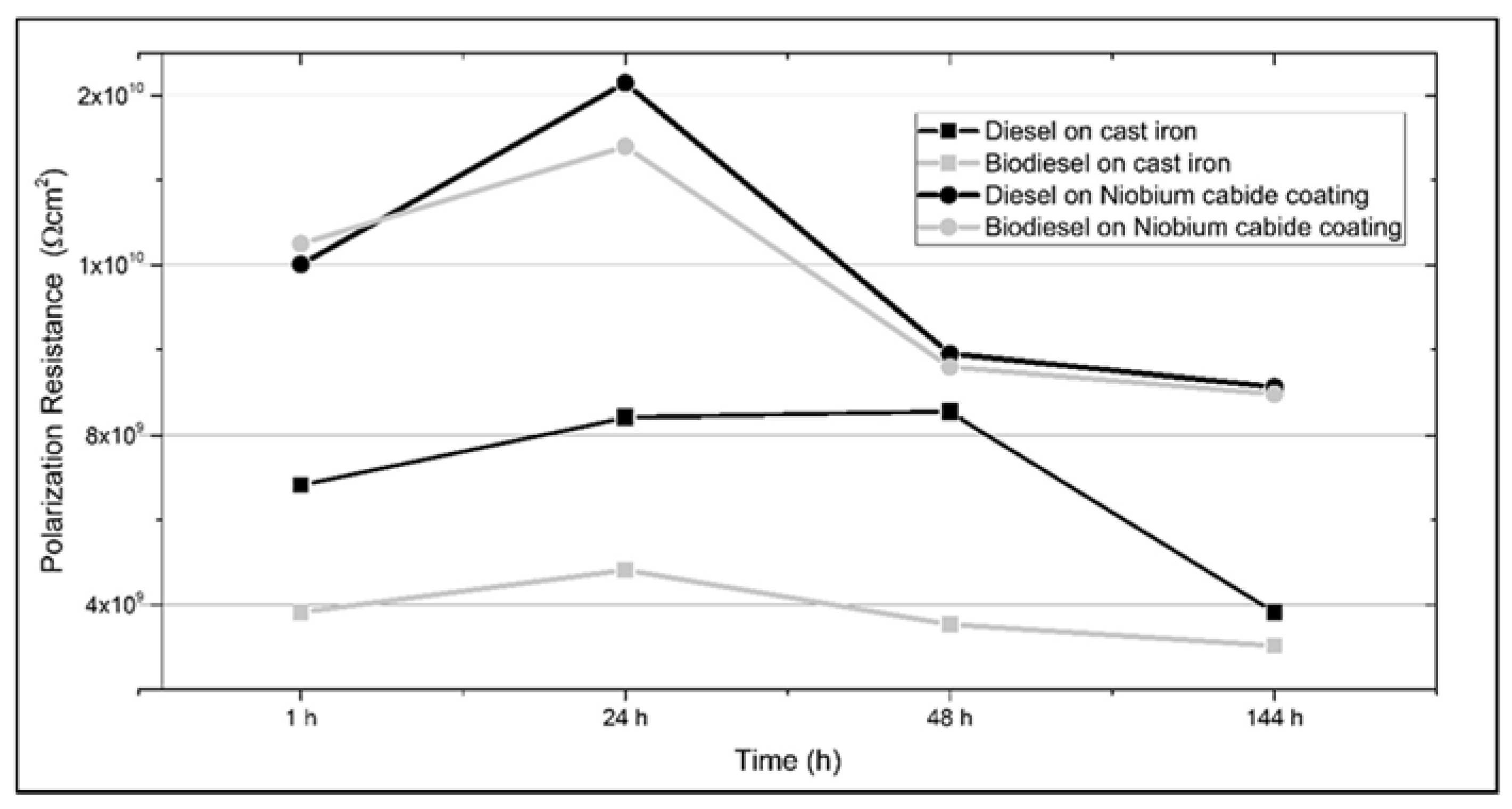

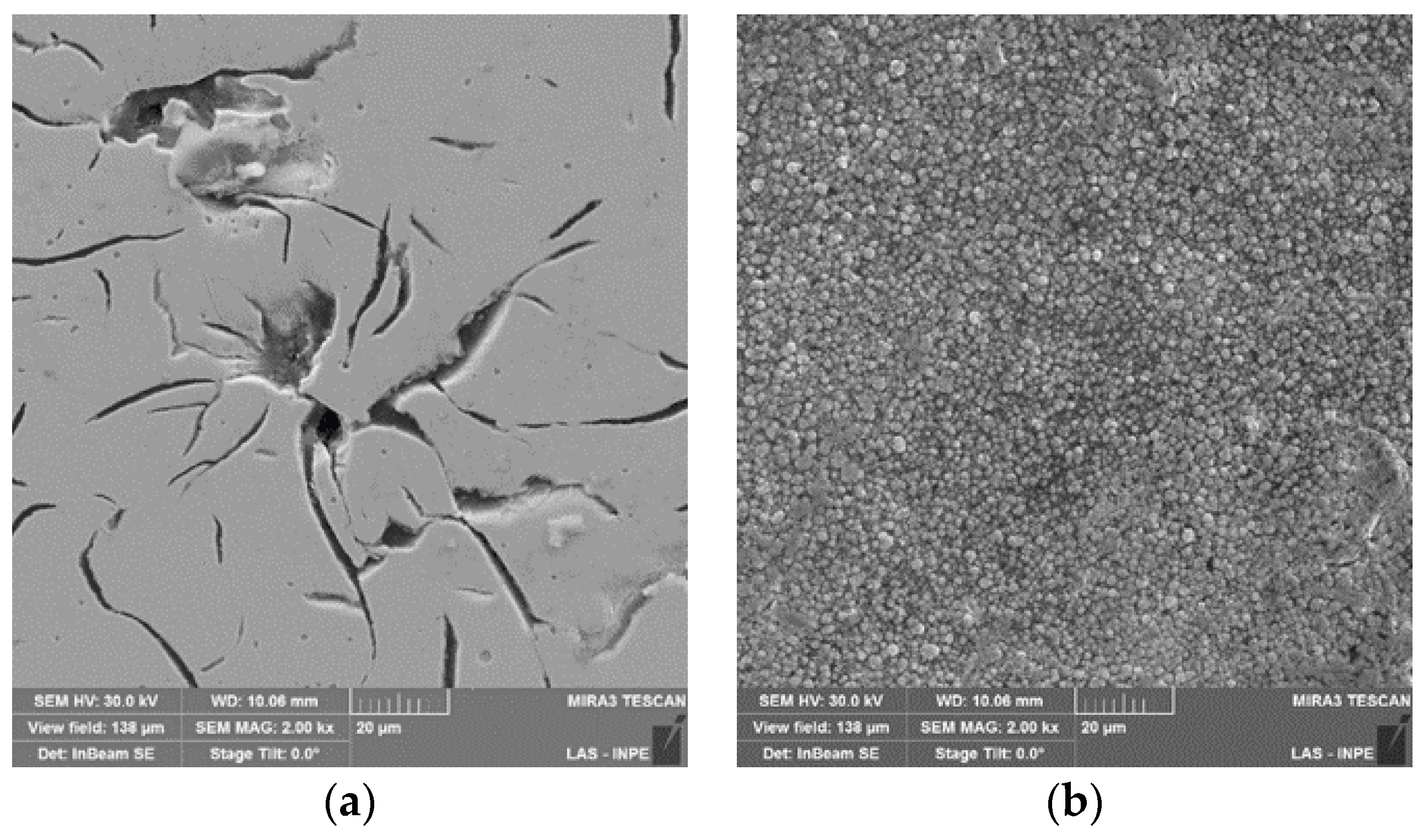

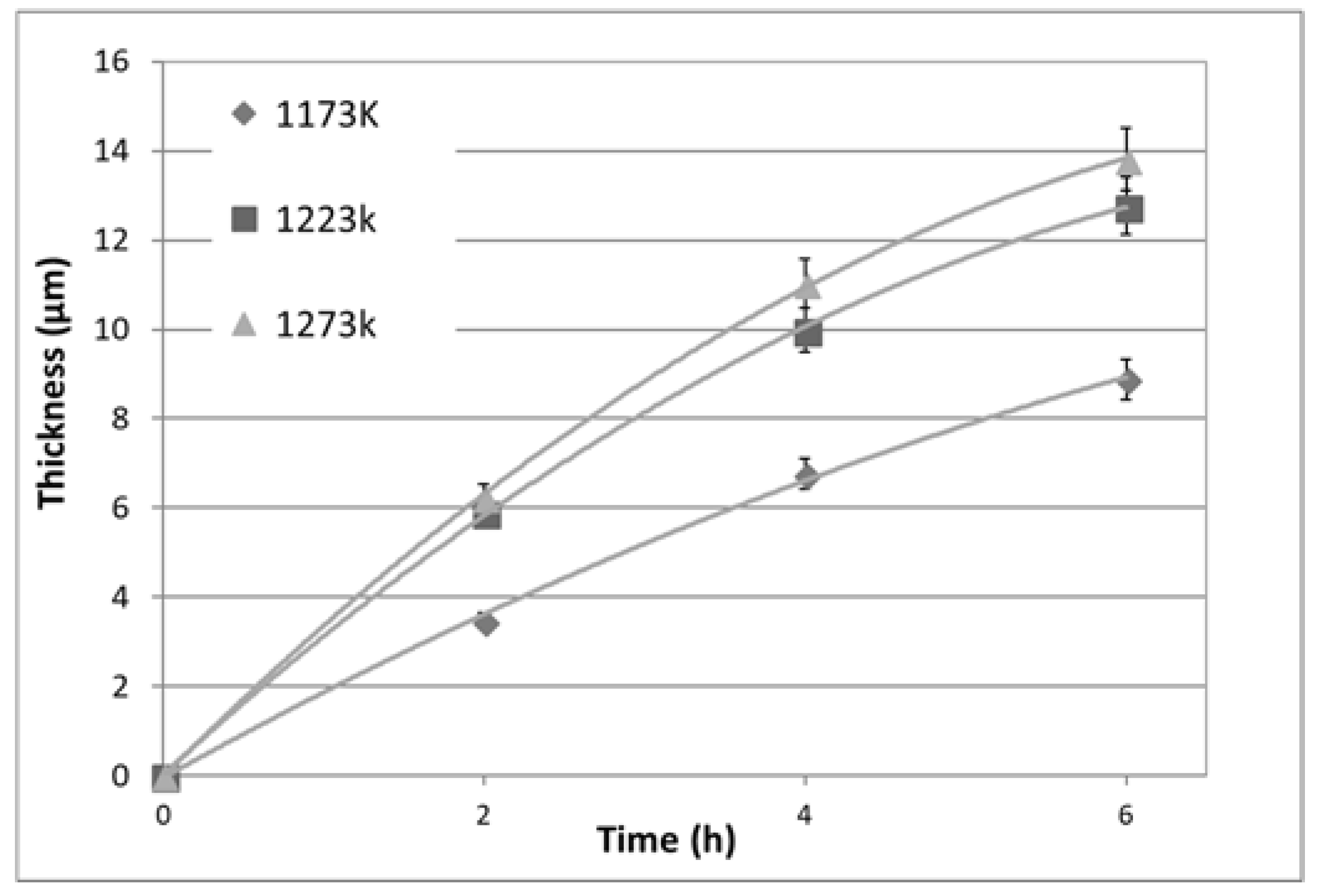

Biodiesel is a renewable fuel consisting of alkyl esters, which show a higher corrosive behavior when compared with a diesel fuel. The corrosive processes by biodiesel affects the processing infrastructure of this biofuel and mechanical parts of automotives. Valves, engine blocks, and cylinder liners are gray cast iron components affected by biodiesel corrosion. The corrosion resistance of niobium carbide (NbC) coatings deposited using thermoreactive diffusion (TRD) on gray cast iron in continuous contact with diesel fuel and palm biodiesel was studied. Both coated and uncoated samples were subjected to immersion tests, cyclic oxidation at 473 K, and an electrochemical impedance spectroscopy (EIS) test. The coatings were characterized by means of scanning electron microscopy (SEM) and X-ray diffraction (XRD). Both the rate of corrosion by immersion and the resistance to polarization via EIS showed the favorable behavior of niobium carbide coatings against the corrosion of palm biodiesel. The corrosion rate on samples coated with niobium carbide was three times lower than that of the gray casting samples. These results allow the conclusion that niobium carbide coatings could be a viable alternative to lessening the corrosive effects of palm biodiesel in the applications where gray cast iron is used in continuous contact with biofuel. View Full-Text
Keywords: biodiesel corrosion; gray cast iron; NbC coating; thermoreactive diffusion TRD biodiesel corrosion; gray cast iron; NbC coating; thermoreactive diffusion TRD
Figures

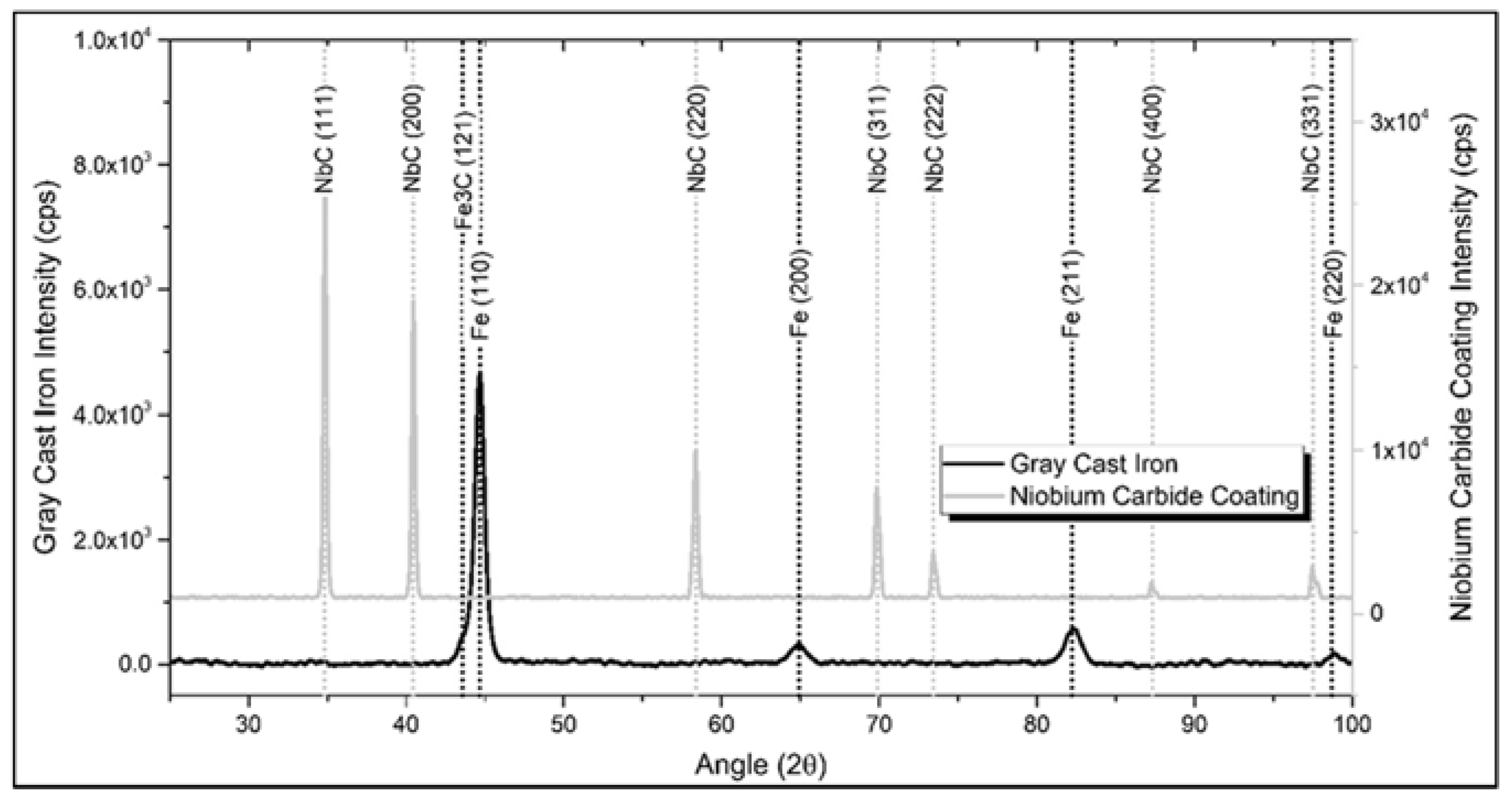

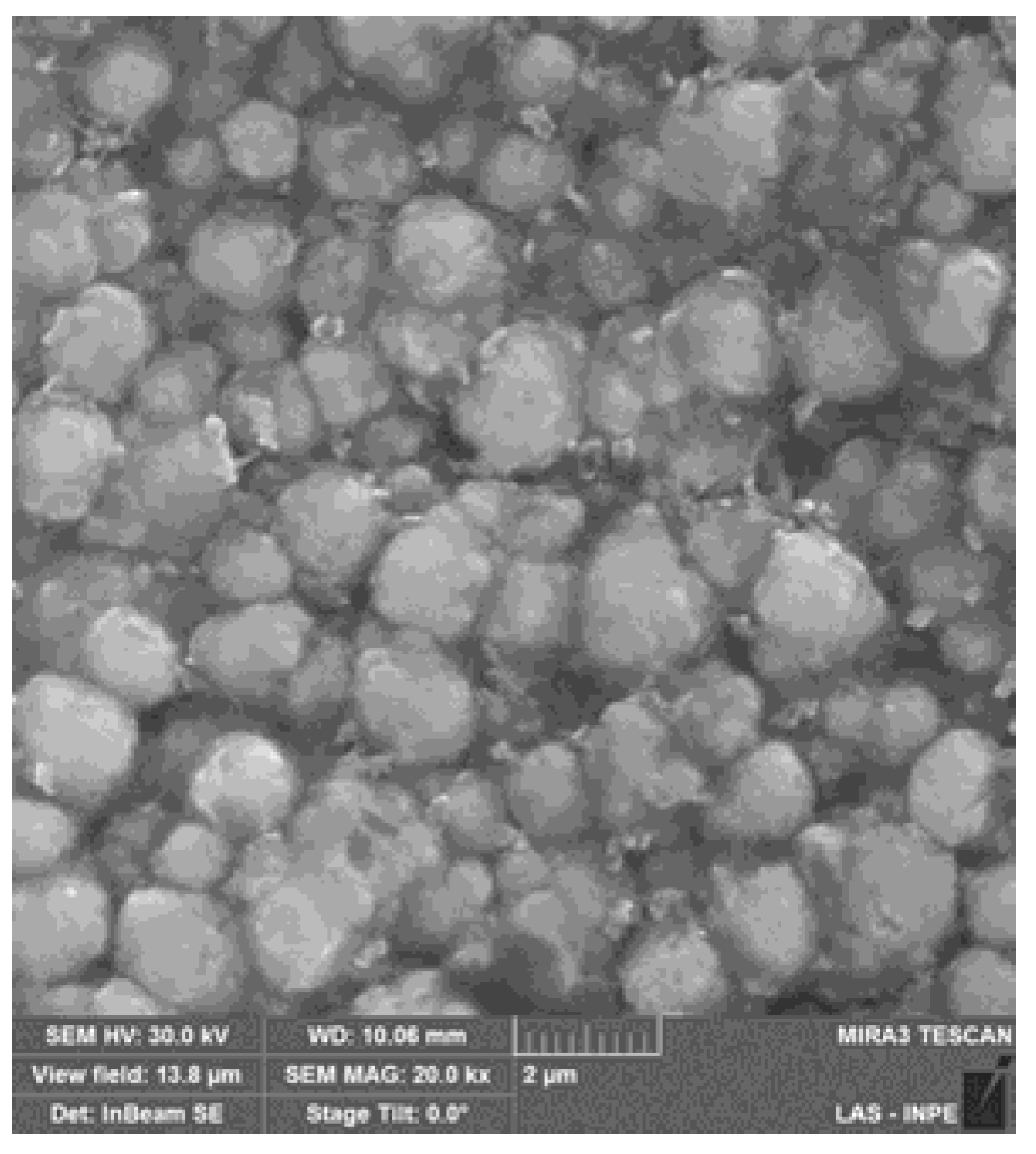

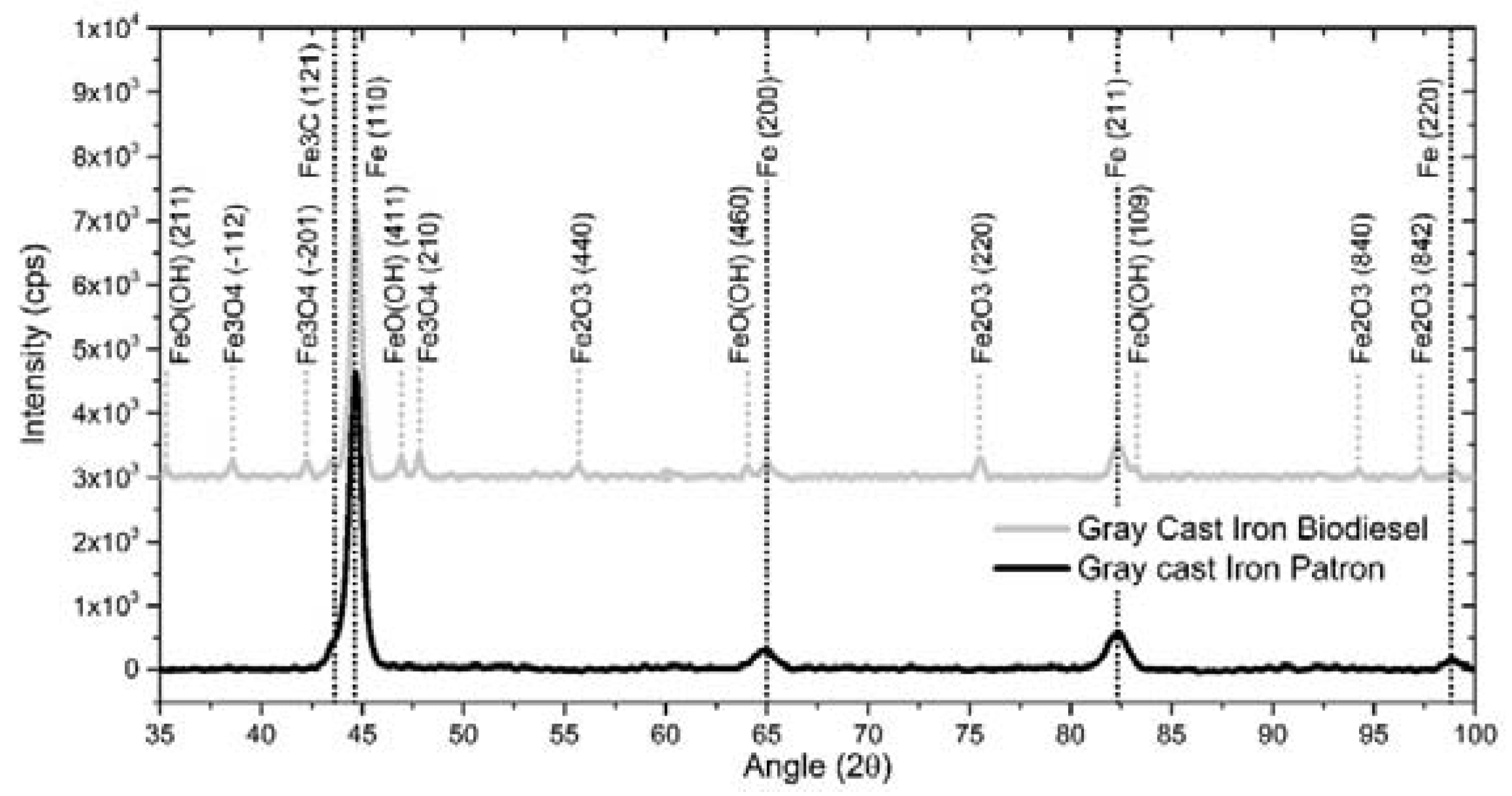

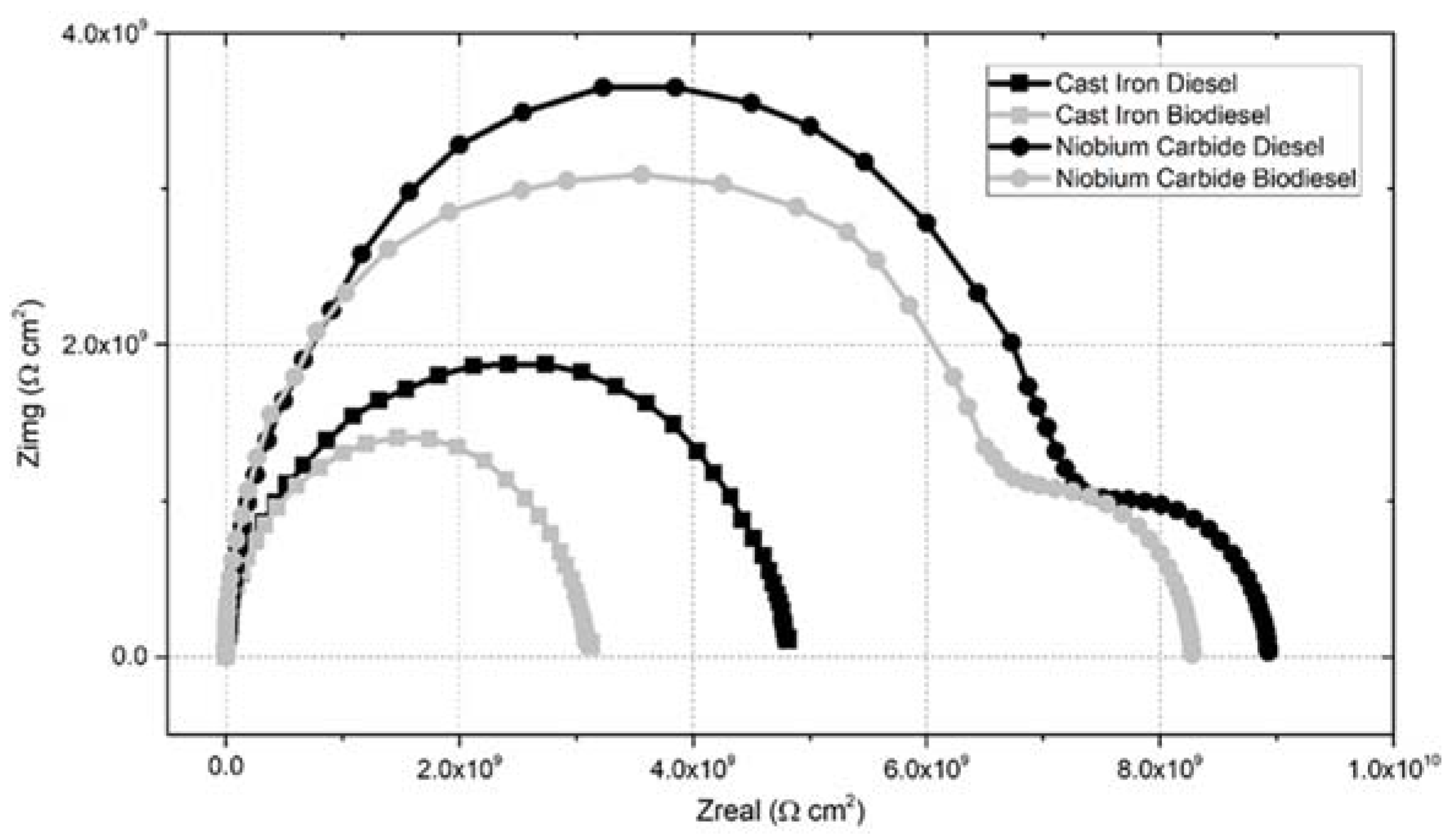

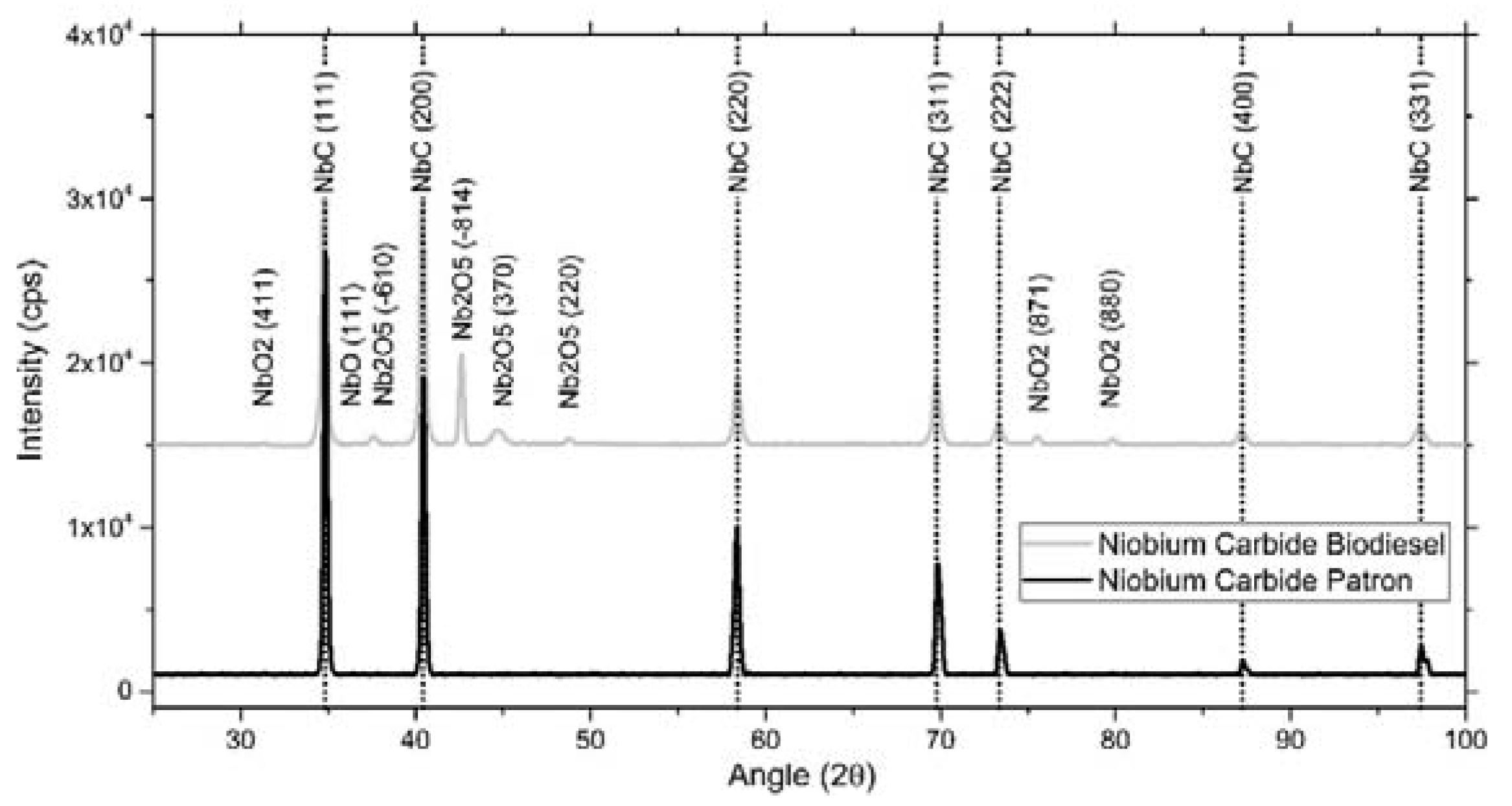

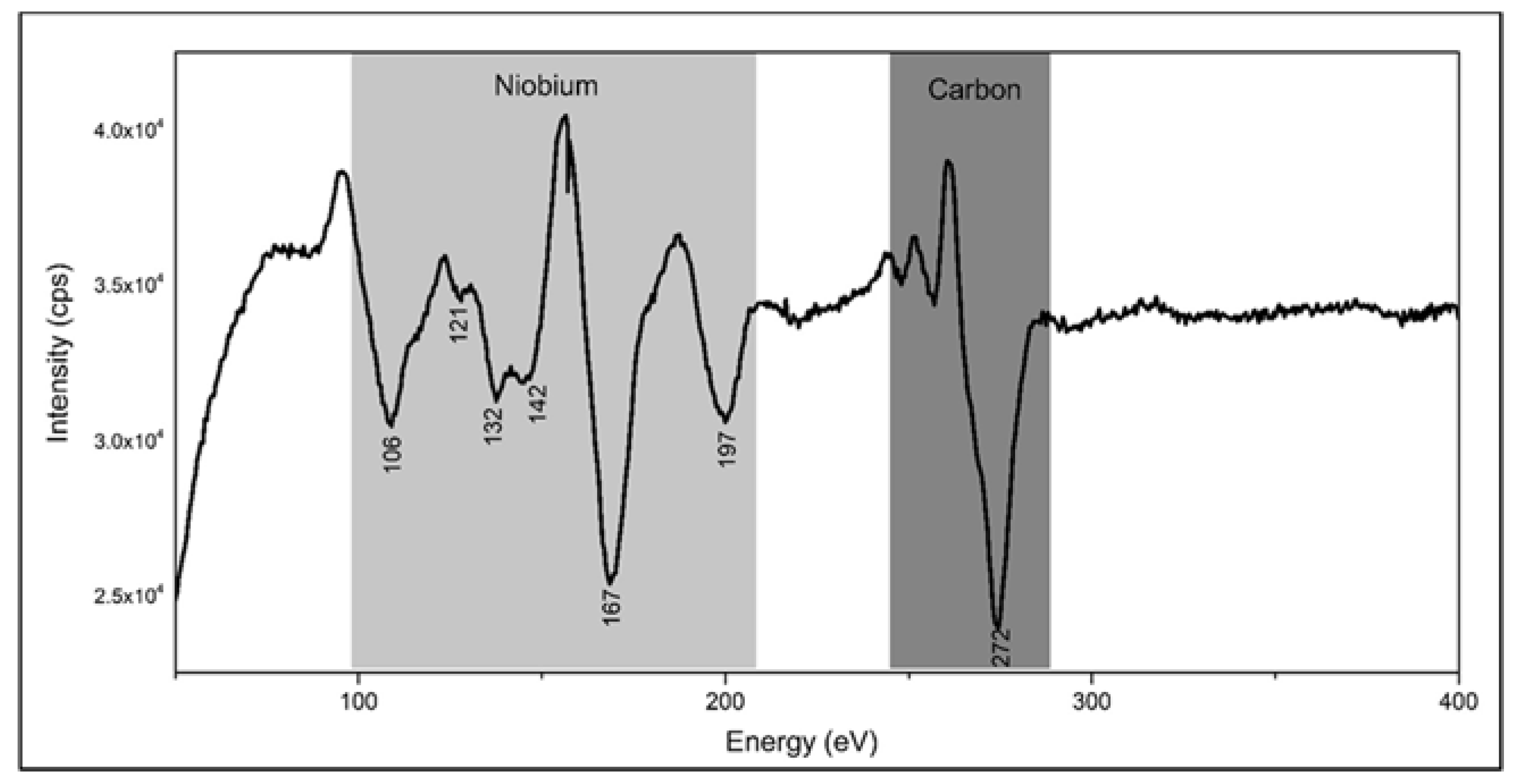

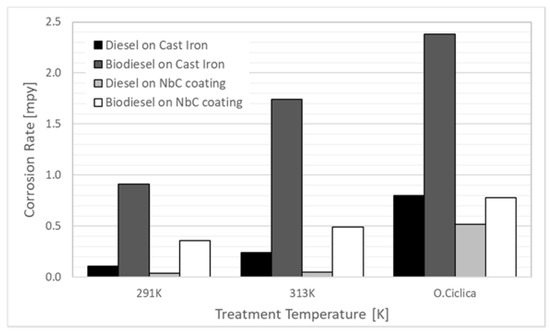

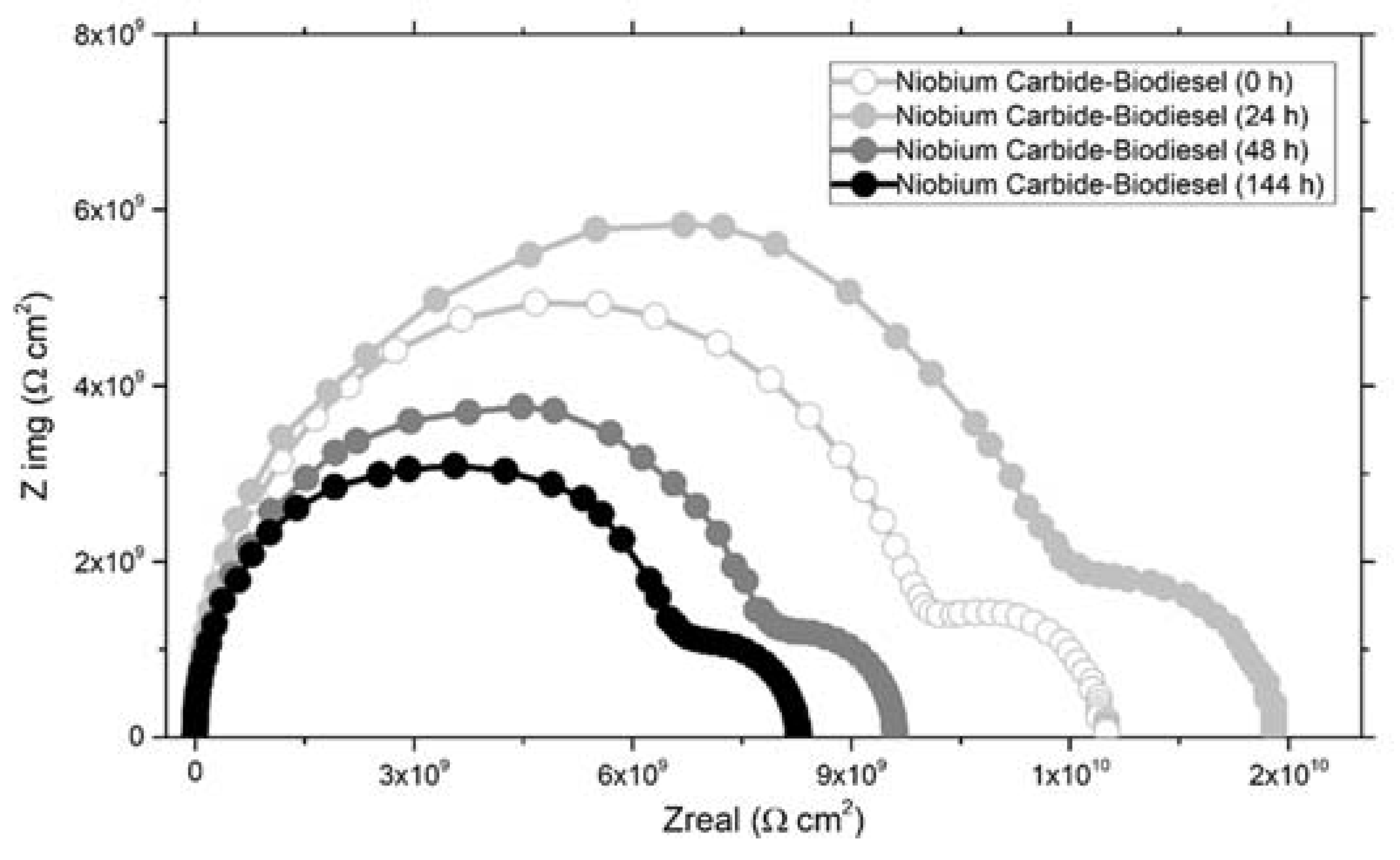

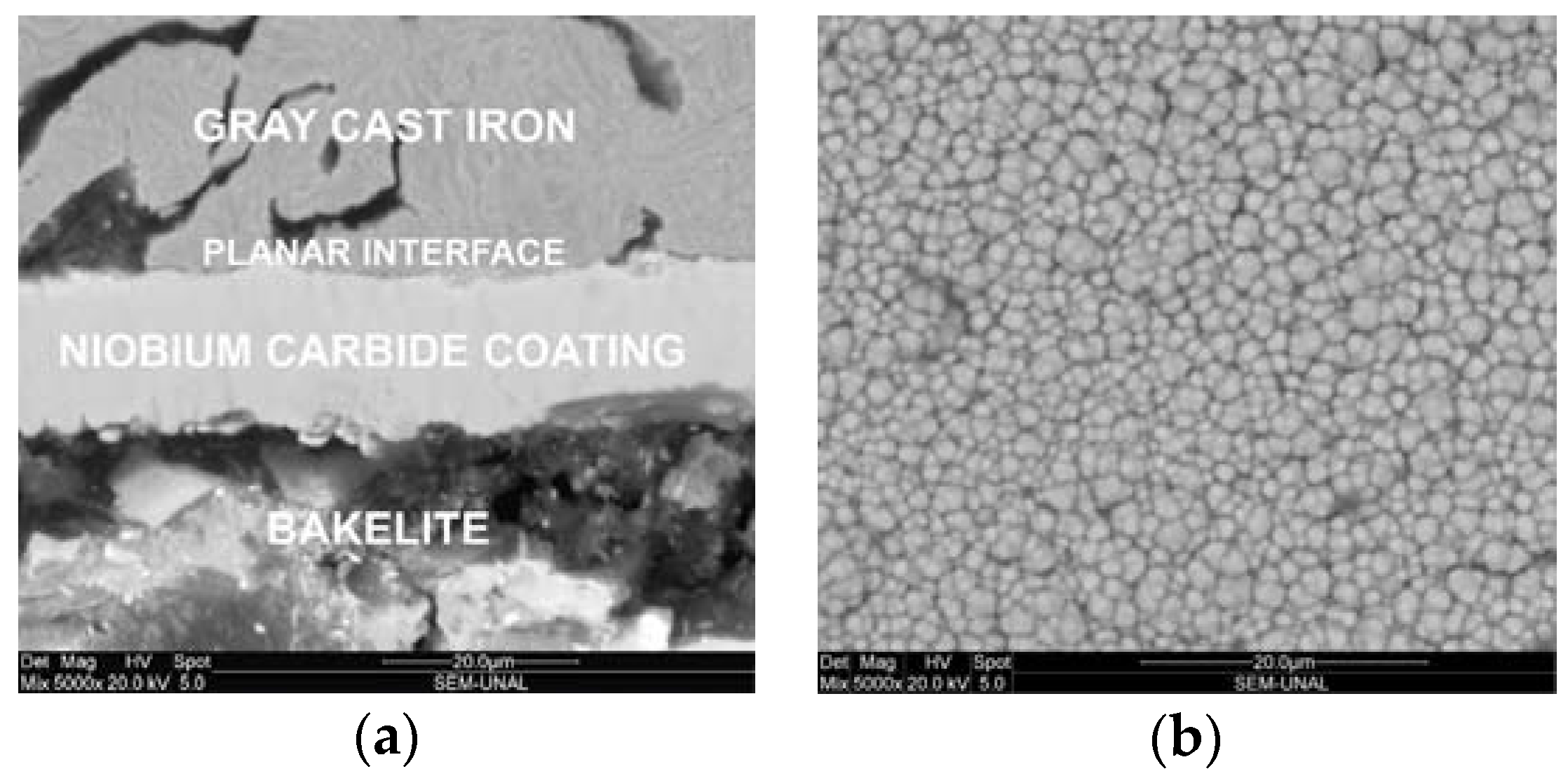

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Amaya, A.; Piamba, O.; Olaya, J. Improvement of Corrosion Resistance for Gray Cast Iron in Palm Biodiesel Application Using Thermoreactive Diffusion Niobium Carbide (NbC) Coating. Coatings 2018, 8, 216.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
