Coatings 2018, 8(2), 56; https://doi.org/10.3390/coatings8020056

Investigation of Electrochemically Deposited and Chemically Reduced Platinum Nanostructured Thin Films as Counter Electrodes in Dye-Sensitized Solar Cells

Department of Opto-Electronic Engineering, National Dong Hwa University, Hualien 97401, Taiwan
*
Author to whom correspondence should be addressed.
Received: 22 November 2017 / Revised: 31 January 2018 / Accepted: 31 January 2018 / Published: 1 February 2018
(This article belongs to the Special Issue Thin Films and Patterned Structures by Electrochemical Methods)
View Full-Text   |   Download PDF [13468 KB, uploaded 1 February 2018]   |

Abstract

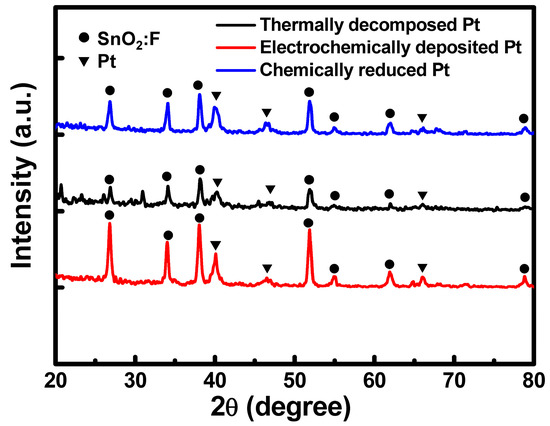

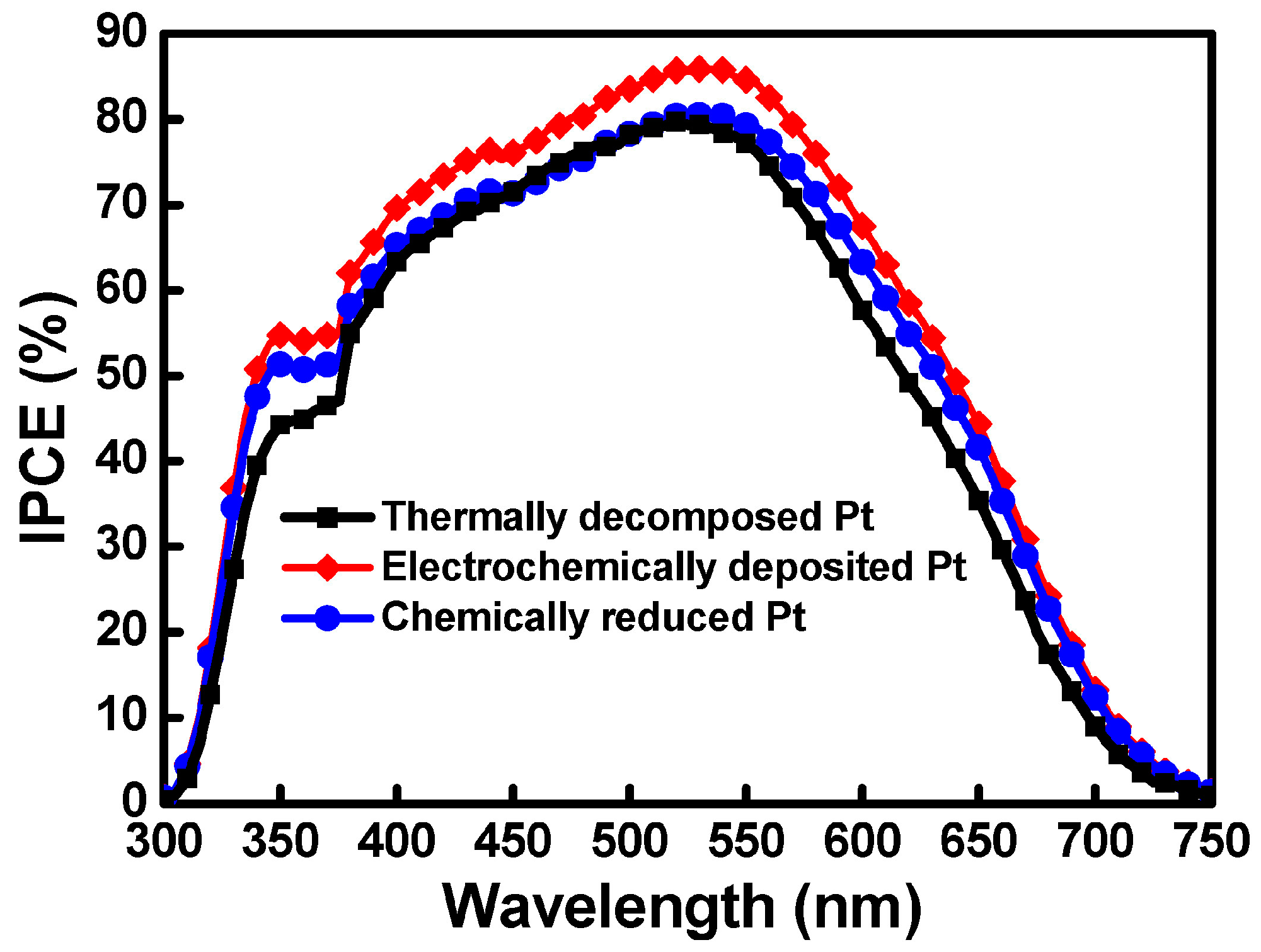

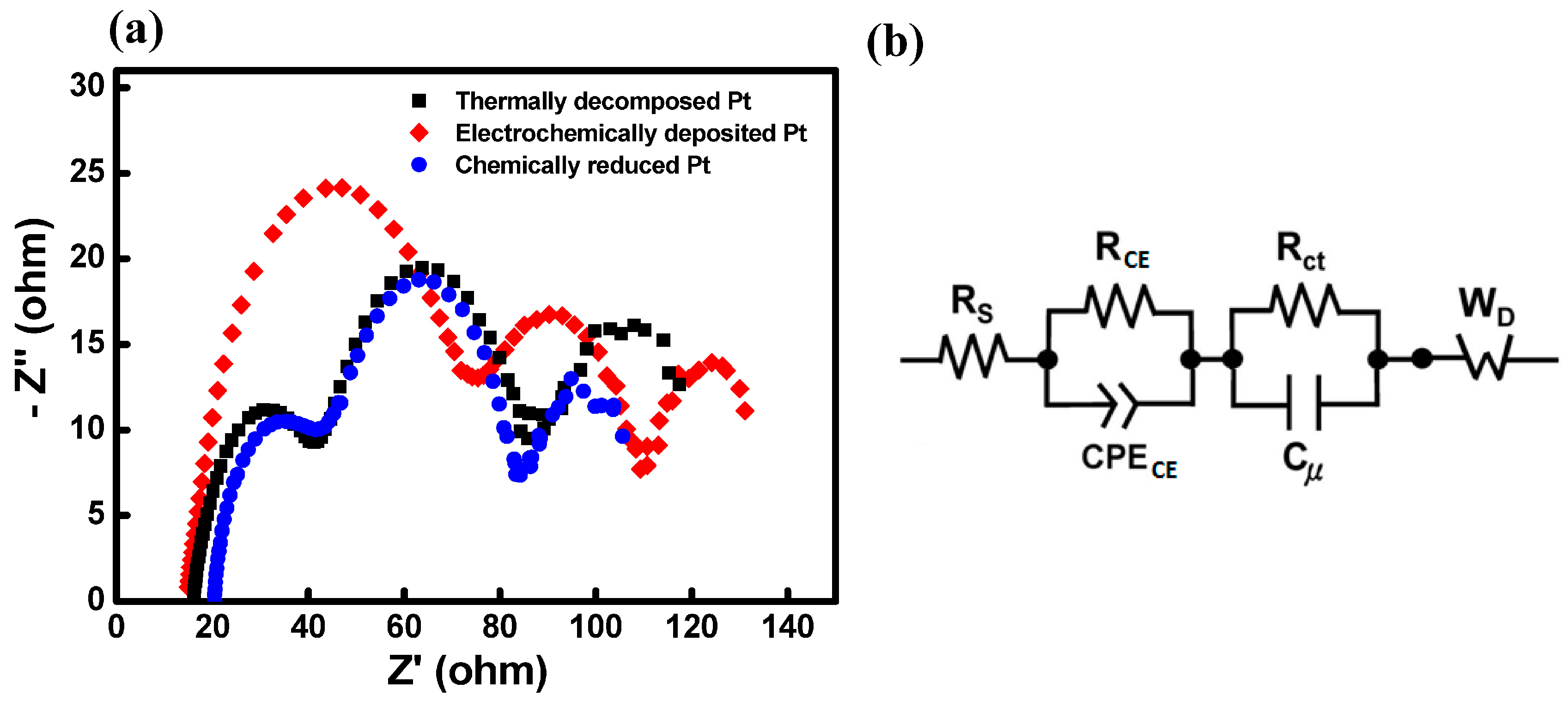

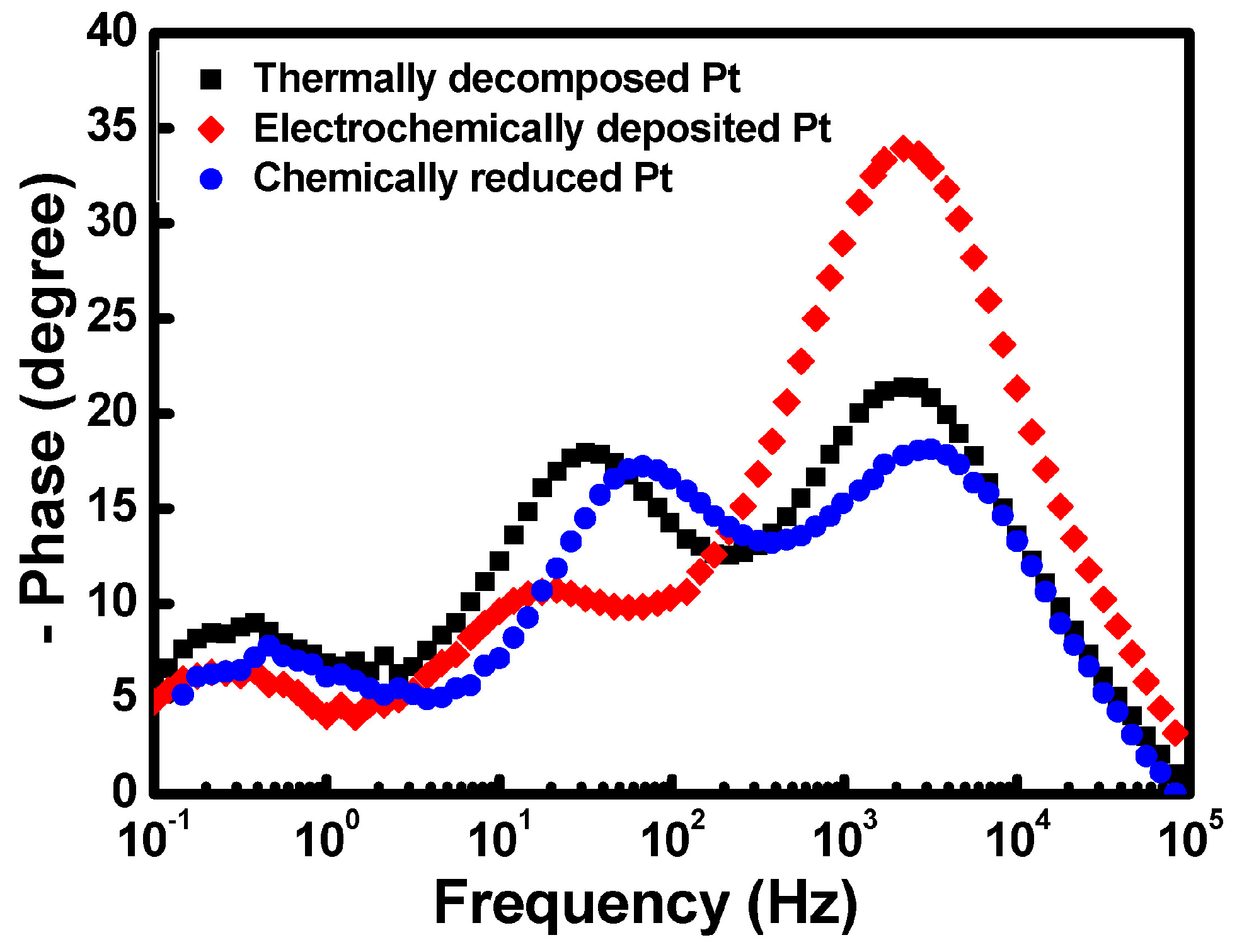

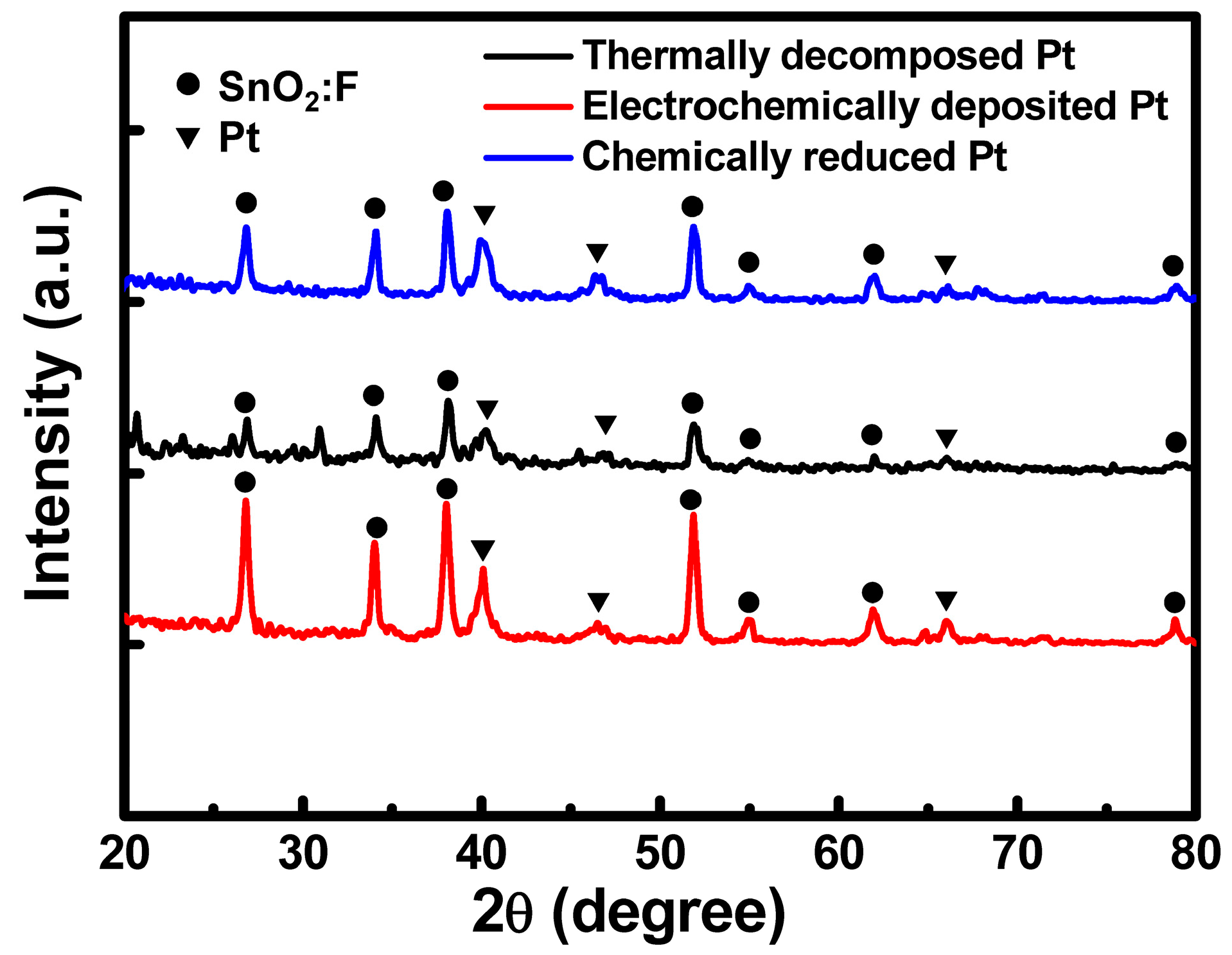

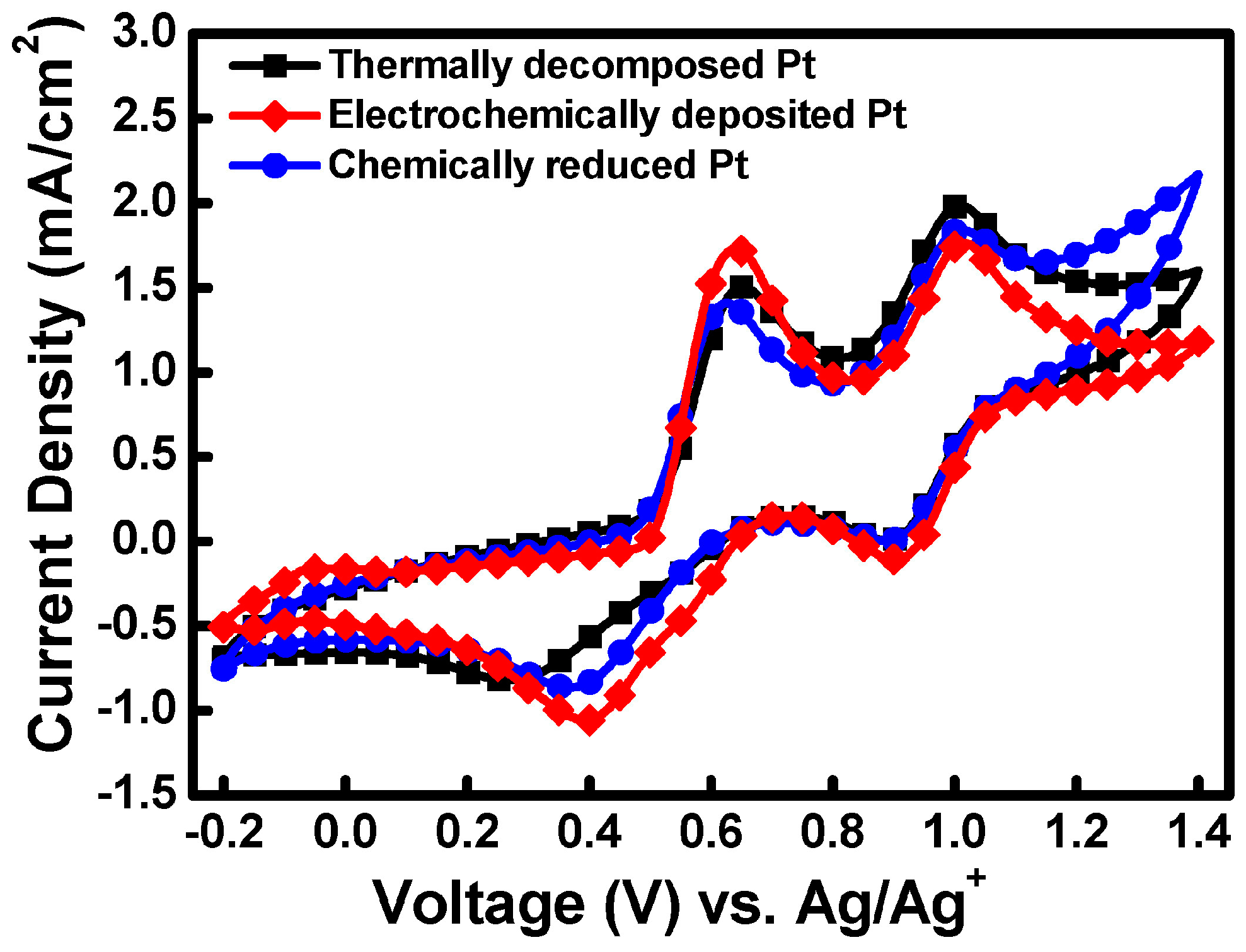

In this paper, we demonstrated that platinum (Pt) counter electrodes (CEs) fabricated using electrochemical deposition and chemical reduction can replace conventional high-temperature thermally decomposed Pt electrodes. In this study, Pt electrodes were fabricated using thermal decomposition, electrochemical deposition, and chemical reduction, and the influence of the different Pt counter electrodes on the efficiency of the dye-sensitized solar cells (DSSCs) was analyzed. The properties of the various Pt CEs were analyzed using scanning electron microscopy (SEM), surface area analysis, X-ray diffraction (XRD), electrochemical impedance spectroscopy (EIS), and cyclic voltammetry (CV). DSSCs with various Pt CEs were characterized using current density-voltage (J-V), incident photo-current conversion efficiency (IPCE), and EIS measurements. The results show that the power conversion efficiencies of these three types of DSSC devices were between 7.43% and 7.72%. The DSSCs based on the Pt electrode fabricated through electrochemical deposition exhibited the optimal power conversion efficiency. Because the processes of electrochemical deposition and chemical reduction do not require high-temperature sintering, these two methods are suitable for the fabrication of Pt on flexible plastic substrates. View Full-Text
Keywords: dye-sensitized solar cell; counter electrode; platinum; thermal decomposition; electrochemical deposition; chemical reduction dye-sensitized solar cell; counter electrode; platinum; thermal decomposition; electrochemical deposition; chemical reduction
Figures

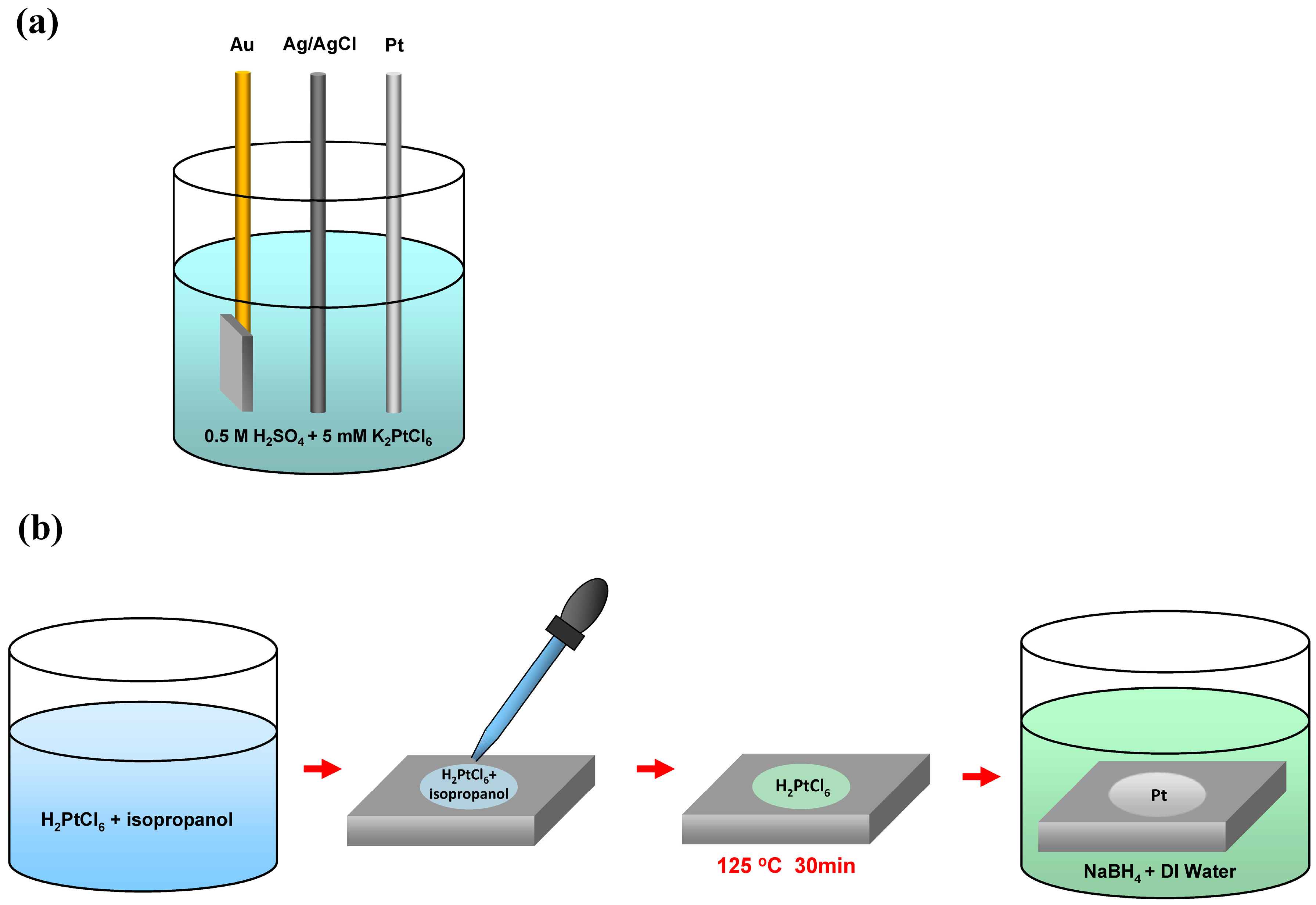

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Tsai, C.-H.; Hsiao, Y.-C.; Chuang, P.-Y. Investigation of Electrochemically Deposited and Chemically Reduced Platinum Nanostructured Thin Films as Counter Electrodes in Dye-Sensitized Solar Cells. Coatings 2018, 8, 56.
