Next Article in Journal
Barrier Heights of Au on Diamond with Different Terminations Determined by X-ray Photoelectron Spectroscopy
Next Article in Special Issue
Influence of Process Parameters on High Velocity Oxy-Fuel Sprayed Cr3C2-25%NiCr Coatings
Previous Article in Journal
Oxidation Behavior and Mechanism of Al4SiC4 in MgO-C-Al4SiC4 System
Previous Article in Special Issue
Stiffness of Plasma Sprayed Thermal Barrier Coatings
Article Menu
Issue 7 (July) cover image

Export Article

Open AccessArticle
Coatings 2017, 7(7), 87; https://doi.org/10.3390/coatings7070087

Effect of Cold-Spray Conditions Using a Nitrogen Propellant Gas on AISI 316L Stainless Steel-Coating Microstructures

Research Division of Metal Finishing and Analysis, Osaka Research Institute of Industrial Science and Technology, Ayumino 2-7-1, Izumi 594-1157, Japan
*
Author to whom correspondence should be addressed.
Received: 7 March 2017 / Revised: 23 June 2017 / Accepted: 24 June 2017 / Published: 28 June 2017
(This article belongs to the Special Issue Thermal Spray Technology)
View Full-Text   |   Download PDF [5630 KB, uploaded 28 June 2017]   |

Abstract

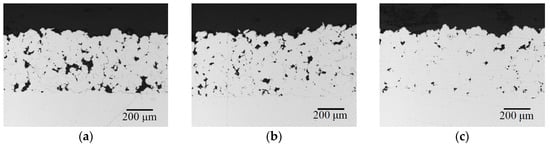

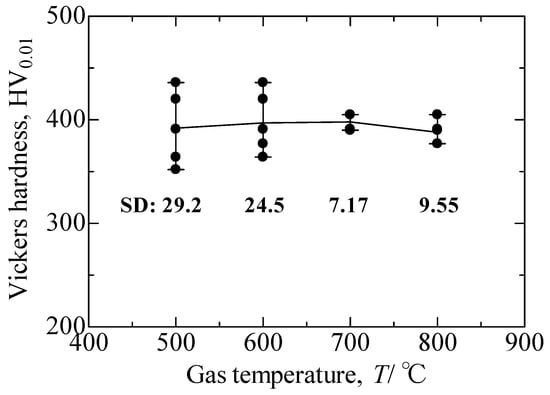

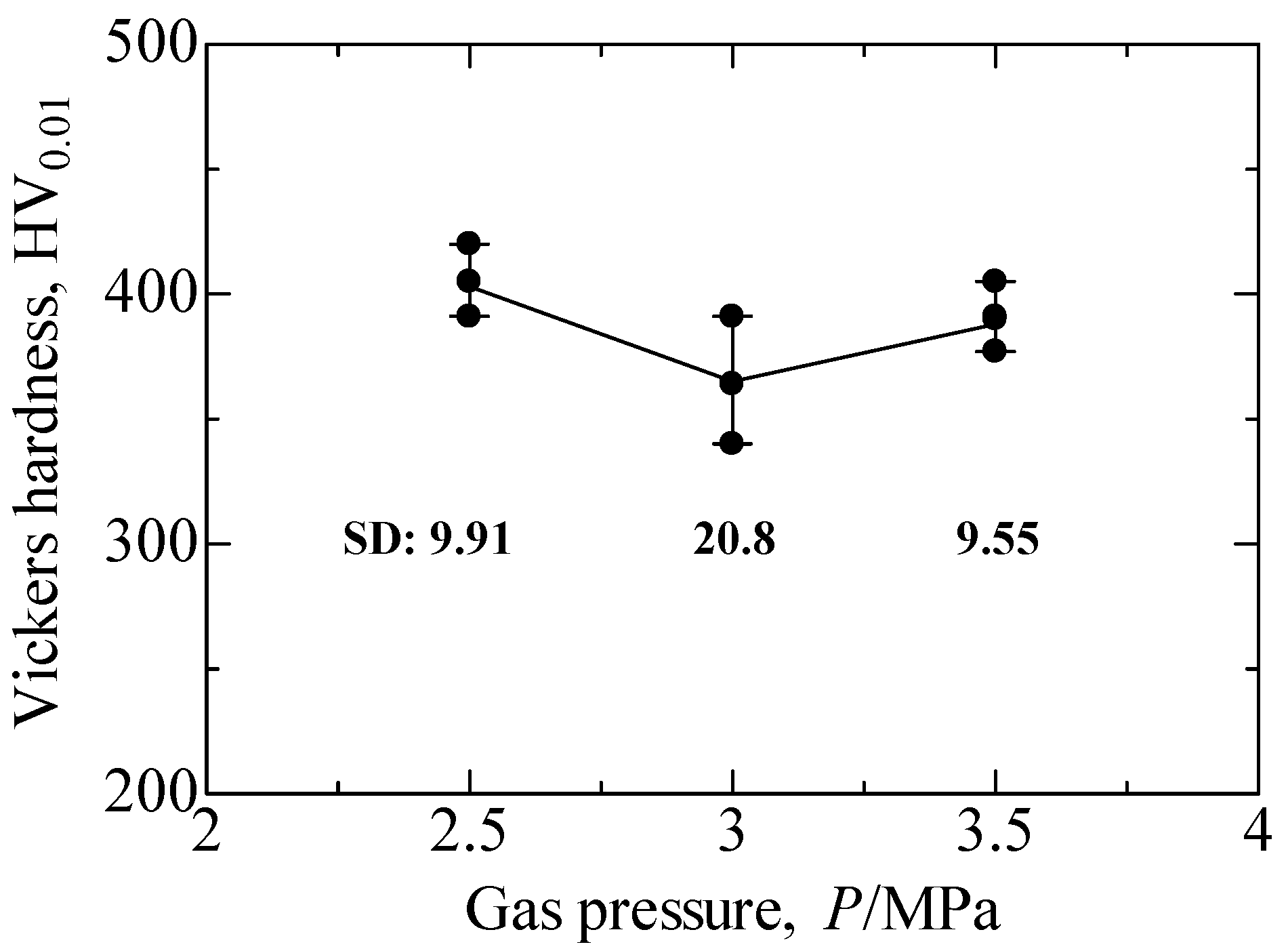

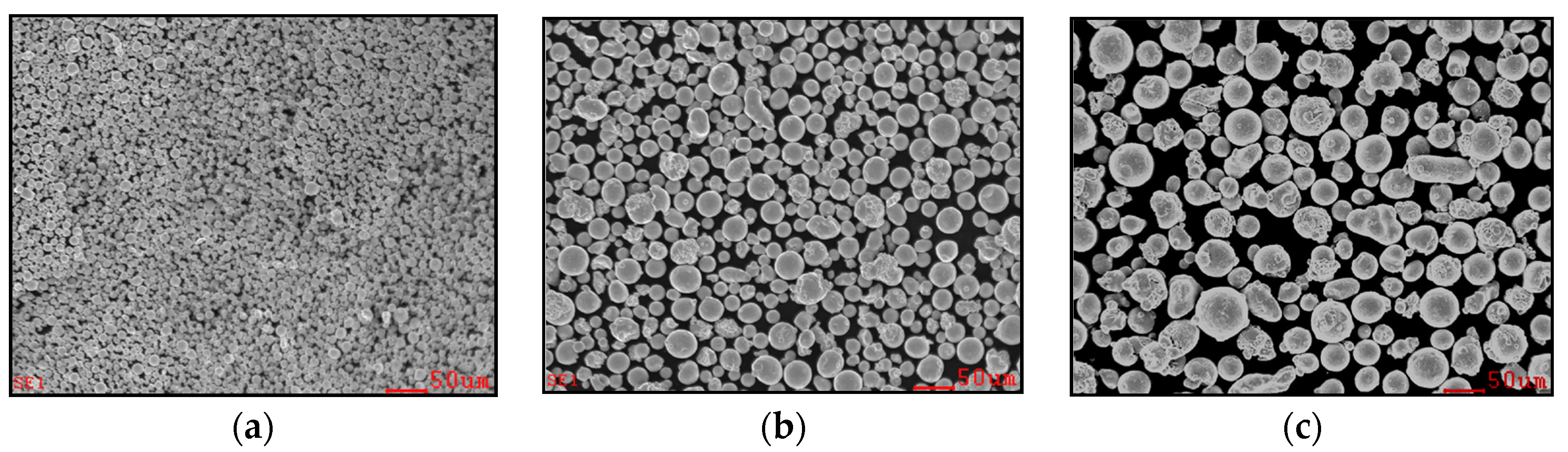

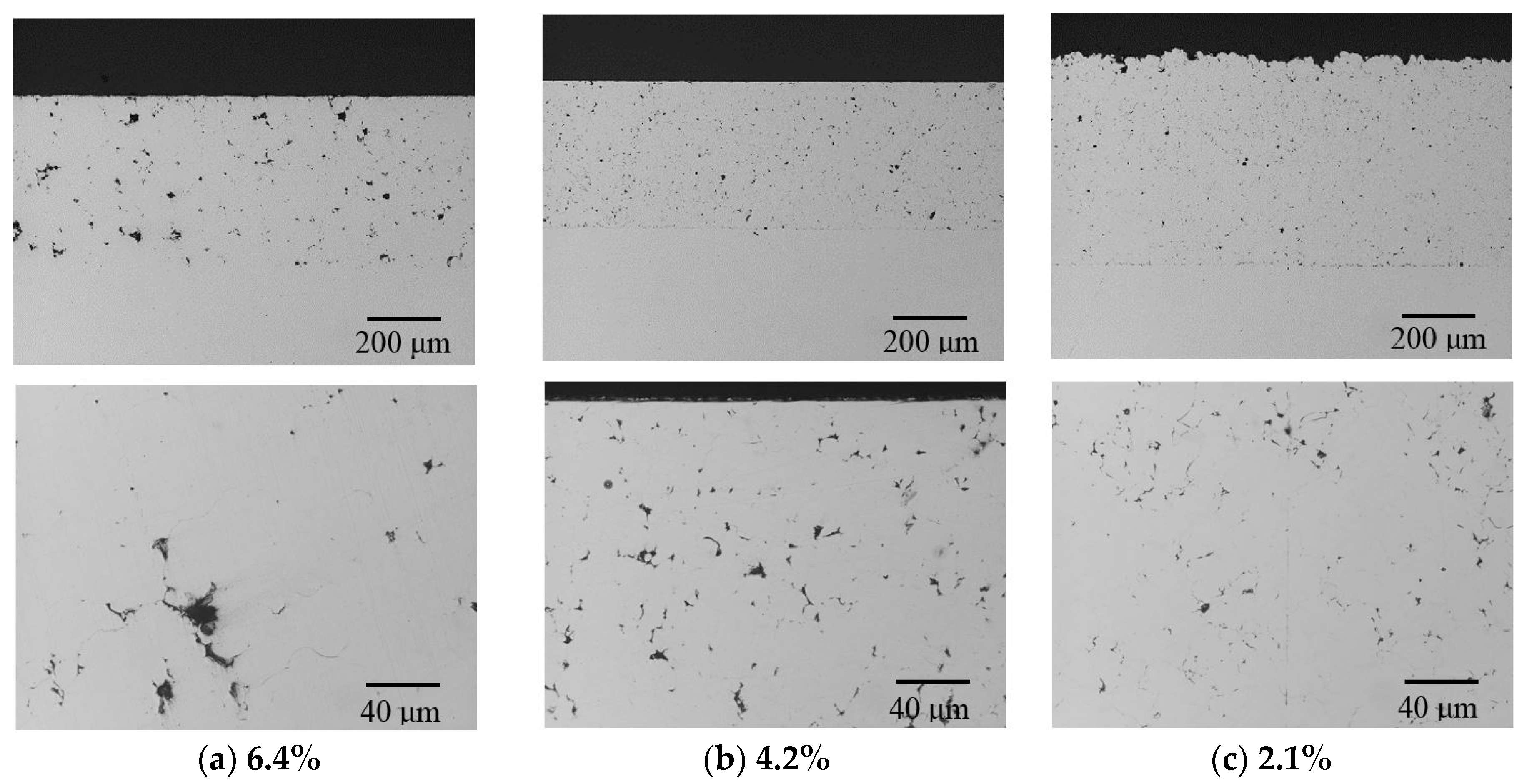

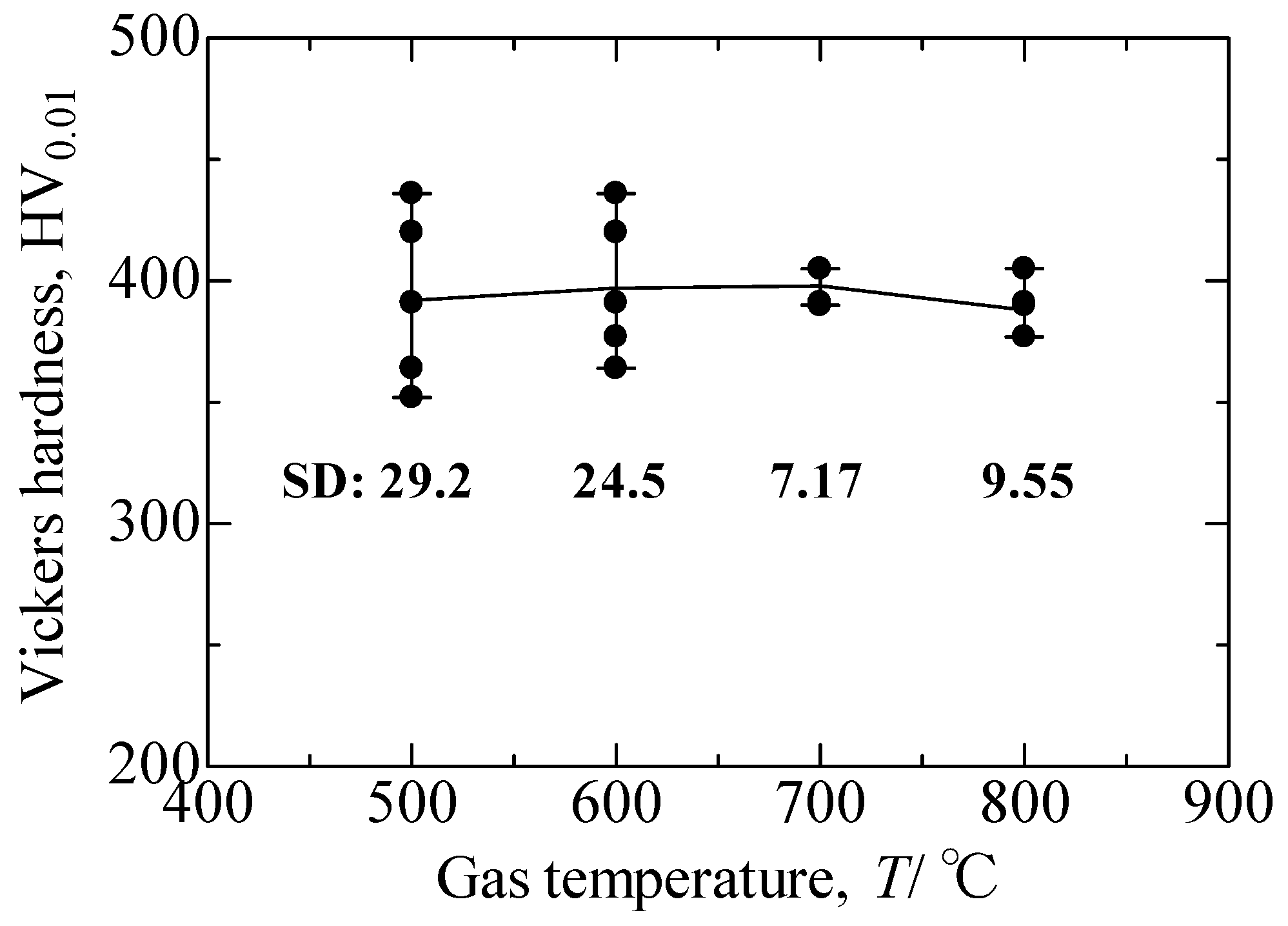

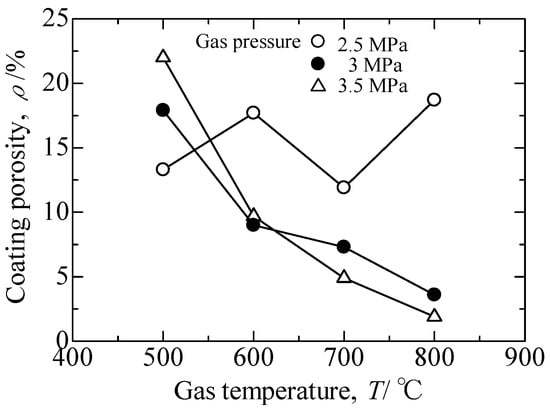

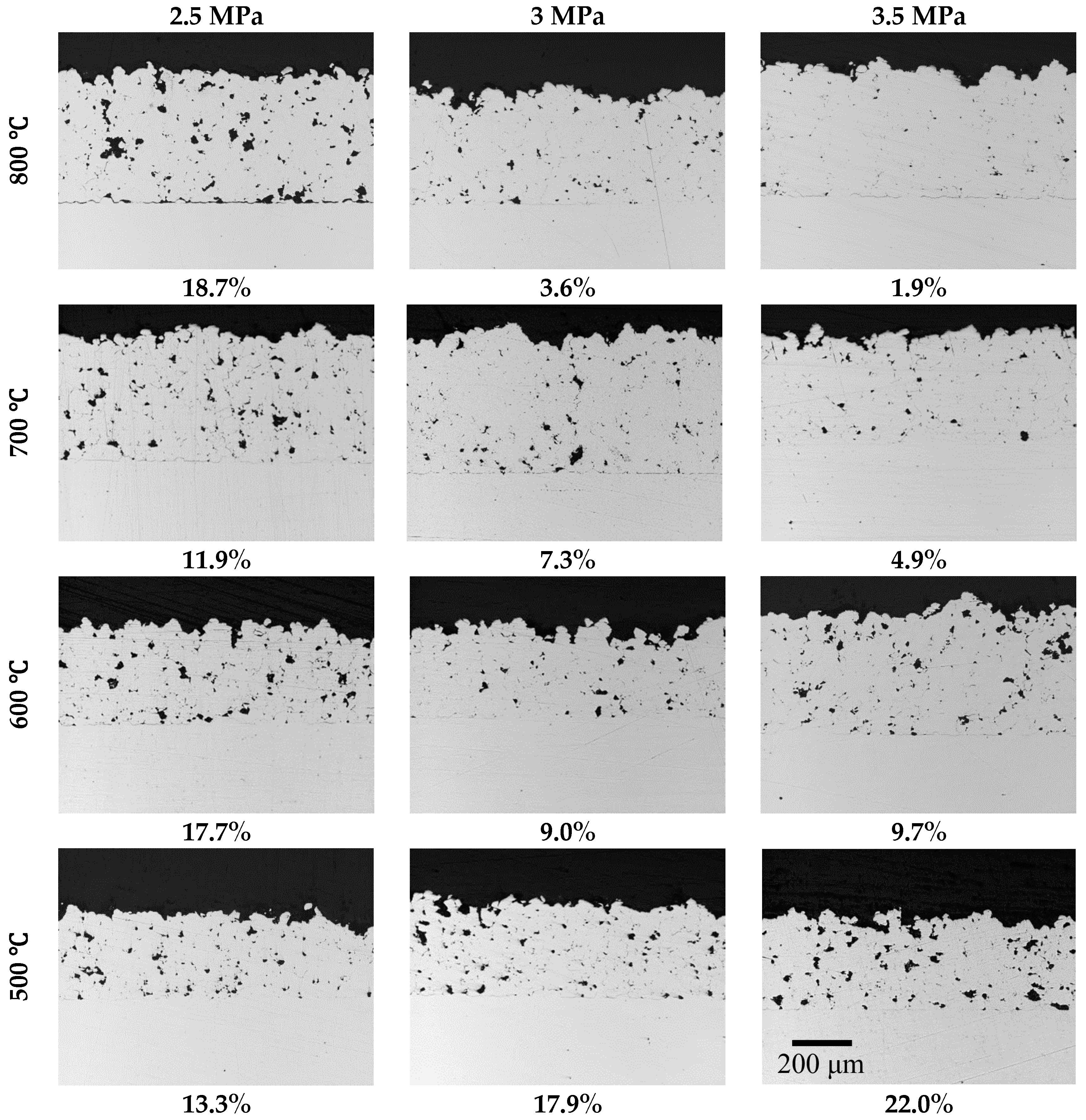

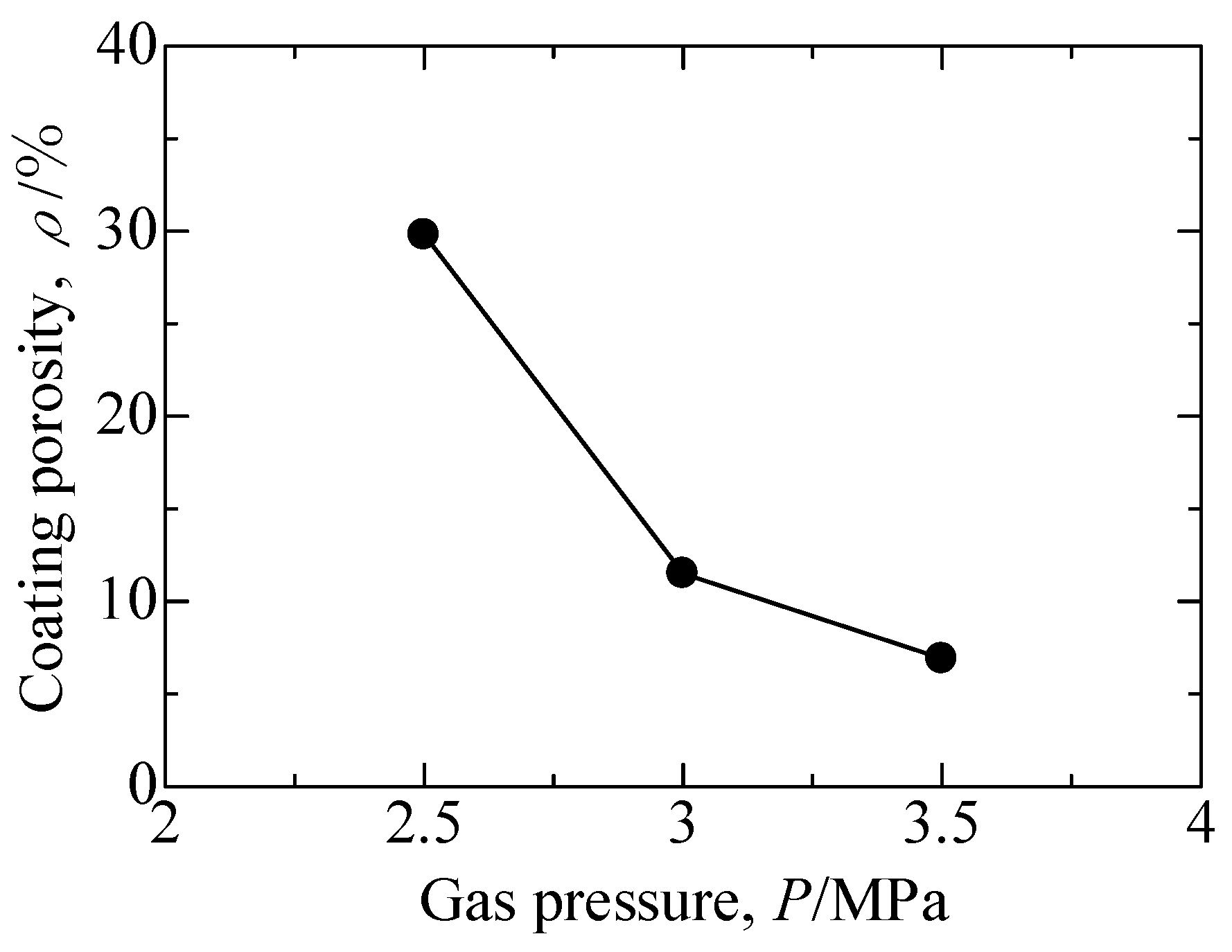

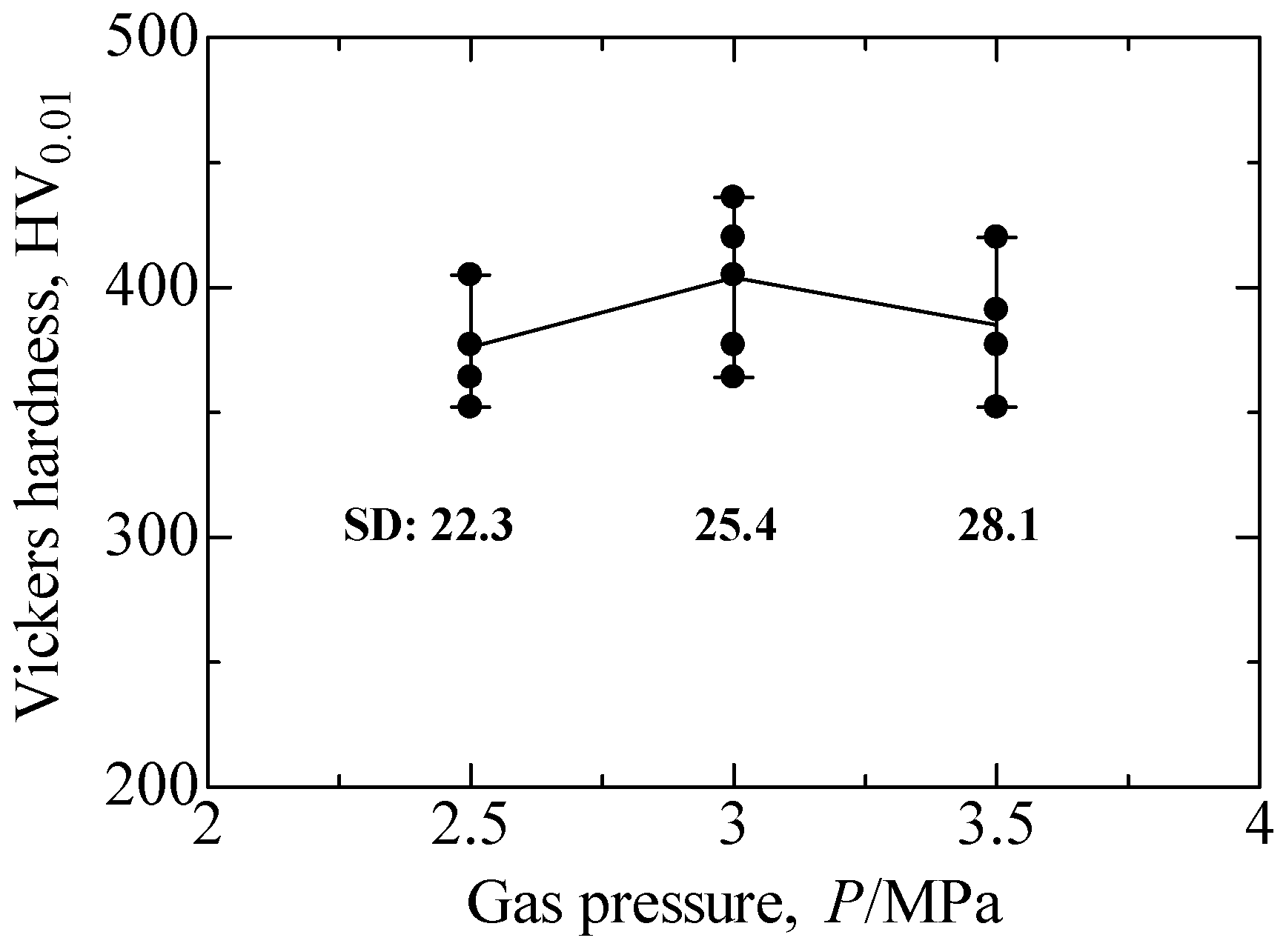

Cold-spray techniques have been a significant development for depositing metal coatings in recent years. In cold-spray processes, inexpensive nitrogen gas is widely used as the propellant gas in many industries. However, it is difficult to produce austenitic stainless steel coatings with dense microstructures with cold-spray techniques when using nitrogen propellant gas because of work hardening. In this study, the effects of cold-spray conditions using a nitrogen propellant gas on AISI 316L stainless steel coatings were examined. It was found that a higher nitrogen propellant gas temperature and pressure produce coatings with dense microstructures. The measured AISI 316L coating hardness values suggest that AISI 316L particles sprayed at temperatures of 700 and 800 °C soften due to the heat, allowing uniform deformation on the substrate and consequently forming dense coating microstructures. In addition, AISI 316L powder with particle diameters of 5–20 µm resulted in a denser coating microstructure than powder with particle diameters of 10–45 and 20–53 µm. Finally, the standoff distance between the nozzle and the substrate also affected the AISI 316L coating microstructures; a standoff distance of 40 mm produced the densest microstructure. View Full-Text
Keywords: cold-spraying; AISI 316L stainless steel; microstructure; porosity; hardness cold-spraying; AISI 316L stainless steel; microstructure; porosity; hardness
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Adachi, S.; Ueda, N. Effect of Cold-Spray Conditions Using a Nitrogen Propellant Gas on AISI 316L Stainless Steel-Coating Microstructures. Coatings 2017, 7, 87.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
