Open AccessArticle
Coatings 2017, 7(2), 23; doi:10.3390/coatings7020023

Silicides and Nitrides Formation in Ti Films Coated on Si and Exposed to (Ar-N2-H2) Expanding Plasma

1
Faculté des Sciences et Techniques, Université de Limoges, CNRS, ENSCI, SPCTS, UMR7315, CEC, 12 rue Atlantis, F-87068 Limoges, France
2
Institut Jean Lamour, CNRS, Université de Lorraine, UMR7198, Parc de Saurupt F-54011 Nancy, France
3
Faculté des Sciences et Techniques, Université de Limoges, CNRS, XLIM, UMR6172, 123 av. A. Thomas, F-87060 Limoges, France
*
Author to whom correspondence should be addressed.
Academic Editors: Alessandro Lavacchi and Yasutaka Ando
Received: 20 September 2016 / Revised: 20 January 2017 / Accepted: 4 February 2017 / Published: 8 February 2017
View Full-Text   |   Download PDF [2589 KB, uploaded 8 February 2017]   |

Abstract

The physical properties including the mechanical, optical and electrical properties of Ti nitrides and silicides are very attractive for many applications such as protective coatings, barriers of diffusion, interconnects and so on. The simultaneous formation of nitrides and silicides in Ti films improves their electrical properties. Ti films coated on Si wafers are heated at various temperatures and processed in expanding microwave (Ar-N2-H2) plasma for various treatment durations. The Ti-Si interface is the centre of Si diffusion into the Ti lattice and the formation of various Ti silicides, while the Ti surface is the centre of N diffusion into the Ti film and the formation of Ti nitrides. The growth of silicides and nitrides gives rise to two competing processes which are thermodynamically and kinetically controlled. The effect of thickness on the kinetics of the formation of silicides is identified. The metastable C49TiSi2 phase is the main precursor of the stable C54TiSi2 phase, which crystallizes at about 600 °C, while TiN crystallizes at about 800 °C. View Full-Text
Keywords: expanding plasma; nitriding process; thin films; titanium silicides; titanium nitrides; X-ray diffraction; Raman spectroscopy; secondary ion mass spectrometry; transmission electron microscopy expanding plasma; nitriding process; thin films; titanium silicides; titanium nitrides; X-ray diffraction; Raman spectroscopy; secondary ion mass spectrometry; transmission electron microscopy
Figures

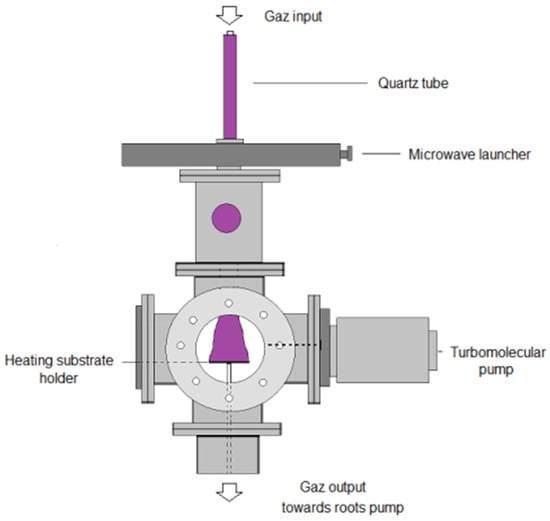

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
