Next Article in Journal
Investigation of Droplet Atomization and Evaporation in Solution Precursor Plasma Spray Coating
Previous Article in Journal
Suppression of Graphene Nucleation by Turning Off Hydrogen Supply Just before Atmospheric Pressure Chemical Vapor Deposition Growth
Previous Article in Special Issue
Effect of Initial Surface Roughness on Cavitation Erosion Resistance of Arc-Sprayed Fe-Based Amorphous/Nanocrystalline Coatings
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Coatings 2017, 7(11), 202; doi:10.3390/coatings7110202

Wear Transition of CrN Coated M50 Steel under High Temperature and Heavy Load

1
Research Lab of Space & Aerospace Tribology, Harbin Institute of Technology, Harbin 150001, China
2
School of Material Science and Technology, Harbin Institute of Technology, Harbin 150001, China
*
Author to whom correspondence should be addressed.
Academic Editor: Shiladitya Paul
Received: 22 September 2017 / Revised: 3 November 2017 / Accepted: 15 November 2017 / Published: 20 November 2017
(This article belongs to the Special Issue Coatings for Harsh Environments)
View Full-Text   |   Download PDF [12761 KB, uploaded 20 November 2017]   |

Abstract

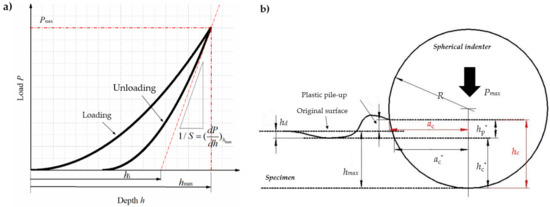

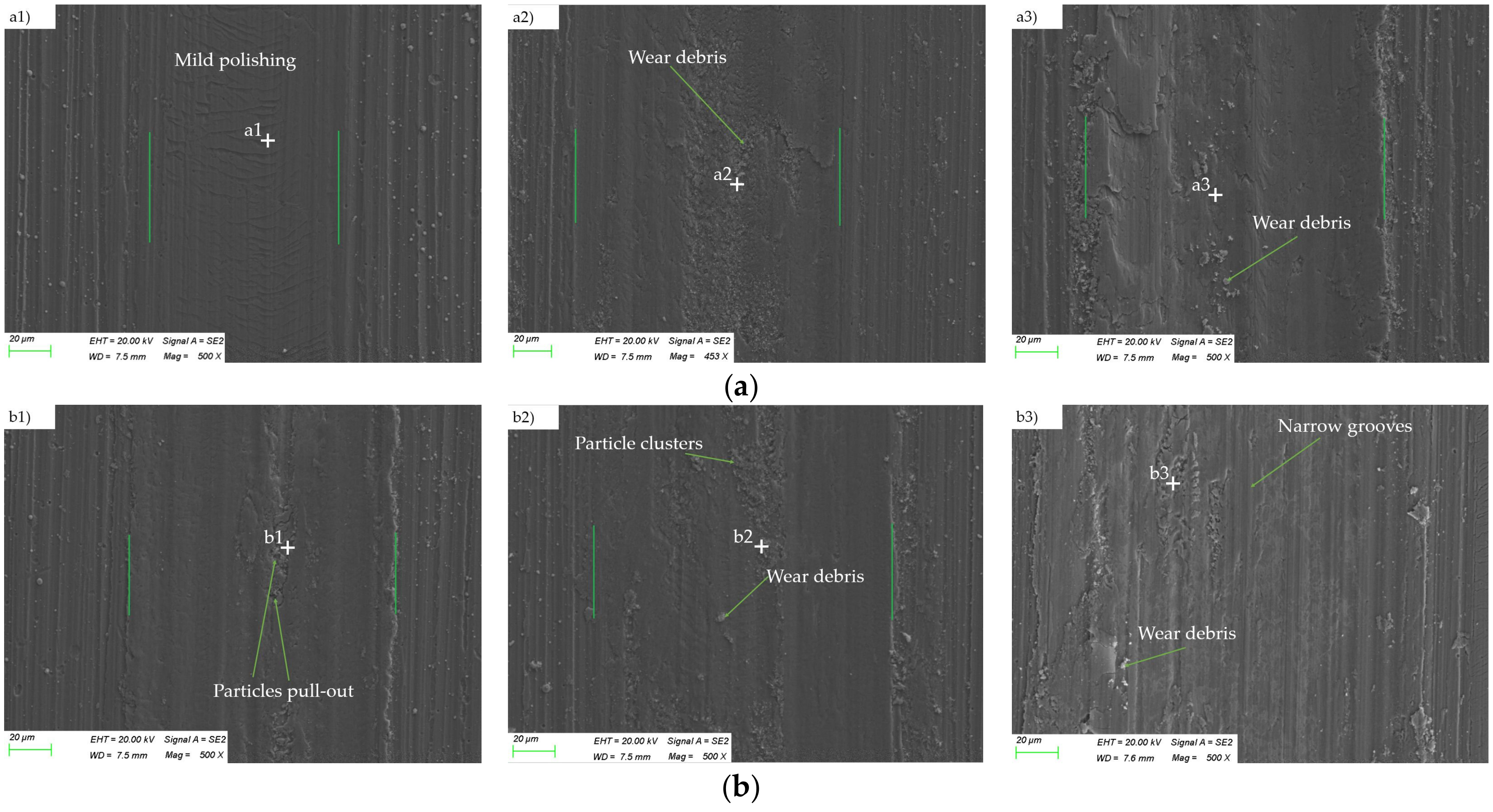

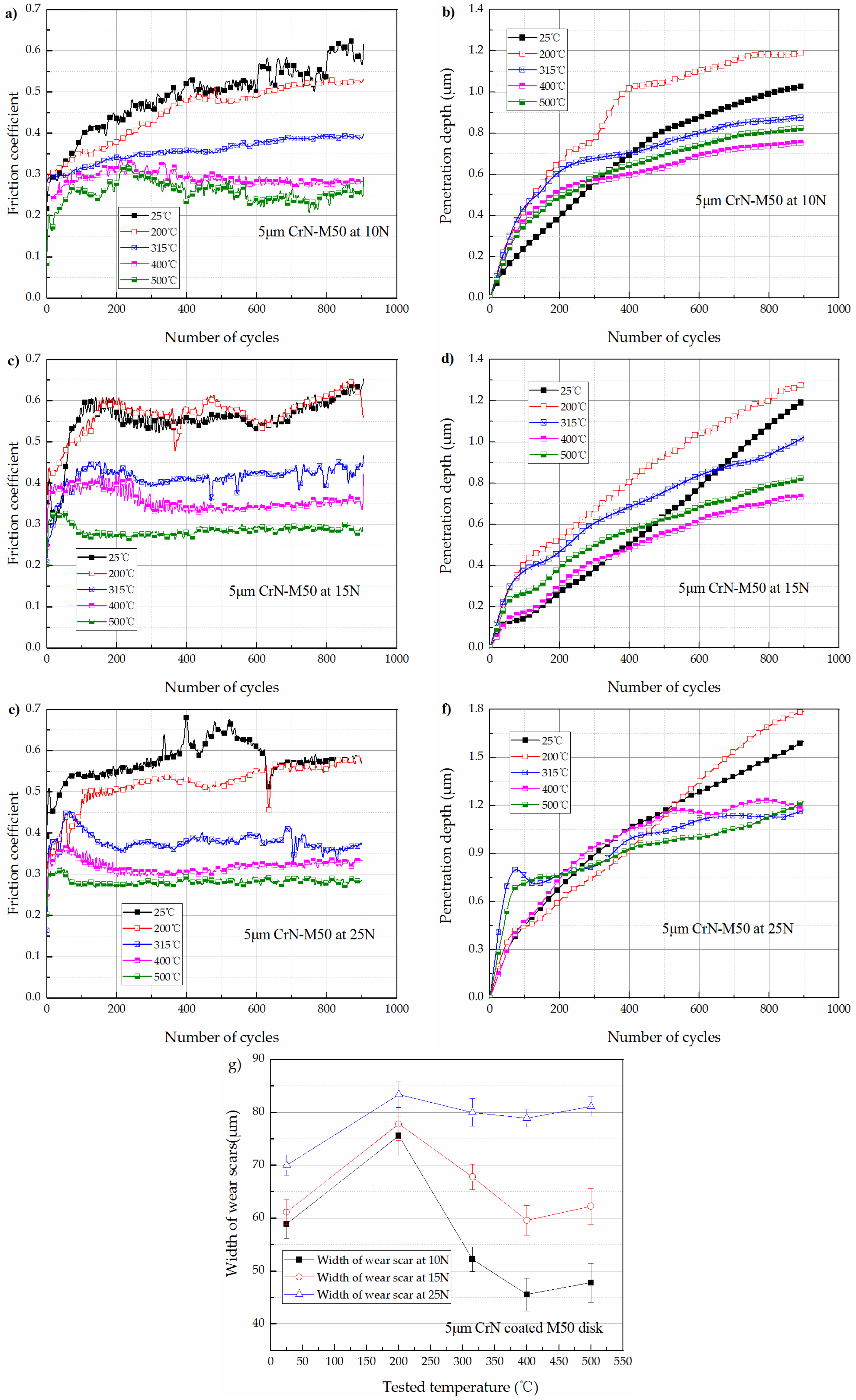

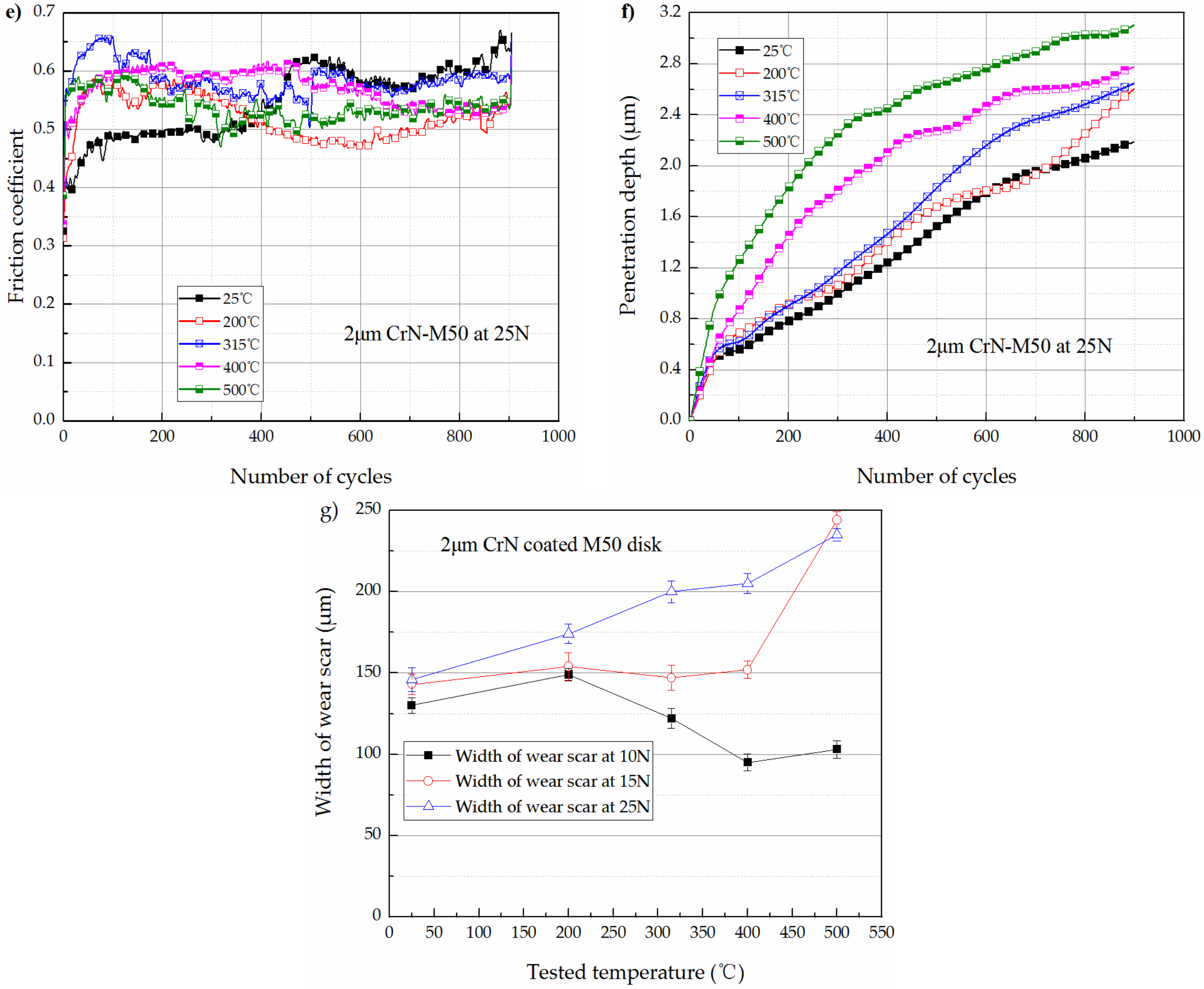

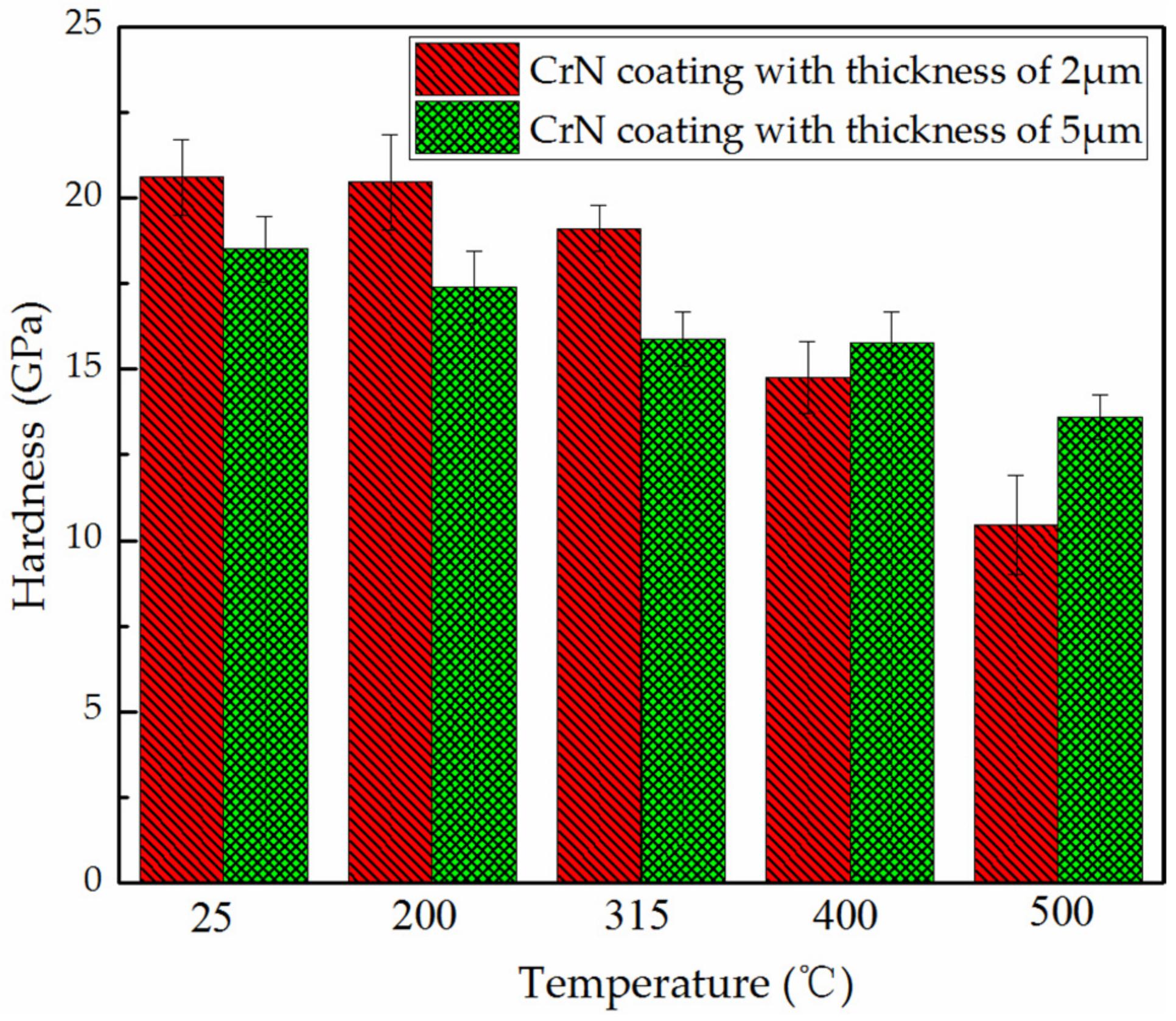

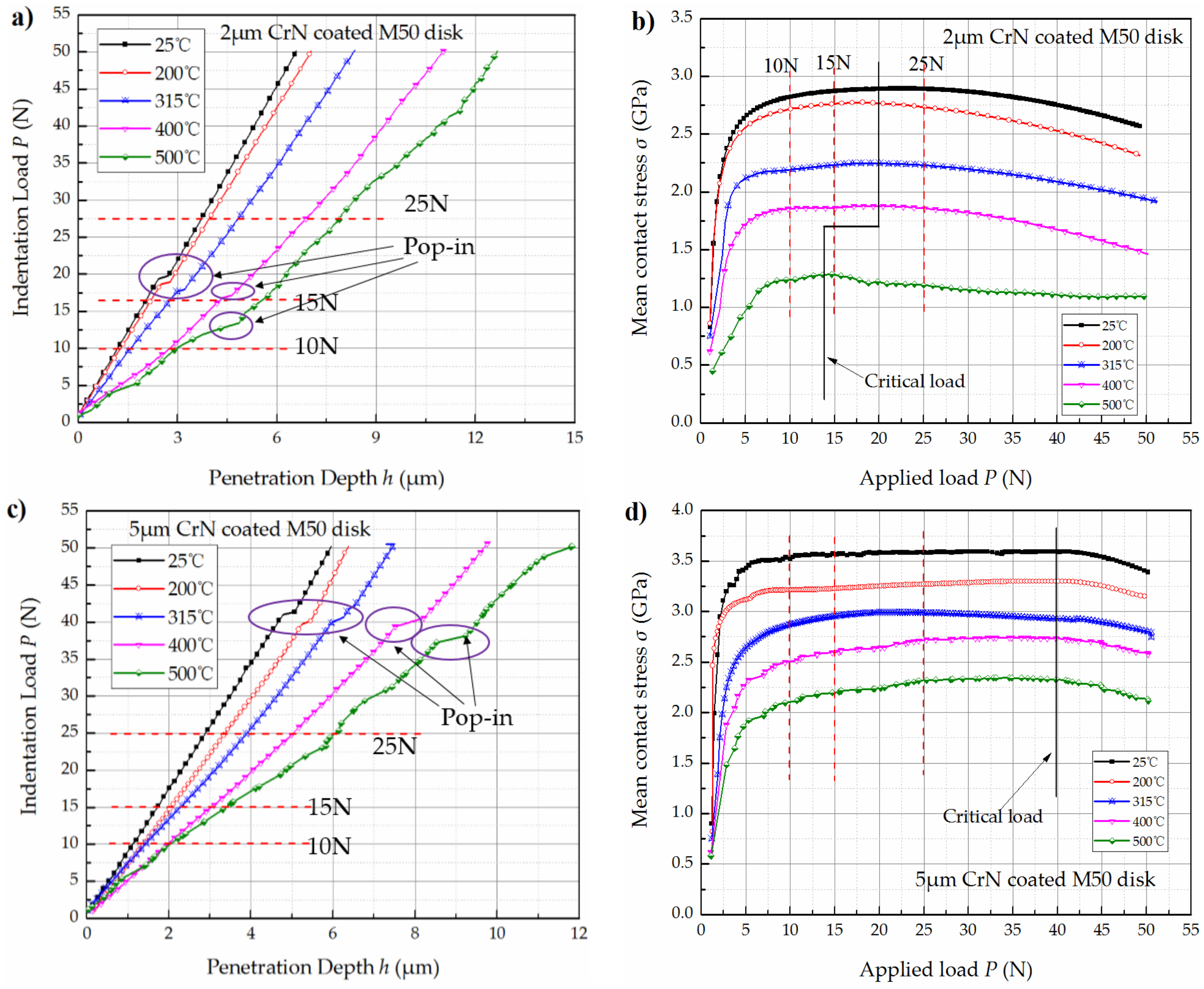

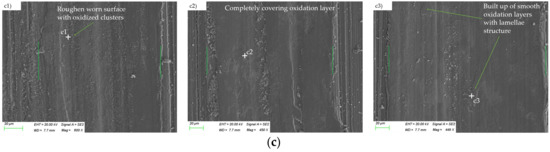

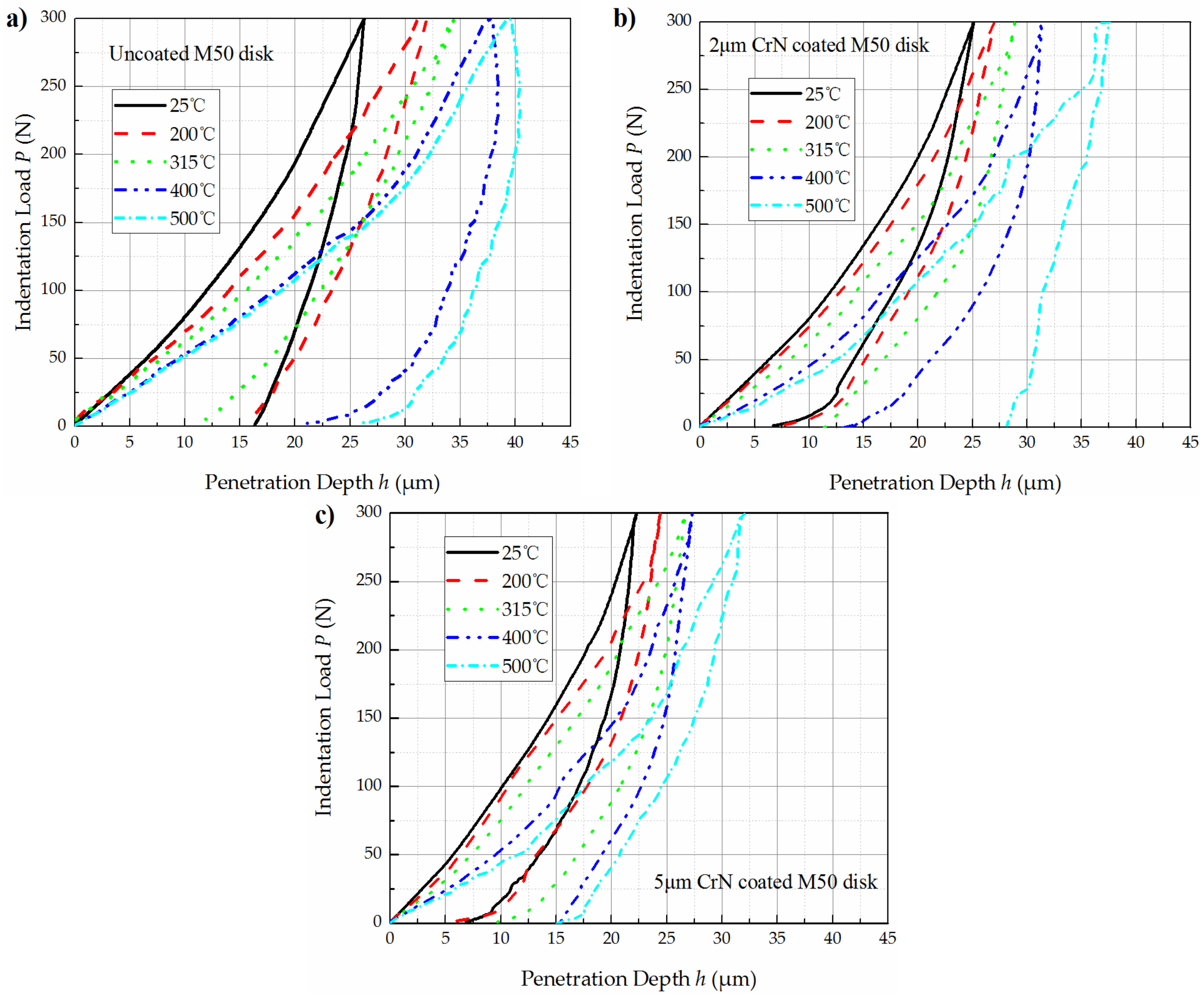

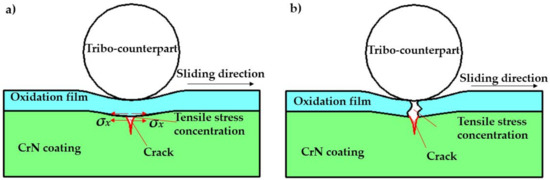

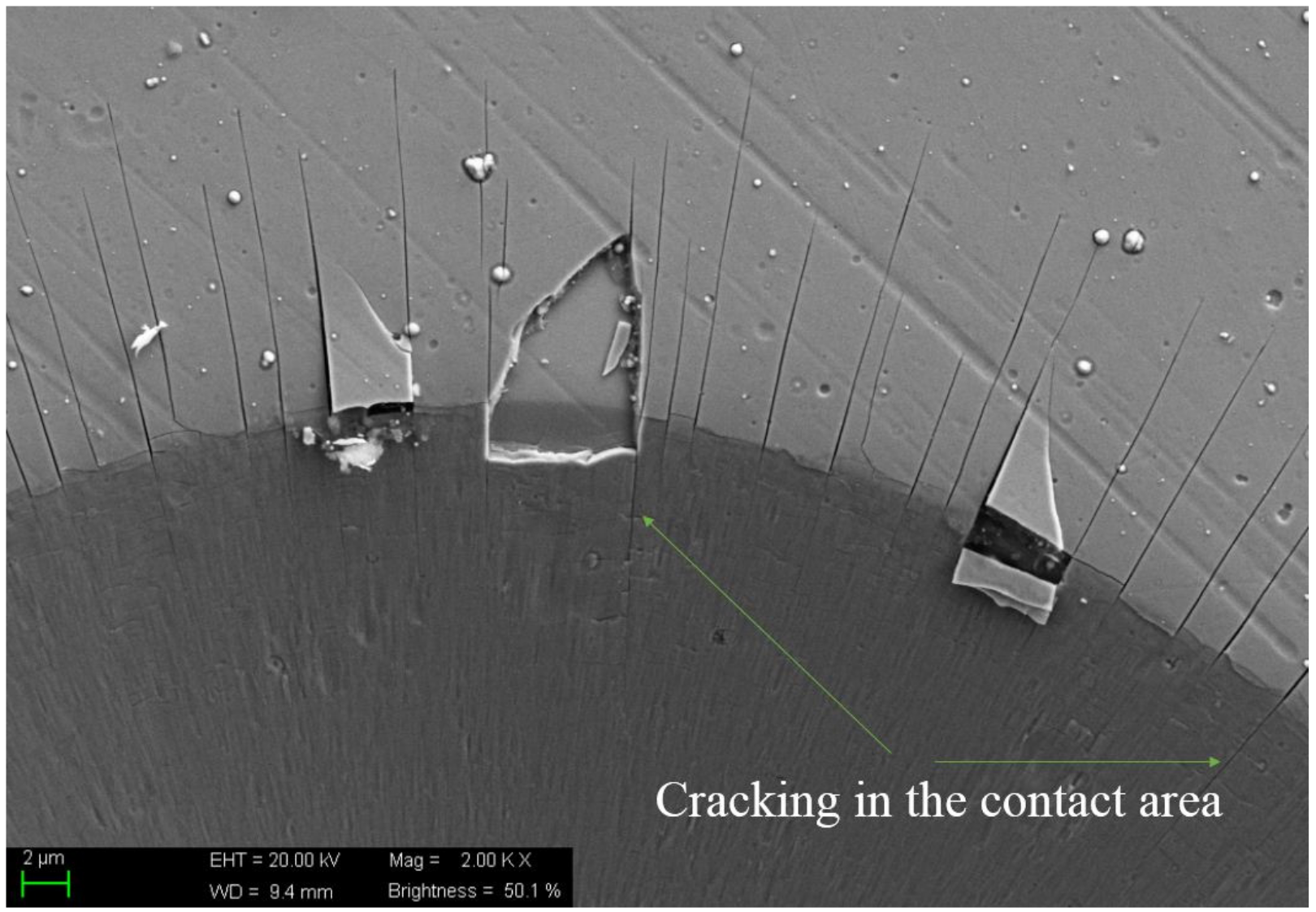

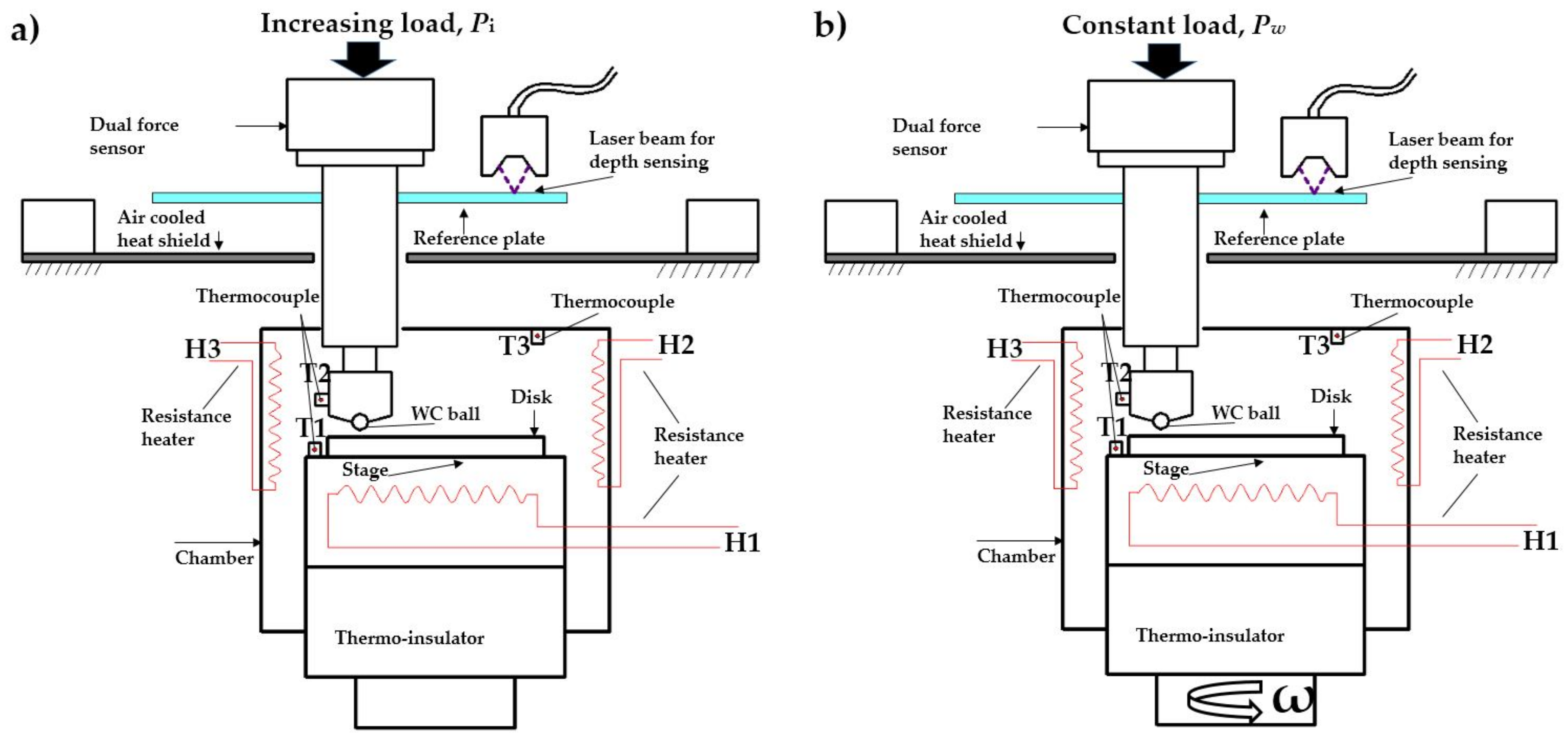

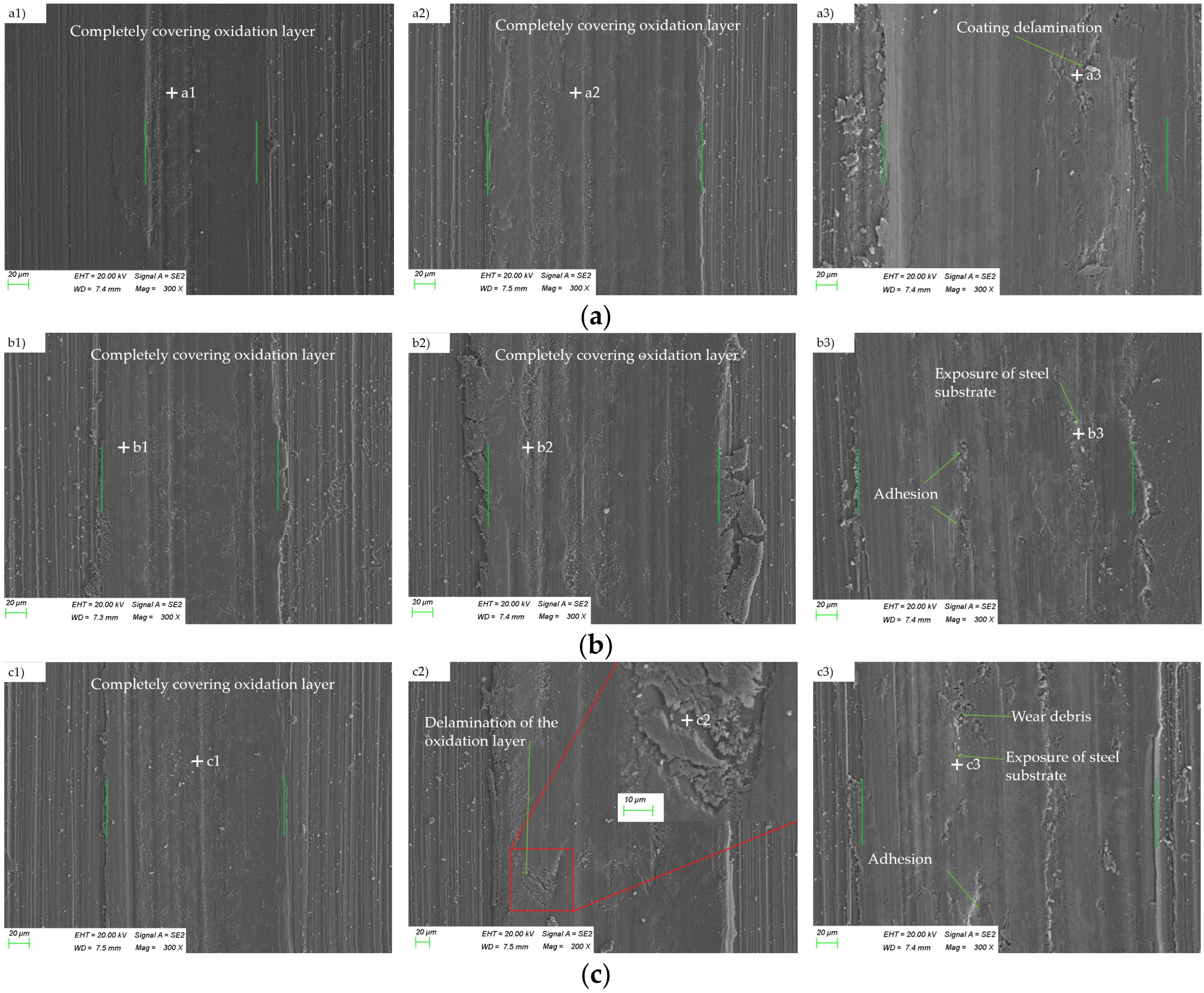

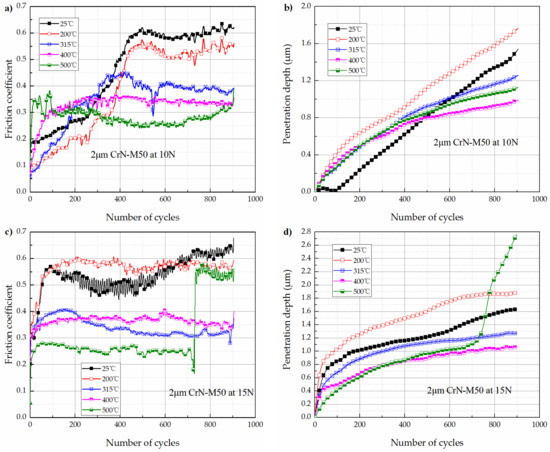

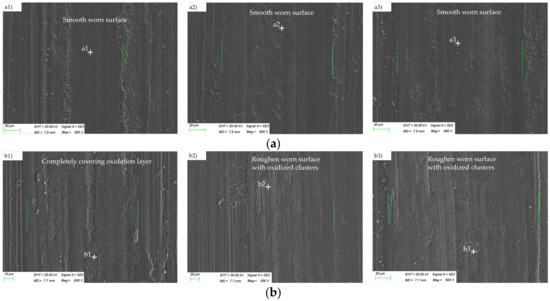

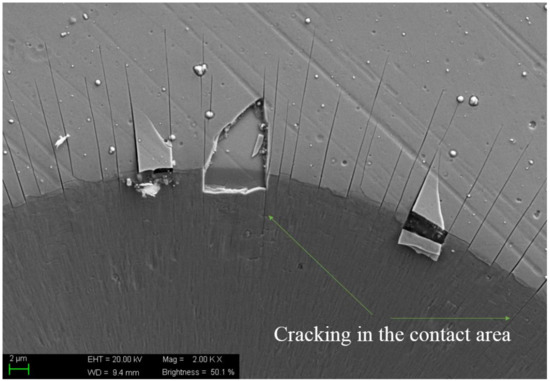

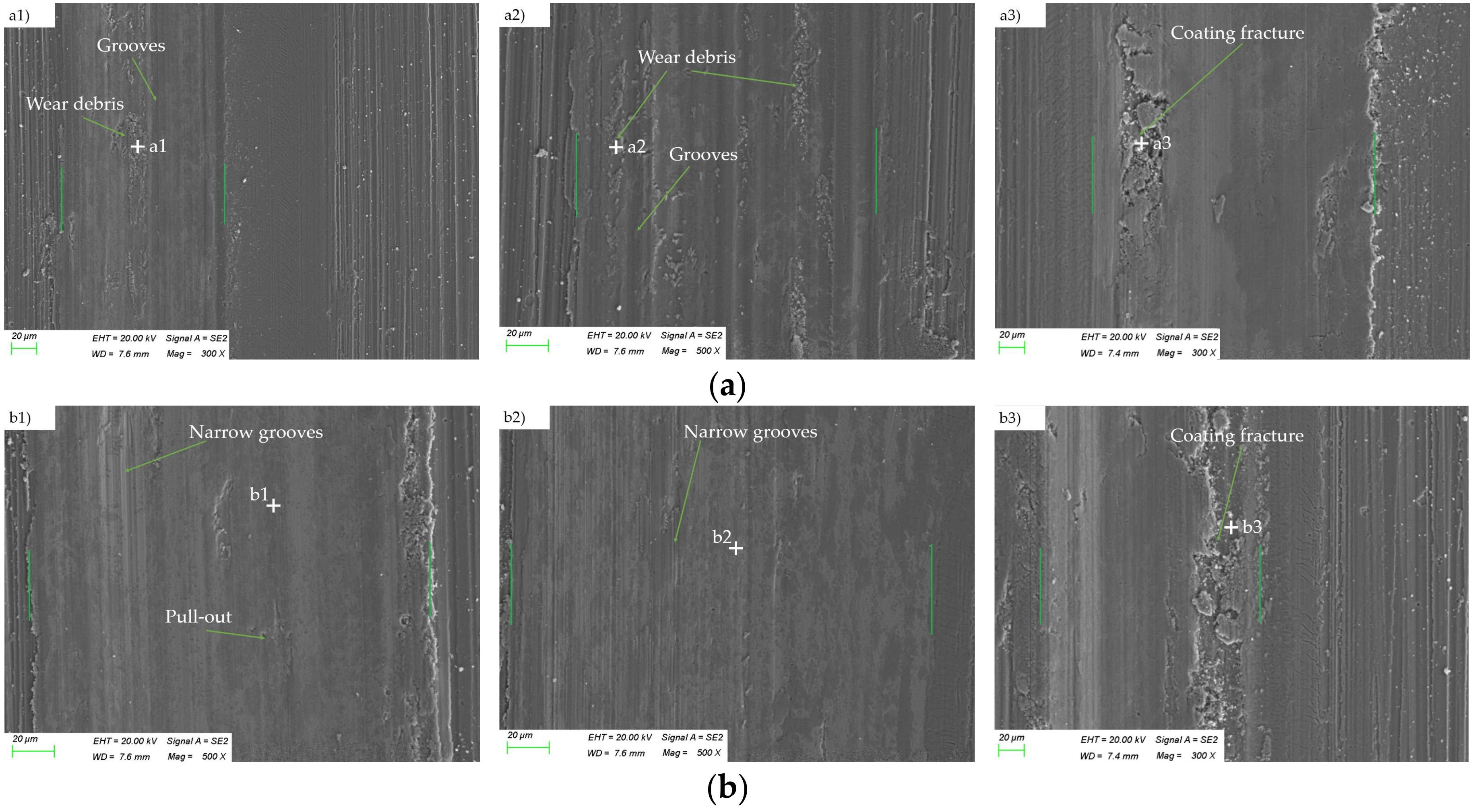

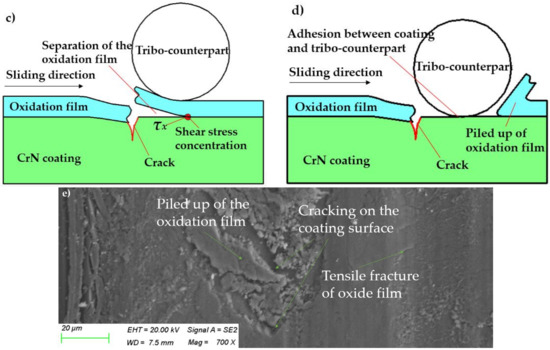

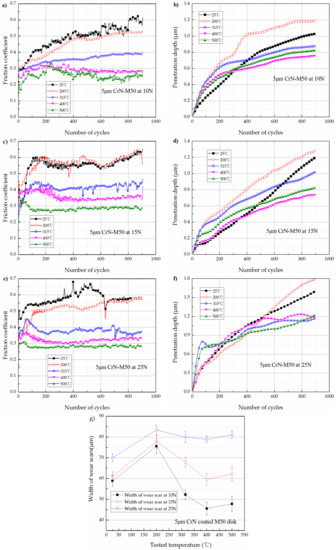

The combination of high temperature indentation and wear test provides a useful way to investigate wear of CrN coating and wear transition mechanisms. In this paper, the high temperature hardness of CrN coatings and load bearing capacity, Lb, of CrN coated M50 disks were determined from spherical indentation at temperatures up to 500 °C. Wear tests with different normal loads were carried out at the same temperatures as the indentation tests. The results show that wear mechanism of CrN coating changes with external load, P, and temperature, T. Under a tested condition of P < Lb and T < 315 °C, abrasive is the dominant wear mechanism for CrN coating. Under a tested condition of P < Lb and T ≥ 315 °C, wear of CrN coating transitions into mild oxidation wear due to the lubricating effect of chromium oxide film. Under a tested condition of P > Lb and T < 315 °C, wear of CrN coating was controlled by coating fracture. Under a tested condition of P > Lb and T ≥ 315 °C, wear of CrN coating transitions into the severe wear mode, due to the tensile fracture of oxidation films, thereby leading to adhesion between CrN coating and tribo-counterpart. The presented method can be helpful in predicting permissible load and working temperature in tribological applications of CrN coating. View Full-Text
Keywords: CrN coating; high temperature indentation; high temperature mechanical properties; wear mechanism; wear transition CrN coating; high temperature indentation; high temperature mechanical properties; wear mechanism; wear transition
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zhang, C.; Gu, L.; Tang, G.; Mao, Y. Wear Transition of CrN Coated M50 Steel under High Temperature and Heavy Load. Coatings 2017, 7, 202.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
