Next Article in Journal
Microwave-Assisted Dip Coating of Aloe Vera on Metallocene Polyethylene Incorporated with Nano-Rods of Hydroxyapaptite for Bone Tissue Engineering
Previous Article in Journal
Evaluation of Accelerated Ageing Tests for Metallic and Non-Metallic Graffiti Paints Applied to Stone
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Coatings 2017, 7(11), 181; https://doi.org/10.3390/coatings7110181

Inhibitory Properties of Neomycin Thin Film Formed on Carbon Steel in Sulfuric Acid Solution: Electrochemical and AFM Investigation

1
Department of Chemistry, Faculty of Sciences, University of Craiova, Calea Bucuresti 107i, Craiova 200478, Romania
2
Department of Physics, Faculty of Sciences, University of Craiova, A.I. Cuza No. 1, Craiova 200585, Romania
*
Author to whom correspondence should be addressed.
Academic Editor: Giovanni Zangari
Received: 11 August 2017 / Revised: 9 October 2017 / Accepted: 25 October 2017 / Published: 31 October 2017
View Full-Text   |   Download PDF [1834 KB, uploaded 31 October 2017]   |

Abstract

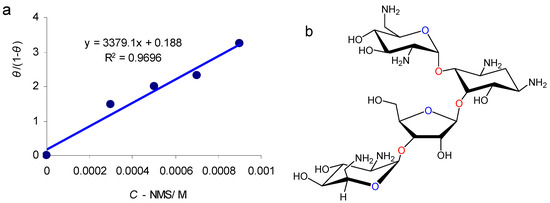

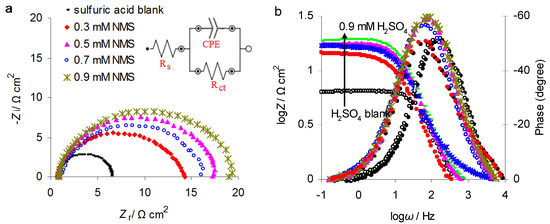

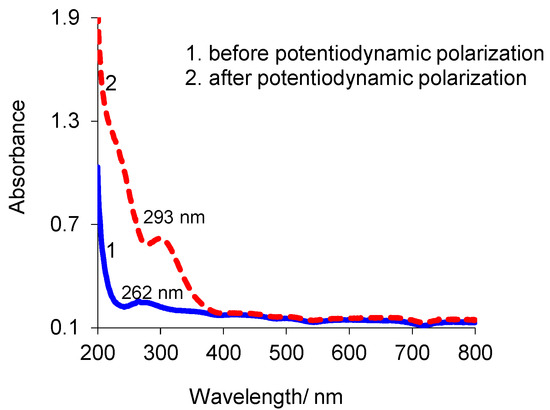

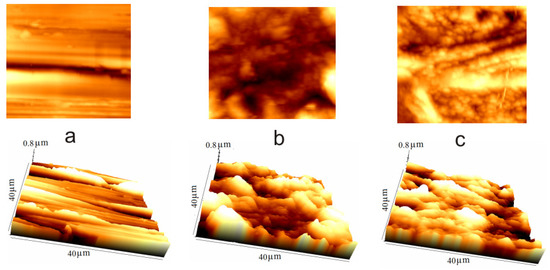

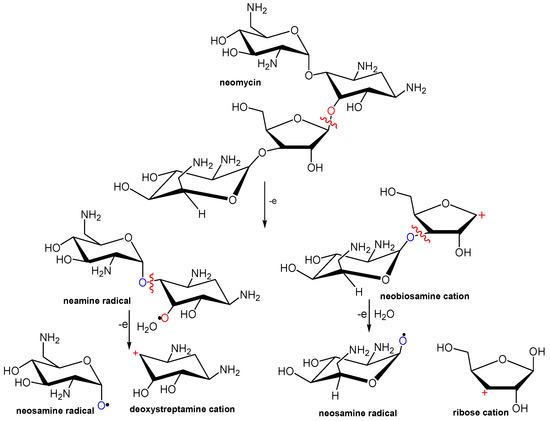

Our study aims to implement a strategy to reduce the carbon steel corrosion rate in a sulfuric acid solution, using an expired drug with adsorption affinity on the metal surface. To investigate the corrosion protection efficiency of an environmental friendly inhibitor, namely neomycin sulfate (NMS), the electrochemical measurements were applied on carbon steel immersed in 1.0 M H2SO4 solution with and without NMS. The protective layer that formed on the steel surface was studied by atomic force microscopy (AFM). The potentiodynamic polarization and electrochemical impedance spectroscopy (EIS) showed that the presence of the neomycin sulfate in acid solution leads to the decrease in corrosion current density (icorr) and the increase of polarization resistance (Rp). The mixed mechanism between physical and chemical adsorption of NMS molecules on the steel surface was proposed according to the Langmuir adsorption isotherm. AFM indicated that the NMS molecules contributed to a protective layer formation by their adsorption on the steel surface. The AFM parameters, such as root mean square roughness (Rq), average roughness (Ra), and maximum peak to valley height (Rp−v) revealed that in the presence of NMS a smoother surface of carbon steel was obtained, compared to the steel surface corroded in sulfuric acid blank solution. View Full-Text
Keywords: expired drug; corrosion inhibitor; potentiodynamic polarization; electrochemical impedance spectroscopy; AFM expired drug; corrosion inhibitor; potentiodynamic polarization; electrochemical impedance spectroscopy; AFM
Figures

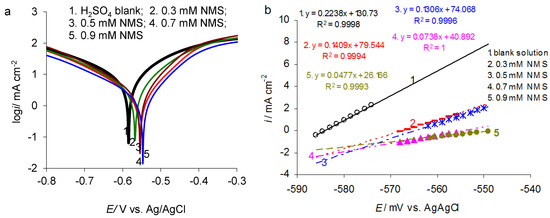

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Samide, A.; Iacobescu, G.E.; Tutunaru, B.; Grecu, R.; Tigae, C.; Spînu, C. Inhibitory Properties of Neomycin Thin Film Formed on Carbon Steel in Sulfuric Acid Solution: Electrochemical and AFM Investigation. Coatings 2017, 7, 181.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
