Monitoring the Effect of Metal Ions on the Mobility of Artemia salina Nauplii
Cranfield Health, Vincent Building, Cranfield University, Cranfield, Bedfordshire, MK43 0AL, UK
School of Engineering, Whittle building, Cranfield University, Cranfield, Bedfordshire, MK43 0AL, UK
* Author to whom correspondence should be addressed.
Received: 9 February 2011; in revised form: 8 March 2011 / Accepted: 22 March 2011 / Published: 28 March 2011

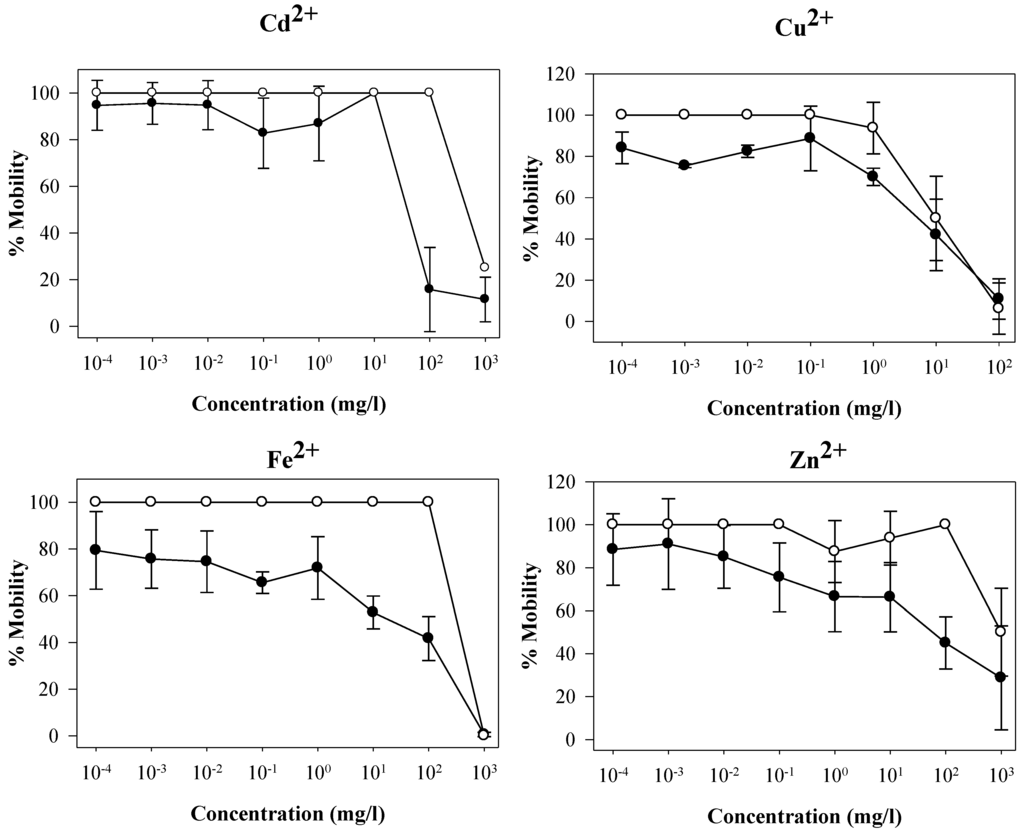

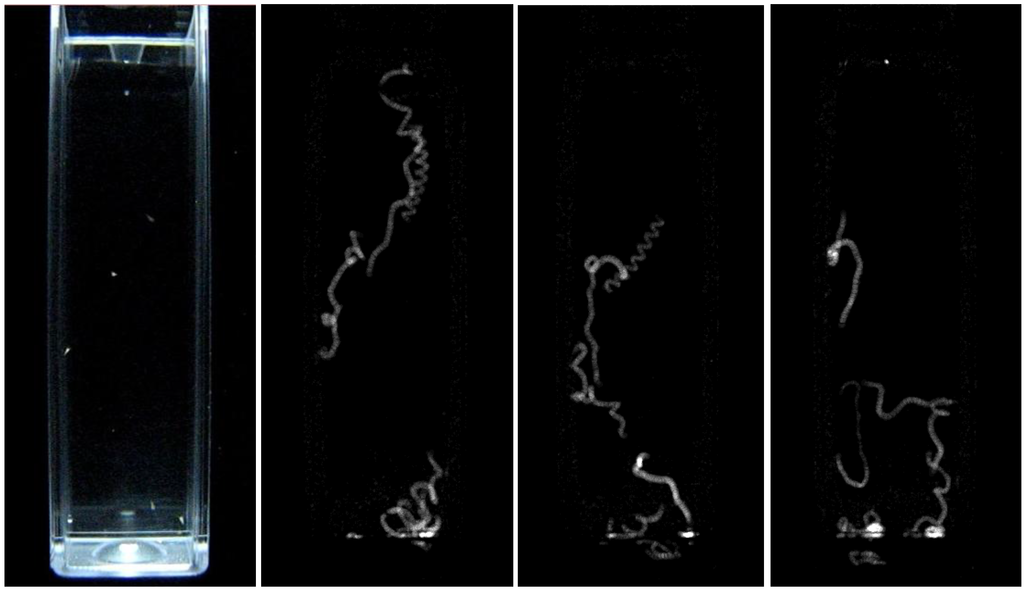

Abstract: This study aims to measure the effect of toxic aqueous solutions of metals on the mobility of Artemia salina nauplii by using digital image processing. The instrument consists of a camera with a macro lens, a dark chamber, a light source and a laptop computer. Four nauplii were inserted into a macro cuvette, which contained copper, cadmium, iron and zinc ions at various concentrations. The nauplii were then filmed inside the dark chamber for two minutes and the video sequence was processed by a motion tracking algorithm that estimated their mobility. The results obtained by this system were compared to the mortality assay of the Artemia salina nauplii. Despite the small number of tested organisms, this system demonstrates great sensitivity in quantifying the mobility of the nauplii, which leads to significantly lower EC50 values than those of the mortality assay. Furthermore, concentrations of parts per trillion of toxic compounds could be detected for some of the metals. The main novelty of this instrument relies in the sub-pixel accuracy of the tracking algorithm that enables robust measurement of the deterioration of the mobility of Artemia salina even at very low concentrations of toxic metals.
Keywords: Artemia salina; crustaceans; image processing; mobility; toxicity assay
Citations to this Article
Cite This Article
MDPI and ACS Style
Kokkali, V.; Katramados, I.; Newman, J.D. Monitoring the Effect of Metal Ions on the Mobility of Artemia salina Nauplii. Biosensors 2011, 1, 36-45.
Kokkali V, Katramados I, Newman JD. Monitoring the Effect of Metal Ions on the Mobility of Artemia salina Nauplii. Biosensors. 2011; 1(2):36-45.
Kokkali, Varvara; Katramados, Ioannis; Newman, Jeffrey D. 2011. "Monitoring the Effect of Metal Ions on the Mobility of Artemia salina Nauplii." Biosensors 1, no. 2: 36-45.
