In Situ Decoration of Gold Nanoparticles on Graphene Oxide via Nanosecond Laser Ablation for Remarkable Chemical Sensing and Catalysis

by
Parvathy Nancy
1,
Anju K Nair
2,
Rodolphe Antoine
3,
Sabu Thomas
4,5,* and
Nandakumar Kalarikkal
1,4,*
1
School of Pure and Applied Physics, Mahatma Gandhi University, Kottayam 686560, India
2
Department of Physics, St. Teresas’s College, Ernamkulam 682011, India
3
Institut Lumière Matière, UMR 5306 CNRS, Université Claude Bernard Lyon 1, Domaine Scientifique de La Doua, Batiment Kastler, 10 rue Ada Byron, 69622 Villeurbanne CEDEX, France
4
International and Inter University Centre for Nanoscience and Nanotechnology, Mahatma Gandhi University, Kottayam 686560, India
5
School of Chemical Sciences, Mahatma Gandhi University, Kottayam 686560, India
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(9), 1201; https://doi.org/10.3390/nano9091201
Submission received: 5 August 2019 / Revised: 15 August 2019 / Accepted: 22 August 2019 / Published: 26 August 2019
(This article belongs to the Special Issue Supramolecular Gold Chemistry: From Atomically Precise Thiolate-Protected Gold Nanoclusters to Gold-Thiolate Nanostructures)
Browse Figures
Versions Notes

Abstract

:
Gold decorated graphene-based nano-hybrids find extensive research interest due to their enhanced chemical catalytic performance and biochemical sensing. The unique physicochemical properties and the very large surface area makes them propitious platform for the rapid buildouts of science and technology. Graphene serves as an outstanding matrix for anchoring numerous nanomaterials because of its atomically thin 2D morphological features. Herein, we have designed a metal-graphene nano-hybrid through pulsed laser ablation. Commercially available graphite powder was employed for the preparation of graphene oxide (GO) using modified Hummers’ method. A solid, thin gold (Au) foil was ablated in an aqueous suspension of GO using second harmonic wavelength (532 nm) of the Nd:YAG laser for immediate generation of the Au-GO nano-hybrid. The synthesis strategy employed here does not entail any detrimental chemical reagents and hence avoids the inclusion of reagent byproducts to the reaction mixture, toxicity, and environmental or chemical contamination. Optical and morphological characterizations were performed to substantiate the successful anchoring of Au nanoparticles (Au NPs) on the GO sheets. Remarkably, these photon-generated nano-hybrids can act as an excellent surface enhanced Raman spectroscopy (SERS) platform for the sensing/detection of the 4-mercaptobenzoic acid (4-MBA) with a very low detection limit of 1 × 10−12 M and preserves better reproducibility also. In addition, these hybrid materials were found to act as an effective catalyst for the reduction of 4-nitrophenol (4-NP). Thus, this is a rapid, mild, efficient and green synthesis approach for the fabrication of active organometallic sensors and catalysts.

1. Introduction

Nano sized particles of noble metals, particularly gold NPs (Au NPs), have ample scope in research due to their unique optical, electrical and catalytic properties and their potential applications in material science, physics, chemistry and in many interdisciplinary fields [1,2,3]. The Au NPs have the tendency of aggregation when they are in a solution on account of their superior surface energy, which results in a reduced catalytic activity and stability [4]. This disadvantage can be solved by anchoring Au NPs on various matrices such as SiO2, polymer and carbon microspheres, etc. [5,6,7]. Among these matrices, graphene derivatives like graphene oxide (GO), and reduced graphene oxide (rGO) have been subjected to vast study owing to an excessive surface area, planar structure, and exceptional physicochemical properties [8]. GO is a better choice when compared with graphene in terms of a low production cost, high yield manner and more application suitability. Having a rich O2 containing functional groups on its edges and basal planes make GO hydrophilic and a good support for the surface functionalization and nanoparticle immobilization. Until now, extensive research has been done on the development of GO or rGO supported Au NPs for applications in the field of catalysts, sensors and medicine. Au NPs and GO nano-hybrids shows novel and increased physicochemical properties, which is considered to be accomplished from the strong interaction between these two constituents [9,10,11].
Graphene sheets embellished with metal nanoparticles are brilliant materials having potential use in energy storage, optoelectronics, bio sensors or catalysts, because of their unique physical and chemical characteristics [12,13]. The surface plasmon resonance of the metallic nanoparticles, interaction of graphene sheets with light, formation of bio sensors by means of bio conjugation, inflation of catalytic activity of nanoparticles [14,15], etc. are controlled by the unique conductivity and volatile features of graphene and metal nanoparticles, respectively. Usually, the graphene- metal nano-hybrids are fabricated by the synchronized reduction of metal salts and graphene derivatives. In such methods, surfactants or co-ligands on the synthesized nanoparticles are utilized to augment stability and to reduce aggregation behavior. At the same time, impurities are also produced along with the entire procedure and final products [16,17]. Generally, the metal nanoparticles are capped with ligands in the surface, which foster a cross-chemical effect. As a solution to this dilemma, ligand free metal nanoparticles have been synthesized through alternative top-end and easy pathways, functioning on the basis of principles of green protocols [18,19]. Pulsed laser ablation in liquids (PLAL) is such a method, in which a solid target immersed in a colloid or liquid is irradiated with a suitable pulsed laser beam [20,21,22,23]. Here in PLAL, the possible synergy between the electromagnetic field of the laser pulses and the atoms on the material surface leads to the removal of electrons from the surface, culminating in creation of an electronic cloud and an electron deficiency localized area on the surface of the target. The electronic cloud in turn will attract the surface ions by means of electromagnetic force, resulting in the formation of clusters of atoms and ionized atoms. A cavitation bubble formation is the next process in line, which cages the material that forms crystalline nanoparticles and finally discharges the nanoparticles in to the liquid environment as the bubble blots out [24,25]. The ligand free Au NPs shows better surface activity due to the lack of ligands on its surface so that it can retain on the GO surface by the combined effect of three distinct reasons (a) interplay among the d-orbitals of metal nanoparticles and the pi-electron aromatic network of graphene (b) the strong electrostatic interaction between metal nanoparticles and graphene promotes the effective anchoring of AuNPs on GO (c) desirable distribution of nanoparticles at the defects/wrinkles found in the graphene surface [26,27]. There are reports of synthesis of ligand free Au NPs by PLAL and subsequent blending with graphene with the aid of a variety of lasers [28,29,30]. The prospect of direct synthesis of particles from graphene sheets in liquid medium signifies that the electromagnetic effects from the laser radiation causing some reactive process in GO may govern the reduction process of graphene oxide. Thus, the laser irradiation eliminates the O2 functional groups from the graphene sheet, whilst possessing the large inter layer spacing, that characterizes the electronic decoupling of the individual layer in the material and this decoupling effect may give rise to superconductivity effects sometimes [31,32]. In this work, we focus on the decoration of graphene oxide sheets with Au NPs in a novel single step approach. The impact given by a nanosecond radiation-based technique upon the control of synthesis of highly pure Au NPs in a liquid ambience containing graphene oxide layers has been studied. Apart from the conventional synthesis methods and the previously reported synthesis via PLAL, we present the fabrication of the Au-GO hybrid material, especially in the nanosecond regime for the first time. The in situ generation and decoration of the Au NPs on the GO layers are established by photons and the purity, structure, size and stability of the AuNPs were fine-tuned by different laser parameters like laser fluence, repletion rate, laser wavelength, irradiation time, etc. To establish the hypothesis, Au NPs were synthesized in a homogenous aqueous suspension of graphene oxide layers. Moreover, this methodology has proved that it is an impressive protocol to derive graphene oxide-metal nanoparticle assemblies with a potential to be used in a verity of applications where undesirable effects of harmful chemicals can be avoided successfully.

2. Experimental Procedure

In order to generate the Au-GO nano-hybrid, a thin gold foil of thickness of 0.1 mm (SIGMA ALDRICH, Missouri, MO, USA, pure trace metal, 99.99%) was properly fixed in the inner side of a glass cuvette, which is filled with 30 mL of an aqueous suspension of the GO solution. The second harmonic beam of an Nd:YAG laser (Litron LPY 674G-10) having a pulse width of 8 ns was focused on to that gold foil with a bi-convex lens having focal length 15 cm at a 10 Hz repletion rate. The spot diameter of the beam was found to be 0.01 mm. Thus, the Au NPs were born and anchored in situ on to the GO single layers through the nanosecond laser radiation strategy technically known as PLAL. GO was prepared previously from the standard graphite powder using a modified Hummers’ method [33]. The whole experiment was performed completely in room temperature.
Figure 1 depicts the experimental arrangement of laser ablation. The Au target is ablated for fifteen minutes (15 min) at four distinct laser energy densities such as 5.3 Jcm−2, 7.9 Jcm−2, 10.5 Jcm−2, and 13.2 Jcm−2. The GO solution was kept under stirring with the aid of a magnetic stirrer for uniform distribution/decoration of the Au NPs on the GO matrix.

3. Results and Discussion

Here, we focus on the facile generation of the Au-GO nano-hybrid using a laser ablation in nanoseconds. The influence of the nanosecond radiation on the controlled synthesis of uniformly dispensed Au NPs in the aqueous suspension of GO sheets and its applications in chemical sensing and catalysis has been studied. With this focus, Au NPs were produced in situ and were anchored on to single layered graphene-oxide sheets. Our results demonstrate that the growth of ligand-free metal nanoparticles on graphene oxide sheets in a single reaction procedure using a laser ablation is a highly beneficial technique for fast, simple and environmentally friendly synthesis of nanoparticles, hybrids and composites.

3.1. UV-Vis Absorption Spectroscopy

Figure 2a represents the absorption spectrum of a pure GO sheet. The GO sheets display an absorption at 234 nm, which is attributed to the C–C bond’s π ⟶ π* interaction; the tiny shoulder peak at 304 nm is attributed to the C=O bond’s n ⟶ π* interaction. Figure 2b represents the absorption spectra of the Au-GO nano-hybrid. After the ablation process at four distinct laser fluences (5.3 Jcm−2, 7.9 Jcm−2, 10.5 Jcm−2, and 13.2 Jcm−2), the absorption peak of the GO in all prepared samples slowly shifted to 255 nm, which implies that a few GO sheets have undergone a reduction due to the interactivity of the GO with a high energy laser beam (Figure 2b). Together with this, the Au-GO nano-hybrid material evince a wide absorption peak at ~526 nm. This is the contribution by the surface plasmon resonance (SPR) of the Au NPs [34,35]. These results indicate that the Au NPs were generated and successfully anchored on the GO matrix. The results also elucidate that the laser fluence is a key-regulating parameter and has a vital role in the size and concentration of Au NPs on the GO matrix.

3.2. XPS and Raman Analysis

The wide-scan XPS spectra of the Au-GO nano-hybrid shown in Figure 3a upholds the existence elements of Au, C and O. In order to examine the oxidation states of Au and GO, the X-ray photoelectron spectroscopy (XPS) was employed. Figure 3a depicts the wide scan spectra of the Au-GO hybrid material. In fact, the high-resolution XPS peaks of the deconvoluted C1s spectrum of the Au-GO nano-hybrid shows three different peaks due to the existence of the C=O (288.2 eV), C–O (286.6 eV) and C–C (286.4 eV) functional groups (Figure 3c), while the binding energy at 84 eV and 87 eV were attributed to the Au4f7/2 and Au4f5/2 peaks (Figure 3b). This result confirms the effective formation of the Au layer over GO.
The Raman spectroscopy was employed additionally to explore the structure of the nano-hybrid and the interactivity between the Au nanoparticles and GO sheets. Here, in the Raman spectra Figure 3d reveals an intense D peak at 1349 cm−1 and a G peak at 1580 cm−1, which affirms the genesis of a few-layered GO with its graphitic structure. The occurrence of an intense D band at 1349 cm−1 in the GO sample clearly indicates the existence of defect sites in the graphene layers. These defects are often assigned to the oxidation of graphite and doping effects in the hexagonal carbon lattice. Furthermore, the ID/IG ration (ID/IG = 1.09) for the Au-GO hybrid is large compared with the bare GO (ID/IG = 0.89); it substantiates the existence of several defects in the Au-GO created during the laser ablation. The evident spike in the ID/IG value from GO to Au-GO indicates the successful anchoring of Au on the GO network. Moreover, the nano-hybrids exhibit increased Raman intensity, which was because of the effect of the localized electromagnetic field of the Au nanoparticles and thus it can be a competent substrate for SERS detection.

3.3. Morphological Analysis

The surface morphology and size of the Au-GO nano-hybrids were studied using a transmission electron microscopy (TEM) and field emission scanning electron microscopy (FESEM).
The TEM image (Figure 4) of the Au-GO nano-hybrid shows that the small Au nanoparticles of a diameter around ~30 nm are anchored on to the surface of the GO. The HRTEM analysis shows that the synthesized Au-GO material is unbound of any other chemical impurities and elements. The high crystalline nature of the material was clear from the lattice fringes. It also provides clear details regarding the d spacing of the Au nanoparticles. The Au nanoparticles exhibit a darker contrast with an interlayer spacing of 0.202 nm that corresponds to the d-spacing of a (200) plane of Au. In addition, the transmission electron microscope-energy dispersive spectra (TEM-EDS) confirms the presence of highly-pure gold nanoparticles decorated over the GO matrix; it is shown in Figure 5. The EDS reveals that, the most evident intensity peaks are Au, C and O corresponding to the Au NPs and GO sheets.
Also, Figure 6 shows the FESEM image and the elemental mapping of the Au-GO nano-hybrid in which the elements Au, C and O are mapped in blue, pink and yellow colour, respectively; the mapping clearly suggests the co-existence of Au and GO in the laser generated nano-hybrid. Figure 6a clearly depicts that the number density of the Au NPs are very high in the vicinity of wrinkles in the GO sheets. These are one of the main reasons for the adsorption of the AuNPs on the GO. The wrinkles present in the GO corresponds to the defect sites and it facilitates the high rate of accumulation and immobilization of the Au NPs on such areas.

3.4. SERS Activity of 4-Mercaptobenzoic Acid (4-MBA)

For the SERS measurement, 10 µL of the samples were coated on a silicon wafer (~1 cm2). The 4-mercaptobenzoic acid solution (4-MBA solution, 10 μM concentration, and 10 µL quantity) was prepared and drop casted on a silicon wafer and then dried in room temperature. These stock solutions were gradually diluted with de-ionized water to obtain various concentrations of analytes. A confocal Raman spectrometer (WITec alpha 300RA) with a 532 nm excitation wavelength was used for SERS measurements of hence prepared samples. The SERS data were collected over the span of 200–2000 cm−1 with 10 s as an integration time.
The relative SERS enhancement capabilities of the Au-GO nano-hybrids were measured using 4-mercaptobenzoic acid (4-MBA) as the probe molecule, which is highly Raman active and adsorbed on the surface of these hybrid nanostructures. For comparison, Au NPs are also prepared to confirm the SERS activity of the 4-MBA molecules. The 4-MBA is an organic molecule with a thiol group and a carboxylic acid group on the two ends that usually exhibits a strong chemical coupling with metallic surfaces [36]. It is well known that metal nanoparticles incorporated nanostructures give higher SERS enhancement than the bare metal nanoparticles. Metal nanoparticles usually contribute an electromagnetic field enhancement to the SERS signals. Figure 7a represents the SERS spectra of the Au-GO synthesized at different laser energies, capped with 4-MBA (10 µM). In Figure 7a, the SERS spectra exhibit two prominent Raman peaks at 1076 cm−1 and 1586 cm−1 that is attributed to the ν(C–C) breathing modes of a benzene ring. The other weak bands, 1412 cm−1 emerged from the stretching mode of νs (COO–) and the band at 1182 cm−1 from the C–H deformation modes; they were found to be consistent with the previous report [37]. The ν(C–C) mode depicts a dominant peak intensity than the other modes of vibration due to the enhanced coupling between the transition dipole moment and local electric field [38,39]. The samples at 13.2 Jcm−2 laser energy displayed more SERS intensity. These observations confirm that the use of Au resulted in a higher surface area, providing amplification of the hot spots. Therefore, such a simple approach of the controlled decoration of Au over GO could successfully enhance the SERS activity. The peak intensities at 1076 cm−1 and 1586 cm−1 were chosen to calculate the SERS enhancement factor for the Au decorated GO sheet. The SERS enhancement factor is evaluated by comparing the SERS signals obtained from the 4-MBA capped structures to the Raman intensities acquired from the bulk 4-MBA molecule using the formula:
Enhancement factor (EF) = ISERS/INR × CNR/CSERS
where, ISERS and INR correspond to the calculated intensity of the SERS spectra of the molecule which is adsorbed on the nano-hybrid surface and the normal Raman spectrum of the bulk molecule, respectively. CNR and CSERS are the corresponding 4-MBA concentrations for the normal Raman and SERS substrates [40]. We have expected that the 4-MBA molecules are evenly distributed on the SERS substrate. So, 10 μL of the 4-MBA solution having a 10−7 M concentration was pipetted and casted on the SERS substrate and the droplet evaporated in air for the experiment.
The calculated SERS enhancement factor (EF) for the [email protected] Jcm−2 at 1076 cm−1 is 7.9 × 106, respectively. Therefore, such nano-hybrids demonstrate higher SERS efficiency than the bare Au NPs and their excellent stability is in very good agreement with the literature [41].
Moreover, it should be noted that the Au nanoparticles with small dimensions are distributed throughout the GO surface thereby creating ‘hot spots’. Figure 7b represents the SERS spectra at different concentrations of 4-MBA, i.e., peaks from 10−7 M to 10−12 M were adsorbed on the surface of [email protected] Jcm−2 sample. From Figure 7b, it is evident that the peaks corresponding to 4-MBA can be sensed even at a very low concentration of 4-MBA at 10−12 M thereby indicating a very high sensitivity of SERS substrate. Figure 7c represents the SERS Raman mapping image of the [email protected] Jcm−2 sample, in which the red region corresponds to the ‘hot spots’. The Au-GO nano-hybrids are believed to be a favourable candidate for the SERS applications due to their surface roughness, which in turn provides a higher surface area for the more adsorption of the SERS-active molecules. The huge enhancement of the SERS signals from the Au-GO nano-hybrids is attributed to the presence of ultra-pure Au NPs, which serves as ‘hot spots’ during the SERS analysis and results in the strong coupling between the surface plasmons of Au NPs thereby enhancing the local electromagnetic field [42]. In the case of our samples, Au nanostructures are randomly distributed over the surface of the GO sheets. With improved structural design and enhanced SERS activity, these nano-hybrids could act as a new type of plasmonic nanomaterial with great potential for various applications including detection of trace chemicals, biomolecules, and in the detection of pathogens for food safety. Hence, the Au decorated GO could be excellent substrates for SERS due to their tunable plasmonic properties, more accessible surface area and chemical stability.

3.5. Au-GO Nano-Hybrids for the Catalytic Reduction of 4-nitrophenol

The catalytic reduction of 4-nitrophenol (4-NP) to 4-aminophenol (4-AP) by NaBH4 was performed as a time-controlled reaction in order to establish the catalytic activity of the Au-GO nano-hybrids. For that, 2.2 mL of water was mixed with 30 μL of 4-NP at a 10 mM concentration in a quartz cuvette at room temperature. To this solution, when 200 μL of 0.1 M, the NaBH4 solution was added. There was an instant change in the solution colour from light yellow to dark yellow. To this mixture, 0.5 mL of bare Au NPs and Au-GO nano-hybrid samples were added and the UV-Vis absorption spectra of the samples were recorded at certain specific intervals in the range of 200–800 nm at room temperature.
For a quantitative investigation of the catalytic activity of the Au NPs and Au decorated GO sheets (Au-GO nano-hybrids), the reduction of 4-nitrophenol (4-NP) to 4-aminophenol (4-AP) by NaBH4 was chosen as a standard at room temperature [43]. The catalytic reduction reaction can easily be demonstrated by the UV-Vis absorption spectroscopy. The absorption peak of 4-NP is shifted to a higher wavelength (400 nm), upon the addition of NaBH4 due to the formation of an intermediate compound 4-nitrophenolate. In the absence of the as-prepared catalyst (Au-GO nano-hybrids), the absorption peak of 4-nitrophenolate at 400 nm remains unaltered over several times thereby confirming that the reduction reaction did not take place. Figure 8a–d represents the time-dependent UV-Vis absorption spectra corresponding to the catalytic reduction of 4-nitrophenol to 4-aminophenol by the Au and Au-GO nano-hybrids at different laser energies, respectively. In the absence of the catalyst (Au-GO nano-hybrid), the 400 nm absorption peak (due to 4-nitrophenolate) remains constant. However, after the small addition of the Au-GO samples, the absorption peak intensity at 400 nm slowly decreased and a new peak centered at 300 nm emerged corresponding to the 4-aminophenol and the colour of the solution turned transparent from the previous dark yellow. Herein, the nano-hybrid acted as a catalyst promoting the electrons transfer from BH4− to 4-NP, facilitating the reduction process.
The time required for the completion of the reaction varied with the different Au-GO hybrids and Au itself. With the use of the [email protected] Jcm−2 laser fluence, the reduction reaction was completed within 2 min as shown in Figure 8d and was found quicker than earlier reports. It should be noted that upon increasing the concentration of Au, the reaction time essential for the reduction was shortened. Additionally, the concentration of NaBH4 extensively goes beyond that of 4-NP, the reduction rate was found to be independent of the NaBH4 concentration. Therefore, the first order kinetics approximation may be suitable for calculating the apparent rate constants (kapp) [44,45]. The reduction rate constant can be calculated according to pseudo first-order kinetics,
ln(Ct/Co) = ln(At/Ao) = kapp t
where kapp corresponds to the apparent rate constant, and At and Ao represents the absorption of 4-NP at time t and its initial time, respectively. Figure 8e represents the relationship between ln (At/Ao) and the reaction time t, which exactly match with the first order reaction kinetics. Each sample exhibits a good linear fit of ln(At/Ao) with the reaction time. The kapp values were obtained from the slope of the plot and the details are listed in Table 1. For [email protected] Jcm−2 [kapp = 40.2 × 10−3 s−1], [email protected] Jcm−2 [kapp = 10.2 × 10−3 s−1), [email protected] Jcm−2 [kapp = 4.2 × 10−3 s−1] and for Au@ 7.9 Jcm−2 [kapp = 1.6 × 10−3 s−1)]. From the results, it is evident that there is a significant increase in the kapp value of the nano-hybrids synthesised at higher laser fluences. The kapp value for the sample [email protected] Jcm−2 is found to be 40.2 × 10−3 s−1, which is significantly higher than the other two samples and AuNPs itself. Hence, the catalytic activity of the Au-GO nano-hybrids obtained at higher laser fluences was found to be greater than that of the bare Au NPs.
Moreover, the catalytic reduction activity of Au-GO nano-hybrid with other materials has also been compared and the details are summarized in Table 2.

4. Conclusions

In this work, we establish the benefits of using a laser-assisted synthesis protocol for the production of highly pure, ligand-free gold nanoparticles that are directly anchored on to the surface of the graphene oxide matrix. The tuning of laser parameters influences the size and concentration of the AuNPs. There is not much considerable alteration in the properties of graphene oxide after laser ablation except for a modest increase in the GO reduction. Throughout the laser ablation process for the in situ generation of gold nanoparticles on the GO matrix, the inherent properties of GO were observed to be unaltered. Here, the graphene oxide is functioning as a capping agent that controls the size of the Au nanoparticles. We further demonstrated that the Au-GO hybrid material exhibits outstanding catalytic and SERS performance when compared with the metal nanoparticles alone. Both the synthesis protocol by laser ablation and the applications of the designed nano-hybrid provides motivations for future advancement in the materials science platform, especially in the catalysis and chemical sensing.

Author Contributions

N.K. and S.T. designed the study; P.N. performed the experiments, analyzed the data and wrote the article. A.K.N. and R.A contributed to the manuscript discussion and result analysis. All authors discussed the results and commented on the manuscript.

Funding

This research was funded by BRNS-DAE, Govt. of India, grant number 39/29/2015-BRNS/39009 and DST-FIST (Sr.No-417 dated 27-02-2017), Govt. of India.

Acknowledgments

The authors acknowledge the financial support from DST for funding through PURSE PII, FIST and Nano Mission programs and BRNS-DAE, Govt. of India, TEM-IIUCNN-MGU, SAIF-MGU and FESEM-CUSAT.

Conflicts of Interest

The authors proclaim no conflict of interest.

References

  1. Zhou, W.; Gao, X.; Liu, D.; Chen, X. Gold Nanoparticles for In Vitro Diagnostics. Chem. Rev. 2015, 115, 10575–10636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Hu, L.; Liu, Y.J.; Xu, S.; Li, Z.; Guo, J.; Gao, S.; Lu, Z.; Si, H.; Jiang, S.; Wang, S. Facile and low-cost fabrication of Ag-Cu substrates via replacement reaction for highly sensitive SERS applications. Chem. Phys. Lett. 2017, 667, 351–356. [Google Scholar] [CrossRef]
  3. Yue, G.; Li, S.; Li, D.; Liu, J.; Wang, Y.; Zhao, Y.; Wang, N.; Cui, Z.; Zhao, Y. Coral-like Au/TiO2 Hollow Nanofibers with Through-Holes as a High-Efficient Catalyst through Mass Transfer Enhancement. Langmuir 2019, 35, 4843–4848. [Google Scholar] [CrossRef] [PubMed]
  4. Lee, J.E.; Bera, S.; Choi, Y.S.; Lee, W.I. Size-dependent plasmonic effects of M and M@SiO 2 (M = Au or Ag) deposited on TiO 2 in photocatalytic oxidation reactions. Appl. Catal. B Environ. 2017, 214, 15–22. [Google Scholar] [CrossRef]
  5. Huang, Z.; Tang, Y.; Li, J.; Yang, M.; Tan, L.; Zhang, X.; Gao, H.; Ma, Q.; Wang, G. Oriented immobilization of Au nanoparticles on C@P4VP core–shell microspheres and their catalytic performance. New J. Chem. 2015, 39, 2949–2955. [Google Scholar]
  6. Bai, S.; Shen, X. Graphene–inorganic nanocomposites. RSC Adv. 2012, 2, 64–98. [Google Scholar] [CrossRef]
  7. Wang, J.; Lu, X.; Huang, N.; Zhang, H.; Li, R.; Li, W. Temperature-responsive multifunctional switchable nanoreactors of poly (N-isopropylacrylamide)/SiO2/lanthanide-polyoxometalates/Au: Controlled on/off catalytic and luminescent system. Mater. Sci. Eng. B 2017, 224, 1–8. [Google Scholar] [CrossRef]
  8. Zhang, Y.; Liu, S.; Lu, W.; Wang, L.; Tian, J.; Sun, X. In situ green synthesis of Au nanostructures on graphene oxide and their application for catalytic reduction of 4-nitrophenol. Catal. Sci. Technol. 2011, 1, 1142. [Google Scholar] [CrossRef]
  9. Fujigaya, T.; Kim, C.; Hamasaki, Y.; Nakashima, N. Growth and Deposition of Au Nanoclusters on Polymer-wrapped Graphene and Their Oxygen Reduction Activity. Sci. Rep. 2016, 6, 21314. [Google Scholar] [CrossRef]
  10. Parlak, O.; Turner, A.P.F.; Tiwari, A. pH-induced on/off-switchable graphene bioelectronics. J. Mater. Chem. B 2015, 3, 7434–7439. [Google Scholar] [CrossRef] [Green Version]
  11. Cao, A.; Liu, Z.; Chu, S.; Wu, M.; Ye, Z.; Cai, Z.; Chang, Y.; Wang, S.; Gong, Q.; Liu, Y. A facile one-step method to produce graphene–CdS quantum dot nanocomposites as promising optoelectronic materials. Adv. Mater. 2010, 22, 103–106. [Google Scholar] [CrossRef]
  12. Cai, B.; Wang, S.; Huang, L.; Ning, Y.; Zhang, Z.; Zhang, G.J. Ultrasensitive Label-Free Detection of PNA–DNA Hybridization by Reduced Graphene Oxide Field-Effect Transistor Biosensor. ACS Nano 2014, 8, 2632–2638. [Google Scholar] [CrossRef]
  13. Hughes, M.D.; Xu, Y.J.; Jenkins, P.; McMorn, P.; Landon, P.; Enache, D.I.; Carley, A.F.; Attard, G.A.; Hutchings, G.J.; King, F.; et al. Tunable gold catalysts for selective hydrocarbon oxidation under mild conditions. Nature 2005, 437, 1132–1135. [Google Scholar] [CrossRef]
  14. Huang, J.; Akita, T.; Faye, J.; Fujitani, T.; Takei, T.; Haruta, M. Propene Epoxidation with Dioxygen Catalyzed by Gold Clusters. Angew. Chem. 2009, 121, 8002–8006. [Google Scholar] [CrossRef]
  15. Turner, M.; Golovko, V.B.; Vaughan, O.P.H.; Abdulkin, P.; Berenguer-Murcia, A.; Tikhov, M.S.; Johnson, B.F.G.; Lambert, R.M. Selective oxidation with dioxygen by gold nanoparticle catalysts derived from 55-atom clusters. Nature 2008, 454, 981–983. [Google Scholar] [CrossRef]
  16. Zhao, Y.; Zhu, Y. Graphene-based hybrid films for plasmonic sensing. Nanoscale 2015, 7, 14561–14576. [Google Scholar] [CrossRef]
  17. Primo, A.; Esteve-Adell, I.; Blandez, J.F.; Dhakshinamoorthy, A.; Álvaro, M.; Candu, N.; Coman, S.M.; Pârvulescu, V.I.; Garcia, H. High catalytic activity of oriented 2.0.0 copper(I) oxide grown on graphene film. Nat. Commun. 2015, 6, 8561. [Google Scholar] [CrossRef]
  18. Gao, F.; Wang, Q.; Gao, N.; Yang, Y.; Cai, F.; Yamane, M.; Gao, F.; Tanaka, H. Hydroxyapatite/chemically reduced graphene oxide composite: Environment-friendly synthesis and high-performance electrochemical sensing for hydrazine. Biosens. Bioelectron. 2017, 97, 238–245. [Google Scholar] [CrossRef]
  19. Wen, F.; Dong, Y.; Feng, L.; Wang, S.; Zhang, S.; Zhang, X. Horseradish Peroxidase Functionalized Fluorescent Gold Nanoclusters for Hydrogen Peroxide Sensing. Anal. Chem. 2011, 83, 1193–1196. [Google Scholar] [CrossRef]
  20. Ziefuß, A.R.; Reichenberger, S.; Rehbock, C.; Chakraborty, I.; Gharib, M.; Parak, W.J.; Barcikowski, S. Laser Fragmentation of Colloidal Gold Nanoparticles with High-Intensity Nanosecond Pulses is Driven by a Single-Step Fragmentation Mechanism with a Defined Educt Particle-Size Threshold. J. Phys. Chem. C 2018, 122, 22125–22136. [Google Scholar] [CrossRef]
  21. Nancy, P.; James, J.; Valluvadasan, S.; Kumar, R.A.; Kalarikkal, N. Laser–plasma driven green synthesis of size controlled silver nanoparticles in ambient liquid. Nano-Struct. Nano-Objects 2018, 16, 337–346. [Google Scholar] [CrossRef]
  22. James, J.; Nancy, P.; Vignaud, G.; Grohens, Y.; Thomas, S.; Kalarikkal, N. Laser assisted synthesis of graphene quantum dots for multifunctional applications. AIP Conf. Proc. 2019, 2100, 020131. [Google Scholar]
  23. Nancy, P.; Nair, A.K.; James, J.; Kalarikkal, N. Green synthesis of graphene oxide/Ag nanocomposites via laser ablation in water for SERS applications. AIP Conf. Proc. 2019, 2100, 020025. [Google Scholar]
  24. Haruta, M. Size- and support-dependency in the catalysis of gold. Catal. Today 1997, 36, 153–166. [Google Scholar] [CrossRef]
  25. Tang, X.Z.; Cao, Z.; Zhang, H.B.; Liu, J.; Yu, Z.Z. Growth of silver nanocrystals on graphene by simultaneous reduction of graphene oxide and silver ions with a rapid and efficient one-step approach. Chem. Commun. 2011, 47, 3084. [Google Scholar] [CrossRef]
  26. Lai, J.; Niu, W.; Luque, R.; Xu, G. Solvothermal synthesis of metal nanocrystals and their applications. Nano Today 2015, 10, 240–267. [Google Scholar] [CrossRef]
  27. Wu, Z.S.; Yang, S.; Sun, Y.; Parvez, K.; Feng, X.; Müllen, K. 3D Nitrogen-Doped Graphene Aerogel-Supported Fe 3 O 4 Nanoparticles as Efficient Electrocatalysts for the Oxygen Reduction Reaction. J. Am. Chem. Soc. 2012, 134, 9082–9085. [Google Scholar] [CrossRef]
  28. Torres-Mendieta, R.; Ventura-Espinosa, D.; Sabater, S.; Lancis, J.; Mínguez-Vega, G.; Mata, J.A. In situ decoration of graphene sheets with gold nanoparticles synthetized by pulsed laser ablation in liquids. Sci. Rep. 2016, 6, 30478. [Google Scholar] [CrossRef] [Green Version]
  29. Lau, M.; Haxhiaj, I.; Wagener, P.; Intartaglia, R.; Brandi, F.; Nakamura, J.; Barcikowski, S. Ligand-free gold atom clusters adsorbed on graphene nano sheets generated by oxidative laser fragmentation in water. Chem. Phys. Lett. 2014, 610, 256–260. [Google Scholar] [CrossRef]
  30. Senyuk, B.; Behabtu, N.; Martinez, A.; Lee, T.; Tsentalovich, D.E.; Ceriotti, G.; Tour, J.M.; Pasquali, M.; Smalyukh, I.I. Three-dimensional patterning of solid microstructures through laser reduction of colloidal graphene oxide in liquid-crystalline dispersions. Nat. Commun. 2015, 6, 7157. [Google Scholar] [CrossRef]
  31. Mafuné, F.; Kohno, J.Y.; Takeda, Y.; Kondow, T. Growth of Gold Clusters into Nanoparticles in a Solution Following Laser-Induced Fragmentation. J. Phys. Chem. B 2002, 106, 8555–8561. [Google Scholar] [CrossRef]
  32. Giammanco, F.; Giorgetti, E.; Marsili, P.; Giusti, A. Experimental and Theoretical Analysis of Photofragmentation of Au Nanoparticles by Picosecond Laser Radiation. J. Phys. Chem. C 2010, 114, 3354–3363. [Google Scholar] [CrossRef]
  33. Liu, G.; Jin, W.; Xu, N. Graphene-based membranes. Chem. Soc. Rev. 2015, 44, 5016–5030. [Google Scholar] [CrossRef]
  34. Jain, P.K.; Huang, X.; El-Sayed, I.H.; El-Sayed, M.A. Review of Some Interesting Surface Plasmon Resonance-enhanced Properties of Noble Metal Nanoparticles and Their Applications to Biosystems. Plasmonics 2007, 2, 107–118. [Google Scholar] [CrossRef]
  35. Huang, X.; El-Sayed, M.A. Gold nanoparticles: Optical properties and implementations in cancer diagnosis and photothermal therapy. J. Adv. Res. 2010, 1, 13–28. [Google Scholar] [CrossRef] [Green Version]
  36. Yan, J.; Han, X.; He, J.; Kang, L.; Zhang, B.; Du, Y.; Zhao, H.; Dong, C.; Wang, H.L.; Xu, P. Highly Sensitive Surface-Enhanced Raman Spectroscopy (SERS) Platforms Based on Silver Nanostructures Fabricated on Polyaniline Membrane Surfaces. ACS Appl. Mater. Interfaces 2012, 4, 2752–2756. [Google Scholar] [CrossRef]
  37. Michota, A.; Bukowska, J. Surface-enhanced Raman scattering (SERS) of 4-mercaptobenzoic acid on silver and gold substrates. J. Raman Spectrosc. 2003, 34, 21–25. [Google Scholar] [CrossRef]
  38. Xu, X.; Ma, Y.; Du, Y.; Jiang, T.; Zhou, J.; Zhao, Z. Sensitive surface-enhanced Raman scattering activity of triple gold/silver/graphene oxide nanostructures decorated on gold nanowire arrays. Mater. Res. Express 2018, 5, 015013. [Google Scholar] [CrossRef]
  39. Dalla Marta, S.; Novara, C.; Giorgis, F.; Bonifacio, A.; Sergo, V. Optimization and characterization of paper-made Surface Enhanced Raman Scattering (SERS) substrates with Au and Ag NPs for quantitative analysis. Materials 2017, 10, 1365. [Google Scholar] [CrossRef]
  40. Cheng, C.; Yan, B.; Wong, S.M.; Li, X.; Zhou, W.; Yu, T.; Shen, Z.; Yu, H.; Fan, H.J. Fabrication and SERS Performance of Silver-Nanoparticle-Decorated Si/ZnO Nanotrees in Ordered Arrays. ACS Appl. Mater. Interfaces 2010, 2, 1824–1828. [Google Scholar] [CrossRef]
  41. Wang, Z.; Wu, S.; Ciacchi, L.C.; Wei, G. Graphene-based nanoplatforms for surface-enhanced Raman scattering sensing. Analyst 2018, 143, 5074–5089. [Google Scholar] [CrossRef]
  42. Jiang, X.; Sun, X.; Yin, D.; Li, X.; Yang, M.; Han, X.; Yang, L.; Zhao, B. Recyclable Au–TiO2 nanocomposite SERS-active substrates contributed by synergistic charge-transfer effect. Phys. Chem. Chem. Phys. 2017, 19, 11212–11219. [Google Scholar] [CrossRef]
  43. Zeng, J.; Zhang, Q.; Chen, J.; Xia, Y. A comparison study of the catalytic properties of Au-based nanocages, nanoboxes, and nanoparticles. Nano Lett. 2009, 10, 30–35. [Google Scholar] [CrossRef]
  44. Sarkar, C.; Dolui, S.K. Synthesis of copper oxide/reduced graphene oxide nanocomposite and its enhanced catalytic activity towards reduction of 4-nitrophenol. RSC Adv. 2015, 5, 60763–60769. [Google Scholar] [CrossRef]
  45. Wu, T.; Ma, J.; Wang, X.; Liu, Y.; Xu, H.; Gao, J.; Wang, W.; Liu, Y.; Yan, J. Graphene oxide supported Au–Ag alloy nanoparticles with different shapes and their high catalytic activities. Nanotechnology 2013, 24, 125301. [Google Scholar] [CrossRef]
  46. Çıplak, Z.; Getiren, B.; Gökalp, C.; Yıldız, A.; Yıldız, N. Green synthesis of reduced graphene oxide-AgAu bimetallic nanocomposite: Catalytic performance. Chem. Eng. Commun. 2019, 1–15. [Google Scholar] [CrossRef]
  47. Liu, Y.; Li, J.; Liu, C.Y. Au/graphene hydrogel: Synthesis, characterization and its use for catalytic reduction of 4-nitrophenol. J. Mater. Chem. 2012, 22, 8426. [Google Scholar] [CrossRef]
  48. Liu, R.; Guo, J.; Ma, G.; Jiang, P.; Zhang, D.; Li, D.; Chen, L.; Guo, Y.; Ge, G.L. Alloyed Crystalline Au-Ag Hollow Nanostructures with High Chemical Stability and Catalytic Performance. ACS Appl. Mater. Interfaces 2016, 8, 16833–16844. [Google Scholar] [CrossRef]
  49. Huang, J.; Vongehr, S.; Tang, S.; Lu, H.; Shen, J.; Meng, X. Ag Dendrite-Based Au/Ag Bimetallic Nanostructures with Strongly Enhanced Catalytic Activity. Langmuir 2009, 25, 11890–11896. [Google Scholar] [CrossRef]
  50. Tang, S.; Vongehr, S.; Meng, X. Controllable incorporation of Ag and Ag–Au nanoparticles in carbon spheres for tunable optical and catalytic properties. J. Mater. Chem. 2010, 20, 5436. [Google Scholar] [CrossRef]
Nanomaterials 09 01201 g001 550

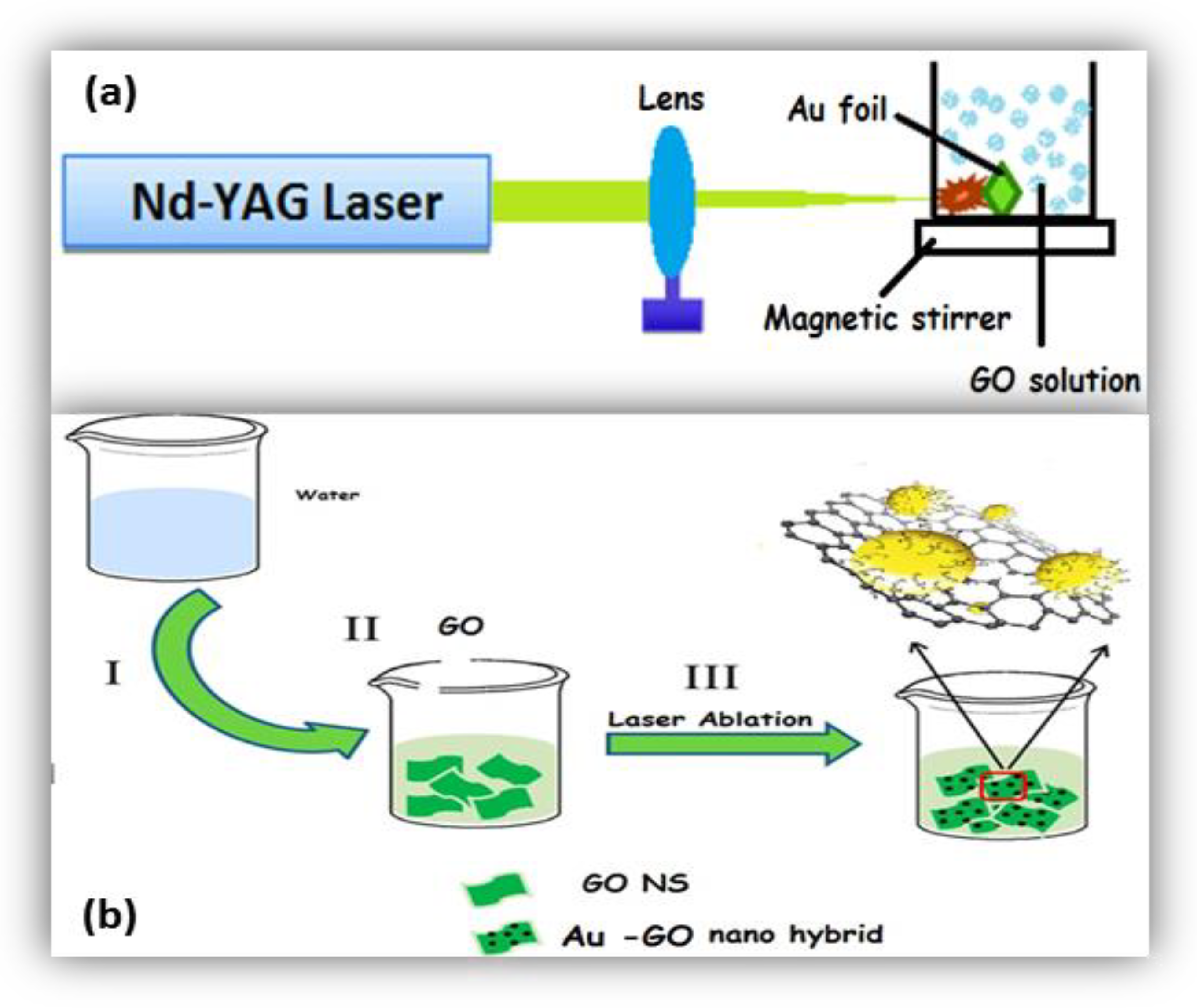

Figure 1. (a) The experimental framework of fabrication of Au-GO nano-hybrid; (b) synthesis procedure for the Au-GO nano-hybrid.
Figure 1. (a) The experimental framework of fabrication of Au-GO nano-hybrid; (b) synthesis procedure for the Au-GO nano-hybrid.
Nanomaterials 09 01201 g001
Nanomaterials 09 01201 g002 550

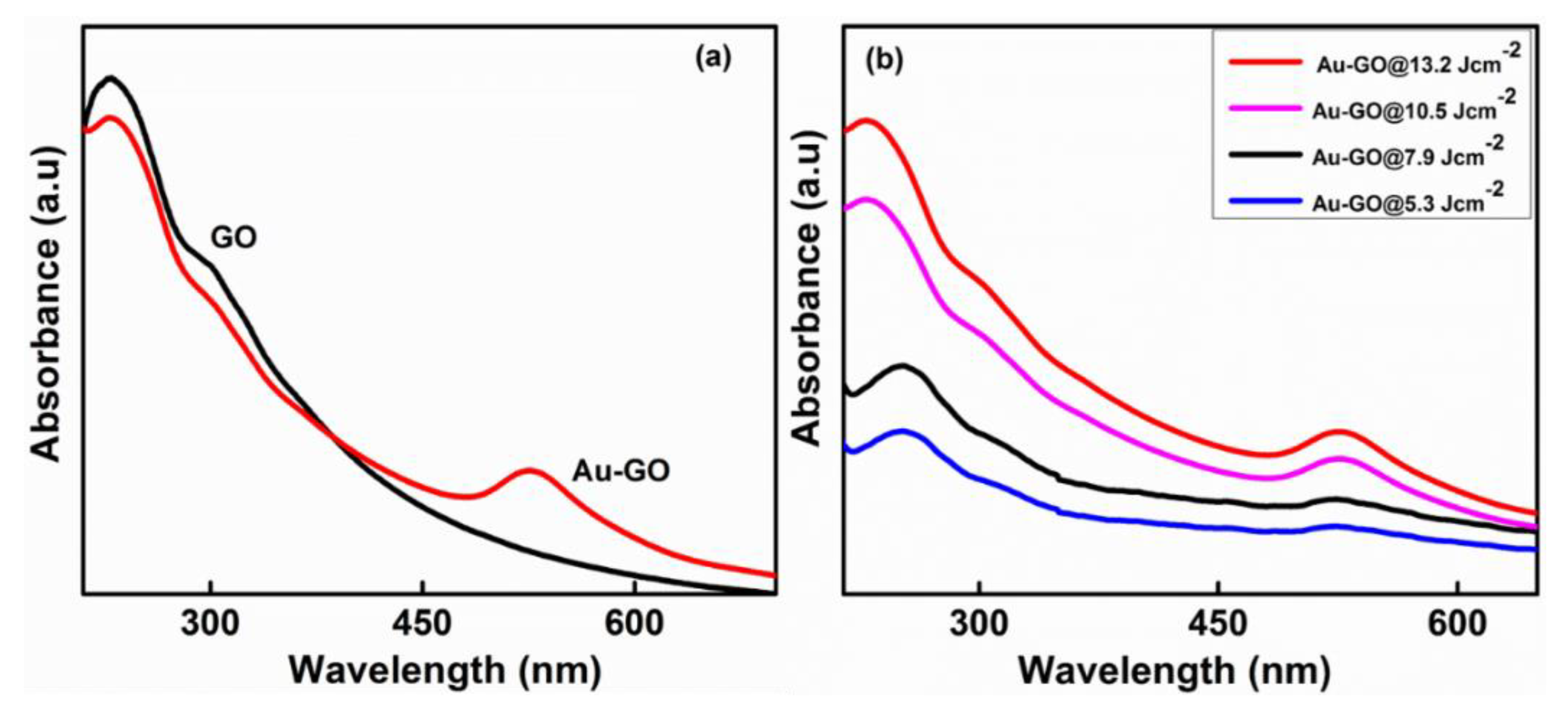

Figure 2. UV-Vis absorption spectrum. (a) GO and Au-GO nano-hybrid; (b) Au-GO at different laser fluences.
Figure 2. UV-Vis absorption spectrum. (a) GO and Au-GO nano-hybrid; (b) Au-GO at different laser fluences.
Nanomaterials 09 01201 g002
Nanomaterials 09 01201 g003 550

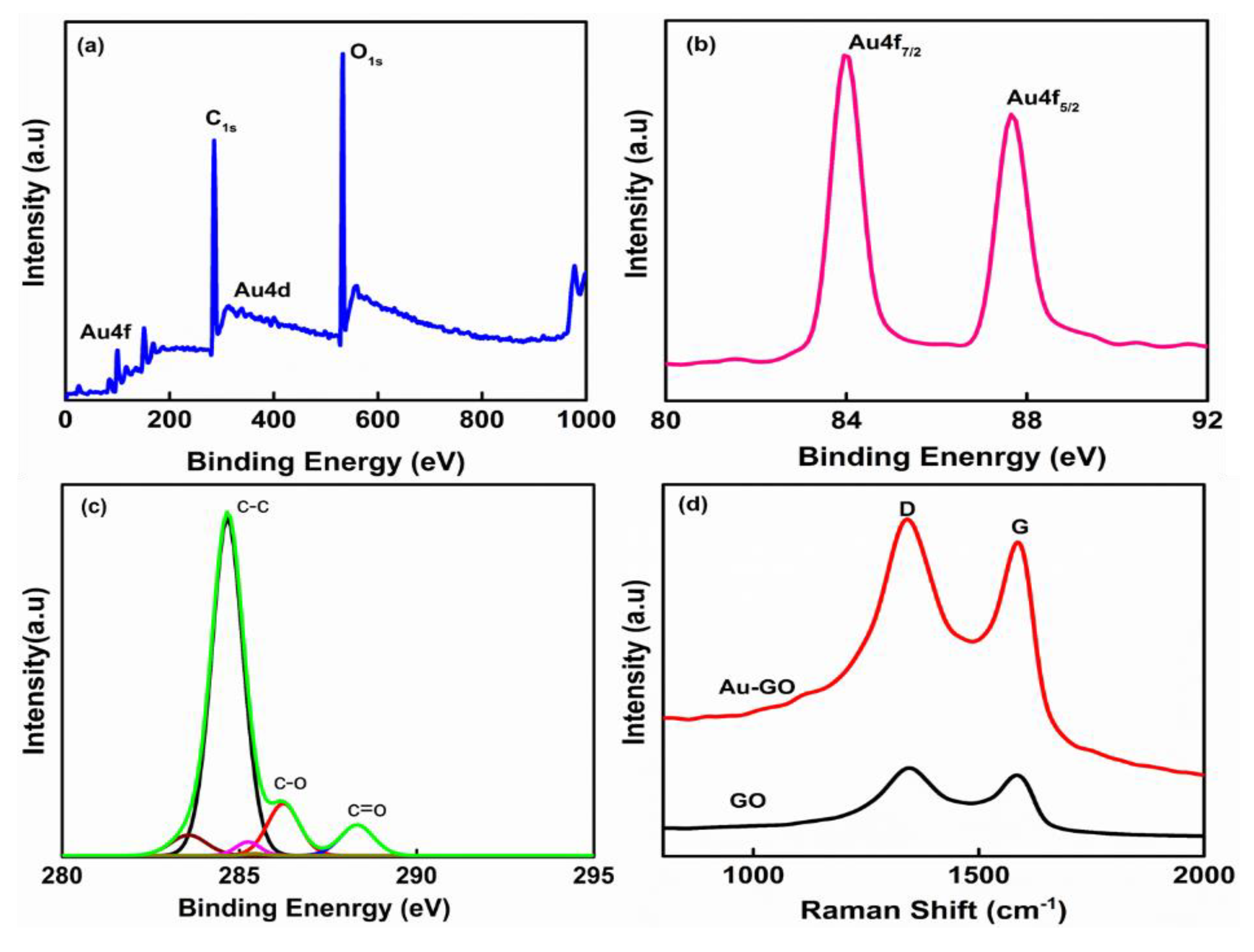

Figure 3. X-ray photoelectron spectroscopy (XPS) and Raman spectra of the Au-GO nano-hybrid. (a) Wide scan spectra; (b) Au4f spectrum; (c) C1s spectrum; (d) Raman spectra of the Au-GO and GO.
Figure 3. X-ray photoelectron spectroscopy (XPS) and Raman spectra of the Au-GO nano-hybrid. (a) Wide scan spectra; (b) Au4f spectrum; (c) C1s spectrum; (d) Raman spectra of the Au-GO and GO.
Nanomaterials 09 01201 g003
Nanomaterials 09 01201 g004 550
Figure 4. TEM and HRTEM images of the Au-GO nano-hybrid.
Figure 4. TEM and HRTEM images of the Au-GO nano-hybrid.
Nanomaterials 09 01201 g004
Nanomaterials 09 01201 g005 550

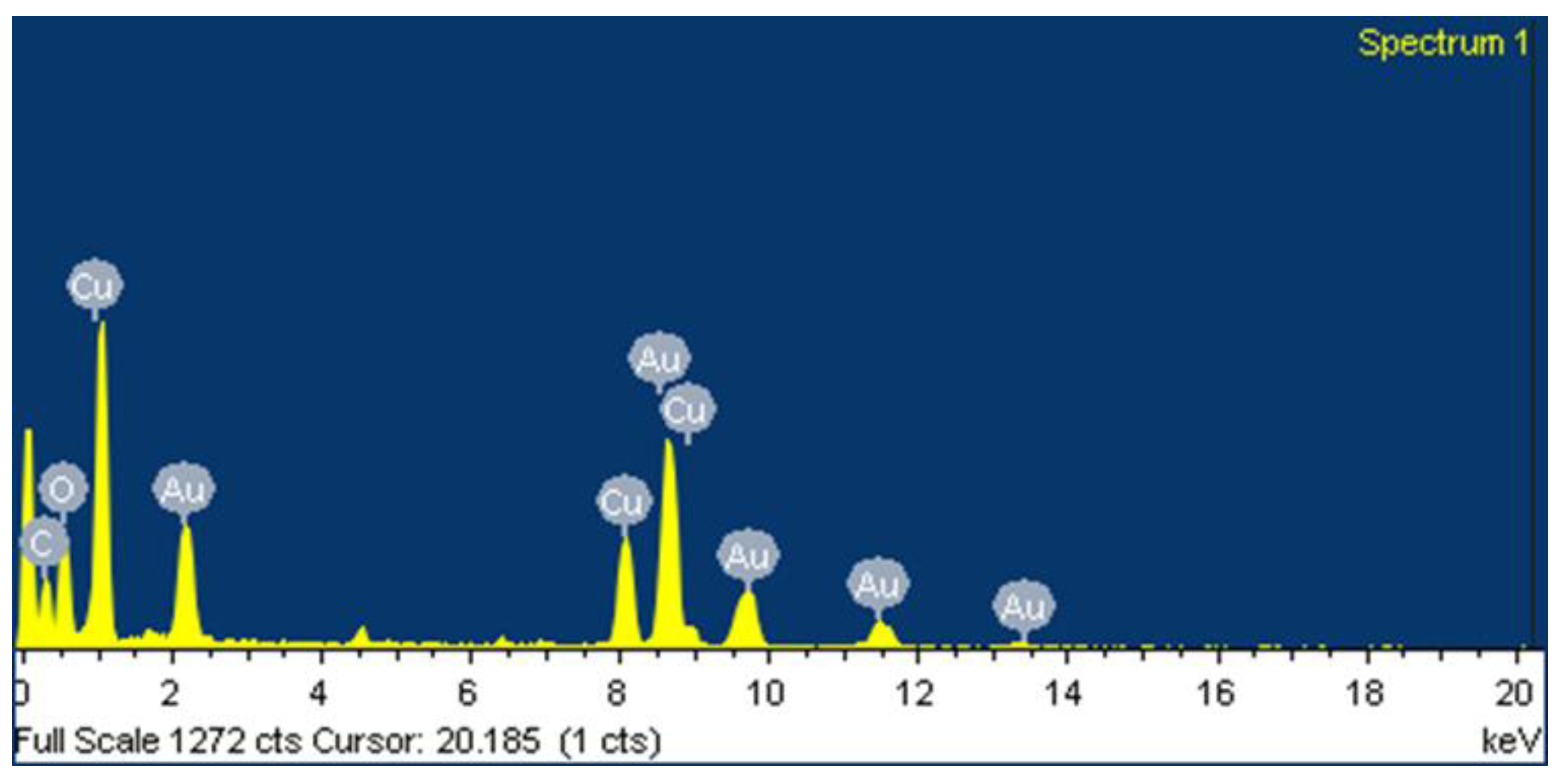

Figure 5. TEM-EDS of the Au-GO nano-hybrid.
Figure 5. TEM-EDS of the Au-GO nano-hybrid.
Nanomaterials 09 01201 g005
Nanomaterials 09 01201 g006 550
Figure 6. (a) Field emission (FESEM) image of the Au-GO nano-hybrid (b–f) elemental mapping of Au-GO nano-hybrid, where C, O and Au are mapped in pink, yellow and blue colours respectively.
Figure 6. (a) Field emission (FESEM) image of the Au-GO nano-hybrid (b–f) elemental mapping of Au-GO nano-hybrid, where C, O and Au are mapped in pink, yellow and blue colours respectively.
Nanomaterials 09 01201 g006
Nanomaterials 09 01201 g007 550

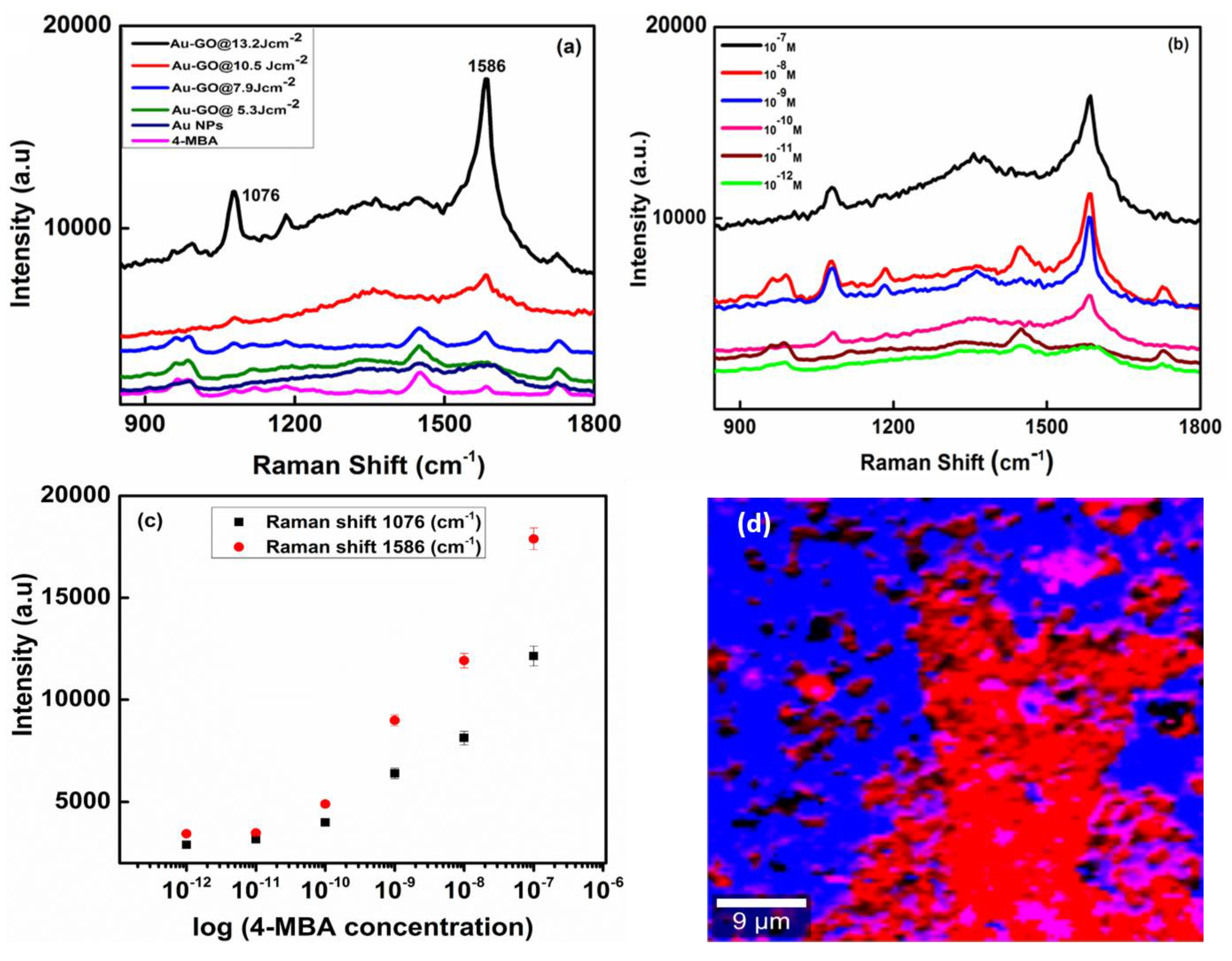

Figure 7. (a) The surface enhanced Raman spectroscopy (SERS) spectra of the samples at 10 μM 4-MBA; (b) the SERS spectra of Au-GO at different concentrations of 4-MBA; (c) calibration data with respect to the average SERS intensities of the peaks of 4-MBA at 1076 cm−1 and 1586 cm−1 with the 4-MBA concentrations; (d) the Raman image of the Au-GO, the red region corresponds to the ‘hot spots’.
Figure 7. (a) The surface enhanced Raman spectroscopy (SERS) spectra of the samples at 10 μM 4-MBA; (b) the SERS spectra of Au-GO at different concentrations of 4-MBA; (c) calibration data with respect to the average SERS intensities of the peaks of 4-MBA at 1076 cm−1 and 1586 cm−1 with the 4-MBA concentrations; (d) the Raman image of the Au-GO, the red region corresponds to the ‘hot spots’.
Nanomaterials 09 01201 g007
Nanomaterials 09 01201 g008 550

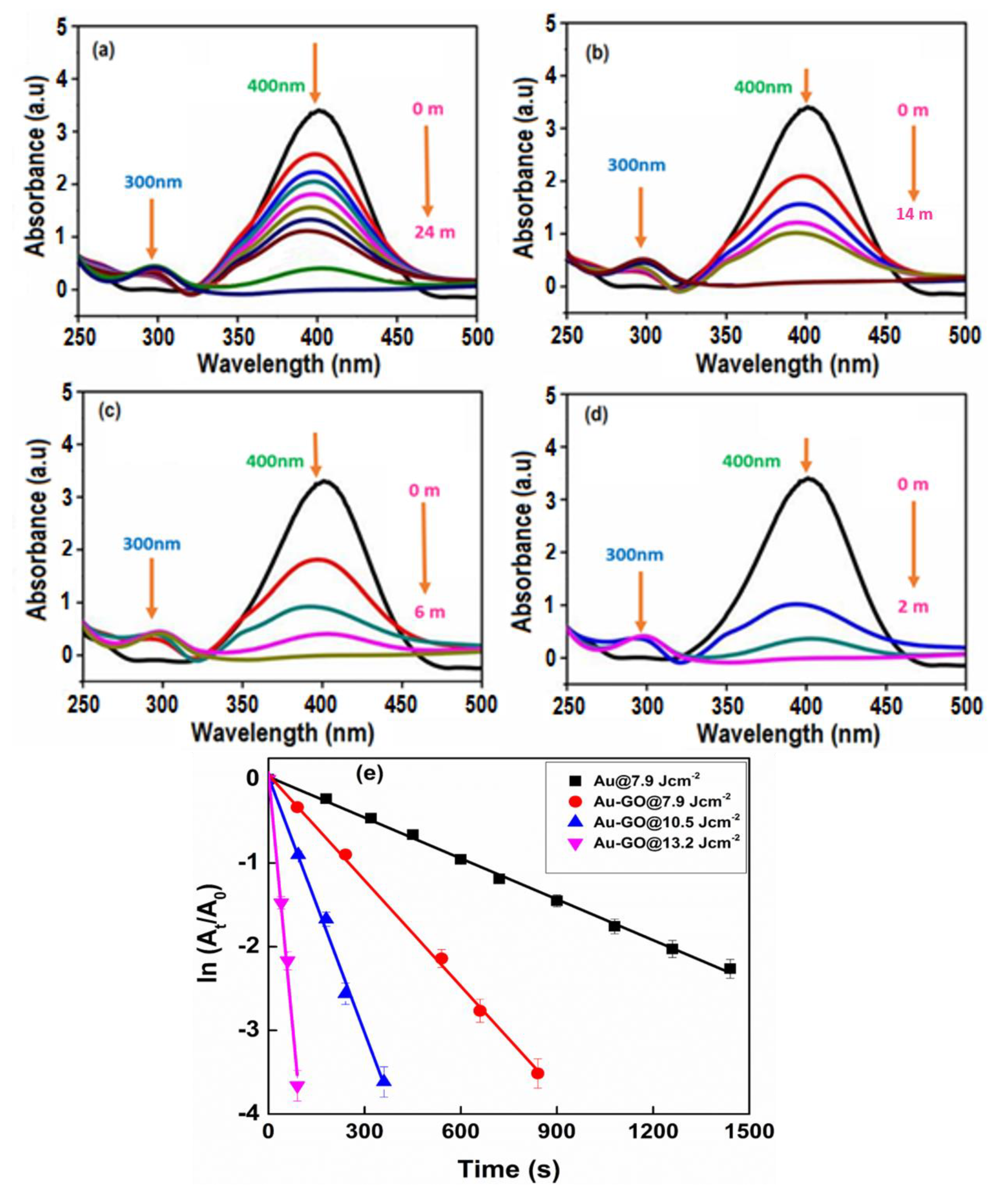

Figure 8. Time-resolved UV-Vis absorption spectra attributed to the catalytic reduction of 4-nitrophenol (4-NP) to 4-aminophenol (4-AP) with (a) Au NPs)@7.9 Jcm−2; (b) [email protected] Jcm−2; (c) [email protected] Jcm−2; (d) [email protected] Jcm−2; (e) plot of ln(At/A0) against the reaction time of various proportions of the Au-GO samples.
