Article

Performance Assessment of Ordered Porous Electrospun Honeycomb Fibers for the Removal of Atmospheric Polar Volatile Organic Compounds

1
School of Environment and Architecture, University of Shanghai for Science and Technology, Shanghai 200093, China
2
School of Materials Science and Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China
3
Department of Environmental Engineering, National I-Lan University, I-Lan 26047, Taiwan
*
Authors to whom correspondence should be addressed.
Nanomaterials 2018, 8(5), 350; https://doi.org/10.3390/nano8050350
Submission received: 16 April 2018 / Revised: 14 May 2018 / Accepted: 15 May 2018 / Published: 21 May 2018
(This article belongs to the Special Issue Functional Nanomaterials by Electrospinning)

Abstract

:
This study explored a new facile method of preparing ordered porous electrospun honeycomb fibers to obtain the most promising composites for maximal adsorption of volatile organic compounds (VOCs). The self-assembly ordered porous material (OPM) and polyacrylonitrile (PAN) were formulated into a blend solution to prepare honeycomb fibers. SEM and TEM images showed that OPM was effectively bonded in PAN fibers because of the composite’s structure. Acetone was used as a model to assess the VOC adsorption performances of electrospun honeycomb fibers with different OPM contents. Experimental results revealed that the adsorption capacity of honeycomb fibers increased with the increase of loaded OPM within the PAN fibers. The highest adsorption capacity was 58.2 μg g−1 by the fibers containing with 60% OPM in weight. After several recycling times, the adsorption capacities of the reused honeycomb fibers were almost the same with the fresh fibers. This finding indicated that the electrospun honeycomb fibers have potential application in removing VOCs in the workplace, and promote the performance of masks for odor removal.

1. Introduction

Volatile organic compounds (VOCs) are emitted mainly by industrial enterprises and seriously pollute the environment [1]. Thus, an economic and effective way to control VOCs is important to reduce human-health risks and environmental damage [2,3]. Adsorption is a widely used method of rapidly and effectively removing VOCs because other VOC-removal technologies (e.g., absorption, catalytic reactions, photoreactions, and biological filtration) are difficult to apply because of their high cost or low efficiency [4,5,6,7,8]. VOC removal through traditional adsorbents such as activated carbon, graphene oxide, and metal organic frameworks [3,9,10,11] is difficult for industrial practice presently because recycling or reusing adsorbents is not easy. Electrospun fibers, which are often assembled in the format of non-woven mats, hold great promise for applications as efficient adsorbents and also other functional nanomaterials because of their unique properties such as huge surface area, larger porosity and 3-D web structure [12,13,14,15].
Atmospheric VOCs can be effectively removed by electrospun fibers, which have adsorption abilities reportedly similar to that of activated carbon [16,17]. In addition, different non-spun solid particles can be added to effectively increase the adsorption capacity of electrospun fibers [16,17]. In recent years, electrospun polyacrylonitrile (PAN) fibers have drawn a great deal of attention due to their good thermal stability, fine precursors of carbon nanofibers and excellent filament-forming properties [18,19]. In the literature, electrospun fibers were reported to be used successfully for removing nonpolar or weak polar VOCs, such as toluene, benzene and ethanol [20,21,22]. Thus, it is anticipated that electrospun PAN fibers can be explored to remove acetone from the atmosphere.
The use of fibers in combination with porous materials can enhance the performance of VOCs adsorption and reuse properties of resultant composites. In the present study, the binding product of self-assembled ordered porous material (OPM) and electrospun fiber is proposed as honeycomb fiber according to its structure for the first time. The surface chemical properties, functional groups and fiber structures of OPM are satisfied to meet the adsorption requirements [23]. The binding properties of different OPM contents and electrospun PAN fibers were evaluated to obtain optimal honeycomb fibers with the highest adsorption capacity. The adsorption mechanism is investigated by exploring the key reaction of acetone removal. The recycling performance of renewable honeycomb fibers was also evaluated to effectively develop environmentally friendly functional materials.

2. Materials and Methods

2.1. Materials

Polyacrylonitrile (PAN, Mw = 150,000) was obtained from Sigma Company in USA and N,N-dimethylformamide (DMF) was chosen as the solvent. Tetraethylorthosilicate (TEOS, 98%) and cetyltrimethylammonium bromide (CTMABr, 99%) were obtained from Aldrich Company in USA. Isopropanol, NaOH and aqueous ammonia (28%) were purchased from Shiyaku Company in Japan.

2.2. Preparation of OPM

Sol-gel method was used for OPM self-assembly synthesis. Cetyl trimethyl ammonium bromide (CTMABr) of 2.5 g was homogenized in NaOH of 10 mL and deionized of 125 mL water before adding NH4OH (28% by weight) of 10 mL. The mixture was stirred at room temperature under magnetic stirring for 30 min until CTMABr was completely dissolved. Then, 5.2 mL TEOS and 10.4 mL Propan-2-ol (isopropanol) were added dropwise to the aqueous CTMABr solution and stirred at room temperature for 8 h. The stirred sample solution was collected by suction filtration. Then, the white precipitate was collected and placed in an oven dried at 120 °C overnight to yield the as-synthesized OPM product. The dried solid product was placed in a high-temperature furnace and calcined at 550 °C for 6 h to remove the organic template. The obtained OPM was naturally cooled to room temperature and placed in a dry oven for preservation.

2.3. Synthesis of Electrospun Honeycomb Fibers Composites

The prepared OPM was ground to a powder (using a diameter of 74 μm sieve) and placed in a drying oven at 80 °C for at least 4 h. The different contents (20, 40, 60 and 80 wt % relative to PAN) of OPM powder were dispersed in DMF and sonicated for 2 h to produce a homogeneous solution. Then, PAN was added to solution and followed by magnetic stirring for another 5 h. The OPM-PAN composite nanofibers were prepared and named as 20% M-P, 40% M-P, 60% M-P and 80% M-P, respectively. Electrospinning parameters included 13 kV applied voltage, 18 cm collection distance and 0.5 mL h−1 fluid flow rate. After electrospinning, the peeled-off fiber mats were dried at 50 °C for 18 h in a vacuum. Given the special structure of the composite’s fibers, they can be called honeycomb fibers.

2.4. Morphology

The morphological structure of the honeycomb fiber was characterized with using a field emission scanning electron microscope (FE-SEM, Hitachi, Tokyo, Japan). Furthermore, the elemental composition of the sample was analyzed with using an energy dispersive X-ray spectrometer connected to a SEM (EDS, IE300X, Oxford Instruments, Oxford, UK). Transmission electron microscopy images of fibers (TEM, Hitachi, Japan) were recorded at an accelerating voltage of 100 kV. The TEM samples were collected by using a copper mesh with a carbon layer on the collector for several minutes during the electrospinning processes.

2.5. Physical Forms of the Components and Their Interactions

The X-ray diffraction pattern (XRD) of the honeycomb fiber was obtained by using a Rigaku D/MAX-B diffractometer equipped with Cu Kα radiation at λ = 0.154 nm. The diffract spectra of the fibers were recorded within a 2θ range from 0° to 60° with each point recorded in a step of 0.5° and a count time of 60 s. The prepared fibers were subjected to attenuated total reflection Fourier transform infrared (ATR FTIR) analysis with a resolution of 2 cm−1 with using a Nicolet-Nexus 670 FTIR spectrometer (Nicolet Instrument Corporation, Madison, WI, USA) within the range of 600–4000 cm−1.

2.6. Hydrophobic Property

The hydrophobicity of the honeycomb fiber mats were determined using a droplet analysis instrument (DSA100, Krüss GmbH, Hamburg, Germany) by measuring the surface water contact angle (WCA). For each sample, a droplet of 3 μL double-distilled water was placed on their surface, which was repeated six times.

2.7. VOC Adsorption Performance Assessment

Acetone is a representative of polar molecules and is used to evaluate the VOC-adsorption capacity of different electrospun honeycomb fibers. The dynamic adsorption and desorption processes were examined according to the diagram shown in Figure 1. The OPM-PAN composite fibers, 0.88 g∙cm−3, were placed in a quartz reaction tube, whose ends were both connected with a pipeline to form a continuous reactor. The initial acetone concentration at the reactor inlet was controlled as 100 ppm and the flow rate was set at 1 mL min−1. The reaction outlet was connected to a gas chromatograph with flame ionization detector (GC-FID) to measure acetone concentration. The VOCs adsorption breakthrough curve of each fiber was obtained at room temperature, and the adsorption capacity of the honeycomb fibers were calculated. In the performance analysis of honeycomb fibers, N2 was used to purge the fibers to remove the acetone molecules adsorbed in the fibers under 105 °C. Residual acetone in the honeycomb fibers was determined by GC-FID after desorption. All the experiments were repeated three times.

2.8. Adsorption Isotherms

2.8.1. Langmuir Isotherm

The Langmuir model, as shown in Equation (1), was used to correlate the experimental equilibrium data considering monolayer adsorption on a uniform surface containing a finite number of uniform adsorption sites within the polymer, which means that no further adsorption occurs at this site [24]. The maximum adsorption of the surface can be obtained when the surface reaches saturation. In addition, it is assumed that the polymer has a uniform structure in which the adsorption sites are equivalent in energy [25].
q e = q m K d C 0 1 + K d C 0
where, C0 (ppm) and qe (μg g−1) is the initial concentration and adsorption capacity, respectively; qm and Kd are the Langmuir isotherm constants. It can be used to predict the affinity between VOCs and honeycomb fibers, and the Langmuir constant is used as the separation factor or the dimensionless equilibrium parameter, which is expressed as follows in Equation (2).
R L = 1 1 + K d C 0
where, RL is the Langmuir constant and indicates the adsorption property. The adsorption process is irreversible, favorable, linear and unfavorable reaction when RL is equal to 0, between 0 and 1, equal to 1 and larger than 1.

2.8.2. Freundlich Isotherm

The Freundlich model shows the type of adsorption on the heterogeneous surface that interacts with adsorbed molecules. The adsorption energy decreases exponentially according to the adsorption center of the polymer and the completion of the reversible adsorption and is not limited to the formation of a monolayer. The Freundlich isotherm is expressed as follows in Equation (3) [26].
ln q e = ln K f + n ln C 0
where, Kf is the Freundlich constant, and n is heterogeneity.

2.8.3. Temkin Isotherm

According to the characteristics of the Temkin isotherm, it is assumed that the binding energy on the honeycomb fiber surface is uniformly distributed. This model also assumes that the adsorption heat associated with their interaction decreases linearly as increasing acetone capacity. In addition, the specific recognition sites are randomly distributed inside the inner cavities of honeycomb fibers. The Temkin isotherms are listed as follows in Equation (4).
Q e q = B T ln ( A T ) + B T ln ( C e q )
where, AT is the Temkin isotherm constant (J g−1) that represents the maximum binding energy and BT is the Temkin isotherm constant (J mol−1) and related to the heat of adsorption.

3. Results and Discussion

3.1. Electrospinning

Electrospinning is generally considered to be a cheap, simple and straightforward process for preparing polymeric nanofiber and fiber-based nanocomposites, which hold a large surface area and high porosity in nature [27,28,29]. A diagram of the electrospinning process and the visual digital photos captured during the working processes are shown in Figure 2. The electrospinning system includes a syringe pump for driving the PAN and OPM mixture solution in the syringe. The high-voltage power supply is connected with the metal spinneret via an alligator clip. The fibers were collected on a grounded plate collector with an aluminum foil cover.

3.2. Characterization

3.2.1. Surface Area and Pore Size Distribution

The specific surface areas and pore sizes of the samples from 20% M-P to 60% M-P increased with the increase of OPM contents within the electrospun nanofibers, which are included in Table 1. However, the pore volume of 60% M-P was almost double that of 80% M-P. This abnormal phenomenon should have a close relationship with the agglomeration of OPM and the entrapment of OPM by PAN.

3.2.2. Morphology

The prepared honeycomb nanofibers are deposited randomly on the collector to form a flexible and continuous non-woven mat. FE-SEM images of these honeycomb fibers with different OPM contents are shown in Figure 3. The homogeneous distributions of OPM within the PAN matrix ensured a porous surface structure of the OPM-PAN composite nanofibers, i.e., honeycomb surface morphologies. The diameter of fibers increases with increased OPM content, as shown in Table 1. Based on the fiber morphology observed with SEM, the addition of OPM also contributed to the high specific surface area of the composite honeycomb fiber mats. OPM content could not be too high. This is because of the requirement of generating uniform nanofibers, and because a high content of 80% OPM frequently clogged the nozzle of spinneret. The fibers were relatively smooth, and the frequency of nodes on the fiber was relatively low when the OPM content was smaller than 60%. Besides the increase of fiber diameter with the increase of OPM, it is also obvious that the fibers’ smoothness decreased gradually due to more OPM on the fibers’ surfaces, which was indicated in Figure 3a–h. The analysis of Si by FE-SEM-EDS similarly suggested that the element Si was effectively loaded on the fibers. Due to the easy agglomeration of non-spinning OPM, the amount of fiber nodes increased with the elevations of OPM.
The TEM images of 60% M-P are shown in Figure 4a,b. From Figure 4a, it is clear that some parts of the dispersed OPM were wrapped inside the PAN matrices, and the other parts were successfully exposed on the surface of composite nanofibers. Figure 4b is an image about a node, within which OPM penetrated the PAN fiber and roughened the fiber’s surface.

3.2.3. Physical Forms

The XDR patterns of honeycomb fibers with different contents of OPM are compared in Figure 5a. The diffraction peaks at 2θ = 17° are suggested to be the reflections of the characteristics of the (200) crystal plane of the originally existing C–N groups in PAN. The low-angle peak of mesoporous OPM is shown in Figure 5b. The XRD patterns of composite nanofibers show both the diffraction peaks (1 0 0) at 2θ = 3.0° (attributed to the characteristics of the hexagonal mesoporous structure of spherical particles [30]) and also the diffraction peaks at 2θ = 17°, indicating a co-present state of OPM and PAN within the electrospun nanofibers.

3.2.4. Functional Groups

FT-IR spectroscopy was used to analyze the function group of fiber mats. Shown in Figure 6, the wavenumber of Si–O stretching vibration bands and Si–O asymmetric stretching vibration bands is located at 800 cm−1 and 1053 cm−1, respectively, which has also reported in literature [31]. Si–O is a characteristic functional group of OPM. These peaks indicates the presence of OPM in the composite fibers. The corresponding Si–O peak increases with increased content of OPM, suggesting that OPM was effectively attached onto the fiber surface. The ≡Si–O–H telescopic vibration band is located at 963 cm−1, verifying the presence of silanol groups on the fibers’ surfaces [32]. The rotating vibration bands of –CH groups are located at 1460 cm−1, reflecting the presence of PAN in the composite fibers [33].

3.2.5. Hydrophobic Property

To investigate the hydrophobic property of the fiber surface, the contact angles of honeycomb fiber mats were measured and the results are shown in Figure 7. Higher contact angle means better hydrophobic property, which is important for the honeycomb composite fiber for avoiding the negative influence of moisture on polar VOC adsorption. From changes of contact angle from 44.5° to 127.8°, the results demonstrated that the hydrophobic performances were improved as the increase of OPM contents within the composite nanofibers, which should correspondingly improve the performance of honeycomb fibers for acetone removal.

3.3. Adsorption Performance of Honeycomb Fibers

The adsorption capacity of honeycomb fibers with different OPM contents for acetone removal is shown in Figure 8. The acetone adsorption efficiency was evaluated at a flow rate of 1 mL min−1 and acetone concentration of 100 ppm to find the optimal OPM content in the composite nanofibers. The adsorption capacity of acetone was evaluated to determine the best OPM content. It is obvious that the adsorption capacity of honeycomb fibers for acetone removal increases with increasing OPM content. In Figure 8, the best adsorption capacity of 58.2 μg g−1 is to use 60% M-P fiber for acetone removal, which is significantly higher than that of 40% M-P and 20% M-P. These results can be anticipated because OPM has a mesopore structure and is suitable for acetone adsorption [34,35]. T Thus, the more OPM was loaded, the better adsorption performance the composite fibers had. However, this trend was broken by the 80% M-P fiber, whose adsorption capacity is 52.1 μg g−1, less than that of 60% M-P fiber (58.2 μg g−1). The reason should be that the pore volume of 60% M-P was almost twice than that of 80% M-P, where the agglomeration of OPM was severe.

3.4. Effect of Adsorption Concentration

In Figure 9, the Langmuir, Freundlich and Temkin isotherm models of acetone adsorption with 60% M-P fibers are fitted. The Langmuir adsorption isotherm model (R2 = 0.9988) is more suitable for adsorption capacity prediction than the Freundlich adsorption isotherm model (R2 = 0.9880) and Temkin adsorption isotherm model (R2 = 0.9925) at acetone concentrations of 100, 200, 400, 800 ppm. The calculated parameters according to these models are included in Table 2. The evaluated RL is about 0.27, which suggests that the acetone removal process belonged to favorable adsorption (0 < RL < 1). The results also confirmed that the adsorption of acetone by composite fibers was monolayer and physical in nature.

3.5. Reusability

Most of the adsorbent material in the form of particles and powder can limit their re-use and commercial value. In this study, OPM was added into PAN fiber by electrospinning, and the honeycomb fibers were prepared to enhance the VOC adsorption performance through increasing the specific surface area and pore volume of the fiber at the same time. Furthermore, acetone could be desorbed from OPM at the lower temperature [30]. The four kinds of honeycomb fibers were used to repeat the VOC adsorption/desorption experiments for five recycling times, and the results are shown in Figure 10. The adsorption data revealed that the results of honeycomb fibers with different OPM contents were similar with each run during the adsorption and desorption processes. Furthermore, 60% M-P honeycomb fibers always had the best adsorption capacity of around 58.3 μg g−1 for acetone removal. After 5 repetitions, the differences about the adsorption performance between the first and the fifth run was less than 5%. These results showed better performances about reusability than those fly-ash-loaded fibers and activated carbon reported in literature [16,17].

3.6. Temperature Effect on Adsorption Performance

The effect of temperature on the acetone adsorption capacity of the honeycomb fibers were assessed in the range of 20–100 °C and the results are shown in Figure 11. The adsorption capacity was relatively large at the lower temperature and gradually decreased with increasing temperature. The relationships between adsorption capacity and temperature for the four honeycomb fibers are also similar. At an adsorption temperature of 20 °C, the 60% M-P adsorption capacity was approximately 58.3 μg g−1 and decreased to an approximate value of 51.9 μg g−1 at 40 °C. While investigating the influence of temperature on the adsorption of acetone, desorption experiments were also conducted. As the temperature rose, the rate of which acetone resolving increased and the time taken for the desorption process gradually shortened (Figure 12).

3.7. Development of Adsorption Mechanism

Based on the experimental data and characterization studies, honeycomb fiber can be used for acetone adsorption effectively since the OPM penetrates the fiber and is exposed to the outside of the fiber with a large area for effective acetone adsorption. This is clearly demonstrated by the SEM image of the single fiber. Furthermore, the Si–O functional group on the honeycomb fiber can be effectively combined with C=O functional group of acetone, which increase the adsorption capacity of acetone, as shown in Figure 13. In addition, the superposition of fibrous layers also creates higher porosity which helps to capture acetone efficiently.
It can be speculated that the removal mechanism consists of three steps. In First step, acetone is adsorbed on the surface of honeycomb fiber due to Brownian motion. In second step, the partial acetone is diffused into inner pores of honeycomb fiber due to core adsorption sites provided by porous materials of honeycomb fiber. In third step, acetone is adsorbed through the intermolecular interactions between carboxyl and Si–O as verified by the EDS results (Figure 3 and Figure 6).

4. Conclusions

In summary, new types of honeycomb fiber were prepared successfully and were explored for effective polar VOC removal. The size and structure estimated by SEM and TEM demonstrated the uniform dispersion of OPM in honeycomb fibers. The description of its physico-chemical properties (BET, FT-IR, XRD and contact angle) indicated that the best-performance honeycomb fiber is 60% M-P with the largest pore volume. In addition, the composite fibers had excellent recycling performances. These honeycomb fibers may find potential applications as absorbents in plants to remove VOCs or as commercial masks.

Author Contributions

Y.-X.W., H.T. and D.-G.Y. conceived and designed the experiments; Y.-X.W., D.-G.Y. and C.-T.C. performed the experiments and analyzed the data; Y.-X.W. and C.-T.C. wrote the paper.

Funding

This research received no external funding.

Acknowledgments

This study was supported by the Natural Science Foundation of China (No. 51679140) and the Ministry of Science and Technology of Taiwan for providing financial support for project MOST 106-2622-E-197-003-CC3.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liang, X.Y.; Chi, J.; Yang, Z. The influence of the functional group on activated carbon for acetone adsorption property by molecular simulation study. Microporous Mesoporous Mater. 2018, 262, 77–88. [Google Scholar] [CrossRef]
  2. Khanchi, A.; Hebbern, C.A.; Zhu, J.; Cakmak, S. Exposure to volatile organic compounds and associated health risks in windsor, Canada. Atmos. Environ. 2015, 120, 152–159. [Google Scholar] [CrossRef]
  3. Vellingiri, K.; Kumar, P.; Deep, A.; Kim, K.H. Metal-organic frameworks for the adsorption of gaseous toluene under ambient temperature and pressure. Chem. Eng. J. 2017, 307, 1116–1126. [Google Scholar] [CrossRef]
  4. Li, S.; Tian, S.; Feng, Y.; Lei, J.; Wang, P. A comparative investigation on absorption performances of three expanded graphite-based complex materials for toluene. J. Hazard. Mater. 2010, 183, 506–511. [Google Scholar] [CrossRef] [PubMed]
  5. Kamal, M.S.; Razzak, S.A.; Hossain, M.M. Catalytic oxidation of volatile organic compounds (VOCs)—A review. Atmos. Environ. 2016, 140, 117–134. [Google Scholar] [CrossRef]
  6. Wu, Y.T.; Yu, Y.H.; Nguyen, V.H.; Lu, K.T.; Wu, J.C.; Chang, L.M.; Kuo, C.W. Enhanced xylene removal by photocatalytic oxidation using fiber-illuminated honeycomb reactor at ppb level. J. Hazard. Mater. 2013, 262, 717–725. [Google Scholar] [CrossRef] [PubMed]
  7. Lee, S.H.; Li, C.; Heber, A.J.; Ni, J.; Huang, H. Biofiltration of a mixture of ethylene, ammonia, n-butanol, and acetone gases. Bioresour. Technol. 2013, 127, 366–377. [Google Scholar] [CrossRef] [PubMed]
  8. Ramos, M.E.; Bonelli, P.R.; Cukierman, A.L.; Ribeiro Carrott, M.M.; Carrott, P.J. Adsorption of volatile organic compounds onto activated carbon cloths derived from a novel regenerated cellulosic precursor. J. Hazard. Mater. 2010, 177, 175–182. [Google Scholar] [CrossRef] [PubMed]
  9. Fayaz, M.; Shariaty, P.; Atkinson, J.D.; Hashisho, Z.; Phillips, J.H.; Anderson, J.E.; Nichols, M. Using microwave heating to improve the desorption efficiency of high molecular weight VOC from beaded activated carbon. Environ. Sci. Technol. 2015, 49, 4536–4542. [Google Scholar] [CrossRef] [PubMed]
  10. Zhou, Y.; Zhou, L.; Hang, X.; Chen, Z.Y. Preparation of zeolitic imidazolate framework-8/graphene oxide composites with enhanced VOCs adsorption capacity. Microporous Mesoporous Mater. 2016, 225, 488–493. [Google Scholar] [CrossRef]
  11. Pokharel, P.; Dai, S.L. High performance polyurethane nanocomposite films prepared from a masterbatch of graphene oxide in polyether polyol. Chem. Eng. J. 2014, 253, 356–365. [Google Scholar] [CrossRef]
  12. Al-Attabi, R.; Dumée, L.F.; Schütz, J.A.; Morsi, Y. Pore engineering towards highly efficient electrospun nanofibrous membranes for aerosol particle removal. Sci. Total Environ. 2018, 625, 706–715. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, D.G.; Li, J.J.; Zhang, M.; Williams, G.R. High-quality janus nanofibers prepared using three-fluid electrospinning. Chem. Commun. 2017, 53, 4542–4545. [Google Scholar] [CrossRef] [PubMed]
  14. Xu, Y.; Li, J.J.; Yu, D.G.; Williams, G.R.; Yang, J.H.; Wang, X. Influence of the drug distribution in electrospun gliadin fibers on drug-release behavior. Eur. J. Pharm. Sci. 2017, 106, 422–430. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, Q.; Yu, D.G.; Zhang, L.L.; Liu, X.K.; Deng, Y.C.; Zhao, M. Electrospun hypromellose-based hydrophilic composites for rapid dissolution of poorly water-soluble drug. Carbohydr. Polym. 2017, 174, 617–625. [Google Scholar] [CrossRef] [PubMed]
  16. Han, J.K.; Pant, H.R.; Choi, N.J.; Kim, C.S. Composite electrospun fly ash/polyurethane fibers for absorption of volatile organic compounds from air. Chem. Eng. J. 2013, 230, 244–250. [Google Scholar]
  17. Scholten, E.; Bromberg, L.; Rutledge, G.C.; Hatton, T.A. Electrospun polyurethane fibers for absorption of volatile organic compounds from air. ACS Appl. Mater. Interfaces 2011, 3, 3902–3909. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Wang, Q.; Du, Y.; Feng, Q.; Huang, F.; Lu, K.; Liu, J.; Wei, Q. Nanostructures and surface nanomechanical properties of polyacrylonitrile/graphene oxide composite nanofibers by electrospinning. J. Appl. Polym. Sci. 2013, 128, 1152–1157. [Google Scholar] [CrossRef]
  19. Al-Attabi, R.; Dumée, L.F.; Kong, L.; Schütz, J.A.; Morsi, Y. High efficiency poly(acrylonitrile) electrospun nanofiber membranes for airborne nanomaterials filtration. Adv. Eng. Mater. 2017, 20, 1700572. [Google Scholar] [CrossRef]
  20. Oh, K.J.; Park, D.W.; Kim, S.S.; Park, S.W. Breakthrough data analysis of adsorption of volatile organic compounds on granular activated carbon. Korean J. Chem. Eng. 2010, 27, 632–638. [Google Scholar] [CrossRef]
  21. Delage, F.; Pascaline Pré, A.; Cloirec, P.L. Mass transfer and warming during adsorption of high concentrations of VOCs on an activated carbon bed: Experimental and theoretical analysis. Environ. Sci. Technol. 2000, 34, 309–316. [Google Scholar] [CrossRef]
  22. Li, L.Q.; Song, J.F.; Yao, X.L.; Huang, G.J.; Liu, Z. Adsorption of volatile organic compounds on three activated carbon samples: Effect of pore structure. J. Cent. South Univ. 2012, 19, 3530–3539. [Google Scholar] [CrossRef]
  23. Hata, H.; Saeki, S.; Kimura, T.; Sugahara, Y.; Kuroda, K. Adsorption of taxol into ordered mesoporous silicas with various pore diameters. Chem. Mater. 1999, 11, 1110–1119. [Google Scholar] [CrossRef]
  24. Viveiros, R.; Lopes, M.I.; Heggie, W.; Casimiro, T. Green approach on the development of lock-and-key polymers for API purification. Chem. Eng. J. 2017, 308, 229–239. [Google Scholar] [CrossRef]
  25. Ansell, R.J. Characterization of the binding properties of molecularly imprinted polymers. In Molecularly Imprinted Polymers in Biotechnology; Springer: Cham, Switzerland, 2015; Volume 150, pp. 51–93. [Google Scholar]
  26. Ellwanger, A.; Berggren, C.; Bayoudh, S.; Crecenzi, C.; Karlsson, L.; Owens, P.K.; Ensing, K.; Cormack, P.; Herrington, D.; Sellergren, S.B. Evaluation of methods aimed at complete removal of template from molecularly imprinted polymers. Analyst 2001, 126, 784–792. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, K.; Liu, X.K.; Chen, X.H.; Yu, D.G.; Yang, Y.Y.; Liu, P. Electrospun hydrophilic janus nanocomposites for the rapid onset of therapeutic action of helicid. ACS Appl. Mater. Interfaces 2018, 10, 2859–2867. [Google Scholar] [CrossRef] [PubMed]
  28. Yang, Y.Y.; Liu, Z.P.; Yu, D.G.; Wang, K.; Liu, P.; Chen, X.H. Colon-specific pulsatile drug release provided by electrospun shellac nanocoating on hydrophilic amorphous composites. Int. J. Nanomed. 2018, 13, 2395–2404. [Google Scholar] [CrossRef] [PubMed]
  29. Liu, X.K.; Shao, W.Y.; Luo, M.Y.; Bian, J.Y.; Yu, D.G. Electrospun blank nanocoating for improved sustained release profiles from medicated gliadin nanofibers. Nanomaterials 2018, 8, 184. [Google Scholar]
  30. Bore, M.T.; Rathod, S.B.; Ward, T.L.; Datye, A.K. Hexagonal mesostructure in powders produced by evaporation-induced self-assembly of aerosols from aqueous tetraethoxysilane solutions. Langmuir 2008, 19, 256–264. [Google Scholar] [CrossRef]
  31. Janus, R.; Kuśtrowski, P.; Dudek, B.; Piwowarska, Z.; Kochanowski, A.; Michalik, M.; Cool, P. Removal of methyl–ethyl ketone vapour on polyacrylonitrile-derived carbon/mesoporous silica nanocomposite adsorbents. Microporous Mesoporous Mater. 2011, 145, 65–73. [Google Scholar] [CrossRef]
  32. Furtado, A.M.B.; Wang, Y.; Glover, T.G.; Levan, M.D. MCM-41 impregnated with active metal sites: Synthesis, characterization, and ammonia adsorption. Microporous Mesoporous Mater. 2011, 142, 730–739. [Google Scholar] [CrossRef]
  33. Chauhan, D.; Afreen, S.; Mishra, S.; Sankararamakrishnan, N. Synthesis, characterization and application of zinc augmented aminated PAN nanofibers towards decontamination of chemical and biological contaminants. J. Ind. Eng. Chem. 2017, 55, 50–64. [Google Scholar] [CrossRef]
  34. Kosuge, K.; Kubo, S.; Kikukawa, N.; Takemori, M. Effect of pore structure in mesoporous silicas on VOC dynamic adsorption/desorption performance. Langmuir 2007, 23, 3095–3102. [Google Scholar] [CrossRef] [PubMed]
  35. Hung, C.; Bai, H.; Karthik, M. Ordered mesoporous silica particles and Si-MCM-41 for the adsorption of acetone: A comparative study. Sep. Purif. Technol. 2009, 64, 265–272. [Google Scholar] [CrossRef]
Figure 1. Diagram of performance assessment system.
Figure 1. Diagram of performance assessment system.
Nanomaterials 08 00350 g001

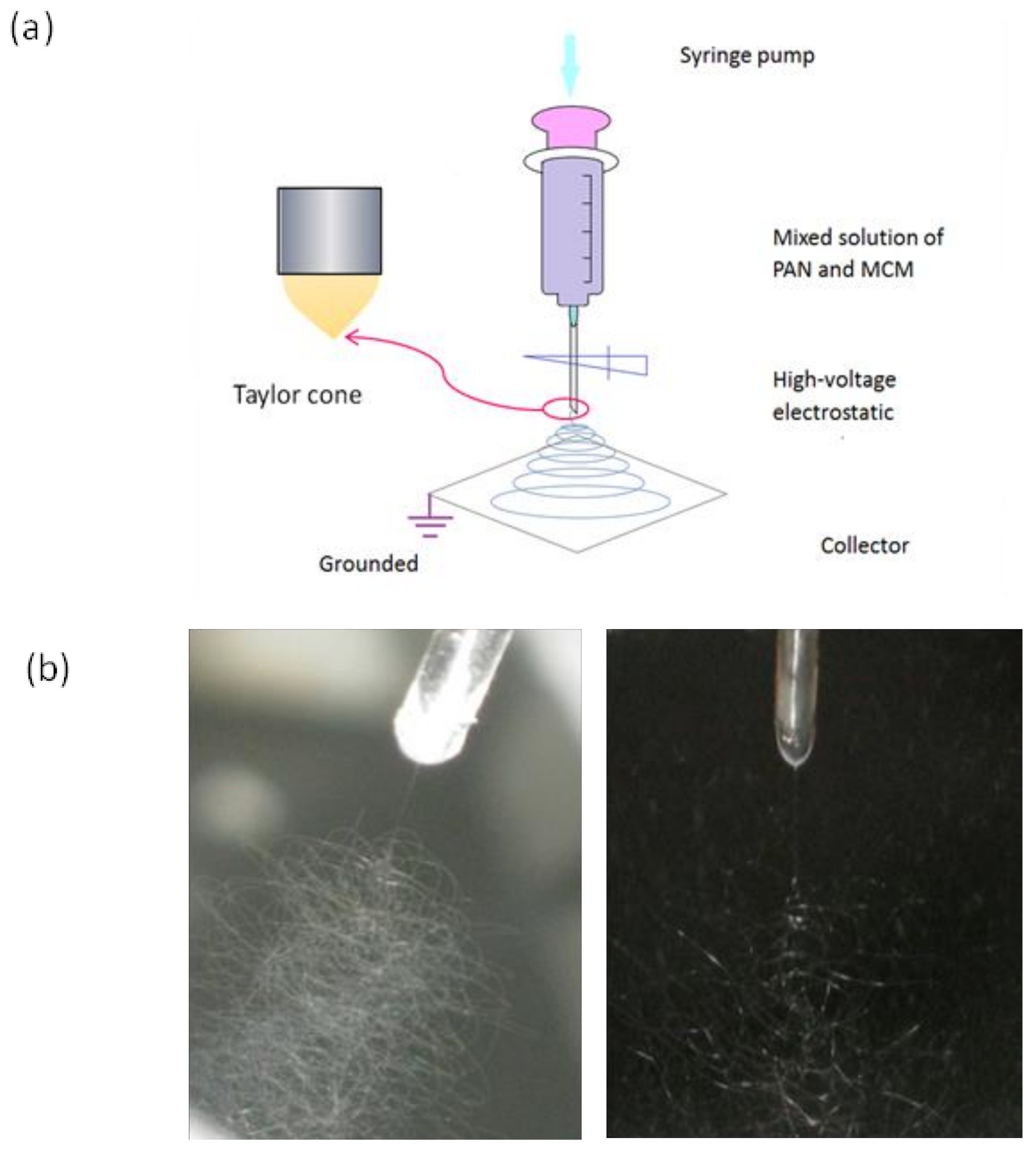

Figure 2. (a) A diagram of the electrospinning system; (b) Two typical digital images about the working processes during electrospinning.
Figure 2. (a) A diagram of the electrospinning system; (b) Two typical digital images about the working processes during electrospinning.
Nanomaterials 08 00350 g002
Figure 3. Morphological images of single honeycomb fibers: (a) 20% M-P; (b) 20% M-P-EDS; (c) 40% M-P; (d) 40% M-P-EDS; (e) 60% M-P; (f) 60% M-P-EDS; (g) 80% M-P; (h) 80% M-P-EDS.
Figure 3. Morphological images of single honeycomb fibers: (a) 20% M-P; (b) 20% M-P-EDS; (c) 40% M-P; (d) 40% M-P-EDS; (e) 60% M-P; (f) 60% M-P-EDS; (g) 80% M-P; (h) 80% M-P-EDS.
Nanomaterials 08 00350 g003aNanomaterials 08 00350 g003b
Figure 4. TEM images of 60% M-P: (a) fiber and (b) node.
Figure 4. TEM images of 60% M-P: (a) fiber and (b) node.
Nanomaterials 08 00350 g004

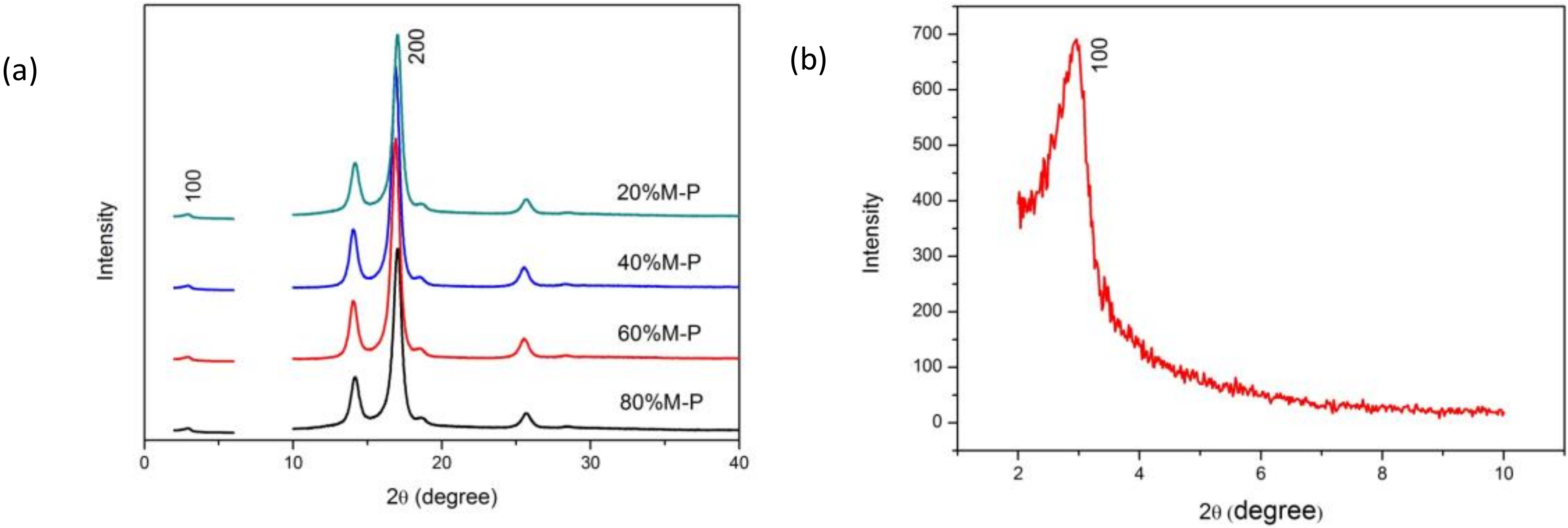

Figure 5. XRD patterns of (a) honeycomb composite fibers and (b) OPM.
Figure 5. XRD patterns of (a) honeycomb composite fibers and (b) OPM.
Nanomaterials 08 00350 g005

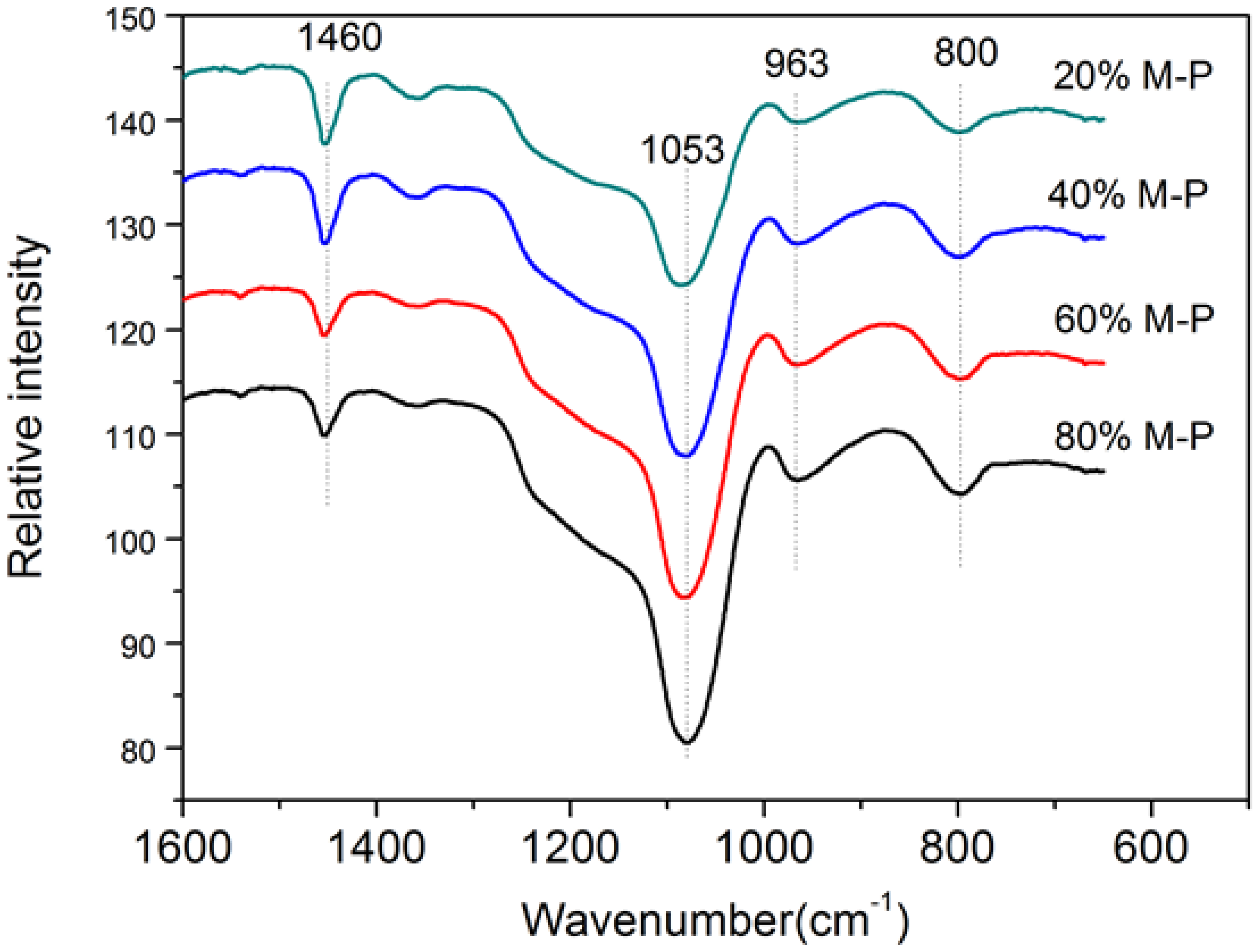

Figure 6. FT-IR spectra of the honeycomb fibers.
Figure 6. FT-IR spectra of the honeycomb fibers.
Nanomaterials 08 00350 g006
Figure 7. Contact angles of honeycomb fibers with different OPM contents.
Figure 7. Contact angles of honeycomb fibers with different OPM contents.
Nanomaterials 08 00350 g007

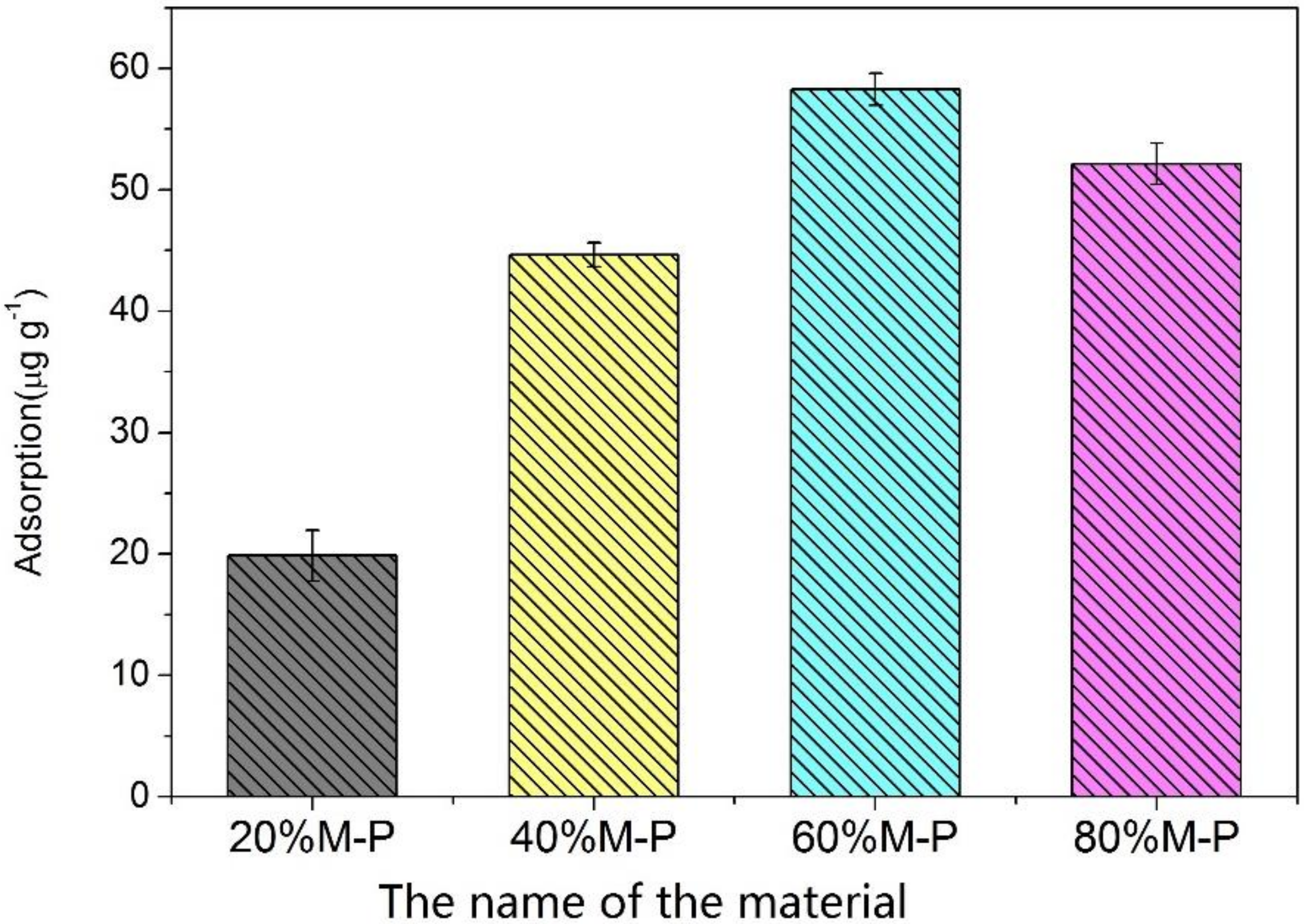

Figure 8. Adsorption capacity of honeycomb fibers with different OPM contents (n = 3).
Figure 8. Adsorption capacity of honeycomb fibers with different OPM contents (n = 3).
Nanomaterials 08 00350 g008

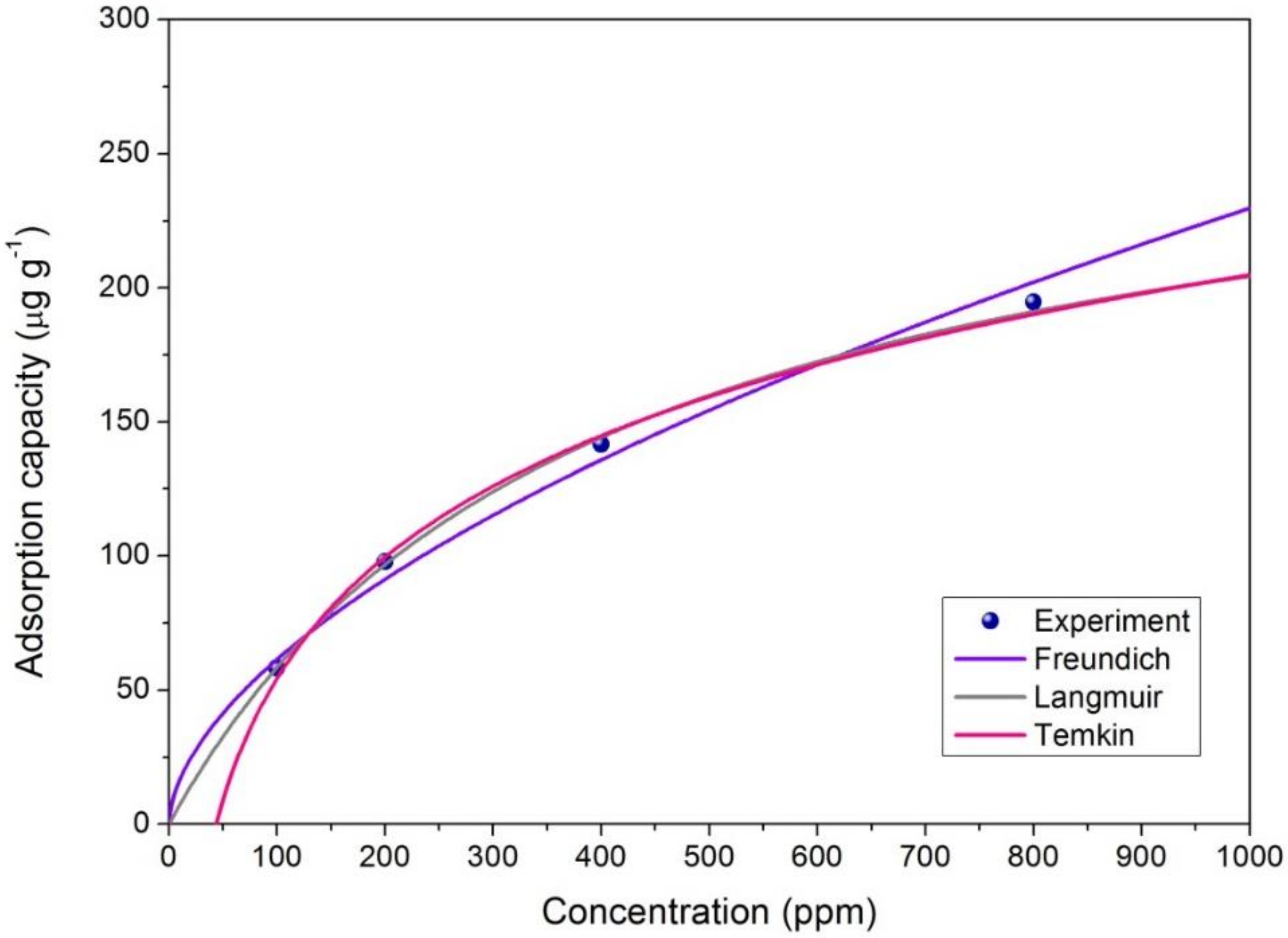

Figure 9. Adsorption capacity estimation for acetone adsorption (n = 3).
Figure 9. Adsorption capacity estimation for acetone adsorption (n = 3).
Nanomaterials 08 00350 g009

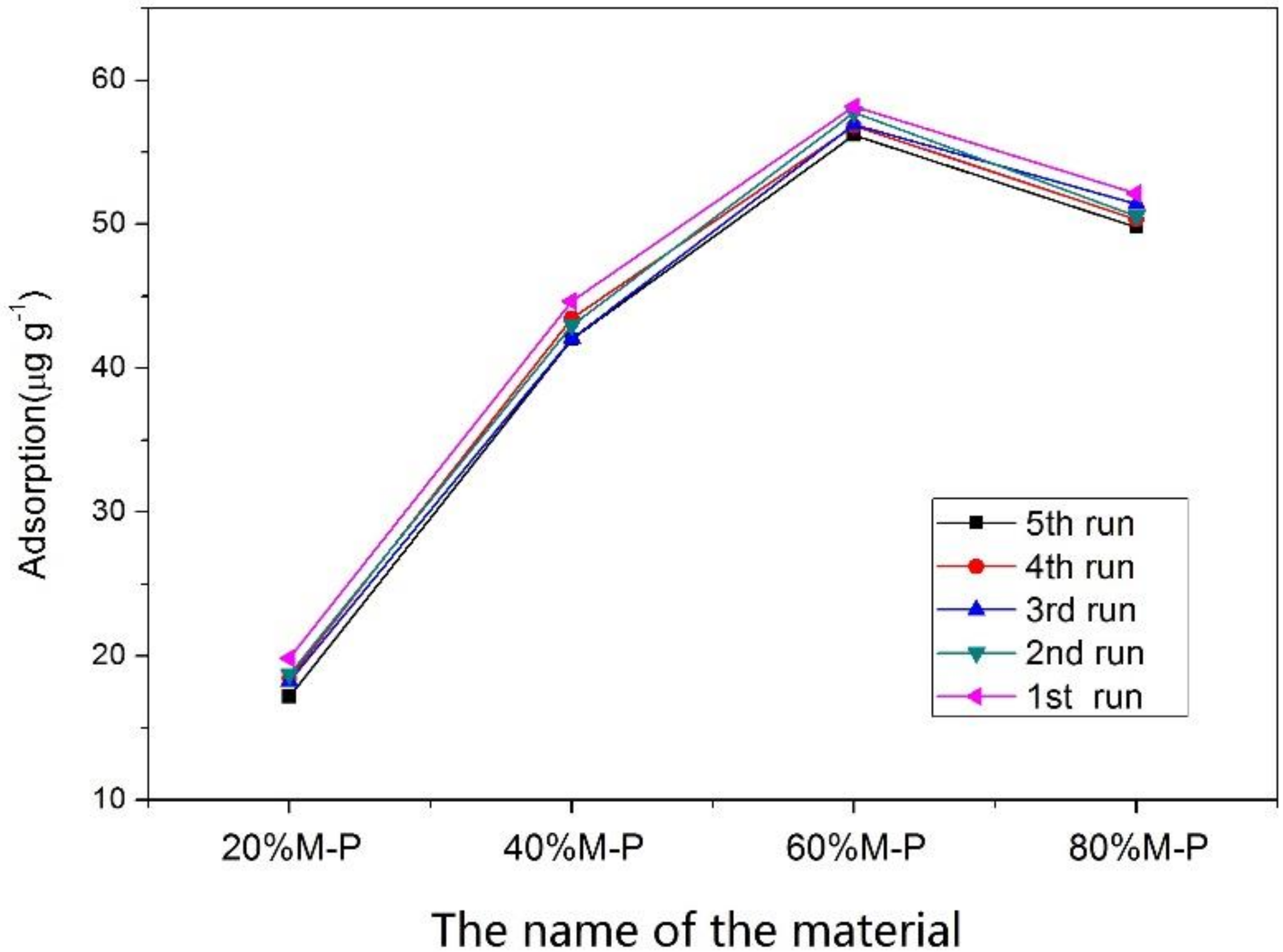

Figure 10. The influences of recycling times on the acetone adsorption by honeycomb fibers (n = 3).
Figure 10. The influences of recycling times on the acetone adsorption by honeycomb fibers (n = 3).
Nanomaterials 08 00350 g010
Figure 11. The influence of temperature on equilibrium acetone adsorption capacity of honeycomb fibers (n = 3).
Figure 11. The influence of temperature on equilibrium acetone adsorption capacity of honeycomb fibers (n = 3).
Nanomaterials 08 00350 g011

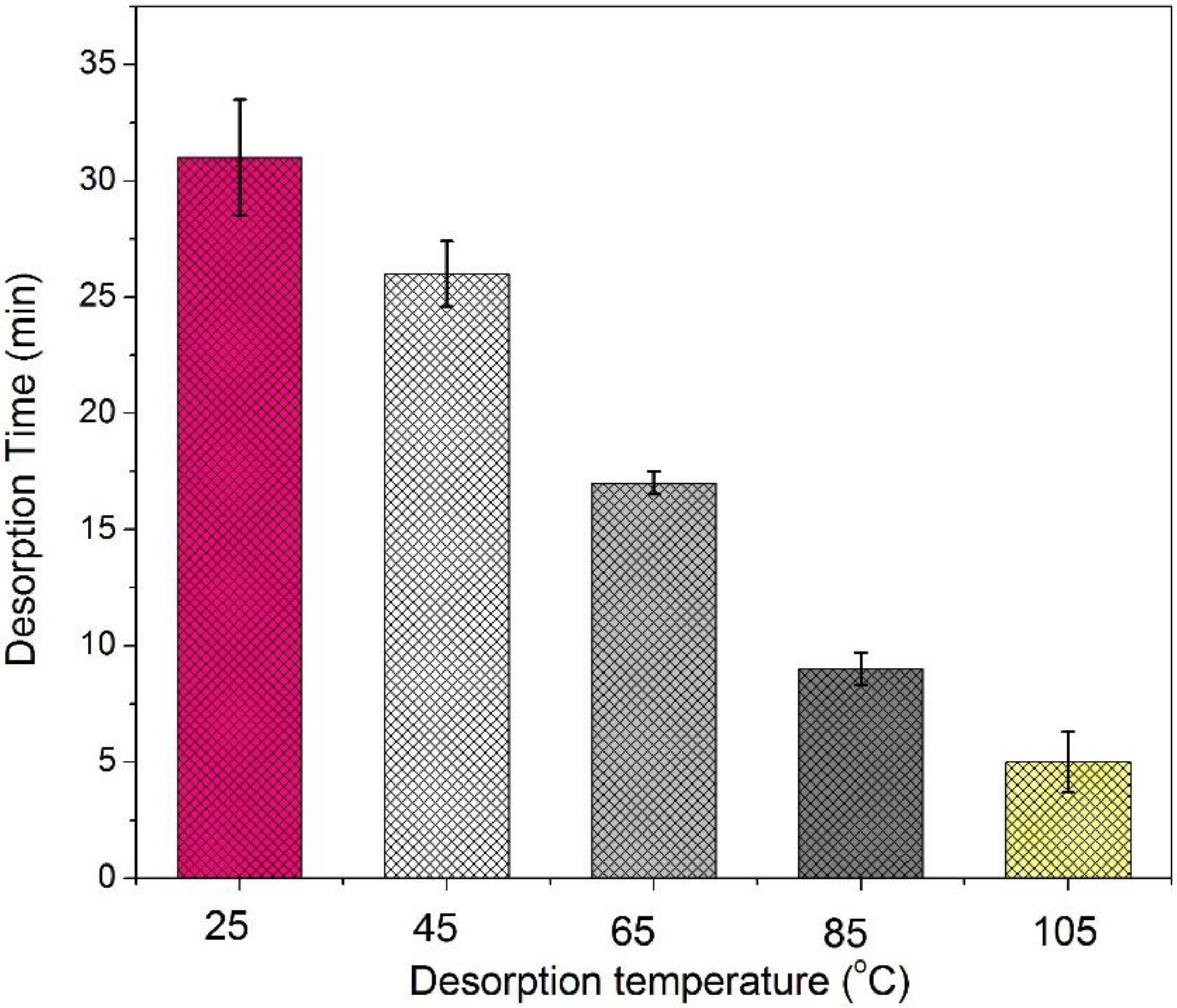

Figure 12. Desorption time of 60% M-P at different temperatures (n = 3).
Figure 12. Desorption time of 60% M-P at different temperatures (n = 3).
Nanomaterials 08 00350 g012

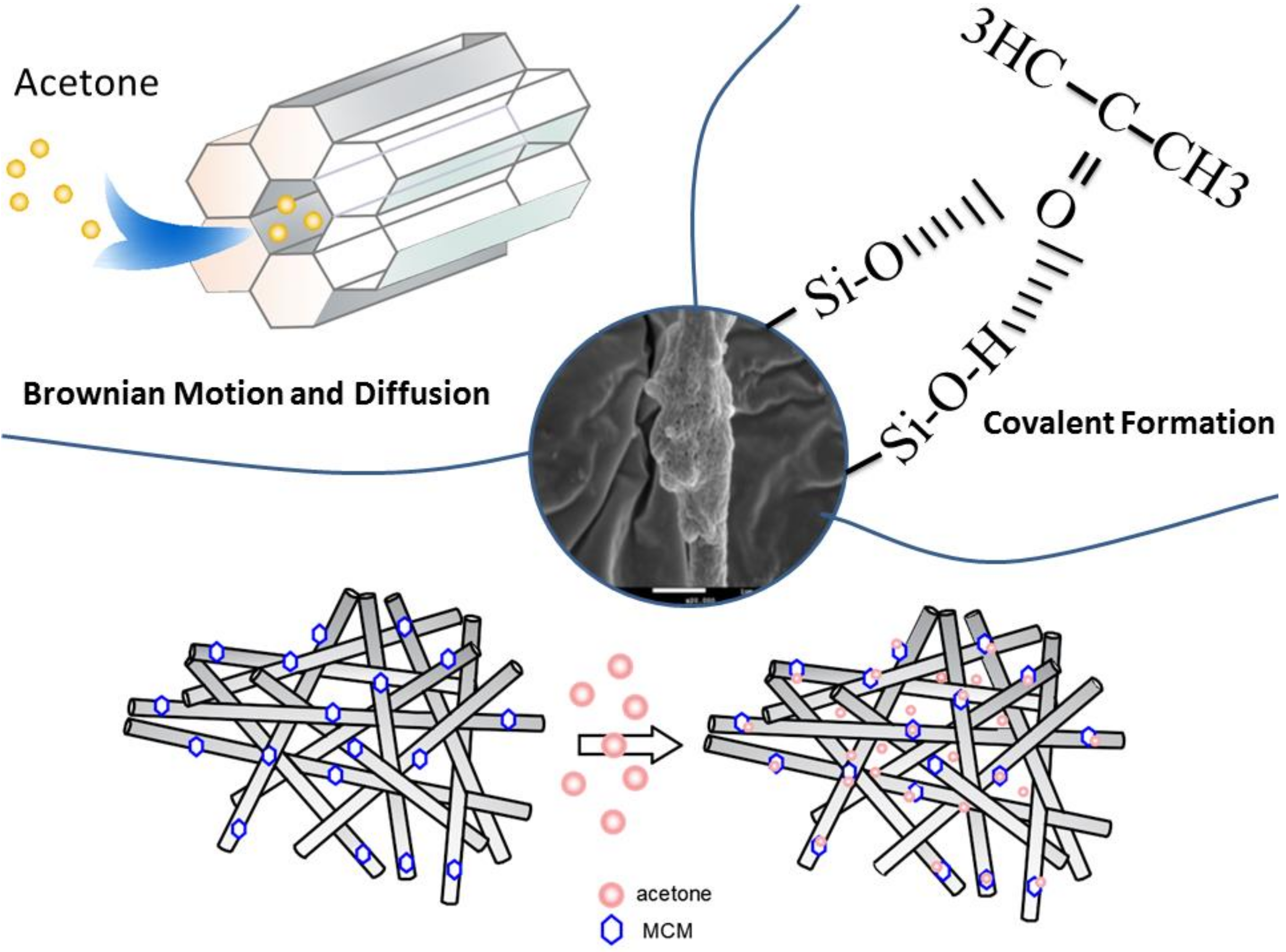

Figure 13. A diagram about the honeycomb fiber adsorption process of acetone.
Figure 13. A diagram about the honeycomb fiber adsorption process of acetone.
Nanomaterials 08 00350 g013
Table 1. Properties of OPM-PAN fibers with different contents of OPM.
Table 1. Properties of OPM-PAN fibers with different contents of OPM.
SampleSBET aPore VolumePore SizeFiber Diameter (nm)
(m2g−1)(m2g)(nm)RangeMean
20% M-P620.022.1252–9065
40% M-P1130.032.1668–184103
60% M-P1210.052.1971–218119
80% M-P2190.033.66113–306199
SBET a: specific surface area calculated by Brunauer–Emmett–Teller (BET) method.
Table 2. Langmuir, Freundlich and Temkin constants for acetone adsorption with 60% M-P.
Table 2. Langmuir, Freundlich and Temkin constants for acetone adsorption with 60% M-P.
AdsorptionLangmuir IsothermFreundlich IsothermTemkin Isotherm
KdqmR2KfnR2BTATR2
60% M-P0.0036277.780.99884.391.750.988065.360.0230.9925
