Next Article in Journal
One-Step Fabrication of Dual Responsive Lignin Coated Fe3O4 Nanoparticles for Efficient Removal of Cationic and Anionic Dyes
Next Article in Special Issue
The Effect of the MEMS Measurement Platform Design on the Seebeck Coefficient Measurement of a Single Nanowire
Previous Article in Journal
In Vitro and In Vivo Short-Term Pulmonary Toxicity of Differently Sized Colloidal Amorphous SiO2
Previous Article in Special Issue
Electrochemical Preparation of Polyaniline Nanowires with the Used Electrolyte Solution Treated with the Extraction Process and Their Electrochemical Performance
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Nanomaterials 2018, 8(3), 161; https://doi.org/10.3390/nano8030161

Understanding the Effects of NaCl, NaBr and Their Mixtures on Silver Nanowire Nucleation and Growth in Terms of the Distribution of Electron Traps in Silver Halide Crystals

1
Department of Applied Physics, Nanjing Tech University, Nanjing 210009, China
2
Department of Chemical and Biological Engineering, University at Buffalo (SUNY), Buffalo, New York, NY 14260, USA
3
College of Chemistry and Molecular Engineering, Nanjing Tech University, Nanjing 210009, China
4
School of Electronic Science and Engineering, Southeast University, Nanjing 210096, China
*
Authors to whom correspondence should be addressed.
Received: 20 February 2018 / Revised: 5 March 2018 / Accepted: 7 March 2018 / Published: 14 March 2018
(This article belongs to the Special Issue Synthesis and Characterization of Nanowires)
View Full-Text   |   Download PDF [24924 KB, uploaded 14 March 2018]   |

Abstract

In recent years, many research groups have synthesized ultra-thin silver nanowires (AgNWs) with diameters below 30 nm by employing Cl and Br simultaneously in the polyol process. However, the yield of AgNWs in this method was low, due to the production of Ag nanoparticles (AgNPs) as an unwanted byproduct, especially in the case of high Br concentration. Here, we investigated the roles of Cl and Br in the preparation of AgNWs and then synthesized high aspect ratio (up to 2100) AgNWs in high yield (>85% AgNWs) using a Cl and Br co-mediated method. We found that multiply-twinned particles (MTPs) with different critical sizes were formed and grew into AgNWs, accompanied by a small and large amount of AgNPs for the NaCl and NaBr additives, respectively. For the first time, we propose that the growth of AgNWs of different diameters and yields can be understood based on the electron trap distribution (ETD) of the silver halide crystals. For the case of Cl and Br co-additives, a mixed silver halide crystal of AgBr1−xClx was formed, rather than the AgBr/AgCl mixture reported previously. In this type of crystal, the ETD is uniform, which is beneficial for the synthesis of AgNWs with small diameter (30~40 nm) and high aspect ratio. AgNW transparent electrodes were prepared in air by rod coating. A sheet resistance of 48 Ω/sq and transmittance of 95% at 550 nm were obtained without any post-treatment. View Full-Text
Keywords: silver nanowire; NaCl; NaBr; AgBr1−xClx crystal; electron trap distribution; critical size of multiply-twinned particles; transparent electrode silver nanowire; NaCl; NaBr; AgBr1−xClx crystal; electron trap distribution; critical size of multiply-twinned particles; transparent electrode

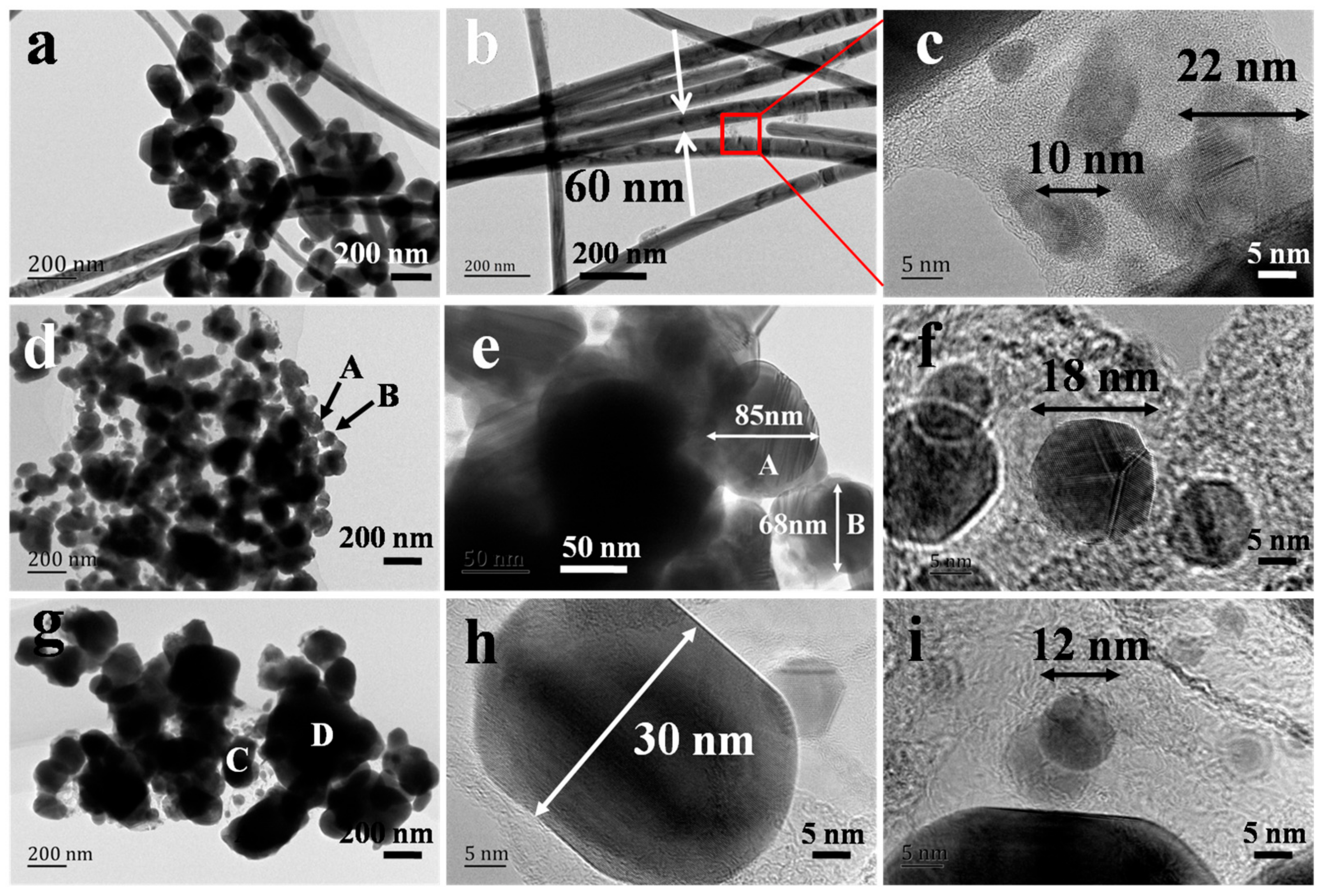

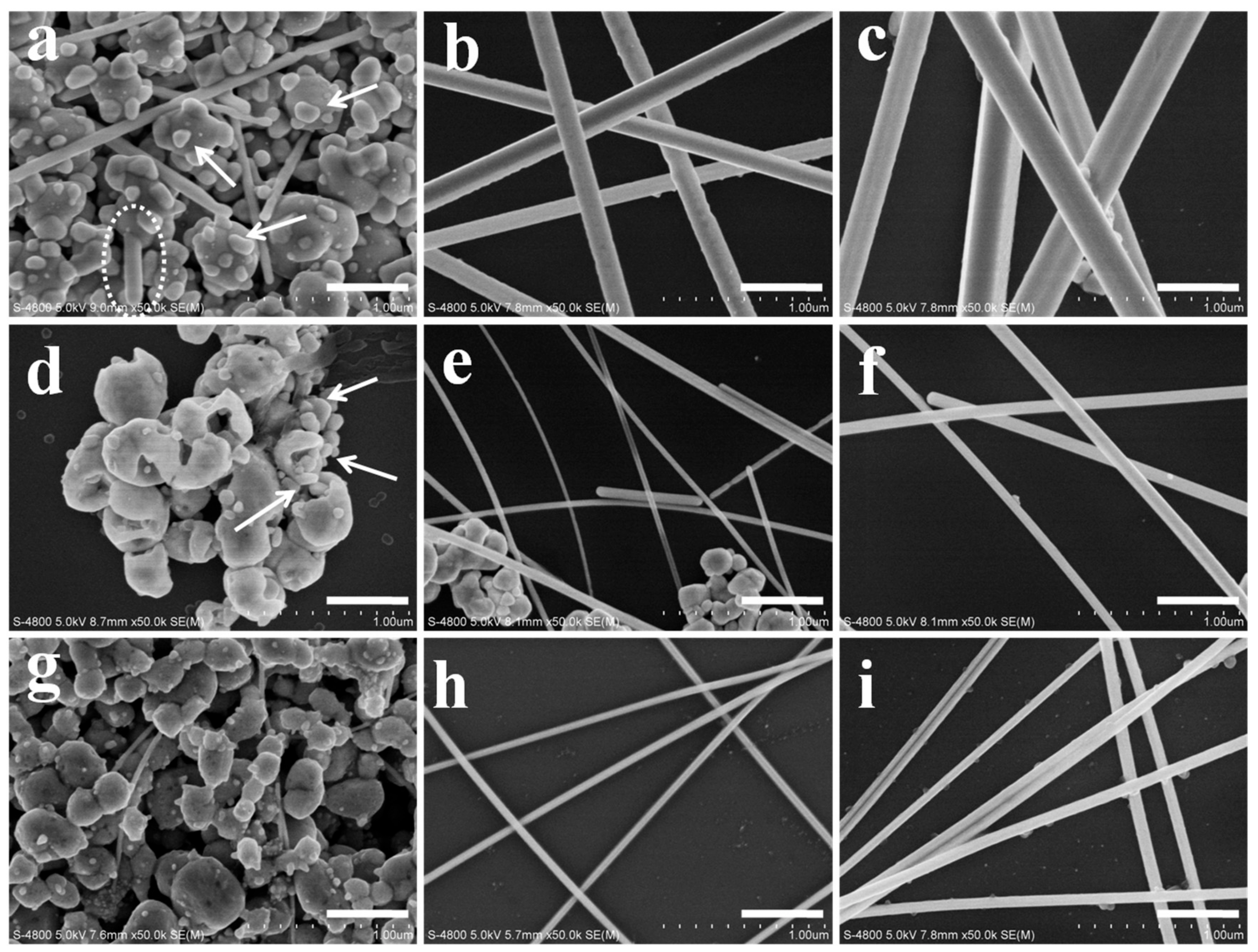

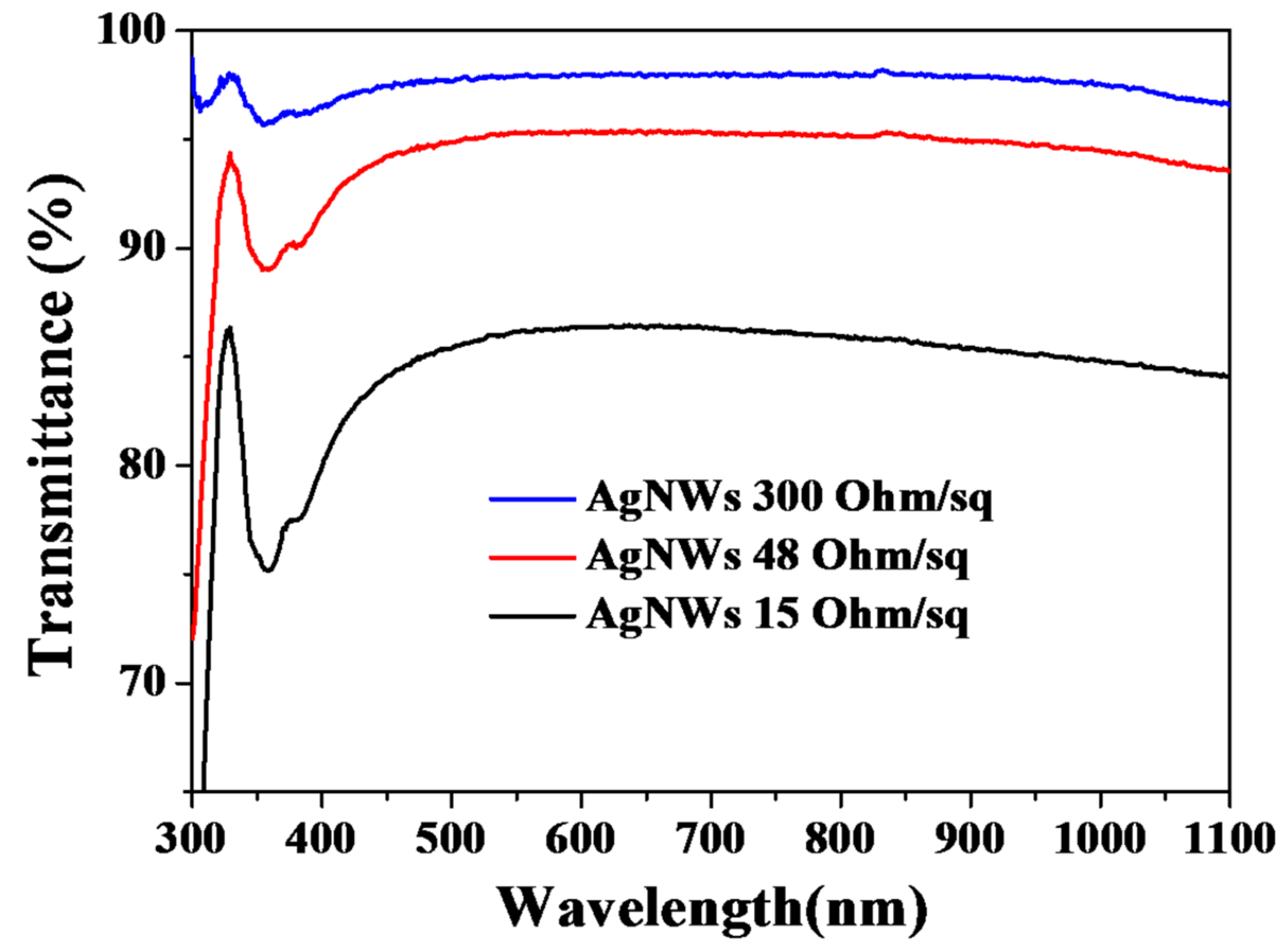

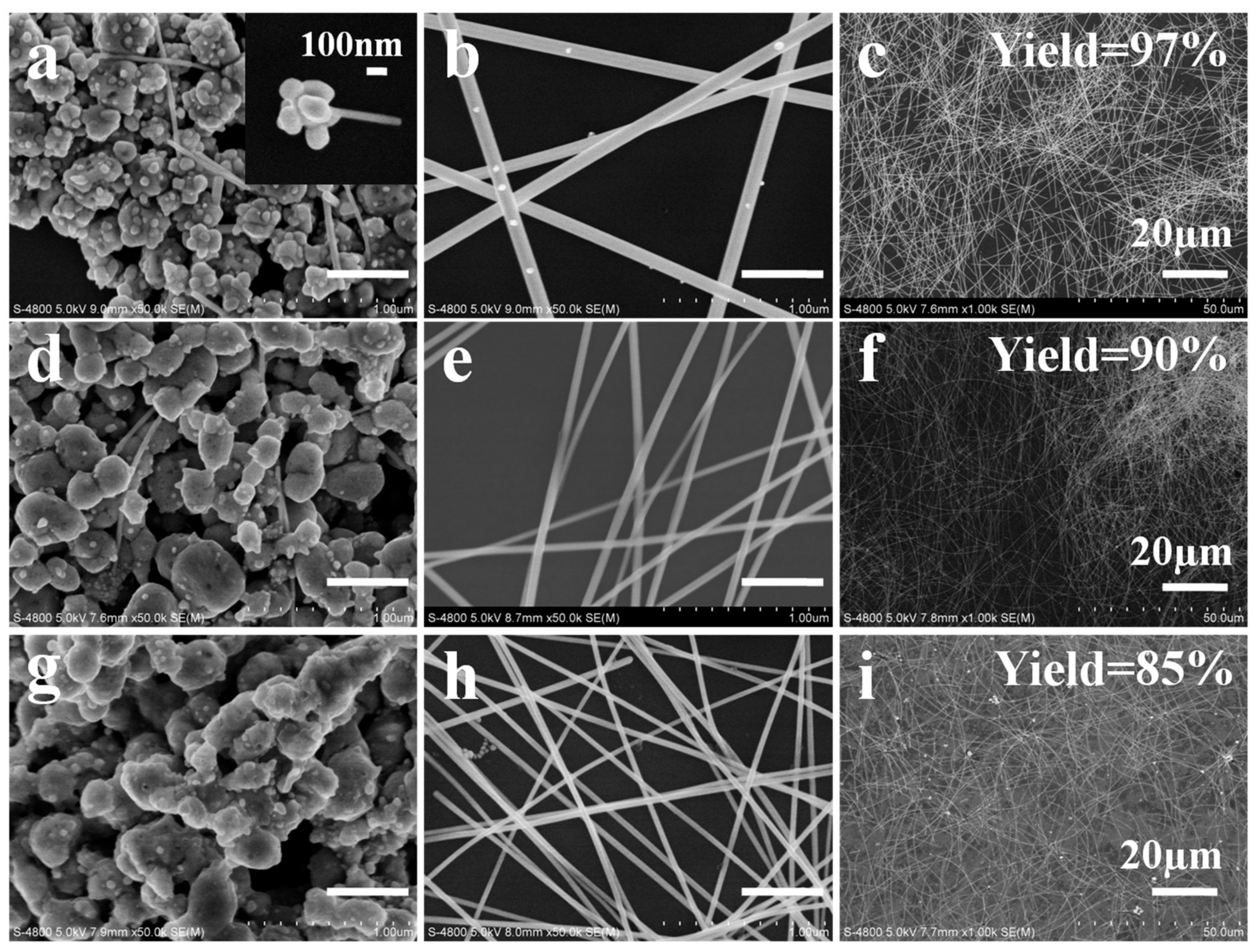

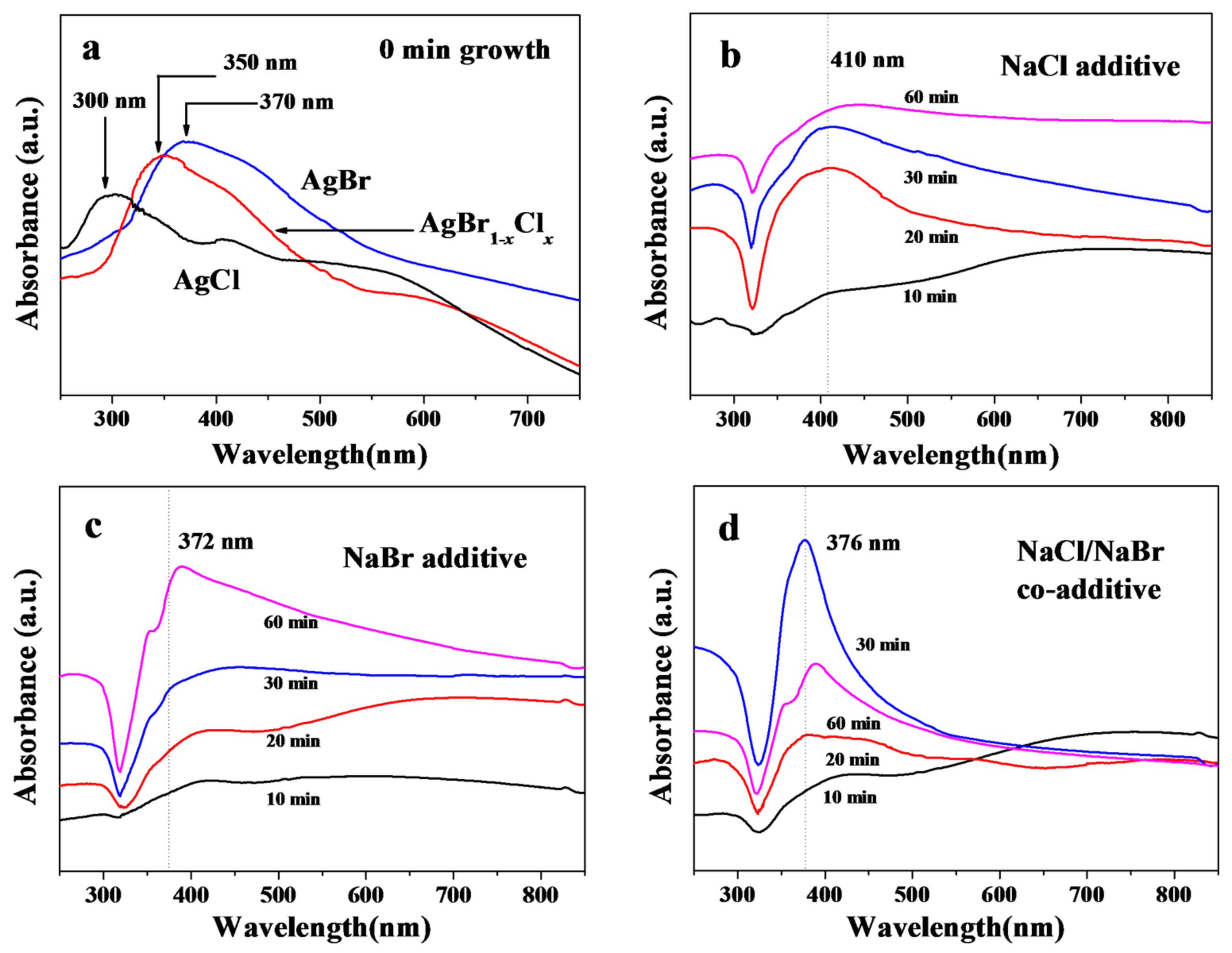

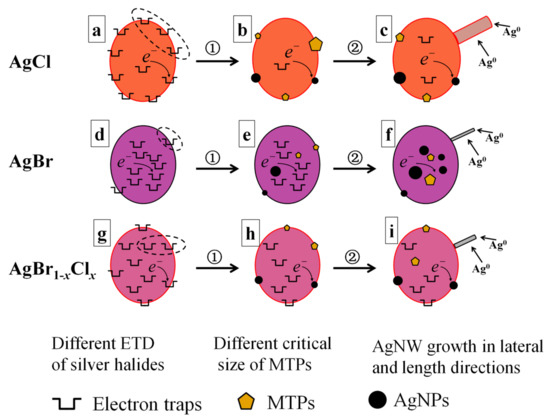

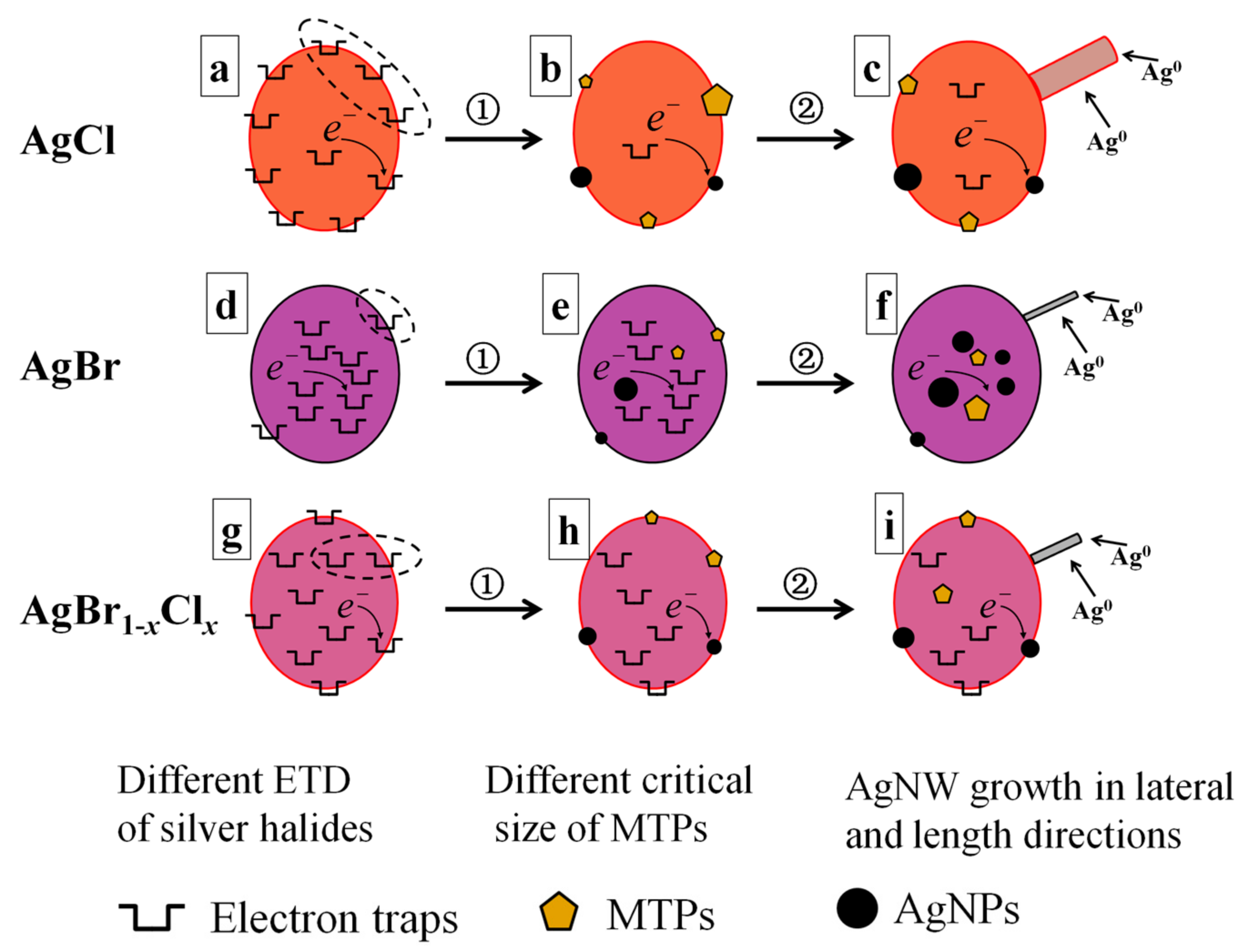

Figures

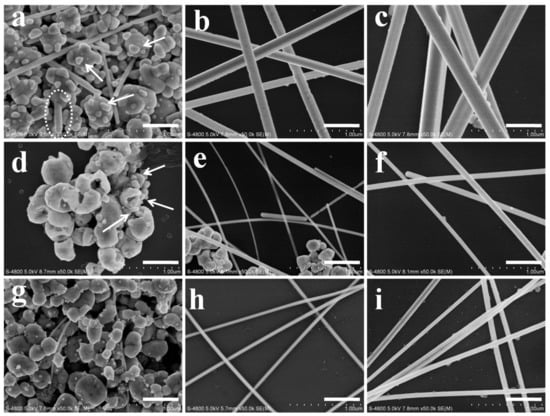

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Rui, Y.; Zhao, W.; Zhu, D.; Wang, H.; Song, G.; Swihart, M.T.; Wan, N.; Gu, D.; Tang, X.; Yang, Y.; Zhang, T. Understanding the Effects of NaCl, NaBr and Their Mixtures on Silver Nanowire Nucleation and Growth in Terms of the Distribution of Electron Traps in Silver Halide Crystals. Nanomaterials 2018, 8, 161.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
