Nanomaterials 2017, 7(9), 236; doi:10.3390/nano7090236

Article
Electrostatic Assembly of Platinum Nanoparticles along Electrospun Polymeric Nanofibers for High Performance Electrochemical Sensors
Peng Li 1, Mingfa Zhang 2, Xueying Liu 2, Zhiqiang Su 2,* and Gang Wei 3,*Orcid
1
Beijing Key Laboratory of Advanced Functional Polymer Composites, Beijing University of Chemical Technology, Beijing 100029, China
2
State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing 100029, China
3
Faculty of Production Engineering, University of Bremen, D-28359 Bremen, Germany
*
Correspondence: Tel.: +49-421-218-64581 (G.W.)
Received: 9 July 2017 / Accepted: 15 August 2017 / Published: 24 August 2017

Abstract

:
A novel polyacrylonitrile (PAN) nanofibrous membrane conjugated with platinum nanoparticles (PtNPs) was fabricated by electrospinning and electrostatic assembly techniques. In this procedure, PAN was electrospun with 3-aminopropyltriethoxysilane (APS) together as precursor materials. First, amine groups were introduced onto PAN nanofibers, and then the as-prepared negative-charged platinum nanoparticles (PtNPs) were conjugated onto the surface of the amino-modified PAN nanofibers uniformly by the electrostatic interaction-mediated assembly. The fabricated PAN–PtNPs hybrid nanofibrous membrane was further utilized to modify the glassy carbon electrodes and was used for the fabrication of a non-enzymatic amperometric sensor to detect hydrogen peroxide (H2O2). The electrochemical results indicated that, due to the uniform dispersion of PtNPs and the electrostatic interaction between amine groups and PtNPs, the fabricated PAN–PtNPs nanofibrous membrane-based electrochemical sensor showed excellent electrocatalytic activity toward H2O2, and the chronoamperometry measurements illustrated that the fabricated sensor had a high sensitivity for detecting H2O2. It is anticipated that the strategies used in this work will not only guide the design and fabrication of functional polymeric nanofiber-based biomaterials and nanodevices, but also extend their potential applications in energy storage, cytology, and tissue engineering.
Keywords:
electrostatic assembly; polymeric nanofibers; electrospinning; PtNPs; electrochemical sensor

1. Introduction

Recently, non-enzymatic electrochemical hydrogen peroxide (H2O2) sensors based on functional hybrid nanomaterials have attracted more and more attention compared to enzymatic sensors because of their advantages such as higher selectivity and sensitivity, simpler fabrication strategy, and lower price [1,2,3]. They possess wide applications in qualitative or quantitative clinical analysis and food safety evaluation [4,5,6]. Compared to other detection techniques such as spectrophotometry [7], chemiluminescence [8], and electrochemical enzymatic sensing [9,10], the non-enzymatic electrochemical H2O2 sensors show superiority in terms of their simplicity and low cost [11,12]. In particular, although the enzymatic sensors usually have unique selectivity towards a lot of biological analytes, they still possess obvious shortcomings such as susceptibility and a short service life. Previous studies have indicated that non-enzymatic electrochemical sensors could prohibit these disadvantages on one hand, and on the other hand they can obtain higher stability and better reproducibility [13,14,15].
Electrospinning is a simple and efficient technique that is driven by electrical forces to fabricate pure or hybrid polymer nanofibers (PMNFs). This occurs when the electrical forces at the surface of a polymer solution or melt overcome the surface tension and cause an electrically charged jet to be ejected [16,17,18,19]. By this way, we can obtain various PMNFs with adjustable length, diameter, chemical functionality, and mechanical properties by selecting various polymer precursors and changing the electrospinning parameters [19]. For example, by incorporating nanoscale building blocks (NBBs) such as metallic nanoparticles (MNPs) or quantum dots within the spinning dope or onto the surface of PMNFs after spinning, it is possible to adjust the physical and chemical properties of electrospun PMNFs by introducing functional additives with special optical and electrical properties to create novel hybrid nanofibrous materials [20]. In addition, the nanofibrous membrane fabricated by electrospinning has a uniform three-dimensional (3D) porous nanostructure, which consists of thousands of nanofibers with or without particular arrangement. The large surface area and high porosity of the fabricated nanofibrous PMNF membrane could provide a lot of active sites for the immobilization of analytes, affording an enhanced current response for the test molecules/biomolecules [21]. Previously, we prepared a graphene-PMNF hybrid nanofibrous membrane by electrospinning and further utilized the created membrane materials for the fabrication of a high performance electrochemical H2O2 sensor [22]. The obtained results indicated that it is possible to improve the electrochemical detection of analytes by incoprating other electroactive nanomaterials into the electrospun PMNFs.
Electrode materials are the bridges connecting the sensor system and current conduction system. In the biological detection aspect, oxidation-reduction reactions take place between electrode materials and biological detected objects under a given voltage, and therefore a good electrode material should possess the abilities of precise selectivity, rapid responses, low detection limit, and good electrical conductivity [21,23,24]. Generally speaking, to guarantee both sensing and conducting properties of an electrode material, a catalyst with high selectivity and conductivity is necessary. Previously, MNPs such as Au, Ag, Pt, and Cu NPs have been thought to be potential candidates to fabricate various electrode materials for electrochemical H2O2 biosensors or sensors due to their good electrochemical activity toward analytes as well as their good electrical conductivity [25,26,27]. Previous studies have indicated that the combination of NBBs with PMNFs to create hybrid nanofibrous membranes is a potential way to fabricate functional electrode materials. We have demonstrated that both one-dimensional (1D) materials like carbon nanotubes [28,29] and two-dimensional (2D) materials like graphene [22] could assist in the better dispersion of MNPs and further improve the electrical conductivity of electrospun PMNFs.
However, with the pre-processing method, the dispersion of NBBs in electrospun PMNFs is always a challenge. The huge gap in surface energy between NPs and the polymeric matrix may lead to severe aggregation and further affect the final sensing performance [30], and the NBBs that remain trapped inside PMNFs possess a limited role for analytical detection [31,32]. To solve this problem, we first fabricated amino-functionalized polyacrylonitrile (PAN) nanofibers by electrospinning a PAN and 3-aminopropyltriethoxysilane (APS) mixed precursor solution, as shown in Figure 1A. Therefore, the as-synthesized negative-charged platinum nanoparticles (PtNPs) could be conjugated onto the positive-charged PAN/APS nanofibers through the electrostatic interaction (Figure 1B). To fabricate an electrochemical sensor, the created PAN–PtNPs hybrid nanofibrous membrane was further utilized to modify a glassy carbon electrode (GCE), as indicated in Figure 1C. We suggest that the fabricated electrochemical sensor could exhibit at least two advantages compared to other kinds of sensors. First, the fabricated PAN–PtNPs hybrid membrane has a 3D porous structure, which could reveal higher surface area and more active sites for analytes. In addition, the nanoscale pores in the membrane could promote the adsorption and diffusion of reactants. Second, the electrostatic assembly could mediate the ordered binding of PtNPs along PAN nanofibers with relatively high density [33,34], which in some way could improve the sensitivity of the current response and enhance the sensing performance.

2. Results and Discussion

2.1. Morphological Characterizations of PtNPs and PAN–PtNPs Nanofibers

Electrospinning is a simple and effective technique to create PMNFs. In this work, we found that the introduction of APS into the PAN solution did not affect the formation of uniform PAN nanofibers, which is proved firstly by the scanning electron microscopy (SEM) characterization. Figure 2A shows the typical SEM image of the electrospun PAN/APS hybrid nanofibers, which reveal high uniformity and linear structure with a diameter of a few 100 nm. After the electrostatic assembly of PtNPs along the fabricated PAN/APS nanofibers, it can be found that the resulted PAN–PtNPs hybrid nanofibers kept the original structure, similar to the PAN/APS nanofibers (Figure 2B), which exhibits a uniform diameter in the range of 200 to 300 nm and is decorated with many PtNPs. A further magnified SEM image (Figure 2C) indicates that the PtNPs were adsorbed uniformly on the surface of electrospun PAN/APS nanofibers due to the electrostatic self-assembly of PtNPs along PAN nanofibers. To identify the successful conjugation of PtNPs along PAN nanofibers, we utilized an energy dispersive X-ray detector (EDX) spectrum to detect the main elements of the final PAN–PtNPs hybrid nanofibers. As shown in Figure 2D, four elements, C, N, Si, and Pt, could be found in the electrospun nanofibers. In particular, two characteristic peaks of Pt (2.2 and 9.4 keV) in the EDX spectrum clearly prove the existence of PtNPs, as well as identify that the electrostatic assembly strategy is effective for creating PAN–PtNPs nanofibrous membrane [35]. In addition, further calculation indicated that the Pt element is about 5.61% of the whole amount of hybrid nanofibers, exhibiting a high density of PtNPs on the surface of PAN nanofibers.
Transmission electron microscopy (TEM) was further utilized to characterize the synthesized PtNPs and PAN–PtNPs hybrid nanofibers, and the obtained images are shown in Figure 3. The prepared PtNPs have a uniform size (about 2–4 nm) and there is no obvious aggregation, as shown in Figure 3A,B. We suggest that the role of glycol in the synthesis process mediated the nucleation and growth of PtNPs, and at the same time the polymer was adsorbed on the surface of PtNPs, inhibiting their aggregation. Low-concentrated PAN–PtNPs hybrid nanofibers were deposited on a Cu grid for single nanofiber analysis, and the typical TEM images are shown in Figure 3C,D. It can be found that many PtNPs were loaded onto the PAN nanofibers due to in situ precipitation as well as the electrostatic interaction between the amine groups and PtNPs. We suggest that the electrostatic assembly of PtNPs along PAN nanofibers is simple and effective for the fabrication of functional PAN–PtNPs hybrid nanofibers.

2.2. Property Characterizations of PAN–PtNPs Hybrid Nanofibers

A few structure-characterization techniques, including X-ray photoelectron spectrum (XPS), ultraviolet (UV)-visible spectrum, and Power X-ray diffraction (XRD), were utilized to identify the formation and detailed structure of PtNPs on PAN nanofibers. Figure 4A presents the large-range XPS spectrum of the electrospun PAN–PtNPs nanofiber materials, and five main elements from the sample, Pt, Si, C, O, and N, can be seen clearly. Here, we suggest that the C and N elements arise due to the use of PAN, and the Si and O elements are ascribed to the introduction of APS. To prove that the Pt element is really from the formed PtNPs, we conducted a further XPS analysis on the obtained Pt peak in Figure 4A. As indicated in Figure 4B, two characteristic peaks of PtNPs (71 and 74.3 eV) were found, which could be assigned to the typical planes (4f7/2 and 4f5/2) of pure PtNPs [36,37]. XPS characterization provided a simple and direct analysis of the synthesized metallic NPs, and here the successful synthesis of PtNPs along PAN nanofibers is identified.
The typical ultraviolet absorption peak of Pt (IV) is 264 nm (wavenumbers), and is an intense absorption peak [38]. Figure 4C shows the corresponding ultraviolet (UV)-visible spectrum of the fabricated PAN–PtNPs hybrid nanofibers. The typical characteristic peak at 261 nm is weak, which could be ascribed to the reduction of Pt (IV). To ensure the crystalline of the created PtNPs, the fabricated PAN–PtNPs nanofibrous membrane was further analyzed with power XRD, and a typical XRD pattern is given in Figure 4D. A strong peak at about 26° could be found due to the high C content in the sample. Although three other peaks at about 39.7°, 46.2°, and 67.5° are not as strong and clear as that at 26°, they still correspond to the previously identified (111), (200), and (220) planes of PtNPs. Based on the above results and analysis, it can be determined that pure PtNPs with high quality were synthesized and conjugated onto the surface of PAN nanofibers successfully.

2.3. Electrochemical Sensing H2O2

Although pure PMNFs have no effects on the sensing performance of the fabricated electrochemical sensors, previous studies have indicated that synthesized PtNPs could greatly increase the electrocatalytic activity of electrodes [35,36]. Therefore, the fabricated PAN–PtNPs hybrid nanofibers in this work may have potential application as a high-performance nanomaterial for creating a non-enzymatic electrochemical H2O2 sensor. To prove this, a GCE was modified by the final PAN–PtNPs nanofibrous membrane and the fabricated PAN–PtNPs/GCE was utilized for the following electrochemical tests.
To prove the improved electrocatalytic activity of the fabricated PAN–PtNPs/GCE compared to the pure PAN/GCE, the cycle voltammetry (CV) curves of both GCEs under the same electrochemical conditions (0.5 mM H2O2, scan rate: 50 mV/s) were measured, and the obtained CV curves are shown in Figure 5A. It is clear that the PAN/GCE shows no oxidization or reduction peaks, but the PAN–PtNPs/GCE created a significant reduction peak at about −0.24 V. We suggest that the obtained CVs confirm the importance of PtNPs in the catalytic activity of PAN–PtNPs/GCE towards H2O2.
Under an optimal applied potential of −0.24 V, the current-time (I-T) response of the fabricated PAN–PtNPs/GCE was carried out by adding H2O2 with various concentrations, and the long-term I-T curve is shown in Figure 5B. It is clear that the current response kept stable throughout the beginning 3000 s, while afterwards a light current vibration could be observed. Figure 5C presents a stable I-T response area until 2000 s by adding H2O2 with various concentrations. The corresponding calibration towards the I-T curve indicates that the fabricated electrochemical sensor has a linear detection range from 5 μM to 53 mM (Coefficient of determination (R2) = 0.9918). The further calculation of the detection limit of the fabricated sensor through the classic equation (detection limit = 3 σ/S, in which σ is the standard deviation of the current response and S is the slope of the calibrated line) indicates that a detection limit as low as 1.46 μM (signal to noise ratio (S/N) = 3) could be obtained. Compared to previous studies on the use of polymer nanofibrous materials for H2O2 sensing [28,33,39,40], our H2O2 sensor in this study exhibits a lower limit of detection (LOD), as indicated in Table 1.
A previous study has shown that a few interferences such as ascorbic acid (AA), uric acid (UA), and dopamine (DA) could affect the sensing of H2O2 by the electrochemical technique [22]. Therefore, the sensor selectivity of the PAN–PtNPs/GC-based H2O2 sensor was investigated by adding H2O2, AA, UA, and DA, and again H2O2, respectively, as indicated in Figure 5E. The corresponding current response proves that the addition of three structure-similar chemicals into the detection system did not affect the sensing of H2O2 significantly. Another parameter, long-term stability, is also crucial for determining the sensing performance of an electrochemical sensor. Therefore, the long-term stability of the fabricated PAN–PtNPs/GCE-based sensor was further tested, and the result is presented in Figure 5F. Within a detection period of 15 days, the fabricated sensor was utilized to detect 0.5 mM H2O2 for every two or three days. It is clear that the current response decreased about 5% after six time measurements. Based on these results, we suggest that the fabricated PAN–PtNPs/GCE-based sensor has acceptable selectivity and stability under the test conditions, but the practical detection of real samples by this sensor should be further investigated in the next step.
Figure 6 shows the contrast image of atmospheres. Figure 6A,B present the CV curves of PAN–PtNPs/GCE with different H2O2 concentrations under N2 atmosphere and air, it could be found that the basic tendency of the curves is similar due to the same redox reactions. However, O2 is a production in this reaction process, and its existence hinders the reaction, as shown in Figure 6C. The peak in air is a little bit larger than that in N2 atmosphere.

3. Materials and Methods

Reagents and materials. PAN (Mw = 150,000) was provided by J&K Scientific Ltd., Beijing, China. N,N-Dimethylformamide (DMF, >99.8%), sodium hydroxide (NaOH, ≥99.0%), chloroplatinic acid hydrate (H2PtCl6·6H2O, ≥99.9%), and Nafion solution were purchased from Sigma-Aldrich (St. Louis, MO, USA). Disodium hydrogen phosphate (Na2HPO4), sodium dihydrogen phosphate (NaH2PO4), ethanol, ascorbic acid (AA), uric acid (UA), and dopamine (DA) were purchased from Beijing Chemicals Co., Ltd. (Beijing, China). H2O2 (analytical grade, 30% aqueous solution) was supplied by Tianjin Dong fang Chemical Plant (Tianjin, China). The water used was purified through a Millipore system (18.2 MΩ·cm).
Electrospinning preparation of PAN/APS nanofibers. First, 1.5 g PAN was dissolved in 15 mL DMF at 80 °C and stirred for 2 h until completely dissolved to prepare the electrospinning solutions. Then, 0.18 g APS was added into the spinning solution until PAN was cooled to room temperature, followed by further stirring for 6 h. The mass ratio of APS to PAN was adjusted to 12%. The total concentration of all the solutions was 20 wt %, which is homogeneous and stable. The preparation of PAN/APS nanofibers was performed on a home-designed electrospinning apparatus produced by Beijing Technova Technology Co., Ltd (Beijing, China). For the electrospinning, 5 mL mixed solution was loaded into a 10 mL syringe (18-gauge blunt tip needle) and an electrospinning rate of 0.1–0.3 mL/h was set. In addition, an applied voltage (10 kV) and distance (about 12 cm) were utilized. The electrospun PAN/APS hybrid nanofibrous membrane was placed under ambient conditions for 48 h and then heated in a ventilated oven at 60 °C for 24 h for the subsequent conjugation with PtNPs.
Synthesis and binding of PtNPs. The platinum sol-containing PtNPs was prepared by a typical aqueous reduction method and used for binding. In brief, 25 mL NaOH (0.5 M) in glycol solution was first mixed with 25 mL H2PtCl6·6H2O (1.9 mM) under stirring. N2 was used to eliminate moisture and other organic byproducts in the solution system. Then, the mixed solution was heated to 160 °C for 3 h to synthesize the polymer-protected PtNPs. Natural cooling to room temperature occurred to obtain a dark brown, unprotected colloidal solution. The conjugation of PtNPs onto the electrospun PAN/APS mats was achieved by the in situ precipitation method. Specifically, the electrospun fiber mat was cut into rounds with a diameter of 3.0 cm and then immersed into 10 mL of platinum sol. Next, HCl (1 M) was added dropwise into the system until the pH of the system reached 4.0. After that, the mat was then washed five times with deionized water and dried thoroughly.
Preparation of PAN–PtNPs/GCE. Before the modification, GCE was polished with 1 and 0.3 μm alumina slurry, and after that, the polished GCE was further washed with ethanol and distilled water in an ultrasonic bath for 10 s, respectively. For the immobilization of nanofibrous membrane on GCE, the GCE was fixed on the drum collector, and both the drum collector and GCE were connected to the ground, and the whole process of electrospinning lasted for 2 min. Finally, the fabricated PAN–PtNPs/GCE was dried in air and stored at 4 °C for the electrochemical detection of H2O2.
Characterization techniques. SEM characterization was carried out with a JSM-6700F scanning electron microscope (JEOL, Tokyo, Japan) at 20 kV. TEM measurements were performed with a Tecnai G220 transmission electron microscope (FEI, Beijing, China) with an accelerating voltage of 200 kV. XRD (Rigaku D/max-2500VB+/PC, Shanghai, China), XPS (ThermoVG ESCALAB 250, Tokyo, Japan), and Raman spectroscopy (LabRAM HORIBA JY, Edison, NJ, USA) were used to characterize the structure of samples.
Electrochemical tests. All electrochemical tests were performed on a CHI 660A electrochemical workstation (Chenhua, Shanghai, China) at room temperature. A conventional three-electrode system was employed with a bare GCE, a Pt wire, and a KCl-saturated calomel electrode (SCE) as the working electrode, auxiliary electrode, and reference electrode, respectively. Phosphate buffer solutions (PBS, 0.1 M, pH = 7.4) that deoxygenated with highly pure N2 for 20 min were used for the electrochemical test system.

4. Conclusions

In summary, a functional PAN–PtNPs hybrid nanofibrous membrane was fabricated by electrospinning positively charged PAN/APS nanofibers and then electrostatically assembling negatively charged PtNPs onto the nanofibers. The electrostatic assembly technique promotes the binding of PtNPs onto PAN/APS nanofibers with high order and density, which potentially enhanced their application as a non-enzymatic electrochemical H2O2 sensor. The electrochemical data indicates that the PAN–PtNPs/GCE-based sensor shows good electrocatalytic activity toward H2O2. The fabricated electrochemical H2O2 sensor exhibits a wide linear range (5 μM–53 mM), low detection limitation (1.46 μM), as well as high selectivity and stability. It is expected that the methodologies utilized in this work will promote the design and fabrication of functional nanofiber-based biomaterials and nanodevices, as well as extend their potential applications in energy storage, cytology, and biomedical engineering.

Acknowledgments

The authors gratefully acknowledge the financial support from the National Natural Science Foundation of China (NSFC, Grant No. 51573013).

Author Contributions

Zhiqiang Su and Gang Wei conceived and designed the experiments; Peng Li, Mingfa Zhang and Xueying Liu performed the experiments; Peng Li, Mingfa Zhang and Xueying Liu analyzed the data; Peng Li and Mingfa Zhang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kimmel, D.W.; LeBlanc, G.; Meschievitz, M.E.; Cliffel, D.E. Electrochemical sensors and biosensors. Anal. Chem. 2012, 84, 685–707. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, P.P.; Zhao, X.N.; Ji, Y.C.; Ouyang, Z.F.; Wen, X.; Li, J.F.; Su, Z.Q.; Wei, G. Electrospinning graphene quantum dots into a nanofibrous membrane for dual-purpose fluorescent and electrochemical biosensors. J. Mater. Chem. B 2015, 3, 2487–2496. [Google Scholar] [CrossRef]
  3. Tiwari, J.N.; Vij, V.; Kemp, K.C.; Kim, K.S. Engineered carbon-nanomaterial-based electrochemical sensors for biomolecules. ACS Nano 2016, 10, 46–80. [Google Scholar] [CrossRef] [PubMed]
  4. Fang, H.T.; Pan, Y.L.; Shan, W.Q.; Guo, M.L.; Nie, Z.; Huang, Y.; Yao, S.Z. Enhanced nonenzymatic sensing of hydrogen peroxide released from living cells based on Fe3O4/self-reduced graphene nanocomposites. Anal. Methods 2014, 6, 6073–6081. [Google Scholar] [CrossRef]
  5. Zhang, M.; Huang, Z.Z.; Zhou, G.Y.; Zhu, L.; Feng, Y.; Lin, T.; Hou, H.Q.; Guo, Q.H. A sensitive hydrogen peroxide sensor based on a three-dimensional n-doped carbon nanotube-hemin modified electrode. Anal. Methods 2015, 7, 8439–8444. [Google Scholar] [CrossRef]
  6. Lee, K.T.; Liu, D.M.; Liang, Y.Y.; Matsushita, N.; Ikoma, T.; Lu, S.Y. Porous fluorine-doped tin oxide as a promising substrate for electrochemical biosensors-demonstration in hydrogen peroxide sensing. J. Mater. Chem. B 2014, 2, 7779–7784. [Google Scholar] [CrossRef]
  7. Zhang, Y.Z.; Huang, Z.M.; Xu, X.J.; Lim, C.T.; Ramakrishna, S. Preparation of core-shell structured PCL-r-gelatin Bi-component nanofibers by coaxial electrospinning. Chem. Mater. 2004, 16, 3406–3409. [Google Scholar] [CrossRef]
  8. Arras, M.M.L.; Jana, R.; Muhlstadt, M.; Maenz, S.; Andrews, J.; Su, Z.Q.; Grasl, C.; Jandt, K.D. In situ formation of nanohybrid shish-kebabs during electrospinning for the creation of hierarchical shish-kebab structures. Macromolecules 2016, 49, 3550–3558. [Google Scholar] [CrossRef]
  9. Lu, W.J.; Sun, J.S.; Jiang, X.Y. Recent advances in electrospinning technology and biomedical applications of electrospun fibers. J. Mater. Chem. B 2014, 2, 2369–2380. [Google Scholar] [CrossRef]
  10. Lv, C.J.; Di, W.H.; Liu, Z.H.; Zheng, K.Z.; Qin, W.P. Luminescent CePO4: Tb colloids for H2O2 and glucose sensing. Analyst 2014, 139, 4547–4555. [Google Scholar] [CrossRef] [PubMed]
  11. Jun, J.; Lee, J.S.; Shin, D.H.; Jang, J. Aptamer-functionalized hybrid carbon nanofiber fet-type electrode for a highly sensitive and selective platelet-derived growth factor biosensor. ACS Appl. Mater. Interfaces 2014, 6, 13859–13865. [Google Scholar] [CrossRef] [PubMed]
  12. Matlock-Colangelo, L.; Baeumner, A.J. Recent progress in the design of nanofiber-based biosensing devices. Lab Chip 2012, 12, 2612–2620. [Google Scholar] [CrossRef] [PubMed]
  13. Ding, J.W.; Zhu, S.Y.; Zhu, T.; Sun, W.; Li, Q.; Wei, G.; Su, Z.Q. Hydrothermal synthesis of zinc oxide-reduced graphene oxide nanocomposites for an electrochemical hydrazine sensor. RSC Adv. 2015, 5, 22935–22942. [Google Scholar] [CrossRef]
  14. Wang, J.H.; Zhao, X.J.; Li, J.F.; Kuang, X.; Fan, Y.Q.; Wei, G.; Su, Z.Q. Electrostatic assembly of peptide nanofiber-biomimetic silver nanowires onto graphene for electrochemical sensors. ACS Macro Lett. 2014, 3, 529–533. [Google Scholar] [CrossRef]
  15. Solanki, P.R.; Kaushik, A.; Agrawal, V.V.; Malhotra, B.D. Nanostructured metal oxide-based biosensors. NPG Asia Mater. 2011, 3, 17–24. [Google Scholar] [CrossRef]
  16. Su, Z.Q.; Ding, J.W.; Wei, G. Electrospinning: A facile technique for fabricating polymeric nanofibers doped with carbon nanotubes and metallic nanoparticles for sensor applications. RSC Adv. 2014, 4, 52598–52610. [Google Scholar] [CrossRef]
  17. Zhang, C.L.; Yu, S.H. Nanoparticles meet electrospinning: Recent advances and future prospects. Chem. Soc. Rev. 2014, 43, 4423–4448. [Google Scholar] [CrossRef] [PubMed]
  18. Cao, L.; Su, D.F.; Su, Z.Q.; Chen, X.N. Fabrication of multiwalled carbon nanotube/polypropylene conductive fibrous membranes by melt electrospinning. Ind. Eng. Chem. Res. 2014, 53, 2308–2317. [Google Scholar] [CrossRef]
  19. Su, Z.Q.; Li, J.F.; Li, Q.; Ni, T.Y.; Wei, G. Chain conformation, crystallization behavior, electrical and mechanical properties of electrospun polymer-carbon nanotube hybrid nanofibers with different orientations. Carbon 2012, 50, 5605–5617. [Google Scholar] [CrossRef]
  20. Zhang, M.F.; Zhao, X.N.; Zhang, G.H.; Wei, G.; Su, Z.Q. Electrospinning design of functional nanostructures for biosensor applications. J. Mater. Chem. B 2017, 5, 1699–1711. [Google Scholar] [CrossRef]
  21. Zhao, M.G.; Huang, J.Y.; Zhou, Y.; Chen, Q.; Pan, X.H.; He, H.P.; Ye, Z.Z. A single mesoporous ZnO/chitosan hybrid nanostructure for a novel free nanoprobe type biosensor. Biosens. Bioelectron. 2013, 43, 226–230. [Google Scholar] [CrossRef] [PubMed]
  22. Li, Y.; Zhang, P.P.; Ouyang, Z.F.; Zhang, M.F.; Lin, Z.J.; Li, J.F.; Su, Z.Q.; Wei, G. Nanoscale graphene doped with highly dispersed silver nanoparticles: Quick synthesis, facile fabrication of 3D membrane-modified electrode, and super performance for electrochemical sensing. Adv. Funct. Mater. 2016, 26, 2122–2134. [Google Scholar] [CrossRef]
  23. Destaye, A.G.; Lin, C.K.; Lee, C.K. Glutaraldehyde vapor cross-linked nanofibrous PVA mat with in situ formed silver nanoparticles. ACS Appl. Mater. Interfaces 2013, 5, 4745–4752. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, J.; Yao, H.B.; He, D.A.; Zhang, C.L.; Yu, S.H. Facile fabrication of gold nanoparticles-poly(vinyl alcohol) electrospun water-stable nanofibrous mats: Efficient substrate materials for biosensors. ACS Appl. Mater. Interfaces 2012, 4, 1963–1971. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Z.Y.; Gao, F.; Gu, Z.Y. Vertically aligned Pt nanowire array/au nanoparticle hybrid structure as highly sensitive amperometric biosensors. Sens. Actuators B 2017, 243, 1092–1101. [Google Scholar] [CrossRef]
  26. Ao, H.; Qian, Z.S.; Zhu, Y.Y.; Zhao, M.Z.; Tang, C.; Huang, Y.Y.; Feng, H.; Wang, A.J. A fluorometric biosensor based on functional Au/Ag nanoclusters for real-time monitoring of tyrosinase activity. Biosens. Bioelectron. 2016, 86, 542–547. [Google Scholar] [CrossRef] [PubMed]
  27. Zhao, M.M.; Guo, Y.J.; Wang, L.X.; Luo, F.; Lin, C.Y.; Lin, Z.Y.; Chen, G.A. A sensitive fluorescence biosensor for alkaline phosphatase activity based on the Cu(ii)-dependent dnazyme. Anal. Chim. Acta 2016, 948, 98–103. [Google Scholar] [CrossRef] [PubMed]
  28. Ouyang, Z.F.; Li, J.F.; Wang, J.H.; Li, Q.; Ni, T.Y.; Zhang, X.Y.; Wang, H.X.; Li, Q.; Su, Z.Q.; Wei, G. Fabrication, characterization and sensor application of electrospun polyurethane nanofibers filled with carbon nanotubes and silver nanoparticles. J. Mater. Chem. B 2013, 1, 2415–2424. [Google Scholar] [CrossRef]
  29. Zhang, P.P.; Zhao, X.N.; Zhang, X.; Lai, Y.; Wang, X.T.; Li, J.F.; Wei, G.; Su, Z.Q. Electrospun doping of carbon nanotubes and platinum nanoparticles into the beta-phase polyvinylidene difluoride nanofibrous membrane for biosensor and catalysis applications. ACS Appl. Mater. Interfaces 2014, 6, 7563–7571. [Google Scholar] [CrossRef] [PubMed]
  30. Kango, S.; Kalia, S.; Celli, A.; Njuguna, J.; Habibi, Y.; Kumar, R. Surface modification of inorganic nanoparticles for development of organic-inorganic nanocomposites—A review. Prog. Polym. Sci. 2013, 38, 1232–1261. [Google Scholar] [CrossRef]
  31. Luo, X.; Zhang, Z.J.; Wan, Q.J.; Wu, K.B.; Yang, N.J. Lithium-doped NiO nanofibers for non-enzymatic glucose sensing. Electrochem. Commun. 2015, 61, 89–92. [Google Scholar] [CrossRef]
  32. Ji, X.Y.; Wang, P.; Su, Z.G.; Ma, G.H.; Zhang, S.P. Enabling multi-enzyme biocatalysis using coaxial-electrospun hollow nanofibers: Redesign of artificial cells. J. Mater. Chem. B 2014, 2, 181–190. [Google Scholar] [CrossRef]
  33. Shen, J.H.; Yang, X.L.; Zhu, Y.H.; Kang, H.G.; Cao, H.M.; Li, C.Z. Gold-coated silica-fiber hybrid materials for application in a novel hydrogen peroxide biosensor. Biosens. Bioelectron. 2012, 34, 132–136. [Google Scholar] [CrossRef] [PubMed]
  34. Moghe, A.K.; Gupta, B.S. Co-axial electrospinning for nanofiber structures: Preparation and applications. Polym. Rev. 2008, 48, 353–377. [Google Scholar] [CrossRef]
  35. Konishi, Y.; Ohno, K.; Saitoh, N.; Nomura, T.; Nagamine, S.; Hishida, H.; Takahashi, Y.; Uruga, T. Bioreductive deposition of platinum nanoparticles on the bacterium shewanella algae. J. Biotechnol. 2007, 128, 648–653. [Google Scholar] [CrossRef] [PubMed]
  36. Wei, G.; Xu, F.G.; Li, Z.; Jandt, K.D. Protein-promoted synthesis of Pt nanoparticles on carbon nanotubes for electrocatalytic nanohybrids with enhanced glucose sensing. J. Phys. Chem. C 2011, 115, 11453–11460. [Google Scholar] [CrossRef]
  37. Li, H.H.; Zhao, S.; Gong, M.; Cui, C.H.; He, D.; Liang, H.W.; Wu, L.; Yu, S.H. Ultrathin ptpdte nanowires as superior catalysts for methanol electrooxidation. Angew. Chem. Int. Ed. 2013, 52, 7472–7476. [Google Scholar] [CrossRef] [PubMed]
  38. Fu, X.Y.; Wang, Y.; Wu, N.Z.; Gui, L.L.; Tang, Y.Q. Shape-selective preparation and properties of oxalate-stabilized Pt colloid. Langmuir 2002, 18, 4619–4624. [Google Scholar] [CrossRef]
  39. Miao, Y.E.; He, S.X.; Zhong, Y.L.; Yang, Z.; Tjiu, W.W.; Liu, T.X. A novel hydrogen peroxide sensor based on Ag/SnO2 composite nanotubes by electrospinning. Electrochim. Acta 2013, 99, 117–123. [Google Scholar] [CrossRef]
  40. Li, Y.; Zhang, M.F.; Zhang, X.P.; Xie, G.C.; Su, Z.Q.; Wei, G. Nanoporous carbon nanofibers decorated with platinum nanoparticles for non-enzymatic electrochemical sensing of H2O2. Nanomaterials 2015, 5, 1891–1905. [Google Scholar] [CrossRef] [PubMed]

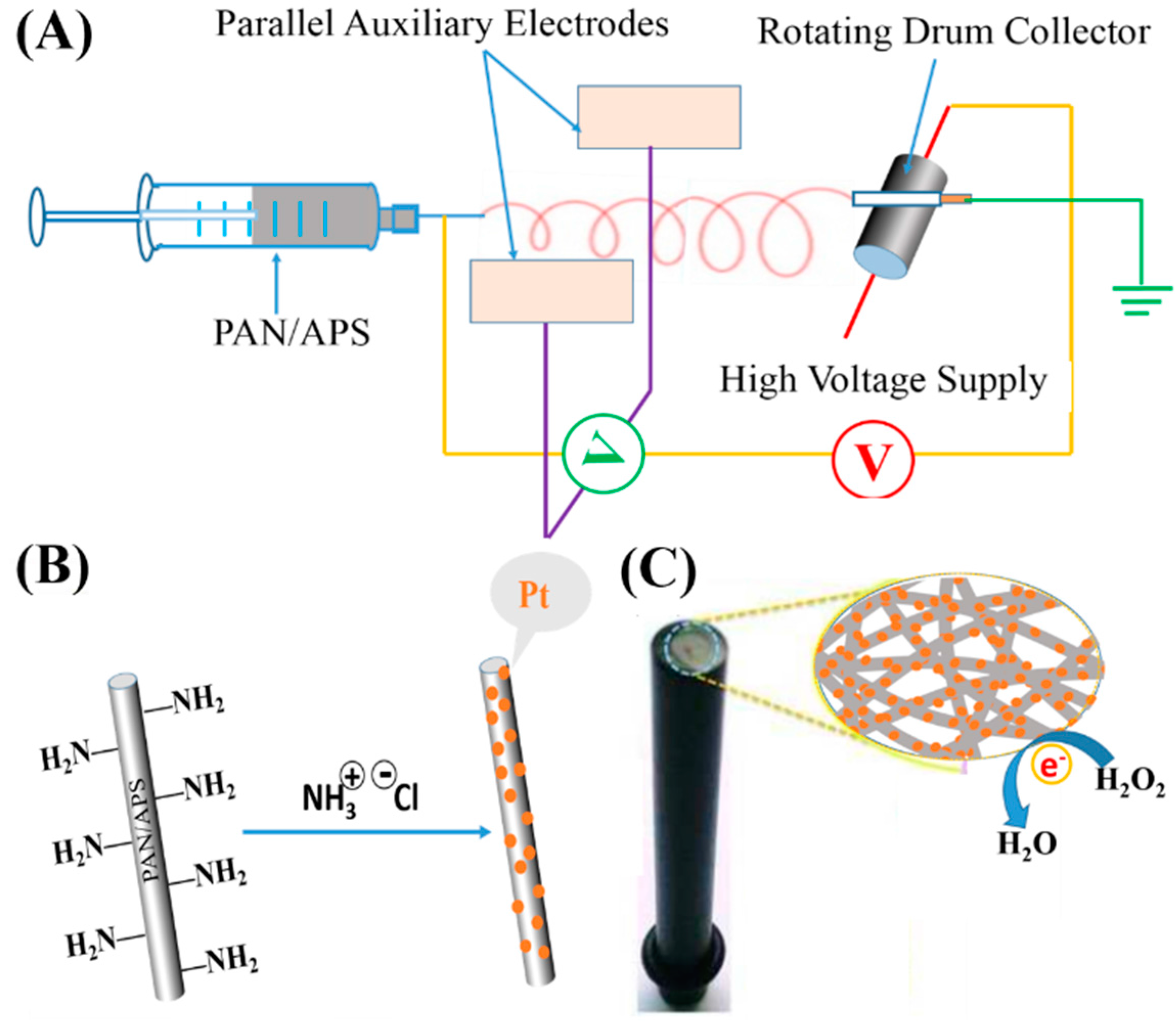

Figure 1. (A) Model of a home-made electrospinning instrument for the synthesis of polyacrylonitrile/3-aminopropyltriethoxysilane (PAN/APS) hybrid nanofibers; (B) Electrostatic assembly mechanism of platinum nanoparticles (PtNPs) along amino-modified PAN nanofibers; (C) PAN–PtNPs hybrid nanofibrous membrane-modified electrode and the potential sensing mechanism of H2O2.
Figure 1. (A) Model of a home-made electrospinning instrument for the synthesis of polyacrylonitrile/3-aminopropyltriethoxysilane (PAN/APS) hybrid nanofibers; (B) Electrostatic assembly mechanism of platinum nanoparticles (PtNPs) along amino-modified PAN nanofibers; (C) PAN–PtNPs hybrid nanofibrous membrane-modified electrode and the potential sensing mechanism of H2O2.
Nanomaterials 07 00236 g001
Figure 2. (A) SEM image of electrospun PAN/APS nanofibers; (B,C) SEM images of PAN–PtNPs hybrid nanofibers with different magnifications; (D) Corresponding energy dispersive X-ray detector (EDX) analysis.
Figure 2. (A) SEM image of electrospun PAN/APS nanofibers; (B,C) SEM images of PAN–PtNPs hybrid nanofibers with different magnifications; (D) Corresponding energy dispersive X-ray detector (EDX) analysis.
Nanomaterials 07 00236 g002
Figure 3. (A,B) High-resolution transmission electron microscopy (HRTEM) images of the synthesized negative-charged PtNPs; (C,D) TEM images of electrospun PAN–PtNPs with different magnifications.
Figure 3. (A,B) High-resolution transmission electron microscopy (HRTEM) images of the synthesized negative-charged PtNPs; (C,D) TEM images of electrospun PAN–PtNPs with different magnifications.
Nanomaterials 07 00236 g003

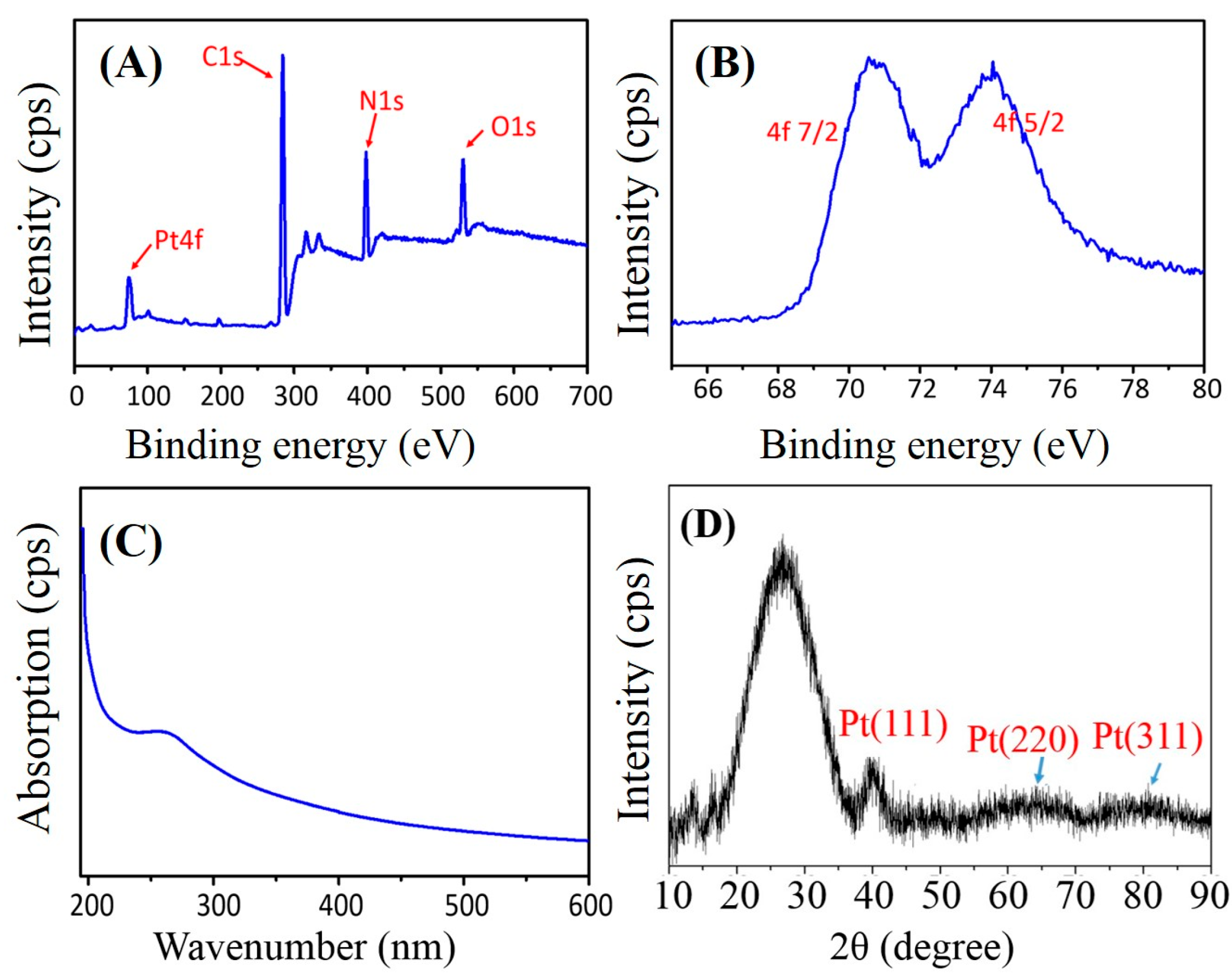

Figure 4. Structural characterizations of electrospun PAN–PtNPs hybrid nanofibers: (A,B) X-ray photoelectron spectrum (XPS) spectra; (C) UV–Vis spectrum, and (D) XRD pattern. Cps means counts per second.
Figure 4. Structural characterizations of electrospun PAN–PtNPs hybrid nanofibers: (A,B) X-ray photoelectron spectrum (XPS) spectra; (C) UV–Vis spectrum, and (D) XRD pattern. Cps means counts per second.
Nanomaterials 07 00236 g004

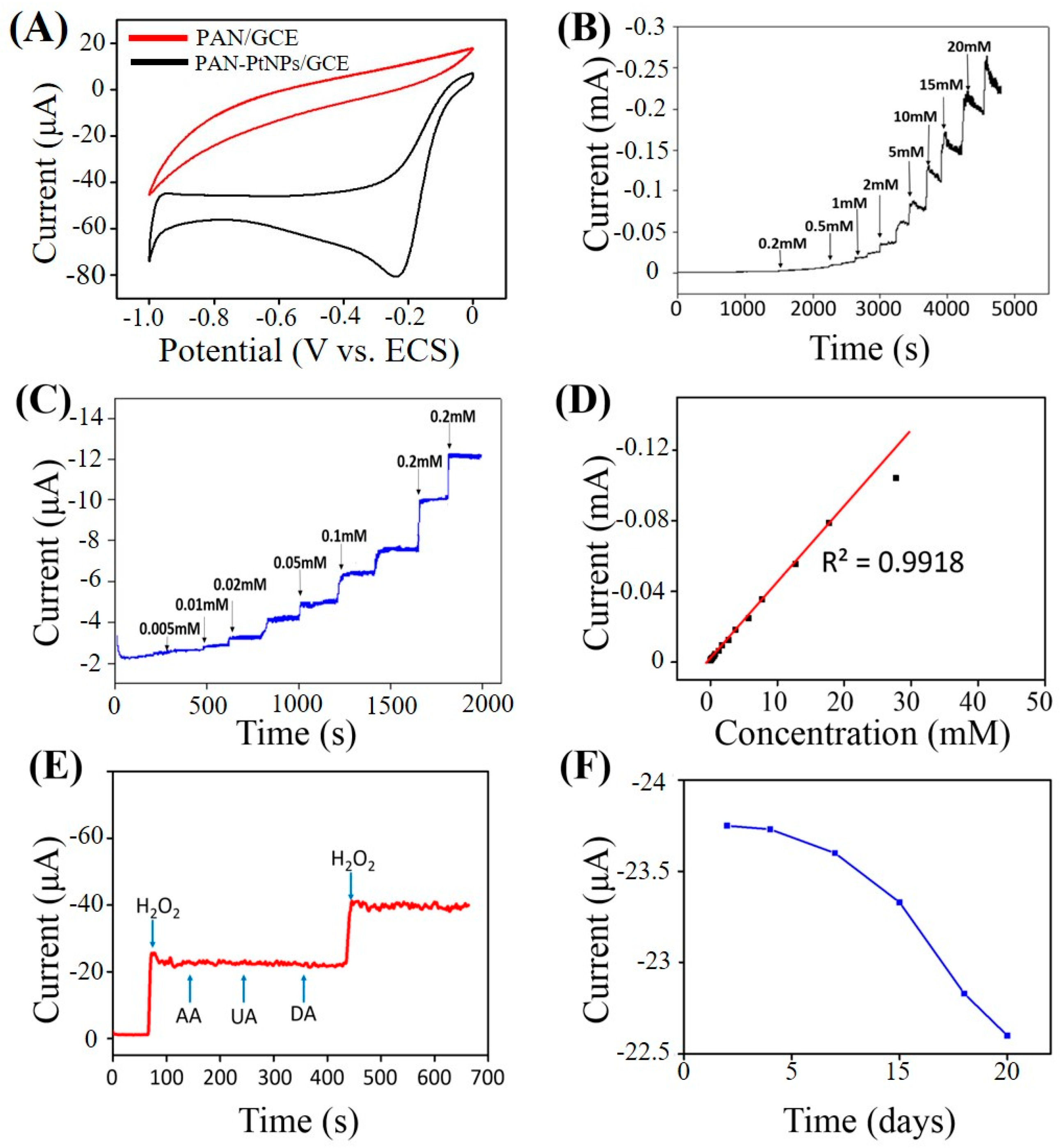

Figure 5. PAN–PtNPs/glassy carbon electrode (GCE) for sensing test (scan rate: 50 mV/s, PBS, PH = 7.4): (A) Typical cycle voltammetry (CV) curves of both PAN/GCE and PAN–PtNPs/GCE; (B,C) Current-time (I-T) response of PAN–PtNPs/GCE with different detection ranges; (D) Corresponding linear current-concentration relationship; (E) Selectivity; and (F) Stability.
Figure 5. PAN–PtNPs/glassy carbon electrode (GCE) for sensing test (scan rate: 50 mV/s, PBS, PH = 7.4): (A) Typical cycle voltammetry (CV) curves of both PAN/GCE and PAN–PtNPs/GCE; (B,C) Current-time (I-T) response of PAN–PtNPs/GCE with different detection ranges; (D) Corresponding linear current-concentration relationship; (E) Selectivity; and (F) Stability.
Nanomaterials 07 00236 g005
Figure 6. PAN–PtNPs/GCE for sensing test (scan rate: 50 mV/s, PBS, PH = 7.4): (A) Typical CV curves of PAN–PtNPs/GCE with different H2O2 concentrations under N2 atmosphere; (B) Typical CV curves of PAN–PtNPs/GCE with different H2O2 concentrations under air atmosphere; (C) Corresponding CV curves with the same H2O2 concentration under air and N2 atmosphere.
Figure 6. PAN–PtNPs/GCE for sensing test (scan rate: 50 mV/s, PBS, PH = 7.4): (A) Typical CV curves of PAN–PtNPs/GCE with different H2O2 concentrations under N2 atmosphere; (B) Typical CV curves of PAN–PtNPs/GCE with different H2O2 concentrations under air atmosphere; (C) Corresponding CV curves with the same H2O2 concentration under air and N2 atmosphere.
Nanomaterials 07 00236 g006
Table 1. Comparison of the performance of the present work with other electrochemical H2O2 sensors.
Table 1. Comparison of the performance of the present work with other electrochemical H2O2 sensors.
MaterialsLinear RangeDetection LimitReference
PU-AgNPs0.5–30 mM18.6 μM[28]
PVA-AgNPs5 μM–0.6 mM5 μM[38]
PAN–PtNPs0.1–30 mM1.9 μM[39]
Paraffin-Silica-AuNPs5 μM–1 mM2 μM[33]
PAN–PtNPs5 μM–53 mM1.46 μMThis work
