Nanomaterials 2012, 2(4), 348-365; doi:10.3390/nano2040348

Characterization of Hybrid Epoxy Nanocomposites

email, * email, email and email
Received: 4 September 2012; in revised form: 24 September 2012 / Accepted: 9 October 2012 / Published: 26 October 2012
(This article belongs to the Special Issue Composite Nanomaterials)
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

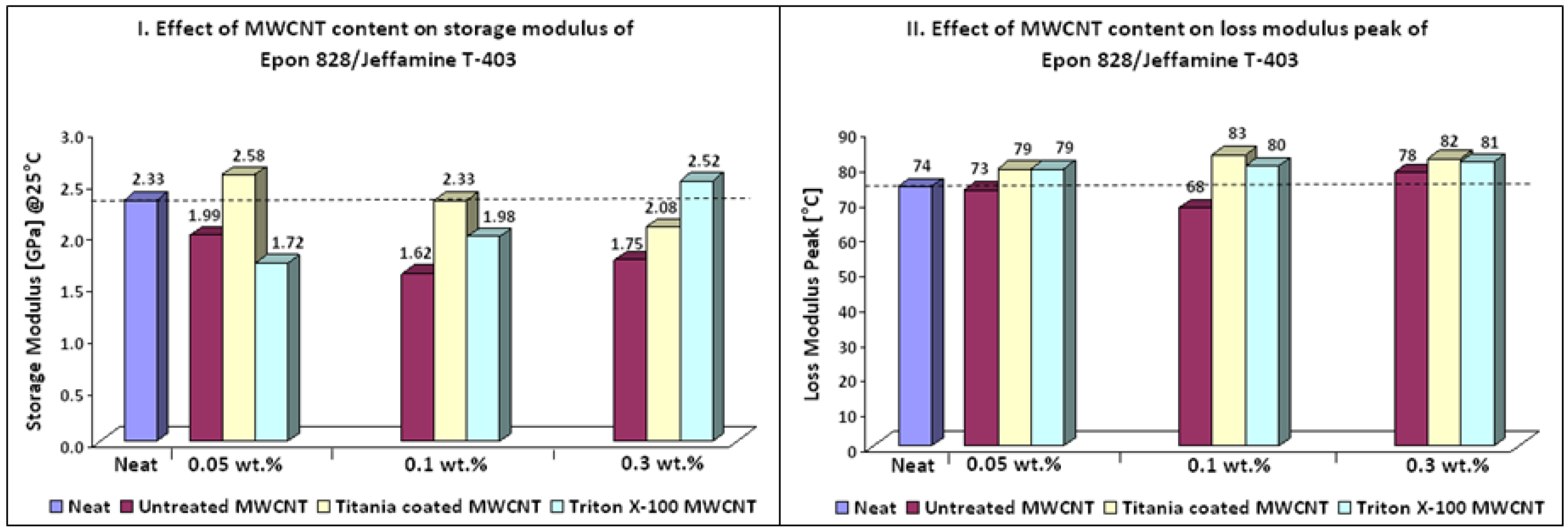

Abstract: This study focused on the effect of Multi Wall Carbon Nanotubes (MWCNT) content and its surface treatment on thermo-mechanical properties of epoxy nanocomposites. MWCNTs were surface treated and incorporated into two epoxy systems. MWCNT's surface treatments were based on: (a) Titania coating obtained by sol-gel process and (b) a nonionic surfactant. Thermo-mechanical properties improvement was obtained following incorporation of treated MWCNT. It was noticed that small amounts of titania coated MWCNT (0.05 wt %) led to an increase in the glass transition temperature and stiffness. The best performance was achieved adding 0.3 wt % titania coated MWCNT where an increase of 10 °C in the glass transition temperature and 30% in storage modulus were obtained.
Keywords: nanocomposites; carbon nanotubes; epoxy; sol-gel
PDF Full-text Download PDF Full-Text [3508 KB, Updated Version, uploaded 20 November 2012 15:54 CET]
The original version is still available [3508 KB, uploaded 26 October 2012 13:35 CEST]

Export to BibTeX |

MDPI and ACS Style

Simcha, S.; Dotan, A.; Kenig, S.; Dodiuk, H. Characterization of Hybrid Epoxy Nanocomposites. Nanomaterials 2012, 2, 348-365.

AMA Style

Simcha S, Dotan A, Kenig S, Dodiuk H. Characterization of Hybrid Epoxy Nanocomposites. Nanomaterials. 2012; 2(4):348-365.

Chicago/Turabian Style

Simcha, Shelly; Dotan, Ana; Kenig, Samuel; Dodiuk, Hanna. 2012. "Characterization of Hybrid Epoxy Nanocomposites." Nanomaterials 2, no. 4: 348-365.

Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
